Immune profiling of NF1-associated tumors reveals histologic subtype distinctions and heterogeneity: Implications for immunotherapy

PDF |  HTML  |  Supplementary Files  |  How to cite

Oncotarget. 2017; 8:82037-82048. https://doi.org/10.18632/oncotarget.18301

Metrics: PDF 1742 views  |   HTML 3401 views  |   ?

Kellie B. Haworth _, Michael A. Arnold, Christopher R. Pierson, Kwangmin Choi, Nicholas D. Yeager, Nancy Ratner, Ryan D. Roberts, Jonathan L. Finlay and Timothy P. Cripe

Abstract

Kellie B. Haworth1,2, Michael A. Arnold3,4, Christopher R. Pierson3,4,5, Kwangmin Choi6, Nicholas D. Yeager1, Nancy Ratner6, Ryan D. Roberts1,2, Jonathan L. Finlay1 and Timothy P. Cripe1,2

1Division of Hematology, Oncology, Blood and Marrow Transplant, Department of Pediatrics, Nationwide Children’s Hospital, Columbus, Ohio, USA

2Center for Childhood Cancer and Blood Diseases, The Research Institute, Nationwide Children’s Hospital, Columbus, Ohio, USA

3Division of Anatomic Pathology, Department of Pathology and Laboratory Medicine, Nationwide Children’s Hospital, Columbus, Ohio, USA

4Department of Pathology, The Ohio State University College of Medicine, Columbus, Ohio, USA

5Division of Anatomy, Department of Biomedical Education and Anatomy, The Ohio State University College of Medicine, Columbus, Ohio, USA

6Division of Experimental Hematology and Cancer Biology, Cincinnati Children’s Hospital Medical Center, Cincinnati, Ohio, USA

Correspondence to:

Kellie B. Haworth, email: [email protected]

Keywords: NF1, MPNST, neurofibromas, immunotherapy, immunophenotype

Received: December 14, 2016     Accepted: April 16, 2017     Published: May 30, 2017

ABSTRACT

Successful treatment of neurofibromatosis type 1 (NF1)-associated tumors poses a significant clinical challenge. While the primary underlying genetic defect driving RAS signaling is well described, recent evidence suggests immune dysfunction contributes to tumor pathogenesis and malignant transformation. As immunologic characterizations, prognostic and predictive of immunotherapeutic clinical response in other cancers, are not fully described for benign and malignant NF1-related tumors, we sought to define their immunologic profiles. We determined the expression of human leukocyte antigen (HLA)-A/-B/-C, β-2-microglobulin (B2M), and T cell inhibitory ligands PD-L1 and CTLA-4 by microarray gene analysis and flow cytometry. We examined HLA-A/-B/-C, B2M, and PD-L1 expression on thirty-six NF1-associated tumor samples by immunohistochemistry, and correlated these with tumoral CD4+, CD8+, FOXP3+, CD56+, and CD45RO+ lymphocytic infiltrates. We evaluated several tumors from a single patient, observing trends of increasing immunogenicity over time, even with disease progression. We observed similarly immunogenic profiles for malignant peripheral nerve sheath tumors (MPNST) and nodular and plexiform neurofibromas, contrasting with diffuse neurofibromas. These studies suggest that while immunotherapies may offer some benefit for MPNST and nodular and plexiform neurofibromas, tumor heterogeneity might pose a significant clinical challenge to this novel therapeutic approach.


INTRODUCTION

Neurofibromatosis Type I (NF1) is an autosomal dominant disorder affecting approximately one in every 3500 people [1]. The syndrome results from a mutation in the NF1 gene encoding neurofibromin, a protein ubiquitously expressed in tissues throughout the body [2] and involved in the RAS signaling pathway [3]. Diagnostic criteria developed by the National Institutes of Health illustrate a myriad of clinical features related to the disease [4], with nervous tissue overgrowth as a universal feature. Virtually all patients with NF1 suffer the development of benign peripheral nerve sheath neurofibromas[5], believed to arise from aberrant Schwann cells [6, 7].

Several benign neurofibroma subtypes have been described based upon location (dermal and intra-neural), macroscopic growth pattern (localized, diffuse, or plexiform), and histopathologic appearance (nodular or diffuse) [8, 9]. Though localized and dermal diffuse tumors arise from distal nerve ends and are not known to undergo malignant transformation, they are problematic for aesthetic reasons. Diffuse intra-neural tumors may cause pain and potentially severe neurologic deficits [2]. Nodular neurofibromas, which arise from nerve roots, often cause morbidity related to their growth pattern within organs [2]. The plexiform variant, involving long segments of multiple nerves, are found in any tissue layer where nerves are present, and represent the highest morbidity for NF1 patients due to tissue compression. Even more concerning is the 20% likelihood of evolution into a malignant peripheral nerve sheath tumor (MPNST)[2], which confers only 28% 5-year overall survival [10].

The development and progression of NF1-associated tumors are primarily linked to aberrant RAS signaling. Recent evidence suggests immune system dysfunction may also play a role. RAS signaling plays a pivotal role in myelopoiesis, and its constitutive activation upon NF1 loss is associated with myeloid progenitor cell hyper-responsiveness to growth factors [3]. Plexiform neurofibroma tumorigenesis in some mouse models is dependent upon NF1 haploinsufficiency within the hematopoietic compartment [11]. The promotion of tumor formation and growth by mast cell-induced inflammation in these models suggests an immunologic microenvironmental contribution to tumoral pathogenesis [12].

Low expression of genes critical for immunity may provide immune escape and avoidance of cytotoxic T lymphocyte (CTL) engagement in the context of malignant transformation to MPNST. Such genes, including the human leukocyte antigen (HLA)-encoding major histocompatibility complex (MHC) class I and II and the transcription factor MHC II transactivator (MHC2TA), the transporter associated with antigen processing (TAP1), and the related chaperone CD74, have reduced expression in NF1-associated tumors compared to normal human Schwann cells [13]. In contrast, the expression of the necessary MHC Class I-associated protein β-2-microglobulin (B2M) is up-regulated among neurofibromas [14]. Though a recent study characterizing tumoral expression of the ligand for programmed cell death protein-1 (PD-1, or CD279), PD-L1, in MPNST tumors reported no correlation with patient outcomes[15], PD-1-positive lymphocyte infiltration and tumoral PD-L1 expression have previously been reported to correlate with decreased overall and event-free survival rates for soft tissue sarcomas including MPNST [16]. Therefore, restoration of appropriate immune function may be important for the prevention of tumor growth and progression.

Here we sought to define the immunologic profiles of both benign and malignant nerve tumors associated with NF1. We characterized the expression of the immunologic markers MHC Class I and B2M and the T cell inhibitory ligands PD-L1 and cytotoxic T lymphocyte antigen-4 (CTLA-4) by gene analysis on tumor and cell line microarrays and determined cell line protein expression of these markers by flow cytometry. We examined HLA I, B2M, and PD-L1 expression on pediatric and young adult tumor samples by immunohistochemistry.

The number of tumor-infiltrating CTLs directly correlates with prognosis in various adult cancer types. In fact, an “immunoscore” based upon CTL (CD3+CD8+) and T-memory (CD3+CD45RO+) infiltrates has been proposed to augment traditional tumor, node, metastasis staging [17]. The immunoscore was found to be the strongest prognostic factor for disease-free, disease-specific, and overall survival for colorectal cancers [17]. We thus also characterized tumoral immunologic cellular infiltrates, including CD4+, CD8+ (CTL), FOXP3+ (suppressive), CD45RO+ (memory), and CD56+ (NK) lymphocytes, and correlated these with our immunohistochemical staining scores.

Our data suggest that the immunologic profiling of NF1-associated tumors may aid in the selection of immune-based therapeutic strategies. Interestingly, we found that benign neurofibromas are distinct in their immunologic profiles and that specific subtypes may also benefit from immunotherapeutic approaches.

RESULTS

NF1-associated tumors and tumor-related Schwann cells display decreased HLA I and B2M and variable T cell inhibitory ligand gene expression compared to normal human Schwann cells

As an initial assessment of immunologic molecule expression in NF1-associated tumors, we queried a microarray database for genes of interest (HLA-A/B/C, B2M, PD-L1, and CTLA-4) (Figure 1). We found that HLA-A, -B, and -C were down-regulated in both benign and malignant NF1-associated tumors and tumor-associated Schwann cells compared to normal human Schwann cells, with the lowest expression noted in MPNST cell lines. B2M gene expression was lowest in malignant MPNST samples, with slightly lower expression in tumors than in cell lines. Benign NF1-associated tumors did not display significantly different B2M expression compared with normal human Schwann cells. Expression of the gene encoding the CTL inhibitory ligand CD274 (PD-L1) was lowest in MPNST and dermal neurofibroma tumors. Dermal neurofibroma Schwann cells, however, displayed a range of PD-L1 gene expression, with an average overall higher than that of normal human Schwann cells. In contrast, gene expression of the CTL inhibitory ligand CTLA-4 was notably up-regulated in the majority of MPNST tumors and several plexiform neurofibroma tumor samples. CTLA-4 was not elevated in MPNST cell lines or tumor-associated Schwann cells compared with normal human Schwann cells.

Expression of immunologic markers in NF1-associated tumors by gene microarray.

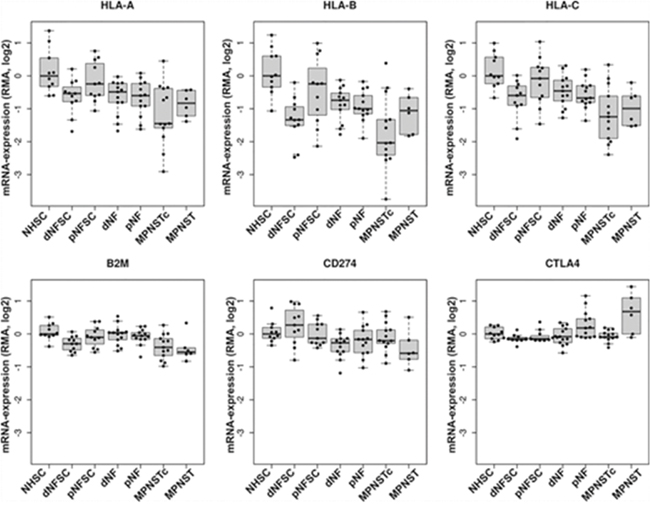

Figure 1: Expression of immunologic markers in NF1-associated tumors by gene microarray. The microarray represents 13 dermal neurofibromas, 13 plexiform neurofibromas, 6 MPNST tumors, and 13 MPNST cell lines normalized against 10 samples of normal human Schwann cells (GSE14038). Top: HLA-A, HLA-B, and HLA-C (MHC Class I); bottom left: B2M; bottom middle: CD274 (PD-L1); bottom right: CTLA-4. The mean of all samples within tumor subtype with standard error of mean are shown. NHSC= normal human Schwann cell; dNFSC= dermal neurofibroma Schwann cell; pNFSC= plexiform neurofibroma Schwann cell; dNF= dermal neurofibroma; pNF= plexiform neurofibroma; MPNSTc= malignant peripheral nerve sheath tumor cell; MPNST= malignant peripheral nerve sheath tumor.

MPNST cell lines express HLA-A/B/C and B2M, variably exhibit PD-L1, and do not express CTLA-4 by flow cytometry

We selected two MPNST cell lines, one a spontaneous non-NF1-associated tumor and the other an NF1-associated tumor-derived cell line, to perform flow cytometric analysis of immunologic molecule expression (Supplementary Figure 1). We detected HLA-A/B/C and B2M in both cell lines. PD-L1 expression was high in the spontaneous model STS-26T, but only very slightly expressed in the NF1-associated model S462TY. We did not detect significant CTLA-4 protein expression in either MPNST cell line.

NF1-associated tumors exhibit wide ranges of HLA-A/B/C, B2M, and PD-L1 expression by immunohistochemical staining, revealing differences between histologic subtypes

To assess tumors in the context of their microenvironment, we performed immunohistochemical staining for immunologic markers of interest (HLA-A/B/C, B2M, and PD-L1) on benign (histologies depicted in Supplementary Figure 2) and malignant tumors from NF1 patients and scored their staining intensity and percentage as previously described [17]. Benign and malignant tumors alike demonstrated wide ranges of HLA-A/B/C staining scores within their individual subtype, indicating substantial heterogeneity among tumors of the same histologic type (Figure 2A). To determine if time from diagnosis or therapeutic interventions contribute to the observed heterogeneity, we compared MPNST samples based on their status as diagnostic versus recurrent or autopsy samples (Supplementary Figure 3A-3D). No clear trend emerged for any of the immunologic markers we examined. In general, MPNST and nodular histology benign tumors displayed higher average HLA-A/B/C staining scores, while diffuse and plexiform neurofibromas exhibited lower average scores (Figure 2A). Benign neurofibromas with nodular histology demonstrated the highest average of B2M staining scores of all samples tested, while the diffuse neurofibromas exhibited the lowest average B2M scores (Figure 2B). Taking both HLA-A/B/C and B2M into account, the average calculated CTL Target Scores were similar amongst MPNST and nodular and plexiform neurofibromas, though they again exhibited extensive score variability within each histologic category. In contrast, the diffuse neurofibromas displayed less variability, with most CTL Target Scores close to zero (Figure 2C).

In vivo protein expression of immunologic markers in NF1-associated tumors by immunohistochemistry.

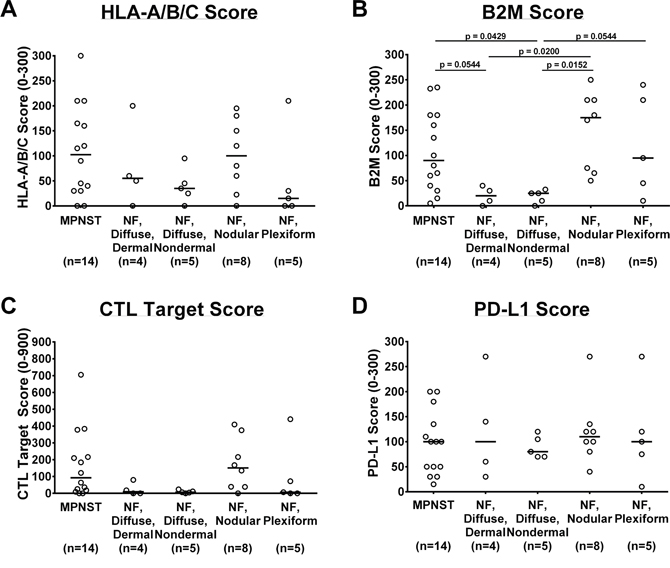

Figure 2: In vivo protein expression of immunologic markers in NF1-associated tumors by immunohistochemistry. (A) HLA-A/B/C, range 0 to 300; (B) B2M, range 0 to 300; (C) CTL Target Scores, range 0 to 900; and (D) PD-L1, range 0 to 300. Each data point represents average of 3 technical replicates for that sample. Number of samples per tumor subtype listed in parentheses below tumor subtype labels. Median of all samples within tumor subtype represented by bar. Tumor subtype scores were compared using Kruskal-Wallis non-parametric testing with the two-step method of Benjamini, Krieger, and Yekutieli post-hoc pairwise comparison to control for a false discovery rate of 0.05 with GraphPad Prism 7 software. Significant results (defined as adjusted p ≤ 0.05) indicated on graphs. CTL= cytotoxic T lymphocyte; MPNST= malignant peripheral nerve sheath tumor; NF= neurofibroma.

To further evaluate the potential for CTL inhibition, we assessed tumoral PD-L1 expression. The average PD-L1 staining scores did not vary significantly amongst the individual tumor subtypes (Figure 2D). All tumor histologies consistently showed broad ranges of PD-L1 scores within their respective group.

Immune cellular infiltrates in NF1-associated tumors vary by tumor histology

We quantified CD8+, CD4+, FOXP3+, CD45RO+, and CD56+ lymphocytes within the tumors (representative staining portrayed in Supplementary Figure 4A-4D). We found that MPNST tumors contain much higher numbers of CD8+ (Figure 3A), CD4+ (Figure 3B), CD56+ (Figure 3E), and CD45RO+ (Figure 3F) lymphocytes overall than those observed in the neurofibromas. Among the benign NF1-associated tumors, the nodular, plexiform, and dermal diffuse samples displayed similar trends, with higher median CD8+ and lower median CD4+ and FOXP3+ cellular infiltrates than the non-dermal diffuse histology tumors. The CD4+ cells correlated with the FOXP3+ cellular infiltrates within the benign tumors. MPNST tumors overall displayed comparatively low FOXP3+ cell counts (Figure 3C and 3D), similar to those observed in the nodular and plexiform benign neurofibroma groups. The CD56+ cell infiltrate numbers did not significantly vary between MPNST and benign tumors (Figure 3E).

In vivo immune cellular infiltrates in NF1-associated patient tumor samples by immunohistochemistry.

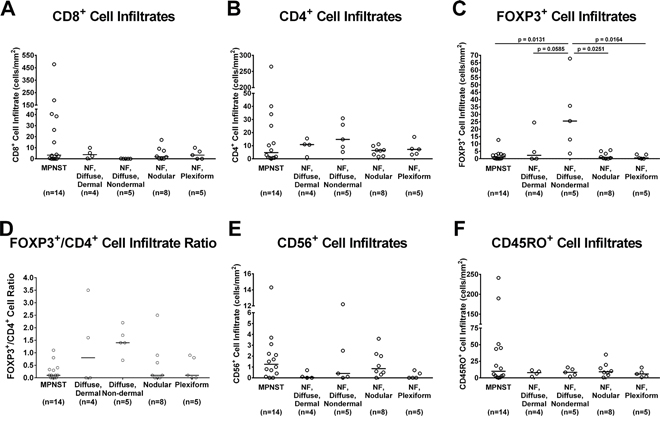

Figure 3: In vivo immune cellular infiltrates in NF1-associated patient tumor samples by immunohistochemistry. (A) CD8+ cellular infiltrates; (B) CD4+ cellular infiltrates; (C) FOXP3+ cellular infiltrates; (D) FOXP3+/CD4+ cellular infiltrate ratio; (E) CD56+cellular infiltrates; and (F) CD45RO+ cellular infiltrates. Each data point represents average of 3 technical replicates for that sample. Number of samples per tumor subtype is listed in parentheses below tumor subtype labels. The median of all samples within each tumor subtype is represented by the bar. Comparisons of cellular infiltrates between each tumor subtype were performed using Kruskal-Wallis non-parametric testing with the two-step method of Benjamini, Krieger, and Yekutieli post-hoc pairwise comparison to control for a false discovery rate of 0.05 with GraphPad Prism 7 software. Significant results (adjusted p ≤ 0.05) are indicated on graphs.

We found no differences in CD4+ or CD56+ lymphocyte infiltrate numbers in MPNST samples when they were classified according to sample type (diagnostic, recurrent, or autopsy) (Supplementary Figure 5B and 5E). The median numbers of tumor-infiltrating CD8+ and CD45RO+ lymphocytes were much lower, while median FOXP3+ cell infiltrates were higher in recurrent samples compared with diagnostic samples (Supplementary Figure 5A, 5C, and 5F). Autopsy samples showed notable decreases in all cellular infiltrates examined.

Evaluation of immunologic marker expression and immune cellular infiltrates in NF1-associated tumors from the same patient reveals differences based on tumor histologic subtypes, timing, therapies, and intra-tumoral heterogeneity

We assessed several benign and malignant tumor samples obtained from the same patient at various time points, beginning four years from the patient’s initial MPNST diagnosis at 12 years of age through various biopsies over a period of 13 years, and at autopsy. Sample histologies included benign plexiform, nodular, and dermal diffuse neurofibromas and both low- and high-grade MPNST. The patient had received radiation therapy upon initial MPNST diagnosis, and each sample for the first 12 years after diagnosis occurred without further chemo- or radiotherapeutic interventions. The samples obtained 13 years after diagnosis, however, reflect the patient’s disease after receiving a standard chemotherapeutic course with ifosfamide and doxorubicin, localized palliative irradiation to two lesions, and the addition of biologic agents (bevacizumab, a monoclonal antibody directed against vascular endothelial growth factor (VEGF), and the mammalian target of rapamycin (mTOR) inhibitor everolimus) (see patient case data in Supplementary Table 1).

Among the benign tumors sampled from this patient, CTL Target Scores rose over time, reflecting increases in both the HLA-A/B/C and B2M staining scores (Figure 4A). We observed a similar upward trend in CTL Target Scores in the patient’s MPNST samples until autopsy, where CTL Target Scores were notably lower. Interestingly, of the MPNST samples obtained 12 years after original diagnosis, two samples acquired at the same time from the same tumor (chest wall lesion with extension into the lung) showed differences in histologic grade (low- versus high-grade) and yielded considerably different staining scores. The low-grade sample displayed higher immunologic marker and CTL Target Scores than the high-grade sample (Figure 4B). PD-L1 staining scores obtained from the patient similarly trended upward in the benign lesions, but reflected an opposite trend to the CTL Target Scores for the malignant tumor samples (Figure 4C).

In vivo scoring and cellular infiltrates in NF1-associated tumors from the same patient by immunohistochemistry.

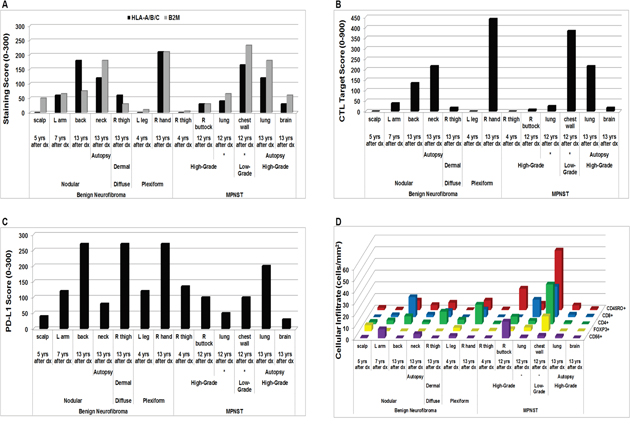

Figure 4: In vivo scoring and cellular infiltrates in NF1-associated tumors from the same patient by immunohistochemistry. (A) HLA-A/B/C and B2M Scoring; (B) CTL Target Scores; (C) PD-L1 scores; and (D) immune cellular infiltrates. Each data point represents average of 3 technical replicates for that sample. Samples obtained from the same tumor mass during the same surgical procedure are indicated by *. Dx = diagnosis; L = left; R = right; yrs = years.

The intra-tumoral CD8+, CD4+, and CD45RO+ lymphocytic cellular infiltrates displayed upward trends over time for each tumor subtype with the exception of samples obtained at autopsy (Figure 4D). FOXP3+ cell numbers decreased over time in the benign samples, but increased in the MPNST tumors (Figure 4D). The CD56+ cellular infiltrates did not reveal a distinct pattern among the tumors sampled from the patient (Figure 4D). Of the two MPNST samples obtained at the same time from within the same tumor 12 years after original diagnosis (see Supplementary Figure 6), the low-grade sample exhibited much higher CD8+, CD4+, FOXP3+, CD45RO+, and CD56+ lymphocytic infiltrates than did the high-grade MPNST sample (Figure 4D).

Immunologic marker staining scores correlate with cellular infiltrates

We performed Spearman correlation calculations to determine whether the expression of immunologic molecules correlate with each other or with lymphocytic cellular infiltrate patterns observed in primary tumors (Figure 5 and Supplementary Table 2). The HLA-A/B/C score correlated with B2M expression for MPNST samples but not individual benign neurofibroma subtypes (Figure 5A). We found that the HLA-A/B/C score positively correlated with CD4+ cellular infiltrates in plexiform tumors and CD8+ cellular infiltrates in MPNST tumors, while negatively correlated with the FOXP3+/CD4+ cellular infiltrate ratio for nodular and plexiform tumors (Figure 5A). The expression of B2M significantly correlated with CD45RO+ cellular infiltrates in nodular neurofibromas and MPNST tumors and with CD4+ and CD8+ infiltrating cell counts in MPNST tumors (Figure 5B). B2M expression negatively correlated with FOXP3+ cellular infiltrates in plexiform and dermal diffuse tumors, as well as the FOXP3+/CD4+ cellular infiltrate ratio and CD56+ cellular infiltrates in dermal diffuse neurofibromas (Figure 5B). We found that the calculated CTL Target Score significantly correlated with the number of infiltrating CD8+, CD4+, and CD45RO+ cells in MPNST and with CD4+ cellular infiltrates in plexiform tumors (Figure 5C). The CTL Target Score inversely correlated with the FOXP3+ cell count and the FOXP3+/CD4+ cellular infiltrate ratio for plexiform neurofibromas (Figure 5C). The PD-L1 staining score showed significant inverse correlation with the amount of FOXP3+ cellular infiltrates and the FOXP3+/CD4+ ratio in dermal diffuse tumors (Figure 5D).

Significant correlations between in vivo immunohistochemical staining scores and immune cellular infiltrates.

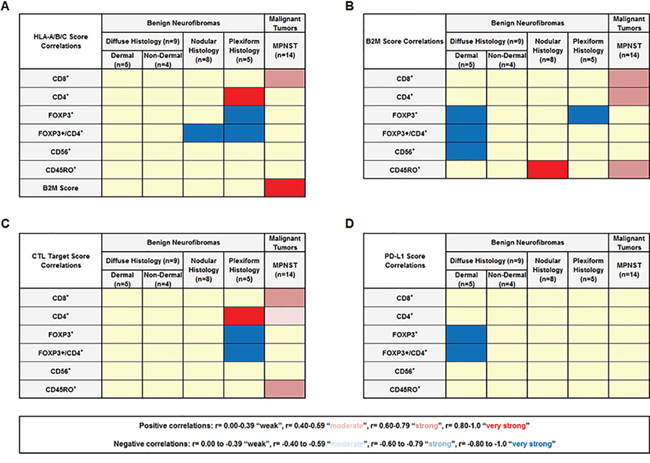

Figure 5: Significant correlations between in vivo immunohistochemical staining scores and immune cellular infiltrates. (A) HLA score correlations; (B) B2M score correlations; (C) CTL Target Score correlations; and (D) PD-L1 score correlations. Number of samples per tumor subtype listed in parentheses below tumor subtype labels. Results were considered to be statistically significant when p ≤ 0.05. p value based on two-tailed t-test. r = Pearson correlation coefficient. Positive correlations are defined as: r= 0.00-0.39 “weak”, r= 0.40-0.59 “moderate”, r= 0.60-0.79 “strong”, r= 0.80-1.0 “very strong”. Negative correlations are defined as: r= 0.00 to -0.39 “weak”, r= -0.40 to -0.59 “moderate”, r= -0.60 to -0.79 “strong”, r= -0.80 to -1.0 “very strong”. Yellow shading indicates results which were not considered to be statistically significant.
