Research Papers:

RICTOR amplification identifies a subgroup in small cell lung cancer and predicts response to drugs targeting mTOR

PDF |  HTML  |  Supplementary Files  |  How to cite  |  Order a Reprint

Oncotarget. 2017; 8:5992-6002. https://doi.org/10.18632/oncotarget.13362

Metrics: PDF 1815 views  |   HTML 2649 views  |   ?

Nneha Sakre, Gary Wildey, Mohadese Behtaj, Adam Kresak, Michael Yang, Pingfu Fu and Afshin Dowlati _


Nneha Sakre1,2, Gary Wildey1,2, Mohadese Behtaj3, Adam Kresak1,3, Michael Yang3, Pingfu Fu4, Afshin Dowlati1,2

1Case Comprehensive Cancer Center, Case Western Reserve University, Cleveland, Ohio, 44106 USA

2Division of Hematology and Oncology, University Hospitals Cleveland Medical Center, Cleveland, Ohio, 44106 USA

3Department of Pathology, University Hospitals Cleveland Medical Center, Cleveland, Ohio, 44106 USA

4Epidemiology and Biostatistics, Case Western Reserve University, Cleveland, Ohio, 44106 USA

Correspondence to:

Afshin Dowlati, email: afshin.dowlati@case.edu

Keywords: RICTOR, mTORC1/2 inhibitors, CNV, amplification, small cell lung cancer

Received: May 27, 2016     Accepted: October 26, 2016     Published: November 15, 2016


Small cell lung cancer (SCLC) is an aggressive cancer that represents ~15% of all lung cancers. Currently there are no targeted therapies to treat SCLC. Our genomic analysis of a metastatic SCLC cohort identified recurrent RICTOR amplification. Here, we examine the translational potential of this observation. RICTOR was the most frequently amplified gene observed (~14% patients), and co-amplified with FGF10 and IL7R on chromosome 5p13. RICTOR copy number variation correlated with RICTOR protein expression in SCLC cells. In parallel, cells with RICTOR copy number (CN) gain showed increased sensitivity to three mTOR inhibitors, AZD8055, AZD2014 and INK128 in cell growth assays, with AZD2014 demonstrating the best inhibition of downstream signaling. SCLC cells with RICTOR CN gain also migrated more rapidly in chemotaxis and scratch wound assays and were again more sensitive to mTOR inhibitors. The overall survival in SCLC patients with RICTOR amplification was significantly decreased (p = 0.021). Taken together, our results suggest that SCLC patients with RICTOR amplification may constitute a clinically important subgroup because of their potential response to mTORC1/2 inhibitors.


Lung cancer is divided into two disease types: small cell lung cancer (SCLC) and non-small cell lung cancer (NSCLC), based upon the histologic appearance of the cancer cells and the behavior of the disease. SCLC makes up about 15 percent of all lung cancers and is the subtype most closely associated with cigarette smoking [1]. SCLC is an aggressive cancer that tends to grow and spread quickly. The aggressive and distant spread of SCLC led the Veterans Administration Lung Study Group in 1957 to create a dichotomized staging system termed limited stage (LS), characterized by a tumor volume encompassed in one radiation portal, and extensive stage (ES), encompassing all forms of metastatic disease [2]. Because most SCLC patients present with metastatic disease, treatment remains platinum-based chemotherapy and surgery is rarely performed (<3% of cases). Currently there are no molecular targeted approaches to treat SCLC.

In this regard, two whole exome studies by Rudin et al [3] and Peifer et al [4] analyzed 40 and 27 SCLC tumors, respectively. These studies identified only two mutated genes that are readily actionable, PTEN (phosphatase and tensin homolog), mutated in 10% of patients and FGFR1 (fibroblast growth factor receptor 1), amplified in 6% of patients. A more recent whole genome study by George et al [5] found a similar low mutation frequency in targetable genes, such as KIT (KIT proto-oncogene receptor tyrosine kinase) (6%) and PIK3CA (phosphatidylinositol-4,5-biphosphate 3-kinase catalytic subunit alpha) (3%). While groundbreaking, there are two limitations of these studies. First, the great majority of tumors analyzed were from a rare subgroup of patients with early stage, resectable disease (LS) and second, none of these studies provided clinical correlates, such as response to therapy or survival, with gene alterations.

Therefore, we recently completed a targeted exome sequencing analysis of ES SCLC tumors and correlated gene mutations with clinical outcome [6]. In this study we identified RICTOR (RPTOR independent companion of MTOR, complex 2) amplification as one of the most frequent, actionable gene alterations in SCLC. RICTOR is a subunit of mTORC2 (mammalian target of rapamycin, complex 2) and regulates cell growth in response to hormonal, but not nutrient, stimulation via phosphorylation of AKT1 (AKT serine/threonine kinase 1), SGK1 (serum/glucocorticoid regulated kinase 1) and PKCα (protein kinase Cα) [7]. mTORC2 also has been shown to regulate epithelial mesenchymal transition (EMT) [8] as well as invasion and metastasis in colon and breast cancer [9, 10]. Through these combined actions, mTORC2 is thought to play an essential role in the aggressive growth and motility characteristics of cancer.

Here we have built upon our initial finding of RICTOR amplification in SCLC in order to determine its clinical importance. We provide clinical correlates of RICTOR amplification in SCLC, and have used model SCLC cell lines with various levels of RICTOR copy number (CN) gain in order to analyze its downstream effects on cell growth and migration. Finally, we have used mTOR inhibitors currently under investigation in clinical trials to examine the translational potential of RICTOR inhibition in SCLC patients.


RICTOR is frequently amplified in SCLC tumors

Targeted exome sequencing data was used to derive chromosomal amplifications [11]. The most frequent amplified genes observed (~14% patients) were RICTOR, FGF10 (fibroblast growth factor 10) and IL7R (interleukin 7 receptor), all of which are localized to chromosome 5p13 (Figure 1A). Another gene, SDHA (succinate dehydrogenase complex flavoprotein subunit A), located on 5p15, was less frequently amplified (~5%), while several genes located on the 5q arm were not amplified [CSF1R (colony stimulating factor 1 receptor) (q32), PDGFRB (platelet derived growth factor receptor beta) (q33.1), FLT4 (fms related tyrosine kinase 4) (q35.3), RAD50 (RAD50 double strand break repair protein) (q31)]. The detailed localization of genes on chromosome 5p13 is shown in Figure 1B. RICTOR amplification ranged from a CNV of 6 to 20; a plot of tumor copy number variation (CNV) demonstrating high, focal RICTOR amplification is shown in Figure 1C (see Supplementary Figure 1 for additional plots). FGFR1, the second most frequently amplified gene in our cohort (10%), also co-amplified with several neighboring genes located on chromosome 8p11, including GPR124 (G protein coupled receptor 124), ZNF703 (zinc finger protein 703) and MYST3 (KAT6A, lysine acetyltransferase 6A). Interestingly, MYC (v-myc avian myelocytomatosis viral oncogene homolog) family amplification was infrequent. Supplementary Table 1 depicts the distribution of amplified genes among the 21 patients with at least one gene amplification. Because of its potential as a novel therapeutic target in SCLC, we focused on RICTOR amplification in all subsequent studies.

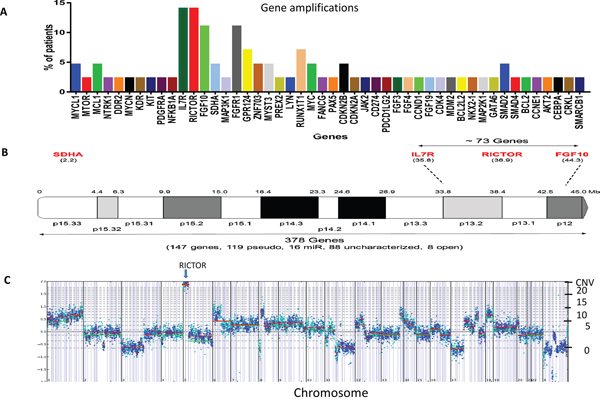

RICTOR amplification in SCLC patients.

Figure 1: RICTOR amplification in SCLC patients. A. Amplification profile, arranged by chromosomal location, of SCLC cohort. B. Localization of genes on chromosome 5p. C. CNV plot of a SCLC tumor sample with amplification of the RICTOR gene at 20 copies on 5p13. The chromosomal location is provided on the X-axis and the gene copy number on the Y-axis. The RICTOR gene is more frequently amplified than either FGFR1 or MYC.

SCLC cell lines as models for RICTOR amplification

We initially assessed if RICTOR CNV paralleled that of IL7R and FGF10 in SCLC cell lines, using data from the Broad Cancer Cell Line Encyclopedia (CCLE) database (http://www.broadinstitute.org/ccle/home) [12]. Indeed, we found parallel CNV among all three genes on chromosome 5p13 (Figure 2A). This suggested that SCLC cell lines are useful model systems to study RICTOR amplification.

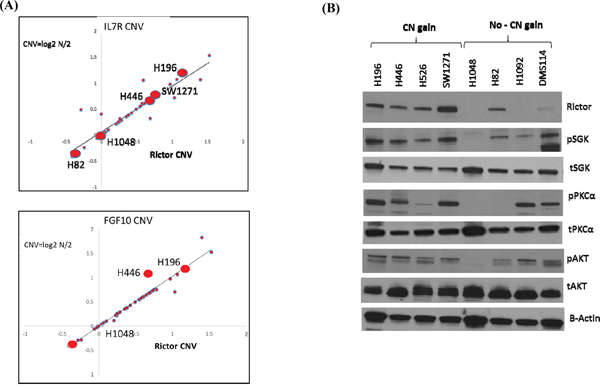

RICTOR expression in SCLC cell lines and tumors.

Figure 2: RICTOR expression in SCLC cell lines and tumors. A. Plots showing Pearson correlation of RICTOR with IL7R and FGF10 CNV (p < 0.0001) in SCLC cell lines. Five cell lines used extensively in this study, H196, H446, SW1271, H1048 and H82, are highlighted. B. Western blots showing basal expression of RICTOR and its downstream-phosphorylated targets in SCLC cell lines with RICTOR CNV. The results show that RICTOR CN gain correlates with RICTOR protein expression in SCLC cell lines.

While RICTOR amplification was defined as CNV ≥ 6 for the patient tumor specimens (Figure 1A), among the SCLC cell lines we studied exhibiting a high RICTOR CN was H196, with a listed segment mean of 1.1778 (CN~ 4.52). Three other SCLC cell lines we examined with high RICTOR CN were H446 (mean 0.6897, CN~ 3.23), H526 (mean 0.6816, CN~ 3.21) and SW1271 (mean 0.7376, CN~ 3.34). Thus, we will refer to all these cell lines as demonstrating RICTOR CN gain, rather than amplification. Four additional SCLC cell lines we examined, H1048 (mean -0.0075, CN~ 1.99), H82 (mean -0.3929, CN~ 1.52), H1092 (mean 0.0472, CN~ 2.07) and DMS114 (mean 0.0639, CN~ 2.09) were used as controls because they demonstrated no RICTOR CN gain.

Western blotting of SCLC protein lysates demonstrated that a gain in RICTOR CN largely correlated with increased RICTOR protein expression (Figure 2B). It was less evident, however, that SCLC cells with RICTOR CN gain demonstrated parallel increases in basal mTORC2 complex (RICTOR) signaling, measured by increased phosphorylation of its downstream targets SGK, PKCα, and AKT, compared to cell lines with no gain in RICTOR CN (Figure 2B). Thus, in subsequent experiments we focused our studies on SCLC cell lines where downstream signaling best paralleled RICTOR CNV: H196, H446, and SW1271 to represent CNV gain, and H1048 and H82 to represent no CNV gain. These cells are highlighted in Figure 2A.

SCLC cell lines with RICTOR CN gain are more sensitive to mTOR inhibitors

We sought to determine whether or not a gain in RICTOR CN increases cell sensitivity to drugs targeting the PAM pathway (PI3K/AKT/mTOR). Three different mTOR inhibitors were used in these experiments: AZD8055, AZD2014 and INK128. Initially, the effects of three concentrations of drug (0.1, 10 and 100 nM) on cell growth were examined by measuring total RFP integrated intensity over time (Supplementary Figure 2). All four SCLC cell lines tested (H196, H446, H1048, H82) responded to drug treatment to variable extents; thus IC50s were calculated for each drug and are displayed for individual cell lines (Figure 3). It was clear, however, that cells with high RICTOR CNV responded better to all mTOR inhibitors than cells with no RICTOR CN gain. Interestingly, AZD2014 demonstrated the most specific, but least potent, inhibitory effect on high vs low RICTOR CNV cells. To better demonstrate the response of cells to drug inhibition, we chose to highlight the cell growth response to a submaximal dose (10 nM) of each drug, shown in Figure 4. We found that cell lines with RICTOR CN gain (H446 and H196) responded well to 10 nM of all three drugs tested except for the response of H196 to AZD2014. By contrast, cell lines with no RICTOR CN gain (H1048 and H82) showed little or no growth inhibition by any of the three drugs when used at this concentration.

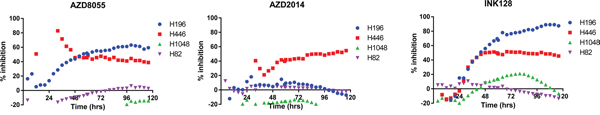

Cell growth inhibition to mTORC inhibitors in SCLC cell lines with RICTOR CNV.

Figure 3: Cell growth inhibition to mTORC inhibitors in SCLC cell lines with RICTOR CNV. The effect of three concentrations of mTORC inhibitors (AZD8055, AZD2014, INK128) on cell proliferation was measured by live cell imaging of RFP-labeled cells after 72 h of incubation. Drug was not refreshed during the incubation. Two SCLC cell lines with RICTOR CN gain (H446, H196) and two with no gain in RICTOR CN (H1048, H82) were studied. Drug doses are listed below bars in nM. The calculated IC50 values, in nM, are listed below the cell names. Cells with RICTOR CN gain demonstrate greater sensitivity to mTORC inhibitors.

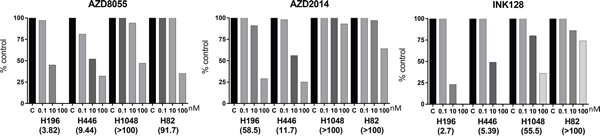

Comparison of growth inhibition produced by a submaximal dose of mTORC inhibitors among SCLC cell lines with RICTOR CNV.

Figure 4: Comparison of growth inhibition produced by a submaximal dose of mTORC inhibitors among SCLC cell lines with RICTOR CNV. Cell proliferation data in the presence of 10 nM of mTORC inhibitor (Supplementary Figure 2) was normalized to the respective cell proliferation data in the absence of drug for each time point and collated into a single plot per drug. Some curves appear discontinuous because data points fell outside the plotted range.

We next sought to determine the efficacy of these three mTOR inhibitors to decrease the phosphorylation of downstream mTORC2 targets. Using 10 and 100 nM drug concentrations for 15 minutes, AZD2014 almost completely decreased SGK Ser422 and PKCα Thr638 phosphorylation in H446 cells compared to that produced by AZD8055 and INK128 (Figure 5A). When a second cell line with high RICTOR CNV was similarly tested, SW1271, AZD2014 again demonstrated better efficacy than AZD8055, and both were much better than INK128 (Figure 5B). We then treated a third cell line with RICTOR CN gain, H196, with AZD2014 for prolonged incubation times using 10 nM drug. We observed that AZD2014 decreased the phosphorylation of downstream SGK and PKCα target proteins for at least 6 hours, but then phosphorylation returned after 24 hours of drug treatment (Figure 5C). Taken together, these results suggest that AZD2014 demonstrates the most consistent inhibition of mTORC2 activity among the three inhibitors tested.

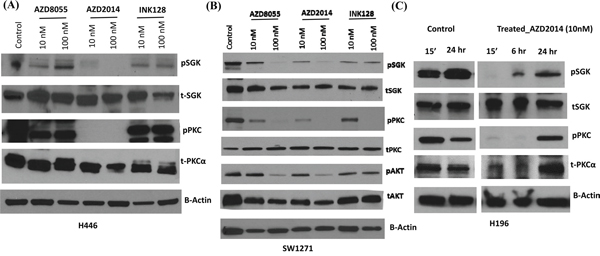

Effect of mTORC inhibitors on downstream signaling in SCLC cells with RICTOR CN gain.

Figure 5: Effect of mTORC inhibitors on downstream signaling in SCLC cells with RICTOR CN gain. A and B. Western blots showing the effect of 15 min incubation of H446 cells (A) and SW1271 cells (B) with mTORC inhibitors (10 and 100 nM) on the phosphorylation of pSGK (Ser-422), pPKC α (Thr-638) and pAKT (Ser-473). C. Similar to panels A and B except a time course of H196 cells treated with AZD2014 at 10 nM. β-actin is a loading control for all of these experiments. These results show the greater efficacy of AZD2014 to inhibit downstream mTORC2 signaling in cells with RICTOR CN gain.

RICTOR CN gain is associated with increased cell motility

Previous studies indicate that RICTOR amplification is associated with increased cell motility [9]. Thus, we used two different assays to measure cell motility in SCLC cell lines with RICTOR CNV; a directional, chemotactic-induced migration assay and a random, scratch wound migration assay. In chemotaxis assays, significantly greater numbers of cells migrated towards the chemo-attractant (5-10% FBS) using cell lines with RICTOR CN gain (H196, H446) compared to a cell line that did not (H1048) (Figure 6A). Similarly, as shown in Figure 6B, the H196 and H446 cell lines closed a scratch wound faster when compared to the H1048 cell line. The conclusion from both migration assays is that cells with RICTOR CN gain migrate more rapidly compared to cells with no gain in RICTOR CN. A quantitation of the migration plot is shown in the Figure 7A. When the three-mTOR drugs were used at a submaximal dose (10 nM) to assess their effects on cell migration, we observed that cells with RICTOR CN gain were more sensitive to INK128 and AZD2014 compared to AZD8055 (Figure 7B).

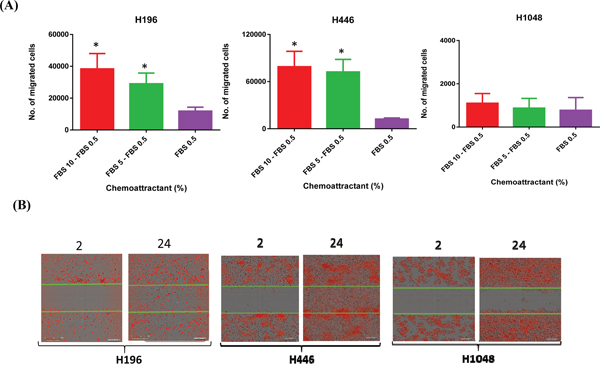

Role of RICTOR CNV in cell migration.

Figure 6: Role of RICTOR CNV in cell migration. A. Matrigel invasion assay in SCLC cell lines with RICTOR CNV. The concentration of chemoattractant is shown on the x-axis, the y-axis shows the number of migrated cells * denotes a significantly higher number of migrated H196 (p <0.0001) and H446 (p <0.0001) cells. Error bars indicate s.d. of means of three independent biological replicates performed in triplicate. B. Scratch wound migration assay. Representative images are shown for the indicated time points (hr). Cells with RICTOR CN gain demonstrate rapid wound healing compared to cells with no RICTOR CN gain.

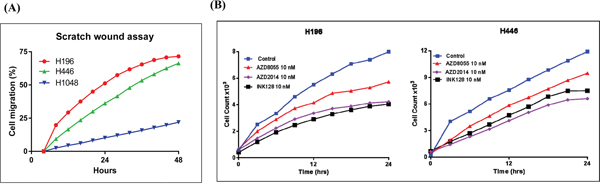

Effect of mTORC inhibitors on cell motility in SCLC cells with RICTOR CN gain.

Figure 7: Effect of mTORC inhibitors on cell motility in SCLC cells with RICTOR CN gain. A. Plot quantitating the migration of cells in a scratch would assay at various times is shown. B. Representative results of scratch wound assays showing the effects of mTORC inhibitors (10 nM) on the migration of H196 and H446 cells. Cells with RICTOR CN gain demonstrate sensitivity to AZD2014 = INK128 > AZD8055.

RICTOR amplification is associated with decreased survival

Finally, we sought to determine if RICTOR amplification status correlated with clinical outcome in our SCLC cohort. Indeed, we found a significant decrease in overall survival in patients with RICTOR amplification (p = 0.021) (Figure 8). The median overall survival for RICTOR non-amplified and amplified groups were 11.7 months (95% CI: 10.2 - 18.9) and 7.9 months (95% CI: 1 – 11.1), respectively. The detailed clinico-pathological characteristics of SCLC patients, such as age, stage, race, gender and surgery in our cohort is depicted in Table 1.

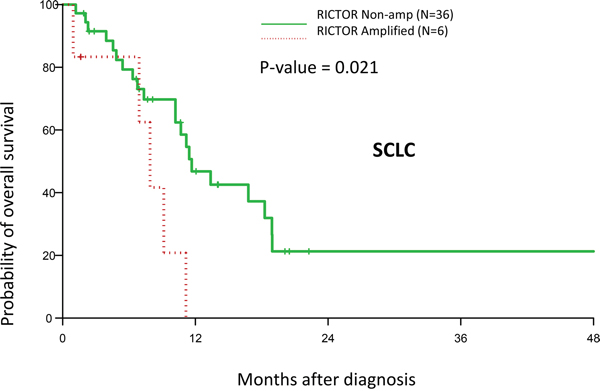

Effect RICTOR amplification on clinical outcome.

Figure 8: Effect RICTOR amplification on clinical outcome. Kaplan–Meier plot on overall survival in SCLC patients with/without RICTOR amplification. Patients with RICTOR amplification demonstrated reduced survival.

Table 1: Descriptive statistics of SCLC cohort



AGE (Median 66) years

Ranges: 35-85

Follow up (Median8.6) months

Ranges: 1-55.5














 With surgery


 No surgery








Copy number variation is a common mechanism by which the expression levels of genes that contribute to cancer development are regulated [13, 14], and contributes to the development of gastric cancer [15], ovarian cancer [16], hepatocellular carcinoma [17], testicular germ cell tumors [18], colorectal carcinoma [19], and bladder cancer [20]. Copies of apoptosis effector genes are often lost during cancer development, in contrast with the frequent amplification of proliferation-related genes [21]. Thus, CNV may represent a mechanism by which transforming cells gain evolutionary advantage. Some established or potential anticancer drug target genes exhibit high levels of CNV, including HER2 (ERBB2, erb-b2 receptor tyrosine kinase), TUBB3 (tubulin beta 3 class III) and TOP2A (DNA topoisomerase (DNA) II alpha) [22]. Given its value to predict potential deregulation of signaling pathways, CNV may provide useful information for molecular subtyping of SCLC and identification of novel therapeutic strategies.

Here we obtained CNV from targeted exome sequencing of 42 SCLC patients. Three genes (RICTOR, FGF10 and IL7R) on chromosome 5p13 were found to be the most frequently amplified in our cohort (Figure 1A). The fact that a fourth gene on chromosome 5p, SDHA, was not amplified to a similar extent indicates that there was not a global amplification of this arm of the chromosome. Likewise, there was no parallel amplification of four genes located on chromosome 5q. We focused on RICTOR amplification, however, because it represents a potentially actionable gene. The frequency of RICTOR amplification observed in the present study, 14%, was slightly higher when compared with previous reports by Ross et al (10%) and Umemura et al (9%) in SCLC [23, 24].

Tumors with RICTOR amplification may be sensitive to inhibitors of mTORC2, the RICTOR-containing signaling complex [25]. Numerous inhibitors that target both mTORC1 and mTORC2 complexes, as well as dual PI3K/mTOR inhibitors, are under preclinical and clinical investigation in multiple tumor types [7, 26]. Here, we used the mTORC1/2 inhibitors AZD8055, AZD2014 and INK128 because of their increased potential to inhibit mTORC2 protein synthesis compared to rapalogs [7]. In this regard, there is evidence for both AZD2014 and AZD8055 being potent inhibitors of the mTORCl/2 pathway in breast cancer [27] and lymphoid malignancies [28], and a recent publication also showed efficacy of AZD2014 on NSCLC cell lines [29]. Our data showed that AZD2014 produced the most specific inhibition of growth and downstream signaling among SCLC cell lines with RICTOR CNV gain (Figures 3 and 5). Thus, because SCLC cell lines with RICTOR CN gain demonstrate sensitivity to mTORC1/2 inhibitors, several of which are currently in clinical trials [30], these drugs may prove effective in SCLC patients harboring tumors with RICTOR amplification. Indeed, it was recently reported that an index patient with NSCLC demonstrating RICTOR-amplification showed a durable response to the dual mTORC1/2 inhibitor CC-223 [29]. This study also showed that RICTOR over-expression transformed Ba/F3 cells and led to increased sensitivity to mTORC1/2 inhibitors. Thus, RICTOR amplification may provide the first predictive biomarker in SCLC to allow enrollment of specific patients into mTOR-directed clinical trials. This would likely improve the initial disappointing results of two mTOR-directed drugs, temsirolimus and everolimus, which failed to show anti-tumor activity in clinical trials of relapsed SCLC [31].

Interestingly, cells with RICTOR CN gain also showed increased cell motility (Figures 6A and 6B). A study by Gulhati et al provided evidence of mTORC1/2 regulating epithelial–mesenchymal transition (EMT), motility, and metastasis in colorectal cancer [9]. Furthermore, Gupta et al and others demonstrated a role for mTORC2 specifically to positively regulate TGFβ signaling in cancer cell migration and invasion [8-10, 32, 33]. Thus, RICTOR amplification likely promotes increased cell motility in vitro via increased mTORC1/2 signaling. This idea is supported by our data that showed that the mTOR inhibitors decreased cell motility in SCLC cells with RICTOR CN gain (Figure 7A and 7B). There is similar evidence that mTORC pathway inhibition attenuates migration and invasion of gall bladder cancer via EMT inhibition [33].

We also found a difference in the effect of RICTOR amplification on overall survival in SCLC; RICTOR amplification was associated with significant decreased survival (p=0.021), (Figure 8). The cohort of patients studied was only 42 patients, so it will be of interest to see if the significant effect of RICTOR amplification on overall survival is maintained as our cohort grows. In this regard, we have observed that co-amplification of RICTOR with FGF10 and IL7R is maintained at a frequency of 13.7% in our latest update of SCLC genomic data using a cohort of N=73 patient tumors (unpublished data). Unfortunately we cannot include data on survival analysis, as this is not yet available.

Taken together, our data suggests that a clinically important subgroup of patients exists in SCLC defined by RICTOR amplification. As SCLC is well known as a disease of early and widespread metastasis, it is intriguing to speculate that RICTOR amplification may enhance the metastatic process in SCLC by increasing cell motility and in this way affect survival outcome. This idea is supported by immunohistochemical studies showing poor outcome in SCLC patients with tumors demonstrating a mesenchymal phenotype [34, 35]. Similar studies by Li et al using multivariate analysis indicated that TGF-β 1 expression predicted poor survival in SCLC patients. [36].

In conclusion, our study demonstrates the translational potential of mTOR1/2 inhibition as a therapeutic strategy in a subset of SCLC patients with RICTOR amplification, which may represent the beginning of a new era of personalized medicine for this disease.


Genomic analysis

Genomic data was obtained from patients who were diagnosed with SCLC at University Hospitals Seidman Cancer Center and had adequate tumor tissue at diagnosis for DNA sequencing [6]. This constituted only 42 of ~500 total SCLC patients currently annotated in our database. A targeted exome sequencing platform is routinely used for genomic analysis of all thoracic tumors and interrogates a panel of 324 clinically relevant cancer-related genes [11]. The platform only makes CNV calls on these 324 targeted genes based upon accumulated sequence coverage for each interrogated exon in the tumor samples compared to a diploid normal control [11]. The typical median coverage for exons is 500x. Genes are considered amplified if the CNV ≥ 6. The specific requirements of sample processing are listed in reference 11. Institutional Review Board approval was obtained to maintain a database of the clinical, molecular and pathological characteristics of all thoracic cancer patients treated at our medical center.

Cell Lines

All cell lines were purchased within the last three years from ATCC, and have not been authenticated. Cells were maintained as recommended by the supplier. To generate stable cell lines expressing red fluorescent protein (RFP), CellPlayer NucLight Red lentivirus was purchased (Essen Bioscience) and transduced into wild type cells using an MOI of 3. After 48 h, 0.5 μg/ml puromycin was added for selection.

Western blotting

Protein lysates (40 μg) were analyzed as described previously [37] using 4-20% Criterion gels (Bio-Rad). Gels were transferred in TRIS-glycine running buffer. Antibodies were purchased from: Cell Signaling (RICTOR #2114, pSGK #5599, tSGK #12103, pPKCα #9375, tPKCα #2056, tAKT #9272), Santa Cruz Biotechnology (pAKT #7985) and Sigma (Actin, A-5441).

Drug treatment

5,000 RFP transduced cells were treated with multiple concentrations of AZD2014, AZD8055 or INK128 (Selleck) in duplicate and allowed to grow for up to 120 h in the IncuCyte Zoom (Essen Bioscience) with fluorescent scanning every 4 h, as described in our previous publication [37] Growth curves were generated showing total RFP integrated intensity over time. The exact chemical structures and Ki of the three mTOR inhibitors can be found at http://www.selleckchem.com/pathways_mTOR.html.

Scratch wound assay

Cells were plated at 35,000 cells per well in Image Lock 96 well plates (Essen BioScience) in 100 μL complete DMEM medium. After overnight incubation, a scratch was made in the plate using a 96-pin WoundMaker tool (Essen BioScience). Plates were washed and incubated for 1 h, and then appropriately diluted drugs were added in 100 μL media to achieve final concentrations. Plates were scanned with an Incucyte Zoom (Essen BioSciences) according to manufacturer's instructions at 2-hour intervals. Images were automatically acquired and registered by the IncuCyte™ software system (ESSEN BioScience). Typically, kinetic updates were recorded over a 24 h period.

Chemotaxis assay

Invasion assays were performed using the invasion chamber (Essen Biosciences, USA) according to the manufacturer’s protocol. Cells were harvested, seeded onto the upper chamber of a Transwell filter that was pre-coated with 10 μg/mL Matrigel, and incubated in RPMI containing 0.5% FBS. After a 24-h incubation at 37°C in 5% CO2, the number of cells that had migrated to the lower chamber containing 5-10% FBS in RPMI media was determined, as described for the scratch wound assay. Control was no FBS gradient, where 0.5% FBS was in the upper and lower chamber. Where indicated, appropriately diluted drugs were added to the upper chamber medium simultaneously with the cells.

Statistical analysis

Overall survival was measured from the date of diagnosis to the date of death and censored at the date of last follow-up for survivors. Survivor distribution was estimated using Kaplan-Meier methods and differences in survival between groups was examined by the log-rank test. The difference of an interval measure among groups was tested using analysis of variance (ANOVA) and the association between two continuous measures was estimated by the Pearson correlation coefficient. Bar charts and copy-number variant (CNV) plots were used to visualize the sequencing data. Analyses for cell experiments were performed using GraphPad Prism (GraphPad Software, CA, USA). All tests were two-sided and p-values ≤ 0.05 were considered statistically significant. IC50 values were determined by linear regression analysis.


The authors have no conflicts of interest to declare.
