Heterogeneity of resistance mutations detectable by next-generation sequencing in TKI-treated lung adenocarcinoma

PDF |  HTML  |  Supplementary Files  |  How to cite  |  Order a Reprint

Oncotarget. 2016; 7:45237-45248. https://doi.org/10.18632/oncotarget.9931

Metrics: PDF 1559 views  |   HTML 2302 views  |   ?

Deborah A. Belchis, Li-Hui Tseng, Thomas Gniadek, Lisa Haley, Parvez Lokhandwala, Peter Illei, Christopher D. Gocke, Patrick Forde, Julie Brahmer, Frederic B. Askin, James R. Eshleman and Ming-Tseh Lin _

Abstract

Deborah A. Belchis1, Li-Hui Tseng1,2, Thomas Gniadek1, Lisa Haley1, Parvez Lokhandwala1, Peter Illei1, Christopher D. Gocke1,3, Patrick Forde3, Julie Brahmer3, Frederic B. Askin1, James R. Eshleman1,3, Ming-Tseh Lin1

1Department of Pathology, Johns Hopkins University School of Medicine, Johns Hopkins Hospital, Baltimore, Maryland, USA

2Department of Medical Genetics, National Taiwan University Hospital, Taipei, Taiwan

3Department of Oncology, Johns Hopkins University School of Medicine, Johns Hopkins Hospital, Baltimore, Maryland, USA

Correspondence to:

Deborah A. Belchis, email: dbelchi1@jhmi.edu

Ming-Tseh Lin, email: mlin36@jhmi.edu

Keywords: EGFR, PIK3CA, tyrosine kinase resistance, next-generation sequencing, lung cancer

Received: April 06, 2016     Accepted: May 19, 2016     Published: June 09, 2016

ABSTRACT

EGFR-mutated lung adenocarcinomas routinely develop resistance to tyrosine kinase inhibitors (TKI). To better characterize the relative frequencies of the resistance mechanisms, we analyzed 48 EGFR-mutated TKI-resistant specimens from 41 patients. Next-generation sequencing of post-treatment specimens detected EGFR p.T790M in 31 (79%) of 39 patients, PIK3CA mutations in 10 (26%), EGFR p.S768_V769delinsIL in one, and KRAS p.G12C in one. Five PIK3CA mutations were outside of codons 542, 545, and 1047. Three of four pre-treatment specimens did not carry the PIK3CA mutation found in the post-treatment sample. Small cell carcinoma transformation was identified in four patients; none had p.T790M, including two where p.T790M was identified in the co-existing adenocarcinoma. In p.T790M-mutated specimens, the allele frequency was less than 5% in 24% of cases. p.T790M allele frequency was usually lower than that of the sensitizing mutation indicating that the resistance mutation was present either in a subset of cells or, if the sensitizing mutation was amplified, in a subset of the sensitizing alleles of a dominant clone. Eight patients had multiple resistance mutations, suggesting either multiple separate resistant clones or a single clone harboring multiple resistance mechanisms. PIK3CA mutations appear to be a more significant resistance mechanism than previously recognized.


INTRODUCTION

The identification of targetable activating mutations in a subset of patients with adenocarcinoma of the lung has transformed therapy for patients with advanced disease. Approximately 10–15% of Caucasian patients and 30–40% of Asian patients with non-small cell lung cancers (NSCLCs) harbor activating mutations in the epidermal growth factor receptor (EGFR) gene [13]. Analysis of tumors for these mutations has become standard of care [1, 2, 4]. Treatment of patients with EGFR-mutated metastatic NSCLCs with gefitinib, erlotinib and afatinib, first-generation and second-generation EGFR tyrosine kinase inhibitors (TKIs), has improved response rates, time to progression, and overall survival [5]. Unfortunately, despite initial response to TKI therapy, acquired resistance develops after a median of approximately 10–13 months in almost all patients [1, 2, 4].

Several mechanisms for acquired resistance to TKI therapy have been reported [5]. These include additional mutations in EGFR (40–60%) [4, 6] and mutations in PIK3CA (5%) [7] and BRAF (1%) [8], amplification of MET (5–10%) [6, 9] and ERBB2 (12%) [10], phenotypic transformation such as to small cell carcinoma (3–14%) [6, 7] and the epithelial to mesenchymal transition [5, 7]. The most common resistance mechanism is the secondary acquisition of an EGFR p.T790M mutation, present in approximately in 40% to 60% of resistant patients [6, 11]. Other uncommon acquired resistance EGFR mutations include p.D761Y, p.T854A and p.L747S [1214]. It is now common clinical practice to select patients for third-generation TKI inhibitors, such as Rociletinib, Osimertinib (AZD9291) and HM61713, on the basis of p.T790M detection[5, 15, 16]. Recently, EGFR p.C797S mutation was found to be a novel mechanism of acquired resistance to third-generation TKIs [1719].

Next-generation sequencing (NGS) is a powerful tool both to identify low-level mutations in cancers and to increase the accurate assessment of small biopsy specimens, as is common after relapse. Because of its high sensitivity, NGS may detect the emergence of a resistant subclone within the tumor, even when it comprises a few percent of the tumor cells analyzed. The identification of these mutants will determine therapeutic options. In this retrospective cohort analysis using a validated clinical NGS assay, we survey our experience with detection of acquired resistance mutations to TKI therapy in a panel of 7 genes [20, 21].

RESULTS

Positive control and negative control specimens

The peripheral blood negative control specimens showed no mutations in 115 runs; all mutations in the positive control specimens were detected over those runs. The observed mutant allele frequencies (MAFs) were highly consistent, demonstrating that NGS is quantitative and precise (Supplementary Table S1).

Level of background noise of EGFR p.T790M (c.2369C > T) mutation in FFPE specimens

In our previous clinical validation of this assay, the background noise for the EGFR c.2369C > T which results in p.T790M was calculated at 1.3% (mean plus 3 standard deviations (SD)), analyzing 16 FFPE non-neoplastic tissues [20]. For this study, a similar calculation of background noise for the EGFR c.2369C > T change was performed in 179 FFPE lung cancer specimens with an activating KRAS mutation. The C > T artifact (a deamination change) at position c.2369 was significantly higher than the C > A (P < 0.001) or C > G signal (P < 0.001) (Figure 1). The calculated background noise for c.2369C > T (mean plus 3 SD) decreased as read depth increased (0.77% for samples with 150-500 EGFR c.2369 reads, 0.42% for samples with 501–1,000 reads, and 0.37% for samples with more than 1,000 reads) (Figure 1).

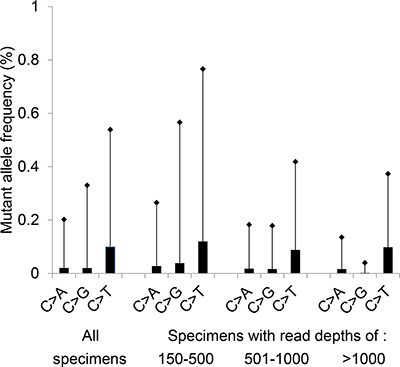

Background noise at EGFR c.2369C.

Figure 1: Background noise at EGFR c.2369C. Mean plus 3 standard deviations (SD) of the variant frequency is plotted for a total of 179 specimens (Total); this includes 53 specimens with a read depth of 150-500 reads, 89 specimens with 501-1000 reads, and 37 specimens with more than 1,000 reads. All specimens contained an activating KRAS mutation at codons 12, 13, 61 or 146. The c.2369C > T change results in the p.T790M mutation.

EGFR p.T790M mutation in pre-TKI specimens

Forty-one NSCLC patients who progressed after TKI treatment were included in this study. (Supplementary Table S2). EGFR mutations before treatment were examined at the Johns Hopkins hospital in 21 patients, 8 by Sanger sequencing and 13 by NGS. EGFR mutations were retrospectively analyzed in patients 3 and 4 whose EGFR mutations were initially tested by Sanger sequencing. Co-existing p.E746_A750del (68%) and p.T790M (7.6%) mutations were detected in patient 3. Other specimens with a MAF in c.2369C > T of 0.25% or less were interpreted as negative for p.T790M mutation.

EGFR mutations in post-TKI specimens

Forty-eight post-TKI specimens were submitted from 41 patients whose NSCLCs progressed after TKI therapy. NGS failed in 5 of 48 specimens, including 2 from patients 16 and 20 who had only one specimen submitted for examination (Supplementary Table S2). TKI-sensitizing mutations were detected in all 39 patients, including 2 with an exon 18 mutation (p.G719C and p.E709_T710delinsD), 26 with an exon 19 deletion mutation, one with exon 20 p.A763_Y764insFQEA, and 10 with exon 21 p.L858R (Table 1). p.T790M was detected in 34 of 43 specimens or 31 (79%) of 39 patients (Tables 1 and 2), including specimen 2 with p.T790M at 1.1% MAF in 1059 reads. Retrospective analysis of 3 separate fragments from this pleural biopsy specimen showed relatively constant but low levels of mutation of p.T790M at 0.7% (1399 reads), 2.6% (1185 reads) and 2.6% (992 reads), respectively. Among the 6 additional EGFR mutations, 4 were present in both pre- and post-TKI specimens (patients 15, 17, 24 and 36), and one (p.S768_V769delinsIL or p.S768I plus p.V769L) was present in only the post-TKI specimen (Table 1). The type of EGFR mutation in the pre-TKI specimen was not known for patient 9, who had a p.K806I in the post-TKI specimen.

Table 1: Mutations and MAF in patients with TKI resistant tumors

Casea

EGFR TKI-sensitizing

EGFR T790Mb

PIK3CAc,d,e

Other mutationsc,d,e

mut no.f

1

E746_A750del (43%)

13%

1

2

L858R (17%)

1.1%b

1

3A

E746_A750del (57%)

16%

V344G (13%)d

2

3B

E746_A750del (39%)

13%

V344G (16%)d

2

3C

E746_A750del (66%)

27%

V344G (25%)d

2

4A

A763_Y764insFQEA (35%)

9.6%

G1049R (73%)e

2

4C

A763_Y764insFQEA (8.2%)

2.1%

G1049R (30%)e

2

5

E746_A750del (32%)

8.3%

E453K (16%)c

2

6

E746_A750del (26%)

5.8%

1

7

L858R (74%)

31%

1

8

E746_A750del (47%)

11%

1

9

L858R (8.6%)

6.1%

H1047L (6.9%)c

EGFR/K860I (8.5%)c

2

10

L747_A750delinsP (36%)

3.6%

E542K (6.1%)d

EGFR/S768_V769delinsIL (12%)d

3

11a

L858R (54%)

negative (432)

0

12

E746_A750del (52%)

22%

1

13

E746_A750del (68%)

negative (618)

0

14

L858R (11%)

negative (329)

0

15

E746_S752delinsIV(36%)

negative (291)

EGFR/G724S (47%)e

0

17

G719C (46%)

17%

EGFR/S768I (45%)e

1

18

L747_S752del (22%)

3.1%

1

19B

E746_A750del (9.2%)

2.0%

1

19Ca

E746_A750del (64%)

negative (680)

0

21

E746_A750del (57%)

16%

1

22

E746_A750del (77%)

20%

1

23

E746_A750del (63%)

42%

1

24B

E746_T751delinsA (33%)

12%

Y1021C (16%)c

EGFR/K754Q (33%)e

2

25

E746_A750del (56%)

14%

1

26

E746_A750del (84%)

negative (494)

0

27

L858R (46%)

26%

1

28

L858R (34%)

4.3%

E110del (20%)c

KRAS/G12C (33%)d

3

29a

L747_P753delinsS (62%)

negative (2437)

E545K (23%)c

1

30

L747_T751delinP (32%)

14%

H1047R (21%)c

2

31

L747_P753delinsQ (29%)

10%

1

32

E746_A750del (65%)

33%

1

33

E746_A750del (47%)

4.1%

1

34

E746_S752delinsV (67%)

37%

1

35

L747_P755delinsSKG (9.4%)

negative (740)

E545K (8.3%)d

1

36

L858R (12%)

8.7%

EGFR/E709K (17%)e

1

37

L747_P753delinsS (91%)

5.0%

1

38

E709_T710delinsD (48%)

negative (2214)

0

39

E746_A750del (36%)

8.9%

1

40

L858R (43%)

13%

1

41

L858R (52%)

9.1%

1

aSmall cell carcinoma. Others: adenocarcinoma.

bNumber in parentheses indicates depth of coverage for specimens with negative p.T790M mutation. The depth of coverage was more than 150 reads for all p.T790M positive cases. Retrospective NGS assays of 3 subareas from the pleural biopsy of specimen 2 showed 0.7% (1399 reads), 2.6% (1185 reads) and 2.6% (992 reads) p.T790M, respectively.

cThe presence or absence of mutation in pre-treatment specimens was not known.

dMutations were not present in the pre-treatment specimens. Pre-treatment specimens of patients 3 and 4 were examined retrospectively by NGS.

eMutations were present in the pre-treatment specimens.

fmut no.: The total number of resistance mutations in each patient’s samples, including the EGFR 790M mutation, the EGFR p.S768_V769delinsIL mutation of specimen 10 (not present in the pre-treatment specimens), PIK3CA mutations, and the KRAS p.G12C mutation of specimen 28. The original TKI-sensitizing mutations and co-existing EGFR mutations in the pre-treatment specimens of patients 15, 17, 24 and the EGFR p.K860I mutation of specimen 9 were not included.

Table 2: EGFR p.T790M, PIK3CA and KRAS mutation in post-TKI specimens

p.T790M

PIK3CA

KRAS

No mutation

2 or 3 mutations

Patients (n = 39)a

31 (79%)b

10 (26%)

1 (2.6%)

6 (15%)e

8 (21%)

adenocarcinoma (n = 37)

31 (84%)

9 (24%)

1 (2.7%)

5 (14%)

8 (22%)

small cell carcinoma (n = 4)c

0

2 (50%)d

0

2 (67%)

0

aIncluding patient 19 with an adenocarcinoma specimen and a small cell carcinoma specimen.

bincluding patient 2 with 1.1% p.T790M mutation.

c: including retrospective analysis of the small cell carcinoma specimen in the pleural effusion of patient 4.

dThe PIK3CA p.G1049R was present in the pre-TKI specimen of patient 4. The pre-TKI specimen of patient 29 was not tested.

eincluding patient 11 with small cell carcinoma transformation.

p.T790M and TKI-sensitizing mutations are in a cis arrangement

By using amplicon-based NGS assays, the cis or trans relationship can be interpreted if co-existing variants are located within the same amplicon. p.T790M was located within the same allele with A763_Y764insFQEA in patient 4 and p.S768I in patient 17. The genotype of SNP rs1050171 was used to analyze 6 specimens in whom the variants were not on the same amplicon. By this method, a patient heterozygous for the inherited SNP will carry the initial, sensitizing mutation in linkage with only one of the SNP alleles (which are not on the same amplicon). If that chromosome is amplified, the SNP and sensitizing mutant alleles will be amplified together (> 50% allele frequency, similar in both SNP and mutant). A subsequent resistance mutation on the same amplicon with the SNP can then be imputed to be in either cis or trans with the sensitizing mutation. The MAF of the TKI-sensitizing mutation was always consistent with that of the SNP allele linked with p.T790M, indicating that p.T790M was in a cis configuration with the TKI-sensitizing mutant allele (Figure 2 and Supplementary Table S3). In specimen 10 with two acquired EGFR resistance mutations, p.S768_V769delinsIL was linked with the rs1050171 G allele, while p.T790M was linked with the A allele.

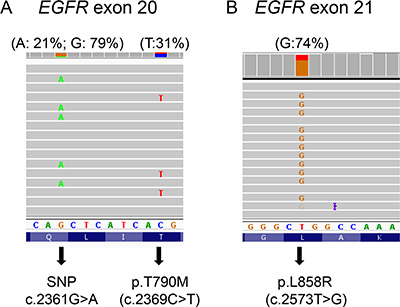

p.T790M in cis position of a subset of amplified p.L858R alleles.

Figure 2: p.T790M in cis position of a subset of amplified p.L858R alleles. In specimen 7 with an estimated 61–80% tumor cellularity, p.T790M (31%) was completely linked with a subset of SNP rs1050171 G allele, while p.L858R mutant allele frequency (74%) was similar to G allele frequency (79%). Percentage in the parentheses indicates mutant allele frequency.

PIK3CA and KRAS mutations in post-TKI specimens

PIK3CA mutations were detected in 10 (26%) of 39 patients (Tables 1 and 2). The 3 most commonly reported codons (p.E542, p.E545 and p.H1047) for PIK3CA mutations accounted for 5 mutations. All except two with a PIK3CA p.E545K mutation (specimens 29 and 35) also carried an EGFR p.T790M. Four pre-TKI specimens were examined for the presence of the PIK3CA mutations known to be in their post-TKI specimens: p.G1049R was detected at both time points in patient 4 (Figure 3), but pre-TKI specimens were negative in patients 3 (Supplementary Figure S1), 10 and 35. In specimen 28, 4 mutations were detected (Table 1), including KRAS p.G12C (Supplementary Figure S2). The pre-treatment specimen of this patient was reported to be positive for EGFR p.L858R, but negative for KRAS mutation using the therascreen KRAS test at another CLIA-certified laboratory. No mutations were detected in the AKT, BRAF, ERBB2 and NRAS genes in all post-TKI specimens examined.

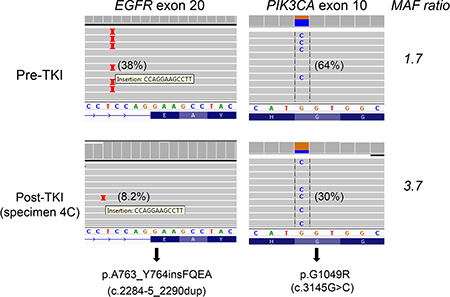

PIK3CA p.G1049R and EGFR p.A763_Y764insFQEA mutations in both pre-TKI (upper panel) and post-TKI (lower panel) specimens.

Figure 3: PIK3CA p.G1049R and EGFR p.A763_Y764insFQEA mutations in both pre-TKI (upper panel) and post-TKI (lower panel) specimens. A 64% PIK3CA p.G1049R in the pre-TKI specimen (upper panel) suggests mutant allele-specific imbalance, which was confirmed by SNP array (Supplementary Figure S4). PIK3CA/EGFR p.A763_Y764insFQEA mutant allele ratio increased from 1.7 in the pre-TKI specimen to 2.1 (specimen 4A), 3.7 (specimen 4C) and 3.4 (pericardial effusion with small cell carcinoma) in post-TKI specimens. Repeated NGS showed PIK3CA/EGFR p.A763_Y764insFQEA mutant allele ratio was 1.6 in the pre-TKI specimen and 3.9 in post-TKI specimen 4C. Percentage in the parentheses indicates mutant allele frequency.

Small cell carcinoma transformation

Transformation from adenocarcinoma to small cell carcinoma was observed in 4 (9.8%) of 41 patients (Supplementary Table S2 and Table 2). The TKI-sensitizing mutation identified in the original pre-therapy adenocarcinoma was detected in the small cell carcinomas of all 4 patients; p.T790M was not identified in any. However, two (patients 4 and 9) of these patients had a component of adenocarcinoma remaining after TKI therapy, and each of these harbored p.T790M in the adenocarcinoma. PIK3CA p.G1049R, seen in the pre-TKI specimen, was also detected in the small cell carcinoma component of patient 4. PIK3CA p.E545K was observed in specimen 29, but the PIK3CA mutation status in the pre-TKI specimen was not examined.

Mutant allele frequency of resistance mutations

p.T790M MAFs were 1–5% in 8 (24%), 1–10% in 16 (47%), and 1–20% in 27 (79%) of 34 specimens. In most post-TKI specimens, p.T790M MAFs were lower than the corresponding MAFs for sensitizing mutations (Figure 4A), indicating p.T790M is most likely present in a resistant subclone. However, since EGFR mutations in lung cancers are commonly associated with gene amplification [22], p.T790M could be present in all tumor cells but only on one or a subset of the amplified EGFR TKI-sensitive mutant alleles. In specimen 7, for example, the presence of 74% p.L858R indicates EGFR gene amplification, which was confirmed by a SNP array assay (Supplementary Figure S3A). The detection of 31% p.T790M in the context of 51–70% estimated tumor cellularity indicates that p.T790M was present in a subset of the amplified p.L858R mutant alleles within a dominant resistant clone (Figure 2). In support of this, the tumor was divided into five areas which were sequenced separately; the correlation of MAFs was analyzed by Spearman’s rank correlation coefficient using GraphPad Prism software (GraphPad Software, ver5, La Jolla, CA) as described [23]. The sensitizing/resistance mutant ratio was constant (1.9, 2.1, 2.0, 2.1, 2.1; r = 0.71), arguing against a tumor subclone. Other examples included specimen 34 with 67% p.E746_S752delinsV and 37% p.T790M in the context of 71–90% tumor cellularity as well as specimen 3C with 66% p.E746_A750del and 27% p.T790M in the context of 71–90% tumor cellularity. EGFR gene amplification was also confirmed in these cases by SNP array assays (Supplementary Figure S3B and S3C)

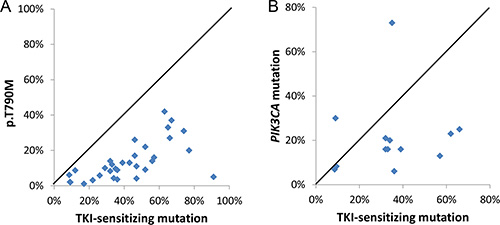

Higher TKI-sensitive EGFR mutant allele frequency than p.T790M mutant allele frequency (A) and PIK3CA mutant allele frequency (B).

Figure 4: Higher TKI-sensitive EGFR mutant allele frequency than p.T790M mutant allele frequency (A) and PIK3CA mutant allele frequency (B).

PIK3CA MAFs were 1–10% in 3 (23%), and 1–20% in 8 (62%) of 13 PIK3CA-mutated specimens. As with p.T790M resistance mutations, PIK3CA MAFs in the post-TKI specimens were also equal to or lower than the TKI-sensitizing EGFR MAFs (Figure 4B), with the exception of two specimens (4A/4C). In this patient, a SNP array assay showed gain of the chromosomal region containing the PIK3CA gene in the pre-TKI specimen (Supplementary Figure S4). The PIK3CA p.A763_Y764insFQEA mutant allele ratio increased from 1.7 in the pre-TKI specimen to 2.1–3.7 in the post-TKI specimens (Figure 3).

Co-existence of multiple of TKI resistance mutations

Two resistance mutations (EGFR p.T790M and PIK3CA mutations) were observed in 6 patients and 3 resistance mutations were observed in 2 patients (Tables 1 and 2). All 5 effusion specimens (3A, 3C, 4C, 9 and 10) from 4 patients showed 2 or 3 resistance mutations. Five specimens (13, 14, 15, 26 and 38) did not show mutations in EGFR p.790M, PIK3CA and KRAS genes nor transformation to small cell carcinoma; other proposed mechanisms of resistance (e.g., MET amplification) were not assessed.

DISCUSSION

In contrast to prior studies, we identified a high frequency of PIK3CA mutations in post-therapy lung adenocarcinoma patients. At 26% (10 out of 39 patients), this is much higher than the frequency of 0–5% reported using a variety of non-NGS assay methods (Table 3)[68, 24]. Four of our cases with post-therapy PIK3CA mutations had pretreatment specimens available for analysis. Only one harbored a PIK3CA mutation, supporting our interpretation that these were acquired mutations. PIK3CA mutations are not common before treatment. In a multinational Lung Cancer Consortium study, PIK3CA was detected in approximately 1% of untreated cases [25]. Our unpublished results show a similar if slightly higher PIK3CA mutation rate (2.6%) in TKI-naïve specimens. Our elevated acquired PIK3CA mutation rate is most likely attributable to both higher analytic sensitivity and a broader reportable range of the NGS assay. Five of our PIK3CA mutations would not have been detected if the assay had been restricted to codons 542, 545 and 1047, the 3 most common spots for PIK3CA mutations. The MAF was less than 10% in 3 of the 5 mutations affecting codons 542, 545 and 1047. Overall, Sanger sequencing of exons 9 and 20 would have only detected p.G1049R (MAF: 73% and 30%), p.E545K (MAF: 23%) and p.H1047R (MAF: 21%) in patients 4, 29 and 30, respectively.

Table 3: Mutational profiling of TKI-resistant specimens

EGFR

AKT1

BRAF

ERBB2

KRAS

NRAS

PIK3CA

Sequist et al. (n = 37)a

49%

ND

0%

ND

0%

0%

5%

Ohashi et al. (n = 146–212)b

55%

ND

1%

ND

0%

0%

ND

Yu et al. (n = 88)c

63%

0%

0%

0%

0%

0%

0%

Wu et al. (n= 20–42)d

48%

NA

0%

0%

0%

0%

0%

Current study (n = 39)

79%

0%

0%

0%

3%

0%

26%

aSNaPshot tumor genotyping assay to detect hot spots mutations of 13 genes, including 8 specific PIK3CA mutations within 6 codons [ref 7]. TKIs: gefitinib or erlotinib.

bA variety of methods including SNaPshot, mass spectrometry-based assay and Sanger sequencing to report mutations in the EGFR (n = 195), BRAF (n = 195), KRAS (n = 195), MEK1 (146) and NRAS (n = 212) genes [ref 8].

cMass spectrometry-based mutation profiling assay to identify 92 specific point mutation in 8 genes. Standard Sanger sequencing, fragment analysis and/or locked nucleic acid-based PCR sequencing were used to detected p.T790M mutation of 115 specimens [ref 6]. TKIs: gefitinib or erlotinib.

dSanger sequencing of 10 genes included exons 9 and 20 of the PIK3CA gene [ref 23]. Specimens tested for EGFR were 42; other genes were tested in 20–26 specimens due to insufficient material. TKIs: afatinib with or without gefitinib or erlotinib.

In this study, 9 of the 10 post-therapy cases with PIK3CA mutations also possessed another resistance mechanism. Eight harbored a concomitant EGFR p.T790M mutation and the other case showed small cell carcinoma transformation. The finding of coexisting mechanisms of resistance has been described in studies examining post-TKI specimens [6, 26]. The significance of the PIK3CA mutation in these cases is uncertain. As EGFR acts through the PIK3CA/AKT pathway, mutations in that pathway might be anticipated to provide a resistance mechanism for the tumor cells. Interestingly, in the consortium study 2.7% of therapy-naïve specimens harbored multiple mutations [25]. Of these, PIK3CA mutation was a common target, found in association with another mutation in 48% of multiply mutated cases. A similar analysis of a broad variety of therapy-naïve cancers using a PCR-based mass spectrometry assay found that PIK3CA mutations are often associated with other driver mutations [27]. The significance of these mutations is uncertain. Several studies have suggested that its presence may affect outcome [2830]. A group showed that EGFR-mutated NSCLC cell lines with acquired resistance due to either EGFR p.T790M mutation or MET amplification had increased apoptosis when a PIK3CA inhibitor plus a MEK pathway inhibitor were used simultaneously. Single agent PIK3CA inhibitor did not show increased apoptosis [31]. These pre-clinical findings may provide a rationale for co-targeting mutant EGFR and PIK3CA pathways to overcome resistance.

As with other studies, our analysis found the most common post-TKI mutation to be p.T790M, occurring in 79% of patients compared to a reported range of approximately 40% to 60%[6, 26]. Our higher percentage is most likely due to a higher analytic sensitivity of the NGS assay. Forty-seven percent and 79% of p.T790M-mutated specimens had MAFs less than 10% and 20%, respectively, which is below the limit of detection for Sanger sequencing. Twenty-four percent of p.T790M-mutated specimens had MAFs of 1–5% which is below the limit of detection for pyrosequencing, high resolution melting analysis or real-time PCR assays such as the therascreen EGFR RGQ PCR Kit and cobas EGFR Mutation Test [3234]. In addition, these assays require separate runs for the detection of p.T790M and other EGFR mutations and therefore may not be suitable for comprehensive mutational profiling in core biopsy or fine needle aspiration specimens where tumor tissue is often limited. As shown in this study, many specimens were taken by core biopsy or fine needle aspiration.

The observation that p.T790M was present in only a small fraction of tumor cells of some patients implies the presence of additional resistant mechanisms in other subclones [35, 36]. In this study, we showed that p.T790M MAFs lower than TKI-sensitive MAFs did not always indicate that p.T790M was present in a small subpopulation of resistant tumor cells. Specimen 7 from our study shows that an acquired p.T790M was present in a fraction of amplified TKI-sensitive alleles of a dominant resistant clone and likely conferred TKI-resistance. Our observation is consistent with an in vitro study demonstrating the dominant effect of a low fraction of p.T790M alleles acquired in TKI-resistant cell lines with a high level of amplified TKI-sensitive alleles [37]. Such “allelic dilution” may obscure detection of the biologically significant EGFR resistance mutation [37] if assays with a lower analytic sensitivity are used. Correctly identifying the proportion of a resistant tumor containing p.T790M may be clinically important as it may correlate with the response to third-generation TKIs. Factors that could affect this analysis include sampling bias in choosing which portion of the tumor to test and allele amplification which might lead to inaccurate and/or imprecise estimation of tumor cellularity. Cell-free circulating tumor DNA has become an alternative source for non-invasive examination of p.T790M mutations [38, 39], with potentially less sampling bias as compared with tissue biopsy. Serial blood draws and ultra-sensitive quantitative assays, such as digital droplet PCR, may provide a precise measurement of p.T790M MAF in the cell-free circulating tumor DNA to correlate with treatment outcomes.

p.S768I has been categorized as a primary resistant EGFR mutation[40], although there are conflicting opinions from other studies with small case numbers [41, 42]. The largest cohort study showed TKIs were less effective in 7 patients with p.S768I mutation [43]. EGFR p.S768_V769delinsIL (or compound p.S768I and p.V769L) has also been detected in a pre-treatment specimen of a patient who did not respond to gefitinib [44], but has not been reported in TKI-resistant specimens. In our specimen 10, linkage of the two acquired mutations p.S768_V769delinsIL and p.T790M to the sensitizing exon 19 mutation could not be determined directly, but linkage of each with a different allele of SNP rs1050171 indicated that only one of these two mutants could be in cis with the TKI-sensitive mutant allele. A previous study showed a cis configuration between p.T790M and p.L8585R in two TKI-resistant cell-lines [37]. In vitro transfection also demonstrated greater TKI-resistance when the p.T790M allele was present in cis to the TKI-sensitizing mutation [37]. Further studies are warranted to elucidate if the p.S768_V769delinsIL confers TKI resistance and if an acquired resistance mutation is effective in the trans configuration with the TKI-sensitive mutant allele.

Mutations in KRAS and EGFR genes are mutually exclusive in therapy-naive NSCLCs, and KRAS mutations also appear to represent a negative predictor for TKI therapy in NSCLCs [45]. Surprisingly, acquired KRAS mutations were not detected in 4 previous larger cohort studies of re-biopsy tissues (Table 3) [68, 24], although co-existing EGFR p.L858R and p.T790M and KRAS p.G12V mutations were reported in a Chinese patient who progressed after 3 months of TKI therapy [46]. In our patient 28, we identified a post-therapy KRASmutation that was not detected by a CLIA-certified laboratory using a relatively sensitive therascreen KRAS test; both pre- and post-therapy specimens showed an EGFR p.L858R mutation. To our knowledge, this is the first convincing example of a KRAS mutation acquired following TKI therapy, presumably as a resistance mechanism. The role of KRAS mutations in acquired TKI resistance was also supported by a recent study demonstrating a high incidence of KRAS mutations in the cell-free circulating tumor DNA from TKI-resistant NSCLC patients [47]. Further studies are needed to evaluate the analytic specificity (or background noise) of an assay with relatively high analytic sensitivity and to confirm the clinical specificity of an assay in circulating tumor DNA detecting a mutation commonly seen in other neoplasms.

In summary, in the setting of post-therapy NSCLCs NGS demonstrates an excellent limit of detection, a broad reportable range of mutations, the capacity for quantitative measurement of MAFs, and the ability to detect co-existing resistance mutations. MAFs can be used as a quality assessment measure to predict or identify heterogeneity of TKI-resistant tumors. Further studies are warranted to elucidate the clinical and/or biological significance of acquired PIK3CA mutations, KRAS mutations and uncommon EGFR (other than p.T790M) mutations as well as other co-existing resistance mutations in TKI-resistant lung cancers.

MATERIALS AND METHODS

Materials

Between April 2013 and June 2015, 830 formalin-fixed paraffin-embedded specimens with lung adenocarcinoma were submitted to the Molecular Diagnostics Laboratory at the Johns Hopkins Hospital. Forty-eight specimens were submitted from 41 patients whose NSCLCs progressed after gefitinib (one patient) or erlotinib (40 patients) therapy (Supplementary Table S2). Three specimens were submitted from patients 3, 4 and 19 and two specimens were submitted from patient 24. Duration of TKI therapy ranged from 3 months to 10 years with a median of 12 months. EGFR mutations before treatment were examined at the John Hopkins Hospital in 21 patients, 8 by Sanger sequencing of exons 18–21 and 13 by NGS [20]. In the remaining 20 patients the EGFR mutations before therapy were documented at other institutions. In 3 of these 20 (patients 9, 16, and 18) the details of EGFR mutations were not known. Thirty two were biopsy specimens, 7 fine needle aspiration specimens, 6 pleural effusion or ascites specimens, 2 resection specimens and one was a bronchioloalveolar lavage specimen (Supplementary Table S2). The Johns Hopkins Medicine institutional review board granted approval to this study

One hematoxylin & eosin (H&E) slide followed by 5–10 unstained slides, each with 5 or 10-micron thick sections, and one additional H&E slide were prepared with PCR precautions. The H&E slide was marked for tumor enrichment by a pathologist. Macro-dissection of neoplastic tissue from 3–10 unstained slides was performed. DNA was isolated using the Pinpoint DNA Isolation System (Zymo Research, Irvine, CA), followed by further purification via the QIAamp Mini Kit (Qiagen, Valencia, CA) [48].

Next-generation sequencing (NGS)

NGS was conducted using the AmpliSeq Cancer Hotspot Panel (v2) for targeted multi-gene amplification, as described previously [20, 49]. Briefly, we used the Ion AmpliSeq Library Kit 2.0 for library preparation, Ion OneTouch 200 Template Kit v2 DL and Ion OneTouch Instrument for emulsion PCR and template preparation, and the Ion PGM 200 Sequencing Kit with the Ion 318 Chip and Personal Genome Machine (PGM) as the sequencing platform (Life Technologies, Carlsbad, California). The DNA input was up to 30 ng, as measured by Qubit 20 Fluorometer (Life Technologies). Up to 8 specimens were barcoded using Ion Xpress Barcode Adapters (Life Technologies) for each Ion 318 chip. One to three controls (a non-template control, a normal peripheral blood control from a male, and/or an artificial positive control specimen) were included on each chip. Positive controls were mixed DNA specimens from several cell lines with known mutations at low mutant allele frequency (lung cancer panel control): AKT p.E17K and p.E49K, BRAF p.V600E, EGFR p.T790M and p.L858R, ERBB2 p.G776V or p.G776_V777insC, KRAS p.G12C and p.P121H, NRAS p.Q61R, and PIK3CA p.K111E and p.H1047R mutations (Supplementary Table S1).

Mutations were identified and annotated through both Torrent Variant Caller (Life Technologies) and direct visual inspection of the binary sequence alignment/map (BAM) file using the Broad Institute’s Integrative Genomics Viewer (IGV). All specimens were analyzed for AKT, BRAF, EGFR, ERBB2, KRAS, NRAS and PIK3CA genes. During our validation of this NGS assay, a cutoff of background noise at 2% was chosen for single nucleotide variations because of our study of 16 non-neoplastic formalin-fixed paraffin-embedded tissues [20]. With sufficient DNA input, the limit of detection is dictated by the depth of coverage (or number of sequencing reads). Approximately 150 and 500 reads are needed to detect a heterozygous mutation with 99% confidence in a specimen with 20% and 10% tumor cellularity, respectively. The reportable ranges for the AKT, ERBB2 and EGFR genes are summarized in Supplementary Table S4. Within these reportable ranges, rs1050171 (c.2361G > A, p.Q787 = of the EGFR gene) was the only single nucleotide polymorphism (SNP) with a minor allele frequency of more than 1% in the general population according to the dbSNP database of the National Center for Biotechnology Information. The reportable ranges and reference ranges for the BRAF, KRAS, NRAS and PIK3CA genes have been reported previously [21]. The nucleotide changes of the mutations detected in this study were summarized in Supplementary Table S5.

Single nucleotide polymorphism (SNP) array

SNP array analysis was performed as previously described [50]. Briefly, DNA samples extracted from FFPE tissues (optimally 200 ng) were treated with the Infinium HD FFPE NDA restore kit before running on the Illumina Infinium II SNP array (HumanCytoSNP-12 v2.1 DNA Analysis BeadChip, Illumina Inc., San Diego, CA) according to the manufacturer’s standard protocol. The B allele frequency and Log R ratio data were analyzed using Illumina KaryoStudio software version 2.0 and CNV (copy number variation) partition V2.4.4.0.

CONFLICTS OF INTEREST

The authors declare no conflicts of interest.

FUNDING

This retrospective analysis for quality improvement was supported by 1UM1CA186691-01 from the NIH-National Cancer Institute.

REFERENCES

1. Lynch TJ, Bell DW, Sordella R, Gurubhagavatula S, Okimoto RA, Brannigan BW, Harris PL, Haserlat SM, Supko JG, Haluska FG, Louis DN, Christiani DC, Settleman J, et al. Activating mutations in the epidermal growth factor receptor underlying responsiveness of non-small-cell lung cancer to gefitinib. N Engl J Med. 2004; 350:2129–2139.

2. Paez JG, Janne PA, Lee JC, Tracy S, Greulich H, Gabriel S, Herman P, Kaye FJ, Lindeman N, Boggon TJ, Naoki K, Sasaki H, Fujii Y, et al. EGFR mutations in lung cancer: correlation with clinical response to gefitinib therapy. Science. 2004; 304:1497–1500.

3. Ha SY, Choi SJ, Cho JH, Choi HJ, Lee J, Jung K, Irwin D, Liu X, Lira ME, Mao M, Kim HK, Choi YS, Shim YM, et al. Lung cancer in never-smoker Asian females is driven by oncogenic mutations, most often involving EGFR. Oncotarget. 2015; 6:5465–5474. doi: 10.18632/oncotarget.2925.

4. Sequist LV, Yang JC, Yamamoto N, O’Byrne K, Hirsh V, Mok T, Geater SL, Orlov S, Tsai CM, Boyer M, Su WC, Bennouna J, Kato T, et al. Phase III study of afatinib or cisplatin plus pemetrexed in patients with metastatic lung adenocarcinoma with EGFR mutations. J Clin Oncol. 2013; 31:3327–3334.

5. Tan CS, Gilligan D, Pacey S. Treatment approaches for EGFR-inhibitor-resistant patients with non-small-cell lung cancer. Lancet Oncol. 2015; 16:e447–459.

6. Yu HA, Arcila ME, Rekhtman N, Sima CS, Zakowski MF, Pao W, Kris MG, Miller VA, Ladanyi M, Riely GJ. Analysis of tumor specimens at the time of acquired resistance to EGFR-TKI therapy in 155 patients with EGFR-mutant lung cancers. Clin Cancer Res. 2013; 19:2240–2247.

7. Sequist LV, Waltman BA, Dias-Santagata D, Digumarthy S, Turke AB, Fidias P, Bergethon K, Shaw AT, Gettinger S, Cosper AK, Akhavanfard S, Heist RS, Temel J, et al. Genotypic and histological evolution of lung cancers acquiring resistance to EGFR inhibitors. Sci Transl Med. 2011; 3:75ra26.

8. Ohashi K, Sequist LV, Arcila ME, Moran T, Chmielecki J, Lin YL, Pan Y, Wang L, de Stanchina E, Shien K, Aoe K, Toyooka S, Kiura K, et al. Lung cancers with acquired resistance to EGFR inhibitors occasionally harbor BRAF gene mutations but lack mutations in KRAS, NRAS, or MEK1. Proc Natl Acad Sci U S A. 2012; 109:E2127–2133.

9. Engelman JA, Zejnullahu K, Mitsudomi T, Song Y, Hyland C, Park JO, Lindeman N, Gale CM, Zhao X, Christensen J, Kosaka T, Holmes AJ, Rogers AM, et al. MET amplification leads to gefitinib resistance in lung cancer by activating ERBB3 signaling. Science. 2007; 316:1039–1043.

10. Takezawa K, Pirazzoli V, Arcila ME, Nebhan CA, Song X, de Stanchina E, Ohashi K, Janjigian YY, Spitzler PJ, Melnick MA, Riely GJ, Kris MG, Miller VA, et al. HER2 amplification: a potential mechanism of acquired resistance to EGFR inhibition in EGFR-mutant lung cancers that lack the second-site EGFRT790M mutation. Cancer Discov. 2012; 2:922–933.

11. Huang L, Fu L. Mechanisms of resistance to EGFR tyrosine kinase inhibitors. Acta Pharm Sin B. 2015; 5:390–401.

12. Balak MN, Gong Y, Riely GJ, Somwar R, Li AR, Zakowski MF, Chiang A, Yang G, Ouerfelli O, Kris MG, Ladanyi M, Miller VA, Pao W. Novel D761Y and common secondary T790M mutations in epidermal growth factor receptor-mutant lung adenocarcinomas with acquired resistance to kinase inhibitors. Clin Cancer Res. 2006; 12:6494–6501.

13. Bean J, Riely GJ, Balak M, Marks JL, Ladanyi M, Miller VA, Pao W. Acquired resistance to epidermal growth factor receptor kinase inhibitors associated with a novel T854A mutation in a patient with EGFR-mutant lung adenocarcinoma. Clin Cancer Res. 2008; 14:7519–7525.

14. Costa DB, Halmos B, Kumar A, Schumer ST, Huberman MS, Boggon TJ, Tenen DG, Kobayashi S. BIM mediates EGFR tyrosine kinase inhibitor-induced apoptosis in lung cancers with oncogenic EGFR mutations. PLoS Med. 2007; 4:1669–1679; discussion 1680.

15. Sequist LV, Soria JC, Goldman JW, Wakelee HA, Gadgeel SM, Varga A, Papadimitrakopoulou V, Solomon BJ, Oxnard GR, Dziadziuszko R, Aisner DL, Doebele RC, Galasso C, et al. Rociletinib in EGFR-mutated non-small-cell lung cancer. N Engl J Med. 2015; 372:1700–1709.

16. Janne PA, Yang JC, Kim DW, Planchard D, Ohe Y, Ramalingam SS, Ahn MJ, Kim SW, Su WC, Horn L, Haggstrom D, Felip E, Kim JH, et al. AZD9291 in EGFR inhibitor-resistant non-small-cell lung cancer. N Engl J Med. 2015; 372:1689–1699.

17. Thress KS, Paweletz CP, Felip E, Cho BC, Stetson D, Dougherty B, Lai Z, Markovets A, Vivancos A, Kuang Y, Ercan D, Matthews SE, Cantarini M, et al. Acquired EGFR C797S mutation mediates resistance to AZD9291 in non-small cell lung cancer harboring EGFR T790M. Nat Med. 2015; 21:560–562.

18. Yu HA, Tian SK, Drilon AE, Borsu L, Riely GJ, Arcila ME, Ladanyi M. Acquired Resistance of EGFR-Mutant Lung Cancer to a T790M-Specific EGFR Inhibitor: Emergence of a Third Mutation (C797S) in the EGFR Tyrosine Kinase Domain. JAMA Oncol. 2015; 1:982–984.

19. Niederst MJ, Hu H, Mulvey HE, Lockerman EL, Garcia AR, Piotrowska Z, Sequist LV, Engelman JA. The Allelic Context of the C797S Mutation Acquired upon Treatment with Third-Generation EGFR Inhibitors Impacts Sensitivity to Subsequent Treatment Strategies. Clin Cancer Res. 2015; 21:3924–3933.

20. Lin MT, Mosier SL, Thiess M, Beierl KF, Debeljak M, Tseng LH, Chen G, Yegnasubramanian S, Ho H, Cope L, Wheelan SJ, Gocke CD, Eshleman JR. Clinical validation of KRAS, BRAF, and EGFR mutation detection using next-generation sequencing. Am J Clin Pathol. 2014; 141:856–866.

21. Haley L, Tseng LH, Zheng G, Dudley J, Anderson DA, Azad NS, Gocke CD, Eshleman JR, Lin MT. Performance characteristics of next-generation sequencing in clinical mutation detection of colorectal cancers. Mod Pathol. 2015; 28:1390–1399.

22. Takano T, Ohe Y, Sakamoto H, Tsuta K, Matsuno Y, Tateishi U, Yamamoto S, Nokihara H, Yamamoto N, Sekine I, Kunitoh H, Shibata T, Sakiyama T, et al. Epidermal growth factor receptor gene mutations and increased copy numbers predict gefitinib sensitivity in patients with recurrent non-small-cell lung cancer. J Clin Oncol. 2005; 23:6829–6837.

23. Dudley JC, Gurda GT, Tseng LH, Anderson DA, Chen G, Taube JM, Gocke CD, Eshleman JR, Lin MT. Tumor cellularity as a quality assurance measure for accurate clinical detection of BRAF mutations in melanoma. Mol Diagn Ther. 2014; 18:409–418.

24. Wu SG, Liu YN, Tsai MF, Chang YL, Yu CJ, Yang PC, Yang JC, Wen YF, Shih JY. The mechanism of acquired resistance to irreversible EGFR tyrosine kinase inhibitor-afatinib in lung adenocarcinoma patients. Oncotarget. 2016; 7:12404–13. doi: 10.18632/oncotarget.7189.

25. Sholl LM, Aisner DL, Varella-Garcia M, Berry LD, Dias-Santagata D, Wistuba, II, Chen H, Fujimoto J, Kugler K, Franklin WA, Iafrate AJ, Ladanyi M, et al. Multi-institutional Oncogenic Driver Mutation Analysis in Lung Adenocarcinoma: The Lung Cancer Mutation Consortium Experience. J Thorac Oncol. 2015; 10:768–777.

26. Ji W, Choi CM, Rho JK, Jang SJ, Park YS, Chun SM, Kim WS, Lee JS, Kim SW, Lee DH, Lee JC. Mechanisms of acquired resistance to EGFR-tyrosine kinase inhibitor in Korean patients with lung cancer. BMC Cancer. 2013; 13:606.

27. Stachler MD, Rinehart EM, Garcia E, Lindeman NI. PIK3CA Mutations are Common in Many Tumor Types and are Often Associated With Other Driver Mutations. Appl Immunohistochem Mol Morphol. 2015:1.

28. Eng J, Woo KM, Sima CS, Plodkowski A, Hellmann MD, Chaft JE, Kris MG, Arcila ME, Ladanyi M, Drilon A. Impact of Concurrent PIK3CA Mutations on Response to EGFR Tyrosine Kinase Inhibition in EGFR-Mutant Lung Cancers and on Prognosis in Oncogene-Driven Lung Adenocarcinomas. J Thorac Oncol. 2015; 10:1713–1719.

29. Gadgeel SM, Wozniak A. Preclinical rationale for PI3K/Akt/mTOR pathway inhibitors as therapy for epidermal growth factor receptor inhibitor-resistant non-small-cell lung cancer. Clin Lung Cancer. 2013; 14:322–332.

30. Ludovini V, Bianconi F, Pistola L, Chiari R, Minotti V, Colella R, Giuffrida D, Tofanetti FR, Siggillino A, Flacco A, Baldelli E, Iacono D, Mameli MG, et al. Phosphoinositide-3-kinase catalytic alpha and KRAS mutations are important predictors of resistance to therapy with epidermal growth factor receptor tyrosine kinase inhibitors in patients with advanced non-small cell lung cancer. J Thorac Oncol. 2011; 6:707–715.

31. Burris HA, 3rd. Overcoming acquired resistance to anticancer therapy: focus on the PI3K/AKT/mTOR pathway. Cancer Chemother Pharmacol. 2013; 71:829–842.

32. Cushman-Vokoun AM, Crowley AM, Rapp SA, Greiner TC. Comparison study of the performance of the QIAGEN EGFR RGQ and EGFR pyro assays for mutation analysis in non-small cell lung cancer. Am J Clin Pathol. 2013; 140:7–19.

33. Vallee A, Le Loupp AG, Denis MG. Efficiency of the Therascreen(R) RGQ PCR kit for the detection of EGFR mutations in non-small cell lung carcinomas. Clin Chim Acta. 2014; 429:8–11.

34. Kimura H, Ohira T, Uchida O, Matsubayashi J, Shimizu S, Nagao T, Ikeda N, Nishio K. Analytical performance of the cobas EGFR mutation assay for Japanese non-small-cell lung cancer. Lung Cancer. 2014; 83:329–333.

35. Pao W, Miller VA, Politi KA, Riely GJ, Somwar R, Zakowski MF, Kris MG, Varmus H. Acquired resistance of lung adenocarcinomas to gefitinib or erlotinib is associated with a second mutation in the EGFR kinase domain. PLoS Med. 2005; 2:e73.

36. Kwak EL, Sordella R, Bell DW, Godin-Heymann N, Okimoto RA, Brannigan BW, Harris PL, Driscoll DR, Fidias P, Lynch TJ, Rabindran SK, McGinnis JP, Wissner A, et al. Irreversible inhibitors of the EGF receptor may circumvent acquired resistance to gefitinib. Proc Natl Acad Sci U S A. 2005; 102:7665–7670.

37. Engelman JA, Mukohara T, Zejnullahu K, Lifshits E, Borras AM, Gale CM, Naumov GN, Yeap BY, Jarrell E, Sun J, Tracy S, Zhao X, Heymach JV, et al. Allelic dilution obscures detection of a biologically significant resistance mutation in EGFR-amplified lung cancer. J Clin Invest. 2006; 116:2695–2706.

38. Ishii H, Azuma K, Sakai K, Kawahara A, Yamada K, Tokito T, Okamoto I, Nishio K, Hoshino T. Digital PCR analysis of plasma cell-free DNA for non-invasive detection of drug resistance mechanisms in EGFR mutant NSCLC: Correlation with paired tumor samples. Oncotarget. 2015; 6:30850–30858. doi: 10.18632/oncotarget.5068.

39. Sundaresan TK, Sequist LV, Heymach JV, Riely GJ, Janne PA, Koch WH, Sullivan JP, Fox DB, Maher R, Muzikansky A, Webb A, Tran HT, Giri U, et al. Detection of T790M, the Acquired Resistance EGFR Mutation, by Tumor Biopsy versus Noninvasive Blood-Based Analyses. Clin Cancer Res. 2016; 22:1103–1110.

40. Sharma SV, Bell DW, Settleman J, Haber DA. Epidermal growth factor receptor mutations in lung cancer. Nat Rev Cancer. 2007; 7:169–181.

41. Hellmann MD, Reva B, Yu H, Rusch VW, Rizvi NA, Kris MG, Arcila ME. Clinical and in vivo evidence that EGFR S768I mutant lung adenocarcinomas are sensitive to erlotinib. J Thorac Oncol. 2014; 9:e73–74.

42. Improta G, Pettinato A, Gieri S, Scandurra G, Skovrider-Ruminski W, Hogdall E, Fraggetta F. Epidermal growth factor receptor exon 20 p.S768I mutation in non-small cell lung carcinoma: A case report combined with a review of the literature and investigation of clinical significance. Oncol Lett. 2016; 11:393–398.

43. Chiu CH, Yang CT, Shih JY, Huang MS, Su WC, Lai RS, Wang CC, Hsiao SH, Lin YC, Ho CL, Hsia TC, Wu MF, Lai CL, et al. Epidermal Growth Factor Receptor Tyrosine Kinase Inhibitor Treatment Response in Advanced Lung Adenocarcinomas with G719X/L861Q/S768I Mutations. J Thorac Oncol. 2015; 10:793–799.

44. Asahina H, Yamazaki K, Kinoshita I, Yokouchi H, Dosaka-Akita H, Nishimura M. Non-responsiveness to gefitinib in a patient with lung adenocarcinoma having rare EGFR mutations S768I and V769L. Lung Cancer. 2006; 54:419–422.

45. Linardou H, Dahabreh IJ, Bafaloukos D, Kosmidis P, Murray S. Somatic EGFR mutations and efficacy of tyrosine kinase inhibitors in NSCLC. Nat Rev Clin Oncol. 2009; 6:352–366.

46. Xiang X, Yu J, Lai Y, He W, Li S, Wang L, Ke Z. L858R-positive lung adenocarcinoma with KRAS G12V, EGFR T790M and EGFR L858R mutations: A case report. Oncol Lett. 2015; 10:1293–1296.

47. Del Re M, Tiseo M, Bordi P, D’Incecco A, Camerini A, Petrini I, Lucchesi M, Inno A, Spada D, Vasile E, Citi V, Malpeli G, Testa E, et al. Contribution of KRAS mutations and c.2369C > T (p.T790M) EGFR to acquired resistance to EGFR-TKIs in EGFR mutant NSCLC: a study on circulating tumor DNA. Oncotarget. 2016; doi: 10.18632/oncotarget.6957.

48. Dudley J, Tseng LH, Rooper L, Harris M, Haley L, Chen G, Gocke CD, Eshleman JR, Lin MT. Challenges posed to pathologists in the detection of KRAS mutations in colorectal cancers. Arch Pathol Lab Med. 2015; 139:211–218.

49. Carter J, Tseng LH, Zheng G, Dudley J, Illei P, Gocke CD, Eshleman JR, Lin MT. Non-p.V600E BRAF Mutations Are Common Using a More Sensitive and Broad Detection Tool. Am J Clin Pathol. 2015; 144:620–628.

50. Zheng G, Tseng LH, Chen G, Haley L, Illei P, Gocke CD, Eshleman JR, Lin MT. Clinical detection and categorization of uncommon and concomitant mutations involving BRAF. BMC Cancer. 2015; 15:779.


Creative Commons License All site content, except where otherwise noted, is licensed under a Creative Commons Attribution 3.0 License.
PII: 9931
