Research Papers:

Clinicopathological and prognostic significance of regulatory T cells in patients with non-small cell lung cancer: A systematic review with meta-analysis

PDF |  HTML  |  How to cite

Oncotarget. 2016; 7:36065-36073. https://doi.org/10.18632/oncotarget.9130

Metrics: PDF 2280 views  |   HTML 2446 views  |   ?

Sha Zhao, Tao Jiang, Limin Zhang, Hui Yang, Xiaozhen Liu, Yijun Jia and Caicun Zhou _


Sha Zhao1,*, Tao Jiang1,*, Limin Zhang1, Hui Yang1, Xiaozhen Liu1, Yijun Jia1, Caicun Zhou1

1Department of Medical Oncology, Shanghai Pulmonary Hospital, Tongji University School of Medicine, Tongji University Medical School Cancer Institute, Shanghai, China

*These authors contributed equally to this work

Correspondence to:

Caicun Zhou , email: [email protected]

Keywords: regulatory T cells, Foxp3+, non-small cell lung cancer, prognosis, systematic review

Received: February 03, 2016     Accepted: April 11, 2016     Published: April 28, 2016


The prognostic and clinicopathological value of regulatory T cells (Tregs) infiltration in patients with non-small cell lung cancer (NSCLC) remains undetermined. A comprehensive literature search of electronic databases (up to December 2015) was conducted. Relationship between Tregs infiltration and clinicopathological features, recurrence-free survival (RFS) and overall survival (OS) was investigated by synthesizing the qualified data. A total of 1303 NSCLC patients from 11 studies were included. The pooled hazard ratio (HR) for survival showed that high Tregs infiltration had no effect on RFS (HR = 2.03, 95% CI: 0.61–3.44, P = 0.708) and OS (HR = 1.20, 95% CI: 0.58–1.62, P = 0.981). High FoxP3+ Tregs infiltration was significantly associated with poor OS in NSCLC (HR = 3.88, 95% CI: 2.45–5.40, P = 0.000). Test methods, ethnicity and types of specimens had no effect on predicting prognosis of Tregs infiltration. While high Tregs infiltration was significantly correlated with smoking status [odds ratios (ORs) = 1.54, 95% CI: 1.15–2.08; P = 0.004], none of other clinicopathological characteristics such as gender, histological type, lymph node metastasis status, tumor size, vascular invasion, lymphatic invasion and pleural invasion were associated with Tregs infiltration. The present study demonstrated that high FoxP3+ Tregs infiltration was significantly associated with poor prognosis in NSCLC and smoking status.


Lung cancer is the most common malignant tumor and the leading cause of cancer death worldwide, with 1.6 million new cases and 1.38 million deaths annually [1, 2]. Non-small cell lung cancer (NSCLC) accounts for 80–85% of all lung malignancies and the overall 5-year survival of patients with NSCLC remains approximately 15–20% [3, 4]. Although the driver mutations including epidermal growth factor receptor (EGFR) and anaplastic lymphoma kinase (ALK) have revolutionized the treatment and prognosis of NSCLC, it just focused on the cancer cell intrinsic properties [5, 6]. More and more recent studies have begun to investigate the prognostic and clinicopathological role of tumor microenvironment (TME) in NSCLC [7, 8]. In the past, it had been supposed that the tumorigenesis and failure of cancer immunotherapy was due to the insufficient activation of immune system. Recently, increasing evidence indicates that inhibitory function plays the crucial role in the TME [6, 9]. One of the most significant inhibitory components is the regulatory T cells (Tregs).

Tregs are one of the most important cells in the TME. Tregs-mediated suppression of tumor-associated antigens has been proposed as a potential mechanism to explain the failure of anti-cancer immunity and the expansion of Tregs was found to be an hindrance to successful tumor immunotherapy [10]. The clinicopatnological and prognostic valueof Tregs in patients with NSCLC have been a long-standing topic of debate. Several studies have suggested that tumor infiltrating Tregs could predict the clinical outcomes in patients with NSCLC. Some of them showed that high Tregs infiltration was associated with poor prognosis [11, 12], while others revealed that high Tregs infiltration was correlated with better prognosis [1315]. Moreover, there are some studies reported no significant association between the presence of Tregs and patient survival [16]. Whether Tregs infiltration had the prognostic potential in patients with NSCLC remains controversial.

The X-linked gene forkhead box P3 (FOXP3), encoding the transcription factor Foxp3, serves as a lineage specification factor for the development and function of CD4+CD25+ Tregs [17, 18]. To date, Foxp3 is considered to be the most specific Tregs marker. Foxp3+ Tregs have been shown to the essential suppressors of the anti-tumor responses by interfering with the release of cytolytic granule by cytotoxic T lymphocytes (CTLs) [19]. High tumor infiltration of Foxp3+ Tregs is supposed to be correlated with the poor outcomes. Indeed, this relationship has been demonstrated in a number of publications [1315, 20]. However, a recent study showed that high Foxp3+ Tregs infiltration was significantly associated with improved survival in patients with NSCLC [12]. Whether Foxp3+ Tregs infiltration had the prognostic value in patients with NSCLC also remains conflicting.

Although there has been a meta-analysis on this topic, they analyzed the prognostic value of Foxp3+ Tregs in different types of cancer and only two publications referred to NSCLC [21]. There have been more than nine papers published since this meta-analysis was conducted. Moreover, it did not perform the subgroup analysis on NSCLC and the relationship between Tregs infiltration and clinicopathological features in patients with NSCLC. For these reasons, we conducted this meta-analysis to derive a more precise estimation of the clinicopathological and prognostic significance of regulatory T cells in patients with NSCLC.


Study selection

The result of literature inclusion was showed in Figure 1. A total of 405 potentially relevant articles were found, and 11 studies were included in this analysis after screening [1116, 20, 2225]. Most of the excluded abstracts were reviews, letters or studies with insufficient data.

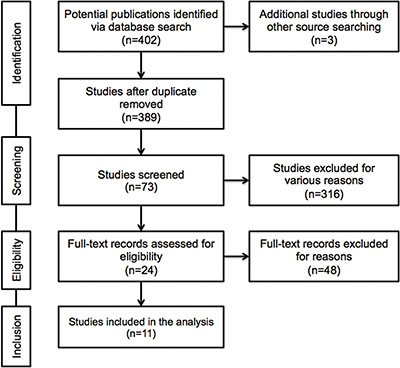

Flow diagram of the study selection process.

Figure 1: Flow diagram of the study selection process.

Characteristics of the included studies

In the present analysis, a total of 1303 cases from 11 studies were met with our defined criteria and included. The main features of each eligible study were extracted (Table 1). Most of the studies (9/11) dealt with patients with stage from I to III/IV of NSCLC, and the rest of the studies (2/11) were focused on the patients with early stage I. Eight studies reported that surgery was performed on patients and two study mentioned that no prior treatment was applied, while only one had no relevant reports at all. The popular kinds of specimens included peripheral blood, regional lymph nodes and paraffin-embedded surgical tissues. The most commonly used test methods for Tregs infiltration are immunohistochemistry (IHC) and flow cytometry (FCM). Still, one study used the quantitative real time-polymerase chain reaction (qRT-PCR). Tregs markers refer to the different combinations of CD4+CD25+ and FoxP3+ or alone. One study had used the Helios+ as the specific marker of Tregs. The cutoff points of high Tregs infiltration were heterogeneous and only two studies used the median number of Tregs as the cutoff point. Eight included studies indicated RFS and/or OS and clinicopathological details. Among the eleven studies, three of them reported neither OS nor DFS, but presented clinicopathological features.

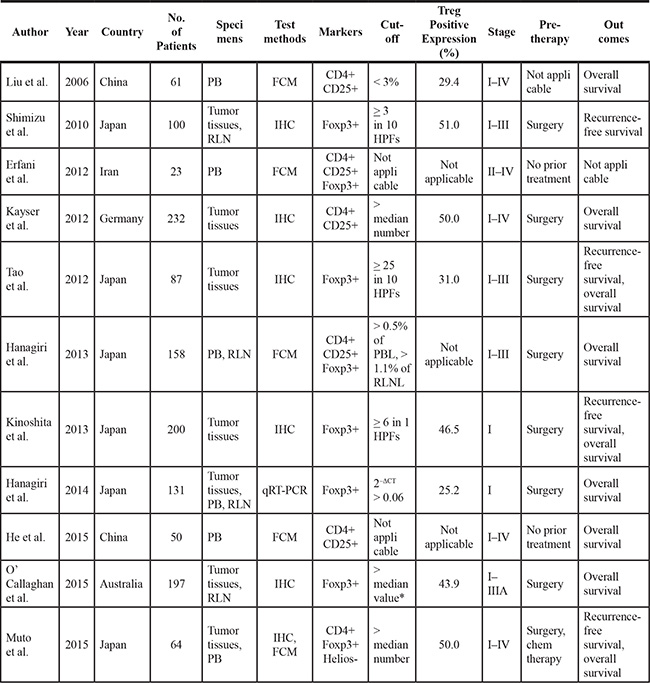

Table 1: General characteristics of included studies

PB: peripheral blood; RLN: regional lymph nodes; FCM: flow cytometry; IHC: immunohistochemistry; HPFs: high-power fields; qRT-PCR: quantitative real time-polymerase chain reaction.

*: median value was defined as the ratio of corresponding tumour islet and stroma counts.

The prognostic effect of Tregs on survival

Data of survival extracted from seven eligible studies were included in the meta-analysis. Since most of the included patients were with resection, patients with advanced stage in two studies were excluded when we performed the meta-analysis [22, 24]. Two of them reported the relationship between high Tregs infiltration and RFS, while six of them published the data of OS. Interestingly, meta-analysis found that the NSCLC patients with high Tregs infiltration showed no superior RFS than those with low Tregs infiltration (HR = 2.03, 95% CI: 0.61–3.44, P = 0.708, fixed model) (Figure 2A). Also patients with high Tregs infiltration showed no superior OS than those with low Tregs infiltration (HR = 1.20, 95% CI: 0.58–1.62, P = 0.981, random model) (Figure 2B).

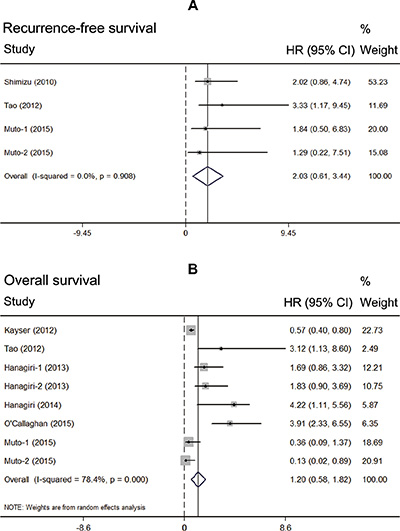

Prognostic value of high Tregs infiltration in NSCLC.

Figure 2: Prognostic value of high Tregs infiltration in NSCLC. (A) meta-analysis of high Tregs infiltration and recurrence-free survival in NSCLC; (B) meta-analysis of high Tregs infiltration and overall survival in NSCLC.

Subgroup analysis of the prognostic effect of Tregs

Considering the high heterogeneity of pooled analysis on OS (I2 = 78.4%; P = 0.000), we performed the subgroup analysis of the prognostic effect of Tregs infiltration. Firstly, we analyzed the test method of Tregs infiltration and found no significant effect on OS (HR = 2.29, 95% CI: 0.33–4.90, P = 0.087). Then, we just included the studies used tumor tissues to test the Tregs infiltration. The pooled result showed that types of specimens had no significant effect on RFS and OS (n = 251, HR = 2.07, 95% CI: 0.49–3.66, P = 0.256; n = 869, HR = 1.47, 95% CI: 0.63–2.31, P = 0.681; respectively) (Figure 3A3B). After that, we just included the studies used FoxP3+ as the markers of Tregs. The pooled result indicated that high FoxP3+ Tregs infiltration was associated with significantly poorer OS in patients with NSCLC (n = 415, HR = 3.88, 95% CI: 2.45–5.40, P = 0.000). In addition the results showed no obvious heterogeneity (I2 = 0.0%; P = 0.896) (Figure 3C). Finally, we investigated the ethnicity (Asian) of Tregs infiltration and found no significant effect on OS (n = 353, HR = 1.34, 95% CI: 0.41–2.28, P = 0.870).

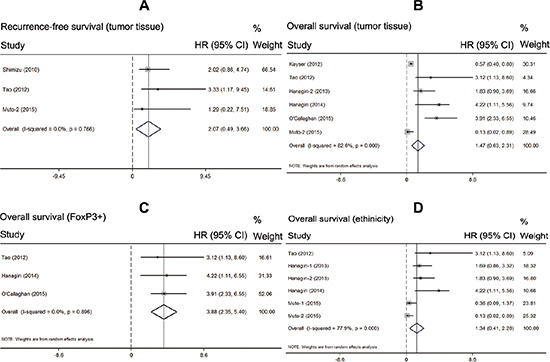

Subgroup analysis of the prognostic effect of Tregs.

Figure 3: Subgroup analysis of the prognostic effect of Tregs. (A) meta-analysis of high Tregs infiltration and recurrence-free survival in the studies used the tumor tissue; (B) meta-analysis of high Tregs infiltration and overall survival in the studies used the tumor tissue; (C) meta-analysis of high Tregs infiltration and overall survival in the studies used Foxp3+ as the Tregs marker; (D) meta-analysis of high Tregs infiltration and overall survival by same ethnicity.

The relationship between Tregs infiltration and clinicopathological features

Four studies provided the information of various clinicopathological parameters and their correlation with Tregs infiltration was summarized in Table 2. Three studies had the statistical data on gender of patients. However, none of them reported the association between gender and high Tregs infiltration. Likewise, three studies demonstrated that there was no correlation between high Tregs infiltration and histology. In addition, Tao et al. showed that patients with smoking habits showed higher Tregs accumulation than non-smokers (P = 0.040). However, another two studies showed that there is no relationship between smoking history and FoxP3+ Tregs infiltration. Hence, we performed the meta-analysis and found that smoking status was significantly correlated with high FoxP3+ Tregs infiltration (OR = 1.54, 95% CI: 1.15–2.08; P = 0.004). Except for these above-mentioned parameters, controversies also existed on the correlation among tumor size (< 3 cm), lymph node metastasis, vascular invasion, lymphatic invasion and pleural invasion. The results of meta-analysis demonstrated that no correlation was found between the infiltration of FoxP3+ Tregs and tumor size (OR = 1.24, 95%CI: 0.89–1.74; P = 0.211), lymph node metastasis (OR = 0.98, 95%CI: 0.60–1.61; P = 0.944), vascular invasion (OR = 1.29, 95%CI: 0.80–2.09; P = 0.296), lymphatic invasion (OR = 1.05, 95% CI: 0.61–1.81; P = 0.848) and pleural invasion (OR = 1.49, 95% CI: 0.90–2.46; P = 0.119) (Table 2).

Table 2: Meta-analysis of the reported clinicopathological factors in the included studies


Number of Studies

Test of association

Test of heterogeneity


95% CI





Gender (male)
























Squamous cell carcinoma








Lymph node metastasis








Tumor size (< 3 cm)








Vascular invasion








Lymphatic invasion








Pleural invasion








RR: risk ratio; CI: confidence interval.


Although a series of studies have discussed the prognostic value of Tregs in NSCLC, the results remains discordant. In the present article, the results indicated that when we ignored the different combinations of Tregs’ marker (including CD4+, CD25+ and Foxp3+), high Tregs infiltration had no effect on RFS and OS in NSCLC. However, when we just included studies used Foxp3+ alone or combined with CD4+ and CD25+ as the Tregs’ marker, we found that high Foxp3+ Tregs infiltration was significantly associated with OS in patients with NSCLC. Our results are consistent with these observations from other investigators. Previous studies have reported that NSCLC patients with high Foxp3+ Tregs infiltration were not only at increased risk of disease relapse but also correlated with unfavorable outcome [1315, 26]. These studies confirm the prognostic value of Foxp3+ Tregs infiltration in patients with NSCLC.

Our study also found that high Foxp3+ Tregs infiltration was significantly associated with smoking status, and this correlation was in line with the studies that the increase in Tregs was related to smoking [13, 27, 28]. The mechanism of this phenomenon is not yet clear. One possible explanation revealed that cigarette smoking could promote the mobilization and accumulation of (MDSCs) and increase the level of interferon-γ in TME [29]. Meanwhile, other studies demonstrated that MDSCs could induce Foxp3+ Tregs development and expansion via the production of cytokines, such as IFN-γ, or direct cell-cell interactions [3032]. Taken together, we can hypothesize that cigarette smoking can induce Foxp3+ Tregs infiltration via promoting accumulation of MDSCs. Nevertheless, this hypothesis need rigorously designed basic research to confirm.

Tregs are a heterogeneous population and consist of at least two subsets: natural Tregs (nTregs) and induced or adaptive Tregs (iTregs) [33]. More and more evidences show that two Tregs types play the different roles in the anti-tumor immune response [18, 34]. The nTregs originate in the thymus and are thought to recognize self-antigens [35]. The iTregs develop from conventional naïve T cell precursors at extra-thymic sites and are considered to suppress the immune response [36]. Therefore, clear discrimination between these two Tregs types is important for assessing their value in predicting prognosis. In the included study, Muto et al. used the Helios, a member of the Ikaros gene family, as a marker to distinguish iTregs from nTregs and found that Foxp3+Helios- Tregs could affect immune suppression, even in early stage NSCLC [12]. Moreover, their results suggested that patients with low level of Helios in Tregs had significantly poorer survival (HR = 0.13, P = 0.04). However, recent studies indicated that nTregs from iTregs are not distinguished only by Helios expression [37]. Other molecular markers should be given fully consideration including epigenetic Tregs-specific demethylated region (TSDR) modifications and neuropilin 1 [3840]. Despite of these studies, a determined marker for nTregs has not been found so far.

Recently, several studies aimed to improve the therapeutic efficacy via depleting Tregs in patients with cancer. Some researchers attempted to inhibit Tregs function by using anti-CD25 antibody and by suppressing the cytotoxic T lymphocyte antigen 4 (CTLA4) pathway, which is an important inhibitory signal for activated T cells [41], but the results were disappointed. The reason may include that these strategies could not only deplete Tregs but also affect activated effector T cells function [42]. Of note, a recent study revealed that tumor-induced Tregs could proliferate via vascular endothelial growth factor (VEGF)/VEGF receptor (VEGFR) pathway in colorectal cancer [43]. VEGF/VEGFR pathway blockade did not eradicate all Tregs but simply restored their proportion to physiology levels. Therefore, it would be interesting to combine anti-angiogenic agents inhibiting VEGF/VEGFR pathway with other immunotherapeutic strategies [44, 45]. This approach would selectively suppress Tregs and avoid the depletion of effector T cells and minimize the occurrence of autoimmune mediated adverse effects correlated with a total of Treg depletion [43].

The present systematic review with meta-analysis has some limitations that should be acknowledged. Firstly, the number of the included studies was relatively small. Secondly, there may be some degree of publication bias in this area of research. We identified several abstracts describing articles that were not further detailed in standard publications. We have tried to contact authors of primary studies. However, we have not received any reply. Thirdly, there is clearly a multitude of confounding factors (test technique, specimen storage, laboratory condition and so on) that make experiment comparisons difficult. Last but not least, there is statistical heterogeneity among the studies regarding the prognostic value of Tregs infiltration. Studies may have differed with regard to the baseline characteristics of the patients included histological type, tumor size, disease stage, prior treatment and adjustments for other cofactors. Fortunately, we found that the heterogeneity may be due to the lack of standard test methods and evaluation criteria.

In conclusion, the current study suggests that high Foxp3+ Tregs infiltration may be a promising prognostic factor to patients with NSCLC. High Foxp3+ Tregs infiltration seems to correlate with smoking status instead of gender, histological type, lymph node metastasis status, tumor size, vascular invasion, lymphatic invasion and pleural invasion. Depletion of Tregs is an attractive strategy in future cancer treatment. In addition, the specific and exclusive surface molecule of Tregs should be illustrated clearly before large-scale clinical studies being performed.


Publication search strategy

We performed a comprehensive publication search through the PubMed, EMBASE, Web of Science, and Cochrane library up to December 31, 2015, without language limitations. The following contextual query language was used: (“lung cancer”) AND (“regulatory T cells” OR “Foxp3”) AND (“prognosis” OR “mortality” OR “survival”). Titles and abstracts were reviewed to identify reports, which examined the association of Tregs expression with clinical outcomes, such as overall survival (OS), recurrence-free survival (RFS), disease free survival (DFS) and clinicopathological features. Reference lists of identified studies and reviews were also hand-searched. We have made any effort to contact authors of primary studies. This analysis was performed in accordance with Preferred Reporting Items for Systematic Reviews and Meta-Analyses: the PRISMA Statement [46].

Inclusion and exclusion criteria

The criteria for inclusion were listed as follows: studies must have (1) been published as original articles; (2) evaluated human subjects; (3) Tregs was detected on tumor tissue or peripheral blood via testing the markers of CD4+CD25+, FoxP3+ or CD4+CD25+FoxP3+, rather than in the cell lines or any other kinds of specimens; (4) reported association of high and low Tregs infiltration with OS, DFS, or RFS; and (5) contained the minimum information necessary to estimate the effects (i.e., hazard ratio) and a corresponding measure of uncertainty (i.e., confidence interval, P-values, standard errors or variance). As an additional criterion, when a single population was reported in multiple reports, only the report with the most complete data was included to avoid duplication. Studies were excluded if they were: (1) reviews, case-only studies, or familial studies; (2) lacking sufficient data for calculation of incidence and/or HR with 95% confidence intervals (CIs); and (3) duplication of previous publications or replicated samples. Two reviewers determined study eligibility independently. Disagreements were solved by consensus.

Data extraction

From each study, the following information was extracted: first author’s name, year of publication, study population, Tregs infiltration assessment methods, cut-off definition, and incidence of high Tregs infiltration with 95% CIs, HR for OS, and/or DFS with corresponding 95% CIs. If the HRs and CIs were not reported, the total observed death events and the numbers of patients in each group were extracted to calculate HR and its variance indirectly. In order to guarantee the accuracy of collected data, studies for which only Kaplan-Meier curves would not be included. When both univariate analysis and multivariate analysis were reported to get the HR, the results of multivariate analysis were selected. Two reviewers extracted the data independently, using a predefined Excel form. Disagreements were resolved by consensus after discussion. If they can’t get the consensus, the article would be excluded.

Quality assessment

Two reviewers assessed the study quality independently by using the following factors: (1) distinct definition of the study population; (2) clear definition of the test method and the cut-off value of high Tregs infiltration; (3) sample size larger than ten and (4) clear definition of the outcome assessment (if applicable). Studies lacking any of these criteria were excluded.

Statistical analysis

Overall survival (OS) was measured from the date of surgery until the date of death from any cause or the date on which the patient was last known to be alive. The recurrence-free survival (RFS) time was measured as the interval between the date of surgery and the date of recurrence, the date of death from any cause, or the most recent date on which the patient was last known to be disease-free. For time-to-event data, the HRs with their 95% CIs were directly extracted from the research article or calculated using previously published methods proposed by Tierney et al. [47]. The χ2 test was used to test for statistical heterogeneity and the I2 statistic was used to assess the extent of variability attributable to statistical heterogeneity across trials. P > 0.1 for the χ2 test and I2 < 25% were interpreted as signifying low-level heterogeneity. When there was no statistically significant heterogeneity, a pooled effect was calculated with a fixed-effects model; otherwise, a random-effects model was used.

To investigate the source of heterogeneity, predefined subgroup analyses were performed based on assessment method, cut-off definition, types of specimens and markers of Tregs. Sensitivity analyses were performed to assess the stability of the results, namely, a single study was deleted each time to reflect the influence of the individual data set on the results. Furthermore, we explored performed subgroup analysis on the relationship between high Tregs infiltration and clinicopathological parameters.

Statistical analysis was performed by STATA v12.0 (Stata Corporation, TX) and Review Manager 5.0 software. All data were analyzed using the Statistical Package for Social Sciences (SPSS) software (version 20.0 for Windows). P < 0.05 was considered statistically significant except for the Q-test.


Sha Zhao, Tao Jiang and Caicun Zhou designed the study and wrote the manuscript. Limin Zhang, Hui Yang, Xiaozhen Liu and Yijun Jia collected the relevant papers and data. Sha Zhao, Tao Jiang and Caicun Zhou analyzed the data. All authors reviewed the manuscript.


The authors have declared no conflicts of interest.


This study was supported by grants from the National Natural Science Foundation of China (No. 81372392) and the key project of the Science and Technology Commission of Shanghai Municipality (No. 11JC1411301).


1. Jemal A, Bray F, Center MM, Ferlay J, Ward E, Forman D. Global cancer statistics. CA Cancer J Clin. 2011; 61:69–90.

2. Torre LA, Bray F, Siegel RL, Ferlay J, Lortet-Tieulent J, Jemal A. Global cancer statistics, 2012. CA Cancer J Clin. 2015; 65:87–108.

3. Chen Z, Fillmore CM, Hammerman PS, Kim CF, Wong KK. Non-small-cell lung cancers: a heterogeneous set of diseases. Nat Rev Cancer. 2014; 14:535–46.

4. Herbst RS, Heymach JV, Lippman SM. Lung cancer. N Engl J Med. 2008; 359:1367–80.

5. Zochbauer-Muller S, Gazdar AF, Minna JD. Molecular pathogenesis of lung cancer. Annu Rev Physiol. 2002; 64:681–708.

6. Mittal V, El Rayes T, Narula N, McGraw TE, Altorki NK, Barcellos-Hoff MH. The Microenvironment of Lung Cancer and Therapeutic Implications. Adv Exp Med Biol. 2016; 890:75–110.

7. Liu R, Wei S, Chen J, Xu S. Mesenchymal stem cells in lung cancer tumor microenvironment: their biological properties, influence on tumor growth and therapeutic implications. Cancer Lett. 2014; 353:145–52.

8. Wood SL, Pernemalm M, Crosbie PA, Whetton AD. The role of the tumor-microenvironment in lung cancer-metastasis and its relationship to potential therapeutic targets. Cancer Treat Rev. 2014; 40:558–66.

9. Turley SJ, Cremasco V, Astarita JL. Immunological hallmarks of stromal cells in the tumour microenvironment. Nat Rev Immunol. 2015; 15:669–82.

10. Pardoll DM. The blockade of immune checkpoints in cancer immunotherapy. Nat Rev Cancer. 2012; 12:252–64.

11. Kayser G, Schulte-Uentrop L, Sienel W, Werner M, Fisch P, Passlick B, Zur Hausen A, Stremmel C. Stromal CD4/CD25 positive T-cells are a strong and independent prognostic factor in non-small cell lung cancer patients, especially with adenocarcinomas. Lung Cancer. 2012; 76:445–51.

12. Muto S, Owada Y, Inoue T, Watanabe Y, Yamaura T, Fukuhara M, Okabe N, Matsumura Y, Hasegawa T, Osugi J, Hoshino M, Higuchi M, Suzuki H, et al. Clinical significance of expanded Foxp3+ Helios- regulatory T cells in patients with non-small cell lung cancer. Int J Oncol. 2015; 47:2082–90.

13. Tao H, Mimura Y, Aoe K, Kobayashi S, Yamamoto H, Matsuda E, Okabe K, Matsumoto T, Sugi K, Ueoka H. Prognostic potential of FOXP3 expression in non-small cell lung cancer cells combined with tumor-infiltrating regulatory T cells. Lung Cancer. 2012; 75:95–101.

14. Hanagiri T, Fukumoto M, Koyanagi Y, Furutani Y, Tanaka F. Regulatory T-cells and micrometastasis in lymph nodes of stage I NSCLC. Anticancer Res. 2014; 34:7185–90.

15. O’Callaghan DS, Rexhepaj E, Gately K, Coate L, Delaney D, O’Donnell DM, Kay E, O’Connell F, Gallagher WM, O’Byrne KJ. Tumour islet Foxp3+ T-cell infiltration predicts poor outcome in nonsmall cell lung cancer. Eur Respir J. 2015; 46:1762–72.

16. Hanagiri T, Shigematsu Y, Shinohara S, Takenaka M, Oka S, Chikaishi Y, Nagata Y, Iwata T, Uramoto H, So T, Tanaka F. Clinical significance of the frequency of regulatory T cells in regional lymph node lymphocytes as a prognostic factor for non-small-cell lung cancer. Lung Cancer. 2013; 81:475–9.

17. Fontenot JD, Gavin MA, Rudensky AY. Foxp3 programs the development and function of CD4+CD25+ regulatory T cells. Nat Immunol. 2003; 4:330–6.

18. von Boehmer H, Daniel C. Therapeutic opportunities for manipulating T(Reg) cells in autoimmunity and cancer. Nat Rev Drug Discov. 2013; 12:51–63.

19. Mempel TR, Pittet MJ, Khazaie K, Weninger W, Weissleder R, von Boehmer H, von Andrian UH. Regulatory T cells reversibly suppress cytotoxic T cell function independent of effector differentiation. Immunity. 2006; 25:129–41.

20. Kinoshita T, Ishii G, Hiraoka N, Hirayama S, Yamauchi C, Aokage K, Hishida T, Yoshida J, Nagai K, Ochiai A. Forkhead box P3 regulatory T cells coexisting with cancer associated fibroblasts are correlated with a poor outcome in lung adenocarcinoma. Cancer Sci. 2013; 104:409–15.

21. Shang B, Liu Y, Jiang SJ, Liu Y. Prognostic value of tumor-infiltrating FoxP3+ regulatory T cells in cancers: a systematic review and meta-analysis. Sci Rep. 2015; 5:15179.

22. Liu L, Yao J, Ding Q, Huang S. CD4+CD25 high regulatory cells in peripheral blood of NSCLC patients. J Huazhong Univ Sci Technolog Med Sci. 2006; 26:548–51.

23. Shimizu K, Nakata M, Hirami Y, Yukawa T, Maeda A, Tanemoto K. Tumor-infiltrating Foxp3+ regulatory T cells are correlated with cyclooxygenase-2 expression and are associated with recurrence in resected non-small cell lung cancer. J Thorac Oncol. 2010; 5:585–90.

24. Erfani N, Mehrabadi SM, Ghayumi MA, Haghshenas MR, Mojtahedi Z, Ghaderi A, Amani D. Increase of regulatory T cells in metastatic stage and CTLA-4 over expression in lymphocytes of patients with non-small cell lung cancer (NSCLC). Lung Cancer. 2012; 77:306–11.

25. He LY, Li L, Guo ML, Zhang Y, Zhang HZ. Relationship between CD4+CD25+ Treg and expression of HIF-1alpha and Ki-67 in NSCLC patients. Eur Rev Med Pharmacol Sci. 2015; 19:1351–5.

26. Petersen RP, Campa MJ, Sperlazza J, Conlon D, Joshi MB, Harpole DH, Jr., Patz EF, Jr. Tumor infiltrating Foxp3+ regulatory T-cells are associated with recurrence in pathologic stage I NSCLC patients. Cancer. 2006; 107:2866–72.

27. Barcelo B, Pons J, Ferrer JM, Sauleda J, Fuster A, Agusti AG. Phenotypic characterisation of T-lymphocytes in COPD: abnormal CD4+CD25+ regulatory T-lymphocyte response to tobacco smoking. Eur Respir J. 2008; 31:555–62.

28. Granville CA, Memmott RM, Balogh A, Mariotti J, Kawabata S, Han W, Lopiccolo J, Foley J, Liewehr DJ, Steinberg SM, Fowler DH, Hollander MC, Dennis PA. A central role for Foxp3+ regulatory T cells in K-Ras-driven lung tumorigenesis. PLoS One. 2009; 4:e5061.

29. Kumar S, Torres MP, Kaur S, Rachagani S, Joshi S, Johansson SL, Momi N, Baine MJ, Gilling CE, Smith LM, Wyatt TA, Jain M, Joshi SS, et al. Smoking accelerates pancreatic cancer progression by promoting differentiation of MDSCs and inducing HB-EGF expression in macrophages. Oncogene. 2015; 34:2052–60.

30. Yang R, Cai Z, Zhang Y, Yutzy WHt, Roby KF, Roden RB. CD80 in immune suppression by mouse ovarian carcinoma-associated Gr-1+CD11b+ myeloid cells. Cancer Res. 2006; 66:6807–15.

31. Huang B, Pan PY, Li Q, Sato AI, Levy DE, Bromberg J, Divino CM, Chen SH. Gr-1+CD115+ immature myeloid suppressor cells mediate the development of tumor-induced T regulatory cells and T-cell anergy in tumor-bearing host. Cancer Res. 2006; 66:1123–31.

32. Gabrilovich DI, Nagaraj S. Myeloid-derived suppressor cells as regulators of the immune system. Nat Rev Immunol. 2009; 9:162–74.

33. Curotto de Lafaille MA, Lafaille JJ. Natural and adaptive foxp3+ regulatory T cells: more of the same or a division of labor? Immunity. 2009; 30:626–35.

34. Josefowicz SZ, Lu LF, Rudensky AY. Regulatory T cells: mechanisms of differentiation and function. Annu Rev Immunol. 2012; 30:531–64.

35. Apostolou I, Sarukhan A, Klein L, von Boehmer H. Origin of regulatory T cells with known specificity for antigen. Nat Immunol. 2002; 3:756–63.

36. Bilate AM, Lafaille JJ. Induced CD4+Foxp3+ regulatory T cells in immune tolerance. Annu Rev Immunol. 2012; 30:733–58.

37. Zabransky DJ, Nirschl CJ, Durham NM, Park BV, Ceccato CM, Bruno TC, Tam AJ, Getnet D, Drake CG. Phenotypic and functional properties of Helios+ regulatory T cells. PLoS One. 2012; 7:e34547.

38. Kim YC, Bhairavabhotla R, Yoon J, Golding A, Thornton AM, Tran DQ, Shevach EM. Oligodeoxynucleotides stabilize Helios-expressing Foxp3+ human T regulatory cells during in vitro expansion. Blood. 2012; 119:2810–8.

39. Weiss JM, Bilate AM, Gobert M, Ding Y, Curotto de Lafaille MA, Parkhurst CN, Xiong H, Dolpady J, Frey AB, Ruocco MG, Yang Y, Floess S, Huehn J, et al. Neuropilin 1 is expressed on thymus-derived natural regulatory T cells, but not mucosa-generated induced Foxp3+ T reg cells. J Exp Med. 2012; 209:1723–42, S1.

40. Yadav M, Louvet C, Davini D, Gardner JM, Martinez-Llordella M, Bailey-Bucktrout S, Anthony BA, Sverdrup FM, Head R, Kuster DJ, Ruminski P, Weiss D, Von Schack D, et al. Neuropilin-1 distinguishes natural and inducible regulatory T cells among regulatory T cell subsets in vivo. J Exp Med. 2012; 209:1713–22, S1–19.

41. Buchbinder E, Hodi FS. Cytotoxic T lymphocyte antigen-4 and immune checkpoint blockade. J Clin Invest. 2015; 125:3377–83.

42. Mougiakakos D, Choudhury A, Lladser A, Kiessling R, Johansson CC. Regulatory T cells in cancer. Adv Cancer Res. 2010; 107:57–117.

43. Terme M, Pernot S, Marcheteau E, Sandoval F, Benhamouda N, Colussi O, Dubreuil O, Carpentier AF, Tartour E, Taieb J. VEGFA-VEGFR pathway blockade inhibits tumor-induced regulatory T-cell proliferation in colorectal cancer. Cancer Res. 2013; 73:539–49.

44. Yasuda S, Sho M, Yamato I, Yoshiji H, Wakatsuki K, Nishiwada S, Yagita H, Nakajima Y. Simultaneous blockade of programmed death 1 and vascular endothelial growth factor receptor 2 (VEGFR2) induces synergistic anti-tumour effect in vivo. Clin Exp Immunol. 2013; 172:500–6.

45. Liu XD, Hoang A, Zhou L, Kalra S, Yetil A, Sun M, Ding Z, Zhang X, Bai S, German P, Tamboli P, Rao P, Karam JA, et al. Resistance to Antiangiogenic Therapy Is Associated with an Immunosuppressive Tumor Microenvironment in Metastatic Renal Cell Carcinoma. Cancer Immunol Res. 2015; 3:1017–29.

46. Liberati A, Altman DG, Tetzlaff J, Mulrow C, Gotzsche PC, Ioannidis JP, Clarke M, Devereaux PJ, Kleijnen J, Moher D. The PRISMA statement for reporting systematic reviews and meta-analyses of studies that evaluate health care interventions: explanation and elaboration. Ann Intern Med. 2009; 151:W65–94.

47. Tierney JF, Stewart LA, Ghersi D, Burdett S, Sydes MR. Practical methods for incorporating summary time-to-event data into meta-analysis. Trials. 2007; 8:16.
