Oncotarget

Research Papers:

The pro-apoptotic paradox: the BH3-only protein Bcl-2 interacting killer (Bik) is prognostic for unfavorable outcomes in breast cancer

PDF |  HTML  |  Supplementary Files  |  How to cite  |  Order a Reprint

Oncotarget. 2016; 7:33272-33285. https://doi.org/10.18632/oncotarget.8924

Metrics: PDF 1426 views  |   HTML 1634 views  |   ?

Vrajesh Pandya _, Darryl Glubrecht, Larissa Vos, John Hanson, Sambasivarao Damaraju, John Mackey, Judith Hugh and Ing Swie Goping

Abstract

Vrajesh Pandya1, Darryl Glubrecht2, Larissa Vos2, John Hanson2, Sambasivarao Damaraju3, John Mackey2, Judith Hugh3, Ing Swie Goping1,2

1Department of Biochemistry, University of Alberta, Edmonton, Alberta T6G 2H7, Canada

2Department of Oncology, University of Alberta, Edmonton, Alberta T6G 2H7, Canada

3Laboratory Medicine and Pathology, University of Alberta, Edmonton, Alberta T6G 2H7, Canada

Correspondence to:

Ing Swie Goping, e-mail: igoping@ualberta.ca

Keywords: breast cancer, BH3-only proteins, Bcl-2 interacting killer, BiK, autophagy

Received: March 02, 2016    Accepted: April 10, 2016    Published: April 22, 2016

ABSTRACT

Breast cancer is the leading cause of cancer-associated deaths in women worldwide. Clinical biomarkers give information on disease progression and identify relevant biological pathways. A confounding factor that uncouples markers from disease outcome is the ability of tumor cells to mutate and evade clinical intervention. Therefore, we focussed on apoptotic genes that modulate tumor regression. Using gene and tissue microarray analyses, we identified an association of Bcl-2 interacting killer (Bik) with poor breast cancer prognosis. Bik prognostic ability was independent of Estrogen Receptor/Progesterone Receptor and Her2 status. Additionally, Bik was independent of anti-apoptotic Bcl-2, Bcl-xL, Mcl-1 and Bcl-w suggesting a complex mechanism of tumor promotion identified by Bik high tumors. Bik also stimulates autophagy, which can contribute to enhanced tumor fitness. We found a significant association between the autophagy marker ATG5 and Bik. Combined high expression level of ATG5 and Bik was a stronger predictor of outcome than either alone. Thus, our study identifies Bik as a novel, independent prognostic biomarker for poor outcomes in breast cancer and suggests that Bik-mediated autophagy contributes to disease recurrence.


INTRODUCTION

Breast cancer is the most prevalent cancer in women worldwide accounting for the highest number of cancer-associated deaths [13]. Cancer is a heterogeneous disease with many factors affecting accurate estimation of prognosis, treatment decisions and quality of life. Identification of clinical biomarkers and elucidation of their roles has paved the way for a better understanding of the disease and improved patient survival [4, 5]. Since many unknown factors still determine variable clinical outcomes, we decided to search for additional prognostic markers. We reasoned that due to inherent genomic instability, compensatory mutations would uncouple upstream molecular drivers from clinical outcome. We thus decided to analyze apoptotic markers and in particular focussed on the Bcl-2 family of proteins that are downstream effectors of cell-death or cell-survival decisions [6, 7]. The BH3-only proteins are a subgroup of the Bcl-2 family of proteins [6, 8]. BH3-only proteins have both distinct and overlapping developmental and tissue-specific expression patterns, highlighting both unique and redundant roles in cellular processes [6, 8]. In addition to regulating apoptosis, members of this family also interact with such diverse cellular pathways as autophagy, checkpoint regulation and metabolism [8]. Therefore we examined whether specific BH3-only proteins were prognostic for breast cancer patient outcome and correlated expression with specific biological pathways.

Analysis of gene expression datasets linked to clinical outcomes can identify biomarkers that are significantly regulated at the transcriptional level. Indeed many of the BH3-only proteins are transcriptionally regulated with subsequent effects on apoptotic and autophagic pathways [8, 9]. Genomic stress mediated upregulation of multiple BH3-only genes is dependent on the p53 tumor suppressor [6]. Depending on the nature of stress-stimuli Bid, Bim and Puma are also regulated by FOXO3a while Bim and Puma are subject to E2F-1 dependent regulation [6, 1012]. Additionally, NF-κB modulates transcriptional activity of Bad and Noxa in squamous cell carcinoma and neutrophils respectively [13]. Although Bik transcription is dependent on p53, various other regulators including TGF-β, E2F, TEF and PARbZIP transcription factors regulate gene expression [14, 15]. Thus multiple pathways that determine cancer cell fate, regulate the gene expression of multiple BH3-only genes.

Importantly, BH3- only protein levels are also regulated at the post-transcriptional level [8, 14]. For instance, Bik is degraded by both proteasomal- and autophagic pathways. [16, 17]. In addition, post-translational modifications of BH3-proteins alter protein function and can act as a signalling switch from apoptosis to cell survival. It is thus important to compare gene expression studies with protein analysis to generate mechanistic models for clinical outcome.

Thus, we investigated the prognostic potential of BH3-only gene expression followed by validation at the protein level. Of five BH3-only genes analyzed, Bik was the only independent prognostic indicator for breast cancer patient recurrence. Bik prognostic value was not dependent on anti-apoptotic gene expression, suggesting that Bik-high tumors were not addicted to anti-apoptotic proteins. However we identified an association between autophagy marker ATG5 and Bik. Our work suggests that Bik may be an indicator of enhanced autophagy and cell survival, contributing to disease recurrence.

RESULTS

BH3-only gene expression and breast cancer patient outcome

The BH3-only proteins are comprised of multiple family members with distinct and overlapping roles depending on tissue-type and cellular signals [8]. Whether unique BH3-only proteins regulate breast cancer pathophysiology is not yet clear, and this understanding would aid in efforts to dissect relevant molecular pathways in disease. Therefore, we analyzed a gene expression microarray to identify which, if any, BH3-only genes were associated with clinical outcome. As described in previous studies, this patient cohort contained all pathological subtypes of breast cancer (64% Luminal, 5% HER2 amplified and 32% Triple negative) of variable grade and stage with 49% recurrence and 27% death with complete long-term follow-up after diagnosis (Figure 1) [18, 19]. To identify markers of early recurrence, we assessed five-year disease-free and overall survival. The hazard ratio (HR) indicates the likelihood of relapse or death of the marker-high group versus the marker-low group. The HR values and statistical significance of BH3-only gene expression alongside clinicopathological factors of age, tumor size, mitotic grade, overall grade, vascular invasion, menopausal status, hormone receptor status and Her2 status are shown in Table 1. Of the clinicopathological features, mitotic grade (HR 2.05, p=0.002), overall grade (HR 1.95, p=0.009) and progesterone receptor (PR) status (HR 0.66, p=0.05) were significantly associated with disease-free survival. Gene expression data was retrieved for the BH3-members Bad, Bid, Bik, Noxa and Puma. Univariate Cox regression analysis identified relatively high mRNA levels of only Bid (HR 1.75, p=0.011) and Bik (HR 1.79, p=0.021) to be significantly associated with poor survival outcomes.

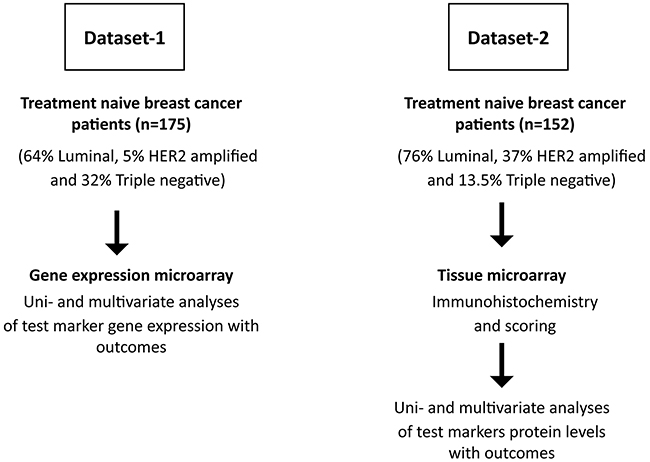

Flow chart depicting selection of patients and experimental scheme.

Figure 1: Flow chart depicting selection of patients and experimental scheme. Two different patient cohorts were chosen for the study. Treatment-naïve tumor tissue was collected for gene expression studies (Dataset-1) and protein expression studies (Dataset-2). All patients subsequently received standard guideline based therapy.

Table 1: Uni- and multivariate analyses of pathophysiological parameters and BH-3 only gene expression in association with disease-free survival from Dataset-1

Variable

Univariate (Cox)

Multivariate (Cox) - Stepwise

n=175

HR

95% CI

p

HR

95% CI

P

Age>50

1.10

0.81 to 1.67

0.670

ns

Tumor size >2 cm

1.16

0.76 to 1.78

0.486

ns

Mitotic grade

2.05

1.32 to 3.17

0.002

2.11

1.36 to 3.27

0.001

Vascular invasion

1.50

0.97 to 2.33

0.068

ns

ER status

0.72

0.47 to 1.11

0.140

ns

PR status

0.66

0.43 to 1.0

0.050

ns

HER2 status

1.14

0.67 to 1.97

0.628

ns

Overall grade

1.95

1.18 to 3.21

0.009

ns

Menopausal status

0.87

0.57 to 1.33

0.527

ns

Bad

0.73

0.48 to 1.11

0.145

ns

Bid

1.75

1.14 to 2.68

0.011

ns

Bik

1.79

1.09 to 2.92

0.021

1.89

1.16 to 3.09

0.011

Noxa

0.73

0.47 to 1.11

0.143

ns

Puma

1.35

0.89 to 2.10

0.166

ns

ns= non significant

Bik gene expression is a significant and independent predictor of breast cancer survival

In order to assess whether Bik or Bid were independently prognostic, we performed multivariate Cox analysis. We carried out stepwise multivariate analysis on all variables associated with recurrence (Bid, Bik, PR, overall grade and mitotic grade). Only Bik and mitotic grade were retained as independent variables. We then performed pairwise multivariate analysis to assess the relationships between variables (Supplementary Table S1). Bid was independent of Bik (HR 1.78, p=0.009) but was dependent on mitotic-grade and overall grade. On the other hand, Bik was independent of mitotic grade, overall grade, PR status and Bid. ROC curve analysis was performed with recurrence as the classification variable to identify an appropriate cut-point (≤1.71) that dichotomized patients into Bik-high and Bik-low groups. Kaplan-Meier analysis of those groups for disease-free survival revealed worse prognosis for Bik high patients with a HR of 1.78 (p=0.019) (Figure 2A). Similar analysis was performed for overall survival. Kaplan-Meier analysis revealed a higher risk of death for Bik high patients with a hazard ratio of 2.05 (p=0.021) (Figure 2B). Thus, elevated Bik mRNA level was an independent prognostic indicator of recurrence and death.

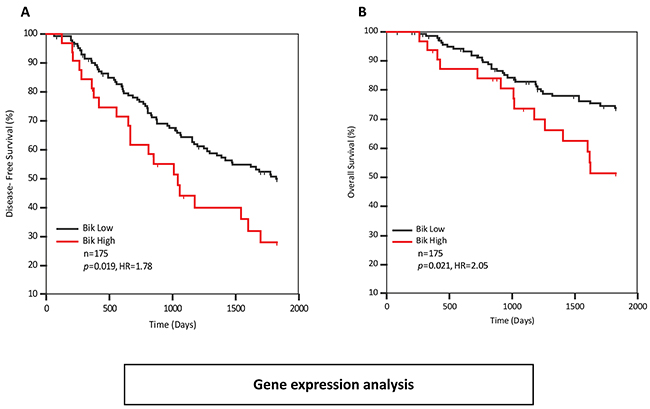

Bik transcript levels are elevated in breast cancer patients with poor survival outcomes.

Figure 2: Bik transcript levels are elevated in breast cancer patients with poor survival outcomes. Kaplan-Meier survival curves depicting A. five year disease-free (HR=1.78, 95% CI: 0.99 to 3.20) and B. overall survival (HR= 2.05, 95%CI: 0.96 to 4.37) outcomes of 175 patients based on Bik transcript levels. Patients with low levels of Bik transcript (n=143) were compared to patients with high levels of Bik transcript (n=32). The HR value of greater than 1.0 estimates the predicted risk of poor prognosis.

Elevated Bik protein levels are associated with poor prognosis of breast cancer patients

We were curious as to whether Bik protein was also prognostic of outcome. To rigorously test the prognostic value of Bik, we queried a different cohort of patients. We examined a tissue microarray (TMA) from 152 treatment naïve patients (Dataset-2) composed of luminal (76%), HER2 amplified (37%) and triple negative (13.5%) pathological subtypes of variable grade and stage with 11 % recurrence and 16.5 % death (Figure 1). The statistical significance of clinicopathological factors of age, tumor size, mitotic grade, overall grade, vascular invasion, estrogen receptor (ER)/PR and HER2 protein levels are shown in Table 2. Mitotic grade (HR 3.91, p=0.006), overall grade (HR 3.29, p=0.037) and ER status (HR 0.37, p=0.05) were significantly associated with disease-free survival. The TMA was immunostained with an anti-Bik antibody and tumor cells within each tissue core were analyzed for Bik staining. Bik was localized to the cytoplasm and staining intensity for each core was scored on a relative scale between 0-3 by personnel blinded to outcomes (Figure 3A). A Bik score generated from the average value of each associated core was assigned for each patient. ROC analysis identified a cutpoint of ≥1.5. Kaplan-Meier analysis confirmed that high levels of Bik protein were also associated with worse disease-free survival (Figure 3B). Patients with high Bik protein levels had poor disease-free survival with a hazard ratio of 3.59 (p=0.007) compared to Bik low patients. Similarly Bik-high patients had a worse overall survival with a hazard ratio of 3.40 (p=0.04) compared with Bik-low patients (Figure 3C). Multivariate analysis showed that mitotic grade and Bik protein expression were the only two variables that retained significance (Table 2). We then carried out pairwise multivariate analysis to identify dependence of Bik prognostic signature on pathophysiological factors (Supplementary Table S2). Similar to the gene expression analysis, Bik prognostic signature was independent of mitotic grade, overall grade and ER status. Altogether, mRNA and protein analysis identify Bik as a novel independent marker for breast cancer clinical outcomes.

Table 2: Uni- and multivariate analyses of pathophysiological parameters and Bik protein level in association with disease-free survival from Dataset-2

Variable

Univariate (Cox)

Multivariate (Cox) - Stepwise

n=152

HR

95% CI

p

HR

95% CI

p

Age>50

0.36

0.12 to 1.10

0.074

ns

Tumor size >2 cm

1.18

0.44 to 3.09

0.743

ns

Mitotic grade

3.91

1.49 to 10.27

0.006

3.97

1.51 to 10.44

0.005

Vascular invasion

0.81

0.31 to 2.14

0.673

ns

ER status

0.37

0.14 to 0.99

0.050

ns

PR staus

0.40

0.16 to 1.05

0.062

ns

HER2 status

0.53

0.14 to 1.95

0.336

ns

Overall grade

3.29

1.07 to 10.09

0.037

ns

Menopausal status

0.58

0.21 to 1.56

0.277

ns

Bik

3.60

1.33 to 9.73

0.012

3.66

1.35 to 9.89

0.011

ns= non significant

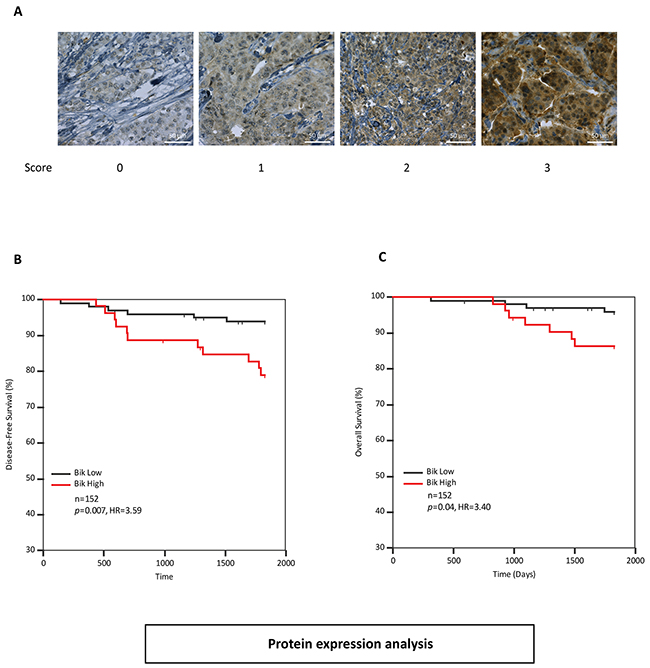

Bik protein levels are elevated in breast cancer patients with poor survival outcomes

Figure 3: Bik protein levels are elevated in breast cancer patients with poor survival outcomes A. Immunohistochemistry analysis of patient tumors stained with anti-Bik antibody. Score values are based on antibody staining intensity (brown) on a scale of 0 to 3. Images are representative of tumor cores with typical score values. Scale bars, 50μm. B. and C. Kaplan-Meier survival analysis depicting five year disease-free (HR=3.59, 95%CI: 1.32 to 9.82) (B) and overall survival (HR=3.40, 95%CI: 1.10 to 11.69) (C) outcomes of 152 patients based on Bik protein levels in tumor cores. Patients with low levels of Bik protein (n=99) were compared to patients with high levels of Bik protein (n=53). The associated HR value of greater than 1.0 estimates the predicted risk of poor prognosis.

Bik association with poor outcomes is not explained by compensatory increase in anti-apoptotic gene or protein expression

Bik has a well-documented role as a pro-apoptotic protein, so we were initially surprised that higher levels of Bik mRNA and protein were associated with poor clinical outcomes. A possible explanation was that anti-apoptotic protein levels were upregulated and compensated for Bik activity. For example, Bcl-2 and Bik levels are significantly correlated in multiple myeloma cell lines where Bcl-2 inhibits Bik-induced apoptosis [15]. Therefore, we investigated whether a similar Bik:Bcl-2 association was recapitulated in the clinical samples in our study. We found no correlation with Bik and Bcl-2 gene expression levels (r=-0.02, P=0.79), which did not support a Bcl-2-mediated tumor adaptation model for Bik high tumors. We next examined levels of anti-apoptotic genes in relation to disease-free survival. Data was available for four anti-apoptotic genes (Bcl-2, Bcl-xL, Mcl-1 and Bcl-w). Univariate Cox analysis identified that elevated levels of Bcl-2, Bcl-xL and Mcl-1transcripts were associated with favourable disease-free survival (Table 3). Stepwise multivariate Cox analysis demonstrated that all variables remained significant and were independent of each other. In KM survival analyses (Figure 4 A-C) elevated levels of Bcl-2, Bcl-xL and Mcl-1 were associated with significantly improved disease-free survival with HRs of 0.41, 0.65 and 0.55, respectively. This is opposite to what would be expected if elevated Bcl-2, Bcl-xL and Mcl-1 were indeed inhibiting apoptosis as this would be associated with higher likelihood of recurrence with a HR greater than 1. Finally, using the Bik/Bcl-2 relationship as a model, we stratified patients with respect to their individual Bik and Bcl-2 gene expression levels and looked for correlations between subgroup expression levels and recurrence (Figure-S1). If the tumor adaption model were dominant, we would expect a lower recurrence rate in the Bik-high patient subgroup with low Bcl-2 and presumably unencumbered apoptotic signalling, whereas the Bik-high patients with high Bcl-2 would show significantly higher recurrence rates. However, we see no significant difference between these two subgroups, and in fact the majority of patients show the opposite effect. Thus elevated Bik levels and diminished Bcl-2 levels are both prognostic for poor outcomes, but potentially function in separate pathways.

Table 3: Uni- and multivariate analyses of Bik and anti-apoptotic Bcl-2 family members gene expression in association with disease-free survival from Dataset-1

Variable

Univariate (Cox)

Multivariate (Cox) - Stepwise

n=175

HR

95% CI

p

HR

95% CI

p

Mitotic grade

2.05

1.32 to 3.17

0.002

1.83

1.16 to 2.89

0.010

Bik

1.79

1.09 to 2.92

0.021

1.66

1.01 to 2.74

0.047

Bcl-2

0.40

0.26 to 0.62

<0.0001

0.47

0.30 to 0.73

0.031

Bcl-xL

0.65

0.43 to 0.99

0.045

0.63

0.41 to 0.96

0.031

Mcl-1

0.55

0.34 to 0.87

0.010

0.48

0.30 to 0.77

0.003

Bcl-w

1.24

0.75 to 2.04

0.399

ns

ns=non significant

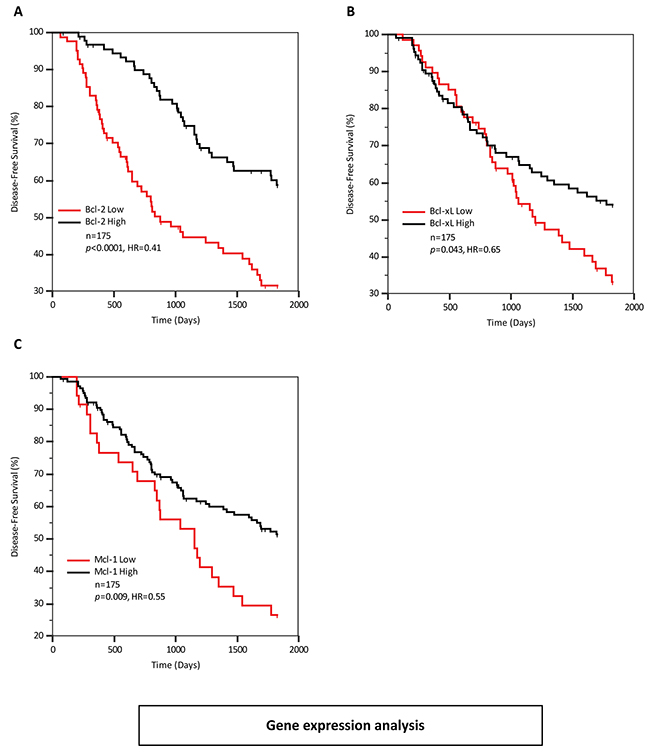

Elevated expression of anti-apoptotic Bcl-2 family members is not associated with poor patient prognosis

Figure 4: Elevated expression of anti-apoptotic Bcl-2 family members is not associated with poor patient prognosis A, B and C. Kaplan-Meier survival curves representing disease-free survival outcomes of 175 patients based on Bcl-2, Bcl-xL and Mcl-1gene expression levels respectively.

We next examined Bcl-2 protein levels in the previously described TMA from Dataset-2. Tumor cells within each core were assessed for Bcl-2 protein levels (Figure 5A). ROC analysis identified a cutpoint of >0. Kaplan-Meier analysis confirmed that high levels of Bcl-2 protein were associated with improved disease-free survival (Figure 5B). Patients with high Bcl-2 protein levels had a higher recurrence-free survival with a hazard ratio of 0.13 (p<0.002) compared to Bcl-2 low patients. Similarly Bcl-2-high patients had a higher overall survival with a hazard ratio of 0.18 (p=0.01) compared with Bcl-2-low patients (Figure 5C). Additionally, we performed a multivariate Cox analysis of Bik and Bcl-2 protein levels; Bik and Bcl-2 were found to be independent variables (Table 4). Altogether, our analyses indicate that Bik prognostic value is independent of anti-apoptotic protein levels, suggesting that a non-apoptotic activity of Bik contributes to poor clinical outcomes.

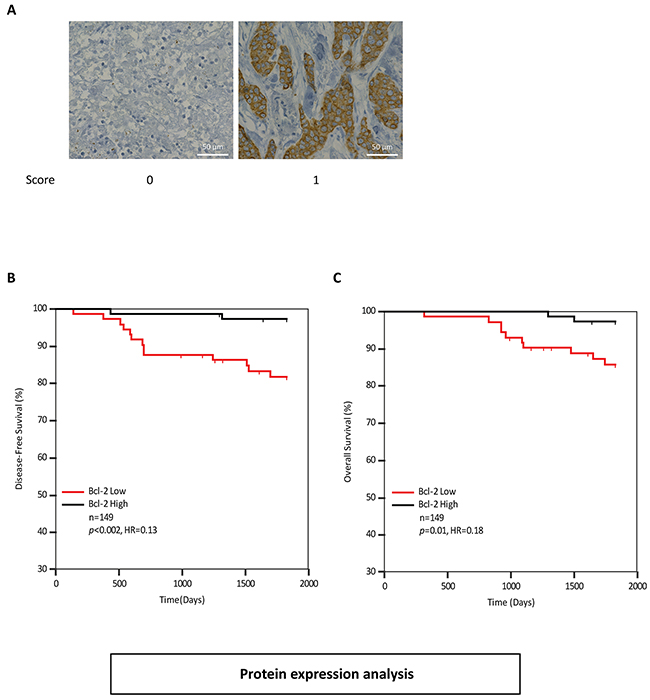

Bcl-2 protein levels are elevated in breast cancer patients with favourable survival outcomes

Figure 5: Bcl-2 protein levels are elevated in breast cancer patients with favourable survival outcomes A. Immunohistochemistry analysis of patient tumors stained with anti-Bcl-2 antibody. Score values are based on antibody staining intensity (brown) on a scale of 0 and 1. Images are representative of tumor cores with typical score values. Scale bars, 50μm. B. and C. Kaplan-Meier survival analysis depicting 5 year disease-free (HR=0.13, 95%CI: 0.15 to 0.37) and overall survival outcomes (HR= 0.33, 95%CI: 0.15 to 0.55) of 149 breast cancer patients based on Bcl-2 protein levels in tumor cores. Patients with low levels of Bcl-2 protein (n=73) were compared to patients with high levels of Bcl-2 protein (n=76). The associated HR value of less than 1.0 estimates the predicted risk of poor prognosis.

Table 4: Uni- and multivariate analyses of Bik and Bcl-2 protein levels in association with disease-free survival from Dataset-2

Variable

Univariate (Cox)

Multivariate (Cox) - Stepwise

n=139

HR

95% CI

p

HR

95% CI

p

Bik

2.99

1.07 to 8.35

0.038

3.52

1.25 to 9.88

0.017

Bcl-2

0.21

0.06 to 0.74

0.016

0.18

0.05 to 0.65

0.009

High Bik and ATG5 levels are associated with worse patient outcome

We sought to identify a tumor-promoting pathway that accounts for the poor prognosis in Bik high patients. In addition to stimulating apoptotic pathways, Bik facilitates autophagy [2022] and enhanced autophagy is associated with poor clinical outcomes [2325]. Thus, using the gene expression microarray as a screening tool, we looked for a correlation between high Bik expression levels and markers of autophagy. Four autophagy gene sets (ATG5, ATG7, Beclin-1 and p62) were captured in the gene expression microarray (Supplementary Table S3). ATG5, ATG7 and p62 showed clear association of high autophagy flux with poor patient outcomes. ATG5 showed the best ROC values so we analyzed ATG5 further. The ATG5 gene product is an E3 ubiquitin ligase involved in elongation of autophagosomal membranes that facilitates tumor survival in nutrient deprivation [26, 27]. Overexpression of ATG5 is associated with aggressive tumors in squamous cell carcinoma, colorectal and prostate cancers and chemoresistant tumors in gastric cancer [2629]. To examine dependence of Bik and ATG5, we performed ROC curve analysis and identified a cut-point (>0.939) that dichotomized patients into ATG5-high and -low groups. Kaplan-Meier survival analysis of patients with respect to ATG5 gene expression levels demonstrated that patients with high levels of ATG5 mRNA had a disease-free survival HR of 1.69 (p=0.018) compared to ATG5-low patients (Figure 6A). As well, ATG5-high patients had a lower overall survival with a HR of 1.90 (p=0.04) compared to ATG5-low patients (Figure 6B). In order to dissect the relationship between Bik and ATG5, we performed multivariate Cox analysis and found that Bik and ATG5 were independent variables (p=0.02 and p=0.02 respectively). We performed a bivariable KM analysis in order to further examine potential relationships between Bik and ATG5 (Figure 6C). We found that while ATG5-high was a stand-alone significant prognostic indicator (Figure 6A), Bik-high was significant only when ATG5 was also high (Figure 6C), suggesting that the mechanism whereby high Bik contributes to poor outcomes may be through an ATG5-dependent autophagy pathway. To interrogate this further, we generated a scatter plot to correlate patients with respect to their individual Bik and ATG-5 gene levels and examined recurrence rates for each subgroup (Figure 6D). We observed that Bik-high patients with high levels of ATG5 mRNA had 88% recurrence (p=0.009) compared to a 44% recurrence rate in the Bik high/ATG5-low patient subgroup. Of the Bik-low patient subgroups, there was no significant difference in recurrence rates relative to ATG-5 levels. Collectively, this data supports a mutual association of Bik and ATG5 in determining patient outcome.

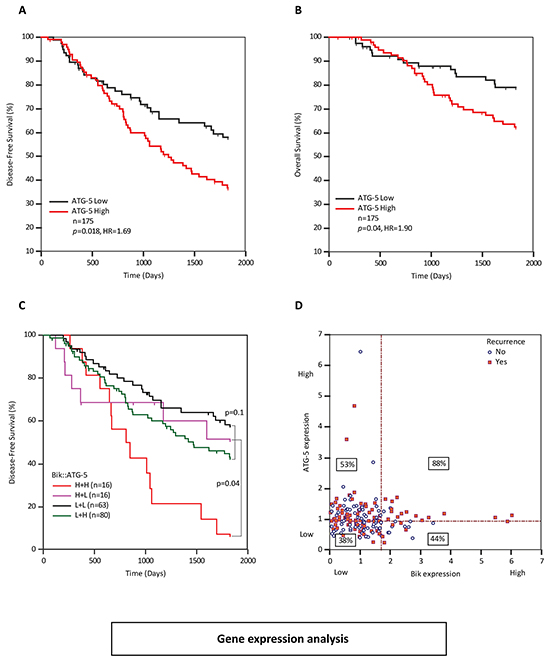

ATG5 transcript levels are elevated in breast cancer patients with poor survival outcomes

Figure 6: ATG5 transcript levels are elevated in breast cancer patients with poor survival outcomes A. and B. Kaplan Meier survival curves representing disease-free (HR=1.69, 95%CI: 1.11 to 2.65) survival and overall survival (HR=1.90, 95%CI: 1.11 to 3.41) outcomes of 175 BC patients based on ATG5 mRNA levels. C. Paired KM curves demonstrating individual or combined effects of high ATG5 and Bik expression levels on recurrence-free survival of patients. D. Scatter-plot comparing gene expression levels of ATG5 and Bik per patient with respect to disease recurrence. Horizontal and vertical dotted lines indicate dichotomizing score cut-points as determined by ROC analysis. Percentage values in rectangles indicate percent of patients that recurred within each quadrant.

DISCUSSION

We identified that the BH3-only protein Bik was a novel prognostic marker for breast cancer. Bik levels were prognostic for disease-free and overall survival in two independent cohorts of primary breast cancer patients. Importantly, elevated Bik levels were associated with poor outcomes (average HR= 2.75). This result suggested that Bik may have tumor-promoter activity. However, there is substantial evidence that Bik is a tumor-suppressor. For example, the Bik gene was mutated in peripheral B-cell lymphomas, deleted in gliomas, head and neck and colorectal cancers or silenced in renal cell carcinomas [14, 3033]. Additionally, a genetically-engineered mutant of Bik (BikDD) induced apoptosis in pancreatic, breast and colon cancer models resulting in tumor clearance [3437]. On the other hand, Bik expression was elevated in breast, pancreas, multiple myeloma and colon cancers, suggestive of a tumor-promoting role for Bik [3841]. These studies, however, did not correlate Bik levels to outcome. As far as we know, our study is the first to report that high Bik transcript and protein levels correlated with poor outcomes.

How Bik association with poor clinical outcome is manifested at the molecular level is unclear. Bik could either be a marker of aggressive tumors that have evolved anti-apoptotic strategies, or Bik could have a direct tumor-promoting role. To address the first point, it is possible that tumors upregulate Bcl-2 expression. This compensatory mechanism to ablate apoptotic pathways is well-documented in multiple myeloma and non-small cell lung cancer (NSCLC) tumor models [15, 42]. Of particular interest, Lu et al reported that poorly surviving non-small cell lung cancer (NSCLC) patients had high Bik expression and compensatory increase in anti-apoptotic protein Bcl-2 led to tumor adaptation [14, 42]. Contrary to their findings, in breast cancer we found that Bik and Bcl-2 were independent variables and the increase in Bik expression was not correlated with expression levels of 4 anti-apoptotic members of the Bcl-2 family. Furthermore, the anti-apoptotic genes Bcl-2, Bcl-xL and Mcl-1 were all independently prognostic of favourable outcome, which argues against a simple anti-apoptotic/tumor-promoting role for these genes. In addition, loss of apoptosis in the face of Bik elevation may involve dysregulation of downstream apoptotic effectors and their regulators. Additionally, recent studies report BH3-only proteins can lead to tumorigenesis by compromising mitochondrial integrity, facilitating low caspase activation and chronic genomic damage [43]. It is possible that Bik-expressing tumors have greater genomic instability driving tumor adaptation and the development of more aggressive subtypes of cancer. Taken together, our data suggests that a complex network may be at play.

Variable clinical outcomes have correlated with anti-apoptotic protein expression dependent on tumor type. Negative outcome associations are seen in Hodgkin’s lymphoma, myeloid leukemia and follicular lymphoma, and positive outcome associations are seen in NSCLC, breast and liver cancers [4447]. In our case, Bcl-2 levels were associated with good outcome, and this is in agreement with other studies [44, 48, 49]. While Bcl-2 can also inhibit cell proliferation and autophagy [21, 5053], the mechanism behind the positive prognostic signature of the anti-apoptotic genes in our study, is not clear.

It is possible that Bik stimulates tumor-promoting autophagy. Bik stimulates autophagy through Bcl-2-dependent and -independent mechanisms. In the first case, Bik indirectly stimulates autophagy by ablating Bcl-2:Beclin-1 interactions [21]. Specifically, Chang et al reported that Bcl-2 interaction with the ER-resident protein, Naf-1 was crucial for inhibition of Beclin-1-mediated autophagy and Bik suppressed this Bcl-2/Naf-1 interaction [21]. In the case of the Bcl-2-independent autophagy pathway, ectopic expression of Bik induced autophagy in Bcl2-/- MEFs [20]. Bik was a target of autophagy and also actively contributed to autophagy induction [16]. Finally, silencing of endogenous Bik expression in the breast cancer cell line MDA-MB-231 downregulated crucial components of autophagic machinery [22]. We found that high Bik expression in breast cancer patients was significantly correlated with increased levels of the autophagy marker, ATG5. ATG5 is a prognostic indicator of squamous cell carcinoma, prostate, and colorectal cancers relapse [26, 29, 54]. This is consistent with a model whereby Bik induced-autophagy promotes breast cancer relapse (Figure 7). Additionally, we speculate that anti-apoptotic Bcl-2-like proteins act downstream of Bik and/or directly antagonize Bik to inhibit autophagic processes. This may explain in part, why elevated Bcl-2 is associated with favourable outcomes. This multiple interaction network of Bik, Bcl-2 and the marker of autophagy ATG5 may then have subset interactions, and thus retain statistical independence. As well, we expect that other signals stimulate ATG5 and autophagy independently of Bik, again resulting in the retention of the independent prognostic value of Bik and ATG5. Although we propose that Bik promotes tumor survival by facilitating autophagy, other possible mechanisms could lead to Bik prognostic association with poor outcomes.

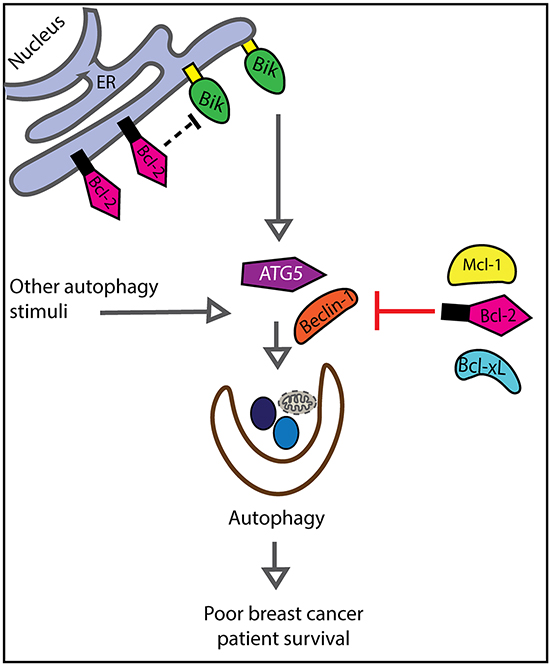

Model describing relationships between Bik, Bcl-2 and ATG5 with respect to patient survival.

Figure 7: Model describing relationships between Bik, Bcl-2 and ATG5 with respect to patient survival. We propose that Bik stimulates autophagy and Bcl-2 inhibits autophagy. Thus, Bik and Bcl-2 function in two separate yet converging pathways associated with poor patient prognosis.

Altogether, multiple models of Bik-induced tumor survival signaling could be at play and lead to the observation of poor clinical outcome. Our study results give rationale to investigate non-canonical roles of Bik related to tumor growth. In addition, exploration of interactions of Bik with autophagy and clinical response in breast cancer patients could set the stage for novel therapeutic regimens in the future.

MATERIALS AND METHODS

Reagents

Bik antibody (sc-1710) used for IHC was obtained from Santa Cruz, USA. Bcl-2 antibody (M0887) used for IHC was from Dako, USA.

Gene expression and tissue microarray analyses

Pre-treatment tumor samples were accessed from the Alberta Cancer Research Biobank/CBCF Tumor Bank. Patient information was collected under research ethics board approval (HREB Biomedical). All patients received guideline based standard therapy. Gene expression data from 175 primary breast cancer patients was determined from analysis of Agilent Whole Human Genome Arrays and has been described previously [18]. The messenger RNA (mRNA) expression data sets were deposited (GEO accession ID GSE22820) in a publicly accessible database. This cohort is referred to as Dataset-1 in this study. For Dataset-2, tissue microarrays (TMA) were generated from formalin fixed tumor samples obtained for 152 primary breast cancer patients as described previously [55]. Briefly, the TMA was prepared by punching at least two representative tumor cores from pre-treatment formalin fixed paraffin embedded (FFPE) blocks and embedding them in recipient paraffin blocks. Glass TMA slides were generated. TMAs were deparaffinized in xylene and serially rehydrated in 95% to 0% ethanol solution. Epitope retrieval was performed by microwaving in citrate buffer (10mM citrate, 0.05% Tween-20; pH 6.0). Immunostaining on these TMAs was performed using anti-Bik antibody (1:300; Santa Cruz Biotechnology, Inc. USA) and anti-Bcl-2 antibody (1:300; Dako, USA). Dako EnVision+System-HRP (Dako, USA) system was used for signal amplification with DAB substrate.

Scoring and quantification of immunohistochemical staining

The scoring of the immunostained TMA was performed in an outcome blinded fashion according to training and guidelines from the study’s breast pathologist. Images were acquired at 40X magnification using a Carl Zeiss Axio Observer microscope (Carl Zeiss, Germany)

Statistical analysis

Statistical analysis was performed using MedCalc version 15 (Ostend, Belgium). Receiver operator characteristic (ROC) curve analysis was used as a measure of sensitivity versus specificity for determining the optimum cutpoint value for gene expression and TMA scores. Disease-free and overall survival were calculated by Kaplan-Meier analysis. Significant differences between KM curves were measured by log-rank test. Uni- and multivariate analyses for recurrence or death was carried out using Cox regression methods.

ACKNOWLEDGMENTS

Operating grants from the Alberta Institute for Health Research (AIHS)/Pfizer program (ISG, JRM), Alberta Cancer Foundation (ISG, JRM) and Canadian Breast Cancer Foundation (CBCF) Prairies/NWT Chapter (ISG) supported this research. SD received operating grants from Canadian Breast Cancer Foundation (CBCF) Prairies/NWT Chapter. JRM received operating grants from Alberta Breast Cancer Initiatives program. We thank Jennifer Dufour for technical assistance. We thank Devon Germain and Krista Vincent for help with statistical analysis. We thank Dr. Alan Underhill and all members of the Goping lab for helpful discussions.

CONFLICTS OF INTEREST

The authors declare no conflict of interest

Author contributions

VP and ISG designed the study; VP, DG and LV performed experiments and collected data; VP and Jo Ha performed statistical analysis; SD, JRM and JHugh provided expert opinions on oncology and pathology; VP and ISG wrote the manuscript and all authors provided input.

REFERENCES

1. Jemal A, Bray F, Center MM, Ferlay J, Ward E and Forman D. Global cancer statistics. CA Cancer J Clin. 2011; 61:69-90.

2. Ferlay J, Soerjomataram I, Dikshit R, Eser S, Mathers C, Rebelo M, Parkin DM, Forman D and Bray F. Cancer incidence and mortality worldwide: sources, methods and major patterns in GLOBOCAN 2012. International journal of cancer. 2015; 136:E359-386.

3. Ferlay J SI, Ervik M, Dikshit R, Eser S, Mathers C, Rebelo M, Parkin DM, Forman D, Bray, F. (2013). Cancer Incidence and Mortality Worldwide: IARC CancerBase No. 11. GLOBOCAN 2012 v10,.

4. Henry NL and Hayes DF. Cancer biomarkers. Mol Oncol. 2012; 6:140-146.

5. Van Poznak C, Somerfield MR, Bast RC, Cristofanilli M, Goetz MP, Gonzalez-Angulo AM, Hicks DG, Hill EG, Liu MC, Lucas W, Mayer IA, Mennel RG, Symmans WF, Hayes DF and Harris LN. Use of Biomarkers to Guide Decisions on Systemic Therapy for Women With Metastatic Breast Cancer: American Society of Clinical Oncology Clinical Practice Guideline. Journal of clinical oncology. 2015; 33:2695-2704.

6. Puthalakath H and Strasser A. Keeping killers on a tight leash: transcriptional and post-translational control of the pro-apoptotic activity of BH3-only proteins. Cell death and differentiation. 2002; 9:505-512.

7. Czabotar PE, Lessene G, Strasser A and Adams JM. Control of apoptosis by the BCL-2 protein family: implications for physiology and therapy. Nature reviews Molecular cell biology. 2014; 15:49-63.

8. Lomonosova E and Chinnadurai G. BH3-only proteins in apoptosis and beyond: an overview. Oncogene. 2008; 27:S2-19.

9. Maiuri MC, Criollo A, Tasdemir E, Vicencio JM, Tajeddine N, Hickman JA, Geneste O and Kroemer G. BH3-only proteins and BH3 mimetics induce autophagy by competitively disrupting the interaction between Beclin 1 and Bcl-2/Bcl-X(L). Autophagy. 2007; 3:374-376.

10. Dey P, Strom A and Gustafsson JA. Estrogen receptor beta upregulates FOXO3a and causes induction of apoptosis through PUMA in prostate cancer. Oncogene. 2014; 33:4213-4225.

11. Sunters A, Fernandez de Mattos S, Stahl M, Brosens JJ, Zoumpoulidou G, Saunders CA, Coffer PJ, Medema RH, Coombes RC and Lam EW. FoxO3a transcriptional regulation of Bim controls apoptosis in paclitaxel-treated breast cancer cell lines. The Journal of biological chemistry. 2003; 278:49795-49805.

12. Cao Q, Xia Y, Azadniv M and Crispe IN. The E2F-1 transcription factor promotes caspase-8 and bid expression, and enhances Fas signaling in T cells. Journal of immunology. 2004; 173:1111-1117.

13. Co NN, Tsang WP, Tsang TY, Yeung CL, Yau PL, Kong SK and Kwok TT. AF1q enhancement of gamma irradiation-induced apoptosis by up-regulation of BAD expression via NF-kappaB in human squamous carcinoma A431 cells. Oncology reports. 2010; 24:547-554.

14. Chinnadurai G, Vijayalingam S and Rashmi R. BIK, the founding member of the BH3-only family proteins: mechanisms of cell death and role in cancer and pathogenic processes. Oncogene. 2008; 27:S20-29.

15. Bodet L, Menoret E, Descamps G, Pellat-Deceunynck C, Bataille R, Le Gouill S, Moreau P, Amiot M and Gomez-Bougie P. BH3-only protein Bik is involved in both apoptosis induction and sensitivity to oxidative stress in multiple myeloma. British journal of cancer. 2010; 103:1808-1814.

16. Chen S, Zhou L, Zhang Y, Leng Y, Pei XY, Lin H, Jones R, Orlowski RZ, Dai Y and Grant S. Targeting SQSTM1/p62 Induces Cargo-Loading Failure and Converts Autophagy to Apoptosis via NBK/Bik. Molecular and cellular biology. 2014; 34:3435-49. doi: 10.1128/MCB.01383-13.

17. Lopez J, Hesling C, Prudent J, Popgeorgiev N, Gadet R, Mikaelian I, Rimokh R, Gillet G and Gonzalo P. Src tyrosine kinase inhibits apoptosis through the Erk1/2- dependent degradation of the death accelerator Bik. Cell death and differentiation. 2012; 19:1459-1469.

18. Germain DR, Graham K, Glubrecht DD, Hugh JC, Mackey JR and Godbout R. DEAD box 1: a novel and independent prognostic marker for early recurrence in breast cancer. Breast cancer research and treatment. 2011; 127:53-63.

19. Liu RZ, Graham K, Glubrecht DD, Germain DR, Mackey JR and Godbout R. Association of FABP5 expression with poor survival in triple-negative breast cancer: implication for retinoic acid therapy. The American journal of pathology. 2011; 178:997-1008.

20. Rashmi R, Pillai SG, Vijayalingam S, Ryerse J and Chinnadurai G. BH3-only protein BIK induces caspase-independent cell death with autophagic features in Bcl-2 null cells. Oncogene. 2008; 27:1366-1375.

21. Chang NC, Nguyen M, Germain M and Shore GC. Antagonism of Beclin 1-dependent autophagy by BCL-2 at the endoplasmic reticulum requires NAF-1. The EMBO journal. 2010; 29:606-618.

22. Ruiz Esparza-Garrido R, Torres-Marquez ME, Viedma-Rodriguez R, Velazquez-Wong AC, Salamanca-Gomez F, Rosas-Vargas H and Velazquez-Flores MA. Breast cancer cell line MDA-MB-231 miRNA profile expression after BIK interference: BIK involvement in autophagy. Tumour Biol. 2015.

23. Guo JY, Xia B and White E. Autophagy-mediated tumor promotion. Cell. 2013; 155:1216-1219.

24. Yang S, Wang X, Contino G, Liesa M, Sahin E, Ying H, Bause A, Li Y, Stommel JM, Dell’antonio G, Mautner J, Tonon G, Haigis M, Shirihai OS, Doglioni C, Bardeesy N, et al. Pancreatic cancers require autophagy for tumor growth. Genes & development. 2011; 25:717-729.

25. Wei H, Wei S, Gan B, Peng X, Zou W and Guan JL. Suppression of autophagy by FIP200 deletion inhibits mammary tumorigenesis. Genes & development. 2011; 25:1510-1527.

26. Tang JY, Fang YY, Hsi E, Huang YC, Hsu NC, Yang WC, Chang HW, Chai CY and Chu PY. Immunopositivity of Beclin-1 and ATG5 as indicators of survival and disease recurrence in oral squamous cell carcinoma. Anticancer research. 2013; 33:5611-5616.

27. Kim MS, Song SY, Lee JY, Yoo NJ and Lee SH. Expressional and mutational analyses of ATG5 gene in prostate cancers. APMIS. 2011; 119:802-807.

28. Ge J, Chen Z, Huang J, Chen J, Yuan W, Deng Z and Chen Z. Upregulation of autophagy-related gene-5 (ATG-5) is associated with chemoresistance in human gastric cancer. PloS one. 2014; 9:e110293.

29. Cho DH, Jo YK, Kim SC, Park IJ and Kim JC. Down-regulated expression of ATG5 in colorectal cancer. Anticancer research. 2012; 32:4091-4096.

30. Arena V, Martini M, Luongo M, Capelli A and Larocca LM. Mutations of the BIK gene in human peripheral B-cell lymphomas. Genes, chromosomes & cancer. 2003; 38:91-96.

31. Bredel M, Bredel C, Juric D, Harsh GR, Vogel H, Recht LD and Sikic BI. High-resolution genome-wide mapping of genetic alterations in human glial brain tumors. Cancer research. 2005; 65:4088-4096.

32. Castells A, Ino Y, Louis DN, Ramesh V, Gusella JF and Rustgi AK. Mapping of a target region of allelic loss to a 0.5-cM interval on chromosome 22q13 in human colorectal cancer. Gastroenterology. 1999; 117:831-837.

33. Sturm I, Stephan C, Gillissen B, Siebert R, Janz M, Radetzki S, Jung K, Loening S, Dorken B and Daniel PT. Loss of the tissue-specific proapoptotic BH3-only protein Nbk/Bik is a unifying feature of renal cell carcinoma. Cell death and differentiation. 2006; 13:619-627.

34. Li C, Li R, Grandis JR and Johnson DE. Bortezomib induces apoptosis via Bim and Bik up-regulation and synergizes with cisplatin in the killing of head and neck squamous cell carcinoma cells. Molecular cancer therapeutics. 2008; 7:1647-1655.

35. Day CP, Rau KM, Qiu L, Liu CW, Kuo HP, Xie X, Lopez-Berestein G, Hortobagyi GN and Hung MC. Mutant Bik expression mediated by the enhanced minimal topoisomerase IIalpha promoter selectively suppressed breast tumors in an animal model. Cancer gene therapy. 2006; 13:706-719.

36. Jiao S, Wu M, Ye F, Tang H, Xie X and Xie X. BikDDA, a mutant of Bik with longer half-life expression protein, can be a novel therapeutic gene for triple-negative breast cancer. PloS one. 2014; 9:e92172.

37. Lan KL, Yen SH, Liu RS, Shih HL, Tseng FW and Lan KH. Mutant Bik gene transferred by cationic liposome inhibits peritoneal disseminated murine colon cancer. Clinical & experimental metastasis. 2007; 24:461-470.

38. Garcia N, Salamanca F, Astudillo-de la Vega H, Curiel-Quesada E, Alvarado I, Penaloza R and Arenas D. A molecular analysis by gene expression profiling reveals Bik/NBK overexpression in sporadic breast tumor samples of Mexican females. BMC cancer. 2005; 5:93.

39. Lopez-Munoz E, Hernandez-Zarco A, Garcia-Hernandez N, Alvarado-Cabrero I, Zarco-Espinosa G, Salamanca-Gomez F and Arenas-Aranda D. BIK/NBK gene as potential marker of prognostic and therapeutic target in breast cancer patients. Clinical & translational oncology. 2012; 14:586-591.

40. Maxfield KE, Taus PJ, Corcoran K, Wooten J, Macion J, Zhou Y, Borromeo M, Kollipara RK, Yan J, Xie Y, Xie XJ and Whitehurst AW. Comprehensive functional characterization of cancer-testis antigens defines obligate participation in multiple hallmarks of cancer. Nat Commun. 2015; 6:8840.

41. Zhan F, Huang Y, Colla S, Stewart JP, Hanamura I, Gupta S, Epstein J, Yaccoby S, Sawyer J, Burington B, Anaissie E, Hollmig K, Pineda-Roman M, Tricot G, van Rhee F, Walker R, et al. The molecular classification of multiple myeloma. Blood. 2006; 108:2020-2028.

42. Lu Y, Lemon W, Liu PY, Yi Y, Morrison C, Yang P, Sun Z, Szoke J, Gerald WL, Watson M, Govindan R and You M. A gene expression signature predicts survival of patients with stage I non-small cell lung cancer. PLoS medicine. 2006; 3:e467.

43. Ichim G, Lopez J, Ahmed SU, Muthalagu N, Giampazolias E, Delgado ME, Haller M, Riley JS, Mason SM, Athineos D, Parsons MJ, van de Kooij B, Bouchier-Hayes L, Chalmers AJ, Rooswinkel RW, Oberst A, et al. Limited mitochondrial permeabilization causes DNA damage and genomic instability in the absence of cell death. Molecular cell. 2015; 57:860-872.

44. Abdel-Fatah TM, Perry C, Dickinson P, Ball G, Moseley P, Madhusudan S, Ellis IO and Chan SY. Bcl2 is an independent prognostic marker of triple negative breast cancer (TNBC) and predicts response to anthracycline combination (ATC) chemotherapy (CT) in adjuvant and neoadjuvant settings. Annals of oncology. 2013; 24:2801-2807.

45. Anagnostou VK, Lowery FJ, Zolota V, Tzelepi V, Gopinath A, Liceaga C, Panagopoulos N, Frangia K, Tanoue L, Boffa D, Gettinger S, Detterbeck F, Homer RJ, Dougenis D, Rimm DL and Syrigos KN. High expression of BCL-2 predicts favorable outcome in non-small cell lung cancer patients with non squamous histology. BMC cancer. 2010; 10:186.

46. Karakas T, Maurer U, Weidmann E, Miething CC, Hoelzer D and Bergmann L. High expression of bcl-2 mRNA as a determinant of poor prognosis in acute myeloid leukemia. Annals of oncology. 1998; 9:159-165.

47. Sup SJ, Alemany CA, Pohlman B, Elson P, Malhi S, Thakkar S, Steinle R and Hsi ED. Expression of bcl-2 in classical Hodgkin’s lymphoma: an independent predictor of poor outcome. Journal of clinical oncology. 2005; 23:3773-3779.

48. Lipponen P, Pietilainen T, Kosma VM, Aaltomaa S, Eskelinen M and Syrjanen K. Apoptosis suppressing protein bcl-2 is expressed in well-differentiated breast carcinomas with favourable prognosis. The Journal of pathology. 1995; 177:49-55.

49. Gasparini G, Barbareschi M, Doglioni C, Palma PD, Mauri FA, Boracchi P, Bevilacqua P, Caffo O, Morelli L, Verderio P and et al. Expression of bcl-2 protein predicts efficacy of adjuvant treatments in operable node-positive breast cancer. Clinical cancer research. 1995; 1:189-198.

50. Pattingre S, Tassa A, Qu X, Garuti R, Liang XH, Mizushima N, Packer M, Schneider MD and Levine B. Bcl-2 antiapoptotic proteins inhibit Beclin 1-dependent autophagy. Cell. 2005; 122:927-939.

51. Wei Y, Pattingre S, Sinha S, Bassik M and Levine B. JNK1-mediated phosphorylation of Bcl-2 regulates starvation-induced autophagy. Molecular cell. 2008; 30:678-688.

52. Mazel S, Burtrum D and Petrie HT. Regulation of cell division cycle progression by bcl-2 expression: a potential mechanism for inhibition of programmed cell death. The Journal of experimental medicine. 1996; 183:2219-2226.

53. Vairo G, Innes KM and Adams JM. Bcl-2 has a cell cycle inhibitory function separable from its enhancement of cell survival. Oncogene. 1996; 13:1511-1519.

54. An CH, Kim MS, Yoo NJ, Park SW and Lee SH. Mutational and expressional analyses of ATG5, an autophagy-related gene, in gastrointestinal cancers. Pathology, research and practice. 2011; 207:433-437.

55. Craik AC, Veldhoen RA, Czernick M, Buckland TW, Kyselytzia K, Ghosh S, Lai R, Damaraju S, Underhill DA, Mackey JR and Goping IS. The BH3-only protein Bad confers breast cancer taxane sensitivity through a nonapoptotic mechanism. Oncogene. 2010; 29:5381-5391.
