Radiotherapy prolongs the survival of advanced non-small-cell lung cancer patients undergone to an immune-modulating treatment with dose-fractioned cisplatin and metronomic etoposide and bevacizumab (mPEBev)

Introduction

Non-small cell lung cancer (NSCLC) is the most common malignancy and the leading cause of cancer death, representing 17% of new cases of cancer diagnosed worldwide [1, 2]. Chemotherapy with platinum derivatives in combination with a second cytotoxic drug (gemcitabine, pemetrexed or taxans) is recommended for patients in advanced stage of disease (stage IIIB-IV) and no driver mutations/rearrangements, which, on the other hand, require molecular targeted specific drugs against EGFR or EML-ALK [3-5]. Further on, the addiction of Bevacizumab, an anti-angiogenic mAb that targets the vasculo-endothelial-growth-factor (VEGF), to the chemotherapy is recommended in patients with non-squamous histology being able to prolong their progression-free (PFS) and overall survival (OS). On the overall, PFS and OS of advanced NSCLC patients are in a range of 7-8 and 12-13 months, respectively. More recently, the clinical development of immune-check point blockade offers new treatment opportunities for these patients. In fact, mAbs to programmed cell death receptor-1 (PD-1) and PD-1 ligand-1 (PDL-1) may improve their survival by rescuing pre-existing tumor-specific cytotoxic-T-cells (CTLs) in the tumor sites [6-11]. Tumor specific-CTLs may rise in NSCLC patients in response to the processing and cross-priming of antigenic material spontaneously released in a context of an immunogenic danger signal by the tumor cells or as consequence of previous antitumor treatments, including CH and/or RT. The latter strategy in particular, alone or in combination with CH, represents a powerful palliative treatment in advanced NSCLC patients [12-17]. Most recent technological developments, including intensity/volumetric modulated arc therapy (IMRT/VMAT), image-guided RT (IGRT), 4D-conformal RT simulation and proton therapy, have greatly reduced the occurrence of adverse events, and its use is achieving excellent palliative results in term of symptom relief and in term of symptom relief and quality of life in patients with life-threatening metastases, mostly to bone, intra-thoracic and central nervous system lesions, and more rarely to the testicles [18-26]. Although RT is generally considered as a loco-regional anticancer means, a number of studies have largely demonstrated its ability to elicit complex immune-adjuvant effects. RT may, in fact, induce immunogenic cell death and peri-tumoral inflammation, thus converting the irradiated tumor tissue in a functional “in situ” antitumor vaccine with consequent poly-antigen specific CTL responses [27-29]. At this purpose, these immune-biological effects have been advocated to explain the sporadic occurrence of tumor regressions outside the irradiation site in cancer patients undergone palliative RT with no other concomitant systemic anticancer treatments [30-33]. This phenomenon recognized in the 50ths by Mule et al. was designated as “abscopal effect” [30-33]. On these bases, several trials are currently testing RT in combination with immunotherapy and/or immune-checkpoint blockade in patients with a number of different malignancies [28, 30, 34, 35] including malignant melanoma [34], prostate adenocarcinoma [35], and NSCLC. Several cytotoxic drugs and CH schedules have shown immune-modulating effects similar to RT. Metronomic chemotherapy (mCH) or dose-dense CH, is an alternative anti-cancer strategy based on the use of conventional cytotoxic drugs administered at lower dosage for a prolonged period of time [36]. This treatment modality allows the achievement of a higher dose-intensity of target cytotoxic drugs compared to traditional usage, avoiding dangerous peaks in blood concentration and, consequently, showing a more tolerated toxicological profile and different antitumor activity. The antitumor activity of mCH derives by a combination of different mechanisms concerning: a direct cytotoxic effect on tumor cells (anti-blastic effect), pro-angiogenic precursors (anti-angiogenic effect), immunosuppressive regulatory-T-cells (Tregs) and myeloid-derivative-suppressor-cells (MDSCs) (immune-modulating effects). Additionally, it may induce neo-antigen and gene modulation in tumor cells (epigenetic effect) and constant release of tumor-derived antigens in a context of immunogenic cell death (immune-stimulating effects) [36, 37]. We previously showed that a metronomic regimen with dose-fractioned cisplatin, oral etoposide and bevacizumab (mPEBev) is a safe and very active treatment for advanced NSCLC patients enrolled in the two-step phase I-IIb BEVA2007 trial [38-41]. An immune-biological monitoring performed on these patients along the treatment, revealed its ability to decrease the serum levels of multiple proangiogenic factors (VEGFA, Angiopoietin 2 and Follistatin), and cytokines (IFNɣ, IL4 and IL17A). This treatment was also associated to a progressive increase of different circulating immune-cell lineages including activated CTLs (CD3+CD8+CD62L+), long-term effector-memory- (CD3+CD8+CD27+) and central-memory-T-cells (TCMs; CD3+CD8+C45RA-CCR7+). The BEVA2007 trial was enforced by a functional study on in vitro cultured peripheral blood mononuclear cells (PBMCs) derived from the enrolled patients. The results of this ancillary study revealed the ability of the mPEBev regimen to give rise to an efficient DC activity in the cultures and to promote an increased antigen-specific T-cell proliferation and Th1 cytotoxic response in NSCLC patients [39-41]. We have, therefore, hypothesized that the immune-modulating properties of the mPEBev regimen could empower the systemic immunological effect potentially ignited by conventional RT. In order to test this hypothesis, we carried out a retrospective analysis aimed to investigate whether the use of RT, given on palliative setting, could improve the outcome of NSCLC patients who received the mPEBev mCH regimen.

Results

Study design

We carried out a retrospective analysis on sixty-nine consecutive patients with metastatic non-squamous NSCLC enrolled in the step 2 of the BEVA2007 trial between September 2007 and September 2015. Patients who completed four treatment cycles according to the mPEBev regimen were selected for our retrospective study. Among these, twenty-four patients received mCH alone and their features are presented in the Table 1. The remaining forty-five patients, 37 males and 8 females, with median age of 63 years and a median ECOG performance status of 1, presented symptomatic lesions and required concurrent palliative RT on selected sites (Table 1). Nineteen of the latter patients received RT to the bones; seven to thoracic lesions (five lung and two nodes); twenty-one to brain (eighteen WBRT and three SRS). Sixteen patients with bone metastases received 30 Gy in ten RT fractions, while three patients received further 20 Gy in five fractions. The treatment resulted safe in patients with advanced NSCLC undergoing to mCH and RT. Thirty Gy in ten RT fractions were planned for patients who received WBRT; while 54 Gy in 30 RT fractions were planned for patients who needed thoracic irradiation. Brain SRS was instead administered as 20 Gy in one single fraction. No significant adverse events or toxicity-related interruptions were recorded for these patients, and all of them could complete the pre-planned treatment program. However, there was a moderate hematological toxicity in both groups, mainly consisting in reversible grade 1-3 leucopenia (6 cases in the mCH group vs 8 cases in the mCH plus RT group) rapidly recovered with the use of growth factors, grade 2 anemia (6 cases in the mCH group vs 8 cases in the mCH plus RT group). In addition, only a light-moderate grade of skin toxicity and a grade 3 post-attinic esophagitis (1 case) were observed in the group of patients undergoing mCH plus RT. Palliative RT was administered after two and four mPEBev courses in 10 and 35 patients, respectively.

Radiotherapy and survival

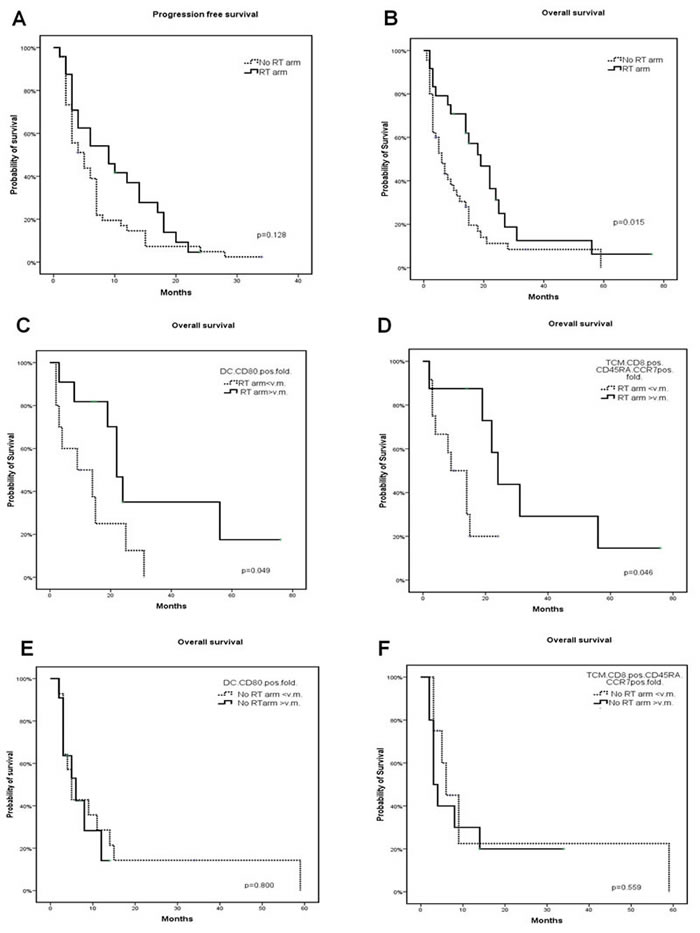

Kaplan-Meier curves and log-rank tests did not record difference between patients who received mCH alone and those who received mCH + RT in term of PFS. Conversely, a much longer survival was recorded in the second group of patients [mCH vs. mCH+RT: 12.1 +/-2.5 (95%CI 3.35-8.6) vs. 22.12 +/-4.3 (95%CI 11.9-26.1) months; P = 0.015] (Figure 1A, 1B). Kaplan Meyer curves and log-rank tests on the group of patients who received RT did not disclose significant correlations between either PFS or OS and with: a) sex, b) grading, c) ECOG performance status score (1 < vs. ≥1) and type response (PR vs SD) to the mCH (data not shown).

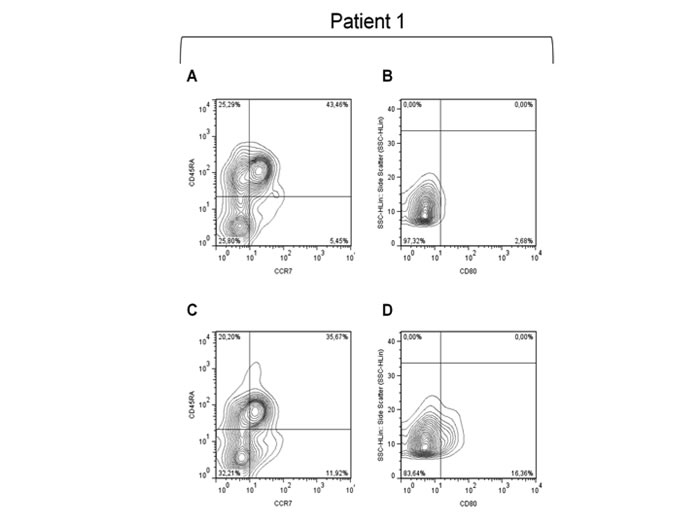

Immunomodulation and survival

We then investigated whether the longer survival recorded in patients who received RT and mCH could have some correlation with the immunological effects induced by the mPEBev regimen in NSCLC patients and described in a previous report [41]. Our analysis revealed a much longer survival in those patients who received RT + mCH and presented a mPEBev-related increase in activated DCs (CD3-CD11b+CD15-CD83+CD80+) [FBV ≤1 vs > 1: 4+/-5.389 (95%CI,0-14.56) vs 56+/-23.05 (95%CI,10.8-101.2) months; p:0.049)] and peripheral TCMs [FBV ≤1 vs > 1: 8+/-5.96 (95%CI,0-19.68) vs 31+/-12.3 (95%CI,6.94-55.1) months; p:0.046] (Figure 1C, 1D and Figure 2). We were instead unable to demonstrate the same survival correlation in patients who received the mCH alone with the treatment-related increase in these blood cell populations [DC, FBV ≤ 1 vs > 1; 14.6+/-5.618 (95%CI 0-12.046) vs 6+/-1.35 (95%CI1.6-10.325) months, P = 0.800; TCMs FV ≤1 vs > 1: 17.7+/-1063 (95%CI 3.54-8.46) vs 10.7+/-3.84 (95%CI,1.4 4.55); P = 0.559], (Figure 1E, 1F). Our statistical analysis failed to demonstrate any other survival correlation with baseline and mCH-related changes in the serum levels of proangiogenic factors (VEGFA, Angiopoietin 2 and Follistatin), cytokines [Interferon (IFN)ɣ, IL4 and IL17A] and Tregs, NKs or MDSC (data not shown).

Discussion

Our retrospective analysis, carried out on advanced NSCLC patients who completed four mPEBev regimen courses and received concomitant or subsequential palliative radiotherapy, revealed a 78% disease control rate (CR+PR+SD) with an OS over 23 months and a 66% one-year survival rate. These patients presented a much longer OS if compared with a homologous group of patients enrolled in the same BEVA2007 trial and who underwent the same mCH regimen with no progression along the treatment, who did not receive RT. Our analysis showed that the OS of patients who received mCH + RT did not correlate with RT modality, dosage or site of irradiation. Interestingly, the two populations of patients who received mCH or mCH + RT did not show statistical difference in term of PFS, a fact that suggests a systemic therapeutic effects in the latter group of patients which results in a prolonged survival.

Even though significant bias exists, due to the small sample, and the retrospective nature of the study, these results appear intriguing. In fact, the most promising systemic treatments for inoperable NSCLC patients present a median OS barely longer than 12-14 months [3-5]. Additionally, no information, concerning the putative ability of palliative RT to prolong the survival in patients who receive standard chemotherapy +/- bevacizumab is currently available. We have hypothesized that our metronomic CH regimen may help RT to elicit an immune-mediated response, with potential antitumor activity as described in the literature [32, 33, 42]. This hypothesis is strongly supported by the finding that the survival of patients who received mCH + RT is correlated with the mPEBev-dependent increase in activated DCs and TCMs. In line with these results, preclinical findings suggest that RT-induced tumor cell death and peri-tumoral inflammation modulate the immune-system’s ability to activate antigen presenting cells-mediated cross-priming and additional immune-effects (immunogenic cell death). Exposure of tumor cells to ionizing radiation can result in immunogenic cell death, whereby upregulation or release of new tumoral antigens and of Damage-Associated-Molecular-Patters (DAMPs), Heat-Shock-Proteins and High-Mobility-Group-Box-1 (HMGB1), recognized by the toll like receptor-4 (TLR-4) on the surface of DCs, promotes both maturation and activity of DCs [42, 43]. Therefore, the release of DAMPs associated with RT-induced cancer cell death occurs in a dose-dependent fashion and has been shown to recruit and stimulate DCs to uptake tumor antigens and cross-present them to naïve T cells thus initiating anti tumor immune responses. RT can also facilitate the recruitment of effector T-cells to the tumor by inducing the secretion of CXC motif chemokine ligand CXCL9, CXCL10 and CXCL16 by tumor cells [1, 2]. RT is able to induce upregulation of major histocompatibility complex class I molecules, FAS/CD95, and stress-induced natural killer group 2D-ligands on tumor cells by enhancing recognition and killing of tumor cells by CTls [1, 3, 4]. Thus, all radio-induced immunological effects convert the irradiated tumor cells into an “in situ vaccine”, resulting in immunogenic cell death and activation of a systemic antitumor immune response [42-44]. In this context, it has been shown that the sequential or concomitant combination of RT with anticancer vaccines elicits a very efficient multi-antigen T cell antitumor response in mouse models that leads to longer survival compared with either vaccine-therapy or RT alone [6, 45].

On these basis, we can speculate the existence of an additive antitumor effect between mPEBev mCH and RT potentially related to clear immune-biological effects of both treatment modality. The mPEBev-related increase in the percentage of activated DCs could in fact, empower the cross-priming of antigen released by the irradiated tumor tissue, with a consequential amplified anti-tumor T cell response. In this contest, TCMs represent an effector-T-cell subset with long term memory and high tumor killing activity, which are able to achieve distant lymph-nodes and tumor sites due to the expression of chemokine receptors (CCR)-7 on their surface [46, 47]. However, despite of the immune-stimulatory effects of both mPEBev regimen and RT, cancer recurrence and/or progression occurs in the majority of patients due to immune-escape mechanisms in the long term. In this context PD-1/PDL1 immune-check point blockade with mAbs could be a promising therapeutic salvage tool in these patients. In general, the main limitation of these immune-checkpoint blocking agents is represented by an inefficient tumor specific CTL response and by a low CTL-tumor infiltration rate which precedes the immune-checkpoint blockade. At this purpose a rationale combination of PD-1/PDL1 blockade with treatments, like chemotherapy, RT or cancer vaccines, able to elicit an efficient CTL response that could produce more than additive therapeutic results in these patient has already been proposed. In this context, Deng et al. showed that RT-mediated inflammation results in IFNγ release thus increasing PDL-1 expression on cancer cells, MDSCs, and M2-macrophages in tumor microenvironment [30] and also reported that the combination of RT and mAbs to PDL- 1 enhances the frequency of the abscopal events and the antitumor activity of both treatment modalities [30].

In conclusion, although with significant limitation, our results suggest that RT delivered on a palliative setting prolongs the survival of advanced NSCLC patients who have received the mPEBev regimen presumably by igniting an immunological effect. This effects seems to be correlated to the development of antigen presenting cells like DCs and consequently to the expansion of activated effector T cells with antitumor activity. On these basis, this sequential module of treatment which involves mPEBev regimen + stereotactic RT deserves to be investigated in further prospective trials in NSCLC patients possibly in sequential combination with immune-checkpoint blockade.

Patients and methods

Study design

The study protocol code #BEVA2007 was a two step phase I/II clinical trial, performed in accordance to the good clinical practice guidelines and was approved by the Bioethics Committee of the University of Siena as described in previous reports [38-41]. Moreover, informed consent was obtained from each subject or subject’s guardian. The first step of the study included 25 patients, who were sub-divided in five cohorts receiving escalating dosage of bevacizumab. Cohort 1 received mPE chemotherapy alone, while cohort 2, 3, 4 and 5 received bevacizumab every three weeks, at the dosage of 2.5, 5, 7.5 and 10 mg/kg every three weeks [38]. Bevacizumab dosage for the second step (Phase II trial) was extrapolated by the results of the first step that identified 5 mg/kg as the most effective biological dose (MEBD) in combination with the mPEBev regimen and 7.5 mg/kg as its maximum tolerated dose (MTD). Sixty-nine patients signed a written informed consent and were enrolled in the second part of the study [39-41]. All the cases were discussed in a multidisciplinary tumor board, including a dedicated surgeon, medical oncologist, radiation oncologist, radiologist, and pathologist. The inclusion criteria were: histological diagnosis of mNSCLC, allowing squamous cell carcinomas not considered at risk of bleeding, performance status (ECOG) from 0 to 2, normal renal and hepatic function, WBC count more than 2,500/mm3, hemoglobin more than 9 g/dl, platelet cell count more than 90,000/mm3, normal cardiac function, and advanced stage (IIIB/IV) of disease. The exclusion criteria were: Central tumors with high risk of bleeding (excavated with bulky necrosis and infiltration of large arterial and venous structures) for bevacizumab use, a history of other severe cardiovascular disease, arrhythmia, second malignant tumors, signs of active infections.

Treatment schedule

Sixty-nine patients, therefore, received iv. cisplatin (30 mg/sqm) on days 1-3 and daily oral etoposide (50 mg) on from day 1 to day 15 and bevacizumab (5 mg/kg) on the day 3 every three weeks, for a maximum of 4 consecutive courses [38-40]. Palliative radiotherapy was allowed with palliative intent on quality of-life threatening lesions.

Radiation therapy treatment

RT was delivered on a case by case basis, as a palliative treatment. Forty-five of these patients received radiation therapy, either as RT to the bones (19 patients), WBRT (18 patients) and SRS (3 patients), palliative thoracic irradiation (7 patients). RT was delivered with a Linear Accelerator (6MV-15MV photon) as a 3D-conformational radiation therapy (3D-CRT) on that. The target volume was identified by diagnostic CT scan. RT dosage was prescribed on a case by case basis, according to the Clinician choice. CT simulation was performed with a 5 mm slicing, 120KV, 10 Index Noise, Range 100-440 mA, spiral 16 slices CT Scanner.

Biological analysis and blood sampling

Peripheral blood samples (10 ml) were withdrawn at baseline and one hour before any treatment cycle of chemotherapy for either serum and PBMC isolation. Serum derived from standard peripheral blood centrifugation and PBMCs obtained by Ficoll-Hypaque (Celbio S.P.A., Italy) gradient separation medium form heparinized blood samples were immediately frozen and stored as described in previous studies [38-40]. Lymphocytes, platelets, neutrophils, monocytes were evaluated by hemocytometric cell counts, while their feature was evaluated by microscope analysis. Flow cytometry was perfomed on patients’ PBMCs by carrying out standard multicolor immuno-cytofluorimetric analysis [41] with conjugated anti-CD3, CD4, CD8, CD27, CD62L, CD19, CD16, CD56, CD25, CD80, CD83, FoxP3, CCR7, CD45Ra, CD11b, CD11c, CD14, CD15 mAbs all purchased by eBioscience, USA.

BioPlex assay

Blood samples were collected from a peripheral vein at baseline and just before each treatment and kept on ice. Serum was collected by centrifugation (3,000 rpm for 10 min at 4°C), aliquoted, and stored at −80°C until analyzed. A multiplex biometric ELISA-based immunoassay, containing dyed microspheres conjugated with a monoclonal antibody specific for a target protein was used according to the manufacturer’s instructions (Bioplex, Bio-Rad Lab., Inc., Hercules, CA, USA). Soluble molecules were measured using either commercially available kits or customized kits for the evaluation of the following cytokines: Interleukin(IL)4, IL8, IL10, IL12/A, IL17/A, IFNɣ, Tumor necrosis factor (TNF)α, VEGF, Granulocyte-Colony Stimulating Factor (GCSF), angiopoietin-2 as described in previous papers [38-41]. Serum levels of all proteins were determined using a Bio-Plex array reader (Luminex, Austin, TX) that quantifies multiplex immunoassays in a 96-well plate with very small fluid volumes. The analyte concentration was calculated using a standard curve, with software provided by the manufacturer (Bio-Plex Manager Software).

Statistical analysis

The between-mean differences were statistically analyzed using Stat View statistical software (Abacus Concepts, Berkeley, CA). The results were expressed as the mean +/- standard deviation (SD) of 4 determinations made in three different experiments, and the differences determined using the 2-tail Student’s t-test for paired samples. In order to perform a survival analysis we divided the patients into two subgroups with low (A) and high (B) score, according to their respective median value of each specific marker or treatment related level change expressed as fold change to baseline value. Descriptive statistic by Kaplan Meier’s method and Log-Rank test were used to evaluate PFS, and OS and correlate them with patients’ associated variables. All analyses were performed by SPSS statistical package, version 17.0. A p-value of 0.05 or less was considered statistically significant. In the comparative analysis, patients who showed a rapid disease progression or severe adverse events or death during the induction treatment with the mPEBev regimen and did not complete at least three treatment courses were excluded from the retrospective study.

Abbreviations

RT: radiotherapy; mCH: metronomic chemotherapy; mPEBev: metronomic dose-fractioned cisplatin, oral etoposide and bevacizumab; mNSCLC: metastatic non-small-cell-lung cancer; EGFR: epidermal growth factor receptor; EML-ALK echinoderm microtubule-associated protein-like 4 and anaplastic lymphoma kinase fusion protein;VEGF: vasculo-endothelial-growth-factor ; OS: overall survival ; PFS: progression-free survival; mAbs: monoclonal antibodies; PD-1: programmed cell death receptor-1; PDL-1: PD-1 ligand-1; CTLs: cytotoxic-T-cells; IMRT/VMAT: intensity/volumetric modulated arc therapy; IGRT: image-guided RT; Tregs: regulatory-T-cells ; MDSCs: myeloid-derivative-suppressor-cells;TCMs: central-memory-T-cells; PBMCs: peripheral blood mononuclear cells; DC: dendritic cells; ECOG: eastern cooperative oncology group performance status; WBRT: whole brain radiotherapy; SRS: stereotactic radiosurgery; Gy: gray; PR: partial response; SD: stable disease; FBV: fold to baseline value; VEGFA: vascular endothelial growth factor A; IFNɣ: Interferon ɣ; DAMPs: Damage-Associated-Molecular-Patters;HMGB1: high-mobility-group-box-1; TLR-4: toll like receptor-4; CCR-7: chemokine receptors; MEBD: most effective biological dose; MTD: maximum tolerated dose; WBC: white blood cell; 3D-CRT: 3D-conformational radiation therapy; TNFα: tumor necrosis factor α; GCSF: granulocyte-colony stimulating factor.

Author contributions

(I) Conception and design: Pierpaolo Pastina, Pierpaolo Correale; Cirino Botta, Pierfrancesco Tassone, Pierosandro Tagliaferrri; (II) Administrative support: Michele Caraglia, Pierpaolo Correale; (III) Provision of study materials or patients: All authors; (IV) Collection and assembly of data: All authors; (V) Data analysis and interpretation: All authors; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Conflicts of interest

The authors have no conflicts of interest to declare.

References

1. World Health Organization, I.A.f.r.o.c. GLOBOCAN 2012: Estimated Cancer incidence, Mortality and Prevalence Worldwide in 2012. 2012; Available at: http://globocan.iarc.fr/default.aspx.

2. Ettinger DS. Lung cancer and other pulmonary neoplasms. In: Goldman L, Schafer AI, eds. Cecil Medicine. 24th ed. Philadelphia, PA: Saunders Elsevier; 2011:chap 197.

3. Pilkington G, Boland A, Brown T, Oyee J, Bagust A, Dickson R. A systematic review of the clinical effectiveness of first-line chemotherapy for adult patients with locally advanced or metastatic non-small cell lung cancer. Thorax. 2015; 70:359-367.

4. Scagliotti GV, Parikh P, von Pawel J, Biesma B, Vansteenkiste J, Manegold C, Serwatowski P, Gatzemeier U, Digumarti R, Zukin M, Lee JS, Mellemgaard A, Park K, et al. Phase III study comparing cisplatin plus gemcitabine with cisplatin plus pemetrexed in chemotherapy-naive patients with advanced-stage non-small-cell lung cancer. J Clin Oncol. 2008; 26:3543-3551.

5. Socinski MA, Bondarenko I, Karaseva NA, Makhson AM, Vynnychenko I, Okamoto I, Hon JK, Hirsh V, Bhar P, Zhang H, Iglesias JL, Renschler MF. Weekly nab-paclitaxel in combination with carboplatin versus solvent-based paclitaxel plus carboplatin as first-line therapy in patients with advanced non-small-cell lung cancer: final results of a phase III trial. J Clin Oncol. 2012; 30:2055-2062.

6. Boussiotis VA, Chatterjee P, Li L. Biochemical signaling of PD-1 on T cells and its functional implications. Cancer J. 2014; 20:265-271.

7. Luke JJ, Ott PA. PD-1 pathway inhibitors: the next generation of immunotherapy for advanced melanoma. Oncotarget. 2015; 6:3479-3492. https://doi.org/10.18632/oncotarget.2980

8 Pardoll DM. The blockade of immune checkpoints in cancer immunotherapy. Nat Rev Cancer. 2012; 12:252-264.

9. Creelan BC. Update on immune checkpoint inhibitors in lung cancer. Cancer Control. 2014; 21:80-89.

10. Brahmer JR, Hammers H, Lipson EJ. Nivolumab: targeting PD-1 to bolster antitumor immunity. Future Oncol. 2015; 11:1307-1326.

11. Sundar R, Cho BC, Brahmer JR, Soo RA. Nivolumab in NSCLC: latest evidence and clinical potential. Ther Adv Med Oncol. 2015; 7:85-96.

12. Lutz ST, Jones J, Chow E. Role of radiation therapy in palliative care of the patient with cancer. J Clin Oncol. 2014; 32:2913-2919.

13. Gore EM, Bradley JD, Buatti JM, Germano I, Ghafoori AP, Henderson MA, Murad GJ, Patchell RA, Patel SH, Robbins JR, Robins HI, Vassil AD, Wippold FJ 2nd, et al, Expert Panel on Radiation Oncology-Brain Metastases. ACR Appropriateness Criteria(R) pre-irradiation evaluation and management of brain metastases. J Palliat Med. 2014; 17:880-886.

14. Chang JY, Kestin LL, Barriger RB, Chetty IJ, Ginsburg ME, Kumar S, Loo BW Jr, Movsas B, Rimner A, Rosenzweig KE, Stinchcombe TE, Videtic GM, Willers H. ACR Appropriateness Criteria(R) nonsurgical treatment for locally advanced non-small-cell lung cancer: good performance status/definitive intent. Oncology. 2014; 28:706-710, 712, 714 passim.

15. Lutz ST, Chang EL, Galanopoulos N, Howell DD, Kim EY, Konski AA, Pandit-Taskar ND, Rose PS, Ryu S, Silverman LN, Sloan AE, Van Poznak C, Expert Panel on Radiation Oncology-Bone Metastases. ACR Appropriateness Criteria (R) spinal bone metastases. J Palliat Med. 2013; 16:9-19.

16. Rosenzweig KE, Chang JY, Chetty IJ, Decker RH, Ginsburg ME, Kestin LL, Kong FM, Lally BE, Langer CJ, Movsas B, Videtic GM, Willers H. ACR appropriateness criteria nonsurgical treatment for non-small-cell lung cancer: poor performance status or palliative intent. J Am Coll Radiol. 2013; 10:654-664.

17. McAvoy S, Ciura K, Wei C, Rineer J, Liao Z, Chang JY, Palmer MB, Cox JD, Komaki R, Gomez DR. Definitive reirradiation for locoregionally recurrent non-small cell lung cancer with proton beam therapy or intensity modulated radiation therapy: predictors of high-grade toxicity and survival outcomes. Int J Radiat Oncol Biol Phys. 2014; 90:819-827.

18. Gregoire V, Mackie TR. State of the art on dose prescription, reporting and recording in Intensity-Modulated Radiation Therapy (ICRU report No. 83). Cancer Radiother. 2011; 15:555-559.

19. Teoh M, Clark CH, Wood K, Whitaker S, Nisbet A. Volumetric modulated arc therapy: a review of current literature and clinical use in practice. Br J Radiol. 2011; 84:967-996.

20. Chen AB, Neville BA, Sher DJ, Chen K, Schrag D. Survival outcomes after radiation therapy for stage III non-small-cell lung cancer after adoption of computed tomography-based simulation. J Clin Oncol. 2011; 29:2305-2311.

21. Liao ZX, Komaki RR, Thames HD Jr, Liu HH, Tucker SL, Mohan R, Martel MK, Wei X, Yang K, Kim ES, Blumenschein G, Hong WK, Cox JD. Influence of technologic advances on outcomes in patients with unresectable, locally advanced non-small-cell lung cancer receiving concomitant chemoradiotherapy. Int J Radiat Oncol Biol Phys. 2010; 76:775-781.

22. Terasawa T, Dvorak T, Ip S, Raman G, Lau J, Trikalinos TA. Systematic review: charged-particle radiation therapy for cancer. Ann Intern Med. 2009; 151:556-565.

23. Chen AB, Cronin A, Weeks JC, Chrischilles EA, Malin J, Hayman JA, Schrag D. Palliative radiation therapy practice in patients with metastatic non-small-cell lung cancer: a Cancer Care Outcomes Research and Surveillance Consortium (CanCORS) Study. J Clin Oncol. 2013; 31:558-564.

24. Rodrigues G, Macbeth F, Burmeister B, Kelly KL, Bezjak A, Langer C, Hahn C, Movsas B. Consensus statement on palliative lung radiotherapy: third international consensus workshop on palliative radiotherapy and symptom control. Clin Lung Cancer. 2012; 13:1-5.

25. Rodrigues G, Videtic GM, Sur R, Bezjak A, Bradley J, Hahn CA, Langer C, Miller KL, Moeller BJ, Rosenzweig K, Movsas B. Palliative thoracic radiotherapy in lung cancer: An American Society for Radiation Oncology evidence-based clinical practice guideline. Pract Radiat Oncol. 2011; 1:60-71.

26. Chieffi P, Franco R, Portella G. Molecular and cell biology of testicular germ cell tumors. Int Rev Cell Mol Biol. 2009; 278:277-308.

27. Domagala-Kulawik J. The role of the immune system in non-small cell lung carcinoma and potential for therapeutic intervention. Transl Lung Cancer Res. 2015; 4:177-190.

28. Tang C, Wang X, Soh H, Seyedin S, Cortez MA, Krishnan S, Massarelli E, Hong D, Naing A, Diab A, Gomez D, Ye H, Heymach J, et al. Combining radiation and immunotherapy: a new systemic therapy for solid tumors? Cancer Immunol Res. 2014; 2:831-838.

29. Reits EA, Hodge JW, Herberts CA, Groothuis TA, Chakraborty M, Wansley EK, Camphausen K, Luiten RM, de Ru AH, Neijssen J, Griekspoor A, Mesman E, Verreck FA, et al. Radiation modulates the peptide repertoire, enhances MHC class I expression, and induces successful antitumor immunotherapy. J Exp Med. 2006; 203:1259-1271.

30. Deng L, Liang H, Burnette B, Beckett M, Darga T, Weichselbaum RR, Fu YX. Irradiation and anti-PD-L1 treatment synergistically promote antitumor immunity in mice. J Clin Invest. 2014; 124:687-695.

31. Saba R, Saleem N, Peace D. Long-term survival consequent on the abscopal effect in a patient with multiple myeloma. BMJ Case Rep. 2016; 2016.

32. Grass GD, Krishna N, Kim S. The immune mechanisms of abscopal effect in radiation therapy. Curr Probl Cancer. 2016; 40:10-24.

33. Abuodeh Y, Venkat P, Kim S. Systematic review of case reports on the abscopal effect. Curr Probl Cancer. 2016; 40:25-37.

34. Twyman-Saint Victor C, Rech AJ, Maity A, Rengan R, Pauken KE, Stelekati E, Benci JL, Xu B, Dada H, Odorizzi PM, Herati RS, Mansfield KD, Patsch D, et al. Radiation and dual checkpoint blockade activate non-redundant immune mechanisms in cancer. Nature. 2015; 520:373-377.

35. Slovin SF, Higano CS, Hamid O, Tejwani S, Harzstark A, Alumkal JJ, Scher HI, Chin K, Gagnier P, McHenry MB, Beer TM. Ipilimumab alone or in combination with radiotherapy in metastatic castration-resistant prostate cancer: results from an open-label, multicenter phase I/II study. Ann Oncol. 2013; 24:1813-1821.

36. Maiti R. Metronomic chemotherapy. J Pharmacol Pharmacother. 2014; 5:186-192.

37. Kareva I, Waxman DJ, Lakka Klement G. Metronomic chemotherapy: an attractive alternative to maximum tolerated dose therapy that can activate anti-tumor immunity and minimize therapeutic resistance. Cancer Lett. 2015; 358:100-106.

38. Correale P, Cerretani D, Remondo C, Martellucci I, Marsili S, La Placa M, Sciandivasci A, Paolelli L, Pascucci A, Rossi M, Di Bisceglie M, Giorgi G, Gotti G, et al. A novel metronomic chemotherapy regimen of weekly platinum and daily oral etoposide in high-risk non-small cell lung cancer patients. Oncology Reports. 2006; 16:133-140.

39. Correale P, Botta C, Basile A, Pagliuchi M, Licchetta A, Martellucci I, Bestoso E, Apollinari S, Addeo R, Misso G, Romano O, Abbruzzese A, Lamberti M, et al. Phase II trial of bevacizumab and dose/dense chemotherapy with cisplatin and metronomic daily oral etoposide in advanced non-small-cell-lung cancer patients. Cancer Biol Ther. 2011; 12:112-118.

40. Correale P, Remondo C, Carbone SF, Ricci V, Migali C, Martellucci I, Licchetta A, Addeo R, Volterrani L, Gotti G, Rotundo MS, Tassone P, Sperlongano P, et al. Dose/dense metronomic chemotherapy with fractioned cisplatin and oral daily etoposide enhances the anti-angiogenic effects of bevacizumab and has strong antitumor activity in advanced non-small-cell-lung cancer patients. Cancer Biol Ther. 2010; 9:685-693.

41. Martino EC, Misso G, Pastina P, Costantini S, Vanni F, Gandolfo C, Botta C, Capone F, Lombardi A, Pirtoli L, Tassone P, Ulivieri C, Tagliaferri P, et al. Immune-modulating effects of bevacizumab in metastatic non-small-cell-lung cancer patients. Cell Death Discovery. 2016; 2:16025.

42. Levy A, Chargari C, Marabelle A, Perfettini JL, Magné N, Deutsch E. Can immunostimulatory agents enhance the abscopal effect of radiotherapy? Eur J Cancer. 2016; 62:36-45.

43. Zitvogel L, Kepp O, and Kroemer G. Decoding cell death signals in inflammation and immunity. Cell. 2010; 140:798-804.

44. Formenti SC, Demaria S. Radiation therapy to convert the tumor into an in situ vaccine. Int J Radiat Oncol Biol Phys. 2012; 84:879-880.

45. Kim R, Emi M, Tanabe K. Cancer immunoediting from immune surveillance to immune escape. Immunology. 2007; 121:1-14.

46. Bromley SK, Yan S, Tomura M, Kanagawa O, Luster AD. Recirculating memory T cells are a unique subset of CD4+ T cells with a distinct phenotype and migratory pattern. J Immunol. 2013; 190:970-976.

47. Díaz-Montero CM, Naga O, Zidan AA, Salem ML, Pallin M, Parmigiani A, Walker G, Wieder E, Komanduri K, Cole DJ, Montero AJ, Lichtenheld MG. Synergy of brief activation of CD8 T-cells in the presence of IL-12 and adoptive transfer into lymphopenic hosts promotes tumor clearance and anti-tumor memory. Am J Cancer Res. 2011; 1:882-896.
