The prognostic impacts of TEA domain (TEAD) transcription factor polymorphisms in Chinese hepatocellular carcinoma patients

Abstract

TEA domain (TEAD) transcription factors play an important role in hepatocellular carcinoma (HCC) development and progression by regulating the expression of a number of genes. However, the association of their genetic variations with HCC prognosis remains elusive. Seven potentially functional single nucleotide polymorphisms in TEAD1-4 (rs2304733, rs10831923, rs12104362, rs3745305, rs11756089, rs2076173, rs7135838) were genotyped from 331 hepatitis B virus positive HCC patients using the Sequenom MassARRAY iPLEX platform. The TEAD3 rs2076173 C allele and rs11756089 T allele were identified as protective alleles as they were significantly associated with longer median overall survival time (MST). The T allele of rs2076173 was significantly associated with HCC survival independent of age, gender, smoking and drinking status, BCLC stage, and chemotherapy or TACE status (HR = 0.73, 95% CI = 0.56-0.93, P = 0.012). This protective effect was more prominent for patients who were non-drinkers (P for multiplicative interaction = 0.002). Patients had more than one of these protective alleles had significant longer MST of 19.25 months than those had none (MST=12.85 months, adjusted HR = 0.56, 95% CI = 0.33-0.95, P=0.030), especially for those non-drinkers (adjusted HR = 0.48, 95% CI = 0.32-0.74, P = 0.001). These findings suggested that rs2076173 and rs11756089 in TEAD3 gene could serve as genetic markers for favorable survival in the Chinese HCC patients.

INTRODUCTION

Hepatocellular carcinoma (HCC) is the fourth commonly diagnosed cancer and the third leading cause of cancer death in China [1]. Due to the asymptomatic nature, HCC are often diagnosed at advanced stage with poor prognosis. Combined modalities such as surgery, radiation, chemotherapy and molecular targeted therapy were showed to provide limited or marginal therapeutic benefits and always associated with unpleasant side effects. There remains an urgent need to identify molecular markers that can identify high-risk patients for more appropriate cancer treatment that gives a better clinical outcome.

The transcriptional enhancer activator domain (TEAD) family is a group of transcriptional factors, participating in the development of various tumors, such as liver [2], gastric [3] and ovarian cancers [4]. Four family members (TEAD1, TEAD2, TEAD3 and TEAD4) shared in the highly conserved TEA DNA binding domain and required transcriptional coactivators for transcription activation [5]. With the help of coactivators, quite a few genes relevant to tumorigenesis are regulated by TEADs, including connective tissue growth factor (CTGF) [6], AXL tyrosine kinase receptor (AXL) [7], cyclin D1 (CCND1) and Forkhead box protein M1 (FOXM1) [8]. In HCC, TEAD-Yes-associated protein (YAP) complex is the downstream regulator of the Hippo tumor suppressor pathway [9]. Dysregulated Hippo signaling pathway will lead to hypophosphorylation of YAP and resulting in translocation of YAP into the nucleus to form the complex with TEADs. The four TEAD family members have similar affinity for YAP. The YAP-TEAD complex subsequently would induce a number of gene expressions involving anti-apoptosis, proliferation and “stemness” phenotype [9–11]. Disrupting YAP-TEAD complex was demonstrated to impede HCC tumorigenesis without interrupting normal liver homeostasis [12]. Other evidences showed that downregulation of TEAD1/3/4 were able to abolish YAP-induced oncogenic transformation including cell proliferation, anchorage-independent growth and epithelial-mesenchymal transition (EMT) suggesting that TEAD is essential for the function of YAP in HCC development and progression [9]. Genetic variations of TEADs such asTEAD1 rs7944031 AG/GG and TEAD4 rs1990330 CA/AA genotypes, were significantly associated with poor survival time in melanoma [13]. An alternative splicing form of TEAD4 which lacking the N-terminal DNA-binding domain but maintaining the YAP interaction domain was found under-expressed in various cancer cells. Restoring this TEAD4 isoform could inhibit tumor growth through repressing YAP signaling [14].

Nevertheless, the clinical significance of TEADs genetic variations in HCC has not been known. Considering the essential role of TEADs in HCC development and progression, we performed single nucleotide polymorphisms (SNPs) genotyping on seven potentially functional variants of TEADs in 331 HCC patients to investigate whether they could serve as biomarkers for better clinical management.

RESULTS

Association of TEADs polymorphisms with overall survival

The demographic characteristics and clinical information of the 331 HCC patients were described previously [15]. There were 258 of patients who died from HCC, and 2 died from other causes during the follow-up to 60.7 months. Median age of the patients was 53 years and the median survival time (MST) was 14.5 months. Of the 331 patients, 284 patients (85.8%) were male and 47 (14.2%) were female; 211 (63.7%) patients were defined as smokers and 204 (61.6%) patients were drinkers; 304 (91.8%) patients were at BCLC stage B and 27 (8.2%) of them at BCLC stage C; 240 (72.5%) received either the chemotherapy or TACE therapy. Notably, the drinkers had a higher risk of death (HR = 1.43, 95%CI = 1.11-1.84, P = 0.006) than non-drinkers, whereas patients with chemotherapy or TACE had a 61% significant risk reduction of death (HR = 0.39, 95%CI = 0.29-0.51, P < 0.001).

Kaplan-Meier and log-rank tests were used to examine the associations between the SNPs and HCC survival by using different genetic models. All P-values of Hardy-Weinberg equilibrium were greater than 0.05. None of the SNPs tested for TEAD1/2/4 were found to have significant association with the overall survival time. Two SNPs of TEAD3, rs11756089 and rs2076173 polymorphisms were significantly correlated with the HCC specific overall survival time using the dominant model (log-rank test: P = 0.009 and P = 0.022, respectively) and the additive model (log-rank test: P = 0.024 and P = 0.039, respectively) (Table 1 and Figure 1). As shown in Table 2, compared to the patients carrying rs11756089 CC genotype, those with CT/TT genotypes had a longer MST of 18.14 months, although not reaching statistical significance after adjusted for age, gender, smoking and drinking status, BCLC stage, and chemotherapy or TACE status (adjusted HR = 0.74, 95% CI = 0.53-1.03, P = 0.075). For rs2076173, TC/CC genotypes was shown to result in a significant improvement in overall survival time of 14.95 months (adjusted HR = 0.73, 95% CI = 0.56-0.93, P = 0.012) when compared to TT genotype with MST of 12.85 months. Since both of the SNPs are located within TEAD3 gene, the combined effects of the protective alleles (T allele of rs11756089 and C allele of rs2076173) on HCC survival were examined (Table 2). Patients carrying increasing number of these protective alleles tends to have better survival outcomes (P for trend = 0.011). Patients with 1-4 protective alleles had a 27% significant risk reduction of death (95% CI = 0.57-0.94, P = 0.014), compared to patients with wide-type (WT) homozygotes of the two SNPs. Similarly, patients with 3-4 protective alleles had a significantly longer MST of 19.25 months than those had none (MST = 12.85 months, adjusted HR = 0.56, 95% CI = 0.33-0.95, P = 0.030).

Table 1: Genotyping results with HCC patients' survival

SNP	Base change a	Gene	Location	Genotyping Rate	MAF b	Log-rank P
						Dominant model	Additive model
rs2304733	T>C	TEAD1	11p15.2	96.98%	0.132	0.137	0.180
rs10831923	T>A	TEAD1	11p15.2	96.07%	0.414	0.900	0.966
rs12104362	T>C	TEAD2	19q13.3	97.89%	0.500	0.537	0.158
rs3745305	C>T	TEAD2	19q13.3	97.58%	0.067	0.100	0.100
rs11756089	C>T	TEAD3	6p21.31	96.37%	0.114	0.009	0.024
rs2076173	T>C	TEAD3	6p21.31	96.68%	0.354	0.022	0.039
rs7135838	C>G	TEAD4	12p13.33	96.68%	0.159	0.130	0.241

HCC, hepatocellular carcinoma; SNP, single nucleotide polymorphism; MAF, minor allele frequency.

^a major > minor allele.

^b MAF in Patients.

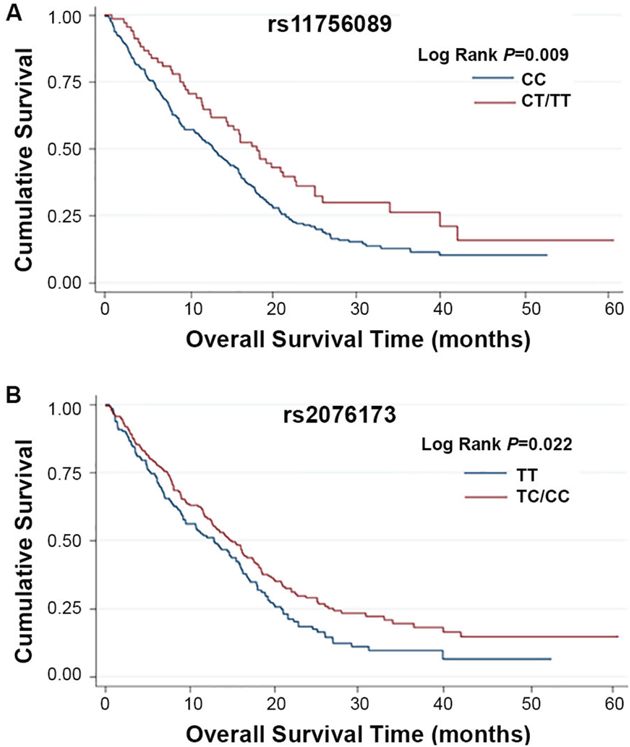

Figure 1: Kaplan-Meier plots of survival by TEAD3 rs11756089 and rs2076173 genotypes in HCC patients’ survival. (A) TEAD3 rs11756089 genotypes and HCC survival (log-rank P = 0.009 for CT/TT vs. CC) in a dominant model. (B) TEAD3 rs2076173 genotypes and HCC survival (log-rank P = 0.022 for TC/CC vs. TT) in a dominant model.

Table 2: Polymorphisms and HCC Patients' Survival

Genotype	Patients	Deaths	MST (months)	Crude HR (95% CI)	Adjusted HR (95% CI) a	Pa
rs11756089
CC	257	209	12.98	1.00	1.00
CT	62	44	16.16	0.70 (0.50-0.97)	0.75 (0.53-1.05)	0.097
TT	6	4	22.87	0.42 (0.15-1.12)	0.66 (0.24-1.80)	0.418
Additive model				0.68 (0.52-0.90)	0.77 (0.57-1.03)	0.078
Dominant model				0.66 (0.48-0.91)	0.74 (0.53-1.03)	0.075
rs2076173
TT	142	120	12.85	1.00	1.00
TC	137	108	14.13	0.79 (0.61-1.03)	0.76 (0.58-0.99)	0.041
CC	47	30	16.26	0.63 (0.42-0.93)	0.63 (0.42-0.94)	0.025
Additive model				0.79 (0.66-0.95)	0.78 (0.65-0.94)	0.009
Dominant model				0.75 (0.59-0.96)	0.73 (0.56-0.93)	0.012
Combined genotypes (rs11756089-T and rs2076173-C)
0	140	118	12.85	1.00	1.00
1	97	78	13.14	0.86 (0.64-1.14)	0.76 (0.57-1.02)	0.071
2	61	44	16.03	0.68 (0.48-0.97)	0.74 (0.52-1.05)	0.095
3-4	26	17	19.25	0.57 (0.34-0.95)	0.56 (0.33-0.95)	0.030
Trend				P b = 0.005	P b = 0.011
0	140	118	12.85	1.00	1.00
1-4	184	139	14.95	0.75 (0.59-0.96)	0.73 (0.57-0.94)	0.014

HCC, hepatocellular carcinoma; MST, median survival time; HR, hazard ratio; CI, confidence intervals.

^a Adjusted for age, gender, smoking and drinking status, BCLC stage, and chemotherapy or TACE status.

^b P value of Cochran-Armitage’s trend test.

Stepwise cox regression analysis on HCC survival

We then performed stepwise Cox proportional hazard analysis to estimate the effects of demographic characteristics, clinical features, TEAD3 rs11756089 and rs2076173 on HCC survival. As shown in Table 3, four variables (chemotherapy or TACE status, age, TEAD3 rs2076173 and drinking status) were selected into the final regression model. Furthermore, when gender, smoking status and BCLC stage were included in the final model, the TEAD3 rs2076173 still remained as an independent protective factor for HCC survival (HR = 0.69, 95%CI = 0.54-0.89, P = 0.005).

Table 3: Multivariable cox regression analysis on HCC patients’ survival

Variables	β a	SE b	HR	95% CI	P
Stepwise regression analysis
Chemotherapy or TACE (yes vs. none)	-1.1340	0.1524	0.32	0.24-0.43	<0.001
Age (>53 vs. <=53)	-0.4467	0.1366	0.64	0.49-0.84	0.001
rs2076173 (TC/CC vs.TT)	-0.3580	0.1293	0.70	0.54-0.90	0.006
Drinking status (yes vs. no)	0.3112	0.1321	1.37	1.05-1.77	0.018
Final regression model
Chemotherapy or TACE (yes vs. none)	-1.1419	0.1523	0.32	0.24-0.43	<0.001
Age (>53 vs. <=53)	-0.4555	0.1363	0.63	0.49-0.83	0.001
rs2076173 (TC/CC vs.TT)	-0.3644	0.1289	0.69	0.54-0.89	0.005
Drinking status (yes vs. no)	0.3074	0.1320	1.36	1.05-1.76	0.020

HCC, hepatocellular carcinoma; HR, hazard ratio; CI, confidence intervals; TACE, transcatheter hepatic arterial chemoembolization.

^a β is the estimated parameter of the regression model.

^b SE is the standard error of the regression model.

TEAD3 polymorphisms associated with survival in HCC patients’ subtypes

To better assess the correlations of the two polymorphisms of TEAD3 and HCC survival, stratified analysis was performed on age, gender, smoking and drinking status, BCLC stage, and chemotherapy/TACE status. As shown in Supplementary Tables 2 and 3, the protective effects of the variant genotypes of rs11756089 and rs2076173 were more prominent in non-drinkers than drinkers (heterogeneity test: P = 0.002 for rs11756089; P = 0.031 for rs2076173). Similarly, the combined protective effect of the variant alleles of rs11756089 and rs2076173 was also more prominent in non-drinkers (adjusted HR = 0.50, 95% CI = 0.33-0.77) than drinkers (adjusted HR = 0.90, 95% CI = 0.65-1.23, P = 0.030 for heterogeneity test, Supplementary Table 4). Therefore, a gene-drink status interaction analysis was carried out, and a statistically significant multiplicative interaction was observed (multiplicative interaction analysis: P = 0.004 for rs11756089; P = 0.002 for rs2076173; P = 0.002 for the combined genotypes, Table 4, Figures 2 and 3). Comparing to drinkers with rs11756089 CC genotype, non-drinkers with rs11756089 CT/TT genotypes had a significantly decreased mortality risk (adjusted HR = 0.39, 95% CI = 0.24-0.65, P < 0.001, Table 4 and Figure 2A). Compared to drinkers with rs2076173 TT genotype, non-drinkers with rs2076173 TC/CC genotypes had a 52% significant risk reduction of death (adjusted HR = 0.48, 95% CI = 0.32-0.74, P = 0.001, Table 4 and Figure 2B). When combining the two SNPs, non-drinkers with 1-4 protective alleles had better survival with MST of 19.25 months (adjusted HR = 0.48, 95% CI = 0.32-0.74, P = 0.001, Table 4 and Figure 3) than drinkers with 0 protective allele.

Table 4: Interaction between variants genotypes and drinking status

Combined effects	SNP	Drinking status	Patients	Deaths	MST(months)	Adjusted HR (95% CI) a	P a
	rs11756089
0	CC	Yes	167	137	12.06	1.00
1	CT/TT	Yes	32	26	9.99	1.12 (0.73-1.72)	0.618
2	CC	No	90	72	16.69	0.79 (0.55-1.14)	0.210
3	CT/TT	No	36	22	22.67	0.39 (0.24-0.65)	<0.001
	P for multiplicative interaction rs2076173					0.004
0	TT	Yes	95	80	12.85	1.00
1	TC/CC	Yes	106	84	12.06	0.87 (0.64-1.19)	0.379
2	TT	No	47	40	15.93	0.93 (0.59-1.47)	0.765
3	TC/CC	No	78	54	19.25	0.48 (0.32-0.74)	0.001
	P for multiplicative interaction Combined genotypes (rs11756089-T and rs2076173-C)					0.002
0	0	Yes	93	78	11.30	1.00
1	1-4	Yes	106	85	12.06	0.88 (0.64-1.20)	0.409
2	0	No	47	40	15.93	0.93 (0.59-1.48)	0.769
3	1-4	No	78	54	19.25	0.48 (0.32-0.74)	0.001
	P for multiplicative interaction					0.002

MST, median survival time; HR, hazard ratio; CI, confidence intervals.

^a Adjusted for age, gender, smoking and drinking status, BCLC stage, and chemotherapy or TACE status.

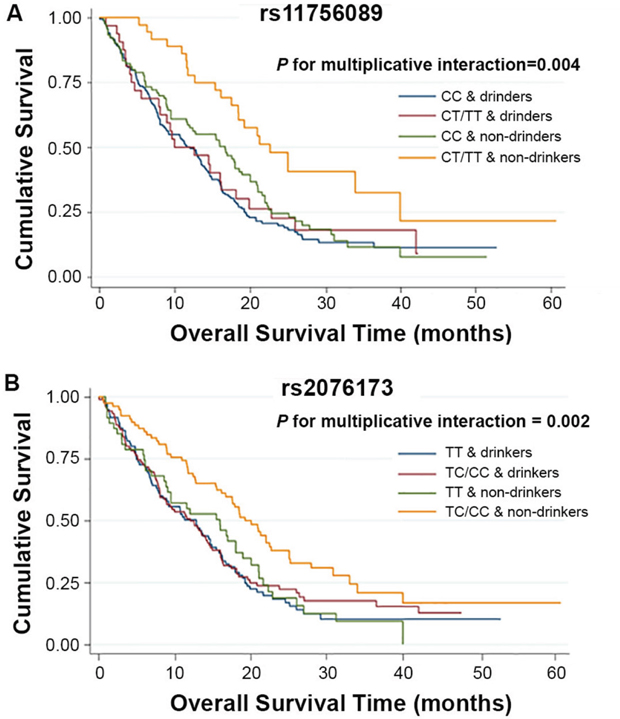

Figure 2: Kaplan-Meier plots of survival by TEAD3 rs11756089 and rs2076173 genotypes in HCC patients’ survival. (A) Kaplan-Meier plots of survival by the combination of rs11756089 genotypes and drinking status in HCC-specific survival (P for multiplicative interaction = 0.004). (B) Kaplan-Meier plots of survival by the combination of rs2076173 genotypes and drinking status in HCC-specific survival (P for multiplicative interaction = 0.002).

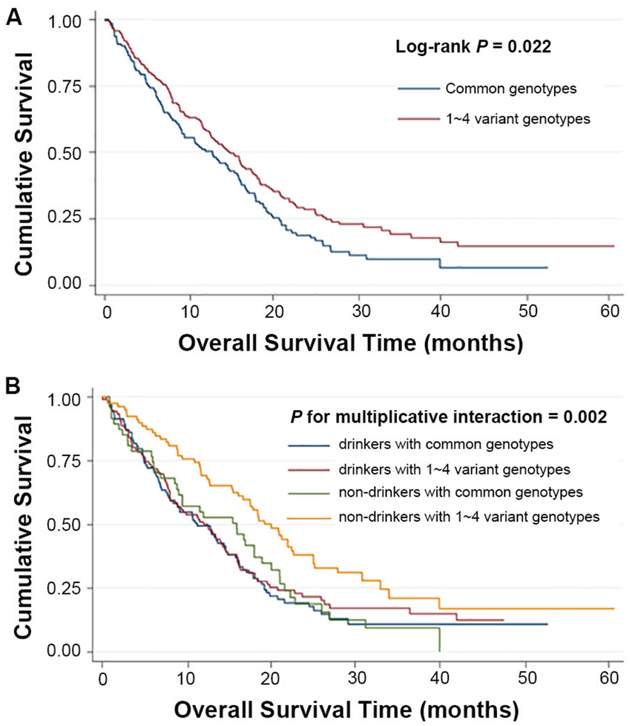

Figure 3: Kaplan-Meier plots of survival by combined genotypes (rs11756089-T and rs2076173-C) in HCC patients’ survival. (A) combined genotypes and HCC survival (Log-rank P = 0.022 for 1~4 variant genotypes vs. common genotypes). (B) Kaplan-Meier plots of survival by the combination of combined genotypes and drinking status in HCC-specific survival (P for multiplicative interaction = 0.002).

DISCUSSION

In the present study, we investigated the associations of seven potentially functional TEADs SNPs with the clinical outcome in Chinese patients with intermediate or advanced HCC. The C allele of TEAD3 rs2076173 and the T allele of TEAD3 rs11756089 were identified as protective alleles. Patients who are carrying of at least one protective allele had significantly longer overall survival time than those without, especially for those non-drinkers. The prognostic value of these protective alleles was independent of age, gender, smoking and drinking status, BCLC stage, and chemotherapy or TACE status.

As transcriptional factors, TEADs have been found to be related with various human cancers by promoting cell proliferation and inhibiting apoptosis. The transcriptional function of TEADs was affected by three groups of coactivators including YAP/transcriptional coactivator with PDZ-binding motif (TAZ), vgll proteins, and p160 family of nuclear receptor coactivators [16]. TEAD1/2 enhanced mesothelin transcription which was frequently overexpressed in pancreatic and ovarian cancer [17, 18]. TEAD4 was found overexpressed in breast cancer to induce cell proliferation and tumor growth by inhibiting p27 transcription [19]. TEAD1/4 overexpression was considered as prognostic marker for prostate cancer [20]. In human, TEAD3 was reported to regulate the transcription of 3 beta-hydroxysteroid dehydrogenase/isomerase (HSD3B), which was involved in the degradation of androstenone in the liver [21, 22]. Silencing of TEAD3 showed abrogation of radiation-induced adaptive response in mice, suggesting that TEAD3 may play a role in radiation-induced apoptosis, proliferation and differentiation [23]. Association of TEAD3 and Hippo-YAP signaling pathway was found in renal clear carcinoma [24], ovarian cancer [4] and hepatocellular carcinoma [9].

Here, we found Chinese patients who were carrying rs2076173 TC/CC or rs11756089 CT/TT genotypes of TEAD3, appeared to have a prolonged overall survival. The SNP rs2076173 (T>C) was located at the 3’-untranslated region of TEAD3. According to the web-based SNP analysis tool (SNPinfo: https://snpinfo.niehs.nih.gov/snpinfo/snpfunc.html), rs2076173 may be located at miRNAs (has-miR-455-3p and hs-miR-766)-binding site, which was likely to disrupt miRNA-target interaction and result in the deregulation of target gene expression. As no different binding energy changed in the two A/G alleles for the hsa-miR-455-3p, and binding energy for the hs-miR-766 was available only in the A allele in the SNPinfo database, further in vitro experiments, such as luciferase assay, were needed to validate our polymorphic functional hypothesis. Moreover, it was associated with the expression of DEP6 (Effect size = -0.24, P = 0.0000062), TEAD3 (Effect size = -0.32, P = 0.000011) and RPL10A (Effect size = 0.34, P = 0.000021) according to the database of GTExPortal (http://www.gtexportal.org). The SNP rs11756089 (C>T), a synonymous variant, may be served as exonic splicing enhancer (ESE) or exonic splicing silencer (ESS) according to the SNPinfo analysis tool. It was also associated with the expression of TEAD3 (Effect size = -0.40, P = 0.000012) according to the database of GTExPortal. These evidences for the SNPs seem to be biologically plausible, but further functional analyses of the regions including the SNPs are needed.

HCC is a severe and complex disease caused by a combination of genetic and environmental factors [25, 26]. Previous studies showed that gene-gene and gene-environment interactions were implicated in HCC development [27, 28]. In this study, we identified the C allele of rs2076173 and the T allele of rs11756089 were protective alleles for HCC patients, especially for those nondrinkers. Patients who are carrying an increased number of these protective alleles will give a better survival outcome. In this cohort, patients who had 3-4 protective alleles had a significantly prolonged survival time of 19.25 months. For drinkers with none of these allele, the median survival time was 11.3 months, whereas, the MST was 19.25 months for those nondrinkers with 1-4 protective alleles. This finding suggested that the two SNPs may be involved in the process of gene-environment interactions.

To our knowledge, this is the first study to investigate the association between TEADs SNPs with HCC survival. Among the 7 SNPs, rs2076173 and rs11756089 polymorphisms of TEAD3 were identified to be significantly associated with HCC patients. There are several limitations in our study. The results are based on a relatively small cohort of only 331 Chinese HBV-related HCC patients and our study was lack of replication cohort. Further validation will be needed in a larger cohort. Meanwhile, the functions of rs2076173 and rs11756089 have not been fully characterized. Related investigation is needed to further reveal the functions of this polymorphism on TEAD3 and their potential targets. In summary, our results demonstrated the potential use of TEAD3 polymorphisms as prognostic markers for intermediate and advanced HCC patients. These data may provide a basis for rational HCC surveillance, therapeutics strategies development and medicinal individualization of HCC patients.

MATERIALS AND METHODS

Patients and samples collection

A total of 331 HCC patients of Barcelona Clinic Liver Cancer (BCLC) staging system stage B or C were recruited from Nantong Tumor Hospital (Nantong, People’s Republic of China) and Nanjing First Hospital, Nanjing Medical University (Nanjing, People’s Republic of China) from January 2006 to December 2010. Patients were diagnosed with HCC based on histopathological examination, or the measurement of serological α-fetoprotein level (>400 ng/mL) and imaging examination by magnetic resonance imaging and/or computerized tomography, as described previously [29]. Patients were followed up every 3 months from the date of enrollment until death or to the last follow-up date (January 14, 2013). Individuals who smoked 1 cigarette per day for over 1 year were defined as smokers, and those who consumed one or more alcohol drinks a week for over 6 months were categorized as alcohol drinkers. All of them were serologically confirmed hepatitis B virus (HBV) positive without receiving any surgical treatment. The study was approved by the institutional review board of Nanjing Medical University (Nanjing, People’s Republic of China). Signed informed consents were collected from enrolled patients for the use of clinical specimens in medical research.

Serological tests

HBsAg, anti-HBs, anti-HBc and anti-HCV were detected by the enzyme-linked immunosorbent assay (Kehua Bio-engineering Co., Ltd., Shanghai, China) following the manufacturer’s instructions as described previously [30].

SNPs selection and genotyping

All common (minor allele frequency, MAF > 0.05 in Chinese or Asians) polymorphisms in TEAD1, TEAD2, TEAD3 and TEAD4 of potentially functional, that is, located at 5’-flanking regions (5’-FRs), 5’-untranslated regions (5’-UTRs), coding regions, or 3’-UTRs according to NCBI dbSNPs (last search date: November 2014) were identified. SNPs that were demonstrated to be of biological significance or associated with gene expression and/or cancer risk/survival according to the literature review were also included. If SNPs are in high linkage disequilibrium (LD) (r² > 0.8), only one SNP were genotyped. As a result, seven SNPs (TEAD1 rs2304733 and rs10831923, TEAD2 rs12104362 and rs3745305, TEAD3 rs11756089 and rs2076173, TEAD4 rs7135838) were selected for genotyping. Genomic DNA was extracted from leukocyte pellets by traditional proteinase K digestion, phenol-chloroform extraction and ethanol precipitation. All SNPs were genotyped using the Sequenom MassARRAY iPLEX platform (Sequenom Inc). The primers for the seven SNPs are shown in Supplementary Table 1. More than 5% of the samples were randomly selected for repeated genotyping, yielding a 100% concordance. The success rates of genotyping for the seven SNPs were all above 95%.

Statistical analysis

Survival time was calculated from the date of HCC diagnosis to the date of death of any cause or last follow-up. Hardy-Weinberg equilibrium was assessed within patients by using a goodness-of-fit χ² test. Mean survival time was presented when the median overall survival time (MST) could not be calculated. Kaplan-Meier method and log-rank test were performed to compare the survival time in different subgroups categorized by patient characteristics, clinical features and genotypes. Univariate and multivariable Cox proportional hazard regression analyses were performed to estimate the crude or adjusted HR and their 95% CIs, with adjustment of age, gender, smoking status, drinking status, BCLC stage, and chemotherapy or transcatheter hepatic arterial chemoembolization (TACE) status. Cox stepwise regression model was conducted to determine predictive factors for HCC prognosis, with a significance level of 0.050 for entering and 0.051 for removing the respective explanatory variables. The Chi-square-based Q test was applied to test the heterogeneity of associations between subgroups. Analyses were carried out using Statistical Analysis System software (version 9.1.3; SAS Institute, Cary, NC, USA). All tests were two-sided and the criterion of statistical significance was set at P < 0.05.

Author contributions

H. Xia and W. Zhao performed the experiments, H. Xia and Z. Xu wrote the manuscript, D. Gu assisted the statistical analysis, Z. Hu and J. Chen provided the samples, clinical information and technique support, Z. Xu designed the project, J. Wen collected the data and did the statistical analysis.

CONFLICTS OF INTEREST

The authors declare that they have no potential conflicts of interest in this work.

FUNDING

The work was supported by grants from the National Natural Science Foundation of China (No. 81370057) and 2013 Jiangsu Government Scholarship for Visiting Scholar to Dr. Z. Xu.
