Tumor PD-L1 status and CD8+ tumor-infiltrating T cells: markers of improved prognosis in oropharyngeal cancer

PDF |  HTML  |  Supplementary Files  |  How to cite  |  Order a Reprint

Oncotarget. 2017; 8:80443-80452. https://doi.org/10.18632/oncotarget.19045

Metrics: PDF 1318 views  |   HTML 2574 views  |   ?

Astrid De Meulenaere _, Tijl Vermassen, Sandrine Aspeslagh, Philippe Deron, Fréderic Duprez, Debby Laukens, Jo Van Dorpe, Liesbeth Ferdinande and Sylvie Rottey

Abstract

Astrid De Meulenaere1,*, Tijl Vermassen1, Sandrine Aspeslagh2, Philippe Deron3, Fréderic Duprez4, Debby Laukens5, Jo Van Dorpe6, Liesbeth Ferdinande6,* and Sylvie Rottey1,*

1Department of Medical Oncology, Ghent University Hospital, 9000 Ghent, Belgium

2DITEP, Gustave Roussy Cancer Centre, 94800 Villejuif, France

3Department of Head, Neck and Maxillo-Facial Surgery, Ghent University Hospital, 9000 Ghent, Belgium

4Department of Radiation Oncology, Ghent University Hospital, 9000 Ghent, Belgium

5Department of Internal Medicine, Ghent University Hospital, 9000 Ghent, Belgium

6Department of Pathology, Ghent University Hospital, 9000 Ghent, Belgium

*These authors are senior authors

Correspondence to:

Astrid De Meulenaere, email: astrid.demeulenaere@ugent.be

Keywords: oropharynx, HPV, PD-L1, tumor infiltrating lymphocytes, biomarker

Received: March 06, 2017     Accepted: June 20, 2017     Published: July 06, 2017

ABSTRACT

Introduction: The aim of this study was to evaluate the expression of PD-L1 in oropharyngeal squamous cell carcinoma. Its relation with clinicopathological variables, tumor infiltrating lymphocytes and survival was also determined.

Results: Positive PD-L1 status for the SP142 clone related with improved overall survival in oropharyngeal squamous cell carcinoma. Tumors heavily infiltrated by tumor infiltrating lymphocytes were also linked with better outcome, and this as well for the total number of tumor infiltrating lymphocytes as for the CD3+ and CD8+ T cell count. A Cox proportional hazard model proved that solely infiltrating CD8+ T cells exhibit a positive effect on overall survival (hazard ratio = 0.31 [0.14–0.70]; P = 0.0050)

Materials and Methods: Formalin-fixed, paraffin-embedded tissue from oropharyngeal tumors of 99 patients was immunohistochemically stained for PD-L1 (SP142 and 22C3 clones), CD3, CD8 and FoxP3. Expression of PD-L1, CD3, CD8, FoxP3 and HPV status were correlated with clinicopathological variables. Overall survival was determined by a log-rank (Mantel–Cox) test whereas the Cox proportional hazard model was used for multivariate analysis.

Conclusions: Our results demonstrate that CD8+ T lymphocytes constitute an independent prognostic marker in patients diagnosed with oropharyngeal squamous cell carcinoma. PD-L1 positivity for SP142, but not for 22C3, also tends to have a positive effect on survival in oropharyngeal squamous cell carcinoma.


INTRODUCTION

Over the last decades there has been an increase in oropharyngeal squamous cell carcinoma (OSCC) which has mainly been attributed to human papillomavirus (HPV) infection [1, 2]. HPV-associated OSCC seems to be a distinct clinical entity, compared to tobacco related squamous cell carcinoma of the head and neck (SCCHN): patients (1) tend to be younger, (2) lack a history of smoking and/or alcohol abuse and (3) have a significant survival benefit [1, 39]. These observations have raised the possibility that some of these patients receive unnecessary treatment and are therefore exposed to unnecessary toxicity. Refining patient stratification by considering additional biomarkers next to HPV status may ensure appropriate therapy and therefore better survival and improved quality of life.

Programmed cell death protein 1 (PD-1) is a 50-55 kDa type I transmembrane receptor expressed by activated T and B cells, as well as by monocytes and dendritic cells. It has two binding partners, PD-L1 and PD-L2, each specific for various tissue types and with specific expression patterns. PD-L1 is expressed on immune cells (ICs) including T cells, dendritic cells and monocytes. In addition, PD-L1 is expressed in the context of T cell exhaustion during chronic viral infection (e.g. HPV infection) and by tumor cells (TCs) [1012]. The presence of PD-L1 on TCs contributes to the process of immune evasion [13], hence PD-L1 expression is confirmed to be a marker of poor prognosis in the majority of solid tumors [14]. In the context of SCCHN (including OSCC) there is no consensus yet on the role of PD-L1 expression as a prognostic biomarker [1518]. Multiple antibody (Ab) clones are currently analyzed for PD-L1 expression on cancer cells and in the cancer microenvironment using different immunohistochemical staining platforms or in-house staining procedures, often yielding different staining patterns. Moreover, read-out of PD-L1 positivity can be done on TCs as well as on ICs in the tumor microenvironment. This methodological complexity only contributes to the contradictorily results on the value of PD-L1 as biomarker. Therefore, the aim of this study was to perform additional research on the role of PD-L1 in SCCHN, focusing only on OSCC, using two clones from FDA approved kits, namely the 22C3 clone (Agilent-DAKO) and the SP142 clone (Roche), and scoring both TCs and ICs. We evaluated the expression of PD-L1 in OSCC and looked for associations with clinicopathological variables and the amount and type of tumor infiltrating lymphocytes (TILs). In addition we assessed the effect of PD-L1 status and the tumor immune cell infiltrate on outcome.

RESULTS

Patient characteristics

The 99 patients included in this study were predominantly male (83%), and represented primarily stage III/IV tumors (83%). Most of the tumors originated from the tonsil (43%) and were moderately (62%) differentiated. The overall HPV prevalence rate was 19% (19/99) with no difference in distribution along all topographic sites (P = 0.5673). More HPV+ specimens were detected among poorly differentiated and basaloid tumors (11/32) compared to well/moderately differentiated tumors (8/67; P = 0.0265).

Patients clinicopathological variables are displayed in Table 1.

Table 1: Association between PD-L1 on tumor cells, CD8+ T cells and clinicopathological variables

Parameter

Overall

SP142 PD-L1

22C3 PD-L1

CD8+ T cell count

Negative

Positive

P-value

Negative

Positive

P-value

Low

High

P-value

Patient number

99 (100)

72 (77)

22 (23)

64 (66)

33 (34)

67 (77)

20 (23)

Age

 < 50 years

13 (13)

11 (11)

1 (1)

0.1522*

10 (10)

2 (2)

0.0234*

8 (9)

1 (1)

0.0248*

 50–69 years

74 (75)

54 (57)

16 (17)

50 (52)

23 (24)

54 (62)

13 (15)

 ≥ 70 years

12 (12)

7 (7)

5 (5)

4 (4)

8 (9)

5 (6)

6 (7)

Gender

 Female

17 (17)

12 (13)

5 (5)

0.5351

12 (13)

5 (5)

0.7820

14 (16)

3 (3)

0.7515

 Male

82 (83)

60 (64)

17 (18)

52 (54)

28 (29)

53 (61)

17 (20)

Tumour site

 Tonsil

43 (43)

29 (31)

13 (14)

0.2108*

23 (24)

20 (21)

0.1621*

28 (32)

10 (12)

0.1330*

 Tongue base

12 (12)

5 (5)

5 (5)

6 (6)

5 (5)

5 (6)

4 (5)

 Other sites

23 (23)

17 (18)

4 (4)

17 (18)

5 (5)

17 (20)

2 (2)

 Multiple subsites

21 (21)

21 (22)

0 (0)

18 (19)

3 (5)

17 (20)

4 (5)

T stage

 T1-2

56 (57)

39 (42)

16 (17)

0.1441

32 (33)

23 (24)

0.0650*

32 (37)

17 (20)

0.0041

 T3-4

43 (43)

33 (35)

6 (6)

32 (33)

10 (10)

35 (40)

3 (3)

N stage

 N0

30 (30)

23 (25)

4 (4)

0.2100*

21 (22)

8 (8)

0.0939*

19 (22)

5 (6)

0.6038*

 N1

14 (14)

12 (13)

2 (2)

12 (12)

2 (2)

12 (14)

2 (2)

 N2-3

55 (56)

37 (39)

16 (17)

31 (32)

23 (24)

36 (41)

13 (15)

Prognostic stage

 I/II

17 (17)

15 (16)

2 (2)

0.3430

12 (13)

5 (5)

0.7820

10 (12)

4 (5)

0.7291

 III/IV

82 (83)

57 (61)

20 (21)

52 (54)

28 (29)

57 (66)

16 (18)

Grade of differentiation

 Well/moderately

67 (68)

58 (62)

7 (7)

0.0001*

50 (52)

16 (17)

0.0111*

52 (60)

8 (9)

0.0006*

 Poorly

19 (19)

8 (8)

10 (10)

8 (8)

11 (11)

6 (7)

9 (10)

 Basaloid

13 (13)

6 (6)

5 (5)

6 (6)

6 (6)

9 (10)

3 (3)

HPV status

 Negative

80 (81)

66 (70)

11 (12)

< 0.0001

55 (57)

23 (24)

0.0649

57 (66)

13 (15)

0.0591

 Positive

19 (19)

6 (6)

11 (12)

9 (9)

10 (10)

10 (12)

7 (8)

Primary therapy

 Surgery

51 (52)

34 (36)

15 (16)

0.1374*

31 (31)

19 (20)

0.4390*

32 (37)

11 (13)

0.0521*

 Radiotherapy

25 (25)

18 (19)

5 (5)

16 (17)

9 (9)

15 (17)

8 (9)

 Chemoradiotherapy

23 (23)

20 (21)

2 (2)

17 (18)

5 (5)

20 (23)

1 (1)

Data given are numbers, percentages are given between brackets (%). Overall column displays total numbers (%). Cut-off values were taken at median values (3+: abundant occurrence of CD8+ T cells) and at ≥ 5% for PD-L1 on TCs (SP142 clone and 22C3 clone). Samples that were classified as ‘impossible to evaluate’ were not included in the analysis. P-value calculated by Fisher exact test unless otherwise indicated (*P-value calculated by Chi-square test). HPV, human papillomavirus.

The pattern of PD-L1 expression

Tumor cells (TCs)

Using the SP142 clone for evaluation of PD-L1 expression, PD-L1 status of TCs was categorized as follows: IHC 0 (58%), IHC 1 (15%), IHC 2 (12%) and IHC 3 (10%). Five samples (5%) could not be evaluated. Using the 22C3 clone, distribution of tumoral IHC scores was as follows: IHC 0 (45%), IHC 1 (20%), IHC 2 (13%) and IHC 3 (20%). Two samples (2%) could not be evaluated. PD-L1 positivity defined as ≥ 5% PD-L1 expression on TCs resulted in 23% (22/94) and 34% (33/97) PD-L1+ tumor specimens for the SP142 and 22C3 clone, respectively (Table 1).

Immune cells (ICs)

Only little tumor infiltrating ICs expressed PD-L1 (SP142 clone) with IHC 0 in 76 cases (77%), IHC 1 in 9 cases (9%), IHC 2 in one case (1%) and IHC 3 in one case (1%). Twelve samples (12%) were not evaluable. Similar to the SP142 clone, low expression was observed on ICs for the 22C3 clone: IHC 0 in 66% of cases, IHC 1 in 16% of cases, IHC 2 in 3% of cases and no IHC 3. Thirteen samples could not be evaluated.

Relation of PD-L1 expression on TCs with different clinicopathological variables

A positive link was found between HPV status and PD-L1 positivity on TCs for the SP142 clone (P < 0.0001) and 22C3 clone (P = 0.0649). Next, positive SP142 PD-L1 expression was associated with poorly differentiated/basaloid tumors (15/29 versus 7/65; P = 0.0001) whereas positive 22C3 PD-L1 expression on TCs was most common in elder patients (8/12 versus 25/85; P = 0.0234) and in poorly differentiated/basaloid tumors (17/31 versus 16/66; P = 0.0111).

All associations between PD-L1 on TCs and clinicopathological variables are presented in Table 1.

Relation of PD-L1 expression on TCs with TILs

Notably, PD-L1 positivity on TCs was linked with the immune environment, as this parameter was associated with increased TIL count (P < 0.0001 and P = 0.0009), CD3+ T cell count (P = 0.0009 and P = 0.0044), CD8+ T cell count (P < 0.0001 and P = 0.0001) and FoxP3+ T cell count (P = 0.0004 and P = 0.0094) for the SP142 and 22C3 clone, respectively.

All associations with TILs are given in Table 2.

Table 2: Association between PD-L1 on tumor cells and stromal immune cell infiltrate

Parameter

Overall

SP142 PD-L1

22C3 PD-L1

Negative

Positive

P-value

Negative

Positive

P-value

Patient number

99 (100)

72 (77)

22 (23)

64 (66)

33 (34)

TIL count

 1+

12 (12)

12 (14)

0 (0)

< 0.0001

11 (12)

1 (1)

0.0009

 2+

42 (42)

37 (42)

3 (3)

32 (36)

9 (10)

3+

26 (26)

14 (16)

11 (13)

13 (14)

13 (14)

 4+

11 (11)

4 (5)

7 (8)

3 (3)

8 (9)

 ITE

8 (8)

CD3+ T cell count

 1+

20 (20)

18 (21)

0 (0)

0.0009

15 (17)

4 (5)

0.0044

 2+

33 (33)

28 (32)

5 (6)

26 (29)

8 (9)

3+

19 (19)

12 (14)

7 (8)

12 (14)

7 (8)

 4+

17 (17)

8 (9)

9 (10)

5 (6)

12 (14)

 ITE

10 (10)

CD8+ T cell count

 1+

36 (36)

34 (40)

2

< 0.0001

30 (35)

7 (8)

0.0001

 2+

31 (31)

24 (28)

5 (6)

22 (25)

8 (9)

3+

20 (20)

8 (9)

12 (14)

5 (6)

15 (17)

 ITE

12 (12)

FoxP3+ T cell count

 1+

58 (59)

51 (59)

7 (8)

0.0004*

44 (49)

15 (17)

0.0094

2+

31 (31)

15 (17)

14 (16)

14 (16)

16 (18)

 ITE

10 (10)

Data given are numbers, percentages are given between brackets (%). Cut-off values were taken at ≥ 5% for PD-L1 on TCs (SP142 clone and 22C3 clone). Parameters in bold and underlined represent median cut-off values used for survival analysis: 3+ (TIL count, CD3+ T cell count and CD8+ T cell count) and 2+ (FoxP3+ T cell count). Samples that were classified as ‘impossible to evaluate’ were not included in the analysis. P-value calculated by Chi-square test unless otherwise indicated (* P-value calculated by Fisher exact test). ITE, impossible to evaluate; TIL, tumor-infiltrating lymphocyte.

Relation of PD-L1 expression on TCs with clinical outcome

Positive PD-L1 expression using the SP142 clone resulted in a more favorable outcome with median overall survival (OS) of 9.8 years versus 4.1 years for SP142 PD-L1 negativity (hazard ratio [HR] = 0.51 [0.31–0.99], P = 0.0466; Figure 1A) whereas 22C3 PD-L1 expression on TCs showed no significant association with OS (4.0 years versus 4.4 years; HR = 0.99 [0.58–1.72], P = 0.9846; Figure 1B). None of the PD-L1 markers was associated with prolonged disease-free survival (DFS) (HR SP142 = 0.43 [0.22–1.16], P = 0.1070 and HR 22C3 = 1.28 [0.60–2.83], P = 0.5110; Figure 1C1D). An overview of the HRs on DFS for all tumor markers, IC markers and associated clinicopathological markers is given in Supplementary Table 1.

Survival outcome of PD-L1 expression.

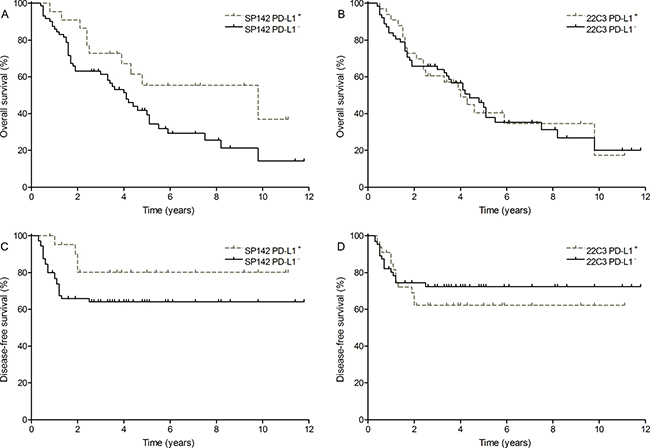

Figure 1: Survival outcome of PD-L1 expression. (A) OS of SP142 PD-L1 (0.51 [0.31–0.99], P = 0.0466); (B) OS of 22C3 PD-L1 (0.99 [0.58–1.72], P = 0.9846); (C) DFS of SP142 PD-L1 (0.43 [0.22– 1.16], P = 0.1070) and (D) DFS of 22C3 PD-L1 (1.28 [0.60–2.83], P = 0.5110). Cut-off values were taken at ≥ 5% for PD-L1 on TCs (SP142 and 22C3 clone).

The relation between TILs and outcome was evaluated as well. High TIL count, high CD3+ T cell count and high CD8+ T cell count but not FoxP3+ T cell count proved to have a favorable influence on OS (Supplementary Figure 1). Particularly, an elevated CD8+ T cell count was significantly associated with prolonged OS (9.8 years) versus patients with a low CD8+ T cell count (3.5 years; HR = 0.32 [0.22–0.71], P = 0.0020). As CD8+ T cell count proved the strongest marker of the immune cell infiltrate, an analysis was performed combining CD8+ T cell count and PD-L1 expression on TCs. The combined analysis of SP142 PD-L1 expression on TCs and CD8+ T cell count showed that this combination was significantly correlated with OS: median OS of 9.8 years, not reached, 2.4 years and 4.0 years for the PD-L1+/high CD8+, PD-L1/high CD8+, PD-L1+/low CD8+, and PD-L1/low CD8+ cohorts, respectively (P = 0.0321; Figure 2A). Similar, a significance was found for combining 22C3 PD-L1 expression on TCs and CD8+ T cell count with median OS of 9.8 years, not reached, 2.1 years and 4.1 years for the respective cohorts (P = 0.0118; Figure 2B). As the majority of patients were stratified as PD-L1/low CD8+, patients were bicategorically categorized as ‘at least one variable positive’ versus PD-L1/low CD8+. Patients with ‘at least one variable positive’ had a more favorable outcome for the SP142 PD-L1 expression (median OS 9.8 years versus 4.0 years; HR = 0.40 [0.24–0.78], P = 0.0048; Figure 2C) but not for the 22C3 PD-L1 expression (median OS 5.5 years versus 4.1 years; HR = 0.66 [0.38–1.15], P = 0.1415; Figure 2D).

Overall survival outcome combining PD-L1 expression on tumor cells with CD8+ T cell count.

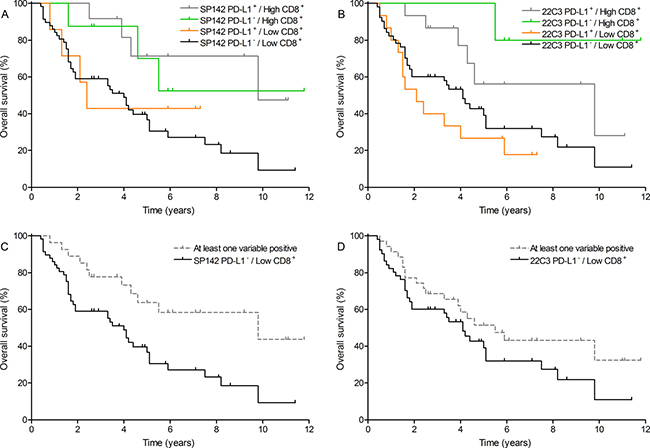

Figure 2: Overall survival outcome combining PD-L1 expression on tumor cells with CD8+ T cell count. (A) SP142 PD-L1/CD8+ T cell count: all groups (P = 0.0321); (B) 22C3 PD-L1/CD8+ T cell count: all groups (P = 0.0118); (C) SP142 PD-L1/CD8+ T cell count: PD-L1/low CD8+ versus at least one variable positive (0.40 [0.24–0.78], P = 0.0048) and (D) 22C3 PD-L1/CD8+ T cell count: PD-L1/low CD8+ versus at least one variable positive (0.66 [0.38–1.15], P = 0.1415). Cut-off values were taken at median values (3: abundant occurrence of CD8+ T cells) and at ≥ 5% for PD-L1 on tumor cells (SP142 and 22C3 clone).

In the multivariate model, which adjusted for HPV status, CD8+ T cell count proved to be the independent prognosticator for OS (HR = 0.31 [0.14–0.70]; P = 0.0050) whereas SP142 PD-L1 positivity and other immune cell counts did not contribute to the model. When assessing the combination of SP142 PD-L1 expression and CD8+ T cell count in the multivariate model, patients with ‘at least one variable positive’ had an OS benefit compared with PD-L1-/low CD8+ patients (HR = 0.39 [0.20–0.78]; P = 0.0070).

An overview of all multivariate HR is given in Table 3.

Table 3: Multivariate Cox regression model for overall survival outcome

Parameter

Separate immune markers

Combination of immune markers

Multivariate HR (95% CI)

P-value

Multivariate HR (95% CI)

P-value

HPV status

Negative

1

1

Positive

0.55 (0.21–1.43)

0.2213

0.61 (0.25–1.49)

0.2786

TIL count

Low

1

1

High

1.06 (0.48–2.35)

0.8828

1.11 (0.49–2.52)

0.7976

CD3+ T cell count

Low

1

1

High

0.94 (0.45–1.97)

0.8660

0.77 (0.37–1.61)

0.4859

CD8+ T cell count

Low

1

High

0.31 (0.14–0.70)

0.0050

SP142 PD-L1

Negative

1

Positive

0.98 (0.35–2.74)

0.9689

Combination SP142 PD-L1/CD8+ T cell count

PD-L1/low CD8 +

1

At least 1 positive/high

0.39 (0.20–0.78)

0.0070

Multivariate HRs were calculated through a Cox proportional-hazards regression model. Multivariate analysis was performed for CD8+ T cell count and SP142 PD-L1 as separate immune markers or as combined immune markers. Cut-off values were taken at median values (3+: abundant occurrence of TILs, CD3+ T cells and CD8+ T cells) and at ≥ 5% for PD-L1 on tumor cells (SP142 clone). HPV, human papillomavirus; HR, hazard ratio; TIL, tumor-infiltrating lymphocyte.

Relation of PD-L1 expression on ICs with clinicopathological variables, TILs and clinical outcome

No relation was demonstrated between PD-L1 expression (SP142 or 22C3 clone) on ICs and clinicopathological variables, including TILs, overall and disease-free survival.

DISCUSSION

In our study, positive PD-L1 expression on TCs using the SP142 clone was noticed in 23% of specimens whereas 34% of specimens were PD-L1+ according to the 22C3 clone (≥ 5 % cut-off). The number of PD-L1+ samples is considerably lower in comparison to other previously reported data on the expression of PD-L1 in OSCC [19, 20]. These differences might be partially explained by the difference in sample size. However, the main confounder for the lower PD-L1 expression is probably the use of different Ab clones. Each Ab targets different epitopes of PD-L1 with different affinity, resulting in different staining patterns [21]. When considering PD-L1 as a biomarker in daily clinical practice, one should be aware of these methodological concerns and validation and quality assessment of this immunohistochemical marker will prove to be of the utmost importance.

The study of PD-L1 expression on ICs did not add useful data to our study, probably because of the very low expression levels (98% of the samples using the SP142 clone and 97% of the samples using the 22C3 clone [≥ 5% cut-off] were PD-L1). The expression of PD-L1 on tumor infiltrating ICs is well known but further research is warranted in order to evaluate its contribution to the (anti-) tumor immune response and its link with PD-L1 expression on TCs.

We found PD-L1 expression on TCs determined by SP142 and 22C3 staining to be positively associated with high number of TILs, high CD3+ T cell count, high CD8+ T cell count and high FoxP3+ T cell count. These findings reflect the hypothesis that a PD-L1 mediated adaptive immune resistance is induced following interferon-gamma secretion by TILs [22]. It is reported that PD-L1 expression is visually higher in areas with high T cell infiltrate and this finding is confirmed in our study [23]. PD-L1 was also associated with positive HPV status which in turn was nearly significantly associated with CD8+ T cells. As PD-L1 expression is observed in the deep invaginations of tonsillar crypts in non-cancerous tonsils as well, this observation might suggest that virus induced malignant transformation could be enhanced in the reticulated epithelium of tonsillar crypts in the presence of PD-L1.

Survival analysis revealed that PD-L1 positivity of TCs, using the SP142 clone, was related to better OS but not with DFS in univariate analysis. Also high CD8+ T cell count showed prognostic OS benefit in OSCC, irrespective of the HPV status. As both CD8+ T cell count and PD-L1 status were related to a better OS, their effect was even more pronounced when using a combined prognostic biomarker based on PD-L1 status plus CD8+ T cell count. Having ‘at least one variable positive’ resulted in an increased survival outcome compared to patients who were stratified as PD-L1/low CD8+. The link of PD-L1 with T-cell infiltrate and HPV status as demonstrated by our own study should at least partially be accounted for this observation. The fact that PD-L1+ tumors and high infiltration of CD8+ T lymphocytes showed better survival outcome might come across as a paradox since high CD8+ lymphocyte count indicates an active immune response with anti-tumor effect whereas PD-L1 positivity is assumed to dampen this response. This observation demonstrates that PD-L1 expression cannot be interpreted simply as a marker of immune suppression but rather reflects a response to (over-) activation of an endogenous inflammatory immune response at the tumor site [23, 24].

To our knowledge, this is the first study to evaluate the expression of PD-L1 in OSCC using two monoclonal Abs (SP142 clone and 22C3 clone) from FDA approved kits that are currently used in various clinical trials. Pharmacodiagnostic testing for anti-PD-(L)1 therapy is nowadays mainly performed with two clones from Agilent-DAKO and two clones from Roche. Recently, it was reported that staining results for the 22C3 clone are in concordance with those obtained from the 28-8 and SP263 clone, but not with those of the SP142 clone [25, 26] and this incited us to focus on the 22C3 and SP142 clone for this study. Besides, we chose to include tumors arising from one primary tumor site. Although SCCHN is often considered one entity, recent publications report a heterogeneous molecular and immunological tumor profile of these malignancies on different anatomical localizations [27, 28]. Therefore it is desirable to focus on one tumor site rather than on SCCHN in general and thus we restricted the assessment of PD-L1 expression to a well-defined population of patients with tumors arising from the oropharynx.

Also, we deliberately chose to work with formalin-fixed, paraffin-embedded (FFPE) samples from biopsies or resections as this is the material that will be available for prognostic biomarker testing in the future. Although biopsy samples might harbor sampling errors and suffer from spatial heterogeneity in PD-L1 expression, it is important to include these samples in the trials to avoid selection bias. It remains however important to evaluate the concordance of PD-L1 expression between different available clones, between different cut-off values and between samples from different origins (e.g. biopsy versus resection specimens).

In conclusion our results demonstrate that CD8+ TILs constitute a strong positive prognostic marker in patients diagnosed with OSCC. Furthermore, PD-L1 expression on TCs, assessed by the SP142 clone, also tends to have a positive effect on patient outcome in OSCC. The results of this retrospective study should be confirmed in prospective trials to assess the clinical impact of the biomarkers on routine daily practice. Herein, special attention should be given to methodological issues on PD-L1 testing that were also of concern in this study, such as choice of Ab clone, interpretation criteria and sample type.

MATERIALS AND METHODS

Study population

Ninety-nine patients with histologically proven OSCC (anno 2004-2013) were selected from the archival database of the Department of Pathology, Ghent University Hospital. Patients were excluded from the study in case of recurrent or distant metastatic disease. When available, samples from resection specimens were preferred for further analysis (n = 27), if not, endoscopic biopsy material was used (n = 72).

The study was approved by the ethics committee of the Ghent University Hospital.

Clinical, treatment and follow-up data were retrieved from the electronic patient data file. Tumor sites consisted of tonsil, tongue base, other (e.g. tonsillar pillars, posterior wall, vallecula) or multiple subsites involved. The majority of the patients was treated surgically (n = 51) by either tumor resection with or without lymph node dissection (n = 19 and n = 8, respectively) or lymph node dissection alone (n = 24). Forty-six out of 51 surgically patients received adjuvant treatment, that is, concurrent chemoradiotherapy (n = 30) or radiotherapy alone (n = 16). Clinical data and treatment details are presented in Table 1. For all patients, treatment decisions were discussed in a multidisciplinary meeting consisting of dedicated head and neck surgeons, medical and radiation oncologists, radiologists and pathologists.

HPV status

HPV status was determined on FFPE material by high-risk HPV in situ hybridization (ISH) using the Inform HPV III Family B probe (Ventana Medical Systems) on a BenchMark XT automated stainer (Ventana Medical Systems) under ISO15189:2012 accreditation. The probe cocktail detects HPV types 16, 18, 31, 33, 35, 39, 45, 51, 52, 56, 58 and 66. The high-risk HPV ISH test was considered positive if a discrete, blue colored, precipitated reaction product within the TCs was observed.

Immunohistochemistry

Immunohistochemistry for PD-L1 and TILs subtyping was performed using the BenchMark XT instrument (Ventana Medical Systems inc., Arizona, USA). Staining of CD3, CD8 and FoxP3 (DAKO, Glostrup, Denmark) was performed on FFPE tissue slides of 2μm as previously described [29]. For staining of PD-L1, similar antigen retrieval and blocking steps were followed by incubation with the anti-PD-L1 primary Ab (clone 22C3 diluted 1:100 [Agilent-DAKO, United States] and clone SP142 ready-to-use [Roche, Basel, Switzerland]) and DAB detection using the Ultraview kit (Ventana) and the optiview kit (Ventana), respectively, according to the instructions of the manufacturer. Slides were counterstained with hematoxylin.

Scoring of the tumor samples

First, a hematoxylin-eosin slide was evaluated to confirm the presence of invasive squamous cell carcinoma, to determine the grade of tumor differentiation and/or define basaloid subtype. The infiltration of TILs in tumor stroma was scored semi-quantitatively with a 4-tiered scale (1+ to 4+) as previously described [29, 30]. Representative scoring for stromal TILs is given in Supplementary Figure 2.

Elaborate evaluation of the immune infiltrate in the stromal compartment (i.e. lymphocytes within the intertumoral stroma), was done semi-quantitatively by scoring for CD3+, CD8+ and FoxP3+ T cell count. For the subtyping of the immune infiltrate, three representative fields were selected and scored using a similar 4-tiered semi-quantitative method as for TIL scoring (1+ to 4+) [29, 30] (Supplementary Figure 2). The mean of the separate scores from each of the 3 fields was calculated as final score, ranging from 1+ to 4+. Necrotic or ulcerated areas were excluded from evaluation. Criteria to classify samples as ‘impossible to evaluate (ITE)’ were the following: 1) (virtually) no tumor stroma present, 2) presence of only a minimal invasive carcinoma component and 3) the inability to differentiate between the ICs of the pre-existing lymphoid tissue of the tonsil and the tumor-associated IC infiltrate.

Subsequently, samples were scored for PD-L1 expression with both the SP142 clone and the 22C3 clone by two independent observers. IHC was scored 0 if < 1% of TCs were positive, IHC 1 if ≥ 1% but < 5% of TCs were positive, IHC 2 if ≥ 5% but < 10% of TCs were positive or IHC 3 if ≥ 10% of TCs were positive (Figure 3) [31]. Mean scores between both observers were used in the analyses. Cut-off values for PD-L1 positivity on TCs were taken at ≥ 5% (membranous and/or cytoplasmic) for the SP142 and 22C3 clone. PD-L1 expression on ICs was evaluated using Cell^D imaging software (Olympus Corporation, Tokyo, Japan) to ensure objective scoring as the expression of PD-L1 on ICs was low. PD-L1 staining was quantified in the three same representative fields of intertumoral stroma used for scoring of the T cell infiltrate. Scores were given as percentages reflecting the ratio of PD-L1 staining surface area to the whole surface area of the representative field. The final score was determined as the mean of the separate scores from the chosen fields. Again, cut-off values for PD-L1 positivity on ICs were taken at ≥ 5%.

Representative immunohistochemical staining for PD-L1 (x200).

Figure 3: Representative immunohistochemical staining for PD-L1 (x200). PD-L1 expression was determined on TCs. Staining patterns for SP142 PD-L1 were: IHC 0 (A), IHC 1 (B), IHC 2 (C) and IHC 3 (D). Staining patterns for 22C3 PD-L1 were: IHC 0 (E), IHC 1 (F), IHC 2 (G) and IHC 3 (H). Staining with SP142 and 22C3 clone was performed on serial sections (2 μm) of the same tumor sample for each IHC score respectively.

Statistical analysis

Sample size calculation for a proportional z test of the most fitting immune cell marker (CD8+ T cells) has shown that 106 patients are needed to achieve a power of 90% (α = 5%; proportion event group high CD8+ = 0.35; proportion event low CD8+ = 0.68; sample ratio high CD8+/ low CD8+ = 0.29). Associations between categorical variables were determined via Chi-square test. In case of 2 × 2 contingency tables with 1 or more observed values lower than 10, a Fisher’s Exact test was applied. Secondly, the HR of immunohistochemical parameters on OS and DFS was determined by a log-rank (Mantel–Cox) test. OS was calculated from time from diagnosis on biopsy until day of death or final follow-up whereas DFS was calculated from time of therapy until time of recurrence. For every patient who was not seen in clinic for the preceding 12 months at the point of the survival analysis, the general practitioner was contacted to confirm whether the patient was still alive. Patients that were lost to follow up at either the Ghent University Hospital or the general practitioner were censored in the survival analysis (n = 8). Finally, the covariate effect of the risk factors on survival analysis, that reached a P value lower than 0.1 on univariate log-rank test, was determined by means of the Cox proportional hazard model (backward method). Samples that were classified as ‘ITE’ were not included in the analysis.

ACKNOWLEDGMENTS

This research was supported by the agency for Innovation by Science and Technology (IWT).

CONFLICTS OF INTEREST

None.

REFERENCES

1. Nasman A, Attner P, Hammarstedt L, Du J, Eriksson M, Giraud G, Ahrlund-Richter S, Marklund L, Romanitan M, Lindquist D, Ramqvist T, Lindholm J, Sparen P, et al. Incidence of human papillomavirus (HPV) positive tonsillar carcinoma in Stockholm, Sweden: an epidemic of viral-induced carcinoma? Int J Cancer. 2009; 125:362–366.

2. Chaturvedi AK, Engels EA, Anderson WF, Gillison ML. Incidence trends for human papillomavirus-related and -unrelated oral squamous cell carcinomas in the United States. J Clin Oncol. 2008; 26:612–619.

3. Gillison ML, Koch WM, Capone RB, Spafford M, Westra WH, Wu L, Zahurak ML, Daniel RW, Viglione M, Symer DE, Shah KV, Sidransky D. Evidence for a causal association between human papillomavirus and a subset of head and neck cancers. J Natl Cancer Inst. 2000; 92:709–720.

4. Mellin H, Friesland S, Lewensohn R, Dalianis T, Munck-Wikland E. Human papillomavirus (HPV) DNA in tonsillar cancer: clinical correlates, risk of relapse, and survival. Int J Cancer. 2000; 89:300–304.

5. Dahlstrand HM, Dalianis T. Presence and influence of human papillomaviruses (HPV) in Tonsillar cancer. Adv Cancer Res. 2005; 93:59–89.

6. Lindquist D, Romanitan M, Hammarstedt L, Nasman A, Dahlstrand H, Lindholm J, Onelov L, Ramqvist T, Ye W, Munck-Wikland E, Dalianis T. Human papillomavirus is a favourable prognostic factor in tonsillar cancer and its oncogenic role is supported by the expression of E6 and E7. Mol Oncol. 2007; 1:350–355.

7. Marur S, D’Souza G, Westra WH, Forastiere AA. HPV-associated head and neck cancer: a virus-related cancer epidemic. Lancet Oncol. 2010; 11:781–789.

8. Ang KK, Harris J, Wheeler R, Weber R, Rosenthal DI, Nguyen-Tan PF, Westra WH, Chung CH, Jordan RC, Lu C, Kim H, Axelrod R, Silverman CC, et al. Human papillomavirus and survival of patients with oropharyngeal cancer. N Engl J Med. 2010; 363:24–35.

9. Attner P, Du J, Nasman A, Hammarstedt L, Ramqvist T, Lindholm J, Marklund L, Dalianis T, Munck-Wikland E. The role of human papillomavirus in the increased incidence of base of tongue cancer. Int J Cancer. 2010; 126:2879–2884.

10. Keir ME, Butte MJ, Freeman GJ, Sharpe AH. PD-1 and its ligands in tolerance and immunity. Annu Rev Immunol. 2008; 26:677–704.

11. Freeman GJ, Long AJ, Iwai Y, Bourque K, Chernova T, Nishimura H, Fitz LJ, Malenkovich N, Okazaki T, Byrne MC, Horton HF, Fouser L, Carter L, et al. Engagement of the PD-1 immunoinhibitory receptor by a novel B7 family member leads to negative regulation of lymphocyte activation. J Exp Med. 2000; 192:1027–1034.

12. Latchman Y, Wood CR, Chernova T, Chaudhary D, Borde M, Chernova I, Iwai Y, Long AJ, Brown JA, Nunes R, Greenfield EA, Bourque K, Boussiotis VA, et al. PD-L2 is a second ligand for PD-1 and inhibits T cell activation. Nat Immunol. 2001; 2:261–268.

13. Dong H, Strome SE, Salomao DR, Tamura H, Hirano F, Flies DB, Roche PC, Lu J, Zhu G, Tamada K, Lennon VA, Celis E, Chen L. Tumor-associated B7-H1 promotes T-cell apoptosis: a potential mechanism of immune evasion. Nat Med. 2002; 8:793–800.

14. Wu P, Wu D, Li L, Chai Y, Huang J. PD-L1 and Survival in Solid Tumors: A Meta-Analysis. PLoS One. 2015; 10:e0131403.

15. Kim HS, Lee JY, Lim SH, Park K, Sun JM, Ko YH, Baek CH, Son YI, Jeong HS, Ahn YC, Lee MY, Hong M, Ahn MJ. Association Between PD-L1 and HPV Status and the Prognostic Value of PD-L1 in Oropharyngeal Squamous Cell Carcinoma. Cancer Res Treat. 2016; 48:527–536.

16. Satgunaseelan L, Gupta R, Madore J, Chia N, Lum T, Palme CE, Boyer M, Scolyer RA, Clark JR. Programmed cell death-ligand 1 expression in oral squamous cell carcinoma is associated with an inflammatory phenotype. Pathology. 2016; 48:574–580.

17. Straub M, Drecoll E, Pfarr N, Weichert W, Langer R, Hapfelmeier A, Gotz C, Wolff KD, Kolk A, Specht K. CD274/PD-L1 gene amplification and PD-L1 protein expression are common events in squamous cell carcinoma of the oral cavity. Oncotarget. 2016; 7:12024–12034. https://doi.org/10.18632/oncotarget.7593.

18. Chureemas T, Larbcharoensub N, Juengsamarn J, Layangkool T, Jiarpinitnun C, Chansriwong P, Trachu N, Pattaranutaporn P, Ngamphaiboon N. Prevalence, pattern, and impact of PD-L1 expression and HPV-status in head and neck squamous cell carcinoma. Ann Oncol. 2016; 27:328–350.

19. Lyford-Pike S, Peng S, Young GD, Taube JM, Westra WH, Akpeng B, Bruno TC, Richmon JD, Wang H, Bishop JA, Chen L, Drake CG, Topalian SL, et al. Evidence for a role of the PD-1:PD-L1 pathway in immune resistance of HPV-associated head and neck squamous cell carcinoma. Cancer Res. 2013; 73:1733–1741.

20. Ukpo OC, Thorstad WL, Lewis JS Jr. B7-H1 expression model for immune evasion in human papillomavirus-related oropharyngeal squamous cell carcinoma. Head Neck Pathol. 2013; 7:113–121.

21. De Meulenaere A, Vermassen T, Aspeslagh S, Huvenne W, Van Dorpe J, Ferdinande L, Rottey S. Turning the tide: clinical utility of PD-L1 expression in squamous cell carcinoma of the head and neck. Oral Oncol. 2017; 70:34–42.

22. Pardoll DM. The blockade of immune checkpoints in cancer immunotherapy. Nat Rev Cancer. 2012; 12:252–264.

23. Taube JM, Anders RA, Young GD, Xu H, Sharma R, McMiller TL, Chen S, Klein AP, Pardoll DM, Topalian SL, Chen L. Colocalization of inflammatory response with B7-h1 expression in human melanocytic lesions supports an adaptive resistance mechanism of immune escape. Sci Transl Med. 2012; 4:127ra137.

24. Tumeh PC, Harview CL, Yearley JH, Shintaku IP, Taylor EJ, Robert L, Chmielowski B, Spasic M, Henry G, Ciobanu V, West AN, Carmona M, Kivork C, et al. PD-1 blockade induces responses by inhibiting adaptive immune resistance. Nature. 2014; 515:568–571.

25. Ilie M, Falk AT, Butori C, Chamorey E, Bonnetaud C, Long E, Lassalle S, Zahaf K, Venissac N, Mouroux J, Cohen C, Brambilla E, Marquette CH, et al. PD-L1 expression in basaloid squamous cell lung carcinoma: Relationship to PD-1+ and CD8+ tumor-infiltrating T cells and outcome. Mod Pathol. 2016; 29:1552–1564.

26. Ratcliffe MJ, Sharpe A, Midha A, Barker C, Scott M, Scorer P, Al-Masri H, Rebelatto M, Walker J. Agreement between Programmed Cell Death Ligand-1 Diagnostic Assays across Multiple Protein Expression Cut-Offs in Non-Small Cell Lung Cancer. Clin Cancer Res. 2017. https://doi.org/10.1158/1078-0432.CCR-16-2375.

27. Pai SI, Westra WH. Molecular pathology of head and neck cancer: implications for diagnosis, prognosis, and treatment. Annu Rev Pathol. 2009; 4:49–70.

28. Loyo M, Li RJ, Bettegowda C, Pickering CR, Frederick MJ, Myers JN, Agrawal N. Lessons learned from next-generation sequencing in head and neck cancer. Head Neck. 2013; 35:454–463.

29. De Meulenaere A, Vermassen T, Aspeslagh S, Zwaenepoel K, Deron P, Duprez F, Rottey S, Ferdinande L. Prognostic markers in oropharyngeal squamous cell carcinoma: focus on CD70 and tumour infiltrating lymphocytes. Pathology. 2017; 49:397–404. https://doi.org/10.1016/j.pathol.2017.02.002.

30. Dahlin AM, Henriksson ML, Van Guelpen B, Stenling R, Oberg A, Rutegard J, Palmqvist R. Colorectal cancer prognosis depends on T-cell infiltration and molecular characteristics of the tumor. Mod Pathol. 2011; 24:671–682.

31. Herbst RS, Soria JC, Kowanetz M, Fine GD, Hamid O, Gordon MS, Sosman JA, McDermott DF, Powderly JD, Gettinger SN, Kohrt HE, Horn L, Lawrence DP, et al. Predictive correlates of response to the anti-PD-L1 antibody MPDL3280A in cancer patients. Nature. 2014; 515:563–567.


Creative Commons License All site content, except where otherwise noted, is licensed under a Creative Commons Attribution 3.0 License.
PII: 19045
