Mutations of KRAS, NRAS, BRAF, EGFR, and PIK3CA genes in urachal carcinoma: Occurence and prognostic significance

Abstract

Purpose: Targeted therapy represents an attractive alternative for rare tumors such as urachal carcinoma (UrC). The aim of this study was to assess the mutations of the most commonly affected 5 genes in the targetable EGFR-pathway in UrC and comapre their frequencies to those of found in urothelial and colorectal cancer.

Materials and Methods: Mutational hot-spots of selected genes were tested in 22 UrC samples by pyrosequencing. Mutational patterns were compared to those published for colorectal and urothelial cancers. Furthermore, we sought correlations between mutations and clinicopathological and follow-up data.

Results: We found 11 mutations in 10 of 22 (45%) patients. The most frequently mutated gene was KRAS (27%) followed by BRAF (18%) and NRAS (5%), while no mutations were detected in the EGFR and PIK3CA genes. No correlation was found between the mutation status and clinicopathological parameters (Sheldon/Mayo stage, tumor grade, metastases). Furthermore, none of the mutations correlated with progression-free or overall survival.

Conclusions: The mutation pattern of UrC is more similar to colorectal than to urothelial cancer. However, the mutation characteristics of UrC seems to be unique suggesting that clinical decision-making for UrC cannot be simply adopted from urothelial or colorectal carcinoma. The high occurence of EGFR-pathway mutations warrants the testing for KRAS and BRAF mutations when considering anti-EGFR therapy in UrC.

INTRODUCTION

The urachus, or median umbilical ligament, is a midline tubular structure stretching between the bladder and the umbilicus. It is a remnant of embryonic development which gradually degenerates after the fourth month of embryonic life [1]. If the regression is incomplete, the urachus may persist and give rise to various abnormalities including malignances. Urachal cancer (UrC) is a rare, but highly malignant entity accounting for < 1% of all bladder cancers and mostly detected in conjunction with its invasion to the urinary bladder [2]. Because of its low incidence, our knowledge on the biology of UrC is limited. The recommended treatment for non-metastatic UrC is partial cystectomy with the complete removal of umbilicus and umbilical ligament [3]. Because of its hidden anatomical location at least 30% of UrCs are diagnosed at progressed stages, when a surgical treatment is not possible. In these cases, the most frequently used treatment is chemotherapy. As large scale, prospective clinical studies can hardly be performed for such a rare malignancy, clinical evidence and clear recommendations are not available for the systemic treatment of UrC. Therefore, the current chemotherapeutic treatment of UrC is rather based on individual decisions. The most frequently used chemotherapeutic agents are cisplatin and 5-fluorouracil [4-5]. The sparse data available on the efficacy of chemotherapeutic treatment in progressed UrC suggests 5-FU-based treatments to be superior to platinum-based therapies [4-5]. However, using any of these therapies the survival of UrC patients remains poor, warranting the need for more effective treatments. In the lack of evidence-based recommendations, targeted therapies tailored to the genetic features of each UrC case may provide an alternative approach in order to rationalize therapy decisions. To date there are only few, however promising data on the efficacy of targeted therapies in UrC. Testa et al. reported a necrotic involution of the tumor and a significant improvement of abdominal pain in a UrC patient who was treated with second-line multikinase inhibitor (Sunitinib) [6], while Goss et al. observed a size regression of a UrC as a response to EGFR-inhibitor therapy with gefitinib (Iressa) [7]. Finally, a recent study reported a patient with lung metastatic UrC who was effectively treated with a monoclonal EGFR-inhibitor (cetuximab) for eight months [8].

Both developing from the cloaca, urachal and colorectal adenocarcinomas (CRC) display several similarities regarding their histological, immunohistochemical and molecular features [9-10]. Mutated intracellular domain of EGFR is a therapeutic target in several malignancies including CRC as EGFR-inhibitors can silence mutation-activated EGFR signaling [11]. EGFR has three main downstream pathways: (1) RAS-RAF-MAPK, (2) PI3K-AKT and (3) JAK-STAT pathway, which stimulate mitosis leading to cell proliferation and inhibition of apoptosis [12]. A number of mutations of these downstream pathways are able to impair anti-EGFR treatment [11]. Therefore, mutation analyses of the EGFR-pathway are widely used for guiding treatment decisions [11, 13].

The prevalence and prognostic significance of the mutations in genes of the EGFR pathway in UrC remain poorly understood. Therefore, we screened the most commonly affected mutational hot spots of KRAS, NRAS, BRAF, EGFR and PIK3CA genes in the largest set of UrC samples evaluated to date and correlated them with patients’ characteristics and survival.

RESULTS

Follow-up characteristics

Postoperative tumor recurrence was detected in two cases, metastatic tumor progression in two cases and local recurrence together with distant metastatic progression in five cases. The median time from surgery to first progression was 18 months. At the time of data evaluation 14 of 22 patients were alive with a median overall survival time of 35 months.

Occurrence of mutations

We analyzed the mutations of the most frequently affected mutational hot-spots of KRAS, NRAS, BRAF, EGFR and PIK3CA genes in 22 UrC samples.

Overall, 11 mutations in 10 of 22 (45%) patients were found. KRAS was the most frequently affected gene with 6 mutations (6/22; 27%), followed by BRAF with 4 mutations (4/22; 18%) and NRAS with one case (1/22; 5%) (Tables 1, 2). In one case co-occurrence of an NRAS and a BRAF mutation was observed. No mutations in the EGFR and PIK3CA genes were detected.

Table 1: Mutations

Gene	Exon	Codon	Spot change	Amino change		Gene	Exon
KRAS	2	12	c.35G>A	p.G12D	GGT --> GAT	Gly --> Asp	1/22
	2	12	c.35G>T	p.G12V	GGT --> GTT	Gly --> Val	1/22
	2	13					0/22
	3	59					0/22
	3	61	c.182A>T	p.Q61L	CAA --> CTA	Gln --> Leu	1/22
	4	146	c.437C>T	p.A146V	GCA --> GTA	Ala --> Val	2/22
	4	146	c.436G>A	p.A146T	GCA --> ACA	Ala --> Thr	1/22
	∑						6/22
NRAS	2	12, 13					0/22
	3	59					0/22
	3	61	c.183A>T	p.Q61H	CAA --> CTA	Gln --> His	1/22
	4	146					0/22
	∑						1/22
BRAF	15	600	c.1799T>A	p.V600E	GTG --> GAG	Val --> Glu	4/22
EGFR	18	719					0/22
	19	744-750					0/22
	20	768, 790					0/22
	21	858-861					0/22
	∑						0/22
PIK3CA	9	542, 545					0/22
	20	1047					0/22
	∑						0/22

Table 2: Mutation frequency in different cancers

Mutations	Urachal cc		Bladder adenocc		Bladder TCC		Colorectal cc
	N	%	N	%	N	%	N	%
KRAS	6/22 *	27	2/21 18	10	10/234 29	4	3410/8350 25	41
	3/7 33	43			3/105 30	3	613/1487 26	41
	1/5 18	20			4/218 31	2	124/277 19	45
	1/7 36	14			4/98 32	4	92/194 27	47
	2/9 8	22			0/128 17	0	71/164 28	43
							119/276 21	43
Ʃ	13/50	26	2/21	10	21/783	3	4429/10748	41
NRAS	1/22 *	5			2/105 30	2	17/644 37	3
	0/7 36	0			0/218 31	0	14/282 19	5
	1/9 8	11			4/98 32	4	7/194 27	4
					0/128 17	0	25/276 21	9
Ʃ	2/38	5	-	-	6/549	1	63/1396	5
BRAF	4/22 *	18			0/145 31	0	1288/11955 35	11
	0/7 33	0			0/128 17	0	18/243 19	7
	0/7 36	0					10/194 27	5
	0/9 8	0					26/164 28	16
							22/276 21	8
Ʃ	4/45	9	-	-	0/273	0	1342/12832	10
EGFR	0/22 *	0	0/28 18	0	0/21 15	0	17/236 20	7
	0/7 36	0			0/75 16	0	3/280 19	1
	0/9 8	0			0/128 17	0	11/276 21	4
Ʃ	0/38	0	0/28	0	0/224	0	31/792	4
PIK3CA	0/22 *	0			61/257 41	24	108/743 37	15
	0/7 36	0			19/105 30	18	24/255 19	9
	1/9 8	11			37/218 31	17	32/194 27	16
					26/128 17	20	50/276 21	18
Ʃ	1/38	3	-	-	143/708	20	214/1468	15

*results of this study

Table 3: Patients‘ characteristics and KRAS, NRAS and BRAF mutations

Variables		Patients		KRAS	NRAS	BRAF
		n	%	n	n	n
Age	≤ 55	14	64	4	1	3
	> 55	8	44	2	0	1
Gender	male	16	73	2	1	4
	female	6	27	4	0	0
Histology	ADC with SRC	3	14	0	0	1
	ADC without SRC	19	86	6	1	3
Calcification	present	3	14	1	0	0
	absent	19	86	5	1	4
Sheldon Stage	I-II	0	0	0	0	0
	IIIA	10	45	2	1	2
	IIIB	7	32	4	0	1
	IIIC	1	5	0	0	0
	IVA	2	9	0	0	0
	IVB	2	9	0	0	1
	IVC	0	0	0	0	0
Mayo stage	I	4	19	1	0	0
	II	10	48	3	1	3
	III	5	24	2	0	0
	IV	2	9	0	0	1
	missing	1
LN or distant meta at diagn.	N0/M0	18	82	6	1	3
	N + / M+	4	18	0	0	1
Initial surgical treatment	partial CE	15	68	5	0	3
	radical CE	5	23	1	0	0
	TURB	2	9	0	1	1
Umbilectomy	yes	11	50	4	0	2
	no	11	50	2	1	2
LND	yes	13	59	3	0	2
	no	9	41	3	1	2
Chemotherapy	yes	6	27	1	1	2
	no	16	73	5	0	2
Progression	local recurrence	2	9	1	1	1
	distant met	2	9	1	0	0
	both	5	23	2	0	1
	no progression	13	59	3	0	2

Abbreviations:

ADC – adenocarcinoma

SRC – signet ring cell differentiation+

CE – cystectomy

LND – lymph node dissection

Correlation of mutations with the clinical and follow-up data

We found no correlation between mutation status and clinicopathological parameters (signet ring cell differentiation, presence of calcification, Sheldon stage, Mayo stage, tumor grade and the presence of lymph node or distant metastases). However, all KRAS mutations were present in non-metastatic cases (6/18), this correlation missed the significance level (p = 0.176 - Chi-test). Furthermore, no association was detected between mutations and progression-free (p = 0.949) and overall survival (p = 0.942) ( Figure 1).

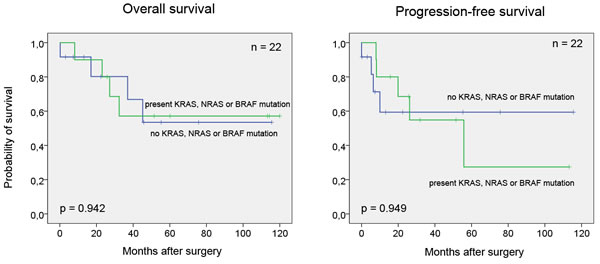

Figure 1: Kaplan-Meier survival curves

DISCUSSION

In the present study, we analyzed the mutation patterns of the most commonly affected genes of the EGFR-signaling pathway in UrC. The observed mutation frequencies were compared to those of CRC and urothelial carcinoma. Furthermore, we sought correlation between the detected genetic alterations and clinicopathological and follow-up data. Our results revealed a unique mutational profile for UrC which shows more similarities to CRC than to urothelial carcinoma.

The EGFR signaling pathway represents an important therapeutic target in various cancers e.g. in metastatic CRC [11]. Regarding efficacy of anti-EGFR therapy in UrC we found only one early two studies. An early phase I study assessed the effect of the EGFR-inhibitor gefitinib (Iressa) in various progressed solid tumors including lung, breast, colon, cervix and ovary cancers as well as one case of lymph node positive UrC [7]. From the 28, 22 included cases in this study, four showed clinical evidence of response and the one with UrC showed the highest decrease in tumor size of 55%, which was accompanied by a biological response as shown by the decrease of Ki67 proliferation index in the post treatment tumor biopsy [7]. In a recent publication Collazo-Lorduy et al. reported cetuximab treatment to be effective for eight months in a patient with metastatic UrC bearing EGFR amplification and wild-type KRAS [8]. These promising data suggest that anti-EGFR therapy might be effective also in UrC.

Primary resistance to EGFR inhibitors is mostly related to the presence of wild-type EGFR, as these tumors often harbor mutations in other genes downstream of EGFR such as KRAS and BRAF [14]. EGFR mutations were found to be absent in urothelial and primary bladder ADC and was reported to be also rare in CRC [12, 15-21]. Our present analysis provided similar results in UrC, revealing no mutations in the EGFR gene.

In the last years it became increasingly evident that activating structural mutations in one of the downstream pathway members can lead to resistance to anti-EGFR therapies (such as cetuximab). One of the most commonly affected downstream pathway is the RAS-RAF-MAPK signal way. KRAS is a G-protein encoding proto-oncogene and a member of the RAS protein family. In contrast to wild-type RAS proteins, which are deactivated after a short time, mutated RAS proteins cause continuous activation of RAS signaling pathways also without the upstream stimulation of EGFR or HER1 receptor [22, 23]. The oncogenic activation of RAS signaling pathways leads to abnormal cell growth, proliferation and differentiation. A somatic missense mutation in codon 12 of the KRAS gene, results in a single amino acid substitution (Gly12Val) representing the most frequently occurring mutation in CRC [22]. Further, less frequent KRAS mutations were found in KRAS codon 61 and 146 present in 1.5% and 3.2% of cases [24]. These KRAS mutant cases were unlikely to benefit from anti-EGFR therapy. Therefore, determination of its mutations has a crucial role in characterization and therapy of CRC [23]. In contrast to CRC [19, 21, 25-28], KRAS mutations are rare in urothelial carcinomas and primary bladder ADCs (~5% and ~10% respectively) [17-18, 29-32]. In UrC, Sirintrapun et al. observed 3 of 7 (43%) cases present with KRAS mutation, while Alexander et al. found mutation in 1 of 5 UrC patients (20%) [18, 33]. In accordance, we found similar occurrence (27%) for KRAS mutation in our 22 patients. Based on these, KRAS mutations - similar to CRC but in contrast to urothelial carcinomas - seems to be frequent in UrC. However, 3 of the 6 KRAS mutations we observed were located at codons 61 and 146 which are rarely ( < 5%) affected in CRC.

About half of the CRC patients with wild-type KRAS do not respond to anti-EGFR therapy [34]. In these cases, mutated BRAF gene - which is present in ~10% of cases - can affect response to anti-EGFR treatment [35]. BRAF mutations were found to be absent in urothelial carcinoma, while, to best of our knowledge, there are no available data on the occurrence of its mutations in primary ADC of the bladder [17, 31]. In the present analysis, we found BRAF mutations in 4 of 22 (18%) UrC cases, which frequency seems to be similar to that of in CRC. In contrast, others found no BRAF mutations in UrC [8, 33, 36]. Low case number of that study together with the relative low abundance of BRAF mutation might be the reason for this discrepancy.

NRAS activating mutations were also found to be associated with failure of anti-EGFR therapy. Our analysis revealed one single UrC with NRAS mutation (1/22, 5%), suggesting, that these mutations are rare also in UrC similar to those of CRC [19, 21, 27, 31] and urothelial carcinoma [17, 30-32] (5% and 1% respectively).

The PIK3CA gene is involved in, the PI3K pathway affecting fundamental processes such as protein synthesis and cellular growth, mediated by mammalian target of rapamycin (mTOR) and S6 kinase. PIK3CA mutations in CRC are associated with clinical resistance to EGFR-targeted monoclonal antibodies [38]. Another therapeutically relevant correlation between the PIK3CA mutation and treatment response is related to aspirin. Experimental results demonstrated, that the inhibition of cyclooxygenase-2 (COX-2) by aspirin also down-regulates PI3K signaling activity [39]. In accordance, PIK3CA mutant CRCs were found to benefit from adjuvant aspirin therapy in contrast to patients with wild-type PIK3CA gene [40]. We found no PIK3CA mutations in any of the analyzed UrCs. In contrast, both urothelial [17, 30-31] and colorectal cancers [19, 21, 27, 31] were reported to bear PIK3CA mutations with a probability of 15-20% (Tables 2, 3).

We found no significant correlation between the mutation status and clinicopathological parameters of UrC (signet ring cell differentiation, presence of calcification, Sheldon stage, Mayo stage, tumor grade and the presence of lymph node or distant metastases). KRAS mutations were present only in non-metastatic cases (6/18), however, this correlation missed the significance level (p = 0.176 - Chi-test). Furthermore, none of the mutations correlated with progression-free or overall survival. In contrast, Sirantrapun et al. recently analyzed KRAS and BRAF mutations in 7 cases of UrC and found a better survival in patients with mutated KRAS gene [33]. This observation, however, is in contrast to those made in CRC and lung adenocarcinoma where KRAS mutations were associated with adverse prognosis. Therefore, the observed favorable prognostic effect of KRAS in UrC seems rather to be a consequence of low patient numbers than a real prognostic effect.

Recent publications provided whole exome sequencing data in samples UrC patients. Singh et al. identified recurrent mutations in NF1, APC and RNF43 genes suggesting the involvement of MAPK and Wnt/β-catenin pathways in UrC formation [36]. In accordance, a further study found mutations in the MAPK pathway in four of nine cases [8].

Our study has some limitations regarding the low number of analyzed cases. Because of the extreme low incidence of UrC, only multi-institutional efforts can help to reach statistically relevant sample sizes. Being aware of this problem, we collected samples from multiple university centers. However, despite our study is one of the largest to date with molecular analysis on UrC, we have to acknowledge the sample size is still low, which does not allow a reliable statistical analysis. Therefore, further analyses with larger patient numbers are needed to confirm our findings.

CONCLUSIONS

Our comparison between the mutation patterns of UrC and CRC as well as urothelial carcinoma revealed both similarities and differences. On the one hand, KRAS and BRAF mutations occurred in UrC with similar frequencies as in CRC, in contrast to urothelial carcinoma, where both of these mutations are infrequent. On the other hand, unlike in CRC, PIK3CA mutations seem to be absent. Finally, EGFR and NRAS mutations are rare in all these three tumor entities. These data suggest that the molecular features of UrC are rather similar to CRC than to urothelial carcinoma. However, the mutation characteristics of UrC seems to be unique, suggesting, that clinical decision making regarding UrC cannot simply adopted from evidence that is based on colorectal or urothelial carcinoma. Furthermore, our data suggest that patients with metastatic UrC, who are being considered for an anti-EGFR antibody therapy, should be tested for the presence of KRAS and BRAF mutations prior to therapy.

MATERIALS AND METHODS

Clinical samples

Twenty-two formalin-fixed, paraffin-embedded (FFPE) UrC samples were retrospectively collected from four academic centers. Inclusion criteria were histologically confirmed urachal adenocarcinoma localized to the urachus fistula and/or bladder dome. Cases with metastatic and/or local invasion to the bladder from other (e.g. gastrointestinal) cancers were excluded.

Clinical data including age, gender, tumor localization, Sheldon/Mayo-stage, grade, lymph node status and presence of distant metastasis, details on treatment, tumor recurrence, progression and survival were obtained from the medical records and relevant offices.

The median patient age was 52 years (range: 32-77 years). Sixteen of 22 patients were men (female-to-male ratio: 1:2.7). In three cases signet ring cell morphology and in another three cases calcification was observed. We used both the Sheldon [42] and Mayo systems [3] for stage classification. According to the Sheldon staging system [14], 10 patients were categorized into Sheldon stage IIIA, 7 into IIIB, 1 into IIIC, 2 into IVA and 1 into IVB, while the distribution regarding to the Mayo-system [3] was as follows: 4x stage I, 10x stage II, 5x stage III and 7x stage IV (staging data from one patient was not available). At the time of diagnosis, 4 patients (18%) had lymph node or distant metastasis. Initial surgical treatment was partial cystectomy in 15, radical cystectomy in 5 and transurethral resection (TURB) in 2 cases. In the two patients who underwent TURB, cystectomy was performed within a few weeks following transurethral resection. Eleven patients underwent umbilectomy and 13 patients had lymphadenectomy. Six patients received chemotherapy (Tables 3, 1). No chemotherapy or radiation was performed before surgery in any of the cases. The study was performed in accordance with the ethical standards of the Helsinki Declaration and was approved by the local ethical committee.

DNA isolation and mutation analysis

Tumor containing areas were marked on hematoxylin and eosin (HE) stained sections by a pathologist and careful macrodissection has been performed in order to reduce contamination with non-malignant tissue. DNA was isolated from the dissected tissue sample using the High Pure PCR Template Preparation Kit (Roche, Mannheim, Germany) according to the manufacturer’s recommendation. Extracted DNA concentrations were measured by a NanoDrop ND-1000 Spectrophotometer V3.3 (Thermo Fisher Scientific, Wilmington, DE, USA). Isolated DNA samples were amplified by polymerase chain reaction (PCR) for 13 exons of the 5 selected genes (KRAS exons 2, 3 and 4; NRAS exons 2, 3 and 4; BRAF exon 15; EGFR exons 18, 19, 20 and 21 and PIK3CA exons 9 and 20) on an Applied Biosystems VeritiTM 96 well Thermal Cycler instrument (Applied Biosystems, Foster City, CA, USA). PCR conditions are shown in Suppl. table 1. PCR amplification products were analyzed on a PyroMark Q24 analyzer (Qiagen, Hilden, Germany) with PyroMark Q24 Software 2.0. All mutations were confirmed in a second analysis by repeating the PCR and pyrosequencing steps from the same DNA sample. Pyrosequencing primers were designed to test codons 12, 13, 59, 61 and 146 for KRAS, codons 12, 13, 59, 61, 117 and 146 for NRAS, codon 600 for BRAF, codons 719, 744-750, 768, 790 and 858-861 for EGFR and codons 542, 545 and 1047 for PIK3CA. Primer sequences are listed in Suppl. table 2.

Statistical analysis

Results were correlated with clinicopathological and follow-up data. Chi-squared test was used to evaluate the association between mutation status and clinicopathological parameters. The Kaplan-Meier method with log-rank test was performed to estimate overall and progression-free survival. Statistical analyses were performed using the SPSS software version 20.0 (SPSS, Chicago, IL). The statistical significance was set at p < 0.05.

ACKNOWLEDGMENTs

We thank for Ms Krisztina Egedi and Ms Krisztina Császár for their technical assistance. Thank you for Dr. Nathalie Rioux-Leclercq for her help in retrieving samples. Macell A. Szász and Tibor Szarvas were supported by János Bolyai Research Scholarship of the Hungarian Academy of Sciences. This study was supported by the National Research, Development and Innovation Office (Grant number: NKFIH/PD 115616) and the Hungarian Association of Urology.

CONFLICTS OF INTERESTS

None of the authors reported any financial interests or potential conflicts of interest related to this study.
