Research Papers:

Migration-inducing gene 7 promotes tumorigenesis and angiogenesis and independently predicts poor prognosis of epithelial ovarian cancer

PDF |  HTML  |  Supplementary Files  |  How to cite

Oncotarget. 2016; 7:27552-27566. https://doi.org/10.18632/oncotarget.8487

Metrics: PDF 1943 views  |   HTML 2405 views  |   ?

Bihui Huang _, Mingzhu Yin, Xia Li, Guosheng Cao, Jin Qi, Ge Lou, Shijie Sheng, Junping Kou, Kang Chen and Boyang Yu


Bihui Huang1,2,3,*, Mingzhu Yin4,5,*, Xia Li6,7, Guosheng Cao4, Jin Qi4, Ge Lou8, Shijie Sheng9,10, Junping Kou4, Kang Chen2,3,10,11,12, Boyang Yu4

1Department of Pharmacology, Yale University School of Medicine, New Haven, Connecticut, USA

2Department of Obstetrics and Gynecology, Wayne State University, Detroit, Michigan, USA

3Perinatology Research Branch, Eunice Kennedy Shriver National Institute of Child Health and Human Development, National Institutes of Health, Detroit, Michigan, USA

4State Key Laboratory of Natural Products and Jiangsu Key Laboratory of Traditional Chinese Medicine (TCM) Evaluation and Translational Research, Department of Complex Prescription of TCM, China Pharmaceutical University, Nanjing, China

5Department of Pathology, Yale University School of Medicine, New Haven, Connecticut, USA

6Department of Internal Medicine, Yale University School of Medicine, New Haven, Connecticut, USA

7Yale Stem Cell Center, Yale University, New Haven, Connecticut, USA

8Department of Gynecologic Oncology, The Affiliated Cancer Hospital of Harbin Medical University, Harbin, China

9Department of Pathology, Wayne State University, Detroit, Michigan, USA

10Tumor Biology and Microenvironment Program, Barbara Ann Karmanos Cancer Center and Department of Oncology, Wayne State University, Detroit, Michigan, USA

11Department of Immunology and Microbiology, Wayne State University, Detroit, Michigan, USA

12Mucosal Immunology Studies Team, National Institute of Allergy and Infectious Diseases, National Institutes of Health, Bethesda, Maryland, USA

*B.H. and M.Y. are interchangeable co-first authors and contributed equally to this study

Correspondence to:


Junping Kou, e-mail: [email protected]

Kang Chen, e-mail: [email protected]


Keywords: epithelial ovarian cancer, biomarker, prognosis, Migration-Inducting Gene 7, angiogenesis

Received: November 30, 2015    Accepted: March 18, 2016    Published: March 30, 2016


Epithelial ovarian carcinomas (EOC) cause more mortality than any other cancer of the female reproductive system. New therapeutic approaches to reduce EOC mortality have been largely unsuccessful due to the poor understanding of the mechanisms underlying EOC proliferation and metastasis. Progress in EOC treatment is further hampered by a lack of reliable prognostic biomarkers for early risk assessment. In this study, we identify that Migration-Inducting Gene 7 (MIG-7) is specifically induced in human EOC tissues but not normal ovaries or ovarian cyst. Ovarian MIG-7 expression strongly correlated with EOC progression. Elevated MIG-7 level at the time of primary cytoreductive surgery was a strong and independent predictor of poor survival of EOC patients. Cell and murine xenograft models showed that MIG-7 was required for EOC proliferation and invasion, and MIG-7 enhanced EOC-associated angiogenesis by promoting the expression of vascular endothelial growth factor. Inhibiting MIG-7 by RNA interference in grafted EOC cells retarded tumor growth, angiogenesis and improved host survival, and suppressing MIG-7 expression with a small molecule inhibitor D-39 identified from the medicinal plant Liriope muscari mitigated EOC growth and invasion and specifically abrogated the expression of vascular endothelial growth factor. Our data not only reveal a critical function of MIG-7 in EOC growth and metastasis and support MIG-7 as an independent prognostic biomarker for EOC, but also demonstrate that therapeutic targeting of MIG-7 is likely beneficial in the treatment of EOC.


Ovarian cancer is one of the most common gynecologic malignancies and causes more mortality than any other cancer of the female reproductive system [1]. Nearly 90% of ovarian cancer is classified as epithelial ovarian carcinomas (EOC) [1]. Approximately 70% of EOC patients are in the advanced stage at the time of diagnosis with incurable disease [24]. Despite advances in sophisticated surgery and new chemotherapeutic regimens, the 5-year survival rate for EOC patients has not achieved much improvement in the last two decades [5]. Failure of effective EOC treatment has been largely due to a lack of reliable biomarkers for early risk assessment [6] and uncontrolled cancer cell proliferation, metastasis and the acquisition of chemoresistance in the advanced stage [7]. EOC cells have high tolerance to low oxygen, which enables them to evade chemotherapy and rapidly develop drug resistance [8]. To support the rapid growth, it is necessary for EOC cells to acquire sufficient nutrients via promoting tumor angiogenesis [9]. Therefore, understanding the regulators of EOC proliferation and angiogenesis will reveal novel molecular targets for drugs to inhibit these critical processes, and identifying reliable prognostic biomarkers will help to improve risk assessment, disease management and consequently patient survival.

Migration-Inducting Gene 7 (MIG-7) is a cysteine-rich protein first identified in endometrial cancer cells upon hepatocyte growth factor (HGF) treatment [10]. Later studies showed that MIG-7 was upregulated on cell membrane and in the cytoplasm of a variety of cancers, but remained low or undetectable in non-cancerous tissues [11]. MIG-7 may therefore represent a promising marker for cancer detection and diagnosis. This notion is further supported by immunohistochemical (IHC) studies showing MIG-7 expression in circulating tumor cells, suggesting its potential as an early marker for metastatic carcinomas [11]. Studies on the function of MIG-7 in regulating tumor growth were focused primarily on two aspects. Some suggested that MIG-7 promoted tumor growth by regulating mitogenic and metastatic signaling pathways [12]. For example, MIG-7 could promote metastasis of lung cancer by activating the cyclooxygenase-2 (COX-2)–prostaglandin E2 (PGE2) signaling cascade [13]. Others suggested that MIG-7 promoted vascular mimicry prior to tumor angiogenesis, thus contributing to early EOC growth and metastasis [14]. However, currently there are no effective drugs that specifically inhibit vascular mimicry to treat EOC. Nor is there any report on the level of MIG-7 expression on the prognosis of EOC.

In the present study, we followed a cohort of EOC patients and found that elevated ovarian MIG-7 expression strongly correlated with EOC progression and metastasis, and independently predicted poor prognosis. We further showed that MIG-7 promotes EOC growth and angiogenesis in vitro and in vivo, and may represent an effective therapeutic target of EOC.


Elevated ovarian MIG-7 expression correlates with EOC progression and metastasis

The function of MIG-7 as a cancer-promoting factor and a biomarker in EOC has been unknown. Using quantitative real-time polymerase chain reaction (qRT-PCR) and Western Blot analyses, we found that MIG-7 mRNA and protein levels were increased in the ovaries of a cohort of 121 EOC patients as compared to subjects with normal ovaries or patients with ovarian cyst (Figure 1A1C). Of note, MIG-7 protein was undetectable in normal ovarian tissues. IHC analysis confirmed increased ovarian MIG-7 protein expression in EOC (Figure 1D). MIG-7 expression in EOC tissues correlated positively with tumor stage (p = 0.0008) and negatively with histopathological differentiation (p = 0.0001) (Figure 1E and Table 1). Furthermore, EOC patients with high ovarian MIG-7 expression had significantly more ascites volume and lymph node metastasis than those with low ovarian MIG-7 expression (p = 0.009 and 0.03, respectively) (Table 1). No statistically significant association between MIG-7 expression and other clinicopathological parameters, such as serum CA-125 level and histology type, was found. Therefore, elevated ovarian MIG-7 expression closely associates with the progression, de-differentiation and metastasis of EOC.

MIG-7 expression is elevated in EOC and correlates with advanced disease.

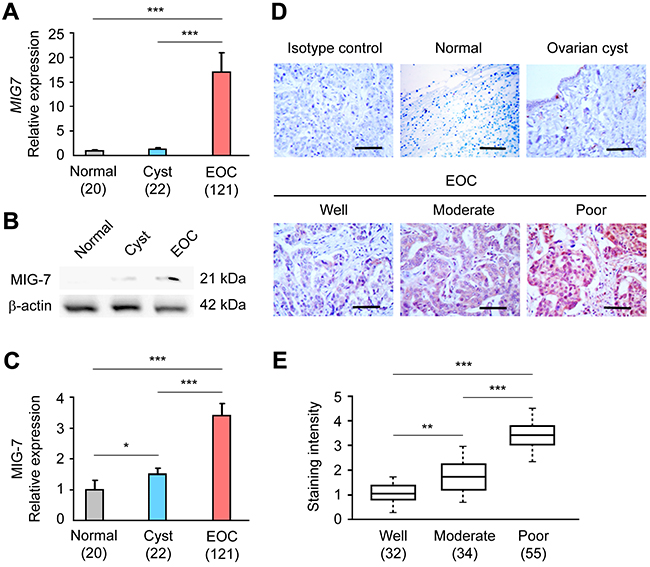

Figure 1: MIG-7 expression is elevated in EOC and correlates with advanced disease. A. qRT-PCR analysis of MIG7 transcriptional level in normal ovary, ovarian cyst and EOC tissues. The relative expression of the MIG7 gene is normalized to the expression of the ACTB (β-actin) gene. B, C. Western Blot and densitometric analyses of MIG-7 expression in normal ovary, ovarian cyst and EOC tissues. β-actin served as a loading control and was used for normalization. D. Representative IHC staining images of MIG-7 in normal ovary, ovarian cyst and EOC tissues at different FIGO stages. Bar: 100 μm. E. Statistical analysis of MIG-7 staining intensity in well, moderately and poorly differentiated EOC samples. The staining was scored by positivity and intensity. All data are presented as Mean ± SEM. The sample size of each group is indicated in the parentheses.*: p < 0.05; **: p < 0.01; ***: p < 0.001.

Table 1: Association between MIG-7 expression and clinicopathological features of EOC

Clinicopathological parameter

MIG-7 expression

No. of patients (n = 121)




Age (years)






 ≥ 50




Serum CA-125 level (U/ml)


 < 35




 ≥ 35




Ascites (ml)


 < 100




 ≥ 100




Histopathological differentiation














Histology type


 Serous adenocarcinoma




 Mucoid adenocarcinoma




 Endometrioid adenocarcinoma




FIGO stage


 I & II








Lymph node metastasis










Primary tumor size (cm)


 < 5




 ≥ 5




MIG-7 is required for EOC proliferation and invasion

To understand the function of MIG-7 expression in EOC development, we screened a panel of gynecological epithelial cancer cell lines by qRT-PCR for MIG7 expression. MIG7 was highly expressed in the EOC line SKOV3 (Supplementary Figure S1). Stable knockdown of MIG7 (Supplementary Figure S2A and S2B) resulted in a significant reduction in the proliferation of SKOV3 cells, as evidenced by diminished numbers of Ki-67+ cells (Figure 2A and 2B) [15], impaired ability to form colonies (Figure 2C and 2D) and reduced growth (Figure 2E). In addition, MIG-7 knockdown markedly blunted the invasiveness of SKOV3 cells, as shown by their reduced migration in a wound healing assay (Figure 2F and 2G). These data suggest that MIG-7 is required for the proliferation and invasiveness of EOC cells.

MIG-7 promotes EOC cell proliferation, invasion and angiogenesis in vitro.

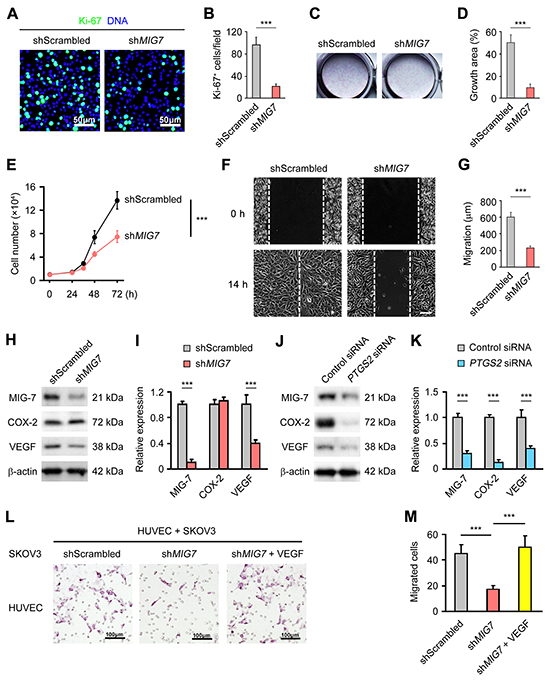

Figure 2: MIG-7 promotes EOC cell proliferation, invasion and angiogenesis in vitro. A, B. Immunofluorescent images and statistical analyses of Ki-67 expression in SKOV3 cells with control or MIG7 stable knockdown by scrambled or MIG7-targeting shRNA, respectively. Bar: 50 μm. C, D. Clonogenic assay of SKOV3 cells following control or MIG7 stable knockdown. E. Proliferation of SKOV3 cells with control or MIG7 stable knockdown in culture for 24, 36, 48 and 72 h. 1×104 cells were seeded at the beginning of the assay. F, G. Invasion of SKOV3 cells with control or MIG7 stable knockdown determined by a wound healing assay. White dashed lines indicate the gap of the cell monolayer at 0 and 14 after cell scratch. Bar: 200 mm. H, I. Western Blot and densitometric analyses of COX-2, MIG-7 and VEGFA expression in SKOV3 cells with control or MIG7 stable knockdown. β-actin served as a loading control. J, K. Western Blot and densitometric analyses of COX-2, MIG-7 and VEGFA expression in SKOV3 cells with control or PTGS2 (COX-2) knockdown by siRNA. β-actin served as a loading control. L, M. Hematoxylin staining and statistical analysis of HUVEC transmigration after 14 h of co-culture with SKOV3 cells with control or MIG7 stable knockdown with or without 100 ng/ml VEGFA. Each experiment was performed in triplicates. Data are presented as mean ± SEM of triplicates and represent 3 independent experiments. ***: p < 0.001.

MIG-7 promotes VEGF expression by EOC cells

Tumor-associated angiogenesis promotes tumor growth and metastasis [16]. Both mRNA and protein levels of vascular endothelial growth factor A (VEGFA), a major angiogenic factor, were significantly reduced in SKOV3 cells upon MIG7 knockdown (Supplementary Figure S3A and Figure 2H and 2I). Of note, MIG-7 knockdown did not affect the expression of COX-2 (Figure 2H and 2I), while knocking down COX-2 expression diminished the level of both MIG-7 and VEGFA (Supplementary Figure S3B and Figure 2J and 2K), which was consistent with COX-2 being an upstream inducer of MIG-7 [13]. Accordingly, SKOV3 cells with MIG-7 expression knocked down had impaired ability to induce the migration of co-cultured HUVECs, which was rescued by the addition of exogenous VEGFA (Figure 2L and 2M). Indeed, we found a significant positive correlation between the expression of MIG-7 and that of VEGFA in primary EOC tissues (Correlation Index (CI) = 0.37; p < 0.0001).

MIG-7 promotes EOC growth and angiogenesis and impairs host survival

To determine the function of MIG-7 on EOC growth in vivo, we inoculated SKOV3 cells with control or MIG7 stable knockdown into athymic nude mice. Tumors derived from MIG7 knockdown cells exhibited markedly attenuated growth (Figure 3A) and reduced size than control tumors (Figure 3B and 3C). Mice inoculated with MIG7 knockdown tumor cells experienced delayed death and improved rate of survival (Figure 3D). Consistent with the growth retardation of MIG7 knockdown tumors, cells in these tumors exhibited diminished expression of the proliferation-associated molecule Ki-67 (Supplementary Figure S4). Furthermore, VEGFA expression and tumor angiogenesis were markedly reduced in MIG7 knockdown tumors (Figure 3E3H), echoing the result found in SKOV3 cells in vitro. Taken together, these data show that MIG-7 is an important promoting factor of EOC pathogenesis, including tumor proliferation, migration and angiogenesis.

MIG-7 is required for the growth and angiogenesis of EOC cells in vivo.

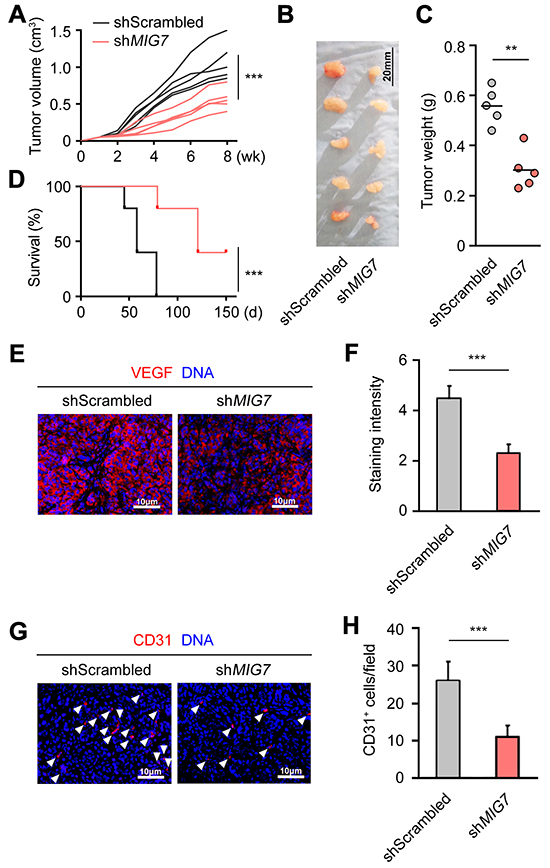

Figure 3: MIG-7 is required for the growth and angiogenesis of EOC cells in vivo. A. Volume of SKOV3-drived control or MIG7-knockdown tumors after inoculation, measured every week for 8 weeks. B. Images of SKOV3-derived control or MIG7-knockdown tumors 60 days after subcutaneous inoculation of SKOV3 cells into athymic nude mice. C. Weight of SKOV3-derived control or MIG7-knockdown tumors 60 days after inoculation. Bar: 20 mm; n = 5. D. Kaplan-Meier analysis of the survival of athymic nude mice inoculated with 107 control or MIG7-knockdown SKOV3 cells. E, F. Immunofluorescent images and statistical analysis of VEGFA (red) expression in dissected tumors from athymic nude mice 60 days after subcutaneous inoculation of control or MIG7-knockdown SKOV3 cells. DAPI stains the DNA (blue). Bar: 10 mm. G, H. Immunofluorescent images and statistical analysis of CD31 (red, and indicated by arrowheads) expression in dissected tumors from athymic nude mice 60 days after subcutaneous inoculation of control or MIG7-knockdown SKOV3 cells. DAPI stains the DNA (blue). Bar: 10 mm. Each experiment was performed with 5 mice per group. Data are presented as mean ± SEM of 5 mice and represent 3 independent experiments. **: p < 0.01; ***: p < 0.001.

A small molecule inhibitor of MIG-7 expression suppresses EOC growth, invasion and angiogenesis

Having demonstrated a critical function of MIG-7 in EOC pathogenesis, we explored the therapeutic potential of inhibiting MIG-7 in EOC. To this end, we performed a screen for inhibitors of MIG-7 expression from the compound library of Liriope muscari, a medicinal plant used in traditional Chinese medicine to treat various diseases including malignancies [17]. A compound, D-39 (Supplementary Figure S5A), was identified, which specifically suppressed the expression of MIG7, but not MIG2, MIG6 or MIG14 in SKOV3 cells (Figure 4A). Treatment of D-39 did not decrease the expression of COX-2, an inducer of MIG-7 (data not shown) [13]. D-39 exhibited selective killing of SKOV3 cells but not A2780 cells which have an undetectable level of MIG-7 (Supplementary Figure S5B). Consistent with a positive role of MIG-7 in EOC growth and invasion, D-39 potently inhibited the growth, proliferation and invasion of SKOV3 cells (Figure 4B4G). Our earlier results demonstrated a requirement for MIG-7 in VEGF expression in EOC. Accordingly, the MIG-7 inhibitor D-39 specially suppressed the expression of VEGFA but not other angiogenic or mitogenic factors (Figure 4H and 4I). Collectively, our findings suggest that therapeutic targeting MIG-7 may be beneficial in inhibiting multiple key processes of EOC pathogenesis, including growth, angiogenesis and metastasis (Supplementary Figure S7).

D-39, an inhibitor of MIG-7 expression, suppresses EOC cell growth and VEGFA expression.

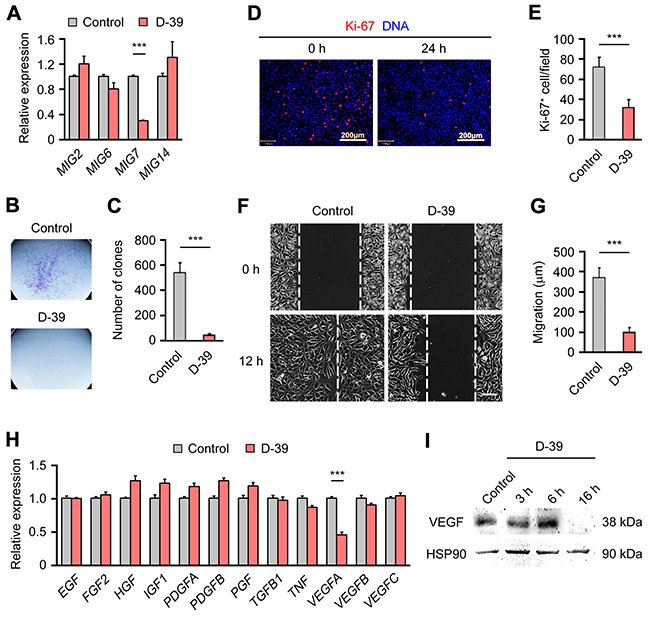

Figure 4: D-39, an inhibitor of MIG-7 expression, suppresses EOC cell growth and VEGFA expression. A. qRT-PCR analysis of MIG2, MIG6, MIG7 and MIG14 gene expression in SKOV3 cells treated with 20 μM D-39 for 14 h. Values were normalized to cells treated with 2% dimethyl sulfoxide (DMSO) (control), which was the solvent present in 20 μM D-39. B, C. Growth of SKOV3 cells treated with 2% DMSO (control) or 20 μM D-39 for 14 h, as determined by a clone formation assay. D, E. Immunofluorescent images and statistical analyses of Ki-67 expression in SKOV3 cells treated with 2% DMSO (control) or 20 μM D-39 for 14 h. DAPI stained DNA. Bar: 200 μm. F, G. Invasion of SKOV3 cells treated with 2% DMSO (control) or 20 μM D-39 for 14 h, as determined by a wound healing assay. White dashed lines indicate the gap between the cell monolayer at 0 and 12h after the scratch. H. qRT-PCR analysis of Epidermal growth factor (EGF), Fibroblast growth factor 2 (FGF2), Hepatocyte growth factor (HGF), Insulin-like growth factor 1 (IGF1), Platelet-derived growth factor β (PDGFA), Platelet-derived growth factor β (PDGFB), Placental growth factor (PGF), Transforming growth factor-β (TGFB1), Tumor necrosis factor (TNF), VEGFA, VEGFB and VEGFC gene expression in SKOV3 cells treated with 20 mM D-39 for 14 h. Values were normalized to the cells treated with 2% DMSO (control). I. Western Blot analysis of VEGFA expression in SKOV3 cells treated with 2% DMSO (control) or 20 μM D-39 for 3, 6 and 16 h. HSP90 served as a loading control. Each experiment was done in triplicates. Data are presented as mean ± SEM of triplicates and represent 2 to 4 independent experiments. Bar: 200μm; ***: p < 0.001.

MIG-7 expression in EOC tissues positively correlates with EOC angiogenesis

To confirm the correlation between MIG-7 expression and angiogenesis in human EOC, we determined tumor-associated angiogenesis in EOC tissues of 52 and 69 patients with low and high MIG-7 expression, respectively. VEGFA expression was significantly elevated in patients with high MIG-7 expression, particularly in the ovary area containing aggregated tumor cells (Figure 5A and 5B). Poisson analysis revealed a significant positive correlation between MIG-7 and VEGFA expression (CI = 0.37, p < 0.0001). Consistently, tumors with high MIG-7 expression harbored a higher density of tumor-associated vessels as determined by CD31 staining (Figure 5C and 5D). Therefore, MIG-7 expression in EOC tissues positively correlates with EOC-associated angiogenesis.

High ovarian MIG-7 expression independently predicts poor prognosis of EOC.

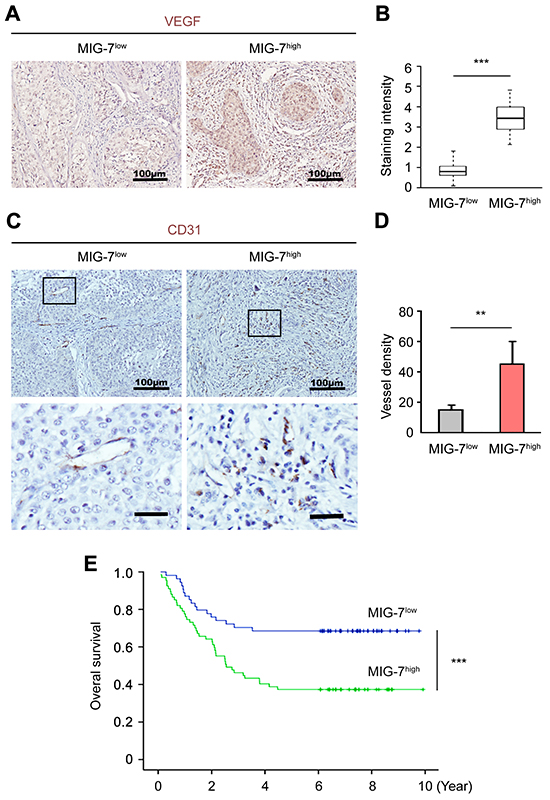

Figure 5: High ovarian MIG-7 expression independently predicts poor prognosis of EOC. A, B. Immunohistochemical staining and statistical analysis of VEGFA expression in resected EOC samples with low or high MIG-7 expression. Nuclei were stained with hematoxylin. Bar: 100 μm. C, D. IHC and statistical analyses of CD31 expression in resected EOC samples with low or high MIG-7 expression. Nuclei were stained with hematoxylin. Bar: 100 mm (upper panels), 25 mm (lower panels). E. Kaplan-Meier analysis of the OS of EOC patients with either high or low expression of MIG-7 at the time of primary cytoreductive surgery. The median survival of EOC patients with high and low MIG-7 expression is 3.8 and 5.6 years, respectively. **: p < 0.01; ***: p < 0.001. n = 44 (MIG-7low) and 77 (MIG-7high).

Ovarian MIG-7 expression independently predicts poor prognosis of EOC

We further determined the prognostic value of ovarian MIG-7 expression in patient survival. Univariate analysis from 121 EOC patients with either low (n = 52) and high (n = 69) MIG-7 expression revealed that the 5-year OS for patients with high and low tumor MIG-7 expression was 39.39% and 65.15%, respectively (p < 0.0001) (Figure 5E and Table 2). Further analysis suggested that higher MIG-7 expression negatively correlated with the OS of EOC patients (p = 0.0008), alongside classical clinicopathological variables including residual tumor size (p = 0.02), histopathological differentiation (p = 0.0161), lymph node metastasis (p = 0.0001), CA-125 level (p = 0.0321), ascites volume (p = 0.0352), FIGO stage (p = 0.0041) and lymph node metastasis (p < 0.0001) (Table 2). A multivariate Cox regression model adjusted for statistically significant prognostic factors was further established to evaluate the independent impact of MIG-7 expression on the OS. In this model, OS was used as a response variable and the factors used for adjustment included residual tumor size, CA-125 level, ascites volume, lymph node metastasis, histopathological differentiation and FIGO stage. Patients with high MIG-7 expression had a significantly shorter OS than those with low MIG-7 expression (OS: Hazard ratio = 2.099, p = 0.0133) (Table 3). In conclusion, out data suggest that MIG-7 is a novel and powerful biomarker that independently predicts poor prognosis of EOC.

Table 2: Univariate analysis of 113 EOC patients






MIG-7 expression








Residual tumor size (cm)


 < 1



 ≥ 2



FIGO stage


 I & II






Serum CA-125 level (U/ml)


 < 35



 ≥ 35



Ascites (ml)


 < 100



 ≥ 100



Lymph node metastasis

< 0.0001







Histopathological differentiation











Histology type


 Serous adenocarcinoma



 Mucoid adenocarcinoma



 Endometrioid adenocarcinoma



Table 3: Multivariate analysis with covariates adjustment of 121 EOC patients


Parameter estimate


Hazard ratio

95% Hazard Ratio

Confidence Limits

MIG-7 expression








FIGO stage

 I & II







Serum CA-125 level (U/ml)

 < 35

 ≥ 35






Ascites (ml)


 ≥ 100






Lymph node metastasis








Histopathological differentiation















Cell lines

Human embryonic kidney epithelial cell line HEK293T, breast cancer cell line MCF-7, trophoblast cell line HTR-8/svNeo, endometrial cancer cell Ishikawa and three lines of ovarian cancer cells IGROV1, A2780 and SKOV3 were purchased from American Type Culture Collection (ATCC, Manassas, VA, USA). All cells were cultured in Dulbecco’s Modified Eagle Medium (Thermo Fisher Scientific, Carlsbad, CA, USA) supplemented with 10% fetal bovine serum (Clontech Laboratories, Mountain View, CA, USA), 10 U/ml penicillin and 10 mg/ml streptomycin in a humidified incubator at 37°C with 5% CO2.

Study subjects

Following Institutional Review Board approval, a total of 121 patients with advanced EOC seen at the Affiliated Cancer Hospital of Harbin Medical University from January 2003 to December 2011 who met the following inclusion criteria were enrolled into this study. The inclusion criteria were: (1) pathology examination confirming the presence of stage I to IV EOC; (2) complete basic clinical data; (3) no prior treatment for cancer; (4) absence of serious complications or other malignant disease; (5) the patients and family members being informed about the illness and having given informed consent before treatment. All patients had undergone complete cytoreductive surgery. After obtaining informed consent, all eligible patients received intravenous platinum-based combination chemotherapy after surgery consisting of 6 cycles of treatment with 3 weeks between each cycle. An additional 42 subjects with pathologically confirmed normal ovaries or ovarian cysts were included as the control.

RNA interference

To achieve stable knockdown of MIG7, SKOV3 cells were transfected at 70% confluence with 4 mg MIG7-targeting shRNA and selected with 2 mg/ml puromycin. For transient knockdown, SKOV3 cells were transfected with 40 nM MIG7-or PTGS2-targeting siRNA (GE Dharmacon, Lafayette, CO, USA) and harvested at 72 h for mRNA and protein extraction. The sequences of the shRNA and siRNA used are provided in Supplementary Table S1 [13, 18].


Total RNA was extracted from cells and tissues using an RNAeasy Kit (Qiagen, Redwood City, CA, USA). 500 ng of RNA was reverse transcribed into cDNA using an iScript reverse transcription kit (Bio-Rad, Hercules, CA, USA). Equal volume of cDNA was applied for qRT-PCR using SYBR Green (Bio-Rad) with the following thermocycling condition: 15 seconds (s) at 95°C and 1 min at 60°C for 40 cycles, and the primers in Supplementary Table S2.

Western blot

Western Blot analysis was performed with tissue samples homogenized in lysis buffer consisting of 1% Triton X-100 and a protease inhibitor cocktail in phosphate-buffered saline (PBS). The lysates were centrifuged at 12 000 g for 15 min at 4°C to obtain the supernatants. Sixty micrograms of the protein extract was separated by 10% SDS polyacrylamide gel electrophoresis (SDS-PAGE) and transferred onto a PVDF membrane (EMD Millipore, Billerica, MA, USA). The membrane were blocked and incubated with antibodies against target proteins. Immunoreactive proteins were revealed by chemiluminescence. Membranes were then stripped and treated as described above but with an antibody against β-actin. Antibodies used are listed in Supplementary Table S3.


MIG-7 expression was evaluated in ovarian tissues of 121 EOC patients, 22 patients with ovarian cysts and 20 subjects with normal ovaries using the avidin-biotin immunoperoxidase technique. 4 mm paraffin-embedded tissue sections were stained with hematoxylin and eosin for tumor confirmation. Adjacent sections were used for IHC analysis. The selected sections were deparaffinized in Xylene and rehydrated with graded alcohol, immersed in 0.01 M citrate buffer (pH = 6.0) and heated at 95°C for 15 minutes (min). Sections were incubated with 3% H2O2 for 10 min to block endogenous peroxidase and then with 10% normal goat serum for 10 min to block non-specific immunoglobulin binding. Subsequently, the sections were incubated at room temperature for 1 h with an antibody against MIG-7, rinsed and incubated for 30 min with a biotinylated secondary antibody followed by streptavidin-conjugated horse-radish peroxidase (HPR) for 30 min. The sections were treated with 3,3′-diaminobenzidine tetrahydrochloride (DAB) (Dako, Carpinteria, CA, USA) in 0.01% H2O2 for 10 min to visualize the reaction. Then, the slides were counterstained with Meyer’s hematoxylin for 45 s and mounted. Finally, IHC was performed using an IHC kit (Jingmei Biotech Inc., Shanghai, China). Negative control slides were stained with rabbit serum. Evaluation of MIG-7 expression was simultaneously performed by 3 independent pathologists blinded about the clinicopathological features of the patients. The intensity of staining and the percentage of positive cells were used to create a composite score. The intensity of staining was scored as: 0 = none; 1 ≤ 10%, 2 = 10–50%; 3 ≥ 50%. The percentage of positive cells was scored as: 0 = no staining or weak staining (light yellow); 1 = moderate staining (yellow brown); 2 = strong staining (brown). MIG-7 expression score ranges from 0 to 4. Cases with score of 3 and 4 were considered to have high MIG-7 expression.


Equal number of SKOV3 cells with or without MIG-7 knockdown was seeded into a 12-well cell culture plate. Each well was placed a 0.2% gelatin pre-coated cell culture coverslip. The cells were fixed with 4% PFA and permeabilized with 0.2% Triton X-100, washed with PBS 3 times, blocked with 4% horse serum for 1 h at room temperature, and incubated with primary antibodies in blocking buffer overnight at 4°C. The cells were then washed with PBS 3 times and incubated with fluorochrome-conjugated secondary antibodies for 1 h. Cells were counterstained with DAPI, mounted with fluoromount G, and imaged using a fluorescent microscope (Zeiss, Jena, Germany) to generate pseudo color composite images.

Wound healing and transwell migration assays

Confluent SKOV3 cells were scratched with 200 ml sterile tips in the center of the well horizontally and vertically to create gaps. After scratching, the cells were washed with sterile PBS to remove debris and cultured in fresh media. The gaps were imaged immediately and after 14 h. For transwell migration assay, 2×104 SKOV3 cells were seeded in the lower chamber and 1×104 human umbilical vein endothelial cells (HUVECs) were seeded in the top chamber. 100 ng/ml recombinant human VEGFA165 (R&D Systems, Minneapolis, MN, USA) was added to the bottom chamber that contained MIG7-knockdown SKOV3 cells. After 14h, HUVECs in the top chamber were removed by a cotton swab. HUVECs that migrated to the bottom chamber were stained with hematoxylin and enumerated under a microscope [19].

MTT cell viability assay

5 000 SKOV3 or A2780 cells were seeded into each well of a 96-well plate in four replicates. The cells were incubated with various concentrations of D-39 for 14 h, washed and incubated in fresh medium containing 1 mg/ml 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) (Sigma-Aldrich, St. Louis, MO, USA), for another 4 h at 37°C. The medium was removed, and 150 ml MTT solvent (0.1% Triton X-100 and 4 mM HCl in isopropanol) was added to each well for incubation for 15 min. The optical density was determined at 570 nm [20].

Clonogenic assay

3 000 SKOV3 cells seeded into 10-cm culture dishes were either left untreated or treated with 20 mM D-39 for 24 h. The medium was removed and cells were fixed with 2% paraformaldehyde for 30 min. The cells were gently washed with PBS twice and stained with hematoxylin for 5 min. After washing with PBS 3 times, the plates were dried and cell colonies were imaged and enumerated [21].

Murine tumor xenograft model

Eight-week old 20 g female athymic nude mice of the C56BL/6 background were purchased from Shanghai Laboratory Animal Center and housed in the specific pathogen-free (SPF) facility of China Pharmaceutical University. The mice were inoculated with 106 SKOV3 cells subcutaneously on the back. Tumor growth was monitored for 8 weeks, with tumor volume measured by external caliper every week. Mice were sacrificed after 60 days and tumor weight was determined. For the assessment of host survival, 107 SKOV3 cells were subcutaneously inoculated into 8-week old female athymic nude mice of the C56BL/6 background. Mouse survival was monitored for up to 150 days. All animal procedures were approved by the Institutional Animal Care and Use Committee of China Pharmaceutical University.

Chemical library screen

A library of 105 compounds extracted from the medicinal plant Liriope muscari (Decne.) Baily was applied for inhibitor screening. Tianjin Tasly Medicine Distribution Group holds the patent of the compounds. 5×103 SKOV3 cells were seeded in 384-well plates in a total volume of 40μl per well. On the following day, 0.8μl of 1mM compounds (in DMSO) was robotically pinned into each assay well to achieve a final concentration of 20 μM. An equal amount of DMSO was used as the vehicle control. After 24 hours of incubation, the culture medium was removed, and the cells were washed with cold PBS once. Each well of cells was directly lysed by adding 20 μl lysis buffer from a BIOGHSC Super Probe One-Step PCR kit (BAIDAI, Changzhou, Jiangsu, China) and incubated at room temperature for 20 min. Another 2 μl stopping buffer from the kit was added to each well. After 2 min of incubation at room temperature, 15 μl of crude lysate from each well was used for reverse transcription using the kit according to manufacturer’s instruction, followed by quantitative real-time PCR using SYBR Green mastermix (Thermo Fisher Scientific, Waltham, MA, USA) on an Applied Biosystems 7900 HT Fast Real-Time PCR System. The RT-PCR was performed at 95°C for 10 min followed by 95°C for 15 s and 60°C for 1 min for 60 cycles using primers specific for MIG7 or ACTB. The compounds that gave ≥50% inhibition of MIG7 transcript level were selected for further validation.

Patient follow-up

Follow-up was performed at 3-month intervals after primary cytoreductive surgery. Physical examination was performed at every 3 months, which included serum cancer antigen 125 (CA-125) level, pelvic magnetic resonance imaging, color Doppler ultrasound of liver and kidney. X-ray was performed every 6 months.

Statistical analysis

Statistical analysis was performed with SAS 9.2. p < 0.05 was considered significant. Qualitative variables were analyzed with the Pearson χ-square test and quantitative variables with Student’s t-test. Overall survival (OS) of patients was defined by the interval from the date of primary cytoreductive surgery to the date of death, regardless of the cause or the last follow-up appointment. Progression-free survival was defined as the period after the conclusion of treatment to proven local recurrence or distant metastasis. The survivors were censored at the date of last contact. Logistic regression analysis and receiver operating characteristic curves were used to determine the predictive value of MIG-7. The area under the curve and the 95% confidence interval were used to assess the discriminatory power of MIG-7 for predicting prognosis. Kaplan-Meier analysis was used to determine the OS and progression-free survival (PFS). The Log-rank test was used to compare survival outcomes between patients and controls. The Cox-regression model was used to perform multivariate analysis to identify clinicopathological factors that independently predicted survival.


The expression of MIG-7 is very low or undetectable in normal non-cancerous tissues, but significantly increased in a variety of cancer tissues, such as breast, lung, colon and endometrial cancer [14]. Most studies on the function of MIG-7 on tumorigenesis were focused on tumor invasion and metastasis. Recently, several reports suggested a correlation between MIG-7 overexpression and metastasis of lung cancer, possibly via the activation of the COX-2-PDE2 pathway and the induction of E-cadherin suppressors to promote epithelial-mesenchymal transition [13, 22, 23]. However, the function of MIG-7 in the pathogenesis of EOC and its association with clinicopathological parameters and its prognosis were unknown. We showed elevated expression of MIG-7 in EOC tissues but not normal ovary or ovarian cyst, which supports MIG-7 as a biomarker for EOC progression. MIG-7 expression negatively correlated with histopathological differentiation and lymph node metastasis, and positively correlated with FIGO stage, indicating that MIG-7 predicts poor prognosis of EOC. In addition, MIG-7 was important in promoting EOC pathogenesis. Knocking down MIG7 impaired the proliferation, invasiveness and VEGFA expression of SKOV3 cells, and retarded tumor growth, reduced the formation of tumor-associated blood vessels in vivo and improved host survival after these cells were grafted. These functions of MIG-7 may underlie our clinical observation of the strong association between high MIG-7 expression and lymph node metastasis, poor histopathological differentiation of tumors and reduced survival of EOC patients.

Angiogenesis is central to both normal ovarian function and the development and progression of ovarian cancer [24, 25]. The mechanism underlying the proposed function of MIG-7 in vascular mimicry of several solid tumors was unknown [14, 26]. We revealed that, in EOC, this process likely encompasses the maintenance of the expression of VEGFA, a principal promoting factor of angiogenesis and metastasis. A number of angiogenesis-targeting therapies have been under clinical trial to treat EOC [2731]. Most of them involved inhibition of the VEGF pathway by monoclonal antibodies, tyrosine kinase inhibitors or soluble decoy receptors. As MIG-7 is not expressed in normal ovarian tissues and is only detected during ovarian cancer development, MIG-7-targeted therapies should allow the specific inhibition of pathological angiogenesis associated with ovarian cancer development but spare physiological angiogenesis required for normal ovarian function. Our discovery of the MIG-7–VEGFA axis in EOC cells has additional preclinical and clinical implications for the treatment of EOC. EOC tends to give rise to abnormal vasculature characterized by leaky and immature vessels that are conducive to cancer cell metastasis [32], and high levels of VEGFA can transform normal, functional ovarian epithelium into ascites-producing cancers by enhancing vascular permeability [24, 3336]. Indeed, there was a strong positive correlation between MIG-7 level in EOC tissues and ascites volume and lymph node metastasis in our cohort of patients. Thus, inhibiting MIG-7 in EOC not only may help to control tumor growth and angiogenesis, but also might reduce ascites formation and inhibit metastasis.

Consistent with the important function of MIG-7 in EOC development, our study found that MIG-7 expression was very low in normal ovarian tissues and ovarian cyst, but markedly elevated in EOC, thereby supporting MIG-7 as a potential biomarker for EOC. MIG-7 expression negatively correlated with histopathological differentiation and positively correlated with FIGO stage, indicating that high MIG-7 level predicts poor prognosis of EOC. Notably, EOC patients with a high level of MIG-7 were usually accompanied with a high percentage of lymph node metastasis, which might be explained by the function of MIG-7 in promoting the migration of EOC cells found in our in vitro study. Furthermore, patient follow-up study revealed that high ovarian MIG-7 level had a significant negative impact on 3 and 5-year OS of EOC patients following primary cytoreductive surgery. In a Poisson multivariate analysis, MIG-7 level and lymph node metastasis were the only two parameters among other major clinicopathological parameters including residual tumor size, FIGO stage, ascites volume, histopathological differentiation and serum CA-125 level, a widely used biomarker for OC diagnosis [37], that significantly associated with reduced OS. Therefore, MIG-7 may represent a reliable and independent indicator of EOC prognosis.

The potential therapeutic efficacy of inhibiting MIG-7 in EOC is further corroborated by the ability of the small molecule inhibitor D-39 from the medicinal plant L. muscari (Decne.) Baily to suppress the growth, migration and VEGFA expression of SKOV3 cells. Of note, D-39 exhibited specific inhibition of the expression of MIG-7 but not other MIG family members and selective killing of MIG-7-expressing SKOV3 cells. The specificity of D-39 on suppressing VEGFA over a variety of other angiogenic and growth factors echoed the requirement for MIG-7 in maintaining VEGFA expression. The mechanism underlying such potent and specific inhibition of MIG-7 expression by D-39 is under investigation.

In summary, we have demonstrated MIG-7 as an important promoting factor of multiple key processes of EOC pathogenesis, and identified MIG-7 as a novel prognostic biomarker of EOC. Our findings provide a strong basis for the therapeutic inhibition of MIG-7, such as using the small molecule inhibitor D-39 or MIG-7-targeting monoclonal antibodies [12], to treat EOC.


The authors declare no conflicts of interest.


The authors thank Dr. Wei-Zen Wei (Barbara Ann Karmanos Cancer Institute) for helpful discussion of the manuscript and the core facilities of Harbin Medical University, China Pharmaceutical University and Barbara Ann Karmanos Cancer Institute for technical assistance. This work was supported by grants from the Major National Science and Technology Project of China for Significant New Drugs Development (2012ZX09102201-015), National Natural Science Foundation of China (81274131), Jiangsu Province 2011 Plan for Collaborative Innovation, Project Program of the State Key Laboratory of Natural Medicines of China Pharmaceutical University (JKGZ201107) to J.K., US National Institutes of Health (U01AI95776 Young Investigator Award, Cancer Center Support Grant P30CA22453), Burroughs Wellcome Fund, American Congress of Obstetricians and Gynecologists, Wayne State University Maternal, Perinatal and Child Health Initiative, and Wayne State University Office of the Vice President for Research to K.C.


1. Jemal A, Murray T, Ward E, Samuels A, Tiwari RC, Ghafoor A, Feuer EJ and Thun MJ. Cancer statistics, 2005. CA Cancer J Clin. 2005; 55:10-30.

2. Kolwijck E, Lybol C, Bulten J, Vollebergh JH, Wevers RA and Massuger LF. Prevalence of cysts in epithelial ovarian cancer. Eur J Obstet Gynecol Reprod Biol. 2010; 151:96-100.

3. Chung HH, Hwang SY, Jung KW, Won YJ, Shin HR, Kim JW and Lee HP. Ovarian cancer incidence and survival in Korea: 1993-2002. Int J Gynecol Cancer. 2007; 17:595-600.

4. Yin M, Xu Y, Lou G, Hou Y, Meng F, Zhang H, Li C and Zhou R. LAPTM4B overexpression is a novel predictor of epithelial ovarian carcinoma metastasis. Int J Cancer. 2011; 129:629-635.

5. Coleman MP, Forman D, Bryant H, Butler J, Rachet B, Maringe C, Nur U, Tracey E, Coory M, Hatcher J, McGahan CE, Turner D, Marrett L, Gjerstorff ML, Johannesen TB, Adolfsson J, et al. Cancer survival in Australia, Canada, Denmark, Norway, Sweden, and the UK, 1995-2007 (the International Cancer Benchmarking Partnership): an analysis of population-based cancer registry data. Lancet. 2011; 377:127-138.

6. Williams TI, Toups KL, Saggese DA, Kalli KR, Cliby WA and Muddiman DC. Epithelial ovarian cancer: disease etiology, treatment, detection, and investigational gene, metabolite, and protein biomarkers. J Proteome Res. 2007; 6:2936-2962.

7. Yin M, Li C, Li X, Lou G, Miao B, Liu X, Meng F, Zhang H, Chen X, Sun M, Ling Q and Zhou R. Over-expression of LAPTM4B is associated with poor prognosis and chemotherapy resistance in stages III and IV epithelial ovarian cancer. J Surg Oncol. 2011; 104:29-36.

8. Facciabene A, Peng X, Hagemann IS, Balint K, Barchetti A, Wang LP, Gimotty PA, Gilks CB, Lal P, Zhang L and Coukos G. Tumour hypoxia promotes tolerance and angiogenesis via CCL28 and T(reg) cells. Nature. 2011; 475:226-230.

9. Gonzalez-Villasana V, Fuentes-Mattei E, Ivan C, Dalton HJ, Rodriguez-Aguayo C, Fernandez-de Thomas RJ, Aslan B, Del CMP, Velazquez-Torres G, Previs RA, Pradeep S, Kahraman N, Wang H, Kanlikilicer P, Ozpolat B, Calin G, et al. Rac1/Pak1/p38/MMP-2 Axis Regulates Angiogenesis in Ovarian Cancer. Clin Cancer Res. 2015; 21:2127-2137.

10. Crouch S, Spidel CS and Lindsey JS. HGF and ligation of alphavbeta5 integrin induce a novel, cancer cell-specific gene expression required for cell scattering. Exp Cell Res. 2004; 292:274-287.

11. Phillips TM and Lindsey JS. Carcinoma cell-specific Mig-7: a new potential marker for circulating and migrating cancer cells. Oncol Rep. 2005; 13:37-44.

12. Petty AP, Wright SE, Rewers-Felkins KA, Yenderrozos MA, Vorderstrasse BA and Lindsey JS. Targeting migration inducting gene-7 inhibits carcinoma cell invasion, early primary tumor growth, and stimulates monocyte oncolytic activity. Mol Cancer Ther. 2009; 8:2412-2423.

13. Ho MY, Liang SM, Hung SW and Liang CM. MIG-7 controls COX-2/PGE2-mediated lung cancer metastasis. Cancer Res. 2013; 73:439-449.

14. Petty AP, Garman KL, Winn VD, Spidel CM and Lindsey JS. Overexpression of carcinoma and embryonic cytotrophoblast cell-specific Mig-7 induces invasion and vessel-like structure formation. Am J Pathol. 2007; 170:1763-1780.

15. Scholzen T and Gerdes J. The Ki-67 protein: from the known and the unknown. J Cell Physiol. 2000; 182:311-322.

16. Wang Z, Dabrosin C, Yin X, Fuster MM, Arreola A, Rathmell WK, Generali D, Nagaraju GP, El-Rayes B, Ribatti D, Chen YC, Honoki K, Fujii H, Georgakilas AG, Nowsheen S, Amedei A, et al. Broad targeting of angiogenesis for cancer prevention and therapy. Semin Cancer Biol. 2015.

17. Xiao PG. [Modernization of Chinese Materia Medica and I]. Zhongguo Zhong Xi Yi Jie He Za Zhi. 2002; 22:569-570.

18. Narayanan BA, Narayanan NK, Davis L and Nargi D. RNA interference-mediated cyclooxygenase-2 inhibition prevents prostate cancer cell growth and induces differentiation: modulation of neuronal protein synaptophysin, cyclin D1, and androgen receptor. Mol Cancer Ther. 2006; 5:1117-1125.

19. Huang B, Deora AB, He KL, Chen K, Sui G, Jacovina AT, Almeida D, Hong P, Burgman P and Hajjar KA. Hypoxia-inducible factor-1 drives annexin A2 system-mediated perivascular fibrin clearance in oxygen-induced retinopathy in mice. Blood. 2011; 118:2918-2929.

20. Mosmann T. Rapid colorimetric assay for cellular growth and survival: application to proliferation and cytotoxicity assays. J Immunol Methods. 1983; 65:55-63.

21. Franken NA, Rodermond HM, Stap J, Haveman J and van Bree C. Clonogenic assay of cells in vitro. Nat Protoc. 2006; 1:2315-2319.

22. Shweiki D, Neeman M, Itin A and Keshet E. Induction of vascular endothelial growth factor expression by hypoxia and by glucose deficiency in multicell spheroids: implications for tumor angiogenesis. Proc Natl Acad Sci USA. 1995; 92:768-772.

23. Ho MY, Liang CM and Liang SM. MIG-7 and phosphorylated prohibitin coordinately regulate lung cancer invasion/metastasis. Oncotarget. 2015; 6:381-393. doi: 10.18632/oncotarget.2804.

24. Ramakrishnan S, Subramanian IV, Yokoyama Y and Geller M. Angiogenesis in normal and neoplastic ovaries. Angiogenesis. 2005; 8:169-182.

25. Spannuth WA, Sood AK and Coleman RL. Angiogenesis as a strategic target for ovarian cancer therapy. Nat Clin Pract Oncol. 2008; 5:194-204.

26. Ren K, Yao N, Wang G, Tian L, Ma J, Shi X, Zhang L, Zhang J, Zhou X, Zhou G, Wu S and Sun X. Vasculogenic mimicry: a new prognostic sign of human osteosarcoma. Hum Pathol. 2014; 45:2120-2129.

27. Burger RA, Sill MW, Monk BJ, Greer BE and Sorosky JI. Phase II trial of bevacizumab in persistent or recurrent epithelial ovarian cancer or primary peritoneal cancer: a Gynecologic Oncology Group Study. J Clin Oncol. 2007; 25:5165-5171.

28. Monk BJ, Han E, Josephs-Cowan CA, Pugmire G and Burger RA. Salvage bevacizumab (rhuMAB VEGF)-based therapy after multiple prior cytotoxic regimens in advanced refractory epithelial ovarian cancer. Gynecol Oncol. 2006; 102:140-144.

29. Buckstein R, Meyer RM, Seymour L, Biagi J, Mackay H, Laurie S and Eisenhauer E. Phase II testing of sunitinib: the National Cancer Institute of Canada Clinical Trials Group IND Program Trials IND.182-185. Curr Oncol. 2007; 14:154-161.

30. Matulonis UA, Berlin S, Ivy P, Tyburski K, Krasner C, Zarwan C, Berkenblit A, Campos S, Horowitz N, Cannistra SA, Lee H, Lee J, Roche M, Hill M, Whalen C, Sullivan L, et al. Cediranib, an oral inhibitor of vascular endothelial growth factor receptor kinases, is an active drug in recurrent epithelial ovarian, fallopian tube, and peritoneal cancer. J Clin Oncol. 2009; 27:5601-5606.

31. Karlan BY, Oza AM, Richardson GE, Provencher DM, Hansen VL, Buck M, Chambers SK, Ghatage P, Pippitt CH, Jr., Brown JV, 3rd, Covens A, Nagarkar RV, Davy M, Leath CA, 3rd, Nguyen H, Stepan DE, et al. Randomized, double-blind, placebo-controlled phase II study of AMG 386 combined with weekly paclitaxel in patients with recurrent ovarian cancer. J Clin Oncol. 2012; 30:362-371.

32. Kumaran GC, Jayson GC and Clamp AR. Antiangiogenic drugs in ovarian cancer. Br J Cancer. 2009; 100:1-7.

33. Schumacher JJ, Dings RP, Cosin J, Subramanian IV, Auersperg N and Ramakrishnan S. Modulation of angiogenic phenotype alters tumorigenicity in rat ovarian epithelial cells. Cancer Res. 2007; 67:3683-3690.

34. Zhang L, Yang N, Garcia JR, Mohamed A, Benencia F, Rubin SC, Allman D and Coukos G. Generation of a syngeneic mouse model to study the effects of vascular endothelial growth factor in ovarian carcinoma. Am J Pathol. 2002; 161:2295-2309.

35. Trinh XB, Tjalma WA, Vermeulen PB, Van den Eynden G, Van der Auwera I, Van Laere SJ, Helleman J, Berns EM, Dirix LY and van Dam PA. The VEGF pathway and the AKT/mTOR/p70S6K1 signalling pathway in human epithelial ovarian cancer. Br J Cancer. 2009; 100:971-978.

36. Belotti D, Paganoni P, Manenti L, Garofalo A, Marchini S, Taraboletti G and Giavazzi R. Matrix metalloproteinases (MMP9 and MMP2) induce the release of vascular endothelial growth factor (VEGF) by ovarian carcinoma cells: implications for ascites formation. Cancer Res. 2003; 63:5224-5229.

37. Bast RC, Jr. Status of tumor markers in ovarian cancer screening. J Clin Oncol. 2003; 21:200s-205s.
