Suppressing activity of tributyrin on hepatocarcinogenesis is associated with inhibiting the p53-CRM1 interaction and changing the cellular compartmentalization of p53 protein
Metrics: PDF 1291 views | HTML 1561 views | ?
Juliana F. Ortega1, Aline de Conti2, Volodymyr Tryndyak2, Kelly S. Furtado1, Renato Heidor1, Maria Aderuza Horst1, Laura Helena Gasparini Fernandes1, Paulo Eduardo Latorre Martins Tavares1, Marta Pogribna2, Svitlana Shpyleva2, Frederick A. Beland2, Igor P. Pogribny2, Fernando Salvador Moreno1
1Laboratory of Diet, Nutrition and Cancer, Department of Food and Experimental Nutrition, Faculty of Pharmaceutical Sciences, University of São Paulo, São Paulo, Brazil
2Division of Biochemical Toxicology, National Center for Toxicological Research, Jefferson, USA
Fernando Salvador Moreno, e-mail: firstname.lastname@example.org
Igor P. Pogribny, e-mail: email@example.com
Keywords: hepatocarcinogenesis, chemoprevention, tributyrin, p53 subcellular localization, CRM1
Received: January 30, 2016 Accepted: February 28, 2016 Published: March 22, 2016
Hepatocellular carcinoma (HCC), an aggressive and the fastest growing life-threatening cancer worldwide, is often diagnosed at intermediate or advanced stages of the disease, which substantially limits therapeutic approaches for its successful treatment. This indicates that the prevention of hepatocarcinogenesis is probably the most promising approach to reduce both the HCC incidence and cancer-related mortality. In previous studies, we demonstrated a potent chemopreventive effect of tributyrin, a butyric acid prodrug, on experimental hepatocarcinogenesis. The cancer-inhibitory effect of tributyrin was linked to the suppression of sustained cell proliferation and induction of apoptotic cell death driven by an activation of the p53 apoptotic signaling pathway. The goal of the present study was to investigate the underlying molecular mechanisms linked to tributyrin-mediated p53 activation. Using in vivo and in vitro models of liver cancer, we demonstrate that an increase in the level of p53 protein in nuclei, a decrease in the level of cytoplasmic p53, and, consequently, an increase in the ratio of nuclear/cytoplasmic p53 in rat preneoplastic livers and in rat and human HCC cell lines caused by tributyrin or sodium butyrate treatments was associated with a marked increase in the level of nuclear chromosome region maintenance 1 (CRM1) protein. Mechanistically, the increase in the level of nuclear p53 protein was associated with a substantially reduced binding interaction between CRM1 and p53. The results demonstrate that the cancer-inhibitory activity of sodium butyrate and its derivatives on liver carcinogenesis may be attributed to retention of p53 and CRM1 proteins in the nucleus, an event that may trigger activation of p53-mediated apoptotic cell death in neoplastic cells.
Hepatocellular carcinoma (HCC), an aggressive and life-threatening cancer in humans, is the fastest growing cause of cancer-related deaths in the United States  and the third most common cause of death from cancer in the world . HCC develops in a milieu of interconnected molecular alterations in fundamental signaling pathways, among which a disruption of the balance between cell proliferation and cell death driven by enhanced cell replication and the suppression of apoptosis is the central cancer-related principle of both human and rodent liver carcinogenesis [3, 4]. This suggests that strategies focusing on the inhibition of anti-apoptotic signaling and/or activation of apoptotic cell death may have the potential to improve the clinical management of HCC.
Butyric acid, a product of the fermentation of dietary fibers by endogenous bacteria, is considered a promising anti-cancer agent ; however, its limited bioavailability, short half-life, and difficulty in producing effective plasma concentrations compromise its therapeutic application. In contrast, tributyrin, a butyric acid prodrug, present in milk fat and honey , exhibits a more favorable plasma half-life and greater anti-cancer potential in in vitro and in vivo preclinical studies [7–9].
In previous studies using a classic “resistant hepatocyte” model of rat liver carcinogenesis  that recapitulates the development of human HCC , we demonstrated that treatment of rats undergoing hepatocarcinogenesis with tributyrin during the initiation and promotion stages inhibited the carcinogenic process via the induction of apoptotic cell death in preneoplastic enzyme-altered foci [12, 13]. Furthermore, Watkins et al.  reported that tributyrin treatment induces apoptosis in human liver cancer cells, and Yamamoto et al.  and Emanuele et al.  demonstrated increased apoptotic cell death in human liver cancer cells treated with sodium butyrate. The anti-cancer activity of tributyrin was attributed to its activity to act as a histone deacetylase inhibitor and inducer of the expression of pro-apoptotic genes in the p53 signaling pathway .
The tumor suppressor protein, p53, is a fundamental regulator of apoptosis in response to exogenous and endogenous stimuli . The presence of p53 in the nucleus of the cells is essential to its functional activity and this is under control of nuclear-cytoplasmic translocation mechanisms , including factors related to p53 nuclear import and export, subnuclear localization, fixation, and cytoplasmic sequestration [19, 20]. Aberrant cytoplasmic accumulation of p53 has been linked to alterations in cellular differentiation, increased malignancy, tumor progression, metastases, cancer drug resistance, and poor prognosis . Previously, we [12, 13] demonstrated that treatment with tributyrin during the initiation and promotion stages of liver carcinogenesis reduced cytoplasmic accumulation of p53 in preneoplastic livers indicating the possibility that tributyrin influences the subcellular localization of p53; however, the underlying mechanism of this phenomenon remained unexplored.
Based on these considerations, in the present study we investigated (i) the chemopreventive effect of tributyrin when administered only during the promotion stage of hepatocarcinogenesis, and (ii) the potential mechanism of tributyrin-induced retention of p53 protein in nuclei by using in vitro and in vivo models of liver carcinogenesis. We demonstrate that treatment of rats with tributyrin during the promotion stage of liver carcinogenesis results in a large increase in apoptotic cell death in glutathione-S-transferase placental form (GST-P)-positive preneoplastic foci, as well as in rat HCC JM1 cells treated with sodium butyrate. These changes were accompanied by a substantial increase in the nuclear level of p53 protein in the preneoplastic livers of rats treated with tributyrin and in rat and human HCC cell lines treated with sodium butyrate. We demonstrate that elevation of p53 protein in the nuclei is paradoxically associated with an increase in the nuclear level of chromosome region maintenance 1 (CRM1; Exportin1; XPO1) protein, the main nuclear translocation protein involved in exporting p53 protein to the cytoplasm , in preneoplastic livers and rat and human HCC cell lines treated with either tributyrin or sodium butyrate. Mechanistically, this effect may be attributed to an ability of tributyrin and sodium butyrate to reduce markedly the binding interaction of CRM1 with p53 and, thus, favor the accumulation of p53 protein in the nucleus and its reduction in the cytoplasm.
Effect of tributyrin on the formation of preneoplastic lesions
Immunohistochemical analysis of liver sections of rats undergoing liver carcinogenesis revealed the presence of large preneoplastic GST-P-positive foci that were evenly distributed throughout the entire section of the liver. In the livers of rats treated with tributyrin during the promotion stage of carcinogenesis, the size of the GST-P positive foci, as well as the area of liver occupied by them, were significantly smaller (P < 0.05) than in control rats (Table 1).
Table 1: Morphometric analysis of GST-P positive foci in the livers of rats subjected to a“resistant hepatocyte” model of hepatocarcinogenesis (control group) and treated with tributyrin during the promotion phase
Number of GST-P positive PNL per cm2
Size of GST-P positive PNL (mm2)
Area of liver section occupied by GST-P positive PNL (%)
BrdU positive hepatocytes/mm2 PNL
Hepatic apoptotic bodies/mm2 PNL
61 ± 4
0.38 ± 0,09
25 ± 2
12.11 ± 5.85
0.37 ± 0.34
55 ± 4
0.19 ± 0.01*
10 ± 1*
6.68 ± 6.64
2.23 ± 0.89*
*Statistically significant difference (P < 0.05) when compared to the control group. Values are means ± S.D. PNL - preneoplastic lesion.
Effect of tributyrin on the extent of cell proliferation and apoptosis
A double-labeling immunohistochemical staining approach was used to examine the extent of cell proliferation in the preneoplastic GST-P-positive foci in the livers of control and rats treated with tributyrin. Table 1 shows that treatment of rats undergoing hepatocarcinogenesis with tributyrin did not affect the extent of cell proliferation, as measured by BrdU positive hepatocytes. In contrast, the extent of apoptosis in the GST-P-positive foci in tributyrin-treated rats was six times greater than in untreated control rats (Table 1).
To investigate further the effect of tributyrin on cell proliferation and apoptosis, rat HCC JM1 cells, a cell line derived from a primary HCC induced in a partially hepatectomized Fischer 344 rat that had received a single dose of N-nitrosodiethylamine (DEN) followed by chronic phenobarbital administration , were treated with sodium butyrate. Similar to the in vivo data, treatment of the JM1 cells in vitro with sodium butyrate at IC10 and IC25 doses did not affect cell proliferation (data not shown), whereas the extent of apoptosis was greatly increased, evidenced by an increased caspase 3/7 activity and annexin V staining (Figure 1).

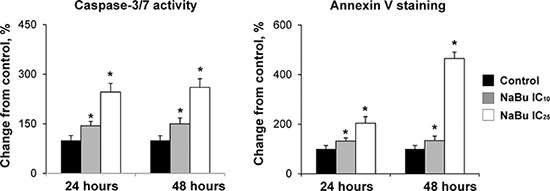

Figure 1: Apoptosis in the rat HCC JM1 cells. The extend of apoptotic cell death in rat HCC JM1 control cells and cells treated with sodium butyrate was analyzed by annexin-V/propidium iodide staining and caspases 3/7 activity assays. The experiments were conducted in triplicate. * - Significantly different from control group.
Effect of tributyrin and sodium butyrate on the level and localization of p53 protein
In our previous studies on rat liver carcinogenesis, we demonstrated that treatment of rats during the initiation and promotion stages of hepatocarcinogenesis with tributyrin resulted in activation of pro-apoptotic genes in the p53 signaling pathway driven by an increased accumulation of p53 protein in the nucleus  and a decreased level of this protein in the cytoplasm [12, 13]. Figure 2 shows that the treatment of rats undergoing liver carcinogenesis in vivo with tributyrin during the promotion stage resulted in a reduction in the cytoplasmic level of p53 protein and increase in the nuclear level of p53 protein (Panel A). This caused a substantial increase in ratio of nuclear to cytoplasmic fractions of p53 protein in the preneoplastic livers. Similar changes in the subcellular p53 localization were found in the rat HCC JM1 cells and human HCC PLC/PRF/5 cells treated with sodium butyrate (Figure 2, Panels B and C). PLC/PRF/5 cells harbor a AGG to AGT (arginine to serine) mutation at codon 249 (p.R249S) that accounts for 90% of TP53 mutations in aflatoxin B1-related HCC .

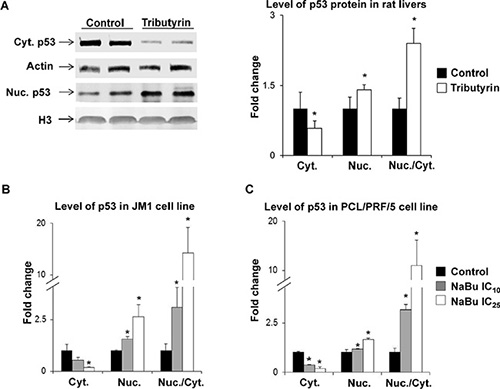

Figure 2: Subcellular localization of p53 protein in preneoplastic livers in rats undergoing hepatocarcinogenesis and in HCC cell lines. Western blot analysis of p53 in cytoplasmic and nuclear fractions from liver tissue of control rats (n = 5) and rats treated with tributyrin (n = 5) (A) and in cytoplasmic and nuclear fractions in the rat HCC JM1 (B) and human HCC PLC/PRF/5 (C) control cells and cells treated with sodium butyrate (n = 3 per treatment group). The results are presented as an average fold change in the level of cytoplasmic or nuclear p53 protein in the livers of tributyrin-treated rats or sodium butyrate-treated cells relative to their respective controls, which were assigned a value 1. Cytoplasmic and nuclear levels of p53 were normalized to β-actin or histone H3, respectively. Values are means ± S.D. * - Significantly different from control group.
Effect of tributyrin and sodium butyrate on the level and localization of CRM1 protein
In order to investigate the potential mechanism of tributyrin- and sodium butyrate-induced prevention of carcinogenesis associated with a decrease in p53 accumulation in the cytoplasm and a retention of p53 protein in the nuclei, the level of CRM1, the primary nuclear export protein involved in p53 protein translocation to cytoplasm [22, 25], was investigated. Immunohistochemical analysis of liver sections of rats revealed that the majority of GST-P-positive preneoplastic foci were positive for CRM1 (Figure 3, Panel A). The liver sections of rats undergoing liver carcinogenesis were characterized by a predominantly cytoplasmic CRM1 immunostaining (Figure 3, Panel B). Treatment of rats with tributyrin resulted in a 2-fold increase (P < 0.05) in the nuclear CRM1 protein staining in GST-p-positive preneoplastic foci (Figure 3, Panel C). Treatment of the rat HCC JM1 cells with sodium butyrate did not affect the total level of CRM1 protein (Figure 3, Panel D), but markedly reduced the level of CRM1 protein in the cytoplasm and increased its level in the nuclei in rat HCC JM1 and human HCC PLC/PRF/5 p53-mutant cells (Figure 3, Panels E and F). All of these subcellular CRM1 localization changes in the preneoplastic livers of both rat and human HCC lines resulted in a profound increase in ratio of nuclear to cytoplasmic forms of CRM1 protein (Figure 3, Panels C, E, and F).

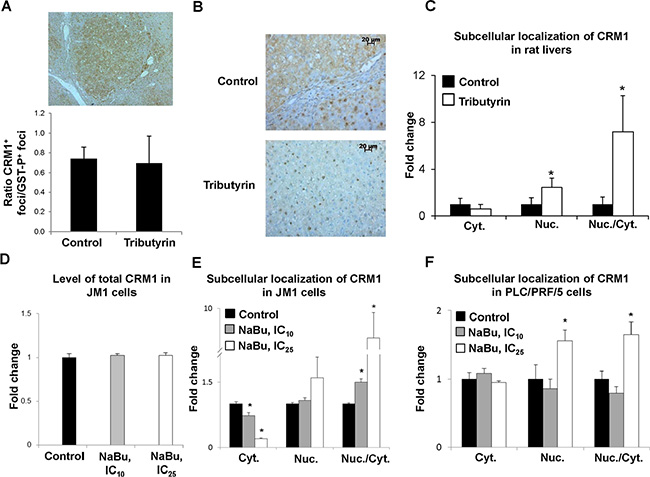

Figure 3: Subcellular localization of CRM1 protein in preneoplastic livers in rats undergoing hepatocarcinogenesis and in HCC cell lines. Immunohistochemical analysis of CRM1 staining in GST-P-positive foci (A) Representative images of CRM1 cytoplasmic staining in liver tissues from control rats and CRM1 nuclear staining in rats treated with tributyrin (B) Fold change of GST-P-positive foci stained for cytoplasmic or nuclear CRM1 in the livers of control rats (n = 5) and rats treated with tributyrin (n = 5). (C) Western blot analysis of total CRM1 protein (D), and cytoplasmic and nuclear CRM1 protein levels in the rat HCC JM1 (E) and human HCC PLC/PRF/5 (F) control cells and cells treated with sodium butyrate (n = 3 per treatment group). Values are means ± S.D. * - Significantly different from control group.
Inhibition of CRM1-p53 interaction by sodium butyrate
A large number of cancer-associated proteins, including p53, require CRM1 for their nuclear export . In light of this, the interaction of CRM1 protein with p53 in the rat HCC JM1 cells, treated or untreated with sodim butyrate, was investigated. Figure 4 shows that treatment of rat HCC JM1 cells with sodium butyrate for 48 hr blocked the interaction between p53 and CRM1 by 50%.

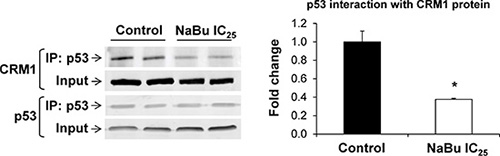

Figure 4: Interaction of p53 with CRM1 protein. Co-immunoprecipitation and Western blot analyses were conducted in total cellular extracts from rat HCC JM1 control cells and cells treated with sodium butyrate. The experiments were conducted in triplicate. * - Significantly different from control group.
Expression of CRM1 in human HCC
The expression levels of the CRM1 gene in human HCC tissue samples and normal liver samples were extracted from the TCGA database. Figure 5 shows that the expression of CRM1 in HCC tissue samples was significantly greater than in normal livers.

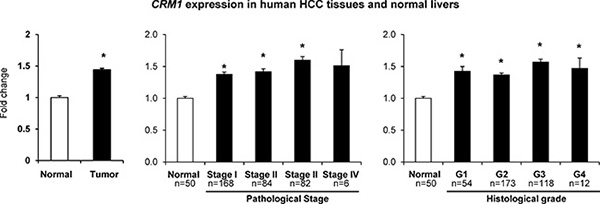

Figure 5: Expression of the CRM1 gene in human HCC samples. CRM1 gene expression and clinical and tumor pathological data were extracted from the TCGA database.
The results of several comprehensive studies have indicated that sodium butyrate and a butyric acid prodrug, tributyrin, exhibit a potent ability to prevent and/or inhibit carcinogenesis, including hepatocarcinogenesis. In previous studies [12, 13], we showed a potent inhibitory activity of tributyrin on rat hepatocarcinogenesis when administered during the initiation and promotion stages. In the present study, we demonstrate that the treatment of rats with tributyrin during the promotion stage of liver carcinogenesis greatly reduced the number, size, and area of the GST-P-positive preneoplastic foci. This inhibitory effect was associated with a marked activation of apoptotic cell death in GST-P-positive lesions and substantial elevation in the nuclear level of p53 protein in the preneoplastic livers.
p53 protein is an important regulator of cell proliferation, DNA damage repair, and apoptosis, the activities of which can be inhibited by p53’s cellular compartmentalization [22, 26]. Specifically, an increased accumulation of p53 in the cytoplasm, where p53 protein is not functional, is related to an increased malignancy of several major human cancers, including HCC [26, 27]. Additionally, an elevation in cytoplasmic p53 protein, with a concomitant loss in nuclear staining, was observed in preneoplastic livers in early phases of hepatocarcinogenesis [26–29] and was linked to genomic instability and genetic alterations associated with malignant transformation . In contrast, the cancer-inhibitory activity of several anti-cancer agents has been associated with concomitant induction of apoptosis and increased accumulation of p53 protein in the nuclei of the tumors [30–33]. Similar to those findings, the results of this study demonstrate that the increase in the nuclear level of p53 protein in preneoplastic livers of rats and in rat and human HCC cell lines treated with tributyrin or sodium butyrate was associated with markedly induced apoptotic cell death.
Several mechanisms may contribute to the dysregulation of an accurate maintenance of the proper intracellular compartmentalization of the p53 protein, among which an interaction of p53 with proteins that promotes its nuclear export, especially by nuclear exporter CRM1, may be one of the main mechanisms . Over-expression of CRM1 has been found in many major human cancers and is related to tumor progression, increased tumor size, metastasis, cancer drug resistance, and a decrease in survival [34–36]. In the present study, we found an up-regulation and redistribution in intracellular compartmentalization of CRM1 in the GST-P-positive preneoplastic livers of rats undergoing liver carcinogenesis and over-expression of the CRM1 gene in human primary HCC tissue samples. These findings are in a good agreement with a previous report that showed up-regulation of CRM1 in preneoplastic GST-P-positive foci, which correlated with progression of hepatocarcinogenesis in rats and in human HCC . Therefore, it has been suggested that inhibition of the CRM1-mediated nuclear export and restoration of normal function of tumor suppressors, including p53, may be an effective universal approach for the treatment of cancer [25, 34]. Indeed, several drugs, known to be selective inhibitors of nuclear export, have been developed and tested in pre-clinical and human clinical cancer trial studies alone or in combination with other chemotherapeutic agents [25, 35, 36, 38].
A central finding of this study is the demonstration that the treatment of rats undergoing liver carcinogenesis with tributyrin during the promotion stage of the hepatocarcinogenic process, and rat and human HCC cells with sodium butyrate reduced the binding interaction between CRM1 and p53. This may lead to an increased nuclear accumulation of p53 protein and marked activation of p53-mediated apoptotic cell death in the preneoplastic foci and HCC cells. This finding is particularly important since the use of a number of CRM1 inhibitors in human clinical trials has been hammered by their high toxicity. In light of this, sodium butyrate and its derivatives, which are characterized by minimal side-toxic effects, may be an attractive approach for cancer intervention and cancer prevention, including HCC, in combination with current chemotherapeutic drugs. Nevertheless, future studies are needed to identify the molecular mechanisms associated with sodium butyrate- and tributyrin-mediated inhibition of p53-CRM1 interaction in cancer cells and their efficacy on the development and progression of HCC using different relevant model systems. Additionally, in the present study the chemopreventive activity of tributyrin on hepatocarcinogenesis was investigated in male rats because of the greater incidence of HCC in men than in women . However, future research is required to investigate the sex-specific chemopreventive efficiency of tributyrin.
MATERIALS AND METHODS
In vivo rat model of hepatocarcinogenesis
Male Wistar rats (n = 14) were obtained from the colony of the Faculty of Pharmaceutical Sciences, University of São Paulo (São Paulo, Brazil), housed in a temperature-controlled room (24°C) with a 12 hr light-dark cycle, and given ad libitum access to water and commercial chow diet (Purina Nutrimentos Ltd, Paulinia, Brazil). After one week of adaptation, the animals were submitted to a “resistant hepatocyte model” of liver carcinogenesis, as previously described .
Briefly, the rats received a single intraperitoneal injection of DEN (Sigma-Aldrich, St Louis, MO; 200 mg/kg body weight; dissolved in 0.9% of NaCl) to initiate hepatocarcinogenesis. After a 2-week recovery period, the rats were gavaged with 2-acetylaminofluorene (2-AAF; Sigma-Aldrich; 20 mg/kg body weight; dissolved in corn oil) for four consecutive days, and then subjected to a partial hepatectomy . One day after the partial hepatectomy, the rats were gavaged with 2-AAF (20 mg/kg body weight and allocated randomly to control and experimental groups. Rats (n = 8) in the experimental group were treated by gavage with tributyrin (2 g/kg body weight) daily for 5 consecutive weeks. Rats (n = 6) in the control group received maltodextrin (Nestlé, São Paulo, Brazil; 3 g/kg body weight) at an isocaloric dose to the tributyrin group. All animals were sacrificed 8 weeks after DEN administration. All experimental procedures were performed in accordance with an animal study protocol approved by the Faculty of Pharmaceutical Sciences of the University of São Paulo Ethics Committee for Animal Research (Protocol number 243).
Cell lines and cell culture
The human HCC PLC/PRF/5 (p53 mutant p.R249S) cell line was obtained from the American Type Culture Collection (ATCC, Manassas, VA) and maintained in Williams’ medium. The rat HCC JM1 cell line, derived from a primary hepatocellular carcinoma in a Fischer 344 rat , a gift by Dr. George Michalopoulos, University of Pittsburgh, (Pittsburgh, PA), was cultured in Dulbecco’s modified Eagle’s medium (Gibco, Carlsbad, CA) supplemented with 10% fetal bovine serum (FBS). Cells were seeded at a density 0.5 × 106 viable cells per 100 mm plate, and the media was changed twice per week. The cells were scrapped onto ice, washed in phosphate-buffered saline (PBS), frozen at −80°C, or immediately utilized in subsequent analyses.
Treatment of HCC cells with sodium butyrate
Sodium butyrate (Sigma-Aldrich, St. Louis, MO) was diluted in deionized water, and sterilized by filtration. JM1 and PLC/PRF/5 cells were treated with 0, 1, 2, 5, or 10 mM sodium butyrate. Control cells were treated with the same volume of sterile deionized water. After 48 hr of incubation, cell viability was analyzed by a trypan blue exclusion test . The IC10 (inhibitory concentration to produce 10% cell death) and IC25, values were determined by using the resulting dose-response curves.
Immunohistochemistry and image analysis
The status of GST-P, a well-accepted end-point indicator of rat liver carcinogenesis , was determined by immunohistochemistry, as described previously . A dual-labeling immunohistochemistry technique was used to investigate the extent of cell proliferation in the GST-P-positive foci in livers of control and experimental rats as described in Mazzantini et al. . Positive staining for CRM1 (1:200) protein was analyzed in serial histologic sections stained for GST-P.
The extent of apoptosis in the livers of control and tributyrin-treated rats was analyzed for the presence of apoptotic bodies as described previously . Apoptosis in the rat HCC JM1 cells was evaluated by annexin-V/propidium iodide staining and caspases 3/7 activity assays. Cells were stained using an ApopNexin Annexin V FITC Apoptosis detection kit (EMD Millipore, Billerica, MA), according to the manufacturer’s protocol and analyzed using a FACSort flow cytometer (Becton Dickinson, Washington, DC). Heat-shock treated cells were used as a positive control, and non-stained cells as a negative control. Quantitative analyses of caspases-3/7 activity in cells were conducted by ELISA, using Caspase-Glo®3/7 reagent (Promega, Madison, USA) as substrate, according to manufacturer’s instructions.
Western blot analysis of protein levels
Cytoplasmic and nuclear fractions from liver tissues samples (n = 5 per group) were prepared as described previously . Cytoplasmic and nuclear fractions from HCC cells were prepared by using a Subcellular Protein Fractionation Kit for Cultured Cells (ThermoFisher Scientific, Grand Island, NY), according to the manufacturer’s protocol. Extracts containing equal quantities of proteins were separated by sodium dodecyl sulfate-polyacrylamide gel electrophoresis on 8–15% polyacrylamide gels and transferred to polyvinylidene difluoride membranes. Membranes were probed with primary antibodies against p53 (1:500; Cell Signaling Technology, Danvers, MA), CRM1 (1:1000; Abcam, Cambridge, MA), β-actin (1:5000; Santa Cruz Biotechnology, Santa Cruz, CA), and total H3 (1:1000; Cell Signaling Technology). IRDye 800-labeled secondary goat anti-mouse or goat anti-rabbit secondary antibodies (Li-Cor, Lincoln, NE) were added to bind to the primary antibody. The bound complex was detected using the Odyssey Infrared Imaging System (Li-Cor). The images were analyzed using the Odyssey Application Software, version 1.2 (Li-Cor) to obtain the integrated intensities.
Co-immunoprecipitation of p53 and CRM1 proteins
Total protein extract from rat HCC JM1 cells was immunoprecipitated with p53 antibodies using a Dynabeads® Protein G Immunoprecipitation kit (ThermoFisher Scientific). Briefly, p53 antibody (Abcam) was covalently coupled to the beads using BS3 (Thermo Scientific) as a cross-linker, according to the manufacturer’s instructions. Total HCC JM1 cell extract was incubated with Dynabeads-Ab complexes for 10 min at room temperature to allow antigen binding. After elution of the bound p53-protein complexes by heating at 70°C, the samples were analyzed by Western blotting using anti-CRM1 and anti-p53 antibodies.
Retrieval of data from online database
Gene expression data for the expression of CRM1 gene and clinical and tumor pathological data were extracted as .txt files from The Cancer Genome Atlas database (TCGA; http://cancergenome.nih.gov).
Results are presented as mean ± S.D. Comparisons between two groups were conducted with Student’s t-test. Otherwise, data were analyzed by one-way analysis of variance (ANOVA), followed by Tukey’s test for pair-wise comparisons. P-values < 0.05 were considered significant.
HCC, hepatocellular carcinoma; GST-P, glutathione-S-transferase placental form, CRM1, chromosome region maintenance 1; 2-AAF, 2-acetylaminofluorene; DEN, N-nitrosodiethylamine.
ACKNOWLEDGMENTS AND FUNDING
The authors thank Prof. George Michalopoulos, University of Pittsburgh (Pittsburgh, PA), for the rat HCC JM1 cell line.
CONFLICTS OF INTEREST
The authors declare that they have no competing interests.
Maria Aderuza Horst, Juliana F. Ortega and Renato Heidor conducted the experimental model. Juliana F. Ortega and Aline de Conti conducted the molecular biology assays. Juliana F. Ortega and Volodymyr Tryndyak conducted the in vitro experiments. Maria Aderuza Horst conducted the cellular proliferation and apoptosis assays in the liver tissues. Laura Helena Gasparini Fernandes and Paulo Eduardo Latorre Martins conducted p53 western blot from cytoplasmic and nuclear hepatic fractions. Marta Pogribna conducted cell proliferation assays in hepatic cells, and treatment of rat and human HCC cells with sodium butyrate. Svitlana Shpyleva conducted the apoptosis assays in hepatic cells. Kelly S. Furtado conducted the immunohistochemistry analysis for CRM1. Frederick A. Beland, Igor P. Pogribny and Fernando Salvador Moreno designed, supervised, and coordinated the study and prepared the manuscript.
1. Singal AG, El-Serag HB. Hepatocellular carcinoma from epidemiology to prevention: translating knowledge into practice. Clin Gastroenterol Hepatol. 2015; 13:2140–2151.
2. World Cancer Report 2014. Stewart BW, Wild CP, eds. International Agency for Research on Cancer, Lyon, France, 2014.
3. Fabregat I, Roncero C, Fernández M. Survival and apoptosis: a dysregulated balance in liver cancer. Liver Int. 2007; 27:155–162.
4. Pogribny IP, Muskhelishvili L, Tryndyak VP, Beland FA. The tumor-promoting activity of 2-acetylaminofluorene is associated with disruption of the p53 signaling pathway and the balance between apoptosis and cell proliferation. Toxicol Appl Pharmacol. 2009; 235:305–311.
5. Heidor R, Ortega JF, de Conti A, Ong TP, Moreno FS. Anticarcinogenic actions of tributyrin, a butyric acid prodrug. Curr Drug Targets. 2012; 13:1720–1729.
6. Parodi PW. Cows’ milk fat components as potential anticarcinogenic agents. J Nutr. 1997; 127:1055–1060.
7. Egorin MJ, Yuan Z-M, Sentz DL, Plaisance K, Eiseman JL. Plasma pharmacokinetics of butyrate after intravenous administration of sodium butyrate or oral administration of tributyrin or sodium butyrate to mice and rats. Cancer Chemother Pharmacol. 1999; 43:445–453.
8. Chen Z-X, Breitman TR. Tributyrin: a prodrug of butyric acid for potential clinical application in differentiation therapy. Cancer Res. 1994; 54:3494–3499.
9. Conley BA, Egorin MJ, Tait N, Rosen DM, Sausville EA, Dover G, Fram RJ, Van Echo DA. Phase I study of the orally administered butyrate prodrug, tributyrin, in patients with solid tumors. Clin Cancer Res. 1998; 4:629–634.
10. Semple-Roberts E, Hayes MA, Armstrong D, Becker RA, Racz WJ, Farber E. Alternative methods of selecting rat hepatocellular nodules resistant to 2-acetylaminofluorene. Int J Cancer. 1987; 40:643–645.
11. Petrelli A, Perra A, Cora D, Sulas P, Menegon S, Manca C, Migliore C, Kowalik MA, Ledda-Columbano GM, Giordano S, Columbano A. MicroRNA/gene profiling unveils early molecular changes and nuclear factor erythroid related factor 2 (NRF2) activation in a rat model recapitulating human hepatocellular carcinoma (HCC). Hepatology. 2014; 59:228–241.
12. Kuroiwa-Trzmielina J, de Conti A, Scolastici C, Pereira D, Horst MA, Purgatto E, Ong TP, Moreno FS. Chemoprevention of rat hepatocarcinogenesis with histone deacetylase inhibitors: efficacy of tributyrin, a butyric acid prodrug. Int J Cancer. 2009; 124:2520–2527.
13. de Conti A, Tryndyak V, Koturbash I, Heidor R, Kuroiwa-Trzmielina J, Ong TP, Beland FA, Moreno FS, Pogribny IP. The chemopreventive activity of the butyric acid prodrug tributyrin in experimental rat hepatocarcinogenesis is associated with p53 acetylation and activation of the p53 apoptotic signaling pathway. Carcinogenesis. 2013; 34:1900–1906.
14. Watkins SM, Carter LC, Mak J, Tsau J, Yamamoto S, German JB. Butyric acid and tributyrin induce apoptosis in human hepatic tumour cells. J Dairy Res. 1999; 66:559–567.
15. Yamamoto H, Fujimoto J, Okamoto E, Furuyama J-i, Tamaoki T, Hashimoto-Tamaoki T. Suppression of growth of hepatocellular carcinoma by sodium butyrate in vitro and in vivo. Int J Cancer. 1998; 76:897–902.
16. Emanuele S, D’Anneo A, Bellavia G, Vassalo B, Lauricella M, De Blasio A, Vento R, Tesoriere G. Sodium butyrate induces apoptosis in human hepatoma cells by a mitochondrial/caspase pathway, associated with degradation of β-catenin, pRb and Bcl-X. Eur J Cancer. 2004; 40:1441–1452.
17. Haupt S, Berger M, Goldberg Z, Haupt Y. Apoptosis - the p53 network. J Cell Sci. 2003; 116:4077–4085.
18. Fabbro M, Henderson BR. Regulation of tumor suppressors by nuclear-cytoplasmic shuttling. Exp Cell Res. 2003; 282:59–69.
19. Liang S-H, Clarke MF. Regulation of p53 localization. Eur. J. Biochem. 2001; 268:2779–2783.
20. O’Brate A, Giannakakou P. The importance of p53 location: nuclear or cytoplasmic zip code? Drug Resist Updat. 2003; 6:313–322.
21. Heinze T, Jonas S, Kärsten A, Neuhaus P. Determination of the oncogenes p53 and C-erb B2 in the tumour cytosols of advanced hepatocellular carcinoma (HCC) and correlation to survival time. Anticancer Res. 1999; 19:2501–2503.
22. Nguyen KT., Holloway MP, Altura RA. The CRM1 nuclear export protein in normal development and disease. Int J Biochem Mol. Biol. 2012; 3:137–151.
23. Novicki DL, Jirtle RL, Michalopoulos G. Establishment of two rat hepatoma cell strains produced by a carcinogen initiation, phenobarbital promotion protocol. In vitro. 1983; 19:191–202.
24. Gouas DA, Shi H, Hautefeuille AH, Ortiz-Cuaran SL, Legros PC, Szymanska KJ, Galy O, Egevad LA, Abedi-Ardekani B, Wiman KG, Hantz O, Caron de Fromentel C, Chemin IA, et al. Effects of the TP53 p.R249S mutant on proliferation and clonogenic properties in human hepatocellular carcinoma cell lines: interaction with hepatitis B virus X protein. Carcinogenesis. 2010; 31:1475–1482.
25. Turner JG, Dawson J, Cubitt CL, Baz R, Sullivan DM. Inhibition of CRM1-dependent nuclear export sensitizes malignant cells to cytotoxic and targeted agents. Semin Cancer Biol. 2014; 27:62–73.
26. Anzola M, Burgos JJ. Hepatocellular carcinoma: molecular interactions between hepatitis C virus and p53 in hepatocarcinogenesis. Expert Opin Mol Med. 2003; 5:1–16.
27. Zhang W, Hou J, Wang X, Jiang R, Yin Y, Ji J, Deng L, Huang X, Wang K, Sun B. PTPRO-mediated autophagy prevents hepatosteatosis and tumorigenesis. Oncotarget. 2015; 6:9420–9433. doi: 10.18632/oncotarget.3353.
28. Van Gijssel HE, Ohlson LCE, Torndal U-B, Mulder GJ, Eriksson LC, Porsch-Hällström I, Meerman JHN. Loss of nuclear p53 protein in preneoplastic rat hepatocytes is accompanied by Mdm2 and Bcl-2 overexpression and by defective response to DNA damage in vivo. Hepatology. 2000; 32:701–710.
29. Mazzantini RP, de Conti A, Moreno FS. Persistent and remodeling hepatic preneoplastic lesions present differences in cell proliferation and apoptosis, as well as in p53, Bcl-2 and NF-κB pathways. J Cell Biochem. 2008; 103:538–546.
30. Hamada Y, Mizoguchi M, Suzuki SO, Iwaki T. Accumulation of class I mutant p53 and apoptosis induced by carboplatin in a human glioma cell line. Brain Tumor Pathol. 1998; 15:77–82.
31. Elnakady YA, Sasse F, Lünsdorf H., Reichenbach H. Disorazol A, a highly effective antimitotic agent acting on tubulin polymerization and inducing apoptosis in mammalian cells. Biochem Pharmacol. 2004; 67:927–935.
32. Almazi JG, Mactier S, Best OG, Crossett B, Mulligan SP, Christopherson RI. Fludarabine nucleoside induces accumulation of p53, p63 and p73 in the nuclei of human B-lymphoid cell lines, with cytosolic and mitochondrial increases in p53. Proteomics Clin Appl. 2012; 6:279–290.
33. Lu Z, Cao S, Zhou H, Hua L, Zhang S, Cao J. Mechanism of arctigenin-induced specific cytotoxicity against human hepatocellular carcinoma cell lines: Hep G2 and SMMC7721. PLoS One. 2015; 10:e0125727.
34. Turner JG, Dawson J, Sullivan DM. Nuclear export of proteins and drug resistance in cancer. Biochem Pharmacol. 2012; 83:1021–1032.
35. Gravina GL, Senapedis W, McCauley D, Baloglu E, Shacham S, Festuccia C. Nucleo-cytoplasmic transport as a therapeutic target of cancer. J Hematol Oncol. 2014; 7:85.
36. Mendonca J, Sharma A, Kim H-S, Hammers H, Meeker A, De Marzo A, Carducci M, Kauffman M, Shacham S, Kachhap S. Selective inhibitors of nuclear export (SINE) as novel therapeutics for prostate cancer. Oncotarget. 2014; 5:6102–6112. doi: 10.18632/oncotarget.2174.
37. Pascale RM, Simile MM, Calvisi DF, Frau M, Muroni MR, Seddaiu MA, Daino L, Muntoni MD, De Miglio MR, Thorgeirsson SS, Feo F. Role of HSP90, CDC37, and CRM1 as modulators of P16INK4A activity in rat liver carcinogenesis and human liver cancer. Hepatology. 2005; 42:1310–1319.
38. Wang S, Han X, Wang J, Yao J, Shi Y. Antitumor effects of a novel chromosome region maintenance 1 (CRM1) inhibitor on non-small cell lung cancer cells in vitro and in mouse tumor xenografts. PLoS One. 2014; 9:e89848.
39. Strober W. Trypan blue exclusion test of cell viability. Curr Protoc Immunol. 1997; A.3B.1–A.3B,2.
40. Pitot HC, Dragan YP, Teeguaden J, Hsia S, Campbell H. Quantitation of multistage carcinogenesis in rat liver. Toxicol Pathol. 1996; 24:119–128.
