Combined analysis of circulating epithelial cells and serum thyroglobulin for distinguishing disease status of the patients with papillary thyroid carcinoma

PDF |  HTML  |  Supplementary Files  |  How to cite  |  Order a Reprint

Oncotarget. 2016; 7:17242-17253. https://doi.org/10.18632/oncotarget.6587

Metrics: PDF 764 views  |   HTML 1190 views  |   ?

Hung-Chih Lin, Miaw-Jene Liou, Hsung-Ling Hsu, Jason Chia-Hsun Hsieh, Yi-An Chen, Ching-Ping Tseng and Jen-Der Lin _

Abstract

Hung-Chih Lin1, Miaw-Jene Liou2, Hsung-Ling Hsu3, Jason Chia-Hsun Hsieh4,5, Yi-An Chen3, Ching-Ping Tseng1,3,6,7 and Jen-Der Lin2

1 Graduate Institute of Biomedical Science, College of Medicine, Chang Gung University, Taoyuan, Taiwan, ROC

2 Division of Endocrinology and Metabolism, Department of Internal Medicine, Chang Gung Memorial Hospital, Taoyuan, Taiwan, ROC

3 Department of Medical Biotechnology and Laboratory Science, College of Medicine, Chang Gung University, Taoyuan, Taiwan, ROC

4 Division of Hematology-Oncology, Department of Internal Medicine, Chang Gung Memorial Hospital, Taoyuan, Taiwan, ROC

5 Department of Chemical and Materials Engineering, Chang Gung University, Taoyuan, Taiwan, ROC

6 Molecular Medicine Research Center, Chang Gung University, Taoyuan, Taiwan, ROC

7 Department of Laboratory Medicine, Chang Gung Memorial Hospital, Taoyuan, Taiwan, ROC

Correspondence to:

Jen-Der Lin, email:

Ching-Ping Tseng, email:

Keywords: papillary thyroid carcinoma, thyroid cancer, thyroglobulin, circulating epithelial cells, metastasis

Received: June 02, 2015 Accepted: November 25, 2015 Published: December 13, 2015

Abstract

Papillary thyroid carcinoma (PTC) accounts for about 80% of the cases in thyroid cancer. Routine surveillance by serum thyroglobulin (Tg) and medical imaging is the current practice to monitor disease progression of the patients. Whether enumeration of circulating epithelial cells (CECs) helps to define disease status of PTC patients was investigated. CECs were enriched from the peripheral blood of the healthy control subjects (G1, n = 17) and the patients at disease-free status (G2, n = 26) or with distant metastasis (G3, n = 22). The number of CECs expressing epithelial cell adhesion molecule (EpCAM) or thyroid-stimulating hormone receptor (TSHR) was determined by immunofluorescence microscopy analyses. The medium number of EpCAM+-CECs was 6 (interquartile range 1-11), 12 (interquartile range 7-16) and 91 (interquartile range 31-206) cells/ml of blood for G1, G2 and G3, respectively. EpCAM+-CEC counts were significantly higher in G3 than in G1 (p < 0.05) and G2 (p < 0.05). The medium number of TSHR+-CECs was 9 (interquartile range 3-13), 16 (interquartile range 10-24) and 100 (interquartile range 31-226) cells/ml of blood for G1, G2 and G3, respectively. The TSHR+-CEC counts also distinguished G3 from G1 (p < 0.05) and G2 (p < 0.05). With an appropriate cut off value of CEC count, the disease status for 97.9% (47/48) of the cases was clearly defined. Notably, the metastatic disease for all patients in G3 (22/22) was revealed by combined analysis of serum Tg and CEC. This study implicates that CEC testing can supplement the current standard methods for monitoring disease status of PTC.


INTRODUCTION

Thyroid cancer is the most common endocrine malignancy worldwide and is the fourth most common cancer in women with a 2.4-fold increase in the annual incidence over the past decade [1-4]. Among the subtypes of thyroid cancer, papillary thyroid carcinoma (PTC) accounts for more than 80% of the cases [5, 6]. The prognosis of PTC is usually favorable. However, recurrence during the first year after initial thyroidectomy is a poor prognostic factor and is a challenge in patient management [7].

A number of PTC patients in remission eventually develop loco-regional recurrence or distant metastasis [8-10]. Routine surveillance of the disease status by serum thyroglobulin (Tg) and medical imaging such as ultrasonography, positron emission tomography (PET), computed tomography (CT), PET-CT, magnetic resonance imaging (MRI), and 131I-whole body scintigraphy (131I-WBS) is required [11, 12]. However, the presence of anti-Tg antibody (anti-TgAb) in the bloodstream usually interferes with the interpretation of serum Tg testing and the disease status of the patients [13, 14]. Medical imaging studies which are usually performed in an interval of 6-12 months also have limitations in unveiling patient status in real time. The best modality for follow-up of thyroid cancer patients remains to be improved.

Circulating epithelial cells (CECs) or circulating tumor cells are the “liquid biopsies” that serve as a tool to monitor treatment response and disease progression in a number of cancer types [15, 16]. With only few studies addressing the clinical values of CECs in PTC [17], whether CEC testing is able to distinguish disease status of the patients with PTC is still not clear. In this study, we analyzed the number of CECs from 17 healthy control subjects and 48 PTC patients at disease-free status or with distant metastatic disease. We reported that CEC counts were significantly increased in the patients with distant metastasis of which the disease status can be revealed by combined analysis of serum Tg and CECs. The significance of these findings in clinical management of the patients with PTC is discussed.

RESULTS

Basic characteristics of enrolled cases

A total of 48 PTC patients and 17 healthy volunteers were enrolled in the study between April 2013 and August 2015 and were categorized into three groups (G1, G2 and G3). G1 included 17 healthy control individuals (three males and fourteen females) who had a median age of 44 (interquartile range 33-53) years (Tables 1 and 2). All healthy control subjects underwent thyroid ultrasonography and blood testing of free thyroxine (T4), thyroid-stimulating hormone (TSH), Tg, and anti-thyroid peroxidase (TPO) antibody (Table 2). Normal levels of serum free T4, TSH and Tg (Table 2), and negative in anti-TPO antibody testing with no obvious nodule in thyroid ultrasonography (data not shown) were demonstrated to exclude any thyroid disorders such as thyroid nodules, autoimmune thyroid disease, and cancer history. G2 included 26 PTC patients (six males and twenty females) who have received curative treatment and were confirmed as disease-free by serum Tg testing and medical imaging studies (Tables 1 and 3). The median age and the median follow-up duration of these patients was 55.5 (interquartile range 45-63) years and 8.7 (interquartile range 5.4-12.5) years, respectively. The PTC subtypes of these patients included classical PTC (n = 20), follicular variant of PTC (FVPTC, n = 2), multifocal classical PTC (n = 2) and multifocal FVPTC (n = 2). All other clinical features including TNM staging, the surgery received by the patients, the levels of anti-TgAb, the follow-up duration, and the cumulative radioactive iodine (RAI) dose received by the patients were described in Table 3. G3 included 22 patients (six males and sixteen females) who were confirmed to have distant metastatic disease (Tables 1 and 4). Distant metastases were demonstrated by histopathology using immunochemical staining (cases #1 and #13 of G3), 131I-WBS or other imaging methods including CT, PET-CT, MRI, X-ray, and bone scan. The median age and the median follow-up duration of these patients was 52 (interquartile range 38-75) years and 6.6 (interquartile range 1.3-11.0) years, respectively. The PTC subtypes of these patients included classical PTC (n = 8), FVPTC (n = 4), multifocal classical PTC (n = 7), multifocal FVPTC (n = 1), multifocal vascular PTC (n = 1) and poorly differentiated thyroid carcinoma (PDTC, n = 1). All other clinical features including TNM staging, the imaging methods to confirm the status of distant metastasis, the surgery received by the patients, the sites of metastasis, the levels of serum Tg and anti-TgAb, the follow-up duration, and the cumulative RAI dose received by the patients were described in Table 4. The enrolled cases were age- and gender-matched among the three groups with no statistical difference for the follow-up duration between G2 and G3 (Table 1).

Table 1: Basic characteristics of the study subjects

Parameter

G1

G2

G3

p-value

Age (year) a

44 (33-53)

55.5 (45-63)

52 (38-75)

0.0582

Gender (male/female)

3/14

6/20

6/16

0.7816

Follow-up duration (year) a

-

8.7 (5.4-12.5)

6.6 (1.3-11.0)

0.1923

Cumulative RAI dose (mCi) a

-

60 (30-60)

195 (90-650)

0.0001

aThe data represent the median and the interquartile range for the indicated parameters.

Table 2: Clinical features, serum markers and CEC counts for the control subjects in G1

No.

Gender

Age

(year)

Free T4

(ng/dl)

TSH

(μIU/ml)

Tg

(ng/ml)

EpCAM+-CECs

(cell/ml)

TSHR+-CECs (cell/ml)

1

F

50

NDa

1.112

11.83

6

6

2

F

52

ND

2.018

13.34

2

5

3

F

44

ND

1.506

14.81

16

12

4

F

72

ND

0.889

74.76

0

2

5

F

33

ND

1.729

9.45

1

1

6

F

42

1.13

0.733

0.71

11

20

7

F

34

ND

1.593

7.22

1

1

8

F

33

1.11

0.852

5.88

1

7

9

F

25

ND

1.918

28.42

4

12

10

F

23

1.55

1.463

4.48

14

19

11

F

52

1.15

1.318

5.40

14

21

12

F

54

1.18

2.155

7.24

11

13

13

F

54

1.32

2.157

16.86

10

12

14

F

51

1.15

2.471

5.13

11

9

15

M

42

1.49

1.374

9.51

9

2

16

M

56

1.17

1.523

1.83

1

7

17

M

30

1.19

1.235

7.18

2

14

aNot determined.

Table 3: Clinical features, treatment and CEC counts for the PTC patients in G2

No.

Gender

Age

(year)

Histological variant

TNM stage

Surgery

Anti-TgAb

(IU/ml)

Follow-up

(year)

Cumulative RAI dose

(mCi)

EpCAM+

(cell/ml)

TSHR+

(cell/ml)

1

F

52

Classical

T2N0M0

TT

< 10.00

2.3

60

2

17

2

F

36

Classical

T1N0M0

TT

< 10.00

9.1

60

5

10

3

F

48

Classical

T1N0M0

TT

< 10.00

11.6

30

10

15

4

F

44

Classical

T1N1M0

TT with LND

19.43

7.6

160

4

4

5

F

63

Classical

T1N0M0

ST

13.70

16.8

60

14

13

6

F

45

Classical

T1N0M0

TT

< 10.00

2.4

60

49

11

7

F

56

Classical

T1N0M0

TT

20.34

10.5

30

13

18

8

F

72

Classical

T1N0M0

TT

< 10.00

11.8

60

9

10

9

F

74

Classical

T2N0M0

TT

22.24

15.2

30

7

8

10

F

71

Classical

T1N0M0

ST

< 10.00

15.1

60

17

22

11

F

43

Classical

T1N0M0

ST

10.57

10.1

30

19

32

12

F

60

Classical

T1N0M0

TT

12.13

12.9

30

22

29

13

F

55

Classical

T1N0M0

TT

12.24

6.8

30

9

14

14

F

35

Classical

T3N0M0

TT

< 10.00

12.6

60

9

11

15

F

41

Classical

T1N0M0

TT

13.45

6.6

30

22

29

16

M

59

Classical

T3N0M0

TT with LND

< 10.00

5.5

60

5

1

17

M

48

Classical

T1N0M0

TT

13.28

2.7

60

14

17

18

M

63

Classical

T2N0M0

TT

11.27

16.0

90

16

18

19

M

58

Classical

T2N0M0

TT

21.36

6.8

30

16

19

20

M

60

Classical

T1N0M0

TT

11.99

12.4

60

8

8

21

F

55

FVPTC

T3N0M0

TT

12.30

3.7

60

14

38

22

F

57

FVPTC

T2N0M0

TT

13.46

9.5

30

15

24

23

F

64

Classical, multifocal

T1N0M0

TT

17.13

6.2

30

11

10

24

M

66

Classical, multifocal

T1N0M0

TT

13.21

5.0

60

7

4

25

F

53

FVPTC, multifocal

T1N0M0

TT

14.49

3.9

60

26

30

26

F

37

FVPTC, multifocal

T2N0M0

TT

17.67

8.2

30

2

24

Abbreviations: TT, total thyroidectomy; ST, subtotal thyroidectomy; LND, lymph-node dissection.

PTC patients with distant metastasis had an increase in EpCAM+-CEC and TSHR+-CEC counts

After RBC lysis and removal of CD45+ white blood cells from the peripheral blood by the PowerMag system, the enriched cells were analyzed by immunofluorescence staining using the antibody against epithelial cell adhesion molecule (EpCAM) and thyroid-stimulating hormone receptor (TSHR), the marker for the cells originated from epithelia and thyroid, respectively [18, 19]. Staining of the cells with Hochest 33342 DNA staining dye was used to define the nucleated cells. Fluorescence microscopy analysis was performed to identify the CECs that expressed EpCAM or TSHR. Representative CECs that were positive for EpCAM or TSHR were shown (Figure 1).

Isolation and characterization of CECs from patients with PTC.

Figure 1: Isolation and characterization of CECs from patients with PTC. A.-B. CECs were isolated by PowerMag system and analyzed by immunofluorescence staining as described in the Materials and Methods. At least two CEC populations that were positive for EpCAM (panel A, green) or positive for TSHR (panel B, green), were defined. Positive staining of Hoechst 33342 (panel A and B, blue) indicates the presence of intact nucleated cells.

The number of CECs per ml of blood was determined and compared among the healthy controls (G1), the PTC patients at disease-free status (G2) and the patients with distant metastasis (G3). The median number of EpCAM+-CECs was 6 (interquartile range 1-11), 12 (interquartile range 7-16) and 91 (interquartile range 31-206) cells/ml for G1, G2 and G3, respectively (Figure 2A). EpCAM+-CEC count was significant difference between G2 and G3 (p < 0.05), between G1 and G3 (p < 0.05), and among G1, G2 and G3 (p < 0.0001). However, it was not significant difference between G1 and G2. Receiver operating characteristic (ROC) analysis revealed that EpCAM+-CEC count distinguished G3 from G2 with an area under the curve (AUC) equivalent of 0.926 (p < 0.0001) (Figure 2B). The sensitivity and specificity of the assay was 86.4% and 92.3%, respectively, when the cut off value was 22 EpCAM+-CECs/ml (Table 5 and Supplementary Table 1). On the other hand, EpCAM+-CEC count distinguished G3 from G1 with the AUC equivalent of 0.967 (p < 0.0001) (Figure 2C). The sensitivity and specificity of the assay was 90.9% and 100%, respectively, when the cut off value was 16 EpCAM+-CECs/ml (Supplementary Table 2).

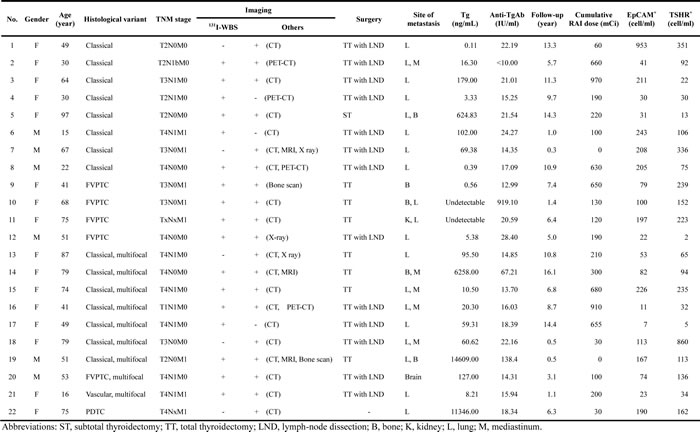

Table 4: Clinical features, treatment and CEC counts for the PTC patients in G3

The number of CECs that expressed TSHR was also analyzed and compared among G1, G2 and G3. The median number of TSHR+-CECs was 9 (interquartile range 3-13), 16 (interquartile range 10-24) and 100 (interquartile range 31-226) cells/ml for G1, G2 and G3, respectively (Figure 2D). The TSHR+-CEC count was significant difference between G2 and G3 (p <0.05), between G1 and G3 (p < 0.05), and among G1, G2 and G3 (p < 0.0001). However, it was not significant difference between G1 and G2. ROC analysis showed that TSHR+-CEC count distinguished G3 from G2 with the AUC equivalent of 0.866 (p < 0.0001) (Figure 2E). The sensitivity and specificity of the assay was 72.7% and 96.2%, respectively, when the cut off value was 33 TSHR+-CECs/ml (Table 5 and Supplementary Table 3). On the other hand, the TSHR+-CEC count distinguished G3 from G1 with the AUC equivalent of 0.920 (p < 0.0001) (Figure 2F). The sensitivity and the specificity of the assay was 86.4% and 100%, respectively, when the cut off value was 21 TSHR+-CECs/ml (Supplementary Table 4). These data together indicate that the number of EpCAM+-CECs and TSHR+-CECs is comparable between healthy controls and the patients at disease-free status, but is significantly increased in the PTC patients with distant metastasis.

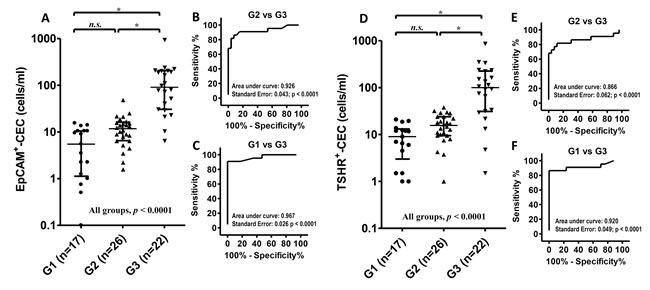

Scatter dot plots and ROC analyses for EpCAM

Figure 2: Scatter dot plots and ROC analyses for EpCAM+-CEC and TSHR+-CEC counts in the healthy controls and the patients with PTC. A.-F. The scatter dot plots for the number of EpCAM+-CEC (panel A) and TSHR+-CEC (panel D) in G1, G2 and G3. Kruskal-Wallis test with the post-hoc Dunn’s test were used for statistical analyses. The medium and the interquartile range for each group are indicated by the horizontal lines. ROC analysis for the number of EpCAM+-CEC (panel B and C) and TSHR+-CEC (panel E and F) between G2 and G3 (panel B and E), and between G1 and G3 (panel C and F).

CEC counts revealed distant metastatic status of the patients who had undetectable serum Tg

Serum Tg is mainly used for monitoring disease status of post-thyroidectomy patients. In this study, serum Tg was measured when the patients underwent T4 treatment to facilitate the comparison among G1, G2 and G3. Under this circumstance, all patients at disease-free status (G2) had undetectable serum Tg (< 0.1 ng/ml, data not shown). The levels of anti-Tg Ab for all patients in G2 were below 115 IU/ml (Table 3) which was considered in our hospital as the cut off value for no interference with the measurement of serum Tg. This was in accord with the report that the level of anti-TgAb below 30 IU/ml did not interfere with serum Tg testing [13]. Only minimal interference with serum Tg was observed even when the anti-TgAb reached 100 IU/ml [13]. The undetectable serum Tg (< 0.1 ng/ml) for the patients in G2 thereby was not due to the interference by anti-TgAb. On the other hand, 20 of the 22 (90.9%) patients with distant metastasis (G3) had detectable serum Tg (> 0.1 ng/ml) (Table 4). ROC analysis revealed that serum Tg distinguished the patients with distant metastatic disease from the patients at disease-free status with the AUC equivalent of 0.955 (p < 0.0001). The sensitivity and specificity of the assay was 90.9% and 100%, respectively (Table 5).

The cases #10 and #11 in G3 were the two patients with undetectable Tg. Case #10 was a 68 year-old female diagnosed with PTC without capsular or stromal invasion. After thyroidectomy, no evidence of loco-regional and distant metastasis was revealed by 131I-WBS and neck CT. The patient was enrolled in the study one year after thyroidectomy. Serum Tg of the patient was undetectable (< 0.1 ng/ml) but anti-TgAb was positive (919.1 IU/ml). However, CEC count was significantly elevated in this patient. The number of EpCAM+-CECs and TSHR+-CECs was 100 cells/ml and 152 cells/ml, respectively (Table 4). Based on these findings, CT scan (Figure 3A) and 131I-WBS with the therapeutic dose of 100 mCi (Figure 3B) were performed that ultimately confirmed the patient had multiple lung and right pelvis bone metastases.

For the case #11, the anti-TgAb was low (20.59 IU/ml) that did not contribute to the undetectable serum Tg for the patient. In accord with this notion, serum Tg was detectable (9.06 ng/ml) in another blood test when T4 treatment was interrupted. The patient had significantly elevated CEC counts with the number of EpCAM+-CECs and TSHR+-CECs equivalent of 197 cells/ml and 223 cells/ml, respectively (Table 4). The patient was subsequently revealed to have kidney and lung metastases by 131I-WBS and CT (Figure 3C and 3D). Histological proof of FVPTC was confirmed after partial left nephrectomy (image not shown). The data of these two patients with undetectable serum Tg together indicate that CEC enumeration could supplement serum Tg testing and standard imaging methods in defining metastatic status of the patients.

Key medical images reveal disease recurrence in cases #10 and #11.

Figure 3: Key medical images reveal disease recurrence in cases #10 and #11. A. The image of chest CT demonstrated multiple, round but small (all less than 1 cm in diameter) pulmonary nodules (the yellow arrow indicates one of them) of case #10. These nodules were not distinguishable from the nodules derived from benign diseases such as tuberculosis. B. Single-photon emission computed tomography (SPECT, upper row) and 131I-WBS (middle low) were performed for case #10 at the 7th day after an oral dose of 100 mCi 131I. The images were superimposed (bottom row) to show the multiple focal areas of increased uptake in lung (yellow arrows) and right pelvis (red arrows). The coronal view (left panel), sagittal view (middle panel) and transverse view (right panel) of the images are shown. C. The abdominal CT image for case #11 shows a left renal middle pole tumor (2.2 x 1.7 cm) which was undistinguishable from a primary renal cell carcinoma. D. The chest CT image for case #11 shows one of the multiple small and round opacities in the lung (yellow arrow).

Comparison of CEC testing with conventional methods in distinguishing disease status of the patients with PTC

Imaging studies such as CT/MRI/PET and 131I-WBS are the gold standard for detection of recurrent disease when serum Tg is detectable [11]. Although the sensitivity and specificity for the combination of standard imaging methods in the identification of distant metastasis were both 100% (Table 5), the risk in radiation exposure and the costs associated with the examinations lead us to determine whether combined analysis of serum Tg with CECs is an alternative way to monitor disease status of the patients with PTC. Our data revealed that combined analysis of serum Tg with EpCAM+-CEC or TSHR+-CEC defined the disease status (disease-free vs. distant metastasis) in 46 (95.8%) or 47 (97.9%) of the 48 patients, respectively (Tables 3 and 4). Notably, metastatic status of all 22 patients (100%) in G3 was revealed by combined analyses of serum Tg and CECs. ROC analyses showed that combined analysis of serum Tg with EpCAM+-CEC distinguished distant metastasis from disease-free status with the AUC equivalent of 0.962 (p < 0.0001). The sensitivity and specificity of the assay was 100% and 92.3%, respectively. When combined analysis of serum Tg with TSHR+-CEC, the AUC, sensitivity and specificity was 0.981 (p < 0.0001), 100% and 96.2%, respectively (Table 5). These data demonstrate that combined analysis of serum Tg with CECs is suitable to distinguish the patients at disease-free status from the patients with distant metastasis.

Table 5: ROC analyses of the indicated testing methods in distinguishing G3 from G2

Testing methodsa

Sensitivity (%)

Specificity (%)

AUC

p-value

Medical imaging

100.0

100.0

1.000

< 0.0001

Tg

90.9

100.0

0.955

< 0.0001

EpCAM+-CEC

86.4

92.3

0.926

< 0.0001

TSHR+-CEC

72.7

96.2

0.866

< 0.0001

Tg/EpCAM+-CEC

100.0

92.3

0.962

< 0.0001

Tg/TSHR+-CEC

100.0

96.2

0.981

< 0.0001

aCEC testing was considered positive when EpCAM+-CEC >22 cells/ml or TSHR+-CEC >33 cells/ml.

DISCUSSION

The prevalence of PTC was increased in many developed and developing countries in recent decades. Although most of the patients with PTC have excellent prognosis after appropriate therapy, some of the patients have poor prognosis [20, 21] and eventually develop local regional recurrence or distant metastases [22, 23]. In this study, we show that CEC enumeration has the potential to compromise the current methods for following up PTC patients at risk of recurrence and distant metastasis.

Immunofluorescence staining of thyroid-related proteins allows us to define the thyroid origin of CECs. TSHR, a general marker for the cells with thyroid origin [19], was used to define circulating thyroid cells in the patients with PTC. Although TSHR is also present in the cells of non-thyroid origin [24], TSHR+-CECs were detectable in all metastatic PTC patients [25]. The expression of TSHR mRNA in the circulating cells has also been shown to enhance preoperative detection of cancer in patients with thyroid nodules [26]. We found in this study that TSHR+-CECs instead of EpCAM+-CECs are more frequently present in most of the PTC patients, implying that not all TSHR+-CECs are EpCAM-positive. In support of this notion, co-immunofluorescence staining of CECs using anti-TSHR and anti-EpCAM antibodies reveals a subgroup of CECs that are TSHR-positive but EpCAM-negative (data not shown). This subgroup of CECs is not likely isolated and identified by the CEC enrichment methods based on positive selection of EpCAM+ cells [15, 27]. The negative selection system PowerMag we used in this study thereby offers benefits for isolating different populations of CECs including both EpCAM+-CECs and EpCAM--CECs.

CEC counts allow real-time monitoring of cancer progression for various cancer types [15, 16, 28]. In this study, we found that the number of EpCAM+-CECs and TSHR+-CECs is statistically higher for the patients with distant metastasis (G3) than the patients in disease-free status (G2) and the healthy controls (G1). Although it is not statistical significance, the number of TSHR+-CECs and EpCAM+-CECs is higher for the patients in G2 than in G1. These observations indicate that some of the patients in G2 may carry circulating thyroid cancer cells in the bloodstream, despite that they are negative in histopathology, serum Tg, and 131I-WBS. These patients are likely at risk of recurrence and require medical attention. The clearest example is the case #20 in G3. When enrolled in this study, case #20 is presumably disease-free based on the patient’s historical data of medical examinations. An unexpected high CEC count (EpCAM+-CECs: 74 cells/ml; TSHR+-CECs: 136 cells/ml) in this case led to a serial of examinations that ultimately confirmed the diagnosis of PTC with brain metastasis. Similar to the findings in other cancer types [29, 30], CEC testing is an important tool for dynamic monitoring of thyroid cancer progression.

To further confirm the clinical value of CEC enumeration in monitoring the progression of PTC patients, CEC testing was first compared with the standard imaging methods. Because standard imaging methods are the gold standard for monitoring metastatic disease in current clinical practice [11], the AUC, sensitivity and specificity, as expected, was 1.000, 100% and 100% respectively. In contrast, the assay specificity of CEC testing is slightly less than the standard imaging methods (92.3% for EpCAM+-CEC and 96.2% for TSHR+-CEC vs. 100% for imaging methods). The discrepancy was due to the high EpCAM+-CEC and TSHR+-CEC count in two and one of the patients in G2, respectively. Whether the cases were at risk of recurrence or were false positive in CEC testing is not clear. Nevertheless, we have noticed that the percentage of disease-free patients with positive CEC testing results (G2, 4.5%) was within the range of the reported recurrence rate (1.4-14%) for the patients with initial remission after surgery and RAI therapy [8-10]. Accordingly, longitudinal follow-up of the patients in G2 who have high CEC count may be required to determine whether CEC testing is valuable to supplement standard imaging methods in the follow-up of patients with no defined metastatic lesion.

Serum Tg is a routine test for monitoring disease progression in PTC patients with total thyroidectomy [11]. The clinical value of CEC testing was then compared with serum Tg assay in this study. Notably, we demonstrated that CEC testing revealed the distant metastatic status for the two patients in G3 (cases #10 and 11) whose serum Tg was undetectable. The anti-TgAb (> 115 IU/ml) which is present in approximately 15% of thyroid cancer patients [31] has been shown to interfere with the measurement of serum Tg leading to false negative Tg testing [32]. The poorly differentiate thyroid cells may also associate with an undetectable level of serum Tg [33]. The association of the high CEC count with the distant metastatic disease of PTC patients indicates that CEC testing is useful in monitoring disease status when the individual has undetectable serum Tg.

The potential application for combined analyses of CECs and serum Tg in distinguishing disease status of the patients with PTC was also evaluated. For the known cases of thyroid cancer patients, sensitivity is relatively more important than specificity in monitoring of disease progression. Our data indicate that all metastatic cases shown by serum Tg and standard imaging methods can be revealed by combined serum Tg and CEC testing. The assay sensitivity for combined analysis of CEC and serum Tg (100%) is comparable to the standard imaging methods (100%) and is superior to serum Tg alone (90.9%). Despite future trials are still required, combined analyses of CEC and serum Tg have the potential to real-time follow up of the patients with PTC and reduce the use of cumbersome and expensive imaging methods.

In conclusion, with the strong correlation between CEC count and the disease status of PTC patients, CEC enumeration is a simple test that can be performed more frequently than standard imaging methods in distinguishing disease status of PTC. Simultaneous measurements of serum Tg and CEC with one blood draw have the potential in follow-up of thyroid cancer progression and management of patient care.

MATERIALS AND METHODS

Study subjects

This study was approved by the Chang Gung Memorial Hospital Institutional Review Board (approval ID: 102-3433B). Patients enrollment criteria included (1) age ≧ 18 years and (2) ability of the patients to understand and sign the informed consent. Enrolled cases were classified into three groups. Group I (G1) included control subjects without clinically significant thyroid disorders such as thyroid nodules, autoimmune thyroid disease and cancer history. Thyroid ultrasonography was performed and the serum TSH, Tg, and anti-TPO antibody were measured to confirm the absence of thyroid diseases. Group II (G2) included PTC patients in disease-free status that have been followed up for more than 2 years. Disease-free was defined as serum Tg < 0.1 ng/ml, anti-TgAb < 115 IU/ml, negative in neck ultrasonic examination, negative in chest x-ray examination and negative in 131I-WBS. Group III (G3) included PTC patients with distant metastasis that was defined by serum Tg > 0.1 ng/ml when anti-TgAb < 115 IU/ml and positive medical images in 131I-WBS, CT/MRI/PET-CT, chest radiography, or bone scan. The patients with cumulative RAI dose more than 1000 mCi were excluded from the study to rule out any potential effect of high RAI dose on CEC enumeration [34]. Neck ultrasonography studies were conducted on a real-time ultrasonographic machine and a 10 MHz transducer (Aloka).

Thyroid-related biochemical testing

Anti-TgAb was measured by using a competitive radioimmunoassay (Biocode Hycel, Liege, Belgium). The analytical sensitivity is 6 IU/ml. In our hospital, anti-TgAb <115 IU/ml was considered as no interference with serum Tg testing. Anti-TPO antibody was measured by using the anti-TPO Test Kit (Thermo Fisher Scientific, Pittsburgh, PA). Serum TSH and free T4 were measured by using the Siemens Thyroid Assay Reagents (Siemens, Erlangen, Germany). Serum Tg was measured by using the highly sensitive Tg Access assay (Beckman Coulter, Brea, CA). To avoid interference from elevated TSH and facilitate the comparison among G1, G2 and G3, serum Tg was measured when the patients underwent T4 treatment. The blood samples for CEC testing, serum Tg, and other thyroid-related assays were collected simultaneously from one blood drawing.

Treatment of papillary thyroid cancer patients

The staging of PTC patients was determined using the International Union Against Cancer Tumor-Node-Metastasis (TNM) criteria (6th edition) [35]. All thyroid carcinoma tissues were pathologically classified according to the World Health Organization criteria [36]. The American Thyroid Association guidelines [11] were followed for therapeutic planning of the patients. Depending on clinical indication, noninvasive examinations included chest radiography, CT, MRI, bone scintigraphy, PET-CT, and 131I-scintigraphy may be performed. After thyroidectomy, thyroid remnant ablation was performed between four and six weeks after surgery for the patients with intermediate or high risk. The 131I ablation dose for most of the patients was 1.1-3.7 GBq (30-100 mCi). WBS was performed one week after 131I administration using the dual-head gamma camera (model of Dual head Genesys, Philips/ADAC, Stokesdale, NC; and model of Infinia Hawkeye 4, GE Healthcare, Haifa, Israel) equipped with a high-energy collimator. Subsequently, treatment with L-T4 was initiated in order to decrease the level of TSH without inducing clinical thyrotoxicosis. Cases in which the foci of 131I uptake extended beyond the thyroid bed were classified as distant metastasis. This type of patients received higher therapeutic doses of 3.7-7.4 GBq (100-200 mCi). Hospital isolation was arranged and 131I-WBS was performed two weeks after administration of 131I.

Enrichment and isolation of CECs

A negative selection system PowerMag was used to enrich CECs [37]. Briefly, fresh blood samples from patients or healthy donors were processed by lysis of red blood cells followed by depletion of CD45+ white blood cells using a magnetic chamber. The viable CECs were enriched from the patients and analyzed subsequently as described previously [38, 38].

Immunofluorescence staining and CEC enumeration

For immunofluorescence staining, leukocyte-depleted cell filtrates were separated into two aliquots. One of the aliquots was incubated with the anti-TSHR antibody (Abcam Inc, Cambridge, England) and the DNA staining dye Hoechst 33342 (Invitrogen Inc, Carlsbad, CA) at room temperature for 1 h. The other aliquot was incubated with the anti-EpCAM antibody (Abcam Inc, Cambridge, England) and the DNA staining dye Hoechst 33342 at room temperature for 1 h. After several washes and centrifugation to remove the supernatants, the cell pellets were resuspended and the Alexa Fluor 488-conjugated donkey anti-mouse antibody (Invitrogen Inc, Carlsbad, CA) was added to the cell suspension. After incubation in the dark for 30 min, the unbound antibody was removed and immunofluorescent images were captured and analyzed by fluorescence microscopy (Zeiss Axiovert 200M). EpCAM+-CEC was defined as the cell that was positive for Hoechst 33342 and EpCAM. TSHR+-CEC was defined as the cell that was positive for Hoechst 33342 and TSHR.

Statistical analysis

The CEC counts in healthy controls and in the patients with PTC were compared using the Kruskal-Wallis test for all groups. Dunn’s test was used for post-hoc test between any two groups. ROC analysis was used to illustrate the discrimination ability between any two groups. The follow-up year and the cumulative RAI dose for G2 and G3 were compared and analyzed by using the Mann-Whitney test. Statistical analysis was performed using SPSS for Windows (version 18, SPSS, Chicago, IL). A p-value < 0.05 was considered statistically significant.

Abbreviations

Anti-TgAb, anti-thyroglobulin antibody; AUC, area under the curve; CEC, circulating epithelial cell; CT, computed tomography; CTC, circulating tumor cell; EpCAM, epithelial cell adhesion molecule; FVPTC, follicular variant of PTC; MRI, magnetic resonance imaging; PET, positron emission tomography; PTC, papillary thyroid carcinoma; ROC, receiver operating characteristic; T4, thyroxine; Tg, thyroglobulin; TNM, tumor-node-metastasis; TPO, thyroid peroxidase; TSH, thyroid-stimulating hormone; TSHR, thyroid-stimulating hormone receptor; WBS, whole body scintigraphy.

GRANT SUPPORT

This work was supported in part by the Ministry of Science and Technology grants NSC99-2632-B-182-001-MY3, MOST102-2628-B-182-009-MY3, and MOST102-2628-B-182-010-MY3, the Chang Gung Memorial Hospital grants (CMRPD1C0551-3, CMRPD1B0391-3 and CMRPD1E0181), and the Chang Gung Molecular Medicine Research Center grant (EMRPD1E1491) to C.-P. Tseng; NMRPD1B0312 and CMRPG3B1943 to J.-D. Lin.

CONFLICTs OF INTEREST

The authors declare no conflict of interest.

REFERENCES

1. Siegel R, Naishadham D, Jemal A. Cancer statistics, 2013. CA Cancer J Clin. 2013; 63: 11-30.

2. Jung CK, Little MP, Lubin JH, Brenner AV, Wells SA Jr, Sigurdson AJ, Nikiforov YE. The increase in thyroid cancer incidence during the last four decades is accompanied by a high frequency of BRAF mutations and a sharp increase in RAS mutations. J Clin Endocrinol Metab. 2014; 99: E276-285.

3. Albores-Saavedra J, Henson DE, Glazer E, Schwartz AM. Changing patterns in the incidence and survival of thyroid cancer with follicular phenotype - papillary, follicular, and anaplastic: a morphological and epidemiological study. Endocr Pathol. 2007; 18: 1-7.

4. Forman D, Bray F, Brewster DH, Gombe-Mbalawa C, Kohler B, Piñeros M, Steliarova-Foucher E, Swaminathan R, Ferlay J. Cancer incidence in five continents volume X. Lyon: IARC Scientific Publications; 2014.

5. Dadu R, Ahn P, Holsinger FC, Hu MI. Chpater 2: Thyroid and parathyroid cancer. In: Haller DG, Wagman LD, Camphausen KA, Hoskins WJ editors. Cancer management: a multidisciplinary approach. 13th ed. Norwalk: UBM Medica; 2014.

6. Xing M. Molecular pathogenesis and mechanisms of thyroid cancer. Nat Rev Cancer. 2013; 13: 184-199.

7. Lin JD, Hsueh C, Chao TC. Early recurrence of papillary and follicular thyroid carcinoma predicts a worse outcome. Thyroid. 2009; 19: 1053-1059.

8. Durante C, Montesano T, Torlontano M, Attard M, Monzani F, Tumino S, Costante G, Meringolo D, Bruno R, Trulli F, Massa M, Maniglia A, D’Apollo R et al. Papillary thyroid cancer: time course of recurrences during postsurgery surveillance. J Clin Endocrinol Metab. 2013; 98: 636-642.

9. Grant CS. Recurrence of papillary thyroid cancer after optimized surgery. Gland Surg. 2015; 4: 52-62.

10. Tuttle RM, Tala H, Shah J, Leboeuf R, Ghossein R, Gonen M, Brokhin M, Omry G, Fagin JA, Shaha A. Estimating risk of recurrence in differentiated thyroid cancer after total thyroidectomy and radioactive iodine remnant ablation: using response to therapy variables to modify the initial risk estimates predicted by the new American Thyroid Association staging system. Thyroid. 2010; 20: 1341-1349.

11. Cooper DS, Doherty GM, Haugen BR, Kloos RT, Lee SL, Mandel SJ, Mazzaferri EL, McIver B, Pacini F, Schlumberger M, Sherman SI, Steward DL, Tuttle RM. Revised American Thyroid Association management guidelines for patients with thyroid nodules and differentiated thyroid cancer. American Thyroid Association (ATA) Guidelines Taskforce on Thyroid Nodules and Differentiated Thyroid Cancer. Thyroid. 2009; 19: 1167-1214.

12. Pak K, Kim SJ, Kim IJ, Kim BH, Kim SS, Jeon YK. The role of 18F-fluorodeoxyglucose positron emission tomography in differentiated thyroid cancer before surgery. Endocr Relat Cancer. 2013; 20: R203-213.

13. Ahn BC, Lee WK, Jeong SY, Lee SW, Lee J. Estimation of true serum thyroglobulin concentration using simultaneous measurement of serum antithyroglobulin antibody. Int J Endocrinol. 2013; 2013: 210639.

14. Ringel MD, Nabhan F. Approach to follow-up of the patient with differentiated thyroid cancer and positive anti-thyroglobulin antibodies. J Clin Endocrinol Metab. 2013; 98: 3104-3110.

15. Alix-Panabieres C, Pantel K. Circulating tumor cells: liquid biopsy of cancer. Clin Chem. 2013; 59: 110-118.

16. Davis JW. Circulating tumor cell assays for the prognosis of prostate and colon cancers. Expert Opin Med Diagn. 2009; 3: 293-301.

17. Winkens T, Pachmann K, Freesmeyer M. Circulating epithelial cells in patients with thyroid carcinoma. Can they be identified in the blood? Nuklearmedizin. 2013; 52: 7-13.

18. Litvinov SV, Velders MP, Bakker HA, Fleuren GJ, Warnaar SO. EpCAM: a human epithelial antigen is a homophilic cell-cell adhesion molecule. J Cell Biol. 1994; 125: 437-446.

19. Farid NR, Szkudlinski MW. Structural and functional evolution of the thyrotropin receptor. Endocrinology. 2004; 145: 4048-4057.

20. Dinneen SF, Valimaki MJ, Bergstralh EJ, Goellner JR, Gorman CA, Hay ID. Distant metastases in papillary thyroid carcinoma: 100 cases observed at one institution during 5 decades. J Clin Endocrinol Metab. 1995; 80: 2041-2045.

21. Ito Y, Higashiyama T, Takamura Y, Kobayashi K, Miya A, Miyauchi A. Clinical outcomes of patients with papillary thyroid carcinoma after the detection of distant recurrence. World J Surg. 2010; 34: 2333-2337.

22. Toniato A, Boschin I, Casara D, Mazzarotto R, Rubello D, Pelizzo M. Papillary thyroid carcinoma: factors influencing recurrence and survival. Ann Surg Oncol. 2008; 15: 1518-1522.

23. Lin JD, Huang MJ, Juang JH, Chao TC, Huang BY, Chen KW, Chen JY, Li KL, Chen JF, Ho YS. Factors related to the survival of papillary and follicular thyroid carcinoma patients with distant metastases. Thyroid. 1999; 9: 1227-1235.

24. Szkudlinski MW, Fremont V, Ronin C, Weintraub BD. Thyroid-stimulating hormone and thyroid-stimulating hormone receptor structure-function relationships. Physiol Rev. 2002; 82: 473-502.

25. Sorg S, Pachmann K, Brede-Hekimian K, Freesmeyer M, Winkens T. Determining tissue origin of circulating epithelial cells (CEC) in patients with differentiated thyroid cancer by real-time PCR using thyroid mRNA probes. Cancer Lett. 2015; 356: 491-495.

26. Chia SY, Milas M, Reddy SK, Siperstein A, Skugor M, Brainard J, Gupta MK. Thyroid-stimulating hormone receptor messenger ribonucleic acid measurement in blood as a marker for circulating thyroid cancer cells and its role in the preoperative diagnosis of thyroid cancer. J Clin Endocrinol Metab. 2007; 92: 468-475.

27. Nagrath S, Sequist LV, Maheswaran S, Bell DW, Irimia D, Ulkus L, Smith MR, Kwak EL, Digumarthy S, Muzikansky A, Ryan P, Balis UJ, Tompkins RG et al. Isolation of rare circulating tumour cells in cancer patients by microchip technology. Nature. 2007; 450: 1235-1239

28. Yu M, Bardia A, Wittner BS, Stott SL, Smas ME, Ting DT, Isakoff SJ, Ciciliano JC, Wells MN, Shah AM, Concannon KF, Donaldson MC, Sequist LV et al. Circulating breast tumor cells exhibit dynamic changes in epithelial and mesenchymal composition. Science. 2013; 339: 580-584.

29. Nolé F, Munzone E, Zorzino L, Minchella I, Salvatici M, Botteri E, Medici M, Verri E, Adamoli L, Rotmensz N, Goldhirsch A, Sandri MT. Variation of circulating tumor cell levels during treatment of metastatic breast cancer: prognostic and therapeutic implications. Ann Oncol. 2008; 19: 891-897.

30. Schulze K, Gasch C, Staufer K, Nashan B, Lohse AW, Pantel K, Riethdorf S, Wege H. Presence of EpCAM-positive circulating tumor cells as biomarker for systemic disease strongly correlates to survival in patients with hepatocellular carcinoma. Int J Cancer. 2013; 133: 2165-2171.

31. Legakis I, Manousaki M, Detsi S, Nikita D. Thyroid function and prevalence of anti-thyroperoxidase (TPO) and anti-thyroglobulin (Tg) antibodies in outpatients hospital setting in an area with sufficient iodine intake: influences of age and sex. Acta Med Iran. 2013; 51: 25-34.

32. Verburg FA, Luster M, Cupini C, Chiovato L, Duntas L, Elisei R, Feldt-Rasmussen U, Rimmele H, Seregni E, Smit JW, Theimer C, Giovanella L. Implications of thyroglobulin antibody positivity in patients with differentiated thyroid cancer: a clinical position statement. Thyroid. 2013; 23: 1211-1225.

33. Ibrahimpasic T, Ghossein R, Carlson DL, Nixon IJ, Palmer FL, Patel SG, Tuttle RM, Shaha A, Shah JP, Ganly I. Undetectable thyroglobulin levels in poorly differentiated thyroid carcinoma patients free of macroscopic disease after initial treatment: Are they useful? Ann Surg Oncol. 2015. DOI 10.1245/s10434-015-4567-3.

34. Winkens T, Pachmann K, Freesmeyer M. The influence of radioiodine therapy on the number of circulating epithelial cells (CEC) in patients with differentiated thyroid carcinoma - a pilot study. Exp Clin Endocrinol Diabetes. 2014; 122: 246-253.

35. Sobin LH, Wittekind C. TNM classification of malignant tumors. 6th ed. New York: Wiley-Liss, 2002, p. 52-56.

36. Travis, WD, Brambilla E, Burke AP, Marx A, Nicholson AG. Pathology and genetics of tumors of endocrine organs. In: Delellis RA, Lloyd RV, Heitx PU, Eng C editors. World health organization of tumors. Lyon: IARC Scientific Publications; 2004, p.73-76.

37. Lin HC, Hsu HC, Hsieh CH, Wang HM, Huang CY, Wu MH, Tseng CP. A negative selection system PowerMag for effective leukocyte depletion and enhanced detection of EpCAM positive and negative circulating tumor cells. Clin Chim Acta. 2013; 419: 77-84.

38. Hsieh JC, Lin HC, Huang CY, Hsu HL, Wu TM, Lee CL, Chen MC, Wang HM, Tseng CP. Prognostic value of circulating tumor cells with podoplanin expression in patients with locally advanced or metastatic head and neck squamous cell carcinoma. Head Neck. 2015; 37: 1448-1455.


Creative Commons License All site content, except where otherwise noted, is licensed under a Creative Commons Attribution 3.0 License.
PII: 6587
