Early cardiac toxicity following adjuvant radiotherapy of left-sided breast cancer with or without concurrent trastuzumab

PDF |  HTML  |  How to cite

Oncotarget. 2016; 7:1042-1054. https://doi.org/10.18632/oncotarget.6053

Metrics: PDF 1921 views  |   HTML 2899 views  |   ?

Lu Cao, Gang Cai, Cai Chang, Zhao-Zhi Yang, Yan Feng, Xiao-Li Yu, Jin-Li Ma, Jiong Wu, Xiao-Mao Guo and Jia-Yi Chen _

Abstract

Lu Cao1,4,5, Gang Cai1,4,5, Cai Chang2,5, Zhao-Zhi Yang1,5, Yan Feng1,5, Xiao-Li Yu1,5, Jin-Li Ma1,5, Jiong Wu3,5, Xiao-Mao Guo1,5 and Jia-Yi Chen1,4,5

1 Department of Radiation Oncology, Fudan University Shanghai Cancer Center, Shanghai, China

2 Department of Ultrasound, Fudan University Shanghai Cancer Center, Shanghai, China

3 Department of Breast Surgery, Fudan University Shanghai Cancer Center, Shanghai, China

4 Department of Radiation Oncology, Ruijin Hospital, Shanghai Jiaotong University School of Medicine, Shanghai, China

5 Shanghai Medical College, Fudan University, Shanghai, China

Correspondence to:

Jia-Yi Chen, email:

Keywords: breast cancer, cardiotoxicity, radiotherapy, trastuzumab, concurrent treatment

Received: May 24, 2015 Accepted: September 23, 2015 Published: October 09, 2015

Abstract

Purpose: To evaluate the influence of concurrent trastuzumab on the cardiotoxicity in patients receiving left-sided adjuvant radiotherapy.

Materials and Methods: Medical records of stage I-III left-sided breast cancer patients, including 64 receiving concurrent trastuzumab with radiotherapy and 73 receiving radiotherapy alone were retrospectively reviewed. All of the patients had normal LVEF after adjuvant chemotherapy. Information of doses volume to cardiac structures was collected. Cardiac events were assessed according to CTC 2.0.

Results: Median follow-up of LVEF and clinical assessment of cardiac function from the initiation of radiotherapy was 6.7 months (range 3–60.9) and 26 months (range 6.4–60.9), respectively. Grade 1 LVEF dysfunction occurred in 5 (7.8%) and 3 (4.1%) patients of the concurrent-trastuzumab and radiotherapy alone cohort, respectively. Trastuzumab was the only significant factor influencing absolute LVEF decrease in univariate analysis. In multivariate analysis of concurrent-trastuzumab cohort, IMC radiotherapy and start trastuzumab during radiotherapy were independent risk factors. For concurrent cohort, mean heart dose, as well as D10-D30, D50-D55, V5-V20 of the heart and D30-D45, D65-D75, V6-V15 of the LV were significantly higher in patients developing LVEF dysfunction.

Conclusions: Concurrent trastuzumab and left-sided radiotherapy is well tolerated in terms of cardiotoxicity in patients with normal baseline cardiac function after adjuvant chemotherapy. However, increases in mean dose and low–dose volume of cardiac structures are associated with a higher risk of acute LVEF dysfunction.


Introduction

Radiation therapy (RT) has been established to be an important treatment strategy after breast conservative surgery or after mastectomy in node positive patients [1-3]. One of the major toxicities of RT is cardiotoxicity, resulting in an increase of non-breast cancer related mortality [3-5]. Modern techniques have allowed much better protection of the heart [6-9]. However, as heart lies just below the chest wall, the risk of radiation-induced cardiac damage persists, especially in patients with left-sided breast cancer.

HER2 is expressed or amplified in about 25% of breast cancers, and is associated with increased risk for recurrence and mortality [10-12]. Trastuzumab (Herceptin; Roche, Basel, Switzerland), a HER2-directed humanized monoclonal antibody, has been shown to improve both disease-free and overall survival in HER2-positive (HER2+) breast cancer patients [13]. The most common toxicity reported from trastuzumab is cardiotoxicity [11], which presents most frequently in the form of asymptomatic decrease in left ventricular ejection fraction (LVEF) [14].

Benefit of trastuzumab is higher when administrated as soon as possible and concurrently with adjuvant chemotherapy [15, 16]. Therefore, adjuvant RT is often delivered concurrently with adjuvant trastuzumab. RT associated cardiotoxicity has been reported as a result of damage to micro- and macro-vascular structures [17, 18]. There are much fewer reports about mechanisms of trastuzumab-induced cardiotoxicity. In animal studies, it was found to cause dilated cardiomyopathy through inhibition of HER2 receptor [19]. In most cases, LVEF recovers to normal but not always baseline level after trastuzumab is discontinued without cardiologic treatment [20, 21]. It is possible that heart exposed to trastuzumab is more susceptible to the damage from ionizing irradiation.

Radiation-related cardiotoxicity depends mainly on the dose volumes of the heart irradiated [22]. In a previous retrospective study, our group found a positive association between the dose volumes histograms of cardiac structures and early cardiotoxicity in left-sided breast cancer patients receiving concurrent trastuzumab and RT. [23]. However, the limited sample size (enrolling only 24 left-sided breast cancer patients) has limited us from extrapolating the dose-volume recommendation.

The main objective of this study was first, to evaluate the influence of concurrent trastuzumab on the cardiotoxicity in patients receiving left-sided adjuvant RT. Second, to explore the detailed dosimetric information with regard to the acute systolic dysfunction, so as to provide information for future practical recommendations of dose-volume constraints in that specific clinical scenario.

Results

Baseline characteristics

In total, 64 patients treated with concurrent trastuzumab and left-sided RT (the concurrent-trastuzumab cohort) and 73 patients treated with left-sided RT alone (the no-trastuzumab cohort) were enrolled in this analysis. Clinical features of the 137 patients according to trastuzumab treatment are shown in Table 1. The two cohorts were similar in age, BMI, comorbidity, menopausal status and clinical-pathologic stage. No patient was active smoker. All patients who received concurrent trastuzumab had HER2+ invasive ductal carcinoma. Compared with those receiving no trastuzumab, the proportion of hormone receptor (HR) negativity was higher in patients who received concurrent trastuzumab (P = 0.01).

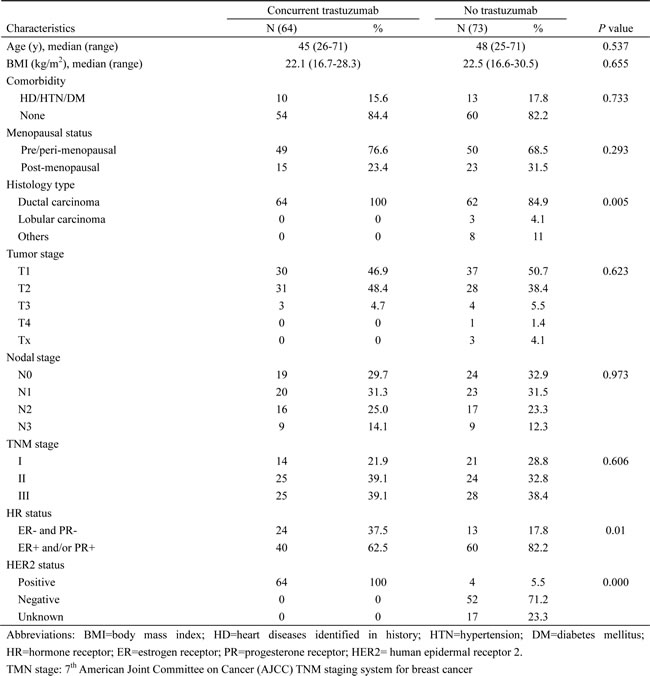

Table 1: Baseline patient demographics and clinical characteristics

Systemic and locoregional treatments are detailed in Table 2. There was no significant difference in the frequency of anthracycline-based chemotherapy and cumulative dose of anthracycline between the concurrent-trastuzumab and no-trastuzumab cohort in both the neoadjuvant and adjuvant setting. Patients with HR positive disease were less likely to receive hormone therapy in the concurrent-trastuzumab cohort (P = 0.005). This might be due to more cases with HR positive of 1% to 9% in the concurrent-trastuzumab cohort (6 of 64 patients) compared with the no-trastuzumab cohort (0 of 73 patients) (P = 0.01). Internal mammary chain (IMC) RT was associated with significantly higher cardiac dose, the mean heart dose and mean dose to the LV was 1150.5 ± 230.9 cGy versus 568.9 ± 205.4 cGy(P = 0.000) and 1109.7 ± 397.9cGy versus 810.8 ± 276.1cGy(P = 0.013)respectively in patients with and without IMC RT. The proportion of IMC RT was lower in patients who received concurrent trastuzumab compared with those who did not receive trastuzumab (10.9% versus 31.5%, P = 0.004, Table 2).

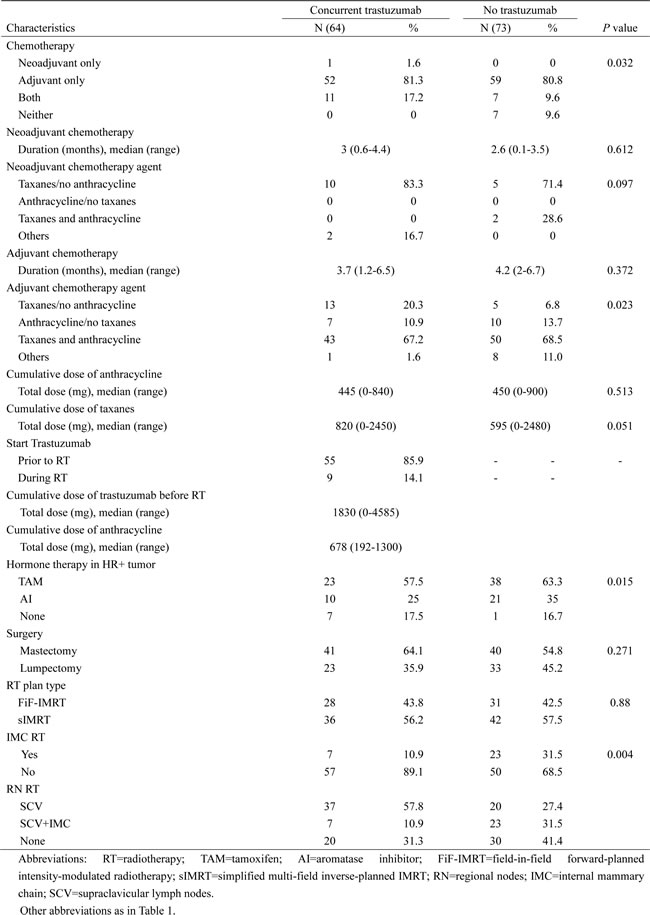

Table 2: Details of systemic and locoregional treatment in 137 patients

Trastuzumab was started, with neoadjuvant chemotherapy, with adjuvant chemotherapy, before initiation of RT and with RT in 10, 39, 6 and 9 patients, respectively. Trastuzumab regimen was consistent with chemotherapy schedule, which was administrated every 3 weeks and weekly in one and 9 patients during neoadjuvant chemotherapy, in 29 and 22 patients during adjuvant chemotherapy, respectively. All patients then received trastuzumab every 3 weeks during and after RT. There were four patients receiving concurrent administration of trastuzumab and anthracycline in the adjuvant setting. The median age of these four patients was 38.5 years (range 26-51). Sixty-three of the 64 patients completed 1-year trastuzumab as planned.

Cardiotoxicity

Median follow-up of LVEF and clinical assessment of cardiac function from the initiation of RT was 6.7 months (range 3-60.9 months) and 26 months (range 6.4-60.9 months), respectively. In the concurrent-trastuzumab and non-trastuzumab cohort, the median absolute LVEF decrease from baseline to the lowest measured value after RT was 3% overall (range 7% increase to 15% decrease) and 1% overall (range 13% increase to 13% decrease), respectively. Grade 1 LVEF dysfunction (an asymptomatic decline in LVEF of at least 10% but less than 20% from baseline) occurred in 5 (7.8%) and 3 (4.1%) patients respectively. There was no significant difference in the rate of LVEF dysfunction between the concurrent-trastuzumab and no-trastuzumab cohort (7.8% versus 4.1%; P = 0.473). No patient presented chronic heart failure (CHF) or any cardiac symptoms whether they were or were not treated with trastuzumab. At the time of the last follow-up, LVEF of all patients recovered to normal (≥ 50%). In the concurrent-trastuzumab and non-trastuzumab cohort, the median time to recovery was 3.16 months and 3.33 months, respectively.

One patient stopped trastuzumab for developing pericardial effusion and chest pain after 15 cycles of 3-weekly scheme and 5 months after completion of RT. This is a 69-year-old woman with diabetes mellitus, but with no other cardiac risk factors. She had a T1N3 breast cancer with a baseline LVEF of 67% and received chest wall and Supraclavicular (SCV) irradiation of 50Gy. She was treated with 6 cycles of docetaxel and carboplatin adjuvant chemotherapy concurrently with trastuzumab. She did not developed LVEF dysfunction during the follow-up until 31 months from the initiation of RT. Her pericardial effusion was self-limited and recovered 1 month after stop of trastuzumab. The mean dose to the heart and left ventricle (LV) were 491.94cGy and 745.6cGy, respectively. The V30 of the heart and LV were 5% and 8%, respectively.

Cardiac risk factors

Univariate analysis tested the effect of different patient- and treatment-related factors on the risk of LVEF dysfunction in patients treated with left-sided RT (Table 3). In the whole cohort, concurrent trastuzumab treatment was the only significant risk factor for absolute decrease of LVEF (P = 0.006), even if the rate of LVEF dysfunction did not differ significantly with regard to whether concurrent trastuzumab was given or not. Nor did the cumulative dose of anthracycline and IMC RT affect the rate of LVEF dysfunction. In the concurrent-trastuzumab cohort, IMC RT was of borderline significance (P = 0.088) in increasing the rate of LVEF dysfunction. Start trastuzumab during the period of RT instead of before RT increased the risk of LVEF dysfunction, although statistical significance was not found (22.2% versus 5.5%, P = 0.141). Young age (< 47 years) and pre/peri-menopause significantly increased the risk of LVEF absolute decrease. Neither cumulative dose of trastuzumab before nor during RT significantly influenced the risk of LVEF dysfunction.

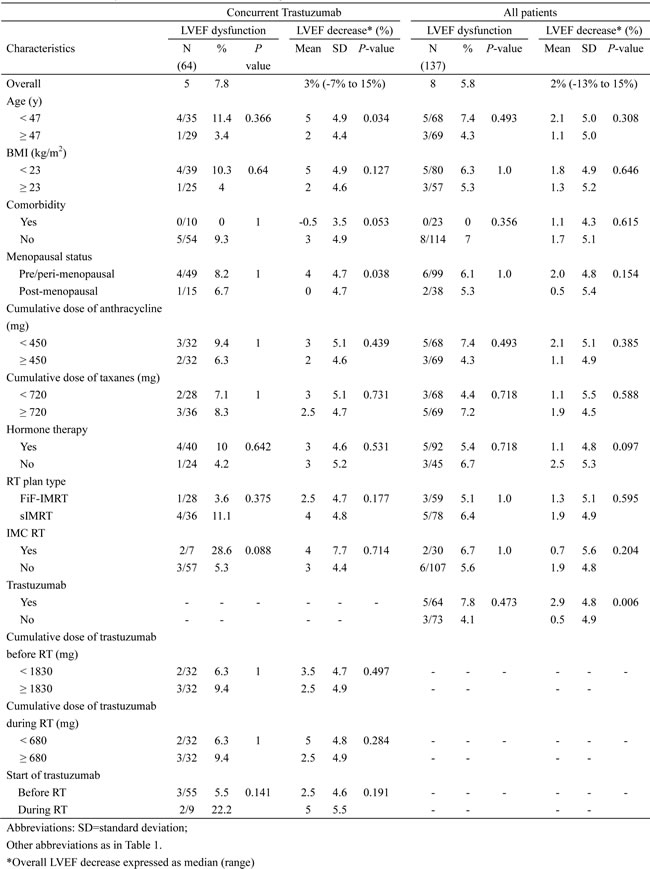

Table 3: Univariate analysis of cardiac risk factors following left-sided RT

Multivariate analysis of risk factors for LVEF dysfunction was shown in Table 4. In 64 patients treated with concurrent trastuzumab, IMC RT and start trastuzumab during RT were found to be independent significant cardiac risk factors. In all 137 patients who received left-sided RT, concurrent trastuzumab treatment increased risk of LVEF dysfunction, but without statistical significance (P = 0.365).

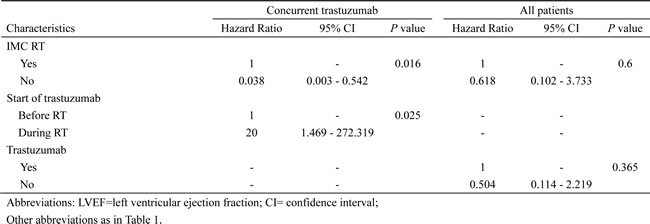

Table 4: Multivariate analysis of LVEF dysfunction following left-sided RT

Dosimetric analysis in patients with concurrent treatment

The average value of Dose-volume histogram (DVH) parameters of the heart and LV was summarized in Figure 1. The mean doses to the heart and LV were 633.5 ± 276.4c Gy and 843.9 ± 303.1cGy, respectively.

The average value of DVH parameters in 137 patients receiving left-sided RT.

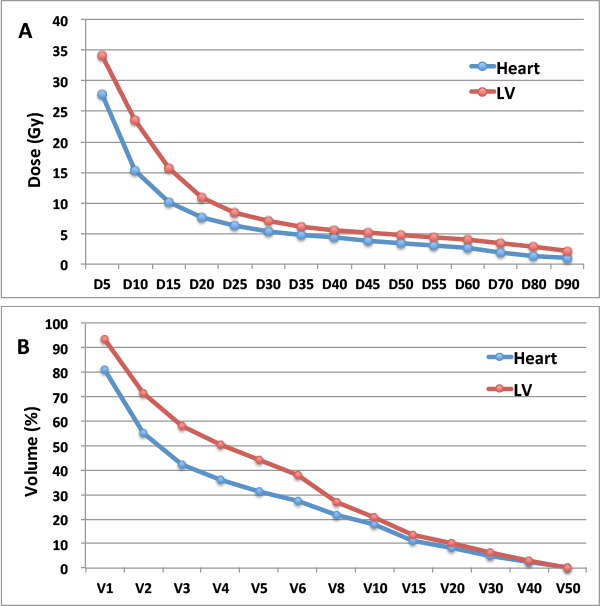

Figure 1: The average value of DVH parameters in 137 patients receiving left-sided RT. A., average Dn (Gy) of heart and LV; B., average Vn (%) of heart and LV. DVH=dose volumes histograms; RT=radiotherapy; Dn=minimum dose which reached ≥n percentage of volume; LV= left ventricle; Vn=percentage of volume receiving ≥n Gy.

The average mean dose delivered to the heart was significantly higher in those developing LVEF dysfunction compared to those with no observed cardiac toxicity (936.1± 333.7cGy versus 607.5 ± 258.3cGy; P = 0.01). Further analysis to compare the average value of dose-volume parameters of the heart and LV between patients with and without LVEF dysfunction found that, for the heart, D10-D30, D50-D55 and V5 -V20 were significantly higher in patients who developed LVEF dysfunction (all P < 0.05, Figure 2A and 2C). As to the LV, a continuous increase of D30-D45, D65-D75 and V6-V15 was also statistically significant in patients with LVEF dysfunction (all P < 0.05, Figure 2B and 2D). In multiple logistic regression analysis of all above statistically significant dose-volume histogram parameters, V10 of the LV was showed to be the best predictive factor for LVEF dysfunction in the setting of concurrent treatment. The V10 of the LV was 33.4±17.3% and 16.3±12.7% in patients with and without LVEF dysfunction, respectively (P = 0.01).

The average value of DVH parameters in 64 patients treated with concurrent trastuzumab, according to development of LVEF dysfunction.

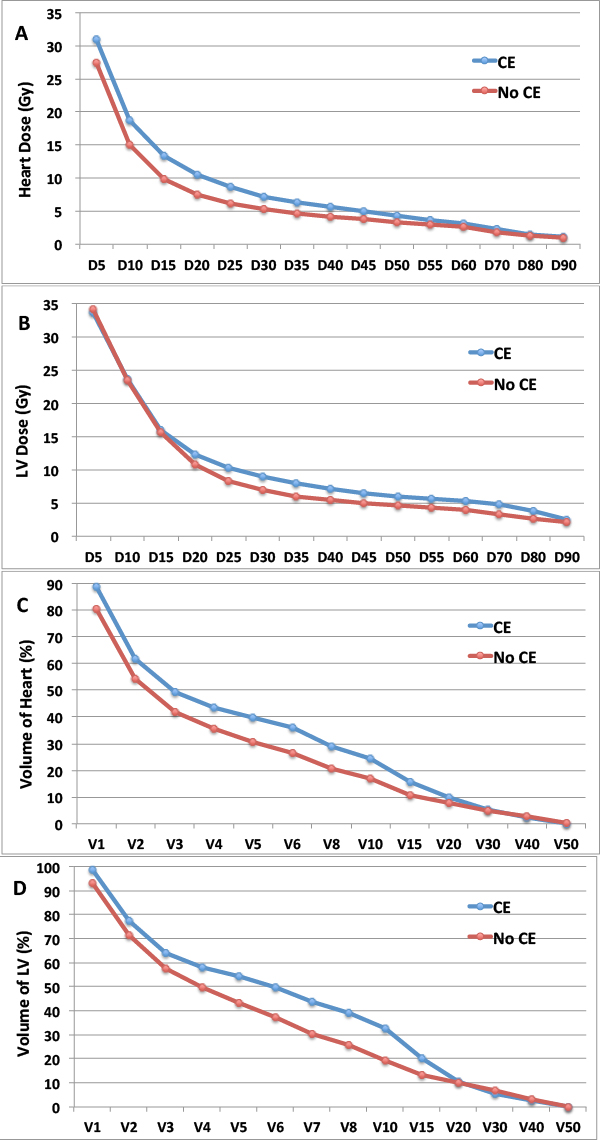

Figure 2: The average value of DVH parameters in 64 patients treated with concurrent trastuzumab, according to development of LVEF dysfunction. A., average value of Dn (Gy) of heart; B., average value of Dn (Gy) of LV; C., average value of Vn (%) of heart, D. average value of Vn (%) of LV. DVH=dose volumes histograms; CE=cardiac events; LVEF= left ventricular ejection fraction; Dn=minimum dose which reached ≥n percentage of volume; LV= left ventricle; Vn=percentage of volume receiving ≥n Gy.

Discussion

Our data demonstrated that in patients with normal baseline cardiac function after adjuvant chemotherapy, concurrent administration of trastuzumab and left-sided RT was well tolerated using modern techniques, with a 7.8% grade 1 LVEF dysfunction rate in the concurrent-trastuzumab cohort and a 4.1% rate in the no-trastuzumab cohort. We also further confirmed a direct relationship between the dose-volume of cardiac structures irradiated and the risk of early cardiac toxicity in patients treated with concurrent trastuzumab and left-sided RT, which has been shown in our previous study [23].

Within 7-month median follow-up of LVEF, only five out of 64 patients (7.8%) developed grade 1 LVEF dysfunction after concurrent trastuzumab and left-sided RT. Only one patient presented self-limited pericardial effusion 5 months after completion of RT and no one developed CHF. In a reanalysis of adverse events data from the N9831 trial, the reported cumulative incidence of CHF and cardiac death was between 1.7% and 2.7% in the trastuzumab group [24]. Within a median follow-up of 16 months, Belkacemi et al. [25] [26] found that 9 of 92 patients developed a grade ≥ 2 of LVEF decrease after concurrent trastuzumab with RT. Shaffer et al. [27] reported that 18.5% patients stopped trastuzumab due to cardiac events after concurrent left-sided RT during a median follow-up of 15 months. The frequency of cardiac toxicity in our study seems much lower than previous reports. As follow up time of our study is relatively shorter than prior studies, some of the cardiac injury may still remain in sub-clinical phase, which would underestimate the actual cardiac events. Intensity-modulated radiotherapy (IMRT) has shown promising results as a cardiac sparing technique for breast cancer patients in several reports [28]. All cases in our study were treated with IMRT, which allowed for better cardiac protection and might therefore reduce the risk of cardiotoxicity. Old age (≥ 60 years) has been reported to be associated with increased trastuzumab related-LVEF dysfunction [29]. Only 6 patients (9.3%) were 60 years old or above in our study, which might also contribute to the low cardiotoxicity incidence.

So far, published studies indicated that concurrent administration of RT and trastuzumab is safe for the heart. . However, so far, no study has ever done a straight comparison between concurrent trastuzumab with left-sided RT and left-sided RT alone. Our data showed that concurrent trastuzumab treatment was the only significant risk factor for absolute LVEF decrease (mean 2.9±4.8% versus 0.5±4.9%, P = 0.006). The rate of LVEF dysfunction in patients who received concurrent trastuzumab was almost twice as high as in their counterparts (7.8% versus 4.1%), even though without significant difference. More patients in the non-trastuzumab cohort received IMC RT, which might partly offset the difference of cardiac toxicity risk. Comparable to our findings, in the N9831 trial, the rate of cardiac events was 2.2% in the trastuzumab group and 0.4% in the non-trastuzumab group after a median follow-up time of 3.7 years. But left-sided patients were not analyzed in isolation in that study. To date, concurrent treatment of trastuzumab and left-sided RT is reported to be well tolerated, nevertheless, our data cautioned that the impact of concurrent trastuzumab on the risk of RT-related cardiac toxicity might exist to some extent, which warrants further follow up.

Detailed information of radiation doses received by cardiac structures was considered to be of paramount importance for a better correlation to the cardiotoxicity of concurrent trastuzumab and RT. To our knowledge, a retrospective study reported by Shaffer et al [27] is the only study prior to our work exploring this issue, which found no significant correlation. However, in this study irradiation techniques and dose fractionation were heterogeneous and the DVH data of the heart were undetailed, which would limit the applicability of the conclusion. Recently, our group published a study, which for the first time established a direct association between dose-volume of cardiac structures and frequency of early cardiac toxicity in the setting of concurrent trastuzumab and left-sided RT. After that study, we continually enrolled new patients such that our finding could be strengthened and extrapolated. In a series of 64 left-sided patients receiving concurrent trastuzumab, the association between dose-volume of cardiac structures and early cardiac toxicity was confirmed, which might provide information for practical recommendations with regard to dose constraints in treatment planning. The mean heart dose was significantly higher in those who developed LVEF dysfunction (936.1 ± 333.7cGy versus 607.5 ± 258.3cG y, P = 0.01). Darby et al. [30] reported that increase of cardiac events was proportional to mean heart dose. In the era of comprehensive treatment, several systemic agents might also increase the risk of cardiac damage in the setting of concurrent trastuzumab and radiation therapy. A high cumulative dose and concurrent use of anthracycline were shown to increase the risk of trastuzumab-associated cardiotoxicity [31]. In recent years, the improvements in breast cancer RT have kept the irradiation exposure of the heart at a very low level [8]. Nevertheless, even in such context our data suggested that constraint of the dose-volume of cardiac structures irradiated would remain an effective protective strategy for the heart.

In this study, DVH parameters that significantly correlated with the risk of LVEF dysfunction referred mainly to the low-intermediate dose volumes of the heart, with D10-D30, D50-D55 and V5-V20 of the heart and D30-D45, D65-D75 and V6-V15 of the LV. The clinical significance of relatively low dose volumes of the heart was seldom reported and controversial. In 32 breast cancer patients treated with left-sided RT, Chung et al. [32] found no correlation for perfusion and very low doses (mean heart dose < 5 Gy and D95) delivered to cardiac structures. IMRT has been introduced in the breast cancer RT to improve dose homogeneity in the breast as well as to reduce cardiac dose [28]. Compared with three-dimensional conformal radiotherapy (3D-CRT), IMRT significantly changed the pattern of irradiated dose distribution to the heart with increased mean dose and low dose volumes and decrease in high dose volumes [34, 35]. Currently there is no consensus whether such increase in low-dose volume is detrimental for heart, although it has become the major pitfall of IMRT being accepted as standard practice in breast RT. Further to our previous study, V10 of the LV, which represented low dose-volume, was found to be a significant prognostic factor of LVEF dysfunction. The absolute value of V10 in patients with LVEF dysfunction was two times as high as in patients with normal LVEF (33.4±17.3% versus 16.3±12.7%). Even if it maybe not yet to define one single dosimetric value as threshold, information from our study, together with future data, will help to develop a practical algorithm of dose-volume recommendations in IMRT of the left breast in the background of modern multidisciplinary treatment.

Despite the fact that IMC was part of the regional nodes irradiated in randomized trials that have proved the survival benefit of post-mastectomy radiotherapy in node-positive breast cancer patients [36-40], as well as in the recent published EORTC 22922/10925 and MA 20 trials which have proved that regional nodes irradiation in addition to breast/chest wall irradiation significantly improved distant disease-free survival in node-positive and high-risk node negative patients [41, 42], the benefit of IMC RT as part of regional RT is still controversial. Whatever technique to choose, IMC RT, more or less, is associated with an extra exposure of cardiac structures. Acute cardiotoxicity of concurrent trastuzumab and RT including IMC has been explored in several studies, with controversial results. In a retrospective study, Shaffer et al. [27] found that cardiac events were even fewer in patients who received left-sided IMC RT. By no means that IMC RT would serve as a protective factor for heart. Such counter-intuitive result may be due to small sample and bias in the selection of IMC RT. In another prospective study, 88 out of 106 patients received IMC RT, including 40 patients with left-sided breast cancer [43]. After a median follow-up of 28 months, 5 patients developed ≥ grade 2 left ventricular systolic dysfunction. The frequency of cardiac events was much higher than our results, which might indirectly reflect the detrimental effect of IMC RT. Our current study for the first time proved that left-sided IMC RT, in concurrent with trastuzumab, was an independent risk factor for LVEF dysfunction. Therefore, cardiac volume sparing and strict selection of high risk IMC irradiation are highly recommended [25].

Another phenomenon we observed was that the sequence of trastuzumab and RT was an independent risk factor influencing the cardiac toxicity. Start trastuzumab during the period of RT was associated with a higher risk of LVEF dysfunction, compared with start trastuzumab before the initiation of RT. As the baseline LVEF was assessed before RT, those who started trastuzumab during RT were almost simultaneously exposed to double cardiotoxic therapeutic modalities, which was quite different from those who exposed to trastuzumab first and RT subsequently. This result suggested that trastuzumab and left-sided RT have at least combined effect on cardiac toxicity. Therefore, those trastuzumab naïve patients who were not assessed for potential tolerance of trastuzumab and, prepared to double treatments might require stricter dose-volume constraints in treatment planning.

The main limitation of current study is that LVEF is not sensitive enough to detect early and minor cardiac dysfunction, thus the actual toxicity might be underestimated. Our group has also explored the role of diastolic function in monitoring early cardiac abnormalities under the same clinical scenario [44]. Nevertheless, as a fundamental parameter of cardiac function, LVEF is less susceptible to intra-observer differences. Therefore, LVEF would remain as the golden standard for monitoring cardiac function under current therapeutic modality [14]. New diagnostic modalities such as myocardial deformation imaging or biomarkers might help detect cardiac toxicity at an earlier stage [45-47]. In addition, biomarker such as HER2 [Ile655Val] genetic polymorphism and troponin I might help identify patients at high risk of trastuzumab-related cardiotoxicity [48, 49]. Several agents have been reported to ameliorate anthracycline associated cardiac toxicity, such as composite polymer nanoparticle and dihydromyricetin [50, 51]. Whether there agents will ameliorate trastuzumab- or radiation-associated cardiotoxicity needs further exploration. The median follow-up period of 26 months in this study is still too short. Considering the very long latent period of RT-induced cardiac toxicity, as well as the unclear long-term impact of trastuzumab on cardiac function, patients should be followed-up regularly for as long as possible, so that the clinical impact of early LVEF decrease will be further validated.

Materials and Methods

Patients

The medical records of patients treated with adjuvant RT for left-sided stage I-III (AJCC, 7th [52]) breast cancer between February 2009 and September 2011 were retrospectively reviewed. Patients with HER2+ disease (immunohistochemistry score 3 or fluorescence in situ hybridization positive) and also node-positive or high-risk node-negative disease were eligible for treatment with trastuzumab. Normal LVEF ( ≥ 50%) before the initiation of trastuzumab and RT were required. Demographic data and potential cardiac risk factors were collected, as well as histopathological, systemic and locoregional treatment details. The research protocol was reviewed and approved by the Ethical Committee and Institutional Review Board of the Fudan University Shanghai Cancer Center (FDSCC). All patients in FDSCC provided written informed consent.

Systemic treatment

Neoadjuvant chemotherapy was administrated in patients with a primary diagnosis of stage IIA-IIIA disease. Adjuvant chemotherapy was decided by the multidisciplinary breast cancer team. Hormonal therapy was given to patients with HR positive breast cancers as determined by immunohistochemistry ( > 1% positive). Trastuzumab was administered every 3 weeks (6 mg/kg after a first cycle of 8 mg/kg) or every week (2 mg/kg after a first cycle of 4 mg/kg).

Radiotherapy and dosimetric analysis

RT was delivered to the whole breast or chest wall (50 Gy/25 fractions/5 weeks). Tumor bed boost of 10 Gy in 5 fractions was given using electron for breast conserving patients. SCV and IMC lymph nodes irradiation were given at the discretion of the radiation oncologist. No scar boost was used in patients receiving chest wall RT. All patients underwent CT-simulation in a supine position, immobilized on a breast board (Med-Tec, Inc. Orange City, IA, USA) with both arms abducted and raised overhead. For chest wall RT, field-in-field forward-planned intensity-modulated radiotherapy (FiF-IMRT) was used [53]. Breast RT was performed with simplified multi-field inverse-planned IMRT (sIMRT), which was described in details in a previous publication [23]. For patients treated with sIMRT, irradiation of SCV and IMC lymph nodes was integrated into sIMRT plan. For patients treated with FiF-IMRT, an anterior mixed photon and electron beam was used.

Cardiac structures were delineated according to the heart atlas published by Feng et al.[54]. A radiation oncologist, under supervision of a radiologist, deliberately contoured the whole heart and LV. DVH parameters of the heart and LV were calculated using individual dose distribution data in the RT planning system (ADAC Pinnacle 3, versions 8.0m). DVH parameters of the heart and the LV were collected and included the minimum dose reaching relative volume levels ranging from 1% to 95% (D1 to D95) and the percentage of volume exceeding 1 to 50 Gy (V1 to V50). As contribution of the tumor bed boost and SCV irradiation to the heart dose was very low [55, 56], adjustments for cardiac dose were not carried out for these patients.

Statistical analysis

Cardiac event was evaluated according to LVEF decrease from the baseline measure. The LVEF measured by echocardiogram and/or multiple gated acquisition scan (MUGA). This assessment, combined with the clinical assessment of cardiac function, was performed before initiation of RT and every 3 to 6 months after RT for the first 5 years and annually thereafter. Cardiac event (grade ≥ 1) assessed according to the National Cancer Institute Common Toxicity Criteria (NCI-CTC, version 2.0).

Comparisons between groups were assessed using the chi-squared test (or Fisher’s exact test) for categorical variables and Mann-Whitney U test for quantitative variables. Comparison between groups for dosimetric details was analyzed using the Student’s t-test. A stepwise backward procedure was used to construct a set of independent risk factors of cardiac events. All factors achieving a P value < 0.10 were considered and sequentially removed if the P value in the multiple models was > 0.05. All P values were two-sided, P < 0.05 was considered significant. SPSS software version 21.0 was used.

Acknowledgments

None.

Funding

This study was supported in part by the National Natural Science Foundation of China (grant 81172504).

Conflicts of interest

The authors declare no conflicts of interest.

References

1. Clarke M, Collins R, Darby S, Davies C, Elphinstone P, Evans E, Godwin J, Gray R, Hicks C, James S, MacKinnon E, McGale P, McHugh T, et al. Effects of radiotherapy and of differences in the extent of surgery for early breast cancer on local recurrence and 15-year survival: an overview of the randomised trials. Lancet. 2005; 366:2087-2106.

2. Early Breast Cancer Trialists’ Collaborative G, Darby S, McGale P, Correa C, Taylor C, Arriagada R, Clarke M, Cutter D, Davies C, Ewertz M, Godwin J, Gray R, Pierce L, et al. Effect of radiotherapy after breast-conserving surgery on 10-year recurrence and 15-year breast cancer death: meta-analysis of individual patient data for 10,801 women in 17 randomised trials. Lancet. 2011; 378:1707-1716.

3. McGale P, Taylor C, Correa C, Cutter D, Duane F, Ewertz M, Gray R, Mannu G, Peto R, Whelan T, Wang Y, Wang Z and Darby S. Effect of radiotherapy after mastectomy and axillary surgery on 10-year recurrence and 20-year breast cancer mortality: meta-analysis of individual patient data for 8135 women in 22 randomised trials. Lancet. 2014; 383:2127-2135.

4. Cuzick J, Stewart H, Rutqvist L, Houghton J, Edwards R, Redmond C, Peto R, Baum M, Fisher B, Host H and et al. Cause-specific mortality in long-term survivors of breast cancer who participated in trials of radiotherapy. Journal of clinical oncology. 1994; 12:447-453.

5. Rutqvist LE, Lax I, Fornander T and Johansson H. Cardiovascular mortality in a randomized trial of adjuvant radiation therapy versus surgery alone in primary breast cancer. International journal of radiation oncology, biology, physics. 1992; 22:887-896.

6. Darby SC, McGale P, Taylor CW and Peto R. Long-term mortality from heart disease and lung cancer after radiotherapy for early breast cancer: prospective cohort study of about 300,000 women in US SEER cancer registries. The Lancet Oncology. 2005; 6:557-565.

7. Marks LB, Yu X, Prosnitz RG, Zhou SM, Hardenbergh PH, Blazing M, Hollis D, Lind P, Tisch A, Wong TZ and Borges-Neto S. The incidence and functional consequences of RT-associated cardiac perfusion defects. International journal of radiation oncology, biology, physics. 2005; 63:214-223.

8. Giordano SH, Kuo YF, Freeman JL, Buchholz TA, Hortobagyi GN and Goodwin JS. Risk of cardiac death after adjuvant radiotherapy for breast cancer. Journal of the National Cancer Institute. 2005; 97:419-424.

9. Patt DA, Goodwin JS, Kuo YF, Freeman JL, Zhang DD, Buchholz TA, Hortobagyi GN and Giordano SH. Cardiac morbidity of adjuvant radiotherapy for breast cancer. Journal of clinical oncology. 2005; 23:7475-7482.

10. Slamon DJ, Clark GM, Wong SG, Levin WJ, Ullrich A and McGuire WL. Human breast cancer: correlation of relapse and survival with amplification of the HER-2/neu oncogene. Science. 1987; 235:177-182.

11. Romond EH, Perez EA, Bryant J, Suman VJ, Geyer CE, Jr., Davidson NE, Tan-Chiu E, Martino S, Paik S, Kaufman PA, Swain SM, Pisansky TM, Fehrenbacher L, et al. Trastuzumab plus adjuvant chemotherapy for operable HER2-positive breast cancer. The New England journal of medicine. 2005; 353:1673-1684.

12. Smith I, Procter M, Gelber RD, Guillaume S, Feyereislova A, Dowsett M, Goldhirsch A, Untch M, Mariani G, Baselga J, Kaufmann M, Cameron D, Bell R, et al. 2-year follow-up of trastuzumab after adjuvant chemotherapy in HER2-positive breast cancer: a randomised controlled trial. Lancet. 2007; 369:29-36.

13. Viani GA, Afonso SL, Stefano EJ, De Fendi LI and Soares FV. Adjuvant trastuzumab in the treatment of her-2-positive early breast cancer: a meta-analysis of published randomized trials. BMC cancer. 2007; 7:153.

14. Marinko T, Dolenc J and Bilban-Jakopin C. Cardiotoxicity of concomitant radiotherapy and trastuzumab for early breast cancer. Radiology and oncology. 2014; 48:105-112.

15. Slamon DJ, Leyland-Jones B, Shak S, Fuchs H, Paton V, Bajamonde A, Fleming T, Eiermann W, Wolter J, Pegram M, Baselga J and Norton L. Use of chemotherapy plus a monoclonal antibody against HER2 for metastatic breast cancer that overexpresses HER2. The New England journal of medicine. 2001; 344:783-792.

16. Ferretti G, Papaldo P, Fabi A, Carlini P, Felici A and Cognetti F. Adjuvant trastuzumab with docetaxel or vinorelbine for HER-2-positive breast cancer. The oncologist. 2006; 11:853-854.

17. Seddon B, Cook A, Gothard L, Salmon E, Latus K, Underwood SR and Yarnold J. Detection of defects in myocardial perfusion imaging in patients with early breast cancer treated with radiotherapy. Radiotherapy and oncology : journal of the European Society for Therapeutic Radiology and Oncology. 2002; 64:53-63.

18. Corn BW, Trock BJ and Goodman RL. Irradiation-related ischemic heart disease. Journal of clinical oncology. 1990; 8:741-750.

19. Crone SA, Zhao YY, Fan L, Gu Y, Minamisawa S, Liu Y, Peterson KL, Chen J, Kahn R, Condorelli G, Ross J, Jr., Chien KR and Lee KF. ErbB2 is essential in the prevention of dilated cardiomyopathy. Nature medicine. 2002; 8:459-465.

20. Ewer MS and Tan-Chiu E. Reversibility of trastuzumab cardiotoxicity: is the concept alive and well? Journal of clinical oncology. 2007; 25:5532-5533; author reply 5533-5534.

21. Ewer MS, Vooletich MT, Durand JB, Woods ML, Davis JR, Valero V and Lenihan DJ. Reversibility of trastuzumab-related cardiotoxicity: new insights based on clinical course and response to medical treatment. Journal of clinical oncology. 2005; 23:7820-7826.

22. Ewer MS and Ewer SM. Cardiotoxicity of anticancer treatments: what the cardiologist needs to know. Nature reviews Cardiology. 2010; 7:564-575.

23. Cao L, Hu WG, Kirova YM, Yang ZZ, Cai G, Yu XL, Ma JL, Guo XM, Shao ZM and Chen JY. Potential impact of cardiac dose-volume on acute cardiac toxicity following concurrent trastuzumab and radiotherapy. Cancer radiotherapie : journal de la Societe francaise de radiotherapie oncologique. 2014; 18:119-124.

24. Halyard MY, Pisansky TM, Dueck AC, Suman V, Pierce L, Solin L, Marks L, Davidson N, Martino S, Kaufman P, Kutteh L, Dakhil SR and Perez EA. Radiotherapy and adjuvant trastuzumab in operable breast cancer: tolerability and adverse event data from the NCCTG Phase III Trial N9831. Journal of clinical oncology. 2009; 27:2638-2644.

25. Belkacemi Y, Gligorov J, Ozsahin M, Marsiglia H, De Lafontan B, Laharie-Mineur H, Aimard L, Antoine EC, Cutuli B, Namer M and Azria D. Concurrent trastuzumab with adjuvant radiotherapy in HER2-positive breast cancer patients: acute toxicity analyses from the French multicentric study. Annals of oncology. 2008; 19:1110-1116.

26. Jacob J, Belin L, Pierga JY, Gobillion A, Vincent-Salomon A, Dendale R, Beuzeboc P, Campana F, Fourquet A and Kirova YM. Concurrent administration of trastuzumab with locoregional breast radiotherapy: long-term results of a prospective study. Breast cancer research and treatment. 2014; 148:345-353.

27. Shaffer R, Tyldesley S, Rolles M, Chia S and Mohamed I. Acute cardiotoxicity with concurrent trastuzumab and radiotherapy including internal mammary chain nodes: a retrospective single-institution study. Radiotherapy and oncology : journal of the European Society for Therapeutic Radiology and Oncology. 2009; 90:122-126.

28. Shah C, Badiyan S, Berry S, Khan AJ, Goyal S, Schulte K, Nanavati A, Lynch M and Vicini FA. Cardiac dose sparing and avoidance techniques in breast cancer radiotherapy. Radiotherapy and oncology : journal of the European Society for Therapeutic Radiology and Oncology. 2014; 112:9-16.

29. Tarantini L, Gori S, Faggiano P, Pulignano G, Simoncini E, Tuccia F, Ceccherini R, Bovelli D, Lestuzzi C and Cioffi G. Adjuvant trastuzumab cardiotoxicity in patients over 60 years of age with early breast cancer: a multicenter cohort analysis. Annals of oncology. 2012; 23:3058-3063.

30. Darby SC, Ewertz M, McGale P, Bennet AM, Blom-Goldman U, Bronnum D, Correa C, Cutter D, Gagliardi G, Gigante B, Jensen MB, Nisbet A, Peto R, et al. Risk of ischemic heart disease in women after radiotherapy for breast cancer. The New England journal of medicine. 2013; 368:987-998.

31. Suter TM, Procter M, van Veldhuisen DJ, Muscholl M, Bergh J, Carlomagno C, Perren T, Passalacqua R, Bighin C, Klijn JG, Ageev FT, Hitre E, Groetz J, et al. Trastuzumab-associated cardiac adverse effects in the herceptin adjuvant trial. Journal of clinical oncology. 2007; 25:3859-3865.

32. Chung E, Corbett JR, Moran JM, Griffith KA, Marsh RB, Feng M, Jagsi R, Kessler ML, Ficaro EC and Pierce LJ. Is there a dose-response relationship for heart disease with low-dose radiation therapy? International journal of radiation oncology, biology, physics. 2013; 85:959-964.

33. Preston DL, Shimizu Y, Pierce DA, Suyama A and Mabuchi K. Studies of mortality of atomic bomb survivors. Report 13: solid cancer and noncancer disease mortality: 1950-1997. 2003. Radiation research. 2012; 178:Av146-172.

34. Rongsriyam K, Rojpornpradit P, Lertbutsayanukul C, Sanghangthum T and Oonsiri S. Dosimetric study of inverse-planed intensity modulated, forward-planned intensity modulated and conventional tangential techniques in breast conserving radiotherapy. Journal of the Medical Association of Thailand = Chotmaihet thangphaet. 2008; 91:1571-1582.

35. Coon AB, Dickler A, Kirk MC, Liao Y, Shah AP, Strauss JB, Chen S, Turian J and Griem KL. Tomotherapy and multifield intensity-modulated radiotherapy planning reduce cardiac doses in left-sided breast cancer patients with unfavorable cardiac anatomy. International journal of radiation oncology, biology, physics. 2010; 78:104-110.

36. Overgaard M, Hansen PS, Overgaard J, Rose C, Andersson M, Bach F, Kjaer M, Gadeberg CC, Mouridsen HT, Jensen MB and Zedeler K. Postoperative radiotherapy in high-risk premenopausal women with breast cancer who receive adjuvant chemotherapy. Danish Breast Cancer Cooperative Group 82b Trial. The New England journal of medicine. 1997; 337:949-955.

37. Overgaard M, Jensen MB, Overgaard J, Hansen PS, Rose C, Andersson M, Kamby C, Kjaer M, Gadeberg CC, Rasmussen BB, Blichert-Toft M and Mouridsen HT. Postoperative radiotherapy in high-risk postmenopausal breast-cancer patients given adjuvant tamoxifen: Danish Breast Cancer Cooperative Group DBCG 82c randomised trial. Lancet. 1999; 353:1641-1648.

38. Ragaz J, Olivotto IA, Spinelli JJ, Phillips N, Jackson SM, Wilson KS, Knowling MA, Coppin CM, Weir L, Gelmon K, Le N, Durand R, Coldman AJ, et al. Locoregional radiation therapy in patients with high-risk breast cancer receiving adjuvant chemotherapy: 20-year results of the British Columbia randomized trial. Journal of the National Cancer Institute. 2005; 97:116-126.

39. Hennequin C, Bossard N, Servagi-Vernat S, Maingon P, Dubois J-B, Datchary J, Carrie C, Roullet B, Suchaud J-P and Teissier E. Ten-year survival results of a randomized trial of irradiation of internal mammary nodes after mastectomy. International Journal of Radiation Oncology* Biology* Physics. 2013; 86:860-866.

40. Chang JS, Park W, Kim YB, Lee IJ, Keum KC, Lee CG, Choi DH, Suh C-O and Huh SJ. Long-term survival outcomes following internal mammary node irradiation in stage II-III breast cancer: results of a large retrospective study with 12-year follow-up. International Journal of Radiation Oncology* Biology* Physics. 2013; 86:867-872.

41. Whelan TJ, Olivotto IA, Parulekar WR, Ackerman I, Chua BH, Nabid A, Vallis KA, White JR, Rousseau P, Fortin A, Pierce LJ, Manchul L, Chafe S, et al. Regional Nodal Irradiation in Early-Stage Breast Cancer. The New England journal of medicine. 2015; 373:307-316.

42. Poortmans PM, Collette S, Kirkove C, Van Limbergen E, Budach V, Struikmans H, Collette L, Fourquet A, Maingon P, Valli M, De Winter K, Marnitz S, Barillot I, et al. Internal Mammary and Medial Supraclavicular Irradiation in Breast Cancer. The New England journal of medicine. 2015; 373:317-327.

43. Caussa L, Kirova YM, Gault N, Pierga JY, Savignoni A, Campana F, Dendale R, Fourquet A and Bollet MA. The acute skin and heart toxicity of a concurrent association of trastuzumab and locoregional breast radiotherapy including internal mammary chain: a single-institution study. European journal of cancer. 2011; 47:65-73.

44. Cao L, Cai G, Chang C, Miao AY, Yu XL, Yang ZZ, Ma JL, Zhang Q, Wu J, Guo XM and Chen JY. Diastolic Dysfunction Occurs Early in HER2-Positive Breast Cancer Patients Treated Concurrently With Radiation Therapy and Trastuzumab. The oncologist. Oncologist. 2015; 20:605-14.

45. Khouri MG, Douglas PS, Mackey JR, Martin M, Scott JM, Scherrer-Crosbie M and Jones LW. Cancer therapy-induced cardiac toxicity in early breast cancer: addressing the unresolved issues. Circulation. 2012; 126:2749-2763.

46. Goel S, Simes RJ and Beith JM. Exploratory analysis of cardiac biomarkers in women with normal cardiac function receiving trastuzumab for breast cancer. Asia-Pacific journal of clinical oncology. 2011; 7:276-280.

47. Shah AM and Solomon SD. Myocardial deformation imaging: current status and future directions. Circulation. 2012; 125:e244-248.

48. Beauclair S, Formento P, Fischel JL, Lescaut W, Largillier R, Chamorey E, Hofman P, Ferrero J-M, Pages G and Milano G. Role of the HER2 [Ile655Val] genetic polymorphism in tumorogenesis and in the risk of trastuzumab-related cardiotoxicity. Annals of oncology. 2007; 18:1335-1341.

49. Cardinale D, Colombo A, Torrisi R, Sandri MT, Civelli M, Salvatici M, Lamantia G, Colombo N, Cortinovis S and Dessanai MA. Trastuzumab-induced cardiotoxicity: clinical and prognostic implications of troponin I evaluation. Journal of Clinical Oncology. 2010; 28:3910-3916.

50. Zhu H, Luo P, Fu Y, Wang J, Dai J, Shao J, Yang X, Chang L, Weng Q, Yang B and He Q. Dihydromyricetin prevents cardiotoxicity and enhances anticancer activity induced by adriamycin. Oncotarget. 2015; 6:3254-3267. Doi: 10.18632/oncotarget.2410.

51. Pramanik D, Campbell NR, Das S, Gupta S, Chenna V, Bisht S, Sysa-Shah P, Bedja D, Karikari C, Steenbergen C, Gabrielson KL, Maitra A and Maitra A. A composite polymer nanoparticle overcomes multidrug resistance and ameliorates doxorubicin-associated cardiomyopathy. Oncotarget. 2012; 3:640-650. Doi: 10.18632/oncotarget.543.

52. Edge SB and Compton CC. The American Joint Committee on Cancer: the 7th edition of the AJCC cancer staging manual and the future of TNM. Annals of surgical oncology. 2010; 17:1471-1474.

53. Kestin LL, Sharpe MB, Frazier RC, Vicini FA, Yan D, Matter RC, Martinez AA and Wong JW. Intensity modulation to improve dose uniformity with tangential breast radiotherapy: initial clinical experience. International journal of radiation oncology, biology, physics. 2000; 48:1559-1568.

54. Feng M, Moran JM, Koelling T, Chughtai A, Chan JL, Freedman L, Hayman JA, Jagsi R, Jolly S, Larouere J, Soriano J, Marsh R and Pierce LJ. Development and validation of a heart atlas to study cardiac exposure to radiation following treatment for breast cancer. International journal of radiation oncology, biology, physics. 2011; 79:10-18.

55. Taylor CW, Nisbet A, McGale P and Darby SC. Cardiac exposures in breast cancer radiotherapy: 1950s-1990s. International journal of radiation oncology, biology, physics. 2007; 69:1484-1495.

56. Erven K, Florian A, Slagmolen P, Sweldens C, Jurcut R, Wildiers H, Voigt JU and Weltens C. Subclinical cardiotoxicity detected by strain rate imaging up to 14 months after breast radiation therapy. International journal of radiation oncology, biology, physics. 2013; 85:1172-1178.
