Identifying clinically relevant drug resistance genes in drug-induced resistant cancer cell lines and post-chemotherapy tissues

PDF |  HTML  |  Supplementary Files  |  How to cite  |  Order a Reprint

Oncotarget. 2015; 6:41216-41227. https://doi.org/10.18632/oncotarget.5649

Metrics: PDF 1541 views  |   HTML 1889 views  |   ?

Mengsha Tong, Weicheng Zheng, Xingrong Lu, Lu Ao, Xiangyu Li, Qingzhou Guan, Hao Cai, Mengyao Li, Haidan Yan, You Guo, Pan Chi and Zheng Guo _

Abstract

Mengsha Tong1, Weicheng Zheng1, Xingrong Lu2, Lu Ao1, Xiangyu Li1, Qingzhou Guan1, Hao Cai1, Mengyao Li1, Haidan Yan1, You Guo1, Pan Chi2, Zheng Guo1

1Department of Bioinformatics, Key Laboratory of Ministry of Education for Gastrointestinal Cancer, Fujian Medical University, Fuzhou, China

2Department of Colorectal & Anal Surgery, Affiliated Union Hospital of Fujian Medical University, Fuzhou, China

Correspondence to:

Zheng Guo, e-mail: guoz@ems.hrbmu.edu.cn

Pan Chi, e-mail: chipan@yeah.net

Keywords: drug-induced resistant cancer cell lines, drug treatment response, colorectal cancer, 5-fluorouracil, oxaliplatin

Received: June 30, 2015     Accepted: September 12, 2015     Published: October 15, 2015

ABSTRACT

Until recently, few molecular signatures of drug resistance identified in drug-induced resistant cancer cell models can be translated into clinical practice. Here, we defined differentially expressed genes (DEGs) between pre-chemotherapy colorectal cancer (CRC) tissue samples of non-responders and responders for 5-fluorouracil and oxaliplatin-based therapy as clinically relevant drug resistance genes (CRG5-FU/L-OHP). Taking CRG5-FU/L-OHP as reference, we evaluated the clinical relevance of several types of genes derived from HCT116 CRC cells with resistance to 5-fluorouracil and oxaliplatin, respectively. The results revealed that DEGs between parental and resistant cells, when both were treated with the corresponding drug for a certain time, were significantly consistent with the CRG5-FU/L-OHP as well as the DEGs between the post-chemotherapy CRC specimens of responders and non-responders. This study suggests a novel strategy to extract clinically relevant drug resistance genes from both drug-induced resistant cell models and post-chemotherapy cancer tissue specimens.


INTRODUCTION

Differentially expressed genes (DEGs) between parental and drug–induced resistant cells are frequently regarded as drug resistance genes [16] and used to identify predictive markers of therapeutic benefit [79]. However, findings of such studies can be hardly translated into clinical practice [1014]. It has been recognized that genes identified from drug–induced resistant cell models may simply represent drug-induced transcriptional changes that may be irrelevant to resistance mechanisms [15]. Therefore, alternative experimental approaches have been proposed.

Stevenson et al. introduced three in vitro gene lists [9]: (i) DEGs between parental and resistant cells [termed basally deregulated (BD) genes]; (ii) DEGs between parental and drug-treated parental cells [inducible in the parental cells (IP) genes], and (iii) DEGs between resistant and drug-treated resistant cells [inducible in the resistant cells (IR) genes]. They considered the pathways significantly enriched with any of the three types of genes as drug resistance pathways. Apparently, both IP and IR genes may mainly represent drug-induced changes, and their relevance to drug resistance is unclear. Allen et al. proposed that the overlap between BD genes and IP genes might represent drug resistance genes [16, 17]. However, because BD and IP genes represent sustained and transient drug-induced changes, respectively, their overlaps may still be irrelevant to drug resistance. Munkácsy et al. proposed that IP genes should be excluded from BD genes [18]. However, some IP genes could be drug resistance genes, and it is difficult to determine which IP genes should be excluded. In contrast to the aforementioned studies, Li et al. proposed that DEGs between a drug-induced resistant cell and its parental cell, both of which have undergone drug treatment for a defined time, might represent targets for therapies aimed at reversing drug resistance [19]. Here, we define this type of DEG as inducible difference (ID) genes, which represent the difference between two cell types in response to drug treatment. Given this diversity of definition for candidate drug resistance genes, it is necessary to evaluate the clinical relevance of various genes identified in cell models.

Another problem is that, in microarray or RNA-sequencing experiments that compare two types of cell lines, usually only two or three technical replicates are generated. Because commonly used statistical methods, such as Significance Analysis of Microarrays (SAM) [20] and variation analysis [21], often have insufficient statistical power when the sample sizes are small [2224], the FC method is frequently applied to select DEGs in such small-scale cell line experiments [2527]. However, genes that are highly expressed in both cells can hardly reach large FCs. Moreover, genes with low expression levels in both cell types may reach large FCs owing simply to measurement variations, resulting in false positives [28]. In contrast, the average difference (AD) method can identify genes that are highly expressed in both cells and show large absolute differences, even if the FCs in their expression levels are small [23, 29]. Notably, genes with high expression levels are likely to participate in some biologically conserved pathways, such as metabolism and membrane trafficking [29, 30] Hence, it is necessary to leverage its value in detecting drug resistance genes in small-scale cell line experiments.

In this study, we defined DEGs between pre-chemotherapy clinical tissue samples of responders and non-responders for 5-fluorouracil and oxaliplatin-based therapy as clinically relevant drug resistance genes (CRG5-FU/L-OHP). By analyzing the transcriptional profiles of drug-induced resistant cell models, we showed that BD genes mainly reflected drug treatment response and were inconsistent with CRG5-FU/L-OHP. In contrast, ID genes, especially when selected according to the AD ranking method, were significantly consistent with CRG5-FU/L-OHP. We also found that ID genes were significantly consistent with DEGs between the post-chemotherapy CRC specimens of responders and non-responders, which provided compelling evidence for the use of post-chemotherapy CRC specimens for identifying genes relevant to drug resistance.

RESULTS

BD genes are significantly consistent with IP genes

The IP genes were denoted as IP6, IP12 and IP24 for the conditions in which the parental cells underwent drug treatment for 6, 12 and 24 hours, respectively. In the E-MEXP-390 dataset (Table 1), we selected the top-ranked 3000 BD genes and the IP genes for 5-FU with the largest FC values. The consistency scores (the percentage of genes that had the same deregulation directions, see Methods) of BD genes with IP6, IP12 and IP24 were 97.16%, 98.42% and 98.13%, respectively (binomial test, all P-values < 1.11E-16, Table 2). When ranking genes by AD, the corresponding consistency scores were 90.92%, 90.96% and 86.85% (binomial test, all P-values < 1.11E-16, Table 1). Similarly, significant consistency between BD genes and IP6, IP12 and IP24 genes of L-OHP was observed (binomial test, all P-values < 1.11E-16, Table 1). When comparing the top-ranked 1500 BD genes and IP genes, the same results were observed (Supplementary Table 1).

Table 1: Datasets analyzed in this study

The cell line data used for identifying BD, IP or ID genes

Cell line

Dataset

Platform

Drug

Sensitive

Resistant

HCT116(colon)

E-MEXP-390

GPL570

5-FU

3

3

HCT116(colon)

E-MEXP-390

GPL570

L-OHP

3

3

HCT116(colon)

E-MEXP-1691

A-AFFY-101

5-FU

3

3

HCT116(colon)

E-MEXP-1691

A-AFFY-101

SN38

3

3

HCT116(colon)

E-MEXP-1171

GPL570

SN38

3

3

EPP85-181P(pancreatic)

EPG85-257P(gastric)

GSE3926

GPL96

Doxo

1

1

HT29(colon)

MCF-7(breast)

DLD1;HT29; LS513;Lovo;(colon)

GSE10405

GPL2006

SN38

1

1

The CRC tissue data used for identifying CRGs

Stage

Dataset

Platform

Therapeutic regimen

R

NR

IV

GSE19860

GPL570

mFOLFOX6

3

14

IV

GSE28702

GPL570

mFOLFOX6

16

11

IV

E-MEXP-3368

A-AFFY-101

5-FU and L-OHP

4

4

IV

GSE52735

GPL570

5-FU-based

23

14

IV

GSE69657

GPL570

FOLFOX6

13

17

Abbreviations: 5-FU: 5-fluorouracil; L-OHP:Oxaliplatin;SN38: an active metabolite of irinotecan; Doxo: Doxorubicin; R:Responder;NR:Non-responder;

Table 2: The consistency scores of the top-ranked 3000 BD and IP6, IP12, IP24 genes detected from HCT1116 cell line

Dataset

Cell line

Drug

Method

IP

Overlapped DEGa

Consistent DEGb(%)

Binominal P-valuec

E-MEXP-390

HCT116

5-FU

FC

IP6

1198

97.16

<1.11E-16

AD

2026

90.92

<1.11E-16

FC

IP12

1457

98.42

<1.11E-16

AD

2091

90.96

<1.11E-16

FC

IP24

1229

98.13

<1.11E-16

AD

2045

86.85

<1.11E-16

E-MEXP-390

HCT116

L-OHP

FC

IP6

1898

98.84

<1.11E-16

AD

2409

98.22

<1.11E-16

FC

IP12

1833

99.95

<1.11E-16

AD

2298

96.52

<1.11E-16

FC

IP24

1402

99.29

<1.11E-16

AD

2214

91.64

<1.11E-16

E-MEXP-1691

HCT116

5-FU

FC

IP24

1838

98.80

<1.11E-16

AD

2409

94.69

<1.11E-16

E-MEXP-1691

HCT116

SN38

FC

IP24

1934

98.29

<1.11E-16

AD

2423

95.00

<1.11E-16

E-MEXP-1171

HCT116

SN38

FC

IP6

1341

96.20

<1.11E-16

AD

1974

81.26

<1.11E-16

FC

IP12

1059

88.48

<1.11E-16

AD

1987

82.94

<1.11E-16

FC

IP24

1079

86.75

<1.11E-16

AD

2033

86.77

<1.11E-16

Abbreviations: DEG: differentially expressed genes; BD: basally deregulated genes; IP: inducible parental genes; 5-FU: 5-fluorouracil; L-OHP: oxaliplatin; SN38: an active metabolite of irinotecan;

aThe number of BD genes overlapped with IP genes;

bThe consistency score of BD genes and IP genes;

cThe binominal distribution P-value.

Subsequent analysis of HCT116 SN-38-resistant cells and doxorubicin-resistant cells from four cancer types (gastric, pancreatic, colon and breast) in the GSE3926 dataset revealed similar results (Supplementary Table 2).

Clinically relevant drug resistance genes

We defined DEGs between pre-chemotherapy tissue samples of non-responders and responders of CRC patients treated with 5-FU and L-OHP-based therapy as clinically relevant drug resistance genes, denoted as CRG5-FU/L-OHP. The GSE19860 and GSE28702 datasets (Table 1), which were both generated by the Affymetrix microarray GPL570 platform, included samples for a total of 25 non-responders and 19 responders of metastatic CRC patients treated with mFOLFOX6 chemotherapy, respectively. We combined the two datasets together to detect 2033 DEGs(FDR < 0.2) using the RankProduct method which is resistant to experimental batch effects [31]. Then, we detected 179 DEGs (FDR < 0.2) between the 4 non-responders and 4 responders of metastatic CRC patients treated with 5-FU and L-OHP in the E-MEXP-3368 dataset. As the mFOLFOX6 regimen also included 5-FU and L-OHP, the overlapped genes of the two lists of DEGs should be CRG5-FU/L-OHP and consistent in deregulation directions under the assumption that the drugs used together in each of the chemotherapy regimens have no or limited antagonistic effects against with each other (Supplementary Methods). In fact, the two lists of DEGs had 82 overlapped genes and the consistency score was 79.27% (binomial test, P-value < 5.15E-07). This result suggested that CRG5-FU/L-OHP could be detected robustly in the independent datasets. It also provided evidence for the assumption that the drugs used in combination had no or limited antagonistic effects against with each other. Finally, the 315 DEGs detected with FDR < 0.2 in a dataset and with P-value < 0.05 in another dataset were treated as the final CRG5-FU/L-OHP (Supplementary Table 3).

We additionally analyzed the GSE52735 dataset which included samples for 14 non-responders and 23 responders of metastatic CRC patients treated with a combination chemotherapy including fluoropyrimidine (5-FU and capecitabine, an oral prodrug of 5-FU). Using the RankProduct method, we detected 1805 DEGs (FDR < 0.2) between the non-responders and responders and they overlapped with 167 of the 315 CRG5-FU/L-OHP. As the three combination chemotherapy regimens shared 5-FU only, the overlapped DEGs should represent CRG5-FU and consistent in deregulation directions in the three gene lists (Supplementary Methods). In fact, the consistency score for the 167 overlapped genes was 78.44% (binomial test, P-value = 7.39E-11). This result suggested that CRGs for 5-FU could be detected robustly in independent datasets. The 131 DEGs consistently detected in the three datasets were defined as the final CRG5-FU (Supplementary Table 4). We used CRG5-FU to evaluate the clinical relevance of candidate genes derived from 5-FU resistant cell line models (Figure 1). Due to the lack of other independent datasets for CRC patients with L-OHP-based chemotherapy, we treated the CRG5-FU/L-OHP as the reference to evaluate the clinical relevance of BD genes and ID genes of L-OHP (Supplementary Methods).

The main idea behind our approach.

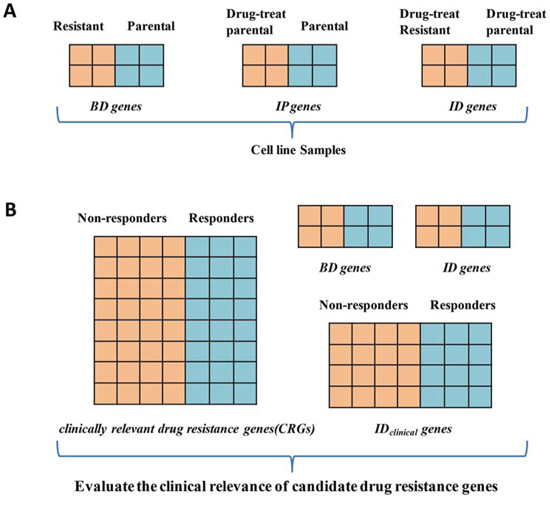

Figure 1: The main idea behind our approach. A. Three gene lists identified in drug-induced resistant cell models. B. Evaluation of clinical relevance of candidate drug resistance gene derived from drug-induced resistant cell models and post-chemotherapy cancer specimens. Abbreviations: BD genes: basally deregulated genes detected between parental cell line and resistant cell line; IP genes: genes detected between parental and drug-treated parental cells; ID genes: genes detected between drug-treat parental cell line and drug-treat resistant cell line; clinically relevant drug resistance genes (CRGs): DEGs between the pre-chemotherapy clinical specimens of responders and non–responders; IDclinical genes: DEGs between the post-chemotherapy clinical specimens of responders and non–responders.

Clinical relevance of BD genes

We defined BDtwo genes as those found in the overlap between the top-ranked 3000 BD genes of 5-FU and L-OHP, which had the same deregulation directions in the drug-resistant cell lines compared with their corresponding parental cell lines(Supplementary Table 5). The consistency scores between BDtwo genes and CRG5-FU/L-OHP were as low as 45% for the DEGs ranked by the FC method. The score was 64.44% for the DEGs ranked by the AD method (binomial test, P-value = 3.62E-02, Table 3), suggesting significant but weak consistency between BDtwo genes and CRG5-FU/L-OHP. In addition, We evaluated the clinical relevance of BD genes for each single drug. The corresponding consistency scores between the top-ranked 3000 BD genes of 5-FU and CRG5-FU/L-OHP were 51.35% for the FC method and 68.57% for the AD method (Table 3). Similar results were observed when the CRG5-FU were used as the reference to evaluate the clinical relevance of BD genes for 5-FU (Supplementary Table 6). For L-OHP, no significant consistency was observed between BD genes and CRG5-FU/L-OHP when ranking genes by either FC or AD (Table 3). For other CRC L-OHP-resistant cell lines (DLD1, HT29, LS513 and Lovo) in the GSE10405 dataset, no significant consistency was observed between BD genes and CRG5-FU/L-OHP (Table 3).

Table 3: The consistency scores of CRG5-FU/L-OHP and the top-ranked 3000 BD genes or ID genes

Dataset

Drug

Cell line

Gene set

Method

Overlapped DEGa

Consistent DEG(%)b

Binominal P-value

E-MEXP-390

5-FU/L-OHP

HCT116

BDtwo

FC

40

45.00

>1.00E-01

AD

45

64.44

3.62E-02

IDtwo-6

FC

11

54.55

>1.00E-01

AD

24

54.17

>1.00E-01

IDtwo-12

FC

18

55.56

>1.00E-01

AD

33

57.58

>1.00E-01

IDtwo-24

FC

10

70.00

1.72E-01

AD

38

84.21

1.22E-05

E-MEXP-390

5-FU

HCT116

BD

FC

74

51.35

>1.00E-01

AD

70

68.57

1.27E-03

ID6

FC

79

55.70

>1.00E-01

AD

71

52.11

>1.00E-01

ID12

FC

85

77.65

1.52E-07

AD

89

74.16

2.85E-06

ID24

FC

79

55.70

>1.00E-01

AD

79

72.15

5.13E-05

E-MEXP-390

L-OHP

HCT116

BD

FC

85

43.53

>1.00E-01

AD

78

57.69

>1.00E-01

ID6

FC

60

50.00

>1.00E-01

AD

70

51.43

>1.00E-01

ID12

FC

92

28.26

>1.00E-01

AD

82

35.37

>1.00E-01

ID24

FC

71

74.65

1.94E-05

AD

71

83.10

6.74E-09

GSE10405

L-OHP

DLD1

BD

FC

20

70.00

>1.00E-01

AD

21

57.14

>1.00E-01

HT29

FC

26

42.31

>1.00E-01

AD

16

43.75

>1.00E-01

LS513

FC

18

55.56

>1.00E-01

AD

21

52.38

>1.00E-01

Lovo

FC

23

43.48

>1.00E-01

AD

15

53.33

>1.00E-01

Abbreviations: ID: inducible difference genes;

aThe number of candidate drug resistance genes overlapped with CRG5-FU/L-OHP;

bThe consistency score of candidate drug resistance genes and CRG5-FU/L-OHP.

Similar results were observed when analyzing the top-ranked 1500 BDtwo and BD genes ranked by FC or AD (Supplementary Table 7). These results suggest that the clinical relevance of BD genes is poor.

Clinical relevance of ID genes

We defined IDtwo genes as the overlap of the top-ranked 3000 ID genes of 5-FU and L-OHP, which had the same deregulation directions in the drug-resistant cell lines treated with 5-FU or L-OHP compared with their corresponding parental cell lines also treated with 5-FU or L-OHP (Supplementary Table 5). The IDtwo genes were further denoted as IDtwo-6, IDtwo-12 and IDtwo-24 for the conditions where cells underwent drug treatment for 6, 12, and 24 hours, respectively. We then evaluated the clinical relevance of these genes. No significant consistency was observed for IDtwo-6 and IDtwo-12 genes when ranking genes either by FC or AD (Table 3). For IDtwo-24 genes, however, the consistency score was as high as 84.21% when ranking genes by AD (binomial test, P-value=1.22E-05). The score was also as high as 70% when ranking genes by FC, although it did not reach significance. Similar results were observed when analyzing the top-ranked 1500 IDtwo genes (Supplementary Table 7).

We further evaluated the clinical relevance of the top-ranked 3000 ID genes of 5-FU. When ranking genes by FC, only ID12 genes were significantly consistent with CRG5-FU/L-OHP, with a corresponding consistency score of 77.65% (binomial test, P-value = 1.52E-07, Table 3). When ranking genes by AD, however, significant consistency was observed for both ID12 and ID24 genes and the corresponding consistency scores were 74.16% (binomial test, P-value = 2.85E-06) and 72.15% (binomial test, P-value = 5.13E-05, Table 3), respectively. Similar results were observed when the CRG5-FU were used as the reference to evaluate the clinical relevance of ID genes for 5-FU (Supplementary Table 6). With regard to L-OHP, no significant consistency was observed for either ID6 or ID12 genes when ranking genes by either FC or AD (Table 3). For ID24 genes, however, the corresponding consistency scores were 74.65% when ranked by FC (binomial test, P-value = 1.94E-05) and 83.10% by AD (binomial test, P-value = 6.74E-09, Table 3). Similar results were observed when analyzing the top-ranked 1500 ID genes (Supplementary Table 7).

Additionally, we applied two-way analysis of variance to identify ID genes. The numbers of ID genes for L-OHP and 5-FU were 269 and 361 (P-value < 5.00E-02), respectively, and they overlapped with only 6 and 3 of CRG5-FU/L-OHP, respectively, due to the limited efficiency of variance estimation [22].

We found that the IDtwo-24 genes, BD genes of 5-FU and ID24 genes of 5-FU detected by the AD method were more significantly consistent with CRG5-FU/L-OHP compared with the FC method (Table 3). With regard to the IDtwo-24 genes, there were 35 genes detected by AD but not FC. The average expression levels of these genes in parental cells treated with 5-FU for 24 hours and 5-FU-resistant cells treated with 5-FU for 24 hours were 1992.72 and 2322.72 (Figure 2A, Supplementary Table 8). The consistency score of these genes with CRG5-FU/L-OHP was 82.86% (binomial test, P-value = 5.84E-05, Supplementary Table 8). By contrast, 7 genes detected by FC but not AD tended to have low expression levels and the corresponding average expression levels were 212.93 and 238.03 (Figure 2A, Supplementary Table 8). The corresponding consistency score was 57.14% (Supplementary Table 8). A similar result was also observed in L-OHP-resistant cells (Figure 2B, Supplementary Table 4). Subsequent analysis of BD genes of 5-FU and ID24 genes of 5-FU revealed similar results (Figure 2C2D, Supplementary Table 8). These results demonstrate that AD is biased toward the identification of genes expressing at higher levels, whereas FC is biased at lower levels. Genes with low expression levels in both cell lines may reach large FCs simply due to measurement variations that create false positives [32].

The distributions of DEGs exclusively detected by FC or AD.

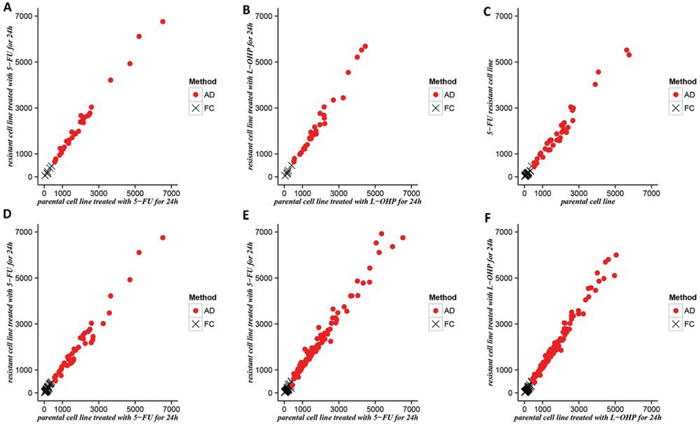

Figure 2: The distributions of DEGs exclusively detected by FC or AD. The average expression levels of DEGs exclusively detected by FC or AD were plotted. A–B. IDtwo-24 genes compared with CRG5-FU/L-OHP in parental cell line treated with 5-FU(or L-OHP) for 24 h and resistant cell line treated with 5-FU(or L-OHP) for 24 h; C. BD genes of 5-FU compared with CRG5-FU/L-OHP in parental cell line and 5-FU resistant cell line; D. ID24 genes of 5-FU compared with CRG5-FU/L-OHP in parental cell line treated with 5-FU for 24 h and resistant cell line treated with 5-FU for 24 h; E–F. IDtwo-24 genes compared with IDclinical genes in parental cell line treated with 5-FU(or L-OHP) for 24 h and resistant cell line treated with 5-FU(or L-OHP) for 24 h;

It is worth noting that IDtwo-24 and ID24 genes of both 5-FU and L-OHP had significant consistency with CRG5-FU/L-OHP while no significant consistency was observed in IDtwo-6 and ID6 genes (Table 2). We combined ID24 genes detected by FC or AD method, which were significantly consistent with CRG5-FU/L-OHP, resulting in 70 genes of 5-FU resistance and 65 genes of L-OHP resistance (Supplementary Table 9). The log2 FC values and AD values of these genes are shown in Figure 3A3D. We found that resistant genes of both 5-FU and L-OHP tended to change abruptly before the 24-hour time point. This result indicates that transient changes in expression levels might be unstable when the drug treatment time is short. It has been reported that many of the genes obtained above correlate with drug resistance, as exemplified in Supplementary Table 10 for the top 20 ID24 genes ranked by AD method for each of the two drugs. TYMS is target of 5-FU and its overexpression can induce 5-FU resistance [33]. UNG can initiate base excision repair and its overexpression may stimulate the development of L-OHP resistance [34]. Up-regulation of PSAT1 stimulates cell growth and increases chemoresistance of colon cancer cells to L-OHP [35]. TTK, MCM2, CLDN7 and TSPAN13 promote tumor cell proliferation and their overexpression could stimulate drug resistance [3639].

The log2 FC values and AD values of 70 genes of 5-FU resistance and 65 genes of L-OHP resistance.

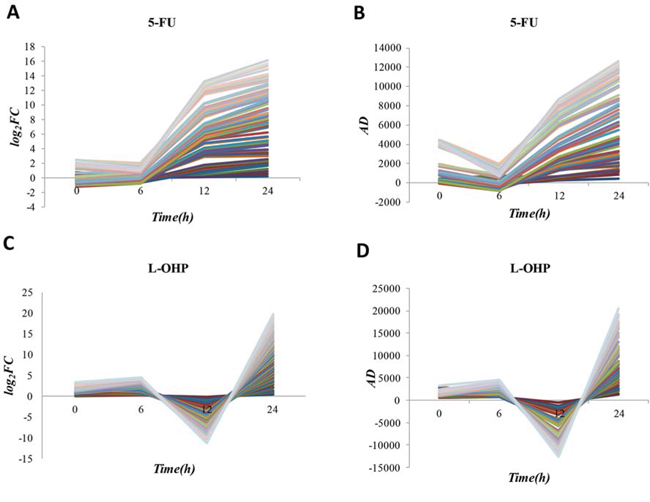

Figure 3: The log2 FC values and AD values of 70 genes of 5-FU resistance and 65 genes of L-OHP resistance. A–B. The log2 FC values and AD values of 70 genes of 5-FU resistance in parental cell line treated with 5-FU for 24 h and resistant cell line treated with 5-FU for 24 h; C–D. The log2 FC values and AD values of 65 genes of L-OHP resistance in parental cell line treated with L-OHP for 24 h and resistant cell line treated with L-OHP for 24h.

Pathway analysis of ID24 genes

Functional enrichment analysis showed that the top 3000 ID24 genes of 5-FU separately ranked by FC and AD were enriched in 6 and 22 pathways, respectively (FDR < 0.1, Supplementary Table 11). With regard to L-OHP, the top 3000 ID24 genes separately ranked by FC and AD were enriched in 14 and 31 pathways, respectively (FDR <0.1, Supplementary Table 11). It has been reported that many of the pathways enriched with ID24 genes could mediate drug resistance of the corresponding drug, as described in the Supplementary Table 11. Genes detected by the AD method but not FC were significantly enriched mostly in more conserved pathways with important biological significance, including glycolysis/gluconeogenesis, citrate cycle (TCA cycle), fatty acid degradation and glutathione metabolism. It has been found that targeting metabolic enzymes in the glycolytic pathway, citric acid cycle and fatty acid synthesis could enhance the efficacy of common therapeutic agents and overcome resistance to chemotherapy [40]. Elevation of glutathione metabolism pathway involved in the deactivation of anticancer agents [41]. Several inhibitors which have been reported to target the corresponding pathways were listed in the Supplementary Table 12.

Identification of ID genes based on post-chemotherapy CRC specimens

We denoted IDclinical genes as DEGs between the post-chemotherapy CRC specimens of responders and non–responders, which are similar to ID genes that represent the difference between two cell types in response to drug treatment. Using the RankProduct method, we detected 1725 IDclinical genes (FDR < 0.1), with the consistency score between IDclinical genes and CRG5-FU/L-OHP (CRG5-FU) as high as 83.85% (88.46%) (binomial test, P-value < 1.11E-16, Supplementary Table 13). Furthermore, the consistency score between IDclinical genes and the top-ranked 3000 IDtwo-24 detected by the AD method was 73.57% (binomial test, P-value < 1.09E-08, Supplementary Table 13). Both IDtwo-24 and ID24 genes were substantially more consistent with IDclinical genes than IDtwo-6, IDtwo-12, ID6, and ID12 (Supplementary Table 13). Similar results were observed when analyzing the top-ranked 1500 ID genes ranked by FC or AD (Supplementary Table 13). In addition, the IDtwo-24 genes detected by the AD method were also more significantly consistent with IDclinical genes compared with the FC method (Supplementary Table 8, Figure 2E2F).

DISCUSSION

Current cancer therapeutics are generally dosed in combination [42, 43]. This makes it difficult to directly study drug resistance mechanisms for any single drug in clinical cohorts. Thus, using cell models would be the only practical choice for identifying resistant signatures for individual drugs [7, 4446] although the clinical relevance of cancer cell models has been continuously questioned [1014]. Our results demonstrated that, rather than BD genes, ID genes which represented the difference between parental and resistant cells in response to drug treatment would be more likely to be involved in drug resistance. Moreover, our analysis supports that samples taken after neoadjuvant chemotherapy can be used to ascertain functional drug resistance signatures [47, 48].

One caveat of our analysis for identifying ID genes is that expression profiles of drug-treated cells were only measured at 6, 12, and 24 hours, which might be insufficient to investigate the characteristics of sustained responses [49, 50]. It would be possible that the difference between two types of cell in sustained response to drug treatment might be more likely relevant with drug resistance. Hence, it is necessary to design experiments with prolonged time of drug treatment and to further characterize the dynamic transcriptome change. Another problem is that many factors such as the choice of a parent cell line, drug dose and treatment interval are associated with the drug resistance level of the drug-induced resistant cell [51]. A reasonable assumption would be that using cell models with higher level of drug resistance might have larger chance to find drug resistance genes, which deserves our future study. The third problem is that the CRGs identified from pre-chemotherapy specimens represent inherent resistance genes, whereas the process of inducing a drug sensitive cell to become a drug resistant cell by drug treatment might mimic the process of acquiring drug resistance for clinical patients during chemotherapy. However, it has been suggested that there might be no obvious boundaries between inherent drug resistance genes and acquired drug resistance genes [52, 53]. In fact, the significant consistency between the ID genes and the corresponding CRGs could be regarded as evidence supporting the notion that the two type genes might be largely consistent [52, 53].

In summary, this pilot study on CRC suggests a novel experimental analysis strategy to extract clinically relevant drug-resistance signatures from drug-induced resistant cell models. It also suggests that tumor tissue samples taken at definitive surgery after chemotherapy could be useful for identifying drug-resistance signatures.

MATERIALS AND METHODS

Data acquisition and processing

The transcriptional profiles of 30 post-chemotherapy CRC specimens were submitted to Gene Expression Omnibus (GEO) under accession number GSE69657. All patients underwent neoadjuvant FOLFOX4 chemotherapy, and there were 13 responders and 17 non-responders according to the Response Evaluation Criteria in Solid Tumors (RECIST) [54]. The detailed experimental protocols were described in a previous study [55]. All other datasets analyzed in this study were downloaded from GEO and ArrayExpress (Table 1). The datasets generated from the Affymetrix microarray platform were pre-processed using the robust microarray average (RMA) algorithm and the other datasets generated from the Illumina and Agilent microarray platform were log2-transformed and quantile normalized. Normalization of GSE10405 was performed with Lowess and Dye Swap Sim Fix Filter methods [56]. Each probe-set ID was mapped to its Entrez gene ID. If multiple probe-sets were mapped to the same gene, the expression value for the gene was defined as the arithmetic mean of the values of the multiple probe-sets.

Reproducibility evaluation of DEGs from independent datasets

For DEGs from two independent datasets, sharing k DEGs, of which s genes had the same deregulation directions (both up-regulated or down-regulated in the two gene lists), the consistency score was calculated as s/k. The probability of observing at least s of k DEGs with the same deregulation directions by chance can be evaluated using the cumulative binomial distribution model as follows:

p=1i=0s1(ki)(pe)i(1pe)ki(1)

where pe is the probability of one gene having the same deregulation directions in two gene lists by random chance (here, pe=0.5).

Selection of clinically relevant drug resistance genes

We have made a strict mathematical derivation to prove that if two different regimens share one or several drugs, then the overlaps of CRGs for the two different regimens should be the CRGs for the shared drug(s) under the assumption that the drugs used in combination had no (or limited) antagonistic effects(Supplementary Methods). The RankProduct method [31], which is resistant to batch effects, was applied to identify DEGs between responders and non–responders. Using 52 samples collected from three independent datasets (Table 1), we selected and evaluated the reproducibility of the CRG5-FU/L-OHP. The GSE52735 dataset including 37 samples was used to select the CRG5-FU. The p-values were adjusted using the Benjamini and Hochberg procedure [57].

Selection of DEGs from cell lines

The non-log-transformed average expression values of gene i in the drug-resistant sample and parental sample were denoted as XiA and XiB, respectively. Then, the FC for each gene i between the two samples was calculated as follows:

FCi=XiAXiB(2)

The AD for each gene i between the two samples was calculated as follows:

ADi=XiAXiB(3)

All genes were sorted in descending order according to FC or AD. If the value of FCi was larger (or smaller) than one, then gene i was defined as up-regulated (or down-regulated) in resistant samples. Similarly, if the value of ADi was larger (or smaller) than zero, gene i was defined as up-regulated (or down-regulated) in resistant samples.

Pathway enrichment analysis

Functional enrichment analysis was performed based on the Kyoto Encyclopedia of Genes and Genomes [58]. The hypergeometric distribution model was used to identify biological pathways that were significantly enriched with DEGs.

CONFLICTS OF INTEREST

No potential conflicts of interest were disclosed.

GRANT SUPPORT

This work was supported by the National Natural Science Foundation of China(Grant Nos. 81572935 and 81372213, 81501215, 81501829).

REFERENCES

1. Hansen SN, Westergaard D, Thomsen MB, Vistesen M, Do KN, Fogh L, Belling KC, Wang J, Yang H, Gupta R, Ditzel HJ, Moreira J, Brunner N, Stenvang J, Schrohl AS. Acquisition of docetaxel resistance in breast cancer cells reveals upregulation of ABCB1 expression as a key mediator of resistance accompanied by discrete upregulation of other specific genes and pathways. Tumour Biol. 2015; 36:4327–38.

2. Shen Y, Pan Y, Xu L, Chen L, Liu L, Chen H, Chen Z, Meng Z. Identifying microRNA-mRNA regulatory network in gemcitabine-resistant cells derived from human pancreatic cancer cells. Tumour Biol. 2015; 36:4525–34.

3. von der Heyde S, Wagner S, Czerny A, Nietert M, Ludewig F, Salinas-Riester G, Arlt D, Beissbarth T. mRNA profiling reveals determinants of trastuzumab efficiency in HER2-positive breast cancer. PLoS One. 2015; 10:e0117818.

4. Chen Z, Zhang L, Xia L, Jin Y, Wu Q, Guo H, Shang X, Dou J, Wu K, Nie Y, Fan D. Genomic analysis of drug resistant gastric cancer cell lines by combining mRNA and microRNA expression profiling. Cancer Lett. 2014; 350:43–51.

5. Nakamura A, Nakajima G, Okuyama R, Kuramochi H, Kondoh Y, Kanemura T, Takechi T, Yamamoto M, Hayashi K. Enhancement of 5-fluorouracil-induced cytotoxicity by leucovorin in 5-fluorouracil-resistant gastric cancer cells with upregulated expression of thymidylate synthase. Gastric Cancer. 2014; 17:188–195.

6. Zhang YW, Zheng Y, Wang JZ, Lu XX, Wang Z, Chen LB, Guan XX, Tong JD. Integrated analysis of DNA methylation and mRNA expression profiling reveals candidate genes associated with cisplatin resistance in non-small cell lung cancer. Epigenetics. 2014; 9:896–909.

7. Zheng Y, Zhou J, Tong Y. Gene signatures of drug resistance predict patient survival in colorectal cancer. Pharmacogenomics J. 2015; 15:135–143.

8. Moutinho C, Martinez-Cardus A, Santos C, Navarro-Perez V, Martinez-Balibrea E, Musulen E, Carmona FJ, Sartore-Bianchi A, Cassingena A, Siena S, Elez E, Tabernero J, Salazar R, Abad A, Esteller M. Epigenetic inactivation of the BRCA1 interactor SRBC and resistance to oxaliplatin in colorectal cancer. J Natl Cancer Inst. 2014; 106:djt322.

9. Stevenson L, Allen WL, Turkington R, Jithesh PV, Proutski I, Stewart G, Lenz HJ, Van Schaeybroeck S, Longley DB, Johnston PG. Identification of galanin and its receptor GalR1 as novel determinants of resistance to chemotherapy and potential biomarkers in colorectal cancer. Clin Cancer Res. 2012; 18:5412–5426.

10. Anderson AC. Possible paths and potential barriers to successfully modeling drug resistance. Future Med Chem. 2013; 5:1181–1183.

11. Gillet JP, Varma S, Gottesman MM. The clinical relevance of cancer cell lines. J Natl Cancer Inst. 2013; 105:452–458.

12. Gillet JP, Calcagno AM, Varma S, Marino M, Green LJ, Vora MI, Patel C, Orina JN, Eliseeva TA, Singal V, Padmanabhan R, Davidson B, Ganapathi R, Sood AK, Rueda BR, Ambudkar SV, et al. Redefining the relevance of established cancer cell lines to the study of mechanisms of clinical anti-cancer drug resistance. Proc Natl Acad Sci U S A. 2011; 108:18708–18713.

13. Borst P, Wessels L. Do predictive signatures really predict response to cancer chemotherapy? Cell Cycle. 2010; 9:4836–4840.

14. Borrell B. How accurate are cancer cell lines?. Nature. 2010; 463:858.

15. Boyer J, Allen WL, McLean EG, Wilson PM, McCulla A, Moore S, Longley DB, Caldas C, Johnston PG. Pharmacogenomic identification of novel determinants of response to chemotherapy in colon cancer. Cancer Res. 2006; 66:2765–2777.

16. Allen WL, Turkington RC, Stevenson L, Carson G, Coyle VM, Hector S, Dunne P, Van Schaeybroeck S, Longley DB, Johnston PG. Pharmacogenomic profiling and pathway analyses identify MAPK-dependent migration as an acute response to SN38 in p53 null and p53-mutant colorectal cancer cells. Mol Cancer Ther. 2012; 11:1724–1734.

17. Allen WL, Coyle VM, Jithesh PV, Proutski I, Stevenson L, Fenning C, Longley DB, Wilson RH, Gordon M, Lenz HJ, Johnston PG. Clinical determinants of response to irinotecan-based therapy derived from cell line models. Clin Cancer Res. 2008; 14:6647–6655.

18. Munkacsy G, Abdul-Ghani R, Mihaly Z, Tegze B, Tchernitsa O, Surowiak P, Schafer R, Gyorffy B. PSMB7 is associated with anthracycline resistance and is a prognostic biomarker in breast cancer. Br J Cancer. 2010; 102:361–368.

19. Li J, Wood WH 3rd, Becker KG, Weeraratna AT, Morin PJ. Gene expression response to cisplatin treatment in drug-sensitive and drug-resistant ovarian cancer cells. Oncogene. 2007; 26:2860–2872.

20. Tusher VG, Tibshirani R, Chu G. Significance analysis of microarrays applied to the ionizing radiation response. Proc Natl Acad Sci U S A. 2001; 98:5116–5121.

21. Feten G, Aastveit AH, Snipen L, Almoy T. A discussion concerning the inclusion of variety effect when analysis of variance is used to detect differentially expressed genes. Gene Regul Syst Bio. 2007; 1:43–47.

22. Jeffery IB, Higgins DG, Culhane AC. Comparison and evaluation of methods for generating differentially expressed gene lists from microarray data. BMC Bioinformatics. 2006; 7:359.

23. Kadota K, Nakai Y, Shimizu K. A weighted average difference method for detecting differentially expressed genes from microarray data. Algorithms Mol Biol. 2008; 3:8.

24. Chen JJ, Tsai CA, Tzeng S, Chen CH. Gene selection with multiple ordering criteria. BMC Bioinformatics. 2007; 8:74.

25. Obenauf AC, Zou Y, Ji AL, Vanharanta S, Shu W, Shi H, Kong X, Bosenberg MC, Wiesner T, Rosen N, Lo RS, Massague J. Therapy-induced tumour secretomes promote resistance and tumour progression. Nature. 2015; 520:368–372.

26. Asangani IA, Dommeti VL, Wang X, Malik R, Cieslik M, Yang R, Escara-Wilke J, Wilder-Romans K, Dhanireddy S, Engelke C, Iyer MK, Jing X, Wu YM, Cao X, Qin ZS, Wang S, et al. Therapeutic targeting of BET bromodomain proteins in castration-resistant prostate cancer. Nature. 2014; 510:278–282.

27. Lin X, Li J, Yin G, Zhao Q, Elias D, Lykkesfeldt AE, Stenvang J, Brunner N, Wang J, Yang H, Bolund L, Ditzel HJ. Integrative analyses of gene expression and DNA methylation profiles in breast cancer cell line models of tamoxifen-resistance indicate a potential role of cells with stem-like properties. Breast Cancer Res. 2013; 15:R119.

28. Leek JT, Scharpf RB, Bravo HC, Simcha D, Langmead B, Johnson WE, Geman D, Baggerly K, Irizarry RA. Tackling the widespread and critical impact of batch effects in high-throughput data. Nat Rev Genet. 2010; 11:733–739.

29. Ao L, Yan H, Zheng T, Wang H, Tong M, Guan Q, Li X, Cai H, Li M, Guo Z. Identification of reproducible drug-resistance-related dysregulated genes in small-scale cancer cell line experiments. Sci Rep. 2015; 5:11895.

30. Schaefer MH, Yang JS, Serrano L, Kiel C. Protein conservation and variation suggest mechanisms of cell type-specific modulation of signaling pathways. PLoS Comput Biol. 2014; 10:e1003659.

31. Breitling R, Armengaud P, Amtmann A, Herzyk P. Rank products: a simple, yet powerful, new method to detect differentially regulated genes in replicated microarray experiments. FEBS Lett. 2004; 573:83–92.

32. Zhang M, Yao C, Guo Z, Zou J, Zhang L, Xiao H, Wang D, Yang D, Gong X, Zhu J, Li Y, Li X. Apparently low reproducibility of true differential expression discoveries in microarray studies. Bioinformatics. 2008; 24:2057–2063.

33. Temraz S, Mukherji D, Alameddine R, Shamseddine A. Methods of overcoming treatment resistance in colorectal cancer. Crit Rev Oncol Hematol. 2014; 89:217–230.

34. Seetharam R, Sood A, Goel S. Oxaliplatin: pre-clinical perspectives on the mechanisms of action, response and resistance. Ecancermedicalscience. 2009; 3:153.

35. Vie N, Copois V, Bascoul-Mollevi C, Denis V, Bec N, Robert B, Fraslon C, Conseiller E, Molina F, Larroque C, Martineau P, Del Rio M, Gongora C. Overexpression of phosphoserine aminotransferase PSAT1 stimulates cell growth and increases chemoresistance of colon cancer cells. Mol Cancer. 2008; 7:14.

36. Kaistha BP, Honstein T, Muller V, Bielak S, Sauer M, Kreider R, Fassan M, Scarpa A, Schmees C, Volkmer H, Gress TM, Buchholz M. Key role of dual specificity kinase TTK in proliferation and survival of pancreatic cancer cells. Br J Cancer. 2014; 111:1780–1787.

37. Niittymaki I, Gylfe A, Laine L, Laakso M, Lehtonen HJ, Kondelin J, Tolvanen J, Nousiainen K, Pouwels J, Jarvinen H, Nuorva K, Mecklin JP, Makinen M, Ristimaki A, Orntoft TF, Hautaniemi S, et al. High frequency of TTK mutations in microsatellite-unstable colorectal cancer and evaluation of their effect on spindle assembly checkpoint. Carcinogenesis. 2011; 32:305–311.

38. Kim CJ, Lee JW, Choi JJ, Choi HY, Park YA, Jeon HK, Sung CO, Song SY, Lee YY, Choi CH, Kim TJ, Lee JH, Kim BG, Bae DS. High claudin-7 expression is associated with a poor response to platinum-based chemotherapy in epithelial ovarian carcinoma. Eur J Cancer. 2011; 47:918–925.

39. Darido C, Buchert M, Pannequin J, Bastide P, Zalzali H, Mantamadiotis T, Bourgaux JF, Garambois V, Jay P, Blache P, Joubert D, Holle F. Defective claudin-7 regulation by Tcf-4 and Sox-9 disrupts the polarity and increases the tumorigenicity of colorectal cancer cells. Cancer Res. 2008; 68:4258–4268.

40. Zhao Y, Butler EB, Tan M. Targeting cellular metabolism to improve cancer therapeutics. Cell Death Dis. 2013; 4:e532.

41. Kibria G, Hatakeyama H, Harashima H. Cancer multidrug resistance: mechanisms involved and strategies for circumvention using a drug delivery system. Arch Pharm Res. 2014; 37:4–15.

42. Al-Lazikani B, Banerji U, Workman P. Combinatorial drug therapy for cancer in the post-genomic era. Nat Biotechnol. 2012; 30:679–692.

43. Chabner BA Roberts TG Jr. Timeline: Chemotherapy and the war on cancer. Nat Rev Cancer. 2005; 5:65–72.

44. Ferriss JS, Kim Y, Duska L, Birrer M, Levine DA, Moskaluk C, Theodorescu D, Lee JK. Multi-gene expression predictors of single drug responses to adjuvant chemotherapy in ovarian carcinoma: predicting platinum resistance. PLoS One. 2012; 7:e30550.

45. Liedtke C, Wang J, Tordai A, Symmans WF, Hortobagyi GN, Kiesel L, Hess K, Baggerly KA, Coombes KR, Pusztai L. Clinical evaluation of chemotherapy response predictors developed from breast cancer cell lines. Breast Cancer Res Treat. 2010; 121:301–309.

46. Lee JK, Havaleshko DM, Cho H, Weinstein JN, Kaldjian EP, Karpovich J, Grimshaw A, Theodorescu D. A strategy for predicting the chemosensitivity of human cancers and its application to drug discovery. Proc Natl Acad Sci U S A. 2007; 104:13086–13091.

47. Basik M, Aguilar-Mahecha A, Rousseau C, Diaz Z, Tejpar S, Spatz A, Greenwood CM, Batist G. Biopsies: next-generation biospecimens for tailoring therapy. Nat Rev Clin Oncol. 2013; 10:437–450.

48. Loi S, Symmans WF, Bartlett JM, Fumagalli D, Van’t Veer L, Forbes JF, Bedard P, Denkert C, Zujewski J, Viale G, Pusztai L, Esserman LJ, Leyl-Jones BR. Proposals for uniform collection of biospecimens from neoadjuvant breast cancer clinical trials: timing and specimen types. Lancet Oncol. 2011; 12:1162–1168.

49. Qu XA, Rajpal DK. Applications of Connectivity Map in drug discovery and development. Drug Discov Today. 2012; 17:1289–1298.

50. Bar-Joseph Z, Gitter A, Simon I. Studying and modelling dynamic biological processes using time-series gene expression data. Nat Rev Genet. 2012; 13:552–564.

51. McDermott M, Eustace AJ, Busschots S, Breen L, Crown J, Clynes M, O’Donovan N, Stordal B. In vitro Development of Chemotherapy and Targeted Therapy Drug-Resistant Cancer Cell Lines: A Practical Guide with Case Studies. Front Oncol. 2014; 4:40.

52. Turner NC, Reis-Filho JS. Genetic heterogeneity and cancer drug resistance. Lancet Oncol. 2012; 13:e178–185.

53. Chapal N, Molina L, Molina F, Laplanche M, Pau B, Petit P. Pharmacoproteomic approach to the study of drug mode of action, toxicity, and resistance: applications in diabetes and cancer. Fundam Clin Pharmacol. 2004; 18:413–422.

54. Therasse P, Arbuck SG, Eisenhauer EA, Wanders J, Kaplan RS, Rubinstein L, Verweij J, Van Glabbeke M, van Oosterom AT, Christian MC, Gwyther SG. New guidelines to evaluate the response to treatment in solid tumors. European Organization for Research and Treatment of Cancer, National Cancer Institute of the United States, National Cancer Institute of Canada. J Natl Cancer Inst. 2000; 92:205–216.

55. Li S, Lu X, Chi P, Pan J. Identification of HOXB8 and KLK11 expression levels as potential biomarkers to predict the effects of FOLFOX4 chemotherapy. Future Oncol. 2013; 9:727–736.

56. Martinez-Cardus A, Martinez-Balibrea E, Bandres E, Malumbres R, Gines A, Manzano JL, Taron M, Garcia-Foncillas J, Abad A. Pharmacogenomic approach for the identification of novel determinants of acquired resistance to oxaliplatin in colorectal cancer. Mol Cancer Ther. 2009; 8:194–202.

57. Benjamini Y, Drai D, Elmer G, Kafkafi N, Golani I. Controlling the false discovery rate in behavior genetics research. Behav Brain Res. 2001; 125:279–284.

58. Kanehisa M, Goto S, Sato Y, Furumichi M, Tanabe M. KEGG for integration and interpretation of large-scale molecular data sets. Nucleic Acids Res. 2012; 40:D109–114.


Creative Commons License All site content, except where otherwise noted, is licensed under a Creative Commons Attribution 3.0 License.
PII: 5649
