Research Papers: Gerotarget (Focus on Aging):
APOE-by-sex interactions on brain structure and metabolism in healthy elderly controls
Metrics: PDF 1429 views | HTML 1962 views | ?
Frederic Sampedro1,2,3,*, Eduard Vilaplana1,2,*, Mony J de Leon4, Daniel Alcolea1,2, Jordi Pegueroles1,2, Victor Montal1,2, María Carmona-Iragui1,2, Isabel Sala1,2, María-Belén Sánchez-Saudinos1,2, Sofía Antón-Aguirre1,2, Estrella Morenas-Rodríguez1,2, Valle Camacho3, Carles Falcón5,7, Javier Pavía6,7, Domènec Ros5,7, Jordi Clarimón1,2, Rafael Blesa1,2, Alberto Lleó1,2, Juan Fortea1,2 for the Alzheimer’s Disease Neuroimaging Initiative**
1Memory Unit, Department of Neurology, Hospital de la Santa Creu i Sant Pau- Biomedical Research Institute Sant Pau- Universitat Autònoma de Barcelona, Barcelona, Spain
2Centro de Investigación Biomédica en Red de Enfermedades Neurodegenerativas. CIBERNED, Madrid, Spain
3Nuclear Medicine Department, Hospital de la Santa Creu i Sant Pau- Biomedical Research Institute Sant Pau- Universitat Autònoma de Barcelona, Barcelona, Spain
4New York University School of Medicine, New York, NY, USA
5Unitat de Biofísica i Bioenginyeria, Departament de Ciències Fisiològiques I, Facultat de Medicina, Universitat de Barcelona – IDIBAPS, Barcelona, Spain
6Nuclear Medicine Department. Hospital Clínic de Barcelona, Barcelona, Spain
7Biomedical Research Networking Center in Bioengineering, Biomaterials and Nanomedicine - CIBER-BBN, Barcelona, Spain
*These authors have contributed equally to this work
**Data used in preparation of this article were obtained from the Alzheimer’s Disease Neuroimaging Initiative (ADNI) database (adni.loni.usc.edu). As such, the investigators within the ADNI contributed to the design and implementation of ADNI and/or provided data but did not participate in analysis or writing of this report. A complete listing of ADNI investigators can be found at: http://adni.loni.usc.edu/wp-content/uploads/how_to_apply/ADNI_Acknowledgement_List.pdf.
Juan Fortea, e-mail: firstname.lastname@example.org
Keywords: Gerotarget, Alzheimer’s disease, aging, APOE, MRI, PET-FDG
Received: June 29, 2015 Accepted: August 28, 2015 Published: September 10, 2015
Background: The APOE effect on Alzheimer Disease (AD) risk is stronger in women than in men but its mechanisms have not been established. We assessed the APOE-by-sex interaction on core CSF biomarkers, brain metabolism and structure in healthy elderly control individuals (HC).
Methods: Cross-sectional study. HC from the Alzheimer’s Disease Neuroimaging Initiative with available CSF (n = 274) and/or 3T-MRI (n = 168) and/or a FDG-PET analyses (n = 328) were selected. CSF amyloid-β1–42 (Aβ1–42), total-tau (t-tau) and phospho-tau (p-tau181p) levels were measured by Luminex assays. We analyzed the APOE-by-sex interaction on the CSF biomarkers in an analysis of covariance (ANCOVA). FDG uptake was analyzed by SPM8 and cortical thickness (CTh) was measured by FreeSurfer. FDG and CTh difference maps were derived from interaction and group analyses.
Results: APOE4 carriers had lower CSF Aβ1–42 and higher CSF p-tau181p values than non-carriers, but there was no APOE-by-sex interaction on CSF biomarkers. The APOE-by-sex interaction on brain metabolism and brain structure was significant. Sex stratification showed that female APOE4 carriers presented widespread brain hypometabolism and cortical thinning compared to female non-carriers whereas male APOE4 carriers showed only a small cluster of hypometabolism and regions of cortical thickening compared to male non-carriers.
Conclusions: The impact of APOE4 on brain metabolism and structure is modified by sex. Female APOE4 carriers show greater hypometabolism and atrophy than male carriers. This APOE-by-sex interaction should be considered in clinical trials in preclinical AD where APOE4 status is a selection criterion.
The apolipoprotein E (APOE) genotype is the strongest genetic risk factor for Alzheimer’s disease (AD) . It has three isoforms, ε2, ε3 and ε4. The APOE ε4 allele (APOE4) increases the risk for AD . The effect of the APOE4 allele on AD biomarkers in healthy controls (HC) has been widely studied , . APOE4 carriers have consistently lower cerebrospinal fluid (CSF) β-amyloid 1–42 (Aβ1–42) levels than non-carriers, but the differences in tau levels are more controversial –. Most, – but not all [18F]-fluorodeoxyglucose (FDG) PET studies – have shown hypometabolism in AD-related regions in APOE4 carriers in late-middle age  and even earlier . A gene-dosage effect on the hypometabolism has also been reported . The relationship between the APOE genotype and brain structure is more controversial. Many cross-sectional studies have reported cortical thinning or hippocampal atrophy, , ,  while several others have found no relationship  and two have reported increased gray matter in relation to the APOE4 allele , .
Several factors might account for the conflicting results. First, the age-range differences between studies are critical because distinct effects of APOE across the lifespan have been described . Not all brain changes associated with the APOE genotype reflect incipient AD. APOE has been implicated in normal human brain development . Second, there are amyloid dependent  and independent  mechanisms underlying the APOE influences on AD risk. However, most studies assessing the role of APOE on brain structure and metabolism do not assess AD pathophysiological biomarkers to disentangle these mechanisms. Third, APOE4 is likely to interact with other pathological factors, complicating the isolation of a unique genetic effect . And fourth, some of the inconsistent imaging and biochemical findings related to APOE in HC might result from neglecting a possible APOE-by-sex interaction . Most studies to date have included sex as a covariate in the analyses but they did not explicitly test for an APOE-by-sex interaction.
The finding that the APOE effect on AD risk is stronger in women than in men was reported in early studies, ,  confirmed in meta-analyses, ,  and in a recent longitudinal study . However, only two studies have assessed APOE-by-sex interactions on AD biomarkers. Altmann et al found a significant interaction for tau in mild cognitive impairment patients . Damoiseaux et al reported a significant APOE-by-sex interaction for CSF tau levels and default mode network abnormalities in healthy controls .
The interaction between APOE4 and sex on brain structure and metabolism has not been established. This interaction could affect the design and interpretation of prevention trials in preclinical AD in which APOE is a selection criterion (i.e. the Alzheimer’s Prevention Initiative APOE4 Trial, NIH project number 1UF1AG046150-01). The aim of the present study was to examine the interactions between APOE4 and sex on brain metabolism and structure, based on the hypothesis that the APOE4 allele exerts a differential adverse effect on brain metabolism and structure depending on sex.
Demographic and clinical of the participants in the CSF, FDG and MRI subsets are summarized separately in the Table 1. CSF was available in 274 HC individuals, 328 had an FDG PET, 225 had a 3T MRI, and 137 subjects had all three biomarkers. There were no significant differences between the MRI, PET and CSF subsets in age, sex, APOE status, MMSE or CSF biomarkers. There were no significant differences in age, APOE status, MMSE or CSF biomarkers between males and females in all three subsets. In the FDG and CSF subsets, males had higher years of education than females (p < 0.001), but in the MRI subset this difference did not reach significance.
Table 1: Demographic, cerebrospinal fluid and clinical data in the CSF, FDG-PET and MRI Alzheimer’s Disease Neuroimage Initiative subsets.
MRI (N = 168)
FDG-PET (N = 328)
CSF (N = 274)
APOE4 N (%)
SEX (% Females)
YEARS OF EDUCATION
APOE4+ = apolipoprotein E ε4 allele carrier, APOE− = apolipoprotein E ε4 allele non-carrier
Values are expressed as mean (standard deviation) unless specified.
*equals p < 0.001 and
**equals p < 0.05 for the APOE4 carriers vs non-carriers comparison within each subset. Note that 137 subjects were included in the three subsets.
***CSF data only available in 146 subjects in the MRI subset and 242 subjects in the PET subset.
APOE4 carriers had lower CSF Aβ1–42 values than non-carriers in all three subsets (p < 0.001). APOE4 carriers had higher CSF p-tau181p values in the three subsets, but these only reached significance in the FDG and CSF subset which had larger sample sizes (p < 0.001 and p = 0.004 respectively). APOE4 carriers had higher CSF t-tau values in the three subsets, but these only reached significance in the CSF subset (p < 0.05). There were no significant differences in MMSE scores or education between APOE4 carriers compared to non-carriers in any of the subsets. There were no significant differences between males and females in CSF biomarkers. Neither was there an APOE-by-sex interaction on CSF Aβ1–42, CSF t-tau or CSF p-tau181pvalues in the analysis of covariance (ANCOVA) analyses.
APOE-by-sex interaction on brain metabolism
Fig. 1A presents this FDG voxel-wise interaction analysis across the cerebral hemispheres, showing voxels with an APOE-by-sex interaction, covaried by age and years of education (p < 0.005, k = 50). Two clusters emerged, one located mainly in the anterior cingulate region and the other in the temporal region. To analyze the directionality, we isolated the temporal cluster, averaged the FDG uptake, and plotted it in box and whisker plots (Fig. 1B). As shown, this interaction was driven by the decreased metabolism in female APOE4 carriers and the increased metabolism in male APOE4 carriers. The main and interactive effects of APOE4 status and sex on brain metabolism in the ANCOVA analysis were significant in the model (interaction term between APOE4 status and sex: β-coefficient = 0.069, standard error [SE] = 0.021, p = 0.001; main effect of APOE4 status: β-coefficient = –0.037, SE = 0.016, p = 0.019; main effect of sex: β-coefficient = −0.041, SE = 0.018, p = 0.026). Similar results were found for the anterior cingulate cluster (not shown).

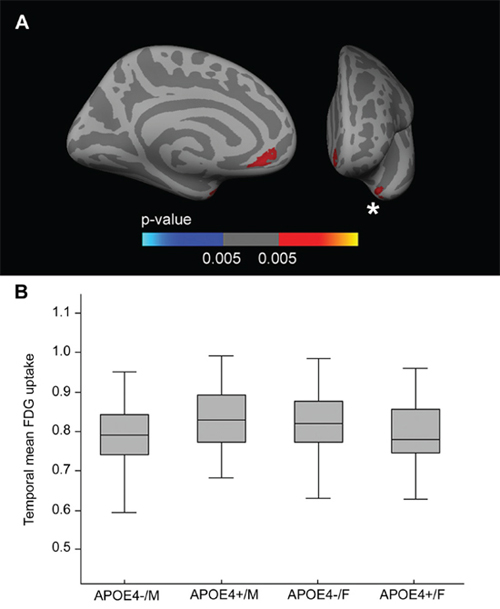

Figure 1: FDG APOE-by-sex interaction analysis. A. Areas in which there is a FDG-uptake interaction between sex and the APOE4 status (p < 0.005 uncorrected) co-varied for age and years of education displayed across the medial and frontal views of the cerebral cortex. B. Box and whisker plot illustrating individual FDG-uptake values in the temporal cluster. For each plot, the central black lines show the median value, the regions above and below the black line show the upper and lower quartiles, respectively, and the whiskers extend to the minimum and maximum values. As illustrated, the female APOE4 carriers showed decreased metabolism in the temporal cortex with respect to female non-carriers. FDG = fluorodeoxyglucose; APOE = apolipoprotein E, APOE4+ = apolipoprotein E ε4 allele carriers, APOE4− = apolipoprotein E ε4 allele non-carriers.
Fig. 2 shows the sex stratified APOE4 group analyses for FDG, covaried by age and years of education. Female APOE4 carriers showed widespread clusters of decreased metabolism (p < 0.005) across the whole cerebral cortex in both hemispheres with respect to APOE4 non-carriers (Fig. 2A). Male APOE4 carriers showed an isolated cluster of decreased metabolism (p < 0.005) in the precuneus with respect to non-carriers (Fig. 2B).

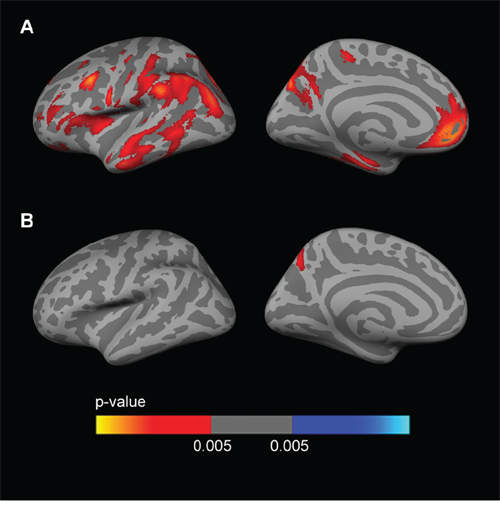

Figure 2: Sex-stratified FDG analyses. Analysis between APOE4 carriers and APOE4 non-carriers (p < 0.005 uncorrected) in A. females and B. males, co-varied for age and years of education across the lateral and medial views of the cerebral cortex. As shown, female APOE4 carriers showed widespread clusters of decreased metabolism with respect to female APOE4 non-carriers (Fig. 2A), whereas male APOE4 carriers only showed an isolated cluster of decreased metabolism (p < 0.005) in the precuneus with respect to male non-carriers (Fig. 2B). FDG = fluorodeoxyglucose; APOE4 = apolipoprotein E ε4 allele.
To examine the impact of CSF biomarkers in the APOE-by-sex interaction on brain metabolism, we included CSF Aβ1–42 and CSF p-tau181p as covariates in the analyses. The inclusion of the CSF biomarkers did not significantly alter the results of the APOE-by-sex interaction analysis (not shown) nor the female APOE4 carriers vs non-carriers comparison (Fig. 3A1–3A3). In the male APOE4 carriers vs non-carriers comparison two clusters of increased metabolism emerged in APOE4 carriers with respect to male non-carriers in prefrontal regions and a cluster in the medial temporal region when CSF Aβ1–42 levels or both Aβ1–42 and CSF p-tau181p levels (but not CSF p-tau181p levels alone, Fig. 3B2) were included as a covariate (Fig. 3B1 and 3B3).

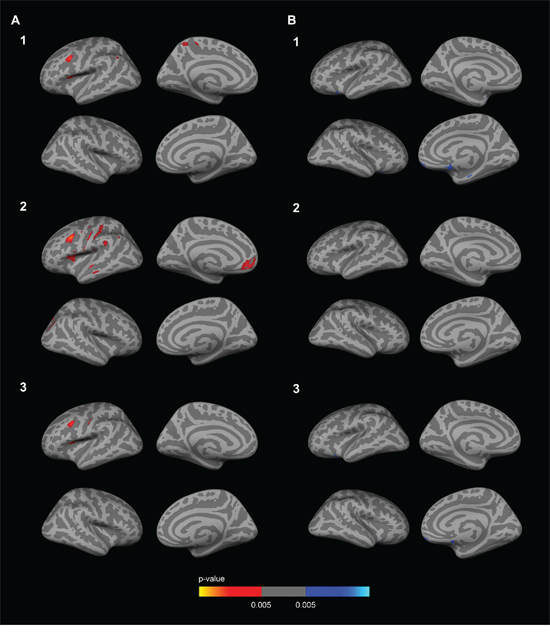

Figure 3: Sex-stratified FDG analyses with CSF biomarker levels included as a covariate. Row 1. CSF Aβ1–42 levels; Row 2. CSF p-tau181p levels; Row 3 CSF Aβ1–42 and p-tau181p levels. The analysis between female APOE4 carriers and female APOE4 non-carriers A1-A3. showed several clusters of decreased metabolism (p < 0.005 uncorrected) co-varied for age. As illustrated, female APOE4 carriers showed decreased metabolism in the anterior cingulate cortex with respect to female non-carriers after the inclusion of the CSF biomarkers as a covariate. The analysis between male APOE4 carriers and male APOE4 non-carriers B1-B3. showed several clusters of increased metabolism (p < 0.005 uncorrected) co-varied for age. As illustrated, male APOE4 carriers showed increased metabolism in several clusters in the dorsolateral prefrontal cortex with respect to male APOE4 non-carriers after the inclusion of CSF Aβ1–42 levels or both CSF Aβ1–42 and CSF p-tau181p as a covariate (B1 and B3), but not after the inclusion of the CSF p-tau181p levels alone (B2). FDG = fluorodeoxyglucose; APOE = apolipoprotein E, APOE4: apolipoprotein E ε4 allele
APOE-by-sex interaction on brain structure
Fig. 4A presents the vertex-wise interaction analysis across the whole cortical mantle, covaried by age and years of education, showing voxels with an APOE-by-sex interaction. Two large clusters (Family-wise error corrected [FWE] p < 0.05) emerged, one in the dorsolateral frontal region and one in the temporoparietal region. To analyze the directionality, we then isolated the temporoparietal cluster, averaged the cortical thickness (CTh), and plotted it in a box and whisker plot (Fig. 4B). As shown, this interaction was mainly driven by the increased CTh in male APOE4 carriers. The main effects and the interactive effects of APOE4 status and sex in the ANCOVA analysis were significant in the model (interaction term between APOE4 status and sex: β-coefficient = −0.228, SE = 0.045, p < 0.001; main effect of sex: β-coefficient = 0.149, SE = 0.039, p < 0.001; main effect of APOE4 status: β-coefficient = 0.062, SE = 0.030, p = 0.041). Similar results were found for the remaining cluster (not shown).

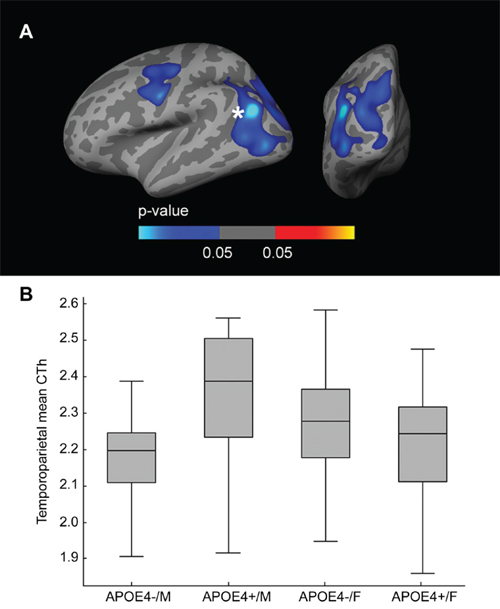

Figure 4: CTh APOE-by-Sex interaction analysis. A. Family-wise corrected (p < 0.05) clusters with an interaction between sex and the dichotomized APOE4 genotype co-varied for age and years of education displayed across the lateral and posterior views of the cerebral cortex. B. Box and whisker plot illustrating individual CTh values in the temporo-parietal and occipital cluster. For each plot, the central black lines show the median value, regions above and below the black line show the upper and lower quartiles, respectively, and the whiskers extend to the minimum and maximum values. As illustrated, male APOE4 carriers showed increased CTh in the temporo-parietal and occipital cluster. CTh = cortical thickness; APOE = apolipoprotein E, APOE4+ = apolipoprotein E ε4 allele carriers, APOE4− = apolipoprotein E ε4 allele non-carriers.
Fig. 5 shows the sex-stratified APOE4 CTh analyses, covaried by age and years of education. Male APOE4 carriers showed 3 large clusters (FWE corrected) of increased CTh with respect to non-carriers. Two of the clusters were observed in the left hemisphere, one in the dorsolateral frontal region and another in the temporoparietal, occipital and precuneus regions. The third cluster was observed in the right hemisphere in the parietal and occipital regions. Female APOE4 carriers showed cortical thinning in several regions than female APOE4 non-carriers (not shown as this analysis did not survive FWE correction).

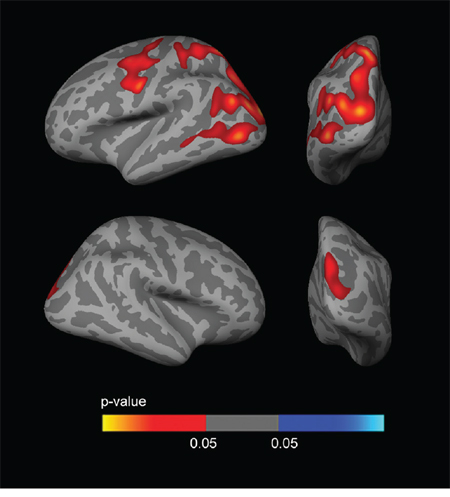

Figure 5: Sex-stratified CTh analyses. Analysis between male APOE4 carriers and male APOE4 non-carriers, co-varied for age and years of education. As shown, male APOE4 carriers presented large clusters of increased CTh (FWE p < 0.05) in temporo-parieto-occipital regions, mainly in the left hemisphere. The analysis between female APOE4 carriers and female APOE4 non-carriers showed clusters of decreased CTh which did not survive FWE correction (not shown). CTh = cortical thickness; APOE = apolipoprotein E; FWE = family-wise error corrected (p < 0.05).
To examine the influence of CSF biomarkers on the APOE-by-sex interaction on brain structure, we included CSF Aβ1–42 and CSF p-tau181p as covariates in the analyses. The vertex-wise APOE-by-sex interaction analysis across the whole cortical mantle showed a reduction in the significance maps when including CSF biomarkers as covariates, especially Aβ1–42 (Fig. 6). In the sex-stratified APOE4 CTh analyses, the clusters of increased CTh in male APOE4 carriers disappeared when CSF Aβ1–42 levels (but not CSF p-tau181p levels) were included as a covariate (Fig. 7). No result survived FWE correction in females.

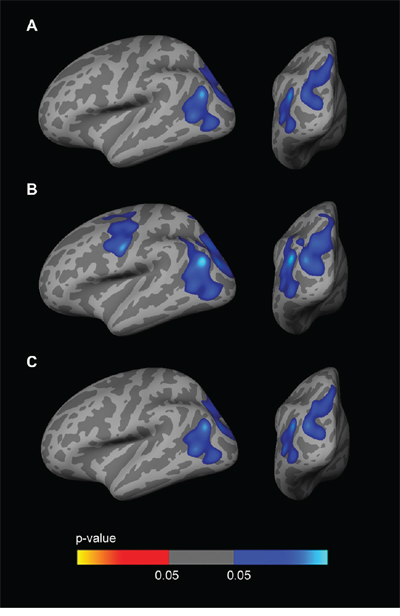

Figure 6: CTh APOE-by-Sex interaction analysis with CSF biomarker levels included as covariates. Family-wise corrected (p < 0.05) clusters with an interaction between sex and the dichotomized APOE4 genotype co-varied for age and: A. CSF Aβ1–42 levels; B. CSF p-tau181p levels; C. CSF Aβ1–42 and p-tau181p levels. As illustrated, the inclusion of CSF Aβ1–42 levels as a covariate significantly diminished the clusters showing a CTh APOE-by-sex interaction. CTh = cortical thickness; APOE = apolipoprotein E.

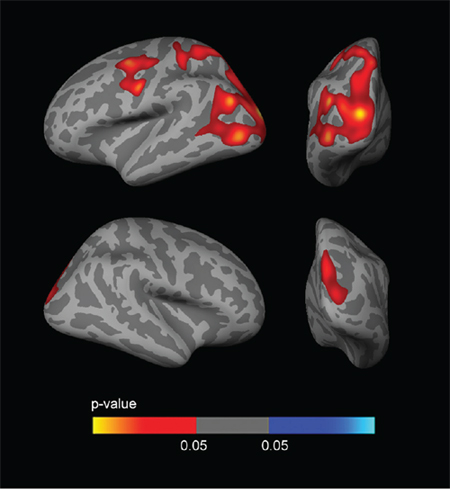

Figure 7: Sex stratified CTh analyses with CSF biomarker levels included as a covariate. The analysis between male APOE4 carriers and male APOE4 non-carriers showed several clusters of increased CTh (p < 0.005 uncorrected) co-varied for age and CSF p-tau181p levels. There were no significant clusters of increased CTh male APOE4 carriers vs male APOE4 non-carriers after the inclusion of CSF Aβ1–42 levels as a covariate. CTh = cortical thickness; APOE = apolipoprotein E.
All analyses were repeated excluding APOE ε2 allele carriers and including CSF t-tau as a covariate. We also restricted the analyses to non-hispanic white subjects (not shown). The results were not significantly altered in any case.
This study shows for the first time that the impact of the APOE4 genotype on brain structure and metabolism is modified by sex. We found a significant APOE-by-sex interaction on brain metabolism and structure. Female APOE4 carriers showed brain hypometabolism and cortical thinning with respect to female non-carriers whereas male APOE4 carriers showed only a small cluster of hypometabolism and cortical thickening with respect to male non-carriers. CSF core AD biomarkers had an influence on brain structural results (and to a lesser extent on brain metabolism).
Epidemiologically, there is strong evidence that supports the APOE-by-sex interaction , , . The only study assessing the APOE-by-sex interactions on MRI demonstrated the interaction on resting state functional connectivity but not on gray matter volume . Our results expand these findings. We show an APOE-by-sex interaction on both brain structure and metabolism. The discrepancy on brain structure could be due to the differences in the subject population or technical differences (CTh analyses vs voxel-based morphometry ). Our FDG results are congruent with those of the aforementioned resting state functional connectivity analyses. APOE appears to affect brain network activity which is closely related to neuroenergetic functions .
Our metabolic findings suggest that women are metabolically more susceptible to the APOE4 genotype. Neglecting a possible APOE-by-sex interaction on brain metabolism could be one of the reasons for the discordant FDG results –. Male APOE4 carriers showed increased CTh and females decreased CTh. The finding of cortical thickening in AD vulnerable areas in middle aged (48–75 years old) APOE4 carriers with respect to non-carriers has already been described , , but it is in contrast with other works assessing older cohorts , , , .
The discrepancies on brain structure might be conciliated if we consider a 2-phase phenomenon model in preclinical AD . In this framework, pathological cortical thickening associated with low CSF Aβ1–42 would be followed by atrophy once CSF p-tau181p becomes abnormal . Accordingly, our study shows that the clusters of increased CTh in male APOE4 carriers disappear when we included CSF Aβ1–42 as a covariate. The hypometabolism in female APOE4 carriers did not disappear when CSF Aβ1–42 levels were included as a covariate. The APOE4 genotype might therefore exert its effects on brain glucose metabolism—at least in part—independently of amyloidogenic pathways . Of note, the inclusion of CSF Aβ1–42 levels as a covariate prompted the emergence of several areas of increased metabolism in male APOE4 carriers. Increased brain metabolism in relation to brain amyloidosis has been previously described .
Altogether, our findings support that the mechanisms underlying the increased AD risk in female APOE4 carriers might occur downstream of Aβ pathology . The APOE4 effect on lowering CSF Aβ1–42 levels is marked in both men and women (with no sex differences) and was also found in our work , . The impact of an APOE-by-sex interaction on CSF has only been assessed twice and, as in the present work, always with data from the ADNI study. The absence of an APOE-by-sex interaction on CSF Aβ1–42 levels is in agreement with the two previous works , . The impact on CSF p-tau181p levels is less clear. We did not find an APOE-by-sex interaction on CSF p-tau181p levels. Such an interaction was reported initially  in HC but was not confirmed in the later work with a larger sample size . Nonetheless, this last work did find the interaction for CSF p-tau181p levels in mild cognitive impairment patients. Women, moreover, would be more susceptible and would present more abnormal neuronal injury biomarkers  and faster clinical decline . Accordingly, female APOE4 carriers showed hypometabolism and cortical thinning with respect to non-carriers, suggesting that female APOE4 carriers might be more advanced in the aforementioned 2-phase phenomenon model in preclinical AD .
The mechanisms by which the APOE allele modifies the risk for AD have been extensively studied but are not completely understood. Both β-amyloid-dependent  and β-amyloid-independent  mechanisms have been described. APOE appears to affect brain network activity and neuroenergetic functions  and to increase microglia reactivity at Aβ plaques in mouse models , . These metabolic and inflammatory responses in relation to the APOE genotype might differ in males and females, accounting for the differences found.
This work has potential clinical implications. Clinical trials in preclinical AD in which APOE4 status is a selection criterion are underway (Alzheimer’s Prevention Initiative APOE4 Trial, NIH project number 1UF1AG046150-01). Our results emphasize the importance of sex stratification when considering the AD risk and its impact on AD topographical biomarkers  conferred by the APOE genotype. More broadly, the present work stresses the need to consider interactions between biomarkers and risk factors in the AD preclinical phase .
The strengths of this study are the inclusion of a relatively high number of subjects and the fact that the results were found in two different topographical AD biomarkers,  with congruent findings between the two. The study has some limitations. It is cross-sectional and the age-range sampled does not include young HC to assess the age-range in which amyloid is starting to deposit in the brain of APOE4 carriers .
In conclusion, the impact of APOE4 on brain structure and metabolism is modified by sex in HC. This interaction should be considered in current clinical trials in preclinical AD in which APOE4 status is a selection criterion.
MATERIALS AND METHODS
Study participants and clinical classification
Data used in the preparation of this article were obtained from the Alzheimer’s Disease Neuroimaging Initiative (ADNI) database (http://adni.loni.usc.edu). The ADNI was launched in 2003 by the National Institute on Aging (NIA), the National Institute of Biomedical Imaging and Bioengineering (NIBIB), the Food and Drug Administration (FDA), private pharmaceutical companies and non-profit organizations, as a $60 million, 5-year public-private partnership. The primary goal of ADNI has been to test whether serial magnetic resonance imaging (MRI), positron emission tomography (PET), other biological markers, and clinical and neuropsychological assessment can be combined to measure the progression of mild cognitive impairment (MCI) and early AD. Determination of sensitive and specific markers of very early AD progression is intended to aid researchers and clinicians to develop new treatments and monitor their effectiveness, as well as lessen the time and cost of clinical trials.
The Principal Investigator of this initiative is Michael W. Weiner, MD, VA Medical Center and University of California – San Francisco. ADNI is the result of efforts of many co-investigators from a broad range of academic institutions and private corporations, and subjects have been recruited from over 50 sites across the U.S. and Canada. The initial goal of ADNI was to recruit 800 subjects but ADNI has been followed by ADNI-GO and ADNI-2. To date these three protocols have recruited over 1500 adults, ages 55 to 90, to participate in the research, consisting of cognitively normal older individuals (HC), people with early or late MCI, and people with early AD. The follow up duration of each group is specified in the protocols for ADNI-1, ADNI-2 and ADNI-GO. Subjects originally recruited for ADNI-1 and ADNI-GO had the option to be followed in ADNI-2. For up-to-date information, see http://www.adni-info.org.
We included all HC with available CSF and/or a 3T-MRI and/or an FDG PET.
Methods for CSF acquisition and biomarker measurement using the ADNI cohort have been reported previously . Aβ1–42, total tau (t-tau) and phospho-tau (p-tau181p) levels were measured using the multiplex xMAP Luminex platform (Luminex) with Innogenetics (INNO-BIA AlzBio3) immunoassay kit–based reagents.
MRI and FDG-PET imaging procedures
ADNI acquisition procedure
The details of MRI and FDG-PET acquisition are available elsewhere (http://www.adni-info.org).
FDG-PET processing procedure
FDG-PET images were downloaded in the most processed format. They were intensity-scaled by the reference pons-vermis region , spatially normalized using SPM8 [http://www.fil.ion.ucl.ac.uk/spm/] to the Montreal Neurological Institute (MNI) PET template and spatially smoothed with a Gaussian kernel of full width at half-maximum (FWHM) of 8 mm. All resulting images were visually inspected to check for possible registration errors. Voxel-wise results were displayed at p < 0.005 (uncorrected) using an extent threshold k = 50, and projected on an inflated single-subject cortical surface reconstruction.
Cortical thickness processing procedure
Cortical reconstruction of the structural images was performed with the FreeSurfer software package, version 5.1 (http://surfer.nmr.mgh.harvard.edu). The procedures have been fully described elsewhere . Estimated surfaces were inspected to detect errors in the automatic segmentation procedure. Fifty-seven of the 225 N3 processed MRI analyzed were excluded because of segmentation errors and 168 were included in the analyses. A Gaussian kernel of 15 mm full-width at half maximum was applied. To avoid false positives, we tested Monte Carlo simulation with 10,000 repeats in Qdec (family-wise error [FWE], p < 0.05). Only regions that survived FWE are presented in the figures.
Group analyses were made using SPSS (SPSS Inc, Chicago, IL). Comparisons between groups were performed using the two-tailed Student t test for continuous variables and a chi-square test for categorical variables.
The main objective of our work was to study the APOE-by-sex interaction on brain metabolism and brain structure. Two approaches were used: interaction and sex-stratified analyses. We carried out an ANCOVA as implemented in SPM and FreeSurfer for the PET and MRI analyses, respectively, using the APOE genotype (APOE4 carrier vs APOE4 non-carrier) and sex as binary categorical independent variables, and age and years of education as variables of no interest to assess the interaction.
To examine the impact of CSF biomarkers on the FDG PET and CTh analyses, we introduced CSF biomarkers as covariates in the analyses. All analyses were repeated excluding APOE2 carriers and restricting to only non-hispanic white subjects.
Clusters derived from the interaction analyses in FDG or CTh were isolated to analyze the directionality of the interactive effects for each variable within an ANCOVA model, using age as a covariate. Specifically, we used the following model for FDG-PET and MRI:
Mean cluster FDG uptake (or mean cluster CTh) = â0 + â1*SEX + â2*APOE + â3*[SEX*APOE] + age
The same ANCOVA approach was used for the CSF analyses to test for an interactive effect of APOE genotype and sex in CSF biomarker levels.
We thank Carolyn Newey for editorial assistance.
This work was supported by research grants from the Carlos III Institute of Health, Spain (grants PI11/02425 and PI14/01126 to Juan Fortea, grants PI10/1878 and PI13/01532 to Rafael Blesa and PI11/03035 to Alberto Lleó) and the CIBERNED program (Program 1, Alzheimer Disease to Alberto Lleó), partly funded by FEDER funds of the EU. This work has also been supported by a “Marató TV3” grant (531/U/2014 to Juan Fortea). The work of Frederic Sampedro is supported by the Spanish government FPU (Formación del Profesorado Universitario) doctoral grant (Grant No. AP2012-0400). This work was also supported by NIH-NIA grants to M.J. de Leon, AG022374, AG13616, and AG12101.
Data collection and sharing for this project was funded by the Alzheimer’s Disease Neuroimaging Initiative (ADNI) (National Institutes of Health Grant U01 AG024904) and DOD ADNI (Department of Defense award number W81XWH-12-2-0012). ADNI is funded by the National Institute on Aging, the National Institute of Biomedical Imaging and Bioengineering, and through generous contributions from the following: Alzheimer’s Association; Alzheimer’s Drug Discovery Foundation; BioClinica, Inc.; Biogen Idec Inc.; Bristol-Myers Squibb Company; Eisai Inc.; Elan Pharmaceuticals, Inc.; Eli Lilly and Company; F. Hoffmann-La Roche Ltd and its affiliated company Genentech, Inc.; GE Healthcare; Innogenetics, N.V.; IXICO Ltd.; Janssen Alzheimer Immunotherapy Research & Development, LLC.; Johnson & Johnson Pharmaceutical Research & Development LLC.; Medpace, Inc.; Merck & Co., Inc.; Meso Scale Diagnostics, LLC.; NeuroRx Research; Novartis Pharmaceuticals Corporation; Pfizer Inc.; Piramal Imaging; Servier; Synarc Inc.; andTakeda Pharmaceutical Company. The Canadian Institutes of Health Research is providing funds tosupport ADNI clinical sites in Canada. Private sector contributions are facilitated by the Foundation for the National Institutes of Health (http://www.fnih.org). The grantee organization is the Northern California Institute for Research and Education, and the study is coordinated by the Alzheimer’s Disease Cooperative Study at the University of California, San Diego. ADNI data are disseminated by the Laboratory for Neuro Imaging at the University of Southern California.
CONFLICTS OF INTEREST
All authors report no biomedical financial interests or potential conflicts of interest related to this work.
