Research Papers:

Enhancement of tumor initiation and expression of KCNMA1, MORF4L2 and ASPM genes in the adenocarcinoma of lung xenograft after vorinostat treatment

PDF |  HTML  |  Supplementary Files  |  How to cite

Oncotarget. 2015; 6:8663-8675. https://doi.org/10.18632/oncotarget.3536

Metrics: PDF 2940 views  |   HTML 3040 views  |   ?

Wei-Ying Kuo _, Chun-Yi Wu, Luen Hwu, Jhih-Shian Lee, Cheng-Han Tsai, Kang-Ping Lin, Hsin-Ell Wang, Teh-Ying Chou, Chun-Ming Tsai, Juri Gelovani and Ren-Shyan Liu


Wei-Ying Kuo1,*, Chun-Yi Wu2,*, Luen Hwu3, Jhih-Shian Lee1, Cheng-Han Tsai1, Kang-Ping Lin4,5, Hsin-Ell Wang1, Teh-Ying Chou6, Chun-Ming Tsai7, Juri Gelovani8, Ren-Shyan Liu1,3,6,9

1 Department of Biomedical Imaging and Radiological Sciences, National Yang-Ming University, Taipei, Taiwan

2 Department of Biomedical Imaging and Radiological Science, China Medical University, Taichung, Taiwan

3 Molecular and Genetic Imaging Core/Taiwan Mouse Clinic, National Comprehensive Mouse Phenotyping and Drug Testing Center, Taipei, Taiwan

4 Department of Electrical Engineering, Chung Yuan Christian University, Chungli, Taiwan

5 Holistic Medical Device Development Center, Chung Yuan Christian University, Chungli, Taiwan

6 Institute of Clinical Medicine, National Yang-Ming University, Taipei, Taiwan

7 Department of Medicine, National Yang-Ming University, Taipei, Taiwan

8 Department of Biomedical Engineering and Karmanos Cancer Institute, Wayne State University, Detroit, MI, USA

9 National PET/Cyclotron Center and Department of Nuclear Medicine, Taipei Veterans General Hospital, Taipei, Taiwan

* These authors contributed equally to this study

Correspondence to:

Ren-Shyan Liu, email:

Keywords: Lung cancer, ALDH activity, cancer stem cells, suberoylanilide hydroxamic acid (SAHA)

Received: November 25, 2014 Accepted: February 12, 2015 Published: March 12, 2015


Cancer stem cells (CSCs) are usually tolerant to chemotherapy and radiotherapy and associated with tumor relapse. Suberoylanilide hydroxamic acid (SAHA), a histone deacetylase inhibitor (HDACI), is currently being used in clinical trials of lung cancer. However, SAHA facilitates the formation of induced pluripotent stem cells from somatic cells. We hypothesized that SAHA would mediate the CSCs properties and subsequently confer a more malignant phenotype in lung cancer. Transfected H1299 lung cancer cells, which stably expresses a triple fused reporter gene (DsRedm-Fluc-tTKsr39) under the control of CMV promoter was used to establish a xenograft mouse model. After the treatment of SAHA, H1299 cell line and tumor xenografts were sorted by fluorescence-activated cell sorting (FACS) based on aldehyde dehydrogenase (ALDH) activity. We found that SAHA could suppress the growth of xenografted H1299 tumors with decreased proportion of ALDHbr lung cancer cells indicating that SAHA may target CSCs. However, SAHA significantly enhanced the tumor initiating capacity and the expression of malignant genes such as KCNMA1, MORF4L2 and ASPM in the remaining living ALDHbr cells. These findings suggested that SAHA treatment created a more drug-resistant state in residual ALDHbr cells. The in vivo imaging technique may facilitate searching and characterization of CSCs.


In the cancer stem cell (CSC) paradigm, cancer originates from the uncommon cells with characteristics of pluripotency and self-renewal [1]. CSCs were first identified in leukemia and more recently in solid tumors. This subpopulation of cancer cells has ability to escape chemotherapy and driving tumor recurrence [2]. It is urging to develop effective therapeutic approaches to eliminate CSCs. However, a long-standing problem is the paucity of specific markers to identify and isolate CSCs from common tumor cells and to investigate their roles in tumorigenesis. Previous data showed that tumorspheres, CSCs-like clusters, can be generated in vitro by non-adherent suspension culture in serum-free medium, and they have been widely used to study underlying key molecular pathways [3]. Mounting evidences suggest that the tumor microenvironment is responsible for conditioning the stem cell status itself. The in vitro system has been questioned because of the entire differences between in vitro and in vivo systems in microenvironment. Side population (SP) technique and flow cytometry using cell surface markers have been applied to isolate CSC, but the specificity of these two methods is under debate. Previous studies reported that non-SP cells and CD133 cells can also generate tumors in NOD/SCID mice [4, 5].

Regarding the limitations in the isolation procedures, especially those used stem cell surface markers, would result in CSC “injury”, we designed an in vivo method using intracellular markers of stem cells which were identified in various human cancers to isolate CSCs from xenograft tumors in animal model. Aldehyde dehydrogenases (ALDHs) are detoxifying enzymes within a superfamily. In fact, the expression level of ALDH in stem cells usually high enough to protect them against oxidative insult, suggesting their well-known longevity. ALDH converts retinol to retinoic acid, a modulator of cell and stem cell proliferation. Elevation of the level of ALDH activity has been seen in stem cell populations of breast cancer [6], lung cancer [7], liver cancer [8] and colon cancer [9]. An ALDEFLUOR kit (Stem Cell Technologies) designed for precise identification and isolation of ALDH-bright CSCs using specific inhibitor for ALDH activity─ diethylaminobenzaldefyde (DEAB) was thus applied in this study.

Histone deacetylase inhibitors (HDACIs) can induce hyperacetylation of specific proteins, recently considered as a new solution to inhibit cell proliferation and promote differentiation of various hematologic and solid tumors [10, 11]. Suberoylanilide hydroxamic acid (SAHA, Vorinostat), an HDACI, was approved by FDA for treatment of cutaneous T-cell lymphoma in 2004 [12]. Recent investigations demonstrated that SAHA treatment can suppress the expression of the stem cell marker CD133 in glioma [13]. In addition, SAHA can also inhibit the ability to proliferation, self-renewal, migration, and invasion in human pancreatic CSCs by up-regulation of miR-34a [14]. These results implied that SAHA could be a potential agent for the therapy against CSCs. However, some studies revealed that SAHA leads to the increase of the stem cell markers in epithelial–mesenchymal transitions (EMT) phenotypic prostate cancer cells [15, 16]. These findings are in consistent with the clinical results of HDACIs, which have shown promise efficacy in hematological malignancies while disappointed effects in epithelial cell-derived cancers. The detailed mechanism of this phenomenon remains to be elucidated.

In the current study, we aim to determine the significance role of SAHA in the mediation of CSCs in lung cancer. The ALDEFLUOR assay and FACS analysis were used to isolate CSCs from human lung carcinoma grown as xenografts on nude mice. The results showed that SAHA retards the growth of H1299 xenografts and decreases CSC population, but induces EMT phenotype and activates pluripotency associated program in the residual CSCs. Our results provide a possible mechanism for the limited treatment response of HDACIs in the clinical trials on the epithelial cell-derived cancer.


SAHA enhances the expression of CSC characteristics in vitro

To investigate the effects of SAHA on cell morphology, we treated H1299 cells with SAHA, and found that H1299 cells treated with SAHA caused elongation and dissemination of fibroblastoid morphology in a dose-dependent manner. In contrast, H1299 cells treated with DMSO displayed a cobblestone appearance, a typical morphology of epithelial cells (Fig. 1A). These results suggest that treatment of lung cancer cell with SAHA leads to the induction of EMT phenotype. Previous studies have shown that HDACIs could induce EMT in tumor cells [15, 16], and the cells with EMT phenotype have been demonstrated to be the source of cancer stem-like cells [17-19]. To address this issue, we assessed the expression of genes associated with metastatic ability and stem cell function such as KCNMA1 and ASPM, which has been reported earlier to serve as prognostic molecular markers of the metastatic process and cancer stem cell maintenance, respectively [20, 21]. The results from quantitative reverse transcription PCR (qRT-PCR) showed that the treatment with SAHA led to increased expression of genes involving in stemness (ASPM, stem cell programs), metastasis (KCNMA1, RASSF8), and drug resistance (MORF4L2) (Fig.1B). We further investigated the effect of SAHA on CSC populations by using qRT-PCR and found that all the analyzed genes was strongly up-regulated by at least 10-fold in SAHA-treated ALDHbr cells when compared with untreated cells (Fig.1C).

The capacity of self-renewal is one of the features of CSCs. To further verify the impact of SAHA on cancer stem cell properties, we performed the sphere formation assay as previous described [6]. The result showed that cells treated with SAHA formed more spheres than untreated cells did (Fig.1D). We next examined if SAHA could enhance the expression of stem cell-associated genes in tumorspheres. As shown in Fig. 1E, the levels of all gene sets were increased in sphere cells when compared with the controls. As expected, these genes were significantly enriched in sphere cells after SAHA application. Overall, these findings confirm that treatment of lung cancer cells with SAHA leads to the enhancement of CSC characteristics, which correlates with EMT phenotype.

SAHA enhances the CSC characteristics

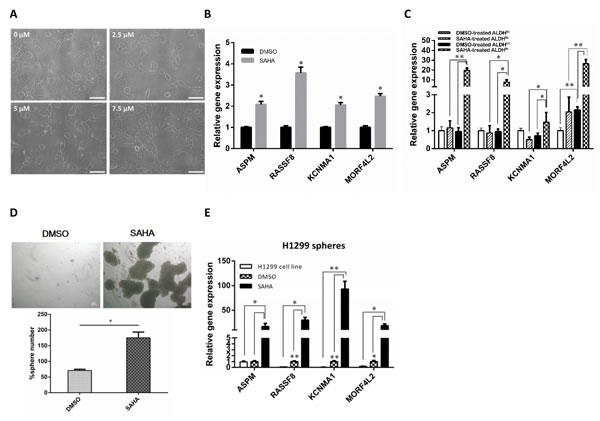

Figure 1: SAHA enhances the CSC characteristics in vitro. H1299 cells were incubated in the medium containing various concentration of SAHA for 72 h. (A) Morphological examinations were performed. Scale bars, 100 μm. (B) qRT-PCR of H1299 cells treated with SAHA or vehicle (DMSO). The results showed that the relative mRNA expression of ASPM, KCNMA1, RASSF8 and MORF4L2 increased following treatment when compared with DMSO control (the value of control was designed as 1, *, p<0.001). (C) qRT-PCR analysis in sorted H1299 cells confirmed the elevated expression of metastases-, stemness- and drug resistance-related genes in ALDHbr cells after SAHA treatment. *, p<0.05; **, p<0.001. (D) Representative images (top) and quantification (bottom) of spheroid formation in H1299 cells treated with SAHA. Scale bars, 100 μm. Data represent means ± s.e.m. (n=3). Asterisk indicates p<0.001, compared with control cells (Student’s t-test). (E) SAHA increased the expression of gene associated with stemness, metastasis and drug resistance in tumorspheres. qRT-PCR was conducted with parental cells and sphere-forming cells for stem cell and EMT-related genes. Delta-delta-CT was calculated, considering β-actin as internal control. Three experiments were run in triplicates. *, p<0.05; **, p<0.001.

Efficacy of SAHA treatment in the H1299 xenograft model

To monitor the tumor growth and trace the tumor cells in vivo, we labelled H1299 cells with a luciferase reporter system. The activity of SAHA against the growth of lung cancer cells in vivo was examined in the H1299 human non-small cell lung cancer xenograft, which was inoculated subcutaneously in nude mice. The tumor progression rate was assessed by in vivo luciferase bioluminescent imaging. In the treatment group, the signals in the tumor are significant lower than that in vehicle-treated control tumor (Fig. 2A). Daily administration of SAHA with the dosage of 100 mg/kg/day caused significant suppression of the growth of established H1299 tumors; reduction of 63% tumor volume compared with that of the vehicle-treated control animals (Fig. 2B). Each animal receiving 100 mg/kg/day SAHA survived for at least 10 days. These results indicate that SAHA effectively reduces the tumor growth of H1299 xenografts in vivo at the dose of 100 mg/kg/day.

SAHA effectively inhibits the growth of H1299 tumor cells.

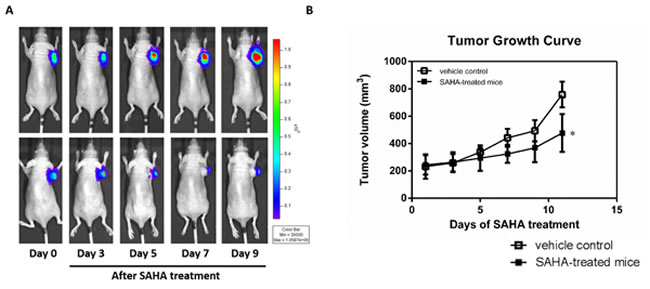

Figure 2: SAHA effectively inhibits the growth of H1299 tumor cells. (A) Bioluminescent images of mice bearing H1299-CMV-Luc tumors before and after SAHA treatment. (B) Tumor growth curve of the subcutaneous H1299-CMV-Luc lung cancer xenograft in mice daily treated with vehicle alone or SAHA (100 mg/kg, i.p.). Data are presented as the mean tumor volume ± S.E. of the surviving animals in each groups. All groups contained five mice.

Expression of cancer stem cell markers and EMT markers in fresh xenograft

ALDH activity has been applied for identifying CSCs in a variety of tumor types [6, 7, 9]. We used the ALDEFLUOR assay to quantitate the percentage of ALDHbr cells in xenografted lung tumors (Fig. 3A). In each experiment, the samples were stained simultaneously with Aldefluor and DEAB for identifying the ALDHbr population. A subpopulation of ALDHbr cells was detected by flow cytometry (1.62% ±0.02% of the total cell population) and was also observed by fluorescent microscopy (Fig. 3B).

CD133 and ALDH have been applied to define CSCs in multiple epithelial cancer [8] including lung cancer [22]. We examined the expression of these markers in mouse xenografted tumors. Immunofluorescence staining confirmed the expression of ALDH and CD133 in fresh xenograft tissues (Fig. 3C and 3D). The process of EMT has been played a critical role in tissue and vessel invasion. Regarding that CSCs also express some features of EMT, we tried to determine whether ALDHbr tumor cells harbored EMT phenotype such as expression of the EMT markers. To test this phenomenon, we co-stained with a fluorescent dye-conjugated antibody for the EMT marker vimentin. Immunofluorescence staining confirmed that ALDHbr cells co-expressed vimentin in fresh xenografted lung cancer tissues (Fig. 3E), indicating the fresh lung cancer cells express multiple potential cancer stem cell markers and some of these cells also possess EMT properties.

Cancer stem cells and EMT markers were detected in xenografted lung tumor cells.

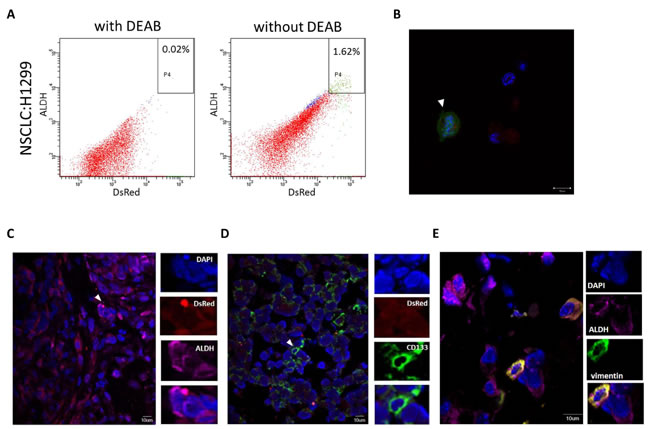

Figure 3: Cancer stem cells and EMT markers were detected in xenografted lung tumor cells. (A) Fresh H1299 xenograft tumors were directly separated for non-CSC (ALDHlo cells) and CSC (ALDHbr cells) populations by the ALDEFLUOR assay (right panel). Baseline fluorescence was established by inhibiting ALDH activity with DEAB (left panel) and used to generate a gate to identify ALDHbr cells, revealing a subpopulation (~2%) of ALDHbr tumor cells. (B) Confocal microscopy imaging indicated the existence of ALDHbr cells (green, arrow) with nuclei identified by DAPI (blue areas). (C, D and E) Immunofluorescent staining shows ALDH, CD133 and vimentin expression in H1299 xenograft tumor tissues. Abbreviations: ALDH, aldehyde dehydrogenase; DEAB, diethylaminobenzaldehye.

SAHA reduces the population of ALDHbr cells in H1299 xenografts

To further validate the antitumor effects of SAHA in vivo, we isolated ALDHbr cells from xenograft tumors based on the previously described [23-29]. We also performed ALDEFLUOR assay to isolate ALDHbr cells and found that the percentage of ALDHbr cells derived from H1299 xenografts of mice treated with SAHA was 0.2% ± 0.04 (Fig. 4A), which was around a 11-fold reduction (Fig. 4B) compared with that of the cells directly isolated from the mice treated with vehicle alone (Fig. 4A). Confocal microscopic images further confirmed the existence of ALDHbr cells in our lung cancer xenograft models and effective suppression of the ALDHbr cells by SAHA treatment in the in vivo experiment (Supplement 2.).

Continuous administration of SAHA increased the invasion ability in ALDH

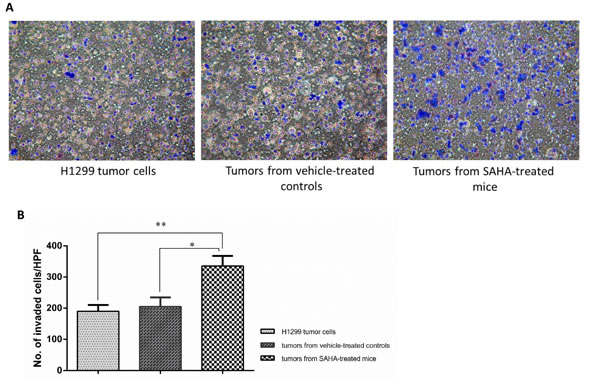

Figure 4: Continuous administration of SAHA increased the invasion ability in ALDHbr cells. Phase-contrast microscopy images (top) and invasion ability (bottom) of ALDHbr cells from H1299 lines, SAHA-treated xenografts or vehicle-treated controls. Data represent mean ± SD (n=3). Asterisks indicate P< 0.001, compared with H1299 cell line (Student’s t-test).

SAHA enhances the migration ability in ALDHbr cells sorted from H1299 xenografts

To determine the metastatic capacity of these cell populations after SAHA treatment, tumor cells from mouse xenografts were sorted using ALDEFLUOR assay and the ALDHbr cells from xenografts of the mice treated with SAHA or vehicle alone were further examined by Matrigel invasion assay. As shown in Fig. 5, the percentage of ALDHbr H1299 cells from the mice treated with SAHA capable of invasion through Matrigel was at least 1.9-fold higher than that of the Aldefluor-positive H1299 cells from vehicle-treated controls (P< 0.05). These results suggest that although SAHA suppressed the growth of tumor xenografts and decreased the CSCs population in vivo, the residual CSCs seems more invasive.

Profiling of ALDHbr subpopulation from the xenografts of mice treated with SAHA identifies the upregulation of CSC-associated genes

One novelty of this study was to identify the potential target against CSCs by in vivo molecular imaging method. To understand the biology of ALDHbr cells from mice xenografts treated with SAHA, we analyzed the gene profiles of ALDHbr cells using microarray technique. Unsupervised hierarchical cluster analysis was applied to the four samples (ALDHbr and ALDHlo cells from H1299 xenografts with SAHA administration or vehicle controls) and found 37 interested genes with different expression between ALDHbr cells and SAHA-treated mouse xenografts and from vehicle-treated controls (Fig. 5A, fold change > 2.0, P< 0.05). Owing to the observed reduction of the ALDHbr population, we expected that the downregulation effect should be noticed in these CSC-related pathways after HDAC inhibitor treatment. However, these gene set (ALDH3A2, CDC42, FGF7, stem cell programs) were not downregulated instead of more pronounced and highly upreglated after SAHA treatment. Based on previous literatures, the rest of upregulated genes were associated with stem cell functions, including cell cycle regulation, mitosis, and proliferation or biological processes, including transporters, protein binding, regulation of transcription, signal transduction, metabolism and cell movement (Fig. 5B).

Gene expression of four upregulated genes in ALDHbr cells from SAHA-treated mouse xenografts was valiadated by qRT-PCR . It showed significantly higher expression of the pluripotency genes, ASPM and RASSF8, at the mRNA levels compared to the ALDHbr cells from vehicle-treated mouse xenografts and unsorted population. It also showed higher mRNA expression of the EMT gene (KCNMA1) and drug-resistant related gene, (MORF4L2) (Fig. 5C). These results illustrate that the genes associated with pluripotency are induced by SAHA and help to unravel the mechanism of HDAC inhibitor on proliferation and survival of human lung CSCs.

Functional effects of SAHA in ALDH

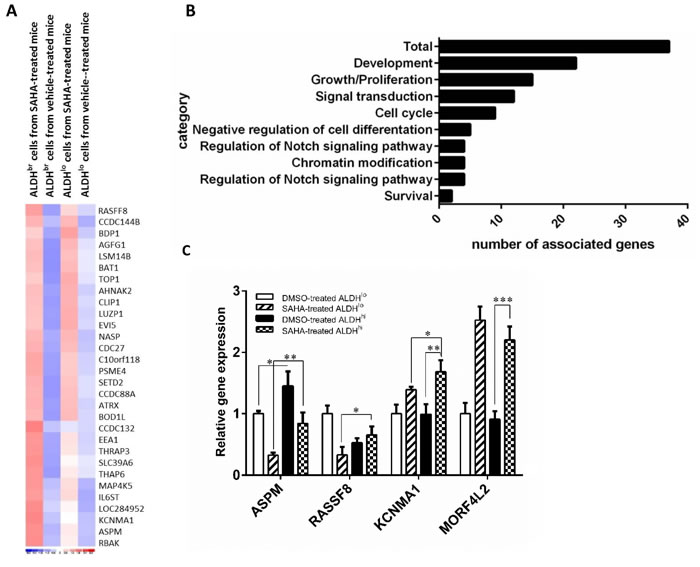

Figure 5: Functional effects of SAHA in ALDHbr cells from mouse xenografts. Profiling of ALDHbr cells from SAHA-treated mouse xenografts. (A) Supervised hierarchical clustering of 37 differentially expressed transcripts between ALDHbr cells from mouse xenografts treated with or without SAHA. Colored spots indicate upregulated (red) or downregulated (blue) genes from microarray analysis. (B) Gene ontology of RNA Microarrays show that many genes involved in “development”, “cell cycle” and “chromatin modification” are affected due to SAHA treatment. (C) Quantitative reverse transcription-PCR (qRT-PCR) validation of differentially expressed genes. cDNAs of ALDHbr and ALDHlo subpopulations were obtained from mouse xenografts treated with SAHA or vehicle controls. Expression levels were normalized to GAPDH. Data represent mean ± SEM (n=3).

Enhanced tumorigenicity of SAHA-treated ALDHbr lung cancer cells

To further determine the efficacy of SAHA treatment on cancer stem cells sorted from xenografts, we electronically sorted ALDHbr and ALDHlo cells from SAHA or vehicle-treated H1299 xenografts, respectively. Variable numbers of sorted cells were immediately implanted into nude mice by subcutaneous injection, and tumor formation was observed up to 24 weeks to avoid underestimating the tumor initiating cells (TIC) frequency by a short observation time. The capacity of in vivo tumor formation with sorted cells was different between these groups. Only the injection of ALDHbr cells gave rise to visible tumors, particularly at low numbers of injected cells (1,000 cells), whereas little or no tumors were observed with ALDHlo cells, even when as many as 8,000 cells were injected (Fig. 6A). Moreover, we found that the tumor volume and incidence of tumor formation by ALDHbr tumor cells from mice received SAHA treatment were larger and higher than that of the mice received DMSO treatment (Fig. 6B). As indicated in Fig. 6C, the size and latency of tumor formation correlated with the number of injected cells, where 1,000 ALDHbr cells resulted in tumor growth in 2 of 4 mice which received SAHA administration. In SAHA-treated xenografts, injection with cell numbers greater than 2,000 was capable of developing tumors in all experimental animals. Taken together, these findings indicate that SAHA might have limited effect on eradication of ALDHbr lung CSCs; moreover, the residual ALDHbr cells exhibited enhanced tumorigenic potential in vivo.

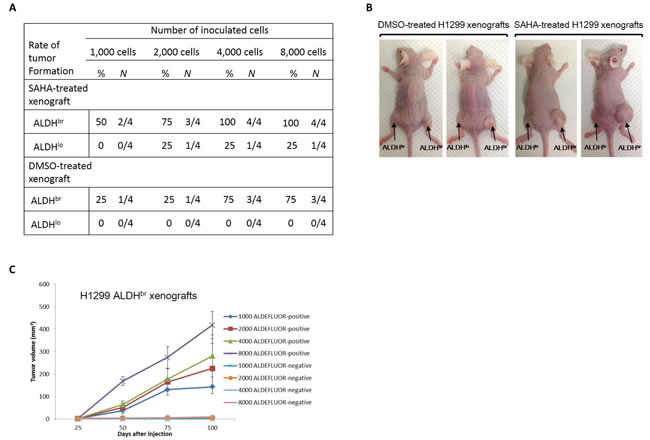

Figure 6: The ALDHbr cell population from SAHA-treated H1299 xenografts displays enhanced properties of CSCs. (A) Incidence of tumor formation from isolated ALDHbr lung cancer cells. For each group, varying numbers of ALDHbr and ALDHlo cells were injected and tumor growth was measured over a 100-d interval. (B) Representative photographs of SAHA or vehicle-treated xenografts derived from respective ALDH populations after a 3-months tumor development. The size of xenograft derived from ALDHbr cells was significantly larger than that derived from ALDHlo cells in both groups. (C) Tumorigenicity assay. The ALDHbr cell population from SAHA-treated H1299 xenografts was capable of regenerating phenotypic heterogeneity of the initial tumor after passage in nude mice. No tumor was detected when 8,000 of ALDHlo cells were injected, whereas ALDHbr cells produced tumors that grew at a rate that directly correlated with the number of cells injected.


In the current study, we used cells to develop a simpler method for isolating CSCs directly from excised H1299 xenografts, without any in vitro culture step. ALDHbr and Ds-Red double positive cells were regarded as putative CSCs, because the Ds-Red expression excluded other stem cell derived from the mice. By using ALDEFLUOR assay for detecting ALDH expression followed by standard FACS analysis, we successfully isolated ALDHbr cells and found that SAHA can suppress the growth of tumor xenografts and decreases the lung CSC population in vivo. Surprisingly, we found that residual ALDHbr cells from SAHA-treated mice exhibited properties of cancer stem cells, including high capacity of tumorigenesis, metastasis and stem cell-related gene expression.

CSCs and normal stem cells express similar surface markers, by which they can be identified and characterized. There has been no specific marker for the isolation and characterization of CSCs from different type of tumors to date [30]. The rigorous identification and isolation of tissue-specific CSCs has thus far been accomplished in only a few human organ systems. An overview of the techniques for the characterization of CSCs from the literatures shows controversial results. A Hoechst 33342 efflux assay in combination with flow cytometry has been used to identify and isolate ‘‘side populations,’’ which are enriched in cancer stem-like cells. Although the assay shows high efficiency in isolating side populations, the toxicity associated with the Hoechst 33342 dye creates bias by selectively injuring the non-side population cells that might affect subsequent functional stem cell assays in vitro and in vivo [31]. Furthermore, recent report even suggested that side populations in some tumors might not represent CSCs [32]. Flow cytometry methods using cell surface markers have been successfully applied to the mouse and human samples to isolate stem cell populations, but the choice of markers can greatly vary depending on different tissues or species. Besides, the markers used in mouse to sort specific stem cell populations are rarely valid in human. Non-SP cells or CD133-/low cells can also generate tumors in NOD/SCID mice [4, 5]. These studies imply that only using one kind of technique such as cell surface markers or SP is not precise enough to isolate CSCs. Moreover, recent study further indicated that non-CS/PCs and CS/PCs of each subpopulation are interconvertible [33], which means that it is extremely difficult to identify CSCs in a tumor. Seeking a reliable marker to screen tumor-initiating cells without the influence on their biological characteristics becomes extremely critical.

We choose the ALDH marker as a starting point based on the prior work on lung CSCs, of which the cells with high ALDH activity were identified as putative CSCs [7]. Different from other CSC markers, ALDHbr cells are viable and are selectable by their fluorescence, thus avoiding the toxicity associated with Hoechst 33342 on the isolated cells. Furthermore, the ALDEFLUOR assay is based on the enzymatic activity of ALDH rather than cell surface phenotype and therefore it is not necessary to identify the specific cell surface markers that discriminate stem cells from their differentiated progeny of which the expression may also be dynamic and influenced by the local microenvironment. The majority of published reports on human lung cancer stem cells used commercially available lung cancer cell lines or “the cells” isolated from in vitro formed spheres [7, 34]. However, the biologic chracteristics of tumorspheres was far from CSCs in real tumors due to the distinct environments, a network of cytokines and growth factors, including the interaction with the mesenchymal stem cells, tumor associated fibroblasts, adipocytes, immune cells, and endothelial cells [9] which are lacking in the serum-free suspension culture system. Direct isolation of CSCs from xenograft models also has its defect. Macrophages, fibroblasts and other cells may express some stem cell markers, such as CD44 and CD24. As these cells are substantial populations in the tumor mass and may promote tumorigenesis, it is important to avoid their contamination in the lung cancer stem cell compartments. Unlike the previously described CSC phenotype, which might require the use of a combination of several surface antigens, our reporter gene-labelled cells and the ALDEFLUOR assay would be a more effective approach for defining and isolating an enriched lung CSC population from xenografts and might be potentially amenable to clinical applications.

Histone deacetylase inhibitors (HDACIs) have been shown to be promising drugs for the treatment of a number of hematological malignancies including cutaneous T-cell lymphoma [12] and peripheral T-cell in clinical trials [35]. However, therapeutic trials with the HDACIs in solid tumors have been disappointing, partly due to resistance to HDACIs themselves. HDACIs, including TSA and SAHA, have been applied to facilitate the development of embryo receiving somatic cell nuclear transfer and to induce ectopic expression of pluripotency factors for pluripotent stem cell derivation [36]. It implies a relationship between HDACIs and CSCs. A recent study has shown that SAHA could induce EMT phenotype and acquire cancer stem cell characteristics, which have been known to contribute to drug-resistant, cancer relapse and metastasis [19]. In the current study, we found up-regulation of the expression of metastatic genes in sorted ALDHbr cells treated with SAHA; this is in consistent with the increased CSC properties of SAHA treated cells. How does SAHA modulate CSCs in our xenograft model warrants further investigations.

The current study provided evidences of the effect of SAHA on lung CSCs. First, SAHA treatment significantly enhanced the stemness properties of H1299 lung cancer cells, of which the ALDH-expressing cells expressed high levels of stem cell-associated genes, efficiently formed tumorspheres and displayed high metastatic ability after SAHA administration. In contrast, previous studies revealed that SAHA could suppress the growth of tumor xenografts in vivo [37, 38]. The current study demonstrated that administration of SAHA can inhibit tumor growth and decrease ALDHbr population simultaneously in mice bearing human H1299 lung tumors. These findings are in consistent with the results of clinical trials that SAHA showed anticancer activity in patients with thyroid, renal cell and urothelial carcinomas [39], and may imply the possibility of SAHA against CSCs. However, the controversial results from in vitro and in vivo or clinical studies point out the importance of tumor microenvironment that defines the stem cell niche which might be affected by SAHA administration as well. Second, the residual ALDHbr cells from SAHA-treated mice exhibited more aggressive phenotype. Using SAHA-treated xenograft to derive the ALDHbr cells, we disclosed that these cells had much greater tumorigenicity and more enhanced invasiveness than that of tumor-bearing mice receiving vehicle alone. Third, the qRT-PCR results showed that ALDHbr cells markedly increase the expression of the genes associated with stemness, metastasis and drug resistance following SAHA treatment. Interpreting the above data based on the framework of the CSC theory implies that SAHA might worse the patient outcome by enhancing malignant characteristics of the residual CSCs and might be used to explain the limited effects of SAHA in clinical use.

SAHA has been the first HDACI approved by FDA and has been tested in several clinical trials. In clinical studies the effect of single use of SAHA seems to be minor. Our results disclosed the potential of SAHA to induce resistance to cancer therapy. The microarray gene expression data showed up-regulation of certain genes in SAHA-treated ALDHbr cells which are linked to high migration capacity, drug resistance, poor prognosis and could be a potential target for cancer therapy. The current study disclosed that MORF4L2, KCNMA1 and ASPM were up-regulated by SAHA treatment. MORF4L2 is a gene involving in drug metabolism, endocrine system development and function. MORF4L2, a component of the NuA4 histone acetyltransferase complex, involves the activation of oncogene and proto-oncogene-mediated growth induction, and replicative senescence; these result in higher levels of DNA repair and suppressed apoptosis [40]. KCNMA1 gene is related to cancer invasion and metastasis [20]. A previous study evaluated the relationship between ASPM and CSCs and revealed that the expression of ASPM correlates with tumor grade and increases at recurrence. ASPM was also considered as a marker for distinguishing stem-like cells from gliomas stromal cells [21]. Unexpectedly, we found the inconsistent results on the expression of ASPM and RASFF8 obtained from microarray and qPCR, respectively. Poor annotation or crosshybridization are not the reason for this inconsistency, because this experiment is repeated at least three times. Instead, it may be explained by a possible difference in splice variants detected by the two technologies, ASPM and RASFF8, of which more than one transcript were associated [41].

Although our results showed that a subpopulation of lung cancer cells exists within the H1299 xenografted tumors with markedly enhanced tumorigenic potential and stem cell properties after SAHA treatment, there are limitations to our study. First, high ALDH activity might not be as a universal marker for stem cells that may infer the use of ALDEFLUOR assay for identifying CSCs. It has also been demonstrated that isolated ALDHbr cells expressed lower proliferative rate and migration ability as compared with ALDHlo cells in adipose tissue [42]. Thus, it is critical to carefully characterize the cells isolated based on high ALDH activity. Second, an established xenografted tumor rather than primary tumor directly obtained from the patient was investigated in this study. Further research using primary tumor is necessary to confirm the findings of this study. Third, the SAHA-induced CSCs activation was observed in H1299 cells, we will perform the parallel studies in other type of lung cancer cells to demonstrate that this effect globally exists in most of lung carcinoma cell lines.

We have successfully isolated and characterized CSCs in vivo from the xenografted H1299 lung cancers in mice rather than from the tumorspheres by conventional in vitro methods. The results of the current study revealed that SAHA treatment can suppress the tumor growth of H1299 lung cancer, decrease ALDHbr population but promote CSC characteristics, such as enhancement of the tumor initiating capacity and the expression of KCNMA1, MORF4L2 and ASPM genes in the residual subpopulation of cells with high ALDH activity residing in SAHA-treated xenografted tumor. We thus may propose that clinical use of SAHA alone in the treatment of solid tumor should proceed with a great caution.

Materials and Methods

Cell lines

The H1299 human non–small cell lung cancer cell line was obtained from American Type Culture Collection (Rockville, MD) and maintained in RPMI 1640 (Gibco Laboratories, Grand Island, NY) supplemented with 10% fetal bovine serum (FBS), 2 mmol/L L-glutamine,100 μg/mL Streptomycin, and 100 units/mL Penicillin. All cells were maintained in a 37°C humidified 5% CO2 incubator. All media and cell culture reagents were purchased from Life Technologies (San Giuliano Milanese, Italy). Stable clones are generated by transfection of plasmids (Supplement 1.) and selected by appropriate antibiotics.

SAHA preparation and administration

Suberoylanilide hydroxamic acid (SAHA) was synthesized as described previously [43]. Male BALB/c nude (nu/nu) mice with palpable H1299 subcutaneously xenografted tumors were randomly divided into two groups (at least four mice/group). All mice in each groups had tumors size (~100mm3) at the beginning of treatment. SAHA was dissolved in DMSO in a series of concentrations. Each mice daily received 100 mg/kg of SAHA by intraperitoneal (i.p.) administration for 10 days. The control group only received vehicle (DMSO). The animals were sacrificed on day 11 after SAHA treatment and the tumors were excised for further experiments.

Tumor cell isolation

H1299 xenografts were sliced with a surgical blade and single-cell suspensions were generated by addition of 1 mg/ml (235 U/ml) collagenase I (Sigma-Aldrich, St. Louis, MO) for 60 min at 37°C with intermittent vortexing, followed by homogenization with cell dissociator (gentleMACS™, Miltenyi Biotec, Bergisch Gladbach, Germany), and sequentially passage through a 70 μm filter (Fisher Scientific, Pittsburgh, PA). Red blood cells were lysed using 1X Red Blood Cell Lysis Buffer (eBioscience, San Diego, CA). Cells were washed twice and subjected to FACS.

ALDEFLUOR assay and separation of the ALDHbr population by FACS

To characterize the cells with high levels of ALDH (ALDHbr), the ALDEFLUOR kit (Stem Cell Technologies, Vancouver, Canada) was utilized to isolate them with from tumor cells. A specific ALDH1 inhibitor, diethylaminobenzaldehyde (DEAB), was used as a negative control, and cells were analyzed with a FACSAria cell sorter (BD Biosciences, San Jose, CA). The sorting gates were established using the DsRed-expression cells for viability and the ALDEFLUOR-stained cells treated with DEAB as negative controls.

Cell invasion assay

Cell invasion assay was performed following the previous literature with a Boyden chamber (8-μm pore size) [44].

Sphere formation assay

The assay was performed following the protocol in previous literature [6]. Briefly, tumor cells or electronically sorted tumor cell subsets (5 × 104 cells/mL) were seeded in ultralow attachment plates (Corning, USA) and grown in defined serum-free medium composed of RPMI 1640, hormone mixture B27 (Gibco, USA), 20 ng/mL EGF (epidermal growth factor; Sigma-Aldrich, USA), 10 ng/mL bFGF (basic fibroblast growth factor; Invitrogen, USA) and 1 μg/mL heparin. The number of spheroids was counted after 14 days later.

Quantitative real-time PCR

To determine the changes in the expression level of ALDHbr cells in microarray data, we performed Quantitative Real-Time RT-PCR. The total mRNA was extracted using Direct-zol RNA MiniPrep kit with on column DNA digestion (Zymo Research Corp., California, USA). The first strand of cDNA was generated from 1 μg total RNA using oligo-dT primer and SuperScript® III Reverse Transcriprase (Invitrogen). Quantitative real-time PCR was run on StepOnePlus real-time PCR system (Applied Biosystems, Carlsbad, USA) with the preset PCR program, using TaqMan primers for β-actin, ASPM, KCNMA1, RASSF8, MORF4L2 and TaqMan Universal PCR Master Mix (Applied Biosystems, Carlsbad, USA) for dection. The cycle number when the fluorescence first reachs a preset threshold (Ct), allows the quantification of the specific template concentraction. Transcripts of the housekeeping gene β-actin in the same incubations were used for internal normalization.

In vivo tumor formation assays

All the animal protocols in this study were in accordance with the Animal Care and Use Committee of our institution. BALB/C nude mice were used to assess the in vivo stem cell properties of the ALDEFLUOR-positive population with SAHA treatment, compared to the same population with administration of vehicle only (DMSO). The H1299 xenografted cells were sorted as previously described and the tumorigenicity of each populations of H1299 cells with or without SAHA treatment was tested by inoculation of limiting dilutions of cells (1,000, 2,000, 4,000, and 8,000 cells) mixed with Matrigel (BD Biosciences, Mississauga, Canada; 1:1) into the anaesthetized 6-week-old nude mice, subcutaneously. Tumor size was measured weekly using a caliper and tumor volume was calculated using the following formula: tumor volume = length × width × thickness × 0.523.

Microarray analysis

The Affymetrix Human U133 plus 2.0 whole genome array was used in this study. Total RNA extraction, cRNA probe preparation, array hybridization, feature selection and computational analysis were performed as previously described [45]. The q-value was calculated to control the multiple testing errors in differential expression analysis, as previously described [45]. The heat map was created by the dChip software. More than 2 fold changes in all chip data were considered as up-regulated.

Immunofluorescence-microscopy staining

Immunofluorescence staining was performed using antibodies for ALDH1A1, CD133 and vimentin as previously described [46]. The characteristics of the antibodies used are listed in Supplementary Information, Table S1.


This research was supported by the grants: NSC 102-2314-B-010-038-MY3, NSC 102-2627-M-010-003 (Ministry of Science and Technology), MOHW103- TD-B-111-02 (Department of Health), V103C-132, V103E3-007 (Taipei Veterans General Hospital), 103AC-BI1 (BMIRC, National Yang-Ming University). The authors thank the technical support from Molecular and Genetic Imaging Core, Taiwan Mouse Clinic (MOST 103-2325-B-001-015) which is funded by the National Research Program for Biopharmaceuticals (NRPB) at the Ministry of Science and Technology (MOST) of Taiwan, and Ms. Tsuey-Ling Jan for the assistance of preparing the manuscript.

Conflicts of Interest

The authors declared no conflicts of interest.
