Research Perspectives:

Polo Like Kinase 2 Tumour Suppressor and cancer biomarker: new perspectives on drug sensitivity/resistance in cancer

PDF |  HTML  |  How to cite

Oncotarget. 2012; 3:78-83. https://doi.org/10.18632/oncotarget.332

Metrics: PDF 3471 views  |   HTML 3852 views  |   ?

Helen M. Coley _, Eleftheria Hatzmichael, Sarah P. Blagden, Iain A. McNeish, Alastair Thompson, Tim Crook and Nelofer Syed


Helen M. Coley1, Eleftheria Hatzimichael2, Sarah Blagden3, Iain McNeish4, Alastair Thompson5, Tim Crook5 and Nelofer Syed6

1 Faculty of Health and Medical Sciences, University of Surrey, Guildford, Surrey GU2 7XH, UK

2 Department of Hematology, University Hospital of Ioannina, Ioannina, Greece

3 Department of Medical Oncology, Hammersmith Hospital, London, W12 0HU, UK

4 Department of Medical Oncology, St Bartholomew’s Hospital, London, EC1, UK

5 Dundee Cancer Centre, University of Dundee, Ninewells Hospital, Dundee DD1 9SY, UK

6 Neuro-Oncology Research Group, Charing Cross Hospital, Imperial College, London, W6 8RF, UK

Received: September 15, 2011; Accepted: January 26, 2012; Published: January 28, 2012;

Keywords: Polo Like Kinases, Chemotherapy resistance, collateral sensitivity


Helen M. Coley, email:


The polo-like kinase PLK2 has recently been identified as a potential theranostic marker in the management of chemotherapy sensitive cancers. The methylation status of the PLK2 CpG island varies with sensitivity to paclitaxel and platinum in ovarian cancer cell lines. Importantly, extrapolation of these in vitro data to the clinical setting confirms that the methylation status of the PLK2 CpG island predicts outcomes in patients treated with carboplatin & paclitaxel chemotherapy. A second cell cycle regulator, p57Kip2, is also subject to epigenetic silencing in carboplatin resistance in vitro and in vivo, emphasising that cell cycle regulators are important determinants of sensitivity to chemotherapeutic agents and providing insights into the phenomenon of collateral drug sensitivity in oncology. Understanding the mechanistic basis and identification of robust biomarkers to predict collateral sensitivity may inform optimal use of chemotherapy in patients receiving multiple lines of treatment.


The Polo Like Kinases (Plk) are a family of structurally similar but functionally (relatively) distinct mitotic kinases all of which share homology with the Drosophila Polo, mutants of which show defects in mitosis and meiosis. There are five human Plk which have critical roles in regulation of cell cycle and response to DNA damage. Whilst there is good experimental evidence that Plk1 may function as an oncogene and indeed is a leading target for developmental therapeutics in oncology, Plk2-Plk5 have properties more consistent with tumour suppressor genes [1]. Plk2 was initially identified as an early response gene in serum-starved cells re-challenged with serum, hence the original name Serum Inducible Kinase (Snk) [2].. Later it was shown that the gene is a transcriptional target of p53 and activates a G2-M checkpoint [3].

Plk2 is epigenetically regulated in haematological neoplasia

We used suppression: subtraction PCR to identify PLK2 as a gene down-regulated in B lymphomas [4]. Remarkably, Plk2 was subject to methylation-dependent transcriptional silencing in 100% of Burkitt lymphoma (BL) cell lines and a similarly high proportion of primary BL. The CpG island was also methylated across the spectrum of B cell lymphomas and in a proportion of cases of B cell chronic lymphocytic leukemias (B-CLL), suggesting that the gene is frequently down-regulated in B cell dyscrasias. More recent studies from our groups have shown methylation in the PLK2 CpG island in other haematological malignancies including multiple myeloma [5], acute myeloid leukemia (AML) and myelodysplastic syndromes (MDS) [6]. We found that the frequency of methylation was higher in MDS than in AML (88.4% vs 68.9%) and also was significantly higher in low and intermediate risk MDS compared to higher risk groups (p=0.04). Based on these findings we suggested that methylation of PLK2 could be another mechanism that leads to increased apoptosis that characterizes early stage MDS [6]. Another finding in this study was a tendency for improved survival for both AML and MDS patients who displayed hypermethylation of the PLK2 CpG island, suggesting that the gene may have a utility as a prognostic biomarker in myeloid malignancies. In multiple myeloma, the frequency of aberrant methylation was found to be 60%, and although no correlation was found between PLK2 methylation and MTHFR genotypes, anemia, bone disease or advanced stage, a 48% lower risk of death was noted for patients with methylated PLK2 CpG island [5].

Dynamic epigenetic changes in the PLK2 CpG island methylation with paclitaxel sensitivity: a model for drug resistance in ovarian and other cancers?

The taxanes docetaxel and paclitaxel remain key chemotherapeutic agents in the treatment of many solid tumours, including breast cancer, epithelial ovarian cancer (EOC), non-small cell lung cancer and prostate cancer. Resistance to chemotherapy including to the taxanes remains, however, one of the most important factors limiting the ability of oncologists manage neoplastic disease long term. Whereas a subset of human tumours exhibit clinical hypersensitivity to chemotherapy [7], the majority typically respond transiently to cytotoxic drugs but ultimately acquire resistance leading to treatment failure and death. The time interval between initial response and clinical drug resistance varies widely. For example, small cell lung cancer demonstrates remarkable sensitivity to cisplatin and etoposide in the majority of patients but relapse is inevitable and frequently occurs within weeks of stopping chemotherapy. In EOC, the majority of cases are initially sensitive to first-line chemotherapy typically with carboplatin and paclitaxel, but in contrast to small cell lung cancer sensitivity may be retained for extended periods of time, with only gradual emergence of drug-resistance. It is standard clinical practice to re-challenge EOC patients with platinum-based chemotherapy if a disease-free interval of > 1 year has elapsed since previous exposure to platinum, but there are few other clinico-pathological parameters to guide the physician in the rational use of chemotherapy at first and subsequent relapses, underlining the importance of identifying and validating robust biomarkers of drug sensitivity / resistance.

An increasing consensus recognizes the importance of epigenetics (heritable non-structural changes in gene expression), as a major mechanism driving acquired resistance to chemotherapy [8]. A popular approach to identifying determinants of acquired resistance to anti-cancer agents is the use of cell lines made relatively resistant to cytotoxic drugs in vitro with subsequent analysis either via the testing of candidate genes or by expression profiling. We derived a series of novel EOC cell lines with acquired resistance to paclitaxel and carboplatin and showed that resistance to paclitaxel, often with cross-resistance to carboplatin, occurred with loss of the G2 checkpoint and apoptosis [9] and we asked whether this was associated with changes in expression of the Polo Like Kinases. Whereas expression of Plk1, Plk3 and Plk4 was unchanged, there was clear and reproducible down-regulation of Plk2 due to acquired methylation in the CpG-island at the 5’ end of the gene. Increasing levels of resistance to paclitaxel correlated with incrementally decreased expression of Plk2 and increasing CpG island methylation. We propose that exposure to chemotherapeutic stress induces methylation in the CpG island of specific “ resistance” genes and this seeding effect leads to increasing methylation as the level of resistance increases, a phenomenon previously described in cells exposed to 6-mercaptopurine [10]. A study by Matthew et al. [11] described an in vivo study that considered the influence of hypoxia on chemosensitivity in Plk2-deficient tumours. Complete resistance to camptothecin was shown which pointed to an interplay between Plk2 and tumour micro-environment, whereas in the same experiments normoxia was associated with increased drug sensitivity. In the same study, it was shown that Plk2 can inhibit mTOR signaling under the influence of wild-type p53 control.

In clinical cases of EOC, DNA methylation of the CpG island in the PLK2 promoter in tumor tissue was associated with a higher risk of relapse in patients treated post-operatively with carboplatin and paclitaxel and this trend was also reflected in the analysis of matched serum samples in which detection of methylated PLK2 genomic DNA was more frequent in relapsed cases [9], Figure 1A. Further, we were able to show in the same series that for patients for whom methylated PLK2 was detected in either or both tumour tissue and matched serum there was reduced survival, shown by Kaplan-Meier analysis (Figure 1B and 1C). Independent evidence of an important role for Plk2 as a determinant of chemotherapy sensitivity was afforded by a micro-array study which identified Plk2 as a down-regulated gene in chemotherapy-resistant EOC [12]. Plk2 was also independently identified as a critical determinant of clinical sensitivity of B CLL to chemotherapy, failure of Plk2 induction by fludarabine strongly predicting chemotherapy resistance [13]. Interestingly, when A2780 cells with high level resistance to paclitaxel were grown in the absence of maintenance exposure to the drug, a paclitaxel sensitive population re-emerged which re-expressed Plk2 due to loss of methylation in the PLK2 CpG island. These proliferated at a higher basal rate than the paclitaxel-resistant cells from which they derived, an effect phenol-copied (at least in part) by ectopic expression of Plk2 [9] and unpublished observations). This was to the best of our knowledge the first demonstration that specific epigenetic changes are reversible when the selective pressure that initiated and then sustained evolution of a drug resistant cell population is removed. Our observations may partially answer the question of why the longer an individual cancer patient is not exposed to anti-cancer agents, the higher the probability that clinical response will be seen upon re-challenge with the original chemotherapy (a regular management strategy in platinum sensitive EOC and in other cancers treated with platinum such as non-small cell and small cell lung cancer and mesothelioma). In this model, methylation-dependent transcriptional silencing of key cell cycle regulators would increase with ongoing exposure to cytotoxic drugs and then diminish when chemotherapy is stopped. Re-expression of genes such as PLK2 and re-emergence of a more rapidly proliferating cell population would manifest as clinical relapse but with reacquired chemotherapy sensitivity.

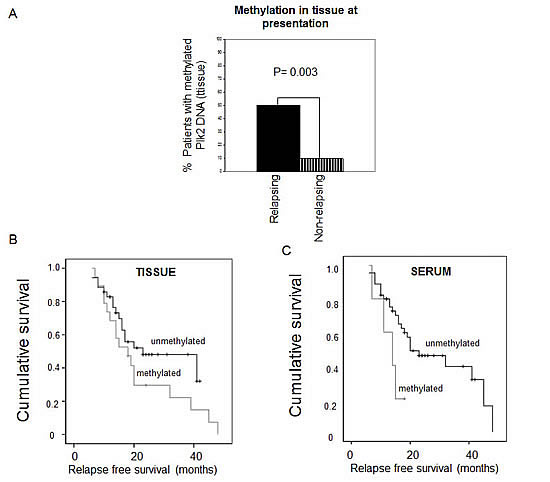

Figure 1: Methylation of Plk2 is associated with resistance to chemotherapy in EOC. Genomic DNA was isolated from primary EOC tissue and matched serum. Methylation in the Plk2 CpG island was analysed by MSP as described in Methods. A: MSP analysis of Plk2 in tumour tissue from EOC cases at initial presentation; Solid black panel = patients with subsequent relapse; Shaded panel = patients who had not relapsed at the time of censor. p value given (Fisher’s Exact test). B: Kaplan-Meier analysis of cases with and without Plk2 methylation in tissue at presentation and at relapse as indicated (p = 0.174, Log rank) and C: Kaplan-Meier analysis of cases with and without Plk2 methylation in serum at presentation and at relapse as indicated (p = 0.054, Log rank). Note follow-up period is censored if the patient is still alive at the time of the assessment. Censored data is indicated by (☐).

A wider role for cell cycle regulators in drug resistance in ovarian cancer

We have demonstrated a role for down-regulation of Plk2 as a pivotal factor underlying platinum / taxane resistance in EOC by a series of gene silencing experiments [9]. These findings prompt interesting questions concerning a possible more general role for cell cycle regulators as determinants of chemotherapy sensitivity/ resistance, consistent with work by other investigators [14]. Micro-array analysis of our own series of novel paclitaxel- and platinum-resistant EOC cell lines has revealed that several such genes are down-regulated in isogenic paclitaxel-resistant cell lines, including Wee1 and p57Kip2. Down-regulation of p57Kip2 results in unopposed activity of the cyclin dependent kinases (CDK) and we hypothesized that this could confer collateral sensitivity to CDK inhibitors. Testing the CDK2 inhibitor seliciclib in EOC cell lines confirmed that this is indeed the case [15]. These results raise the intriguing possibility that a subset of EOC, in which acquired resistance to chemotherapy occurs via transcriptional silencing of cell cycle regulatory genes such as p57Kip2 are collaterally sensitized to pharmacological inhibition of the CDKs.

Collateral sensitivity of drug resistant cell lines – are there opportunities for resensitisation?

The term “ collateral sensitivity” was first used in the field of microbiology to describe the “hypersensitivity” of otherwise antibiotic resistant E.coli (reviewed in Hall et al. 2009). The mechanistic basis underlying this phenomenon are varied and complex but nevertheless encompass a wide range of important chemotherapeutic drugs (reviewed in 16]. The concept that acquired resistance to one class of agent may confer “collateral sensitivity” to a second class of agents is established in the field of oncology and has been explored with a number of cytotoxic cancer chemotherapeutic agents [17], but has not been widely exploited in the clinical setting.. Interestingly, it was shown that the collateral sensitivity of nitrogen mustard-resistant cells to chloroethyl nitrosoureas was attributable to the loss of guanine-O6-alkyl transferase activity present in the parent line, implying that changes in expression of specific genes confer both resistance and collateral sensitivity [18]. A study by Nakajima et al. [19] which examined two different time exposures of EOC lines to paclitaxel demonstrated a relationship between drug exposure time and extent of resistance induction, with collateral sensitivity to cisplatin. Another study by Xu et al. [20] analysed cisplatin-resistant gastric cancer lines generated by use of varying concentrations of inducing agent. Higher cisplatin-resistance was shown to correlate with collateral sensitivity to other platinum compounds, doxorubicin, mitomycin C and 5-FU. A variety of mechanisms associated with antioxidant and transporter genes was proposed by the authors [20]. There are also examples of platinum-resistance being associated with collateral sensitivity to anti-folate compounds [21].

Mechanistically, collateral sensitivity: resistance has been more rigourously tested with new targeted anti-cancer agents. Indeed, the literature cites a number of examples where new targeted therapy may be used advantageously in combination “cocktails”. Raf-1 transformed cells were relatively resistant to doxorubicin but collaterally sensitive to the Hsp90-targeting compound Geldanamycin [22]. The same study showed a combination of Geldanamycin and imatinib to be effective in BCR/Abl expressing cells, but only at unrealistic dose levels. An intriguing approach was to then consider the cell cycle inhibitor flavopiridol – which can act as a transcriptional inhibitor (as can the CDK inhibitor seliciclib) and could help to overcome the block in apoptosis seen in highly over-expressing BCR/Abl cells. Indeed, the triple combination of drugs enabled sensitization of the resistant cells to the effects of Geldanamycin [22]. Increased activation of AKT and /or a lack of PTEN is associated with tumours with a high proliferative response and chemotherapy resistance, but may confer sensitivity to mTOR inhibitors (reviewed in23]. This is further complicated by the fact that a feedback loop in the mTOR pathway leads to suppression of AKT and thus mTOR inhibition could actually lead to activation of AKT in some cells [24]. The notch3, jagged and Wnt genes have been shown to be expressed in serous ovarian cancers [25]. It is tempting to speculate that this tumour, which is notoriously chemorefractory, may be sensitive to specific targeted agents directed against such genotypes.

The EGFR directed tyrosine kinase inhibitor Gefitinib, whilst showing itself to be an effective therapy in the management of NSCLC with activating mutations in EGFR, is also associated with the development of resistance rendering it ineffective. NSCLC cell lines with acquired resistance to Gefitinib expressing reduced EGFR were shown to possess collateral sensitivity to TNF-alpha [26]. Even with reduced EGFR levels, Gefitinib resistant cells responded to TNF-alpha by autophosphorylation of EGFR with reduced AKT-phosphorylation.

Our observations, and those of other investigators, imply that a potential approach to therapy of solid tumours would envisage molecular profiling pre- and post-acquisition of clinical drug resistance. Transcriptional silencing of one or more key cell cycle regulators such as p57Kip2 would support the use of CDK inhibitors. Clearly, such an approach requires additional studies to determine the specific role of cell cycle regulators as determinants of resistance to individual chemotherapeutic agents and the effect of their loss, if any, in conferring collateral sensitivity to pharmacological inhibitors of the CDKs.


Since the first description of anticancer drug resistance, investigators have identified a multiplicity of mechanisms which affect cellular sensitivity both to individual agents and more generally.

Alongside efforts to describe the mechanistic basis of reduced response to chemotherapy, there is a continuing requirement to identify robust biomarkers which predict patients at risk of developing chemotherapy resistant disease and suggest optimal alternative therapy for them. We have shown that the cell cycle regulators PLK2 and p57Kip2 are important determinants and candidate novel biomarkers of chemotherapy resistance in ovarian (and potentially other) cancers. Our results raise interesting considerations into collateral drug sensitivity in chemotherapy resistance both in vitro and in the oncology clinic.


1. Bahassi EM. Polo-like kinases and DNA damage checkpoint: beyond the traditional mitotic functions. ExpBiol and Medicine 2011; 236: 648-657.

2. Simmons DL, Neel BG, Stevens R, Evett G, Erikson RL. Identification of an early growth response gene encoding a novel putative protein kinase. Mol Cell Biol 1992; 12: 4164–4169.

3. Burns TF, Fei P, Scata KA, et al. Silencing of the novel p53 target gene Snk/Plk2 leads to mitotic catastrophe in paclitaxel (Taxol)-exposed cells. Mol Cell Biol 2003; 23: 5556-5571.

4. Syed N, Smith P, Sullivan A, Farrell PJ, Crawford D, Griffin B, Dyer MS, Karran L, O’Nions J, Spender L, Allday M, Crook T. Transcriptional silencing of Snk/Plk2 occurs at high frequency in B cell neoplasia. Blood 2006; 107: 250-256.

5. Hatzimichael E, Dasoula A, Benetatos L, Syed N, Dranitsaris G, Crook T and Bourantas K. Study of specific genetic and epigenetic variables in multiple myeloma. Leuk Lymphoma 2010; 51: 2270-2274.

6. Benetatos L, Dasoula A, Hatzimichael E, Syed N, Voukelatou M, Dranitsaris G, Bourantas KL and Crook T. Polo-like kinase 2 (SNK/PLK2) is a novel epigenetically regulated gene in acute myeloid leukemia and myelodysplastic syndromes: genetic and epigenetic interactions. Ann Hematol 2011 Feb 22.

7. Savage P, Stebbing J, Bower M, Crook T. Why does cytotoxic chemotherapy cure only some cancers? Nat Clin Prac Oncol 2009; 6: 43-52.

8. Glasspool RM, Teodoridis JM and Brown R. Epigenetics as a mechanism driving polygenic clinical drug resistance. Br J Cancer 2006; 94: 1087-92.

9. Syed N, Coley HM, Sehouli J, Koensgen D, Mustea A, Szlosarek PW, McNeishI, Lovell DP, Blagden SP, Schmid P, Hatzimichael E, Crook T. Polo-like kinase 2 is an epigenetic determinant of chemosensitivity and clinical outcomes in ovarian cancer. Cancer Research 2011; 71: 3317-3327.

10. Bredberg A and Bodmer W. Cytostatic drug treatment causes seeding of gene promoter methylation. Eur J Cancer 2007; 43: 947–954.

11. Matthew EM, Hart LS, Astrinidis A, Navaraj A, Dolloff NG, Dicker DT, Henske EP, El-Deiry WS. The p53 target Plk2 interacts with TSC proteins impacting mTOR signaling, tumour growth and chemosensitivity under hypoxic conditions. Cell Cycle 2009; 8: 4168-75.

12. Ju W, Yoo BC, Kim IJ, Kim JW, Kim SC and Lee HP. Identification of genes with differential expression in chemoresistant epithelial ovarian cancer using high-density oligonucleotide microarrays. Oncol Rep 2009; 18: 47–56.

13. De Viron E, Knoops L, Connerotte T, Smal C, Michaux L, Saussoy P, Vannuffel P, Beert E, Vekemans M-C, Hermans C, Bontemps F and Van Den Neste E. Impaired up-regulation of polo-like kinase 2 in B-cell chronic lymphocytic leukemia lymphocytes resistant to fludarabine and 2-chlorodeoxyadenosine: a potential marker of defective damage response. Br J Haematol 2009; 147: 641-652.

14. Swanton C, Marani M, Pardo O, Warne PH, Kelly G, Sahai E, et al. Regulators of mitotic arrest and ceramide metabolism are determinants of sensitivity to paclitaxel and other chemotherapeutic drugs. Cancer Cell 2007; 11: 498–512.

15. Coley HM, Mohammed Safuwan Nur Arnida, Chivers P, Papacharalbous E, Giannopoulos T, Butler-Manuel S, Madhuri K, Lovell DP and Crook T. The Cyclin-Dependent Kinase Inhibitor p57Kip2 is epigenetically regulated in carboplatin-resistance and results in collateral sensitivity to the CDK inhibitor seliciclib in ovarian cancer. Br J cancer 2011 (IN PRESS)

16. Hall MD, Handley MD, Gottesman MM. Is resistance usefless? Multidrug resistance and collateral sensitivity. Trends in Pharmacological Sciences 2009; 30: 546-56.

17. Tew KD and Wang AL. Selective cytotoxicity of haloethylnitrosoureas in a carcinoma cell line resistant to bifunctional nitrogen mustards. Mol Pharmacol 1982; 21:729-738.

18. Dean SW, Gibson NW and Tew KD. Selection of nitrogen mustard resistance in a rat tumor cell line results in loss of guanine-O6-alkyl transferase activity. Mol Pharmacol 1986; 30:77-80.

19. Nakajima K, Isonishi S, Saito M, Tachibana T, Ishikawa H. Characterisation of two independent, exposure – time dependent paclitaxel –resistant human ovarian carcinoma cell lines. Hum Cell 2010; 23: 156-63.

20. Xu H, Choi SM, An CS, Min YD, Kim KC, Kim KJ, Choi CH. Concnetration-dependent collateral sensitivity of cispltin-resistant gastric cancer cell sublines. Biochem Biophys Res Commun 2005; 328: 618-22.

21. Marverti G, Ligabue A, Paglietti G, Corona P, Piras S, Vitale G, Guerrieri D, Luciani R, Costi MP, Frassineti C, Moruzzi MS.Collateral sensitivity to novel thymidylate synethase inhibitors correlates with folate cycle enzymes impairment in cisplatin-resistant human ovarian cancer cells. Eur J Pharmacol 2009; 615: 17-26..

22. Demidenko ZN, An WG, Lee JT, Romanova LY, McCubrey JA, Blagosklonny MV. Kinase addiction and bi-phasic sensitivity-resistance of BCR-Abl-and Raf1 expressing cells to imatinib and geldanamycin. Cancer Biology and Therapy 2005; 4: 484-90.

23. Chappell WH, Steelman LS, Long JM and 23 others. Ras/Raf/MEK/ERK and PI3K/PTEN/Akt/mTOR inhibitors: rationale and importance to inhibiting these pathways in human health. Oncotarget 2011; 2: 135-64.

24. McCubrey JA, Steelman LS, Abrams SL et al. Targeting survival cascades induced by activation of raf/ras/MEK/ERK, PI3K/PTEN/Akt/mTOR and Jak/STAT pathways for effective leukaemia therapy. Leukemia 2008; 22: 708-22.

25. Chen X, Stoeck A, Lee Sj, Shih lM, Wang MM, Wang T-L. Jagged1 expression regulated by Notch3 and Wnt/β-catenin signalling pathways in ovarian cancer. Oncotarget 2010; 1: 210-18.

26. Ando K, Ohmori T, Inoue F and 11 others. Enhancement of sensitivity to tumour necrosis factor alpha in non-small cell lung cancer cells with acquired resistance to gefitinib. Clin Cancer Res 2005; 11: 8872-9.
