Importance of activated leukocyte cell adhesion molecule (ALCAM) in prostate cancer progression and metastatic dissemination

Metrics: PDF 695 views  |   Full Text 959 views  |   ?

Andrew J. Sanders _, Sioned Owen, Liam D. Morgan, Fiona Ruge, Ross J. Collins, Lin Ye, Malcolm D. Mason and Wen G. Jiang

Abstract

Andrew J. Sanders1, Sioned Owen1,3, Liam D. Morgan1, Fiona Ruge1, Ross J. Collins1, Lin Ye1, Malcolm D. Mason2 and Wen G. Jiang1

1 Cardiff China Medical Research Collaborative (CCMRC), Division of Cancer and Genetics, Cardiff University School of Medicine, Cardiff, UK

2 Division of Cancer and Genetics, Cardiff University School of Medicine, Cardiff, UK

3 Alfred Russel Wallace Building, Upper Glyntaff, University of South Wales, Pontypridd, UK

Correspondence to:

Andrew J. Sanders,email: sandersaj1@cardiff.ac.uk

Keywords: ALCAM; prostate cancer; bone; metastasis; serum biomarker

Received: May 09, 2019     Accepted: September 05, 2019     Published: October 29, 2019

ABSTRACT

Activated Leukocyte Cell Adhesion Molecule (ALCAM) has been linked to the progression of numerous human cancers, where it appears to play a complex role. The current study aims to further assess the importance of ALCAM in prostate cancer and the prognostic potential of serum ALCAM as a biomarker for prostate cancer progression. Here we demonstrate enhanced levels of tissue ALCAM are associated with metastasis. Additionally, elevated serum ALCAM is indicative of progression and poorer patient outlook, and demonstrates comparable prognostic ability to PSA in terms of metastasis and prostate cancer survival. ALCAM suppression enhanced proliferation and invasiveness in PC-3 cells and motility/migration in PC-3 and LNCaP cells. ALCAM suppressed PC-3 cells were generally less responsive to HGF and displayed reduced MET transcript expression. Furthermore a recombinant human ALCAM-Fc chimera was able to inhibit LNCaP cell attachment to HECV and hFOB1.19 cells. Taken together, ALCAM appears to be a promising biomarker for prostate cancer progression, with enhanced serum expression associated with poorer prognosis. Suppression of ALCAM appears to impact cell function and cellular responsiveness to certain micro environmental factors.


Introduction

Dissemination and metastatic spread of cancer cells is a key determinant of patient prognosis and the bone is a common site for metastasis arising from prostate cancer [1]. Additional research is required to fully comprehend the molecular and cellular mechanisms involved in these processes and to develop new therapeutic strategies.

Activated leukocyte cell adhesion molecule (ALCAM, CD166) was initially characterized by Bowen et al. in 1995 [2]. ALCAM, a transmembrane glycoprotein, is a member of the immunoglobulin superfamily and has been identified as mediating homophilic, ALCAM-ALCAM, and heterophilic, ALCAM-CD6, interactions [2, 3]. ALCAM has been identified as a substrate of a disintegrin and metalloprotease (ADAM) 17 and can be shed from the cellular surface, a process that can be enhanced by epidermal growth factor (EGF) and transforming growth factor (TGF) β [46]. ALCAM has been implicated to influence cellular traits associated with cancer progression in vitro and in vivo [611], though there is some conflict within the literature. Alterations in ALCAM expression have been reported and associated with the progression or prognosis of various human cancers including, breast [7, 1215], melanoma [16, 17] and gastric [18, 19] cancer, however there are again contrasting reports within the literature.

Accumulating evidence suggests that ALCAM may play a role in cancer cell dissemination and development within the bone environment. Early work has demonstrated reduced ALCAM levels in breast cancer patients who developed skeletal metastasis [14]. Additional studies exploring the prognostic role of ALCAM in breast cancer dissemination have implicated over-expression of ALCAM with nodal involvement and a tendency toward increased tumor cell presence in the bone marrow [7]. Hansen et al., have explored the role of ALCAM in prostate cancer [6]. Using a number of in vivo models they demonstrated that ALCAM suppression does not impact on growth or local invasion of cancer cells inoculated into the prostate but significantly reduced skeletal metastasis and burden following intracardiac inoculation and resulted in reduced growth and survival of intratibially inoculated cells [6].

The current study aims to further explore the functional role of ALCAM in regulating aggressive traits in prostate cancer cells and their responsiveness to environmental factors, together with assessing the potential of serum ALCAM as a marker of prostate cancer progression.

Results

Clinical significance of ALCAM in prostate cancer tissues and serum

ALCAM expression was examined in a tissue microarray (TMA) containing core biopsies of localized, metastatic disease and paired normal tissues. ALCAM expression was observed mainly in epithelial tissues at both cytoplasmic and membranous locations, though differential staining profiles of cytoplasmic and membranous ALCAM were not performed in the current analysis. Enhanced ALCAM staining intensity was observed in cancerous compared to normal samples, though this was not statistically significant (p = 0.32; Figure 1A and 1C). Significantly enhanced ALCAM staining was observed in M1 compared to M0 patients (p = 0.027; Figure 1B and 1D), though no significant differences were seen between stage (p = 0.161; Figure 1E), Gleason score (p = 0.150; Figure 1F) or patient prostate specific antigen (PSA) levels (p = 0.668; Figure 1G). Furthermore, comparison of paired normal and cancer tissues (n = 8 pairs, Supplementary Figure 1), highlighted enhanced staining in cancer tissues in 6 (75%) of the pairs.

ALCAM tissue expression in a tissue microarray of prostate and prostate cancer tissues.

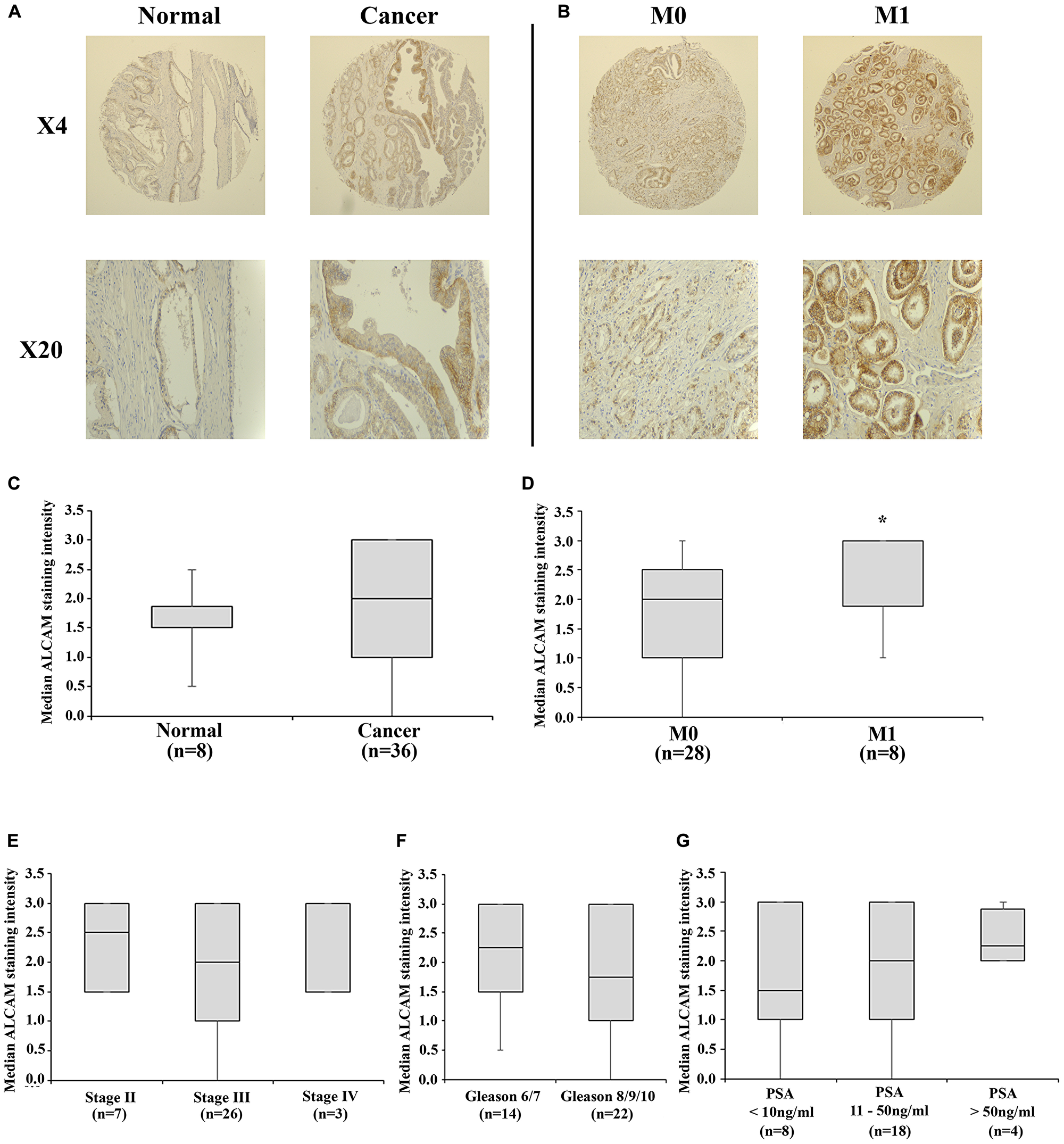

Figure 1: ALCAM tissue expression in a tissue microarray of prostate and prostate cancer tissues. Representative images of normal and cancerous cores (A) and cores derived from M0 and M1 patients (B) shown at ×4 and ×20 objective magnifications. Median staining intensity scores are presented for normal and cancerous tissue (C), M0 and M1 patients (D), patient stage (E), Gleason score (F) and PSA score (G). Boxplot data represents the median, Q1 and Q3 staining intensity scores and whiskers represent minimum and maximum values. *Represents p < 0.05.

The prognostic potential of serum ALCAM was also assessed in 229 prostate cancer patients (Figure 2). Significantly higher levels of ALCAM were observed in patients who died of prostate cancer (PRCa) compared to those who were still alive (Figure 2A, p < 0.001) and in M1 patients compared to M0 patients (Figure 2B, p = 0.002), with borderline significant elevations observed in N1 compared to N0 patients (Figure 2C, p = 0.05). Significant differences in ALCAM serum levels were observed between Gleason score groups (Figure 2D). Post hoc analysis revealed significantly elevated ALCAM serum levels in Gleason 9 compared to Gleason 7 or Gleason 6 samples, and in Gleason 8 compared to Gleason 7 or Gleason 6 samples (all p < 0.05). No significant differences were seen between Gleason 10 and other groups, potentially due to the smaller sample size of this group. Significant differences were also detected between T score (Figure 2E) and PSA level (Figure 2F). Post hoc analysis indicated significantly higher serum ALCAM levels in T4 patients compared to either T3 or a combined T1-2 classification group and in T3 compared to T1-2 samples (all p < 0.05) (Figure 2E). Additionally, post hoc analysis indicated significantly elevated serum ALCAM in patients with a PSA level > 50 ng/ml in comparison to those whose PSA < 10 ng/ml and whose PSA was between 10.1 and 50 ng/ml (both p < 0.05) (Figure 2F). A positive correlation was also noted between serum PSA and ALCAM levels, where clinical PSA information was available, (n = 217, Spearman Rank correlation coefficient = 0.275, p ≤ 0.001, data not shown).

Association of serum ALCAM expression with patient clinical pathological information and prognostic ability.

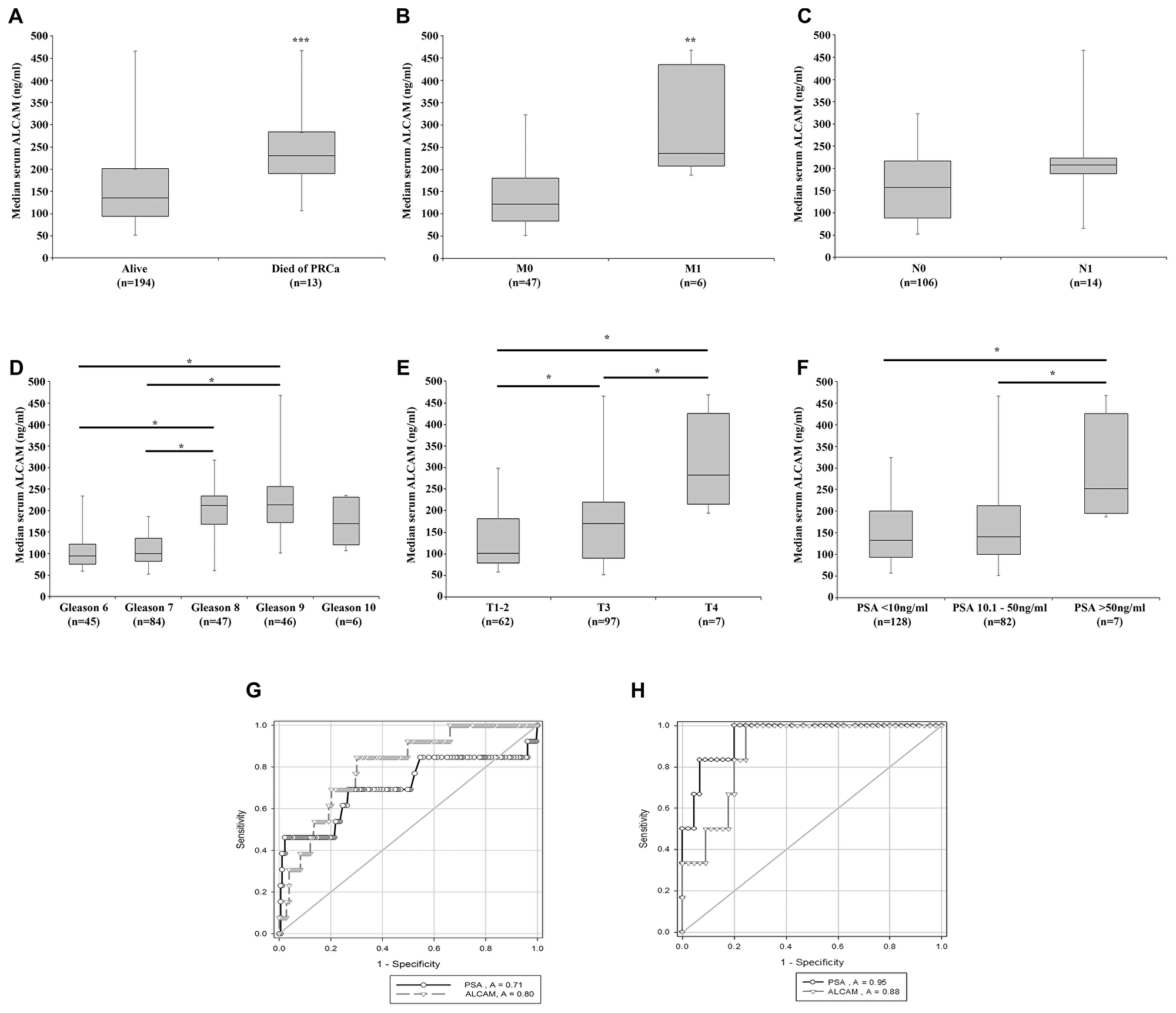

Figure 2: Association of serum ALCAM expression with patient clinical pathological information and prognostic ability. Serum ALCAM levels were examined in a cohort of prostate cancer patients and correlated with available clinical pathological information. Elevated levels of serum ALCAM were observed in patients who died from prostate cancer (A), those with detectable metastasis (B) and those with nodal involvement (C). Higher serum ALCAM was also generally associated with higher Gleason score (D), T-score (E) and PSA level (F). ROC analysis demonstrated a comparable prognostic capacity of serum ALCAM and PSA to predict patients who died of prostate cancer (total n = 196 samples with PSA and ALCAM levels; alive, n = 183 and died of PRCa, n = 13) (G) and those with metastasis (total n = 51 samples with PSA and ALCAM levels; M0, n = 45 and M1, n = 6) (H). Box plots represent median, Q1 and Q3 data and whiskers represent minimum and maximum values. ***Represents p ≤ 0.001; **Represents p ≤ 0.01; and *Represents p < 0.05.

Receiver operating characteristic (ROC) analysis was undertaken to explore the prognostic capacity of serum ALCAM, compared to PSA, to identify patients who died of PRCa (Figure 2G) or with metastasis (Figure 2H). Combined ALCAM and PSA serum levels were available for 196 patients with survival outcomes (alive, n = 183; died of PRCa, n = 13) and 51 patient with M scores (M0, n = 45; M1, n = 6). Serum ALCAM proved to have comparable diagnostic power to PSA, performing slightly better at identifying those patients who died of PRCa (ALCAM AUC = 0.80, 95% CI 0.69 – 0.91 compared to PSA AUC = 0.71, 95% CI 0.51 – 0.91) (Figure 2G) and slightly worse at identifying those patients with metastasis (ALCAM AUC = 0.88, 95% CI 0.78 – 0.99 vs. PSA AUC = 0.95, 95% CI 0.88 – 1.02) (Figure 2H).

Generation and verification of ALCAM suppression in PC-3 and LNCaP prostate cancer lines

ALCAM transcript expression was screened in a number of human prostate, prostate cancer, osteoblast (hFOB1.19) and endothelial (HECV) cell lines (Figure 3A). With the exception of the MDA-PCa-2b cell line, ALCAM was expressed at moderate to strong levels. PC-3 and LNCaP cell lines were chosen for transfection with either pEF6 control plasmids or pEF6 plasmids containing ribozyme transgenes targeting ALCAM. Quantitative transcript analysis revealed a significant decrease in ALCAM expression, compared to control cells, in PC-3 cells (p = 0.021) and LNCaP cells (p = 0.049) following transfection with the ALCAM ribozyme transgene (Figure 3B and 3C). Similarly, western blot analysis indicated a suppression of ALCAM protein in both PC-3 and LNCaP cells transfected with the ALCAM ribozyme transgene (Figure 3D and 3E).

ALCAM expression and targeting in prostate cancer cell lines.

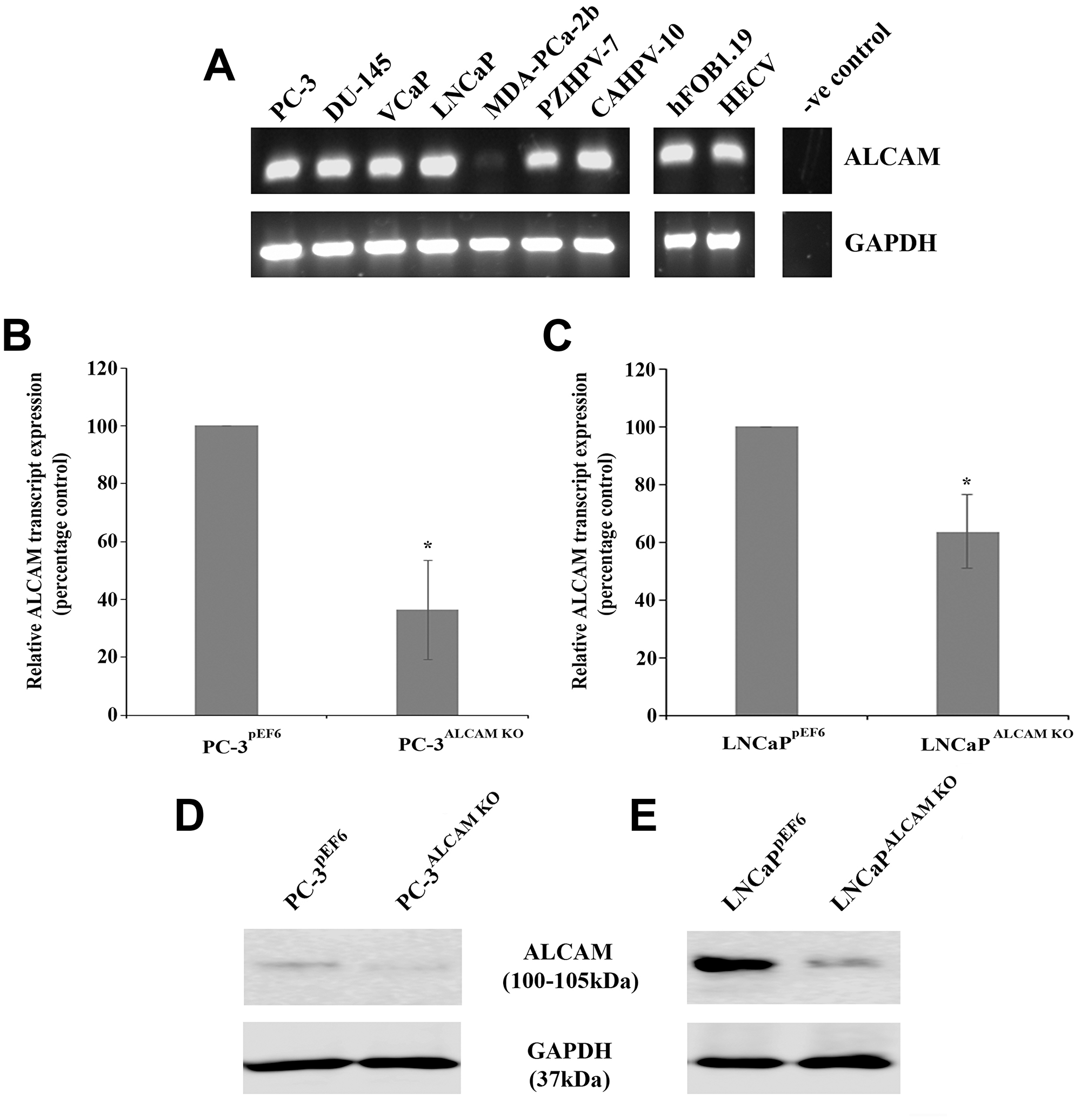

Figure 3: ALCAM expression and targeting in prostate cancer cell lines. RT-PCR demonstrating ALCAM transcript expression in the majority of human prostate cell lines, hFOB1.19 osteoblast and HECV endothelial cell lines (A). Quantitative PCR demonstrated that targeting of ALCAM significantly reduced transcript expression in the PC-3 cell line (n = 3) (B) and the LNCaP cell line (n = 3) (C). Western blot analysis demonstrating reduced protein levels following ALCAM targeting in the PC-3 (D) and LNCaP (E) cell lines. Composite gel/blot images show representative images, cropped for conciseness. Comparative bands and adjustments for each individual molecule were taken from the same image. Data represents mean percentage control values ± SEM. *Represents p < 0.05.

Functional characterization of ALCAM suppression and impact on cellular responsiveness to a bone-like environment

Functional characterization of ALCAM suppressed cells was undertaken in conjunction with 50 μg/ml bone matrix extract (BME) intended to mimic a bone like environment in vitro (Figure 4). Knockdown of ALCAM in untreated PC-3 cells significantly enhanced PC-3 cell growth rates over a 5 day incubation period (p = 0.04) but had no significant effect on the LNCaP cell line. BME treatment had no significant impact on the growth of either cell line (Figure 4A and 4B). ALCAM knockdown in untreated cells did not significantly impact on the cell-matrix adhesion of either PC-3 (Figure 4C) or LNCaP cells (Figure 4D), though general reductions were observed in both cell lines. No significant effects were noted following treatment of either line with BME, though generally a greater response was seen in PC-3ALCAM KO cells compared to PC-3pEF6 cells. ALCAM knockdown also significantly enhanced cellular invasiveness in untreated PC-3 cells (p = 0.009), and non-significantly enhanced LNCaP invasiveness (p = 0.427). Differential responses to BME treatment within PC-3 and LNCaP cells was again observed, although significance was not reached (Figure 4E and 4F). Motility bead analysis demonstrated enhanced motility in PC-3ALCAM KO cells compared to PC-3pEF6 control cells (p = 0.007, Figure 4G) and similarly, LNCaPALCAM KO cells were found to have enhanced, though non-significantly, 4 hour migratory rates compared to LNCaPpEF6 cells using an electric cell substrate impedance sensing (ECIS) based assay (p = 0.091; Figure 4H). In both cell lines, the addition of BME had no significant impact on motility.

Impact of ALCAM suppression and bone matrix extract (BME) on prostate cancer cell function.

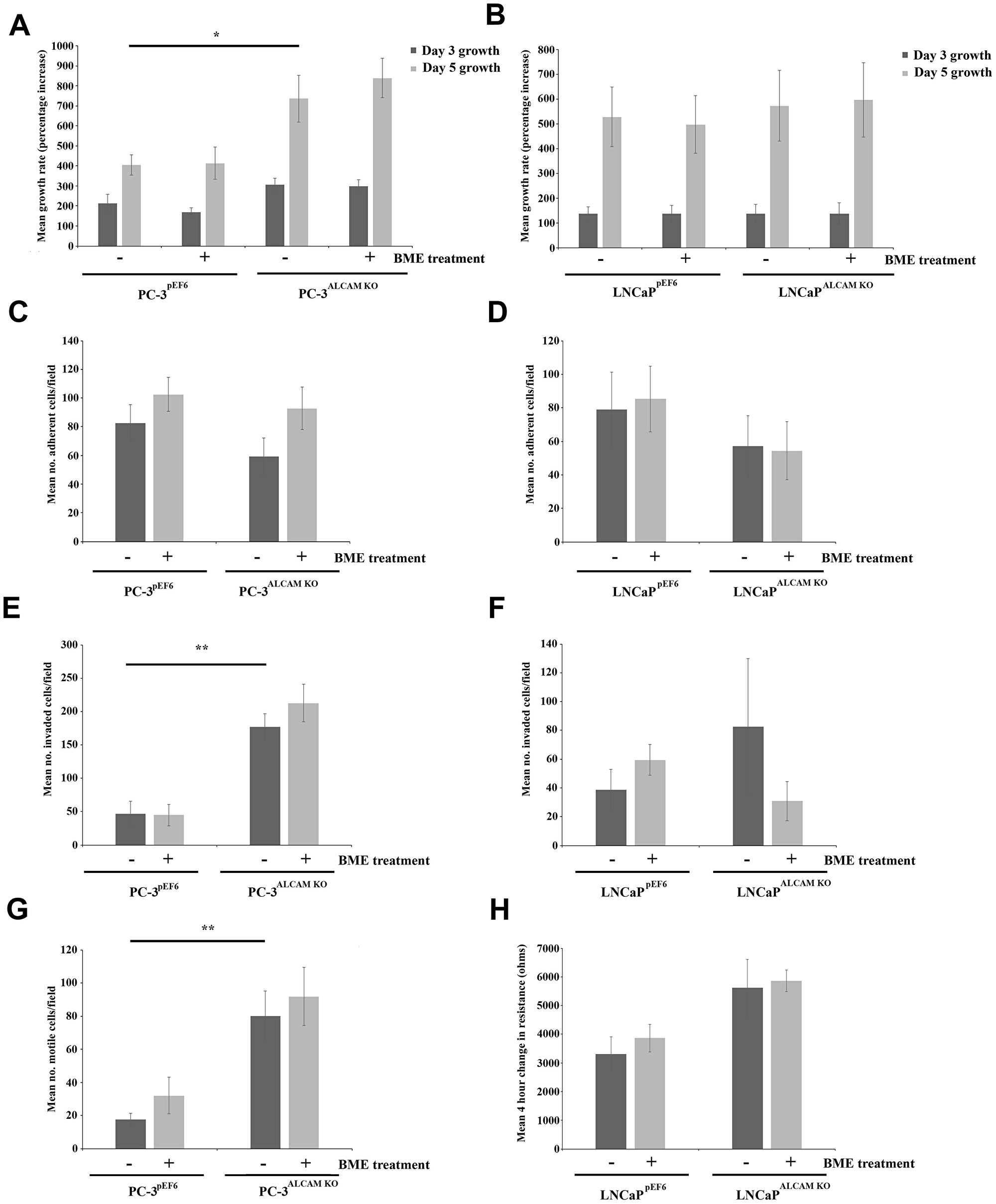

Figure 4: Impact of ALCAM suppression and bone matrix extract (BME) on prostate cancer cell function. Cell growth in response to ALCAM knockdown and treatment with BME in PC-3 (n = 4) (A) and LNCaP (n = 4) (B) cell lines. Impact of ALCAM suppression and BME treatment on cell matrix adhesion in the PC-3 (n = 3) (C) and LNCaP (n = 4) (D) cell line. Impact of ALCAM suppression and BME treatment on cellular invasion in PC-3 (n = 3) (E) and LNCaP (n = 3) (F) cell lines. Cell motility bead assay demonstrating the response of PC-3 cells to ALCAM knockdown and BME treatment (n = 4) (G). Cell migration in the LNCaP cell line in response to ALCAM suppression and BME treatment following a 4 hour period, quantified using an ECIS based assay (n = 4) (H). Data represents mean values ± SEM., ***Represents p ≤ 0.001, ** Represents p ≤ 0.01 and *Represents p < 0.05.

Potential mechanistic impact of ALCAM suppression in prostate cancer cell lines

A protein microarray was used to identify potential differences between PC-3pEF6 and PC-3ALCAM KO cells. This highlighted differential expression and/or phosphorylation of certain receptors, including the hepatocyte growth factor (HGF) receptor MET, where a general decrease in signal intensity was observed in a number of pan and phospho-specific probes (Figure 5A). Subsequently, quantification of MET transcript levels indicated a significant reduction in PC-3ALCAM KO compared to PC-3pEF6 cells (p = 0.01, Figure 5B). We also explored the responsiveness of PC-3pEF6 and PC-3ALCAM KO cells to HGF. Data is presented as percentage change in either PC-3pEF6 or PC-3ALCAM KO following treatment with 40ng/ml HGF in relation to the relative untreated control to give an indication and comparison of the capacity of such cells to respond to HGF, with >100% indicating a positive and < 100% indicating an inhibitory response. PC-3ALCAM KO cells were generally found to have a lower capacity to respond to HGF than PC-3pEF6 cells in terms of 5 day growth (p = 0.067, Figure 5C), invasion (p = 0.094, Figure 5D) and motility (p = 0.126, Figure 5E). No significant differences were seen regarding cell-matrix adhesion (p = 0.537, Figure 5F). We further analyzed the expression profile of a number of other key molecules which may act downstream. Within the protein array, alterations were seen in a number of pan and phospho-specific AKT1 antibodies (Supplementary Figure 2A), though both enhanced and decreased total expression was observed across different antibodies following ALCAM knockdown and subsequently, no significant difference in transcript expression was observed (p = 0.229; Supplementary Figure 2B) between PC-3pEF6 and PC-3ALCAM KO cells. Similarly expression profiles of total and phospho-specific expression of extracellular signal-regulated kinase (ERK) 1 & 2 were explored in the protein microarray where general increases in total ERK1 expression and only minor changes in total ERK2 were observed (Supplementary Figure 2C) following ALCAM suppression, whereas no significant differences in the transcript expression of ERK1 (p = 0.520; Supplementary Figure 2D) but a significant decrease in ERK2 transcripts were observed (p < 0.001; Supplementary Figure 2E) in PC-3ALCAM KO compared to PC-3pEF6 cells. Interestingly, according to the micro-array, the greatest difference following ALCAM suppression, relative to the control, was an enhanced phosphorylation of ERK1/2 Y204. Finally, the protein micro-array also demonstrated alterations in focal adhesion kinase (FAK) expression and phosphorylation following ALCAM suppression, with greatest reductions, relative to the control, seen in total FAK, FAK S732 and FAK S722 (Supplementary Figure 2F), which is partially supported at the transcript level where ALCAM suppression led to a significant decrease in FAK expression (p = 0.002; Supplementary Figure 2G).

Mechanistic implications of ALCAM suppression and impact on responsiveness to hepatocyte growth factor (HGF).

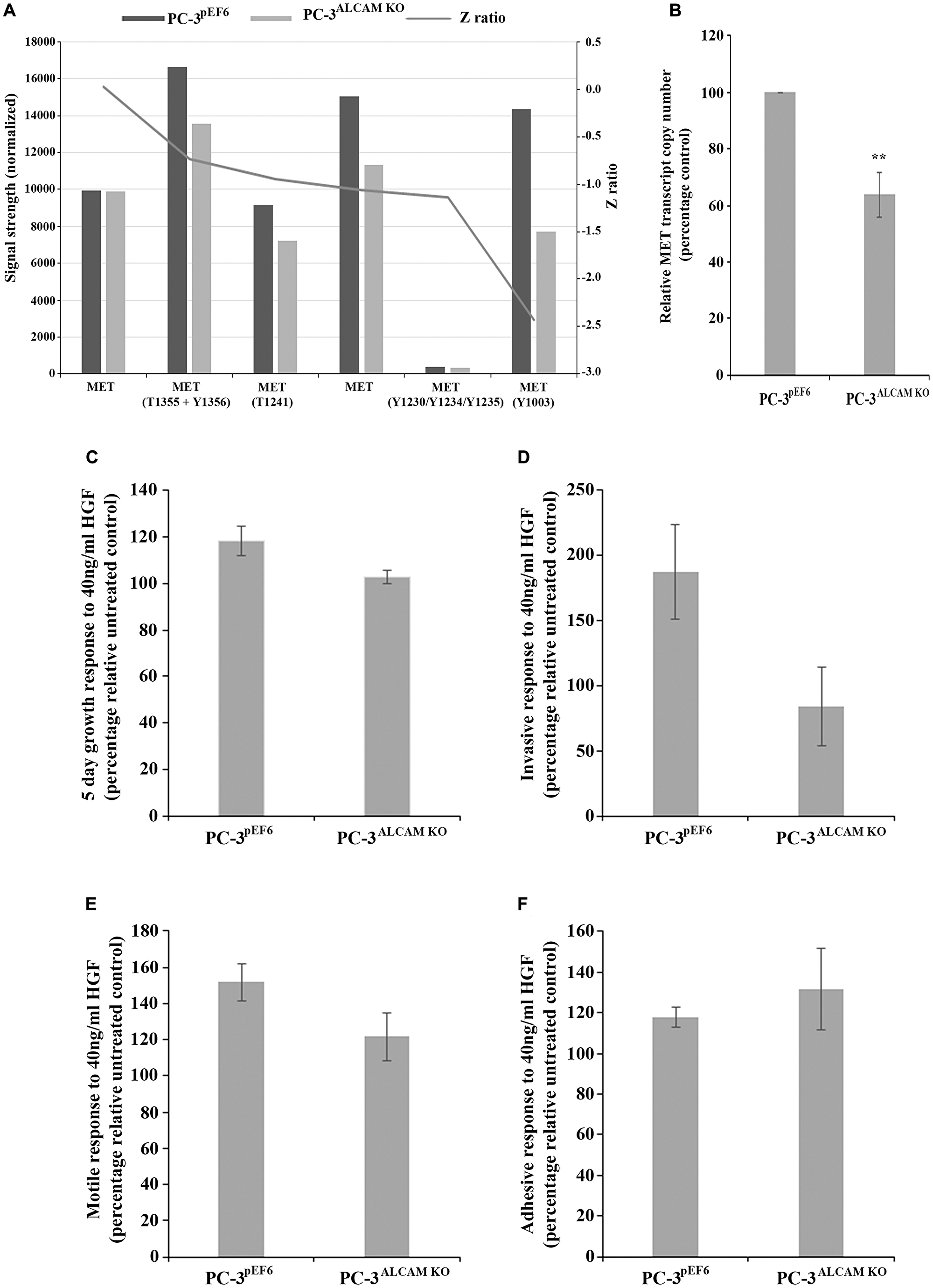

Figure 5: Mechanistic implications of ALCAM suppression and impact on responsiveness to hepatocyte growth factor (HGF). Protein microarray demonstrating signal expression profile of included MET and phospho-MET antibodies in PC-3 control and ALCAM knockdown cells (n = 1) (A). Quantitative PCR analysis of MET transcript expression in PC-3 control and ALCAM knockdown cells (n = 3) (B), quantitative PCR data shown represents mean percentage control ± SEM, ** represents p ≤ 0.01. Impact of HGF treatment on the responsiveness of PC-3 control or ALCAM knockdown cells on 5 day growth (n = 4) (C), invasion (n = 3) (D), motility (n = 4) (E) and matrix-adhesion (n = 3) (F). Data shown represents the mean percentage change ± SEM in comparison to the relative untreated control or ALCAM knockdown cells to demonstrate respective responsive rate to HGF in each individual line.

Impact of ALCAM-Fc chimera on endothelial attachment and function

The impact of an ALCAM-Fc chimera, containing Trp28-Ala526 of ALCAM, on prostate cancer cell attachment to HECV endothelial cells was explored. No tested concentration of ALCAM-Fc chimera significantly impacted on PC-3 (Figure 6A) or VCaP (Figure 6C) attachment to the HECV monolayer. However, significant differences were seen on LNCaP attachment (Figure 6B) with post hoc analysis indicating significant inhibition at 0.5 μg/ml (p = 0.002), 1.5 μg/ml (p = 0.002) and 3.0 μg/ml (p < 0.001) concentrations compared to untreated control.

Impact of ALCAM-Fc chimera on cancer cell attachment and endothelial cell function.

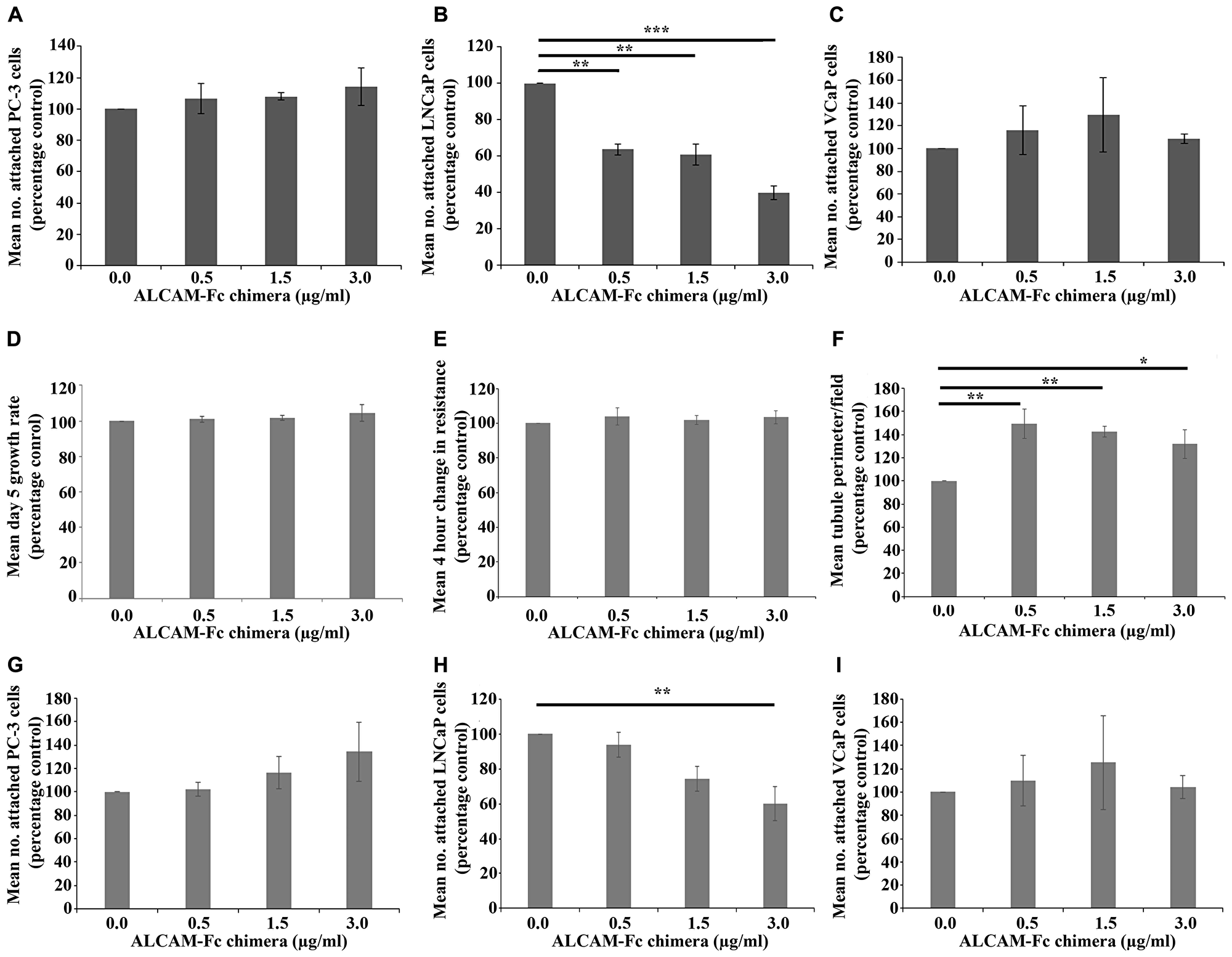

Figure 6: Impact of ALCAM-Fc chimera on cancer cell attachment and endothelial cell function. Effect of increasing concentrations of ALCAM-Fc chimera on PC-3 (A), LNCaP (B) and VCaP (C) cancer cell attachment to a HECV endothelial monolayer. Impact of increasing concentrations of ALCAM-Fc chimera on 5 day growth rates (D), 4 hour migration (E) and tubule formation (F) of HECV human endothelial cells. Change in resistance during an ECIS based wounding assay was taken as a surrogate of cellular migration. Effect of increasing concentrations of ALCAM-Fc chimera on PC-3 (G), LNCaP (H) and VCaP (I) cancer cell attachment to an hFOB1.19 osteoblast monolayer. Data shown represents mean percentage control (n = 3) ± SEM. ***Represents p ≤ 0.001, **Represents p ≤ 0.01 and *Represents p < 0.05.

ALCAM-Fc chimera did not significantly influence HECV 5 day growth rates (Figure 6D) or cellular migration (Figure 6E) but significantly impacted on HECV tubule formation, with post hoc analysis highlighting significant increases at 0.5 μg/ml, 1.5 μg/ml and 3.0 μg/ml concentrations (p = 0.005, 0.01 and 0.038, respectively, vs. untreated HECV cells) (Figure 6F).

Impact of ALCAM-Fc chimera on osteoblast attachment

No significant alterations were seen in PC-3 or VCaP attachment to a hFOB1.19 osteoblast monolayer at any ALCAM-Fc chimera concentration (Figure 6G and 6I), though generally higher numbers of PC-3 cells adhered at the 3.0 μg/ml concentration. Increasing concentrations of ALCAM-Fc chimera were found to significantly inhibit LNCaP attachment rates (Figure 6H), with post hoc analysis highlighting significant attachment inhibition at 3.0 μg/ml concentration (p = 0.007 vs. untreated control).

DISCUSSION

The cell adhesion molecule ALCAM has been recognized as an important molecule in cancer progression and metastasis though its precise role appears to be complex and remains to be fully elucidated. The current study aimed to further explore the relevance of ALCAM in prostate cancer cells and associated mechanisms, the potential of serum ALCAM to act as a biomarker of prostate cancer and the impact of an ALCAM-Fc chimera, containing extracellular regions of ALCAM, to influence other cell types involved in the metastatic cascade.

Several studies have looked at ALCAM immunostaining in prostate cancer. Kristiansen et al., highlighted a general up-regulation of ALCAM in tumor tissues, where enhanced expression was associated with low Gleason grade and a lower expression associated with higher grade disease [20]. A later study by this group supported ALCAM over-expression in prostate cancer samples and also demonstrated the potential of cytoplasmic, but not membranous, ALCAM to act as a prognostic marker of PSA relapse, highlighting the significance of protein location in addition to expression in cancer progression [21]. Further work, using a large scale tissue microarray format, noted ALCAM expression predominantly at the membrane with any cytoplasmic staining correlating with strong membranous expression and similarly associated high membranous ALCAM immunostaining to correlate with favorable tumor characteristics such as T stage, nodal status and preoperative PSA, with high ALCAM expression also linked to reduced risk of biochemical recurrence [22]. Differential expression of ALCAM has been observed in many other cancer types, where its cellular location again has been implicated as a significant factor. For example, in breast cancer reduced ALCAM transcript expression has been observed to associate with more aggressive phenotypes and poorer patient outlooks with reductions of either cytoplasmic and/or membranous ALCAM staining observed in patient tumor tissue and/or those with bone metastasis [13, 14]. Another study associated enhanced cytoplasmic ALCAM expression with reduced disease free survival rates, suggesting a role for strong cytoplasmic ALCAM expression as a marker of aggressive disease [15], whereas evaluation of membranous staining in a different study reported a link between decreased ALCAM expression and advanced tumor size, grade, negative estrogen and progesterone status and poorer survival rates, noting links between cytoplasmic staining and stronger membranous staining [12]. A further study, not differentiating between membranous and cytoplasmic staining, demonstrated the correlation of strong ALCAM expression with nodal involvement and presence of tumor cells in the bone marrow, with strong ALCAM expression in ductal carcinomas also correlating with reduced rates of recurrence free and overall survival [7]. In colorectal cancer, analysis of cytoplasmic and membranous ALCAM expression indicated a significant correlation between membranous ALCAM expression and reduced patient survival rates [23]. A different study noted predominant membranous ALCAM expression in colorectal samples, with cytoplasmic staining associated with strong membrane expression, and following the analysis of membranous ALCAM expression reported a significantly reduced overall survival rate in ALCAM negative patients [24]. Similar links to cellular localization have also been implicated in lung cancer, where membranous ALCAM expression, but not cytoplasmic, associated with shortened overall survival [25], oral squamous cell carcinomas (OSCCs) where cytoplasmic accumulation of ALCAM was indicative of poor patient prognosis [26] and pancreatic cancer, where cytoplasmic ALCAM expression in cancer cells was observed compared to membranous expression in normal cells and increased ALCAM expression was linked to adverse recurrence free and overall survival rates [27]. Taken together, ALCAM expression appears to be useful as a predictive prognosis tool, however, some contrast appears within the literature and its role may be dependent on cellular localization or cancer type. In our current study ALCAM staining levels were found to be generally enhanced in cancer tissues and were significantly associated with metastatic disease, though no significant associations were seen with other clinical pathological factors. However, the data presented here represents only a small microarray and no differential expression analysis was performed for membranous or cytoplasmic expression. Hence, these factors may account for discrepancies observed between the results presented here and other studies but again give an indication of the potential use for ALCAM staining as a prognostic factor.

Currently, there is very little information regarding the clinical relevance of serum ALCAM as a prognostic factor for prostate cancer progression. Previous mouse models utilizing human PC-3 and LNCaP xenografts have demonstrated a role for tumor, but not host derived ectodomain ALCAM in influencing the tumor burden of subcutaneous and orphotopic xenographs [6]. Within our cohort, significantly higher levels of serum ALCAM were associated with T stage, Gleason score and survival. ALCAM and PSA levels were also found to correlate and demonstrated comparable abilities to identify patients with metastasis and those who died of the disease, though serum ALCAM is not prostate specific and hence any clinical benefit may be in conjunction with other markers. Numerous studies have explored serum ALCAM in other cancers types where elevated levels are indicative of cancer or of poorer prognosis in gastric cancer [18, 28], hepatocellular carcinoma [29] and esophageal cancer [30]. Similar observations have also been made in breast cancer, where studies have shown ALCAM to perform as well or better than cancer antigen 15-3 (CA15-3) and carcinoembryonic antigen (CEA) [3133] and in epithelial ovarian cancer, where correlations between serum ALCAM and cancer antigen 125 (CA125) were noted [34]. However, other studies have also suggested either no difference between pancreatic cancer and chronic pancreatitis [35], or that enhanced serum ALCAM may be associated with moderate, compared to poorly differentiated cervical cancer [36]. Currently, PSA testing is widely used in diagnosis and monitoring of prostate cancer, though such a test carries both advantages and limitations and hence there is a need to identify, refine or develop new diagnostic and predictive assays for prostate cancer. Our study demonstrates the significance of serum ALCAM as a potential marker of prostate cancer progression, highlighting its use as a possible indicator of poor prognosis. Further work on larger cohorts of prostate cancer patients are needed to further realize the potential of serum ALCAM, potentially in conjunction with other markers, as a biomarker for prostate cancer and disease progression.

To further explore the wider implications and significance of extracellular ALCAM we explored the impact of an ALCAM-Fc chimera, including Trp28 – Ala526 and representing extracellular regions of ALCAM. The presence of this ALCAM-Fc chimera was found to enhance the tubule formation capacity of HECV human endothelial cells, potentially indicating a pro-angiogenic effect, which could support advanced tumor growth and aid metastatic dissemination. ALCAM has previously been associated with the processes of embryonic hematopoiesis and vasculoangiogenesis and, somewhat in contrast to our data, a soluble ALCAM-Fc chimera has previously been shown to negatively influence tube formation in yolk sac derived endothelial cells [37]. Soluble recombinant human ALCAM-Fc has also been shown to inhibit the trans-endothelial migration of monocytes without influencing migration or attachment to PMVEC endothelial cells [38]. In our current study ALCAM-Fc chimera also had differential effects on cancer cell attachment to endothelial or osteoblast cells, inhibiting LNCaP but not PC-3 or VCaP cell attachment. This may in part be due to differing cellular expression profiles of ALCAM within these cell lines, which could possibly allow for a greater disruption of ALCAM-ALCAM interactions in these cells. However, additional mechanisms, receptors or binding partners may exist and the nature and heterogeneity of a particular cancer type may also be a key factor in such mechanisms.

Our current data suggests that suppression of ALCAM may be associated with a more aggressive cellular phenotype in vitro, but this appeared to be largely cell line specific. Many differences exist between PC-3 and LNCaP cells utilized in this study, with perhaps one of the more significant being their androgen receptor (AR) status and responsiveness to androgen. Such differences as well as others may likely account for differential results between the cell lines though the importance of AR or androgen was not directly explored in this study and requires additional scientific investigation. Similar observations regarding ALCAMs role in regulating cellular phenotype have been noted in a number of other studies/cancers, though others suggest a contrasting role for ALCAM in regulating such traits in vitro and in vivo [611]. A recent study by Devis et al. [8], demonstrated ALCAM suppression in endometrial cells could reduce migration and invasion in vitro and also reduce primary tumor development and metastatic local spread in an orthotopic model, a trait not associated with proliferative changes but suggested to arise through the influence of ALCAM in cell micro-environment communications. Furthermore Devis et al., describe differences in gene profiles between control and ALCAM suppressed cells highlighting a number of pathways altered in cancer, including integrin signaling, as well as genes associated with motility and invasion [8]. ALCAM has also previously been shown to be a key regulator of prostate cancer dissemination to, and tumor development within the bone, with ALCAM suppression reducing skeletal metastasis and intratibial tumor growth but having no proliferative effects on tumor development within an orthotopic model implanted into the prostate [6]. In vitro ALCAM suppression has also been shown to result in a loss of TGFβ induced migration but only result in a non-significant increase in spontaneous migration rates [6]. To further explore potential mechanisms involved we undertook a protein microarray. Interestingly, differential total- or phospho-expression was seen in a number of receptors, signaling pathways and downstream effectors. This may provide a clue as to the differential in vitro and clinical impact of ALCAM in our study, and may suggest that loss of ALCAM may influence cellular traits but may also regulate the expression/phosphorylation of receptors and/or signaling pathways such as MET, a pathway frequently dysregulated in cancer [39], and/or other downstream effector pathways. However, the data presented is preliminary and some contrast exists between protein data within the micro-array and/or the quantitative transcript analysis. Similarly, loss or reduced expression of molecules such as FAK have previously been associated with a less aggressive cancer type and inhibition/disruption of this pathway as a potential therapeutic [40], rather than a more aggressive cellular phenotype reported here. Taken together, this suggests ALCAM may act as a mediator of tumor cell interactions with the surrounding micro-environment and a regulator of signal propagation within the cell, though this appears to be dependent on the particular environment or factors present. However, additional intense study is required to fully explore this, focusing on validation of the micro-array using conventional methods, together with exploring the impact of ALCAM suppression in complex multi-cellular environments. Furthermore, our data provides additional relevance to the potential roles played by extracellular ALCAM which may impact angiogenesis or cell attachment at secondary sites. Together, this may help explain the differential, complex role of ALCAM at a cellular and wider clinical level and supports the dual role of ALCAM proposed by Hansen et al. [6]. Further intense work is necessary to fully elucidate these complex roles and the clinical potential of ALCAM.

In summary, our current data suggest that serum ALCAM may have promise as a prognostic indicator in prostate cancer. Furthermore, ALCAM may influence cellular traits, and also their responsiveness to external stimuli. Extracellular ALCAM may also contribute to aspects of metastatic dissemination.

Materials and Methods

Cell lines, materials and culture conditions

PC-3, LNCaP, VCaP, CAHPV-10, PZHPV-7, hFOB1.19, MDA-PCa-2b and DU-145 cell lines were purchased from the American Type Culture Collection (ATCC; Middlesex, UK). Human HECV endothelial cells were purchased from Interlab Cell Line Collection (ICLC; Genoa, Italy). PC-3, LNCaP, VCaP, HECV and hFOB1.19 cells were used in functional assays. PC-3, VCaP and HECV cells were grown in Dubecco’s Modified Eagle Medium (DMEM)/Ham’s F12 with L-glutamine (Sigma-Aldrich, Dorset, UK) and LNCaP cells were cultured in RPMI 1640 medium (Sigma-Aldrich, Dorset, UK). Human hFOB1.19 osteoblasts were maintained in DMEM/Ham’s F-12 without phenol red (Life Technologies, Paisley, UK) containing 0.3mg/ml G418 (Melford Laboratories, Suffolk, UK). All base mediums were supplemented with 10% foetal calf serum (FCS) (Sigma-Aldrich, Dorset, UK) and an antimicrobial solution (Sigma-Aldrich, Dorset, UK). Cells were cultured at 95% humidity, 5% CO2 and 37° C except hFOB1.19 which were cultured at 34° C.

HGF was a kind gift from Dr T Nakamura (Osaka University Medical School, Japan). Recombinant human ALCAM, comprising a fusion of ALCAM Trp28 - Ala526 and the human IgG Fc region (ALCAM-Fc chimera) was purchased from R&D systems (Abingdon, UK).

Preparation of bone matrix extract (BME) from femoral heads

BME was generated in house from human femoral heads and has been previously described [11]. Briefly, femoral heads, obtained immediately following hip replacement surgery in conjunction with ethical approval, were ground using a bone mill (Splerings Orthopaedics B. V., The Netherlands). Fine material was collected in balanced saline solution (BSS) and subjected to sonication at 4° C using a BioRuptor (Wolf Laboratories, York, UK) and the resulting solutions collected and stored at –80° C.

Clinical samples

A TMA comprising 48 patient samples, containing duplicate cores from 36 patients diagnosed with adenocarcinoma and duplicate (with the exception of 1 sample, where n = 1) cores of matched normal tissue for 8 patients, (HPro-Ade96Sur-01) was purchased from Insight Biotechnologies (Middlesex, UK). Single cores from 4 metastatic locations were also contained on the array though due to the nature of these tissue types, namely bone section staining, were not included in the analysis. Where available, the median follow up period was 23 months.

Serum samples from prostate cancer patients were obtained from the Wales Cancer Bank (WCB) which is funded by the Wales Assembly Government and Cancer Research Wales. Other investigators may have received specimens from the same subjects. A total of 229 samples were utilized in the study with a median patient age of 65 years and a median follow up period of 4.0 years.

Immunohistochemical staining of ALCAM in a prostate cancer TMA

ALCAM expression was assessed across a TMA of normal prostate and prostate cancer sections. TMA antigen retrieval was undertaken in 0.1M EDTA buffer, heated in a microwave for 20 minutes, allowed to cool under running tap water and blocked with 5–10% horse serum for two hours. Following blocking, the TMA was incubated overnight with ALCAM primary antibody (final concentration 2 μg/ml; Novacastra, Milton Keynes, UK) before incubation with secondary and tertiary reagents from a Vectastain Elite Universal ABC kit (Vector Laboratories ltd., Peterborough, UK), in accordance with the manufacturers guidelines, and developing with diaminobenzidine (5mg/ml; Sigma-Aldrich, Dorset, UK) for 10 minutes. Subsequently, the TMA was counterstained with Gill’s hematoxylin (Vector Laboratories ltd., Peterborough, UK), dehydrated, cleared in xylene and mounted in DPX (Sigma-Aldrich, Dorset, UK). Digital images were acquired under the microscope and epithelial staining intensity assessed and scored by three researchers as no (0), weak (1), moderate (2), or strong (3). Where initial conflict occurred, samples were reanalyzed and a consensus decision reached. Average scores for duplicate cores were used.

Enzyme linked immunosorbent assay (ELISA) quantification of serum ALCAM

Patient serum ALCAM was detected using a human ALCAM (CD166) ELISA assay (Life Technologies, Paisley, UK) in accordance with the manufacturer’s guidelines and analyzed in conjunction with available clinicopathological information.

Generation of ALCAM suppression in prostate cancer cells

ALCAM specific ribozyme transgenes were designed, generated and cloned as described in previous studies [11, 41]. Plasmids were transfected into mammalian cells using electroporation. Both plasmids containing ribozyme transgenes (designated ALCAM KO) and control plasmids (designated pEF6) were used to transfect cells.

RNA extraction and reverse transcription polymerase chain reaction (RT-PCR)

RNA was extracted using TRI-reagent (Sigma-Aldrich, Dorset, UK) in accordance with the manufacturer’s instructions. Following extraction, RNA was standardized and reverse transcribed using a high capacity cDNA reverse transcription kit (Life Technologies, Paisley, UK). Subsequently, polymerase chain reaction (PCR) was undertaken using primers designed to amplify Glyceraldehyde 3-phosphate dehydrogenase (GAPDH) or ALCAM (Table 1), GoTaq Green Mastermix (Promega UK, Southampton, UK), sample cDNA and molecular biology grade water. PCR conditions were; initial denaturing at 94° C for 5 minutes followed by 32–34 cycles of 94° C for 30 seconds, 55° C for 30 seconds and 72° C for 40 seconds, before a final extension of 72° C for 10 minutes and holding at 4° C. Products were subsequently separated on an agarose gel stained with SYBR safe (Life Technologies, Paisley, UK) and visualized under blue light.

Table 1: Primers used in the study

PrimerForwardReverse
ALCAM (PCR)TTATCATACCTTGCCGACTTGGGTGGAAGTCATGGTATAG
ALCAM (qPCR)CAGGAGGTTGAAGGACTAAAACTGAACCTGACCGTACAGGGATCAGTTTTCTTTGTCA
GAPDH (PCR)GGCTGCTTTTAACTCTGGTAGACTGTGGTCATGAGTCCTT
GAPDH (qPCR)AAGGTCATCCATGACAACTTACTGAACCTGACCGTACAGCCATCCACAGTCTTCTG
MET (qPCR)ACTGAACCTGACCGTACAGAGCCAAAGTCCTTTCATATCGAATGCAATGGATGAT
FAK (qPCR)CTATCCAGGTCAGGCATCTACTGAACCTGACCGTACACGCAGGTCCAATACTGTAGA
AKT (qPCR)CTACTACGCCATGAAGATCCACTGAACCTGACCGTACAGGTCTGGAAAGAGTACTTCAG
ERK1 (qPCR)ACACGCAGTTGCAGTACAACTGAACCTGACCGTACAGGGGCTGATCTTCTTGAT
ERK2 (qPCR)CCAACCTCTCGTACATCGACTGAACCTGACCGTACAGGGGCTGATTTTCTTGAT

Quantitative polymerase chain reaction

Quantitative polymerase chain reaction (qPCR) was undertaken based on a previously reported technique [42, 43]. Briefly, reactions were prepared containing, PrecisionFAST qPCR mastermix (Primer Design, Eastleigh, UK), forward primer, z-tagged reverse primer (Table 1), Uniprimer probe (Intergen Inc., Oxford, UK), molecular biology grade water and sample cDNA and were run on a StepOne Plus qPCR detection system (Life Technologies, Paisley, UK). Reaction conditions were; initial 95° C for 15 minutes followed by 100 cycles of 95° C for 15 seconds, 55° C for 35 seconds and 72° C for 20 seconds. Samples were run simultaneously with a standard of known transcript copy number, allowing calculation of relative transcript expression. Quantification of GAPDH expression was subsequently used to normalize samples.

Sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) and western blotting

Cells were harvested and lysed in lysis buffer for 1 hour, on a rotating wheel at 4° C, before being centrifuged at 13,000g to remove insolubles, quantified using a Bio-Rad DC protein assay kit (Bio-Rad laboratories, Hemel Hempstead, UK), standardized, diluted in sample buffer (Sigma-Aldrich, Dorset, UK) and boiled for 5 minutes. Samples were separated using SDS-PAGE and transferred to an Immobilon-P PVDF membrane (Sigma-Aldrich, Dorset, UK) using a semi-dry method. Membranes were probed using a SNAP-ID system (Merck-Millipore, Watford, UK) in accordance with the manufacturer’s guidelines and visualized using EZ-ECL reagent (GeneFlow, Lichfield, UK). ALCAM and GAPDH primary antibodies (Insight Biotechnology ltd., Middlesex, UK) and an anti-mouse HRP conjugated secondary antibody (Sigma-Aldrich, Dorset, UK) were used to detect proteins of interest.

Cell characterization assays

A range of cell characterization assays were performed to assess the impact of ALCAM on cellular functions based on previously described methods [42, 44, 45]. Briefly, cell growth rates were assessed using an in vitro cell growth assay. Cells were seeded into triplicate 96 well plates and incubated for either overnight, 3 days or 5 days. Following incubation cells were fixed in 4% formalin and stained in 0.5% crystal violet before extracting stain with 10% acetic acid and measuring absorbance at 540nm, allowing the calculation of percentage growth increase from the overnight reference plate.

Cellular invasion was assessed using a Matrigel invasion assay. PC-3 and LNCaP cells were seeded into transwell inserts, containing 8.0μm pores, pre-coated with 50 μg of Matrigel (Corning, UK) suspended in a 24 well plate containing growth media. Following 3 day incubation, inserts were removed and the inner chamber cleaned thoroughly before fixing cells on the underside of the insert in 4% formalin and staining with 0.5% crystal violet. Representative images were then captured and quantified under ×20 objective magnification.

A matrix adhesion assay was used to assess cellular attachment to Matrigel. Cells were seeded into 96 well plates pre-coated with 5 μg/ml Matrigel and incubated for 45 minutes. Subsequently, wells were washed in PBS and adherent cells fixed in 4% formalin and stained with 0.5% crystal violet. Representative images were then captured and quantified under ×20 objective magnification.

PC-3 cell motility was assessed using an in vitro cytodex-2 bead motility assay. Cells were seeded into 10ml of growth medium containing cytodex-2 beads and incubated overnight. Subsequently, the beads were washed, pelleted and resuspended before seeding into a 96 well plate. Following 4 hour incubation, plates were washed with PBS, fixed in formalin and stained with crystal violet. Representative images were taken, and quantified, of cells which had migrated to the bottom of the well under ×20 objective magnification.

LNCaP and HECV cell migration was assessed using an ECIS assay using an ECIS Zθ system and 96W1E 96 plates (Applied Biophysics Inc., NY, USA). Cells were seeded and incubated to allow confluence before inducing a wound by applying 1400uA for 30 seconds (for LNCaP cells) or 3000uA for 20 seconds (for HECV cells). The change in resistance within each well was subsequently recorded and used to quantify migration.

Angiogenic potential was assessed using a Matrigel tubule formation assay. Briefly, 96 well plates were coated with 500 μg of Matrigel before seeding HECV cells and incubating for 4-6 hours. Tubules formed over this period were visualized under ×4 objective magnification and quantified through assessment of total tubule perimeter per field.

Kinexus protein microarray analysis

Differences in total and phospho-protein expression between PC-3pEF6 and PC-3ALCAM KO were assessed using a Kinexus protein microarray as previously described [46]. Briefly, harvested cells were resuspended and lysed in lysis buffer for 1 hour, on a rotating wheel at 4° C, insolubles removed, through centrifugation, and samples standardized before being sent to Kinexus Bioinformatics, Vancouver, Canada for analysis using a KAM-880 array. Differential expression between PC-3pEF6 and PC-3ALCAM KO samples was interrogated based on normalized signal strength and Z ratio.

In vitro 1,1’-Dioctadecyl-3,3,3′,3′-Tetramethylindocarbocyanine Perchlorate (DiI) cell-cell interaction assays

Cell interaction/attachment was assessed in the presence of ALCAM-Fc chimera using a DiI staining technique based on a previously described method [47]. Briefly, HECV or hFOB1.19 cells were grown to confluence in a 96 well plate before seeding cancer cells, pre-stained with 5μM DiI for 30 minutes, onto the monolayer and incubating for 40 minutes. Subsequently, wells were washed in PBS and adherent cells fixed in 4% formalin. Representative bright field and TRITC images were captured on a Leica fluorescent inverted microscope (Leica Microsystems Ltd., Milton Keynes, UK) at ×20 objective magnification, the images merged and attached cancer cells quantified.

Statistical analysis

Statistical analysis was undertaken using the SigmaPlot 11.0 (Systat Software Inc., London, UK) and Minitab 14 (Minitab Ltd., Coventry, UK) statistical software packages and data analyzed using a t-test, Mann Whitney test, one way ANOVA or Kruskal-Wallis ANOVA on RANKS with post hoc analysis. p < 0.05 was considered to be statistically significant. ROC and Spearman’s rank correlation tests were used to analyze patient serum data.

Abbreviations

ADAM: a disintergrin and metalloprotease; ALCAM: activated leukocyte cell adhesion molecule; AR: androgen receptor; BME: bone matrix extract; CA125: cancer antigen 125; CA15-3: cancer antigen 15-3; CEA: carcinoembryonic antigen; ECIS: electric cell substratum impedance sensing; EGF: epidermal growth factor; ELISA: enzyme linked immunosorbent assay; ERK: extracellular signal regulated kinase; FAK: focal adhesion kinase; GAPDH: glyceraldehyde-3-phosphate dehydrogenase; HGF: hepatocyte growth factor; PRCa: prostate cancer; PSA: prostate specific antigen; ROC: receiver operating characteristic; TGFβ: transforming growth factor beta; TMA: tissue microarray.

Author contributions

WGJ and MDM were involved in project conception and oversaw the study. AJS, SO, RC, LDM, and LY contributed to experimental work and sample preparation. FR, AJS, and RC were involved in IHC staining/analysis. AJS and WGJ contributed to data analysis. AJS wrote the manuscript in conjunction with author comments.

ACKNOWLEDGMENTS

The authors are grateful to Cancer Research Wales for supporting this work. The authors also wish to thank Wales Cancer Bank for provision of clinical materials.

CONFLICTS OF INTEREST

The authors declare no conflicts of interest

FUNDING

This work was funded by Cancer Research Wales.

References

1. Hess KR, Varadhachary GR, Taylor SH, Wei W, Raber MN, Lenzi R, Abbruzzese JL. Metastatic patterns in adenocarcinoma. Cancer. 2006; 106:1624–1633. https://doi.org/10.1002/cncr.21778. [PubMed].

2. Bowen MA, Patel DD, Li X, Modrell B, Malacko AR, Wang WC, Marquardt H, Neubauer M, Pesando JM, Francke U, et al. Cloning, mapping, and characterization of activated leukocyte-cell adhesion molecule (ALCAM), a CD6 ligand. J Exp Med. 1995; 181:2213–2220. https://doi.org/10.1084/jem.181.6.2213. [PubMed].

3. Degen WG, van Kempen LC, Gijzen EG, van Groningen JJ, van Kooyk Y, Bloemers HP, Swart GW. MEMD, a new cell adhesion molecule in metastasizing human melanoma cell lines, is identical to ALCAM (activated leukocyte cell adhesion molecule). Am J Pathol. 1998; 152:805–813. [PubMed].

4. Bech-Serra JJ, Santiago-Josefat B, Esselens C, Saftig P, Baselga J, Arribas J, Canals F. Proteomic identification of desmoglein 2 and activated leukocyte cell adhesion molecule as substrates of ADAM17 and ADAM10 by difference gel electrophoresis. Mol Cell Biol. 2006; 26:5086–5095. https://doi.org/10.1128/MCB.02380-05. [PubMed].

5. Rosso O, Piazza T, Bongarzone I, Rossello A, Mezzanzanica D, Canevari S, Orengo AM, Puppo A, Ferrini S, Fabbi M. The ALCAM shedding by the metalloprotease ADAM17/TACE is involved in motility of ovarian carcinoma cells. Mol Cancer Res. 2007; 5:1246–1253. https://doi.org/10.1158/1541-7786.MCR-07-0060. [PubMed].

6. Hansen AG, Arnold SA, Jiang M, Palmer TD, Ketova T, Merkel A, Pickup M, Samaras S, Shyr Y, Moses HL, Hayward SW, Sterling JA, Zijlstra A. ALCAM/CD166 is a TGF-beta-responsive marker and functional regulator of prostate cancer metastasis to bone. Cancer Res. 2014; 74:1404–1415. https://doi.org/10.1158/0008-5472.CAN-13-1296. [PubMed].

7. Hein S, Muller V, Kohler N, Wikman H, Krenkel S, Streichert T, Schweizer M, Riethdorf S, Assmann V, Ihnen M, Beck K, Issa R, Janicke F, et al. Biologic role of activated leukocyte cell adhesion molecule overexpression in breast cancer cell lines and clinical tumor tissue. Breast Cancer Res Treat. 2011; 129:347–360. https://doi.org/10.1007/s10549-010-1219-y. [PubMed].

8. Devis L, Moiola CP, Masia N, Martinez-Garcia E, Santacana M, Stirbat TV, Brochard-Wyart F, Garcia A, Alameda F, Cabrera S, Palacios J, Moreno-Bueno G, Abal M, et al. Activated leukocyte cell adhesion molecule (ALCAM) is a marker of recurrence and promotes cell migration, invasion, and metastasis in early-stage endometrioid endometrial cancer. J Pathol. 2017; 241:475–487. https://doi.org/10.1002/path.4851. [PubMed].

9. Ishiguro F, Murakami H, Mizuno T, Fujii M, Kondo Y, Usami N, Yokoi K, Osada H, Sekido Y. Activated leukocyte cell-adhesion molecule (ALCAM) promotes malignant phenotypes of malignant mesothelioma. J Thorac Oncol. 2012; 7:890–899. https://doi.org/10.1097/JTO.0b013e31824af2db. [PubMed].

10. Jin Z, Selaru FM, Cheng Y, Kan T, Agarwal R, Mori Y, Olaru AV, Yang J, David S, Hamilton JP, Abraham JM, Harmon J, Duncan M, et al. MicroRNA-192 and -215 are upregulated in human gastric cancer in vivo and suppress ALCAM expression in vitro. Oncogene. 2011; 30:1577–1585. https://doi.org/10.1038/onc.2010.534. [PubMed].

11. Davies S, Jiang WG. ALCAM, activated leukocyte cell adhesion molecule, influences the aggressive nature of breast cancer cells, a potential connection to bone metastasis. Anticancer Res. 2010; 30:1163–1168. [PubMed].

12. Burandt E, Bari Noubar T, Lebeau A, Minner S, Burdelski C, Janicke F, Muller V, Terracciano L, Simon R, Sauter G, Wilczak W, Lebok P. Loss of ALCAM expression is linked to adverse phenotype and poor prognosis in breast cancer: a TMA-based immunohistochemical study on 2,197 breast cancer patients. Oncol Rep. 2014; 32:2628–2634. https://doi.org/10.3892/or.2014.3523. [PubMed].

13. King JA, Ofori-Acquah SF, Stevens T, Al-Mehdi AB, Fodstad O, Jiang WG. Activated leukocyte cell adhesion molecule in breast cancer: prognostic indicator. Breast Cancer Res. 2004; 6:R478–R487. https://doi.org/10.1186/bcr815. [PubMed].

14. Davies SR, Dent C, Watkins G, King JA, Mokbel K, Jiang WG. Expression of the cell to cell adhesion molecule, ALCAM, in breast cancer patients and the potential link with skeletal metastasis. Oncol Rep. 2008; 19:555–561. [PubMed].

15. Burkhardt M, Mayordomo E, Winzer KJ, Fritzsche F, Gansukh T, Pahl S, Weichert W, Denkert C, Guski H, Dietel M, Kristiansen G. Cytoplasmic overexpression of ALCAM is prognostic of disease progression in breast cancer. J Clin Pathol. 2006; 59:403–409. https://doi.org/10.1136/jcp.2005.028209. [PubMed].

16. van Kempen LC, van den Oord JJ, van Muijen GN, Weidle UH, Bloemers HP, Swart GW. Activated leukocyte cell adhesion molecule/CD166, a marker of tumor progression in primary malignant melanoma of the skin. Am J Pathol. 2000; 156:769–774. https://doi.org/10.1016/S0002-9440(10)64943-7. [PubMed].

17. Donizy P, Zietek M, Halon A, Leskiewicz M, Kozyra C, Matkowski R. Prognostic significance of ALCAM (CD166/MEMD) expression in cutaneous melanoma patients. Diagn Pathol. 2015; 10:86. https://doi.org/10.1186/s13000-015-0331-z. [PubMed].

18. Ye M, Du YL, Nie YQ, Zhou ZW, Cao J, Li YF. Overexpression of activated leukocute cell adhesion molecule in gastric cancer is associated with advanced stages and poor prognosis and miR-9 deregulation. Mol Med Rep. 2015; 11:2004–2012. https://doi.org/10.3892/mmr.2014.2933. [PubMed].

19. Ishigami S, Ueno S, Arigami T, Arima H, Uchikado Y, Kita Y, Sasaki K, Nishizono Y, Omoto I, Kurahara H, Matsumoto M, Kijima Y, Natsugoe S. Clinical implication of CD166 expression in gastric cancer. J Surg Oncol. 2011; 103:57–61. https://doi.org/10.1002/jso.21756. [PubMed].

20. Kristiansen G, Pilarsky C, Wissmann C, Stephan C, Weissbach L, Loy V, Loening S, Dietel M, Rosenthal A. ALCAM/CD166 is up-regulated in low-grade prostate cancer and progressively lost in high-grade lesions. Prostate. 2003; 54:34–43. https://doi.org/10.1002/pros.10161. [PubMed].

21. Kristiansen G, Pilarsky C, Wissmann C, Kaiser S, Bruemmendorf T, Roepcke S, Dahl E, Hinzmann B, Specht T, Pervan J, Stephan C, Loening S, Dietel M, Rosenthal A. Expression profiling of microdissected matched prostate cancer samples reveals CD166/MEMD and CD24 as new prognostic markers for patient survival. J Pathol. 2005; 205:359–376. https://doi.org/10.1002/path.1676. [PubMed].

22. Minner S, Kraetzig F, Tachezy M, Kilic E, Graefen M, Wilczak W, Bokemeyer C, Huland H, Sauter G, Schlomm T. Low activated leukocyte cell adhesion molecule expression is associated with advanced tumor stage and early prostate-specific antigen relapse in prostate cancer. Hum Pathol. 2011; 42:1946–1952. https://doi.org/10.1016/j.humpath.2011.02.017. [PubMed].

23. Weichert W, Knosel T, Bellach J, Dietel M, Kristiansen G. ALCAM/CD166 is overexpressed in colorectal carcinoma and correlates with shortened patient survival. J Clin Pathol. 2004; 57:1160–1164. https://doi.org/10.1136/jcp.2004.016238. [PubMed].

24. Tachezy M, Zander H, Gebauer F, Marx A, Kaifi JT, Izbicki JR, Bockhorn M. Activated leukocyte cell adhesion molecule (CD166)–its prognostic power for colorectal cancer patients. J Surg Res. 2012; 177:e15–e20. https://doi.org/10.1016/j.jss.2012.02.013. [PubMed].

25. Ishiguro F, Murakami H, Mizuno T, Fujii M, Kondo Y, Usami N, Taniguchi T, Yokoi K, Osada H, Sekido Y. Membranous expression of activated leukocyte cell adhesion molecule contributes to poor prognosis and malignant phenotypes of non-small-cell lung cancer. J Surg Res. 2013; 179:24–32. https://doi.org/10.1016/j.jss.2012.08.044. [PubMed].

26. Sawhney M, Matta A, Macha MA, Kaur J, DattaGupta S, Shukla NK, Ralhan R. Cytoplasmic accumulation of activated leukocyte cell adhesion molecule is a predictor of disease progression and reduced survival in oral cancer patients. Int J Cancer. 2009; 124:2098–2105. https://doi.org/10.1002/ijc.24192. [PubMed].

27. Kahlert C, Weber H, Mogler C, Bergmann F, Schirmacher P, Kenngott HG, Matterne U, Mollberg N, Rahbari NN, Hinz U, Koch M, Aigner M, Weitz J. Increased expression of ALCAM/CD166 in pancreatic cancer is an independent prognostic marker for poor survival and early tumour relapse. Br J Cancer. 2009; 101:457–464. https://doi.org/10.1038/sj.bjc.6605136. [PubMed].

28. Erturk K, Tastekin D, Bilgin E, Serilmez M, Bozbey HU, Sakar B. Serum activated leukocyte cell adhesion molecule and intercellular adhesion molecule-1 in patients with gastric cancer: Can they be used as biomarkers? Biomed Pharmacother. 2016; 77:86–91. https://doi.org/10.1016/j.biopha.2015.12.006. [PubMed].

29. Ma L, Lin J, Qiao Y, Weng W, Liu W, Wang J, Sun F. Serum CD166: a novel hepatocellular carcinoma tumor marker. Clin Chim Acta. 2015; 441:156–162. https://doi.org/10.1016/j.cca.2014.12.034. [PubMed].

30. Tachezy M, Effenberger K, Zander H, Minner S, Gebauer F, Vashist YK, Sauter G, Pantel K, Izbicki JR, Bockhorn M. ALCAM (CD166) expression and serum levels are markers for poor survival of esophageal cancer patients. Int J Cancer. 2012; 131:396–405. https://doi.org/10.1002/ijc.26377. [PubMed].

31. Al-Shehri FS, Abd El Azeem EM. Activated Leukocyte Cell Adhesion Molecule (ALCAM) in Saudi Breast Cancer Patients as Prognostic and Predictive Indicator. Breast Cancer (Auckl). 2015; 9:81–6. https://doi.org/10.4137/BCBCR.S25563. [PubMed].

32. Witzel I, Schroder C, Muller V, Zander H, Tachezy M, Ihnen M, Janicke F, Milde-Langosch K. Detection of activated leukocyte cell adhesion molecule in the serum of breast cancer patients and implications for prognosis. Oncology. 2012; 82:305–312. https://doi.org/10.1159/000337222. [PubMed].

33. Kulasingam V, Zheng Y, Soosaipillai A, Leon AE, Gion M, Diamandis EP. Activated leukocyte cell adhesion molecule: a novel biomarker for breast cancer. Int J Cancer. 2009; 125:9–14. https://doi.org/10.1002/ijc.24292. [PubMed].

34. Carbotti G, Orengo AM, Mezzanzanica D, Bagnoli M, Brizzolara A, Emionite L, Puppo A, Centurioni MG, Bruzzone M, Marroni P, Rossello A, Canevari S, Ferrini S, Fabbi M. Activated leukocyte cell adhesion molecule soluble form: a potential biomarker of epithelial ovarian cancer is increased in type II tumors. Int J Cancer. 2013; 132:2597–2605. https://doi.org/10.1002/ijc.27948. [PubMed].

35. Tachezy M, Zander H, Marx AH, Stahl PR, Gebauer F, Izbicki JR, Bockhorn M. ALCAM (CD166) expression and serum levels in pancreatic cancer. PLoS One. 2012; 7:e39018. https://doi.org/10.1371/journal.pone.0039018. [PubMed].

36. Ihnen M, Kress K, Kersten JF, Kilic E, Choschzick M, Zander H, Muller V, Mahner S, Janicke F, Woelber L, Milde-Langosch K. Relevance of activated leukocyte cell adhesion molecule (ALCAM) in tumor tissue and sera of cervical cancer patients. BMC Cancer. 2012; 12:140. https://doi.org/10.1186/1471-2407-12-140. [PubMed].

37. Ohneda O, Ohneda K, Arai F, Lee J, Miyamoto T, Fukushima Y, Dowbenko D, Lasky LA, Suda T. ALCAM (CD166): its role in hematopoietic and endothelial development. Blood. 2001; 98:2134–2142. https://doi.org/10.1182/blood.V98.7.2134. [PubMed].

38. Masedunskas A, King JA, Tan F, Cochran R, Stevens T, Sviridov D, Ofori-Acquah SF. Activated leukocyte cell adhesion molecule is a component of the endothelial junction involved in transendothelial monocyte migration. FEBS Lett. 2006; 580:2637–2645. https://doi.org/10.1016/j.febslet.2006.04.013. [PubMed].

39. Parikh RA, Wang P, Beumer JH, Chu E, Appleman LJ. The potential roles of hepatocyte growth factor (HGF)-MET pathway inhibitors in cancer treatment. Onco Targets Ther. 2014; 7:969–83. https://doi.org/10.2147/OTT.S40241. [PubMed].

40. Tai YL, Chen LC, Shen TL. Emerging roles of focal adhesion kinase in cancer. Biomed Res Int. 2015; 2015:690690. https://doi.org/10.1155/2015/690690. [PubMed].

41. Sanders AJ, Jiang DG, Jiang WG, Harding KG, Patel GK. Activated leukocyte cell adhesion molecule impacts on clinical wound healing and inhibits HaCaT migration. Int Wound J. 2011; 8:500–507. https://doi.org/10.1111/j.1742-481X.2011.00823.x. [PubMed].

42. Sanders AJ, Ye L, Li J, Mason MD, Jiang WG. Tumour angiogenesis and repulsive guidance molecule b: a role in HGF- and BMP-7-mediated angiogenesis. Int J Oncol. 2014; 45:1304–1312. https://doi.org/10.3892/ijo.2014.2508. [PubMed].

43. Owen S, Ye L, Sanders AJ, Mason MD, Jiang WG. Expression profile of receptor activator of nuclear-kappaB (RANK), RANK ligand (RANKL) and osteoprotegerin (OPG) in breast cancer. Anticancer Res. 2013; 33:199–206. [PubMed].

44. Owen S, Sanders AJ, Mason MD, Jiang WG. Importance of osteoprotegrin and receptor activator of nuclear factor kappaB in breast cancer response to hepatocyte growth factor and the bone microenvironment in vitro. Int J Oncol. 2016; 48:919–928. https://doi.org/10.3892/ijo.2016.3339. [PubMed].

45. Bartlett A, Sanders AJ, Ruge F, Harding KG, Jiang WG. Potential implications of interleukin-7 in chronic wound healing. Exp Ther Med. 2016; 12:33–40. https://doi.org/10.3892/etm.2016.3263. [PubMed].

46. Feng Y, Sanders AJ, Morgan LD, Owen S, Ruge F, Harding KG, Jiang WG. In vitro significance of SOCS-3 and SOCS-4 and potential mechanistic links to wound healing. Sci Rep. 2017; 7:6715. https://doi.org/10.1038/s41598-017-06886-6. [PubMed].

47. Hiscox S, Jiang WG. Quantification of tumour cell-endothelial cell attachment by 1,1′-dioctadecyl-3,3,3′,3′-tetramethylindocarbocyanine (DiI). Cancer Lett. 1997; 112:209–217. https://doi.org/10.1016/S0304-3835(96)04573-9. [PubMed].
