Efficacy of tumor-targeting Salmonella typhimurium A1-R in combination with anti-angiogenesis therapy on a pancreatic cancer patient-derived orthotopic xenograft (PDOX) and cell line mouse models

PDF |  HTML  |  How to cite

Oncotarget. 2014; 5:12346-12357. https://doi.org/10.18632/oncotarget.2641

Metrics: PDF 2412 views  |   HTML 3625 views  |   ?

Yukihiko Hiroshima, Yong Zhang, Takashi Murakami, Ali Maawy, Shinji Miwa, Mako Yamamoto, Shuya Yano, Sho Sato, Masashi Momiyama, Ryutaro Mori, Ryusei Matsuyama, Takashi Chishima, Kuniya Tanaka, Yasushi Ichikawa, Michael Bouvet, Itaru Endo, Ming Zhao and Robert M. Hoffman _

Abstract

Yukihiko Hiroshima1,2,3, Yong Zhang1, Takashi Murakami3, Ali Maawy2, Shinji Miwa1,2, Mako Yamamoto1,2, Shuya Yano1,2, Sho Sato3, Masashi Momiyama3, Ryutaro Mori3, Ryusei Matsuyama3, Takashi Chishima3, Kuniya Tanaka3, Yasushi Ichikawa3, Michael Bouvet2, Itaru Endo3, Ming Zhao1 and Robert M. Hoffman1,2

1 AntiCancer, Inc., San Diego, CA, USA

2 Department of Surgery, University of California San Diego, San Diego, CA, USA

3 Yokohama City University Graduate School of Medicine, Yokohama, Japan

Correspondence:

Robert M. Hoffman or Ming Zhao, email:

Keywords: Pancreatic cancer, Salmonella typhimurium A1-R, patient-derived orthotopic xenograft (PDOX), orthotopic, nude mice, GFP, VEGF, anti-angiogenic therapy, bevacizumab, gemcitabine

Received: September 17, 2014 Accepted: October 28, 2014 Published: October 28, 2014

Abstract

The aim of the present study was to examine the efficacy of tumor-targeting Salmonella typhimurium A1-R treatment following anti-vascular endothelial growth factor (VEGF) therapy on VEGF-positive human pancreatic cancer. A pancreatic cancer patient-derived orthotopic xenograft (PDOX) that was VEGF-positive and an orthotopic VEGF-positive human pancreatic cancer cell line (MiaPaCa-2-GFP) as well as a VEGF-negative cell line (Panc-1) were tested. Nude mice with these tumors were treated with gemcitabine (GEM), bevacizumab (BEV), and S. typhimurium A1-R. BEV/GEM followed by S. typhimurium A1-R significantly reduced tumor weight compared to BEV/GEM treatment alone in the PDOX and MiaPaCa-2 models. Neither treatment was as effective in the VEGF-negative model as in the VEGF-positive models. These results demonstrate that S. typhimurium A1-R following anti-angiogenic therapy is effective on pancreatic cancer including the PDOX model, suggesting its clinical potential.


INTRODUCTION

Pancreatic cancer is one of the most aggressive malignant tumors with a 23 % 1-year survival rate and < 2 % 5-year survival rate. The two most commonly used chemotherapy drugs approved for the treatment of pancreatic cancer are gemcitabine (GEM) and 5-fluorouracil (5-FU). In recent years, little progress has been made in understanding and treatment of this disease [1].

In pancreatic cancer, overexpression of vascular endothelial growth factor (VEGF) and its receptors is associated with poor prognosis and increased metastatic potential [2, 3]. Bevacizumab (BEV) is a humanized monoclonal VEGF-neutralizing antibody that many tumors become resistant to after a short period of response [4].

Our laboratory has previously developed a genetically modified bacterial strain, Salmonella typhimurium A1, selected for anticancer activity in vivo. S. typhimurium A1 is auxotrophic (leu/arg-dependent) [5]. The strain targets and grows in tumors. In contrast, normal tissue is cleared of these bacterial even in immunodeficient athymic mice. In order to increase the tumor-targeting capability of A1, the strain was re-isolated after infection of a human colon tumor growing in nude mice. The tumor-isolated strain, termed S. typhimurium A1-R, had increased targeting for cells in vivo as well as in vitro [6].

S. typhimurium A1-R is effective against prostate cancer [7], breast cancer [6, 8], pancreatic cancer [9-12], glioma [13, 14], lung cancer [15], fibrosarcoma [16] and osteosarcoma [17].

In the present study, we demonstrate the efficacy of S. typhimurium A1-R following antiangiogenic therapy with bevacizumab/gemcitabine (BEV/GEM) in patient-derived orthotopic xenograft (PDOX) and cell line nude-mouse models of pancreatic cancer.

RESULTS AND DISCUSSION

Differential expression patterns of VEGF-related genes in pancreatic cancer cell lines

In order to identify potential BEV-sensitive pancreatic cancer cell lines, mRNA expression of VEGFA, VEGFR1 and VEGFR2 in pancreatic cancer cell lines (BxPC-3, Capan-1, Hs766T, MiaPaCa-2 and Panc-1) was examined by real-time RT-PCR (Fig. 1). MiaPaCa-2 expressed VEGFA significantly more than other cell lines (p < 0.001) except for BxPC-3 (p = 0.558) (Fig. 1A). MiaPaCa-2 expressed VEGFR2 significantly more than other cell lines (BxPC-3: p = 0.005; Capan-1: p < 0.001; Hs766T: p = 0.005; and Panc-1: p = 0.006) (Fig. 1C). VEGFR1 expression was not detected in MiaPaCa-2 and Capan-1 cell lines (Fig. 1B).

Figure 1:

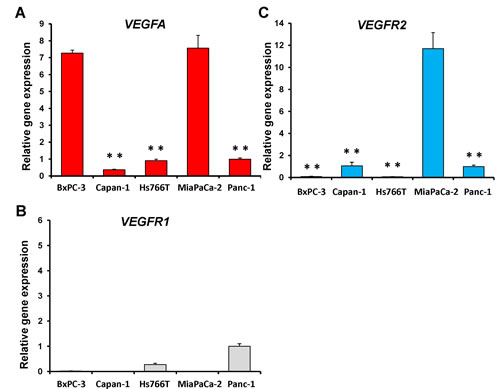

Figure 1: mRNA expression of VEGFA (A), VEGFR1 (B) and VEGFR2 (C) in pancreatic cancer cell lines. mRNA expression was determined with real-time RT-PCR. MiaPaCa-2 significantly expressed VEGFA more than other cell lines (p < 0.001) except for BxPC-3 (p = 0.558) (A). MiaPaCa-2 significantly expressed VEGFR2 more than other the cell lines (BxPC-3: p = 0.005, Capan-1: p < 0.001; Hs766T: p = 0.005; and Panc-1: p = 0.006) (C). VEGFR1 expression was not detected in MiaPaCa-2 and Capan-1 cell lines (B). Data for each treatment are represented as the mean ± SD. ** p < 0.01.

S. typhimurium A1-R killed MiaPaCa-2 and Panc-1 pancreatic cancer cells in vitro

GFP-expressing S. typhimurium A1-R invaded MiaPaCa-2 and Panc-1 pancreatic cancer cells as early as 60 min, and replicated in the cells 120 min after infection. Both cancer cell types appeared to die via apoptosis 24 hr after bacterial infection (Fig. 2A). In the clonogenic assay, the average colony area of MiaPaCa-2 treated with S. typhimurium A1-R was 2.95 ± 0.84 mm2 compared to the untreated control, 6.03 ± 0.86 mm2. The average colony area of Panc-1 treated with S. typhimurium A1-R was 0.93 ± 0.31 mm2, compared to the untreated control, 1.91 ± 0.10 mm2. S. typhimurium A1-R significantly reduced colony formation of both pancreatic cancer cell lines compared to the control (MiaPaCa-2: p = 0.001 and Panc-1: p < 0.001) (Fig. 2B and 2C).

Efficacy of S. typhimurium A1-R on pancreatic cancer cell lines.

Figure 2: Efficacy of S. typhimurium A1-R on pancreatic cancer cell lines. (A) Confocal imaging of MiaPaCa-2 and Panc-1 pancreatic cancer cells infected with S. typhimurium A1-R in vitro. S. typhimurium A1-R infection was detected in both pancreatic cancer cell types after 60 min. S. typhimurium A1-R replicated in the cells after 120 min. S. typhimurium A1-R showed the ability to infect and induce apoptosis in both cell types after 24 hr. Scale bars: 100 μm (pre); 50 μm (60 and 120 min); 25 μm (24 hr). (B and C) MiaPaCa-2 and Panc-1 were treated with S. typhimurium A1-R. Clonogenic assays show that S. typhimurium A1-R significantly reduced colony formation of both pancreatic cancer cell lines compared to the control groups in vitro (MiaPaCa-2: p = 0.001 and Panc-1: p < 0.001). ** p < 0.01.

Differential sensitivity to BEV in pancreatic cancer cell lines growing subcutaneously in nude mice

Real-time RT-PCR of VEGF-related gene expression (Fig. 1) predicted that MiaPaCa-2 was BEV-sensitive and Panc-1 was BEV-resistant. The efficacy of BEV on these cell lines was first determined using a subcutaneous tumor mouse model (Fig. 3). The average tumor volume of the MiaPaCa-2 tumors treated with BEV was 1.04 ± 0.24 mm3 compared to the control which was 4.19 ± 1.21 mm3 on Day 22. The average tumor volume of the Panc-1 tumors treated with BEV was 5.50 ± 2.62 mm3 and compared to the control which was 5.28 ± 0.99 mm3 on Day 22. BEV significantly reduced the growth of MiaPaCa-2 the untreated controll group on Day 22 (p < 0.001) but did not reduce the growth of Panc-1 (Fig. 3).

Efficacy of BEV treatment on pancreatic cancer cell lines which have different levels of

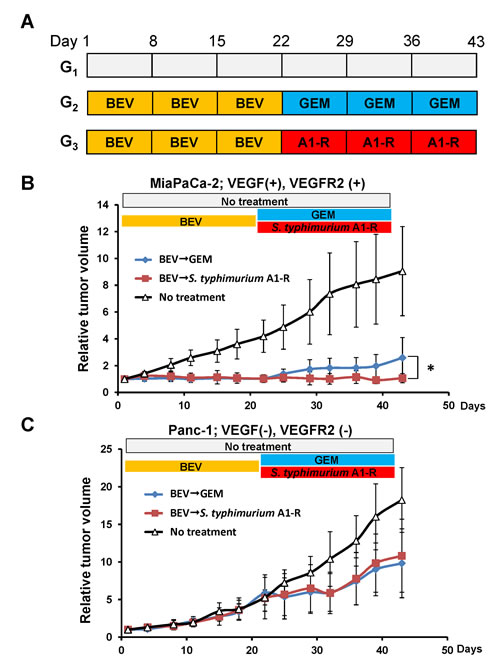

Figure 3: Efficacy of BEV treatment on pancreatic cancer cell lines which have different levels of VEGFA and VEGFR2 expression. (A) Schema of treatments on subcutaneous tumors. Based on RT-PCR results, MiaPaCa-2 was determined to be VEGFA-positive and VEGFR2-positive. Panc-1 was determined as VEGFA-negative and VEGFR2-negative. In order to determine the efficacy of BEV on pancreatic cancer cell lines with different levels of VEGFA and VEGFR2 expression, subcutaneous tumors from MiaPaCa-2 and Panc-1 cells were grown in nude mice and randomized to 3 groups as described in the Materials and Methods. (B) BEV significantly reduced the growth of the MiaPaCa-2 tumor compared to the control on Day 22 (p < 0.001). Both BEV → GEM and BEV → S. typhimurium A1-R treatments significantly reduced MiaPaCa-2 tumor growth compared to the control group on Day 43 (p = 0.001). BEV → S. typhimurium A1-R significantly reduced the MiaPaCa-2 tumor growth compared to BEV → GEM (p = 0.037). (C) BEV did not reduce the tumor growth of Panc-1 compared to the control on Day 22, but both BEV → GEM and BEV → S. typhimurium A1-R treatment significantly reduced tumor growth compared to the control on Day 43 (BEV → GEM: p = 0.023; BEV → S. typhimurium A1-R: p = 0.026). * p < 0.05.

Efficacy of BEV on microvessel density in pancreatic cell lines growing subcutaneously in mice

Subcutaneous tumors (MiaPaCa-2 or Panc-1) were treated with BEV (5 mg/kg, twice a week for 2 weeks) and tumor samples were removed 7 days after the last treatment. Frozen sections from each tumor were stained with anti-mouse CD31 antibody, and the MVD was determined by counting three fields at ×100 magnification of the highest vascular density. The average MVD of the MiaPaCa-2 tumors treated with BEV was 27.6 ± 7.45 compared to the control which was 65.1 ± 16.5. The average MVD of the Panc-1 tumors treated with BEV was 52.4 ± 8.43 compared to the control which was 57.4 ± 5.81. BEV significantly reduced the MVD of the MiaPaCa-2 tumor compared to the control (p = 0.002) (Fig. 4A, B, E) but did not significantly reduce MVD of the Panc-1 tumor (Fig. 4C, D, F). These results are consistent with the expression levels of VEGF-related genes (Fig. 1), indicating that MiaPaCa-2 is BEV-sensitive and Panc-1 is BEV-resistant.

Microvessel density (MVD) in s.c.

Figure 4: Microvessel density (MVD) in s.c. pancreatic cancer xenografts in nude mice treated with bevacizumab (BEV). To determine MVD, sections were stained with an antibody to CD31 as described in the Materials and Methods. MVD was determined by counting the number of CD31-positive vessels in three fields at ×100 magnification of the highest vascular density. The values are the average numbers of microvessels ± S.D. (bars) of five different tumors. (A-D) Representative images of frozen sections stained with anti-CD31 antibody. The number of vessels in MiaPaCa-2 tumors treated with BEV (B) was reduced compared to the control (A). In contrast, there was no difference between Panc-1 tumors treated with BEV (D) and control (C). Scale bars: 200 μm. (E and F) Bar graphs of MVD in pancreatic tumors with and without BEV treatment. BEV significantly reduced the MVD of MiaPaCa-2 compared to the control (p = 0.002) (E), but did not reduce the MVD of Panc-1 (F). ** p < 0.01.

Efficacy of S. typhimurium A1-R following BEV treatment on growth of BEV-sensitive and -resistant tumors

For the BEV-sensitive MiaPaCa-2 tumor, both BEV → GEM and BEV → S. typhimurium A1-R significantly reduced tumor growth compared to the controls on Day 43 (p = 0.001). BEV→S. typhimurium A1-R significantly reduced tumor growth compared to BEV → GEM (p = 0.037) (Fig. 3B). S. typhimurium A1-R completely suppressed growth of MiaPaCa-2 after BEV treatment (Fig. 3B). Both BEV → GEM and BEV →S. typhimurium A1-R significantly reduced tumor growth of the BEV-resistant tumor Panc-1 compared to the control (BEV → GEM: p = 0.023; BEV →S. typhimurium A1-R: p = 0.026) but to a lesser extent than MiaPaCa-2 (Fig. 3C). There was no significant difference in tumor growth inhibition between BEV →S. typhimurium A1-R and BEV →GEM.

Furthermore, GFP-labeled S. typhimurium A1-R was detected in the MiaPaCa-2 tumor after BEV → S. typhimurium A1-R treatment (Fig. 5). Our data suggest that S. typhimurium A1-R is able to survive and multiply even in the hypo-vascular area of the tumor treated with BEV and cause tumor shrinkage.

Distribution of GFP-labeled

Figure 5: Distribution of GFP-labeled S. typhimurium A1-R bacteria in tumors and organs. Livers and tumors were minced and mixed with PBS, as was blood. The PBS, was plated on LB agar to identify S. typhimurium A1-R in each tissue. Fluorescent S. typhimurium A1-R GFP colonies were observed with the OV100 Small Animal Imaging System (Olympus Corp., Tokyo, Japan). Representative images of GFP-labeled S. typhimurium A1-R cultured from the tumor and the normal organs (blood and liver) of the mice in the BEV → S. typhimurium A1-R and BEV → GEM groups. GFP-labeled S. typhimurium A1-R bacteria were clearly detected in both MiaPaCa-2 tumors (A) and Panc-1 tumors (B) in the BEV → S. typhimurium A1-R groups. No GFP-labeled S. typhimurium A1-R was detected in other tissues. Scale bars: 10 mm. BF= brightfield.

To further demonstrate the advantages of S. typhimurium A1-R treatment following anti-VEGF therapy in the orthotopic mouse model, 20 mice with MiaPaCa-2-GFP orthotopic tumors were established and randomized to 4 groups: (G1) saline (vehicle/control, 4 weeks); (G2) GEM (4 weeks); (G3) BEV (4 weeks) / GEM (4 weeks) and (G4) BEV (2 weeks) / GEM (2 weeks) → S. typhimurium A1-R (2 weeks). Tumors were imaged and weighed after treatment (Fig. 6A). A large primary tumor and many metastases spreading over the entire abdominal cavity occurred in the control group (Fig. 6B; G1). Many metastases were found in the mice treated with GEM (G2) (Fig. 6B), but were rarely found in the BEV/GEM (G3) (Fig. 6B) and BEV/GEM → S. typhimurium A1-R groups (G4) (Fig. 6B; G4). The mean tumor weight of each group in the MiaPaCa-2-GFP model was as follows: (G1) Control: 2655.4 ± 583.9 mg; (G2) GEM: 775.9 ± 273.8 mg; (G3) BEV/GEM: 413.5 ± 108.3 mg; (G4) BEV/GEM → S. typhimurium A1-R: 257.5 ± 57.1 mg. All regimens significantly reduced tumor weight compared to the control group (G2: p < 0.001; G3: p < 0.001; G4: p = 0.001). BEV/GEM significantly reduced tumor weight compared to GEM (p = 0.038). BEV/GEM →S. typhimurium A1-R significantly reduced the tumor weight compared to GEM (p = 0.012) and BEV/GEM (p = 0.029). These results demonstrate that BEV/GEM → S. typhimurium A1-R sequential combination therapy is more effective than the BEV/GEM combination.

Figure 6:

Figure 6: S. typhimurium A1-R treatment following BEV and GEM combination therapy of the MiaPaCa-2-GFP tumor in an orthotopic mouse model. (A) Schema of treatment of orthotopic MiaPaCa-2-GFP tumors. After confirmation of tumor growth by imaging with the OV100, the mice with orthotopic tumors were randomized to 4 groups: (G1) saline (vehicle/control, 4 weeks); (G2) GEM (4 weeks); (G3) BEV (4 weeks) / GEM (4 weeks); and (G4) BEV (2 weeks) / GEM (2 weeks) → S. typhimurium A1-R (2 weeks). Animals underwent laparotomy on day 36, and the tumors were imaged with the OV100 and weighed and harvested for analysis. (B) Representative images at laparotomy. Upper panels indicate bright-field images (BF) and lower panels indicate GFP fluorescence images. A large primary tumor and many metastases spreading over the entire abdominal cavity were detected in the control group. Many metastases were found in the mice treated with GEM but rarely found in the BEV/GEM and BEV/GEM → S. typhimurium A1-R groups. All regimens significantly reduced tumor weight compared to the untreated control group (G2: p < 0.001; G3: p < 0.001; G4: p = 0.001). BEV/GEM significantly reduced tumor weight compared to GEM (p = 0.038). BEV/GEM → S. typhimurium A1-R significantly reduced tumor weight compared to GEM (p = 0.012) and BEV/GEM (p = 0.029).

S. typhimurium A1-R following anti-VEGF therapy is effective in a VEGF-positive PDOX model

Our laboratory pioneered surgical orthotopic implantation (SOI) metastatic mouse models of patient tumor specimens in the early 1990s [18-24]. These patient -derived orthotopic xenograft (PDOX) mouse models are more patient-like, especially with regard to metastasis, than ectopic subcutaneous models [25, 26].

A pancreatic cancer PDOX model was used to determine the efficacy of S. typhimurium A1-R treatment following anti-VEGF therapy. The patient tumor was a moderately-differentiated adenocarcinoma which expressed VEGF (Fig. 7A). Twenty mice with PDOXs were established and randomized to 4 groups and treated in the same way as the GFP MiaPaCa-2 orthotopic model. A large primary tumor and some metastases occurred in the control group. A few metastases were found in the mice treated with GEM but rarely in the BEV/GEM and BEV/GEM → S. typhimurium A1-R groups (Fig. 7B). The mean tumor weight of each group in the PDOX model was as follows: (G1) Control: 998.8 ± 377.7 mg; (G2) GEM: 263.1 ± 129.1 mg; (G3) BEV/GEM: 65.9 ± 41.9 mg; (G4) BEV/GEM →S. typhimurium A1-R: 21.9 ± 6.2 mg. All regimens significantly reduced tumor weight compared to the control group (G2: p = 0.004; G3: p = 0.002; G4: p = 0.001). BEV/GEM significantly reduced tumor weight compared to GEM (p = 0.005). BEV/GEM →S. typhimurium A1-R significantly reduced the tumor weight compared to GEM (p = 0.001) and BEV/GEM (p = 0.029). The results demonstrated in the PDOX model, BEV/GEM → S. typhimurium A1-R sequential combination therapy was also more effective than the BEV/GEM combination.

Previously developed concepts and strategies of highly selective tumor-targeting [27-34] can take advantage of the S. typhimuium A1-R tumor targeting described in the present report.

Figure 7:

Figure 7: S. typhimurium A1-R treatment following BEV and GEM combination therapy on a VEGF-positive pancreatic cancer PDOX. (A) Histological characterization of the PDOX. The PDOX was diagnosed as moderately-differentiated adenocarcinoma with H&E staining, and was strongly stained with an anti-VEGF antibody. Scale bars: 100 μm. (B) Representative images at laparotomy. The areas surrounded by the yellow broken lines indicate the primary tumors, and yellow arrow heads indicate metastasis. A large primary tumor and several metastases were detected in the control group (G1). A few metastases were found in the mice treated with GEM (G2) but rarely found in the BEV/GEM (G3) and BEV/GEM → S. typhimurium A1-R groups (G4). (C) Bar graphs of the total tumor weight (primary + metastasis) in each group. All regimens significantly reduced the tumor weight compared to the control group (G2: p = 0.004; G3: p = 0.002; G4: p = 0.001). BEV/GEM significantly reduced tumor weight compared to GEM (p = 0.005). BEV/GEM → S. typhimurium A1-R significantly reduced the tumor weight compared to GEM (p = 0.001) and BEV/GEM (p = 0.029).

MATERIALS AND METHODS

Cell culture and establishment of a green fluorescent protein-labeled cancer cell line

Human pancreatic cancer cell lines Panc-1, MiaPaCa-2 and Hs766T were maintained in Dulbecco’s modified Eagle’s medium (Invitrogen, Carlsbad, CA, USA). Human pancreatic cancer cell lines BxPC-3 and Capan-1 were maintained in RPMI-1640 (Invitrogen, Carlsbad, CA, USA). All cell lines were incubated at 37°C in a humidified atmosphere containing 5% CO2. Each medium was supplemented with 10% fetal bovine serum, streptomycin, and penicillin (complete medium). The cells were collected after trypsinization and stained with trypan blue (Sigma-Aldrich, St. Louis, MO). Only viable cells which excluded trypan blue were counted with a hemocytometer (Hausser Scientific, Horsham, PA). For GFP gene transduction of cancer cells, 70% confluent human pancreatic cancer (MiaPaCa-2) cells were used. In brief, cells were incubated with a 1:1 precipitated mixture of retroviral supernatants of PT67-GFP packaging cells which express the GFP gene linked to the G418 resistance gene and RPMI 1640 (Irvine Scientific, Santa Ana, CA) containing 10% fetal bovine serum (FBS) (Hyclone Laboratories, Logan, UT) for 72 h. Fresh medium was replenished at this time. Cells were harvested with trypsin/EDTA 72 h post-transduction and subcultured at a ratio of 1:15 into medium, which contained 200 µg/ml of the selective agent G418. The level of G418 was increased stepwise up to 800 µg/ml [35, 36].

Real-time RT-PCR

Total RNA was extracted from human pancreatic cancer cell lines (BxPC-3, Capan-1, Hs766T, MiaPaCa-2 and Panc-1) using TRIzol (Invitrogen, Carlsbad, CA, USA), followed by on-column clean up with the RNA spin mini kit (GE Healthcare BioSciences, Little Chalfont, UK). Total RNA (2 μg) was reverse transcribed using the High Capacity RNA-to-cDNA kit (Applied Biosystems, Foster City, CA, USA) for complementary DNA (cDNA) synthesis. cDNA (2 µl) in a final volume of 20 μl,was amplified using the following Taqman Gene Expression assays (Applied Biosystems): VEGFA (Hs00900055_m1); VEGFR1 (Hs01052961_m1); VEGFR2 (Hs00911700_m1); and glyceraldehyde-3-phosphate dehydrogenase (GAPDH) endogenous control (Hs99999905_m1). All reactions were performed in triplicate using ABI 7900 HT Fast (Applied Biosystems). Analysis of relative gene expression data used the ΔΔCt method. An example is shown below:

Relative expression = 2 –ΔΔCt , ΔΔCt = (Ct, Target - Ct, GAPDH ) - (Ct, Panc-1 - Ct, GAPDH ).

Preparation of bacteria

S. typhimurium A1-R was grown overnight on LB medium and then diluted 1:10 in LB medium. Bacteria were harvested at late-log phase, washed with PBS, and then diluted in PBS for use in experiments [6].

Confocal imaging of cancer cells infected with S. typhimurium A1-R in vitro

Both MiaPaCa-2 and Panc-1 pancreatic cancer cell lines were infected with S. typhimurium A1-R GFP in vitro. Pancreatic cancer cells were grown in 24-well tissue culture plates to a density of approximately 104 cells/well. S. typhimurium A1-R GFP were grown to late log in LB broth, diluted in cell culture medium and added to the cancer cells (1×107 CFU/ml) and incubated at 37°C. After 40 min, the cells were rinsed and cultured in medium containing gentamycin sulfate (20 μg/ml) to kill external, but not internal bacteria. The interaction of S. typhimurium A1-R GFP with cancer cells in vitro was observed with confocal microscopy (Fluoview FV1000, Olympus, Tokyo, Japan). The excitation source was a semiconductor laser at 473 nm for GFP. Fluorescence images were obtained using the 20x/1.0 XLUMPLFLN objective [37].

Clonogenic assay

MiaPaCa-2 and Panc-1 cells (1×103 ) were seeded in 35 mm dishes. S. typhimurium A1-R (1×107 CFU/ml) was added to the cancer cells and incubated at 37°C. After 40 min, the cells were rinsed and cultured in medium containing gentamycin sulfate (20 μg/ml). After 7-days culture, the cancer-cell colonies were fixed with ethanol and then stained with crystal violet. ImageJ was used to quantify the cell colonies.

Animals

Male athymic (nu/nu) nude mice (AntiCancer, Inc., San Diego) (4-6 weeks) were used in this study. Mice were kept in a barrier facility under HEPA filtration. Mice were fed with autoclaved laboratory rodent diet. All surgical procedures and imaging were performed with the animals anesthetized by intramuscular injection of a solution of 50% ketamine, 38% xylazine, and 12% acepromazine maleate (0.02 ml). All animal studies were conducted in accordance with the principals and procedures outlined in the NIH Guide for the Care and Use of Laboratory Animals under PHS Assurance Number A3873-1.

Subcutaneous pancreatic cancer cell implantation

MiaPaCa-2, Panc1 and MiaPaCa-2-GFP pancreatic cancer cells were harvested by trypsinization and washed twice with serum-free medium. Cells (2×106 in 100 μl serum-free medium) were injected subcutaneously within 30 min of harvesting, over the right and left flanks in male nude mice. Subcutaneous tumors were allowed to grow for 2-4 weeks until large enough for subsequent experiments or orthotopic implantation.

Assessment of microvessel density (MVD) in xenograft tumors

Frozen tumor sections (7 μm) were fixed with methanol. The sections were then treated for 30 min with hydrogen peroxide (0.3%) to block endogenous peroxidase activity. After incubation with 15% normal goat serum, the sections were incubated with anti-mouse CD31 (1:100; BD Pharmigen, San Jose, CA, USA) for 1 hour at room temperature. The primary antibodies were detected using anti-rat secondary antibodies and avidin/biotin/horseradish peroxidase complex (Vector Laboratories, Burlingame, CA, USA) for 30 min at room temperature. The labeled antigens were visualized with the DAB kit (DAKO Cytomation, Kyoto, Japan). The sections were counterstained with hematoxylin and examined using a BH-2 microscope (Olympus) equipped with an INFINITY1 2.0 megapixel CMOS digital camera (Lumenera Corporation, Ottawa, Canada). All images were acquired using INFINITY ANALYZE software (Lumenera Corporation) without post-acquisition processing. MVD was determined by counting three fields at ×100 magnification of the highest vascular density.

Specimen collection

Patient pancreatic tumor samples were procured with informed written consent and the study was conducted under the approval of the Institutional Review Board of the UC San Diego Medical Center.

Orthotopic tumor implantation

A small transverse incision (6- to 10-mm) was made on the left flank of the mouse through the skin and peritoneum. The tail of the pancreas was exposed through this incision, and a single tumor fragment (3-mm3.) harvested from a subcutaneous tumor was sutured to the tail of the pancreas using 8-0 nylon surgical sutures (Ethilon; Ethicon Inc., NJ, USA). On completion, the tail of the pancreas was returned to the abdomen, and the incision was closed in one layer using 6-0 nylon surgical sutures [19, 24].

Treatment

Mice were randomized to 4 groups and treated as follows: (G1) saline (vehicle/control, ip, weekly, 4 weeks); (G2) GEM (80 mg/kg, ip, weekly, 4 weeks); (G3) BEV (5 mg/kg, ip, twice a week, 4 weeks) / GEM (Eli Lilly, Indianapolis, IN) (80 mg/kg, ip, weekly, 4 weeks) and (G4) BEV (Genentech, South San Francisco, CA) (5 mg/kg, ip, twice a week, 2 weeks) / GEM (80 mg/kg, ip, weekly, 2 weeks) → S. typhimurium A1-R (5 × 107 CFU/body, iv, weekly, 2 weeks) (Fig. 4A). Each treatment group comprised 5 tumor-bearing mice. Body weights of the mice were determined on a balance once a week. Tumor size was measured with calipers in the subcutaneous models and at laparotomy in the orthotopic models on day 36. Tumors were imaged with an OV100 Small Animal Imaging System (Olympus, Tokyo, Japan) or a Canon EOS 60D digital camera with an EF–S18–55 IS lens (Canon, Tokyo, Japan) and weighed and harvested for analysis.

Tissue histology

Tumor samples were removed with surrounding normal tissues at the time of resection. Fresh tissue samples were fixed in 10% formalin and embedded in paraffin before sectioning and staining. Tissue sections (3 μm) were deparaffinized in xylene and rehydrated in an ethanol series. Hematoxylin and eosin (H & E) staining was performed according to standard protocols.

Fluorescence in vivo imaging

The OV100 Small Animal Imaging System, containing an MT-20 light source (Olympus Biosystems, Planegg, Germany) and DP70 CCD camera (Olympus) were used for imaging GFP-labeled S. typhimurium A1-R and orthotopic tumors in live mice [38].

Detection of GFP-labeled S. typhimurium A1-R bacteria in tumors and organs

Tissues from subcutaneous tumors and normal organs (blood, spleen and liver) were removed at termination from the nude mice with subcutaneous tumors. S. typhimurium A1-R was extracted from the tumors and organs and cultured in LB agar for 24 hours, and imaged with the Olympus OV100.

Statistical analysis

PASW Statistics 18.0 (SPSS, Inc) was used for all statistical analyses. The Student’s t-test was used to compare continuous variables between two groups. Analysis of variance models were used to compare multiple groups. A p value of ≤0.05 was considered statistically significant for all comparisons.

ACKNOWLEDGEMENTs

This study was supported in part by National Cancer Institute grants CA132971 and 142669 (to M.B. and AntiCancer, Inc.) and CA183280 (to AntiCancer, Inc.) and JSPS KAKENHI Grant Numbers 26830081 to Y.H., 26462070 to I.E and 24592009 to K.T.

DEDICATION

This paper is dedicated to the memory of A. R. Moossa, M.D.

CONFLICTS OF INTEREST

Y.Z. and M.Z. are employees of AntiCancer Inc. Y.H., T.M., S.M., M.Y., S.Y. and R.M.H. are unsalaried associates of AntiCancer Inc. There are no other competing financial interests.
