Proteomic profiling of skeletal and cardiac muscle in cancer cachexia: alterations in sarcomeric and mitochondrial protein expression

PDF |  HTML  |  Supplementary Files  |  How to cite

Oncotarget. 2018; 9:22001-22022. https://doi.org/10.18632/oncotarget.25146

Metrics: PDF 1905 views  |   HTML 4363 views  |   ?

Angie M. Y. Shum _, Anne Poljak, Nicholas L. Bentley, Nigel Turner, Timothy C. Tan and Patsie Polly

Abstract

Angie M. Y. Shum1,2,*, Anne Poljak3,4,5,*, Nicholas L. Bentley1,3, Nigel Turner3, Timothy C. Tan1,2,6 and Patsie Polly1,2

1Mechanisms of Disease and Translational Research, School of Medical Sciences, Faculty of Medicine, UNSW Sydney, New South Wales, Australia

2Department of Pathology, School of Medical Sciences, Faculty of Medicine, UNSW Sydney, New South Wales, Australia

3Department of Pharmacology, School of Medical Sciences, Faculty of Medicine, UNSW Sydney, New South Wales, Australia

4Bioanalytical Mass Spectrometry Facility, UNSW Sydney, New South Wales, Australia

5Centre for Healthy Brain Ageing, School of Psychiatry, UNSW Sydney, New South Wales, Australia

6Western Clinical School and Westmead Hospital, Westmead, New South Wales, Australia

*These authors contributed equally to this work

Correspondence to:

Patsie Polly, email: [email protected]

Keywords: cancer cachexia; muscle; skeletal; cardiac; proteomics

Received: December 22, 2016     Accepted: March 10, 2018     Published: April 24, 2018

ABSTRACT

Background: Cancer cachexia is observed in more than 50% of advanced cancer patients, and impairs quality of life and prognosis. A variety of pathways are likely to be dysregulated. Hence, a broad-spectrum understanding of the disease process is best achieved by a discovery based approach such as proteomics.

Results: More than 300 proteins were identified with > 95% confidence in correct sequence identification, of which 5–10% were significantly differentially expressed in cachectic tissues (p-value of 0.05; 27 proteins from gastrocnemius, 34 proteins from soleus and 24 proteins from heart). The two most pronounced functional groups being sarcomeric proteins (mostly upregulated across all three muscle types) and energy/metabolism proteins (mostly downregulated across all muscle types). Electron microscopy revealed disintegration of the sarcomere and morphological aberrations of mitochondria in the cardiac muscle of colon 26 (C26) carcinoma mice.

Materials and Methods: The colon 26 (C26) carcinoma mouse model of cachexia was used to analyse soleus, gastrocnemius and cardiac muscles using two 8-plex iTRAQ proteomic experiments and tandem mass spectrometry (LCMSMS). Differentially expressed proteomic lists for protein clustering and enrichment of biological processes, molecular pathways, and disease related pathways were analysed using bioinformatics. Cardiac muscle ultrastructure was explored by electron microscopy.

Conclusions: Morphological and proteomic analyses suggested molecular events associated with disintegrated sarcomeric structure with increased dissolution of Z-disc and M-line proteins. Altered mitochondrial morphology, in combination with the reduced expression of proteins regulating substrate and energy metabolism, suggest that muscle cells are likely to be undergoing a state of energy crisis which ultimately results in cancer-induced cachexia.


INTRODUCTION

Tumours not only interrupt local tissue function but have been shown to produce an additional systemic effect on the entire metabolism of the body. A current paradigm of cancer pathology has inflammatory processes as central to many of the paraneoplastic symptoms observed in cancer patients, such as cancer cachexia, which is observed in more than 50% of advanced cancer patients [1, 2]. It is characterised by progressive weight loss associated with skeletal muscle atrophy and depletion of adipose tissue, irrespective of nutritional intake [3]. Lower performance status and global quality of life with higher fatigue scores and pain have been observed in patients who lost weight with gastrointestinal cancer or non-small cell lung cancer [4, 5]. At least 20% of deaths are caused by cachexia in part due to impaired respiratory or cardiac function [6, 7]. Moreover, the loss of body weight has been observed in a number of patients with various cancers with median survival of less than 6 months, and hence is an indicator of terminal disease [8]. Weight loss has also been associated with poor prognosis, higher recurrence and worse response to chemotherapy [911]. Importantly, it has been shown that the attenuation of weight loss would significantly improve overall survival in patients with gastrointestinal cancer [12]. Taken together, cancer cachexia significantly impairs cancer patient quality of life and prognosis, and reversal of this condition would be beneficial to the management of malignancy in general.

An effective therapeutic option is currently not available to manage cancer cachexia. This is partly due to a limited understanding of the molecular mechanisms underlying this disease process, highlighting the need to better define mediators and factors implicated in the pathology. Research in the field has largely been driven by candidate gene approaches in which specific molecules are selected for study based on their cellular roles. However, it is becoming apparent that cancer cachexia is a complex multi-factorial disease which may involve multiple pathways, and candidate molecular approaches may therefore have limited value in providing insights for overall molecular interactions which are likely to be networked. Moreover, paucity of data on the effects of cancer cachexia on heart muscle highlights the need to investigate this tissue in parallel to skeletal muscle for the purposes of identifying tissue-specific or global muscle responses to cancer cachexia.

We have recently undertaken a genomics approach to studying the multiple changes occurring in muscle during cancer cachexia [13]. While we were able to identify a broad variety of changes at the genomic level, whether these translate into functional changes depends on the realisation of downstream effects. Protein expression levels provide further information on whether the effects observed at the gene level are in fact translated, together with experimental validation of the observed genomic changes. Differential proteomics represents an effective analytical tool to gather information on multiple proteins in a single experimental setup. So far few studies have utilised this approach to investigate aspects of cancer: one study focused on the identification of urine biomarkers associated with cancer cachexia in patients and the other study reported the proteomic profile in skeletal muscle of cachectic rats [14, 15]. These MALDI-TOF experiments were either indirect (urinary proteins) or else focussed on protein oxidation/carbonylation specifically and precluded analysis of differentially expressed proteins. Two very recent studies on proteomic changes in cachexic muscle used label-free approaches [16, 17]. To our knowledge the current work represents the first use of iTRAQ quantitative mass spectrometry to investigate the proteomic profiles of cachexia affected skeletal (fast [gastrocnemius] and slow [soleus] twitch) and heart muscles. Isobaric tags for relative and absolute quantification (iTRAQ) followed by liquid chromatography-tandem mass spectrometry (LC-MS/MS) were used [18]. The iTRAQ approach allows multiple protein changes to be revealed at once as well as providing a validation tool for observed changes at the morphological and gene levels. Use of isobaric tags as internal standards provides higher data accuracy and reliability, and has been successfully applied to studies of proteomic changes associated with liver regeneration and tumour phenotypes of different cancers [1922].

RESULTS

Proteomics analysis of different muscle types

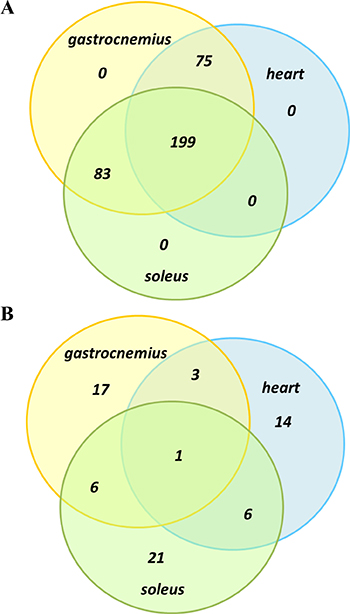

Proteomics analysis identified and quantified more than 300 proteins, with > 95% confidence in correct sequence identification (unused score of > 1.3 and FDR of 1%), in each of two iTRAQ experiments. Spectral, peptide and protein summary data from the two experiments are shown in Table 1, and the full lists of proteins relating to each of the muscle types, gastrocnemius, soleus and heart are shown in the Supplementary Materials (Supplementary Tables 1, 2 and 3). Approximately 5–10% of proteins from the full lists were significantly differentially expressed, at a p-value of 0.05 (27 proteins from gastrocnemius, 34 proteins from soleus and 24 proteins from heart), and are shown in Tables 2, 3 and 4. When the full protein lists across muscle types were compared, 199 proteins were common across all three groups, 75 were common to gastrocnemius and heart, 83 were common to soleus and gastrocnemius, and no proteins were unique to just a single muscle type (Figure 1A). However, when a similar comparison was made based on the much shorter significantly differentially expressed protein lists (i.e., those shown in Tables 2, 3 and 4), then there was only a single protein that was common across all three muscle types (myosin-4 or Myh4), with 3–6 proteins common across pairs of muscle types, and the majority of differentially expressed proteins unique to each muscle type (Figure 1B).

Table 1: Summary data from Protein Pilot v5.0 for the two ITRAQ proteomics experiments

iTRAQ Experiment 1

iTRAQ Experiment 2

Spectra

50,805

30,437

Distinct peptides

7,388

5,917

Proteins (before grouping)

2,659

1,434

Proteins (after grouping)

369

329

Protein ID yield with Local FDR (1%)

357

331

Peptide ID yield with Local FDR (1%)

4,333

3,196

Spectral ID yield with Local FDR (1%)

36,171

19,312

Data was processed with Protein Pilot™ 5.0 software using the Paragon™ Algorithm for the identification of spectra, peptides and proteins. The data represents a protein detection threshold cutoff > 1.3 (unused score), representing a confidence of correct sequence identification of > 95%.

Table 2: Proteins dysregulated in mouse gastrocnemius muscle during cancer cachexia, quantified by iTRAQ based discovery proteomics

Unused

%Cov(95)

gi Accession

Protein Name (protein term for STRING bioinformatics analysis)

Biol Rep

Peptides (95%)

cachexia/control iTRAQ tag area ratio

P Val

6.27

9.565

160358829

hemopexin precursor (Hpx)

BR3

4

1.935

0.00847

6.27

9.565

BR2

4

1.603

0.00119

25.65

36.520

BR5

16

1.565

0.00466

65.16

77.450

439253893

actin, alpha skeletal muscle (Acta1)

BR2

254

1.724

0.00718

65.16

77.450

BR3

254

1.515

0.04439

16.02

23.400

568909414

myosin-binding protein H isoform X1 (MybpH)

BR1

8

1.539

0.00461

16.02

23.400

BR3

8

1.233

0.03045

61.71

8.521

568913099

nebulin isoform X9 (Nebl)

BR3

38

1.500

0.00023

61.71

8.521

BR2

38

1.367

2.39E-07

61.71

8.521

BR1

38

1.257

3.21E-05

11.62

20.640

755519288

troponin T, slow skeletal muscle isoform X2 (Tnnt1)

BR3

8

1.282

0.02597

11.62

20.640

BR2

8

1.245

0.03467

27.66

72.180

11875203

tropomyosin beta chain isoform Tpm2.2st [Tpm2]

BR5

49

1.268

7.61E-05

123.22

92.610

BR3

116

1.136

0.00018

13.92

52.380

68226433

histone H2B type 2-B (Hist2h2bb)

BR3

9

1.250

0.00047

13.92

52.380

BR1

9

1.207

0.00161

163.01

77.090

205830428

myosin heavy chain Iia (Myh2)

BR3

604

1.208

0.04663

163.01

77.090

BR1

604

1.172

0.02887

163.01

77.090

BR2

604

1.134

0.00084

349.71

67.970

67189167

myosin-4 [Myh4]

BR5

254

1.189

2.01E-06

517.79

79.940

BR1

917

1.253

7.19E-05

517.79

79.940

BR2

917

1.073

0.01459

26.32

61.210

300069034

PDZ and LIM domain protein 5 isoform ENH4 (Pdlim5)

BR3

17

1.199

0.00136

26.32

61.210

BR2

17

1.146

0.02435

32.06

0.891

755499204

titin isoform X3 (Ttn)

BR1

23

1.177

0.03356

32.06

0.891

BR2

23

1.155

0.00572

204.45

67.600

18859641

myosin-7 (Myh7)

BR2

348

1.176

7.31E-09

204.45

67.600

BR1

348

1.111

0.00018

136.63

65.380

568947734

myosin-binding protein C, fast-type isoform X1 [Mybpc2]

BR1

79

1.159

5.04E-06

85.11

39.260

BR5

41

1.166

0.00515

75.05

61.190

157951643

alpha-actinin-2 [Actn2]

BR2

66

1.074

0.00484

75.05

61.190

BR1

66

1.091

0.02410

97.56

80.260

163310765

serum albumin precursor [Alb]

BR4

79

0.76

1.04E-09

95.64

79.610

BR1

65

0.94

0.05683

34.76

41.040

254553458

glucose-6-phosphate isomerase (Gpi1)

BR2

31

0.909

0.00992

34.76

41.040

BR1

31

0.855

0.02262

36.56

43.710

33563250

desmin (Des)

BR1

21

0.902

0.00300

36.56

43.710

BR2

21

0.894

0.00139

18.09

66.920

6753810

fatty acid-binding protein, heart (Fabp3)

BR4

26

0.891

0.04207

15.38

63.910

BR2

16

0.874

0.01664

65.9

81.680

6679937

glyceraldehyde-3-phosphate dehydrogenase isoform 2 (Gapdh)

BR2

96

0.888

0.03505

58.71

84.080

BR4

78

0.804

0.03664

52.99

48.750

227330633

phosphoglucomutase-2 (Pgm2)

BR2

32

0.888

0.00047

52.99

48.750

BR1

32

0.881

0.00351

63.56

45.130

18079339

aconitate hydratase, mitochondrial precursor (Aco2)

BR1

35

0.882

0.00050

63.56

45.130

BR2

35

0.882

0.00038

19.28

37.040

568912066

ATP synthase subunit gamma, mitochondrial isoform X1 (Atp5c1)

BR2

14

0.878

0.00898

19.41

33.670

BR5

11

0.819

0.00172

37.66

67.750

31982186

malate dehydrogenase, mitochondrial precursor (Mdh2)

BR1

26

0.875

0.00132

37.66

67.750

BR2

26

0.788

2.89E-06

138.32

68.170

6755256

glycogen phosphorylase, muscle form (Pygm)

BR1

103

0.863

9.37E-05

138.32

68.170

BR2

103

0.840

1.72E-08

34.34

54.360

148747424

ADP/ATP translocase 1 (Slc25a4)

BR1

23

0.826

0.00918

34.34

54.360

BR2

23

0.785

0.00854

12.45

32.390

568889869

ATP synthase subunit O, mitochondrial [Atp5o]

BR2

7

0.734

0.00203

10.26

27.700

BR4

6

0.802

0.00818

9.98

55.920

6679078

nucleoside diphosphate kinase B [Nme2]

BR1

8

0.752

0.00190

9.98

55.920

BR2

8

0.800

0.01394

Two technical replicates (n = 2) and five biological replicates (n = 5) therefore n = 10 samples were used and a total of 377 proteins identified and quantified by 2D LCMSMS (QStar Elite) and ProteinPilot v5.0 analysis. The proteins which were differentially expressed in a consistent direction in the majority of biological replicates, and that were also statistically significant in two or more biological replicates, are listed in this table (27 proteins in all). The full table of identified proteins is provided in Supplementary Table 1. This short-list of differentially expressed proteins was processed using the STRING v10 WEB based bioinformatics tool, and the identified clusters and protein enrichment shown in Figure 2A and Table 5 respectively.

Table 3: Proteins dysregulated in mouse soleus muscle during cancer cachexia, quantified by iTRAQ based discovery proteomics

Unused

%Cov(95)

gi Accession

Name (protein term for STRING bioinformatics analysis)

Peptides (95%)

cachexia/control iTRAQ tag area ratio

P Val

2.33

1.648

167555029

fibrinogen alpha chain isoform 1 precursor (Fga)

1

7.622

0.03395

163.01

77.090

205830428

myosin heavy chain Iia (Myh2)

604

2.317

7.33E-09

36.51

66.550

116517336

four and a half LIM domains protein 1 isoform 2 (Fhl1)

26

2.190

2.49E-06

204.45

67.600

18859641

myosin-7 (Myh7)

348

2.179

7.61E-14

10.47

16.640

6754254

heat shock protein HSP 90-alpha (Hsp90aa1)

15

2.108

0.00198

5.09

21.650

7304987

cysteine and glycine-rich protein 3 (Csrp3)

3

1.949

0.04617

35.4

30.930

84875544

LIM domain-binding protein 3 isoform c (Ldb3)

29

1.947

0.00235

52.65

26.890

568966329

myosin-binding protein C, slow-type isoform X14 (Mybpc2)

32

1.878

6.31E-07

6.76

10.760

755517050

heterogeneous nuclear ribonucleoproteins A2/B1 isoform X1 (Hnrnpa2b1)

5

1.766

0.00248

40.83

9.432

568939784

filamin-C isoform X1 (Flnc)

23

1.755

0.00031

36.56

43.710

33563250

desmin (Des)

21

1.648

4.46E-05

7.46

22.600

6680836

calreticulin precursor (Calr)

5

1.493

0.01178

13.92

52.380

68226433

histone H2B type 2-B (Hist2h2bb)

9

1.487

0.00297

55.41

77.090

82524274

myosin-1 (Myh1)

648

1.483

0.00235

32.06

0.891

755499204

titin isoform X3 (Ttn)

23

1.333

0.00746

41.06

37.460

31981690

heat shock cognate 71 kDa protein (Hspa8)

24

1.330

0.02401

13.5

2.518

254675244

plectin isoform 1 (Plec)

9

1.324

0.02871

73.3

90.850

256000780

tropomyosin alpha-1 chain isoform Tpm1.1st (Tpm1)

134

1.316

0.00037

517.79

79.940

67189167

myosin-4 (Myh4)

917

1.278

1.73E-05

27.09

65.000

6678371

troponin C, skeletal muscle (Tnnc2)

39

1.254

0.02125

127.94

42.870

568953176

myomesin-2 isoform X2 (Myom2)

78

1.208

0.00377

136.63

65.380

568947734

myosin-binding protein C, fast-type isoform X1 (Mybpc2)

79

1.207

0.00239

131.92

55.140

568949470

sarcoplasmic/endoplasmic reticulum calcium ATPase 1 isoform X1 (Atp2a1)

106

1.160

0.03768

13.31

20.390

568966988

phosphate carrier protein, mitochondrial isoform X1 (Slc25a3)

9

0.751

0.01161

9.46

13.540

18700024

isocitrate dehydrogenase 3, beta subunit (Idh3b)

5

0.741

0.02699

12.9

20.000

6679261

pyruvate dehydrogenase E1 component subunit alpha, somatic form, mitochondrial precursor (Pdha1)

9

0.740

0.02822

31.64

24.640

33859811

trifunctional enzyme subunit alpha, mitochondrial precursor (Hadha)

15

0.728

0.00343

53.27

95.270

7949078

myosin regulatory light chain 2, skeletal muscle isoform (Mylpf)

114

0.717

0.00636

20.82

78.910

498752597

hemoglobin subunit beta-1 (Hbb-b1)

18

0.646

0.00448

18.25

44.170

6755963

voltage-dependent anion-selective channel protein 1 (Vdac1)

9

0.625

0.03542

3.5

20.930

13385090

cytochrome c oxidase subunit 6B1 (Cox6b1)

3

0.589

0.00206

40.28

88.960

255708425

myoglobin (Mb)

45

0.387

0.00094

13.55

53.400

568893484

histone H4 (Hist2h4)

12

0.305

0.00360

26.34

77.720

568936906

myosin regulatory light chain 2, ventricular/cardiac muscle isoform isoform X1 (Myl2)

21

0.282

1.15E-06

Two technical replicates (n = 2) and a single biological replicate (n = 1), therefore n = 2 samples were used. A total of 285 proteins were identified and quantified by LCMSMS (QStar Elite) and ProteinPilot v5.0 analysis. Significantly dysregulated proteins are listed in this table (34 proteins). The full table of identified/quantified proteins is provided in Supplementary Table 2. This list of proteins was also processed using the STRING v10 WEB based bioinformatics tool, and the identified clusters and protein enrichment shown in Figure 2B and Table 5 respectively.

Table 4: Proteins dysregulated in mouse heart muscle during cancer cachexia, quantified by iTRAQ based discovery proteomics

Unused

%Cov(95)

gi Accession

Protein Name (protein term for STRING bioinformatics analysis)

Biol Rep

Peptides (95%)

cachexia/control iTRAQ tag area ratio

P Val

2.71

4.358

19527078

fibrinogen gamma chain precursor (Fgg)

BR2

2

5.434

0.02153

3.87

10.43

7304875

alpha-2-HS-glycoprotein isoform 1 precursor (Ahsg)

BR2

3

1.698

0.02759

42.25

37.59

20330802

serotransferrin precursor (Tf)

BR2

24

1.558

1.66E-06

55.67

96.36

568991776

parvalbumin alpha isoform X1 (Pvalb)

BR1

60

1.556

1.46E-05

5.38

36.59

568973615

cytochrome b-c1 complex subunit 8 isoform X1 (Uqcrq)

BR1

5

1.539

0.02216

18.58

2.393

568913135

nebulin isoform X26 (Nebl)

BR1

11

1.445

2.77E-05

7.68

22.5

568384815

four and a half LIM domains protein 1 isoform 3 (Fhl1)

BR1

5

1.393

0.04835

22.73

8.355

568924485

glycogen debranching enzyme isoform X1 (Agl)

BR1

12

1.334

0.03097

25.23

62.09

6678391

troponin I, fast skeletal muscle (Tnni2)

BR1

21

1.310

0.02100

7.9

4.348

110347469

alpha-2-macroglobulin precursor (A2m)

BR2

6

1.306

0.03769

349.71

67.97

67189167

myosin-4 (Myh4)

BR1

254

1.290

1.01E-08

22.03

65

6678371

troponin C, skeletal muscle (Tnnc2)

BR1

31

1.263

0.00660

22.03

65

6678371

BR2

31

1.175

0.03371

44.94

95.27

7949078

myosin regulatory light chain 2, skeletal muscle isoform (Mylpf)

BR1

63

1.223

0.00132

90.83

50.89

7304855

alpha-actinin-3 (Actn3)

BR1

46

1.216

0.00119

34.69

64.88

226958349

triosephosphate isomerase (Tpi1)

BR2

26

1.180

0.02520

119.92

71.97

6755256

glycogen phosphorylase, muscle form (Pygm)

BR1

106

1.165

0.00628

77.95

33.24

568953176

myomesin-2 isoform X2 (Myom2)

BR1

40

1.147

0.02854

77.95

33.24

568953176

BR2

40

1.104

0.04321

71.57

55.88

6680748

ATP synthase subunit alpha, mitochondrial precursor (Atp5a1)

BR1

45

0.813

0.01146

71.57

55.88

6680748

BR2

45

0.896

0.02872

17.54

28.21

6679261

pyruvate dehydrogenase E1 component subunit alpha, somatic form, mitochondrial precursor (Pdha1)

BR2

10

0.861

0.00378

31.14

33.73

226823367

fumarate hydratase, mitochondrial precursor (Fh)

BR2

19

0.815

0.00233

10.46

46.09

9845265

ubiquitin-60S ribosomal protein L40 (Uba52)

BR1

6

0.722

0.00579

10.46

46.09

9845265

BR2

6

0.813

0.00761

13.34

55.92

6679078

nucleoside diphosphate kinase B (Nme2)

BR1

9

0.752

0.00838

13.34

55.92

6679078

BR2

9

0.719

0.02891

4.08

27.18

31980744

ATP synthase subunit g, mitochondrial (Atp5l)

BR2

2

0.676

0.04705

27.32

73.27

568936906

myosin regulatory light chain 2, ventricular/cardiac muscle isoform isoform X1 (Myl2)

BR1

30

0.671

0.00436

Two technical replicates (n = 2) and two biological replicates (n = 2), therefore n = 4 samples were used and a total of 278 proteins identified and quantified by 2D LCMSMS (QStar Elite) and ProteinPilot v5.0 analysis. The proteins which were significantly differentially expressed and in a consistent direction, in both biological replicates, are listed in this table (24 proteins). The full table of identified proteins is provided in Supplementary Table 3. This list of proteins was also processed using the STRING v10 WEB based bioinformatics tool, and the identified clusters and protein enrichment shown in Figure 2C and Table 5 respectively.

Venn diagram comparison of protein overlap between muscle groups.

Figure 1: Venn diagram comparison of protein overlap between muscle groups. Full protein lists, as shown in Supplementary Tables 1, 2 and 3, were compared (A) as well as significantly differentially expressed proteins lists, as shown in Tables 2, 3 and 4 (B).

Bioinformatics analysis

The significantly differentially expressed protein lists (i.e., Tables 2, 3 and 4) were used to explore enrichment of gene ontology (GO) biological processes and molecular functions (Table 5), and protein clusters (Figure 2). Three main processes or functions emerged across muscle types; muscle contraction, metabolites/energy and cytoskeletal protein binding (Table 5). A few processes/functions were uniquely identified in just a single muscle type, including; unfolded protein binding (soleus) and complement and coagulation cascades (heart). Protein group clustering is shown in Figure 4 for each muscle type, with the specific protein involved in enriched biological processes and molecular functions highlighted. In general, muscle contraction and cytoskeletal binding proteins were upregulated in the C26 cachectic mice, whereas the energy/metabolism protein group was generally downregulated in the C26 mice (Tables 2, 3, 4). Ingenuity Pathway Analysis (IPA) was used to explore relationships of the differentially expressed proteins to each other and to diseases and functions (Figure 3). The top ID associated network identified by IPA in each of the muscle types was “skeletal and muscular system development and function”. Other networks were also identified for each of the specific muscle types, including; organismal injury and abnormalities in gastrocnemius (IPA statistically significant diseases and functions sub-categories frequently show cancers of various kinds). For soleus, additional significant ID associated networks included cardiovascular system development and function and embryonic development. For heart, additional significant ID associated network functions included cardiovascular system development and function and cellular assembly and organization.

Table 5: Enrichment of biological processes, molecular functions and KEGG pathways of protein lists that are differentially expressed in mouse gastrocnemius, soleus and heart muscle during cancer cachexia

GO id

Term

Number of Genes

p-value

p-value FDR

p-value Bonferroni

Gastrocnemius

Biological Process Enrichment

GO:0006936

muscle contraction

8

2.59E-12

3.48E-08

3.48E-08

GO:0003012

muscle system process

8

2.20E-11

1.48E-07

2.96E-07

GO:0006091

generation of precursor metabolites and energy

6

6.77E-08

3.04E-04

9.11E-04

GO:0044724

single-organism carbohydrate catabolic process

4

8.49E-07

2.85E-03

1.14E-02

GO:0016052

carbohydrate catabolic process

4

1.31E-06

3.52E-03

1.76E-02

Molecular Function Enrichment

GO:0008092

cytoskeletal protein binding

11

1.46E-10

6.89E-07

6.89E-07

GO:0003779

actin binding

7

8.28E-08

1.95E-04

3.89E-04

GO:0005200

structural constituent of cytoskeleton

4

4.85E-07

7.60E-04

2.28E-03

GO:0046933

proton-transporting ATP synthase activity, rotational mechanism

2

3.81E-05

4.48E-02

1.79E-01

KEGG Pathways Enrichment

4530

Tight junction

4

1.84E-05

5.24E-03

5.24E-03

5410

Hypertrophic cardiomyopathy (HCM)

3

1.30E-04

1.46E-02

3.69E-02

5414

Dilated cardiomyopathy

3

1.55E-04

1.46E-02

4.39E-02

Soleus

Biological Process Enrichment

GO:0003012

muscle system process

13

1.91E-19

2.57E-15

2.57E-15

GO:0006936

muscle contraction

12

5.93E-19

3.98E-15

7.97E-15

GO:0006941

striated muscle contraction

6

8.75E-10

3.92E-06

1.18E-05

GO:0030029

actin filament-based process

9

2.10E-09

7.05E-06

2.82E-05

GO:0007517

muscle organ development

7

6.10E-08

1.64E-04

8.20E-04

GO:0061061

muscle structure development

8

1.22E-07

2.73E-04

1.64E-03

GO:0060048

cardiac muscle contraction

4

5.49E-07

9.98E-04

7.38E-03

GO:0030239

myofibril assembly

4

6.02E-07

9.98E-04

8.09E-03

GO:0055002

striated muscle cell development

5

6.68E-07

9.98E-04

8.98E-03

GO:0055001

muscle cell development

5

1.25E-06

1.52E-03

1.68E-02

GO:0055003

cardiac myofibril assembly

3

1.39E-06

1.52E-03

1.86E-02

GO:0003008

system process

14

1.43E-06

1.52E-03

1.92E-02

GO:0060047

heart contraction

4

1.47E-06

1.52E-03

1.97E-02

GO:0055008

cardiac muscle tissue morphogenesis

4

1.94E-06

1.86E-03

2.61E-02

GO:0003015

heart process

4

2.07E-06

1.86E-03

2.79E-02

GO:0070252

actin-mediated cell contraction

3

2.94E-06

2.47E-03

3.95E-02

GO:0014706

striated muscle tissue development

6

3.18E-06

2.52E-03

4.28E-02

GO:0060415

muscle tissue morphogenesis

4

3.61E-06

2.66E-03

4.85E-02

Molecular Function Enrichment

GO:0005200

structural constituent of cytoskeleton

7

1.49E-12

7.00E-09

7.00E-09

GO:0003779

actin binding

10

3.19E-11

7.49E-08

1.50E-07

GO:0008092

cytoskeletal protein binding

12

1.55E-10

2.42E-07

7.27E-07

GO:0008307

structural constituent of muscle

4

9.90E-09

1.13E-05

4.66E-05

GO:0005198

structural molecule activity

9

1.21E-08

1.13E-05

5.67E-05

GO:0032403

protein complex binding

9

7.30E-06

5.73E-03

3.44E-02

GO:0042805

actinin binding

3

1.10E-05

7.37E-03

5.16E-02

GO:0031433

telethonin binding

2

1.31E-05

7.69E-03

6.15E-02

GO:0051371

muscle alpha-actinin binding

2

6.08E-05

3.18E-02

2.86E-01

GO:0005516

calmodulin binding

4

1.01E-04

4.75E-02

4.75E-01

GO:0051082

unfolded protein binding

3

1.15E-04

4.92E-02

5.42E-01

KEGG Pathways Enrichment

4530

Tight junction

6

4.48E-08

1.27E-05

1.27E-05

5410

Hypertrophic cardiomyopathy (HCM)

5

1.49E-07

1.89E-05

4.23E-05

5414

Dilated cardiomyopathy

5

2.00E-07

1.89E-05

5.68E-05

4260

Cardiac muscle contraction

4

4.75E-06

3.38E-04

1.35E-03

4612

Antigen processing and presentation

3

1.71E-04

9.73E-03

4.87E-02

Heart

Biological Process Enrichment

GO:0006936

muscle contraction

6

4.92E-09

6.61E-05

6.61E-05

GO:0003012

muscle system process

6

2.41E-08

1.62E-04

3.24E-04

GO:0044724

single-organism carbohydrate catabolic process

4

5.17E-07

2.32E-03

6.96E-03

GO:0016052

carbohydrate catabolic process

4

7.98E-07

2.68E-03

1.07E-02

Molecular Function Enrichment

GO:0003779

actin binding

5

2.03E-05

9.53E-02

9.53E-02

KEGG Pathways Enrichment

4530

Tight junction

4

1.13E-05

3.21E-03

3.21E-03

4610

Complement and coagulation cascades

3

6.97E-05

9.89E-03

1.98E-02

Proteins were identified and quantified by iTRAQ based discovery proteomics (see Tables 2, 3 and 4) and processed using the STRING v10 WEB based bioinformatics tool to identify protein enrichment categories. Cellular compartment enrichment is shown in the supplementary materials (Supplementary Table 4).

Figure 2:

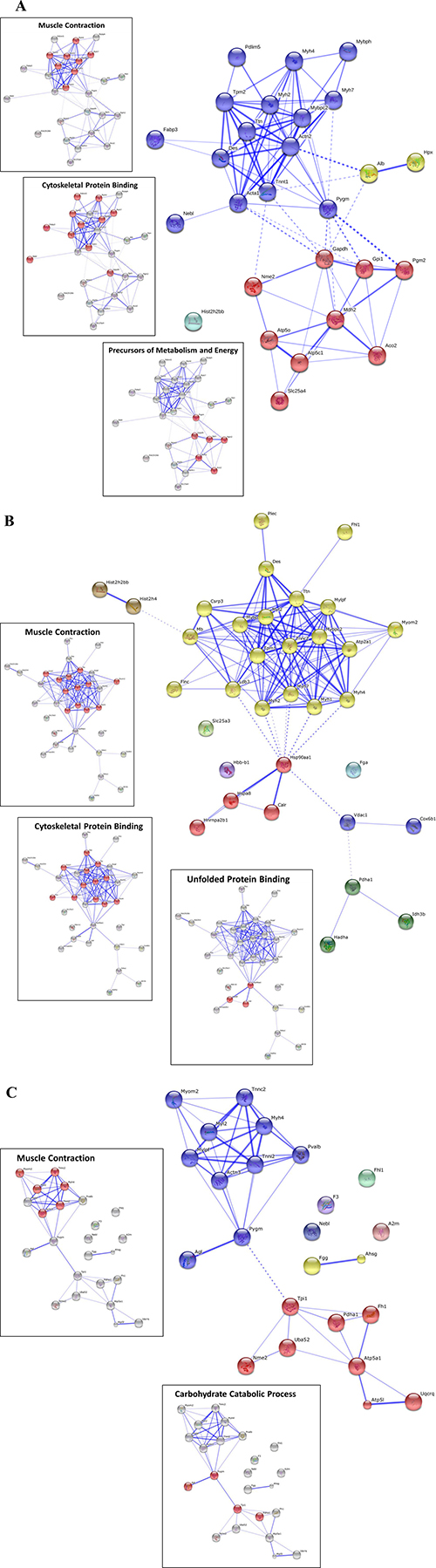

Figure 2: STRING v10 bioinformatics analysis of proteins dysregulated during cancer cachexia in gastrocnemius (27 proteins) (A), soleus (34 proteins) (B) and heart (24 proteins) (C) muscle. MCL 2 point clustering was used for the STRING analysis, and the differentially expressed proteins used for clustering are shown in Tables 2, 3 and 4. The insets show some of the significantly enriched biological processes and molecular functions highlighted in red against grey clusters (the full list of significant enrichment is shown in Table 5).

Ingenuity Pathway Analysis (Qiagen 2015) was used to explore relationships of the differentially expressed proteins to each other and to diseases and functions.

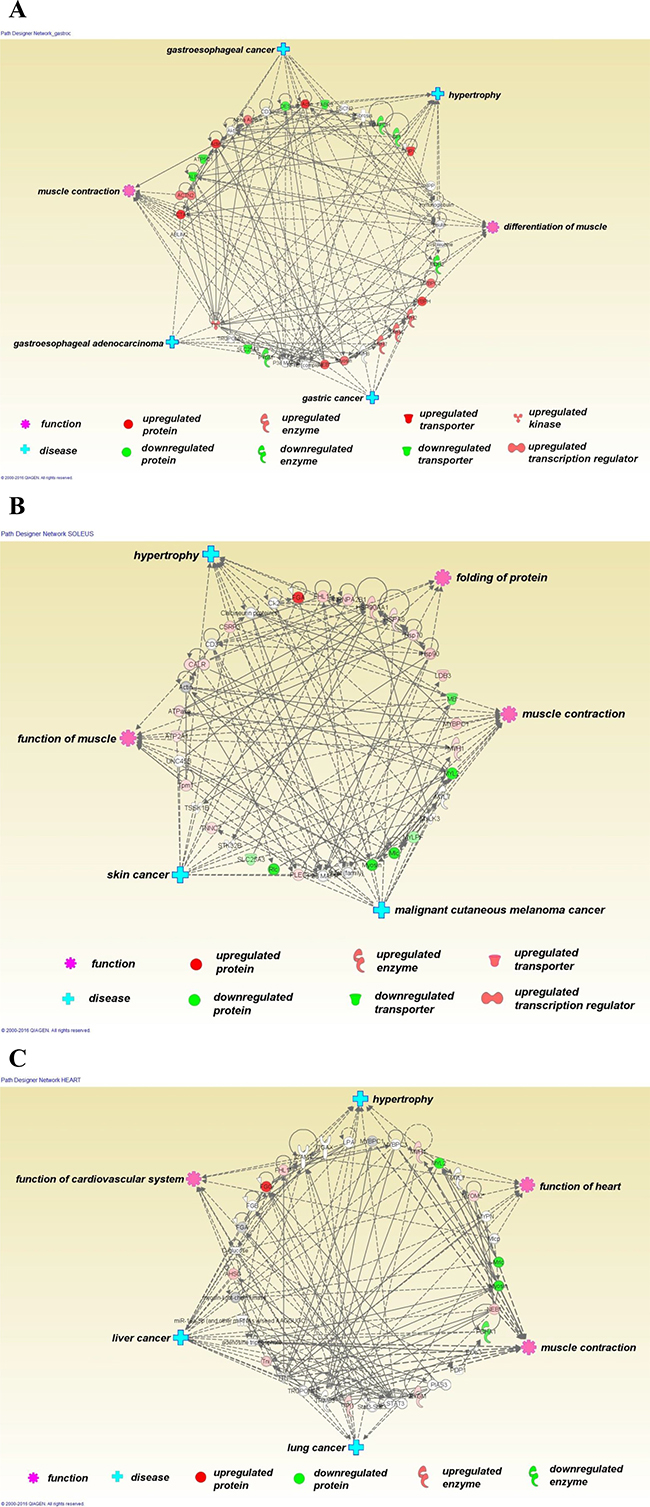

Figure 3: Ingenuity Pathway Analysis (Qiagen 2015) was used to explore relationships of the differentially expressed proteins to each other and to diseases and functions. Differentially expressed proteins (derived from the lists shown in Tables 2, 3 and 4) are shown in a circular layout (upregulated proteins in red, downregulated proteins in green and non-coloured molecules predicted by the software to have interactions). Six statistically significantly related functions (pink cog) and diseases (blue cross) are displayed at points around the central circle. The top ID associated network identified by IPA for each of the muscle types is shown in this figure; gastrocnemius (A), soleus (B) and heart (C). For gastrocnemius, the most significant ID associated network functions (IPA top network score = 53) are skeletal and muscular system development and function, cardiovascular disease, organismal injury and abnormalities (IPA statistically significant diseases and functions sub-categories frequently show cancers of various kinds). For soleus, the most significant ID associated network functions (IPA top network score = 44) are skeletal and muscular system development and function, cardiovascular system development and function, embryonic development. For heart, the most significant ID associated network functions (IPA top network score = 21) were skeletal and muscular system development and function, cardiovascular system development and function, cellular assembly and organization.

Figure 4:

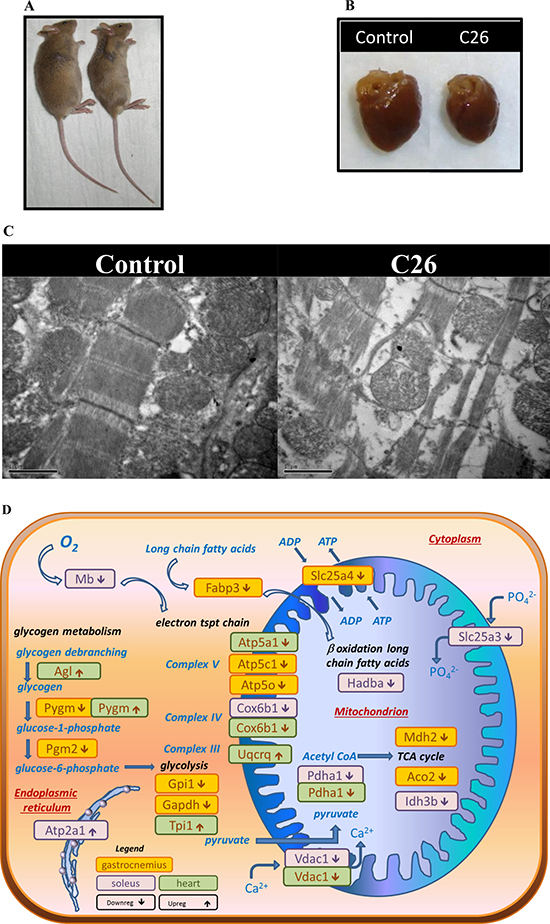

Figure 4: (A) Tumour-mediated effect on whole body size. (B) Tumour-mediated effect on heart. (C) Electron micrographs showing structural and mitochondrial alterations in cardiac muscle of NTB control and C26-bearing mice. Increased intercellular spaces were seen and appeared to be associated with a loss of myofibrils and reduced density of mitochondrial matrix (Magnification = 25,000×). (D) Schematic of the role of muscle proteins differentially expressed during cancer-induced cachexia in the cellular energy/metabolism pathways. Differentially expressed proteins are indicated as small rectangles, with colour representing the muscle type in which differential expression was observed (yellow = gastrocnemius, purple = soleus, green = heart) and the arrows indicating up (inline-image) or down (inline-image) regulation. The displayed proteins were those identified in the proteomics experiments and listed in Tables 2, 3 and 4.

Electron microscopy of cardiac muscle

Sarcomere structure

Disrupted ultrastructural features were evident in cardiac muscle from C26-bearing mice. Hearts from C26-bearing mice were significantly smaller and the absolute weight was less than hearts from NTB controls (Table 6, Figures 4A and 4B). Analysis of muscle from control mice using electron microscopy showed the parallel register of myofibrils consisting of sarcomeres in series (Figure 4C). The sarcomere is the functional and structural unit for contraction and is demarcated by two Z-discs. Sections from cachectic muscle harvested at the endpoint (20% weight loss, day 14) exhibited altered ultrastructure to varying degrees in different myocytes. Vesicle-like structures were apparent at the Z-discs, and invaded into surrounding myofibrils [23]. Sarcomere disintegration was also evident, and extreme changes seen where the sarcomeres appeared ‘torn’ at the M-line (Figure 4C).

Table 6: Weight of carcass (whole body minus tumor) and tumor; absolute and normalized weights of heart at the endpoint

Carcass Weight (g)

TumourWeight (g)

Heart Weight (mg)

Control

27 ± 0.3

---

130.6 ± 1.8

C26

20 ± 0.2
***

0.7 ± 0.1

107.4 ± 2.6
**

Significant weight loss was observed in C26-bearing mice on day 14 after tumor inoculation (endpoint). Absolute heart weight was reduced in C26-bearing mice. Statistical significance of weight was determined by two-tailed unpaired t-test, *p < 0.05, **p < 0.01, ***p < 0.001 compared to the controls (n = 4).

Mitochondrial structure: The normal appearance of mitochondria with densely packed cristae and homogenous matrix was diminished in muscles of C26-bearing mice (Figure 4C). Mitochondrial changes such as the presence of electron-lucent areas and swelling are evident. Some mitochondria are associated with vesicle-like structures which may represent autophagic bodies in the myocyte, with a reduced proportion of normal mitochondria observed. By contrast, the proportion of mitochondria with locally electron-lucent matrix increased in the C26 cachectic group and swelling and/or fragmentation features of cristae were more apparent in mitochondria of C26-bearing mice compared to the controls (Figure 4C).

These changes in mitochondria were observed to be similar to the features seen in the electron micrographs of cachectic skeletal muscle described in our previous work [24], and were consistent with the proteomic changes observed in both the myofibril/cytoskeletal and the energy/metabolism protein groups. When the energy/metabolism group of differentially expressed proteins were superimposed on the various cellular metabolic pathways (Figure 4D), it was evident that multiple metabolic pathways were affected by downregulated protein expression, including glycogen metabolism, glycolysis, electron transport chain, TCA cycle and fatty acid metabolism/β oxidation. Furthermore, several proteins involved in transport of ions and ADP/ATP across the mitochondrial lumen were also downregulated (Vdac1, Slc25a3 and Slc25a4). Proteins from the gastrocnemius have the largest number of differentially expressed proteins related to energy/metabolism, and are represented across all of the metabolic pathways (Figure 4D).

DISCUSSION

This work represents the first study into muscle proteomic changes in the C26 mouse model of cancer cachexia. It follows our published genomics study on the same model [13] and has the further advantage that we were able to identify downstream effects in the form of protein expression changes relating to muscle function (i.e., functional genomics). Furthermore, effects across slow twitch, fast twitch and heart muscle types have been compared.

Proteomic similarities and differences across muscle types

In all muscle samples, the majority of differentially expressed proteins fell into three main groups; muscle function, energy/metabolism and cytoskeleton. A small number of proteins had muscle specific enrichment, such as proton transporting ATP synthase activity in gastrocnemius, unfolded protein binding in soleus and complement and coagulation cascades in cardiac muscle (Table 5).

Proteins were identified and quantified by iTRAQ based discovery proteomics (see Tables 2, 3 and 4) and processed using the STRING v10 WEB based bioinformatics tool to identify protein enrichment categories. Cellular compartment enrichment is shown in the supplementary materials (Supplementary Table 4).

There was considerable overlap of the full list of proteins identified across the three muscle types (199 proteins identified across all three muscle types). However, there was very little overlap of specific proteins that were differentially expressed (see Venn diagrams in Figure 1A and 1B). Even though muscle function and energy/metabolism processes were represented across all three muscle types, only one differentially expressed protein occurred across all three muscle types (Myh4, upregulated in all 3 muscle types) and just a small amount of overlap was found between each of the muscle types (Figure 1B). Three proteins overlapped between gastrocnemius and heart and these were: Nebl (upregulated in both), Nme2 (downregulated in both) and Pygm (upregulated in heart and downregulated in gastrocnemius). Between soleus and heart, six proteins were differentially expressed in both: Fhl1, Myom2 and Tnnc2 being upregulated in both muscle types, Pdha1 and Myl2 being downregulated in both and Mylpf upregulated in heart and downregulated in soleus. In soleus and gastrocnemius six proteins overlap, with upregulation of Hist2h2bb, Mybpc2, Myh2, Myh7 and Ttn in both muscle types, with Des upregulated in soleus but downregulated in gastrocnemius. Nonetheless, most of the differentially expressed proteins across muscle types were involved in the same pathways/processes. This is well illustrated in Figure 4D which shows common metabolic pathways affected across muscle types, even though specific proteins within these pathways may differ.

The sarcomere and disruption of muscle architecture in cancer cachexia

Loss of sarcomeres, disintegration of Z-discs and swollen mitochondria have been reported in skeletal muscle of sepsis- or denervation-induced myopathies [25, 26]. The molecular structure and components of the Z-disc have previously been described [27], and consist largely of titin, α-actinin and nebulin. Since the Z-disc is an anchor point for myofibrillar proteins such as myosin (via large protein titin) and actin, disrupted Z-discs could result in the release of these myofibrillar proteins. This was evident in a sepsis model with higher myofibrillar protein release rate [25]. In this study, all of the main Z-disc proteins were identified in the proteomics lists (Tables 24), and were consistently upregulated across all three muscle types, likely reflecting the disintegration of the Z-disc and release of its constituent proteins. There is a possibility that this upregulation of sarcomeric proteins in the soluble extracts is due to upregulated gene expression, however unlikely for the following reasons: (1) our data represent comparisons of C26 with control muscle samples that underwent identical extraction processes. By comparison with the soluble protein fraction, and even membrane proteins, the normal/intact sarcomere is a robust structure, containing some particularly high molecular weight proteins and protein complexes which are difficult to extract [28, 29]. So weakening of the sarcomere in diseases/disorders such as muscular dystrophy, cachexia and sarcopaenia are likely to facilitate extraction of sarcomere associated proteins. In fact muscle wasting in cachexia has previously been causally linked to proteasome-mediated protein degradation [30], (2) cancer cachexia is a catabolic rather than an anabolic process with weakened sarcomeres and muscle ultrastructural abnormalities, as supported by the electron microscopy data (Figure 4C), our previous work [24] and also data from other groups [3033], (3) our previous genomics study has identified upregulation of protein catabolic processes, particularly those related to ubiquitin [13], and increased protein ubiquitination has also been reported by others [30] so degradation of muscle proteins is likely at play – which would also be consistent with facilitating release/upregulation of sarcomeric proteins during the protein extraction protocol, by comparison with normal controls, (4) gene expression of some muscle structural proteins, such as troponin are reduced in cachexia [33, 34], likely further weakening the sarcomere. We therefore argue that the balance of evidence supports the likelihood that upregulation of sarcomere associated peptides in the C26 samples indicates sarcomere breakdown rather than a homeostatic response to sarcomere weakening. This is the simplest explanation given that the key feature of cachexia is muscle breakdown. It aligns with our observation which is methodologically consistent with extraction being easier and more peptides now appearing in solution upon extraction. Moreover, the M-line has also been suggested to be an important site for the regular register of thick filaments and contributes to the stability of sarcomeres during continuous contraction [35], which consists largely of the protein myomesin [36]. Myomesin overexpression was observed in both soleus and heart (Tables 3 and 4), consistent with disintegration of the M-line and dissolution of its constituents. Therefore, the disrupted sarcomeric structure observed in the skeletal muscle of C26-bearing mice could accelerate muscle wasting and indeed reflect a common response to catabolic conditions including cancer cachexia.

Consistent with these morphological changes to myocyte architecture, our proteomics experiments revealed upregulated soluble levels of a variety of muscle fibre proteins, consistent with disintegration of the sarcomere in the C26 mice. These included a variety of myosins (Myh4, Myh7, Mylpf, Myl12, MybpH, Myh2, MybpC2, Myl2), troponins (Tnnt1, Tnni2, Tnnc2), tropomyosins (Tpm2), actins (Acta1, Actn2, Actn3), titin (Ttn), filamin (flnc) and myomesin (MyoM2). The emerging picture is of disintegration of the sarcomere along with loss of its normal connections to the cytoskeleton and organelles such as the mitochondrion. In particular, dissolution of Z-disc and M-line proteins, titin, α-actinin, nebulin and myomesin is likely to be particularly disruptive to sarcomeric integrity.

Downregulation of energy, metabolism and mitochondrial function in cachexia

Morphological alterations were evident in the mitochondria of cachectic heart muscle (Figure 4C), that could be related to disruption of energy homeostasis in skeletal muscle, and is consistent with our previous observations on cachectic skeletal muscle [24]. These changes included electron–lucent areas which corresponded to a loss of cristae in these mitochondria; suggesting defective oxidative phosphorylation for generating ATP. In addition, swollen mitochondria, which are reported to be associated with cellular ATP depletion, were present [37]. Vesicle-like structures, likely to be autophagic bodies were also observed in some mitochondria which suggested eventual mitochondrial loss via autophagy in cachectic muscle [23]. Therefore, it appears that during cancer cachexia, not only is the sarcomeric structure disrupted, but muscle energy homeostasis may also be disturbed. Such an ultrastructural phenotype may partly explain the reduced grip strength reported in the C26 model [38].

The energy metabolism protein group is almost consistently downregulated across all three muscle types, explaining the lack of energy/strength and fatigue which are hallmarks of cachexia (Tables 2, 3, 4 and Figure 4D). Differentially expressed proteins are representative of multiple pathways, including glycogen metabolism, glycolysis, fatty acid metabolism, TCA cycle, and the electron transport chain. Furthermore myoglobin, a major oxygen reserve in muscle is significantly downregulated in soleus muscle, indicating a further level of compromise of the electron transport chain. The largest number of proteomic changes are focused on the various mitochondrial pathways, with all three muscle types represented (Figure 4D). However, the fast twitch gastrocnemius muscle also has differentially expressed proteins in the glycogen metabolism, glycolysis and fatty acid transport pathways, and therefore appears to be affected across the largest number of metabolic pathways, including glycolysis, glycogen metabolism, TCA cycle, electron transport chain and fatty acid transport/metabolism (Figure 4D). Overall, downregulation of the majority of energy/metabolism proteins not-withstanding several proteins in this group, are upregulated in heart muscle, including Ag1, Pygm, Tpi1 and Uqcrq (Table 4 and Figure 4D), suggesting an attempt to activate homeostatic mechanisms to protect this vital organ.

A multifunctional protein which may be related to energy insufficiency in cancer cachexia is Nme2, which is involved in the synthesis of nucleoside triphosphates other than ATP, and is downregulated in both gastrocnemius and cardiac muscles (Tables 2 and 4). Nucleoside triphosphate kinases are believed to provide GTP to dynamins, which in turn regulate membrane processes such as vesical formation, fusion to other organelles and mitochondrial inner membrane fusion, and knockdown of nucleoside triphosphate kinases resulting in mitochondrial fragmentation [39]. Furthermore, Nme2 also negatively regulates Rho activity, which has a role in cytoskeletal dynamics [40].

Regulatory proteins and connectivity of the sarcomere to subcellular structures

Given that this is a mouse model of cancer cachexia, it is interesting that the muscle function group of proteins is upregulated in all three muscle types. This effect is a likely result of muscle catabolic processes weakening the muscle fibre structure and solubilising muscle fibre proteins, which would normally be fixed within the sarcomere. Consistent with this possibility, the intermediate filament protein desmin, which regulates sarcomere architecture, and links it to mitochondria and the cell nucleus, is differentially expressed in both gastrocnemius and soleus, being downregulated and upregulated respectively. Desmin-null mice have perturbed muscle architecture, involving both myofibrils and mitochondria, and develop hypertrophic cardiomyopathy [41, 42]. Desmin was also downregulated in cardiac muscle in both biological replicates (Supplementary Materials; Table 3), however did not quite achieve the p = 0.05 statistical significance level. Disintegration of the sarcomere during cachexia may be further compounded by desmin dysregulation, and thereby loss of connectivity to mitochondria. Plectin is another protein which associates with the periphery of Z-discs and promotes mechanical integrity of myocytes by connectivity of the myofibril to the cytoskeleton and mitochondria [4345]. Plectin was upregulated in soleus (Table 3) consistent with loss of sarcomeric integrity. Other proteins within our differentially expressed proteins lists, which may be involved with cytoskeletal assembly/integrity include Pdlim5 [46] (upregulated in gastrocnemius) and Ldb3 (also called ZASP, upregulated in soleus), which interacts with α-actinin and mutations of which are associated with myopathy [47].

Proteomics and pathology triggers in cancer cachexia

One of the limitations of this case-control study is that it is not clear what the upstream triggers or processes that initiate cancer related muscle wasting are. Additional work, such as a longitudinal study of cancer cachexia progression will be required to determine what these may be. However, there is evidence in our data of several mechanisms which could impact both sarcomere structure and the cellular energy metabolism pathways; (1) protein folding machinery may not be up to the demand placed on it. In the soleus, two heat shock proteins (Hsp90aa1 and Hspa8) and the sarcoplasmic/endoplasmic reticulum calcium ATPase (Atp2a1) are all upregulated, suggesting the possibility that the ER may be under stress. Furthermore, several proteins which transport ATP/ADP, Ca2+ and inorganic phosphate (Slc25a4, Vdac1 and Slc25a3, respectively) are downregulated, possibly further exacerbating any ER stress, with potentially wide-ranging effects on cellular function, (2) several inflammation related proteins (acute phase) are differentially expressed across muscle types, but especially in cardiac muscle. These include; Ahsg (fetuin-A), which is increased in heart and is a protein which is known to increase during inflammation [48], acute phase proteins are upregulated, including fibrinogen chains in soleus (Fga) and heart (Fgg) and α-2-macroglobulin in the heart. Inflammation can be a driver of muscle catabolic processes [49], (3) a variety of ion or small molecule binding and transport proteins are differentially expressed. Some of these may be upregulated as an attempt to maintain homeostasis, such as several iron carrier proteins; hemopexin (upregulated in gastrocnemius), serotransferrin (upregulated in heart) and the calcium binding protein parvalbumin (upregulated in heart). However, downregulation of others may drive pathological processes, including the ion channel Vdac1 which is downregulated in both soleus and heart and the inorganic phosphate transporter Slc25a3 which is downregulated in soleus. Four and a half LIM domains protein 1 (FHL1) is upregulated in heart (Table 4). This protein is abundant in skeletal muscle and to a lesser extent heart, and is a multifunctional protein likely to be involved with ion channel binding. Defects in the FHL1 gene are associated with myopathy [50], (4) several proteins in our differentially expressed protein lists may be involved with DNA binding and transcription regulation, including the histone proteins Hist2h2bb and Hist2h4 (differentially expressed in both gastrocnemius and soleus muscle), and Nme2 (earlier discussed in the context of GTP synthesis and downregulated in both gastrocnemius and cardiac muscles) is a transcriptional activator of the MYC gene and can also bind DNA non-specifically [51, 52].

Limitations

A limitation of the current study is the absence of functional analysis which could provide a mechanistic link between cachexia related protein dysregulation and hypothesised metabolic changes associated with cancer progression. However, it does provide a basis/rationale for future work into sarcomere and mitochondrial dysfunction in cachexia. A number of reviews speculating on the molecular mechanisms of muscle wasting in cancer cachexia appear in the literature [34, 49, 5361] indicating the importance of improving knowledge in this area. Furthermore, studies in the field addressing functional issues in the context of cancer cachexia are increasing [31, 62, 63]. We suggest that discovery based studies such as genomics and proteomics (i.e., functional genomics) may not only support/refute current hypotheses, but may also be drivers of new hypotheses. The advantages of “omics” and systems biology approaches have recently been reviewed by Gallagher et al. [60]. Such studies are not only complementary to, but also important precursors to functional studies and are beginning to provide important insights into the molecular drivers of cancer cachexia [16, 17]. We expect that our current study will provide the groundwork for future mechanistic investigations.

MATERIALS AND METHODS

Establishment of the colon 26 (C26) carcinoma mouse model of cancer cachexia

The C26 mouse model was established and managed as previously described [13, 24]. Briefly, male Balb/c-DBAj hybrid mice (10–11 weeks old) were obtained from the Animal Resources Centre (Perth, WA, Australia) and housed at the Molecular Physiology Unit (ANZAC Research Institute, Concord, NSW, Australia). Mice were maintained at a constant temperature (22°C) on a 12 hr light: 12 hr dark cycle. Standard rodent chow and water ad libitum were freely accessible. All animal work prior to culling was conducted under ethics approval (Sydney South West Area Health Service Animal Welfare Committee; protocol number 2007/006) and has therefore been performed in accordance with the ethical standards laid down in the 1964 Declaration of Helsinki and its later amendments.

For tumour inoculation, 1 × 106 C26 cells in 100 μl RPMI/PS were subcutaneously inoculated in the upper right flank of the Balb/c-DBAj mice (day 0). Non-tumour-bearing (NTB) control mice were injected with 100 μl RPMI medium/PS. Mice were physically restrained by hand holding for the inoculation process, and total body weight of animals was monitored daily. Mice were sacrificed by cervical dislocation at 2 pm to minimise diurnal variation. For the identification of cachexia-specific effects (single endpoint), the experimental endpoint for cachexia was selected so that percentage weight loss in C26-bearing mice ranged from 13–18%, which was within the ethical limit of 20%. Mice were culled on days 14 and 16 post-tumour inoculation to account for the inter-individual variability of weight loss. Lower hindlimbs were selected for study due to enrichment in both slow and fast muscles which could be used for comparison of changes across muscle types in cancer cachexia. Individual muscles soleus and gastrocnemius skeletal muscles and heart were harvested, snap-frozen in liquid nitrogen and stored at −80°C.

Electron microscopy (EM)

The electron microscopy procedures have previously been described [24]. In brief, muscle tissue was fixed in 2% PFA/2.5% glutaraldehyde in 0.1M sodium cacodylate buffer straight after excision (n = 3 for both NTB and C26 groups). Prior to post-fixation in osmium tetroxide/0.2M sodium cacodylate buffer, 2 washes of 1 hr each were done in 0.1M sodium cacodylate buffer. Samples were then progressively dehydrated in 70%, 90% and 100% ethanol, before an overnight incubation in LR white resin (London Resin Company, London, UK). LR white resin was replaced the next day for another hr of infiltration. Samples were then embedded in closed gelatine capsules with fresh resin and polymerised at 60°C for 24 hrs. Ultrathin sections (70 nm) were cut from fixed muscle and stained with 2% uranyl acetate (aqueous) and 2% lead citrate and examined under a Jeol1400 transmission electron microscope (Electron Microscopic Unit, UNSW, NSW, Australia) at a voltage of 100 kV.

Protein extraction

Muscle extracts were prepared by homogenising muscles in ice-cold buffer [0.15% SDS, 1 mM EDTA, 1 mM EGTA, 1 mM sodium orthovanadate (Na3VO4), 10 mM sodium fluoride (NaF), 15 mM sodium chloride (NaCl), 20 mM HEPES, 10 mM PMSF, pH 7.5] supplemented with 10 mM PMSF and 1 complete™, EDTA-free protease inhibitor cocktail tablet (Roche Diagnostics, Sydney, Australia) using a Pro200 homogeniser (PRO Scientific Inc, Sydney, Australia). Samples were incubated on ice for 1 hr and supernatant lysates were collected following centrifugation at 14,000g for 10 min at 4°C. Protein samples were divided into aliquots and kept at –80°C before subsequent experimental procedures.

iTRAQ labeling and 2-D LC-MS/MS

For quantitative MS, iTRAQ isobaric labelling was used (Applied Biosystems, Foster City, CA, USA). iTRAQ labelling, 2-D LC-MS/MS and data analysis was performed as described previously [64, 65]. In brief, protein concentration was determined, and protein (100 μg) from skeletal muscle (gastrocnemius and soleus) or cardiac muscle (whole heart) extracts was precipitated with acetone containing 0.1% v/v HCl at –20°C, centrifuged at 15 000 g, air dried and resuspended in a final concentration of 50 mM NaHCO3/0.1% SDS (pH 8.8). For subsequent steps, including trypsinisation, the iTRAQ reagents protocol (Applied Biosystems) was followed, except that 200 mM iodoacetamide (Pierce, Sydney, Australia) was used to alkylate cysteines, and immediately prior to adding iTRAQ reagents, 2.5 μL of 500 mM Na2CO3 was added to ensure a basic pH 8–9.

Labelled peptides were passed through a strong cation exchange column (SCX), dried under vacuum and passed through a C18 column to desalt the sample (Peptide MacroTrap, Michrom Bioresources, Auburn, CA, USA), eluting with 500 μL CH3CN : water : formic acid (50:50:0.1, v:v:v), followed by 200 μL CH3CN. To ensure that any peptides present in the SCX flow through would also be captured, an Oasis cartridge (Waters, Sydney, Australia) was used to desalt the SCX flow through component, and the eluent from this step was pooled with the sample from the final C18 step. For LCMSMS analysis the extracted iTRAQ labelled peptides (5 μg) were captured onto a strong cation exchange micro column (0.75 x ~20 mm, Poros S10, Applied Biosystems) and each of the ammonium acetate eluent steps (12 in total) was captured and desalted on a C18 precolumn cartridge (Michrom Bioresources). After a 10 min wash the pre-column was switched (Switchos, Amsterdam, The Netherlands) into line with an analytical column containing C18 reverse phase packing material (Magic, 5 μm, 200Å, Michrom Bioresources) [66]. Peptides were eluted using a 45 min linear gradient of buffer A (H2O:CH3CN of 98:2 containing 0.1% formic acid-buffer) to buffer B (H2O:CH3CN of 20:80 containing 0.1% formic acid-buffer) at 300 nL/min. High voltage (2300 V) was applied through a low volume tee (Upchurch Scientific, Oak Harbor, WA, USA) at the column inlet and the outlet positioned 1 cm from the orifice of an API QStar Pulsar i hybrid tandem mass spectrometer (Applied Biosystems). Positive ions were generated by electrospray and the QStar operated in information- dependent acquisition mode. A Tof MS survey scan was acquired (m/z 350–1700, 0.75 s) and the three largest multiply charged ions (counts 420, charge state z2 to z4) sequentially selected by Q1 for MS/MS analysis. Nitrogen was used as collision gas and an optimum collision energy automatically chosen (based on charge state and mass). Tandem mass spectra were accumulated for up to 2.5 s (m/z 65–2000) with two repeats.

Quantitative proteomics data analysis

All of the data was collected using two 8-plex iTRAQ experiments and each run was performed in duplicate (two technical replicates). Automated inline 2-D LC-MS/MS was carried out using 5 biological replicates (i.e., 5 control mice and 5 cachexia mice, so 10 mice in total) for gastrocnemius muscle, 2 biological replicates (i.e., 2 control mice and 2 cachexia mice so 4 mice in total) for cardiac muscle and a single biological sample for soleus muscle (i.e., 1 control mouse and 1 cachexia mouse, so 2 mice in total, as a skeletal muscle comparison tissue). Combined technical replicates were processed using Protein Pilot™ 5.0 software (Applied Biosystems/MDS Sciex), using the Paragon™ Algorithm and selecting thorough ID search effort and biological modifications selected in ID focus. The database used was NCBInr (mouse data current at 20–10–15). ProteinPilot identification and quantitation parameters were set as follows: A detect protein threshold cutoff > 1.3 (unused score) was used, representing a confidence of > 95% in correct protein identification and autobias correction applied to the reporter ion ratios. The iTRAQ reporter labels were applied to the samples as follows: Experiment 1 gastrocnemius C26-bearing mice/NTB control reporter ion ratios were 118/115, 119/116 and 121/117 (gastrocnemius biological replicates 1, 2 and 3); soleus C26-bearing mice/NTB control reporter ion ratio was 114/113; Experiment 2 cardiac C26-bearing mice/NTB control reporter ion ratios were 115/113, 116/114 (cardiac biological replicates 1 and 2) and gastrocnemius C26-bearing mice/NTB control reporter ion ratios were 119/117 and 121/118 (gastrocnemius biological replicates 4 and 5). The background correction option was not used, however autobias correction values were as follows for each of the reporter ion ratios: Experiment 1 gastrocnemius 118/115 (0.8851), 119:116 (0.7827), 121:117 (0.8455), soleus 114/113 (0.5979); Experiment 2 cardiac muscle 115:113 (0.4845), 116:114 (0.7605), gastrocnemius 119/117 (1.0335), 121:118 (0.9808).

Bioinformatics analysis; STRING v10 and ingenuity pathway

STRING v10 [67] was used to perform network analysis and enrichment of protein groups on the proteins which were found to be differentially expressed in each of the muscle types. For this analysis the default settings were used, the MCL clustering tool was set to a value of 2 and the confidence view selected for output presentation. The protein terms used for each analysis are shown in Tables 2, 3 and 4. STRING v10 was also used to explore enrichment of biological processes, molecular function, cellular components and KEGG pathways against the mouse genome background (only FDR and/or Bonferroni corrected significant values are shown). Ingenuity Pathway Analysis (IPA) software (Qiagen 2015) was used to compare the level of overlap of protein lists between the three muscle types and to explore biochemical networks, diseases and functions which were significantly related to the differentially expressed proteins.

Proteomics terminology

Use of the terms “up-regulated”, “down-regulated”, and “differential expression level”, are widespread in the proteomics literature and are a convention adopted from the genomics field. Consequently they are sometimes taken to imply genetic regulation. However, in the proteomics context they can only ever represent protein level/s relative to a reference or control sample. Such levels may change due to transcriptional, translational, post-translational or disease mechanisms, and proteomics methods alone cannot establish the mechanism/s by which protein levels change. To help clarify our current usage of this terminology and to avoid false inferences, our use of these terms in the current context only indicates protein levels in the cachexia samples relative to the control samples. Any mechanistic inferences that we make are based on a combination of some or all of our proteomic data, muscle ultrastructural observations and our previously published genomics data.

CONCLUSIONS

Complementary findings from our morphological and proteomic analyses provide a global picture of the molecular events that underlie skeletal muscle wasting during cancer cachexia; disintegrated sarcomeric structure, increased soluble protein expression of Z-disc components, and disruption of the M-line with increased expression of soluble myomesin. This model for muscle breakdown, triggered by disruption of the Z-line which releases myofibrillar proteins, presents the Z-disc as the most likely initial and rate-limiting step of muscle breakdown in cancer-induced muscle wasting. These processes are further exacerbated by disrupted energy homeostasis, which is another recurrent feature of the pathophysiology of cancer-induced muscle cachexia. Altered mitochondrial morphology, in combination with the reduced expression of proteins regulating substrate and energy metabolism, suggest that muscle cells are likely to be undergoing a state of energy crisis which ultimately results in cancer-induced cachexia. A wide range of biological processes could potentially be affected by the lack of cellular fuel, including muscle contraction, protein turnover and substrate metabolism. However, based on the results presented, it is still unclear if the observed disrupted energy metabolism during cancer cachexia is a consequence or a cause of muscle wasting. The data generated by this iTRAQ proteomics study shows that the genomic changes which we have previously identified are indeed translated into multiple functional downstream changes, which in turn account for muscle wasting in cancer-induced cachexia. Future work should aim to elucidate what the primary triggers are for these changes, and to this purpose, longitudinal studies may be the way forward.

Author contributions

PP, TCT and AMYS conceived and planned the project. These authors also performed editorial work on the text. AMYS, AP and NLB performed experimental work (tissue collection and processing, iTRAQ proteomics analysis, mass spectrometry, 1D SDS/PAGE and Western blotting) and wrote the main manuscript text. All authors contributed to data interpretation. All authors reviewed the manuscript.

ACKNOWLEDGMENTS

We thank A/Prof. Graham Robertson and Prof. Stephen Clarke for providing support for the animal experiments. We thank Ms Sigrid Fraser and the Electron Microscope Unit UNSW for her invaluable assistance with the ultrastructural analysis. We thank A/Prof Mark J. Raftery for providing subsidized access to the Bioanalytical Mass Spectrometry Facility, UNSW Australia, with technical and analytical support to perform iTRAQ mass spectrometry at this facility.

CONFLICTS OF INTEREST

No conflicts of interest, financial or otherwise, are declared by any of the authors.

FUNDING

This project was supported by a UNSW Australia Faculty of Medicine Research Grant (P. Polly), and A. M. Y. Shum was the recipient of an Australian Postgraduate Award and the UNSW Research Excellence Scholarship. We thank these organisations for their financial support.

REFERENCES

1. Bossola M, Pacelli F, Tortorelli A, Doglietto GB. Cancer cachexia: it’s time for more clinical trials. Ann Surg Oncol. 2007; 14:276–85. https://doi.org/10.1245/s10434-006-9179-5.

2. Shum AM, Polly P. Cancer cachexia: molecular targets and pathways for diagnosis and drug intervention. Endocr Metab Immune Disord Drug Targets. 2012; 12:247–59.

3. Muscaritoli M, Bossola M, Aversa Z, Bellantone R, Rossi Fanelli F. Prevention and treatment of cancer cachexia: new insights into an old problem. Eur J Cancer. 2006; 42:31–41. https://doi.org/10.1016/j.ejca.2005.07.026.

4. Persson C, Glimelius B. The relevance of weight loss for survival and quality of life in patients with advanced gastrointestinal cancer treated with palliative chemotherapy. Anticancer Res. 2002; 22:3661–8.

5. Scott HR, McMillan DC, Brown DJ, Forrest LM, McArdle CS, Milroy R. A prospective study of the impact of weight loss and the systemic inflammatory response on quality of life in patients with inoperable non-small cell lung cancer. Lung Cancer. 2003; 40:295–9.

6. Tisdale MJ. Molecular pathways leading to cancer cachexia. Physiology (Bethesda). 2005; 20:340–8. https://doi.org/10.1152/physiol.00019.2005.

7. Fearon KC. Cancer cachexia: developing multimodal therapy for a multidimensional problem. Eur J Cancer. 2008; 44:1124–32. https://doi.org/10.1016/j.ejca.2008.02.033.

8. Salpeter SR, Malter DS, Luo EJ, Lin AY, Stuart B. Systematic review of cancer presentations with a median survival of six months or less. J Palliat Med. 2012; 15:175–85. https://doi.org/10.1089/jpm.2011.0192.

9. Dewys WD, Begg C, Lavin PT, Band PR, Bennett JM, Bertino JR, Cohen MH, Douglass HO Jr, Engstrom PF, Ezdinli EZ, Horton J, Johnson GJ, Moertel CG, et al, and Eastern Cooperative Oncology Group. Prognostic effect of weight loss prior to chemotherapy in cancer patients. Eastern Cooperative Oncology Group. Am J Med. 1980; 69:491–7.

10. Ross PJ, Ashley S, Norton A, Priest K, Waters JS, Eisen T, Smith IE, O’Brien ME. Do patients with weight loss have a worse outcome when undergoing chemotherapy for lung cancers? Br J Cancer. 2004; 90:1905–11. https://doi.org/10.1038/sj.bjc.6601781.

11. Thivat E, Therondel S, Lapirot O, Abrial C, Gimbergues P, Gadea E, Planchat E, Kwiatkowski F, Mouret-Reynier MA, Chollet P, Durando X. Weight change during chemotherapy changes the prognosis in non metastatic breast cancer for the worse. BMC Cancer. 2010; 10:648. https://doi.org/10.1186/1471-2407-10-648.

12. Andreyev HJ, Norman AR, Oates J, Cunningham D. Why do patients with weight loss have a worse outcome when undergoing chemotherapy for gastrointestinal malignancies? Eur J Cancer. 1998; 34:503–9.

13. Shum AM, Fung DC, Corley SM, McGill MC, Bentley NL, Tan TC, Wilkins MR, Polly P. Cardiac and skeletal muscles show molecularly distinct responses to cancer cachexia. Physiol Genomics. 2015; 47:588–99. https://doi.org/10.1152/physiolgenomics.00128.2014.

14. Skipworth RJ, Stewart GD, Bhana M, Christie J, Sturgeon CM, Guttridge DC, Cronshaw AD, Fearon KC, Ross JA. Mass spectrometric detection of candidate protein biomarkers of cancer cachexia in human urine. Int J Oncol. 2010; 36:973–82.

15. Marin-Corral J, Fontes CC, Pascual-Guardia S, Sanchez F, Olivan M, Argiles JM, Busquets S, Lopez-Soriano FJ, Barreiro E. Redox balance and carbonylated proteins in limb and heart muscles of cachectic rats. Antioxid Redox Signal. 2010; 12:365–80. https://doi.org/10.1089/ars.2009.2818.

16. Barreto R, Mandili G, Witzmann FA, Novelli F, Zimmers TA, Bonetto A. Cancer and Chemotherapy Contribute to Muscle Loss by Activating Common Signaling Pathways. Front Physiol. 2016; 7:472. https://doi.org/10.3389/fphys.2016.00472.

17. Ebhardt HA, Degen S, Tadini V, Schilb A, Johns N, Greig CA, Fearon KCH, Aebersold R, Jacobi C. Comprehensive proteome analysis of human skeletal muscle in cachexia and sarcopenia: a pilot study. J Cachexia Sarcopenia Muscle. 2017; 8:567–82. https://doi.org/10.1002/jcsm.12188.

18. Zieske LR. A perspective on the use of iTRAQ reagent technology for protein complex and profiling studies. J Exp Bot. 2006; 57:1501–8. https://doi.org/10.1093/jxb/erj168.

19. Hsieh HC, Chen YT, Li JM, Chou TY, Chang MF, Huang SC, Tseng TL, Liu CC, Chen SF. Protein profilings in mouse liver regeneration after partial hepatectomy using iTRAQ technology. J Proteome Res. 2009; 8:1004–13. https://doi.org/10.1021/pr800696m.

20. Keshamouni VG, Michailidis G, Grasso CS, Anthwal S, Strahler JR, Walker A, Arenberg DA, Reddy RC, Akulapalli S, Thannickal VJ, Standiford TJ, Andrews PC, Omenn GS. Differential protein expression profiling by iTRAQ-2DLC-MS/MS of lung cancer cells undergoing epithelial-mesenchymal transition reveals a migratory/invasive phenotype. J Proteome Res. 2006; 5:1143–54. https://doi.org/10.1021/pr050455t.

21. Glen A, Evans CA, Gan CS, Cross SS, Hamdy FC, Gibbins J, Lippitt J, Eaton CL, Noirel J, Wright PC, Rehman I. Eight-plex iTRAQ analysis of variant metastatic human prostate cancer cells identifies candidate biomarkers of progression: An exploratory study. Prostate. 2010; 70:1313–32. https://doi.org/10.1002/pros.21167.

22. Wang LN, Tong SW, Hu HD, Ye F, Li SL, Ren H, Zhang DZ, Xiang R, Yang YX. Quantitative proteome analysis of ovarian cancer tissues using a iTRAQ approach. J Cell Biochem. 2012; 113:3762–72. https://doi.org/10.1002/jcb.24250.

23. Arbustini E, Brega A, Narula J. Ultrastructural definition of apoptosis in heart failure. Heart Fail Rev. 2008; 13:121–35. https://doi.org/10.1007/s10741-007-9072-8.

24. Shum AM, Mahendradatta T, Taylor RJ, Painter AB, Moore MM, Tsoli M, Tan TC, Clarke SJ, Robertson GR, Polly P. Disruption of MEF2C signaling and loss of sarcomeric and mitochondrial integrity in cancer-induced skeletal muscle wasting. Aging (Albany NY). 2012; 4:133–43. https://doi.org/10.18632/aging.100436.

25. Williams AB, Decourten-Myers GM, Fischer JE, Luo G, Sun X, Hasselgren PO. Sepsis stimulates release of myofilaments in skeletal muscle by a calcium-dependent mechanism. FASEB J. 1999; 13:1435–43.

26. Tomanek RJ, Lund DD. Degeneration of different types of skeletal muscle fibres. I. Denervation. J Anat. 1973; 116:395–407.

27. Young P, Ferguson C, Banuelos S, Gautel M. Molecular structure of the sarcomeric Z-disk: two types of titin interactions lead to an asymmetrical sorting of alpha-actinin. EMBO J. 1998; 17:1614–24. https://doi.org/10.1093/emboj/17.6.1614.

28. Wang K, Ramirez-Mitchell R, Palter D. Titin is an extraordinarily long, flexible, and slender myofibrillar protein. Proc Natl Acad Sci U S A. 1984; 81:3685–9.

29. Ohlendieck K. Skeletal muscle proteomics: current approaches, technical challenges and emerging techniques. Skelet Muscle. 2011; 1:6. https://doi.org/10.1186/2044-5040-1-6.

30. Aulino P, Berardi E, Cardillo VM, Rizzuto E, Perniconi B, Ramina C, Padula F, Spugnini EP, Baldi A, Faiola F, Adamo S, Coletti D. Molecular, cellular and physiological characterization of the cancer cachexia-inducing C26 colon carcinoma in mouse. BMC Cancer. 2010; 10:363. https://doi.org/10.1186/1471-2407-10-363.

31. Puig-Vilanova E, Rodriguez DA, Lloreta J, Ausin P, Pascual-Guardia S, Broquetas J, Roca J, Gea J, Barreiro E. Oxidative stress, redox signaling pathways, and autophagy in cachectic muscles of male patients with advanced COPD and lung cancer. Free Radic Biol Med. 2015; 79:91–108. https://doi.org/10.1016/j.freeradbiomed.2014.11.006.

32. Tzika AA, Fontes-Oliveira CC, Shestov AA, Constantinou C, Psychogios N, Righi V, Mintzopoulos D, Busquets S, Lopez-Soriano FJ, Milot S, Lepine F, Mindrinos MN, Rahme LG, et al. Skeletal muscle mitochondrial uncoupling in a murine cancer cachexia model. Int J Oncol. 2013; 43:886–94. https://doi.org/10.3892/ijo.2013.1998.

33. Tian M, Nishijima Y, Asp ML, Stout MB, Reiser PJ, Belury MA. Cardiac alterations in cancer-induced cachexia in mice. Int J Oncol. 2010; 37:347–53.

34. Pajak B, Orzechowska S, Pijet B, Pijet M, Pogorzelska A, Gajkowska B, Orzechowski A. Crossroads of cytokine signaling--the chase to stop muscle cachexia. J Physiol Pharmacol. 2008; 59:251–64.

35. Agarkova I, Ehler E, Lange S, Schoenauer R, Perriard JC. M-band: a safeguard for sarcomere stability? J Muscle Res Cell Motil. 2003; 24:191–203.

36. Tskhovrebova L, Trinick J. Making muscle elastic: the structural basis of myomesin stretching. PLoS Biol. 2012; 10:e1001264. https://doi.org/10.1371/journal.pbio.1001264.

37. Gupta A, Gupta S, Young D, Das B, McMahon J, Sen S. Impairment of ultrastructure and cytoskeleton during progression of cardiac hypertrophy to heart failure. Lab Invest. 2010; 90:520–30. https://doi.org/10.1038/labinvest.2010.43.

38. Zhou X, Wang JL, Lu J, Song Y, Kwak KS, Jiao Q, Rosenfeld R, Chen Q, Boone T, Simonet WS, Lacey DL, Goldberg AL, Han HQ. Reversal of cancer cachexia and muscle wasting by ActRIIB antagonism leads to prolonged survival. Cell. 2010; 142:531–43. https://doi.org/10.1016/j.cell.2010.07.011.

39. Boissan M, Montagnac G, Shen Q, Griparic L, Guitton J, Romao M, Sauvonnet N, Lagache T, Lascu I, Raposo G, Desbourdes C, Schlattner U, Lacombe ML, et al. Membrane trafficking. Nucleoside diphosphate kinases fuel dynamin superfamily proteins with GTP for membrane remodeling. Science. 2014; 344:1510–5. https://doi.org/10.1126/science.1253768.

40. Truebestein L, Elsner DJ, Fuchs E, Leonard TA. A molecular ruler regulates cytoskeletal remodelling by the Rho kinases. Nat Commun. 2015; 6:10029. https://doi.org/10.1038/ncomms10029.

41. Milner DJ, Weitzer G, Tran D, Bradley A, Capetanaki Y. Disruption of muscle architecture and myocardial degeneration in mice lacking desmin. J Cell Biol. 1996; 134:1255–70.

42. Milner DJ, Taffet GE, Wang X, Pham T, Tamura T, Hartley C, Gerdes AM, Capetanaki Y. The absence of desmin leads to cardiomyocyte hypertrophy and cardiac dilation with compromised systolic function. J Mol Cell Cardiol. 1999; 31:2063–76.

43. Hijikata T, Murakami T, Imamura M, Fujimaki N, Ishikawa H. Plectin is a linker of intermediate filaments to Z-discs in skeletal muscle fibers. J Cell Sci. 1999; 112:867–76.

44. Steinbock FA, Wiche G. Plectin: a cytolinker by design. Biol Chem. 1999; 380:151–8. https://doi.org/10.1515/BC.1999.023.

45. Reipert S, Steinbock F, Fischer I, Bittner RE, Zeold A, Wiche G. Association of mitochondria with plectin and desmin intermediate filaments in striated muscle. Exp Cell Res. 1999; 252:479–91. https://doi.org/10.1006/excr.1999.4626.

46. Krcmery J, Camarata T, Kulisz A, Simon HG. Nucleocytoplasmic functions of the PDZ-LIM protein family: new insights into organ development. Bioessays. 2010; 32:100–8. https://doi.org/10.1002/bies.200900148.

47. Lin X, Ruiz J, Bajraktari I, Ohman R, Banerjee S, Gribble K, Kaufman JD, Wingfield PT, Griggs RC, Fischbeck KH, Mankodi A. Z-disc-associated, alternatively spliced, PDZ motif-containing protein (ZASP) mutations in the actin-binding domain cause disruption of skeletal muscle actin filaments in myofibrillar myopathy. J Biol Chem. 2014; 289:13615–26. https://doi.org/10.1074/jbc.M114.550418.

48. Stefan N, Haring HU. The role of hepatokines in metabolism. Nat Rev Endocrinol. 2013; 9:144–52. https://doi.org/10.1038/nrendo.2012.258.

49. Cohen S, Nathan JA, Goldberg AL. Muscle wasting in disease: molecular mechanisms and promising therapies. Nat Rev Drug Discov. 2015; 14:58–74. https://doi.org/10.1038/nrd4467.

50. Windpassinger C, Schoser B, Straub V, Hochmeister S, Noor A, Lohberger B, Farra N, Petek E, Schwarzbraun T, Ofner L, Loscher WN, Wagner K, Lochmuller H, et al. An X-linked myopathy with postural muscle atrophy and generalized hypertrophy, termed XMPMA, is caused by mutations in FHL1. Am J Hum Genet. 2008; 82:88–99. https://doi.org/10.1016/j.ajhg.2007.09.004.

51. Postel EH, Berberich SJ, Flint SJ, Ferrone CA. Human c-myc transcription factor PuF identified as nm23-H2 nucleoside diphosphate kinase, a candidate suppressor of tumor metastasis. Science. 1993; 261:478–80.

52. Ji L, Arcinas M, Boxer LM. The transcription factor, Nm23H2, binds to and activates the translocated c-myc allele in Burkitt’s lymphoma. J Biol Chem. 1995; 270:13392–8.

53. Adams V, Anker SD, Schuler G. Muscle metabolism and exercise capacity in cachexia. Curr Pharm Des. 2011; 17:3838–45.

54. Hasselgren PO, Fischer JE. Muscle cachexia: current concepts of intracellular mechanisms and molecular regulation. Ann Surg. 2001; 233:9–17.

55. Wray CJ, Mammen JM, Hasselgren PO. Catabolic response to stress and potential benefits of nutrition support. Nutrition. 2002; 18:971–7.

56. Aversa Z, Costelli P, Muscaritoli M. Cancer-induced muscle wasting: latest findings in prevention and treatment. Ther Adv Med Oncol. 2017; 9:369–82. https://doi.org/10.1177/1758834017698643.

57. Loumaye A, Thissen JP. Biomarkers of cancer cachexia. Clin Biochem. 2017; 50:1281–88. https://doi.org/10.1016/j.clinbiochem.2017.07.011.

58. von Haehling S, Ebner N, Dos Santos MR, Springer J, Anker SD. Muscle wasting and cachexia in heart failure: mechanisms and therapies. Nat Rev Cardiol. 2017; 14:323–41. https://doi.org/10.1038/nrcardio.2017.51.

59. Petruzzelli M, Wagner EF. Mechanisms of metabolic dysfunction in cancer-associated cachexia. Genes Dev. 2016; 30:489–501. https://doi.org/10.1101/gad.276733.115.

60. Gallagher IJ, Jacobi C, Tardif N, Rooyackers O, Fearon K. Omics/systems biology and cancer cachexia. Semin Cell Dev Biol. 2016; 54:92–103. https://doi.org/10.1016/j.semcdb.2015.12.022.

61. Argiles JM, Busquets S, Stemmler B, Lopez-Soriano FJ. Cancer cachexia: understanding the molecular basis. Nat Rev Cancer. 2014; 14:754–62. https://doi.org/10.1038/nrc3829.

62. Tian M, Asp ML, Nishijima Y, Belury MA. Evidence for cardiac atrophic remodeling in cancer-induced cachexia in mice. Int J Oncol. 2011; 39:1321–6. https://doi.org/10.3892/ijo.2011.1150.

63. Bohnert KR, Gallot YS, Sato S, Xiong G, Hindi SM, Kumar A. Inhibition of ER stress and unfolding protein response pathways causes skeletal muscle wasting during cancer cachexia. FASEB J. 2016; 30:3053–68. https://doi.org/10.1096/fj.201600250RR.

64. Evans FF, Raftery MJ, Egan S, Kjelleberg S. Profiling the secretome of the marine bacterium Pseudoalteromonas tunicata using amine-specific isobaric tagging (iTRAQ). J Proteome Res. 2007; 6:967–75. https://doi.org/10.1021/pr060416x.

65. Lim YA, Rhein V, Baysang G, Meier F, Poljak A, Raftery MJ, Guilhaus M, Ittner LM, Eckert A, Gotz J. Abeta and human amylin share a common toxicity pathway via mitochondrial dysfunction. Proteomics. 2010; 10:1621–33. https://doi.org/10.1002/pmic.200900651.

66. Gatlin CL, Kleemann GR, Hays LG, Link AJ, Yates JR 3rd. Protein identification at the low femtomole level from silver-stained gels using a new fritless electrospray interface for liquid chromatography-microspray and nanospray mass spectrometry. Anal Biochem. 1998; 263:93–101. https://doi.org/10.1006/abio.1998.2809.

67. Szklarczyk D, Franceschini A, Wyder S, Forslund K, Heller D, Huerta-Cepas J, Simonovic M, Roth A, Santos A, Tsafou KP, Kuhn M, Bork P, Jensen LJ, et al. STRING v10: protein-protein interaction networks, integrated over the tree of life. Nucleic Acids Res. 2015; 43:D447–52. https://doi.org/10.1093/nar/gku1003.


Creative Commons License All site content, except where otherwise noted, is licensed under a Creative Commons Attribution 4.0 License.
PII: 25146
