Research Papers:

Deregulation of linc-PINT in acute lymphoblastic leukemia is implicated in abnormal proliferation of leukemic cells

PDF |  HTML  |  Supplementary Files  |  How to cite

Oncotarget. 2018; 9:12842-12852. https://doi.org/10.18632/oncotarget.24401

Metrics: PDF 1637 views  |   HTML 2340 views  |   ?

Andoni Garitano-Trojaola, Edurne San José-Enériz, Teresa Ezponda, Juan Pablo Unfried, Arantxa Carrasco-León, Nerea Razquin, Marina Barriocanal, Amaia Vilas-Zornoza, Bruno Sangro, Victor Segura, Felipe Prósper, Puri Fortes and Xabier Agirre _


Andoni Garitano-Trojaola1, Edurne San José-Enériz1, Teresa Ezponda1, Juan Pablo Unfried2, Arantxa Carrasco-León1, Nerea Razquin2, Marina Barriocanal2, Amaia Vilas-Zornoza1, Bruno Sangro3, Victor Segura4, Felipe Prósper1,5,*, Puri Fortes2,* and Xabier Agirre1,*

1Laboratory of Myeloproliferative Syndromes, Oncology Area, Foundation for Applied Medical Research, IDISNA, CIBERONC, University of Navarra, Pamplona, Spain

2Department of Gene Therapy and Hepatology, Foundation for Applied Medical Research, University of Navarra, Pamplona, Spain

3Liver Unit, CIBEREHD, Clínica Universidad de Navarra, University of Navarra, Pamplona, Spain

4Bioinformatics Unit, Foundation for Applied Medical Research, University of Navarra, Pamplona, Spain

5Hematology Service and Area of Cell Therapy, Clínica Universidad de Navarra, University of Navarra, Pamplona, Spain

*These authors have contributed equally to this work

Correspondence to:

Xabier Agirre, email: [email protected]

Puri Fortes, email: [email protected]

Felipe Prósper, email: [email protected]

Keywords: acute leukemia; lncRNA; linc-PINT; epigenetic; HMOX1

Received: February 07, 2017    Accepted: January 19, 2018    Published: February 05, 2018


Long Non-Coding RNAs (lncRNAs) are functional RNAs longer than 200 nucleotides in length. Several lncRNAs are involved in cell proliferation and are deregulated in several human tumors. Few lncRNAs have been described to play a role in Acute Lymphoblastic Leukemia (ALL). In this study, we carried out a genome wide lncRNA expression profiling in ALL samples and peripheral blood samples obtained from healthy donors. We detected 43 lncRNAs that were aberrantly expressed in ALL. Interestingly, among them, linc-PINT showed a significant downregulation in T and B-ALL. Re-expression of linc-PINT in ALL cells induced inhibition of leukemic cell growth that was associated with apoptosis induction and cell cycle arrest in G2/M phase. linc-PINT induced the transcription of HMOX1 which reduced the viability of ALL cells. Intriguingly, we observed that treatment with anti-tumoral epigenetic drugs like LBH-589 (Panobinostat) and Curcumin induced the expression of linc-PINT and HMOX1 in ALL. These results indicate that the downregulation of linc-PINT plays a relevant role in the pathogenesis of ALL, and linc-PINT re-expression may be one of the mechanisms exerted by epigenetic drugs to reduce cell proliferation in ALL.


Acute Lymphoblastic Leukemia (ALL), the most common kind of cancer in children, is an hematological malignancy originated by un-controlled proliferation of B or T lymphoblast in peripheral blood, bone marrow and/or other organs [1]. ALL patients are characterized by aberrant genetic alterations such as chromosome translocations, mutations and deletions. These genetic insults disrupt the expression of oncogenes and tumor suppressor genes, resulting in the expansion of abnormal blasts. However, 40 % of ALL patients do not show such genomic alterations, suggesting that other mechanisms may be involved in the pathogenesis of this disease.

Transcriptome analysis by tiling arrays and RNA sequencing has led to the striking conclusion that while 70%–90% of the genome is transcribed, only 2% of the genome is dedicated to the transcription of protein coding genes [2]. Moreover, it has been shown that small non-coding RNAs such as miRNAs, play a relevant role regulating gene activity in cell homeostasis, differentiation and proliferation, and may also impact the diagnosis and prognosis tools for ALL and many other diseases [37]. In the past years, increasing number of studies have focused on the study of other RNA molecules such as long non-coding RNAs (lncRNAs) in ALL. This class of non-coding RNAs (ncRNAs) consists of RNA molecules longer than 200 nucleotides, which show low levels of expression and coding potential, and in most cases are cell-type and tissue specific [8, 9]. Most of the lncRNAs described to date modulate the expression of specific genes by guiding the chromatin remodeling factors, inducing DNA looping, regulating transcription, splicing, translation, post-translation modifications and mRNA stability [1019]. All these functions play a relevant role in cell homeostasis and proliferation. In fact, several lncRNAs have been described as oncogenes or tumor suppressor genes in several human tumors [19]. Recently, Trimarchi T et al and Fang K et al described that LUNAR1 and ENST00000418618 lncRNAs are regulated by mutated NOTCH1 and rearrange MLL in ALL patients, respectively, indicating that such lncRNAs may have oncogenic properties in this disease [20, 21].

In this study, we carried out a genome-wide expression analysis that shows that lncRNAs are deregulated in ALL, regardless of the genetic status of the disease. Specifically, we observe that the lncRNA linc-PINT (P53 Induced Noncoding Transcript) is downregulated in all the ALL cell lines and most B-ALL and T-ALL patients tested. Interestingly, linc-PINT re-expression reduces the proliferation of ALL cells. This effect could be mediated in part by Heme Oxygenase 1 (HMOX1), whose expression also affects ALL cell-proliferation. Moreover, the re-expression of linc-PINT and HMOX1 is observed upon treatment of ALL with epigenetic drugs, and therefore, it may be one of the molecular mechanisms induced by these drugs to cause anti-tumor effects in this disease.


LncRNAs are aberrantly expressed in ALL

To analyze the expression of lncRNAs in ALL, we carried out a genome-wide lncRNA expression study using the Human SurePrint G3 microarray (Agilent, Santa Clara, CA), which evaluates the expression of 27958 Entrez genes and 7419 lncRNAs. We hybridized 4 primary ALL samples, 2 ALL cell lines and 3 peripheral blood samples obtained from healthy donors (PBHD). The normalized lncRNA array data was initially processed using an unsupervised principal component analysis (PCA) in which we observe that, similar to coding genes, the expression of lncRNAs shows a clear distinction between ALL primary samples and PBHD control samples (Supplementary Figure 1). We extended this first unsupervised analysis with a second supervised study to detect differentially expressed genes between primary ALL samples and PBHD samples. Analysis of the array by Ingenuity Pathway Analysis (IPA) showed that coding genes deregulated with a high statistical significance include genes associated with acute leukemia and cancer (data not shown). This served to validate our experiment design. A threshold of B>2 and fold change >1.5 was used to select 71 lncRNA probes that correspond to differentially expressed genes, 46 were downregulated and 25 upregulated in primary ALL samples (Figure 1, Supplementary Table 4). The downregulated or upregulated lncRNAs in primary ALL samples showed the same expression pattern (down or upregulated) in ALL cell lines MOLT-4 and TOM-1 (Figure 1). This indicates that these ALL cell lines represent a suitable model to study the role of the altered lncRNAs.

lncRNAs differentially expressed in ALL samples compared to healthy donor samples.

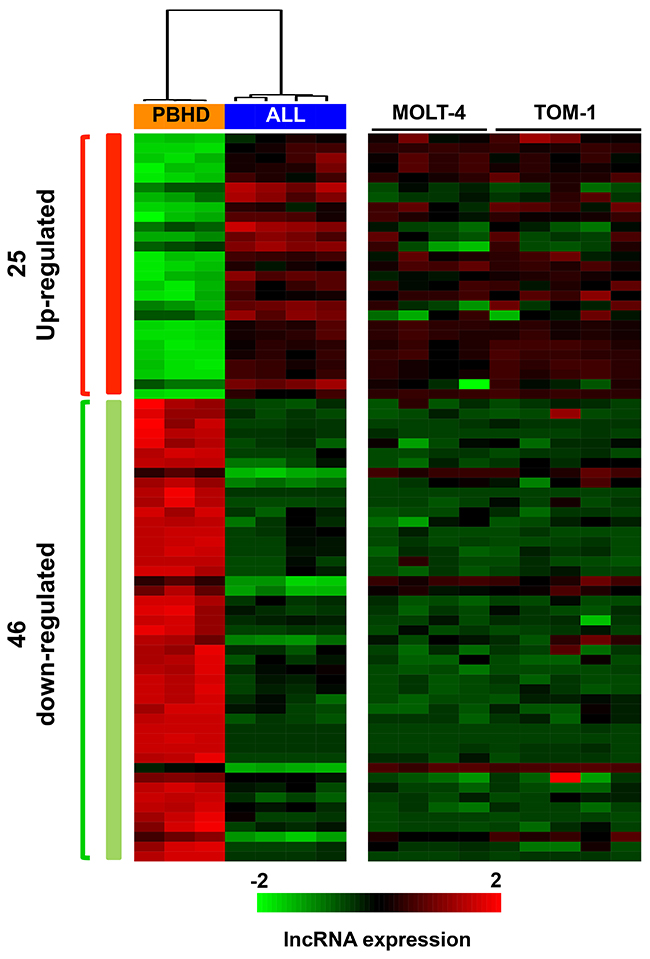

Figure 1: lncRNAs differentially expressed in ALL samples compared to healthy donor samples. Hierarchical clustering using the differentially expressed lncRNAs between ALL patient samples and PBHD, including also the data obtained in TOM-1 and MOLT-4 cell lines. Red=overexpressed lncRNAs; Green= downregulated lncRNAs.

When the probe sequences were analyzed with the UCSC genome browser, we found that some probes matched the same lncRNA and few others were miss-annotated and hybridized to coding transcripts. Therefore, the 71 selected probes corresponded in fact to 43 lncRNA genes, 28 lncRNA genes down-regulated and 15 up-regulated.To validate these studies, 16 lncRNAs deregulated in ALL were selected, preferentially among those with higher scores, and their expression was analyzed by Q-PCR using the 4 primary ALL samples and 3 PBHD. The results show that 15 out of the 16 tested lncRNAs (93%) have the same expression pattern in the expression array (Figure 2). Globally, these results indicate that the expression of lncRNAs is clearly altered in ALL.

lncRNAs expression validation by Q-PCR.

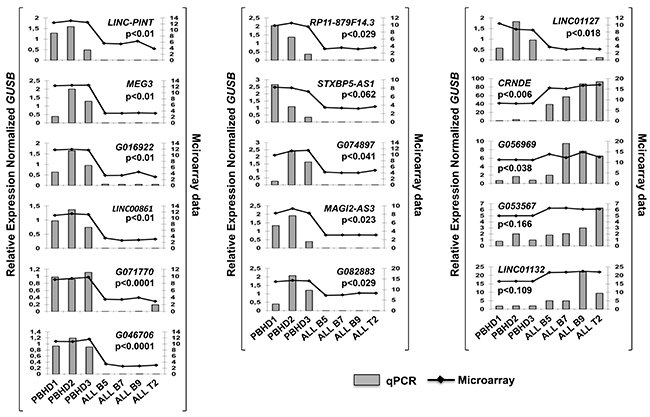

Figure 2: lncRNAs expression validation by Q-PCR. Expression of 16 lncRNAs, including linc-PINT and MEG3, in ALL patients vs PBHD was measured with Q-PCR. GUSB levels were also quantified and used to calculate the relative expression (RE).

Linc-PINT is deregulated in B and T-ALL

Among differentially expressed lncRNAs in ALL, we focused our study on those that had already been described in other human tumors but not in ALL, such as CRNDE (Colorectal Neoplasia Differentially Expressed), MEG3 (Maternally Expressed 3) and linc-PINT. CRNDE was discarded at later stages of our studies because it has been recently described to encode a peptide [25]. Further, inhibition of CRNDE with siRNAs did not affect significantly the proliferation of MOLT-4 cells (data not shown).

To ascertain whether the expression of MEG3 and linc-PINT was altered in ALLs derived from B or T lymphocytes, we analyzed their expression by Q-PCR in a different set of ALL-derived cell lines and we compared their expression with that of purified B cells from PBHD in the case of B-ALLs and purified T lymphocytes obtained from PBHD in the case of T-ALLs. This analysis showed decreased expression of the lncRNAs MEG3 and linc-PINT in all B and T-ALL cell lines tested (Figure 3A-3D).

MEG3 and linc-PINT are differentially expressed in ALL.

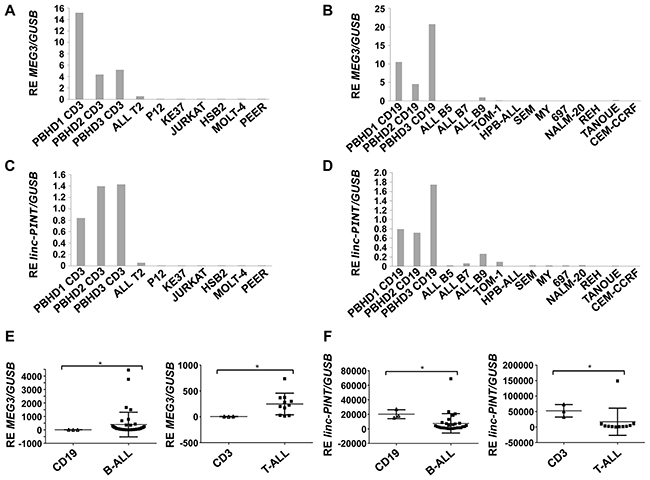

Figure 3: MEG3 and linc-PINT are differentially expressed in ALL. (A and B) MEG3 expression in T and B-ALL cell lines. (C and D) linc-PINT expression in T and B-ALL cell lines. (E) MEG3 expression in T and B-ALL respect to T (CD3+) or B (CD19+) lymphocytes obtained from healthy donors (*p<0.005 in T-ALL patients; *p<0.0049 in B-ALL patients). (F) Linc-PINT expression in T and B-ALL respect to T (CD3+) or B (CD19+) lymphocytes obtained from healthy donors (*p<0.0385 in T-ALL patients: *p<0.0214 in B-ALL patients). GUSB levels were also quantified and used to calculate the relative expression (RE).

Once the down-regulation of MEG3 and linc-PINT was confirmed in B and T-ALL cell lines, we evaluated their expression in 29 primary B-ALL and 11 primary T-ALL samples versus B or T lymphocytes purified from PBHD. As in ALL cell lines, the expression of linc-PINT was significantly decreased in primary B or T-ALL patient samples. However, we observed an increased expression of MEG3 in primary B and T-ALL patient samples (Figure 3E and 3F). These results indicate that the expression of linc-PINT is down-regulated in ALL, suggesting that it could play a role in the pathogenesis of this disease.

Overexpression of linc-PINT inhibits cell growth of ALL cells through apoptosis activation and cell cycle arrest

To define the functional role of linc-PINT in ALL cells, we re-expressed this lincRNA in ALL-derived MOLT-4. Transfection of cells with a plasmid harboring linc-PINT sequence produced a significant increase in the expression of this lncRNA (Figure 4A). Increased expression of linc-PINT resulted in a decrease in cell proliferation (Figure 4B) due to a significant induction of apoptosis (p<0.0005; Figure 4C) and cell cycle arrest at G2/M phase (p<0.01 for S phase and p<0.01 for G2 phase; Figure 4D). A drastic decrease in cell proliferation was also observed when linc-PINT was re-expressed in the B-ALL cell line My (Supplementary Figure 2). These results indicate that the deregulation of linc-PINT expression plays an important role in ALL cell proliferation.

Overexpression of linc-PINT decreases MOLT-4 cell proliferation through apoptosis activation and cell cycle arrest at G2/M phase.

Figure 4: Overexpression of linc-PINT decreases MOLT-4 cell proliferation through apoptosis activation and cell cycle arrest at G2/M phase. (A) linc-PINT expression after transfection of pcDNA3 plasmid that express this lncRNA (*p<0.003). (B) MOLT-4 cell proliferation after linc-PINT re-expression. (C and D) Apoptosis and cell cycle analysis after linc-PINT re-expression. Control: MOLT-4 cells transfected with an empty pcDNA3 plasmid. linc-PINT: MOLT-4 cells transfected with a pcDNA3 that expresses linc-PINT. GUSB levels were also quantified and used to calculate the relative expression (RE).

Linc-PINT activates HMOX1 and their transcription is induced by Curcumin and LBH-589

To examine the mechanism by which linc-PINT decreases the proliferation of ALL cells, we carried out a transcriptome analysis, using the Human SurePrint G3 microarray. The microarray was hybridized with RNA isolated from ALL derived MOLT-4 cells transfected with linc-PINT plasmid or from cells transfected with a control vector. In the analysis of the array, we identified 323 genes differentially expressed (50 genes up-regulated and 273 genes down-regulated; fold change >2 or <2) between cells with linc-PINT overexpression and control MOLT-4 cells. These results agree with a role of linc-PINT in silencing the expression of several genes, as has been described previously [26] (Figure 5A).

linc-PINT induces HMOX1 transcription and both genes are activated by Curcumin and LBH-589 in MOLT-4 cells.

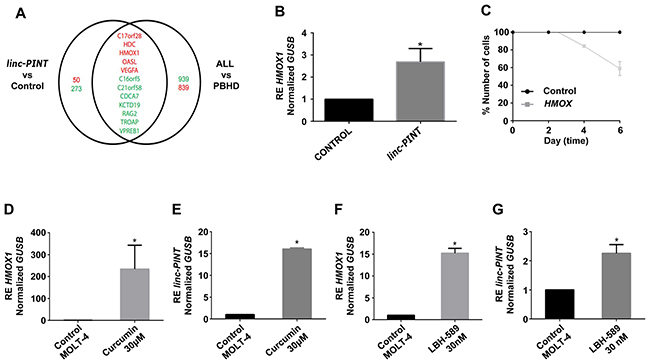

Figure 5: linc-PINT induces HMOX1 transcription and both genes are activated by Curcumin and LBH-589 in MOLT-4 cells. (A) The Venn diagram shows the intersection between the differentially expressed genes in ALL vs PBHD (B>0) and in re-expressed linc-PINT vs control. Red numbers indicate upregulated while green numbers indicate downregulated genes. Red names: Genes down-regulated in ALL that were induced after linc-PINT re-expression. Green names: Genes up-regulated in ALL that were inhibited after linc-PINT re-expression. (B) HMOX1 expression after linc-PINT re-expression (*p<0.03). (C) MOLT-4 cell proliferation after HMOX1 re-expression. (D) HMOX1 expression after treatment of MOLT-4 cells with the IC50 dose of Curcumin (30 μM) (*p< 0.004). (E) linc-PINT expression after treatment of MOLT-4 cells with the IC50 dose of Curcumin (30 μM) (*p<0.003). (F) HMOX1 expression after treatment of MOLT-4 cells with the IC50 dose of LBH-589 (30 nM) (*p<0.01). (G) linc-PINT expression after treatment of MOLT-4 cells with the IC50 dose of LBH-589 (30 nM) (*p<0.01). GUSB levels were also quantified and used to calculate the relative expression (RE).

To identify genes that could mediate the anti-proliferative effect of linc-PINT in ALL, we searched for those genes deregulated in ALL cells versus PBHD (Figure 1) whose expression is also altered by linc-PINT overexpression (Figure 5A). In particular, we searched for genes downregulated in ALL cells (where linc-PINT expression is low) versus PBHD, that were also upregulated in ALL cells that overexpress linc-PINT versus control cells (Figure 5A). We also looked for the opposite scenario (genes upregulated in ALL cells and downregulated by linc-PINT overexpression). Only 12 genes fulfilled these criteria (Figure 5A). From these 12 genes, we focused on HMOX1, a gene up regulated after linc-PINT re-expression in ALL cells. We validated by Q-PCR the up-regulation of HMOX1 after linc-PINT expression in MOLT-4 (p<0.03; Figure 5B) and My cells (p<0.04; Supplementary Figure 2C). As linc-PINT expression induces HMOX1 and decreases cell proliferation, we wanted to evaluate whether HMOX1 expression could also decrease proliferation of MOLT-4 cells and therefore, act as a mediator of linc-PINT effect. When we transfected ALL cells with a HMOX1 expression vector, we observed that, similarly to linc-PINT, HMOX1 overexpression reduced the proliferation of MOLT-4 cells (Figure 5C). This result is surprising as HMOX1 has been described to have pro-tumoral effects.

Finally, we wanted to examine whether linc-PINT and HMOX1 induction, and therefore inhibition of cell proliferation, are also observed when cells are treated with drugs with anti-tumoral properties for ALL and other malignancies. We choose the epigenetic drugs Curcumin and LBH-589, as we have previously shown that these drugs decrease ALL cell proliferation and induce apoptosis [28, 29]. Several molecular mechanisms have been described that explain the anti-tumoral function of these drugs. Interestingly, we observed that Curcumin and LBH-589 induce the expression of both linc-PINT and HMOX1 in MOLT-4 and REH ALL cell lines (Figure 5D-5G and Supplementary Figure 3A-3D). Therefore, the induction of these factors may explain, at least in part, the anti-proliferative effects of Curcumin and LBH-589 in ALL.


Over the last years, advances in transcriptome profiling have led to the identification of a large number of lncRNAs in normal and malignant tissues. In ALL, recent works have identified altered lncRNAs associated to common genetic alterations, such as translocations related with the 11q23 locus (t(4:11), t(11:19), t(9:11)), that alter the function of MLL gene in B-ALL, and NOTCH1 mutations in T-ALL [20, 21, 3032]. In the present work we observe that all ALL cells analysed, regardless of their genetic alterations, show a number of deregulated lncRNAs, suggesting that additional mechanisms may alter these elements in ALL.

Our transcriptomic analysis has identified 43 lncRNAs deregulated in ALL cells (Supplementary Table 4). We believe that most of them represent bona fide candidates. Out of the 16 chosen, the expression of 15 is concordant in the microarray and Q-PCR analyses (Figure 2). This represents a validation of 93% of the candidates. Among the 43 lncRNAs, linc-PINT, MEG3 and CRNDE have been previously described to play a role in tumorigenesis. We believe that other candidates could play similar roles. In fact, analyses of the TCGA data shows that similarly to what we observe, MAGI2-AS2 is significantly decreased more than 3 fold in bladder, breast, kidney and lung cancers, where it associates with survival, and RP4-781K5.8 (LINC01132) is also increased in liver tumors and associates with survival of glioma, kidney and lung tumors.

MEG3 is downregulated in several solid tumors (bladder, breast, cervical, colon, gastric, brain, lung, bone and prostate cancer) [33] and haematological malignancies like acute and chronic myeloid leukemias [34, 35] and it has been shown to exert tumor suppressor functions by inducing p53-dependent apoptosis [33]. Therefore, we were not surprised to find that MEG3 was also decreased in ALL cells compared to controls (Figure 3A and 3B). However, MEG3 shows a significant upregulation in B-ALL and T-ALL primary samples compared to control cells (Figure 3E). MEG3 upregulation has also been observed in hepatoblastoma tissues compared to paired distant healthy tissues [36], suggesting that MEG3 pro-apoptotic function could be counteracted in some tumors.

In the present work, we focus on the study of linc-PINT. We show that linc-PINT is downregulated in ALL cells and in most B-ALL and T-ALL primary samples compared to control cells (Figure 3C, 3D and 3F). Linc-PINT downregulation has also been shown in colorectal tumors [26], in cholangiocarcinoma and in pancreatic cancer [37]. In the latter, it has been described that low levels of linc-PINT in the tumor correlate with poor prognosis after pancreatectomy while low levels of linc-PINT in plasma correlate with tumor recurrence [37]. These studies suggest that linc-PINT could be a tumor suppressor. In fact, we show that re-expression of linc-PINT decreases the proliferation rate of MOLT-4 cells due to induction of apoptosis and cell cycle arrest in G2 (Figure 4). The same effect was observed in other cancer cell lines, such as A549 (lung cancer) and HCT116 (colon cancer) cells [26]. Interestingly, linc-PINT re-expression in mouse embryonic fibroblasts (MEFs) promotes cell proliferation. As linc-PINT induces the opposite effect in MEFs and proliferating human cells, the biological role of linc-PINT may be cell-specific. Consequently, the molecular mechanisms that lead to linc-PINT expression and the pathways altered following its deregulation may vary among cell types. In MEFs, linc-PINT was reported to be induced by p53, to bind the Polycomb Repressive Complex 2 (PRC2) and to be necessary for its PRC2 targeting to the genome. Thus, in MEFs, linc-PINT mediates the trimethylation of H3K27me3 and consequently the silencing of specific genes [26]. Similarly, we find that re-expression of linc-PINT in MOLT-4 cells leads to the repression of several genes (Figure 5A). However, we also show that linc-PINT has a positive effect on gene expression and regulates PRC2 non-dependent genes, such as C17orf28, HDC, OASL, VEGFA and HMOX1.

HMOX1 or heme oxygenase-1 is an inducible enzyme involved in heme degradation [38]. Carbon monoxide and other factors produced in the reaction, mediate HMOX1 beneficial effects as antioxidant, anti-inflammatory, anti-apoptotic and pro-angiogenic. The protective effects of HMOX1 are essential for tumor cell proliferation. Therefore, HMOX1 is increased in several tumors (hepatoma, pancreatic and prostate cancers, among others) and can increase further in response to chemotherapy and irradiation [39]. Usually, pharmacological or genetic induction of HMOX1 facilitates tumor progression while silencing HMOX1 leads to decreased growth in culture cells and in vivo and has been suggested as an antitumor therapy. Surprisingly, in some breast, lung and prostate cancer cells high HMOX1 expression correlates with decreased growth. Both overexpression and silencing of HMOX1 in A549 cells lead to decreased proliferation, indicating that the levels of this factor may be critical. This is also observed in ALL cells. It has been described that inhibition of HMOX1 in ALL cells decreases cell growth [40]. In this work we show for the first time that ALL cells also decrease growth after HMOX1 overexpression. Further, we show that the same effect is observed after re-expression of linc-PINT, an HMOX1 inducer, suggesting the possibility that linc-PINT could decrease ALL cell viability through HMOX1 activation. Further experiments would be required to address whether this is indeed the case and to identify other factors that may also mediate the decrease in cell growth exerted by linc-PINT.

Previous studies have shown that the expression of HMOX1 is promoted by the anti-tumoral drug curcumin in colon, prostate, breast and bladder cancers [41, 42]. Our previous work demonstrated that curcumin and LBH-589/panobinostat decrease ALL proliferation by activating cell death [28, 29]. In the present work, we observe that treatment with these epigenetic drugs leads to linc-PINT and HMOX1 upregulation. Our results suggest that linc-PINT, and subsequently HMOX1, could mediate, at least in part, the anti-tumoral effect of these epigenetic drugs in ALL cells. Interestingly, curcumin and LBH-589/panobinostat induce linc-PINT expression also in healthy donor lymphocytes, but the fold increase is low compare to that observed in MOLT-4 cells (data not shown). This may reflect the fact that healthy donor lymphocytes express higher basal levels of linc-PINT than MOLT-4 cells and speaks in favor of the therapeutic use of epigenetic drugs.

In summary, in this work we demonstrate that several lncRNAs are de-regulated in T and B-ALL cells. Among downregulated lncRNAs, linc-PINT shows tumor suppressor properties. We propose that linc-PINT could reduce cell growth by upregulation of HMOX1. Moreover, we show that epigenetic drugs active in ALL, such as curcumin and panobinostat, induce linc-PINT and HMOX1 expression and produce a decrease in ALL proliferation, suggesting that linc-PINT re-expression may be one of the mechanisms exerted by these epigenetic drugs to reduce cell proliferation in ALL. Collectively, this work demonstrates that the implication of lncRNAs in ALL is still underestimated, and suggests that the expression of lncRNAs could be more relevant for drug response than previously anticipated.


Human samples and cell lines

B-ALL (TOM-1, 697, MY, NALM-20, SEM, REH, and TANOUE) and T-ALL (MOLT-4, HSB2, CEM-CCRF, JURKAT, KE37, HPB-ALL, P12-ICHIKAWA, PEER) derived cell lines were used for in vitro studies (Supplementary Table 1). Three primary B-ALL samples (ALL B5, B7 and B9) and one T-ALL sample (ALL T2) were also chosen as they show good proliferation after injection in immunosuppressed mice and, therefore, allow preclinical studies in animal models. Cell lines were maintained in culture in RPMI-1640 medium supplemented with 20% fetal bovine serum with 1% penicillin-streptomicin and 2% hepes at 37°C in a humid atmosphere containing 5% CO2. We used total peripheral blood samples (PBHD), purified T Lymphocytes (CD3+) and purified B lymphocytes (CD19+) obtained from healthy donors. CD3+ and CD19+ cells were selected by using CD3+ and CD19+ magnetic beads in AutoMACS device (Miltenyi Biotec, Cologne, Germany). In all cases cell purity was over 90%. Bone marrow mononuclear cells were obtained at diagnosis from patients with ALL (Supplementary Table 2) after an informed consent was signed by the patients or the patient’s guardians, in accordance with the Declaration of Helsinki. This study was approved by the Research Ethics Committee at the University of Navarra.

Cell sorting, microarray hybridization and data analysis

Samples were processed using manufacturer protocols. Samples were hybridized to the Agilent SurePrint G3 Human Gene Expression 8x60K microarray [22]. Normalization of microarray data was performed using quantile algorithm (ALL samples=4, PBHD=3, TOM-1=5 and MOLT-4=4, linc-PINT re-expressed MOLT-4 sample=1, pCDNA3 MOLT-4 sample (Control=1). After quality assessment a filtering process was carried out to eliminate low expression probe sets prior to the analysis of expression differences between ALL and PBHD conditions. 38552 probe sets were selected for statistical analysis. R and Bioconductor were used for data processing and statistical analysis [23]. LIMMA (Linear Models for Microarray Data) was used to find out the probe sets that showed significant differential expression between experimental conditions (ALL vs PBHD) [24]. Genes were selected as significant using a B statistic cut off B>2.

To identify the mechanism by which linc-PINT decreases ALL cell viability, we used the same microarray expression mentioned previously. In this case, we hybridized linc-PINT re-expressed MOLT-4 cells and control cells (MOLT-4 transfected with pcDNA3 plasmid). As we wanted to analyze transcriptomic changes previous to proliferation reduction, neomycin was not used for selection of transfected cells. Instead, MOLT-4 cells were co-transfected with a plasmid which expresses linc-PINT (linc-PINT-pcDNA3) or with pcDNA3 and a plasmid that expresses GFP (pcDNA3-GFP) and GFP positive cells were selected by using cell sorting. We set up co-transfection conditions and used 1.5 μg/mL of each plasmid which correspond approximately to the same molar concentration. After 48 hours post-co-transfection, cells were centrifuged at 500 g for 5 minutes and the cellular pellet was resuspended in sorting buffer (phosphate-buffered saline (PBS without Ca/Mg++), 1mM EDTA, 25mM HEPES pH 7, 0.5% Fetal Bovine Serum (heat inactivated)). The GFP positives cells were sorted by using FACS canto (BD bioscience). The differentially expressed genes between linc-PINT re-expressed cells and control cells were selected using a log fold change threshold of 1.

Quantitative real-time PCR (Q-PCR)

Total RNA was isolated from ALL cell lines and samples using UltraSpec reagent (Biotecs Laboratories, Inc) following manufacturer’s instructions. 1μg of total RNA was reverse transcribed using Superscript II RNAse H reverse transcriptase (Invitrogen). The quality of cDNA was checked by a multiplex PCR that amplifies Porphobilinogen Deaminase (PBGD), Abelson Proto-Oncogene (ABL), Breakpoint Cluster Region (BCR) and Beta-2-Microglobulin (β2-MG) genes. Q-PCR was performed in a 7300 Real-Time PCR System (Applied Biosystems), using 20 ng of cDNA in 2 μL, 1 μL of each primer at 20 μM, 6 μL of SYBR Green PCR Master Mix 2X (Applied Biosystems) in 12 μL reaction volume. Primer sequences are indicated in Supplementary Table 3. The following program conditions were applied for Q-RT-PCR running: 50 ºC for 2 min, 95 ºC for 60 s following by 40 cycles at 95 °C for 15 s and 60 °C for 60 s; melting program, one cycle at 95 °C for 15 s, 40 °C for 60 s and 95 °C for 15 s. All reactions were performed in triplicates. The relative expression of each gene was quantified by the Log 2(-ΔΔCt) method using the gene Glucuronidase Beta (GUSB) as an endogenous control.

Apoptosis and cell cycle analysis

For apoptosis assay, 100.000 cells were cultured at a density of 106 cells/mL and incubated for 24 hours. The FITC Annexin V Apoptosis Detection Kit I (Cat. No. 556419, BD Pharmingen) was used following the manufacturer’s instructions, with some modification. Firstly, cells were washed twice with PBS and resuspended in 1X Binding Buffer at a concentration of 106 cells/mL. 1 μL of FITC Annexin V (AV) antibody and 2 μL of propidium iodide (PI) were added and incubated for 15 min at RT in the dark. Finally, 400 μL of 1X Binding Buffer were added to each tube and analyzed by flow cytometry within 1 h using a FACScan flow cytometer (Becton Dickinson). Viable cells with intact membranes exclude PI, whereas the membranes of dead and damage cells are permeable to PI. The FITC AV staining precedes the loss of membrane integrity that accompanies the latest stages of cell death resulting from either apoptotic or necrotic processes. Therefore, cells that were AV-FITC-negative and PI-negative were classified as living cells, while AV-FITC-negative and PI-positive cells were classified as necrotic. AV-FITC-positive but PI negative cells were classified as early apoptotic as they present membrane integrity. Finally, AV-FITC-positive and PI-positive cells were classified as being in the end stage of apoptosis.

For cell cycle analysis, 250.000 cells were cultured at a density of 106 cells/mL, washed twice with PBS and resuspended in 0.2% Tween-20 in PBS and 0.5 mg/mL RNAse A (Sigma) and incubated for 30 min at 37ºC. Subsequently, cells were stained with 25 μg/ml of PI (Sigma) and analyzed using a BD FACScan flow cytometer (Becton Dickinson).

Cell treatments

The HDAC inhibitor LBH589 (diluted in saline solution) (Novartis Pharmaceuticals, East Hanover, NJ, USA) and Curcumin (diluted in DMSO solution) (Sigma Aldrich Steinheim, Germany) were used. REH and MOLT-4 cell lines were treated with LBH589 and Curcumin at the half maximal inhibitory concentration (IC50) and maintained in culture for 2 days. Then cells were washed in PBS and used for different assays. The IC50 value was determined using GraphPad Prism log (inhibitor) vs response (variable slope) software (version 5, La Jolla, CA, USA).

Cell viability assay

Cell viabilitywas analyzed after 48h of in vitro treatment or after 2, 4 or 6 days after linc-PINT nucleofection using the Celltiter 96 Aqueous One Solution Cell Proliferation Assay (Promega, Madison, WI, USA) following manufacturer’s instruction. All experiments were repeated three times.

Plasmids transfection and neomycin selection

The linc-PINT-pCDNA3 and HMOX1-pCDNA3 plasmids express the transgene from a CMV promoter in a pcDNA3 background and have been described previously [26, 27]. For plasmids transfection we employed the nucleofection technique using an Amaxa system device (Amaxa GmbH, Koln, Germany). In different sets of experiments, the ALL-derived cell lines MOLT-4 and MY were nucleofected using 3 μg plasmid per 106 cells in 100 μL of culture medium using the C-005 program and the Nucleofector device. Once cells were transfected, transfection efficiency and cell viability was analyzed by FACS Calibur (BD Biosciences). In MOLT-4 cells, the transfection efficiency was around 40% and cell viability 40-50%. Forty-eight hours post-transfection, Ficoll reagent (GE Healthcare, Pittsburg, PA) was used to remove dead cells. Remaining cells were washed twice with PBS 1X and neomycin 5 mg/mL (Gibco, Grand Island, NY) was used to select the transfected cells.

Statistical analysis

Data are expressed as means ± standard deviation. A descriptive analysis was carried out to analyze the distribution of the samples. A logarithmic transformation was done prior to data normalization with a parametric test. Statistical significance between two samples was estimated with Student’s t-test. Differences were deemed significant for a real alpha of 0.05 (p<0.05). The statistical analysis was carried out by using R/Bioconductor.


We thank Maite Huarte and Roland Stocker for providing LINC-PINT and HMOX1 expression constructs, respectively.


The authors declare that there are no conflicts of interest.


This research was funded by grants from Instituto de Salud Carlos III (ISCIII) PI10/01691, PI13/01469, PI14/01867, PI16/02024, PI16-01845, TRASCAN (EPICA), CIBERONC (CB16/12/00489; Co-finance with FEDER funds), CIBEREHD, RTICC (RD12/0036/0068), Ministry of Economy SAF2012-40003 and SAF2015-70971-R, Departamento de Salud del Gobierno de Navarra 33/2015 and 40/2016 and the Fundació La Marató de TV3 (20132130-31- 32).


1. Jabbour EJ, Faderl S, Kantarjian HM. Adult acute lymphoblastic leukemia. Mayo Clin Proc. 2005; 80:1517-1527.

2. Mattick JS. Non-coding RNAs: The architects of eukaryotic complexity. EMBO Rep. 2001; 2:986-991.

3. Agirre X, Martinez-Climent JA, Odero MD, Prosper F. Epigenetic regulation of miRNA genes in acute leukemia. Leukemia. 2012; 26:395-403.

4. Rodriguez-Otero P, Roman-Gomez J, Vilas-Zornoza A, Jose-Eneriz ES, Martin-Palanco V, Rifon J, Torres A, Calasanz MJ, Agirre X, Prosper F. Deregulation of FGFR1 and CDK6 oncogenic pathways in acute lymphoblastic leukaemia harbouring epigenetic modifications of the MIR9 family. Br J Haematol. 2011; 155:73-83.

5. San Jose-Eneriz E, Roman-Gomez J, Jimenez-Velasco A, Garate L, Martin V, Cordeu L, Vilas-Zornoza A, Rodriguez-Otero P, Calasanz MJ, Prosper F, Agirre X. MicroRNA expression profiling in imatinib-resistant chronic myeloid leukemia patients without clinically significant ABL1-mutations. Mol Cancer. 2009; 8:69.

6. Agirre X, Vilas-Zornoza A, Jimnez-Velasco A, Martin-Subero JI, Cordeu L, Gárate L, San José-Eneriz E, Abizanda G, Rodríguez-Otero P, Fortes P, Rifón J, Bandrés E, Calasanz MJ, et al. Epigenetic silencing of the tumor suppressor microRNA Hsa-miR-124a regulates CDK6 expression and confers a poor prognosis in acute lymphoblastic leukemia. Cancer Res. 2009; 69:4443-4453.

7. Bandres E, Agirre X, Ramirez N, Zarate R, Garcia-Foncillas J. MicroRNAs as cancer players: Potential clinical and biological effects. DNA Cell Biol. 2007; 26:273-282.

8. Djebali S, Davis CA, Merkel A, Dobin A, Lassmann T, Mortazavi A, Tanzer A, Lagarde J, Lin W, Schlesinger F, Xue C, Marinov GK, Khatun J, et al. Landscape of transcription in human cells. Nature. 2012; 489:101-108.

9. Garitano-Trojaola A, Agirre X, Prosper F, Fortes P. Long non-coding RNAs in haematological malignancies. Int J Mol Sci. 2013; 14:15386-15422.

10. Khalil AM, Guttman M, Huarte M, Garber M, Raj A, Rivea Morales D, Thomas K, Presser A, Bernstein BE, van Oudenaarden A, Regev A, Lander ES, Rinn JL. Many human large intergenic noncoding RNAs associate with chromatin-modifying complexes and affect gene expression. Proc Natl Acad Sci U S A. 2009; 106:11667-11672.

11. Yao H, Brick K, Evrard Y, Xiao T, Camerini-Otero RD, Felsenfeld G. Mediation of CTCF transcriptional insulation by DEAD-box RNA-binding protein p68 and steroid receptor RNA activator SRA. Genes Dev. 2010; 24:2543-2555.

12. Wang KC, Yang YW, Liu B, Sanyal A, Corces-Zimmerman R, Chen Y, Lajoie BR, Protacio A, Flynn RA, Gupta RA, Wysocka J, Lei M, Dekker J, et al. A long noncoding RNA maintains active chromatin to coordinate homeotic gene expression. Nature. 2011; 472:120-124.

13. Feng J, Bi C, Clark BS, Mady R, Shah P, Kohtz JD. The Evf-2 noncoding RNA is transcribed from the Dlx-5/6 ultraconserved region and functions as a Dlx-2 transcriptional coactivator. Genes Dev. 2006; 20: 1470-1484.

14. Tripathi V, Ellis JD, Shen Z, Song DY, Pan Q, Watt AT, Freier SM, Bennett CF, Sharma A, Bubulya PA, Blencowe BJ, Prasanth SG, Prasanth KV. The nuclear-retained noncoding RNA MALAT1 regulates alternative splicing by modulating SR splicing factor phosphorylation. Mol Cell. 2010; 39:925-938.

15. Yan MD, Hong CC, Lai GM, Cheng AL, Lin YW, Chuang SE. Identification and characterization of a novel gene Saf transcribed from the opposite strand of Fas. Hum Mol Genet. 2005; 14:1465-1474.

16. Annilo T, Kepp K, Laan M. Natural antisense transcript of natriuretic peptide precursor A (NPPA): Structural organization and modulation of NPPA expression. BMC Mol Biol. 2009; 10:81.

17. Carrieri C, Cimatti L, Biagioli M, Beugnet A, Zucchelli S, Fedele S, Pesce E, Ferrer I, Collavin L, Santoro C, Forrest AR, Carninci P, Biffo S, et al. Long non-coding antisense RNA controls Uchl1 translation through an embedded SINEB2 repeat. Nature. 2012; 491:454-457.

18. Yoon JH, Abdelmohsen K, Srikantan S, Yang X, Martindale JL, De S, Huarte M, Zhan M, Becker KG, Gorospe M. LincRNA-p21 suppresses target mRNA translation. Mol Cell. 2012; 47:648-655.

19. Gong C, Maquat LE. lncRNAs transactivate STAU1-mediated mRNA decay by duplexing with 3’ UTRs via Alu elements. Nature. 2011; 470:284-288.

20. Fang K, Han BW, Chen ZH, Lin KY, Zeng CW, Li XJ, Li JH, Luo XQ, Chen YQ. A distinct set of long non-coding RNAs in childhood MLL-rearranged acute lymphoblastic leukemia: biology and epigenetic target. Hum Mol Genet. 2014; 23:3278-3288.

21. Trimarchi T, Bilal E, Ntziachristos P, Fabbri G, Dalla-Favera R, Tsirigos A, Aifantis I. Genome-wide mapping and characterization of Notch-regulated long noncoding RNAs in acute leukemia. Cell. 2014; 158:593-606.

22. Carnero E, Barriocanal M, Segura V, Guruceaga E, Prior C, Borner K, Grimm D, Fortes P. Type I interferon regulates the expression of long non-coding RNAs. Front Immunol. 2014; 5:548.

23. Gentleman RC, Carey VJ, Bates DM, Bolstad B, Dettling M, Dudoit S, Ellis B, Gautier L, Ge Y, Gentry J, Hornik K, Hothorn T, Huber W, et al. Bioconductor: Open software development for computational biology and bioinformatics. Genome Biol. 2004; 5:R80.

24. Smyth GK. Linear models and empirical bayes methods for assessing differential expression in microarray experiments. Stat Appl Genet Mol Biol. 2004; 3:Article3.

25. Szafron LM, Balcerak A, Grzybowska EA, Pienkowska-Grela B, Felisiak-Golabek A, Podgorska A, Kulesza M, Nowak N, Pomorski P, Wysocki J, Rubel T, Dansonka-Mieszkowska A, Konopka B, et al. The novel gene CRNDE encodes a nuclear peptide (CRNDEP) which is overexpressed in highly proliferating tissues. PLoS One. 2015; 10:e0127475.

26. Marin-Bejar O, Marchese FP, Athie A, Sanchez Y, Gonzalez J, Segura V, Huang L, Moreno I, Navarro A, Monzo M, Garcia-Foncillas J, Rinn JL, Guo S, et al. Pint lincRNA connects the p53 pathway with epigenetic silencing by the polycomb repressive complex 2. Genome Biol. 2013; 14:R104.

27. Beck K, Wu BJ, Ni J, Santiago FS, Malabanan KP, Li C, Wang Y, Khachigian LM, Stocker R. Interplay between heme oxygenase-1 and the multifunctional transcription factor Yin Yang 1 in the inhibition of intimal hyperplasia. Circ Res. 2010; 107:1490-1497.

28. Vilas-Zornoza A, Agirre X, Martin-Palanco V, Martin-Subero JI, San Jose-Eneriz E, Garate L, Alvarez S, Miranda E, Rodriguez-Otero P, Rifon J, Torres A, Calasanz MJ, Cruz Cigudosa J, et al. Frequent and simultaneous epigenetic inactivation of TP53 pathway genes in acute lymphoblastic leukemia. PLoS One. 2011; 6:e17012.

29. Vilas-Zornoza A, Agirre X, Abizanda G, Moreno C, Segura V, De Martino Rodriguez A, José-Eneriz ES, Miranda E, Martín-Subero JI, Garate L, Blanco-Prieto MJ, García de Jalón JA, Rio P, et al. Preclinical activity of LBH589 alone or in combination with chemotherapy in a xenogeneic mouse model of human acute lymphoblastic leukemia. Leukemia. 2012; 26:1517-1526.

30. Fernando TR, Rodriguez-Malave NI, Waters EV, Yan W, Casero D, Basso G, Pigazzi M, Rao DS. lncRNA expression discriminates karyotype and predicts survival in B-lymphoblastic leukemia. Mol Cancer Res. 2015; 13:839-851.

31. Wang Y, Wu P, Lin R, Rong L, Xue Y, Fang Y. lncRNA NALT interaction with NOTCH1 promoted cell proliferation in pediatric T cell acute lymphoblastic leukemia. Sci Rep. 2015; 5:13749.

32. Durinck K, Wallaert A, Van de Walle I, Van Loocke W, Volders PJ, Vanhauwaert S, Geerdens E, Benoit Y, Van Roy N, Poppe B, Soulier J, Cools J, Mestdagh P, et al. The NOTCH driven long non-coding RNA repertoire in T-cell acute lymphoblastic leukemia. Haematologica. 2014; 99:1808-1816.

33. Zhou Y, Zhang X, Klibanski A. MEG3 noncoding RNA: A tumor suppressor. J Mol Endocrinol. 2012; 48:R45-53.

34. Benetatos L, Hatzimichael E, Dasoula A, Dranitsaris G, Tsiara S, Syrrou M, Georgiou I, Bourantas KL. CpG methylation analysis of the MEG3 and SNRPN imprinted genes in acute myeloid leukemia and myelodysplastic syndromes. Leuk Res. 2010; 34:148-153.

35. Zhang X, Zhou Y, Mehta KR, Danila DC, Scolavino S, Johnson SR, Klibanski A. A pituitary-derived MEG3 isoform functions as a growth suppressor in tumor cells. J Clin Endocrinol Metab. 2003; 88:5119-5126.

36. Dong R, Jia D, Xue P, Cui X, Li K, Zheng S, He X, Dong K. Genome-wide analysis of long noncoding RNA (lncRNA) expression in hepatoblastoma tissues. PLoS One. 2014; 9:e85599.

37. Li L, Zhang GQ, Chen H, Zhao ZJ, Chen HZ, Liu H, Wang G, Jia YH, Pan SH, Kong R, Wang YW, Sun B. Plasma and tumor levels of Linc-pint are diagnostic and prognostic biomarkers for pancreatic cancer. Oncotarget. 2016; 7:71773-81. https://doi.org/10.18632/oncotarget.12365.

38. Loboda A, Jozkowicz A, Dulak J. HO-1/CO system in tumor growth, angiogenesis and metabolism - Targeting HO-1 as an anti-tumor therapy. Vascul Pharmacol. 2015; 74:11-22.

39. Was H, Dulak J, Jozkowicz A. Heme oxygenase-1 in tumor biology and therapy. Curr Drug Targets. 2010; 11:1551-1570.

40. Cerny-Reiterer S, Meyer RA, Herrmann H, Peter B, Gleixner KV, Stefanzl G, Hadzijusufovic E, Pickl WF, Sperr WR, Melo JV, Maeda H, Jager U, Valent P. Identification of heat shock protein 32 (Hsp32) as a novel target in acute lymphoblastic leukemia. Oncotarget. 2014; 5:1198-211. https://doi.org/10.18632/oncotarget.1805.

41. Wu SY, Lee YR, Huang CC, Li YZ, Chang YS, Yang CY, Wu JD, Liu YW. Curcumin-induced heme oxygenase-1 expression plays a negative role for its anti-cancer effect in bladder cancers. Food Chem Toxicol. 2012; 50:3530-3536.

42. Lee WY, Chen YC, Shih CM, Lin CM, Cheng CH, Chen KC, Lin CW. The induction of heme oxygenase-1 suppresses heat shock protein 90 and the proliferation of human breast cancer cells through its byproduct carbon monoxide. Toxicol Appl Pharmacol. 2014; 274:55-62.
