Inhibition of the NEDD8 conjugation pathway induces calcium-dependent compensatory activation of the pro-survival MEK/ERK pathway in acute lymphoblastic leukemia
PDF | HTML | How to cite
Metrics: PDF 2022 views | HTML 2788 views | ?
Shuhua Zheng1, Gilles M. Leclerc2,5, Bin Li2, Ronan T. Swords3,5 and Julio C. Barredo2,3,4,5
1 The Sheila and David Fuente Graduate Program in Cancer Biology, University of Miami Miller School of Medicine, Miami, FL, USA
2 Department of Pediatrics, University of Miami Miller School of Medicine, Miami, FL, USA
3 Department of Medicine, University of Miami Miller School of Medicine, Miami, FL, USA
4 Department of Biochemistry and Molecular Biology, University of Miami Miller School of Medicine, Miami, FL, USA
5 Sylvester Comprehensive Cancer Center, University of Miami Miller School of Medicine, Miami, FL, USA
Julio C. Barredo, email:
Keywords: NEDDylation, pevonedistat, MEK/ERK signaling, store operated calcium entry, acute lymphoblastic leukemia (ALL)
Received: July 19, 2017 Accepted: December 22, 2017 Published: December 31, 2017
De novo and acquired drug resistance and subsequent relapse remain major challenges in acute lymphoblastic leukemia (ALL). We previously identified that pevonedistat (TAK-924, MLN4924), a first-in-class inhibitor of NEDD8 activating enzyme (NAE), elicits ER stress and has potent in vitro and in vivo efficacy against ALL. However, in pevonedistat-treated ALL cell lines, we found consistent activation of the pro-survival MEK/ERK pathway, which has been associated with relapse and poor outcome in ALL. We uncovered that inhibition of the MEK/ERK pathway in vitro and in vivo sensitized ALL cells to pevonedistat. The observed synergistic apoptotic effect appears to be mediated by inhibition of the MEK/ERK pro-survival cascade leading to de-repression of the pro-apoptotic BIM protein. Mechanistically, Ca2+ influx via the Ca2+-release-activated Ca2+ (CRAC) channel induced protein kinase C β2 (PKC-β2) was responsible for activation of the MEK/ERK pathway in pevonedistat-treated ALL cells. Sequestration of Ca2+ using BAPTA-AM or blockage of store-operated Ca2+ entry (SOCE) using BTP-2 both attenuated the compensatory activation of MEK/ERK signaling in pevonedistat-treated ALL cells. Pevonedistat significantly altered the expression of Orai1 and stromal interaction molecule 1 (STIM1), resulting in significantly decreased STIM1 protein levels relative to Orai1. Further, we identified eIF2α as an important post-transcriptional regulator of STIM1, suggesting that pevonedistat-induced eIF2α de-phosphorylation selectively down-regulates translation of STIM1 mRNA. Consequently, our data suggest that pevonedistat potentially activates SOCE and promotes Ca2+ influx leading to activation of the MEK/ERK pathway by altering the stoichiometric Orai1:STIM1 ratio and inducing ER stress in ALL cells.
Acute lymphoblastic leukemia (ALL) is the most common cancer diagnosed in children and adolescents and has an overall 5-year event-free survival (EFS) of 80%, whereas adults with ALL have a 5-year EFS rate under 50% [1, 2]. For pediatric and adult patients who relapse, outcomes are particularly dismal . In addition, long-term toxicity associated with current regimens leads to significant morbidity and mortality later in life. Therefore, there is a need to develop novel, more targeted strategies, that increase cure rates and mitigate against immediate and late toxicities.
In this context, we identified the NEDD8-activating enzyme (NAE) as a novel therapeutic target for ALL therapy, resulting in potent in vitro and in vivo anti-leukemic effects . Protein NEDDylation is sequentially catalyzed by 3 enzymatic steps: activation of ubiquitin-like protein NEDD8 via its cognate E1 (NAE), transfer of NEDD8 to a NEDDylation specific E2 enzyme, and conjugation of NEDD8 to target proteins mediated by E3 ligase enzymes . Most NEDD8 target proteins are cullins which are scaffold proteins for the Cullin-RING E3 Ligases (CRLs) . NEDD8 conjugation is a prerequisite for full activation of CRLs which are key components of the ubiquitin-proteasome system (UPS) . Pevonedistat was developed as a first-in-class inhibitor of NAE and inhibits CRL-mediated protein turnover . In our previous study, we demonstrated pevonedistat induced apoptosis in ALL cells occurred by dysregulating cellular translation machinery causing induction of proteotoxic endoplasmic reticulum (ER) stress. Activation of both mTOR and UPR/eIF2α pathways  were key mediators of this mechanism. Based on the increased vulnerability of ALL cells towards ER stress inducers [7, 8], our published data demonstrated that pevonedistat has potential for incorporation into ALL therapy . We also showed that pevonedistat led to activation of the MEK/ERK pathway in ALL cells, and that co-targeting NEDDylation and MEK/ERK resulted in synergistic cell death . We interpreted the induction of MEK/ERK as a compensatory survival mechanisms in response to pevonedistat cytotoxicity, but the mechanisms responsible for MEK/ERK activation remained unclear.
Overexpression of the MEK/ERK pathway has been associated with relapse and poor outcomes in pediatric ALL [9, 10], underscoring the clinical relevance of our findings above. In general, the MAPK cascade is activated by extracellular stimuli such as mitogens, growth factors, and cytokines that binds to receptor tyrosine kinases (RTK) at the cell surface to activate the small GTPase Ras protein. Activated MAPK signaling, represented by ERK1/2 phosphorylation, further regulates cell proliferation and survival [11, 12]. The rise of free intracellular calcium following binding of extracellular ligands to RTKs also influences the MEK/ERK signaling cascade . In lymphocytes, increases in intracellular calcium are dependent on either Ca2+ ER stores or the store-operated Ca2+ entry (SOCE) mediated by the Ca2+-release-activated Ca2+ (CRAC) channel , with the latter identified as the main mechanism to replenish intracellular Ca2+ levels once the ER Ca2+ has been depleted . In typical SOCE, depletion of Ca2+ stores activates the Ca2+ sensor proteins Stromal Interaction Molecules (STIM) 1 and 2, which translocate into the ER-plasma membrane (PM) junctions to activate the CRAC pore-forming subunit Orai1 [15, 16], in order to increase calcium influx. Given the importance of intracellular calcium in lymphocyte biology  and its role in inducing the MEK/ERK pathway activation [9, 10], we investigated the mechanistic role of SOCE/CRAC in pevo-induced activation of the MEK/ERK pathway in ALL cells.
Pevonedistat activates the PKC/MEK/ERK signaling cascade via Ca2+ mobilization
To probe and identify the mechanism(s) underlying MEK-ERK pathway activation in pevonedistat-treated ALL cells . We first evaluated the role of the protein kinase C (PKCα/β II), a known mediator of MEK-ERK activation [17-19], in CCRF-CEM, NALM6, and REH cells treated with pevonedistat (200 to 800 nM). As shown in Figure 1A, pevonedistat significantly increased the cellular levels of p-PKCα/β II (Thr638/Thr641) and phosphorylated Ca2+/calmodulin-dependent protein kinase II (p-CaMKII) in all three ALL cell lines examined, which correlated with p-MEK1/2 (Ser217/Ser221) and p-ERK1/2 (Thr202/Tyr204) activation (Figure 1A). To test the causal relationship between increased p-PKCα/β II and MEK/ERK pathway activation, we treated these cell lines with the PKC inhibitor enzastaurin (ENZ; LY317615, ). Our data show that inhibition of PKC’s activity using ENZ significantly reduced the induction of p-ERK1/2 in pevonedistat-treated ALL cells (Figure 1B), establishing a cause-effect relationship between increased expression (activation) of p-PKCα/β II and MEK-ERK pathway activation in pevonedistat-treated ALL cells. Based on the established requirement for Ca2+ binding in the activation of PKCs  and the role of p-CaMKII in Ca2+ homeostasis , the observed increased cellular levels of p-CaMKII (Thr286) in all three ALL cell lines (Figure 1A) suggested that mobilization of Ca2+ may play a role in pevonedistat induced MEK/ERK activation. Consequently, we investigated the role of Ca2+ as a second messenger in PKC-induced MEK/ERK pathway activation in pevonedistat-treated ALL cells. For this purpose, we used the permeable-membrane calcium chelator BAPTA-AM  to examine its effects on the induction of p-ERK1/2. Consistent with our hypothesis, we found that the addition of BAPTA-AM significantly inhibited pevonedistat-induced p-ERK1/2 activation in all three ALL cell lines examined (Figure 1C), supporting a mechanistic role of Ca2+ in mediating MEK-ERK pathway activation in pevonedistat-treated ALL cells. As shown in Figure 1C, co-treatment with pevonedistat plus BAPTA-AM led to increased expression of CHOP compared to each agent alone, and correlated with greater induction of apoptosis in cells treated with both agents as demonstrated by increased PARP cleavage, suggesting that CHOP may also influence Ca2+ mobilization in pevonedistat-treated ALL cells.
To further assess and confirm the role of Ca2+ on MEK/ERK activation under conditions of pevonedistat-induced ER stress/UPR leading to CHOP activation, we cultured ALL cells in Ca2+ free RPMI-1640 medium and examined the expression of p-ERK1/2, p-PKCα/β II, and p-CaMKII following the addition of Ca2+ and/or pevonedistat. We found that the addition of Ca2+ to pevonedistat-treated NALM6 cells significantly up-regulated the expression of p-ERK1/2, p-PKCα/β II, and p-CaMKII, whereas its absence almost entirely abrogated their induction (Figure 1D). Based on these data, we concluded that the mechanism of PKC-mediated MEK/ERK pathway activation in pevonedistat-treated ALL cells is dependent on Ca2+ mobilization.

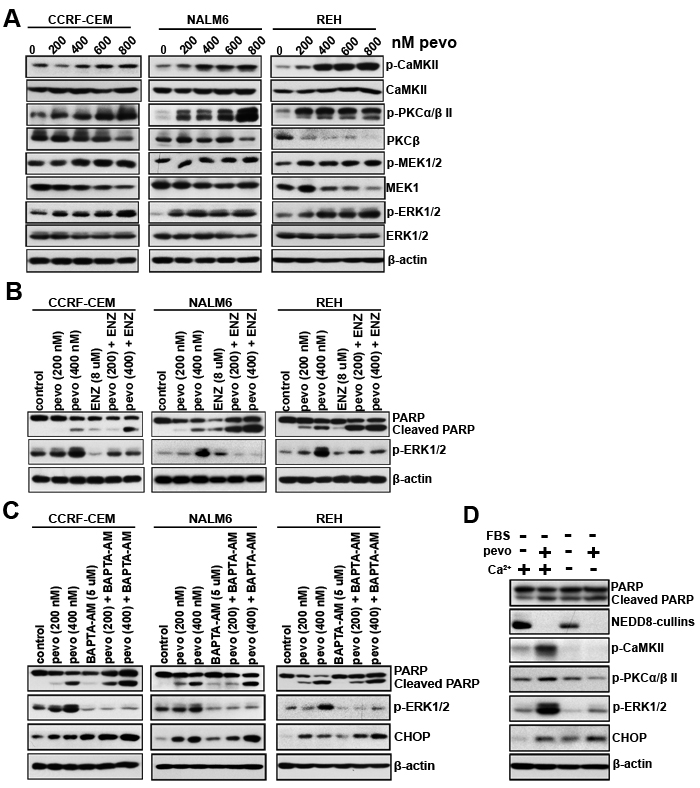

Figure 1: Activation of the MEK/ERK signaling cascade in pevonedistat-treated ALL cells is dependent on intracellular Ca2+ mobilization. A. ALL cell lines CCRF-CEM (T-ALL), NALM6 (Bp-ALL) and REH (Bp-ALL) were treated with pevonedistat (200, 400, 600, and 800 nM) for 24 h. Protein extracts were probed for p-CaMKII (Thr286), CaMKII; p-PKCα/β II (Thr638/641), PKCβ, p-MEK1/2 (Ser217/221), MEK1/2, p-ERK1/2 (Thr202/Tyr204), and ERK1/2. B. Western blots of p-ERK1/2 (Thr202/Tyr204) expression in NALM6 cells treated with pevonedistat (200 and 400 nM) ± the PKC inhibitor enzastaurin (ENZ, 8 µM) for 24 h. C. Western blots of p-ERK1/2 (Thr202/Tyr204) and CHOP expression in CCRF-CEM, NALM6 and REH cells treated with pevonedistat (200 and 400 nM) ± the Ca2+ chelator BAPTA-AM (5 µM) for 24 h. D. Western blot analysis of p-CaMKII (Thr286), p-PKCα/β II (Thr638/641), p-ERK1/2 (Thr202/Tyr204), and CHOP expression in NALM6 cells cultured in Ca2+-free RPMI-1640 medium without FBS ± calcium (0.424 mM) for 24 h. PARP/Cleaved PARP expression was used as an indicator of apoptosis in the NALM6 cells treated above. β-actin levels served as loading controls and pevo stands for pevonedistat.
Pevonedistat activates the Ca2+-release-activated Ca2+ (CRAC) channel
To characterize the mechanism responsible for Ca2+ mobilization in pevonedistat-treated ALL cells, we performed a Ca2+ release assay using the Ca2+ binding dye Fluo-8 AM and determined the level of intracellular Ca2+ release in NALM6 cells treated with either vehicle (control), pevonedistat (400 nM), or the classical ER stress inducer tunicamycin (Tun, 400 ng/mL) known to stimulate Ca2+ release . As previously described for this assay, following treatment with each agent, thapsigargin (TG, an inhibitor of the sarcoplasmic or endoplasmic reticulum Ca-ATPase family of calcium pump ) was added to augment ER Ca2+ release . As shown in Figure 2A, both prior to and after the addition of TG, we found that pevonedistat induced greater Ca2+ release in NALM6 cells compared to cells treated with Tun or untreated controls. When we analyzed expression of p-ERK1/2 as a marker for activation of the MEK/ERK pathway, we observed induction of p-ERK1/2 only in pevonedistat-treated ALL cells correlating with the significantly greater increased in intracellular Ca2+ observed in pevonedistat-treated ALL cells (Figure 2B).
To further probe the mechanism of MEK/ERK activation in pevonedistat-treated ALL cells, we used lentiviral-based shRNAs to knockdown CHOP expression and block UPR-induced Ca2+ mobilization, and found that down-regulation of CHOP significantly attenuated the induction of p-ERK1/2 by pevonedistat (Figure 2C). Next, we examined the contribution of ER Oxidoreductin 1 (ERO1), a well-established downstream target of CHOP that mediates Ca2+ release from the ER , in the mechanism of Ca2+ mobilization and activation of p-ERK1/2 in pevonedistat-treated ALL cells. In ERO1 knock-down NALM6 cells (NALM6-shERO1), pevonedistat induced ERK1/2 phosphorylation was augmented compared to controls (NALM6-Luc) (Figure 2D), suggesting that UPR/CHOP/ERO1-induced Ca2+ release from the ER is likely only a minor contributor to p-ERK1/2 activation in pevonedistat-treated ALL cells. On this basis, we proceeded to investigate the role of the store-operated Ca2+ entry (SOCE), known to play a critical role in modulating Ca2+ influx in lymphocytes . Since SOCE is principally mediated by the Ca2+-release-activated Ca2+ (CRAC) channel , we first examined its role in pevonedistat-induced Ca2+ release and p-ERK1/2 activation using the CRAC inhibitor BTP-2 (10 µM) in combination with pevonedistat (400 nM). By measuring the fluorescence intensity of Ca2+ binding Fluo-8 AM dye, we found that the addition of BTP-2 significantly inhibited the accumulation of intracellular Ca2+ in pevonedistat + BTP-2 treated NALM6 cells as compared to each agent alone or control (DMSO) (Figure 2E), and strongly reduced the activation of both p-MEK1/2 and p-ERK1/2, which correlated with increased cell death (cleaved PARP) (Figure 2F). In addition, we uncovered that inhibition of CRAC significantly down-regulated p-BIM (Ser69), a known pro-apoptotic marker that is inhibited through phosphorylation of its Ser69 residue by p-ERK1/2 to promote cell survival (Figure 2F) . Taken together, these data support a role for CRAC rather than Ca2+ release from the ER, as the major mediator of pevonedistat-induced calcium influx in ALL cells. This role for CRAC was confirmed using shRNAs to down-regulate the expression of the CRAC pore-forming subunit Ora1, a central structural component of the CRAC Ca2+ channel entry, therefore preventing Ca2+ influx . Indeed, knockdown Orai1 in NALM6 cells (NALM6-shOrai1) significantly abrogated the activation of p-MEK1/2 and p-ERK1/2 by pevonedistat, and concomitantly blocked the phosphorylated inhibition of BIM as compared to control cells (NALM6-Luc) (Figure 2G).

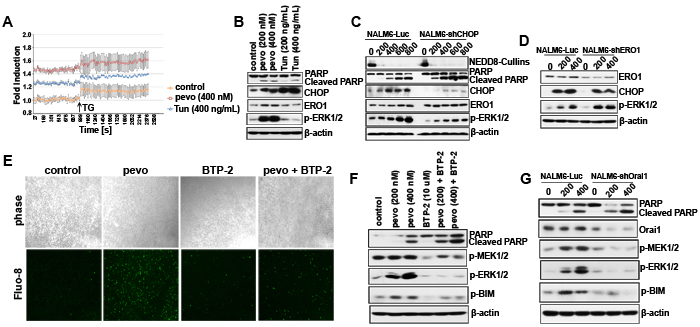

Figure 2: NEDDylation inhibition activated the CRAC channel to trigger Ca2+ influx. A. Determination of intracellular Ca2+ levels in NALM6 cells treated with DMSO (control), pevonedistat (400 nM), or Tun (400 ng/mL) for 24 h using the the Ca2+ binding dye Fluo-8 AM. Absorption was measured at Excitation/Emission = 490/525 nm every 27 sec (mean ± SEM, n ≥ 3). 17 min post-treatment, thapsigargin (TG, 10 µM) was added to each well and cells incubated for 15 min at RT prior determination of intracellular Ca2+ levels. B. Western blot analysis of CHOP, ERO1, and p-ERK1/2 (Thr202/Try204) expression in NALM6 cells treated with pevonedistat (200 and 400 nM) and Tun (200 and 400 ng/mL) for 24 h. C. Western blot analysis of extracts from stably transfected NALM6 cells with lentiviral particles expressing the luciferase (NALM6-Luc) or shRNAs targeting CHOP (NALM6-shCHOP), and treated with pevonedistat (200, 400, 600, and 800 nM) for 24 h. D. Western blot analysis of the markers described in (B) expressed in stably transfected NALM6-Luc and NALM6-shERO1 cells and treated with pevonedistat (200 and 400 nM) for 24 h. E. Intracellular Ca2+ signal by Fluo-8 in NALM6 cells treated with pevonedistat (400 nM) ± the CRAC inhibitor BTP-2 (10 µM) for 24 h (10× magnification). F. Western blot analysis of MEK/ERK pathway proteins and p-BIM (Ser69) in NALM6 cells co-treated with pevonedistat (200 and 400 nM) ± BTP-2 (10 µM) for 24 h. G. Western blot analysis of p-MEK1/2 (Ser217/221), p-ERK1/2 (Thr202/Tyr204), p-BIM (Ser69), and Orai1 protein levels in NALM6-Luc and NALM6-shOrai1 stably transfected cells and treated with pevonedistat (200 and 400 nM) for 24 h. PARP/Cleaved PARP was used as apoptotic marker. β-actin as loading controls and pevo stands for pevonedistat.
The activation of CRAC is potentially mediated by pevonedistat-induced changes in the Orai1/STIM1 ratio
Having established the role of CRAC and its pore-forming subunit Orai1 in pevonedistat-induced calcium influx and MEK/ERK activation in ALL, we examined the mechanistic interaction between Orai1 and the ER-membrane protein STIM1, which orchestrates Ca2+ influx by migrating to ER-plasma membrane appositions (puncta) to interact and open Orai1 . It has recently been proposed that the activation of SOCE is regulated by the stoichiometric Orai1:STIM1 ratio, as opposed to their individual protein levels [29, 30]. Indeed, high STIM1 levels in cells traps Orai1, clusters it intracellularly, and prevents its plasma membrane enrichment. To test if the ratio of Orai1:STIM1 is altered by pevonedistat, we first determined their expression in pevonedistat-treated ALL cells and found that pevonedistat significantly down-regulated STIM1 expression in ALL cells whereas Orai1 expression was slightly upregulated (Figure 3A). The net effect of the observed protein expression changes was a significant alteration of the Orai1:STIM1 ratio in pevonedistat-treated ALL cells.
To investigate the regulatory role of the Orai1:STIM1 ratio on the activation of MEK/ERK signaling in pevonedistat-treated ALL cells, we examined the effects of down-regulating STIM1 on p-ERK1/2 activation by pevonedistat. Figure 3B shows that shRNA-mediated STIM1 knockdown in pevonedistat-treated NALM6 cells (NALM6-shSTIM1) resulted in greater expression of p-ERK1/2 compared to controls (NALM6-Luc), consistent with the hypothesis that pevonedistat-induced upregulation of p-ERK1/2 is mediated by changes in the Orai1:STIM1 ratio. The role of the Orai1/STIM1 ratio in this mechanism was further tested using NALM6 cells overexpressing STIM1 (NALM6-STIM1-CFP) which have an intrinsically altered Orai1:STIM1 ratio. Indeed, overexpression of STIM1-CFP in NALM6 cells abrogated the induction of p-ERK1/2 by pevonedistat and correlated with increased cleavage of PARP compared to wild-type controls, implicating changes in the Orai1:STIM1 ratio in pevonedistat-induced apoptosis of ALL cells (Figure 3C). The functional implication of this interaction was confirmed by confocal microscopy analysis of Orai1-YFP fluorescein expression in NALM6 cells treated with vehicle (control) or pevonedistat (400 nM). As shown in Figure 3D, the Orai1-YFP fluorescent signal was distributed evenly in the plasma membrane of control cells with undetectable intracellular localization, whereas that in pevonedistat-treated NALM6-Orai1-YFP cells, the fluorescent Orai1-YFP signal was mainly clustered in the plasma membrane with minimal intracellular localization, suggesting that pevonedistat-induced STIM1 downregulation may optimize the release of intracellularly trapped Orai1 to allow translocation into the plasma membrane. Taken together, these data suggest that pevonedistat altered the Orai1:STIM1 ratio potentially leading to CRAC activation with the expected increased Ca2+ influx, albeit other known mechanisms such as the induction of ER stress per se may also play a role in this cascade.

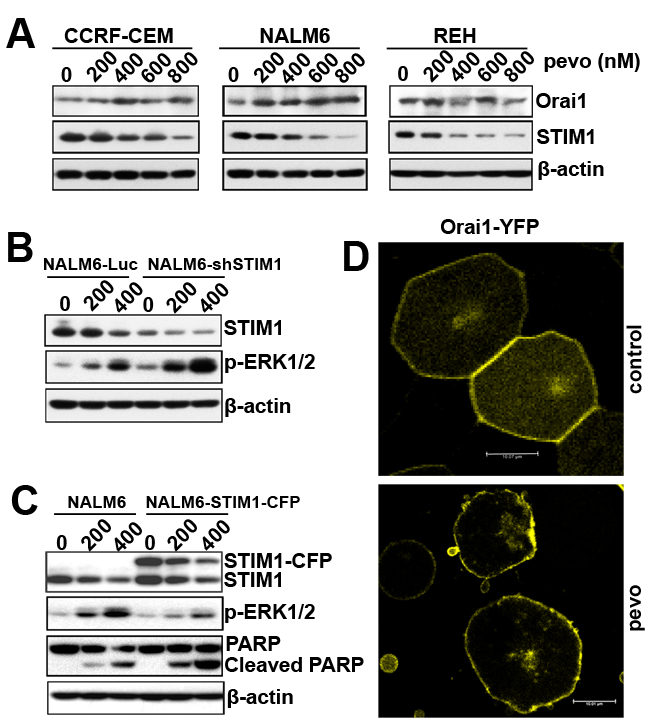

Figure 3: Pevonedistat alters the stoichiometric ratio between the CRAC’s pore-forming subunit Orai1 and the Ca2+ sensor protein STIM1. A. Western blot analysis of Orai1 and STIM1 proteins expressed in CCRF-CEM, NALM6, and REH ALL cells treated with pevonedistat (200, 400, 600, and 800 nM) for 24 h. B. Western blot analysis of STIM1 and p-ERK1/2 (Thr202/Tyr204) expression in stably transfected NALM6-Luc and NALM6-shSTIM1 expressing cells and treated with pevonedistat (200 and 400 nM) for 24 h. C. Western blot analysis of STIM1, p-ERK1/2 (Thr202/Tyr204), and PARP/Cleaved PARP (indicator of apoptosis) proteins expressed in nucleofected NALM6 cells with empty vector (NALM6) or STIM1-CFP (NALM6-STIM1-CFP), and treated with pevonedistat (200 and 400 nM) for 24 h. D. Confocal analysis for Orai1-YFP fluorescein expression in NALM6-Orai1-YFP cells treated with vehicle (DMSO, control) or pevonedistat (400 nM) for 24 h. β-actin was used as loading controls and pevo stands for pevonedistat.
Pevonedistat-induced de-phosphorylation of p-eIF2Α mediates STIM1 down-regulation
The fact that pevonedistat induced UPR-mediated cell death via de-phosphorylation of p-eIF2α (Ser51) in ALL cells, altering the UPR regulation of protein translation , prompted us to examine its role in pevonedistat-induced CRAC/MEK/ERK pathway activation. As previously shown, p-eIF2α regulates the translation of certain ER stress response genes such as CHOP and ATF4 [31, 32], and under ER stress conditions eIF2α is phosphorylated to inhibit global protein translation except for a specific class of mRNAs containing a short upstream open reading frame (5’-uORF) selected for enhanced translation. To test if STIM1 mRNA may be regulated by a similar mechanism, we compared the level of STIM1 expression in NALM6 cells treated with pevonedistat and the ER stress inducer Tun. We found that STIM1 expression correlated with p-eIF2α levels: both were down-regulated by pevonedistat and conversely up-regulated in Tun-treated cells (Figure 4A). We then examined the effects of blocking eIF2α de-phosphorylation on STIM1and p-ERK1/2 expression in NALM6 cells treated with the eIF2α inhibitor salubrinal (SAL, 10µM)  ± pevonedistat (200 and 400 nM). As discussed above, treatment with pevonedistat down-regulated p-eIF2α, even in presence of SAL. We found that the addition of SAL either alone or in combination with pevonedistat resulted in higher levels of STIM1 expression compared to untreated cells (Figure 4B). CHOP and ATF4 expression, known to be regulated by p-eIF2α were used as positive controls. More important, SAL up-regulated STIM1 and the addition of pevonedistat to SAL-treated cells resulted in lower STIM1 and p-ERK1/2 levels compared to cells treated with pevonedistat alone, supporting a role for eIF2α in STIM1 down-regulation leading to CRAC-induced calcium influx (Figure 4B).
Next, we screened the RefSeq database (www.ncbi.nlm.nih.gov/refseq) for putative 5’-uORF regulatory sequences within human, mouse and rat STIM1 genes, and identified only one 5’-uORF conserved sequence among these three species (Figure 4C). The function of this putative 5’-uORF in the eIF2α-dependent translation of STIM1 mRNA was determined using duplexed oligonucleotide fragments containing either wild-type (ATG, 5’-uORF-WT form) or mutated 5’-uORF initiation codon (ATG substituted to AGG, 5’-uORF-MT form) that were cloned into the pGL3-Ehancer plasmid to generate an in-frame fusion with the luciferase coding gene (plasmids pGL3-uORF-WT and pGL3-uORF-WT). (Figure 4D). As shown in Figure 4E, NALM6 cells expressing the putative wild-type 5’-uORF-WT form exhibited lower level of luciferase expression when treated with pevonedistat as compared to controls, whereas no difference was observed between control and pevonedistat-treated NALM6 cells expressing the mutated 5’-uORF-MT form. Therefore this putative STIM1 5’-uORF may play a partial role in the translational regulation of STIM1 mRNA, as it has been shown that more than one 5’-uORF may be required for a more robust regulation seen with other eIF2α-dependent genes .

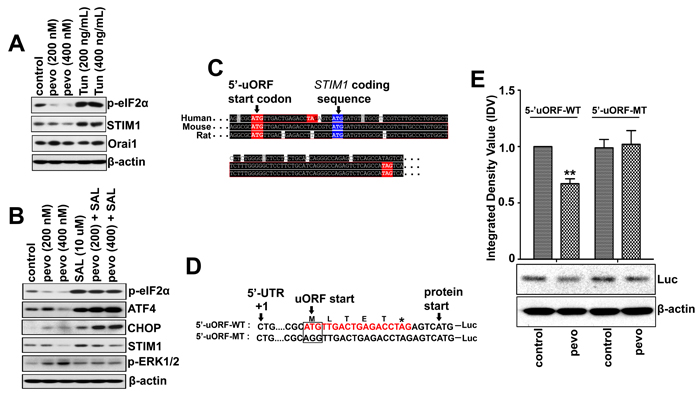

Figure 4: Pevonedistat down-regulates STIM1 expression via eIF2α-dependent translation of a short 5’-uORFsequence in ALL. A. Western blot analysis of p-eIF2α (Ser51), STIM1, and Orai1 expression in NALM6 cells treated with pevonedistat (200 and 400 nM), or Tun (200 and 400 ng/mL) for 24 h. B. Western blot analysis of UPR regulatory proteins (ATF4, CHOP, and p-eIF2α (Ser51)), STIM1, and p-ERK1/2 (Thr202/Tyr204) expression in NALM6 cells treated with pevonedistat (200 and 400 nM) and SAL (10 µM) either alone or in combination for 24 h. C. Alignment of 5’-UTR DNA sequences from human, mouse, and rat STIM1 genes obtained from the RefSeq database (https://www.ncbi.nlm.nih.gov/refseq). The initiation start (ATG) and stop (TAG) codons within the 5’-uORF sequences are indicated in red color. The start codon for STIM1 mRNA is marked in blue. D. Nucleotide sequences of DNA duplexes containing either the wild-type (5’-uORF-WT) or the mutated (5’-uORF-MT) 5’-uORF STIM1 region that were cloned in-frame to the luciferase coding gene (Luc) in the pGL3-Enhancer plasmids. The initiation codon ATG of the putative 5’-uORF was mutated to AGG (5’-uORF-MT). The STIM1 mRNA +1 and initiating methionine codon are indicated. E. Western blot analysis of the luciferase expressed in NALM6 cells nucleofected with either plasmids pGL3-5’-uORF-WT or pGL3-5’-uORF-MT, and treated with pevonedistat (400 nM) for 24 h. The integrated density value (IDV) of each immuno-detected luciferase bands were normalized to their respective β-actin level and expressed relative to control (untreated NALM6/5’-uORF-WT). Pevo stands for pevonedistat.
Activation of the MEK/ERK pathway by pevonedistat protects ALL cells from apoptotic cell death by phosphorylating/inhibiting BIM activity
We previously demonstrated that co-targeting the NEDD8-conjugation and MEK/ERK pathways led to synergistic in vitro and in vivo cell death in ALL cells , but the mechanism remained unclear. To begin to understand the mechanism underlying this synergistic effect, we first evaluated the cytotoxicity and the expression of pro- and anti-apoptotic Bcl-2 family proteins in NALM6 cells co-treated with pevonedistat and the MEK inhibitor selumetinib (SEL). We found lower expression of p-BIM (Ser69) in cells treated with SEL either alone or in combination with pevonedistat (Figure 5A), whereas no difference in expression was observed for total-BIM, Bcl-2 and Bcl-xL proteins. More important, the level of p-BIM (Ser69) was almost completely abrogated by the combination pevonedistat + SEL compared to pevonedistat alone, and p-BIM and pERK1/2 down-regulation correlated with higher PARP cleavage and cell death (Figures 5A, 5B). Our data is consistent with the well-established role of the MEK/ERK pathway in promoting cell survival via phosphorylation/inhibition of BIM at Ser69 by altering its ability to bind other anti-apoptotic Bcl-2 proteins [27, 35]. To evaluate the role of BIM in this synergistic mechanism, we used Co-IP to determine the interaction of BIM with Bcl-2 and Bcl-xL in pevonedistat ± SEL treated ALL cells. Figure 5C demonstrates that the binding between BIM and the anti-apoptotic proteins Bcl-2, and Bcl-xL was significantly enhanced in cells treated with SEL alone or in combination with pevonedistat as compared to controls or pevonedistat alone treated cells. These data support a major role for BIM in promoting cell death by neutralizing Bcl-2 and Bcl-xL anti-apoptotic activity. BIM’s role was confirmed with shRNA-mediated BIM knock-down (NALM6-shBIM) (Figure 5D). We found significantly less cell death in BIM knock-down cells, evidenced by PARP cleavage (Figure 5D) and cell death assays (p < 0.001 for pevonedistat plus SEL vs. controls) (Figure 5E), treated with the combination pevonedistat + SEL compared to controls (NALM6-Luc). Similar effects were observed in primary ALL cells co-treated with pevonedistat + SEL (Figure 5F), highlighting the clinical relevance of our findings. Taken together, our data show that inhibition of the MEK/ERK pathway by SEL, which prevents phosphorylation and inhibition of the pro-apoptotic protein BIM, is critical to the synergistic effect observed in pevonedistat + SEL treated ALL cells.

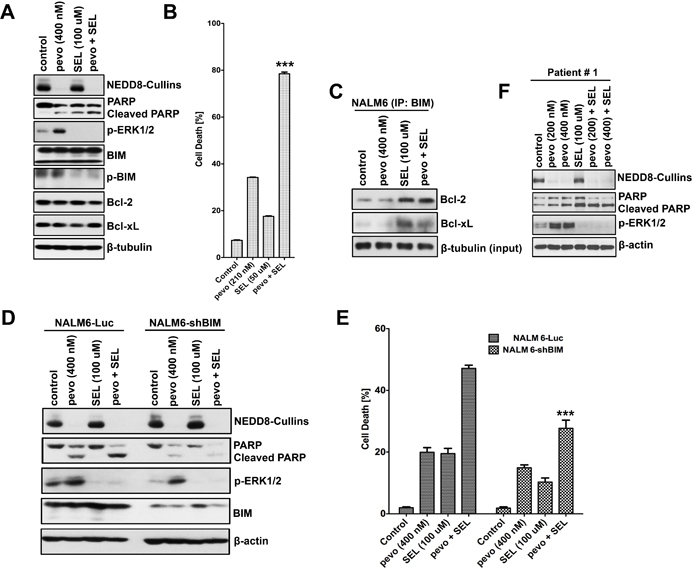

Figure 5: Selumetinib synergistically sensitize ALL cells to pevonedistat via inhibition of the MEK/ERK/p-BIM pro-survival pathway. A. Western blot analysis of p-ERK (Thr202/Tyr204), BIM, p-BIM (Ser69), and anti-apoptotic proteins Bcl-2 and Bcl-xL expressed in NALM6 cells co-treated with pevonedistat (400 nM) and SEL (100 µM) for 24 h. B. Determination of cell death in NALM6 cells co-treated with pevonedistat (210 nM) and SEL (50 µM) for 72 h using trypan blue exclusion assays. Cell death is expressed as a percentage of the number of dead cells in the population (mean ± SEM, n = 3). p < 0.0001 for the combination pevonedistat + SEL vs. each single agent. C. Co-IPs analysis of the binding interactions between BIM with the anti-apoptotic proteins Bcl-2 and Bcl-xL in NALM6 cells treated with pevonedistat (400 nM) and SEL (100 µM) either alone or in combination for 24 h. Cellular extracts were immuno-precipitated with BIM antibodies, subjected to SDS-PAGE, and probed with Bcl-2 and Bcl-xL antibodies. D. Western blot analysis of NEDD8-Cullins, p-ERK1/2 (Thr202/Tyr204), and BIM proteins in stably transfected NALM6-Luc and NALM6-shBIM expressing cells, and treated with pevonedistat (400 nM) and SEL (100 µM) either alone or in combination for 24 h. E. Determination of cell death in NALM6-Luc and NALM6-shBIM cells described in (D). Cell death is expressed as a percentage of the number of dead cells in the population (mean ± SEM, n = 3). ***, p < 0.001 for pevonedistat plus SEL vs. controls. F. Western blot analysis of NEDD8-Cullins, and p-ERK1/2 (Thr202/Tyr204) expression in primary ALL cells, and treated with pevonedistat (200 and 400 nM) ± SEL (200 and 400 µM) for 24 h. PARP/Cleaved PARP was used as marker for apoptosis. Levels of β-actin and β-tubulin were used as loading controls. Pevo stands for pevonedistat.
Pevonedistat plus selumetinib induces significant in vivo anti-leukemic activity in the NSG ALL mouse model
The in vivo relevance of the combination pevonedistat plus SEL was evaluated using our NSG ALL mouse model in which NSG mice are engrafted with NALM6 luciferase expressing cells (NALM6-Luc) . As previously described , following confirmation of ALL cells’ engraftment in NSG mice, animals were assigned to four treatment groups of 6 mice each: treatment with pevonedistat (s.c., 66 mg/kg) or SEL (p.o., 50 mg/kg) alone or in combination, as well as vehicle-treated controls. Treatment was administered twice daily on weekdays and once per day on weekends and bioluminescence analysis of animals was conducted starting at day 21 days post-engraftment. This analysis demonstrated a trend to decrease tumor burden in mice treated with pevonedistat alone and a statistically significant reduction of tumor burden in mice treated with the combination (p < 0.05 for pevonedistat + SEL vs. control) (Figure 6A and 6B). Kaplan-Meier analysis also showed a trend of improved survival in mice treated with pevonedistat alone and in combination over the control group (p < 0.05) (Figure 6C). In order to assess if this survival advantage is an on-target effect, NALM6-Luc cells were harvest from the spleen of engrafted-NSG mice and analyzed for changes in NEDD8-Cullins and p-ERK1/2 expression. We found consistent in vivo inhibitory effects of pevonedistat on the NEDDylation of cullins, and activation of p-ERK1/2 in the NALM6-Luc cells harvested from mice treated with pevonedistat ± SEL, and these findings were comparable to the in vitro data obtained with ALL cell lines and primary ALL cells . Therefore, the activity of the combination of pevonedistat plus SEL in vivo mimics the more extensive analysis conducted in vitro using ALL cell line models and patient-derived samples, highlighting the potential clinical relevance of our findings.

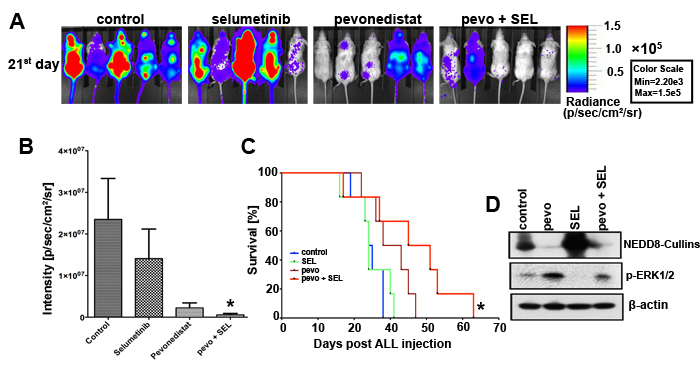

Figure 6: Pevonedistat plus selumetinib reduced tumor burden and prolonged the survival of NSG mice engrafted with ALL. A. NSG mice were injected via the tail vein with 106 viable human NALM6-Luc cells. Once engraftment confirmed, animals were assigned to four treatment groups of 6 mice each, treated for 10 days (21st day post ALL injection) with either vehicles (control), pevonedistat (s.c., 66 mg/kg); SEL (p.o., 50 mg/kg) or the combination pevonedistat plus SEL, and imaged in the IVIS facility. B. Signal intensity from the imaging were quantified, compared, and adjusted to p/sec/cm2/sr. *, p < 0.05, for signal intensity in pevonedistat plus SEL vs. vehicles-treated mice (control). C. Kaplan-Meier curves for ALL engrafted NSG mice treated with the compounds described above. *, p < 0.05, for the survival rate of pevonedistat plus SEL treated mice vs. vehicles-treated mice (control). D. Western blot analysis of NEDD8-Cullins, and p-ERK1/2 (Thr202/Tyr204) expression in NALM6-Luc cells extracted from the spleens of deceased mice from each treatment groups. β-actin was used as loading controls. Experiments were conducted under the supervision of the University of Miami’s Institutional Animal Care and Use Committee. Pevo stands for pevonedistat.
This study identified the Ca2+ release-activated Ca2+ (CRAC) channel  as the major mechanism responsible for activation of the pro-survival MEK/ERK signaling cascade following NEDD8-conjugation pathway inhibition in ALL cells. We uncovered that pevonedistat mobilized intracellular Ca2+ via activation of the store-operated Ca2+ entry (SOCE) leading to augmentation of the CRAC-mediated Ca2+ influx, and activation of the PKC/MEK/ERK signaling cascade. This is evidenced by direct measurement of intracellular calcium using the Ca2+ binding Fluo-8 AM dye, and the CRAC inhibitor BTP-2 which clearly demonstrated that pevonedistat increased Ca2+ influx in ALL cells, and that activation of p-ERK1/2 was significantly reduced in presence of the Ca2+ chelator BAPTA-AM or the PKC inhibitor enzastaurin. Furthermore, Ca2+ influx was shown to be triggered by changes in the stoichiometric ratio between the CRAC’s pore-forming subunit Orai1 and the Ca2+ sensor protein STIM1 [15, 16] [29, 30]. Our data support this model and indicate that pevonedistat treatment altered the Orai1:STIM1 ratio, which together with ER stress, contributes to CRAC-dependent PKC/MEK/ERK activation. More importantly, we demonstrate for the first time that STIM1 mRNA expression appears at least partially regulated by a post-transcriptional mechanism involving eIF2α-dependent translation of a short upstream open reading frame sequence (5’-uORF). Normally under ER stress, eIF2α is phosphorylated by the (ER)-resident protein kinase PERK to block global protein synthesis except for a select group of mRNAs that requires eIF2α phosphorylation for enhanced expression such as the stress response genes CHOP and ATF4 [31, 32, 36, 37]. These stress response genes have been found to be regulated by translation of a series of short 5’unstranslated regions . On this basis, the STIM1 mRNA may be regulated by a similar mechanism. Our data clearly demonstrated that inhibition of p-eIF2α de-phosphorylation using the eIF2α inhibitor salubrinal resulted in higher levels of STIM1, CHOP and ATF4 expression, and significantly abrogated the induction of p-ERK1/2 in pevonedistat-treated ALL cells. In addition, we showed that mutation of the ATG initiation codon of the STIM1 5’-uORF to AGG significantly reduced the translation of this 5’-ORF as evidenced by lessened expression of the in-frame luciferase reporter gene, indicating that the putative 5’-uORF STIM1 is functional and may play a role in regulating the translation of STIM1 mRNA. Through this translational regulatory mechanism, STIM1 mRNA level changes in response to stress conditions to evade global repression of translation mediated by eIF2α as part of an integrated stress response signaling critical for cellular adaption and survival. This mechanism is essential in development, immunity, auto-immunity, neuro-degeneration, and cancer , and through STIM1 expression, it adds to the complexity of Ca2+ homeostasis regulation as a second messenger in ALL cells’ response to stress conditions.
It has been shown that in cells with high STIM1 levels, Orai1 is trapped with STIM1 intracellularly, preventing its plasma membrane enrichment. On the other hand, when STIM1 levels are low or down-regulated, Orai1 is released from the STIM1 intracellular clusters and localized to the plasma membrane to trigger Ca2+ influx . In support of this mechanistic role for STIM1 in Ca2+ regulation in pevonedistat-treated ALL cells, we showed that in NALM6 cells overexpressing Orai1-YFP, the fluorescent signal was distributed evenly in the plasma membrane with undetectable intracellular localization, whereas in the pevonedistat-treated NALM6-Orai1-YFP expressing cells the signal was clustered in the plasma membrane with minimal intracellular localization. These findings are consistent with pevonedistat-induced alteration of the Orai1:STIM1 ratio leading to CRAC activation and increased Ca2+ influx, a critical event required for activation of the PKC/MEK/ERK pathway. Consequently, we propose that de-phosphorylation of p-eIF2α by pevonedistat will not only lead to ER stress/UPR-mediated cell death via increased protein translation in ALL as previously reported , but also enhances the translation rate of the short STIM1 5’-uORF resulting in down-regulation of STIM1 gene expression and alteration of the Orai1:STIM1 ratio. This stoichiometric changes will activate the CRAC channel, and increase Ca2+ influx to subsequently activate the compensatory survival PKC/MEK/ERK pathway as depicted in the proposed model (Figure 7). However, as also indicated STIM1 down-regulation contributes to SOCE activation and MEK/ERK activation but other yet to be identified mechanism(s) likely participate in the induction of cell death and MAPK activation. In the ER, Ca2+ is required for proper protein folding , and it is replenished by activation of the CRAC channel. Thus, it is conceivable that during typical ER stress (e.g., cells treated with the classical ER stressor tunicamycin ), the UPR/PERK will shut down global protein synthesis by promoting eIF2α phosphorylation, which selectively up-regulates translation of mRNAs that harbor small 5’-uORF such as STIM1 . However, additional evidence is required to definitively substantiate the role of eIF2α in the regulation of CRAC-mediated calcium influx in ALL.

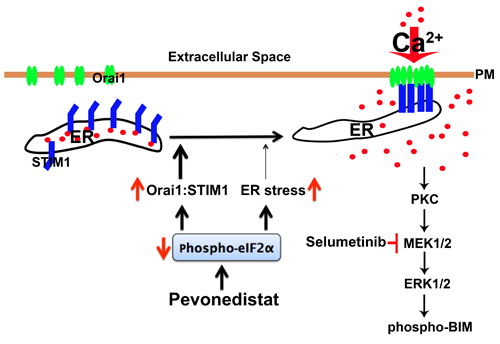

Figure 7: Proposed model of the role of SOCE/CRAC in pevonedistat-induced activation of the PKC/MEK/ERK survival pathway in ALL cells. NEDDylation inhibition by pevonedistat induces eIF2α de-phosphorylation which reduces the cellular level of STIM1 and in turn changes the stoichiometric ratio between Orai1:STIM1, leading to CRAC activation and concomitant increase of Ca2+ influx. De-phosphorylation of eIF2α also contributes ER stress which may also contribute to activation of SOCE with pevonedistat-mediated NEDDylation inhibition in ALL cells. Pevonedistat-induced mobilization of intracellular Ca2+ will activated PKC and its downstream pro-survival MEK/ERK signaling cascade to promote phosphorylation and inhibition of the pro-apoptotic BIM activity. Treatment with SEL will inhibit the MEK/ERK pathway, and promote de-phosphorylation of BIM to increase its pro-apoptotic activity, resulting in synergistic cell death in pevonedistat-treated ALL cells.
The cellular relevance of these molecular signaling interactions leading to increased Ca2+ influx in pevonedistat-treated ALL cells is manifested by the downstream activation of the pro-survival MEK/ERK pathway. Recently, Zhou et al.  reported that pevonedistat induced p-ERK1/2 expression in solid tumors via activation of the epidermal growth factor receptor (EGFR). We tested this mechanism and found no role for EGFR in pevonedistat-induced p-ERK1/2 activation in ALL cells, even though EGFR was expressed in NALM6 cells (data not shown). Herein, we demonstrated that activation of PKC/MEK/ERK signaling cascade was dependent on the induction of CRAC-mediated Ca2+ influx, and that co-targeting the NEDD8 conjugation pathway plus the MEK/ERK pathway led to in vitro  and in vivo synergistic cell death (Figure 7). Aberrant activation of the MEK/ERK pathway has been associated with drug resistance, relapse and poor outcome in pediatric ALL [9, 10, 35]. Here, we clearly show that the synergistic efficacy observed in ALL cells co-treated with pevonedistat plus SEL is due to inhibition of the MEK/ERK pathway leading to increased activity of the pro-apoptotic BIM protein. This is evidenced by our data showing decreased p-BIM expression and greater cell death in pevonedistat + SEL treated ALL cells, together with Co-IP experiments demonstrating that changes in the interaction between BIM and Bcl-2 or Bcl-xL correlate with cell death. It is well established that the MEK/ERK pathway regulates the activity of many proteins involved in apoptosis including Bcl-2, Mcl-1, Bad, caspase-9, and Bim . Mechanistically, the activation of the ERK1/2 pro-survival signaling pathway was shown to promote phosphorylation and proteasome-dependent degradation of the BH3-only protein Bim . Considering that BIM is a known target of CRLs , it is possible that simultaneous inhibition of the NEDD8 conjugation pathway and the MEK/ERK signaling leading to stabilization of BIM and increased BIM pro-apoptotic activity, respectively, will result in synergistic ALL cell death. Our findings support the role of BIM as a key mediator of cell death in pevonedistat-treated ALL , and CCL cells .
Our pre-clinical data show significant synergistic effect of pevonedistat and SEL in ALL, and suggest a clear path for future translation into the clinic for both children and adults with ALL. Indeed, we are initiating a clinical trial of pevonedistat in combination with reinduction chemotherapy for adolescents and young adults with refractory/relapsed ALL (IND 136393; ClinicalTrials.gov 20170602). Successful treatment strategies for ALL continue to require the use of multi-agent regimens, and given that multi-agent therapy is still important in patients with relapse, a favored strategy for the introduction of new agents into ALL therapy has been to incorporate promising new agents into established multi-agent platforms, such as vincristine, prednisone (frequently replaced by dexamethasone in practice), L-asparaginase, and doxorubicin (VPLD). An example of this strategy is the successful incorporation of bortezomib into VPLD therapy for ALL recently reported by Messinger et al. . We previously demonstrated in vitro and in vivo synergy between pevonedistat and dexamethasone in ALL . The first clinical report of pevonedistat in patients with myeloid neoplasms was published recently . In this clinical trial, the safety profile and minimal myelosuppressive effects of this agent increase enthusiasm for pevonedistat combination studies in ALL. Here, we showed that co-treatment of NSG mice harboring human ALL (NALM6-Luc) with pevonedistat plus the MEK/ERK inhibitor selumetinib had lower disease burden and statistically significant increased survival when compared to either agent alone, lending support to further investigate the mechanism of synergy between agents targeting these two pathways. Given that aberrant MEK/ERK activation is associated with resistance and relapses in pediatric ALL , our study provide a rationale to further evaluate the incorporation of drugs targeting NEDDylation either alone or in combination with agents that target the MEK/ERK signaling pathway as part of a multi-agent approach for ALL therapy. Indeed, a clinical trial for relapsed/refractory ALL combining standard VXLD induction with pevonedistat is currently under development, and a subsequent trial could explore the combination of pevonedistat plus agents that inhibit the MEK/ERK pathway.
Materials and Methods
Cell culture and reagents
RPMI-1640 medium (Cellgro), supplemented with 10% heat-inactivated fetal bovine serum (FBS) (Cellgro) and antibiotics (penicillin, 100 IU/mL; streptomycin, 100 μg/mL; Cellgro), was used to culture the ALL cell lines CCRF-CEM (T-ALL), NALM6 (Bp-ALL), REH (Bp-ALL) at 37 °C with 5% CO2. Stably transfected NALM6 cells expressing the luciferase gene (NALM6-Luc) were generated as described . Primary ALL cells were co-cultured with human bone marrow stromal cell feeder as described . Pevonedistat was provided by Millennium Pharmaceuticals, Inc (Cambridge, MA). Selumetinib, and enzastaurin (LY317615) were purchased from Selleckchem (Houston, TX). BTP-2 and BAPTA-AM were obtained from Abcam (Cambridge, MA), and luciferin from Perkin Elmer (Waltham, MA).
Cell viability and cell death assays
Cell viability and cell death were measured with trypan blue exclusion using the Vi-CELL XR analyzer (Beckman Coulter, Brea, CA). Synergism of combinational drug treatments was determined by calculating the combination index (CI) using CalcuSyn Version 2.0 (Biosoft, Ferguson, MO) as described . Statistical significance was determined by unpaired Student’s t test using GraphPad PRISM version 5.0c (San Diego, CA).
Construction of stable NALM6 cell lines expressing shRNAs
Stable NALM6 cells expressing shRNAs against CHOP, ERO1, STIM1, Orai1, and BIM were generated using lentiviral particles obtained from Santa Cruz Biotechnology (Dallas, TX) and transduced by spinoculation as described . Stably transduced ALL cells were selected in presence of 1 µg/mL puromycin, and shRNA-mediated down-regulation validated by western blots. Plasmids encoding Orai1-YFP (Addgene #19756), and STIM1-CFP (Addgene #19755) were obtained from Addgene, and transfected in NALM6 cells by nucleofection and selected in presence of G418 and puromycin, respectively, as described . NALM6 cells expressing YFP and CFP proteins were sorted based on YFP and CFP fluorescent signals using BD FACS SORP Aria-II high-speed cell sorter.
Immunoblots and co-immunoprecipitation (Co-IP) assays
Proteins were extracted using 1X RIPA buffer supplemented with protease/phosphatase inhibitor cocktail (Thermo Fisher Scientific Inc., Waltham, MA), and concentration determined using the BCA protein assay kit (Thermo Fisher Scientific Inc., Waltham, MA). Immunoblots (western blot) were performed as previously described . Primary antibodies against ERK1/2, p-ERK1/2 (Thr202/Tyr204), MEK1/2, p-MEK1/2 (Ser217/221), p-PKCα/β II (Thr638/641), CAMKII, p-CAMKII (Thr286), BIM; p-BIM (Ser69), CHOP, Bcl-2, Bcl-xL, p-eIF2α (Ser51), STIM1, PARP, NEDD8 and secondary HRP-conjugated antibodies were obtained from Cell Signaling (Danvers, MA). Antibodies for PKCβ, luciferase, ERO1 and Orai1 were purchased from Santa Cruz Biotechnology (Dallas, TX). Proteins expression was determined by densitometry analysis of the immune-detected bands, normalized to β-actin, and presented relative to control (fold induction). Co-IP assays were carried out using the Pierce™ Classic Magnetic IP Kit (Thermo Fisher Scientific Inc., Waltham, MA) as described .
Determination of intracellular Ca2+
Intracellular Ca2+ was measured using the Fluo-8 No Wash Ca2+ Assay Kit (Abcam, Cambridge, MA), a method previously validated by others [50-52]. Briefly, NALM6 cells were incubation with pevonedistat (400 nM) or tunicamycin (400 ng/mL) for 24 h, washed twice with HHBS (1X Hank’s with 20 mM Hepes Buffer, pH 7.0), and seeded (200,000 cells/well in a volume of 100 µL) in 96-well plate with black wall and clear flat bottom. Then, 100 µL of Fluo-8 dye solution was added to each well and plates were incubated for 30 min at 37°C, followed by an additional incubation of 30 min at room temperature. The fluorescence intensity was measured at Ex/Em = 490/525 nm. Thapsigargin (TG, 10 µM) was added to each well and kinetic measured at 27 sec intervals for 20 min (n = 3). For Ca2+ measurement using microscopic immunofluorescence, cells were treated with BTP-2 (10 µM) or pevonedistat (400 nM) either alone or in combination (pevonedistat + BTP-2) for 24 h, washed twice with HHBS, and centrifuged at 1000 rpm for 5 min. Fluorescent cell images were captured using a Leica immunofluorescence microscope with a 10× magnification.
Confocal imaging analysis
NALM6-Orai1-YFP expressing cells were treated with vehicle (DMSO) or pevonedistat (400 nM) for 24 h, washed with PBS, and transferred onto coverslips. Then, plates were sealed using nail polish. Images were captured using a Leica SP5 spectral confocal inverted microscope with a 60× magnification, and analyzed using Leica LAS X software.
Mouse ALL xenograft and bioluminescent imaging
ALL cells engraftment in NSG mice, bioluminescent imaging and leukemia burdens were carried out as previously described . Once leukemia xenograft confirmed by either flow cytometry (~1% of human ALL cells CD10/CD19) or bioluminescent signal (≥1.05x103 photons/second/cm2/steradian, p/s/cm2/sr), mice were randomly assigned to four treatment groups (6 mice per group): pevonedistat (s.c., 66 mg/kg in 20% hydroxypropyl-β-cyclodextrin (HPbCD, Onbio Inc., Ontario, Canada)); selumetinib (SEL, p.o., 50 mg/kg in PBS with less than 3% DMSO); combination treatment of both compounds (pevonedistat plus SEL), and the Control group (vehicles). The agents were administered twice daily during weekdays and once per day during weekends for up to 60 days. For biological references, spleens from deceased animals were extracted, lymphocytes isolated, and protein extracts processed for Western blot analysis as described . All experiments were conducted under the supervision of the University of Miami Institutional Animal Care and Use Committee.
The authors thank the Flow Cytometry Core Facility and the IVIS Small Animal Imaging Core Facility at the Sylvester Comprehensive Cancer Center, University of Miami Miller School of Medicine for their help in the flow cytometry data analysis and the animal imaging with the optical Xenogen IVIS SPECTRUM system, respectively. The authors also thank Millennium Pharmaceuticals, Inc., a subsidiary of Takeda Pharmaceutical Company Limited, for providing the NAE inhibitor pevonedistat.
Conflicts of interest
No potential conflicts of interest were disclosed.
This research was supported by grants from the Leukemia & Lymphoma Society (grant number 6168-09), The Dolphin Cancer Challenge, and the CancerFREE Kids Foundation to J.C. Barredo. RS received support from the Miami Clinical and Translational Science Institute, from the National Center for Advancing Translational Sciences (1KL2TR000461), the Paps Corps Champions for Cancer Research and the National Cancer Institute of the National Institutes of Health (R21CA202488). Its contents are solely the responsibility of the author and do not necessarily represent the official views of the NIH.
