Molecular imaging of Toll-like receptor 4 detects ischemia-reperfusion injury during intussusception
Metrics: PDF 806 views | HTML 1325 views | ?
Zhang-Chun Hu1,*, Ya-Lan Tan1,*, Shun-Gen Huang2, Peng Pan1, Xiao-Bo Liu2, Jian Wang2 and Wan-Liang Guo1
1Radiology Department, Children’s Hospital of Soochow University, Suzhou, 215003, China
2General Surgery Department, Children’s Hospital of Soochow University, Suzhou, 215003, China
*These authors contributed equally to this work
Wan-Liang Guo, email: firstname.lastname@example.org
Keywords: intussusception; ischemia-reperfusion; TLR4; in vivo imaging; PbS quantum dots
Received: September 27, 2017 Accepted: November 13, 2017 Published: December 22, 2017
We investigated the expression of Toll-like receptor 4 (TLR4) in the acute phase of intestinal I/R injury during intussusception and evaluated whether anti-TLR4 antibody-conjugated lead sulfide quantum dots (TLR4-PbS QDs) could be used to detect and monitor the injury. We first established a mouse model of I/R injury during intussusception. TLR-PbS QDs were then intravenously administered to intestinal I/R injured mice and visualized using whole-body fluorescence imaging in the second near-infrared window (NIR-II). Immunohistochemical analysis of intestinal tissue from the mice revealed that TLR4 expression was higher in the I/R injury group than the control and TAK-242 groups (5.189 ± 2.482, 1.186 ± 1.171, and 2.400 ± 0.857, respectively, P < 0.05). NIR-II fluorescence intensity was also higher in the I/R injury group than in the control and TAK-242 groups (86.415 ± 10.955, 38.975 ± 8.619, and 71.977 ± 3.838, respectively; P < 0.05). Thus, anti-TLR4-PbS QDs bound to TLR4 on the cell membranes of intestinal epithelial cells with high specificity in vitro and in vivo. These results indicate that TLR4 promotes intestinal I/R injury during intussusception and that the injury can be noninvasively imaged using TLR4-PbS QDs.
Intussusception is a condition in which part of the intestine slides into an adjacent section . It is one of the most common causes of bowel obstruction in children. Intestinal ischemia-reperfusion (I/R) injury can occur during intussusception. Early-stage I/R injury can result in mucosal erosion and hemorrhagic ulceration. These complications can frequently be reversed by treatment with vasodilators .
Inflammatory cytokines promote I/R injury during intussusception. Toll-like receptor 4 (TLR4) is a member of the Toll-like receptor (TLR) family of cell surface receptors. It functions in pathogen recognition and activation of the inflammatory response. Binding of ligands to TLR4 induces activation of the p38 mitogen-activated protein kinase (MAPK) pathway, which regulates the inflammatory immune response, cell survival, and cell death . Several studies have demonstrated that TLR4 is involved in lung and intestinal I/R injury, but the role of TLR4 in has not been elucidated [4–6].
Fluorescence imaging in the second near-infrared window (NIR-II; 1,000–1,700 nm) provides enhanced soft-tissue contrast as well as better anatomical resolution and improved depth of penetration than conventional fluorescence imaging [7–10]. Several studies have demonstrated the feasibility of in vivo imaging using fluorescent or radiolabeled antibodies, receptors, and peptides [11–15]. For example, in vivo imaging using contrast-enhanced ultrasound and targeted microbubbles was used to evaluate therapeutic response in inflammatory bowel disease. Additionally, fluorescent antibodies against tumor necrosis factor were evaluated as molecular imaging agents in Crohn’s disease [16, 17].
In this study, we investigated the expression of TLR4 in the acute phase of intestinal I/R injury during intussusception. Additionally, we evaluated whether anti-TLR4 antibody-conjugated lead sulfide quantum dots (TLR4-PbS QDs) could be used to detect and monitor I/R injury during intussusception.
Ultraviolet-visible near-infrared absorption and photoluminescence spectra of TLR4 antibody-conjugated QDs
Ultraviolet-visible near-infrared (UV-Vis-NIR) absorption and photoluminescence spectra of the TLR4 antibody-labeled QDs revealed a peak at 1,080 nm. The first absorption peak appeared at 980 nm, with a full width at half maximum (FWHM) of 137 nm (Figure 1A).

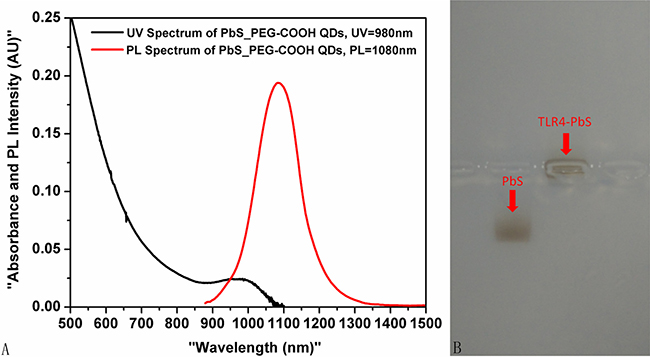

Figure 1: (A) UV-Vis-NIR absorption and photoluminescence spectra of the TLR4-PbS QDs. (B) Characterization of the TLR4-PbS QDs using agarose gel electrophoresis.
Characterization of TLR4-PbS QDs by agarose gel electrophoresis
Agarose gel electrophoresis indicated that the TLR4-PbS QDs were larger and migrated more slowly than the unconjugated PbS QDs (Figure 1B).
Development of a mouse model of intestinal I/R injury during intussusception
We established a mouse model of I/R injury during intussusception (n = 12). Soft tissue masses were visible in the intestines of all 12 mice consistent with bowel obstructions. Small obstructions, and areas of vascular compromise and venous congestion, were observed within 60 min of the onset of intussusception. We then reduced the intussusception and allowed reperfusion to occur for 90 min. Areas of vascular compromise and small bowel obstruction worsened following reperfusion. Histological analysis demonstrated an increase in inflammation and the number of necrotic areas in the I/R injury compared to control group.
In vivo NIR-II imaging
Bright fluorescence was observed in the reticuloendothelial system including the liver and spleen. Bright fluorescence was also observed in the intestine in the intussusception I/R injury group (Figure 2). Higher fluorescence was observed in the TLR4-PbS QD compared to the control and TAK-242 groups (86.415 + 10.955, 38.975 ± 8.619, and 71.977 + 3.838, respectively) (P < 0.05, Figure 3). Increased fluorescence was observed in regions of I/R injury 15 min after injection of the TLR4-PbS QDs. The signal reached a maximum peak after 30 min, and then decreased after 60 min (Supplementary Figures 1 and 2).
Figure 2: NIR-II fluorescence images of living mice 30 min after administration of an 0.15 mL bolus of the TLR4-PbS QDs in the intestinal I/R injury (A), control (B), and TAK-242 (C) groups.
Figure 3: Analysis of the short-term retention of TLR4-PbS QDs in areas of intestinal damage in the I/R injury, control, and TAK-242 groups (** = P < 0.05).
Ex vivo imaging of TLR4 expression
Immunohistochemical analysis indicated that intestinal epithelial cells had a characteristic columnar appearance. TLR4 was predominantly expressed on the cell membranes (Figure 4). The MQSs for TLR4 expression in intestinal epithelial cells were 5.189 ± 2.483, 1.186 ± 1.171, and 2.400 ± 0.857 in tissue samples from the I/R injury, control, and TAK-242 groups, respectively (P < 0.05, Figure 5). Immunofluorescence analysis demonstrated that TLR4 expression was higher in the I/R injury compared to control and TAK-242 groups (31.127 ± 5.482, 10.215 ± 3.255, and 16.500 ± 1.332, respectively, P = 0.0005, Figures 6 and 7). Ex vivo NIR-II imaging also demonstrated increased fluorescence in tissue samples from the I/R injury compared to control and TAK-242 groups (Figure 8). Immunohistochemical analysis indicated that p38 MAPK expression was higher in the I/R injury compared to control and TAK-242 groups (Supplementary Figure 3). The MQSs for p38 MAPK in intestinal epithelial cells were 8.712 ± 0.920, 2.109 ± 0.109, and 5.447 ± 0.526 in tissue samples from the I/R injury, control, and TAK-242 groups, respectively (P < 0.0001, Supplementary Figure 4).
Figure 4: Immunohistochemical analysis showing higher TLR4 expression in the intestinal I/R injury (A) compared to control (B), negative control (C), and TAK-242 (D) groups.

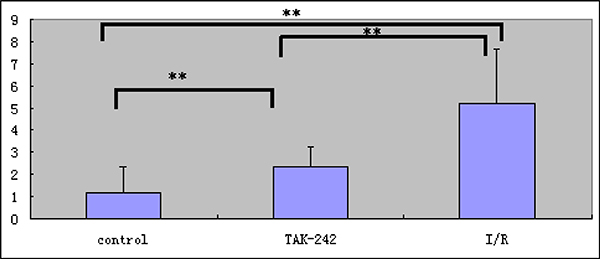

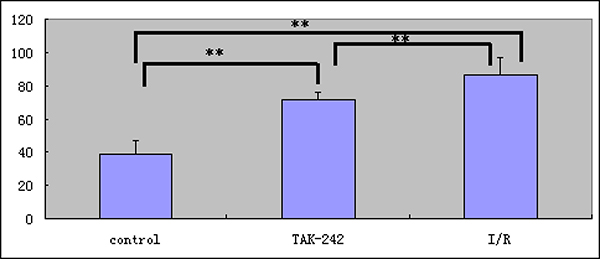

Figure 5: Immunohistochemical analysis of TLR 4 expression (** = P < 0.05).
Figure 6: Ex vivo NIR-II immunofluorescence imaging showing higher TLR4 expression in intestinal tissue samples from the intestinal I/R injury (A) compared to control (B) and TAK-242 (C) groups (magnification: ×400).

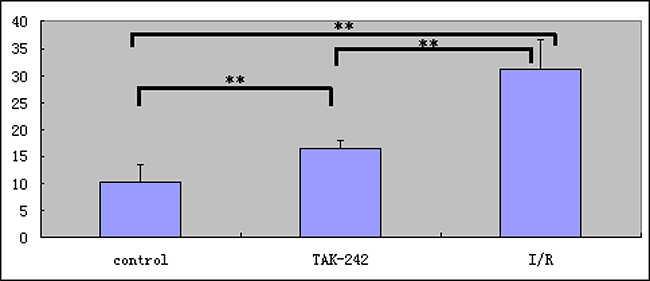

Figure 7: Analysis of TLR4 expression in intestinal tissue using ex vivo NIR-II immunofluorescence imaging (** = P < 0.05).
Figure 8: Ex vivo NIR-II fluorescence images of liver and intestinal tissue from mice 30 min after administration of the TLR4-PbS QDs. Higher TLR4 expression was observed in the intestinal I/R injury (A) compared to control (B) and TAK-242 (C) groups.
In vitro model of intestinal I/R injury
We evaluated the specificity of TLR4-CdSe QDs for TLR4 in an in vitro cell culture model of intestinal I/R injury. We observed a stronger fluorescence signal in the TLR4-CdSe QD compared to control (untreated) and CdSe QD groups. We then pretreated the cells with TLR4 for 30 min and evaluated the fluorescence in the I/R injury compared to control group (Figure 9). These results indicated that the TLR-CdSe QDs bound TLR4 with high specificity.
Figure 9: Immunofluorescence analysis of TLR4-CdSe QD binding activity in an in vitro model of intestinal I/R injury. Positive TLR4 expression on the cell membranes of intestinal epithelial cells in the I/R injury model (A). No staining of TLR4 was observed in the QD (B), control (C), and TLR4-treated (D) groups.
We investigated TLR4 expression in intestinal I/R injury during intussusception. Our data indicated TLR4 expression was higher in areas of intestinal I/R injury than in the normal intestinal epithelium. Using NIR-II fluorescence imaging, we determined that TLR4-PbS QDs bound TLR4 on the surface of intestinal epithelial cells with high specificity both in vitro and in vivo. The TLR4-PbS QDs localized to areas of intestinal damage in a mouse model of I/R injury during intussusception and in human tissue from pediatric intussusception patients. Thus, TLR4-PbS QDs could be used to detect early-stage I/R injury during intussusception. Collectively, our data indicate that TLR4 may have an important role in activating the inflammatory response during intussusception.
The restoration of blood supply to ischemic tissues can result in activation of an acute inflammatory response leading to additional tissue damage. Previous studies have demonstrated that TLR4 can activate the MAPK and NF-kB pathways, which are critical regulators of the inflammatory response, cell survival, and apoptosis . We previously observed high p38 MAPK expression in response to I/R injury . Additionally, Ben et al. demonstrated that TLR4 plays an important role in acute lung injury following intestinal ischemia .
Intestinal I/R injury during intussusception can result in necrosis of the bowel, lung injury, and multiple organ dysfunction syndrome . Currently, the diagnosis of intussusception is based on a combination of serum biochemical markers, ultrasound imaging, computed tomography, magnetic resonance imaging, positron emission tomography (PET), or invasive endoscopic techniques . The early detection of intestinal I/R injury using non-invasive molecular imaging may improve prognosis and treatment efficacy .
Antibodies conjugated to fluorescent probes such as QDs have been developed as non-invasive molecular imaging tools [15, 21]. Li et al. reported that fluorescent imaging of NIR-II probes is advantageous because it can achieve high contrast and facilitate deep-tissue imaging [20, 22]. Thackeray et al. developed a gallium-68 pentixafor to image the chemokine receptor CXCR4 in the myocardium following myocardial infarction using PET .
We investigated whether TLR4-PbS QDs could be used to detect and monitor intestinal I/R during intussusception. The TLR4-PbS QDs localized to areas of tissue damage in a mouse model of I/R injury during intussusception. The TLR4 QDs bound to TLR4 with high specificity both in vitro and in vivo. Our findings are consistent with those of two previous studies [15, 24]. Li et al. demonstrated that Ag2S QDs allowed in vivo monitoring of lymphatic drainage and vascular networks, and enabled targeted delivery of nanodrugs that prevent osteolysis to metastatic bone tumors. The Ag2S QDs demonstrated improve tissue penetration depth and enhanced spatiotemporal resolution [25, 26]. We have demonstrated that TLR4-PbS QDs may be useful for ultrasensitive NIR-II fluorescence imaging in vivo .
Our study had several limitations. First, we did not investigate the cytotoxicity of the TLR4-PbS QDs. Additional studies are required to investigate these effects in major organs including the liver and spleen. Second, we did not explore the pharmacokinetics including clearance time of the TLR4-PbS QDs.
In summary, we have shown that TLR4 is highly expressed on the membranes of intestinal epithelial cells in areas of I/R injury during intussusception. TLR4-PbS QDs bind to TLR4 with high specificity in vivo. These molecular probes may be useful for high-resolution, non-invasive imaging of early-stage I/R injury during intussusception.
MATERIALS AND METHODS
Photoluminescence spectra were acquired using a fiber fluorescence spectrophotometer (Ocean Optics NIR Quest and QE6500, Ocean Optics, Largo, FL, USA) equipped with a HGIL T250 250 W double-grating monochromator. Absorption spectra were acquired on a UV-Vis spectrophotometer (Agilent 8453, Agilent, Santa Clara, CA, USA). Quantum yield (QY) was calculated using the following equation:
where Ф is the quantum yield, I is the measured integrated emission intensity, η is the refractive index of the solvent, and A is the optical density. The subscript “st” refers to the standard with known quantum yield and “x” refers to the QD sample. Fluorescence spectra were measured at excitation wavelengths below 785 nm. IR-26 dye dissolved in 1,2-dichloroethane was used as a reference.
Conjugation of an anti-TLR4 antibody to QDs
Water-soluble, NIR-emitting PbS QDs were purchased from Mesolight Inc. (Suzhou, China). The particles were coated with polyethylene glycol (PEG) modified with carboxylic acid to ensure colloidal stability and solubility in an aqueous environment. The QDs were obtained as a 6 μM stock solution dissolved in sodium borate buffer (10 mM, pH = 7.4). We conjugated the anti-TLR4 antibody to the QDs as described previously . Briefly, QDs capped with PEG-COOH were dissolved in 10 mM sodium borate reaction buffer (pH 7.4) to a final concentration of 1 μM. A total of 50 μL of the TLR4 antibody (Mouse monoclonal ,Abcam, USA) was then added to the QDs while vortexing. A 10 mg/mL stock solution of 1-ethyl-3-(3-dimethylaminopropyl) carbodiimide in water was prepared and 50 μL of the solution immediately added to the reaction mixture. The reaction was incubated for 2 h at room temperature with gentle mixing. Following the incubation, the solution was centrifuged at 13,000 rpm with a MicrosepTM Advance Centrifugal Device (YM-100KD, Pall Corporation, Port Washington, NY, USA) for 10 min to remove free antibodies. TLR4-PbS QDs were recovered in 300 μL 1× phosphate-buffered saline containing 0.05% sodium azide and stored at 4°C until use.
The study protocol was approved by the Institutional Ethics Review Committee of the Children’s Hospital of Soochow University. All experiments were performed in accordance with the institutional guidelines for the use of animals and human tissue in experiments. A total of 18 nude mice (a mixture of male and female, 4–6 weeks old, 15–20 g) were included in the study. The mice were divided into experimental (n = 12) and control (n = 6) groups. To evaluate the binding specificity of the TLR4-PbS QDs for TLR4, we further divided the mice in the experimental group into I/R injury (n = 6) and TAK-242 (n = 6) groups. TAK-242 (3 mg/kg), a specific inhibitor of TLR4, was administered intraperitoneally 60 min prior to intussusception. Intussusception was established under ether inhalation anesthesia as described previously . Intussusception was observed in all mice in the I/R injury and TAK-242 groups after 60 min. Reperfusion was allowed to proceed for 90 min.
In vivo and ex vivo NIR-II fluorescence imaging
In vivo whole-body and ex vivo fluorescence imaging of organs and tissues was performed with a customized NIR-II fluorescence imaging system (Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, China) equipped with an 808 nm diode laser (880 nm long-pass filter). The distribution of the TLR4-PbS QDs in living mice was monitored in real-time and images acquired continuously (50 mW/cm2 power, 100 ms exposure time). TLR4-PbS QDs were administered as a 0.10–0.15 mL bolus via the tail vein. Dynamic contrast-enhanced images were obtained 1 min, 15 min, 30 min, 45 min, 60 min, and 90 min after injection. Regions of interest within the intestine were identified using markers that were placed on the skin during the intussusception procedure. Images were analyzed using MATLAB.
Ex vivo validation studies
Animals were anesthetized with 10% chloral hydrate (20 mL) and then sacrificed using the cervical dislocation method. Fluorescent imaging of the TLR4-PbS QDs was performed to identify areas of intestinal I/R injury. Tissue samples were embedded in optimal cutting temperature compound and cryosectioned into 6 mm thick sections. Sections were transferred onto Superfrost Plus slides (American MasterTech). Tissue samples were stained with hematoxylin and eosin and imaged by light microscopy (Olympus CKX31/41, Tokyo, Japan). TLR4 expression was analyzed by immunohistochemistry and immunofluorescence, while p38 MAPK expression was analyzed by immunohistochemistry. Protein expression was quantified using the IPP 6.0 image analysis software (Media Cybernetics, Rockville, MD, USA). Image analysis was performed as described previously . Quick scores (QSs) were calculated using the following formula: QS = percentage of positive cells × mean intensity. Average QSs were calculated for the various fields of view in each section to obtain mean QSs (MQSs).
In vitro model of I/R injury
IEC-6 non-transformed rat intestinal epithelial cells (CRL-1592; EK-Biosciences, China) were maintained in Dulbecco’s Modified Eagle’s Medium supplemented with 10% fetal bovine serum, 2 mM glutamine, 1% penicillin, and 1% streptomycin at 37°C in an incubator with a humidified atmosphere containing 5% CO2/95% air. Experiments were performed on cells between passages 17–25. An in vitro model of intestinal I/R injury was established by culturing cells under conditions of hypoxia followed by reoxygenation. Cells were placed in a hypoxic chamber with 1% O2 /5% CO2 /94% N2. Reoxygenation was then allowed to occur for the indicated time periods . We evaluated the binding specificity of TLR4 antibody-conjugated cadmium selenide (CdSe) QDs (TLR4-CdSe QDs) for TLR4 by comparing the fluorescence intensity in cells treated with TLR4-CdSe QDs to those treated with CdSe QDs using confocal microscopy. We then pretreated the I/R injury cell model with TLR4 for 30 min at room temperature, and compared the fluorescence intensity of the TLR4-CdSe QDs to unconjugated CdSe QDs.
All data were analyzed using the SAS v8.1 software (SAS Institute, Cary, NC, USA). The data are reported as the mean ± standard deviation. Differences between groups were assessed using Student-Newman-Keuls and Wilcoxon signed-rank tests. P values < 0.05 were considered statistically significant.
The study protocol was approved by the Institutional Ethics Review Committee of the Children’s Hospital of Soochow University. All experiments were performed in accordance with the institutional guidelines regarding the care and use of animals and human tissues in experiments.
Ischemia-reperfusion (I/R); Toll-like receptor (TLR); mitogen-activated protein kinase (MAPK); positron emission tomography (PET); second near-infrared window (NIR-II); Quantum dot (QD).
WG and JW designed the study and wrote the manuscript. ZH and YT collected the data and wrote the manuscript. SG, LX and PP collected and analyzed the data. All authors read and approved the final manuscript.
CONFLICTS OF INTEREST
The authors declare that there are no conflicts of interest.
This research was supported by Jiangsu Province Health and Family Planning Projects (H201519 and H201520), Fundamental and Application Research in Health Care of Suzhou (SYS201762), and Jiangsu Province Social Development Program - Standardized Diagnosis and Treatment of Key Diseases in the Clinic (#BE2015643).
1. Waseem M, Rosenberg HK. Intussusception. Pediatr Emerg Care. 2008; 24:793–800.
2. Weisner W, Khurana B, Hoon I, Ros P. CT of acute bowel ischemia.Radiology. 2003; 226:635–650.
3. Arumugam TV, Okun E, Tang SC, Thundyil J, Taylor SM, Woodruff TM. Toll-like receptors in ischemia-reperfusion injury. Shock. 2009; 32:4–16.
4. Wang J, He GZ, Wang YK, Zhu QK, Chen W, Guo T. TLR4-HMGB1-,MyD88- and TRIF-dependent signaling in mouse intestinal ischemia/reperfusion injury. World J Gastroenterol. 2015; 21:8314–8325.
5. Farmer DG, Ke B, Shen XD, Kaldas FM, Gao F, Watson MJ, Busuttil RW, Kupiec-Weglinski JW. Interleukin-13 protects mouse intestine from ischemia and reperfusion injury through regulation of innate and adaptive immunity. Transplantation. 2011; 91:737–743.
6. Ben DF, Yu XY, Ji GY, Zheng DY, Lv KY, Ma B, Xia ZF. TLR4 mediates lung injury and inflammation in intestinal ischemia-reperfusion. J Surg Res. 2012; 174:326–333.
7. Hong G, Lee JC, Robinson JT, Raaz U, Xie L, Huang NF, Cooke JP, Dai H. Multifunctional In Vivo Vascular Imaging using Near-Infrared II Fluorescence. Nat Med. 2012; 18:1841–1846.
8. Chen G, Tian F, Zhang Y, Zhang Y, Li C, Wang Q. Tracking of Transplanted Human Mesenchymal Stem Cells in Living Mice using Near-Infrared Ag2S Quantum Dots. Adv Funct Mater. 2014; 24:2481–2488.
9. Hong G, Robinson JT, Zhang Y, Diao S, Antaris AL, Wang Q, Dai H. In Vivo Fluorescence Imaging with Ag2S Quantum Dots in the Second Near-Infrared Region. Angew Chem Int Ed Engl. 2012; 51:9818–9821.
10. Zhang Y, Hong G, Zhang Y, Chen G, Li F, Dai H, Wang Q. Ag2S Quantum Dot:A Bright and Biocompatible Fluorescent Nanoprobe in the Second Near-Infrared Window. ACS Nano. 2012; 6:3695–3702.
11. Zhang Y, Hong H, Niu G, Valdovinos HF, Orbay H, Nayak TR, Chen X, Barnhart TE, Cai W. Positron emission tomography imaging of vascular endothelial growth factor receptor expression with (61)Cu-labeled lysine-tagged VEGF121. Mol Pharm. 2012; 9:3586–3594.
12. Chen K, Cai W, Li ZB, Wang H, Chen X. Quantitative PET imaging of VEGF receptor expression. Mol Imaging Biol. 2009; 11:15–22.
13. Li J, Zhang Y, Chordia MD, Wu H, Shao L, Pan D. Multimodal formyl petide receptor 1 targeted inflammation imaging probe:Cflflf-MHI-DOTA. Bioorg Med Chem Lett. 2016; 26:1052–1055.
14. Zhu H, Zhao C, Liu F, Wang L, Feng J, Zhou Z, Qu L, Shou C, Yang Z. Radiolabeling and evaluation of (64)Cu-DOTA-F56 peptide targeting vascular endothelial growth factor receptor 1 in the molecular imaging of gastric cancer. Am J Cancer Res. 2015; 5:3301–3310.
15. Joshi BP, Zhou J, Pant A, Duan X, Zhou Q, Kuick R, Owens SR, Appelman H, Wang TD. Design and Synthesis of Near-Infared Peptide for in Vivo Molecular Imaging of HER2. Bioconjug Chem. 2016; 27:481–494.
16. Deshpande N, Lutz AM, Ren Y, Foygel K, Tian L, Schneider M, Pai R, Pasricha PJ, Willmann JK. Quantification and monitoring of inflammation in murine inflammatory bowel disease with targeted contrast-enhanced US. Radiology. 2012; 262:172–180.
17. Atreya R, Neumann H, Neufert C, Waldner MJ, Billmeier U, Zopf Y, Willma M, App C, Münster T, Kessler H, Maas S, Gebhardt B, Heimke-Brinck R, et al. In vivo imaging using fluorescent antibodies to tumor necrosis factor predicts therapeutic response in Crohn’s disease. Nat Med. 2014; 20:313–318.
18. Guo WL, Wang J, Liu C, Yang FB, Li SW. Expression of p38MAPK and pathological changes in intussusception. Pediatr Int. 2016; 58:881–886.
19. Pierro A, Eaton S. Intestinal ischemia reperfusion injury and multisystem organ failure. Semin Pediatr Surg. 2004; 13:11–17.
20. Feuerstadt P, Brandt LJ. Update on Colon Ischemia:Recent insights and advances. Curr Gastroenterol Rep. 2015; 17:45–50.
21. Liu J, Zuo X, Li C, Yu T, Gu X, Zhou C, Li Z, Goetz M, Kiesslich R, Li Y. In vivo molecular imaging of epidermal growth factor receptor in patients with colorectal neoplasia using confocal laser endomicroscopy. Cancer Lett. 2013; 330:200–207.
22. Li C, Li F, Zhang Y, Zhang W, Zhang XE, Wang Q. Real-Tme Monitoring Surface Chemistry-Dependent In Vivo Behaviors of Protein Nanocages via Encapsulatinggan NIR-II Ag2S Quantum Dot. ACS Nano. 2015; 9:12255–12263.
23. Thackeray JT, Derlin T, Haghikia A, Napp LC, Wang Y, Ross TL, Schäfer A, Tillmanns J, Wester HJ, Wollert KC, Bauersachs J, Bengel FM. Molecular imaging of the chemokine receptor CXCR4 after acute myocardial infarction. JACC Cardiovasc Imaging. 2015; 8:1417–1426.
24. Song C, Zhang Y, Li C, Chen G, Kang X, Wang Q. Enhanced Nanodrug Delivery to Solid Tumors Based on a Tumor Vasculature-Targeted Strategy. Adv Funct Mater. 2016; 26:4192–4200.
25. Li C, Zhang Y, Wang M, Zhang Y, Chen G, Li L, Wu D, Wang Q. In vivo real-time visualization of tissue blood flow and angiogenesis using Ag2S quantum dots in the NIR-IIwindow. Biomaterials. 2014; 35:393–400.
26. Li C, Zhang Y, Chen G, Hu F, Zhao K, Wang Q. Engineered Multifunctional Nanomedicine for Simultaneous Stereotactic Chemotherapy and Inhibited Osteolysis in an Orthotopic Model of Bone Metastasis. Adv Mater. 2017; 29:1605754.
27. Kong Y, Chen J, Fang H, Heath G, Wo Y, Wang W, Li Y, Guo Y, Evans SD, Chen S, Zhou D. Highly Fluorescent Ribonuclease-A-Encapsulated Lead Sulfide Quantum Dots for Ultrasensitive Fluorescence in Vivo Imaging in the Second Near-Infrared Window. Chem Mater. 2016; 28:3041–3050.
28. Hermanson GT. Bioconjugate techniques(Third Edition). Elsevier. 2013; 1017–1094.
29. Ban K, Kozar RA. Protective role of p70S6K in intestinal ischemia/reperfusion injury in mice. PLos One. 2012; 7:e41584.
