UBASH3B promotes tamoxifen resistance and could be negatively regulated by ESR1
Metrics: PDF 947 views | HTML 1872 views | ?
Ketao Jin1,*, Huanrong Lan2,*, Junyu Zhang3, Jieqing Lv1, Yuan Chen4, Kang Yu5 and Wei Wang4
1Department of Colorectal Surgery, Shaoxing People’s Hospital, Shaoxing Hospital of Zhejiang University, Shaoxing, 312000, Zhejiang Province, P.R. China
2Department of Breast and Thyroid Surgery, Shaoxing People’s Hospital, Shaoxing Hospital of Zhejiang University, Shaoxing, 312000, Zhejiang Province, P.R. China
3Department of Hematology, The Fifth Affiliated Hospital of Wenzhou Medical School, Lishui, 323000, Zhejiang Province, P.R. China
4Department of Pathology, Zhejiang Provincial People’s Hospital, Hangzhou, 310014, Zhejiang Province, P.R. China
5Department of Hematology, The First Affiliated Hospital of Wenzhou Medical School, Wenzhou, 323000, Zhejiang Province, P.R. China
*These authors contributed equally to this work
Wei Wang, email: firstname.lastname@example.org
Kang Yu, email: email@example.com
Keywords: UBASH3B; breast cancer; tamoxifen resistance; TP53 mutation; prognosis
Received: May 30, 2017 Accepted: November 08, 2017 Published: December 22, 2017
Purpose: To explore the prognostic value of UBASH3B in ER+ breast cancer patients and explore potential molecular mechanisms.
Results: High expression of UBASH3B is negatively correlated with distant metastasis free survival (DMFS, P = 0.01, P = 0.045, P = 0.04 in 2 independent datasets and a merged dataset, respectively), disease specific survival (DSS, P = 0.028) and disease free survival (DFS, P = 0.0052, P = 0.011, P = 0.016 in 3 independent datasets, respectively) in ER+ breast cancer patients. Subset analysis found that UBASH3B also has prognostic value on both lymph node positive and negative sub-populations with ER+ breast cancer. This study also demonstrates that UBASH3B expression is tightly associated with tamoxifen resistance and TP53 mutation, which explains the association between UBASH3B and poor prognosis of ER+ breast cancer. Further analyses show that the expression of UBASH3B is affected by promoter methylation and copy number loss. Besides, UBASH3B is inversely correlated with ER and down-regulated by ER. Importantly, we find cisplatin could be a therapeutic option targeting on UBASH3B in clinical settings.
Conclusions: UBASH3B is negatively regulated by ER and confers poor outcome in ER+ breast cancer patients. Cisplatin is a potential therapeutic option for the management of breast cancer patients with high expression of UBASH3B.
Breast cancer is the most common malignancy and the leading cause of cancer death in females worldwide . The number of cases has significantly increased since the 1970s, a phenomenon partly attributed to the wide use of menopausal hormone therapy and increased breast cancer screening . It is estimated that there would be 231840 new cases and 40290 deaths of female breast cancer in the United States in the year 2015 .
Among all types breast cancer, over 70% are ER positive (ER+) according to molecular subtyping based on therapeutic regimens . The selective ER modulator tamoxifen forms a central modality in the treatment of ER+ breast cancer, and demonstrates remarkable efficacy especially in patients with early breast cancer. However, approximately 40% patients with ER+ breast cancer are insensitive to tamoxifen treatment and even for those patients who show response initially would become refractory to tamoxifen-directed therapy ultimately, requiring physicians to consider how to better initiate the next step in therapy . One of the key challenges Physicians facing today is to identify of patients best suited for and most likely to respond to each drug. Finding new predictive biomarkers and targets to enhance tamoxifen sensitivity and moreover reverse the resistant phenotype in ER+ breast cancer remain critical goals.
UBASH3B, also called Suppressor of T-Cell Receptor Signaling 1 (STS-1), could promote accumulation of epidermal growth factor receptor (EGFR) on the cell surface by inhibiting degradation of EGFR . Recently, Lee et al. showed that UBASH3B was overexpressed in Triple Negative Breast Cancer (TNBC), where it supported cancer proliferation, invasion, and metastasis largely through up-regulation of epidermal growth factor receptor (EGFR). They also demonstrated that UBASH3B is a functional target of microRNA200a (miR200a) that is down-regulated in TNBC, which they thought could explain why UBASH3B is overexpressed in TNBC . This is a great success in searching for potential therapeutic targets and management of TNBC. Nevertheless, they left several important questions unanswered.
The goal of the present study was to clarify the prognostic value of UBASH3B in ER+ breast cancer and elucidate its association with tamoxifen efficacy. We also sought to uncover new regulators of UBASH3B and search for available chemotherapeutics that could target UBASH3B and enhance tamoxifen sensitivity.
UBASH3B is associated with poor survival in ER+ breast cancer patients
To deduce the potential role for UBASH3B in ER+ breast cancer, gene expression analysis based on publicly available datasets was performed. Interestingly, high expression of UBASH3B was closely associated Distant Metastasis Free Survival (DMFS) in Van dataset and GSE6532 (Figure 1A, left and middle graph, P = 0.01 and 0.045, respectively) and a merged dataset (Figure 1A, right graph, merged by GSE1456 and GSE3494, P = 0.04). Subset analysis indicated that UBASH3B expression was also correlated with DMFS of both lymph node – (Figure 1B, left, P = 0.015) and lymph node + (Figure 1B, right, P = 0.046) patients with ER+ breast cancer in Van dataset. These results indicate an association between UBASH3B and distant metastasis of ER+ breast cancer.

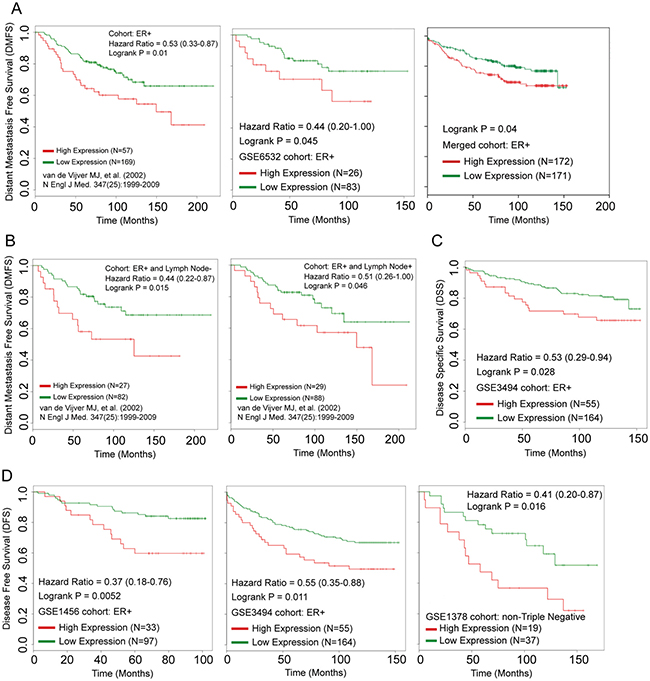

Figure 1: UBASH3B is associated with poor prognosis of ER+ breast cancer patients. Kaplan-Meier plot of Distant Metastasis Free Survival (DMFS) in ER+ (A), ER+ breast cancer patients with lymph node negative and lymph node positive (B). (C) Kaplan-Meier plot of Disease Specific Survival (DSS) in ER+ breast cancer patients. (D) Kaplan-Meier plot of Disease Free Survival (DFS) in non-Triple negative breast cancer patients.
We also performed data analysis to assess the expression level of UBASH3B in relation to Disease Specific Survival (DSS) and Disease Free Survival (DFS). The results indicated that high expression of UBASH3B confers poor DSS in GSE3494 (Figure 1C, P = 0.028) and poor DFS in ER+ (Figure 1D, left and diddle: GSE1456 and GSE3494, P = 0.0052 and 0.011, respectively) or non-TNBC (Figure 1D, right: GSE1378, P = 0.016) cohorts. This observation suggests that high expression of UBASH3B may predict early death and disease progression in ER+ breast cancer patients.
Taken together, these findings suggest a potential role of UBASH3B in the progression of ER+ breast cancer.
Overexpression of UBASH3B is correlated with tamoxifen resistance and TP53 mutation
Since high expression of UBASH3B confers poor prognosis in ER+ breast cancer and tamoxifen is a first-line drug for the management of ER+ patients, UBASH3B expression may be associated with tamoxifen efficacy. By performing GSEA using gene expression data from 623 breast cancer samples, we show high expression of UBASH3B is negatively correlated with genes down regulated in tamoxifen resistant patients, which indicates the association between UBASH3B and tamoxifen resistance (Figure 2A). Furthermore, high expression of UBASH3B was correlated with early distant metastasis in two independent cohorts (GSE6532 and GSE1456) that received tamoxifen treatment (Figure 2B and 2C, P = 0.0085 and 6.8e-05, respectively). Moreover, we found UBASH3B expression was higher in breast cancer patients with TP53 mutation compared with patients with wild type TP53, which may partly account for the poor prognosis in patients with high expression of UBASH3B (Figure 2D).

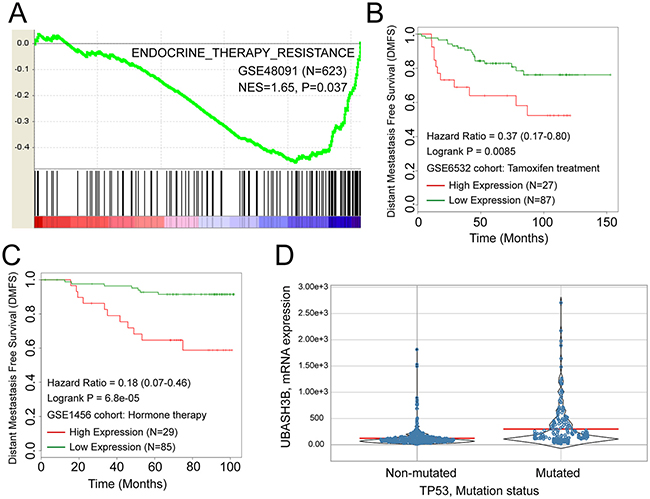

Figure 2: UBASH3B is negatively correlated with genes down-regulated in tamoxifen resistant patients. (A) Kaplan-Meier plot of DMFS in breast cancer patient cohort received tamoxifen or hormone therapy (B, C). High expression of UBASH3B is associated with TP53 mutation in breast cancer (D).
These results indicate that UBASH3B overexpression is correlated with tamoxifen resistance and TP53 mutation.
Regulators of UBASH3B expression
Findings in previous sections show potential roles of UBASH3B plays in the progression and tamoxifen resistance in ER+ breast cancer. Next, we sought to the factors that could influence the expression of UBASH3B. Datasets from TCGA and GEO were used in the analyses. The results indicated that UBASH3B mRNA expression is inversely correlated with its methylation levels (Figure 3A) and copy number variation (Figure 3B). Interestingly, we found mRNA expression of UBASH3B is also negatively correlated with ESR1 protein levels (Figure 3C), thereby a critical question arises. Could ESR1 regulate the expression of UBASH3B? Here we show that UBASH3B mRNA expression is 16 fold higher in ER knock down MCF-7 cells than in parental controls (Figure 3D). Data also suggests that this negative regulation is associated with estrogen stimulation. In long term estrogen deprived conditions, UBASH3B expression in day 30 is about 4 fold higher compared to day 0 (Figure 3E). These observations show that ER is a crucial negative regulator of UBASH3B expression.

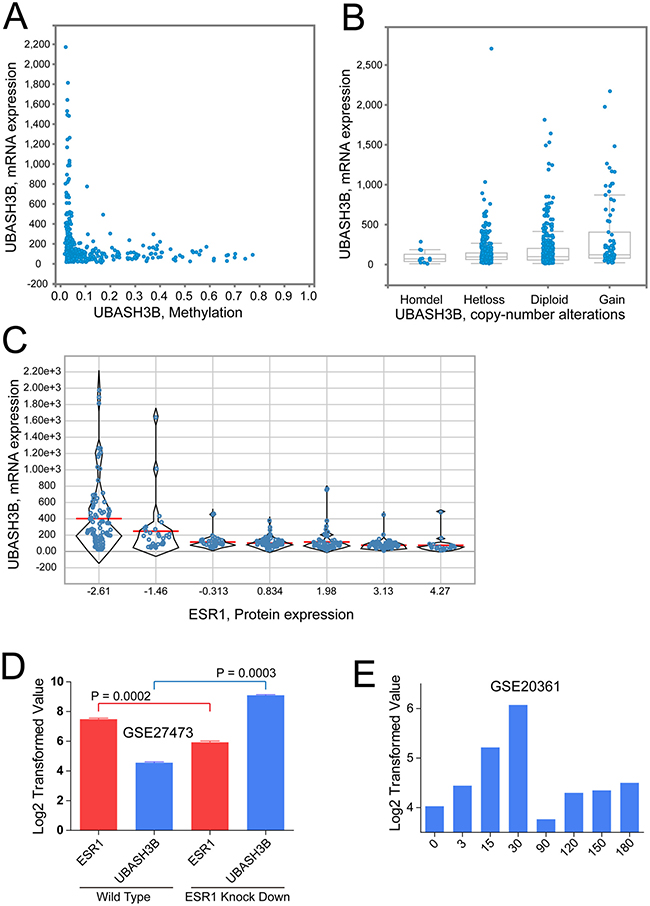

Figure 3: UBASH3B expression is negatively regulated by ESR. Scatter plot of UBASH3B mRNA expression values against UBASH3B methylation levels (A), UBASH3B copy number alterations (B) and ESR1 protein expression values (C). (D) Log2 transformed mRNA expression values of UBASH3B and ESR1 in wild type and estrogen receptor (ER) knock down MCF-7 breast cancer cells. (E) Log2 transformed mRNA expression values of UBASH3B in MCF-7 cells after 3, 15, 30, 90, 120, 150 and 180 days of estrogen deprivation. P values were calculated by paired two-tailed t test. Error bars represent mean ± SEM.
Although tamoxifen has been successfully used in the management of patients with ER+ breast cancer, resistance is a common problem that ultimately culminates in treatment failure. Identification of predictive biomarker of tamoxifen resistance and targets to enhance its sensitivity is more and more important in the years to come.
UBASH3B contain an SH3 domains and could promote cancer progression by targeting CBL ubiquitin ligase for dephosphorylation and inactivation, which in turn leads to up-regulation and accumulation of activated EGFR . Recently, Lee et al. reported that UBASH3B was overexpressed in TNBC and confers poor overall survival in patients with ER- breast cancer, but no significant disadvantage in patients with ER+ breast cancer . In the present study, we demonstrate that high expression of UBASH3B is associated with poor prognosis of ER+ breast cancer and tamoxifen resistance. Furthermore, the expression of UBASH3B is inversely correlated with its methylation levels and copy number variation. Interestingly, our result also indicates that UBASH3B expression is negatively regulated by ER and this regulation is associated with estrogen stimulation. Since tamoxifen functions largely as agonist in molecular level and could recapitulate the gene expression profile induced in breast cancer cells by estrogen , here we hypothesized that UBASH3B expression is negatively regulated by tamoxifen through activating ER signaling pathway in tamoxifen sensitive patients while not in tamoxifen refractory patients, which can perfectly explain the correlation between UBASH3B expression and tamoxifen efficacy.
In an effort to find available chemotherapeutics that could be used in adjuvant setting for the management of breast cancer patients with high expression of UBASH3B, data mining from The Comparative Toxicogenomics Database (CTD) was performed . Our result suggests that cisplatin is a potential therapeutic option that could down-regulate the expression of UBASH3B and enhance tamoxifen sensitivity.
Finally, the overview of UBASH3B signaling pathway was demonstrated in Figure 4. This diagram shows that UBASH3B is down-regulated by ER and cisplatin and can promote breast cancer progression through EGFR. The effect of UBASH3B on cancer progression may be enhanced by the co-existence of TP53 mutation.

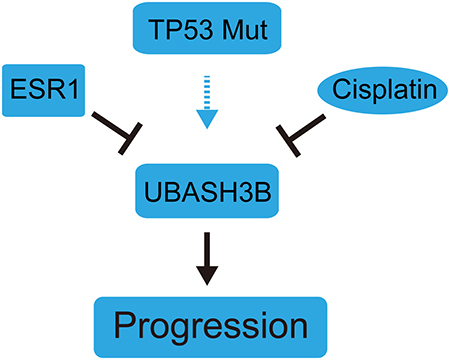

Figure 4: Diagram of UBASH3B signaling pathway. This graph shows that UBASH3B is negatively regulated by ER and Cisplatin and could promote breast cancer progression. TP53 mutation may also promote breast cancer progression by regulating UBASH3B expression.
Taken together, we suggest that UBASH3B expression levels could be used for patient stratification and directing personalized therapies. Cisplatin is a potential therapeutic option that may be used in combination with tamoxifen to enhance the sensitivity of tamoxifen. Nevertheless, in vivo and in vitro experiments and randomized controlled clinical trials are still needed.
MATERIALS AND METHODS
We are free to use breast cancer data in the cancer genome atlas (TCGA) by meeting its freedom-to-publish criteria: A marker paper has been published on that tumor type. We have the right to use datasets from Gene Expression Omnibus (GEO) by complying with all requirements according to each dataset. The Research Ethics Committee of Zhejiang Provincial People’s Hospital waived the requirement for ethical approval of this analysis because the registry is a de-identified database. Written consent was obtained from all alive patients.
UBASH3B mRNA expression, methylation and copy number alteration (CNA) data were obtained from the TCGA Data Portal (National Cancer Institute, The cancer genome atlas data portal, https://tcga-data.nci.nih.gov/docs/publications/tcga/, Accessed September 1, 2013). All other datasets are downloaded from NCBI GEO database . TCGA data was used to demonstrate the association between UBASH3B mRNA expression and methylation or CNAs. The relation among UBASH3B expression and TP53 mutation status were also analyzed using TCGA data . Van dataset , GSE6532 , GSE1456 , GSE3494  and GSE1378  were used for survival analysis. GSE27473  and GSE20361  were used to show the negative regulation of UBASH3B by ER. Gene Set Enrichment Analysis (GSEA)  was performed using expression profiles of 632 breast cancer samples (GSE48091) . The mRNA expression profiling of all the samples were performed on the Human U133B Gene Chip and Human genome U133 plus 2.0 platforms (Affymetrix, Santa Clara, CA).
Standard statistical tests were used to analyze the clinical and gene expression profiling data, including the log rank test, fisher exact test and independent samples t-test. Significance was defined as a P value of less than 0.05. Analyses were primarily performed using R 3.0.1 (R Foundation for Statistical Computing [http://www.r-project.org/]), GraphPadPrism5.01 (GraphPad Software, Inc. [www.graphpad.com]) and SPSS version21 (SPSS Inc, Chicago, Illinois).
CONFLICTS OF INTEREST
The authors declare that they have no conflicts of interest.
This work was supported by National Natural Science Foundation of China (Grants No. 81772537; 81374014), Zhejiang Provincial Science and Technology Projects (grants no. LGF18H160041, 2017C33212, 2017C33213, and 2015C33264,), and Zhejiang Provincial Medical and Healthy Science and Technology Projects (Grant No. 2013KYA228).
1. Torre LA, Bray F, Siegel RL, Ferlay J, Lortet-Tieulent J, Jemal A. Global cancer statistics, 2012. CA Cancer J Clin. 2015; 65:87–108.
2. Althuis MD, Dozier JM, Anderson WF, Devesa SS, Brinton LA. Global trends in breast cancer incidence and mortality 1973–1997. Int J Epidemiol. 2005; 34:405–412.
3. Siegel RL, Miller KD, Jemal A. Cancer statistics, 2015. CA Cancer J Clin. 2015; 65:5–29.
4. Vendrell JA, Ghayad S, Ben-Larbi S, Dumontet C, Mechti N, Cohen PA. A20/TNFAIP3, a new estrogen-regulated gene that confers tamoxifen resistance in breast cancer cells. Oncogene. 2007; 26:4656–4667.
5. Kowanetz K, Crosetto N, Haglund K, Schmidt MH, Heldin CH, Dikic I. Suppressors of T-cell receptor signaling Sts-1 and Sts-2 bind to Cbl and inhibit endocytosis of receptor tyrosine kinases. J Biol Chem. 2004; 279:32786–32795.
6. Lee ST, Feng M, Wei Y, Li Z, Qiao Y, Guan P, Jiang X, Wong CH, Huynh K, Wang J, Li J, Karuturi KM, Tan EY, et al. Protein tyrosine phosphatase UBASH3B is overexpressed in triple-negative breast cancer and promotes invasion and metastasis. Proc Natl Acad Sci U S A. 2013; 110:11121–11126..
7. Hodges LC, Cook JD, Lobenhofer EK, Li L, Bennett L, Bushel PR, Aldaz CM, Afshari CA, Walker CL. Tamoxifen functions as a molecular agonist inducing cell cycle-associated genes in breast cancer cells. Mol Cancer Res. 2003; 1:300–311.
8. Davis AP, Wiegers TC, Johnson RJ, Lay JM, Lennon-Hopkins K, Saraceni-Richards C, Sciaky D, Murphy CG, Mattingly CJ. Text mining effectively scores and ranks the literature for improving chemical-gene-disease curation at the comparative toxicogenomics database. PLoS One. 2013; 8:e58201..
9. Barrett T, Troup DB, Wilhite SE, Ledoux P, Evangelista C, Kim IF, Tomashevsky M, Marshall KA, Phillippy KH, Sherman PM, Muertter RN, Holko M, Ayanbule O, et al. NCBI GEO: archive for functional genomics data sets--10 years on. Nucleic Acids Res. 2011; 39:D1005–1010..
10. Cancer Genome Atlas Network. Comprehensive molecular portraits of human breast tumours. Nature. 2012; 490:61–70. https://doi.org/10.1038/nature11412.
11. van de Vijver MJ, He YD, van’t Veer LJ, Dai H, Hart AA, Voskuil DW, Schreiber GJ, Peterse JL, Roberts C, Marton MJ, Parrish M, Atsma D, Witteveen A, et al. A gene-expression signature as a predictor of survival in breast cancer. N Engl J Med. 2002; 347:1999–2009.
12. Loi S, Haibe-Kains B, Majjaj S, Lallemand F, Durbecq V, Larsimont D, Gonzalez-Angulo AM, Pusztai L, Symmans WF, Bardelli A, Ellis P, Tutt AN, Gillett CE, et al. PIK3CA mutations associated with gene signature of low mTORC1 signaling and better outcomes in estrogen receptor-positive breast cancer. Proc Natl Acad Sci U S A. 2010; 107:10208–10213..
13. Pawitan Y, Bjohle J, Amler L, Borg AL, Egyhazi S, Hall P, Han X, Holmberg L, Huang F, Klaar S, Liu ET, Miller L, Nordgren H, et al. Gene expression profiling spares early breast cancer patients from adjuvant therapy: derived and validated in two population-based cohorts. Breast Cancer Res 2005; 7:R953–964.
14. Miller LD, Smeds J, George J, Vega VB, Vergara L, Ploner A, Pawitan Y, Hall P, Klaar S, Liu ET, Bergh J. An expression signature for p53 status in human breast cancer predicts mutation status, transcriptional effects, and patient survival. Proc Natl Acad Sci U S A. 2005; 102:13550–13555.
15. Ma XJ, Wang Z, Ryan PD, Isakoff SJ, Barmettler A, Fuller A, Muir B, Mohapatra G, Salunga R, Tuggle JT, Tran Y, Tran D, Tassin A, et al. A two-gene expression ratio predicts clinical outcome in breast cancer patients treated with tamoxifen. Cancer Cell. 2004; 5:607–616.
16. Al Saleh S, Al Mulla F, Luqmani YA. Estrogen receptor silencing induces epithelial to mesenchymal transition in human breast cancer cells. PLoS One. 2011; 6:e20610..
17. Aguilar H, Sole X, Bonifaci N, Serra-Musach J, Islam A, Lopez-Bigas N, Mendez-Pertuz M, Beijersbergen RL, Lazaro C, Urruticoechea A, Pujana MA. Biological reprogramming in acquired resistance to endocrine therapy of breast cancer. Oncogene. 2010; 29:6071–6083..
18. Subramanian A, Tamayo P, Mootha VK, Mukherjee S, Ebert BL, Gillette MA, Paulovich A, Pomeroy SL, Golub TR, Lander ES, Mesirov JP. Gene set enrichment analysis: a knowledge-based approach for interpreting genome-wide expression profiles. Proc Natl Acad Sci U S A. 2005; 102:15545–15550.
19. Cunha SI, Bocci M, Lovrot J, Eleftheriou N, Roswall P, Cordero E, Lindstrom L, Bartoschek M, Haller BK, Pearsall RS, Mulivor AW, Kumar R, Larsson C, et al. Endothelial ALK1 Is a Therapeutic Target to Block Metastatic Dissemination of Breast Cancer. Cancer Res. 2015; 75:2445–2456.
