Association of elevated reactive oxygen species and hyperthermia induced radiosensitivity in cancer stem-like cells

PDF |  HTML  |  Supplementary Files  |  How to cite  |  Order a Reprint

Oncotarget. 2017; 8:101560-101571. https://doi.org/10.18632/oncotarget.21678

Metrics: PDF 956 views  |   HTML 1001 views  |   ?

Qibin Fu, Tuchen Huang, Xudong Wang, Chunyang Lu, Feng Liu, Gen Yang _, Yugang Wang and Biao Wang

Abstract

Qibin Fu1, Tuchen Huang1, Xudong Wang2, Chunyang Lu2, Feng Liu2, Gen Yang2, Yugang Wang2 and Biao Wang1

1Sino-French Institute of Nuclear Engineering and Technology, Sun Yat-sen University, Zhuhai 519082, P. R. China

2State Key Laboratory of Nuclear Physics and Technology, School of Physics, Peking University, Beijing 100871, P. R. China

Correspondence to:

Gen Yang, email: gen.yang@pku.edu.cn

Biao Wang, email: wangbiao@mail.sysu.edu.cn

Keywords: cancer stem-like cells, hyperthermia, radiosensitivity, reactive oxygen species

Received: June 27, 2017     Accepted: September 21, 2017     Published: October 09, 2017

ABSTRACT

Cancer stem-like cells (CSCs) are the principal causes of tumor radio-resistance, dormancy and recurrence after radiotherapy. Clinical trials show hyperthermia (HT) might be a potent radiation sensitizer. In this study, CSCs were found to be more susceptible to radiation when combined with HT treatment. Treated cells showed significantly reduced self-renewal, cell survival and proliferation in vitro, as well as significant reduced tumor formation in vivo. Further study demonstrated that the radiosensitization effect was associated with increased intracellular reactive oxygen species (ROS) level in CSCs, confirmed by modifying redox status in CSCs bidirectionally. Pharmacologic depletion of glutathione by buthionine sulphoximine mimicked HT induced radiosensitivity in CSCs. Antioxidant N-acetylcysteine could efficiently rescue HT induced radiosensitivity in CSCs. To our knowledge, this may be the first report suggesting the association between elevated intracellular ROS level and HT induced radiosensitization in human breast CSCs and pancreatic CSCs, which might provide new strategy for improving CSCs radiosensitivity.


INTRODUCTION

Accumulating data have indicated the existence of cancer stem-like cells (CSCs) in multiple solid tumors [13]. CSCs are a subset of tumor cells that have the ability to self-renewal and generate diverse tumor cells [2]. These cells are currently believed to be responsible for treatment failures because of their resistance to conventional treatments including ionizing radiation (IR) [46] and chemotherapy [79]. The mechanisms are suggested to be high free radical scavenger level [5, 10], low proteasome activity [11], preferentially activated DNA damage checkpoints [6], and expression of the ATP-binding cassette B5 (ABCB5) multi-drug resistance proteins [7].

Extensive clinical studies show hyperthermia (HT) can significantly improve both local tumor control and survival after radiation therapy, without major in side-effects [1214]. HT therapy, through increasing the temperature of tumor-loaded tissue to 40–43°C, is applied as an adjuvant to radiotherapy and chemotherapy [1517]. The interaction between IR and HT depends on many factors, including the temperature, the duration time, sequence and time interval between the two modalities [16]. Generally, higher temperature and longer exposure time will yield better the effect [16, 18]. Although the effects produced by the sequence between IR and HT may vary with different tumor types, combination of IR and HT at the same time kills the most tumor cells [1819]. Moreover, as the time interval increases, the radiosensitization by heat could hardly be observed.

Previous studies show that HT acts as a cancer treatment for direct cell killing, radiosensitization, and promotion of tumor reoxygenation [16, 20]. Utilizing hyperthermia as a radiosensitizer, would reduce the dose of radiation, which in turn decrease toxicity to normal tissues. Recently, thermal radiosensitization of CSCs is suggested to result to inhibition of the repair of radiation-induced DNA double-strand breaks (DSBs) [21] or suppression of radiation-induced AKT activation and proliferation [22]. However, the mechanisms of HT induced radiosensitization of CSCs are still unclear.

In this study, HT induced radiosensitization in breast CSCs and pancreatic CSCs were observed in vivo and in vitro. We also found that the radiosensitization was associated with increased intracellular ROS level in CSCs. The association was further confirmed by modifying redox status in CSCs bidirectionally. To our knowledge, this may be the first report shedding light on elevated intracellular ROS level playing critical roles in HT induced radiosensitization in human breast CSCs and pancreatic CSCs, which provides new strategy for improving CSCs radiosensitivity.

RESULTS

Isolation and characterization of breast CSCs and pancreatic CSCs

We isolated CD44+CD24 cells by flow cytometry as described previously [23] and the percentage of CD44+CD24 cells were about 1.4% (Figure 1A). In addition, the isolated CD44+CD24 cells were reanalyzed for the purity, which was 99% (Supplementary Figure 1A). As shown in Supplementary Figure 1B, MCF7 cells, which were mainly CD24+, exhibited a more differentiated morphology, consistent with their luminal-type classification [2425], while CD44+CD24 cells were spindle-like.

Isolation of breast CD44+CD24- CSCs and pancreatic CD44+CD24+ESA+ CSCs from MCF7 and L3.6pl cells by flow cytometry.

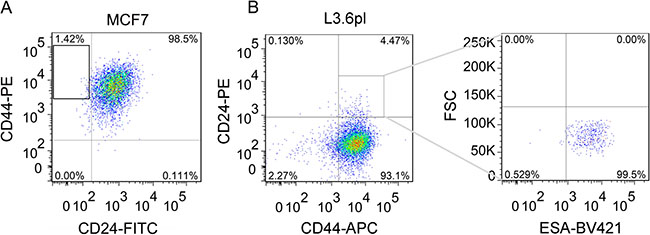

Figure 1: Isolation of breast CD44+CD24- CSCs and pancreatic CD44+CD24+ESA+ CSCs from MCF7 and L3.6pl cells by flow cytometry. (A) Typical proportion of CD44+CD24 cells in MCF7 cells. The isolated CD44+CD24 CSCs were obtained as shown in the frame of A and cultured 1d for re-analysis by flow cytometry (Supplementary Figure 1A). (B) Fluorescence activated cell-sorting (FACS) analysis to measure CD44 and CD24 expression of L3.6pl cells (Left) and the patterns of ESA staining of CD24+CD44+ cells as shown in the frame of panel B Left (Right).

Presently, CD44+CD24 cells showed ~3-fold increase in mammosphere formation compared with MCF7 cells (Figure 2A and 2B), indicating stronger capacity in self-renewal. Moreover, CD44+CD24 cells also showed much stronger mammosphere-forming capability after HT or IR treatment than MCF7 cells (Figure 2B). The results demonstrated that CD44+CD24 cells are much more resistant to stresses including radiation and HT than MCF7 cells. Furthermore, consistent with the previous report [10], around half of ROS level in CD44+CD24 cells were detected compared to MCF7 cells (Figure 2C). Taken together, the identification of CD44+CD24 CSCs was in accordance with previous reports.

Identification of sorted breast CSCs and pancreatic CSCs in vitro and in vivo.

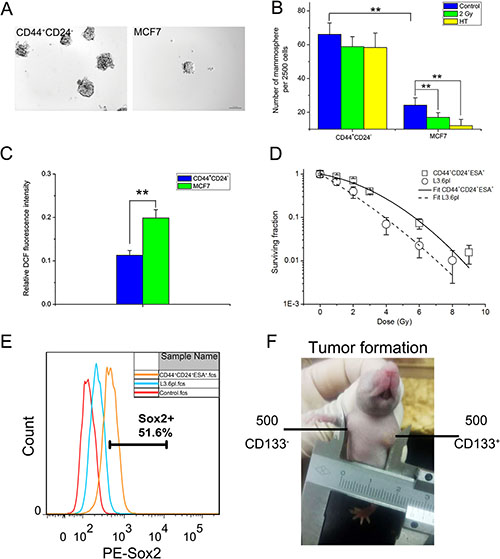

Figure 2: Identification of sorted breast CSCs and pancreatic CSCs in vitro and in vivo. (A) Typical mammosphere formation of CD44+CD24 cells and MCF7 cells imaged by 10x objective (Bar = 100 μm). (B) Quantification of mammospheres derived from CD44+CD24 cells and MCF7 cells at day 7 after sham-treated, HT (43°C for 2 hours) or 2 Gy treatment. (C) Intracellular ROS concentrations of CD44+CD24 cells and MCF7 cells. (D) Clonogenic survival assay in cells derived from CD44+CD24+ESA+ cells (squares) and L3.6pl cells (circles). To determine surviving fractions, counts were normalized using the plating efficiency of the unirradiated corresponding control. The survival curves of CD44+CD24+ESA+ cells (solid line) and L3.6pl cells (dashed line) were fitted using LQ model respectively. (E) FACS analysis to measure Sox2 expression of L3.6pl cells and CD44+CD24+ESA+ cells. (F) Representative experiment depicting tumor formation in a mouse at the injection site of 500 CD133+ cells, with no tumor formation seen at the injection site of 500 CD133- cells. The results are presented as the mean ± SD, as determined from three independent experiments. **P < 0.01.

Likewise, the pancreatic CSCs were isolated through flow cytometry. As CD44+CD24+ESA+ or CD133+ pancreatic cancer cells exhibited stem cell properties [2627], flow cytometry demonstrated the presence of a rare CSCs population. The proportion of such triple positive (CD44+CD24+ESA+, Figure 1B) or CD133+ (data not shown) subpopulations was about 4%. Actually, the small subpopulations (about 0.7%) in which the two kinds of CSCs markers overlap were sorted for the experiment (Supplementary Figure 2B).

The responses of CD44+CD24+ESA+ cells and L3.6pl cells to radiation were compared through clonogenic assay. To give quantitative description of the dose-response curve, the linear-quadratic (LQ) model was used [28]. For CD44+CD24+ESA+ cells, α is 0.148, β is 0.045, mean surviving fraction at 2 Gy [SF2Gy] = 0.62. For L3.6pl cells, α is 0.514, β is 0.02, mean surviving fraction at 2 Gy [SF2Gy] = 0.33 (Figure 2D). The results showed that CD44+CD24+ESA+ cells were more radioresistant than L3.6pl cells. Furthermore, in comparison to L3.6pl cells, CD44+CD24+ESA+ cells showed high expression of Sox2 (Figure 2E), which is a key factor involved in CSCs maintenance [29]. To investigate whether sorted CSCs display long-term tumorigenic potential, we evaluated their ability to generate tumors after serial transplantations. As shown in Table 1, CD133+ cells showed enhanced tumorigenic potential than CD133 cells (P < 0.05). As few as 500 CD133+ cells are capable of generating visible tumors after 40 days. In contrast, no visible tumors were observed with CD133- cells under the same conditions (Figure 2F). Taken together, sorted CD133+ cells or CD44+CD24+ESA+ cells showed the enhanced tumorigenic potential, increased expression of the stemness related molecule Sox2 and highly resistant to radiation, displaying their stem cell properties as previous works reported.

Table 1: Tumor formation ability of sorted pancreatic CSCs

Cell no.

500

1000

5000

CD133+

6/6

5/5

5/5

CD133-

0/6

1/5

3/5

Assayed for the ability to form tumors after injection into the mice at 500, 1000, and 5000 cells per injection. Data are expressed as number of tumors formed/number of injections.

The hyperthermia sensitized breast CSCs and pancreatic CSCs to radiation

Due to the resistance to radiation therapy, CSCs contribute to tumor progression [6]. We investigated the hyperthermia ability in improving the radiosensitivity of breast CSCs and pancreatic CSCs by assessing mammosphere formation and colony formation, two indicators of the self-renewal capacity of CSCs in vitro.

In order to investigate radiosensitization by HT, the conditions of treatments had been optimized. A clinically relevant dose of 2 Gy was chosen for initial studies. 43°C was chosen as the heating temperature. The optimal duration of heating was 1.5 hours for pancreatic CSCs and 2 hours for breast CSCs. HT treatment procedure was performed immediately after irradiation. As shown in Figure 3A3C, HT alone had little effect on pancreatic CSCs colony formation and mammosphere formation. IR alone attenuated colony formation and mammosphere growth by about 29%, but still a significant number of CSCs remained and were able to form colonies or mammospheres (Figure 3B and 3C). The most effective treatment was HT combined with IR, which could reduce pancreatic CSCs colony formation and mammosphere formation by additional 35% and 31% compared to IR alone (Figure 3B and 3C), respectively. For an intuitive description of the relative colony formation, the value of IR alone multiplied by that of HT alone was 71.0% × 94.3%, namely 67.0%, while the value for IR+HT was 35.4%. Obviously, the combined effect was greater than the additive effect, with less colony formation capability (Figure 3B). Furthermore, we determined whether the treated CSCs retained their tumorigenic properties after IR+HT treatment in vivo. As shown in Table 2, a significant decrease in tumor formation was observed after IR+HT treatment compared to IR alone. The results demonstrate HT radiosensitizes CSCs in vitro and in vivo.

Hyperthermia sensitized breast CSCs and pancreatic CSCs to radiation.

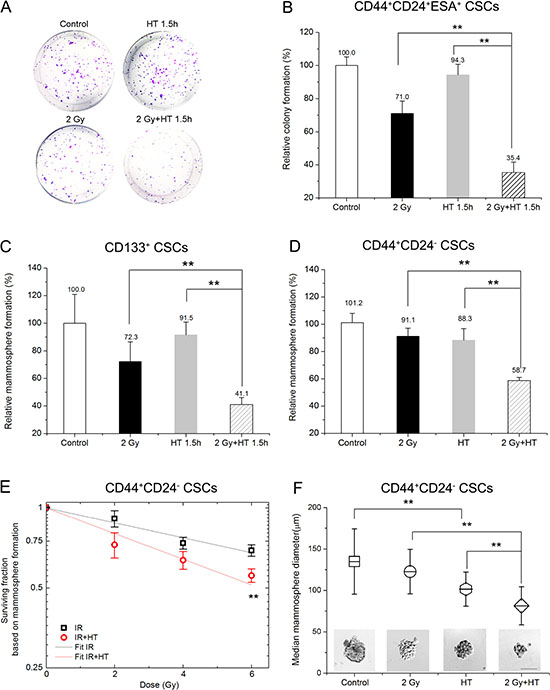

Figure 3: Hyperthermia sensitized breast CSCs and pancreatic CSCs to radiation. (A–B) Representative images of colonies derived from CD44+CD24+ESA+ CSCs after sham-treated, HT (43°C for 1.5 hours), 2 Gy or 2 Gy+HT treatment (A) and quantification of colonies (B). (C) Quantification of mammospheres derived from CD133+ CSCs at day 7 after sham-treated, HT (43°C for 1.5 hours), 2 Gy or 2 Gy+HT treatment. (D) Statistics in mammosphere formations derived from CD44+CD24- CSCs at day 7 after sham-treated, HT (43°C for 2 hours), 2 Gy or 2 Gy+HT treatment. (E) The mammosphere survival of CSCs after IR alone (squares) or IR+HT (circles) treatments. The dose-response curve of IR alone (black line) or IR+HT (red line) was fitted using the linear part of LQ model. (F) Representative images of mammosphere derived from CD44+CD24- CSCs after different treatments. Bar = 100 μm (bottom) and mean values for mammosphere diameters of the indicated treatment groups. At least 40 mammospheres were measured in each group. The results are presented as the mean ± SD, as determined from three independent experiments. *P < 0.05, **P < 0.01.

Table 2: Tumor formation ability of sorted pancreatic CSCs after indicated treatments

Control

IR

HT

IR+HT

6/6

6/6

5/6

2/6

5000 cells after indicated treatments were injected into the mice. The tumor formation were evaluated at 40 d post cell implantation. Data are expressed as number of tumors formed/number of injections.

Additionally, similar results were also illustrated in breast CSCs. As is shown in Figure 3D, treatment with HT alone or IR alone had limited impact on mammosphere formation of CSCs compared to the sham-treated cells. However, IR+HT treatment significantly reduced mammosphere formation compared to IR alone (58.7% ± 2.3% in IR+HT group versus 91.1% ± 5.9% in IR group), indicating loss of self-renewal potential. Actually, treatment with IR+HT significantly decreased mammosphere-forming ability in CSCs compared to IR alone across the entire measured radiation dose range (2–6 Gy) (Figure 3E). Even at 12 Gy, the surviving fractions based on mammosphere formation were 42.0% ± 0.6% for IR group versus 35.6% ± 1.9% for IR+HT group. In order to analyze quantitatively, the dose-response curves were fitted by LQ model. For IR, α is 0.08341, β is –0.0034, for IR+HT, α is 0.16175, β is –0.01079. The ratio of these two slopes is 1.94 (the ratio of these two slopes is 1.83 when fitted by the linear response), showing a considerable enhancement in cell killing with hyperthermia. In addition, IR+HT significantly decreased average mammosphere size compared with IR alone (the diameter is 81.4 ± 22.9 μm for IR+HT versus 122.6 ± 26.7 μm for IR alone) (Figure 3F). Together, these studies demonstrate that IR combined HT is more effective than radiation alone in reducing the self-renewal capacity of CSCs.

The addition of hyperthermia to radiation significantly reduced CSCs proliferation and viability

We next assessed the effect of hyperthermia on survival and proliferation in breast CSCs and pancreatic CSCs. As shown in Figure 4A, IR alone had no significant impact on cell number compared to control cells until 72 hours, on the contrary, HT alone significantly reduced survival fraction based on cell number compared with sham-treated cells (Figure 4A). However, treatment with combined IR and HT significantly reduced breast CSCs survival by additional 13% at 48 hours and 28% at 72 hours compared to HT alone respectively (Figure 4A). Additionally, a significant decrease in cell number at 72 hours was also observed in heated-irradiated pancreatic CSCs when compared to heated CSCs or irradiated CSCs (the relative viable cell number of HT alone and IR alone were 86.1% ± 8.3% and 84.2% ± 5.1% versus 64.4% ± 7.2% for IR+HT, P < 0.05, Figure 4B).

The addition of hyperthermia to radiation significantly reduced cell proliferation and viability in breast CSCs and pancreatic CSCs.

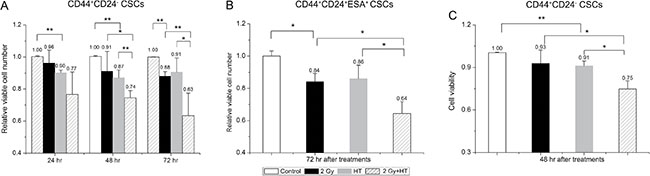

Figure 4: The addition of hyperthermia to radiation significantly reduced cell proliferation and viability in breast CSCs and pancreatic CSCs. (A) The surviving fraction of CD44+CD24 CSCs based on cell number counting at 24, 48, 72 hours after indicated treatments. (B) The surviving fraction of CD44+CD24+ESA+ CSCs based on cell number counting at 72 hours after indicated treatments. (C) The surviving fraction of CD44+CD24 CSCs based on cell viability was detected by CCK-8 at 48 hours post indicated treatments. The results are presented as the mean ± SD, as determined from three independent experiments. *P < 0.05, **P < 0.01.

To determine whether the reduction in cell number reflected changes in the cell viability, we assessed cell viability by CCK-8 kit after the indicated treatments. As shown in Figure 4C, compared with sham-treated cells, IR alone had no effect on cell viability while a significant decrease in cell viability was seen with HT alone treatment. However, IR+HT treatments further reduced cell viability significantly at 48 hours compared to HT alone. Together, the results demonstrate that HT combined with IR is more effective than IR alone in reducing the proliferation and viability of CSCs.

HT induced radiosensitization was associated with elevated intracellular ROS level in irradiated CSCs

CSCs in tumors contain lower ROS levels and enhanced ROS scavengers such as glutathione (GSH) compared to their non-tumorigenic progeny, which results in tumor radioresistance [10, 30]. To address whether modulating redox status played a critical role in HT-induced radiosensitization, we detected the intracellular ROS levels in CSCs after the indicated treatments. As shown in Figure 5A, intracellular ROS level increased significantly in all of the three treated groups compared to the control group. Additionally, a further 1.3-fold increase in ROS level was detected in treated with IR combined HT when compared to HT alone or IR alone (Figure 5A). It is suggested that the elevated intracellular ROS level associated with HT induced radiosensitization.

Figure 5:

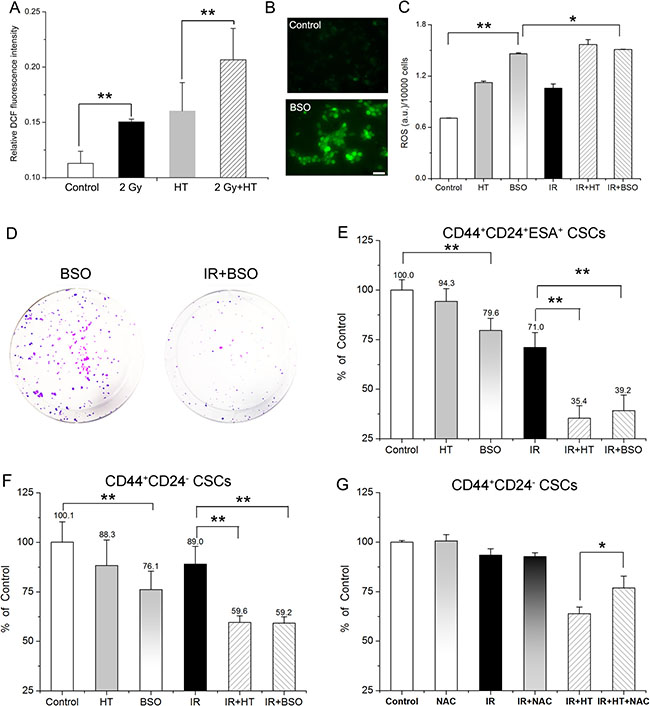

Figure 5: Association of elevated ROS level with HT induced radiosensitization in breast CSCs and pancreatic CSCs. (A) Intracellular ROS concentrations of CD44+CD24- CSCs in control, HT, 2 Gy and 2 Gy+HT treatment groups. No treated group as control. (B) Representative images of intracellular ROS concentrations in CD44+CD24 CSCs treated with or without 1 mM BSO for 24 hours. Bar = 50 μm. (C) Intracellular ROS concentrations of CD44+CD24 CSCs in the indicated treatment groups. (D) Representative images of colony formation in CD44+CD24+ESA+ CSCs at 14 days after treated with BSO (1 mM) or IR+BSO. (E) Colony survival of CD44+CD24+ESA+ CSCs treated with or without 1 mM BSO for 24 hours prior to the indicated treatments. Each data was normalized to that of the sham-treated control. (F) CD44+CD24 CSCs were cultured as mammospheres with or without 1 mM BSO for 24 hours prior to the indicated treatments. Mammosphere survival of each group was analyzed statistically. Each data was normalized to that of the sham-treated control. (G) CD44+CD24 CSCs after indicated treatments were cultured as mammospheres in presence or absence with 100 μM NAC. Post 7 days’ culturing, number of mammospheres per 2500 cells were counted and mammosphere survival of each group was analyzed statistically. Each data was normalized to that of the sham-treated control. The results are presented as the mean ± SD, as determined from three independent experiments. *P < 0.05, **P < 0.01.

Next, the association was further confirmed by modifying redox status in CSCs bidirectionally. On one hand, buthionine sulphoximine (BSO) increases intracellular ROS level by inhibiting glutamate-cysteine ligase [3132]. Presently, fluorescence analysis showed that the ROS formation of BSO treated CSCs was significantly higher than that of control (Figure 5B and 5C). Although BSO itself had significant impact on mammosphere and colony formation (Figure 5E and 5F), exposure to 1 mM BSO in CSCs leads to significant radiosensitization, showing significant increase in ROS formation (Figure 5C), remarkable decrease in colony formation (79.6% ± 6.1% for BSO versus 39.2% ± 7.9% for IR+BSO, Figure 5D and 5E) and mammosphere formation (76.1% ± 9.3% for BSO versus 59.2% ± 3.2% for IR+BSO, Figure 5F). Furthermore, no significant difference in mammosphere formation can be observed between HT alone and BSO treatment (P = 0.17, Figure 5F), suggesting BSO mimicked treatment with HT alone. Interestingly, there was no remarkable difference of ROS formation between IR+HT group and IR+BSO group (Figure 5C), suggesting that BSO mimicked HT induced radiosensitivity. Moreover, as shown in Figure 5E, both IR+BSO group and IR+HT group reduced colony formation by additional ~32% compared to IR group (39.2% ± 7.9% for IR+BSO and 35.4% ± 6.3% for IR+HT versus 71.0% ± 7.5% for IR). The similar extent (29%) of reducing mammosphere growth was also found in either IR+BSO group or IR+HT group compared with IR group (59.2% ± 3.2% for IR+BSO and 59.6% ± 3.4% for IR+HT versus 89.0% ± 9.0% for IR, Figure 5F), Collectively, the results indicated that BSO mimicked HT induced radiosensitivity. Additionally, the effect of HT treatments on antioxidant system in irradiated CSCs was investigated. As shown in Supplementary Figure 3, IR+HT treatment significantly reduced superoxide dismutase (SOD) activity by additional 27% when compared to IR alone, suggesting that the combined treatment resulted in stronger inhibition of the antioxidant activity than with IR alone.

On the other hand, N-acetylcysteine (NAC), an aminothiol and synthetic precursor of intracellular cysteine and GSH, is considered as an important antioxidant [33]. We then tested whether the addition of NAC can neutralize the ROS-induced toxicity for further diminishing the HT induced radiosensitivity in CSCs. As shown in Figure 5G, 100 μM NAC significantly rescued HT induced radiosensitivity, showing increased cell survival (63.9% ± 3.2% in IR+HT group versus 76.8% ± 5.9% in IR+HT+NAC group, P < 0.05). Moreover, compared to IR+HT group, mammosphere size of IR+HT+NAC group was significantly increased, almost to the level of the control group (84.1 ± 22.9 μm in IR+HT group versus 132.2 ± 25.2 μm in IR+HT+NAC group, P < 0.01, Supplementary Figure 4). Moreover, significant difference was also found between IR+HT+NAC group and IR+NAC group (Figure 5G, P < 0.05). The data demonstrated that NAC can partly but significantly rescued HT induced radiosensitivity. Collectively, these results further demonstrated the association of ROS with HT induced radiosensitivity in CSCs.

DISCUSSION

Many Phase III clinical trials show the combination of HT with IR result in higher response rates, accompanied with improved local tumor control rates, better palliative effects, and/or better overall survival rates [3436]. Our study determined that human breast CSCs and pancreatic CSCs can be radiosensitized significantly by HT treatment, showing significant decrease in self-renewal (Figure 3) as well as cell survival and viability both in vitro (Figure 4) and in vivo (Table 2). Since CSCs are suggested to be the major cause of tumor radio-resistance, dormancy and recurrence after radiotherapy, understanding the mechanism(s) of radiosensitizing CSCs are therefore of fundamental importance. Previous reports suggested that IR+HT may prevent the efficient DNA damage repair in breast CSCs [21], reduce AKT activation and impair proliferation in glioma stem-like cells [22]. In this study, we found HT induced radiosensitization was associated with increased intracellular ROS level in IR+HT treated CSCs (Figure 5). The association was further confirmed bidirectionally under different redox status in CSCs through adding BSO or NAC (Figure 5D5G).

How does HT treatment result in elevated intracellular ROS level in CSCs? We found that CSCs contained lower ROS level than non-CSCs. This can be achieved by upregulation of free radical scavenger, downregulation of ROS-producing enzymes, reduced mitochondrial mass and low oxygen consumption [10, 37]. Actually, previous studies reported that hyperthermia can not only increase generation of mitochondrial superoxide anion levels [38] and H2O2 [39], but also inhibit mitochondrial antioxidant system such as SOD (also illustrated in Supplementary Figure 3) [4041] and GSH [4243], which may contribute to increase ROS levels in CSCs.

How does HT-induced elevated intracellular ROS level radiosensitize CSCs? On one hand, elevated ROS level may disturb self-renewal of CSCs. As shown in Figure 3, IR+HT treatment significantly decreased colony formation, mammosphere number as well as mammosphere size compared to IR alone, indicating attenuated self-renewal capacity. Atsushi et al. found that elevated intracellular ROS level promoted the loss of self-renewal and the differentiation of glioma-initiating cells via ROS-dependent activation of p38 MAPK [44]. McCord et al. suggested that hypoxia induces the expression of genes related to stem cell function such as Sox2 and Oct4 [45], indicating the link between intracellular ROS level and cancer stemness.

On the other hand, HT-induced elevated intracellular ROS level may also disturb the process of DNA damage and/or repair in CSCs under IR treatment. Since ROS is a critical mediator in ionizing radiation-induced cell eliminating [4647], CSCs developed less DNA damage compared to non-CSCs [10, 48]. Additionally, CSCs were suggested to preferentially activate DNA damage checkpoints and repair DNA damage more efficiently than non-CSCs [6]. However, excess ROS could result in DNA-protein cross-linkage and damage to the DNA repair system [49]. Laszlo and Fleischer determined that heat induces perturbations of DNA damage signaling pathways [50]. Together, it is likely that increasing ROS to a threshold that is incompatible with cell viability and targeting the enhanced antioxidant mechanisms could contribute to eliminate CSCs effectively.

In summary, our results suggested that the association of elevated intracellular ROS level and HT induced radiosensitivity in human breast CSCs and pancreatic CSCs. Notably, ROS is a critical mediator in ionizing radiation-induced cell killing [4647], involving in cell proliferation, survival, motility, angiogenesis and maintenance of tumor stemness [51], a redox-modulating strategy such as HT in combination with conventional radiotherapy may be an attractive approach to improve therapeutic outcomes.

MATERIALS AND METHODS

Cell culture

Human breast cancer cell line MCF7 was purchased from American Type Culture Collection. Human pancreatic cancer cell line L3.6pl was kindly provided by Dr Heeschen (Spanish National Cancer Research Centre). Cells were cultured in DMEM high glucose medium with 10% fetal calf serum. Isolated CSCs were cultured in plates precoated with 1% geltrex or as mammospheres with DMEM/F12 containing N2, B27, 10 ng/ml bFGF and 20 ng/ml EGF as described previously [23, 48, 52].

Prospective isolation of putative CSCs

Cells were trypsinized into single cell suspension and were counted. For staining, samples were usually incubated with antibodies for 30 minutes at 4°C. Unbound antibody was washed off and cells were sorted by flow cytometry no longer than 30 min post staining on a BD Aria III. In order to isolate breast CSCs, the antibodies used were anti-CD44 PE and anti-CD24 FITC (BD Pharmingen). The purity of isolated breast CSCs was determined by standard flow cytometry analysis. The purity of isolated CD44+CD24 CSCs regularly exceeded 98%. As for sorting pancreatic CSCs, cells were stained with APC-labeled CD44 antibodies and PE-labeled CD24 antibodies (BD Pharmingen), as well as BV421-labeled ESA antibodies (Biolegend). The triple positive (CD44+CD24+ESA+) cells and L3.6pl were reanalyzed by flow cytometry analysis using PE-labeled Sox2 antibodies (Biolegend). In sorted cell implantation experiments, CSCs were isolated using APC-labeled antibody against human CD133 (Miltenyi Biotech).

Cell treatments

For HT treatment, cells were incubated in a 43°C humidified incubator, 5% CO2. For IR+HT treatments, the same HT treatment procedure was performed immediately after irradiation. The optimal duration of heating was 1.5 hours for pancreatic CSCs and 2 hours for breast CSCs. For irradiation, cells were irradiated by γ-rays from a 2.6 × 105 Curie 60Co source at Peking University with total dose of 0, 1, 2, 3, 4, 6, 8, 9 and 12 Gy (dose rate 0.94 Gy/min). BSO and NAC were purchased from Sigma. For BSO treatment, there were two groups of cells. One group was pretreated with 1mM BSO for 24 hours and the other one was as the BSO negative group. Then, both two groups were treated with or without IR, HT or IR+HT. After treatment, all groups were cultured as described in Mammosphere formation assay or in Clonogenic assay. For NAC treatment, cells were non-treated or treated with IR, HT or IR+HT. Then, half of each group was cultured as mammospheres in medium contained with 100 μM NAC for 7 days. The remaining half was as the corresponding negative comparison of each group.

Mammosphere formation assay

Mammosphere formation assay was performed as described previously [5]. In brief, either 2500 cells/well or 1000 cells/well was grown in 24-well low-attachment plates. After 7 days, all mammospheres in each well were assessed via bright-field microscopy (Zeiss). Mammospheres were imaged and analyzed with ImageJ software to obtain the diameters. The mammospheres which diameter was larger than 50 μm were counted. Three independent experiments were performed.

ROS assay

Intracellular ROS was assayed as described previously [10]. In brief, cells at confluency were incubated with 2 μM CM-H2DCFDA (Invitrogen) and treated with HT, IR, or IR+HT. After treatments in the indicated groups, ROS concentration was detected immediately using a fluorescence reader (Varioskan flash, Thermo scientific). In other experiments, cells were pretreated with 1 mM BSO for 24 hours, and then incubated with 2 μM CM-H2DCFDA. The fluorescence was measured in a fluorescence plate reader and was imaged by fluorescence microscopy (Zeiss). Three independent experiments were performed.

Cell viability

Cell viability was assayed using cell counting kit-8 (CCK-8, DOJINDO) according to the manufacturer’s instructions. For cell number analysis, cells were fixed (4% paraformaldehyde) and stained with Hochest33342 (Dojindo Molecular Technologies, Inc) at 24, 48 and 72 hours after treatments, and then imaged as described previously [21]. Three independent experiments were performed.

Colony forming assay

Clonogenic assays were performed immediately after treatments by plating cells into triplicate 6-well cell culture plates. After 14 days, cells were fixed with 4% paraformaldehyde and stained with 1% crystal violet, and colonies containing more than 50 cells were counted. Three independent experiments were performed.

Sorted cell implantation into BALB/c nude mice

Sorted cells (CD133+ versus CD133-) were washed with serum-free HBSS after flow cytometry and suspended in serum free-DF12/Matrigel mixture (1:1 volume) followed by injection s.c. into the right and left armpit using a 26-gauge needle (n ≥ 5 animals per group). Cell number of each injection was 500, 1000 or 5000. Animals underwent autopsy at 40 days after cell implantation. In other experiments, 5000 CD133+ cells were non-treated or treated with IR, HT (43°C for 1.5 hours) or IR+HT. Then the former two groups were injected s.c.into the right and left armpit of the same mice. The rest two groups were injected s.c.into another mice (n = 6 animals per group). All animal studies and protocols were approved by the Peking University Animal Care committee according to Peking University animal use guidelines.

Determination of intracellular SOD activity

After the indicated treatments, total SOD activities of the samples was determined using the Total Superoxide Dismutase Assay Kit with WST-8 (Beyotime Institute of Biotechnology, Jiangsu, China) based on the protocols provided by the manufacturer.

Statistical analysis

The results were presented as mean ± SD. Significance was assessed using Student’s t-test and chi-square analysis, where appropriate, and defined as P < 0.05 or P < 0.01 (extremely significant difference).

ACKNOWLEDGMENTS AND FUNDING

We thank Professor Jianguo Chen (School of Life Sciences, Peking University) for helpful discussion. We thank Jiuqiang Li and Deliang Sun (College of Chemistry and Molecular Engineering, Peking University) for the help of irradiations and also thank Zhonglin Fu and Xuefang Zhang (School of Life Sciences, Peking University) for the help of flow cytometry. We also thank Dong Cao (Peking University Laboratory Animal Center) for the help of animal experiments. This work was supported by the National Natural Science Foundation of China (Grant No. 11434001, 11472313, 11705289) and the National Grand Instrument Program of China (2012YQ030142).

CONFLICTS OF INTEREST

No potential conflicts of interest were disclosed.
