Discovery and evaluation of triple inhibitors of VEGFR-2, TIE-2 and EphB4 as anti-angiogenic and anti-cancer agents

PDF |  HTML  |  Supplementary Files  |  How to cite  |  Order a Reprint

Oncotarget. 2017; 8:104745-104760. https://doi.org/10.18632/oncotarget.20065

Metrics: PDF 617 views  |   HTML 1546 views  |   ?

Lin Zhang, Yuanyuan Shan, Xingyue Ji, Mengyuan Zhu, Chuansheng Li, Ying Sun, Ru Si, Xiaoyan Pan, Jinfeng Wang, Weina Ma, Bingling Dai, Binghe Wang and Jie Zhang _

Abstract

Lin Zhang1,*, Yuanyuan Shan2,*, Xingyue Ji3, Mengyuan Zhu3, Chuansheng Li1, Ying Sun1, Ru Si1, Xiaoyan Pan1, Jinfeng Wang1, Weina Ma1, Bingling Dai1, Binghe Wang3 and Jie Zhang1

1 School of Pharmacy, Health Science Center, Xi’an Jiaotong University, Xi’an, China

2 Department of Pharmacy, The First Affiliated Hospital of Xi’an Jiaotong University, Xi’an, Shaanxi, China

3 Department of Chemistry and Center for Diagnostics and Therapeutics, Georgia State University, Atlanta, Georgia, United States

* These authors contributed equally to this work and should be regarded as joint first authors

Correspondence to:

Jie Zhang, email:

Binghe Wang, email:

Keywords: receptor tyrosine kinase, multiple inhibitors, anti-angiogenic agents, anti-cancer agents, quinazolin-4(3H)-one

Received: June 15, 2017 Accepted: July 30, 2017 Published: August 08, 2017

Abstract

Receptor tyrosine kinases (RTKs), especially VEGFR-2, TIE-2, and EphB4, play a crucial role in both angiogenesis and tumorigenesis. Moreover, complexity and heterogeneity of angiogenesis make it difficult to treat such pathological traits with single-target agents. Herein, we developed two classes of multi-target RTK inhibitors (RTKIs) based on the highly conserved ATP-binding pocket of VEGFR-2/TIE-2/EphB4, using previously reported BPS-7 as a lead compound. These multi-target RTKIs exhibited considerable potential as novel anti-angiogenic and anticancer agents. Among them, QDAU5 displayed the most promising potency and selectivity. It significantly suppressed viability of EA.hy926 and proliferation of several cancer cells. Further investigations indicated that QDAU5 showed high affinity to VEGFR-2 and reduced the phosphorylation of VEGFR-2. We identified QDAU5 as a potent multiple RTKs inhibitor exhibiting prominent anti-angiogenic and anticancer potency both in vitro and in vivo. Moreover, quinazolin-4(3H)-one has been identified as an excellent hinge binding moiety for multi-target inhibitors of angiogenic VEGFR-2, Tie-2, and EphB4.


INTRODUCTION

Pathological angiogenesis is widely involved in tumor progression and has been recognized as a defining characteristic of cancers [1]. Solid tumor growth depends on the vascular vessels to supply oxygen and nutrients and its progression is accompanied with rich angiogenesis [2]. The understanding of angiogenesis has given rise to novel treatment options for cancers. Anti-angiogenic agents are effective in suppressing tumor growth and metastasis [3]. Cancer cells secrete various pro-angiogenic factors such as vascular endothelial growth factors (VEGFs) and its receptor (VEGF Receptor-2, VEGFR-2), angiopoietin (Ang) and its receptor (tyrosine kinase with Ig and epidermal growth factor homology domain-2, Tie-2), erythropoietin-producing hepatoma receptor B4 (EphB4) and its membrane-associated ligand, ephrinB2 [4-6]. However, it is a known fact that many anti-angiogenic agents have failed in the clinic trials. Recently, mounting evidence indicates that tumors become refractory or even bypass the inhibition of a single pro-angiogenic factor via compensatory activation of alternative pro-angiogenic factors [7]. Therefore, systemic characterization of compensatory activation profile constitutes critical steps towards a rational design of multi-target anti-angiogenesis agents. Thus, we undertook the effort to design inhibitors capable of inhibiting multiple targets critical for angiogenesis.

DESIGN STRATEGY OF MULTI-TARGET RTK INHIBITORS

We are interested in the discovery of novel anti-angiogenesis agents. Along this line, structural optimization of natural alkaloid taspine afforded a salicylaldoxime including BPS-7 as potent VEGFR-2 inhibitors (Figure 1D) [8-10]. Very importantly, BPS-7 displayed potent inhibition against angiogenic EphB4 and Tie-2 [11]. These findings encouraged us to develop novel triple inhibitors of VEGFR-2/TIE-2/EphB4 as anti-angiogenic and anticancer agents. Moreover, structural similarity and the highly conserved conformations of VEGFR-2, Tie-2, and EphB4 offer the possibility of designing multi-target inhibitors [12]. The highly conserved aspartate-phenylalanine-glycine (DFG-motif) triad activation loop is essential for kinase activity [13]. Moreover, there is a substantial degree of compensatory activation among three RTKs [14-18]. Therefore, simultaneous inhibition of them might be a promising approach for the suppression of angiogenesis. This kind of multiple RTKIs have a major advantage of overcoming the compensatory feedback of the single-target angiogenesis inhibitors. The three angiogenic RTKs share a basic architecture for construction (Figure 1A-1C), namely hydrogen bonds with the hinge region, hydrophobic interactions with the gatekeeper region, hydrogen bonds with the conserved Glu and DFG motifs and hydrophobic interactions with the allosteric site [19].

Structures of the active sites of three RTKs bound with co-crystalized inhibitors.

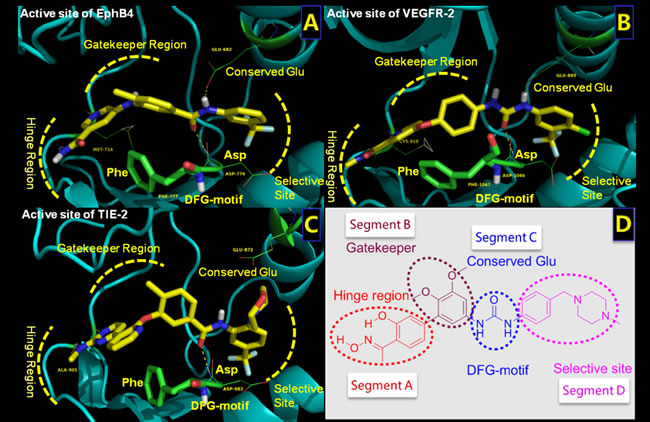

Figure 1: Structures of the active sites of three RTKs bound with co-crystalized inhibitors. A. Structure of EphB4 complexed with 32W (PDB ID: 4BB4). B. Structure of VEGFR-2 bound with sorafenib (PDB ID: 4ASD). C. Structure of Tie-2 complexed with MR9 (PDB ID: 2P4I). D. Structure and pharmacophore of lead compound (BPS-7). Critical elements of inhibitor interaction are labeled and highlighted.

Previously, diaryl urea compound BPS-7 was identified as privileged scaffold. Our continuous efforts focused on the development of novel anti-angiogenic agents based on the binding mode of BPS-7 to RTKs. In doing so, we dissected the lead into four regions for optimization work (Figure 2). First, we explored various heteroaromatics as hinge binding group (HBG) via core-refining approach. Pyridine and quinazolin-4(3H)-one were introduced as new HBG. We reasoned that it is possible that these groups could form hydrogen bonds with RTKs and therefore provide an opportunity to improve affinity. Second, the two methoxyl groups on biphenyl of BPS-7 were removed to reduce the steric hindrance in binding with the respective receptor. Third, inspired by the classic bioisosteric paradigm, urea moiety was replaced with thiourea which bears hydrogen bond donors and acceptors. Fourth, various anilines bearing halogen were incorporated as they are beneficial for antitumor potency and could enhance the persistence [20]. In addition, other anilines containing tert-butyl or benzo[d] [1,3]dioxole were also incorporated as fragments interacting with selective site of RTKs.

These two series of compounds were synthesized, and evaluated for their ability to inhibit RTKs, and then subsequently for their anti-angiogenic and anticancer properties. The representative QDAU5 bearing a quinazolin-4(3H)-one moiety displayed prominent anti-angiogenic and anticancer potency both in vitro and in vivo.

Design strategy and structures of novel multi-target anti-angiogenesis agents derived from BPS-7.

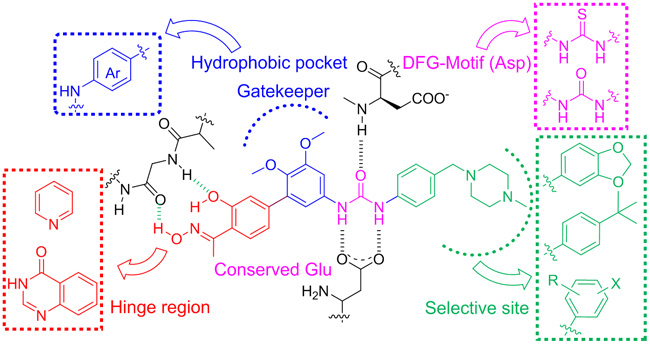

Figure 2: Design strategy and structures of novel multi-target anti-angiogenesis agents derived from BPS-7.

RESULTS AND DISCUSSION

Chemistry

Scheme 1 depicts the synthesis of diaryl thiourea derivatives DATU1-10. Various commercial available anilines 1 were treated with CS2 to generate 2, which was treated with bis(trichloromethyl)carbonate (BTC) to afford isothiocyanates 3. The key intermediate 6 was prepared from 3-pyridinylboronic acid 4 and para-bromoaniline 5 by Pd-catalyzed Suzuki coupling reaction without further purification. Finally, these isothiocyanates 3 were reacted with biphenyl intermediates 6 to afford the title compounds DATU1-10.

Scheme 1: Synthesis of diaryl thiourea derivatives DATU1-10

Scheme 1: Synthesis of diaryl thiourea derivatives DATU1-10a. aReagents and conditions: (a) Dabco, CS2, toluene; (b) BTC, DCM; (c) Pd(PPh3)4, K2CO3, dioxane, 100°C; (d) DCM, room temperature.

The synthetic route of quinazolinone diaryl urea derivatives QDAU1-10 is shown in Scheme 2. 2-Amino-5-bromobenzoicacid 7 was converted to intermediate 8 by cyclization with formamide under atmospheric microwave heating at 150°C. The coupling substrates 10 were obtained by condensation of amino-boronate 9 with various isocyanates, which were prepared from reaction of anilines with BTC. Subsequently, the title commands QDAU1-10 were prepared from the key intermediates 8 and 10 by Suzuki coupling reaction  (See Supplementary Materials).

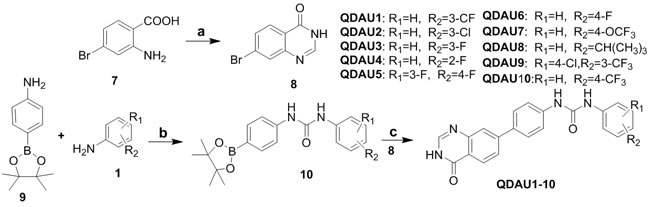

Scheme 2: Synthesis of quinazolinone diaryl urea derivatives QDAU1-10

Scheme 2: Synthesis of quinazolinone diaryl urea derivatives QDAU1-10a. aReagents and conditions: (a) HCONH2, MW, 150°C,1.5h; (b) BTC, Et3N, 0°C to room temperature; (c) Pd(PPh3)4, K2CO3, H2O/dioxane, 100°C.

Biological evaluation

The three targeted RTKs are involved in both angiogenesis and tumorigenesis [21]. With the aim of developing anti-angiogenic and anticancer agents, we firstly evaluated the title compounds for their inhibitory effect and selectivity among various RTKs. Subsequently, in order to validate the dual function of the title compounds, their inhibition on viability of human endothelial cells (HECs, EA.hy926) was examined to examine the anti-angiogenic potency. In addition, their binding affinity to angiogenic RTKs and anticancer potency were also studied in different models. A marketed multi-target RTK inhibitor, sorafenib, was used as positive control.

In Vitro receptor tyrosine kinases inhibition assay

In order to validate the direct effect of title compounds on VEGFR-2, Tie-2, and EphB4 kinases, we performed in vitro assay using the ADP-Glo Kinase Assay Kit (Promega, Wisconsin, USA). In analyzing the inhibition data, we first look at the implications of replacement with thiourea and the hinge binding group of BPS-7. Meanwhile, pyridine was introduced as hinge binding groups (Table 1). It was obvious that compounds with di-halogen substituents (DATU6-8) were more potent than the others. DATU6 displayed the most potent RTKs inhibitory activities with IC50 values of 23.5 nM (VEGFR-2), 66.5nM (Tie-2), and 3.86 nM (EphB4), respectively.

Encouraged by the promising potency of diaryl ureas, we chose to continue our structural optimization by keeping urea unit constant. Quinazolin-4(3H)-one was incorporated onto diaryl urea core as a novel hinge binding group of multi-target inhibitors (Table 2). Three title compounds (QDAU4, QDAU5, QDAU9) displayed simultaneous inhibitory potency against VEGFR-2, Tie-2, and EphB4. In particular, QDAU5 bearing a 3,4-difluoroanilinegroup was the most potent multi-target RTKs inhibitors with IC50 values of 0.77 nM (VEGFR-2), 8.87 nM (Tie-2), and 3.21 nM (EphB4), respectively. The results highlight the importance of the quinazolin-4(3H)-one moiety for improving the inhibition of these multiple inhibitors. This study identified that quinazolin-4(3H)-one was an excellent hinge binding group for multi-target inhibitors of VEGFR-2, Tie-2, and EphB4.

Table 1: Structures and RTKs inhibitory activities of title compounds (DATU1-10, IC50, nM)

Compound

R1

R2

VEGFR-2

TIE-2

EphB4

DATU1

3-CF3

5-Br

20.6

25.7

20.0

DATU2

2-OCF3

4- Br

>500

64.2

>500

DATU3

2- Br

4-OCF3

>500

20.0

21.8

DATU4

2-OCF3

5-Br

>500

>500

18.7

DATU5

2-Br

5-OCF3

>500

>500

54.2

DATU6

2-Cl

4-Cl

23.5

66.5

3.86

DATU7

3-F

4-F

45.2

48.4

10.0

DATU8

3-Cl

4-Cl

354

9.40

>500

DATU9

3-CF3

5-CF3

>500

>500

>500

DATU10

Image1247198.EPS

20.40

>500

>500

Sorafenib

0.55

4.65

3.00

Table 2: Structures and RTKs inhibitory activities of title compounds (QDAU1-10, IC50, nM)

Compound

R1

R2

VEGFR-2

Tie-2

EphB4

QDAU1

H

3-CF3

194

70.5

>500

QDAU2

H

3-Cl

57.9

83.9

>500

QDAU3

H

3-F

>500

90.7

5.64

QDAU4

H

2-F

1.91

4.91

13.9

QDAU5

3-F

4-F

0.77

8.87

3.21

QDAU6

H

4-F

6.28

101

>500

QDAU7

H

4-OCF3

>500

258

>500

QDAU8

H

-CH(CH3)2

41.5

>500

>500

QDAU9

4-Cl

3-CF3

15.8

19.6

24.4

QDAU10

H

4-CF3

50.7

52.7

>500

Sorafenib





0.55

4.65

3.00

Kinase selectivity assays

We investigated the kinase selectivity of the two most potent compounds (QDAU4, QDAU5) against other seven kinases including VEGFR-1, VEGFR-3, FGFR-1, FGFR-4, B-Raf, EGFR and c-Kit for its selective profile. The results were summarized in Table 3. The results revealed that they showed less potency against these RTKs compared with VEGFR-2, TIE-2, and EphB4 with IC50 values higher than 50 nM. It was indicated that they exhibited moderate selectivity for VEGFR-2/TIE-2/EphB4 relative to other RTKs.

Table 3: RTKs selectivity profile of the most active compounds (IC50, nM)

Compound

VEGFR-1

PDGFR-β

FGFR-1

FGFR-4

B-Raf

EGFR

c-Kit

QDAU4

68.3

>500

165.9

83.4

136

113

>500

QDAU5

192

98.5

176.2

>500

>500

98.8

142

Effects on the viability of human endothelial cells (HECs)

In order to determine the anti-angiogenic effect of these multi-target inhibitors, we evaluated their effect on HECs (EA.hy926) viability using cell counting kit-8 (CCK-8) method [22]. Highly consistent with their potent RTKs inhibitory activity, the majority of the selected compounds displayed dose-dependent inhibition of EA.hy926 viability with IC50 values ranging from 4.00 μM to 255 μM (Table 4). Notably, three compounds (DATU1, QDAU4, and QDAU5) exhibited more potent inhibition on the viability of HECs than the others with IC50 values less than 10 μM. These results demonstrated that these compounds could display anti-angiogenic potency through decreasing viability of HECs (EA.hy926). In addition, we profiled the most potent compound, QDAU5, in the anti-proliferative assays against human normal cells. We identified the cytotoxicity of QDAU5 on normal human liver cells (QSG7701) and human embryonic kidney 293 (HEK293). In summary, the results indicated that QDAU5 displayed selective growth inhibition of EA.hy 926 over two human normal cells (IC50 values > 100 μM). From this we might conclude that the representative QDAU5 exhibit selective growth inhibitory activity against HECs compared to normal human cell lines.

Table 4: Inhibition of compounds on human endothelial cell viability (IC50, μM)

Compound

EA.hy926

Compound

EA.hy926

Compound

EA.hy926

DATU1

3.96

DATU8

102

QDAU5

2.69

DATU2

89.9

DATU9

166

QDAU6

255

DATU3

122

DATU10

90.6

QDAU7

68.5

DATU4

44.8

QDAU1

57.9

QDAU8

76.2

DATU5

246

QDAU2

66.3

QDAU9

13.0

DATU6

24.4

QDAU3

42.6

QDAU10

125

DATU7

96.4

QDAU4

8.64

Sorafenib

16.5

Apoptosis detection assay

To further investigate the effect of QDAU5 on the apoptosis of HECs (EA.hy926), we performed flow cytometry analysis and apoptosis detection assays. A substantial and dose-dependent proapoptotic activity in HECs at various concentrations for 48 h was observed. The apoptotic EA.hy926 cells (10.35%) of negative control group were depicted in Figure 3A. After treatment with QDAU5 (5, 20, and 40 nM) for 48 h, the percentage of early apoptotic cells was 19.55%, 28.35%, 31.43%, respectively (Figure 3B-3D). The results indicate that QDAU5 could induce early apoptosis of HECs (EA.hy926) in a dose dependent manner.

Apoptosis detection assays of EA.hy 926 cells after treatment with QDAU5 (A, 0 nM; B, 5 nM; C, 20 nM; D 40 nM).

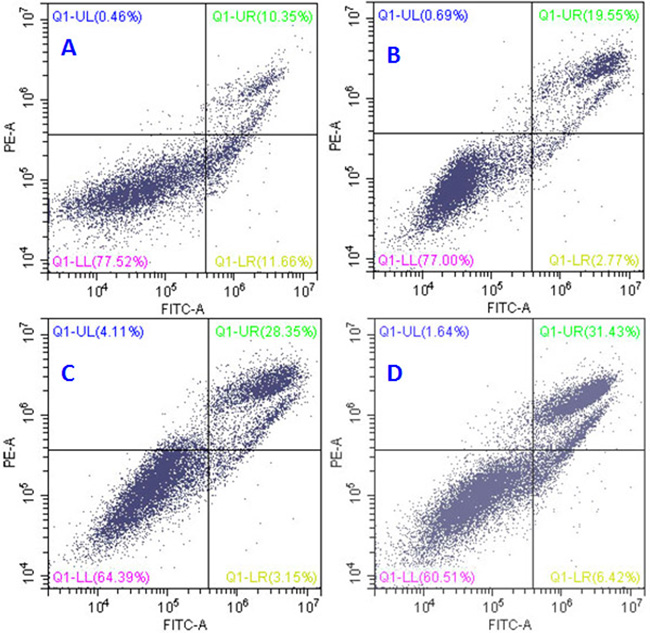

Figure 3: Apoptosis detection assays of EA.hy 926 cells after treatment with QDAU5 (A, 0 nM; B, 5 nM; C, 20 nM; D 40 nM).

Anti-proliferative activity against cancer cells

These RTKs play critical roles in the proliferation of various cancers. Therefore, RTKs inhibition generally translate well into anti-proliferation activity. In this regard, in order to investigate the potential anticancer potency of these multi-target RTKs inhibitors, the most potent inhibitor, QDAU5, was selected to examine its anti-proliferative activity against a panel of cancer cell lines including human hepatic cancer cell lines (7721), human breast cancer cell lines (MCF-7), human pancreatic cancerous cell lines (PANC-1), human epidermoid carcinoma cell line (A431), human lung cancer cell (A549), human colon carcinoma cell line (LOVO), and human cervical cancer cell line (HeLa). QDAU5 was found to significantly inhibit the growth of all seven cancer cell lines with IC50 values ranging from 2.12 μM to 24.9 μM (Table 5). In summary, QDAU5 displayed significant anti-proliferative activity against a broad spectrum of cancer cell lines. In addition, we identified the cytotoxicity of QDAU5 on two normal cell lines (QSG7701 and HEK293). Overall, the results indicated that QDAU5 exhibited selective growth inhibition of human cancer cell lines over two human normal cells (IC50 values > 100 μM). From this we might conclude that the representative QDAU5 displayed selective growth inhibitory potency against all eight human cancer cell lines compared to normal human cell lines.

Table 5: Anti-proliferative activity of QDAU5 against human cancer and normal cells (IC50, μM)

Cell line

7721

MCF-7

PANC-1

A431

A549

LOVO

HeLa

QSG7701

HEK293

QDAU5

58.7

2.12

24.9

16.9

8.37

4.99

5.56

>100

>100

Because of it potent inhibition of RTKs and anti-proliferative activity, QDAU5 was further evaluated for its in vivo anticancer properties in a MCF-7 xenograft mice model [23]. QDAU5 treatment was initiated when tumors were palpable and continued for 21 days. In the MCF-7 xenograft model, QDAU5 could cause a significant reduction of tumor weight in a dose dependent manner (Table 6). Compared with the control group, QDAU5 inhibited tumor growth by 24% and 47% at 40 mg/kg and 80 mg/kg, respectively. Moreover, less body weight loss and no other abnormities were observed in the QDAU5-treated mice compared with controls. Such results indicate that QDAU5 is non-toxic at the doses used. It can be concluded that QDAU5 exhibited active anticancer activity with little signs of toxicity.

Table 6: Anticancer potency of QDAU5 in mouse xenograft models

Treatment

Route

Dose (mg/kg)

Initial body weight (g)

Final body weight (g)

Final tumor weight (g)

Tumor growth inhibition (%)

Control

ig

0

17.7±0.7

16.6±0.8

0.848±0.5

/

QDAU5

ig

20

18.7±0.8

17.4±1.0

0.787±0.7

7.2%

ig

40

18.4±0.6

18.9±1.2

0.642±0.8

24%

ig

80

18.3±0.7

16.1±1.0

0.449±0.9

47%

Sorafenib

ig

40

19.5±0.9

16.8±0.9

0.398±0.8

53%

Identification of QDAU5 binding to VEGFR-2 by cell membrane chromatography method

The cell membrane chromatography (CMC) method has been developed as a new bioaffinity chromatographic system and been widely used to identify potent RTK inhibitors [24]. In previous studies, artificial cultures highly expressing VEGFR-2 on HEK293 cell lines were constructed. A novel analytical method coupling high-expression VEGFR-2/CMC with high performance liquid chromatography model was applied to identify ligands acting on VEGFR-2 specifically, and investigate the affinity of QDAU5 to VEGFR-2 [25]. The elution profiles of five multi-target RTKs inhibitors (cabozantinib, vandetanib, sunitinib, regorafenib and sorafenib) and QDAU5 on the high-expression VEGFR-2/CMC model are shown in Figure 4. It was found that the retention times of the inhibitors and QDAU5 were very different from each other. QDAU5 showed a longer retention time of 38 min while the retention time of the potent VEGFR-2 inhibitors, regorafenib and sorafenib, were both 11 min. One can reasonable assume that the retention on the VEGFR-2/CMC model is largely dependent on binding with VEGFR-2. In addition, the retention behavior of QDAU5 on the VEGFR-2/CMC column indicate that QDAU5 exhibited higher affinity than these multi-target inhibitors when binding toVEGFR-2.

Table 7: Different residues of three RTKs (VEGFR-2, Tie-2, EphB4)

Different residues of three proteins

Index in VEGFR-2

VEGFR-2

Tie-2

EphB4

892

I

L

F

916

V

I

T

919

C

A

M

1045

C

A

S

Elution profiles of cabozantinib (RT=2.6 min).

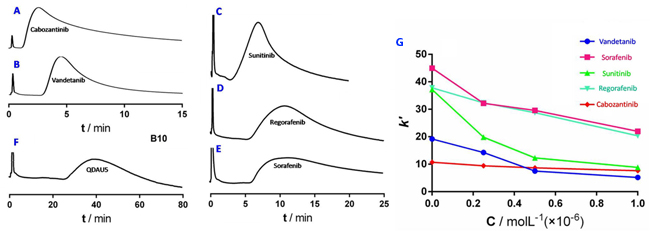

Figure 4: Elution profiles of cabozantinib (RT=2.6 min). A., vandetanib (RT=4.5 min) B., sunitinib (RT=6.8 min) C., regorafenib (RT=10.6 min) D., sorafenib (RT=11.4 min) E. and QDAU5 (RT=38.0 min) F. on the VEGFR-2/cell membrane stationary phase column. Chromatographic conditions: 10 mm×2.0 mm; flow rate0.6 mL/min; column temperature 37°C; mobile phase 5 mM PBS, pH 7.4; detection wavelength 270 nm. G. Change in retention factors of multi-target RTK inhibitors (K’) in the presence of QDAU5 with increased concentrations as direct competitor in the mobile phase.

In the direct competitive assay, five multi-target RTKIs and QDAU5 were used as competitors to examine the competition between known inhibitors and QDAU5 when binding with VEGFR-2 [26]. Figure 4G shows the change in retention factors of multi-target RTKs inhibitors (K‘) in the presence of QDAU5 at different concentrations as a direct competitor in the mobile phase. Decreased K’ values of multi-target RTKs inhibitors was observed with increasing concentrations of QDAU5 in the mobile phase. The displacement studies indicated that QDAU5 interacted with the same site of VEGFR-2 with that of the five multi-target RTKIs.

We further evaluated the effect of representative QDAU5 on the expression level and phosphorylation of VEGFR-2 in HECs using western blot assay. EA.hy926 cells were treated with QDAU5 for 48 h followed by 50 ng/mL VEGF stimulation for 10 min. It was found that QDAU5 dose-dependently decreased VEGF-induced tyrosine phosphorylation of VEGFR-2 in EA.hy926 cells compared with the negative control group (Figure 5). In addition, it moderately reduced the level of VEGFR-2 in VEGF-stimulated EA.hy926 cells. Our findings suggested that the influence of QDAU5 on cell viability of EA.hy926 might be attributed to the inhibition of phosphorylation of VEGFR-2.These results suggested that QDAU5 might exhibit anti-angiogenic and anti-cancer potency by inhibiting VEGFR-2 activation.

Effect of QDAU5 on the level and phosphorylation of VEGFR-2 in EA.hy926 cells.

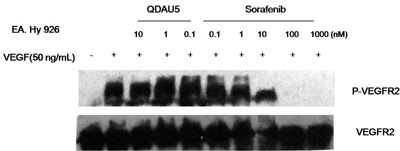

Figure 5: Effect of QDAU5 on the level and phosphorylation of VEGFR-2 in EA.hy926 cells.

To gain a better understanding of its interaction with RTKs, molecular docking was conducted with the crystal structure of VEGFR-2. Besides, the different residues of three proteins were picked out for further analysis (Table 7). As we can see in Figure 6, QDAU-5 forms hydrogen bonding interactions with the side chain of the conserved Glu885 and the backbone of Cys979. For the four different residues, because it is the backbone of Cys979 to interact with the inhibitor, its side chain does not affect much. Second, the closet distances between inhibitor and Ile 892, Val 916 and Cys1045 are 3.5Å, 3.8Å and 2.8Å, respectively, so they don’t greatly change the pocket. Our docking result may explain why QDAU5 shows activities on all three proteins.

Docked molecule QDAU5 (yellow sticks) and residues within 4Å in the crystal structure of VEGFR-2.

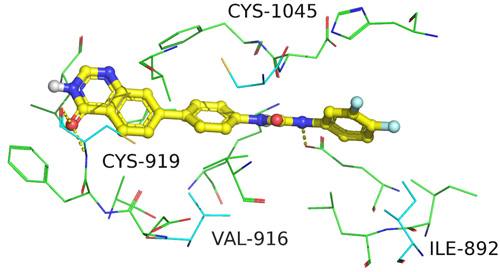

Figure 6: Docked molecule QDAU5 (yellow sticks) and residues within 4Å in the crystal structure of VEGFR-2. Residues that are same or in the same classes are colored in green while different residues are colored in cyan.

MATERIALS AND METHODS

Biological evaluation

In vitro angiogenic RTKs inhibition assays

The in vitro RTK inhibition assays against VEGFR-2, TIE-2, and EphB4 of all the title compounds were detected using the ADP-Glo™ kinase assay kit (Promega, Madison) with sorafenib as a positive control. The kinase assay was performed in a reaction mixture of final volume of 10 μL. General procedures are as the following: for VEGFR-2 assays, the tyrosine kinase (0.6 ng/mL) were incubated with substrates (0.2 mg/mL), test title compounds (1.2×10-4~12μM) and ATP (50 μM) in a final buffer of Tris 40 mM, MgCl2 10 mM, BSA 0.1 mg/mL, DTT 1 mM in 384-well plate with the total volume of 5 μL. The plate was incubated at 30°C for 1 h. After the plate was cooled at room temperature for 5 min, 5 μL of ADP-Glo reagent was added into each well to stop the reaction and consume the remaining ADP within 40 min. At the end, 10 μL of kinase detection reagent was added into the well and incubated for 30 min to produce a luminescence signal. As for TIE-2 and EphB4 assays, the kinase (2.4 ng/mL) were incubated with substrates (0.2 mg/mL), tested compounds (1.2 ×10-4~12 μM) and ATP (50 μM) in a final buffer of Tris 40 mM, MgCl2 10 mM, BSA 0.1 mg/mL, DTT 1 mM in 384-well plate with the total volume of 5 μL. The assay plate was incubated at 30°C for 4 h. After the plate was cooled at room temperature for 5 min, 5 μL of ADP-Glo reagent was added into each well to stop the reaction and consume the remaining ADP within 1 h. At the end, 10 μL of kinase detection reagent was added into each well and incubated for 30 min to produce a luminescence signal. The luminescence was read by VICTOR-X multi-label plate reader.

In vitro RTK selectivity assays [27]

A 50 μL reaction mixture contains 40 mM Tris, pH 7.4, 10 mM MgCl2, 0.1 mg/ml BSA, 1 mM DTT, 10 μM ATP, kinase and substrate (0.2 mg/mL Poly(Glu, Tyr)/10 μM ATP). The test compounds were diluted in 10% DMSO and 5 μL of the dilution was added to a 50 μL reaction so that the final concentration of DMSO is 1% in all of reactions. The assay was performed using Kinase-Glo Plus luminescence kinase assay kit. It measures kinase activity by quantitating the amount of ATP remaining in solution following a kinase reaction. The luminescent signal from the assay is correlated with the amount of ATP present and is inversely correlated with the amount of kinase activity. The IC50 values were calculated using nonlinear regression with normalized dose−response fit using Prism GraphPad software.

Human endothelial cells (EA.hy926) viability assay [28]

The viability of HECs (EA.hy926) was assessed using the cell counting kit-8 (CCK-8, Sigma, USA) assay according to the manufacturer’s instruction. In brief, EA-hy926 cells were harvested and plated in a 96-wellplate at the density of 1×105 cells for each well and cultured in DMEM containing 10% FBS in humidified 5% CO2 atmosphere. After incubation at 37 ºC for 48 h, the cells were treated with tested compounds at various concentrations for 24 h. Subsequently, premixed CCK-8 and medium (10 μL) were added into the 96-well plates to monitor cell viability and were incubated at 37 ºC for 2 h. The number of viable cells was assessed by measurement of absorbance at 450 nm by a microplate reader. The viability rate was calculated as experimental OD value/control OD value.

Apoptosis detection assay [29]

EA.hy926 cells (5×105cells/mL) were seeded in six-well plates and treated with QDAU5 at different concentrations (0, 5, 20, and 40 nM) for 48 h. The cells were then harvested by trypsinization and washed twice with cold PBS. After centrifugation and removal of the supernatants, EA.hy926 cells were re-suspended in 400 μL of 1×binding buffer which was then added to 5 μL of annexin V-FITC and incubated at room temperature for 15 min. After adding 10 μL of PI the cells were incubated at room temperature for another 15 min in the dark. The stained cells were analyzed by a flow cytometer (BD Accuri C6).

Anti-proliferative activity against cancer cell lines

Anti-proliferative activities of QDAU5 were evaluated against fifteen cancer cell lines using 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) method. Exponentially growing cells were harvested and plated in 96-well plates at a concentration of 1×104 cells/well per well, and then were incubated at 37°C for 24 h. The cells were treated with QDAU5 at various concentrations for 48 h. Subsequently, 22 μL fresh MTT (5 mg/mL) was added to each well and incubated at 37 °C for 4 h. 150 mL DMSO was added to each well after supernatant was discarded. Absorbance values were determined by a microplate reader (Bio-Rad Instruments) at 490 nm. The IC50 values were calculated according to inhibition ratios.

In vivo xenograft model [30]

Six-week old female BALB/c mice were purchased from Shanghai Laboratory Animal center of the Chinese Academy of Sciences and housed under aseptic and ventilated condition. The mice were inoculated by subcutaneous injection with MCF-7 cancer cells suspended in 5% saline. Tumor volume and weight were measured on alternate days. Body weights were monitored as an indicator of toxicity. When tumor volume exceeds100 mm3, mice were randomly divided into treatment and control groups (n=8 per group): QDAU5 and vehicle control (0.5% CMC-Na). Treatment groups were administered orally with QDAU5 daily at doses of 20, 40, and 80 mg/kg, respectively. Treatment started from the next day and continued for 21 days. All mice were killed at the end of the experiment, and subcutaneous tumors were removed and weighted.

Western blot analysis

The expression and phosphorylation of VEGFR-2 in EA.hy926 cells were assessed using western blot analysis with various antibodies. After treatment with QDAU5 at various concentrations for 48 h, EA.hy926 cells were washed twice with ice-cold PBS (137 mM NaCl, 2.7 mM KCl, 10 mM Na2HPO4, and 1.8 mM KH2PO4, pH 7.4) and lysed in SDS sample buffer. Cell lysates containing equal amounts of protein were separated by SDS polyacrylamide gel electrophoresis and transferred to polyvinylidene difluoride membranes. After being blocked in 5% nonfat milk in Tris-buffered saline with 0.1% Tween 20, pH 7.6, the membranes were incubated with the appropriate primary antibodies at 4°C overnight and then exposed to secondary antibodies for 2 h at room temperature. Immunoreactive proteins were visualized using the enhanced chemiluminescence system from Pierce Chemical.

VEGFR-2/CMC evaluation

The VEGFR-2 cell membrane stationary phase was prepared as previous reported. Aqueous ammonium acetate buffer solution (pH 7.4, 5 mM) was pumped at a flow rate of 0.2 mL/min as the mobile phase after VEGFR-2/CMC column was loaded onto the chromatography system at the temperature of 37°C. The standard solutions of five multi-target RTK inhibitors and QDAU5 were injected to evaluate their affinity with VEGFR-2. The mobile phase was 5.0 mM phosphate burred saline with a 0.6 mL/min flow rate at a column temperature of 37 °C. The detected wavelength was 270 nm. The test compound was injected into the VEGFR-2/CMC column and their retention characteristics were identified to evaluate their affinity with VEGFR-2. A direct competitive assay was studied by using QDAU5 as a competitor at different concentrations.

Molecular docking

The crystal structure (PDBID: 4ASD) of VEGFR-2 was used for docking. The small molecule’s 3D structure was optimized with Omega2 [31, 32]. Docking study was conducted using OEDocking module FRED [33, 34] with default parameters on GSU cluster Orion [35] and XSEDE [36].

General methods for chemistry

All solvents and reagents were purchased from commercial suppliers and purified according to the standard procedure. The reactions except those in aqueous media were carried out by standard techniques for the exclusion of moisture. All the reactions were monitored by thin layer chromatography (TLC) on 0.25-mm silica gel plates (60GF-254) and visualized with UV light. Flash column chromatography was performed using silica gel (300-400 mesh). Melting points were determined using an electrothermal melting point apparatus and were uncorrected. 1H-NMR and 13C-NMR spectra were recorded on a Bruker Advance AC 400 instrument at 400 MHz and 101 MHz, respectively. Chemical shift (δ) are reported in parts per million (ppm) with TMS as an internal standard and coupling constants (J) are expressed in hertz (Hz). High resolution mass spectra (HRMS)analysis was performed on a Shimadzu LCMS-IF-TOF instrument. All the title compounds were determined to be ≥95% pure by HPLC analysis which was carried out on a Shimadzu HPLC instrument.

General Procedure for the Synthesis of diarylthiourea derivativesDATU 1-10

(3-bromo-5-(trifluoromethyl)phenyl) carbamodithioic acid (2)

3-Bromo-5-(trifluoromethyl) aniline (2.5 g, 10.4 mmol), DABC (1.4 g, 12.5 mmol) was dissolved in toluene (40 mL). Then 1.9 mL carbon disulphide was added dropwise to the above mixture. Subsequently, the mixture was reacted at room temperature for 8 h. The product was collected by filtration and dried under vacuum to afford 2 as a slight yellow solid (1.2g, 40%).

1-bromo-3-isothiocyanato-5-(trifluoromethyl)benzene (3)

Compound 2 (0.8 g, 2.5 mmol) was dissolved in anhydrous CH2Cl2 (20 mL). Then triphosgene (0.88 g, 3 mmol) in anhydrous CH2Cl2 was added dropwise to the above mixture on the ice-bath, and stirring continued for 2 h at room temperature. After completion of the reaction, the organic layer was washed with water and brine (100 mL×3), and dried over Na2SO4. After filtration and concentration in vacuo, the residue was purified by silica gel flash chromatography to afford 3 (0.50 g, 30.0%).

4-(pyridin-3-yl)aniline (6)

A flask charged with Pd(PPh3)4 (3.8 g, 3.25 mmol), K2CO3 (13.5 g, 97.5 mmol), and 4-bromoaniline (9) (5.00 g, 29.30 mmol) and pyridin-3-ylboronic acid (8) (4.0 g, 32.5 mmol) were flushed with nitrogen and suspended in 1,4-dioxane (90 mL) and water (30 mL). The mixture was then refluxed overnight under nitrogen. The hot suspension was filtered and the filtrate distilled by rotary evaporation to remove 1,4-dioxane. Water (50 mL) was added and the product was extracted with AcOEt (30 mL×3), washed with water, and dried over Na2SO4. After filtration and concentration in vacuo, the residue was purified by silica gel flash chromatography (PE/AcOEt = 5:1) affording 3 as white solid (2.8 g, 40%).

N-[3-bromo-5-(trifluoromethyl)phenyl]-N’-(4-pyridin-3-ylphenyl)thiourea (DATU1)

The key intermediate 4-(pyridin-3-yl)aniline 6 (0.80 g, 2.84 mmol) was dissolved in anhydrous CH2Cl2 (10 mL).1-Bromo-3-isothiocyanato-5-(trifluoromethyl)benzene 3 in anhydrous CH2Cl2 (10 mL) was added dropwise to the above mixture, and stirring on the ice-bath continued for 2 h. After stirring at room temperature for 18 h. The organic layer was washed with water and brine (100 mL×3), and dried over Na2SO4. After filtration and concentration in vacuo, the residue was purified by silica gel flash chromatography to yield DATU1 in 50% yield. HRMS m/z calcd for C19H13BrF3N3S ([M+H]+) 453.2932, found 453.6968. m.p.=197-199°C, 1H NMR (400 MHz, DMSO-d6) δ 9.28 (s, 1H), 9.13 (s, 1H), 8.89 (d, J = 2.0 Hz, 1H), 8.54 (m, 1H), 8.06 (m, 1H), 7.98 (s, 1H), 7.90 (s, 1H), 7.70 (d, J = 8.7 Hz, 2H), 7.62 (d, J = 8.7 Hz, 2H), 7.54 (s, 1H), 7.47 (m, 1H).13C NMR (101 MHz, DMSO-d6) δ 152.73, 148.42, 147.70, 142.59, 139.77, 135.59, 133.98, 131.53, 131.34, 127.75, 125.02, 124.56, 124.31, 122.83, 122.30, 121.06, 119.60, 113.97.

The title compounds DATU2-10 were prepared from the key intermediate 3 and 6 with a similar procedure as described for compound DATU1.

N-[4-bromo-2-(trifluoromethoxy)phenyl]-N’-(4-pyridin-3-ylphenyl)thiourea (DATU2).

HRMS m/z calcd for C19H13BrF3N3OS ([M]+) 466.9915, found 466.9940. m.p.=144-145°C, 1H NMR (400 MHz, DMSO-d6) δ 10.25 (s, 1H), 9.65 (s, 1H), 8.92 (d, J = 2.2 Hz, 1H), 8.56 (m, 1.4 Hz, 1H), 8.11-8.07 (m, 1H), 7.76 (s, 1H), 7.74 (m, 2H), 7.70 (s, 1H), 7.66 (d, J = 8.4 Hz, 2H), 7.64-7.61 (m, 1H), 7.49 (m, 1H).13C NMR (101 MHz, DMSO-d6) δ 180.72, 148.76, 147.90, 143.48, 139.67, 135.43, 134.27, 133.71, 132.13, 131.24, 130.90, 127.46, 124.76, 124.48, 124.36, 121.70, 119.14, 118.57.

N-[2-bromo-4-(trifluoromethoxy)phenyl]-N’-(4-pyridin-3-ylphenyl)thiourea (DATU3). HRMS m/z calcd for C19H13BrF3N3OS ([M]+) 466.9915, found 469.9937. m.p.=162-163°C, 1H NMR (400 MHz, DMSO-d6) δ 10.26 (s, 1H), 9.61 (s, 1H), 8.92 (d, J = 1.8 Hz, 1H), 8.56 (m, 1H), 8.11-8.06 (m, 1H), 7.80 (d, J = 2.2 Hz, 1H), 7.76 (d, J = 8.7 Hz, 2H), 7.70 (d, J = 5.1 Hz, 2H), 7.68 (d, J = 5.3 Hz, 1H), 7.51-7.47 (m, 1H), 7.47-7.43 (m, 1H).13C NMR (101 MHz, DMSO-d6) δ 180.73, 148.75, 147.89, 146.61, 139.64, 138.05, 135.44, 134.25, 133.65, 131.87, 127.49, 125.78, 124.53, 124.36, 122.57, 121.71, 121.08, 119.16.

N-[5-bromo-2-(trifluoromethoxy)phenyl]-N’-(4-pyridin-3-ylphenyl)thiourea (DATU4). HRMS m/z calcd for C19H13BrF3N3OS ([M]+) 466.9915, found 469.9939. m.p.=154-155°C, 1H NMR (400 MHz, DMSO-d6) δ 10.34 (s, 1H), 9.70 (s, 1H), 8.92 (d, J = 2.2 Hz, 1H), 8.57 (m, 1.4 Hz, 1H), 8.11-8.06 (m, 2H), 7.76 (d, J = 8.6 Hz, 2H), 7.67 (d, J = 8.6 Hz, 2H), 7.54 (m, 1H), 7.49 (m, 1H), 7.41 (m, 1H).13C NMR (101 MHz, DMSO-d6) δ 180.62, 148.77, 147.91, 142.22, 139.57, 135.42, 134.28, 133.97, 133.82, 131.70, 130.03, 127.49, 124.53, 124.36, 123.44, 121.70, 119.36, 119.13.

N-[2-bromo-5-(trifluoromethoxy)phenyl]-N’-(4-pyridin-3-ylphenyl)thiourea (DATU5). HRMS m/z calcd for C19H13BrF3N3OS ([M]+) 466.9915, found 469.9935. m.p.=125-126°C, 1H NMR (400 MHz, DMSO-d6) δ 10.38 (s, 1H), 9.63 (s, 1H), 8.92 (s, 1H), 8.57 (d, J = 3.3 Hz, 1H), 8.10 (d, J = 7.9 Hz, 1H), 7.83 (d, J = 8.8 Hz, 1H), 7.76 (d, J = 8.5 Hz, 2H), 7.70 (s, 2H), 7.68 (s, 1H), 7.49 (m, 1H), 7.25 (d, J = 8.2 Hz, 1H).13C NMR (101 MHz, DMSO-d6) δ 180.38, 148.78, 147.91, 147.48, 139.93, 139.47, 135.42, 134.32, 134.27, 133.77, 127.53, 124.58, 124.37, 122.80, 121.69, 120.71, 119.87,119.13.

N-(2,4-dichlorophenyl)-N’-(4-pyridin-3-ylphenyl)thiourea (DATU6). HRMS m/z calcd for C18H13Cl2N3S ([M+H]+) 374.0207, found 374.0257. m.p.=156-157°C, 1H NMR (400 MHz, DMSO-d6) δ 10.23 (s, 1H), 9.63 (s, 1H), 8.91 (d, J = 1.9 Hz, 1H), 8.56 (m, 1H), 8.11-8.07 (m, 1H), 7.75 (d, J = 8.6 Hz, 2H), 7.71 (d, J = 2.3 Hz, 1H), 7.67 (d, J = 8.6 Hz, 2H), 7.62 (d, J = 8.6 Hz, 1H), 7.49 (m, 1H), 7.45 (m, 1H).13C NMR (101 MHz, DMSO-d6) δ 180.68, 148.74, 147.89, 139.69, 136.20, 135.45, 134.25, 133.61, 131.78, 131.46, 131.42, 129.41, 127.86, 127.47, 124.50, 124.36.

N-(3,4-difluorophenyl)-N’-(4-pyridin-3-ylphenyl)thiourea (DATU7). HRMS m/z calcd for C18H13F2N3S ([M+H]+) 342.0876, found 342.0851. m.p.=139-140°C, 1H NMR (400 MHz, DMSO-d6) δ 10.12 (s, 1H), 10.03 (s, 1H), 8.92 (d, J = 1.8 Hz, 1H), 8.56 (m, 1H), 8.11-8.07 (m, 1H), 7.74 (d, J = 8.5 Hz, 2H), 7.70 (d, J = 2.5 Hz, 1H), 7.62 (d, J = 8.6 Hz, 2H), 7.49 (m, 1H), 7.46-7.38 (m, 1H), 7.29-7.24 (m, 1H).13C NMR (101 MHz, DMSO-d6) δ 180.18, 148.67, 147.83, 139.79, 136.86, 135.51, 134.31, 133.49, 127.46, 124.48, 124.38, 120.88, 117.55, 117.37, 113.72, 113.52.

N-(3,4-dichlorophenyl)-N’-(4-pyridin-3-ylphenyl)thiourea (DATU8). HRMS m/z calcd for C18H13Cl2N3S ([M+H]+) 374.0285, found 374.0258. m.p.=173-175°C, 1H NMR (400 MHz, DMSO-d6) δ 10.21 (s, 1H), 10.10 (s, 1H), 8.91 (d, J = 1.9 Hz, 1H), 8.57 (m, 1H), 8.12-8.07 (m, 1H), 7.91 (d, J = 2.4 Hz, 1H), 7.74 (d, J = 8.6 Hz, 2H), 7.62 (d, J = 4.1 Hz, 2H), 7.60 (d, J = 4.2 Hz, 1H), 7.52-7.49 (m, 1H), 7.47 (m, 1H).13C NMR (101 MHz, DMSO-d6) δ 179.97, 148.72, 147.87, 140.21, 139.68, 135.48, 134.30, 133.61, 130.91, 130.68, 127.50, 126.45, 125.27, 124.49, 124.38, 124.05.

N-[3,5-bis(trifluoromethyl)phenyl]-N’-(4-pyridin-3-ylphenyl)thiourea (DATU9). HRMS m/z calcd for C20H13F6N3S ([M+H]+) 442.0813, found 442.0791. m.p.=157-158°C, 1H NMR (400 MHz, DMSO-d6) δ 10.48 (s, 1H), 10.35 (s, 1H), 8.92 (d, J = 1.9 Hz, 1H), 8.61-8.55 (m, 1H), 8.28 (s, 2H), 8.10 (d, J = 8.0 Hz, 1H), 7.83 (s, 1H), 7.77 (d, J = 8.5 Hz, 2H), 7.61 (d, J = 8.5 Hz, 2H), 7.50 (m, 1H).13C NMR (101 MHz, DMSO-d6) δ 180.19, 148.82, 147.93, 142.30, 139.23, 135.41, 134.31, 134.05, 130.64, 130.31, 127.71, 127.20, 125.07, 124.75, 124.38, 124.04, 122.36, 117.43.

N-1,3-benzodioxol-5-yl-N’-(4-pyridin-3-ylphenyl)thiourea (DATU10). HRMS m/z calcd for C19H15N3O2S ([M+H]+) 350.0963, found 350.0931. m.p.=147-148°C, 1H NMR (400 MHz, DMSO-d6) δ 9.84 (s, 1H), 9.79 (s, 1H), 8.91 (d, J = 1.5 Hz, 1H), 8.60-8.53 (m, 1H), 8.07 (d, J = 8.0 Hz, 1H), 7.71 (d, J = 8.5 Hz, 2H), 7.63 (d, J = 8.5 Hz, 2H), 7.48 (m, 1H), 7.12 (d, J = 1.4 Hz, 1H), 6.90 (d, J = 8.3 Hz, 1H), 6.82 (m, 1H), 6.04 (s, 2H).13C NMR (101 MHz, DMSO-d6) δ 180.21, 148.66, 147.86, 147.38, 144.98, 140.17, 135.54, 134.19, 133.69, 133.15, 127.29, 124.42, 124.35, 118.11, 108.29, 106.95, 101.72.

General Procedure for the Synthesis of quinazolinone diaryl urea derivatives QDAU1-10.

7-Bromoquinazolin-4(3H)-one (8). Around bottom two flask charged with 2-amino-5-bromobenzoicacid 7 (5.00 g, 23.14 mmol) was flushed with nitrogen and suspended in HCONH2 (80 mL, 2.01 mmol), the mixture was stirred at 150°C for 1.5 h by atmospheric microwave heating. The product was extracted with AcOEt (50 mL ×3), washed with water, and dried over Na2SO4. After filtration and concentration in vacuo, the residue was purified by silica gel flash chromatography (PE/AcOEt=5:1) affording 8 (1.46 g, 41.24%) as white solid. mp: 259~261°C.

1-(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)-3-(3-(trifluoromethyl)phenyl)urea(10). Triphosgene (0.80 g, 2.74 mmol) was dissolved in anhydrous CH2Cl2 (20 mL) and the mixture was stirred on the ice-bath for 5 min. A solution of 3-(trifluoromethyl)aniline (1.10 g, 6.85 mmol) in anhydrous CH2Cl2 was added dropwise to the above mixture and stirring was continued for 15 min. Then triethanolamine (1.15 mL,8.22 mmol) diluted with CH2Cl2 (10 mL) was then added onto the mixture. Stirring was continued for 15 min, a solution of triethanolamine (1.15 mL, 8.22 mmol) and 4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)aniline (1.50 g, 6.85 mmol) in anhydrous CH2Cl2 (10 mL) was added and continued stirring for 20 min. Subsequently, the ice bath was removed, and the mixture was reacted at room temperature overnight. After completion of the action, the reaction was quenched with dilute NaHCO3. The organic layer was washed and dried overNa2SO4. After filtration and concentration in vacuo, the residue was purified by column chromatography (PE/AcOEt=7:1) affording 10 as white solid (1.77 g, 63.67%).

1-(4-(4-oxo-3,4-dihydroquinazolin-7-yl)phenyl)-3-(3-(trifluoromethyl)phenyl)urea (QDAU1). A flask charged with Pd(PPh3)4 (0.39 g, 0.34 mmol), potassium carbonate (1.43 g, 10.35 mmol), and the key intermediate 10 (1.40 g, 3.45 mmol) and 8 (0.78 g, 3.45 mmol) were flushed with nitrogen and suspended in 1,4-dioxane (90 mL) and water (30 mL). The mixture was then refluxed overnight under nitrogen. The hot suspension was filtered and the filtrate distilled by rotary evaporation to remove 1,4-dioxane. Water (50 mL) was added and the product was extracted with AcOEt (30 mL×3), washed with water, and dried over Na2SO4. After filtration and concentration in vacuo, the residue was purified by silica gel flash chromatography (PE/AcOEt=2:1) affording QDAU1 (0.21g) as white solid (yield 14.4%), HRMS m/z calcd for C22H15F3N4O2 ([M]+) 424.1147, found 424.1158. m.p. >300°C, 1H NMR (400 MHz, DMSO-d6) δ 12.25 (s, 1H), 9.15 (s, 1H), 9.05 (s, 1H), 8.17 (d, J = 8.3 Hz, 1H), 8.13 (s, 1H), 8.05 (s, 1H), 7.91 (d, J = 1.5 Hz, 1H), 7.84 (m, J = 8.4, 1.7 Hz, 1H), 7.80 (d, J = 8.7 Hz, 2H), 7.64 (d, J = 8.8 Hz, 2H), 7.60 (s, 1H), 7.54 (t, J = 7.9 Hz, 1H), 7.34 (d, J = 7.6 Hz, 1H).13C NMR (101 MHz, DMSO-d6) δ 161.03, 152.89, 149.83, 146.26, 145.91, 140.95, 140.50, 132.55, 130.43, 128.16, 127.00, 125.34, 124.31, 122.40, 121.46, 119.26, 66.81.

The title compounds QDAU2 -10 were prepared from the key intermediate 8 and 10 with a similar procedure as described for compound QDAU1.

1-(3-chlorophenyl)-3-(4-(4-oxo-3,4-dihydroquinazolin-7-yl)phenyl)urea (QDAU2). White solid (yield 6.7%), HRMS m/z calcd for C21H15ClN4O2 ([M+H]+) 391.0884, found 391.0923. m.p. >300°C, 1H NMR (400 MHz, DMSO-d6) δ 12.25 (s, 1H), 8.99 (s, 2H), 8.16 (d, J = 7.8 Hz, 1H), 8.13 (s, 1H), 7.87 (d, J = 22.9 Hz, 2H), 7.76 (d, J = 16.8 Hz, 2H), 7.63 (s, 2H), 7.31 (s, 2H), 7.04 (s, 1H). 13C NMR (101 MHz, DMSO-d6) δ 161.03, 152.76, 149.83, 146.26, 145.92, 141.63, 140.55, 133.67, 132.48, 130.91, 128.17, 126.99, 125.33, 124.30, 122.05, 121.45, 119.16, 118.09, 117.20.

1-(3-fluorophenyl)-3-(4-(4-oxo-3,4-dihydroquinazolin-7-yl)phenyl)ure (QDAU3). White solid (yield 24.6%), HRMS m/z calcd for C21H15FN4O2 ([M+H]+) 375.1179, found 375.1217. m.p. >300°C, 1H NMR (400 MHz, DMSO-d6) δ 12.25 (s, 1H), 9.00 (s, 1H), 8.98 (s, 1H), 8.16 (d, J = 8.3 Hz, 1H), 8.13 (s, 1H), 7.90 (s, 1H), 7.83 (d, J = 8.4 Hz, 1H), 7.79 (d, J = 8.5 Hz, 2H), 7.62 (d, J = 8.6 Hz, 2H), 7.52 (d, J = 11.9 Hz, 1H), 7.32 (m, J = 15.3, 7.9 Hz, 1H), 7.15 (d, J = 8.0 Hz, 1H), 6.81 (m, J = 11.6, 5.1 Hz, 1H). 13C NMR (101 MHz, DMSO-d6) δ 161.68, 161.03, 152.75, 149.83, 146.25, 145.92, 140.56, 132.47, 130.87, 130.77, 128.17, 126.99, 125.32, 124.30, 121.45, 119.14, 114.46, 108.84, 105.54, 105.27.

1-(2-fluorophenyl)-3-(4-(4-oxo-3,4-dihydroquinazolin-7-yl)phenyl)urea (QDAU4). White solid (yield 22.5%), HRMS m/z calcd for C21H15FN4O2 ([M+H]+) 375.1179, found 375.1222. m.p. >300°C, 1H NMR (400 MHz, DMSO-d6) δ 9.81 (s, 1H), 9.17 (s, 1H), 8.16 (t, J = 4.1 Hz, 2H), 8.15 – 8.10 (m, 1H), 7.86 (d, J = 1.2 Hz, 1H), 7.79 (s, 1H), 7.77 (s, 2H), 7.67 (d, J = 8.6 Hz, 2H), 7.25 (m, J = 10.9, 8.8 Hz, 1H), 7.16 (t, J = 7.7 Hz, 1H), 7.04 (m, J = 9.2, 6.5, 1.5 Hz, 1H). 13C NMR (101 MHz, DMSO-d6) δ 163.56, 154.06, 152.85, 151.66, 150.38, 148.93, 145.24, 140.69, 132.64, 128.10, 126.98, 124.95, 124.92, 124.56, 123.95, 123.23, 123.15, 121.71, 121.50, 118.94, 115.63, 115.44.

1-(3,4-difluorophenyl)-3-(4-(4-oxo-3,4-dihydroquinazolin-7-yl)phenyl)urea (QDAU5). White solid (yield 27.2%), HRMS m/z calcd for C21H14F2N4O2 ([M+H]+) 393.1085, found 393.1123. m.p. >300°C, 1H NMR (400 MHz, DMSO-d6) δ 12.25 (s, 1H), 8.98 (s, 2H), 8.16 (d, J = 8.3 Hz, 1H), 8.12 (s, 1H), 7.90 (d, J = 1.1 Hz, 1H), 7.86 – 7.81 (m, 1H), 7.78 (d, J = 8.6 Hz, 2H), 7.70 (m, J = 13.3, 7.4, 2.4 Hz, 1H), 7.61 (d, J = 8.7 Hz, 2H), 7.36 (m, J = 19.5, 9.3 Hz, 1H), 7.19 – 7.12 (m, 1H). 13C NMR (101 MHz, DMSO-d6) δ 161.03, 152.83, 149.83, 146.24, 145.91, 143.85, 143.72, 140.54, 137.24, 137.14, 132.49, 128.15, 126.98, 125.31, 124.29, 121.45, 119.18, 117.96, 117.78, 114.91, 107.82, 107.61.

1-(4-fluorophenyl)-3-(4-(4-oxo-3,4-dihydroquinazolin-7-yl)phenyl)urea (QDAU6). White solid (yield 19.1%), HRMS m/z calcd for C21H15FN4O2 ([M+H]+) 375.1179, found 375.1225. m.p. >300°C, 1H NMR (400 MHz, DMSO-d6) δ 9.85 (s, 1H), 9.77 (s, 1H), 8.19 (s, 1H), 8.17 (d, J = 8.6 Hz, 1H), 7.86 (d, J = 1.4 Hz, 1H), 7.81 – 7.78 (m, 1H), 7.76 (d, J = 3.1 Hz, 2H), 7.68 (d, J = 8.7 Hz, 2H), 7.60 – 7.54 (m, 2H), 7.14 (t, J = 8.9 Hz, 2H). 13C NMR (101 MHz, DMSO-d6) δ 158.90, 156.54, 153.34, 150.45, 149.15, 145.29, 141.13, 136.87, 132.32, 127.99, 126.95, 124.53, 123.87, 121.40, 120.47, 120.40, 119.01, 115.80, 115.58.

1-(4-(4-oxo-3,4-dihydroquinazolin-7-yl)phenyl)-3-(4-(trifluoromethoxy)phenyl)urea (QDAU7). White solid (yield 14.3%), HRMS m/z calcd for C22H15F3N4O3 ([M+H]+) 441.1096, found 441.1138. m.p. >300°C, 1H NMR (400 MHz, DMSO-d6) δ 12.27 (s, 1H), 9.47 (s, 1H), 9.44 (s, 1H), 8.16 (d, J = 8.3 Hz, 1H), 8.13 (s, 1H), 7.90 (s, 1H), 7.83 (d, J = 8.3 Hz, 1H), 7.79 (d, J = 8.5 Hz, 2H), 7.63 (d, J = 8.6 Hz, 2H), 7.59 (d, J = 8.9 Hz, 2H), 7.30 (d, J = 8.4 Hz, 2H). 13C NMR (101 MHz, DMSO-d6) δ 161.04, 152.98, 149.84, 146.25, 145.96, 143.02, 140.80, 139.51, 132.24, 128.16, 126.98, 125.30, 124.24, 122.25, 121.40, 119.69, 119.40, 118.89.

1-(3-isopropylphenyl)-3-(4-(4-oxo-3,4-dihydroquinazolin-7-yl)phenyl)urea (QDAU8). White solid (yield 26.7%), HRMS m/z calcd for C24H22N4O2 ([M+H]+) 399.1743, found 399.1780. m.p. >300°C, 1H NMR (400 MHz, DMSO-d6) δ 12.25 (s, 1H), 8.87 (s, 1H), 8.71 (s, 1H), 8.17 (d, J = 8.3 Hz, 1H), 8.13 (s, 1H), 7.90 (s, 1H), 7.86 – 7.81 (m, 1H), 7.78 (d, J = 8.6 Hz, 2H), 7.62 (d, J = 8.7 Hz, 2H), 7.37 (s, 1H), 7.28 (d, J = 8.6 Hz, 1H), 7.20 (t, J = 7.8 Hz, 1H), 6.87 (d, J = 7.5 Hz, 1H), 2.85 (m, J = 13.7, 6.8 Hz, 1H), 1.20 (d, J = 6.9 Hz, 6H). 13C NMR (101 MHz, DMSO-d6) δ 161.03, 152.90, 149.84, 149.52, 146.24, 145.97, 140.90, 139.99, 132.15, 129.17, 128.13, 126.99, 125.29, 124.23, 121.40, 120.52, 118.95, 116.72, 116.38, 33.97, 24.35.

1-(4-chloro-3-(trifluoromethyl)phenyl)-3-(4-(4-oxo-3,4-dihydroquinazolin-7-yl)phenyl)urea (QDAU9). White solid (yield 12.7%), HRMS m/z calcd for C22H14ClF3N4O2 ([M+H]+) 459.0757, found 459.0786. m.p. >300°C,1H NMR (400 MHz, DMSO-d6) δ 12.26 (s, 1H), 9.64 (s, 1H), 9.39 (s, 1H), 8.16 (d, J = 8.4 Hz, 1H), 8.13 (s, 2H), 7.90 (s, 1H), 7.83 (d, J = 8.4 Hz, 1H), 7.79 (d, J = 8.5 Hz, 2H), 7.65 (d, J = 4.1 Hz, 2H), 7.63 (d, J = 6.5 Hz, 2H). 13C NMR (101 MHz, DMSO-d6) δ 161.03, 152.87, 149.83, 146.26, 145.89, 140.41, 139.81, 132.51, 128.17, 126.98, 125.32, 124.31, 123.38, 122.73, 121.46, 119.20, 66.81.

1-(4-(4-oxo-3,4-dihydroquinazolin-7-yl)phenyl)-3-(4-(trifluoromethyl)phenyl)urea (QDAU10). White solid (yield 15.1%), HRMS m/z calcd for C22H15F3N4O2 ([M+H]+) 425.1147, found 425.1181. m.p. >300°C, 1H NMR (400 MHz, DMSO-d6) δ 12.25 (s, 1H), 9.20 (s, 1H), 9.04 (s, 1H), 8.17 (d, J = 8.3 Hz, 1H), 8.13 (s, 1H), 7.90 (s, 1H), 7.82 (d, J = 9.1 Hz, 1H), 7.79 (d, J = 8.5 Hz, 2H), 7.70 (d, J = 8.6 Hz, 2H), 7.64 (d, J = 8.1 Hz, 3H), 7.47 (d, J = 8.1 Hz, 1H). 13C NMR (101 MHz, DMSO-d6) δ 161.04, 152.66, 149.82, 146.24, 145.89, 143.82, 140.43, 132.63, 128.17, 126.99, 126.54, 125.31, 124.32, 123.67, 122.49, 122.17, 121.47, 119.22, 118.39.

CONCLUSIONS

In summary, two classes of twenty multi-target RTKIs have been developed with promising activity on angiogenic and oncogenic VEGFR-2, Tie-2, and EphB4. Since all three RTKs play essential roles in both angiogenesis and tumorigenesis. These multiple RTKIs with a ‘triplet’ inhibition profile might have a major advantage of overcoming the compensatory feedback that characterizes single-target drugs. In vitro RTKs inhibition assay and molecular docking revealed that these compounds could suppress VEGFR-2, Tie-2, and EphB4 kinase activity through preferential binding at the ATP-binding site. Biological evaluation using different models led to the discovery of a biphenyl-aryl urea bearing a quinazolin-4(3H)-one moiety (QDAU5), which displayed both anti-angiogenic and anticancer activities. Moreover, quinazolin-4(3H)-one has been identified as an excellent hinge binding group for multi-target inhibitors of VEGFR-2, Tie-2, and EphB4. Further detailed mechanism of action study and extensive pharmacokinetics evaluation of QDAU5 are in progress and will be reported in due course.

Abbreviations

Ang, angiopoietin; DFG, aspartate-phenylalanine-glycine; EC, epithelial cell; EGFR, epidermal growth factor receptor; Eph, erythropoietin-producing hepatoma; FGFR, fibroblast growth factor receptor; HATU, [bis(dimethylamino)methylene]-1H-1,2,3-triazolo [4,5-b]pyridinium 3-oxide hexafluorophosphate; HBG, hinge binding group; HECs, Human endothelial cell; KDR, kinase insert domain receptor; RTK, receptor tyrosine kinase; RTKI, receptor tyrosine kinase inhibitor; Tie-2, tyrosine kinase with Ig and epidermal growth factor homology domain-2; VEGFR-2, vascular endothelial growth factor receptor-2.

Author contributions

*Lin Zhang and Yuanyuan Shan contributed equally to this work and should be regarded as joint first authors.

The manuscript was written through contributions of all authors. All authors have given approval to the final version of the manuscript.

ACKNOWLEDGMENTs AND FUNDING

The research described here was supported by the National Natural Science Foundation of China (NSFC, Grant No. 81573285) and the Fundamental Research Funds for the Central Universities (2015qngz13). We gratefully acknowledge the use of Orion that is supported by Georgia State University’s Research Solutions and the free academic licensing program of Openeye. This work used the Extreme Science and Engineering Discovery Environment (XSEDE), which is supported by National Science Foundation grant number ACI-1053575.

CONFLICTS OF INTEREST

The authors declare no conflicts of interest.

REFERENCES

1. Pandya NM, Dhalla NS, Santani DD. Angiogenesis--a new target for future therapy. Vascul Pharmacol. 2006; 44: 265-274.

2. Muz B, de la Puente P, Azab F, Azab AK. The role of hypoxia in cancer progression, angiogenesis, metastasis, and resistance to therapy. Hypoxia (Auckl). 2015; 3: 83-92.

3. Folkman J. Tumor angiogenesis: therapeutic implications. N Engl J Med. 1971; 285: 1182-1186.

4. Weis SM, Cheresh DA. Tumor angiogenesis: molecular pathways and therapeutic targets. Nat Med. 2011; 17: 1359-1370.

5. Bouïs D, Kusumanto Y, Meijer C, Mulder NH, Hospers GA. A review on pro- and anti-angiogenic factors as targets of clinical intervention. Pharmacol Res. 2006; 53: 89-103.

6. Himanen JP, Rajashankar KR, Lackmann M, Cowan CA, Henkemeyer M, Nikolov DB. Crystal structure of an Eph receptor-ephrin complex. Nature. 2001; 414: 933-938.

7. Hanahan D, Folkman J. Patterns and emerging mechanisms of the angiogenic switch during tumorigenesis. Cell. 1996; 86: 353-364.

8. Lu W, Li P, Shan Y, Su P, Wang J, Shi Y, Zhang J. Discovery of biphenyl-based VEGFR-2 inhibitors. Part 3: design, synthesis and 3D-QSAR studies. Bioorg Med Chem. 2015; 23: 1044-1054.

9. Su P, Wang J, Shi Y, Pan X, Shao R, Zhang J. Discovery of biphenyl-aryl ureas as novel VEGFR-2 inhibitors. Part 4: exploration of diverse hinge-binding fragments. Bioorg Med Chem. 2015; 23: 3228-3236.

10. Shan Y, Gao H, Shao X, Wang J, Pan X, Zhang J. Discovery of novel VEGFR-2 inhibitors. Part 5: Exploration of diverse hinge-binding fragments via core-refining approach. Eur J Med Chem. 2015; 103: 80-90.

11. Dai B, Qi J, Liu R, Zhang J, Zhan Y, Zhang Y. A novel compound T7 (N-{4’-[(1E)-N-hydroxyethanimidoyl]-3’,5,6-trimethoxybiphenyl-3-yl}-N’-[4-(3-morpholin-4-ylpropoxy)phenyl]urea) screened by tissue angiogenesis model and its activity evaluation on anti-angiogenesis. Phytomedicine. 2014; 21: 1675-1683.

12. Peng YH, Shiao HY, Tu CH, Liu PM, Hsu JT, Amancha PK, Wu JS, Coumar MS, Chen CH, Wang SY, Lin WH, Sun HY, Chao YS, et al. Protein kinase inhibitor design by targeting the Asp-Phe-Gly (DFG) motif: the role of the DFG motif in the design of epidermal growth factor receptor inhibitors. J Med Chem. 2013; 56: 3889-3903.

13. Vijayan RS, He P, Modi V, Duong-Ly KC, Ma H, Peterson JR, Dunbrack RL Jr, Levy RM. Conformational analysis of the DFG-out kinase motif and biochemical profiling of structurally validated type II inhibitors. J Med Chem. 2015; 58: 466-479.

14. Sawamiphak S, Seidel S, Essmann CL, Wilkinson GA, Pitulescu ME, Acker T, Acker-Palmer A. Ephrin-B2 regulates VEGFR2 function in developmental and tumour angiogenesis. Nature. 2010; 465: 487-491.

15. Wang Y, Nakayama M, Pitulescu ME, Schmidt TS, Bochenek ML, Sakakibara A, Adams S, Davy A, Deutsch U, Lüthi U, Barberis A, Benjamin LE, Mäkinen T, et al. Ephrin-B2 controls VEGF-induced angiogenesis and lymphangiogenesis. Nature. 2010; 465: 483-486.

16. Nakayama M, Nakayama A, van Lessen M, Yamamoto H, Hoffmann S, Drexler HC, Itoh N, Hirose T, Breier G, Vestweber D, Cooper JA, Ohno S, Kaibuchi K, et al. Spatial regulation of VEGF receptor endocytosis in angiogenesis. Nat Cell Biol. 2013; 15: 249-260.

17. Yang X, Zhang Y, Yang Y, Lim S, Cao Z, Rak J, Cao Y. Vascular endothelial growth factor-dependent spatiotemporal dual roles of placental growth factor in modulation of angiogenesis and tumor growth. Proc Natl Acad Sci U S A. 2013; 110: 13932-13937.

18. Gacche RN. Compensatory angiogenesis and tumor refractoriness. Oncogenesis. 2015; 4: e153.

19. Dietrich J, Hulme C, Hurley LH. The design, synthesis, and evaluation of 8 hybrid DFG-out allosteric kinase inhibitors: a structural analysis of the binding interactions of Gleevec, Nexavar, and BIRB-796. Bioorg Med Chem. 2010; 18: 5738-5748.

20. Pan X, Wang F, Zhang Y, Gao H, Hu Z, Wang S, Zhang J. Design, synthesis and biological activities of Nilotinib derivates as antitumor agents. Bioorg Med Chem. 2013; 21: 2527-2534.

21. Daydé-Cazals B, Fauvel B, Singer M, Feneyrolles C, Bestgen B, Gassiot F, Spenlinhauer A, Warnault P, Van Hijfte N, Borjini N, Chevé G, Yasri A. Rational Design, Synthesis, and Biological Evaluation of 7-Azaindole Derivatives as Potent Focused Multi-Targeted Kinase Inhibitors. J Med Chem. 2016; 59: 3886-3905.

22. Wang S, Chen J, Fu Y, Chen X. Promotion of Astragaloside IV for EA-hy926 Cell Proliferation and Angiogenic Activity via ERK1/2 Pathway. J Nanosci Nanotechnol. 2015; 15: 4239-4244.

23. Zheng L, He X, Ma W, Dai B, Zhan Y, Zhang Y. Ta1722, an anti-angiogenesis inhibitor targeted on VEGFR-2 against human hepatoma. Biomed Pharmacother. 2012; 66: 499-505.

24. Hou X, Wang S, Zhang T, Ma J, Zhang J, Zhang Y, Lu W, He H, He L. Recent advances in cell membrane chromatography for traditional Chinese medicines analysis. J Pharm Biomed Anal. 2014; 101: 141-150.

25. Li M, Wang S, Zhang Y, He L. An online coupled cell membrane chromatography with LC/MS method for screening compounds from Aconitum carmichaeliDebx. acting on VEGFR-2. J Pharm Biomed Anal. 2010; 53: 1063-1069.

26. Du H, Lv N, Wang S, He L. Rapid characterization of a novel taspine derivative-HMQ1611 binding to EGFR by a cell membrane chromatography method. Comb Chem High Throughput Screen. 2013; 16: 324-329.

27. Kashem MA, Nelson RM, Yingling JD, Pullen SS, Prokopowicz AS 3rd, Jones JW, Wolak JP, Rogers GR, Morelock MM, Snow RJ, Homon CA, Jakes S. Three mechanistically distinct kinase assays compared: Measurement of intrinsic ATPase activity identified the most comprehensive set of ITK inhibitors. J Biomol Screen. 2007; 12: 70-83.

28. Shi HB, Chen JD, Chen XH, He Y, Yang ZJ. Effects of salvianolic acid and notoginsengtriterpenes on angiogenesis in EA-hy926 cells in vitro. Chin J Nat Med. 2013; 11: 254-257.

29. Zhang Y, Zhang J, Dai B, Wang N, He L. Anti-proliferative and apoptotic effects of the novel taspine derivative tas41 in the Caco-2 cell line. Environ Toxicol Pharmacol. 2011; 31: 406-415.

30. Zhan Y, Zhang Y, Liu C, Zhang J, Smith WW, Wang N, Chen Y, Zheng L, He L. A novel taspine derivative, HMQ1611, inhibits breast cancer cell growth via estrogen receptor α and EGF receptor signaling pathways. Cancer Prev Res (Phila). 2012; 5: 864-873.

31. OpenEye Scientific Software, S. F., NM http://www.eyesopen.com/OMEGA version 2.5.1.4.

32. Hawkins PC, Skillman AG, Warren GL, Ellingson BA, Stahl MT. Conformer generation with OMEGA: algorithm and validation using high quality structures from the Protein Databank and Cambridge Structural Database. J Chem Inf Model. 2010; 50: 572-584.

33. OpenEye Scientific Software, S. F.; NM http://www.eyesopen.com/OEDocking version 3.2.0.2.

34. Kayser M, Brauer S, Stoneking M. A genome scan to detect candidate regions influenced by local natural selection in human populations. Mol Biol Evol. 2003; 20: 893-900.

35. Sarajlic S, Edirisinghe N, Lukinov Y, Walters M, Davis B, Faroux G. Orion: Discovery Environment for HPC Research and Bridging XSEDE Resources. In Proceedings of the XSEDE16 Conference on Diversity, Big Data, and Science at Scale, ACM: Miami, USA, 2016; 1-5.

36. Towns J, Cockerill T, Dahan M, Foster I, Gaither K, Grimshaw A, Hazlewood V, Lathrop S, Lifka D, Peterson GD. XSEDE: accelerating scientific discovery. IEEE Comput. Sci. Eng. 2014; 16: 62-74.


Creative Commons License All site content, except where otherwise noted, is licensed under a Creative Commons Attribution 3.0 License.
PII: 20065
