Abstract

Expression of the chemokine receptor CXCR4 by many cancers correlates with aggressive clinical behavior. As part of the initial studies in a project whose goal was to quantify CXCR4 expression on cancers non-invasively, we examined CXCR4 expression in cancer samples by immunohistochemistry using a validated anti-CXCR4 antibody. Among solid tumors, we found expression of CXCR4 on significant percentages of major types of kidney, lung, and pancreatic adenocarcinomas, and, notably, on metastases of clear cell renal cell carcinoma and squamous cell carcinoma of the lung. We found particularly high expression of CXCR4 on adrenocortical cancer (ACC) metastases. Microarrays of ACC metastases revealed correlations between expression of CXCR4 and other chemokine system genes, particularly CXCR7/ACKR3, which encodes an atypical chemokine receptor that shares a ligand, CXCL12, with CXCR4. A first-in-human study using 64Cu-plerixafor for PET in an ACC patient prior to resection of metastases showed heterogeneity among metastatic nodules and good correlations among PET SUVs, CXCR4 staining, and CXCR4 mRNA. Additionally, we were able to show that CXCR4 expression correlated with the rates of growth of the pulmonary lesions in this patient. Further studies are needed to understand better the role of CXCR4 in ACC and whether targeting it may be beneficial. In this regard, non-invasive methods for assessing CXCR4 expression, such as PET using 64Cu-plerixafor, should be important investigative tools.


INTRODUCTION

CXCR4 is a chemokine receptor, a member of a subfamily of twenty G-protein coupled chemoattractant receptors that mediate leukocyte trafficking. CXCR4’s sole known chemokine agonist is CXCL12. CXCR4 is unusual among chemokine receptors in that it plays fundamental roles in the hematopoietic, cardiovascular, reproductive, and nervous systems during embryonic development [1]. Its role in cancer has been investigated for fifteen years with expression reported in hematologic malignancies, breast, ovarian, cervical, gastric, colorectal, pancreatic, prostate, lung, and renal (clear cell) carcinomas, as well as sarcomas [2-7]. Depending on the tumor type, expression of CXCR4 has been reported in 20%-80% of cases, where it has been implicated in multiple processes, including tumor growth, invasion of adjacent tissue, metastasis, and resistance to therapy [2, 3, 8-12].

Meta-analysis of studies of CXCR4 expression in multiple cancers including prostate cancer, non-small cell lung cancer, pancreatic ductal adenocarcinoma and others concluded that CXCR4 expression is associated with a poor prognosis and lower overall survival [13-16]. Together, these data have suggested that CXCR4 expression on cancers can serve as a correlate of aggressive biological behavior and that CXCR4 itself could be a potential therapeutic target [17]. Consequently, there has been interest in developing new imaging tools for detecting and quantifying CXCR4 on cancers in order to aid in prognostication and treatment [18, 19].

Recently, a second receptor that binds CXCL12 has been described, initially named CXCR7, and ongoing studies indicate that CXCR7 contributes to CXCR4/CXCL12 biology [20]. CXCR7 has been renamed ACKR3 (atypical chemokine receptor 3), because it is a seven-transmembrane domain chemokine binding protein that does not signal through heterotrimeric G proteins [20-22]. A role has been established for ACKR3 in the activities of CXCR4 and CXCL12 through ACKR3’s function as a binding protein that helps to shape CXCL12 gradients in vivo [23]. ACKR3 is also of interest for its possible role in cancer [24, 25].

As part of a project to develop tools for quantifying CXCR4 on cancers non-invasively in humans, we re-examined CXCR4 expression on multiple cancers by immunohistochemistry (IHC) using a well validated antibody and staining protocol. We found that CXCR4 was expressed on significant percentages of major types of kidney, lung, and pancreatic adenocarcinomas. Remarkably, we found very high expression of CXCR4 on some samples of adrenocortical carcinoma (ACC). This observation led us to focus on ACC as a model cancer in which to study the detection of CXCR4 on tumors.

ACC is a rare malignancy occurring in about 0.7-2.0 cases per million population per year, and is responsible for 0.2% of all cancer deaths in the United States [26]. Currently, the main curative treatment for ACC is surgery, with an overall 5-year survival rate for all patients undergoing tumor resection of approximately 40% [27-29]. Surgery for removal of recurrent tumor, including metastatic lesions can also prolong survival ([26] and unpublished data). Non-surgical treatment options include chemotherapy, radiotherapy and thermal ablation.

Plerixafor is a CXCR4 antagonist approved by the FDA for the mobilization of hematopoietic stem cells [25, 30]. We have previously reported the production of 64Cu-plerixafor [31] and studies in mice demonstrating the ability of this agent to image CXCR4-expressing tissues and cancers [31, 32]. We describe here a first-in-human study using 64Cu-plerixafor for PET imaging in an ACC patient undergoing resection of metastases. This study showed heterogeneity in CXCR4 expression among metastatic nodules, and good correlations among PET SUVs, CXCR4 staining, and CXCR4 mRNA. Moreover, we found that in this patient CXCR4 expression correlated with the lesions’ rates of growth. PET imaging of CXCR4 offers a non-invasive means of assessing CXCR4 expression that could prove useful in clinical studies, including studies targeting CXCR4.

RESULTS

ACC expresses high levels of CXCR4

Studies examining expression of CXCR4 in cancer have used multiple antibodies, with some showing predominantly cytoplasmic and nuclear staining. Nuclear localization of CXCR4 is controversial [33], and some anti-CXCR4 antibodies showing nuclear staining have been unreliable in distinguishing CXCR4+ versus CXCR4- cells [7]. For staining tissues for CXCR4, we chose an antibody shown to stain CXCR4 on cell membranes, with no signal in nuclei or in CXCR4- cells and tissues [7] (see Materials and Methods and Supplementary Figure 1). Staining a multi-cancer/multi-tumor array identified ACC expressing high levels of CXCR4 (Figure 1). We also detected expression of CXCR4 on a number of other primary and/or metastatic cancers, including those of the breast, kidney, and lung (Table 1). Based on these results and the published data on expression of CXCR4, we stained for CXCR4 on additional examples of a variety of primary and metastatic cancers. For non-ACC cancers, we used multi-case tissue arrays. Among the primary tumors for which we had a good number of cases, we found significant percentages of CXCR4+ cases for squamous cell carcinoma of the lung, clear cell renal cell and papillary carcinomas of the kidney, and ductal adenocarcinoma of the pancreas (Table 2). It is important to note that our expression scoring did not consider CXCR4 staining on tumor vasculature, which was often CXCR4+ (Supplementary Figure 1, Supplementary Figure 4, below, and data not shown).

Table 1: CXCR4 expression detected by IHC of tumor array

Negative for CXCR4a

Positive for CXCR4

Astrocytomab (1)c

Adrenal gland cortical adenoma (1)

Bladder transitional cell carcinoma (2)

Adrenal gland cortical carcinomab (1)

Bone chondrosarcoma (1)

Breast cancerb metastatic to lymph node (1)

Bone osteosarcoma (1)

Gastric adenocarcinomab (3)

Breast adenocarcinomab (2)

Kidney clear cell carcinomab (2)

Cervix squamous cell carcinoma (2)

Lung small cell carcinomab (1)

Colon adenocarcinomab (3)

Lymphoma, anaplastic large cell (1)

Colon adenocarcinomab metastaic to liver (1)

Lymphoma, Hodgkin (Reed-Sternberg cells) (1)

Colon signet ring cell carcinomab metastatic to ovary (1)

Meningioma, malignantb (1)

Esophagus squamous cell carcinomab (3)

Ovary adenocarcinomab (2)

Esophagus squamous cell carcinomab metastatic to lymph node (1)

Ovary granulosa cell tumor (1)

Gastrointestinal carcinoma metastatic to lung (1)

Skin squamous cell carcinoma (1)

Head and neck, hard palate adenocarcinoma (1)

Head and neck, tongue squamous cell carcinoma (1)

Head and neck, nasopharyngeal carcinomab (1)

Liver hepatocellular carcinomab (4)

Lung squamous cell carcinomab (2)

Lung adenocarcinomab (1)

Lymphoma, non-Hodgkin B-cell (1)

Meningiomab (2)

Nasal cavity melanomab (1)

Pancreas adenocarcinomab (1)

Prostate adenocarcinomab (2)

Rectum adenocarcinomab (3)

Salivary gland adenoid cystic carcinoma (1)

Small intestine adenocarcinoma (1)

Testis seminoma (2)

Thyroid adenocarcinomab (2)

Uterus endometrial adenocarcinoma (2)

aNegative tumor has < 5% of the cancer cells staining for CXCR4.

bResults of staining for CXCR4 in additional samples of these tumor types are presented in Tables 2-6. Data for this table are from Pantomics array MTU951, and some cases overlap with those on arrays used for Tables 2-4.

cNumbers of cases for each cancer type on tumor array. In the negative column, all cases were negative, whereas in the positive column, one or more of the cases of the cancers listed were positive.

Table 2: CXCR4 expression on selected cancers

Breast

Total samples

Positive for CXCR4

Positive for CXCR4 (%)

Ductal carcinoma in situ

4

0

0

Invasive ductal carcinoma

71

5

7

Invasive lobular carcinoma

7

0

0

Colorectal

Colon adenocarcinoma

47

3

6

Colon mucinous adenocarcinoma

5

0

0

Colon squamous cell carcinoma

1

1

100

Rectum adenocarcinoma

7

0

0

Kidney

Chromophobe renal cell carcinoma

6

0

0

Clear cell renal cell carcinoma

94

11

12

Granular cell and mixed granular and clear cell

11

3

27

Papillary and mixed papillary and clear cell carcinoma

14

5

36

Squamous cell carcinoma

6

3

50

Transitional cell carcinoma

21

0

0

Lung

Adenocarcinoma

13

0

0

Adenosquamous carcinoma

11

1

9

Bronchioloalveolar carcinoma

11

0

0

Small cell carcinoma

3

3

100

Squamous cell carcinoma

49

9

18

Undifferentiated carcinoma

5

3

60

Melanoma

37

1

3

Nervous system tumors

Anaplastic astrocytoma

8

2

25

Astrocytoma

29

2

7

Glioblastoma multiforme

5

0

0

Malignant meningioma

5

0

0

Meningioma

20

0

0

Neuroblastoma

3

1

33

Oligodendroglioma

5

0

0

Schwannoma

4

0

0

Pancreas

Adenosquamous carcinoma

8

2

25

Ductal adenocarcinoma

126

37

29

Prostate adenocarcinoma

91

2

2

High

Figure 1: High expression of CXCR4 on cell surfaces of ACC. A multi-tumor tissue array was stained for CXCR4 using IHC with visualization using DAB (3, 3’-diaminobenzidine). One sample of ACC is shown at X 100 A. and X 400 B. magnifications. An adrenal cortical adenoma on the same array showed similarly high staining for CXCR4.

Overall, CXCR4 expression appeared to be greater in metastatic cancers (Tables 3 and 4), which was supported by comparisons using Fisher’s exact test. For squamous cell carcinoma of the lung and clear cell renal cell carcinoma, frequencies of CXCR4+ cases were significantly higher in metastatic versus primary cancers, with P= 0.01 and P=0.02, respectively. In addition, for the cases of clear cell renal cell carcinoma, the array contained matching primary and metastatic lesions. For three out of four of the CXCR4+ metastatic lesions, the corresponding primary tumors were also CXCR4+, as compared with 11 CXCR4+ out of 94 unselected primary carcinomas, a difference that was significant, P=0.009. It was also noteworthy that out of the 17 metastatic squamous cell cancers whose sites of origin included colon (1 of 17), esophagus (3), larynx (1), lung (3), nasopharynx (4), penis (1), and unknown tissues (4), 15 were CXCR4+ (Table 3). Most of the samples of metastatic cancers came from lymph nodes, and overall approximately 30% of cancer samples from lymph nodes were CXCR4+ (Table 4).

In order to estimate CXCR4 expression by metastatic ACC tumors more reliably, we performed additional IHC on 28 metastases from 27 patients treated at the National Institutes of Health (NIH). Seventy-five percent of the lesions were positive for CXCR4 (score > 0); 25% had scores of 12, the highest score possible (Table 5). Finally, as shown in Figure 2, we performed real-time RT-PCR analysis on 58 ACC metastases from 57 patients, 5 normal adrenals and the adrenal cancer cell line, H295. By this method, expression of CXCR4 could be detected in all tumor samples. Levels of CXCR4 expression extended over a wide range and exceeded the average level for the normal adrenal glands for 21 of the 58 ACC metastases.

Table 3: CXCR4 expression on metastatic lesions, organized by primary cancers

Primary cancers

Total samples

Positive for CXCR4

Positive for CXCR4 (%)

Adenocarcinoma of unknown site

18

5

28

Breast, carcinoma

9

3

33

Colon, carcinoma

47

5

11

Colon, mucinous carcinoma

5

1

20

Colon, signet ring cell carcinoma

4

1

25

Colon, squamous carcinoma

1

1

100

Esophagus, squamous carcinoma

3

2

67

Gastric carcinoma

3

0

0

Kidney, clear cell carcinoma

7

4

57

Kidney, carcinoma, type not specified

1

1

100

Kidney, sarcomatoid carcinoma

1

0

0

Larynx, squamous carcinoma

1

1

100

Liver, hepatocellular carcinoma

2

0

0

Lung, adenocarcinoma

1

1

100

Lung, squamous cell carcinoma

3

3

100

Melanoma

12

1

8

Nasopharynx, carcinoma

4

4

100

Ovary, mucinous cystadenocarcinoma

1

0

0

Pancreas, carcinoma

1

0

0

Penis, squamous carcinoma

1

0

0

Rectum, carcinoma

7

0

0

Rectum, mucinous carcinoma

1

0

0

Squamous cell carcinoma of unknown site

4

4

100

Thyroid, follicular carcinoma

1

0

0

Thyroid, papillary carcinoma

4

1

25

All samples

142

38

27

Table 4: CXCR4 expression on metastatic lesions, organized by metastatic sites

Sites of metastases

Total samples

Positive for CXCR4

Positive for CXCR4 (%)

Adrenal gland

2

2

100

Bone

1

0

0

Brain

4

0

0

Greater omentum

7

1

14

Intestine

2

0

0

Liver

11

1

9

Lung

5

2

40

Lymph node

100

31

31

Ovary

3

0

0

Peritoneum

4

1

25

Spleen

2

0

0

Thyroid

1

0

0

All samples

142

38

27

Figure

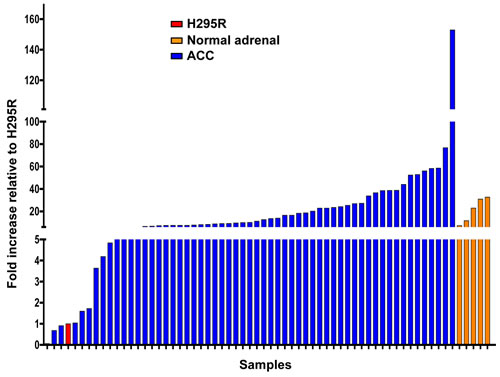

Figure 2: CXCR4 is expressed in metastatic ACC. Expression of CXCR4 mRNA was determined by RT-PCR for the ACC cell line, H295R (red), five normal adrenals (orange), and 58 ACC metastases (blue) from 57 patients. After normalization to measurements of 18S rRNA, values for all samples were normalized to the value for the H295R cell line.

Expression of CXCR4 correlates with expression of chemokine/chemokine receptor genes

In order to identify a correlation, if any, of CXCR4 expression with that of other genes or specific biological pathways, we performed a microarray analysis using mRNA from 57 metastatic lesions removed from 42 patients (along with five normal adrenals and the H295R cell line). In our analysis, we assumed that only genes with highly variable expression (a standard deviation > 1) would be informative, thereby focusing on a set of 2,837 gene probes. The probes where then clustered into 105 groups based on Pearson similarity of expression across the tumor samples. The cluster analysis excluded the four CXCR4 probes to remove potential bias in subsequent analysis. In order to enhance the significance of the correlations between CXCR4 and gene networks, a pattern of a gene’s expression was considered related to CXCR4 expression if the gene’s individual probes correlated with CXCR4 expression, and the gene was also a member of a cluster whose centroid correlated with CXCR4 expression.

CXCR4 correlations for all probes are plotted in Supplementary Figure 2, the Y-axis indicating the individual probe-probe correlation with CXCR4, the X-axis the correlation with the probe cluster’s centroid with CXCR4. There were 403 gene probes appearing in clusters with high correlation with CXCR4 that also individually showed high correlation with CXCR4 expression (both with Pearson’ s coefficient > 0.2). Gene Ontology term enrichment analysis of these 403 probes showed associations with immunological processes, and with the chemokine system and chemotaxis (Supplementary Figure 3).

Remarkably, the list of genes correlating with CXCR4 expression included twelve chemokine and two chemokine receptor genes (Supplementary Table 1).

As a control, we analyzed the collection of 191 gene probes within clusters showing negative correlations with CXCR4 that individually also showed large negative correlations with CXCR4 expression (both with Pearson’ s coefficient < - 0.2, Supplementary Figure 2). Gene Ontology term enrichment analysis of these genes found no associations with immunological processes or with the chemokine system (Supplementary Figure 4), and the list of genes did not include chemokines or chemokine receptors (data not shown).

CXCL12, the gene encoding the CXCL12 chemokine, was not among the genes whose expression correlated with CXCR4. Additionally, staining of 15 of the ACC cases for CXCL12 by IHC, 10 of which were CXCR4+ by IHC (data not shown), failed to reveal CXCL12 in cancer cells. Nonetheless, expression of CXCL12 could be readily detected in the ACC metastases on the microarrays (see GEO Series accession number GSE90713 per Materials and Methods), and CXCL12 was identified by IHC in some tumor vessels and adjacent normal tissues (Supplementary Figure 5).

Of particular interest, one chemokine receptor gene associated with expression of CXCR4 was ACKR3, the gene encoding the other receptor known to bind CXCL12. We confirmed this observation by demonstrating a significant correlation between CXCR4 and ACKR3 expression in 57 ACC metastatic lesions by real-time RT-PCR (Figure 3).

Expression

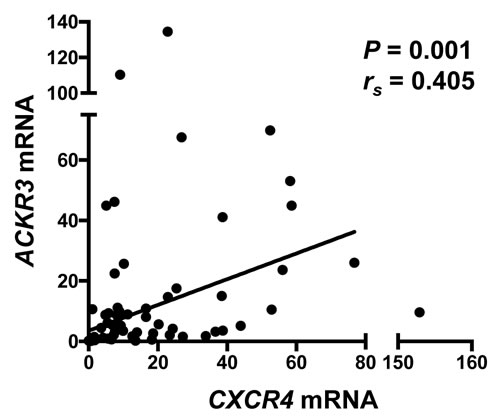

Figure 3: Expression of CXCR4 and ACKR3 are positively correlated in metastatic ACC. Expression of ACKR3 mRNA was determined by RT-PCR for the 58 ACC metastases analyzed in Figure 2 and, after normalization to measurements of 18S rRNA and to the value for the H295R cell line, compared with expression of CXCR4. From a Spearman analysis, the rank correlation coefficient (rs) and P were calculated.

Semi-quantitative, non-invasive determination of CXCR4 expression on metastases of ACC using 64Cu-plerixafor

Determining expression of CXCR4 in individual tumors would be valuable for investigating the significance of CXCR4 in ACC and other cancers, and for selecting patients for studies using CXCR4-targeting therapies. This suggested a potential advantage to the noninvasive assessment of CXCR4 expression in cancer. We, along with others, have previously shown in mouse models that CXCR4 can be evaluated in vivo using the PET tracer 64Cu-plerixafor (also known as 64Cu-AMD3100) [31, 32, 34]. We extended these studies to a patient with metastatic ACC under a clinical protocol (ClinicalTrials.gov identifier NCT02069080) that required that initial subjects have pre-existing biopsies that stained positive for CXCR4 by IHC.

The study subject was a 57-year old woman who underwent pulmonary metastasectomies as part of her medical care under a separate NIH protocol. Following a first surgery that removed nodules in the left lung, IHC of one nodule revealed CXCR4 expression with a score of 8 out of a maximum of 12 (data not shown and see Materials and Methods). PET/CT scanning using 64Cu-plerixafor was performed six and five days prior to a second surgery for removal of nodules in the right lung. Per protocol, a dose of 8.6 mCi of 64Cu-plerixafor (specific activity of 8.76 mCi/μg plerixafor) was administered followed immediately by three consecutive scans and two additional scans at approximately 4 and 24 hours post injection. A representative projection of a PET image is shown in Figure 4A.

Figure

Figure 4: 64Cu-plerixafor identifies pulmonary metastases of ACC. A. PET Maximum Intensity Projection (MIP) of a patient with metastatic ACC 40 minutes following injection of 64Cu-plerixafor. B. Thoracic transaxial plane images of PET as in A with CT co-registration. Images are rostral (I) to caudal (IV). Right lung nodules, as indicated by the white arrows, were numbered prior to resection to allow for subsequent analyses. Nodule 1 was the only target nodule without focal radiotracer uptake.

Similar to results in mice, the liver had the highest uptake of the tracer, with unbound tracer excreted through the kidneys [31, 32]. Significant uptake was also seen in organs of the immune system, including spleen, vertebral bodies (bone marrow), and lymph nodes (Figure 4 and Supplementary Figure 6). Of additional interest, uptake of 64Cu-plerixafor was absent from a number of vertebral bodies in the thoracolumbar spine that were within the region of prior radiation therapy (Figure 4 and Supplementary Figure 6). Dosimetry for 64Cu-plerixafor calculated from this single patient gave an Effective Dose of 0.283 rem/mCi, and a total of 2.43 rem from the dose of 8.6 mCi. The organs that contributed the most to the Effective Dose were the liver and bone marrow (0.0606 and 0.0760 rem/mCi, respectively). PET/CT sections (Figure 4B) showed variable uptake in the multiple pulmonary nodules.

CXCR4 staining of the six excised nodules using IHC, as shown in Figure 5A, revealed a range of CXCR4 expression, with virtually no CXCR4 staining in nodule #1, which pathologic analysis showed to be a chondroma rather than ACC. The standardized uptake values (SUV) at three hours after injection of the 64Cu-plerixafor PET tracer were compared to both CXCR4 IHC scores and CXCR4 mRNA levels in samples from the five excised ACC nodules. The SUV’s showed significant correlations with both the IHC scores (P= 0.0027, Figure 5B) and mRNA levels (P = 0.022, Figure 5C), demonstrating that uptake of 64Cu-plerixafor as determined by PET can be used to quantify expression of CXCR4.

Beyond the heterogeneity found in CXCR4 expression among ACC metastases among different individuals as shown in Figure 2 and Table 5, the finding of significant nodule-to-nodule heterogeneity in CXCR4 expression among the lesions present at one time in this single patient led us to analyze CXCR4 expression by immunostaining in multiple metastases of ACC resected at various times from four additional patients. As shown in Table 6, heterogeneity in CXCR4 expression was also found among pulmonary nodules resected from some other patients, including in patient 3, where a total of ten nodules removed in Years 1-3 were all CXCR4+, whereas the five nodules removed in Year 4 scored as 1 (one nodule) or 0 (four nodules), suggesting a change in CXCR4 expression in this patient’s metastases over time. The scores in Years 2, 3, and 4 were significantly different by one-way ANOVA (P=0.0005), as were pairwise comparisons using Student’s t-test between Year 4 and Year 2 or Year 3, P=0.0017 and P=0.0002, respectively.

Table 5: CXCR4 IHC scores of multiple ACC lesions

Age/ Sex

Score

28F

2

32M

4

33F

2

54F

1

41F

0

32F

0

51F

1

51F

4

24F

12

49F

0

64F

0

32F

12

35F

6

56M

12

52F

0

54M

12

51F

0

55M

0

45F

12

56F

9

52F

6

51M

8

53F

12

54F

4

68F

12

64M

6

72F

9

57F

8

Table 6: CXCR4 IHC scores of lesions from individual patients over time

Year of resectiona

Score

Patient 1

Year 1b

12

Year 2

12

Year 3

12

Year 3

12

Patient 2

Year 1

0.5

Year 2

0

Year 2

0

Year 2

6

Year 2

1

Year 3

6

Year 3

6

Year 3

12

Year 3

3

Year 5

6

Year 5

4

Year 9

0

Patient 3

Year 1

2

Year 2

6

Year 2

12

Year 2

6

Year 2

4

Year 2

6

Year 3

6

Year 3

12

Year 3

8

Year 3

8

Year 4

1

Year 4

0

Year 4

0

Year 4

0

Year 4

0

Patient 4

Year 1

0

Year 2

0

Year 3

0

aFor each patient, the earliest year in which the scored

lesions were resected is designated Year 1.

bEach row corresponds to a single, separate metastatic

nodule.

Uptake

Figure 5: Uptake of 64Cu-plerixafor correlates with expression of CXCR4. A. IHC staining of sections from the six resected pulmonary nodules. Nodule 1 was a chondroma and nodules 2-6 were metastatic ACC. Magnification is X 100. B. Linear regression analysis of CXCR4 IHC score vs. 64Cu-plerixafor SUVmean for the five excised ACC nodules. C. Linear regression analysis of CXCR4 mRNA vs. 64Cu-plerixafor SUVmean for the five excised ACC nodules. After normalization to measurements of 18S rRNA, values for CXCR4 mRNA were normalized to the value for the H295R cell line as in Figure 2. Red symbol in B and C corresponds to nodule 1 (chondroma), which was not included in statistical analyses. R2 is the coefficient of determination.

Expression of CXCR4 correlates with growth of ACC nodules

Our quantification of differences in CXCR4 expression in multiple tumor nodules in a single patient at one time offered a good opportunity to assess potential biological correlates of CXCR4 expression. Using available high-resolution lung CT scans obtained 4 months and just before surgical resection, the growth rates of the patient’s individual nodules were calculated based on the lesions’ volumes [35]. We found a significant correlation (P = 0.0416) between tracer SUV and tumor growth rates (Figure 6).

Figure

Figure 6: 64Cu-plerixafor SUVmean correlates with growth rate for ACC metastases. Linear regression analysis is shown for 64Cu-plerixafor SUVmean vs. tumor growth rate (see Materials and Methods) for six pulmonary nodules over the four months before 64Cu-plerixafor PET/CT. Arrow indicates a nodule of presumed ACC that was not available for analysis in Figure 5. Red symbol corresponds to nodule 1 (chondroma), which was not included in the statistical analysis. R2 is the coefficient of determination.

DISCUSSION

By screening cancer tissue arrays by IHC, we discovered that ACC expresses high levels of CXCR4, and extended these findings using IHC and gene array analyses. We demonstrated that in ACC metastases expression of CXCR4 correlates with expression of other chemokine/chemokine receptor genes including ACKR3, the gene encoding the other receptor known to bind CXCL12. Using 64Cu-plerixafor, we were able to determine CXCR4 expression in ACC metastases non-invasively, and demonstrate significant correlations of the SUVs and expression of CXCR4 protein and mRNA as measured by IHC and RT-PCR, respectively, in five pulmonary metastases. Moreover, in this same patient we found that expression of CXCR4 as determined by 64Cu-plerixafor PET correlated with growth of the metastatic ACC nodules.

We also performed IHC studies of non-ACC cancers. Staining of primary cancers revealed significant frequencies of CXCR4+ samples in cancers of the kidney, lung, and pancreas. Nonetheless, these frequencies were generally lower than reported in published data [3]. Moreover, for other cancers where high frequencies of CXCR4 staining have been reported, such as primary tumors of the breast, colon, and prostate [3], we detected CXCR4 in fewer than 10% of cases. There are several possible reasons for our comparatively low rates of CXCR4 positivity. A limitation of our studies was the use of tissue arrays, which contain small tissue cores. Given the heterogeneity in expression of CXCR4 found routinely within individual tumor samples (as we found, for example, in ACC metastases), depending on a number of factors such as scoring criteria, our array data may have contained a higher frequency of “negative” scores as compared to surveys using significantly larger tissue sections for individual cancers. In addition, every antibody/staining protocol combination will have its own limit of detection. Our data for a large number of ACC metastases, for example, showed that although all metastases contained detectable CXCR4 mRNA, CXCR4 could not be detected by IHC in approximately 25% of samples examined. Nonetheless, it is also important to note that we used an antibody whose specificity in IHC has been well validated by others, as well as in our own hands, whereas many of the studies in the literature have used antibodies that have been poorly characterized for this application, and often produce nuclear staining, whose significance is unclear [7]. Taken together, these considerations suggest that our IHC studies are likely to be highly specific but not highly sensitive, detecting tumors with substantial expression of CXCR4 and thereby providing a reliable lower-limit estimate of the frequencies of CXCR4-expressing tumors.

From the initial studies of CXCR4 in cancer [36] there has been a focus on the role of the receptor in metastasis [2]. It is of interest, therefore, that we found higher frequencies of CXCR4+ samples from metastatic as compared with primary tumors for squamous cell cancer of the lung and clear cell renal cell cancer. Particularly striking were our findings for metastatic squamous cell cancers originating from a range of tissues, for which 15 of 17 cases were CXCR4+. The majority of metastatic samples on the arrays were obtained from lymph nodes, and approximately 30% of the metastases in lymph nodes were CXCR4+. We can only speculate as to the reason(s) for the increased frequencies of CXCR4+ samples in metastatic versus primary tumors for some (but not all) of the cancers. The comparatively high frequencies for some cancers did not bear a simple relationship to the site of metastasis, since most metastases were to lymph nodes for both the metastases that were CXCR4+ and those that were CXCR4-. For renal cell clear cell carcinoma, where we had matched primary and metastatic samples, our data are consistent with preferential metastasis by CXCR4+ primary cancers as a basis for the enrichment of CXCR4+ cases among the metastases, which is in line with some published findings [37].

Cluster analysis of the gene array data including ACC samples from 42 patients revealed a significant correlation of CXCR4 expression with other genes in the chemokine system, including twelve chemokines and two chemokine receptors. We are not aware of previous data showing the correlation of expression of CXCR4 with many other genes within the chemokine system in human tumors. In considering these results, however, it is worth remembering that the gene arrays and RT-PCR data do not allow us to identify the cell types within the tumor samples expressing the relevant mRNAs and proteins.

CXCL12, which encodes the ligand for CXCR4, was not among the chemokine genes we identified whose expression correlated with expression of CXCR4 in the ACC metastases, nor did we find CXCL12 in the cancer cells by IHC. Nonetheless, the data do not suggest that CXCL12 was unavailable for activating CXCR4 on the cancer cells. The microarray data detected expression of CXCL12 mRNA in the ACC samples, and CXCL12 may have been made by cancer cells below the limit of detection by IHC. In any case, CXCL12 can be found in serum, in tumor capillaries, and in normal tissue at sites of metastasis, including lung and liver as shown in our IHC and as reported previously [36].

The chemokines encoded by the genes that we did find to be correlated with CXCR4 expression are ligands for nine chemokine receptors found on many types of leukocytes, including neutrophils, monocytes/macrophages, dendritic cells, T cells, B cells, NK cells, and innate lymphoid cells - and have been reported to have a range of activities in cancers [38]. Among many examples of these chemokines’ activities, CXCL2 and CCL2 have been shown to recruit myeloid-derived suppressor cells (MDSC) [39, 40]; CCL2 and CCL5 have been implicated in recruitment of tumor-supporting macrophages [41-43]; CCL5 has been shown to have direct pro-tumorigenic activity in metastatic colon cancer [44]; CCL18 induces epithelial-mesenchymal transition in breast cancer [45]; and CCL20 recruits IL-22-producing CD4+ T cells that contribute to tumorigenesis in colon cancer [46]. One possible basis for co-expression of these genes might be the activity of NF-κB, which has been reported to induce expression of many of these chemokines, as well as the three receptors whose mRNAs we detected, CXCR4, CXCR7, and CX3CR1 [47-50].

Co-expression of CXCR7/ACKR3 with CXCR4 was confirmed using real-time RT-PCR and is of particular interest given that CXCR4 and ACKR3 cooperate functionally through their distinct modes of interacting with their shared chemokine, CXCL12. Both the CXCR4 and ACKR3 genes can be induced by hypoxia, and by the transcription factor GLI1 (as well as NF-κB) [48, 49, 51, 52], suggesting possible mechanisms underlying co-expression. It is of interest that expression of CXCR4 and ACKR3, which direct the collective migration of cells in the developing zebrafish, is regulated in part by Wnt/β-catenin [53], which has also been suggested to contribute to ACC [54]. ACKR3 can act by signaling independently through β-arrestin-mediated pathways [55], and/or by directly affecting CXCR4 signaling through the formation of ACKR3/CXCR4 heterodimers [56, 57], and/or by sequestering CXCL12 and thereby regulating the concentrations of chemokine and shaping the chemokine gradients to which CXCR4-expressing cells respond [21, 23, 58, 59].

Co-expression of CXCR4 and ACKR3 has been reported both on separate cells and on the same cells within primary cancers [60]. It has been suggested that ACKR3 and CXCR4 cooperate in enhancing tumor growth [60, 61], sometimes through separate effects on cancer cells and angiogenesis [62], and blocking ACKR3 has been shown to diminish growth of tumors in mouse models [20]. Like CXCR4, ACKR3 has been considered a potential target for therapy of a number of cancers, including glioblastoma, endometrial carcinoma, and lung cancer [63-65].

The other chemokine receptor gene whose expression correlated with that of CXCR4 was CX3CR1, which is expressed in NK cells, subsets of monocytes, CD4+ and CD8+ T cells [22], as well as prostate cancer [66] and various experimental cancers and cancer cell lines [67-70]. Again, although the gene array data do not allow us to identify which cell type(s) in the ACC tumors were expressing CX3CR1, CX3CR1 has some similarities of interest with CXCR4 related to potential roles on malignant cells. Just as for CXCR4, CX3CR1 is up-regulated by the hypoxia-responsive transcription factor, HIF-1α [68]. In addition, CX3CR1 has been implicated in metastasis of prostate cancer cells [66] and breast cancer cells [71] to bone, and CXCR4 may have a particular role in bone metastasis [8, 72]. Bone is a known site for metastasis of ACC [29, 73], so that CX3CR1 and CXCR4 may contribute cooperatively to this proclivity. Taken together, the correlations of expression of CXCR4 with these chemokines and these other chemokine receptors suggest the potential for cooperative activities of these proteins within ACC metastases, likely through direct effects on cancer cells and tumor-associated endothelial cells, as well as through effects on leukocytes in the tumor microenvironment.

The heterogeneity of CXCR4 expression found within various types of cancers, including ACC, suggests that a method to detect and quantify CXCR4 on tumors non-invasively would be valuable in investigating CXCR4 in cancer biology, and in selecting and following patients in studies targeting CXCR4 as anti-cancer therapy. We showed previously that 64Cu-plerixafor could be used to image CXCR4 in mouse tissues [31], and we and others also showed that 64Cu-plerixafor could be used to visualize CXCR4 expression on experimental tumors [32, 34]. We show here the first data for 64Cu-plerixafor as a probe to detect CXCR4 expression by PET/CT in a patient. We detected significant uptake of 64Cu-plerixafor in organs of the hematopoietic and immune systems, which contain high numbers of CXCR4-expressing cells, including bone marrow, lymph nodes, and spleen. A portion of the thoracolumbar spine that had been exposed to radiotherapy, presumably leading to ablation of bone marrow, showed no uptake of the probe. As in our mouse studies [31, 32], we also detected accumulation of 64Cu-plerixafor in the liver. Although we had found that uptake by the liver in mice was plerixafor-specific [31], low expression of CXCR4 in the liver [74, 75] makes it unlikely that this uptake is CXCR4-specific. For the pulmonary metastases of ACC, we found that the nodules’ SUVs correlated well with CXCR4 scoring by IHC and levels of CXCR4 mRNA, suggesting that 64Cu-plerixafor can be used to quantify CXCR4 expression on tumors. Our results using IHC and/or 64Cu-plerixafor PET demonstrated significant differences in CXCR4 expression among ACC metastases within individual patients. We found differences in multiple nodules present at a single point in time, and a suggestion that metastases resected at different times from a given patient could differ in their overall levels of CXCR4 expression. Our findings emphasize the potential usefulness of a method for detecting CXCR4 expression on individual tumors that is non-invasive and avoids sampling bias.

In fact, there has been a great deal of recent interest in developing PET agents for visualizing CXCR4 expression on cancers [19]. One study used 68Ga-NOTA-NFB, a derivative of the peptide antagonist of CXCR4, T140, to image gliomas [76]. The most extensive published data have been with a newly developed synthetic pentapeptide labeled with 68Ga, 68Ga-pentixafor [77], which has been evaluated recently in patients with lymphoma [78], multiple myeloma [79], small cell lung cancer [80], glioblastoma [81], neuroendocrine tumors [82], and other cancers [83]. When tissue samples were evaluated, poor correlations were reported for glioblastoma and small cell lung cancer between 68Ga-pentixafor SUVs and CXCR4 immunoreactivity [80, 81]. The most recent data for gastro-entero-hepatic neuroendocrine tumors showed a better but still imperfect correspondence between CXCR4 positivity of tumor biopsies and 68Ga-pentixafor positivity by PET [82]. Uptake of 68Ga-pentixafor was also reported very recently for metastases of ACC, although in that study no tissue samples were available for comparing SUVs with CXCR4 expression assessed by independent methods [84]. As far as we are aware, our data include the first demonstration of a PET agent for CXCR4 for which SUVs faithfully report relative levels of expression of cell surface CXCR4 on, and CXCR4 gene expression in, human tumors.

ACC is a rare disease for which the current best treatment with the possibility of cure is surgical resection of the primary tumor. As for most solid malignancies, new therapies are needed for treatment of non-resectable and metastatic disease. A number of studies are underway assessing the safety and efficacy of CXCR4 antagonists in patients with solid tumors, such as glioblastoma multiforme, and cancers of the pancreas, ovaries, and colon (ClinicalTrials.gov identifiers NCT02179970, NCT02737072, NCT02765165). Despite the rarity of ACC, given the high levels of expression in a majority of tumors, ACC might be considered an appropriate malignancy in which to test therapies targeting CXCR4.

MATERIALS AND METHODS

Human samples and clinical protocols

Human ACC samples were acquired and analyzed from study subjects after obtaining informed consent under National Cancer Institute Center for Cancer Research (NCICCR) protocol “Natural History and Tissue Acquisition Study of Adrenocortical Carcinoma”, number 14-C-0029, ClinicalTrials.gov Identifier NCT02015026, and/or under NCICCR protocols 04-C-0011, 08-C-0176, 10-C-0203, 06-C-0014, and 01-C-0129. PET/CT imaging with 64Cu-plerixafor was done under protocol “Imaging CXCR4 Expression in Subjects With Cancer Using 64Cu-Plerixafor”, number 14-I-0050, ClinicalTrials.gov Identifier NCT02069080. Protocols were approved by the Institutional Review Board of the National Cancer Institute Center for Cancer Research.

Tumors in mice

Athymic (nude) mice were purchased from Taconic Biosciences (Hudson, NY). Mice were housed in pathogen-free conditions and experiments were performed under protocols approved by the NIH Institutional Animal Care and Use Committee. Chinese hamster ovary (CHO) cells, 3LL Lewis lung carcinoma cells, and derivatives of these cell lines expressing human CXCR4, designated CHO-XR4 and 3LL-XR4, respectively, were obtained, cultured, and injected subcutaneously into nude mice for producing local tumors as described [32]. Tumors were excised, formalin-fixed and paraffin-embedded for analysis by IHC as described below.

64Cu-plerixafor PET imaging

64Cu-plerixafor was synthesized according to the method as described [31] with detailed procedures according to U.S. FDA IND 107188. Briefly, 2 µg of plerixafor (Mozobil®, Sanofi, Gentilly, FR) in 0.4 M ammonium acetate (Sigma-Aldrich, St. Louis, MO), pH 5.5 was reacted with 20 mCi of 64Cu-acetate (supplied initially as 64CuCl2 by Cyclotron Facility, PET Department, Clinical Center, NIH). This mixture was vortexed and incubated at 37 °C for ~ 1 to 1.5 hours and the labeling yield of 64Cu-plerixafor analyzed by instant thin layer chromatography. Thereafter the 64Cu-plerixafor was combined with sterile saline, passed through sterile 0.22 μm filters (Millipore, Billerica, MA), and determined to contain < 3.46 EU of endotoxin per dose (Endosafe®, Charles River Laboratories, Wilmington, MA) before being released for use.

The patient was injected i.v. with 8.6 mCi of 64Cu-plerixafor (0.98 μg plerixafor, specific activity 8.76 mCi/μg) and underwent one low dose CT scan and three PET scans during the first hour. Two additional PET/CT scans were carried out 3 and 23 hours after tracer injection. The patient was imaged on a Philips Gemini TF PET/CT (Philips Health Care, Cleveland, OH). The low-dose, non-contrast CT transmission scans (120 kVp, 60 mAs) were used for attenuation correction and co-registration.

The attenuation-corrected PET images in transaxial, coronal, and sagittal projection planes were evaluated visually, co-registered with the CT, and images were displayed using MIM Encore 5.2 (MIM Software, Inc., Cleveland, OH). Volumes of interest (VOI) containing entire lesions were drawn and SUV mean values were calculated. Dosimetry was calculated using Organ Level INternal Dose Assessment (OLINDA) Code (Version 1.1, Vanderbilt University, 2007).

Immunohistochemistry

Tumor arrays and suppliers were as follows: BRC1021, KIC1501, KIC1502, LUC1021, NST1021, MET181, MET961, PRC1021, and MTU951 were purchased from Pantomics (Richmond, CA); CO702a, CO992, HPan-Ade150CS, KD951a, OD-CT-DgPan03-001, and PR633 were purchased from US Biomax (Rockville, MD); CK2 was purchased from Super Bio Chips (Seoul, Korea). IHC was performed similarly on tumor arrays, other human tissue samples, and tumors from mice. Paraffin-embedded sections were baked for 30 min at 55 °C and deparaffinized in xylene x 3. Samples were rehydrated by incubation in a descending gradient of alcohol and thereafter antigen retrieval was performed using low pH antigen retrieval solution (Dako, Carpinteria, CA) at 95 °C for 20 minutes or using a pressure cooker in a microwave oven for 20 minutes. Slides were blocked with 4% rat and mouse sera or Tris-buffer with 5% goat immunoglobulin , and stained with rabbit anti-CXCR4 antibody UMB-2 (Abcam, Cambridge, MA) at a dilution of 1:500 for 1 hour at room temperature. Anti-rabbit Envision + DAB kit (Dako, Carpinteria, CA) was used to visualize the binding of the primary antibody as instructed by the manufacturer. Sections from human tonsils were used as postive controls. In Supplementary Figure 1 and data not shown, we validated UMB-2, and optimized staining procedures using formalin-fixed, paraffin-embedded CXCR4- and CXCR4+ cell lines, processed either as pellets or from tumors grown in mice, and also using sections of human tonsils. The tumors displayed in Supplementary Figure 1 had been analyzed previously using micro-PET and by flow cytometry of single-cell suspensions, demonstrating high and low levels of CXCR4 expression in the CXCR4-transfected CHO and Lewis lung carcinoma tumors, respectively [32]. Some photomicrographs were taken using an Olympus Bx41 microscope with objectives Plan 2x/0.05, UPlanFI 10x/0.30, UPlanFI 20x/0.50, and UPlanFI 40x/0.75, with an adaptor U-TV0.5xC using digital camera Q-imaging Micropublisher 5.0 RTV. The images were captured using “Q-Capture Version 3.1” and imported to Adobe Photoshop 7.0. Other images were obtained using an Olympus BH-2 microscope with objective SPlan 10x/0.30 and equipped with Q-imaging 12 bit camera and acquisition software.

Tissue cores on the arrays were scored as positive or negative for CXCR4 expression by the cancer cells, and all tumor arrays were scored by a single pathologist. For the ACC samples, a standard scoring system [85] was modified for the evaluation of CXCR4 expression. The H-score was defined as: (percentage quintile x average intensity of staining). The percentage quintiles were defined as follows: 0%-5% of cell staining positive, a score of 0; 6%-25% of cells staining positive, a score of 1; 26%-50% of cells staining positive, a score of 2; 51%-75% of cells staining positive, a score of 3; 76%-100% of cells staining positive, a score of 4. The average intensity of staining scale was defined as follows: weak=1, moderate=2, and strong=3. Consequently, the H-scores ranged from 0 to12 (quintile 4 x intensity of 3). For analyzing samples resected from the patient following studies using 64Cu-plerixafor, investigators were blinded as to the lesions’ SUV’s when scoring IHC.

Analysis of tumor growth rates

Tumor growth rates were calculated as described [35]. Calculations were performed using an online calculator found at http://ec2-54-218-32-173.us-west-2.compute.amazonaws.com:3838/tgrShiny/. The volume of each lesion was measured using PACS software from two surgical CT scans done at one week before and four months before PET scanning using 64Cu-plerixafor.

RNA isolation and real time RT-PCR

RNA was isolated using the Qiagen miRNeasy Kit (Qiagen, Valencia, CA) or PureLink RNA KIT (Ambion, Austin, TX) following the manufacturers’ instructions. In addition to tissue samples, for purposes of comparison and normalization, RNA was prepared from the H295R adrenocortical carcinoma cell line, obtained from the American Type Culture Collection, Manassas, VA. Real time RT-PCR was carried out using gene specific TaqMan probes and primers for CXCR4 (Applied Biosystems, Foster City, CA, catalogue number Hs00607978_s1), CXCR7/ACKR3 (catalogue number Hs00604567_m1), and 18S rRNA (catalogue number Hs99999901_s1) on an ABI StepOne instrument, and data were analyzed using SDS software (Applied Biosystems), after which values for CXCR4 and CXCR7/ACKR3 were normalized to values for 18S rRNA for each sample.

Microarray data processing and analysis

RNAs from 63 samples (57 tumor samples, 5 normal adrenal tissue samples, the latter from CHTN Southern Division, Birmingham, AL) and a sample from the H295R cell line were processed on Human PrimeView arrays (Affymetrix, Santa Clara, CA). Array design (PrimeView.cdf, rev01) and genomic annotation (PrimeView.na35.annot.csv) were downloaded from Affymetrix product support (http://www.affymetrix.com/support/technical/byproduct.affx?product=primeview). Signal data were extracted from CEL files with the Affymetrix Import Engine of JMP Genomics software v. 7.0 (SAS Institute, Cary, NC) using RMA background correction, transformation to log2 after adding 16 (shifting factor), and summarization by median polish. Quantile normalization was applied across all probe intensities on all arrays. The data have been deposited in NCBI’s Gene Expression Omnibus and are accessible through GEO Series accession number GSE90713 (http://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE90713).

Cluster analysis

k-means clustering of probe sets was done on the basis of differences among tissue samples in the 63-sample set. In order to do this, the quantile-normalized dataset described above was further standardized for each probe set across the samples by subtracting the mean (over the tissue samples) and dividing by the standard deviation (over the tissue samples). Thus, the Euclidean distance between probe set patterns was equivalent to the inverse of the Pearson correlation. Only those probe sets with a standard deviation > 1.0 were retained for cluster analysis. The cubic clustering criterion was used to determine the optimal number of clusters. Each cluster centroid (vector of tissue sample expression values) was calculated by averaging the tissue sample values for all probe sets in the cluster. These calculations were done using JMP Genomics software (SAS Institute, Cary, NC).

Gene ontology term enrichment analysis

Pathway analysis was carried out using Gene Ontology enRIchment anaLysis and visuaLizAtion tool (GOrilla,http://cbl-gorilla.cs.technion.ac.il) using genes from the cluster analysis done after excluding CXCR4 probes, for two groups of genes: one group included genes that had > 0.2 correlation with CXCR4 probes from clusters that had mean correlations of > 0.2 with CXCR4 probes; the second group included genes that had < -0.2 correlation with CXCR4 probes from clusters that had mean correlations of < -0.2 with CXCR4 probes. GOrilla results were visualized using REVIGO (http://revigo.irb.hr) [86].

Statistical analysis

Fisher’s exacts tests were two-tailed and performed using GraphPad QuickCalcs at https://graphpad.com/quickcalcs/contingency1.cfm (GraphPad Software, La Jolla, CA). Determinations of Pearson’s and/or Spearman’s correlation coefficients, one-way ANOVA and Student’s t-tests were done using GraphPad Prism. For each correlation R2 or rs and P values are shown.

Abbreviations

ACC, adrenocortical cancer; DAB, 3, 3’-diaminobenzidine; IHC, immunohistochemistry; NIH, National Institutes of Health; SUV, standardized uptake value.

Author contributions

I.D.W., L.M.H., M.E., X.X., and S.P.S. performed experiments. I.D.W., L.M.H., M.O.E., S.P., T.F., and J.M.F. designed experiments and analyzed experimental data. P.J.G., T.G.M., and I.D.W. analyzed microarray data. I.D.W., X.X., H.D.D., D.S.V., J-H. L., C.H.P., P.L.C., T.F., and J.M.F. designed and/or wrote, and H.H.Z. performed experiments for the clinical protocol for the use of 64Cu-plerixafor. J-H.L. and C.H.P. prepared 64Cu-plerixafor. M.L.L. and P.L.C. performed PET and they and I.D.W. analyzed PET data. D.S.V., D.S.S., T.F., and J.M.F. performed patient care as part of clinical protocols. I.D.W., P.L.C., T.F., and J.M.F. wrote the manuscript.

ACKNOWLEDGMENTS

We are grateful to the patients who entrusted their care to us, and who agreed to participate in research protocols. We are particularly grateful to the patient who agreed to be the first person studied using 64Cu-plerixafor. We are very grateful to David McDermott of the National Institute of Allergy and Infectious Diseases (NIAID) for the CHO-XR4 cell line, and to our colleagues Gary Griffiths, Stephen Adler, Maureen E. Edgerly and Yolanda McKinney of the National Cancer Institute, and Daniel E. Sturdevant of NIAID for their assistance in carrying out the research.

CONFLICTS OF INTEREST

The authors declare no conflicts of interest.

FUNDING

This research was supported by the Intramural Research Programs of the National Institute of Allergy and Infectious Diseases, the National Cancer Institute, and the Clinical Center, National Institutes of Health.

REFERENCES

1. Klein RS, Rubin JB. Immune and nervous system CXCL12 and CXCR4: parallel roles in patterning and plasticity. Trends Immunol. 2004; 25:306-314.

2. Zlotnik A, Burkhardt AM, Homey B. Homeostatic chemokine receptors and organ-specific metastasis. Nat Rev Immunol. 2011; 11:597-606.

3. Chatterjee S, Behnam Azad B, Nimmagadda S. The intricate role of CXCR4 in cancer. Adv Cancer Res. 2014; 124:31-82.

4. Staller P, Sulitkova J, Lisztwan J, Moch H, Oakeley EJ, Krek W. Chemokine receptor CXCR4 downregulated by von Hippel-Lindau tumour suppressor pVHL. Nature. 2003; 425:307-311.

5. Otsuka S, Klimowicz AC, Kopciuk K, Petrillo SK, Konno M, Hao D, Muzik H, Stolte E, Boland W, Morris D, Magliocco AM, Bebb DG. CXCR4 overexpression is associated with poor outcome in females diagnosed with stage IV non-small cell lung cancer. J Thorac Oncol. 2011; 6:1169-1178.

6. Oda Y, Tateishi N, Matono H, Matsuura S, Yamamaoto H, Tamiya S, Yokoyama R, Matsuda S, Iwamoto Y, Tsuneyoshi M. Chemokine receptor CXCR4 expression is correlated with VEGF expression and poor survival in soft-tissue sarcoma. Int J Cancer. 2009; 124:1852-1859.

7. Fischer T, Nagel F, Jacobs S, Stumm R, Schulz S. Reassessment of CXCR4 chemokine receptor expression in human normal and neoplastic tissues using the novel rabbit monoclonal antibody UMB-2. PLoS One. 2008; 3:e4069.

8. Kang Y, Siegel PM, Shu W, Drobnjak M, Kakonen SM, Cordon-Cardo C, Guise TA, Massague J. A multigenic program mediating breast cancer metastasis to bone. Cancer Cell. 2003; 3:537-549.

9. Orimo A, Gupta PB, Sgroi DC, Arenzana-Seisdedos F, Delaunay T, Naeem R, Carey VJ, Richardson AL, Weinberg RA. Stromal fibroblasts present in invasive human breast carcinomas promote tumor growth and angiogenesis through elevated SDF-1/CXCL12 secretion. Cell. 2005; 121:335-348.

10. Peled A, Wald O, Burger J. Development of novel CXCR4-based therapeutics. Expert Opin Investig Drugs. 2012; 21:341-353.

11. Teicher BA, Fricker SP. CXCL12 (SDF-1)/CXCR4 pathway in cancer. Clin Cancer Res. 2010; 16:2927-2931.

12. Duda DG, Kozin SV, Kirkpatrick ND, Xu L, Fukumura D, Jain RK. CXCL12 (SDF1alpha)-CXCR4/CXCR7 pathway inhibition: an emerging sensitizer for anticancer therapies? Clin Cancer Res. 2011; 17:2074-2080.

13. Krieg A, Riemer JC, Telan LA, Gabbert HE, Knoefel WT. CXCR4—A Prognostic and Clinicopathological Biomarker for Pancreatic Ductal Adenocarcinoma: A Meta-Analysis. PLoS One. 2015; 10:e0130192.

14. Li LN, Jiang KT, Tan P, Wang AH, Kong QY, Wang CY, Lu HR, Wang J. Prognosis and Clinicopathology of CXCR4 in Colorectal Cancer Patients: a Meta-analysis. Asian Pac J Cancer Prev. 2015; 16:4077-4080.

15. Liu K, Bao C, Yao N, Miao C, Varlotto J, Sun Q, Sun X. Expression of CXCR4 and non-small cell lung cancer prognosis: a meta-analysis. Int J Clin Exp Med. 2015; 8:7435-7445.

16. Zhao H, Guo L, Zhao H, Zhao J, Weng H, Zhao B. CXCR4 over-expression and survival in cancer: a system review and meta-analysis. Oncotarget. 2015; 6:5022-5040. https://doi.org/10.18632/oncotarget.3217.

17. Weitzenfeld P, Ben-Baruch A. The chemokine system, and its CCR5 and CXCR4 receptors, as potential targets for personalized therapy in cancer. Cancer Lett. 2014; 352:36-53.

18. Kuil J, Buckle T, van Leeuwen FW. Imaging agents for the chemokine receptor 4 (CXCR4). Chem Soc Rev. 2012; 41:5239-5261.

19. Weiss ID, Jacobson O. Molecular imaging of chemokine receptor CXCR4. Theranostics. 2013; 3:76-84.

20. Burns JM, Summers BC, Wang Y, Melikian A, Berahovich R, Miao Z, Penfold ME, Sunshine MJ, Littman DR, Kuo CJ, Wei K, McMaster BE, Wright K, et al. A novel chemokine receptor for SDF-1 and I-TAC involved in cell survival, cell adhesion, and tumor development. J Exp Med. 2006; 203:2201-2213.

21. Sanchez-Martin L, Sanchez-Mateos P, Cabanas C. CXCR7 impact on CXCL12 biology and disease. Trends Mol Med. 2013; 19:12-22.

22. Bachelerie F, Ben-Baruch A, Burkhardt AM, Combadiere C, Farber JM, Graham GJ, Horuk R, Sparre-Ulrich AH, Locati M, Luster AD, Mantovani A, Matsushima K, Murphy PM, et al. International Union of Pharmacology. LXXXIX. Update on the extended family of chemokine receptors and introducing a new nomenclature for atypical chemokine receptors. Pharmacol Rev. 2014; 66:1-79.

23. Boldajipour B, Mahabaleshwar H, Kardash E, Reichman-Fried M, Blaser H, Minina S, Wilson D, Xu Q, Raz E. Control of chemokine-guided cell migration by ligand sequestration. Cell. 2008; 132:463-473.

24. Maksym RB, Tarnowski M, Grymula K, Tarnowska J, Wysoczynski M, Liu R, Czerny B, Ratajczak J, Kucia M, Ratajczak MZ. The role of stromal-derived factor-1—CXCR7 axis in development and cancer. Eur J Pharmacol. 2009; 625:31-40.

25. Scala S. Molecular Pathways: Targeting the CXCR4-CXCL12 Axis—Untapped Potential in the Tumor Microenvironment. Clin Cancer Res. 2015; 21:4278-4285.

26. Else T, Kim AC, Sabolch A, Raymond VM, Kandathil A, Caoili EM, Jolly S, Miller BS, Giordano TJ, Hammer GD. Adrenocortical Carcinoma. Endocrine Reviews. 2014; 35:282-326.

27. Bilimoria KY, Shen WT, Elaraj D, Bentrem DJ, Winchester DJ, Kebebew E, Sturgeon C. Adrenocortical carcinoma in the United States: treatment utilization and prognostic factors. Cancer. 2008; 113:3130-3136.

28. Kebebew E, Reiff E, Duh QYY, Clark OH, McMillan A. Extent of disease at presentation and outcome for adrenocortical carcinoma: have we made progress? World journal of surgery. 2006; 30:872-878.

29. Baudin E, Endocrine Tumor Board of Gustave R. Adrenocortical carcinoma. Endocrinol Metab Clin North Am. 2015; 44:411-434.

30. Debnath B, Xu S, Grande F, Garofalo A, Neamati N. Small molecule inhibitors of CXCR4. Theranostics. 2013; 3:47-75.

31. Jacobson O, Weiss ID, Szajek L, Farber JM, Kiesewetter DO. 64Cu-AMD3100—a novel imaging agent for targeting chemokine receptor CXCR4. Bioorg Med Chem. 2009; 17:1486-1493.

32. Weiss ID, Jacobson O, Kiesewetter DO, Jacobus JP, Szajek LP, Chen X, Farber JM. Positron emission tomography imaging of tumors expressing the human chemokine receptor CXCR4 in mice with the use of 64Cu-AMD3100. Mol Imaging Biol. 2012; 14:106-114.

33. Don-Salu-Hewage AS, Chan SY, McAndrews KM, Chetram MA, Dawson MR, Bethea DA, Hinton CV. Cysteine (C)-x-C receptor 4 undergoes transportin 1-dependent nuclear localization and remains functional at the nucleus of metastatic prostate cancer cells. PLoS One. 2013; 8:e57194.

34. Nimmagadda S, Pullambhatla M, Stone K, Green G, Bhujwalla ZM, Pomper MG. Molecular imaging of CXCR4 receptor expression in human cancer xenografts with [64Cu]AMD3100 positron emission tomography. Cancer Res. 2010; 70:3935-3944.

35. Ferte C, Koscielny S, Albiges L, Rocher L, Soria JC, Iacovelli R, Loriot Y, Fizazi K, Escudier B. Tumor growth rate provides useful information to evaluate sorafenib and everolimus treatment in metastatic renal cell carcinoma patients: an integrated analysis of the TARGET and RECORD phase 3 trial data. Eur Urol. 2014; 65:713-720.

36. Muller A, Homey B, Soto H, Ge N, Catron D, Buchanan ME, McClanahan T, Murphy E, Yuan W, Wagner SN, Barrera JL, Mohar A, Verastegui E, et al. Involvement of chemokine receptors in breast cancer metastasis. Nature. 2001; 410:50-56.

37. Gahan JC, Gosalbez M, Yates T, Young EE, Escudero DO, Chi A, Garcia-Roig M, Satyanarayana R, Soloway MS, Bird VG, Lokeshwar VB. Chemokine and chemokine receptor expression in kidney tumors: molecular profiling of histological subtypes and association with metastasis. J Urol. 2012; 187:827-833.

38. Mukaida N, Sasaki S, Baba T. Chemokines in cancer development and progression and their potential as targeting molecules for cancer treatment. Mediators Inflamm. 2014; 2014:170381.

39. Katoh H, Wang D, Daikoku T, Sun H, Dey SK, Dubois RN. CXCR2-expressing myeloid-derived suppressor cells are essential to promote colitis-associated tumorigenesis. Cancer Cell. 2013; 24:631-644.

40. Chang AL, Miska J, Wainwright DA, Dey M, Rivetta CV, Yu D, Kanojia D, Pituch KC, Qiao J, Pytel P, Han Y, Wu M, Zhang L, et al. CCL2 produced by the glioma microenvironment is essential for the recruitment of regulatory T cells and myeloid-derived suppressor cells. Cancer Res. 2016; 76:5671-5682.

41. Datar I, Qiu X, Ma HZ, Yeung M, Aras S, de la Serna I, Al-Mulla F, Thiery JP, Trumbly R, Fan X, Cui H, Yeung KC. RKIP regulates CCL5 expression to inhibit breast cancer invasion and metastasis by controlling macrophage infiltration. Oncotarget. 2015; 6:39050-39061. https://doi.org/10.18632/oncotarget.5176. Erratum in: Correction: RKIP regulates CCL5 expression to inhibit breast cancer invasion and metastasis by controlling macrophage infiltration. Oncotarget. 2016.

42. Frankenberger C, Rabe D, Bainer R, Sankarasharma D, Chada K, Krausz T, Gilad Y, Becker L, Rosner MR. Metastasis Suppressors Regulate the Tumor Microenvironment by Blocking Recruitment of Prometastatic Tumor-Associated Macrophages. Cancer Res. 2015; 75:4063-4073.

43. Kitamura T, Qian BZ, Soong D, Cassetta L, Noy R, Sugano G, Kato Y, Li J, Pollard JW. CCL2-induced chemokine cascade promotes breast cancer metastasis by enhancing retention of metastasis-associated macrophages. J Exp Med. 2015; 212:1043-1059.

44. Halama N, Zoernig I, Berthel A, Kahlert C, Klupp F, Suarez-Carmona M, Suetterlin T, Brand K, Krauss J, Lasitschka F, Lerchl T, Luckner-Minden C, Ulrich A, et al. Tumoral Immune Cell Exploitation in Colorectal Cancer Metastases Can Be Targeted Effectively by Anti-CCR5 Therapy in Cancer Patients. Cancer Cell. 2016; 29:587-601.

45. Su S, Liu Q, Chen J, Chen F, He C, Huang D, Wu W, Lin L, Huang W, Zhang J, Cui X, Zheng F, Li H, et al. A positive feedback loop between mesenchymal-like cancer cells and macrophages is essential to breast cancer metastasis. Cancer Cell. 2014; 25:605-620.

46. Kryczek I, Lin Y, Nagarsheth N, Peng D, Zhao L, Zhao E, Vatan L, Szeliga W, Dou Y, Owens S, Zgodzinski W, Majewski M, Wallner G, et al. IL-22(+)CD4(+) T cells promote colorectal cancer stemness via STAT3 transcription factor activation and induction of the methyltransferase DOT1L. Immunity. 2014; 40:772-784.

47. Newton K, Dixit VM. Signaling in innate immunity and inflammation. Cold Spring Harb Perspect Biol. 2012; 4:a006049.

48. Kukreja P, Abdel-Mageed AB, Mondal D, Liu K, Agrawal KC. Up-regulation of CXCR4 expression in PC-3 cells by stromal-derived factor-1alpha (CXCL12) increases endothelial adhesion and transendothelial migration: role of MEK/ERK signaling pathway-dependent NF-kappaB activation. Cancer Res. 2005; 65:9891-9898.

49. Kerdivel G, Boudot A, Pakdel F. Estrogen represses CXCR7 gene expression by inhibiting the recruitment of NFkappaB transcription factor at the CXCR7 promoter in breast cancer cells. Biochem Biophys Res Commun. 2013; 431:729-733.

50. Xiao LJ, Chen YY, Lin P, Zou HF, Lin F, Zhao LN, Li D, Guo L, Tang JB, Zheng XL, Yu XG. Hypoxia increases CX3CR1 expression via HIF-1 and NFkappaB in androgen-independent prostate cancer cells. Int J Oncol. 2012; 41:1827-1836.

51. Esencay M, Sarfraz Y, Zagzag D. CXCR7 is induced by hypoxia and mediates glioma cell migration towards SDF-1alpha. BMC Cancer. 2013; 13:347.

52. Inaguma S, Riku M, Ito H, Tsunoda T, Ikeda H, Kasai K. GLI1 orchestrates CXCR4/CXCR7 signaling to enhance migration and metastasis of breast cancer cells. Oncotarget. 2015; 6:33648-33657. https://doi.org/10.18632/oncotarget.5203.

53. Aman A, Piotrowski T. Wnt/beta-catenin and Fgf signaling control collective cell migration by restricting chemokine receptor expression. Dev Cell. 2008; 15:749-761.

54. Hubalewska-Dydejczyk A, Jabrocka-Hybel A, Pach D, Gilis-Januszewska A, Sokolowski G. Current and Future Medical Therapy, and the Molecular Features of Adrenocortical Cancer. Recent Patents on Anti-Cancer Drug Discovery. 2012; 7:132-145.

55. Rajagopal S, Kim J, Ahn S, Craig S, Lam CM, Gerard NP, Gerard C, Lefkowitz RJ. Beta-arrestin- but not G protein-mediated signaling by the "decoy" receptor CXCR7. Proc Natl Acad Sci U S A. 2010; 107:628-632.

56. Decaillot FM, Kazmi MA, Lin Y, Ray-Saha S, Sakmar TP, Sachdev P. CXCR7/CXCR4 heterodimer constitutively recruits beta-arrestin to enhance cell migration. J Biol Chem. 2011; 286:32188-32197.

57. Levoye A, Balabanian K, Baleux F, Bachelerie F, Lagane B. CXCR7 heterodimerizes with CXCR4 and regulates CXCL12-mediated G protein signaling. Blood. 2009; 113:6085-6093.

58. Sanchez-Alcaniz JA, Haege S, Mueller W, Pla R, Mackay F, Schulz S, Lopez-Bendito G, Stumm R, Marin O. Cxcr7 controls neuronal migration by regulating chemokine responsiveness. Neuron. 2011; 69:77-90.

59. Graham GJ, Locati M, Mantovani A, Rot A, Thelen M. The biochemistry and biology of the atypical chemokine receptors. Immunol Lett. 2012; 145:30-38.

60. Luker KE, Lewin SA, Mihalko LA, Schmidt BT, Winkler JS, Coggins NL, Thomas DG, Luker GD. Scavenging of CXCL12 by CXCR7 promotes tumor growth and metastasis of CXCR4-positive breast cancer cells. Oncogene. 2012; 31:4750-4758.

61. Hattermann K, Held-Feindt J, Lucius R, Muerkoster SS, Penfold ME, Schall TJ, Mentlein R. The chemokine receptor CXCR7 is highly expressed in human glioma cells and mediates antiapoptotic effects. Cancer Res. 2010; 70:3299-3308.

62. Hernandez L, Magalhaes MA, Coniglio SJ, Condeelis JS, Segall JE. Opposing roles of CXCR4 and CXCR7 in breast cancer metastasis. Breast Cancer Res. 2011; 13:R128.

63. Liu Y, Carson-Walter E, Walter KA. Targeting chemokine receptor CXCR7 inhibits glioma cell proliferation and mobility. Anticancer Res. 2015; 35:53-64.

64. Long P, Sun F, Ma Y, Huang Y. Inhibition of CXCR4 and CXCR7 for reduction of cell proliferation and invasion in human endometrial cancer. Tumour Biol. 2016; 37:7473-7480.

65. Yamada K, Maishi N, Akiyama K, Towfik Alam M, Ohga N, Kawamoto T, Shindoh M, Takahashi N, Kamiyama T, Hida Y, Taketomi A, Hida K. CXCL12-CXCR7 axis is important for tumor endothelial cell angiogenic property. Int J Cancer. 2015; 137:2825-2836.

66. Jamieson WL, Shimizu S, D’Ambrosio JA, Meucci O, Fatatis A. CX3CR1 is expressed by prostate epithelial cells and androgens regulate the levels of CX3CL1/fractalkine in the bone marrow: potential role in prostate cancer bone tropism. Cancer Res. 2008; 68:1715-1722.

67. Shulby SA, Dolloff NG, Stearns ME, Meucci O, Fatatis A. CX3CR1-fractalkine expression regulates cellular mechanisms involved in adhesion, migration, and survival of human prostate cancer cells. Cancer Res. 2004; 64:4693-4698.

68. Zhao T, Gao S, Wang X, Liu J, Duan Y, Yuan Z, Sheng J, Li S, Wang F, Yu M, Ren H, Hao J. Hypoxia-inducible factor-1alpha regulates chemotactic migration of pancreatic ductal adenocarcinoma cells through directly transactivating the CX3CR1 gene. PLoS One. 2012; 7:e43399.

69. Tardaguila M, Mira E, Garcia-Cabezas MA, Feijoo AM, Quintela-Fandino M, Azcoitia I, Lira SA, Manes S. CX3CL1 promotes breast cancer via transactivation of the EGF pathway. Cancer Res. 2013; 73:4461-4473.

70. Schmall A, Al-Tamari HM, Herold S, Kampschulte M, Weigert A, Wietelmann A, Vipotnik N, Grimminger F, Seeger W, Pullamsetti SS, Savai R. Macrophage and cancer cell cross-talk via CCR2 and CX3CR1 is a fundamental mechanism driving lung cancer. Am J Respir Crit Care Med. 2015; 191:437-447.

71. Shen F, Zhang Y, Jernigan DL, Feng X, Yan J, Garcia FU, Meucci O, Salvino JM, Fatatis A. Novel Small-Molecule CX3CR1 Antagonist Impairs Metastatic Seeding and Colonization of Breast Cancer Cells. Mol Cancer Res. 2016; 14:518-527.

72. Wang J, Loberg R, Taichman RS. The pivotal role of CXCL12 (SDF-1)/CXCR4 axis in bone metastasis. Cancer Metastasis Rev. 2006; 25:573-587.

73. Ayala-Ramirez M, Jasim S, Feng L, Ejaz S, Deniz F, Busaidy N, Waguespack SG, Naing A, Sircar K, Wood CG, Pagliaro L, Jimenez C, Vassilopoulou-Sellin R, et al. Adrenocortical carcinoma: clinical outcomes and prognosis of 330 patients at a tertiary care center. Eur J Endocrinol. 2013; 169:891-899.

74. Nagasawa T, Nakajima T, Tachibana K, Iizasa H, Bleul CC, Yoshie O, Matsushima K, Yoshida N, Springer TA, Kishimoto T. Molecular cloning and characterization of a murine pre-B-cell growth-stimulating factor/stromal cell-derived factor 1 receptor, a murine homolog of the human immunodeficiency virus 1 entry coreceptor fusin. Proc Natl Acad Sci U S A. 1996; 93:14726-14729.

75. Moepps B, Frodl R, Rodewald HR, Baggiolini M, Gierschik P. Two murine homologues of the human chemokine receptor CXCR4 mediating stromal cell-derived factor 1alpha activation of Gi2 are differentially expressed in vivo. Eur J Immunol. 1997; 27:2102-2112.

76. Wang Z, Zhang M, Wang L, Wang S, Kang F, Li G, Jacobson O, Niu G, Yang W, Wang J, Chen X. Prospective Study of (68)Ga-NOTA-NFB: Radiation Dosimetry in Healthy Volunteers and First Application in Glioma Patients. Theranostics. 2015; 5:882-889.

77. Gourni E, Demmer O, Schottelius M, D’Alessandria C, Schulz S, Dijkgraaf I, Schumacher U, Schwaiger M, Kessler H, Wester HJ. PET of CXCR4 expression by a (68)Ga-labeled highly specific targeted contrast agent. J Nucl Med. 2011; 52:1803-1810.

78. Wester HJ, Keller U, Schottelius M, Beer A, Philipp-Abbrederis K, Hoffmann F, Simecek J, Gerngross C, Lassmann M, Herrmann K, Pellegata N, Rudelius M, Kessler H, et al. Disclosing the CXCR4 expression in lymphoproliferative diseases by targeted molecular imaging. Theranostics. 2015; 5:618-630.

79. Philipp-Abbrederis K, Herrmann K, Knop S, Schottelius M, Eiber M, Luckerath K, Pietschmann E, Habringer S, Gerngross C, Franke K, Rudelius M, Schirbel A, Lapa C, et al. In vivo molecular imaging of chemokine receptor CXCR4 expression in patients with advanced multiple myeloma. EMBO Mol Med. 2015; 7:477-487.

80. Lapa C, Luckerath K, Rudelius M, Schmid JS, Schoene A, Schirbel A, Samnick S, Pelzer T, Buck AK, Kropf S, Wester HJ, Herrmann K. [68Ga]Pentixafor-PET/CT for imaging of chemokine receptor 4 expression in small cell lung cancer--initial experience. Oncotarget. 2016; 7:9288–9295. https://doi.org/10.18632/oncotarget.7063.

81. Lapa C, Luckerath K, Kleinlein I, Monoranu CM, Linsenmann T, Kessler AF, Rudelius M, Kropf S, Buck AK, Ernestus RI, Wester HJ, Lohr M, Herrmann K. (68)Ga-Pentixafor-PET/CT for Imaging of Chemokine Receptor 4 Expression in Glioblastoma. Theranostics. 2016; 6:428-434.

82. Werner RA, Weich A, Higuchi T, Schmid JS, Schirbel A, Lassmann M, Wild V, Rudelius M, Kudlich T, Herrmann K, Scheurlen M, Buck AK, Kropf S, et al. Imaging of Chemokine Receptor 4 Expression in Neuroendocrine Tumors - a Triple Tracer Comparative Approach. Theranostics. 2017; 7:1489-1498.

83. Vag T, Gerngross C, Herhaus P, Eiber M, Philipp-Abbrederis K, Graner FP, Ettl J, Keller U, Wester HJ, Schwaiger M. First Experience with Chemokine Receptor CXCR4-Targeted PET Imaging of Patients with Solid Cancers. J Nucl Med. 2016; 57:741-746.

84. Bluemel C, Hahner S, Heinze B, Fassnacht M, Kroiss M, Bley TA, Wester HJ, Kropf S, Lapa C, Schirbel A, Buck AK, Herrmann K. Investigating the Chemokine Receptor 4 as Potential Theranostic Target in Adrenocortical Cancer Patients. Clin Nucl Med. 2017; 42:e29-e34.

85. Li YM, Pan Y, Wei Y, Cheng X, Zhou BP, Tan M, Zhou X, Xia W, Hortobagyi GN, Yu D, Hung MC. Upregulation of CXCR4 is essential for HER2-mediated tumor metastasis. Cancer Cell. 2004; 6:459-469.

86. Supek F, Bosnjak M, Skunca N, Smuc T. REVIGO summarizes and visualizes long lists of gene ontology terms. PLoS One. 2011; 6:e21800.


Creative Commons License All site content, except where otherwise noted, is licensed under a Creative Commons Attribution 3.0 License.
PII: 19945
