The immune checkpoint molecule V-set Ig domain-containing 4 is an independent prognostic factor for multiple myeloma

PDF |  HTML  |  Supplementary Files  |  How to cite  |  Order a Reprint

Oncotarget. 2017; 8:58122-58132. https://doi.org/10.18632/oncotarget.19468

Metrics: PDF 1211 views  |   HTML 2262 views  |   ?

Jin Roh, Youkyoung Jeon, A-Neum Lee, Sang Min Lee, YeonMee Kim, Chang Ohk Sung, Chan-Jeoung Park, Jung Yong Hong, Dok Hyun Yoon, Cheolwon Suh, Jooryung Huh, Inhak Choi and Chan-Sik Park _

Abstract

Jin Roh1, Youkyoung Jeon6, A-Neum Lee4,5, Sang Min Lee7, YeonMee Kim8, Chang Ohk Sung1, Chan-Jeoung Park3, Jung Yong Hong2, Dok Hyun Yoon2, Cheolwon Suh2, Jooryung Huh1, Inhak Choi6,* and Chan-Sik Park1,4,5,*

1Department of Pathology, University of Ulsan College of Medicine, Asan Medical Center, Seoul, Korea

2Department of Oncology, University of Ulsan College of Medicine, Asan Medical Center, Seoul, Korea

3Department of Laboratory Medicine, University of Ulsan College of Medicine, Asan Medical Center, Seoul, Korea

4Asan Institute for Life Sciences, University of Ulsan College of Medicine, Asan Medical Center, Seoul, Korea

5Cell Dysfunction Research Center, University of Ulsan College of Medicine, Asan Medical Center, Seoul, Korea

6Department of Microbiology and Immunology, Advanced Research Center for Multiple Myeloma, Inje University College of Medicine, Busan, Korea

7Department of Hematology/Oncology, Busan Paik Hospital, Inje University College of Medicine, Busan, Korea

8Department of Pathology, Haeundae Paik Hospital, Inje University College of Medicine, Busan, Korea

*These authors have contributed equally to this work

Correspondence to:

Chan-Sik Park, email: csikpark@amc.seoul.kr

Inhak Choi, email: miccih@inje.ac.kr

Keywords: multiple myeloma, immune checkpoint, VSIG4, immunohistochemistry, prognosis

Received: November 14, 2016    Accepted: June 20, 2017    Published: July 22, 2017

ABSTRACT

Multiple myeloma (MM) remains as an incurable disease, despite recent substantial improvements in treatment. Therefore, development of novel biomarkers for risk stratification and new therapeutic targets are imperative. One of the emerging treatments for MM is the immune checkpoint blockades. V-set Ig domain-containing 4 (VSIG4) is a lately studied B7-related immune checkpoint modulator. We assessed the VSIG4 expression in patients with MM and its prognostic impact. We analyzed 81 bone marrow and 66 extramedullary biopsy samples of MM patients using immunohistochemistry. VSIG4 mRNA expression data from the Multiple Myeloma Genomics Portal (MMGP) were analyzed to validate our results. The overall survival (OS) of the high VSIG4 expression group was significantly poorer than that of the low VSIG4 expression group (p = 0.046). VSIG4 expression was remained statistically significant after adjustment for revised international staging system (rISS) and Mayo stratification algorithm (mSMART) risk classification, respectively (p = 0.019 and 0.017). Corroborating results were also observed on analyses of VSIG4 expression in patients with extramedullary MM and external data from the MMGP. Our results suggest that VSIG4 expression in MM is an independent indicator of poor prognosis, implying a possible therapeutic target for immunotherapy for MM.


INTRODUCTION

Multiple myeloma (MM) is the second most common hematologic malignancy with clonal expansion of terminally differentiated plasma cells. MM accounts for 10–15% of all hematologic malignancies and 20% of deaths from hematologic malignancies [1]. Although substantial improvements have been made in the treatment of MM, including the use of autologous stem cell transplantation (ASCT), immunomodulatory molecules (IMiDs), and proteasome inhibitors, MM remains as an essentially incurable disease. The heterogeneity of the disease, which comprises 7 or 8 different subgroups, has impeded the establishment of a standard treatment [2-4]. Furthermore, there is a lack of histologic markers to accurately predict prognosis. These statements highlight the need for new target molecules for better risk stratification of the disease and for the development of novel therapeutic modalities.

Immune checkpoints—also known as co-inhibitory molecules, including B7-H1 (program death-ligand 1, PD-L1), B7-H3, B7-H4, programmed death-1 (PD-1), and cytotoxic T-lymphocyte-associated antigen 4 (CTLA-4) —play crucial roles in maintaining self-tolerance and limiting immune-mediated tissue damage under physiologic conditions [5]. The overexpression of these co-inhibitory molecules is associated with disease progression and cancer-specific death in many human cancers, including pancreatic carcinoma [6], non-small cell lung carcinoma [7], renal cell carcinoma [8], squamous cell carcinoma of the head and neck [9], and malignant melanoma [10]. Furthermore, immune checkpoint inhibitors have shown significant antitumor activity in various types of malignancies. Clinical trials of immune checkpoint inhibitors targeting CTLA-4, B7-H1,and PD-1 have indicated promising results for the treatment of many types of cancers including hematologic malignancies [5, 11-16].

In particular, MM has also been studied as a target of immunotherapy [17]. Görgün et al. described the anti-MM immune response induced by the PD-1/PD-L1 blockade alone and in combination with lenalidomide [18]. A phase 1 study of anti-PD-1 antibody (CT-011) has reported promising results on MM patients [19] and anotherphase-1 study of PD-1 inhibitor (Pembrolizumab) on MM (NCT01953692) is also currently ongoing [12]. In addition to PD-1 or CTLA-4, other co-inhibitory or co-stimulatory molecules, such as 4-1BB(CD137), lymphocyte-activation gene 3 (LAG-3, CD223), OX40 (CD134), and T-cell immunoglobulin and mucin-domain containing-3 (TIM-3), are being studied as potential targets for antitumor immunotherapy [20].

The V-set Ig domain-containing 4 (VSIG4, also referred to as CRIg or Z39Ig) is a recently studied immune checkpoint molecule which belongs to B7-related family member. VSIG4 is physiologically expressed on tissue-resident macrophages, including alveolar macrophages in the lung and Kupffer cells in the liver. It shares a set of conserved amino acids with the B7 family members, and contains 1 complete IgV-type domain and a truncated IgC-type domain [21, 22]. VSIG4 has been known to block the alternative complement pathway by binding to the convertase subunit C3b [22]. Moreover, it inhibits CD4+ and CD8+ T cell proliferation by ligating an unknown receptor to the T cells [21]. Initially, VSIG4 expression has been studied regarding the pathogenesis of inflammatory diseases such as rheumatoid arthritis, atherosclerosis, and chronic HBV-hepatitis [23, 24]. However, recent studies reported that VSIG4 expression is involved in lung cancer development and associated with poor prognosis of high grade glioma [25, 26]. In the present study, we assessed the VSIG4 expression in patients with MM and evaluated its prognostic impact. We demonstrated that high VSIG4 expression was significantly correlated with poor survival.

RESULTS

Patient characteristics

The general characteristics of the patients are summarized in Table 1. The mean patient age at the time of diagnosis was 62.0 years (range, 44–79 years). The number of male and female patients was similar in the study population (41 and 40, respectively). The mean follow-up duration of this cohort was 40.3 months (range, 0–96 months). Sixty-two patients (76.5%) died due to the disease at the time of the study. The OS rates for the MM patients were 76% at 1 year, 61% at 2 years, and 40% at 5 years, with overall median survival duration of 39.2 months. The characteristics of patients whose specimens were obtained via extramedullary biopsies are summarized in Supplementary Table 1.

Table 1: Characteristics of multiple myeloma patients

Total (%)

Age (years)

< 55

17 (21.0)

≥ 55

64 (79.0)

Sex

male

41 (50.6)

female

40 (49.4)

Monoclonal Ig

Heavy chain

IgG

29 (35.8)

IgA

21 (25.9)

IgD

3 (3.7)

free

28 (34.6)

Light chain

κ

46 (56.8)

λ

35 (43.2)

Durie-Salmon stage

1

12 (14.8)

2

12 (14.8)

3

57 (70.4)

ISS

1

14 (17.3)

2

32 (39.5)

3

35 (43.2)

rISS

1

11 (13.5)

2

60 (74.1)

3

9 (9.9)

Undetermined

2 (2.5)

mSMART risk stratification

standard risk

50 (61.7)

Intermediate risk

25 (30.9)

High risk

4 (4.9)

Not performed

2 (2.5)

Chromosomal abnormality

Absent

37 (45.7)

Present

42 (51.9)

Not performed

2 (2.5)

Treatment

ASCT

Not performed

50 (61.7)

Performed

31 (38.3)

Novel agents

Not used

41 (50.6)

Used

40 (49.4)

plasma cells in bone marrow (mean, %) (±SD)

33.32 (±24.33)

24 hour urine protein (mean, mg/day) (±SD)

2336.88 (±3329.75)

serum calcium (mean, mg/ℓ) (±SD)

9.28 (±1.29)

hemoglobin (mean, g/ℓ) (±SD)

10.13 (±2.10)

serum lactate dehydrogenase (mean, IU/L) (±SD)

237.91 (±103.86)

β2-microglobulin (mean, mgZ/ℓ) (±SD)

8.34 (±11.03)

serum albumin (mean, g/ℓ) (±SD)

3.21 (±0.75)

ASCT: Autologous stem cell transplantation, ISS: International Staging System; rISS: revised ISS, mSMART: Mayo Stratification of Myeloma and Risk-Adapted Therapy; SD: standard deviation

Correlation between VSIG4 expression and clinicopathologic characteristics

The patients were divided into two groups according to their histologic score: the low expression (score: 0–16) group and high expression (score: 17–27) group. Among the 81 patients, 35 (43.2%) were categorized as the high VSIG4 expression group. The correlation between VSIG4 expression and clinicopathologic factors was examined (Table 2). High VSIG4 expression was significantly associated with female sex (p= 0.014) and higher rISS (p=0.032). Patients with high ISS also had tendency of high VSIG4 expression (p = 0.083). However, there was no significant correlation between VSIG4 expression and other clinicopathologic characteristics, such as age, immunoglobulin (Ig) restriction, mSMART risk stratification, treatment, chromosomal abnormality, 24h urine protein level, the percentage of bone marrow plasma cells, serum calcium level, serum hemoglobin (Hb) level, serum lactate dehydrogenase (LDH) level, serum β2-microglobulin level, and serum albumin level.

Table 2: VSIG4 expression and associations with clinicopathological factors in multiple myeloma patients

Variables

VSIG4 expression

Low (%)

High (%)

p value

Age (years)

< 55

7 (8.6)

10 (12.3)

0.14

≥ 55

39 (48.1)

25 (30.9)

Sex

male

29 (35.8)

12 (14.8)

0.01

female

17 (21.0)

23 (28.4)

Monoclonal Ig

Heavy chain

0.25

IgG

14 (17.3)

15 (18.5)

IgA

14 (17.3)

7 (8.6)

IgD

3 (3.7)

0 (0.0)

free

15 (18.5)

13 (16.0)

Light chain

0.34

κ

24 (29.6)

22 (27.2)

λ

22 (27.2)

13 (16.0)

Durie-Salmon stage

1

7 (8.6)

5 (6.2)

0.36

2

9 (11.1)

3 (3.7)

3

30 (37.0)

27 (33.3)

ISS

1

7 (8.6)

7 (8.6)

0.08

2

23 (28.4)

9 (11.1)

3

16 (19.8)

19 (23.5)

rISS

1

4 (5.1)

7 (8.9)

0.03

2

39 (49.4)

21 (26.6)

3

2 (2.5)

6 (7.6)

mSMART risk stratification

standard risk

30 (38.0)

20 (25.3)

0.39

Intermediate risk

14 (17.7)

11 (13.9)

High risk

1 (1.3)

3 (3.8)

Chromosomal abnormality

Absent

24 (30.4)

13 (16.5)

0.18

Present

21 (26.6)

21 (26.6)

Treatment

ASCT

0.46

Not performed

30 (37.0)

20 (24.7)

Performed

16 (19.8)

15 (18.5)

Novel agents

0.31

Not used

21 (25.9)

20 (24.7)

Used

25 (30.9)

15 (18.5)

24 hour urine protein (mg/day)

1904.95

2944.28

0.22

(±SD)

(±2480.58)

(±4218.55)

plasma cells in bone marrow (mean, %)

31.44

35.79

0.43

(±SD)

(±26.62)

(±21.07)

serum calcium (mg/ℓ)

9.11

9.50

0.19

(±SD)

(±1.14)

(±1.46)

hemoglobin (g/ℓ)

10.46

9.70

0.10

(±SD)

(±2.20)

(±1.92)

serum lactate dehydrogenase (IU/L)

242.30

232.14

0.67

(±SD)

(±112.88)

(±91.96)

β2-microglobulin (mg/ℓ)

7.06

10.02

0.23

(±SD)

(±6.22)

(±15.16)

serum albumin (g/ℓ)

3.32

3.07

0.13

(±SD)

(±0.65)

(±0.86)

ASCT: Autologous stem cell transplantation, ISS: International Staging System; rISS: revised ISS, mSMART: Mayo Stratification of Myeloma and Risk-Adapted Therapy; SD: standard deviation

In extramedullary biopsy, older age (≥ 55) and not performing ASCT were significantly associated with high VSIG4 expression (p = 0.011 and 0.001, respectively). Other clinical factors including sex, ISS, results of cytogenetics were not associated with VSIG4 expression. These results are summarized in Supplementary Table 1. For 11 of the total patients included in the study, we could analyze VSIG4 expressions in both bone marrow and extramedullary biopsies. There was no statistically significant difference in the VSIG4 expression between bone marrow and extramedullary biopsies in the same patient (p = 0.196).

Patient survival and VSIG4 expression

The OS of the high VSIG4 expression group was significantly poorer than that of the low VSIG4 expression group (p = 0.046, log-rank test, Figure 1A). However, the EFS of the high VSIG4 expression was not significantly different with that of the low VSIG4 expression group (p = 0.321, log-rank test). The covariates for multivariate analysis were selected according to the results of the univariate analysis, based on the clinical significance. In univariate analysis, not performing ASCT (p = 0.004), high mSMART risk (p = 0.004), high ISS (p = 0.008), high serum LDH level (p = 0.004), high urine protein level (p = 0.002), and low serum Hb level (p = 0.020) were significantly associated with poorer OS. High rISS stage showed tendency of poorer OS (p = 0.050). Although rISS shows marginal statistical significance, we included it as a covariate in multivariate analysis considering its clinical significance. However, the urine protein level was excluded as a covariate for multivariate analysis due to no change of hazard ratio (HR = 1.000). Because serum LDH level was included in rISS, serum LDH level was excluded from covariates when rISS was used as a covariate for multivariate analysis. In addition, the ISS was excluded from covariates because it is included in both rISS and mSMART risk classification. VSIG4 expression was remained statistically significant after adjustment for rISS and mSMART risk classification, respectively (p = 0.019 and 0.017) (Table 3).

Kaplan&#x2013;Meier survival curves in each multiple myeloma subgroups classified according to V-set Ig domain-containing 4 (VSIG4) protein expression.

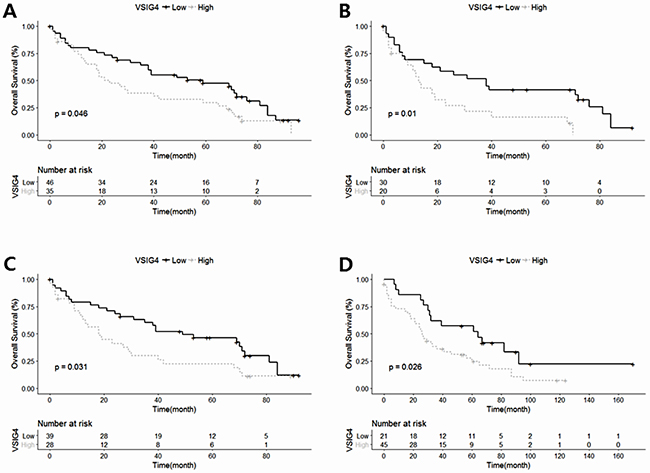

Figure 1: Kaplan–Meier survival curves in each multiple myeloma subgroups classified according to V-set Ig domain-containing 4 (VSIG4) protein expression. (A) The overall survival rate is charted according to VSIG4 expression in the entire cohort. (B) The overall survival rate in autologous stem cell transplantation-ineligible patients according to VSIG4 expression. (C) The overall survival rate in International Stage System 2/3 patients according to VSIG4 expression. (D) The overall survival rate in patients with extramedullary multiple myeloma.

Table 3: Multivariable analysis of VSIG4 expression and characteristics in multiple myeloma patients

Variable

Hazard ratio

95% confidence interval

p value

Hazard ratio

95% confidence interval

p value

lower

upper

lower

upper

VSIG4

low

1.00

0.02

1.00

0.02

high

1.94

1.09

3.45

1.95

1.12

3.40

ASCT

not performed

1.00

0.04

1.00

0.01

performed

0.51

0.27

0.97

0.45

0.24

0.83

rISS

1

1.00

0.43

2

1.62

0.58

4.47

3

2.34

0.65

8.45

mSMART risk

standard risk

1.00

0.01

Intermediate risk

2.35

1.29

4.27

High risk

2.93

0.91

9.39

serum Hb

0.95

0.81

1.10

0.46

0.96

0.83

1.10

0.55

serum LDH

1.00

1.00

1.01

< 0.01

rISS: Revised International Staging System; ASCT: autologous stem cell transplantation; LDH: lactate dehydrogenase; mSMART: Mayo Stratification of Myeloma and Risk-Adapted Therapy

We further performed a subgroup analysis by stratifying patients by ASCT status and ISS. In the patients subgroup who had not received ASCT, the high VSIG4 expression group showed significantly poorer OS than the low VSIG4 expression group (p = 0.010, log-rank test) (Figure 1B). However, the statistical significance of VSIG4 expression was lost in the patients subgroup who had received ASCT (p = 0.315). In addition, the high VSIG4 expression cases with ISS 2/3 also showed a significantly poorer OS as compared to the low VSIG4 expression group (p = 0.031, log-rank test) (Figure 1C). In ISS1 subgroup, however, the high VSIG4 expression group did not showed difference in OS with the low VSIG4 expression group (p = 0.475). Based on these results, we hypothesized that VSIG4 expression may be more influential in advanced stage disease. To evaluate the prognostic impact of VSIG4 expression in the advanced stage of MM, we performed survival analysis with extramedullary MM biopsies. The VSIG4 expression in extramedullary biopsy specimens was analyzed by using the same method and cut-off value. In the cases of extramedullary MM, the high VSIG4 expression patients exhibited significantly worse OS as compared to the low VSIG4 expression patients (p = 0.026, log-rank test) (Figure 1D).

To corroborate our results regarding the association between high VSIG4 expression and poor survival in MM, we analyzed an external data set obtained from the MMGP database. We found that the high VSIG4 mRNA expression group showed significantly poorer EFS as compared to the low expression group (p = 0.032) (Figure 2B). Moreover, patients with high VSIG4 mRNA expression tended to have a worse OS than those with low expression (p = 0.068) (Figure 2A).

Kaplan&#x2013;Meier survival curves of the data set obtained from the Multiple Myeloma Genomics Portal database.

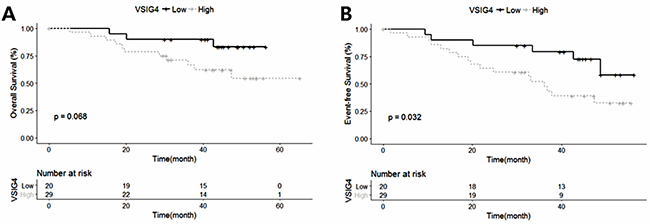

Figure 2: Kaplan–Meier survival curves of the data set obtained from the Multiple Myeloma Genomics Portal database. (A) The overall survival rate is charted according to VSIG4 expression. (B) The event-free survival rate is charted according to VSIG4 expression.

DISCUSSION

In the present study, we evaluated the prognostic impact of VSIG4 expression in MM using IHC. We found that VSIG4 expression was an independent predictor of a poor prognosis in terms of OS. This prognostic impact became more definite after adjustment for other clinical covariates. These findings are supported by the data obtained from the MMGP database.

VSIG4 is a recently studied immune checkpoint molecule, whose expression is reported to be restricted to resting tissue macrophages including Kupffer cells in the liver [21, 22]. In a previous study, we demonstrated that Kupffer cell-associated VSIG4 plays a crucial role in the maintenance of T and NKT cell tolerance in the liver [27]. In this context, most previous studies on VSIG4 have focused on its expression on macrophages in the tissue microenvironment [25, 27]. Liao et al. reported that tumor-associated macrophages (TAM) in lung cancer had upregulated VSIG4 expression, indicating that TAM VSIG4 suppresses tumor-specific T cell functions [22]. However, in our present study, we observed that VSIG4 expression in neoplastic plasma cells in MM was an unfavorable prognostic indicator. In fact, clinical implication of VSIG4 expression by cancer cells has been described recently. Xu et al. reported the presence of VSIG4 expression in high-grade glioma cells, which is also associated with a poor prognosis [26]. In parallel, PD-L1 which is expressed on the antigen presenting cell as a ligand of PD-1 is known to be upregulated in many human cancer cells themselves [7, 28, 29]. PD-1 expression in tumor cells, in addition to tumor infiltrating lymphocytes, also has emerged as a new interest [10]. Further studies regarding the role of VSIG4 expression in tumor cells are warranted.

Of note, the impact of VSIG4 expression on survival was vanished in the patients subgroup who had received ASCT (p = 0.315), while the high VSIG4 expression group in patients who had not received ASCT had a significantly poorer prognosis (p = 0.010) as compared to cases with low VSIG4 expression in the same subgroup. Considering massive alterations in the immune system resulted from ASCT and immune suppression throughout the period of treatment, this data implies the possible contribution of VSIG4 expression in anti-myeloma immunity. Although treatment with newly developed agents such as thalidomide, bortezomib, and lenalidomide can improve OS and delay disease progression in patients who are not eligible for ASCT, a more effective treatment strategy is in demand [30]. VSIG4 can be a plausible candidate target for anti-cancer immunotherapy in addition to stratifying high risk patients by using VSIG4 expression.

In addition to ASCT-ineligible group, the high VSIG4 expression group in patients with high ISS (2 or 3) or extramedullary MM showed significantly poorer OS than the low VSIG4 expression group (p = 0.031 and 0.026, respectively). Based on these results, we can postulate that VSIG4 has more prognostic impact in the advanced stage of MM. Although there have been various options for high risk MM including lenalidomide and bortezomib-based regimens, the best treatment strategy has not established yet [31]. Stratifying high risk patients using VSIG4 expression may be a helpful tool for patients with high ISS (2 or 3) or extramedullary MM.

Protein kinase Cα (PKCα) is reported to control VSIG4 expression [32]. PKC signaling pathway is also associated with cell proliferation, survival, and migration of MM [33]. Abnormal PKC signaling pathway may be responsible for VSIG4 overexpression in MM. Cytokines those are involved in PKC signaling pathway such as Tumor necrosis factor α may be responsible for VSIG4 overexpression. In addition, genetic alterations including mutations or translocations of MM may induce constitutive expression of VSIG4. Further studies to explicit the mechanism of VSIG4 induction in MM is necessary.

Vsig4 is located on the long arm of the X chromosome [34]. Interestingly, significantly more female patients than male patients were in the high VSIG4 expression group (p = 0.010). However, OS was not different between female and male patients (p = 0.999). These results suggest a possible influence of patient sex in anticancer immunity. Some studies contended that X-linked genes are responsible for the divergence between male and female immune responses [35]. Sex disparity in efficacy of immune checkpoint blockade is also reported [36]. These descriptive data in the current study have limitation to make a conclusion. However, further studies to understand biological differences between males and females in cancer immunology will be needed.

In conclusion, high VSIG4 expression in MM patients is an independent indicator of a poor prognosis. VSIG4 expression, particularly in advanced disease, can help predict and stratify patients with MM. VSIG4 may represent a promising target molecule for novel MM immunotherapies.

MATERIALS AND METHODS

Patients and samples

We examined the samples collected from 110 patients diagnosed with MM between 2008 and 2010 at Asan Medical Center. The updated criteria for the diagnosis of MM were applied [37]. Cases without any available initial clinical information were excluded. Cases of localized plasma cell lesions without bone marrow involvement or biopsy specimens obtained at relapse were also excluded. Finally, a total of 81 bone marrow biopsy specimens were included in the analysis. Two expert hematopathologists verified the diagnosis of MM by reviewing the biopsy slides including special studies and clinical information. Clinical information was obtained from the medical records, including sex, age, immunoglobulin light and heavy chain restrictions, treatment details, presence of chromosomal abnormality, serologic markers, and 24h urine protein levels. Chromosomal abnormality was determined according to the results of cytogenetic studies which were composed of karyotype analysis and/or fluorescence in situ hybridization (FISH) analysis for IgH/FGFR3 rearrangement, IgH/CCND1 rearrangement, IgH/MAF rearrangement, 13q deletion, and TP53 deletion. Due to the retrospective nature of this study, the treatments differed among the cases. Of the treatments administered, ASCT and newer agents such as IMiDs (e.g., thalidomide and lenalidomide) and proteasome inhibitors (e.g., bortezomib) were selected as specific covariates. Conventional cytogenetic and/or FISH tests were performed for risk stratification. Durie Salmon (DS) stage, International Stage System (ISS), revised ISS (rISS), and the risk stratification used in the Mayo stratification algorithm (mSMART) [38] were applied for the classification of patients. The medical records were retrospectively reviewed and the clinical features, pathologic findings, cytogenetic results, and clinical outcomes of the patients were evaluated. To estimate the overall survival (OS) and event-free survival (EFS) rate, patients were followed from the date of diagnosis to the date of death. The cause of death was also recorded. To analyze the VSIG4 expression pattern in advanced stage of MM, extramedullary biopsy materials were also collected from 66 MM patients between 2000 and 2011 at the Asan Medical Center. For these patients, clinical information including age, sex, ISS, whether ASCT was performed, result of cytogenetics was also collected. The study protocol was approved by the Institutional Review Board (project number 2015-0751) of the Asan Medical Center.

Immunohistochemistry (IHC) and quantification of IHC results

Immunohistochemical staining was performed on selected formalin-fixed, paraffin-embedded tissue blocks. Each staining was conducted using auto immunostainer BenchMark XT (Ventana Medical Systems, Tucson, AZ, USA) according to the manufacturer’s instructions and by using the reagents supplied with the kit. In brief, 4μm sections were mounted on silanized charged slides and allowed to dry for 10 min at room temperature and then for 20 min at65°C. After deparaffinization, heat-induced epitope retrieval using standard Cell Conditioning 1 was performed for 24 min. Subsequently, the primary anti-VSIG4 (1:50, cat. HPA003903, Sigma-Aldrich, St. Louis, USA) was labeled using an automated immunostaining system with the OptiView DAB Detection Kit (VentanaMedical Systems, Tucson, AZ, USA). Immunostained sections were counter-stained with hematoxylin.

We examined the whole tissue section slides under a light microscope. The plasma cells were distinguished based on their characteristic appearance. CD138 IHC (1:100, MI-15, DAKO, Glostrup, Denmark) was also performed to confirm plasma cells. On VSIG4 IHC staining, the tumor cells showed membranous and cytoplasmic expression. Other cells in bone marrow except megakaryocytes did not show noticeable VSIG4 expression. Specific binding of VSIG4 antibody was validated on VSIG4 transfected human embryonic kidney 293T (HEK 293T) cell line (Supplementary Figure 1). The relative percentage of VSIG4-positive cells was counted and analyzed relative to the overall number of tumor cells. The labeling frequencies were quantified in 10% increments: 0, 0–10%; 1, 10–20%; 2,20–30%; 3, 30–40%; 4, 40–50%; 5, 50–60%; 6, 60–70%; 7, 70–80%; 8, 80–90%; and 9, >90%. The intensity of labeling was categorized as 0, 1, 2, or 3 for negative, weak, moderate, or strong staining, respectively (Figure 3). The total histologic score was calculated by multiplying the area score and the intensity score. For extramedullary biopsy, IHC was performed with the same protocol. Interpretation and quantification of the immunostained slides were also performed in the same manner as for bone marrow biopsies (Supplementary Figure 2). The histologic and IHC slides were reviewed independently by two pathologists who were blinded to the clinical information. In the case of discrepancy, a consensus was reached through discussion between the experts.

Immunohistochemical staining for the V-set Ig domain-containing 4 (VSIG4) and CD138 in representative tissue samples.

Figure 3: Immunohistochemical staining for the V-set Ig domain-containing 4 (VSIG4) and CD138 in representative tissue samples. The intensity of VSIG4 immunostaining is arranged in increasing order. (A) Negative (0); (C) weak (1); (E) moderate (2); (G) strong (3). (B, D, F, and H) The tumor cells in the bone marrow biopsies were confirmed by immunohistochemical staining for CD138. Original magnification, ×400.

Statistical analysis

The optimal cutoff value was determined using the Cutoff Finder which is an online accessible web application. Among variable methods for cutoff optimization, the hazard ratio plot was used for the analysis [39]. The clinical characteristics of the patients with low and high VSIG4 expression were compared by using the Chi-squared test (categorical variable) and Student’s t-test (continuous variables). Survival curves were plotted using the Kaplan-Meier method, and the log-rank test was used to analyze the statistical differences between the life tables. The impact of VSIG4 expression on OS was analyzed by using univariate and multivariate Cox proportional hazard models. The proportional-hazards assumption was confirmed via examination of the log (-log [survival]) curves and no relevant violations were noted. P-values less than 0.05 were considered to indicate statistical significance. All statistical analyses were performed using the SPSS statistical software (version 21.0; IBM Corp., Armonk, NY, USA).

Analysis of multiple myeloma genomics portal (MMGP) data

In order to corroborate the potential role of VSIG4 in MM, we analyzed a MMGP data set that contained survival information. The correlation between the expressions of protein and mRNA of VSIG4 is previously reported [40]. Genomic DNA and total RNA of primary tumors were obtained from CD138-enriched cell populations of bone marrow biopsy for the comparative genomic hybridization and mRNA microarray, respectively [41]. The data set included raw microarray gene expression data of 49 cases, based on results of Affymetrix microarrays. The expression of the VSIG4 gene was analyzed and categorized as either high (log2(expression value) ≥ 8.3) or low (log2(expression value) <8.3). The OS and the EFS were calculated based on the information provided by the data set.

ACKNOWLEDGMENTS

This manuscript was previously published in abstract form and presented (poster) at Asia Pacific International Academy of Pathology, Brisbane, Queensland, Australia, Jun 2015.

CONFLICTS OF INTEREST

All the authors declare that they have no conflicts of interest.

GRANT SUPPORT

This study was supported by a grant from the National R&D Program for Cancer Control, 453 Ministry for Health, Welfare and Family affairs (0920040 to I.C.),the National 454 Research Foundation of Korea (NRF) grant funded by the Korea government, 455 (MSIP) (no. R13-2007-023-00000-0 to I.C.), the National Research Foundation of Korea and MRC grant (no. 2008-0062286 to C.S.P.), and the Asan Institute for Life Sciences, Seoul, Korea (no. 2012-527 to C.S.P.).The authors declare that there is no conflict of interest.

REFERENCES

1. McKenna RW, Kyle RA, Kuehl WM, Grogan TM, Harris NL, Coupland RW. (2008). Plasma cell neoplasms. In: Swerdlow SH, Campo E, Harris NL, Jaffe ES, Pileri SA, Stein H, Thiele J and Vardiman JW, eds. WHO classification of tumours of haematopoietic and lymphoid tissues. (Lyon, France: IARC Press), pp. 200-213.

2. Bergsagel PL, Kuehl WM. Molecular pathogenesis and a consequent classification of multiple myeloma. J Clin Oncol. 2005; 23:6333-6338.

3. Fonseca R, Bergsagel PL, Drach J, Shaughnessy J, Gutierrez N, Stewart AK, Morgan G, Van Ness B, Chesi M, Minvielle S, Neri A, Barlogie B, Kuehl WM, et al. International Myeloma Working Group molecular classification of multiple myeloma: spotlight review. Leukemia. 2009; 23:2210-2221.

4. Rajkumar SV. Treatment of multiple myeloma. Nat Rev Clin Oncol. 2011; 8:479-491.

5. Ramsay AG. Immune checkpoint blockade immunotherapy to activate anti-tumour T-cell immunity. Br J Haematol. 2013; 162:313-325.

6. Geng L, Huang D, Liu J, Qian Y, Deng J, Li D, Hu Z, Zhang J, Jiang G, Zheng S. B7-H1 up-regulated expression in human pancreatic carcinoma tissue associates with tumor progression. J Cancer Res Clin Oncol. 2008; 134:1021-1027.

7. Konishi J, Yamazaki K, Azuma M, Kinoshita I, Dosaka-Akita H, Nishimura M. B7-H1 expression on non-small cell lung cancer cells and its relationship with tumor-infiltrating lymphocytes and their PD-1 expression. Clin Cancer Res. 2004; 10:5094-5100.

8. Thompson RH, Kuntz SM, Leibovich BC, Dong H, Lohse CM, Webster WS, Sengupta S, Frank I, Parker AS, Zincke H, Blute ML, Sebo TJ, Cheville JC, et al. Tumor B7-H1 is associated with poor prognosis in renal cell carcinoma patients with long-term follow-up. Cancer Res. 2006; 66:3381-3385.

9. Strome SE, Dong H, Tamura H, Voss SG, Flies DB, Tamada K, Salomao D, Cheville J, Hirano F, Lin W, Kasperbauer JL, Ballman KV, Chen L. B7-H1 blockade augments adoptive T-cell immunotherapy for squamous cell carcinoma. Cancer Res. 2003; 63:6501-6505.

10. Hino R, Kabashima K, Kato Y, Yagi H, Nakamura M, Honjo T, Okazaki T, Tokura Y. Tumor cell expression of programmed cell death-1 ligand 1 is a prognostic factor for malignant melanoma. Cancer. 2010; 116:1757-1766.

11. Gelao L, Criscitiello C, Esposito A, Goldhirsch A, Curigliano G. Immune checkpoint blockade in cancer treatment: a double-edged sword cross-targeting the host as an “innocent bystander”. Toxins (Basel). 2014; 6:914-933.

12. Dolan DE, Gupta S. PD-1 pathway inhibitors: changing the landscape of cancer immunotherapy. Cancer Control. 2014; 21:231-237.

13. Hodi FS, O’Day SJ, McDermott DF, Weber RW, Sosman JA, Haanen JB, Gonzalez R, Robert C, Schadendorf D, Hassel JC, Akerley W, van den Eertwegh AJ, Lutzky J, et al. Improved survival with ipilimumab in patients with metastatic melanoma. N Engl J Med. 2010; 363:711-723.

14. Topalian SL, Hodi FS, Brahmer JR, Gettinger SN, Smith DC, McDermott DF, Powderly JD, Carvajal RD, Sosman JA, Atkins MB, Leming PD, Spigel DR, Antonia SJ, et al. Safety, activity, and immune correlates of anti-PD-1 antibody in cancer. N Engl J Med. 2012; 366:2443-2454.

15. Brahmer JR, Tykodi SS, Chow LQ, Hwu WJ, Topalian SL, Hwu P, Drake CG, Camacho LH, Kauh J, Odunsi K, Pitot HC, Hamid O, Bhatia S, et al. Safety and activity of anti-PD-L1 antibody in patients with advanced cancer. N Engl J Med. 2012; 366:2455-2465.

16. Wolchok JD, Kluger H, Callahan MK, Postow MA, Rizvi NA, Lesokhin AM, Segal NH, Ariyan CE, Gordon RA, Reed K, Burke MM, Caldwell A, Kronenberg SA, et al. Nivolumab plus ipilimumab in advanced melanoma. N Engl J Med. 2013; 369:122-133.

17. Atanackovic D, Luetkens T, Kroger N. Coinhibitory molecule PD-1 as a potential target for the immunotherapy of multiple myeloma. Leukemia. 2014; 28:993-1000.

18. Gorgun G, Samur MK, Cowens KB, Paula S, Bianchi G, Anderson JE, White RE, Singh A, Ohguchi H, Suzuki R, Kikuchi S, Harada T, Hideshima T, et al. Lenalidomide enhances immune checkpoint blockade-induced immune response in multiple myeloma. Clin Cancer Res. 2015; 21:4607-4618.

19. Berger R, Rotem-Yehudar R, Slama G, Landes S, Kneller A, Leiba M, Koren-Michowitz M, Shimoni A, Nagler A. Phase I safety and pharmacokinetic study of CT-011, a humanized antibody interacting with PD-1, in patients with advanced hematologic malignancies. Clin Cancer Res. 2008; 14:3044-3051.

20. Melero I, Grimaldi AM, Perez-Gracia JL, Ascierto PA. Clinical development of immunostimulatory monoclonal antibodies and opportunities for combination. Clin Cancer Res. 2013; 19:997-1008.

21. Vogt L, Schmitz N, Kurrer MO, Bauer M, Hinton HI, Behnke S, Gatto D, Sebbel P, Beerli RR, Sonderegger I, Kopf M, Saudan P, Bachmann MF. VSIG4, a B7 family-related protein, is a negative regulator of T cell activation. J Clin Invest. 2006; 116:2817-2826.

22. Helmy KY, Katschke KJ Jr, Gorgani NN, Kljavin NM, Elliott JM, Diehl L, Scales SJ, Ghilardi N, van Lookeren Campagne M. CRIg: a macrophage complement receptor required for phagocytosis of circulating pathogens. Cell. 2006; 124:915-927.

23. Lee MY, Kim WJ, Kang YJ, Jung YM, Kang YM, Suk K, Park JE, Choi EM, Choi BK, Kwon BS, Lee WH. Z39Ig is expressed on macrophages and may mediate inflammatory reactions in arthritis and atherosclerosis. J Leukoc Biol. 2006; 80:922-928.

24. Guo S, Yang C, Mei F, Wu S, Luo N, Fei L, Chen Y, Wu Y. Down-regulation of Z39Ig on macrophages by IFN-gamma in patients with chronic HBV infection. Clin Immunol. 2010; 136:282-291.

25. Liao Y, Guo S, Chen Y, Cao D, Xu H, Yang C, Fei L, Ni B, Ruan Z. VSIG4 expression on macrophages facilitates lung cancer development. Lab Invest. 2014; 94:706-715.

26. Xu T, Jiang Y, Yan Y, Wang H, Lu C, Xu H, Li W, Fu D, Lu Y, Chen J. VSIG4 is highly expressed and correlated with poor prognosis of high-grade glioma patients. Am J Transl Res. 2015; 7:1172-1180.

27. Jung K, Kang M, Park C, Hyun Choi Y, Jeon Y, Park SH, Seo SK, Jin D, Choi I. Protective role of V-set and immunoglobulin domain-containing 4 expressed on kupffer cells during immune-mediated liver injury by inducing tolerance of liver T- and natural killer T-cells. Hepatology. 2012; 56:1838-1848.

28. Dong H, Strome SE, Salomao DR, Tamura H, Hirano F, Flies DB, Roche PC, Lu J, Zhu G, Tamada K, Lennon VA, Celis E, Chen L. Tumor-associated B7-H1 promotes T-cell apoptosis: a potential mechanism of immune evasion. Nat Med. 2002; 8:793-800.

29. Brown JA, Dorfman DM, Ma FR, Sullivan EL, Munoz O, Wood CR, Greenfield EA, Freeman GJ. Blockade of programmed death-1 ligands on dendritic cells enhances T cell activation and cytokine production. J Immunol. 2003; 170:1257-1266.

30. Moreau P, Attal M, Facon T. Frontline therapy of multiple myeloma. Blood. 2015; 125:3076-3084.

31. Vincent Rajkumar S. Multiple myeloma: 2014 Update on diagnosis, risk-stratification, and management. Am J Hematol. 2014; 89:999-1009.

32. Ma Y, Usuwanthim K, Munawara U, Quach A, Gorgani NN, Abbott CA, Hii CS, Ferrante A. Protein kinase calpha regulates the expression of complement receptor Ig in human monocyte-derived macrophages. J Immunol. 2015; 194:2855-2861.

33. Podar K, Raab MS, Zhang J, McMillin D, Breitkreutz I, Tai YT, Lin BK, Munshi N, Hideshima T, Chauhan D, Anderson KC. Targeting PKC in multiple myeloma: in vitro and in vivo effects of the novel, orally available small-molecule inhibitor enzastaurin (LY317615.HCl). Blood. 2007; 109:1669-1677.

34. Langnaese K, Colleaux L, Kloos DU, Fontes M, Wieacker P. Cloning of Z39Ig, a novel gene with immunoglobulin-like domains located on human chromosome X. Biochim Biophys Acta. 2000; 1492:522-525.

35. Gabriele L, Buoncervello M, Ascione B, Bellenghi M, Matarrese P, Care A. The gender perspective in cancer research and therapy: novel insights and on-going hypotheses. Ann Ist Super Sanita. 2016; 52:213-222.

36. Lin PY, Sun L, Thibodeaux SR, Ludwig SM, Vadlamudi RK, Hurez VJ, Bahar R, Kious MJ, Livi CB, Wall SR, Chen L, Zhang B, Shin T, et al. B7-H1-dependent sex-related differences in tumor immunity and immunotherapy responses. J Immunol. 2010; 185:2747-2753.

37. Rajkumar SV, Dimopoulos MA, Palumbo A, Blade J, Merlini G, Mateos MV, Kumar S, Hillengass J, Kastritis E, Richardson P, Landgren O, Paiva B, Dispenzieri A, et al. International Myeloma Working Group updated criteria for the diagnosis of multiple myeloma. Lancet Oncol. 2014; 15:e538-548.

38. Mikhael JR, Dingli D, Roy V, Reeder CB, Buadi FK, Hayman SR, Dispenzieri A, Fonseca R, Sher T, Kyle RA, Lin Y, Russell SJ, Kumar S, et al. Management of newly diagnosed symptomatic multiple myeloma: updated Mayo Stratification of Myeloma and Risk-Adapted Therapy (mSMART) consensus guidelines 2013. Mayo Clin Proc. 2013; 88:360-376.

39. Budczies J, Klauschen F, Sinn BV, Gyorffy B, Schmitt WD, Darb-Esfahani S, Denkert C. Cutoff Finder: a comprehensive and straightforward Web application enabling rapid biomarker cutoff optimization. PLoS One. 2012; 7:e51862.

40. Gorgani NN, Thathaisong U, Mukaro VR, Poungpair O, Tirimacco A, Hii CS, Ferrante A. Regulation of CRIg expression and phagocytosis in human macrophages by arachidonate, dexamethasone, and cytokines. Am J Pathol. 2011; 179:1310-1318.

41. Carrasco DR, Tonon G, Huang Y, Zhang Y, Sinha R, Feng B, Stewart JP, Zhan F, Khatry D, Protopopova M, Protopopov A, Sukhdeo K, Hanamura I, et al. High-resolution genomic profiles define distinct clinico-pathogenetic subgroups of multiple myeloma patients. Cancer Cell. 2006; 9:313-325.


Creative Commons License All site content, except where otherwise noted, is licensed under a Creative Commons Attribution 3.0 License.
PII: 19468
