Inhibition of avian tumor virus replication by CCCH-type zinc finger antiviral protein
Metrics: PDF 1102 views | HTML 1874 views | ?
Mingjun Zhu1, Xiaoqian Ma1, Xiyao Cui1, Jing Zhou1, Chengui Li1, Libo Huang1, Yingli Shang1 and Ziqiang Cheng1
1College of Veterinary Medicine, Shandong Agricultural University, Tai’an, 271018, China
Ziqiang Cheng, email: firstname.lastname@example.org
Keywords: chicken CCCH type zinc finger antiviral protein, avian leukosis virus subgroup J, overexpression, RNAi
Received: February 18, 2017 Accepted: July 12, 2017 Published: July 19, 2017
CCCH type zinc finger antiviral protein (ZAP) is a host restriction factor that inhibits the replication of a variety of viruses in mammals. However, little is known about its antiviral activity on avian tumor virus. Avian leukosis virus subgroup J (ALV-J), an oncogenic retrovirus, induces myelocytomas and various other tumors in meat and egg type chickens. Here, we identified a chicken ZAP (chZAP) that increased at early stage, and subsequently decreased after infection of ALV-J in DF-1 cells, indicating the inducible feature of the endogenous chZAP. To demonstrate the inhibitory effect on ALV-J replication by chZAP, we expressed exogenous chZAP by lentivirus based vectors in DF-1 cells that infected by ALV-J. The result showed that overexpression of chZAP significantly inhibited ALV-J replication at both mRNA level and protein level. Consequently, knockdown of endogenous chZAP by RNAi facilitated ALV-J replication in DF-1 cells. Further, we demonstrated that chZAP interacts with SU protein (encode by gp85 gene) of ALV-J in cytoplasm. Taken together, our results demonstrated that chZAP inhibits ALV-J by both mRNA and protein pathway and it may shed light on a novel antiviral approach in poultry.
Host restriction factors play critical roles in control of retrovirus replication . In recent years, a number of powerful host restriction factors that specifically inhibit retrovirus replication have been identified in mammals including APOBEC3, TRIM5, KAP1/TRIM28/ZFP809, SAMHD1, Tetherin and the CCCH type zinc finger antiviral protein (ZAP) [2–7]. Most of the restriction factors were identified from non-permissive cells, in which viral replication is severely restricted, indicating that restriction factors constitute novel aspects of intrinsic immunity. In addition, restriction factors can display hallmarks of positive genetic selection during evolution which benefits the host in settings of host-pathogen conflicts . The findings of a serial of host restriction factors have not only provided us comprehensive understanding of the restriction factors, but also offered us new strategies to study the mechanisms of retrovirus-host interaction.
CCCH type ZAP contains four zinc finger motifs at the N terminus and each has a cysteine–histidine repeat in a cys–cys–cys–his (CCCH) configuration. ZAP was initially identified in rat as a host restriction factor that prevents cells from infection with the moloney murine leukemia virus (MMLV) . In addition to MMLV, ZAP has an extensive antiviral spectrum that includes alphaviruses, such as Sindbis virus, Ross River virus, xenotropic murine leukemia virus-related virus and human immunodeficiency virus; filoviruses, such as Ebola virus and Marburg virus [9–11] and hepadnaviridae, such as hepatitis B virus . Although ZAP is a host restriction factor of the innate immune system, ZAP does not induce a universal antiviral state because some viruses, such as herpes simplex virus type 1 and yellow fever virus, can replicate normally in ZAP-overexpressing cells . ZAP reduces the level of mRNA in the cytoplasm to suppress target virus infection at the posttranscriptional stage, whereas ZAP does not inhibit the early stage of virus infection . ZAP recognizes the target virus transcripts via its CCCH type zinc-finger domains and binds to RNA helicases and components of the exosome to induce the degradation of virus transcripts [13–17].
Avian leukosis virus subgroup J (ALV-J), an oncogenic retrovirus belongs to the alpharetroviral genus of the family Retroviridae, is a causative agent of immunosuppression and myelocytomas and various other tumors in chicken. ALV-J was isolated by Payne in the UK in 1991 from meat-type broilers . After that, this disease caused by ALV-J has spread rapidly worldwide and has become a major problem in the meat-type and layer-type chicken industry. Feng observed that ZC3HAV1 (chZAP) mRNA showed a two-fold up-regulation in spleen at day 4 post infection of ALV-J, indicating the association between the innate immune factor of chZAP and ALV-J . However, little is known about the antiviral activity of chZAP on ALV-J.
Endogenous chZAP expression was induced by infection of ALV-J
To understand whether endogenous chZAP expression was affected by ALV-J infection in cells, we examined the endogenous chZAP changes by qPCR, western blot before and after infection of ALV-J in DF-1 cells. As shown in Figure 1A, cellular endogenous RNA level of chZAP was extremely significant increased (P < 0.01) at 24 h and 48 h, and then was decreased (P < 0.01) at 72 h post infection of ALV-J. Accordingly, protein level of endogenous chZAP showed same trend (Figure 1B).

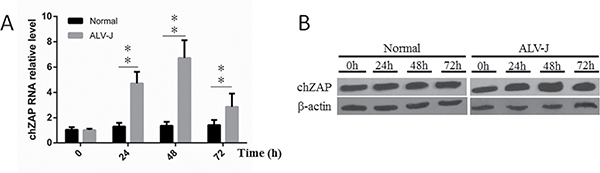

Figure 1: Endogenous chZAP expression was induced by infection of ALV-J. At 24 h and 48 h post infection with ALV-J, the chZAP mRNA level (A) and protein expression level (B) of infected cells was significantly (*P < 0.05) higher than the uninfected normal control cells. At 72 h post infection, the chZAP level decreased significantly (**P < 0.01). Results shown are mean ± SEM of three independent experiments.
Overexpression of chZAP suppressed ALV-J replication
Two titers of lentivirus-chZAP (107 TU/ml and 108 TU/ml) were used to transfect the DF-1 cells. At 72 post transfection, the green fluorescence of GFP observed under fluorescent microscope (Figure 2A) and the expression levels of chZAP measured by western blot (Figure 2B) and qPCR (Figure 2C and 2D) indicate that chZAP significantly expressed in DF-1 cells under transfection titers of 108 TU/ml. Overexpression of chZAP transfected with titer of 108 TU/ml led to a significant reduction of mRNA (p < 0.05) (Figure 2E) and protein expression (Figure 2F) of ALV-J in DF-1 cells.

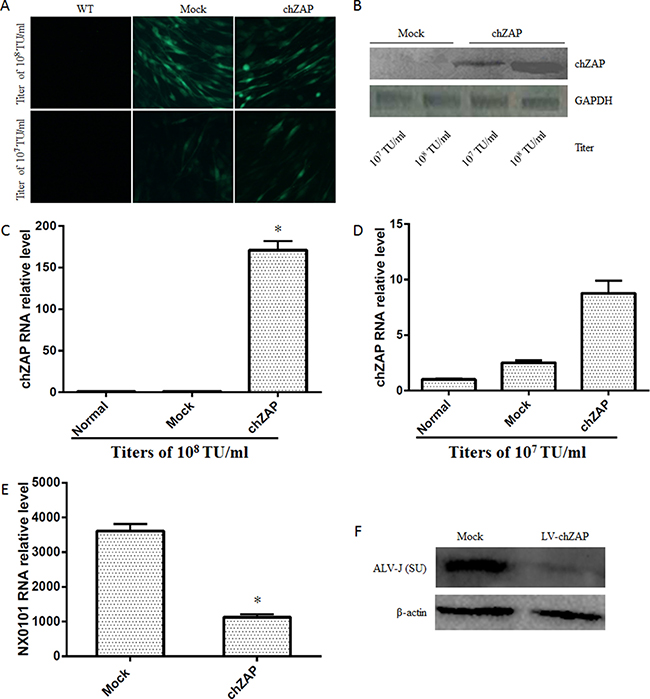

Figure 2: Overexpression of chZAP suppressed ALV-J replication. At 72 h post transduction of lentivirus-chZAP, DF-1 cells were infected with 100 μl 103 TCID50 ALV-J. The cells were harvested at 72 h post infection with ALV-J, and the viral RNA was analyzed by qPCR. Overexpression of chZAP (A, B, C and D) significantly inhibits ALV-J replication (*p < 0.05) at the titer of 1 × 108 TU/ml (E and F) while not 1 × 107 TU/ml. Data is representative of three independent experiments and statistical significance was calculated by one-way analysis of variance (ANOVA) with Tukey’s test for multiple comparisons comparing all samples to each other.
Down-regulation of endogenous chZAP facilitated ALV-J replication
To confirm the inhibitory role of chZAP on ALV-J, we knocked down the basal expression of chZAP in DF-1 cells by using chZAP-specific siRNAs, and then infected with ALV-J (103 TCID50). The result showed that chZAP-specific siRNAs efficiently reduced the basal levels of chZAP expression to more than 70% of its original expression (Figure 3A and 3B). The levels of chZAP expression kept low stably (Figure 3C and 3E) after RNAi and led to a significant increase of ALV-J mRNA (Figure 3D) (P < 0.01) and env protein expression (Figure 3E). The result suggested that the basal level of chZAP is a robust host restriction factor for ALV-J.

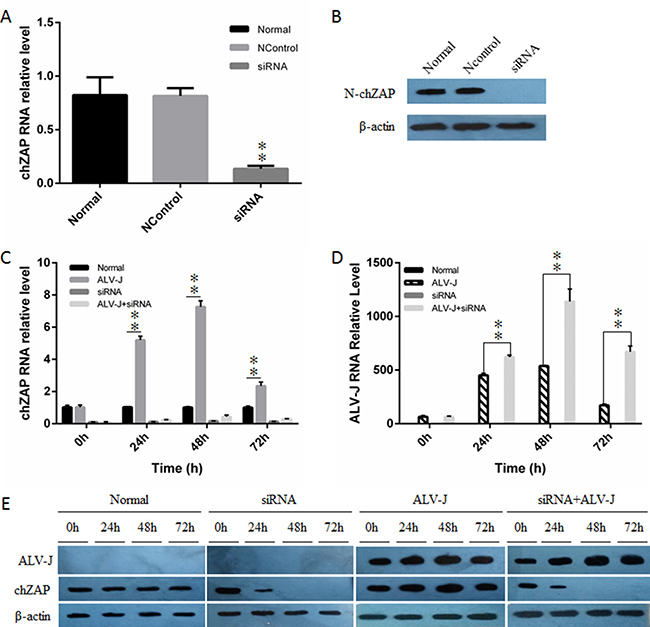

Figure 3: Knockdown of endogenous chZAP facilitated ALV-J replication. chZAP-specific siRNA significantly knocked down RNA level (A and C) and protein expression level (B and E) of chZAP. Knockdown of endogenous chZAP expression significantly increased the mRNA level (**P < 0.01) (D) and env expression level (E) of ALV-J in DF-1 cells. Data is representative of three independent experiments and statistical significance was calculated by one-way analysis of variance (ANOVA) with Tukey’s test for multiple comparisons comparing all samples to each other.
chZAP interacted with SU protein of ALV-J in cytoplasm
To probe how chZAP interferes with the protein level of ALV-J, we infected DF-1 cells with ALV-J after transfected with Lentivirus-chZAP (108 TU/ml) and investigated the interactions between chZAP and ALV-J by confocal laser scanning microscopy (CLSM) and co-immunoprecipitation (Co-IP). CLSM result further confirmed that ALV-J can induce chZAP expression, suggesting the inducible activation of chZAP and its inhibitory role for ALV-J. Moreover, the merged yellow fluorescence of ALV-J and chZAP indicated the interaction between SU of ALV-J and chZAP and the interaction occurred in the cytoplasm (Figure 4A). Correspondingly, Co-IP result confirmed the interaction between SU and chZAP (Figure 4B).

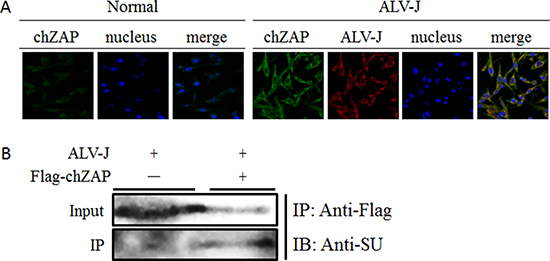

Figure 4: chZAP interacted with SU of ALV-J in cytoplasm. (A) ALV-J and endogenous chZAP are both present in cytoplasm of DF-1 cells. At 48 h post infection with ALV-J, the protein expression level of chZAP of infected cells was very significantly higher than the uninfected normal control cells. The merged yellow fluorescence indicated the interaction between chZAP and ALV-J. (B) chZAP interacted with SU. DF-1 cells were transfected with empty vector (chZAP-) or LV-chZAP expressing flag-chZAP (chZAP+). The cells were harvested at 72 h post infection with ALV-J. Lysates were immunoprecipitated with anti-Flag antibody and detected by western blotting using anti-SU antibody.
Viral pathogenesis is determined by the interaction between viruses and hosts. They both change dynamically in multiple ways in response to each other. In host, the innate immunity plays an important role at the initial infection of virus . The innate immunity sets up a first-line defense to prevent the host from viral infection. In principle, the innate immunity consists of many viral inhibitory factors that intervene against the virus at every step of replication. Such inhibitory factors are all belong to host restriction factors. Among them, CCCH-type ZAP showed a specific antiviral activity in mammals. Chicken CCCH-type ZAP (chZAP) gene was first predicted in a high-quality library of chicken bursal lymphocytes cDNA . However, little is known about its role of antiviral activity on avian retrovirus.
To understand the interaction between chZAP and ALV-J, firstly, we detected the basal chZAP expression in normal and ALV-J infected DF-1 cells. Interestingly, ALV-J infection induced increasing expression of endogenous chZAP at the early time point (24 h and 48 h), indicating that chZAP is an inducible factor. However, chZAP was down-regulation at 72 h post infection of ALV-J, suggesting that there exist the interaction between the chZAP and ALV-J. Next, we want to know if the decreasing of chZAP was directly caused by ALV-J. To answer this question, we packaged the lentivirus-chZAP to overexpress exogenous chZAP in cultured DF-1 cells. Liu had demonstrated that rat ZAP is predominantly localized in the cytoplasm at steady state but shuttles between the nucleus . Shuttling proteins are key factors in conveying information on nuclear and cytoplasmic activities within the cell . Subsequently, we transfected the lentivirus-chZAP into DF-1 cells that infected by ALV-J. qPCR result showed that the overexpressed chZAP significantly inhibited ALV-J replication, and the antiviral activity of chZAP against ALV-J was dependent on the expression level of chZAP. Knockdown of endogenous chZAP together with increasing ALV-J replication demonstrated the inhibition of ALV-J by chZAP, indicating the robust host restriction factor of chZAP for ALV-J. Previous studies suggested that ZAP interacts with target RNA of virus through its zinc finger motifs . However, there have been no reports of interactions between proteins for virus and ZAP. Results from our study suggested that chZAP interacts with SU protein of ALV-J. We demonstrated that chZAP exhibits its antiviral activity in cytoplasm by interaction with mRNA and SU protein of ALV-J.
Taken together, the work reported here has identified an antiviral protein of chZAP as a host restriction factor that inhibits ALV-J replication by mRNA and protein pathway. chZAP-mediated antiviral function may be used to develop novel antiviral strategies in poultry.
MATERIALS AND METHODS
Cells and virus
DF-1 cells and 293T cells were maintained in Dulbecco’s Modified Eagle’s Medium (DMEM) supplemented with 10% fetal bovine serum (FBS) (GIBCO, America), respectively. The stock NX0101 strain of ALV-J that isolated from a broiler breeder was maintained in our laboratory. The TCID50 of NX0101 strain was determined by limiting dilution in DF-1 culture.
Quantitative real time RT-PCR (qPCR)
DF-1 cells in DMEM with 10% FBS were seeded in a 6-well plate at 1 × 106 cells per well. When the confluence of DF-1 cells reached 80%, a volume of 100 μl 103 TCID50 of ALV-J was added to the culture medium. Total RNA was extracted and reverse transcripted to cDNA. The 20 μl reaction system contained 1 μl cDNA, 0.4 μl Rox Reference Dye II (50X), 10 μl SYBR® Premix Ex TaqTM (TaKaRa), and 8 pmol primers for ALV-J (forward: 5′-TGCGTGCGTGGTTATTATTTC-3′ and reverse: 5′-AATGGTGAGGTCGCTGACTGT-3′). The GAPDH mRNA level was the internal control. The reactions were run on an Applied Biosystems 7500 Prism real-time PCR machine using the SYBR® Premix Ex TaqTM (TaKaRa) for ALV-J with the following steps: (i) 30 s at 95°C and (ii) 40 cycles of 1 cycle consisting of 5 s at 95°C and 34 s at 60°C, followed by melting curve analysis. The chZAP was amplified with the following primers: forward: 5′ACCAGTGCTGAGAACAAA3′ and reverse: 5′CATCAGGAAGGAGGAAAG3′. The 2-ΔΔCt method was used to analyze the results .
GV virus carrier which was recombined with chZAP gene and enhanced green fluorescent protein (EGFP) gene, pHelper 1.0 carrier and pHelper 2.0 carrier were extracted from DH5α and purified without endotoxin. GV virus carrier contains essential elements 5′LTR and 3′LTR as well as other auxiliary elements of HIV. pHelper 1.0 carrier contains gag gene encoding the major structural protein of the HIV, pol gene encoding virus-specific enzyme, and rev gene encoding regulators for gag and pol gene expression. pHelper 2.0 carrier contains VSV-G gene which provides membrane proteins for viral packaging. The three carriers were co-transducted to 293T cells followed by the manufacturer’s instructions to obtain the lentivirus-chZAP recombinant vector. The titer of the lentivirus-chZAP recombinant vector was determined by limiting dilution in 293T cell culture (Shanghai GeneChem Co., Ltd). The optimal transfection titer in DF-1 cells for the recombinant vector is 107~108 TU/ml. Polybrene (5 μg/ml) was added to enhance the transfection. The lentivirus-chZAP recombinant vector which contains EGFP and chZAP genes were successfully transfected into DF-1 cells, then integrated into the genome to be high level expression. The expression time procession of the lentivirus-chZAP recombinant vector was determined by the expression of EGFP observing under a fluorescence microscope, and the mRNA level of chZAP was tested by qPCR.
Measurement of ALV-J replication in chZAP-overexpressed DF-1 cells
To evaluate the antiviral activity of chZAP, we used overexpressed recombinant lentivirus-chZAP to inhibit ALV-J replication in DF-1 cells. DF-1 cells were seeded at 2 × 105 cells per well in a 24-well plate and transfected the following day with lentivirus-chZAP recombinant vector at titers of 107 TU/ml or 108 TU/ml. At 72 h post-transfection, green fluorescence of the recombinant vector was observed. A volume of 100 μl 103 TCID50 of ALV-J was added to the culture medium and cultured for 72 h. The cells were harvested at the terminal time points of this experiment and tested by qPCR.
RNA interference (RNAi)
chZAP siRNA (Cat. siG151014100702) and control siRNA (Cat. siN05815122147) were synthesized by Ruibo Biotechnology, Inc (Jinan, China). To confirm the inhibition of ALV-J by chZAP, chZAP-specific siRNA was transducted into DF-1 cells, and then infected ALV-J. siRNA transduction (50 nM) was performed by Lipofectamine 2000 according to manufacturer’s directions. The RNA and protein level of chZAP and env protein of ALV-J were tested by qPCR and western blot, respectively at 0 h, 24 h, 48 h and 72 h post infection of ALV-J.
Transduced DF-1 cells were washed once with PBS buffer, lysed in cell lysis buffer (Beyotime) and incubated on ice for 5 minutes. The lysates were resuspended in SDS loading buffer, boiled for 5 min, loaded and run on a 12% SDS-PAGE, and then transferred onto a nitrocellulose membrane (Solarbio). The nitrocellulose membrane was blocked with 5% skimmed milk at 4°C overnight and probed with a polyclonal antibody against chZAP at a 1:200 dilution, followed by horseradish peroxidase (HRP)-conjugated goat anti-rabbit secondary antibody (Bioss) at a 1:3000 dilution. The beta-actin was as reference control. Detection was performed with Enhanced HRP-DAB Chromogenic Substrate Kit (Tiangen) according to the manufacturer’s instructions.
Confocal laser scanning microscopy (CLSM)
DF-1 cells were seeded in confocal dishes the day prior to infection and maintained in DMEM with 10% FBS. When the cell confluence reached 80%, the cells were infected with 200 μl NX0101 strain of ALV-J at 103 TCID50 per dish. The cells were washed three times with PBS (137 mM NaCl, 2.7 mM KCl, 10 mM Na2HPO4, and 2 mM KH2PO4) and were fixed in fixative (1 ml of fixative contains 600 μl of acetone plus 400 μl of alcohol) at 0 h, 24 h, 48 h and 72 h post infection. 7 minutes later, the fixative was removed and the cells were washed three times with PBS. Then, the cells were incubated with primary anti-chZAP (1:50) or anti-SU (1:200) antibody at 4°C for 10 h. After that, the cells were washed three times with PBS, and incubated with HRP-labeled Goat anti-rabbit IgG (H+L) (1:5000) and HRP-labeled Goat anti-mouse IgG (H+L) (1:5000) at 37°C for 1.5 h. Then, the cells were washed three with PBS. Nucleuses were coloring with DAPI at 37°C for 5 minute, and then the cells were washed three with PBS again. Finally, the cells with 1 ml of 50% glycerol were observed in CLSM immediately.
DF-1 cells were seeded in 12 holes plate. Cells were infected with ALV-J (103 TCID50) after transfected by lentivirus-chZAP (108 TU/ml). The cells were harvested at 72 h post infection and lysed in lysis buffer (20 Mm Tris, PH 7.5, 150 mM NaCl, 1% Triton X-100, 1 mM EDTA, 10 μg/ml aprotinin, 10 μg/ml leupeptin, 1 mM phenylmethylsulfonyl fluoride). Cell lysate was incubated with 1 μg of the indicated antibody and 25 μl carboxyl beads (2 mg/ml) for 8 h at 4°C. Immunoprecipitates were washed three times with TBST, re-suspended in SDS loading buffer, boiled for 5 min and analyzed by western blot with indicated antibody.
The following programs were used for statistical analysis: SPSS Statistics, Graphpad prism6.
The sequence of chZAP gene was deposited in GenBank, and the accession number is KJ675563.
Zhu M and Mao X did the experiments; Zhu M, Zhou J, and Cui X analyzed the data; Li C, Huang L and Shang Y participated in the guidance of the experimental process; Cheng Z participated in formulation of the concept; Zhu M and Cheng Z wrote the manuscript. All authors gave final approval for publication.
The study was supported by grants from the Natural Science Foundation of China (No.31372458), the National high-tech project (No.2015BAD11B03-5), the Shandong Modern Agricultural Technology & Industry System (No. SDAIT-11-04) and the Fund of Shandong “Double Tops” Program.
CONFLICTS OF INTEREST
The authors have no potential conflicts of interest to disclose.
1. Wolf D, Goff SP. Host Restriction Factors Blocking Retroviral Replication. Annu Rev Genet. 2008; 42:143–163.
2. Lafuse WP, Brown D, Castle L, Zwilling BS. Cloning and characterization of a novel cDNA that is IFN-gamma-induced in mouse peritoneal macrophages and encodes a putative GTP-binding protein. J Leukocyte Biol. 1995; 57:477.
3. Gao G, Guo X, Goff SP. Inhibition of Retroviral RNA Production by ZAP, a CCCH-Type Zinc Finger Protein. Science. 2002; 297:1703–1706.
4. Stremlau M, Owens CM, Perron MJ, Kiessling M, Autissier P, Sodroski J. The cytoplasmic body component TRIM5alpha restricts HIV-1 infection in Old World monkeys. Nature. 2004; 427:848.
5. Cullen BR. Role and mechanism of action of the APOBEC3 family of antiretroviral resistance factors. J Virol. 2006; 80:1067–1076.
6. Neil SJ, Zang T, Bieniasz PD. Tetherin inhibits retrovirus release and is antagonized by HIV-1 Vpu. Nature. 2008; 451:425–430.
7. Hatziioannou T, Bieniasz PD. Antiretroviral Restriction Factors. Curr Opin Virol. 2011; 1:526–532.
8. Zheng YH, Jeang KT, Tokunaga K. Host restriction factors in retroviral infection: promises in virus-host interaction. Retrovirology. 2012; 9:112.
9. Bick MJ, Carroll JW, Gao G, Goff SP, Rice CM, Macdonald MR. Expression of the zinc-finger antiviral protein inhibits alphavirus replication. J Virol. 2003; 77:11555–11562.
10. Müller S, Möller P, Bick MJ, Wurr S, Becker S, Günther S, Kümmerer BM. Inhibition of Filovirus Replication by the Zinc Finger Antiviral Protein. J Virol. 2007; 81:2391–2400.
11. Zhang Y, Burke CW, Ryman KD, Klimstra WB. Identification and Characterization of Interferon-Induced Proteins That Inhibit Alphavirus Replication. J Virol. 2007; 81:11246–11255.
12. Mao R, Nie H, Cai D, Zhang J, Liu H, Yan R, Cuconati A, Block TM, Guo JT, Guo H. Inhibition of hepatitis B virus replication by the host zinc finger antiviral protein. PLoS Pathog. 2013; 9:e1003494.
13. Guo X, Carroll JW, Macdonald MR, Goff SP, Gao G. The Zinc Finger Antiviral Protein Directly Binds to Specific Viral mRNAs through the CCCH Zinc Finger Motifs. J Virol. 2004; 78:12781–12787.
14. Guo X, Ma J, Sun J, Gao G. The zinc-finger antiviral protein recruits the RNA processing exosome to degrade the target mRNA. Proc Natl Acad Sci USA. 2007; 104:151–156.
15. Wang X, Lv F, Gao G. Mutagenesis analysis of the zinc-finger antiviral protein. Retrovirology. 2010; 7:19.
16. Ye P, Liu S, Zhu Y, Chen G, Gao G. DEXH-Box protein DHX30 is required for optimal function of the zinc-finger antiviral protein. Protein Cell. 2010; 1:956–964.
17. Chen S. Structure of N-terminal domain of ZAP indicates how a zinc-finger protein recognizes complex RNA. Nat Struct Mol Biol. 2012; 19:430.
18. Payne LN, Brown SR, Bumstead N, Howes K, Frazier JA, Thouless ME. A novel subgroup of exogenous avian leukosis virus in chickens. J Gen Virol. 1991; 72:801–807.
19. Feng M, Dai M, Xie T, Li Z, Shi M, Zhang X. Innate Immune Responses in ALV-J Infected Chicks and Chickens with Hemangioma In Vivo. Front Microbiol. 2016; 7:786.
20. Kawai T, Akira S. Innate immune recognition of viral infection. Nat Immunol. 2006; 56:1.
21. Caldwell RB, Kierzek AM, Arakawa H, Bezzubov Y, Zaim J, Fiedler P, Kutter S, Blagodatski A, Kostovska D, Koter M. Full-length cDNAs from chicken bursal lymphocytes to facilitate gene function analysis. Genome Biol. 2005; 6:1–9.
22. Liu L, Chen G, Ji X, Gao G. ZAP is a CRM1-dependent nucleocytoplasmic shuttling protein. Biochem Biophys Res Commun. 2004; 321:517–523.
23. Gama-Carvalho M, Carmo-Fonseca M. The rules and roles of nucleocytoplasmic shuttling proteins. Febs Lett. 2001; 498:157–163.
24. Livak KJ, Schmittgen TD. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods. 2001; 25:402–408.
