Differential expression of circulating biomarkers of tumor phenotype and outcomes in previously treated non-small cell lung cancer patients receiving erlotinib vs. cytotoxic chemotherapy

PDF |  HTML  |  Supplementary Files  |  How to cite

Oncotarget. 2017; 8:58108-58121. https://doi.org/10.18632/oncotarget.17510

Metrics: PDF 2252 views  |   HTML 6483 views  |   ?

Mary Jo Fidler, Casey Frankenberger, Richard Seto, Gabriela C. Lobato, Cristina L. Fhied, Selina Sayidine, Sanjib Basu, Mark Pool, Reem Karmali, Marta Batus, Wen-Rong Lie, David Hayes, Jehangir Mistry, Philip Bonomi and Jeffrey A. Borgia _


Mary Jo Fidler1, Casey Frankenberger2, Richard Seto1, Gabriela C. Lobato3, Cristina L. Fhied2, Selina Sayidine2, Sanjib Basu4, Mark Pool2, Reem Karmali5,6, Marta Batus1, Wen-Rong Lie7, David Hayes7, Jehangir Mistry7, Philip Bonomi1 and Jeffrey A. Borgia2,3

1Section of Medical Oncology, Rush University Medical Center, Chicago, IL 60612, USA

2Pathology, Rush University Medical Center, Chicago, IL 60612, USA

3Biochemistry, Rush University Medical Center, Chicago, IL 60612, USA

4Preventative Medicine, Rush University Medical Center, Chicago, IL 60612, USA

5Hematology, Oncology and Cell Therapy at Rush University Medical Center, Chicago, IL 60612, USA

6Present address: Division of Hematology and Oncology, Northwestern University, Chicago, IL 60612, USA

7EMD Millipore Corporation, St. Charles, MO 63304, USA

Correspondence to:

Jeffrey A. Borgia, email: [email protected]

Keywords: biomarker, non-small cell lung cancer (NSCLC), Luminex, erlotinib, epithelial-to-mesenchymal transition (EMT)

Received: October 11, 2016    Accepted: February 06, 2017    Published: April 28, 2017


Background: The objective of this study was to identify serum biomarkers capable of predicting clinical outcomes in previously-treated NSCLC patients with wild-type for EGFR activating mutations or insufficient tissue for mutation status determination.

Methods: Sixty-six Luminex immunoassays representative of biological themes that emerged from a re-analysis of transcriptome data from the Cancer Genome Atlas (TCGA) were evaluate against pretreatment serum specimens from previously-treated advanced NSCLC patients received either cytotoxic chemotherapy (n=32) or erlotinib (n=79). Known EGFR mutation positive cases were excluded from analysis. Associations of biomarkers with outcome parameters and their differential interaction with treatment for survival outcomes were assessed using multivariate Cox PH analyses.

Results: Our EMT-based transcriptomic analysis revealed a range of biological processes associated with angiogenesis, apoptosis, cachexia, inflammation, and metabolism emerging as those most highly associated with patient outcome. These processes were evaluated via surrogate serum biomarkers. A treatment-biomarker interaction analysis revealed that higher pretreatment levels of c-Met signaling biomarkers (i.e. HGF levels), pro-inflammatory/ pro-cachexia (e.g. IL-8, sIL-2Rα, FGF-2) processes and a pro-angiogenic (e.g. TGF-α, IL-8, VEGF) milieu were associated with inferior survival (HR=0.35, 0.29, 0.58, 0.50, 0.61, 0.45, respectively; all p<0.05) for patients receiving chemotherapy, relative to erlotinib. In contrast, high levels of decoy receptor for IL-1, sIL-1RII, and a high tissue vimentin/E-cadherin ratio were associated with a poor OS (HR=3.78; p=0.00055) in the erlotinib cohort.

Conclusions: Contemporary precision medicine initiatives that pair patient tumor characteristics with the optimal therapy type may maximize the use of agents targeting EGFR in the treatment of NSCLC.


Epidermal growth factor receptor (EGFR) tyrosine kinase inhibitors (TKI’s) prolonged survival in molecularly unselected advanced non-small cell lung cancer (NSCLC) patients receiving second or third line therapy and in the maintenance setting [13]. Recently, however, erlotinib lost its wild type indication based on consistent trends for prolonged progression free survival (PFS) in wild-type EGFR patients treated with second line docetaxel or pemetrexed over EGFR TKIs [4, 5]. Though EGFR TKI’s produce their most pronounced effects in patients with EGFR activating mutations [13, 6], prolonged survival in the maintenance setting with erlotinib and recent approval of afatinib for the squamous cell population suggests that EGFR-TKI therapy could be beneficial even in the wild type setting [1, 7]. Additionally, Necitumumab, a monoclonal antibody targeting EGFR was recently FDA approved suggesting persistent drug development in this area is ongoing.

As patients with NSCLC are beginning to live longer with better chemotherapies and the advent of immunotherapy, there is the potential for increased exposure to many agents for NSCLC. The Identification of biomarkers predictive of clinical benefit with EGFR TKI’s in wild-type EGFR tumors could offer a well-tolerated option for select patients in this setting. A serum based approach is advantageous for this task as it can provide a real-time snap shot of a patient’s disease status and avoids the costs and risks associated with repeat biopsies. Precedent for this approach is a mass-spectrometry assay for serum proteins which was found to be prognostic in NSCLC patients and predictive of chemotherapy benefit over erlotinib for those who have a poor risk serum profile, though recent data suggests the Veristrat assay may be of more prognostic value.

The objective of this study was to identify serum biomarkers capable of predicting favorable clinical outcomes on erlotinib versus palliative chemotherapy in previously-treated NSCLC patients with wild-type for EGFR activating mutations or insufficient tissue for mutation status determination. Herein, we considered 66 unique serum biomarkers related to EMT and evaluated their prognostic and predictive value in 111 cases of pretreated NSCLC lacking known EGFR activating mutations. For these studies we hypothesize that tumor phenotype strongly influences tumor progression and cases with strong epithelial character would benefit the most from strategies targeting EGFR.


Overall results of patient cohorts

The median PFS and OS of the entire group was 2.4 months and 7.1 months, respectively The median PFS and OS for the erlotinib group were 1.9 and 6.8 months, respectively and the median PFS and OS for the chemotherapy group were 3.0 and 7.6 months, respectively.

Association of circulating biomarkers with epithelial versus mesenchymal phenotypes

Using transcriptome data from 104 cases of advanced stage NSCLC profiled as part of the Cancer Genome Atlas (TCGA) [8], a gene set analysis (GSA) was performed to reveal biological categories for genes significantly enriched in relation to markers of EMT progression (vimentin vs. E-cadherin expression) (Figures 1A and 1B, respectively). Overall, high levels of biomarkers associated with inflammation (myeloid cell differentiation), angiogenesis (vascular development) and cachexia (skeletal and muscle development) were associated with tumors expressing high vimentin levels, while metabolic processes (lipid catabolism and glycoprotein metabolism) were inversely related to vimentin expression. Furthermore, various gene sets associated with an epithelial phenotype (EGFR signaling, positive regulation of cell cycle, cell-cell adhesion) were enriched in high E-cadherin expressing tumors, while pro-apoptosis (DNA catabolic process, cell structure disassembly during apoptosis, and apoptotic nuclear changes) and metabolism (oxidative stress, biogenesis, and mitochondrial organization) themes were down-regulated. These associations were used, in part, to help guide the selection of circulating biomarkers for the serum studies based on involvement of the biomarkers with processes identified in Figure 1. That is, given increasing mesenchymal character of the tumor is associated with a poor clinical outcome [911] as well as increasing vimentin and/or decreasing E-cadherin expression [1113]; processes associated with these biomarkers should have strong prognostic significance. With this, commercially-available assays of secreted or tumor-shed biomarkers associated with these processes (as indicated in Table 1) were selected for evaluation in the current study. These biomarker categorizations are provided in Figures 2 and 3.

Biological processes enriched in advanced stage NSCLC patients in relation to EMT.

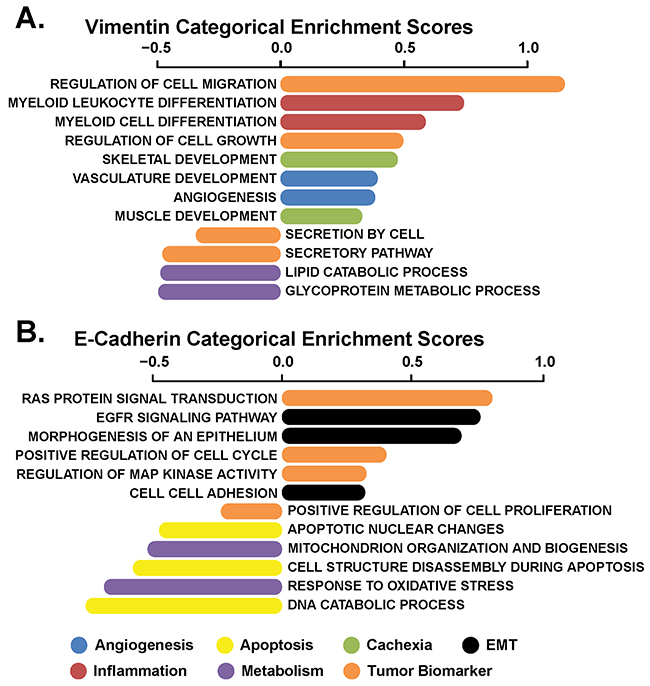

Figure 1: Biological processes enriched in advanced stage NSCLC patients in relation to EMT. Categorical analysis of genes profiled from advanced stage NSCLC patients (n=104) that were part of the Cancer Genome Atlas (TCGA), lung adenocarcinoma study (LuAD), whose expression correlates to EMT markers (A) vimentin or (B) E-cadherin. Colors indicate themes of these categories (blue = angiogenesis, yellow = apoptosis, green = cachexia, black = EMT, red = inflammation, purple = metabolism, and orange = tumor biomarker).

Table 1: Demographics and clinicopathological data of patient population based on treatment with erlotinib or Chemotherapy


Erlotinib Patients

Chemotherapy Patients










33 (42%)

16 (50%)


46 (58%)

16 (50%)








Pemetrexed/ cetuximab






Carboplatin/ Paclitaxel



Gemcitabine/ vinorelbine



Metronomic Cyclophosphamide






Disease Stage







Race/ ethnicity










Smoking History


  Pack Years






Current/ Former





54 (68%)

16 (50%)

Squamous Cell

12 (15%)

6 (19%)


13 (17%)

10 (31%)

Performance Status


19 (24%)

11 (34%)


50 (63%)

20 (59%)


8 (10%)

1 (03%)


2 (3%)


Notes: * Definition of smoking history: current smoker or stopped less than 1 year prior to study entry, former smoker, stopped smoking at least 1 year prior to study entry, never smoked or smoked fewer than 100 cigarettes in lifetime.

Forest plot of Cox PH regression analysis findings for overall survival in the single-agent chemotherapy cohort.

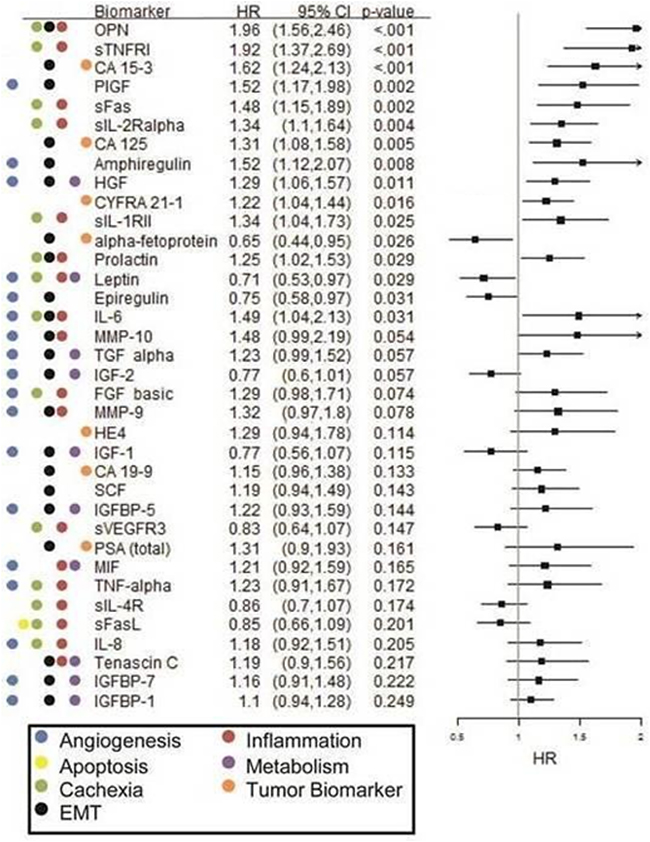

Figure 2: Forest plot of Cox PH regression analysis findings for overall survival in the single-agent chemotherapy cohort. Hazard ratios (HR), confidence intervals (CI) and p-values are provided along with examples of known biological pathways/ processes involvement for each biomarker.

Forest plot of Cox PH regression analysis findings for overall survival in the erlotinib cohort.

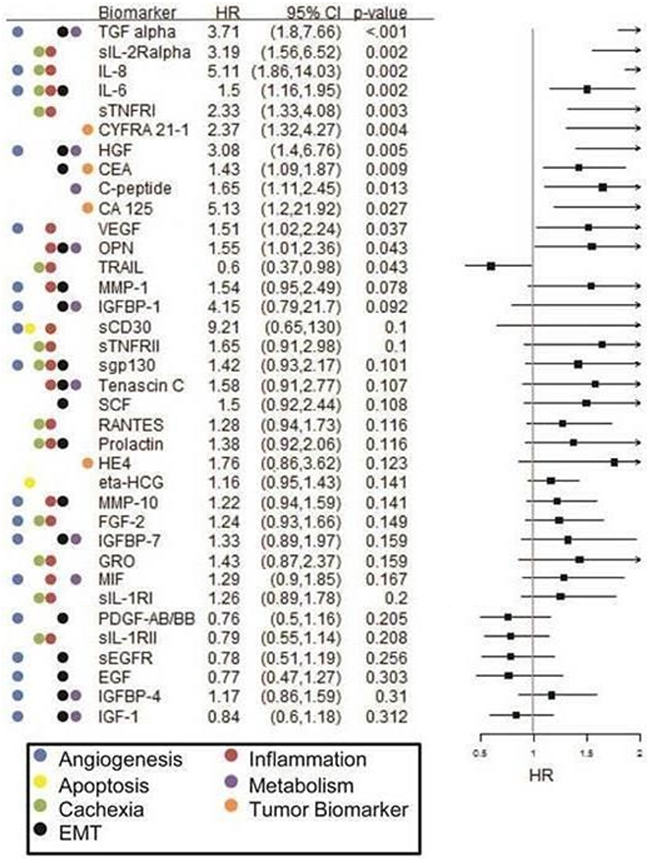

Figure 3: Forest plot of Cox PH regression analysis findings for overall survival in the erlotinib cohort. Hazard ratios (HR), confidence intervals (CI) and p-values are provided along with examples of known biological pathways/ processes involvement for each biomarker.

Serum biomarker cohort characteristics

The demographics and clinicopathological information on the cohorts are provided in Table 1. Serum samples for proteomic analysis were collected prospectively from 111 patients enrolled in this study. Cases receiving cytotoxic chemotherapy (n=32) were descriptively slightly younger (average 62.7 vs. 65.5 years; p=0.193) than the erlotinib cohort (n=79), with a higher smoking history (35 vs. 29 pack years; p=0.265) and fewer never smokers (3 vs. 16 individuals). Both the chemotherapy cohort and erlotinib groups had approximately equal number of males and females (50% and 58%, respectively). Also, the erlotinib cohort had a slightly higher proportion of patients with adenocarcinoma than the chemotherapy cohort (68% vs. 50%, respectively; p=0.130). In terms of EGFR mutational status, the chemotherapy cohort had 18 (56%) of the cases confirmed negative for mutations, and 14 (44%) cases indeterminate; whereas the erlotinib cohort had 50 (63%) of the cases confirmed negative for mutations and 29 (37%) cases indeterminate due to a lack of evaluable specimens (tumor or plasma). Performance status distributions were balanced between the cohorts, with a majority of patients having Eastern Cooperative Oncology Group (ECOG) performance status of 1. In the subset of patients with immunohistochemical analyses, patients were predominately female 42 (69%); ethnically Caucasian (66%) or African American (30%), had a median smoking history of 35 pack-years (12 never-smokers); and had predominately adenocarcinoma histology (n=42; 69%, squamous cell carcinoma n=8; 13%), unspecified NSCLC (n=11; 18%). 41 of 61 (67%) received erlotinib as their treatment.

Prognostic value of biomarkers for clinical outcome based on treatment type

Chemotherapy cohort

In this cohort, increased pretreatment levels of TGF-α, sIL-2Rα, IL-8, IL-6, sTNF-RI, HGF, and osteopontin were found to be significantly associated with both increased hazard for death (HR= 3.71, 3.19, 5.11, 1.5, 2.33, 3.08, and 1.55, respectively; see Figure 2) as well as increased hazard for progression (see Supplementary Figure 1). [Please note that the HRs represent the impact of one standard deviation change at biomarker level]. Additionally, increased pretreatment levels of CYFRA 21.1, CEA, CA-125, C-peptide, CA-125, and VEGF-A were significantly associated with increased hazard of death (see Figure 2). In contrast, increased levels of TRAIL were significantly associated with decreased hazard of death (HR=0.60; p=0.043) and progression. Altogether, 13 biomarkers were found to have statistically significant (p< 0.05) association with OS and 13 biomarkers were found to have statistically significant (p< 0.05) association with PFS in the chemotherapy cohort based on the Cox PH analyses.

Erlotinib cohort

Altogether, 19 biomarkers were found to have statistically significant (p< 0.05) association with OS (Figure 3) and 15 biomarkers were found to have statistically significant (p< 0.05) association with PFS (Supplementary Figure 2) in the erlotinib cohort. Out of these, increased pretreatment circulating levels of amphiregulin, CA-125, CA15-3, osteopontin, PLGF, sFas, sTNF-RI and sTNF-RII were found to be significantly associated with increased hazard of both death as well as progression, whereas increased pretreatment levels of leptin were found to be significantly associated with decreased hazard of both death and progression. Additionally, increased pretreatment levels of sIL-2Rα, HGF, CYFRA 21.1, sIL-1RII, prolactin, and IL-6 were associated (HR=1.34, 1.29, 1.22, 1.34, 1.25, 1.49, respectively) with an increased hazard for death; again, HRs represent the impact of one standard deviation change at biomarker level. In contrast, increased pretreatment levels of α-fetoprotein, leptin, and epiregulin were associated with decreased hazard of death (HR=0.65, 0.71, and 0.75; p=0.026, 0.029, and 0.031; respectively).

Immunohistochemical analysis

The immunohistochemical analysis of patient-matching tissue specimens (n=61 tested; 58 evaluable) showed a strong association for an increased vimentin to E-cadherin (V/E) ratio with an increased hazard for disease progression or death (HR=1.78 and 2.45; p=0.001 and 0.00024, both respectively) in the erlotinib group (data not shown). E-cadherin, vimentin, or their ratio (V/E) were not found to be significantly associated with progression or death (all p>0.05) in the chemotherapy arm; however, this finding may be reflective of the small number of cases available for this analysis. In the analysis of association of observed biomarker levels with the V/E ratio, high levels of TGF-β, sVEGFR2, MMP-1, sFas, TNF-α, and sIL-6R were found to be positively correlated (Spearman rank correlations, p≤0.05) with increasing V/E ratio. Most commonly, there was co-expression of both epitopes with the pattern of increasing vimentin with decreasing E-cadherin upon adoption of a phenotype with poorer survival statistics. Representative images of immunostaining are shown in Supplementary Figure 3.

Predictive value of biomarkers using a therapy-biomarker interaction analysis

A therapy-biomarker interaction analysis was performed to assess the differential associations of biomarker levels with the hazard of outcome events in the erlotinib cohort relative to those receiving palliative chemotherapy. These differential associations may have value for directing treatment decisions in that they link biomarker levels with clinical outcomes (i.e. hazard of outcome events) for erlotinib relative to chemotherapy. In this study we found the therapy-biomarker interaction hazard ratios (of death) for pretreatment levels of TGF-α, IL-8, VEGF, sIL-2Rα, FGF-2, and HGF were all less than 1 (HR = 0.35, 0.29, 0.58, 0.5, 0.61 and 0.45 respectively, all p ≤ 0.05) and only sIL-1RII was found to have a significant interaction HR greater than 1 (HR=1.69; p ≤ 0.05). That is, with increasing levels of TGF-α, IL-8, VEGF, sIL-2Rα, FGF-2, and HGF, the rates of change for hazard of death (in log scale) were found to be lower in the erlotinib group relative to the chemotherapy group or higher for increasing levels of sIL-1RII. These findings are further illustrated in Figure 4, where representative survival plot predictions from the fitted Cox PH Interaction model at the 10th and 90th percentiles of the biomarker values are shown to illustrate survival curves for cases potentially with “low” or “high” biomarker levels. Forest plots of these same data are provided in Supplementary Figure 4, whereas findings for the hazard of disease progression (PFS) are provided in Supplementary Figure 5.

Cox PH interaction model-based predictions of Kaplan-Meier plots for a section of biomarkers.

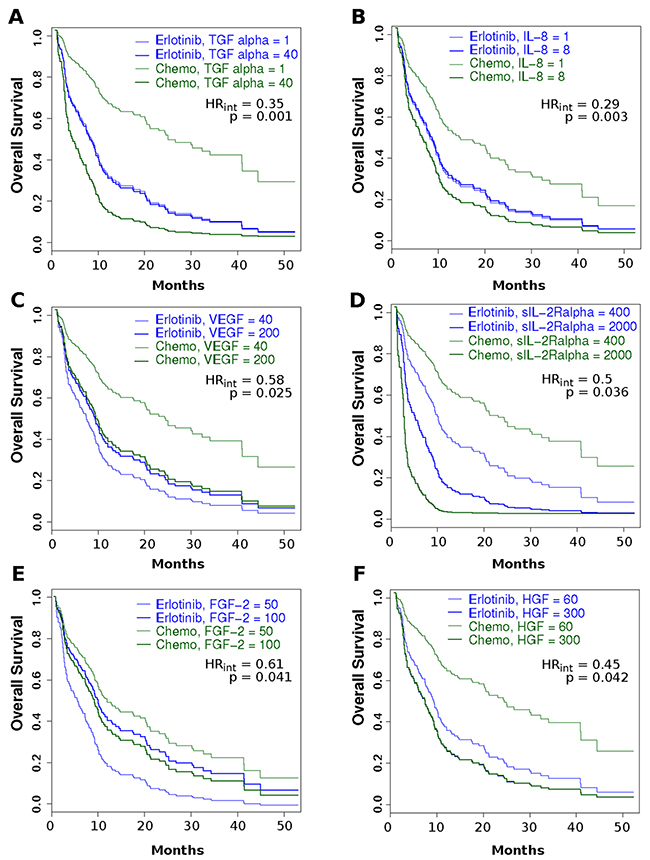

Figure 4: Cox PH interaction model-based predictions of Kaplan-Meier plots for a section of biomarkers. Each plot illustrates the overall survival curves based on having either a “low” biomarker level (thin line) or “high” biomarker level (thick line), for patients receiving either erlotinib (blue) or single agent chemotherapy (magenta; “Chemo”). Please note that “low” and “high” levels illustrated here represent the levels observed at the 10th and 90th percentiles for the distribution of measured concentrations for that cohort. Panel A - TGF-α; Panel B – Il-8; Panel C – VEGF; Panel D – sIL-2Rα; Panel E – FGF-2 (aka bFGF); Panel F – HGF. [Example of interpretation: low pretreatment sIL-2Rα levels were associated with a superior outcome in both treatment arms, with the patients receiving chemotherapy performing slightly better than those receiving erlotinib. Those with high levels had a slightly better outcome when erlotinib was administered, relative to patients receiving chemotherapy].

These findings presented above for the therapy-biomarker interaction analysis on the two therapy groups were corroborated with the subgroup analyses reported in Figures 2 and 3. Namely, the HRs (for death) of TGF-α, IL-8, VEGF, sIL-2Rα, and FGF-2 in the chemotherapy cohort were documented as being significant in Figure 2, whereas the HRs for these same markers were not significant in the erlotinib cohort (Figure 3) - leading to a significant differential therapy-biomarker interaction hazard ratio. Additionally, the markedly lower HRs in the erolinib cohort compared to the chemotherapy cohorts for TGF-α (1.23 vs 3.71), IL-8 (1.18 vs 5.11), VEGF (0.88 vs 1.51), sIL-2Rα (1.34 vs 3.19), FGF-2 (0.73 vs 1.24), and HGF (1.29 vs 3.08) further corroborate the inverse HR findings for these markers in the interaction analysis. Note that the subgroup analyses reported in Figures 2 and 3 are respectively on the chemotherapy and erlotinib cohorts, whereas the interactions analysis draws its strength by analyzing the two cohorts combined.


During the EMT process, tumor cells have the potential to adopt certain “cancer stem cell” characteristics, including surface antigens, signaling pathways, and transcriptional regulation mechanisms [1416]. Perhaps the most archetypal example of EMT features is the loss of E-cadherin expression and up-regulation of alternate adhesion molecules, such as fibronectin or N-cadherin, as well as the intermediate filament protein, vimentin [14, 17]. Our exploratory analysis evaluating patient-matching tissue for E-cadherin (E) and vimentin (V) via immunohistochemistry demonstrated that only in the erlotinib cohort, decreasing E-cadherin and/or increasing vimentin (or a high V/E ratio) were associated with a poor clinical outcome. In other studies this effect was shown to be independent of treatment type [1820], however, the relatively small size of the chemotherapy group should be considered when interpreting this finding. Our biomarker-interaction test demonstrated that there was a clear increase in hazard of death for patients in the erlotinib cohort, relative to patients receiving single-agent chemotherapy, when the V/E was high. These results support the idea that increasing mesenchymal character in the tumor results in a worse clinical outcome with erlotinib, relative to patients treated with chemotherapy. Moreover, we observed little difference in outcomes for either treatment in patients with high mesenchymal biomarker levels (dark lines, Figure 4), probably resulting from the very influential nature of the tumor processes promoted by this phenotype. However, when these biomarker levels were low (thin lines, Figure 4), very dramatic differences could be observed in outcomes that were dependent on therapy type – with patients receiving chemotherapy being observed to experience an overall better outcome. This finding is consistent with the findings of the TAILOR trial, where EGFR wild-type patient population were documented to have a superior outcome with chemotherapy, versus erlotinib [4]. These combined observations suggest that chemotherapy has greater impact in tumors with an epithelioid phenotype.

Taking this premise further, identifying circulating surrogate influential biomarkers related to EMT would provide an opportunity to evaluate this process in patients for EGFR directed therapy, particularly in wild type patients. For the present study, a Spearman analysis of the observed biomarker levels with the V/E ratio found TGF-β, sVEGFR2, MMP-1, sFas, TNF-α, and sIL-6R as being highly-related variables (p≤0.05) suggesting the potential for serum markers to identify patients that we would expect to have inferior outcomes on EGFR-TKIs. Examination of biomarkers for overall survival identified a series of EMT-associated factors, including osteopontin (OPN), CA15-3, PIGF, CA-125, HGF, prolactin, IL-6, MMP-10, sgp130 and IGFBP-1 with a negative impact on outcome, whereas α-fetoprotein and IGF-2, factors known to oppose EMT processes, were positively associated with outcome in the cohort of 111 patients. The EGFR ligands (amphiregulin, TGF-α, epiregulin, betacellulin, EGF, and HB-EGF) are also known to be intimately involved in promoting EMT, as well as angiogenesis. We observed that amphiregulin, TGF-α, and epiregulin had prognostic values which were consistent with observations made by Vollebergh and colleagues [21]. For example, Figure 4, shows that patients with low levels of TGF-α would have a superior outcome with chemotherapy whereas patients with high levels would benefit more from erlotinib.

Angiogenesis generates tumor neovasculature and is a hallmark of cancer linked to EMT [22]. Through events initiated by low oxygen tension and/or nutrient deprivation caused by tumor cell proliferation [23], hypoxia induced factor-1α (HIF-1α) activation leads to increased gene expression of glucose transporters and glycolytic enzymes, increased expression of pro-angiogenic factors/ decreased expression of anti-angiogenic factors, promotion of adhesion molecule “switching” and metalloproteinase expression that lead to increased cellular motility and invasion that promote metastasis, and enhanced cellular survival/ proliferation [24]. That is, HIF-1α activation initiates the phenotypic changes associated with an epithelial-to-mesenchymal transition (EMT), which have well documented ramifications for promoting EGFR-TKI resistance and poor outcomes [18, 25, 26]. In this study we evaluated a series of factors that promote angiogenesis in lung cancer, including VEGF (VEGF-A), FGF-2, TGF-α, IL-8, PLGF, IGFBP-5, and IL-6 [2730], as well as a range of matrix metalloproteinases (MMPs), including MMPs -1, -2, -7, and -9, that initiate remodeling of the sub-epithelial stroma and blood vessels for new vessel formation [31, 32]. Our findings were consistent with the idea that high circulating levels of any pro-angiogenic factor have a negative impact on clinical outcomes regardless of treatment (see Figures 2 or 3). However, the pro-angiogenic factors TGF-α, IL-8, VEGF-A, FGF-2, and HGF were found to confer a particularly inferior outcome in the single-agent chemotherapy cohort, as indicated by our therapy-biomarker interaction analysis (see Figure 4 or Supplementary Figure 4) suggesting that erlotinib may possibly mitigate these factors.

Lastly, inflammation is a key promotor of EMT and cancer cachexia and is associated with a poor clinical outcome in lung cancer [33]. This process is thought to be mediated, in part, by circulating inflammatory and/or acute-phase biomarkers [3437]. We investigated a series of pro- and anti-inflammatory biomarkers as part of this study to determine if these associations were found in our patient cohort and whether biomarker levels were associated with treatment-related outcomes. Not unexpectedly, we observed strong associations of high levels of factors such as IL-6, IL-8, FGF-2, and sIL-2Rα with poor clinical outcomes (see Figures 2 and 3), consistent with documented reports for chronic inflammation and cachexia in multiple cancer types [3843]. The findings from our biomarker-therapy interaction analysis were provocative with a majority of the significant associations identified being with pro-inflammatory biomarkers. High pretreatment levels of IL-8, sIL-2Rα, and FGF-2 were associated with an increased hazard of death for patients receiving single-agent cytotoxic chemotherapy when compared to those receiving erlotinib. Conversely, high circulating levels of the sIL-1RII were associated with increased hazard of death with erlotinib, relative to those receiving chemotherapy (see Supplementary Figure 4). Interestingly, sIL-1RII is a known anti-inflammatory factor and is thought to function as a circulating “decoy receptor” for IL-1 and IL-1ra, exerting a potent negative effect [44, 45]. High levels of the satiety hormone, leptin, was also associated with an increased hazard of disease progression (HR=0.56; p=0.01) in patients undergoing chemotherapy versus those receiving erlotinib – consistent with the patterns observed with the pro-inflammatory biomarkers.

An obvious weakness of this study is lack of available EGFR mutation data for some of the patients. However, the strength of this paper is that it is studying many circulating biomarkers that signal independent of the EGF receptor that may support preferential use of EGFR targeted therapy in some wild type NSCLC patients. A minor weakness is the lack of post study treatment information though PFS and OS numbers are comparable to published survivals in the previously treated setting and these patients did not have the benefit of exposure to immunotherapy treatments [46]. Our observations require validation. With the recent approval of afatinib and necitumumab in squamous cell NSCLC patients, it would be reasonable to attempt to validate our findings in patients treated with these EGFR inhibitors.


Late stage adenocarcinoma gene set analysis

Gene mRNA expression data and clinical annotation and were downloaded from the Broad Firehose GDAC website [47]. Of 572 lung adenocarcinoma samples, 104 were annotated as being late stage (stage III or stage IV). Using mRNA expression profiles [48] of the late stage adenocarcinoma tumors, gene set analysis was performed using the GSA package (v1.03) in the bioconductor suite of the R statistical package (v3.1.2) [49, 50]. 825 gene sets related to biological processes were tested for enrichment to mRNA expression levels of EMT markers vimentin or E-cadherin in these late stage samples [50, 51]. Two hundred permutations of the response variable were used to establish significance and false discovery.

Patient population

Patients with stage IV NSCLC that had previously been treated with platinum doublet chemotherapy were enrolled. Serum was collected before initiation of either cytotoxic agents or erlotinib, chosen at the discretion of the treating physician. Serum and clinical data were collected prospectively after written informed consent. Patients were evaluated for disease progression based on version 1.1 of RECIST criteria. The study was performed with written informed patient consent and was approved by the Institutional Review Board at Rush University Medical Center.

EGFR mutational status were determined whenever possible from archival FFPE materials as we previously described [52]. In cases where FFPE materials were not available, EGFR mutational status were determined through digital droplet PCR on cell-free DNA in archived patient plasma or were left as indeterminate from a lack of evaluable specimens. Briefly, circulating free DNA (cfDNA) was purified from 500 μL to 1 mL plasma for each sample using a NucleoSpin Plasma XS kit (Clontech Laboratories, Mountain View, CA) as suggested by the manufacturer. Purity and quantity of the purified cfDNA were examined by NanoDrop (Agilent Technolgies, Santa Clara, CA) and Qubit (ThermoFisher Scientific, Grand Island, NY) instruments independently. Detections of EGFR mutations (G719S and L858R) and exon 19 deletion (E746-A750) in plasma cfDNA by digital droplet PCR were performed in a Bio-Rad QX200 digital PCR System (Bio-Rad Laboratories, Hercules, CA). For each mutation analysis, 10 ng of cfDNA were mixed with 12.5 μL of 2X supermix, 1.25 μL of 20X wild-typed assay and 1.25 μL of 20X mutant assay in a 25 μL reaction. Subsequently, emulsion droplets were generated from the reaction mixture and subjected to PCR amplification. Products of amplification were analyzed by a QX200 Droplet Reader, and data were acquired and analyzed by QuantaSoftTM software (Bio-Rad).

Collection and storage of serum specimens

Peripheral blood was collected from each patient prior to treatment initiation and processed using standard phlebotomy methods. Briefly, approximately 10 mL of blood was drawn into standard red-top Vacutainers® (without anticoagulant) and permitted to coagulate at room temperature for 30-40 minutes. Following coagulation, the specimens were centrifuged for 15 minutes to yield 4 to 7 mL of sera per tube. Each sera was then spiked with 25 μL/mL of the Mammalian Protease inhibitor cocktail (Sigma, St. Louis, MO) and 10 μL/mL of 0.5M EDTA to prevent further hydrolysis of proteins within the sera. Aliquots of the sera were archived at -80°C in an ultra-low temperature freezer until analysis. No specimen was subject to greater than two freeze-thaw cycles for this study.

Measurement of serum biomarker concentrations

A total of 66 distinct analytes were evaluated in the Luminex immunobead platform using commercially obtained kits that were executed according to the manufacturer’s recommended protocols. All primary data points were collected on a Luminex FLEXMAP 3D® system with concentrations calculated based on 7-point standard curves using a five-parametric fit algorithm in xPONENT® v4.0.3 (Luminex Corp., Austin, TX). Only data that fell within the documented assay range, passed the quality control/ quality assurance measures provided by each kit’s manufacturer, and possessed a %CV value ≤10% were considered by our statistician. Any primary read that failed to meet these quality control thresholds were reprocessed until a satisfactory value was obtained.

Analytes were evaluated in the following manner (by kit): IGF-I (MILLIPLEX® MAP Human IGF-I Single Plex; EMD Millipore Corp., Billerica, MA); IGF-II (MILLIPLEX® MAP Cancer Biomarker Panel; EMD Millipore Corp., Billerica, MA); IGFBP-1, IGFBP-2, IGFBP-3, IGFBP-4, IGFBP-5, IGFBP-6, IGFBP-7 (MILLIPLEX® MAP Human IGF Binding Protein (IGFBP) Panel; EMD Millipore Corp., Billerica, MA); C-peptide (MILLIPLEX® MAP Human Endocrine Immunoassay; EMD Millipore Corp., Billerica, MA); sEGFR, sCD30, sgp130, sIL-1RI, sIL-1RII, sIL-2Ralpha, sIL-4R, sIL-6R, sRAGE, sTNFRI, sTNFRII, sVEGFR1, sVEGFR2, sVEGFR3 (MILLIPLEX® MAP Human Soluble Cytokine Receptor Panel; EMD Millipore Corp., Billerica, MA); MMP-1, MMP-2, MMP-7, MMP-9, MMP-10 (MILLIPLEX® MAP Human MMP Panel 2; EMD Millipore Corp., Billerica, MA); TGF-β (MILLIPLEX® MAP Human TGF-β Single Plex; EMD Millipore Corp., Billerica, MA); IL-8, IL-6, GRO, PDGF-AA, PDGF-AB/BB, RANTES (MILLIPLEX® MAP Human Cytokine/ Chemokine Panel I; EMD Millipore Corp., Billerica, MA); HCG, α-fetoprotein, CA-125, CA 15-3, CA 19-9, CEA, HE4, HGF, VEGF, Leptin, MIF, Osteopontin, Prolactin, SCF, sFas, sFasL, TGF-α, TNF-α, Total PSA, TRAIL, CYFRA 21-1 (MILLIPLEX® MAP Human Circulating Cancer Biomarker Panel 1; Amphiregulin, Betacellulin, Epiregulin, EGF, bFGF, HB-EGF, PDGF-BB, PLGF, Tenascin C (Widescreen Human Cancer Panel 2, EMD Millipore Corp.).

Immunohistochemical studies

A subset of the patients enrolled in the serum studies had evaluable tissue specimens (n=61) from a previous surgical encounter in the tissue archives of our Pathology Department and were further appraised via immunohistochemistry. Formalin-fixed, paraffin-embedded tissue was prepared as five micron sections, transferred to positive-charge slides and baked for 30 minutes at 60 °C. Immunohistochemistry was performed using a Ventana Benchmark autostainer (Ventana Medical Systems, Inc.; Tucson, AZ, USA). Sections were immunostained with either monoclonal mouse anti-vimentin (400-fold dilution; clone V9; DAKO, Carpinteria, CA) or monoclonal mouse anti-E-cadherin (100-fold dilution; clone G-10, Santa Cruz Biotechnology, Santa Cruz, CA). Detection was performed using the iView DAB detection kit, an indirect biotin streptavidin system for detecting mouse and rabbit primary antibodies, on the automated platform per Ventana protocol (Ventana Medical Systems). Staining intensity and distribution for each specimen were recorded in a minimum of 25 randomly selected fields (x400 magnification) along a serpentine pattern using a 3-point intensity-based scoring system, defined as 0, negative; 1, weak; and 2, strong. The percentage of cells staining positive at each of these intensities was recorded for each field evaluated and ultimately averaged to generate values characteristic of the observed staining for each case. A final score was then calculated as the sum of the fractions positive in each of the intensity scores multiplied by the average frequency. Scoring was conducted in a blinded fashion by a minimum of two independent physician observers for each biomarker.

Biomarker statistical methods

Demographics and clinicopathological data were compared between erlotinib and chemotherapy groups by Mann-Whitney and Fisher exact tests. The associations between time-to-event outcomes (PFS/OS) and biomarkers in continuous scale were assessed by Cox proportional hazards (PH) regression analyses. The biomarkers were analyzed in standardized scales in these PH analyses; thus, the hazard ratios (HRs) resulting from these analyses model the impact of one standard deviation unit change in the biomarker level. The differential impacts of biomarker levels (again in standardized scales) with cytotoxic chemotherapy vs. erlotinib on progression-free survival (PFS) and overall survival (OS) were assessed by multivariate Cox PH interaction model based analyses, using methods similar to those employed in other studies [53, 54].

Authors’ contributions

All authors had substantial contribution to at least one aspect of the conception, execution, analysis, or reporting of the current study. Specifically, the study was conceived and developed by MJF, PB, CF, and JAB; the study was performed by CLF, MP, RS, MB, WRL, DH, JM, RS, GL and JAB; the data was analyzed by CF, CLF, SB, GL and JAB; and the manuscript composed by MJF, CF, RK, PB, and JAB. All authors read and approved of the manuscript.


The authors would like to thank Kelly Walters, Diana Escarzaga and Emira Hadziahmetovic for their assistance in biobanking specimens for this study and Drs. Zhongmin Guo and Jim Lu of GoPath Laboratories LLC for assisting with EGFR mutation analysis.


Several of the authors (WRL, DH, and JM) were employees of EMD Millipore at the time of study performance; this fact in no way influenced any of the experimental design or interpretation of results presented in this article. Otherwise, the remaining authors have no competing interests to declare.


This work was supported by the American Cancer Society, Illinois Chapter (J.B.), the Respiratory Health Association of Metropolitan Chicago (P.B.), and a philanthropic donation to the Rush Thoracic Oncology Group by the Sapiente Family (P.B.).
