Nomograms for predicting progression and efficacy of post-operation radiotherapy in IIIA-pN2 non-small cell lung cancer patients

PDF |  HTML  |  How to cite

Oncotarget. 2017; 8:37208-37216. https://doi.org/10.18632/oncotarget.16564

Metrics: PDF 1517 views  |   HTML 2187 views  |   ?

Baozhong Zhang _, Zhiyong Yuan, Lujun Zhao, Qingsong Pang and Ping Wang

Abstract

Baozhong Zhang1, Zhiyong Yuan1, Lujun Zhao1, Qingsong Pang1, Ping Wang1

1Department of Radiotherapy, Tianjin Medical University Cancer Institute and Hospital, National Clinical Research Center for Cancer, Tianjin Key Laboratory of Cancer Prevention and Therapy, Tianjin’s Clinical Research Center for Cancer, Tianjin, People’s Republic of China

Correspondence to:

Baozhong Zhang, email: [email protected]

Keywords: non-small cell lung cancer (NSCLC), N2, post-operative chemo-radiotherapy (POCRT), nomogram

Received: December 28, 2016     Accepted: March 16, 2017     Published: March 25, 2017

ABSTRACT

In this retrospective study, we developed nomograms for predicting the efficacy of post-operation radiotherapy (PORT) in IIIA-N2 non-small cell lung cancer (NSCLC) patients. In total, 334 patients received post-operational chemotherapy and were included in the analysis. Of those, 115 also received either concurrent or sequential post-operational radiotherapy (PORT). Nomograms were developed using Cox proportional hazard regression models to identify clinicopathological characteristics that predicted progression free survival (PFS) and overall survival (OS), and subgroup analyses of the effects of PORT were performed using nomogram risk scores. PFS and OS predicted using the nomogram agreed well with actual PFS and OS, and patients with high PFS/OS nomogram scores had poorer prognoses. In subgroup analyses, PORT increased survival more in patients with low PFS nomogram risk scores or high OS nomogram risk scores. Thus, our novel nomogram risk score model predicted PFS, OS, and the efficacy of PORT in IIIA-N2 NSCLC patients.


INTRODUCTION

Patients with stage IIIA pN2 non-small cell lung cancer (NSCLC) differ in clinicopathologic characteristics and in the risk of local recurrence and metastasis after complete resections. Although the efficacy of post-operative chemotherapy (POCT) after complete resection has been confirmed in stage II and III NSCLC patients [35], the value of post-operative radiotherapy (PORT) in these patients remains controversial [1, 2]. An early meta-analysis found that PORT was detrimental to patients with completely resected NSCLC, especially for those with stage I/II N0-N1 disease [6]; PORT therefore declined in popularity as a treatment for NSCLC patients for several years. But in 2006, Lally et al. [7] demonstrated that PORT was beneficial for pN2 NSCLC patients. The Adjuvant Navelbine International Trialist Association (ANITA) trial confirmed that PORT was associated with better overall survival (OS) in patients with resected pN2 NSCLC [8]. Overall survival of IIIA-pN2 NSCLC patients is generally poor; the 5-year OS rate for such patients in the SEER database is 24% [9]. However, additional studies are needed to confirm the efficacy of PORT for treating IIIA-pN2 NSCLC patients. A robust prognostic model for predicting prognosis would help determine the efficacy of PORT in IIIA-N2 NSCLC patients. In this study, we developed a nomogram based on clinical features for predicting prognosis and the value of PORT for treating stage IIIA-N2 NSCLC patients.

RESULTS

Clinicopathological characteristics for the 334 patients included in the survival analysis after filtering are shown in Table 1. The 115 patients who received POCRT were assigned to the PORT group, while the 219 patients received only POCT were assigned to the non-PORT group. The median PFS and OS for all 334 patients were 16.0 months (95% CI: 13.982–18.018) and 36.0 months (95% CI: 30.615–41.385), respectively; the 3-year PFS and OS probability were 25.7% and 48.7%, respectively.

Table 1: Clinicopathological characteristics

Variable

PORT

Non-PORT

Gender

Male

83

136

Female

32

83

Age

≤ 60

75

125

> 60

40

94

Pathology

Adenocarcinoma

54

131

Squamous carcinoma

46

58

Adeno-squamous carcinoma

5

18

others

10

12

Surgical procedure

Pneumonectomy

13

29

Lobectomy/Tumor excision

102

190

T stage

T1

40

72

T2

52

121

T3

23

26

Number of positive N2 stations

Single

54

117

Multiple

61

102

Extra capsular extension

Positive

30

37

Negative

85

182

Positive total lymph nodes’ ratio

≤ 25%

63

121

> 25%

52

98

Positive N2 lymph nodes’ ratio

≤ 20.5%

55

110

> 20.5%

60

109

Lymph node skip

No skip

62

141

Skip

53

78

Dissected N2 stations

≥ 6

79

166

≥ 6

36

53

Total

115

219

PORT is associated with increases in survival

PORT group patients, with median 3-year PFS duration and probability of 24 months and 39.7%, had improved survival compared to the non-PORT group, with a median 3-year PFS duration and probability 14 months and 19.2% (p < 0.001). Median 3-year OS was also better in PORT patients (duration: 51 months, rate: 60.4%) than in non-PORT patients (duration: 32 months, rate: 43.1%, p = 0.005, Table 2, Figure 1).

Table 2: Survival based on PORT

PORT

Non-PORT

PFS

Median

24

14

P = 0.000

3-year PFS

39.7%

19.2%

OS

Median

51

32

P = 0.005

3-year OS

60.4%

41.3%

The median, 3-year PFS were respectively, 24 months, 39.7% for the PORT group, while 14 months, 19.2% for the non-PORT group (p = 0.000).

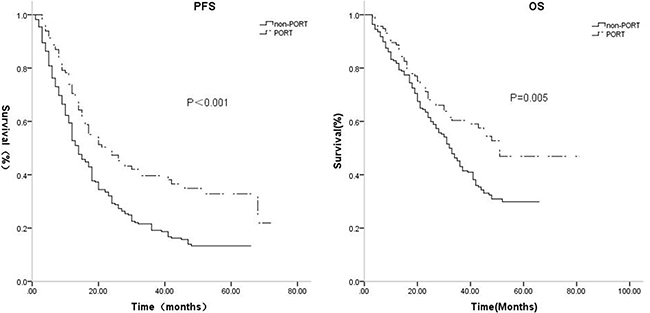

Figure 1: The median, 3-year PFS were respectively, 24 months, 39.7% for the PORT group, while 14 months, 19.2% for the non-PORT group (p = 0.000). The median, 3-year OS were respectively, 51 months, 60.4% for the PORT group, while 32 months, 43.1% for the non-PORT group (p = 0.005).

Nomograms for predicting PFS and OS

The nomograms for predicting PFS and OS were constructed using the Cox model. The results of univariate and multivariate Cox analyses are shown in Table 3A and 3B. The nomogram for predicting PFS was constructed based on T stage, extra-capsular extension (ECE), positive N2 station number, lymph node (LN) skip status, positive LN ratio, and surgical procedure, while the nomogram for predicting OS was constructed based on T stage, ECE, positive N2 station number, LN skip status, positive N2 ratio, and pathology (Figure 2). The nomograms were used to predict for 3-year and 5-year PFS and OS probabilities; associated ROC curves and internal calibration plots are shown in Figure 3. The area under the multivariate model ROC curve for PFS was 0.670 (95% CI: 0.603–0.737), and the calibration plot showed good agreement between predicted and observed 3-year PFS (C-index = 0.653, p = 0.037). The area under the multivariate model ROC curve for OS was 0.647 (95% CI: 0.589–0.706), and the calibration plot also showed good agreement between predicted and observed 3-year OS (C-index = 0.649, p = 0.044).

Table 3A: Univariate and multivariate Cox proportional hazard regression analysis-between clinicopathologic variables and PFS

Variables

Univariate

Multivariate

HR

95% CI

P value

HR

95% CI

P value

T status

T1

1

1

T2

1.606

1.212–2.127

0.001

1.610

1.206–2.147

0.001

T3

2.345

1.585–3.469

0.000

2.076

1.339–3.219

0.001

ECE

ECE (−)

1

1

ECE (+)

1.602

1.184–2.167

0.002

1.372

0.978–1.926

0.067

N2 stations

Single

1

1

Multiple

1.372

1.073–1.756

0.012

1.162

0.890–1.518

0.270

Excision

Lobectomy/Tumor resction

1

1

Pneumonectomy

1.729

1.213–2.465

0.002

1.168

1.109–2.330

0.012

LN Skip

LN skip

1

1

status

LN no skip

1.539

1.186–1.997

0.001

1.618

1.216–2.152

0.001

Positive

≤ 25.5%

1

1

LN ratio

> 25.5%

1.485

1.160–1.900

0.002

1.232

0.928–1.636

0.148

Table 3B: Univariate and multivariate Cox proportional hazard regression analysis-between clinicopathologic variables and OS

Variables

Univariate

Multivariate

HR

95% CI

P value

HR

95% CI

P value

T status

T1

1

1

T2

1.613

1.160–2.242

0.005

1.700

1.207–2.395

0.002

T3

2.142

1.341–3.422

0.001

2.059

1.232–3.441

0.006

ECE

ECE (−)

1

1

ECE(+)

1.574

1.108–2.236

0.011

1.377

0.942–2.015

0.099

N2 stations

Single

1

1

Multiple

1.542

1.155–2.058

0.003

1.217

0.874–1.695

0.245

Pathology

Adenocarcinoma

1

1

Squamous carcinoma

1.176

0.852–1.624

0.324

1.355

0.966–1.899

0.078

Adeno-squamous carcinoma

1.996

1.219–3.269

0.006

2.322

1.404–3.839

0.001

others

1.251

0.700–2.234

0.450

1.353

0.754–2.429

0.311

LN Skip

LN skip

1

1

status

LN no skip

1.486

1.095–2.018

0.011

1.592

1.154–2.197

0.005

Positive

≤ 20.5%

1

1

N2 ratio

> 20.5%

1.515

1.134–2.023

0.005

1.491

1.052–2.113

0.025

Figure 2:

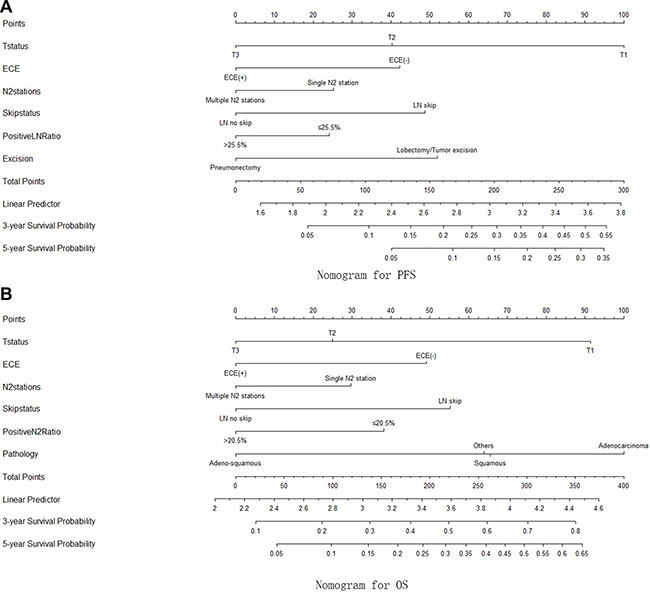

Figure 2: (A) The nomogram for PFS, constructed based on T stage, ECE, posivive N2 station number, LN skip status, positive LN ratio and the surgical procedures; (B) the nomogram for OS, constructed based on T stage, ECE, posivive N2 station number, LN skip status, positive N2 ratio and pathology.

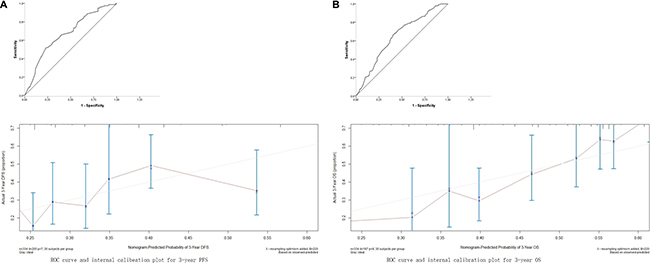

Receiver operating characteristic (ROC) curve and internal calibration plot.

Figure 3: Receiver operating characteristic (ROC) curve and internal calibration plot. (A) for the 3-year PFS, area under Receiver operating characteristic (ROC) curve was 0.670 (95% CI: 0.603–0.737), internal calibration plot C-index = 0.653, p = 0.037; (B) for the 3-year OS, area under ROC curve was 0.647 (95% CI: 0.589–0.706), C-index = 0.649, p = 0.044.

Nomogram scores predict the efficacy of PORT in subgroup analysis

Based on ROC analysis of the nomogram, a cutoff value of 215 was selected for predicting PFS, and patients were divided into low (group 1, 0–215) and high (group 2, > 215) PFS groups based on this cutoff. There were 234 patients in the low PFS group and 100 patients in the high PFS group. K-M analysis revealed that median PFS and 3-year PFS probability were higher in low PFS patients (12 months, 95%CI: 10.475–13.525, 17.8%, respectively) than in high PFS patients (30 months, 95%CI: 21.931–38.069, 43.8%, respectively, p = 0.000, Figure 5). The cutoff value for OS was 221; based on this cutoff, 156 patients were assigned to the low OS group (group 1, 0–221) and 178 patients were assigned to the high OS group (group 2, > 221). K-M analysis revealed that median OS and 3-year OS probability were also higher in low OS group patients (25 months, 95%CI: 20.352–29.648, 28.4%, respectively) than in high OS group patients (51 months, 95% CI: 45.615–59.382, 65.5%, respectively, p = 0.000).

Subgroup K-M analysis was conducted to determine whether PORT improved survival. Among the low PFS patients, 80 received PORT and 154 did not. Low PFS patients who did not receive PORT had lower median PFS and 3-year PFS probability (12 months, 95% CI: 10.462–13.538, 11.7%, respectively) than low PFS patients who received PORT (17 months, 95% CI: 13.340–20.660, 31.5%, respectively, p = 0.000). Of the high PFS patients, 35 received PORT and 65 did not. High PFS patients who did not receive PORT also had lower median PFS and 3-year PFS probability (24 months, 95% CI: 19.558–28.412, 36.7%, respectively) than high PFS patients who received PORT (46 months, 95% CI: 26.660–58.962, 57.9%, respectively, p = 0.050, Table 4, Figure 4). Among the low OS patients, 51 received PORT and 105 did not. Median OS and 3-year OS probability tended to be lower in low OS patients who did not receive PORT (24 months, 95%CI: 18.830–29.170, 23.4%, respectively) than in low OS patients who received PORT (27 months, 95% CI: 21.017–32.983, 35.8%, respectively, p = 0.063), but this difference was not statistically significant. Among the high OS patients, 64 received PORT and 114 did not. High OS patients who did not receive PORT had lower median OS and 3-year OS probability (44 months, 95% CI: 37.909–50.091, 59.9%, respectively) than high OS patients who received PORT (56 months, 95% CI: 50.134–64.962, 76.8%, respectively, p = 0.029, Table 4, Figure 4).

Table 4A: Nomogram score-subgroup analysis of PFS for PORT

Group 1

Group 2

PFS median (months)(95% CI)

3–year PFS probability

PFS median (months) (95% CI)

3-year PFS probability

Non-PORT

12 (10.462–13.538)

11.7%

24 (19.558–28.412)

36.7%

PORT

17 (13.340–20.660)

31.5%

46 (26.660–58.962)

57.9%

P value

0.000

0.050

Table 4B: Nomogram score-subgroup analysis of OS for PORT

Group1

Group2

OS median (months)(95% CI)

3–year OS probability

OS median (months)(95% CI)

3-year OS probability

Non-PORT

24 (18.830–29.170)

23.4%

44 (37.909–50.091)

59.9%

PORT

27 (21.017–32.983)

35.8%

56 (50.134–64.962)

76.8%

P value

0.063

0.029

Figure 4:

Figure 4: (A) The median PFS and 3-year PFS probability were lower in group 1 (12 months, 95% CI: 10.475–13.525, 17.8%, respectively) than in group 2 (30 months, 95% CI: 21.931–38.069, 43.8%, respectively, p = 0.000); (B)The median OS and 3-year OS probability were also lower in group 1 (25 months, 95% CI: 20.352–29.648, 28.4%, respectively) than in group 2 (51 months, 95% CI: 45.615–59.382, 65.5%, respectively, p = 0.000).

For PFS, In low-score group, the median PFS and 3-year PFS probability were 12 months (95%CI: 10.462-13.538) and 11.7% for non-PORT subgroup, while 17 months (95%CI: 13.340&#x2013;20.660) and 31.5% for PORT subgroup respectively, (p = 0.000).

Figure 5: For PFS, In low-score group, the median PFS and 3-year PFS probability were 12 months (95%CI: 10.462-13.538) and 11.7% for non-PORT subgroup, while 17 months (95%CI: 13.340–20.660) and 31.5% for PORT subgroup respectively, (p = 0.000). In high-score group, the median PFS and 3-year PFS probability were 24 months(95% CI: 19.558–28.412) and 36.7% for non-PORT subgroup, while 46 months (95% CI: 26.660–58.962) and 57.9% for PORT subgroup respectively, (p = 0.050); for OS, In low-score group, the median OS and 3-year OS probability were 24 months (95% CI: 18.830–29.170) and 23.4% for non-PORT subgroup, while 27 months (95% CI: 21.017–32.983) and 35.8% for PORT subgroup respectively, (p = 0.063); In high-score group, the median OS and 3-year OS probability were 44 months (95%CI: 37.909–50.091) and 59.9%% for non-PORT subgroup, while 56 months (95% CI: 50.134–64.962) and 76.8% for PORT subgroup respectively, (p = 0.029).

DISCUSSION

The efficacy of PORT after complete resection in stage IIIA pN2 NSCLC patients remains controversial. Some retrospective studies report that PORT improved local recurrence free survival (LRFS) or progression free survival (PFS), but had no impact on OS [1012]. In contrast, C. Billiet et al. [13] reported that PORT improved OS in stage IIIA-N2 NSCLC patients. However, because they are a heterogeneous group with different clinicopathological features, patients with pN2 IIIA NSCLC would likely benefit from individualized treatments. Several clinical and pathological factors, including the number of pathologically involved lymph node (LN) stations [14, 15], positive lymph node ratio (LNR) [1620], extra-capsular extension (ECE) [21], and LN skip status [22], are predictive of prognosis in NSCLC patients and should be considered when weighing the risks and benefits of PORT, which induces damage. It is particularly important to examine multiple factors when predicting patient outcomes and the therapeutic efficacy of PORT; no single factor is sufficiently accurate for such evaluations.

In this retrospective study, we identified risk factors for tumor recurrence after surgery in IIIA-N2 NSCLC patients and established a novel nomogram prediction model to estimate PFS probabilities and the efficacy of PORT. Similar nomogram prediction models have been used for several types of malignant tumors, including breast cancer, early stage non-small cell lung cancer, and osteosarcoma [2327]. Here, K-M analysis revealed that patients who received PORT had better PFS and OS than patients who did not receive PORT. We then developed nomograms for predicting PFS and OS in R0 resected IIIA-N2 NSCLC patients. These predictive and prognostic models were internally validated, and calibration and discrimination tests indicated that they performed well. These nomograms may therefore be useful for risk assessments and for selecting individualized therapies. Subgroup analysis revealed that PORT increased median PFS by 5 months and increased 3-year PFS probability by 19.8% in the low PFS nomogram score group. Similarly, PORT increased median PFS by 22 months and increased 3-year PFS probability by 21.2% in the high PFS nomogram group. Furthermore, the smaller p value associated with the difference in the low PFS group compared to the high PFS group emphasizes the potential benefit of PORT for low PFS group patients in particular. In the high OS nomogram group, PORT increased median survival by 12 months and increased 3-year survival probability by 16.9%; there was a trend towards similar, albeit smaller, increases in the low OS nomogram group, but they did not reach statistical significance. Therefore, patients with high OS nomogram scores may benefit more from PORT.

This novel nomogram risk score system might assist in the selection of individualized treatments for IIIA-N2 NSCLC patients while avoiding unnecessary adverse effects. However, some limitations of this study should be considered when interpreting the results. First, although the nomogram was validated internally, it was not validated externally in an independent set of patients. Future studies should be conducted to determine whether it is applicable in other patient sets and populations [28]. Second, because this is a retrospective study, patients differed in the primary treatment they received, and these treatments might have affected the survival assessment. Randomized prospective studies with larger numbers of patients are crucial for confirming the utility of this nomogram risk score model for predicting PFS, OS, and the efficacy of PORT treatment in IIIA-N2 NSCLC patients.

MATERIALS AND METHODS

Of the 388 IIIA-N2 NSCLC patients who underwent resection at Tianjin Medical Collage Cancer Hospital between Jan 1st, 2008 and Dec 30th, 2011, 334 were included in this retrospective analysis. Staging and pathologic identification were performed according to the 7th edition tumor node metastasis (TMN) staging system recommended by the IASLC (International Association for the Study of Lung Cancer) and the UICC (Union for International Cancer Control). All patients underwent CT or PET-CT scans before surgery to confirm either that they had lower than N2 status or, if they had N2 disease, that it was resectable. Only patients with N2 disease identified by postoperative pathology were included in the analysis. All patients received post-operative chemotherapy (POCT); 115 received postoperative chemoradiotherapy (POCRT, concurrent for 25 patients and sequential for 90 patients), while the remaining 219 received POCT only. The exclusion criteria included: disease status that exceed IIIA or pN2; multiple primary cancer; pretreatment before operation (chemotherapy and/or radiotherapy); incomplete resection (positive margin, surgical margin < 1.5 centimeter, or lymph node dissection < 3 stations); serious medical complications at the time of surgery; or a follow-up period of less than 3 months. Patient follow-ups occurred once every three months for the first two years following surgery and every six months thereafter during hospitalizations and/or outpatient clinic consultations. CT scans of the chest and MRIs of the head were performed at each follow-up, and local recurrence or distant metastasis was confirmed by pathology or PET if necessary. The chemotherapy regimens consisted of 4 cycles of intravenous docetaxel (75 mg/m2) or paclitaxel (175 mg/m2) and cisplatin (75 mg/m2) for non-adenocarcinoma patients and docetaxel (75 mg/m2), paclitaxel (175 mg/m2), or pemetrexed (500 mg/m2) and cisplatin (75 mg/m2) for adenocarcinoma patients, with an interval of 3 weeks. Radiation therapy consisted of 1.8 Gy per fraction for 28 fractions for a total dose of 50.4 Gy using linear accelerator, 6 MV X-rays. This study was approved by the Regional Ethics Committee of Tianjin Medical University Cancer Institute and Hospital, and all patients were contacted by telephone to obtain verbal informed consent.

Statistical analysis

PFS was defined as the interval between the date of the initial operation and the date of progression or the last visit. OS was defined as the interval between the date of the initial operation and the date of death or the last visit. Variables correlated with disease progression were identified using univariate and multivariate COX analyses; variables with univariate p < 0.05 were included in the nomograms. The nomograms were built based on the Cox proportional hazards regression model for survival data. Receiver operating characteristic (ROC) curves and internal calibration plots were used to verify the nomogram score. Survival analysis was conducted using the Kaplan–Meier method, and p < 0.05 was considered statistically significant. Kaplan–Meier and the COX analysis were conducted with SPSS 17.0 software; nomogram, ROC, and internal validation were conducted with R software, version 3.2.2.

Authors’ contributions

Doctor Baozhong Zhang performed patient follow-ups, collected data, and drafted the manuscript. Professor Zhiyong Yuan assisted in designing the study and the R model. Professor Lujun Zhao assisted with study design and performing statistical analyses. Professor Qingsong Pang assisted in study design and coordination. Professor Ping Wang conceived of the study, assisted in its design and coordination, and helped draft the manuscript. All authors read and approved the final manuscript.

ACKNOWLEDGMENTS

Not applicable.

CONFLICTS OF INTEREST

We declare that we have no financial or personal relationships with other people or organizations that inappropriately influenced our work. We have no professional or other personal interests of any nature in any product, service, and/or company that could be construed as influencing the positions presented in, or the review of, this manuscript.

FUNDING

Not applicable.

Ethics approval

This study was approved by the Regional Ethics Committee of Tianjin Medical University Cancer Institute and Hospital (Reference number: TMC-RTR-110050), and all patients were contacted by telephone to obtain verbal informed consent.

Availability of data and materials

The datasets generated for this study are available in the ‘MRAN’ platform (http://mran.microsoft.com), a complete open source platform for statistical analysis and data science, including the ‘R’ software and all packages.

REFERENCES

1. Vansteenkiste JF, De Leyn PR, Deneffe GJ, Lerut TE, Demedts MG. Clinical prognostic factors in surgically treated stage IIIA-N2 non-small cell lung cancer: analysis of the literature. Lung Cancer. 1998; 19:3–11.

2. Betticher DC, Hsu Schmitz SF, Tötsch M, Hansen E, Joss C, von Briel C, Schmid RA, Pless M, Habicht J, Roth AD, Spiliopoulos A, Stahel R, Weder W, et al. Prognostic factors affecting longterm outcomes in patients with resected stage IIIA pN2 non-small-cell lung cancer: 5-year follow-up of a phase II study. Br J Cancer. 2006; 94:1099–7.

3. Arriagada R, Bergman B, Dunant A, Le Chevalier T, Pignon JP, Vansteenkiste J. Cisplatin-based adjuvant chemotherapy in patients with completely resected non-small-cell lung cancer. N Engl J Med. 2004; 350:351–10.

4. Douillard JY, Rosell R, De Lena M, Carpagnano F, Ramlau R, Gonzáles-Larriba JL, Grodzki T, Pereira JR, Le Groumellec A, Lorusso V, Clary C, Torres AJ, Dahabreh J, et al. Adjuvant vinorelbine plus cisplatin versus observation in patients with completely resected stage IB–IIIA nonsmall-cell lung cancer (Adjuvant Navelbine International Trialist Association [ANITA]): a randomised controlled trial. Lancet Oncol. 2006; 7:719–9.

5. Winton T, Livingston R, Johnson D, Rigas J, Johnston M, Butts C, Cormier Y, Goss G, Inculet R, Vallieres E, Fry W, Bethune D, Ayoub J, et al. Vinorelbine plus cisplatin vs. observation in resected non-small-cell lung cancer. N Engl J Med. 2005; 352:2589–9.

6. Postoperative radiotherapy in non-smallcell lung cancer: systematic review and meta-analysis of individual patient data from nine randomised controlled. Lancet. 1998; 352:257–7.

7. Lally BE, Zelterman D, Colasanto JM, Haffty BG, Detterbeck FC, Wilson LD. Postoperative radiotherapy for stage II or III non-small-cell lung cancer using the surveillance, epidemiology, and end results database. J Clin Oncol. 2006; 24:2998–8.

8. Douillard JY, Rosell R, De Lena M, Riggi M, Hurteloup P, Mahe MA. Adjuvant Navelbine International Trialist Association, Impact of postoperative radiation therapy on survival in patients with complete resection and stage I, II, or IIIA non-small-cell lung cancer treated with adjuvant chemotherapy: The adjuvant Navelbine International Trialist Association (ANITA) randomized trial. Int J Radiat Oncol Biol Phys. 2008; 72:695–7.

9. Ravdin PM, Davis G. Prognosis of patients with resected non-small cell lung cancer: Impact of clinical and pathologic variables. Lung Cancer. 2006; 52:207–6.

10. Scotti V, Meattini I, Saieva C, Agresti B, de Luca Cardillo C, Bastiani P, Livi L, Mangoni M, Di Cataldo V, Marrazzo L, Rampini A, Cipressi S, Bruni A, et al. Post-operative radiotherapy in N2 non-small cell lung cancer: a retrospective analysis of 175 patients. Radiother Oncol. 2010; 96:84–8.

11. Dai H, Hui Z, Ji W, Liang J, Lu J, Ou G, Zhou Z, Feng Q, Xiao Z, Chen D, Zhang H, Yin W, He J, et al. Postoperative radiotherapy for resected pathological stage IIIA-N2 non-small cell lung cancer: a retrospective study of 221 cases from a single institution. Oncologist. 2011; 16:641–50.

12. Feng QF, Wang M, Wang LJ, Yang ZY, Zhang YG, Zhang DW, Yin WB. A study of postoperative radiotherapy in patients with non-small-cell lung cancer: a randomized trial. Int J Radiat Oncol Biol Phys. 2000; 47:925–9.

13. Billiet C, Decaluwé H, Peeters S, Vansteenkiste J, Dooms C, Haustermans K, De Leyn P, De Ruysscher D. Modern post-operative radiotherapy for stage III non-small cell lung cancer may improve local control and survival: a meta-analysis. Radiother Oncol. 2014; 110:3–8.

14. Mantovani C, Levra NG, Filippi AR, Novello S, Buffoni L, Ragona R, Ricardi U. Postoperative radiotherapy for patients with completely resected pathologic n2 non-small-cell lung cancer: a retrospective analysis. Clin Lung Cancer. 2013; 14:194–9.

15. Matsuguma H, Nakahara R, Ishikawa Y, Suzuki H, Inoue K, Katano S, Yokoi K. Postoperative radiotherapy for patients with completely resected pathological stage IIIA-N2 non-small cell lung cancer: focusing on an effect of the number of mediastinal lymph node stations involved. Interact Cardiovasc Thorac Surg. 2008; 7:573–7.

16. Urban D, Bar J, Solomon B, Ball D. Lymph node ratio may predict the benefit of postoperative radiotherapy in non-small-cell lung cancer. J Thorac Oncol. 2013; 8:940–6.

17. Jonnalagadda S, Arcinega J, Smith C, Wisnivesky JP. Validation of the lymph node ratio as a prognostic factor in patients with N1 nonsmall cell lung cancer. Cancer. 2011; 117:4724–31.

18. Matsuguma H, Oki I, Nakahara R, Ohata N, Igarashi S, Mori K, Endo S, Yokoi K. Proposal of new nodal classifications for non-small-cell lung cancer based on the number and ratio of metastatic lymph nodes. Eur J Cardiothorac Surg. 2012; 41:19–24.

19. Nwogu CE, Groman A, Fahey D, Yendamuri S, Dexter E, Demmy TL, Miller A, Reid M. Number of lymph nodes and metastatic lymph node ratio are associated with survival in lung cancer. Ann Thorac Surg. 2012; 93:1614–9.

20. Wang CL, Li Y, Yue DS, Zhang LM, Zhang ZF, Sun BS. Value of the metastatic lymph node ratio for predicting the prognosis of non-small-cell lung cancer patients. World J Surg. 2012; 36:455–62.

21. Moretti L, Yu DS, Chen H, Carbone DP, Johnson DH, Keedy VL, Putnam JB Jr, Sandler AB, Shyr Y, Lu B. Prognostic Factors for Resected Non-Small Cell Lung Cancer with pN2 Status: Implications for Use of Postoperative Radiotherapy. Oncologist. 2009; 14:1106–10.

22. Legras A, Mordant P, Arame A, Foucault C, Dujon A, Le Pimpec Barthes F, Riquet M. Long-term survival of patients with pN2 lung cancer according to the pattern of lymphatic spread. Ann Thorac Surg. 2014; 97:1156–62.

23. Keam B, Kim DW, Park JH, Lee JO, Kim TM, Lee SH, Chung DH, Heo DS. Nomogram Predicting Clinical Outcomes in Non-small Cell Lung Cancer Patients Treated with Epidermal Growth Factor Receptor Tyrosine Kinase Inhibitors. Cancer Res Treat. 2014; 46:323–8.

24. Zhang F, Zheng W, Ying L, Wu J, Wu S, Ma S, Su D. A Nomogram to Predict Brain Metastases of Resected Non-Small Cell Lung Cancer Patients. Ann Surg Oncol. 2016; 1–7.

25. Marshall RJ. Are regression “nomograms” useful? Journal of Clinical Epidemiology. 2016; 1–3.

26. Kent MS, Mandrekar SJ, Landreneau R, Nichols F, Foster NR, DiPetrillo TA, Meyers B, Heron DE, Jones DR, Tan AD, Starnes S, Putnam JB Jr, Fernando HC. A Nomogram to Predict Recurrence and Survival of High-Risk Patients Undergoing Sublobar Resection for Lung Cancer: An Analysis of a Multicenter Prospective Study (ACOSOG Z4032). Ann Thorac Surg. 2016; 1–8.

27. Zeng Q, Hong MH, Shen LJ, Meng XQ, Guo X, Qian CN, Wu PH, Huang PY. Nomograms for predicting long-term survival in patients with non-metastatic nasopharyngeal carcinoma in an endemic area. Oncotarget. 2016; 7:29708–19. doi: 10.18632/oncotarget.8823.

28. Iasonos A, Schrag D, Raj GV, Panageas KS. How to build and interpret a nomogram for cancer prognosis. J Clin Oncol. 2008; 26:1364–7.
