Research Papers:

Autologous transplantation of cytokine-induced killer cells as an adjuvant therapy for hepatocellular carcinoma in Asia: an update meta-analysis and systematic review

PDF |  HTML  |  Supplementary Files  |  How to cite

Oncotarget. 2017; 8:31318-31328. https://doi.org/10.18632/oncotarget.15454

Metrics: PDF 2340 views  |   HTML 2926 views  |   ?

Xiu-Rong Cai, Xing Li, Jin-Xiang Lin, Tian-Tian Wang, Min Dong, Zhan-Hong Chen, Chang-Chang Jia, Ying-Fen Hong, Qu Lin and Xiang-Yuan Wu _


Xiu-Rong Cai1,2,*, Xing Li1,2,*, Jin-Xiang Lin1, Tian-Tian Wang1,2, Min Dong1,2, Zhan-Hong Chen1,2, Chang-Chang Jia2,3, Ying-Fen Hong1,2, Qu Lin1,2 and Xiang-Yuan Wu1,2

1Department of Medical Oncology, the Third Affiliated Hospital of Sun Yat-sen University, Guangzhou 510630, People’s Republic of China

2Guangdong provincial Key Laboratory of Liver Disease Research, Guangzhou 510630, People’s Republic of China

3Cell-gene Therapy Translational Medicine Research Center, the Third Affiliated Hospital of Sun Yat-sen University, Guangzhou 510630, People’s Republic of China

*These authors have contributed equally to this work

Correspondence to:

Xiang-Yuan Wu, email: [email protected]

Qu Lin, email: [email protected]

Keywords: cytokine induced killer cell, liver cancer, adoptive cells therapy, immunotherapy, meta-analysis

Received: June 13, 2016    Accepted: November 12, 2016    Published: February 17, 2017


Background: High recurrence rate after curative treatment is the major problem for hepatocellular carcinoma (HCC). Cytokine-induced killer cells (CIKs) therapy was extensively studied among HCC patients. However, the value of CIKs therapy was controversial. A meta-analysis was performed to investigate the efficacy of adjuvant CIKs after invasive treatments among HCC patients.

Methods: We searched online for literatures studying sequential CIKs therapy for HCC patients. Recurrence-free survival (RFS), progress-free survival (PFS) and overall survival (OS) were set as the main endpoints. Both overall and subgroup analysis were accomplished.

Results: A total of 12 clinical trials with 1,387 patients were included. The pooled analysis showed a significant improvement of RFS, PFS and OS in CIK group (HR 0.56, 95% CI 0.47-0.67, p<0.00001 for RFS; HR 0.53, 95% CI 0.40-0.69, p<0.00001 for PFS; HR 0.59, 95% CI 0.46-0.77, p<0.0001 for OS). The proportion of CD4+ T cells increased significantly, while CD8+ T cells decreased significantly after CIKs therapy (WMD 4.07, 95% CI 2.58-5.56, p<0.00001; WMD -2.84, 95% CI -4.67 to -1.01, p=0.002, respectively). No significant differences of adverse events between CIK and non-CIK group existed.

Conclusions: Conventionally invasive therapies combined with CIKs therapy could improve the prognosis of HCC patients, especially for RFS and PFS, with mild side effects. Optimizing patient selection shall be the direction in future studies.


Disease recurrence after curative treatments is the major problem for hepatocellular carcinoma (HCC) [1]. The latent causes include failure to detect occult metastasis, tumor promoting microenvironment and lack of effective adjuvant treatments [2, 3]. To minimize disease recurrence, lots of strategies are employed including combination of local treatments, usage of antiviral agents and advanced imaging technology [4-6]. However, few consensus is achieved in the field of adjuvant systematic treatments including sorafenib, chemotherapy and immunotherapy [7].

Cytokine-induced killer cells (CIKs) consisting of activated NKG2Dhigh T cells, activated NK cells and NK T cells [8], were designed to alter suppressive immune microenvironment of tumor and consequently present certain efficacy in several malignancies [9-12]. Adoptive cells therapies (ACT) with CIKs were extensively studied among HCC patients in the Asia-Pacific region, where hepatitis B virus (HBV) related HCC constitute the major population of HCC. However, efficacy of this treatment on HCC patients are still controversial.

Therefore, we performed an update meta-analysis of clinical trials studying the efficacy of sequential CIKs treatments compared with non-CIK treatments in HCC, to provide comprehensive evidence of adjuvant efficacy of CIKs.


Literature research

A total of 12 studies were included (Figure 1). After title and abstract review, 279 studies were excluded. Then comprehensively review excluded 19 studies (Appendix-Search Strategies and Excluded Studies). Screening of the references listed in related articles yielded no more studies available. We finally included 12 articles meeting the selection criteria into this meta-analysis involving 1,387 patients. Agreement between the two reviewers was 100% for study selection and 95.2% (4/84 was controversial) for quality assessment of the trials.

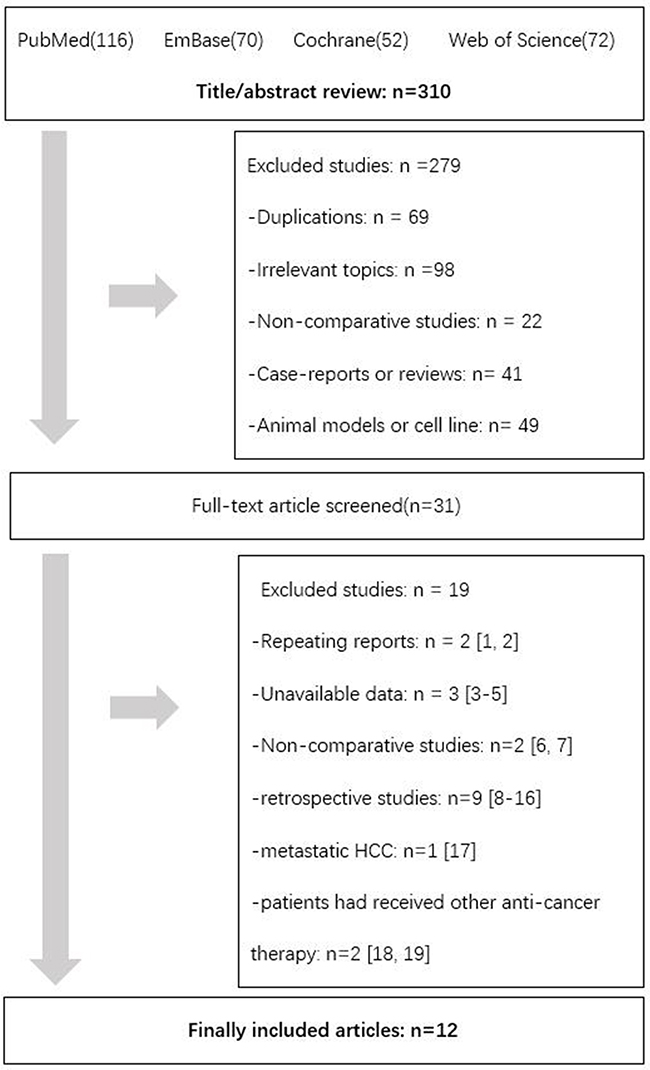

Flow diagram showing record identification, screening and study inclusion process.

Figure 1: Flow diagram showing record identification, screening and study inclusion process.

Characteristics of eligible studies

Over all, we included 9 RCTs and 3 quasi-RCTs (Table 1). All of the eligible studies were conducted in Asia. Two studies were conducted in South of Korea [13] and Japan [14], and the rest of the included studies were conducted in China. Previous treatments included liver resection, TACE, RFA, PMCT and PEI. Yu et al [15] divided the patients into 3 groups: resection plus CIKs versus resection along, TACE plus CIKs versus TACE along, supportive care with CIKs versus supportive care along, all of which were labeled as Yu 2014-A, B and C respectively. Hui et al [16] compared resection plus 3 and 6 cycles of CIKs therapy versus resection along, which were labeled as Hui 2009-A for 3-cycles CIK group and Hui 2009-B for 6-cycles CIK group. Lee et al [13] conducted subgroup analysis between patients underwent different previous treatments, which were labeled as Lee 2015-A for resection group and Lee 2015-B for RFA/PEI group respectively. Eight studies used CIKs-only immunotherapy to treat patients in the study group. Other four studies evaluated the efficacy of CIK-based cytotherapy as follows: Xu et al [17] used dendritic cells (DCs), γδ T cells plus CIKs; Zhang et al [18] used DCs plus CIKs; Cui et al [19] used NK cells, CIKs and γδ T-cells. Qiu et al [20] used CIKs plus α-Gal epitope-expressing tumor cell-pulsed DCs. Infusions of CIKs were mostly via peripheral veins, while local tumor injections were also used in some studies. Various clinical stage systems were used: seven studies [14, 16-18, 20-22] used TNM stage system, while 3 studies [15, 19, 23] used BCLC stage system and the other two studies [13, 24] used American Joint Committee on Cancer Staging System (6th edition). Only three studies reported changes of lymphocyte subsets, two [15, 18] of which used peripheral venous blood and one [14] study used PBMCs. Overall, with a mean age of 46.1 years, most of the patients in the studies had a good performance status and more than 3-months life expectancy. With the exact number of male and female patients, 10 studies were summarized to a 6:1 male/female ratio (969/160). Baseline characteristics of the included patients in this meta-analysis showed no significant differences between CIK and non-CIK group (Supplementary Table 1).

Table 1: Baseline characteristics of the eligible studies.


Study period


Study design

No. of patients (male/female)

Median follow-up

Clinical stage

Previous treatment

CIKs per cycle

Method of infusion

Takamaya 2000





4.4 years




5 infusion IV

Weng 2008









8-10 infusions via hepatic arteries

Hui 2009





5-7 years




3 or 6 infusions (1 per 2 weeks) IV

Hao 2010









1-3 infusions (4 per 1 month) IV

Qiu 2011





16.8 months


Surgery +radio/chemo-therapy


2-7 infusions (1 per week)

†Wang 2012





44(10-88) months




6-12 infusions (1 per 2 weeks) IV or via hepatic arteries

†Xu 2013





6-36 months



DCs=1-1.2×108 CIKs=γδ T cells=0.3-1.0×1010

2 cycles,1 cycle per month IV and local tumor injection

Yu 2014





18.6 months


resection /TACE /Support

1.01×1010 (0.72-1.21 ×1010)

2–36 cycles (1 per 1 month)

†Zhang 2014








DCs=CIKs =1.0×1010

6 courses IV and local tumor injection

Cui 2014





12 months



1.2-2.0×109 (NK, CIK and γδ T cell)

3 or 6 courses (8 infusions per course) IV

Lee 2015





36.5-40 months


resection/RFA /PEI


16 infusions IV

Xu 2016





38.2(3.7-73) months




4 cycles IV

Abbreviations: 5-FU:5-fluoro-2,4(1h, 3h) pyrimidinedione; ADM: Doxorubicin Hydrochloride; CHN: country of China; CIK: cytokine induced killer (cell); DC: dendritic cell; DDP: cisplatin; EPI: epirubicin; FUDR: floxuridine; GEM: gemcitabine; HCPT: hydroxycamptothecin; IC: intracutaneous injection; IV: intravenous injection; KOR: country of Korea; MMC: mitomycin; NA: not available; NS: normal saline; OXA: oxaliplatin; PEI: percutaneous ethanol injection; PMCT: percutaneous microwave coagulation therapy; quasi-RCT: quasi-randomized controlled trial; RCT: randomized controlled trial; RFA: radiofrequency ablation; TACE: transcatheter arterial chemoembolization; THP: pirarubicin; UFL: ultra fluid lipiodol.

†articles published in Chinese; ‡: Stage based on American Joint Committee on Cancer staging system (6th edition); ⊕: Stage based on American Joint Committee on Cancer staging system (7th edition).

Methodological assessment of included articles

Quality of the eligible studies was summarized (Supplementary Table 2 for detailed assessment of individual studies; Supplementary Figure 1 and 2 for risk of bias in individual studies and among the included studies, respectively). The included quasi-RCTs assigned the allocation depending on patients’ choices. But for RCTs, adequate sequence generation was well done in seven studies [13-17, 20, 24], while not mentioned clearly in others [18, 19, 21-23]. Only three studies [13, 15, 24] provided details of allocation concealment and two [13, 19] showed prognostic imbalance between CIK and non-CIK groups. All the included studies were free of selective reporting. Taken together, five studies [14, 16, 17, 20, 24] without any bias of high-risk were judged as high quality.

Primary outcomes

The pooled analysis showed a significant improvement of RFS, PFS and OS in CIK group (HR 0.56, 95% CI 0.47-0.67, p<0.00001 for RFS; HR 0.53, 95% CI 0.40-0.69, p<0.00001 for PFS; HR 0.59, 95% CI 0.46-0.77, p<0.0001 for OS) (Figure 2).

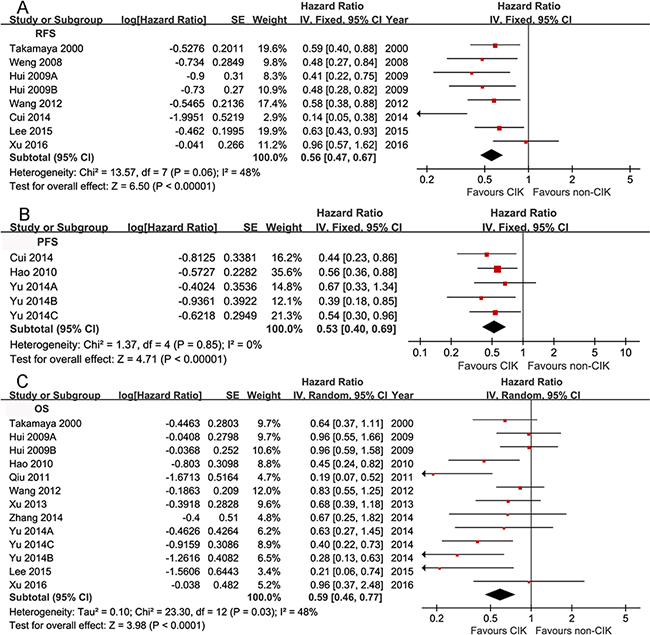

Comparison of RFS (A), PFS (B) and OS (C) between CIK and non-CIK groups.

Figure 2: Comparison of RFS (A), PFS (B) and OS (C) between CIK and non-CIK groups. The fixed effects meta-analysis model (Mantel-Haenszel method) was used for RFS A. and PFS B. while the random-effects model (Mantel-Haenszel method) was used for OS C.. Each trial is represented by a square, the center of which gives the HR for that trial. The size of the square is proportional to the information provided by the trial report. The ends of the horizontal bars denote the 95% CI.

The analysis showed a significant benefit of RFS in CIK group, indicating a 44% reduction in the relative risk of recurrence with no statistical heterogeneity (p = 0.06, I2 = 48%). However, in subgroup analysis of study designs, no significant amelioration of RFS was found in CIK group but a greater heterogeneity was observed among quasi-RCTs (HR 0.30, 95% CI 0.07-1.24, p = 0.1; p = 0.01, I2 = 85% for heterogeneity). In other subgroups, such as study quality, tumor staging systems, clinical characteristics, previous treatments and CIKs treatments, the analysis showed a consistency of RFS with that in overall analysis.

Only three studies [15, 19, 23] reported PFS and were analyzed to show a statistically significant delaying of disease progression without remarkable heterogeneity between these studies (p = 0.85, I2 = 0). Subgroup analysis also showed a consistency of PFS with that in overall analysis.

OS was significantly improved in CIK group. However, the heterogeneity among the included studies was statistically significant (p = 0.03, I2 = 48). Nevertheless, the heterogeneity of OS was not significant in subgroup analysis of study quality, tumor staging systems, and clinical characteristics of the enrolled patients, all of which may account for the heterogeneity in the overall analysis. Moreover, significant improvement of OS in CIK group was observed in all of the above subgroups. But in subgroup of resection as the previous treatments, more than 5 times injection of CIKs as the cytotherapy, and AJCC as the staging system, there was no clear evidence of prolongation of OS in CIK group (The outcomes of both overall and subgroup analysis were summarized in Supplementary Table 3 and 4, respectively).

Secondary outcomes

Changes of lymphocyte subsets

Only 3 studies [17, 18, 21] provided available data about alteration of lymphocyte subsets. The analysis demonstrated that the proportion of CD4+ T cells increased significantly after CIKs therapy, while CD8+ T cells decreased significantly (WMD 4.07, 95% CI 2.58-5.56, p<0.00001; WMD -2.84, 95% CI -4.67 to -1.01, p = 0.002, respectively). The heterogeneity among these 3 studies was not statistically significant (p = 0.20, I2 = 37% for CD4+ T cells; p = 0.97, I2 = 0 for CD8+ T cells, respectively) (Figure 3).

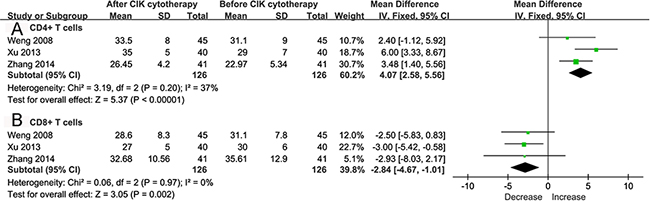

Forest plot for lymphocyte subsets assessment.

Figure 3: Forest plot for lymphocyte subsets assessment. The outcomes were obtained from patients before and after CIK cytotherapy. The fixed effects meta-analysis model (Mantel-Haenszel method) was used for CD4+ T cells A. and CD8+ T cells B. in this analysis.

Adverse events

The pooled analysis exhibited no significant differences of AEs between CIK and non-CIK groups (Figure 4). Most studies reported no severe AEs in CIK group but without quantitative details. Lee et al [13] reported that AEs in Grade 3/4 were 6% (7/115) and 4% (4/115) in CIK and non-CIK groups, respectively (p = 0.354). While 0% (0/66) and 5% (3/66) were reported by Yu et al [15] and none of the AEs was associated with CIK cytotherapy. Pyrexia especially slight fever, was mostly reported. Other AEs such as flu-like symptom, digestive adverse reaction, allergy, and deterioration of liver function, showed no significant differences between these two groups.

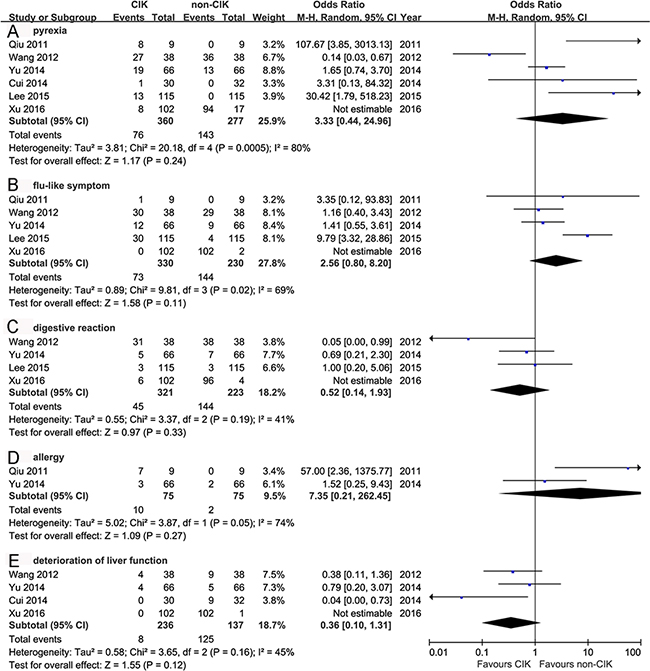

Comparison of the adverse events between CIK group and non-CIK group.

Figure 4: Comparison of the adverse events between CIK group and non-CIK group. The random-effects meta-analysis model (Mantel-Haenszel method) was used in this analysis.

Sensitivity analysis

Sensitivity analysis suggested that no individual studies dominantly affected the pooled HRs for RFS, PFS and OS, indicating that the results of this meta-analysis were statistically stable (Supplementary Figure 3).

Publication bias

No significant publication bias for RFS, PFS, OS, changes of lymphocyte subsets and AEs was observed in Begg’s funnel plot (Supplementary Figure 4).


Reversing the immune-suppressive microenvironment in tumor shall be a promising strategy for HCC [25]. ACT as a potentially effective treatment, contains several types of lymphocytes including tumor-infiltrating lymphocytes, lymphokine-activated killer cells, and CIKs, etc. First reported by Schimidt Wolf and his colleagues, CIKs were tested in various cancers, which remained controversial for the heterogeneity of individual immnuotolerance mechanism and lack of consensus on the selection of right patients at right time [26]. In the present meta-analysis, CIKs were indicated as an effective adjuvant therapy for HCC patients by improving RFS and PFS.

We found that CIKs prolonged RFS and PFS with reasonable heterogeneity between studies. In subgroups of quasi-RCTs, only two studies reported RFS, which may result in insignificant RFS as well as heterogeneity between-studies for the limited number of available studies. In other subgroups, such as study quality, tumor staging systems, clinical characteristics, previous treatments and CIKs treatments, the analysis showed consistency of both RFS and PFS. Liver resection and other invasive treatments massively reduced tumor burden and alleviate pre-existing immune suppression, which might improve the effect of CIKs. Moreover, transarterial embolization or local ablation may increase tumor immunogenicity and unmask tumor-specific antigens [27, 28]. After curative resection or other local therapies, HCC patients without metastases or portal venous thrombus would benefit from sequential CIKs transplantation in terms of cancer recurrence and progression.

The significant improvement of OS by CIKs was not confirmed due to the defects of heterogeneity between studies. After subgroup analysis, we found that the heterogeneity may result from differences in study quality, tumor staging systems, and clinical characteristics of the enrolled patients. And significant improvement of OS by CIKs was observed in all of the above subgroups. But in subgroup of resection as the previous treatments, more than 5 times injection of CIKs as the cytotherapy, and AJCC as the staging system, there was no significant prolongation of OS in CIK group. For only two studies using AJCC staging system, more convincing evidence should be collected in further clinical studies. So far, HCC patients with sufficient liver function (Child-Pugh A/B) and without metastases or portal venous thrombus, would have a further prolonged OS by CIKs after local therapies (e.g. TACE/RFA/PEI/PMCT). However, these patients would not have a further improvement of OS by CIKs after liver resection. According to our previous studies, the OS of HCC patients was significantly influenced by treatments of later lines, which made it difficult to improve OS for CIKs [29]. Thus, RFS and PFS shall be more appropriate endpoints for evaluating the efficacy of CIKs. Summarily, sequential CIKs presented a promising efficacy in improving RFS and PFS for HCC patients after receiving conventional procedures, and in improving OS for those underwent TACE/RFA/PEI/PMCT.

Monitoring the effect of CIKs during the treatment was also essential. Several studies investigated the predictive value of peripheral lymphocyte subsets during CIKs treatment, of which the results were inconsistent [30]. It’s reported that CD4+ T cells were required for the remodeling of the tumor microenvironment to sustain tumor regression [31]. Moreover, Endig, et al found depletion of CD8+ T cells markedly delays tumor progression in mice with chronic liver injury, which indicated a facilitative role of CD8+ T cells in the tumor microenvironment of HCC [32]. In present study, the proportion of CD4+ T cells increased significantly while CD8+ T cells decreased dramatically in patients receiving CIKs therapy, which implied potential predictors for CIKs. But further clinical confirmation was needed due to a limited number of trials reported changes of lymphocyte subsets in this study.

CIK cytotherapy presented a reliable safety profile without increase of AEs. Many studies didn’t provide completely quantitative information of AEs, but they did report that AEs in Grade 3/4 were rare. Based on our results, we deduced that CIKs might be more salutary for HCC patients with sufficient liver function (Child-Pugh A/B) and without metastasis or portal venous thrombus. However, the optimal timing of sequential CIKs cannot be concluded because a wide range of treatment cycles were conducted among the included studies. Randomized clinical trials were needed to further confirm the timing of CIKs treatments.

The present study employed a more advanced and accurate statistical strategy to achieve more conclusive results. Antecedent meta-analysis assessed the efficacy of CIKs for HCC patients after minimally invasive treatments and concluded that both RFS and OS were significantly improved in CIKs group compared with control group [33]. They included both prospective and retrospective studies, and pooled survival rate with OR to evaluate the efficacy of CIK cytotherapy. By comparison, our study possessed some advantages. Firstly, we included only prospective studies (RCTs and quasi-RCT), and performed a stratification analysis. Though the number of potentially eligible studies was limited, we evaluated strictly on the quality of the included studies by well-accepted tools. Secondly, to integrate time-to-events (RFS, PFS and OS), we calculated HR to show a trend over time rather than OR to show efficacy at some time point. Thirdly, both survival outcomes, changes of lymphocyte subsets and AEs were analyzed.

Our study also had some limitations. Primarily, all eligible clinical trials were conducted in oriental countries, where chronic HBV infection was the major etiology. Thus, our results could not be easily expanded to HCV-related HCC and other types of HCC. Secondly, a limited number of studies were included in secondary outcomes. Though these studies reported relatively consistent results in secondary outcomes, more eligible studies were needed to draw a more convincing conclusion. Lastly, the present meta-analysis was not based on individual patient data and unable to subject to an open external evaluation procedure. Therefore, the analysis may have potential bias in over-estimating the treatment effects. Several completed clinical trials haven’t display their results at present, which limited our collection of concerning data (NCT01749865). Despite these limitations, CIKs as an adjuvant therapy for HCC presented a potentially efficacy, which deserved further verification in more specific subgroup of HCC patients.

Above all, sequential CIKs presented a promising efficacy in improving RFS and PFS for HCC patients after receiving conventionally invasive therapies, and in improving OS for those after TACE/RFA/PEI/PMCT. Optimizing patient selection shall be the direction to promote the efficacy of CIKs in future studies.


Study protocol and literature search

A prospective protocol of objectives, search strategies, selection criteria, outcome measurements, and methods of statistical analysis were settled down in advance, which was accordant with Preferred Reporting Items for Systematic Reviews and Meta-Analyses guidelines and conducted in accordance with the Cochrane Collaboration’s systematic review framework [34, 35].

With no language or regional restrictions, we searched on Pubmed, Embase, Web of Science and the Cochrane Library using key words as hepatocellular carcinoma and cytokine-induced killer cells date to October 7, 2016. The trial register and reference lists of related articles were also searched for supplements. We regularly updated the search until October 7, 2016. We tried to obtain information about relevant studies that have been completed but never published in the following ways: 1) The International Standard Randomized Controlled Trial Number Register scheme; 2) The International Clinical Trials Registry Platform Search Portal; 3) Formal letters of request for information about unpublished studies to colleagues.

Selection criteria

Inclusion criteria: 1) patients diagnosed confirmedly of HCC without systematic treatments before enrolling; 2) studies comparing the outcomes of conventional treatments plus sequential CIKs with conventional treatments alone; 3) conventional treatments including liver resection, TACE, percutaneous microwave coagulation therapy (PMCT), radiofrequency ablation (RFA), percutaneous ethanol injection (PEI); and 4) both randomized controlled trials (RCTs) and quasi-RCTs with available data were included.

Exclusion criteria: 1) patients with metastatic HCC or mixed malignancies; 2) repeated reports, which were excluded in several ways: same studies published in different magazines; overlapped data from the studies reported by the same authors or from the same organization.

Data extraction

Assessment of the eligibility of the retrieved studies and data extraction of the included studies were performed by Xiu-Rong Cai and Xing Li separately. A unified data form was applied, which included the following items: first author, publication year, study period and country, study design, patient demographic, disease characteristics, details of treatments, hazard ratio (HR) with 95% confidential interval (95% CI) for the CIK group compared with non-CIK group, changes of lymphocyte subsets before and after CIKs therapy and adverse events (AEs) of both groups. Any discrepancies were discussed mutually and ultimately solved by Xiu-Rong Cai. The same method was used to evaluate the quality of the included studies.

Outcome definition

Our primary outcomes were recurrence-free survival (RFS), progress-free survival (PFS) and overall survival (OS). Secondary outcomes were changes of lymphocyte subsets and AEs. RFS was defined as the time from treatments to either local, distant recurrence or death (any cause). PFS was defined as the time from treatments to the date on disease progressing or death (any cause). With OS defined as the time from treatments to death or to the date of the last follow-up for censored patients. Changes of lymphocyte subsets such as CD4+ T cells and CD8+ T cells were recorded before and after CIKs. AEs were classified and graded according to the Common Terminology Criteria for Adverse Events, version 3.0.

Qualitative assessment

The methodological quality of RCTs and quasi-RCTs were assessed by the Cochrane risk of bias tool [36], which contained bias of sequence generation, allocation concealment, blinding, incomplete outcome data addressed, selective reporting and other bias. Each bias was labeled as low-risk, unclear-risk or high-risk. A study without any high-risk of bias was judged as high-quality RCT.

Statistical analysis

We proceeded all meta-analysis based on Review Manager version 5.0 and STATA SE version 12.0.

RFS, PFS and OS were pooled by HR with 95% CI, which was estimated by the tool introduced by Parmar MK and his colleagues [37]. HR of less than 1 represented a benefit of CIK group compared with non-CIK group. Continuous and dichotomous variables were denoted by weighted mean difference (WMD) and odds ratio (OR) with 95% CI. OR greater than 1 showed more frequency of events in CIK group. All reported p values were two-tailed and deemed statistically significant if less than 0.05.

Both χ2 test and I2 tests were utilized to evaluate heterogeneity among studies. When the p value from the heterogeneity analysis was greater than 0.1, a fixed effects model was applied, which demonstrated no significant heterogeneity. Otherwise a random-effects model was applied [38]. Specifically, the higher χ2 and I2 statistic, the greater heterogeneity.

Subgroup analysis was performed considering different study designs, study quality, tumor staging systems, clinical characteristics, previous treatments and details of CIK treatments. To assess the consistency of the results and evaluate the influence of single studies on overall risk estimate, we conducted a sensitivity analysis by omitting each study in turn. Begg’s funnel plot was used to analyze publication bias. The p value less than 0.05 represented a statistically significant publication bias.


This study was supported by grants from the National Natural Science Foundation of China (No. 81372374, 81172193, 81402426, 81402509, 31600710), and Natural Science Foundation of Guangdong (No. 2014A030313146 and 2016A030313302).


This work was supported by grants from the National Natural Science Foundation of China (No. 81372374, 81172193, 81402426, 81402509, 31600710), and Natural Science Foundation of Guangdong (No. 2014A030313146 and 2016A030313302). The sponsors of the study had no role in study design, data extraction, data analysis, data interpretation, or writing of the report. The co-authors had full access to all the data in the study and had final responsibility for the decision to submit for publication.


The authors have no financial issues or conflicts of interest related to this article to disclose.


1. Bruix J, Gores GJ, Mazzaferro V. Hepatocellular carcinoma: clinical frontiers and perspectives. Gut. 2014; 63:844-855.

2. Jia CC, Wang TT, Liu W, Fu BS, Hua X, Wang GY, Li TJ, Li X, Wu XY, Tai Y, Zhou J, Chen GH, Zhang Q. Cancer-associated fibroblasts from hepatocellular carcinoma promote malignant cell proliferation by HGF secretion. Plos One. 2013; 8:e63243.

3. Wu DH, Jia CC, Chen J, Lin ZX, Ruan DY, Li X, Lin Q, Min D, Ma XK, Wan XB, Cheng N, Chen ZH, Xing YF, et al. Autophagic LC3B overexpression correlates with malignant progression and predicts a poor prognosis in hepatocellular carcinoma. Tumour Biology. 2014; 35:12225-12233.

4. Yamashita T, Kitao A, Matsui O, Hayashi T, Nio K, Kondo M, Ohno N, Miyati T, Okada H, Mizukoshi E, Honda M, Nakanuma Y, Takamura H, et al. Gd-EOB-DTPA-enhanced magnetic resonance imaging and alpha-fetoprotein predict prognosis of early-stage hepatocellular carcinoma. Hepatology. 2014; 60:1674-1685.

5. Qi X, Liu L, Wang D, Li H, Su C, Guo X. Hepatic resection alone versus in combination with pre- and post-operative transarterial chemoembolization for the treatment of hepatocellular carcinoma: A systematic review and meta-analysis. Oncotarget. 2015; 6:36838-36859. doi: 10.18632/oncotarget.5426.

6. Li X, Zhong X, Chen ZH, Xing YF, Wu DH, Chen J, Ma XK, Lin Q, Wen JY, Wei L, Wang TT, Ruan DY, Lin ZX, et al. Hepatitis B virus DNA negativity acts as a favorable prognostic factor in hepatocellular carcinoma patients. Asian Pacific journal of cancer prevention. 2014; 15:9635-9641.

7. Prieto J, Melero I, Sangro B. Immunological landscape and immunotherapy of hepatocellular carcinoma. Nature reviews Gastroenterology & hepatology. 2015; 12:681-700.

8. Schmidt-Wolf IG, Negrin RS, Kiem HP, Blume KG, Weissman IL. Use of a SCID mouse/human lymphoma model to evaluate cytokine-induced killer cells with potent antitumor cell activity. The Journal of experimental medicine. 1991; 174:139-149.

9. Leemhuis T, Wells S, Scheffold C, Edinger M, Negrin RS. A phase I trial of autologous cytokine-induced killer cells for the treatment of relapsed Hodgkin disease and non-Hodgkin lymphoma. Biology of Blood and Marrow Transplantation. 2005; 11:181-187.

10. Li R, Wang C, Liu L, Du C, Cao S, Yu J, Wang SE, Hao X, Ren X, Li H. Autologous cytokine-induced killer cell immunotherapy in lung cancer: a phase II clinical study. Cancer immunology, immunotherapy. 2012; 61:2125-2133.

11. Liu L, Zhang WH, Qi XY, Li H, Yu JP, Wei S, Hao XS, Ren XB. Randomized Study of Autologous Cytokine-Induced Killer Cell Immunotherapy in Metastatic Renal Carcinoma. Clinical Cancer Research. 2012; 18:1751-1759.

12. Shi LR, Zhou Q, Wu J, Ji M, Li GJ, Jiang JT, Wu CP. Efficacy of adjuvant immunotherapy with cytokine-induced killer cells in patients with locally advanced gastric cancer. Cancer Immunology Immunotherapy. 2012; 61:2251-2259.

13. Lee JH, Lee JH, Lim YS, Yeon JE, Song TJ, Yu SJ, Gwak GY, Kim KM, Kim YJ, Lee JW, Yoon JH. Adjuvant Immunotherapy With Autologous Cytokine-Induced Killer Cells for Hepatocellular Carcinoma. Gastroenterology. 2015; 148:1383-1391.

14. Takayama T, Sekine T, Makuuchi M, Yamasaki S, Kosuge T, Yamamoto J, Shimada K, Sakamoto M, Hirohashi S, Ohashi Y, Kakizoe T. Adoptive immunotherapy to lower postsurgical recurrence rates of hepatocellular carcinoma: a randomised trial. Lancet. 2000; 356:802-807.

15. Yu X, Zhao H, Liu L, Cao S, Ren B, Zhang N, An X, Yu J, Li H, Ren X. A randomized phase II study of autologous cytokine-induced killer cells in treatment of hepatocelluar carcinoma. Journal of Clinical Immunology. 2014; 34:194-203.

16. Hui D, Qiang L, Jian W, Ti Z, Da-Lu K. A randomized, controlled trial of postoperative adjuvant cytokine-induced killer cells immunotherapy after radical resection of hepatocellular carcinoma. Digestive and liver disease. 2009; 41:36-41.

17. Xu YM, Xu DY, Zhang NZ, Shi Y, Luan ZY, Liu JQ. TACE combined PMCT sequential own cancer vaccine and immunoeffector cells to treat large hepatocellular carcinoma clinical observation. Chinese Journal of Cancer Prevention and Treatment. 2013; 20:1928-1932.

18. Zhang QC, Pan GZ, Li GQ, Yuan QZ, Xu JB, Kong Y, Wang LM. DC-CIK cell therapy combined with transcatheter arterial chemoembolization and radiofrequency ablation for treatment of small hepatocellular carcinoma. World Chinese Journal of Digestology. 2014; 22:2237-2242.

19. Cui J, Wang N, Zhao H, Jin H, Wang G, Niu C, Terunuma H, He H, Li W. Combination of radiofrequency ablation and sequential cellular immunotherapy improves progression-free survival for patients with hepatocellular carcinoma. International Journal of Cancer. 2014; 134:342-351.

20. Qiu Y, Xu M, Yun MM, Wang Y, Zhang R, Meng X, Ou-Yang X, Yun S. Hepatocellular carcinoma-specifc immunotherapy with synthesized α1,3- galactosyl epitope-pulsed dendritic cells and cytokine-induced killer cells. World Journal of Gastroenterology. 2011; 17:5260-5266.

21. Weng DS, Zhou J, Zhou QM, Zhao M, Wang QJ, Huang LX, Li YQ, Chen SP, Wu PH, Xia JC. Minimally invasive treatment combined with cytokine-induced killer cells therapy lower the short-term recurrence rates of hepatocellular carcinomas. Journal of immunotherapy. 2008; 31:63-71.

22. Wang JP, Li W, Huang ZL, Wu PH, Li XS, Wei YD, Zhou QM, Pan CC, Xia JC, Zhao M. Value of CIK in the treatment of TACE combined with RFA for HCC in long-term survival and prognostic analysis. Zhonghua yi xue za zhi. 2012; 92:3062-3066.

23. Hao MZ, Lin HL, Chen Q, Ye YB, Chen QZ, Chen MS. Efficacy of transcatheter arterial chemoembolization combined with cytokine-induced killer cell therapy on hepatocellular carcinoma: A comparative study. Chinese Journal of Cancer. 2010; 29:172-177.

24. Xu L, Wang J, Kim Y, Shuang ZY, Zhang YJ, Lao XM, Li YQ, Chen MS, Pawlik TM, Xia JC, Li SP, Lau WY. A randomized controlled trial on patients with or without adjuvant autologous cytokine-induced killer cells after curative resection for hepatocellular carcinoma. OncoImmunology. 2016; 5:e1083671-79.

25. Calderaro J, Rousseau B, Amaddeo G, Mercey M, Charpy C, Costentin C, Luciani A, Zafrani ES, Laurent A, Azoulay D, Lafdil F, Pawlotsky JM. Programmed death ligand 1 expression in hepatocellular carcinoma: Relationship With clinical and pathological features. Hepatology. 2016; 64:2038-2046.

26. Thanendrarajan S, Nowak M, Abken H, Schmidt-Wolf IGH. Combining cytokine-induced killer cells with vaccination in cancer immunotherapy: More than one plus one? Leukemia Research. 2011; 35:1136-1142.

27. Ali MY, Grimm CF, Ritter M, Mohr L, Allgaier HP, Weth R, Bocher WO, Endrulat K, Blum HE, Geissler M. Activation of dendritic cells by local ablation of hepatocellular carcinoma. Journal of hepatology. 2005; 43:817-822.

28. Dromi SA, Walsh MP, Herby S, Traughber B, Xie J, Sharma KV, Sekhar KP, Luk A, Liewehr DJ, Dreher MR, Fry TJ, Wood BJ. Radiofrequency ablation induces antigen-presenting cell infiltration and amplification of weak tumor-induced immunity. Radiology. 2009; 251:58-66.

29. Hong YF, Chen ZH, Ma XK, Li X, Wu DH, Chen J, Dong M, Wei L, Wang TT, Ruan DY, Lin ZX, Wen JY, Lin Q, et al. Comparison of five models for end-stage liver disease in predicting the survival rate of patients with advanced hepatocellular carcinoma. Tumour Biol. 2016; 37:5265-5273.

30. Lin ZX, Ruan DY, Li Y, Wu DH, Ma XK, Chen J, Chen ZH, Li X, Wang TT, Lin Q, Wen JY, Wu XY. Lymphocyte-to-monocyte ratio predicts survival of patients with hepatocellular carcinoma after curative resection. World Journal of Gastroenterology. 2015; 21:10898-10906.

31. Rakhra K, Bachireddy P, Zabuawala T, Zeiser R, Xu L, Kopelman A, Fan AC, Yang Q, Braunstein L, Crosby E, Ryeom S, Felsher DW. CD4+ T cells contribute to the remodeling of the microenvironment required for sustained tumor regression upon oncogene inactivation. Cancer cell. 2010; 18:485-498.

32. Endig J, Buitrago-Molina LE, Marhenke S, Reisinger F, Saborowski A, Schutt J, Limbourg F, Konecke C, Schreder A, Michael A, Misslitz AC, Healy ME, Geffers R, et al. Dual Role of the Adaptive Immune System in Liver Injury and Hepatocellular Carcinoma Development. Cancer cell. 2016; 30:308-323.

33. Li X, Dai D, Song X, Liu J, Zhu L, Xu W. A meta-analysis of cytokine-induced killer cells therapy in combination with minimally invasive treatment for hepatocellular carcinoma. Clin Res Hepatol Gastroenterol. 2014; 38:583-591.

34. Liberati A, Altman DG, Tetzlaff J, Mulrow C, Gotzsche PC, Ioannidis JP, Clarke M, Devereaux PJ, Kleijnen J, Moher D. The PRISMA statement for reporting systematic reviews and meta-analyses of studies that evaluate healthcare interventions: explanation and elaboration. BMJ. 2009; 339:b2700.

35. Higgins JPT GSe. Cochrane Handbook for Systematic Reviews of Interventions Version 5.1.0. The Cochrane Collaboration. 2011.

36. Green S, Higgins J, Cochrane C. Cochrane Handbook for Systematic Reviews of Interventions.

37. Tierney JF, Stewart LA, Ghersi D, Burdett S, Sydes MR. Practical methods for incorporating summary time-to-event data into meta-analysis. Trials. 2007; 8:16.

38. DerSimonian R, Laird N. Meta-analysis in clinical trials. Controlled clinical trials. 1986; 7:177-188.
