Predictive value of peripheral regulatory T cells in non-small cell lung cancer patients undergoing radiotherapy

PDF |  HTML  |  How to cite  |  Order a Reprint

Oncotarget. 2017; 8:43427-43438. https://doi.org/10.18632/oncotarget.15238

Metrics: PDF 1462 views  |   HTML 1595 views  |   ?

Chao Liu, Shikai Wu _, Xiangying Meng, Guangxian Liu, Dongmei Chen, Yang Cong, Ge Shen, Bing Sun, Wei Wang, Qian Wang, Hongjun Gao and Xiaoqing Liu

Abstract

Chao Liu1, Shikai Wu1, Xiangying Meng1, Guangxian Liu2, Dongmei Chen1, Yang Cong1, Ge Shen1, Bing Sun1, Wei Wang2, Qian Wang1, Hongjun Gao3 and Xiaoqing Liu3

1 Department of Radiation Oncology, Affiliated Hospital of Academy of Military Medical Sciences, Beijing, China

2 Cancer Therapy Center, Affiliated Hospital of Academy of Military Medical Sciences, Beijing, China

3 Department of Lung Cancer, Affiliated Hospital of Academy of Military Medical Sciences, Beijing, China

Correspondence to:

Shikai Wu, email:

Keywords: T cells; lymphocyte subsets; stereotactic body radiation therapy; non-small cell lung cancer; immunotherapy

Received: December 19, 2016 Accepted: January 27, 2017 Published: February 09, 2017

Abstract

Background: Studies increasingly focus on the impact of radiotherapy on immunity; however, the role of peripheral cellular immunity prior to radiotherapy in cancer patients remains largely unknown. In this study, we investigated the predictive roles of lymphocyte subsets on tumor progression in non-small cell lung cancer (NSCLC) patients undergoing radiotherapy, and their expression in NSCLC patients at first relapse.

Methods: We enrolled 70 NSCLC patients and 14 age- and sex-matched healthy donors and tested the lymphocyte subsets in their peripheral blood by flow cytometry. Among them, 40 newly diagnosed patients received radiotherapy and were enrolled to investigate the predictive value of lymphocyte subsets on tumor progression after radiotherapy by uni- and multivariate analyses; 30 patients at first relapse were included to evaluate the differences of lymphocyte subsets between them and first diagnosed patients and healthy volunteers.

Results: Increased proportions of regulatory T cells, CD8+ T cells, and CD8+CD28- T cells and decreased CD4+ T cells and CD4/CD8 ratios were observed in NSCLC patients at first relapse compared to newly diagnosed patients. In the 40 first diagnosed patients undergoing radiotherapy, uni- and multivariate analyses showed that increased level of regulatory T cells correlated with poor progression-free survival (hazard ratio = 2.55 and 3.76, P = 0.022 and 0.010, respectively).

Conclusions: Peripheral regulatory T cells were increased and independently predict tumor progression in NSCLC patients undergoing radiotherapy, suggesting the promising combination of radiotherapy and immunotherapy.


INTRODUCTION

As the most common malignant tumor worldwide, approximately 80% of lung cancer patients are non-small cell lung cancer (NSCLC) cases [1, 2]. In recent years, radiotherapy lonely and in combination with other therapies are used as prevailing treatments in ~ 60% of newly diagnosed NSCLC patients [3]. Stereotactic body radiotherapy (SBRT) is becoming as the predominant treatment for NSCLC, especially for early stage ones [4, 5]. Besides the effect of direct killing, radiation induces immunologic response and consequently eliminates non-irradiated tumor cells [6, 7]. According to the immune mechanism of radiotherapy, we proposed that the immune status before radiotherapy may impact the tumor response to radiation and accordingly affect long-term survival. Thus, we aimed to evaluate the clinical values of pretreatment immune cells in peripheral blood in NSCLC patients undergoing radiation therapy.

The theory of cancer immunoediting, including immune elimination, equilibrium, and escape, describes the dual role of immunity in tumor suppression and protection. Immune function in cancer patients closely relates to cancer occurrence and progression [8]. Lymphocytes are significant components of human cellular immunity; different lymphocyte subsets have been observed according to different phenotypes and functions [9]. Several studies have investigated the expression of peripheral lymphocyte subsets in NSCLC. For example, decreased proportions of CD4+ cells (T helper cells), CD4/CD8 ratios, and B cells and increased CD8+CD28- T lymphocytes and regulatory T (Treg) cells were observed in patients with lung cancer [10-13].

In addition to the expression of lymphocyte subsets, researchers also tested their predictive and prognostic roles in NSCLC. Many studies proved the prognostic value of tumor-infiltrating lymphocytes of different subtypes, including CD3+, CD4+, CD8+, Treg cells [14-18]. However, the predictive roles of lymphocyte subpopulations in peripheral blood were not well studied. McCoy et al. [19] found that an elevated proportion of peripheral Treg cells was associated with poor survival in patients with thoracic malignancies. A very recent study has demonstrated that the prognostic value of CD4+ Treg subtypes in NSCLC patients received chemotherapy [20]. Nevertheless, in NSCLC patients undergoing radiotherapy, the clinical significance of lymphocyte subsets is poorly investigated.

The present study aimed to evaluate the predictive value of Treg cells and other lymphocyte subsets in NSCLC patients treated with radiotherapy, and their expression in NSCLC patients at first relapse.

RESULTS

Baseline characteristics

Table 1 shows the clinicopathologic characteristics of 70 NSCLC patients. The mean age of 70 NSCLC patients was 63 (range 36-90). No differences of baseline characteristics were observed between patients at first diagnosis and relapse, providing an opportunity to compare the expression of lymphocyte subsets between them. Among 40 newly diagnosed patients, 24 (60%) were treated with SBRT with 30-50 Gy/5 fractions; 16 (40%) received conventional fraction radiotherapy with 60-66 Gy/30-33 fractions for their lung masses. Twenty-two patients underwent positron emission tomography-computed tomography before treatment (data not shown); mean standard uptake value (SUV) of lung mass was 11.1 (range, 3.2-30.8). There were 3 patients with epidermal growth factor receptor mutation and 2 patients with anaplastic lymphoma kinase gene fusion and KRAS mutation, respectively.

Table 1: Comparisons of baseline characteristics between NSCLC-D and NSCLC-R

NSCLC Patients (N=70)

Characteristic

NSCLC-D (N= 40)

NSCLC-R (N= 30)

P

N(%)

N(%)

Sex

Male

28(70)

22(73.3)

0.760

Female

12(30)

8(26.7)

Age(years)

<60

14(35)

15(50)

0.207

≥60

26(65)

15(50)

Smoking

Never

14(35)

11(36.7)

0.688

Previous

3(7.5)

4(13.3)

Present

23(57.5)

15(50)

ECOG PS

0

16(40)

10(33.3)

0.669

1

21(52.5)

19(63.3)

2

3(7.5)

1(3.3)

Histology

SCC

19(47.5)

15(50)

0.929

ADC

19(47.5)

13(43.3)

Other

2(5)

2(6.7)

Differentiation

Well

3(7.5)

2(6.7)

0.925

Moderate

21(52.5)

15(50)

Poor

9(22.5)

9(30)

Unknown

7(17.5)

4(13.3)

Gene mutation

Yes

5(12.5)

5(16.7)

0.906

No

32(80)

23(76.7)

Unknown

3(7.5)

2(6.7)

Tumor stage

T1

10(25)

6(20)

0.835

T2

17(42.5)

12(40)

T3

6(15)

7(23.3)

T4

7(17.5)

5(16.7)

Nodal stage

N0

11(27.5)

7(23.3)

0.639

N1

11(27.5)

7(23.3)

N2

10(25)

12(40)

N3

8(20)

4(13.3)

Metastasis

Yes

11(27.5)

9(30)

0.819

No

29(72.5)

21(70)

AJCC stage

1

4(10)

5(16.7)

0.791

2

8(20)

4(13.3)

3

17(42.5)

12(40)

4

11(27.5)

9(30)

Abbreviations: NSCLC: non-small cell lung cancer; NSCLC-D: NSCLC-at first diagnosis; NSCLC-R: NSCLC-at first relapse; ECOG PS: Eastern Cooperative Oncology Group performance status; SCC: squamous cell carcinoma; ADC: adenocarcinoma; AJCC: American Joint Committee on Cancer.

The proportions of lymphocyte subsets in NSCLC patients.

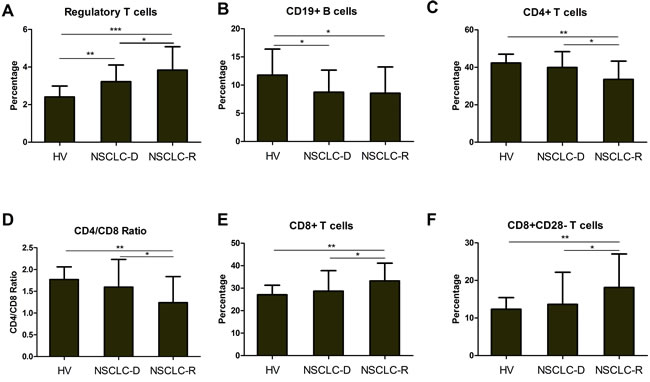

Figure 1: The proportions of lymphocyte subsets in NSCLC patients. A. Increased regulatory T cells in NSCLC-D and NSCLC-R; Decreased B. CD19+ B cells, C. CD4+ T cells, and D. CD4/CD8 ratio; Elevated E. CD8+ T cells and F. CD8+CD28- T cells. Abbreviations: NSCLC = non-small cell lung cancer; HV = healthy volunteers; NSCLC-D = NSCLC-at first diagnosis; NSCLC-R = NSCLC-at first relapse. *P < 0.05; ** P < 0.01; *** P < 0.001.

The proportions of lymphocyte subsets in NSCLC patients

The percentage of Treg cells in cancer patients were considerably elevated compared to healthy controls; the high expression of Treg cells was further validated in NSCLC patients at first relapse compared to newly diagnosed patients (Table 2, Figure 1A). In contrast, decreased proportions of CD19+ B cells, CD4+ T cells, and CD4/CD8 ratios were observed (Table 2, Figure 1B-1D). Besides, increased CD8+ T cells and CD8+CD28- T cells were showed in NSCLC patients (Table 2, Figure 2E-2F). However, there were no differences in NK, NKT, γδT, CD3+ and CD8+CD28+ T cells between patients and controls (Table 2). In 30 patients at first relapse, increased Treg cells were observed in metastatic patients compared to recurrent patients; decreased proportions of CD4+ T cells, CD4/CD8 ratios were presented with a statistical trend (Table 3).

Table 2: Comparisons of lymphocyte subsets between NSCLC patients and healthy controls

Immune parameter

Healthy control

NSCLC-D

NSCLC-R

P

CD3+ T cells

72.87±5.40

69.63±12.83

67.89±11.02

0.398

CD4+ T cells

42.26±4.70

39.85±8.49

33.53±9.74

0.002

CD8+ T cells

27.05±4.21

28.65±9.12

33.20±7.00

0.025

CD4/CD8 ratio

1.77±0.29

1.60±0.63

1.24±0.60

0.008

CD8+CD28+ T cells

14.59±2.70

13.72±4.92

13.44±3.86

0.708

CD8+CD28- T cells

12.32±3.10

13.64±8.52

18.11±8.92

0.033

Treg

2.40±0.59

3.22±0.89

3.83±1.24

0.001

CD19+ B cells

11.77±4.62

8.74±3.91

8.57±4.66

0.058

NK

16.24±6.33

20.22±11.92

20.98±8.91

0.350

NKT

6.85±4.20

5.54±4.63

6.37±4.22

0.590

γδT

5.62±4.66

5.17±7.08

5.11±4.42

0.963

Data were expressed as Mean±SD. Abbreviations: NSCLC: non-small cell lung cancer; NSCLC-D: NSCLC-at first diagnosis; NSCLC-R: NSCLC-at first relapse; SD: standard deviation; Treg: regulatory T cells.

Table 3: Differences of lymphocyte subsets between local recurrence and metastasis in 30 NSCLC patients at first relapse

Immune parameter

Local recurrence (N= 18)

Metastasis (N= 12)

P

CD3+ T cells

68.72±11.03

66.63±11.36

0.619

CD4+ T cells

37.42±11.18

32.14±9.08

0.184

CD8+ T cells

30.20±8.51

32.71±7.56

0.416

CD4/CD8 ratio

1.38±0.69

1.03±0.37

0.083

CD8+CD28+ T cells

13.09±4.10

13.97±3.56

0.548

CD8+CD28- T cells

17.52±9.83

19.00±7.70

0.665

Treg

2.61±0.98

3.55±1.21

0.046

CD19+ B cells

8.02±3.66

9.26±5.82

0.547

NK

19.66±8.90

22.65±9.06

0.418

NKT

6.36±5.34

6.38±2.39

0.990

γδT

4.97±4.45

5.29±4.60

0.864

Data were expressed as Mean±SD. Abbreviations: NSCLC: non-small cell lung cancer; SD: standard deviation; Treg: regulatory T cells.

Correlation of lymphocyte subpopulations with clinicopathologic parameters

Table 4-5 summarizes the associations between lymphocyte subsets and clinicopathological variables in 40 newly diagnosed patients. Patients who were younger and with negative tumor markers had higher proportions of CD3+ T cells compared to their counterparts. Similarly, increased CD4+ T cells were observed in young patients. In females, there were elevated proportions of CD4+ T cells and CD4/CD8 ratios compared to males. High levels of CD8+CD28+ T cells were occurred in patients with negative tumor markers (Table 4). Nonsmokers showed increased γδT cells compared to smokers (Table 5). We found no significant associations between CD8+CD28- T cells, Treg, CD19+ B cells, NK, NKT cells and clinicopathologic characteristics.

Table 4: Correlation between T lymphocyte subsets and clinicopathologic characteristics in 40 newly diagnosed NSCLC patients

Parameter

CD3+ T cells

P

CD4+ T cells

P

CD8+ T cells

P

CD4/CD8 ratio

P

CD8+CD28+ T cells

P

CD8+CD28- T cells

P

Treg

P

Sex

Female

72.86±12.42

0.303

44.04±8.04

0.046

26.64±12.39

0.749

2.11±1.30

0.036

12.41±3.42

0.277

13.55±9.26

0.965

3.42±1.20

0.562

Male

68.24±12.97

37.28±10.01

27.73±8.60

1.47±0.58

14.28±5.40

13.68±8.37

3.20±0.93

Age(years)

<60

75.11±10.36

0.046

44.03±7.74

0.024

28.65±10.00

0.559

1.72±0.67

0.769

14.19±3.95

0.662

13.43±8.19

0.909

3.45±1.18

0.414

≥60

66.68±13.24

36.76±10.08

26.73±9.73

1.63±1.00

13.47±5.43

13.76±8.86

3.16±0.89

Smoking

Never

71.78±12.19

0.445

40.15±10.07

0.697

26.37±11.80

0.628

1.92±1.24

0.180

10.71±3.15

0.003

15.51±10.83

0.315

3.06±1.05

0.426

Previous/present

68.47±13.25

38.85±9.94

27.96±8.64

1.53±0.62

15.34±4.99

12.63±7.03

3.35±0.98

ECOG PS

0

72.34±10.66

0.281

40.34±7.51

0.597

29.51±9.59

0.269

1.65±1.13

0.928

14.87±5.04

0.233

15.32±7.83

0.314

3.29±0.63

0.919

1-2

67.82±14.02

38.62±11.28

26.00±9.78

1.68±0.72

12.96±4.80

12.52±8.94

3.25±1.17

SUV

<9.5

69.51±14.92

0.949

39.21±9.44

0.479

27.68±10.70

0.982

1.76±1.36

0.582

12.96±4.21

0.364

14.85±8.32

0.557

3.00±0.90

0.600

≥9.5

69.11±14.22

36.00±11.09

27.58±10.73

1.51±0.68

11.30±4.18

17.38±10.98

2.81±0.66

Histology

SCC

66.76±15.13

0.228

36.29±10.57

0.138

27.33±9.87

0.779

1.48±0.60

0.366

13.48±4.90

0.711

14.21±9.81

0.866

3.05±0.97

0.422

ADC

71.92±10.37

40.88±7.89

28.24±10.07

1.74±1.09

14.10±5.30

13.72±7.53

3.31±0.91

Differentiation

Well/moderate

69.9±12.63

0.675

39.34±8.67

0.170

27.94±10.41

0.828

1.68±0.98

0.256

12.78±3.96

0.234

14.64±9.12

0.903

2.95±0.84

0.397

Poor

67.6±17.16

34.07±11.89

28.80±9.12

1.27±0.59

14.98±6.21

15.08±8.76

3.25±0.91

Tumor stage

T1

65.48±12.86

0.243

37.48±8.89

0.507

25.27±9.61

0.430

1.83±1.34

0.519

12.05±5.71

0.221

13.94±6.40

0.899

3.10±0.70

0.601

T2-T4

71.01±12.74

39.92±10.25

28.12±9.84

1.61±0.71

14.28±4.61

13.54±9.22

3.31±1.07

Nodal stage

N0

69.61±10.82

0.995

39.02±9.23

0.913

27.93±10.76

0.836

1.77±1.34

0.654

14.71±4.84

0.443

12.60±6.55

0.641

3.24±1.01

0.936

N1-N3

69.64±13.70

39.41±10.26

27.20±9.52

1.63±0.68

13.35±4.99

14.03±9.24

3.27±1.01

AJCC stage

1-3

68.79±12.97

0.508

38.83±10.07

0.626

26.90±9.39

0.598

1.67±0.94

0.950

13.43±4.49

0.555

13.61±8.35

0.974

3.21±0.98

0.614

4

71.85±12.79

40.56±9.69

28.75±10.96

1.65±0.80

14.48±6.11

13.71±9.38

3.39±1.07

Tumor Marker

Negative

75.53±8.82

0.049

41.98±6.86

0.241

32.44±9.88

0.026

1.46±0.68

0.294

15.91±5.14

0.050

15.58±8.00

0.288

3.27±1.18

0.960

Positive

66.41±13.64

38.43±10.82

24.62±9.13

1.81±0.98

12.45±4.56

12.27±8.75

3.25±0.97

Data were expressed as Mean±SD. Abbreviations: NSCLC: non-small cell lung cancer; SD: standard deviation; Treg: regulatory T cells; SUV: standard uptake value; ECOG PS: Eastern Cooperative Oncology Group performance status; SCC: squamous cell carcinoma; ADC: adenocarcinoma; AJCC: American Joint Committee on Cancer.

Table 5: Correlation between other lymphocyte subsets and clinicopathologic characteristics in 40 newly diagnosed NSCLC patients

Parameter

CD19+ B cells

P

NK

P

NKT

P

γδT

P

Sex

Female

11.72±6.13

0.057

14.49±10.65

0.073

4.53±2.81

0.423

4.13±2.61

0.590

Male

8.36±3.90

22.43±11.83

5.93±5.16

5.58±8.19

Age(years)

<60

9.54±5.90

0.823

15.74±10.05

0.090

5.71±2.92

0.873

5.14±3.56

0.986

≥60

9.16±4.15

22.75±12.35

5.45±5.43

5.19±8.53

Smoking

Never

9.60±6.39

0.802

17.54±10.62

0.377

6.70±7.12

0.330

9.60±11.59

0.011

Previous/present

9.16±4.03

21.41±12.47

5.04±3.06

3.23±2.04

ECOG PS

0

8.22±2.63

0.318

18.31±10.13

0.476

4.24±2.61

0.211

4.09±2.26

0.498

1-2

9.90±5.61

21.31±12.91

6.28±5.38

5.79±8.71

SUV

<9.5

7.84±3.59

0.728

22.00±15.39

0.854

4.11±1.70

0.145

4.71±2.61

0.427

≥9.5

7.25±3.60

20.89±10.41

8.08±7.60

8.26±12.82

Histology

SCC

8.45±3.77

0.435

23.58±12.86

0.138

5.58±6.09

0.933

5.43±9.49

0.865

ADC

9.52±4.14

17.41±10.46

5.72±2.72

5.00±3.82

Differentiation

Well/moderate

8.83±3.40

0.579

19.86±10.23

0.455

5.26±5.28

0.364

5.68±8.67

0.892

Poor

7.92±5.28

23.80±17.87

7.15±3.81

5.24±4.15

Tumor stage

T1

9.32±3.80

0.989

24.93±11.68

0.210

4.09±1.84

0.323

3.88±3.48

0.564

T2-T4

9.29±5.09

18.88±11.85

5.96±5.11

5.54±7.82

Nodal stage

N0

9.04±3.45

0.860

18.96±10.72

0.719

5.11±2.52

0.751

3.67±2.63

0.470

N1-N3

9.38±5.20

20.65±12.46

5.69±5.18

5.67±8.02

AJCC stage

1-3

9.02±4.85

0.607

21.70±12.37

0.269

4.87±4.96

0.193

5.61±8.11

0.582

4

9.92±4.78

16.87±10.60

7.07±3.51

4.17±4.02

Tumor Marker

Negative

10.26±3.68

0.534

14.59±8.79

0.054

5.89±2.69

0.785

3.53±2.32

0.434

Positive

9.09±5.34

23.24±12.40

5.39±5.41

5.71±8.50

Data were expressed as Mean±SD. Abbreviations: NSCLC: non-small cell lung cancer; SD: standard deviation; Treg: regulatory T cells; SUV: standard uptake value; ECOG PS: Eastern Cooperative Oncology Group performance status; SCC: squamous cell carcinoma; ADC: adenocarcinoma; AJCC: American Joint Committee on Cancer.

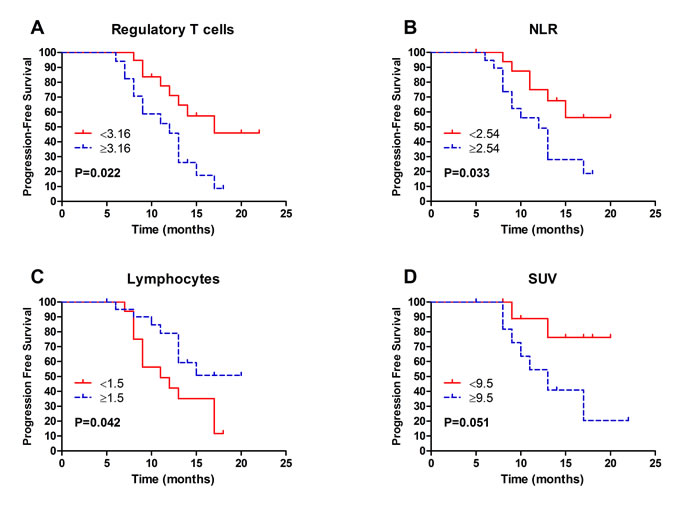

Increased Treg cells correlated with poor progression-free survival (PFS)

Table 6 summarizes the results of univariate analysis of lymphocyte subsets. High proportions of Treg cells correlated to worse PFS (HR = 2.55, 95%CI = 1.07-6.11, P = 0.022, Figure 2A). We found no significant association between other lymphocyte subsets with PFS. In addition to lymphocyte subpopulations, some other parameters were correlated with clinical outcomes (Table 6). The neutrophil/lymphocyte ratio (NLR) was negatively correlated to PFS (HR = 2.66, 95%CI = 1.01-7.05, P = 0.033, Figure 2B); conversely, a positive association was observed between lymphocytes and PFS (HR = 0.42, 95%CI = 0.17-1.03, P = 0.042, Figure 2C). Moreover, a high standard uptake value (SUV) correlated with poor survival, with a strong trend toward significance (HR = 4.14, 95%CI = 0.85-20.11, P = 0.051, Figure 2D). In terms of clinicopathologic characteristics, the Eastern Cooperative Oncology Group performance status (ECOG PS), tumor differentiation, clinical stage, and nodal stage correlated with clinical outcome of NSCLC patients (Table 6).

Table 6: Univariate analysis of progression-free survival of 40 newly diagnosed NSCLC patients according to clinicopathologic characteristics and lymphocyte subsets

Parameter

Median survival (months)

HR (95%CI)

P

Age (≥60 vs <60)

17 vs 13

0.78(0.33-1.84)

0.551

Sex (Male vs Female)

13 vs NA

1.94(0.70-5.37)

0.173

ECOG PS (1-2 vs 0)

11 vs 16

3.59(1.30-9.94)

0.006

Smoking (Previous/present vs Never)

13 vs 13

1.33(0.54-3.27)

0.521

SUV (≥9.5 vs <9.5)

13 vs NA

4.14(0.85-20.11)

0.051

Histology (ADC vs SCC)

13 vs 15

1.24(0.51-3.01)

0.614

Differentiation (Poor vs Well/moderate)

8 vs 17

4.91(1.70-14.15)

0.001

Tumor Marker (Positive vs Negative)

13 vs 15

1.93(0.64-5.80)

0.213

Tumor stage (T2-4 vs T1)

13 vs NA

1.70(0.57-5.03)

0.312

Nodal stage (N1-3 vs N0)

12 vs 16

3.70(1.09-12.58)

0.019

AJCC stage (4 vs 1-3)

10 vs 17

3.21(1.37-7.50)

0.003

Leukocyte (≥median vs <median)

13 vs 13

0.96(0.38-2.38)

0.919

Lymphocyte (≥1.5 vs <1.5)

14 vs 11

0.42(0.17-1.03)

0.042

NLR (≥2.54 vs <2.54 )

12 vs 16

2.66(1.01-7.05)

0.033

PLR (≥median vs <median)

13 vs 13

1.34(0.55-3.29)

0.500

MLR (≥median vs <median)

15 vs 13

1.21(0.50-2.94)

0.655

Treg (≥3.16 vs <3.16 )

12 vs 17

2.55(1.07-6.11)

0.022

CD3+ T cells (≥median vs <median)

13 vs 13

0.99(0.43-2.31)

0.989

CD4+ T cells (≥median vs <median)

13 vs 13

1.16(0.50-2.68)

0.722

CD8+ T cells (≥median vs <median)

17 vs 13

0.86(0.37-2.01)

0.720

CD4/CD8 ratio(≥median vs <median)

13 vs 17

1.53(0.65-3.60)

0.302

CD19+ B cells (≥median vs <median)

11 vs 13

1.13(0.49-2.61)

0.767

NK (≥median vs <median)

13 vs 13

0.97(0.42-2.27)

0.945

NKT (≥median vs <median)

11 vs 15

1.57(0.67-3.68)

0.271

γδT (≥median vs <median)

13 vs 15

1.49(0.63-3.49)

0.335

CD8+CD28+ T cells (≥median vs <median)

13 vs 13

0.82(0.35-1.90)

0.630

CD8+CD28- T cells (≥median vs <median)

17 vs 13

0.67(0.29-1.55)

0.325

Abbreviations: NSCLC: non-small cell lung cancer; HR: hazard ratio; CI: confidence interval; Treg: regulatory T cells; SUV: standard uptake value; SCC: squamous cell carcinoma; ADC: adenocarcinoma; ECOG PS: Eastern Cooperative Oncology Group performance status; AJCC: American Joint Committee on Cancer; NLR: neutrophil/lymphocyte ratio; PLR: platelet/lymphocyte ratio; MLR: monocyte/lymphocyte ratio.

Figure 2:

Figure 2: Kaplan-Meier of progression-free survival of 40 first diagnosed NSCLC patients according to A. Regulatory T cells; B. NLR; C. Lymphocyte count; D. SUV. Abbreviations: NSCLC = non-small cell lung cancer; NLR = neutrophil/lymphocyte ratio; SUV = standard uptake value.

Elevated Treg cells independently predict poor PFS

On multivariate analysis, elevated Treg cells were independently correlated with poor PFS (HR = 3.76, 95%CI = 1.38-10.22, P = 0.010, Table 7). For well-recognized prognostic factors, the independent roles of American Joint Committee on Cancer (AJCC) stage and nodal stage were found as well.

Table 7: Multivariate analysis of progression-free survival of 40 newly diagnosed NSCLC patients

Parameter

HR (95%CI)

P

Treg

<3.6

1

0.010

≥3.6

3.76(1.38-10.22)

Differentiation

Well/moderate

1

0.152

Poor

2.46(0.72-8.40)

AJCC stage

1-3

1

0.005

4

5.74(1.71-19.19)

Nodal stage

N0

1

0.004

N1-N3

8.12(1.94-33.98)

ECOG PS

0

1

0.101

1-2

2.10(0.65-6.75)

Abbreviations: NSCLC: non-small cell lung cancer; HR: hazard ratio; ECOG PS: Eastern Cooperative Oncology Group performance status; Treg: regulatory T cells; AJCC: American Joint Committee on Cancer.

DISCUSSION

We demonstrated that elevated Treg cells were independently associated with poor PFS in NSCLC patients received radiotherapy. In addition, NLR and the lymphocyte count were associated with tumor progression in univariate analysis. Moreover, we further validated the increased proportions of Treg cells, CD8+ T cells, and CD8+CD28- T cells and decreased CD4+ T cells and CD4/CD8 ratios in NSCLC patients at first relapse compared to newly diagnosed patients. To our knowledge, this is the first study to validate the predictive significance of Treg cells in patients with NSCLC undergoing radiotherapy, and the expression of them in patients at first relapse.

Treg cells suppress anti-tumor activity elicited by adaptive immune system in human cancer and facilitate tumor growth [21]. Several studies have proved the prognostic and predictive significance of peripheral Treg cells in lung cancer patients undergoing surgery and chemotherapy [15, 19]. In the present study, we further confirmed its predictive role in NSCLC patients treated with radiotherapy. Elevated proportions of Treg cells indicated rapid tumor progression after radiotherapy, which may because of the suppressor function of Treg cells and their resistance to radiation [22, 23]. In addition to lymphocyte subsets, we also observed that lymphocyte counts and NLR were correlated with survival without relapse, which were consistent with published studies [24, 25]. The predictive value of NLR, platelet/lymphocyte ratio (PLR) and monocyte/lymphocyte ratio (MLR) were previously investigated in various kinds of cancer [24, 26-28]. A recent study observed that pretreatment SUV correlated with PFS in early-stage NSCLC patients treated with SBRT [29]. We found a similar trend in the 22 patients whose SUV were available, although 7 of them had been treated with conventional fraction radiotherapy.

As immunosuppressive cells, increased Treg cells were observed in various tumors and metastatic diseases, including those with NSCLC [11, 30-32]. Our findings are consistent with these observations and supported this role in patients at first relapse compared to newly diagnosed patients. In addition, we found that NSCLC patients with metastatic disease showed high level of Treg cells compared to local recurrence, which may suggest the relationship between increased Treg cells and tumor progression. However, we found no differences of other lymphocyte subsets between metastatic disease and local recurrence, which may be attributable to the limited number of patients. Our study showed decreased proportions of CD4+ T cells, CD4/CD8 ratio and CD19+ B cells in NSCLC patients, which is in agreement with previous studies [12, 33]. As important immune cells that prevent tumor progression, CD8+ cytotoxic T lymphocytes (CD8+CD28+ T cells) were decreased in NSCLC patients compared to healthy volunteers although it did not reach significance. CD8+CD28- T cells, exhibiting immunosuppressive role, were significantly increased in NSCLC patients, which may contribute to the increase of CD8+ T cells. Furthermore, the expression of these immune cells was confirmed in NSCLC patients at first relapse compared to patients at first diagnosis. These observations may imply the important role of adaptive immune system in cancer patients.

Younger patients, females and those with negative tumor markers presented increase of CD4+, CD8+CD28+ T cells, and CD4/CD8 ratios in the periphery, which is consistent with a previous study [34]. However, we have not observed significant correlation between these lymphocyte subsets with tumor stage, which may attribute to the limited patients number.

There are several limitations in our study. First, the sample size is small. Second, the clinical stages of patients in our study are not homogeneous. Third, different radiation doses and fractions were used. Despite these limitations, we proved that the level of Treg cells independently predicted tumor progression. Moreover, increased Treg cells were observed in NSCLC patients at first diagnosis and at first relapse compared to healthy controls.

CONCLUSIONS

In NSCLC patients undergoing radiotherapy, the level of peripheral Treg cells may serve as a useful predictor of tumor progression, indicating that adaptive immunity is highly important for NSCLC patients. Those findings suggest that radiotherapy combined with the manipulation of Treg cells may become a successful treatment for NSCLC patients.

MATERIALS AND METHODS

Patients and clinical data

Seventy histologically confirmed NSCLC patients were prospectively enrolled in the present study, consisting of 40 newly diagnosed patients and 30 patients at first relapse. The 40 newly diagnosed patients were over 18 years old and had not received treatment for cancer before enrollment. They had no immune system related diseases, no infections, transplant history, cancer of other types, and they had not received steroid treatment before enrollment. The 30 NSCLC patients at first relapse had not received anti-tumor therapy, immunotherapy and steroid therapy for at least 3 months (exclude one who received gefitinib) before enrollment. Fourteen age-matched healthy controls were enrolled. All volunteers and patients provided informed consent. This study was approved by the Ethical Committee of The Affiliated Hospital of Academy of Military Medical Sciences.

We obtained patient characteristics from electronic records. Tumor stage was evaluated by [AJCC]-7 criteria [35]. Tumor markers for NSCLC contained squamous cell carcinoma antigen (SCC), carcinoembryonic antigen (CEA) and cytokeratinfragment (CYFRA 21-1). Tumor marker was positive when either of them was positive. NLR, PLR and MLR were collected from peripheral blood routine test.

Blood samples and flow cytometry

Fresh blood samples were collected from patients prior to anti-cancer treatment and from volunteers. Ten specific monoclonal antibodies (mAbs) against CD3 (APC and PerCP), CD4 (FITC and APC), CD8 (FITC and APC), CD16 (PE), CD19 (APC), CD25 (APC), CD28 (PE), CD56 (PE), CD127 (PE), and TCR (PE) were used to differentiate lymphocyte subsets. At the beginning, we mixed 100 µl fresh blood with the above mAbs and incubated at room temperature for 15 minutes in the dark. We used FACS lysing solution (BD Biosciences, San Jose, CA, USA) to lyse red blood cells in the mix and then washed twice with phosphate buffered saline (PBS). After that, flow cytometry was used to analysis the residual white blood cells and the proportions of the lymphocyte subsets were calculated by FlowJo Version 10 data analysis software (FlowJo, Ashland, OR, USA).

Lymphocyte subpopulations were identified as follow: CD3+ T cells (CD3+CD19-), CD4+ T cells (CD3+ CD4+CD8-), CD8+ T cells (CD3+CD8+CD4-), CD8+CD28+ T cells (CD3+CD8+CD28+), CD8+CD28- T cells (CD3+CD8+CD28-), Treg (CD4+CD25+CD127low), B cells (CD3-CD19+), natural killer (NK) cells (CD3-CD16+CD56+), natural killer T (NKT) cells (CD3+CD16+CD56+), gamma delta T (γδT) cells (CD3+TCR+). Lymphocyte subsets were determined by the percentages of total lymphocytes.

Treatment and follow up

The 40 newly diagnosed NSCLC patients received radiotherapy alone or combined with targeted therapy/chemotherapy concurrently or consecutively. Radiotherapy contained SBRT with 30-50 Gy/5 fractions by Cyber Knife (Accuray, Sunnyvale, CA, USA) and conventional fraction radiotherapy with 60-66 Gy/30-33 fractions using linear accelerator. Platinum-based agents were used for first-line chemotherapy; crizotinib, erlotinib, and gefitinib were used for targeted therapy.

Follow-up was ended on October 20, 2016 or the time of death of the patient. Patients were followed up regularly every 3 months after radiotherapy. The median follow-up was 12.5 months (range: 5-22 months). PFS was the primary endpoint, which calculated from the time of initial treatment to the time of first progression defined by RECIST (Response Evaluation Criteria in Solid Tumors) 1.1 [36] criteria, loss to follow-up, or death.

Statistical analysis

Proportions of lymphocyte subpopulations were expressed with mean±standard deviation (SD). Basic characteristics between patients at first diagnosis and relapse were compared by Chi-square and Fisher exact tests. Differences of immune parameters between the two groups of lung cancer patients and the controls were evaluated by one-way analysis of variance (ANOVA) and post-hoc multiple comparisons. The Student’s t-test was used to determine relationships between lymphocyte subsets and patient characteristics. We employed the Kaplan-Meier analysis to estimate PFS and log-rank test to compare the survival of two groups. The Cox proportional hazards model was used to determine hazard ratios (HRs) and 95% confidence intervals (CIs). Considering the limited number of patients, only parameters of P < 0.025 in univariate analysis were included in multivariate analysis. We used the Statistical Package for Social Sciences, Version 20.0 (IBM Corporation, Armonk, NY, USA) to analyze the data. P value < 0.05 was considered statistically significant.

CONFLICTS OF INTEREST

The authors report no conflicts of interest in this work.

REFERENCES

1. Chen W, Zheng R, Baade PD, Zhang S, Zeng H, Bray F, Jemal A, Yu XQ, He J. Cancer statistics in China, 2015. CA Cancer J Clin. 2016; 66: 115-32. doi: 10.3322/caac.21338.

2. Devesa SS, Bray F, Vizcaino AP, Parkin DM. International lung cancer trends by histologic type: male:female differences diminishing and adenocarcinoma rates rising. Int J Cancer. 2005; 117: 294-9. doi: 10.1002/ijc.21183.

3. Jaffray DA. Image-guided radiotherapy: from current concept to future perspectives. Nat Rev Clin Oncol. 2012; 9: 688-99. doi: 10.1038/nrclinonc.2012.194.

4. Chang JY, Senan S, Paul MA, Mehran RJ, Louie AV, Balter P, Groen HJ, McRae SE, Widder J, Feng L, van den Borne BE, Munsell MF, Hurkmans C, et al. Stereotactic ablative radiotherapy versus lobectomy for operable stage I non-small-cell lung cancer: a pooled analysis of two randomised trials. Lancet Oncol. 2015; 16: 630-7. doi: 10.1016/s1470-2045(15)70168-3.

5. Timmerman RD, Herman J, Cho LC. Emergence of stereotactic body radiation therapy and its impact on current and future clinical practice. J Clin Oncol. 2014; 32: 2847-54. doi: 10.1200/jco.2014.55.4675.

6. Herrera FG, Bourhis J, Coukos G. Radiotherapy combination opportunities leveraging immunity for the next oncology practice. CA Cancer J Clin. 2016. doi: 10.3322/caac.21358.

7. Bernstein MB, Krishnan S, Hodge JW, Chang JY. Immunotherapy and stereotactic ablative radiotherapy (ISABR): a curative approach? Nat Rev Clin Oncol. 2016; 13: 516-24. doi: 10.1038/nrclinonc.2016.30.

8. Vesely MD, Kershaw MH, Schreiber RD, Smyth MJ. Natural innate and adaptive immunity to cancer. Annu Rev Immunol. 2011; 29: 235-71. doi: 10.1146/annurev-immunol-031210-101324.

9. Appay V, van Lier RA, Sallusto F, Roederer M. Phenotype and function of human T lymphocyte subsets: consensus and issues. Cytometry A. 2008; 73: 975-83. doi: 10.1002/cyto.a.20643.

10. Saavedra D, Garcia B, Lorenzo-Luaces P, Gonzalez A, Popa X, Fuentes KP, Mazorra Z, Crombet T, Neninger E, Lage A. Biomarkers related to immunosenescence: relationships with therapy and survival in lung cancer patients. Cancer Immunol Immunother. 2016; 65: 37-45. doi: 10.1007/s00262-015-1773-6.

11. Erfani N, Mehrabadi SM, Ghayumi MA, Haghshenas MR, Mojtahedi Z, Ghaderi A, Amani D. Increase of regulatory T cells in metastatic stage and CTLA-4 over expression in lymphocytes of patients with non-small cell lung cancer (NSCLC). Lung Cancer. 2012; 77: 306-11. doi: 10.1016/j.lungcan.2012.04.011.

12. Karagoz B, Bilgi O, Gumus M, Erikci AA, Sayan O, Turken O, Kandemir EG, Ozturk A, Yaylaci M. CD8+CD28- cells and CD4+CD25+ regulatory T cells in the peripheral blood of advanced stage lung cancer patients. Med Oncol. 2010; 27: 29-33. doi: 10.1007/s12032-008-9165-9.

13. Ke X, Zhang S, Xu J, Liu G, Zhang L, Xie E, Gao L, Li D, Sun R, Wang F, Pan S. Non-small-cell lung cancer-induced immunosuppression by increased human regulatory T cells via Foxp3 promoter demethylation. Cancer Immunol Immunother. 2016; 65: 587-99. doi: 10.1007/s00262-016-1825-6.

14. Schalper KA, Brown J, Carvajal-Hausdorf D, McLaughlin J, Velcheti V, Syrigos KN, Herbst RS, Rimm DL. Objective measurement and clinical significance of TILs in non-small cell lung cancer. J Natl Cancer Inst. 2015; 107. doi: 10.1093/jnci/dju435.

15. Tao H, Mimura Y, Aoe K, Kobayashi S, Yamamoto H, Matsuda E, Okabe K, Matsumoto T, Sugi K, Ueoka H. Prognostic potential of FOXP3 expression in non-small cell lung cancer cells combined with tumor-infiltrating regulatory T cells. Lung Cancer. 2012; 75: 95-101. doi: 10.1016/j.lungcan.2011.06.002.

16. Kinoshita T, Muramatsu R, Fujita T, Nagumo H, Sakurai T, Noji S, Takahata E, Yaguchi T, Tsukamoto N, Kudo-Saito C, Hayashi Y, Kamiyama I, Ohtsuka T, et al. Prognostic value of tumor-infiltrating lymphocytes differs depending on histological type and smoking habit in completely resected non-small cell lung cancer. Ann Oncol. 2016. doi: 10.1093/annonc/mdw319.

17. Zeng DQ, Yu YF, Ou QY, Li XY, Zhong RZ, Xie CM, Hu QG. Prognostic and predictive value of tumor-infiltrating lymphocytes for clinical therapeutic research in patients with non-small cell lung cancer. Oncotarget. 2016; 7: 13765-81. doi: 10.18632/oncotarget.7282.

18. Feng W, Li Y, Shen L, Cai XW, Zhu ZF, Chang JH, Xiang JQ, Zhang YW, Chen HQ, Fu XL. Prognostic value of tumor-infiltrating lymphocytes for patients with completely resected stage IIIA(N2) non-small cell lung cancer. Oncotarget. 2016; 7: 7227-40. doi: 10.18632/oncotarget.6979.

19. McCoy MJ, Nowak AK, van der Most RG, Dick IM, Lake RA. Peripheral CD8(+) T cell proliferation is prognostic for patients with advanced thoracic malignancies. Cancer Immunol Immunother. 2013; 62: 529-39. doi: 10.1007/s00262-012-1360-z.

20. Kotsakis A, Koinis F, Katsarou A, Gioulbasani M, Aggouraki D, Kentepozidis N, Georgoulias V, Vetsika EK. Prognostic value of circulating regulatory T cell subsets in untreated non-small cell lung cancer patients. Sci Rep. 2016; 6: 39247. doi: 10.1038/srep39247.

21. Josefowicz SZ, Lu LF, Rudensky AY. Regulatory T cells: mechanisms of differentiation and function. Annu Rev Immunol. 2012; 30: 531-64. doi: 10.1146/annurev.immunol.25.022106.141623.

22. Schuler PJ, Harasymczuk M, Schilling B, Saze Z, Strauss L, Lang S, Johnson JT, Whiteside TL. Effects of adjuvant chemoradiotherapy on the frequency and function of regulatory T cells in patients with head and neck cancer. Clin Cancer Res. 2013; 19: 6585-96. doi: 10.1158/1078-0432.ccr-13-0900.

23. Persa E, Balogh A, Safrany G, Lumniczky K. The effect of ionizing radiation on regulatory T cells in health and disease. Cancer Lett. 2015; 368: 252-61. doi: 10.1016/j.canlet.2015.03.003.

24. Cannon NA, Meyer J, Iyengar P, Ahn C, Westover KD, Choy H, Timmerman R. Neutrophil-lymphocyte and platelet-lymphocyte ratios as prognostic factors after stereotactic radiation therapy for early-stage non-small-cell lung cancer. J Thorac Oncol. 2015; 10: 280-5. doi: 10.1097/jto.0000000000000399.

25. Shaverdian N, Veruttipong D, Wang J, Schaue D, Kupelian P, Lee P. Pretreatment Immune Parameters Predict for Overall Survival and Toxicity in Early-Stage Non-Small-Cell Lung Cancer Patients Treated With Stereotactic Body Radiation Therapy. Clin Lung Cancer. 2016; 17: 39-46. doi: 10.1016/j.cllc.2015.07.007.

26. Cummings M, Merone L, Keeble C, Burland L, Grzelinski M, Sutton K, Begum N, Thacoor A, Green B, Sarveswaran J, Hutson R, Orsi NM. Preoperative neutrophil:lymphocyte and platelet:lymphocyte ratios predict endometrial cancer survival. Br J Cancer. 2015; 113: 311-20. doi: 10.1038/bjc.2015.200.

27. Liu C, Huang Z, Wang Q, Sun B, Ding L, Meng X, Wu S. Usefulness of neutrophil-to-lymphocyte ratio and platelet-to-lymphocyte ratio in hormone-receptor-negative breast cancer. Onco Targets Ther. 2016; 9: 4653-60. doi: 10.2147/ott.s106017.

28. Lan H, Zhou L, Chi D, Zhou Q, Tang X, Zhu D, Yue J, Liu B. Preoperative platelet to lymphocyte and neutrophil to lymphocyte ratios are independent prognostic factors for patients undergoing lung cancer radical surgery: A single institutional cohort study. Oncotarget. 2016 Nov 11. doi: 10.18632/oncotarget.13312. [Epub ahead of print].

29. Horne ZD, Clump DA, Vargo JA, Shah S, Beriwal S, Burton SA, Quinn AE, Schuchert MJ, Landreneau RJ, Christie NA, Luketich JD, Heron DE. Pretreatment SUVmax predicts progression-free survival in early-stage non-small cell lung cancer treated with stereotactic body radiation therapy. Radiat Oncol. 2014; 9: 41. doi: 10.1186/1748-717x-9-41.

30. Wolf AM, Wolf D, Steurer M, Gastl G, Gunsilius E, Grubeck-Loebenstein B. Increase of regulatory T cells in the peripheral blood of cancer patients. Clin Cancer Res. 2003; 9: 606-12.

31. Kono K, Kawaida H, Takahashi A, Sugai H, Mimura K, Miyagawa N, Omata H, Fujii H. CD4(+)CD25high regulatory T cells increase with tumor stage in patients with gastric and esophageal cancers. Cancer Immunol Immunother. 2006; 55: 1064-71. doi: 10.1007/s00262-005-0092-8.

32. Wang ZK, Yang B, Liu H, Hu Y, Yang JL, Wu LL, Zhou ZH, Jiao SC. Regulatory T cells increase in breast cancer and in stage IV breast cancer. Cancer Immunol Immunother. 2012; 61: 911-6. doi: 10.1007/s00262-011-1158-4.

33. Nakamura H, Saji H, Ogata A, Hosaka M, Hagiwara M, Kawasaki N, Konaka C, Kato H. Immunologic parameters as significant prognostic factors in lung cancer. Lung Cancer. 2002; 37: 161-9.

34. Nakamura H, Kawasaki N, Hagiwara M, Saito M, Konaka C, Kato H. Cellular immunologic parameters related to age, gender, and stage in lung cancer patients. Lung Cancer. 2000; 28: 139-45.

35. Edge SB, Compton CC. The American Joint Committee on Cancer: the 7th edition of the AJCC cancer staging manual and the future of TNM. Ann Surg Oncol. 2010; 17: 1471-4. doi: 10.1245/s10434-010-0985-4.

36. Eisenhauer EA, Therasse P, Bogaerts J, Schwartz LH, Sargent D, Ford R, Dancey J, Arbuck S, Gwyther S, Mooney M, Rubinstein L, Shankar L, Dodd L, et al. New response evaluation criteria in solid tumours: revised RECIST guideline (version 1.1). Eur J Cancer. 2009; 45: 228-47. doi: 10.1016/j.ejca.2008.10.026.


Creative Commons License All site content, except where otherwise noted, is licensed under a Creative Commons Attribution 3.0 License.
PII: 15238
