CT-guided percutaneous laser ablation of metastatic lung cancer: three cases report and literature review

PDF |  HTML  |  Supplementary Files  |  How to cite

Oncotarget. 2017; 8:2187-2196. https://doi.org/10.18632/oncotarget.13901

Metrics: PDF 1887 views  |   HTML 2524 views  |   ?

Qiyu Zhao, Guo Tian, Fen Chen, Liyun Zhong and Tian’an Jiang _

Abstract

Qiyu Zhao1, Guo Tian2, Fen Chen3, Liyun Zhong1 and Tian’an Jiang1

1 Department of Ultrasonography, First Affiliated Hospital, Zhejiang University School of Medicine, Hangzhou China

2 State Key Laboratory for Diagnosis and Treatment of Infectious Diseases, Collaborative Innovation Center for Diagnosis and Treatment of Infectious Diseases, The First Affiliated Hospital, Zhejiang University School of Medicine, Hangzhou, China.

3 Department of Hepatobiliary Pancreatic Surgery, First Affiliated Hospital, Zhejiang University School of Medicine, Hangzhou, China

Correspondence to:

Tian’an Jiang, email:

Keywords: laser ablation; CT-guided; computed tomography; lung; lung cancer

Received: September 02, 2016 Accepted: November 22, 2016 Published: December 10, 2016

Abstract

Objective: To report the efficacy and safety of CT-guided percutaneous laser ablation (PLA) for metastatic lung tumors.

Methods: Three cases of metastatic lung cancer underwent CT-guided PLA, and we searched for previously published articles on the minimally invasive CT-guided RFA or MWA for lung tumors in recent five years.

Results: With the guidance of CT, all lesions had good prognosis under laser ablation. Case 1 suffering from severe pulmonary dysfunction and diffuse pulmonary bullae, had small pneumothorax. CT scan obtained four months following the ablation showed two lesions had complete responses and one partial response. Case 2 had successful complete response with absent lung mass, and also had a good postoperative condition without any discomfort in the two-month follow-up. Case 3 showed partial response and improved greatly after five months. 962 cases (mean age of 45.7 years, 62.2% male) of 1297 lung tumors with detailed information were identified from 27 articles. Of these cases, the minority manifested complications such as pneumothorax, hemoptysis, hemothorax, pneumonia, pain and fever.

Conclusions: Percutaneous CT-guided PLA could be a safe and promising minimally invasive treatment for patients with primary lung cancer or unresectable pulmonary metastases, especially multineedle PLA in large tumors, which still needs more large-scale prospective studies to convince this method in the future.


Introduction

Lung cancer is the most common cause of cancer-related death in the world. It was reported that 226,160 new patients of lung cancer was diagnosed in 2012, and it was evaluated that 160,340 deaths were related to lung cancer [1]. Smoking is the most dangerous factor for lung cancer. Environmental and occupational exposures to carcinogens also have important impacts on this disease. Meanwhile, lung is the second most common site of metastases for colon cancer after liver and traditionally, surgery is the main treatment option. However, it is more expensive and has higher complication risks such as atrial fibrillation, prolonged air leaks, myocardial infarction, recurrent nerve injury, bleeding, pneumonia, and bronchial stenosis [2, 3]. About 10% to 15% patients who had a surgical resection for colorectal cancer may develop lung metastasis [4]. In recent years, emerging studies have displayed that CT-guided RFA and MWA are feasible for patients with primary lung cancer or unresectable pulmonary metastases, in which pneumothorax, hemoptysis, pneumonia, pleural effusion may occur [5-22]. It was reported that the 3-year overall survival rate following RFA for pulmonary metastases was nearly 50% against that (60%) of patients treated with pulmonary metastasectomy [4]. However, RFA have a higher impedance in the lung than in the liver, which means poor energy was spread due to high impedance and charing, thus it is difficult to identify whether the lesions are completely ablated or not.

Additionally, percutaneous laser ablation (PLA) is minimally invasive by introducing the position of laser catheters into the lesions, followed by thermal ablation of targeted tumors through laser energy. PLA has more advantages than other ablative methods including the lower risk of bleeding, infection or injuries of adjacent organs [23], which enable PLA to be valuable for the treatment of small tumors adjacent to vital but subtle regions.

Recently, PLA has been increasingly applied in the treatment of benign and malignant diseases in the liver and thyroid through the guidance of ultrasonography (US) as well as Magnetic Resonance Imaging (MRI) [24-28]. In particular, CT-guided PLA showed a safe, minimally invasive and promising therapy in some lesions such as adrenal metastases and osteoid osteomas [23, 29]. In previous study, percutaneous CT-guided PLA of lung tumors presented complete ablation of lung metastases and lung cancers with the average energy of 46 kJ (18-102 kJ) through 9F trocar, of which pneumothorax, endothelial hemorrhage and pain were recorded [30, 31]. Here we reported three cases with lung tumors treated by PLA with fine needle and lower energy. We successfully applied CT-guided laser ablation into the lesions in the lung, and postoperative follow-up showed good results.

Case presentation

We retrospectively collected three patients who underwent CT-guided PLA for liver metastatic lung cancer from January 2016 to March 2016 at The First Affiliated Hospital, College of Medicine, Zhejiang University. We targeted these three patients who were evaluated according to the CT imaging. Surgery and chemotherapy were carried out in two patients due to sigmoid colon metastases. The study was approved by the ethics committee of The First Affiliated Hospital of Zhejiang University. These patients had written informed consent for the use of their clinical data and tissues sample for study. Case 1 was a 62-year-old man, who underwent surgical resection of the caudate lobe in March 2013, and two years later, he had TACE in our hospital. Preoperative CT image revealed three lung lesions of 15.4*10.7mm, 14.5*7.7mm and 5*5mm, respectively. This patient could not accepted surgical resection, RFA, MWA or particle implantation treatment because of severe pulmonary dysfunction and diffuse pulmonary bullae. Therefore, CT-guided PLA procedure was conducted. Case 2 was a 64-year-old man with only one nidus. He had a history of the sigmoid colon tumor resection in 2011, and gamma knife surgery of liver cancer in 2013. Computed tomography detected a 11.6*7.5mm nodule in the right lung. He also underwent a CT-guided PLA procedure within two laser fibers, each of 1800J. Case 3 was a 63-year-old woman with sigmoid colon metastatic lung cancer, who had the sigmoid colon tumor and liver metastases resection in 2014. CT revealed a 13*9 mm lesion of the right-middle lobe.

CT-guided percutaneous laser ablation

The procedures were performed under local anesthesia, in which lidocaine 2% was administered. Computed tomography (CT) was implemented to localize the nidus by 64-slice systems (Brilliance iCT and 64-channel systems). With a 21-gauge Chiba needle (Top, Tokyo, Japan), the interventional radiologist withdrew the needle core and placed the laser fiber into the needle sheath outside of the pin end within 1 cm. If the tumor is larger, we can ablate it simultaneously with at most 4 laser fibers. The nidus was ablated by a Nd:YAG laser fiber with a wavelength of 1064nm, each of which has an output power of 5W for 1800J (Echolaser X4, ESAOTE, Italy) (Figure 1A and 1B). Targeted tumour tissue would be in coagulation necrosis when the tissue temperature reached 55°C. When there was residual area left, an additional laser ablation should be conducted subsequently.

Follow-Up and Outcome Measures

The outcome of the local ablation was evaluated according to the World Health Organization (WHO) response evaluation criteria for solid tumor: 1) Complete response (CR): disappearance of all target niduses without any residual lesion for a month; 2) Partial response (PR): 50% or more reduction in target lesions, without a 25% enlargement in any one target lesion for a month; 3) Stable disease (SD): neither PR nor PD criteria fit; 4) Progressive disease (PD): 25% or more enlargement in target lesions or appearance of new lesions [32]. Patients were observed 24h after the CT-guided PLA for possible complications including fever, skin burns, and pain. Serum biochemical tests, including white blood count (WBC), alpha fetal protein (AFP) levels, carbohydrate antigen 199 (CA199) levels, and carcinoembryonic antigen (CEA) levels (reference range, (4-10) *10E9/L, (0-20) ng/mL, (0-37) U/mL, (0-5) ng/mL, respectively), were obtained before the first PLA session and 1 week after PLA session. In addition, we also conducted a systematic review by retrieving electronic databases of PubMed, Embase and Scoups using the words as following: lung, computed tomography, metastasis, neoplasm, radiofrequency ablation, microwave ablation and laser ablation in recent five years without language limitations (see Appendix 1).

Results

The basic characteristics of three cases are summarized in Table 1. These three patients were aged from 62 to 64 years. The major tumor axes ranged from 5 mm to 15.4 mm. Case 1 mentioned of cough and some dyspnea after the first interventional therapy. Chest radiograph suggested small pneumothorax requiring chest tube drainage. CT scan obtained four months following the ablation showed two lesions with complete response (Figure 2A-2E and Figure 3A-3C) and one partial response (Figure 4A-4C). The WBC, AFP, CA199, and CEA levels in the patient were all normal before and after the laser ablation (Table 1). Case 2 also had a successful complete response with absent lung mass (Figure 5A-5D). Although other blood parameters were within the reference range, the level of CEA was high in both before and after the ablation. However, the patient had a good postoperative condition without discomfort in the two-month follow-up. Case 3 showed partial response and improved greatly after five months (Figure 6A and 6B). Most of the blood biochemical parameters were normal except for CEA level.

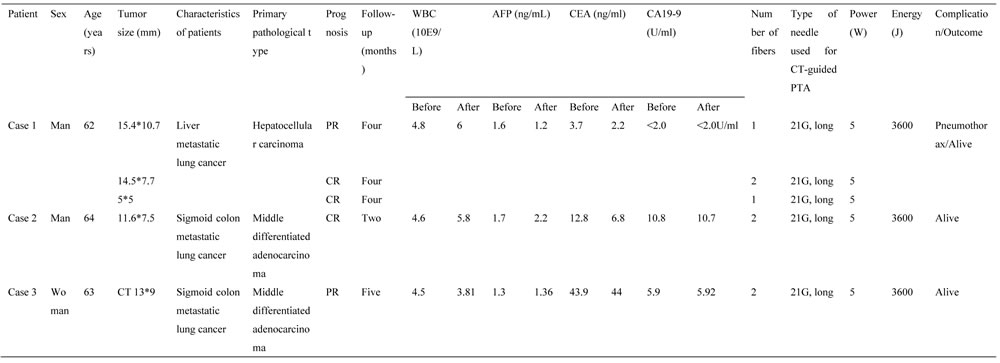

Table 1: Case and tumor characteristics

WBC: white blood count;

AFP: alpha fetal protein;

CA199: carbohydrate antigen 199;

CEA: carcino embryonie antigen;

PLA: percutaneous laser ablation;

PR: partial response;

CR: Complete response.



Mechanisms of CT-guided percutaneous laser ablation.

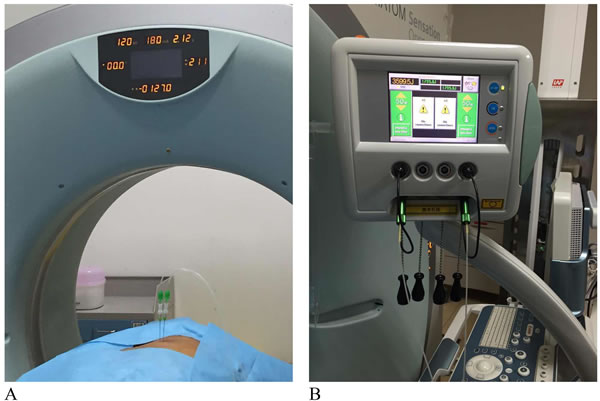

Figure 1: Mechanisms of CT-guided percutaneous laser ablation.

Representative CT images from a 62-year-old man diagnosed with lung metastasis from liver cancer.

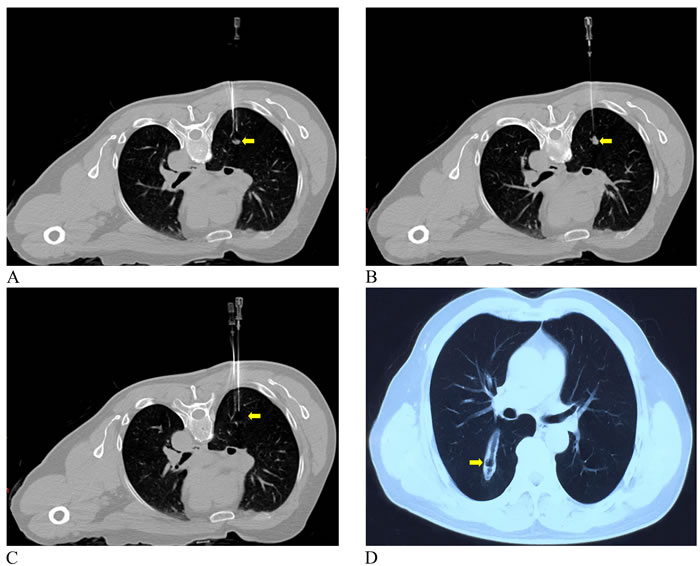

Figure 2: Representative CT images from a 62-year-old man diagnosed with lung metastasis from liver cancer. A. Preoperative unenhanced CT image before PLA shows tumor about 14.5*7.7 mm in the right lung (yellow arrow). Intraoperative CT image shows the arranging needle method of using two laser fibers parallelly ablating the tumor (B. Before ablation; C. After ablation) (yellow arrows). Postoperative CT image in axial plane indicated the increased high-density lesion that has been ablated two months later D. and reduced in four-month follow-up E. (yellow arrows).

Figure 3:

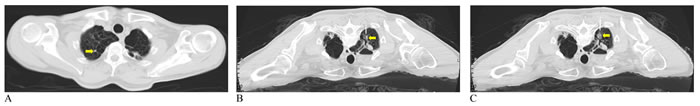

Figure 3: A. Preoperative CT image showed a mass in the upper lobe of the right lung (yellow arrow). B. A laser fiber was inserted into the location 1 cm away from the lesions (yellow arrow). C. CT image showed successfully ablated with high-density signal (yellow arrow).

Figure 4:

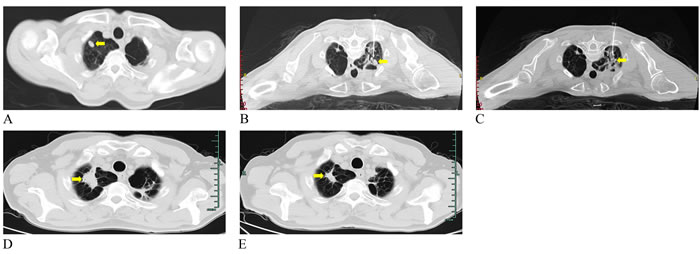

Figure 4: A. Supine CT image before PLA showed the tumor measuring 15.4*10.7 mm in diameter adjacent to the blood vessels in the right lung (yellow arrow). B. and C. CT image two and four month obtained after ablation showed the lesion not significant change (yellow arrows).

A 64-year-old man with lung metastasis from sigmoid colon cancer.

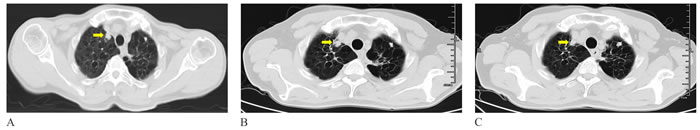

Figure 5: A 64-year-old man with lung metastasis from sigmoid colon cancer. Coronal unenhanced CT images revealed laser fibers ablating the tumor 1 cm outside the lesion (A. Before ablation; B. After ablation) (yellow arrows). C. CT image during the two-month follow-up demonstrated completed response (yellow arrow).

CT images from a 63-year-old woman with lung metastasis from sigmoid colon cancer.

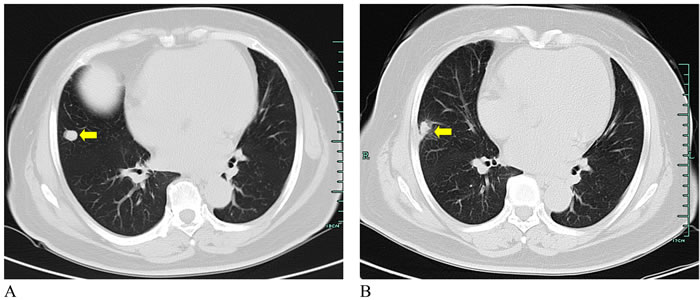

Figure 6: CT images from a 63-year-old woman with lung metastasis from sigmoid colon cancer. Coronal unenhanced CT images indicated the decreased tumor after PLA for lung metastasis (A. Before ablation; B. After ablation) (yellow arrows).

Discussion

Lung cancer is an important cause of cancer-related death in the world. Recently, emerging studies have depicted thermal ablation including RFA, MWA, PLA to be applied on the tumors. Our study mainly indicated that CT-guided PLA has significant effectiveness in the lung nidus. The therapy was optimized by using CT to evaluate the ablated area immediately after laser ablation. In addition, the procedure had only transient adverse effects without serious complications.

We reviewed 27 studies presenting a total of 962 cases with 1297 lung tumors following percutaneous CT-guided RFA, MWA and LA. The summary of 27 studies is listed in Table 2 [5-15, 17-22, 30, 31, 33-40]. The mean age of included studies was beyond 45.7 years, and 62.2% were males. The majority of the lung tumors were completely or partially ablated. The complication rate occurred in percutaneous CT-guided RFA was 12.8%-24.6% [8, 9] and in MWA was 11.9%-66.7% [5, 7]. Li et al. used CT-guided RFA percutaneously as a supplemental therapy for selected advanced non-small cell lung cancers. 31 patients had complete responses, 12 patients had partial responses, 6 patients stable disease, and no patients progressive disease [5]. However, pneumothorax occurred in 8 of 67 patients [5]. Li et al. successfully performed C-arm CT to RFA for 36 small lung lesions. During the procedure, 4 cases had pneumothorax and 3 cases developed hemoptysis [6]. In another study, 12 patients were successfully treated by RFA via a transosseous route under CT guidance. Several complications including pneumothorax, pulmonary hemorrhage, hemothorax, pneumonia, and fever also appeared [7]. There were also similar postoperative side reactions in CT-guided microwave ablation [8-10]. Previous multivariate analysis found that the prognosis in pulmonary metastatic patients treated by RFA was significantly associated with the size and the number of metastasis [41]. Compared to these thermal ablation in lung nidus, our study suggested that CT-guided PLA manifested fewer side effects and had predictable, small, and legible volumes of necrosis. These may be because PLA has thinner puncture needle, smaller thermal effect and more effective range than other thermal ablations. Laser fibers were used parallelly for larger lesions, and the combination required less energy for focal ablation and gasification. It was reported that when energy input was excessive, it might lead to malignant tumor recurrence and rapid expansion [42-44]. Therefore, in order to inactivate tumor, lower power and energy were used to produce better prognosis. Regarding the process of laser ablation in tissue, it is divided into five stages: first, tissue protein degeneration following laser-induced high temperature; second, coagulation necrosis; third, tissue liquefaction; fourth, moisture evaporation; finally, carbonizing the diseased regions. Interestingly, even if the first needle was deviating from the lesion center, we can place the second needle parallelly to ablate the whole lesions under CT guidance. Preoperative lesions showed high density imaging while it disappeared completely with low density imaging after gasification and ablation. We called this phenomenon “Lesions gasification signs”. This is different from the image of laser ablation in liver lesions.

Nevertheless, there are several limitations of CT guidance:1) Imaging plane orientation for needle position is strict. 2) A small gantry bore restricts the needle length. 3) It can not be visualised in real time [45]. In addition, the result may produce bias due to the limited sample size and period of follow-up.

In a word, this study indicated that CT-guided PLA is a minimally invasive, safe and effective method and could be promising for the treatment of lung tumors. Furthermore, especially multineedle PLA in large tumors, there are still the needs for more large-scale prospective studies to convince this in the future.

Table 2: Summary of 962 cases with 1297 pulmonary tumors after ablation in 27 published literatures

Author

Year

Country

Characteristics of patients

Treatment method

Patients (No. of tumors)

Tumor size(mm)

Male/female

Mean age (range)

Follow-up interval (months)

Prognosis

Complication

Vogl TJ et al.

2004

Germany

24 lung metastases; 6 localized lung tumors

22 percutaneous CT-guided LA; 8 percutaneous MR-guided LA

30(30)

0-30

14/16

60.2

(35-81)

36

24 CR

3 pneumothorax

Schoellnast H et al.

2011

America

1 NSCLC

Percutaneous real-time FDG PET CT-guided RFA

1(2)

18*12; 16*8

1

75

12

PR

NA

Vogl TJ et al.

2011

Germany

80 lung metastases

Percutaneous CT-guided MWA

80(130)

2.9±2.4 mL

30/50

59.7±6.4

(48-68)

6-24

Technical success rate: 73.1%;1- and 2-year OS: 91.3% and 75%

11 pneumothorax;8 hemorrhage; 6 hemoptysis; 12 pain;1 burn

Schoellnast H et al.

2012

America

26 adenocarcinoma; 9 squamous cell carcinoma; 1 large cell carcinoma; 3 NSCLC

Percutaneous CT-guided RFA

33(39)

28±15 (10-75)

21/12

75±7

19±11

(1-52)

Technical success rate: 97%;a)<3cm median OS: 24 months;1-year OS rate: 83%;median PFS: 11 months;1-year PFS rate: 50%;median TTLP: 24 months;1-year LP free rate: 65%; b)>3cm median OS: 15 months; 1-year OS rate: 56%;median PFS: 5 months;1-year PFS rate: 11%;median TTLP:8 months;1-year LP free rate: 17%

1 died;10 pneumothorax; 1 brachial plexopathy

Okuma T et al.

2012

Japan

1 NSCLC complicated with mild interstitial pneumonia

Percutaneous CT-guided RFA

1

23

1

67

11

CR

1 pneumothorax;1 pleural effusion

Lu Q et al.

2012

China

48 NSCLC; 21 pulmonary metastasis
tumor

Percutaneous CT-guided MWA

69(93)

22.3±1.7 (8-55 )

45/24

65±15

36

a)NSCLC: 1-, 2- and 3-year OS:75.0%, 54.2% and 29.2%; 1-, 2- and 3-year recurrence-free survival rates:72.9%, 50.0% and 27.1%; b)pulmonary metastatic tumor: 1-, 2- and 3-year OS:47.6%, 23.8% and 14.3%;1-, 2- and 3-year mortality rates for pulmonary metastatic tumor patients: 47.6%, 19.0% and 14.3%

13 pneumothorax;5 hemoptysis;2 hemothorax;3 pneumonia; 2 pain;2 fever

Liu H et al.

2013

Australia

5 adenocarcinoma; 6 NSCLC; 4 squamous; 1 large cell

Percutaneous CT-guided MWA

15(16)

24

11/4

73

(52-87)

12

(6-18)

9 CR; 2 PR; 5 LTP

10 pneumothorax;1 haemoptysis

Belfiore G et al.

2013

Italy

44 lung cancer, 25 lung metastases

Percutaneous CT-guided MWA

56(69)

30±9

35/21

61.5±9.13

3-36

Mean OS:27.8±2.8 months;1-, 2- and 3-year cancer-specific mortality: 69%, 54% and 49%

18 pneumothorax; 8 pain

Li X et al.

2013

China

20 squamous cell carcinoma; 26 adenocarcinoma; 3 others

Percutaneous CT-guided RFA

49(61)

29 (14-50)

40/9

Median: 60 (24-82)

19

(6-34)

31 CR; 12 PR; 6 stable status;median PFS: 16 weeks

Major complication: 8 pneumothorax; minor complications: self-limited minor pneumothorax; slight cough, fever; local pain

Gadaleta CD et al.

2013

Italy

1 squamous cell carcinoma; 2 NSCLC; 17 metastatic lung cancer

Percutaneous CT-guided RFA

17(20)

32±7

6/11

66.5

(44-81)

6

11 CR;technical success rate: 100%;LTP rate: 21% in 3-5-cm-diameter tumors and 0% in tumors of 3 cm or smaller in diameter

Major complications: 5 pneumothorax; 1 bronchopleural fistula

Yang X et al.

2014

China

28 adenocarcinoma; 13 squamous; 6 others

Percutaneous CT-guided MWA

47

24-50

30/17

69.4

(56-82)

30

Median time of the first recurrence,cancer-specific and median OS: 45.5, 47.4 and 33.8 months;after MWA 1-, 2-, 3- and 5-year OS rate: 89%, 63%, 43% and 16%;after MWA 1-, 3-, 5-year local control rate: 96%, 64% and 48%

Major complications: 5 pneumothorax;3 pleural effusion;1 bronchopleural fistula; minor complications: 15 pneumothorax;7 pleural effusion;10 hemoptysis;7 pneumonia

Li XQ et al.

2014

China

36 small lung lesions

Percutaneous C-arm CT-guided RFA

34(36)

18±7 (4-30)

20/14

56±3

(28-80)

16.5±13.1 (2-56)

6-month, 1- and 2-year OS:100.0,
69.0 and 60.0%

4pneumothorax; 3 hemoptysis

Hu X et al.

2014

China

8 primary lung cancer; 6 adenocarcinoma/bronchioloalveolar; 2 squamous-cell cancer; 10 pulmonary metastasis from HCC

Percutaneous CT-guided RFA

26(29)

20±4 (10-35)

19/7

61.3±6.7 (44-77)

13.5

(3-30)

Technique efficacy rates in primary tumors and lung metastases patients: 93% and 91.7%;2-year OS rate: 80.8%;2-year-cancer-specific survival rate: 100%;1- and 2-year-tumor-free survival: 69.2% and 26.9%

5 pneumothorax;3 hemoptysis

Nour-Eldin NE et al.

2014

Germany

6 primary lesions; 94 metastatic lesions

Percutaneous CT-guided RFA

78(100)

NA

46/32

58.9

12

80 CR;mean detectable time of tumor residue or recurrence after ablation: 6.7 months

8 pneumothorax;6 hemorrhage;4 hemoptysis

Iguchi T et al.

2015

Japan

12 lung tumors

Percutaneous CT-guided RFA

12(12)

10±3 (4-16)

6/6

66.4±8.6 (56-81)

19.5

(3.0-41.5)

6-month, 1- and 2-year technique efficacy rate: 91.7%, 81.5%, and 81.5%

3 pneumothorax;1 neuralgia;1 pulmonary
hemorrhage;1 hemothorax;1 andpneumonia;1 fever

Liu L et al.

2015

China

lung cancer

Percutaneous CT-guided RFA

30(30)

13.25±3.15 cm2

19/11

69

(52-85)

NA

CR or PR

NA

Splatt AM et al.

2015

Australia

44 NSCLC; 26 lung metastasis

Percutaneous CT-guided MWA

51(70)

24.4 (7-63)

33/18

71.2

(46-88)

48

NA

Major complications:1 died;9 pneumothoraces;4 effusion drainage;2 pulmonary haemorrhage; 2 infections;1 mechanical failure;1 chest wall burn;1 pleural seeding

Sun YH et al.

2015

China

15 primary lung cancer; 14 metastatic lung cancer

Percutaneous CT-guided MWA

29(39)

37 (15-58)

17/12

Median:

63 (39-74)

Median: 25 (3-45)

8 CR; 14 PR; 4 stable status, and 3 LTP;Mean PFS: 14.6 months; 1- and 2-year OS: 91.3% and 82.6%

5 pneumothorax; 2 pleural effusion; 15 fever

Ni X et al.

2015

China

25 NSCLC; 10 squamous cell carcinoma

Percutaneous CT-guided MWA

35(39)

30 (10-110)

25/10

59

(34-71)

17.7

(6-45)

32 CR; 7 PR;local efficacy: 87.2%; Median MWA-related PFS, MWA-related OS, PFS, and OS:5.4, 10.6, 11.8 and 17.7 months

8 pneumothorax;6 pleural effusion;2 pneumonia;1 bronchial fistula;3 hemorrhage;9 pain

Qi H et al.

2015

China

19 right lung metastases from nasopharyngeal carcinoma and 10 left lung metastases

Percutaneous CT-guided MWA

17(29)

8-42

15/2

45.7

(28-65)

14

(3-24)

6 new metastases

2 pneumothorax;4 parenchyma bleeding

Tavares E Castro A et al.

2015

Portugal

20 primary lung cancer; 8 metastatic lung cancer

Percutaneous CT-guided RFA

28(28)

30.0±13.6 (9-70 )

22/6

62±17

24

Technical success rate: 74.1%;mean OS:43 months;median PFS: 31.6 months;Disease-related mortality: 46.4

7 pneumothorax;1 pleural effusion;3 mild
bleeding;1 hemoptoic sputum;2 haemorrhages

Acksteiner C et al.

2015

Australia

11 NSCLC

Percutaneous CT-guided MWA

10(11)

19 (10-52)

6/5

79

(75-88)

12

3 CR;5 PR

2 pneumothorax;chest tube 3;1 chest wall burn;1 chest wall burn;infection 2;1 haemoptysis;5 alveolar haemorrhage;2 surgical emphysema

Cheng M et al.

2016

Australia

recurrent NSCLC

Percutaneous CT-guided RFA and MWA

12(12)

34.2±12.8

8/4

71±7

19±11

Median OS: 35 months;mean time to local progression
for <30mm and >30mm tumours: 23 months and 14 months

5 pneumothorax

Parvizi N et al.

2016

UK

13 primary lung cancer; 21 metastatic lung cancer

Percutaneous CT-guided MWA

31(34)

19 (10-52)

19/12

72.7

(48-90)

12

7 LTP

NA

Fanucchi O et al.

2016

Italy

25 right upper lobe;3 middle lobe;20 right lower lobe;23 left upper lobe;28 left lower lobe

Percutaneous CT-guided RFA

61(86)

20

38/23

74

28

1-, 3-, 5-year OS rates:94.8% , 49.0% and 44.5%;1-, 3-, 5-year PFS rates were 86.3%, 70.3% and 68.3%

9 pneumothorax;1 chest drainage;2 pleural effusion

Vogl TJ et al.

2016

Germany

231 colorectal lung metastases

a)Percutaneous CT-guided MWA;

b)percutaneous CT-guided LA;

c)percutaneous CT-guided RFA

109(231)

a)5-50;

b)10-45;

c)8-42

a)29/18;

b)14/7;

c)28/13

a)64.6±11.5

(34–86);

b)72.9±10.4

(54–94);

c)71±10

(50–90)

24

a)The median time to LTP:7.5 months;median survival:32.8 months;1-, 2-, 4-year OS rates:82.7%, 67.5% and 16.6%;1-,2-,3- and 4-year PFS rate:54.6%, 29.1%, 10.0% and 1.0%;b)the median time to LTP:10.4 months;median survival:22.1 months;1-, 2-, 4-year OS rates:95.2%, 47.6% and 23.8%;1-,2-,3- and 4-year PFS rate:96.8%, 52.7%, 24.0% and 19.1%;c)the median time to LTP:7.2 months;median survival:24.2 months;1-, 2-, 4-year OS rates:76.9%, 50.8% and 8.0%;1-,2-,3- and 4-year PFS rate:77.3%, 50.2%, 30.8% and 16.4%

a)14 pleural effusion;1 subcutaneous emphysema;5 hemorrhage;5 hemoptysis;3 pneumothorax;b)22 pleural effusion;6 subcutaneous emphysema;7 hemorrhage;5 hemoptysis;13 pneumothorax;c)37 pleural effusion;31 subcutaneous emphysema;10 hemorrhage;5 hemoptysis;37 pneumothorax

Crombé A et al.

2016

France

1 lung metastase

Percutaneous CT-guided RFA

1(3)

7-12

1

82

120

CR

1 chest drainage

NSCLC: non-small cell lung cancer;

RFA: radiofrequency ablation;

MWA: microwave ablation;

CT: computed tomography;

PR: partial response;

CR: Complete response;

NA: not available;

OS: overall survival;

PFS: progression-free survival;

TTLP: time to local progression;

LTP: local tumor progression.

Acknowledgments

This study was supported by the opening foundation of the State Key Laboratory for Diagnosis and Treatment of Infectious Diseases, Collaborative Innovation Center for Diagnosis and Treatment of Infectious Diseases, The First Affiliated Hospital of Medical College, Zhejiang University, grant NO. 2015KF06.

Conflict of interests

The authors state that there is no conflict of interests regarding the publication of this paper.

References

1. Nahleh ZA. Hormonal therapy for male breast cancer: A different approach for a different disease. Cancer treatment reviews. 2006; 32: 101-105.

2. D’Andrilli A, Maurizi G, Andreetti C, Ciccone AM, Ibrahim M, Piraino A, Mariotta S, Venuta F, Rendina EA. Sleeve Lobectomy Versus Standard Lobectomy for Lung Cancer: Functional and Oncologic Evaluation. The Annals of thoracic surgery. 2016; 101:1936-1942.

3. Pompili C, Miserocchi G. Air leak after lung resection: pathophysiology and patients’ implications. Journal of thoracic disease. 2016; 8: S46-54.

4. Kim HJ, Kye BH, Lee JI, Lee SC, Lee YS, Lee IK, Kang WK, Cho HM, Moon SW, Oh ST. Surgical resection for lung metastases from colorectal cancer. Journal of the Korean Society of Coloproctology. 2010; 26: 354-358.

5. Li X, Zhao M, Wang J, Fan W, Li W, Pan T, Wu P. Percutaneous CT-guided radiofrequency ablation as supplemental therapy after systemic chemotherapy for selected advanced non-small cell lung cancers. AJR American journal of roentgenology. 2013; 201: 1362-1367.

6. Li XQ, Zhang Y, Huang DB, Zhang J, Zhang GS, Wen ZX, Li JH, Liu HL. Value of C-arm computed tomography in radiofrequency ablation of small lung lesions. Genetics and molecular research. 2014; 13: 6027-6036.

7. Iguchi T, Hiraki T, Ishii H, Gobara H, Fujiwara H, Matsui Y, Kanazawa S. Transosseous Route for CT Fluoroscopy-Guided Radiofrequency Ablation of Lung Tumors. Journal of vascular and interventional radiology. 2015; 26: 1694-1698.

8. Lu Q, Cao W, Huang L, Wan Y, Liu T, Cheng Q, Han Y, Li X. CT-guided percutaneous microwave ablation of pulmonary malignancies: Results in 69 cases. World journal of surgical oncology. 2012; 10: 80.

9. Ni X, Han JQ, Ye X, Wei ZG. Percutaneous CT-guided microwave ablation as maintenance after first-line treatment for patients with advanced NSCLC. OncoTargets and therapy. 2015; 8: 3227-3235.

10. Sun YH, Song PY, Guo Y, Sheng LJ. Computed tomography-guided percutaneous microwave ablation therapy for lung cancer. Genetics and molecular research. 2015; 14: 4858-4864.

11. Yang X, Ye X, Zheng A, Huang G, Ni X, Wang J, Han X, Li W, Wei Z. Percutaneous microwave ablation of stage I medically inoperable non-small cell lung cancer: clinical evaluation of 47 cases. Journal of surgical oncology. 2014; 110: 758-763.

12. Splatt AM, Steinke K. Major complications of high-energy microwave ablation for percutaneous CT-guided treatment of lung malignancies: Single-centre experience after 4 years. Journal of medical imaging and radiation oncology. 2015; 59: 609-616.

13. Liu H, Steinke K. High-powered percutaneous microwave ablation of stage I medically inoperable non-small cell lung cancer: a preliminary study. Journal of medical imaging and radiation oncology. 2013; 57: 466-474.

14. Belfiore G, Ronza F, Belfiore MP, Serao N, di Ronza G, Grassi R, Rotondo A. Patients’ survival in lung malignancies treated by microwave ablation: our experience on 56 patients. European journal of radiology. 2013; 82: 177-181.

15. Liu L, Zhi X, Liu B, Zhang Y. Utilizing gemstone spectral CT imaging to evaluate the therapeutic efficacy of radiofrequency ablation in lung cancer. La Radiologia medica. 2015;121:261-267.

16. Cheng M, Fay M, Steinke K. Percutaneous CT-guided thermal ablation as salvage therapy for recurrent non-small cell lung cancer after external beam radiotherapy: A retrospective study. International journal of hyperthermia. 2016; 1-8.

17. Hu X, Zhang F, Liu XR, Wu YT, Ni YM. Efficacy and potential microRNA mechanism for computed tomography-guided percutaneous radiofrequency ablation of primary lung cancer and lung metastasis from liver cancer. Cellular physiology and biochemistry. 2014; 33: 1261-1271.

18. Nour-Eldin NE, Naguib NN, Tawfik AM, Gruber-Rouh T, Zangos S, Vogl TJ. CT volumetric assessment of pulmonary neoplasms after radiofrequency ablation: when to consider a second intervention? Journal of vascular and interventional radiology. 2014; 25: 347-354.

19. Schoellnast H, Deodhar A, Hsu M, Moskowitz C, Nehmeh SA, Thornton RH, Sofocleous CT, Alago W, Jr., Downey RJ, Azzoli CG, Rosenzweig KE, Solomon SB. Recurrent non-small cell lung cancer: evaluation of CT-guided radiofrequency ablation as salvage therapy. Acta radiologica. 2012; 53: 893-899.

20. Okuma T, Tsuji T, Sakamoto T, Tokura S, Akira M, Hamamoto S, Matsuoka T, Miki Y. A case of postoperative pyopneumothorax following CT-guided radiofrequency ablation for lung cancer with interstitial pneumonia. Acta radiologica short reports. 2012; 1.

21. Schoellnast H, Larson SM, Nehmeh SA, Carrasquillo JA, Thornton RH, Solomon SB. Radiofrequency ablation of non-small-cell carcinoma of the lung under real-time FDG PET CT guidance. Cardiovascular and interventional radiology. 2011; 34 Suppl 2: S182-185.

22. Gadaleta CD, Solbiati L, Mattioli V, Rubini G, Fazio V, Goffredo V, Vinciarelli G, Gadaleta-Caldarola G, Canniello E, Armenise F, D’Aluisio L, Gaudiano A, Ranieri G, et al. Unresectable lung malignancy: combination therapy with segmental pulmonary arterial chemoembolization with drug-eluting microspheres and radiofrequency ablation in 17 patients. Radiology. 2013; 267: 627-637.

23. Vogl TJ, Lehnert T, Eichler K, Proschek D, Floter J, Mack MG. Adrenal metastases: CT-guided and MR-thermometry-controlled laser-induced interstitial thermotherapy. European radiology. 2007; 17: 2020-2027.

24. Perala J, Klemola R, Kallio R, Li C, Vihriala I, Salmela PI, Tervonen O, Sequeiros RB. MRI-guided laser ablation of neuroendocrine tumor hepatic metastases. Acta radiologica short reports. 2014; 3: 2047981613499753.

25. Wu X, Zhou P, Ma S, Tian S, Deng J, Zhao Y. [Ultrasound-guided laser thermal ablation for treatment of small liver cancer at high-risk sites]. Nan fang yi ke da xue xue bao = Journal of Southern Medical University. 2016; 36: 120-125.

26. Mauri G, Cova L, Ierace T, Baroli A, Di Mauro E, Pacella CM, Goldberg SN, Solbiati L. Treatment of Metastatic Lymph Nodes in the Neck from Papillary Thyroid Carcinoma with Percutaneous Laser Ablation. Cardiovascular and interventional radiology. 2016; 39:1023-1030.

27. Bozkurt AK, Yilmaz MF. A prospective comparison of a new cyanoacrylate glue and laser ablation for the treatment of venous insufficiency. Phlebology / Venous Forum of the Royal Society of Medicine. 2016; 31: 106-113.

28. Rao MS, Hargreaves EL, Khan AJ, Haffty BG, Danish SF. Magnetic resonance-guided laser ablation improves local control for postradiosurgery recurrence and/or radiation necrosis. Neurosurgery. 2014; 74: 658-667; discussion 667.

29. Zouari L, Bousson V, Hamze B, Roulot E, Roqueplan F, Laredo JD. CT-guided percutaneous laser photocoagulation of osteoid osteomas of the hands and feet. European radiology. 2008; 18: 2635-2641.

30. Vogl TJ, Fieguth HG, Eichler K, Straub R, Lehnert T, Zangos S, Mack M. [Laser-induced thermotherapy of lung metastases and primary lung tumors]. Der Radiologe. 2004; 44: 693-699.

31. Vogl TJ, Eckert R, Naguib NN, Beeres M, Gruber-Rouh T, Nour-Eldin NA. Thermal Ablation of Colorectal Lung Metastases: Retrospective Comparison Among Laser-Induced Thermotherapy, Radiofrequency Ablation, and Microwave Ablation. AJR American journal of roentgenology. 2016; 1-10.

32. Lockhat Z, Werke IVD, Walt BVD. Practical guidelines in the application of response evaluation criteria for solid tumours (RECIST) in oncology imaging. South African Journal of Radiology. 2004; 8.

33. Vogl TJ, Naguib NN, Gruber-Rouh T, Koitka K, Lehnert T, Nour-Eldin NE. Microwave ablation therapy: clinical utility in treatment of pulmonary metastases. Radiology. 2011; 261: 643-651.

34. Qi H, Wan C, Li X, Zhang L, Song Z, Fan W. Computed tomography-guided percutaneous microwave ablation treatment for lung metastases from nasopharyngeal carcinoma. Indian journal of cancer. 2015; 52 Suppl 2: e91-95.

35. Tavares ECA, Freitas S, Portilha A, Alves F, Caseiro-Alves F. Efficacy and safety of percutaneous radiofrequency thermal ablation in the treatment of lung cancer lesions. Acta medica portuguesa. 2015; 28: 63-69.

36. Acksteiner C, Steinke K. Percutaneous microwave ablation for early-stage non-small cell lung cancer (NSCLC) in the elderly: a promising outlook. Journal of medical imaging and radiation oncology. 2015; 59: 82-90.

37. Cheng M, Fay M, Steinke K. Percutaneous CT-guided thermal ablation as salvage therapy for recurrent non-small cell lung cancer after external beam radiotherapy: A retrospective study. International journal of hyperthermia. 2016; 32: 316-323.

38. Parvizi N, Chung D, Little MW, Gleeson FV, Anderson EM. Does perfusion CT play a role in the evaluation of percutaneous microwave-ablated lung tumours? Clinical radiology. 2016; 71: 1137-1142.

39. Fanucchi O, Ambrogi MC, Aprile V, Cioni R, Cappelli C, Melfi F, Massimetti G, Mussi A. Long-term results of percutaneous radiofrequency ablation of pulmonary metastases: a single institution experience. Interactive cardiovascular and thoracic surgery. 2016; 23: 57-64.

40. Crombe A, Buy X, Godbert Y, Alberti N, Kind M, Bonichon F, Palussiere J. 23 Lung Metastases Treated by Radiofrequency Ablation Over 10 Years in a Single Patient: Successful Oncological Outcome of a Metastatic Cancer Without Altered Respiratory Function. Cardiovascular and interventional radiology. 2016; 39:1779-1784.

41. de Baere T. Lung tumor radiofrequency ablation: where do we stand? Cardiovascular and interventional radiology. 2011; 34: 241-251.

42. Dong S, Jian K, Kong F, Kong J, Gao J, Shan K, Wang S, Ding X, Sun W, Zheng L. Insufficient radiofrequency ablation promotes epithelial-mesenchymal transition of hepatocellular carcinoma cells through Akt and ERK signaling pathways. Journal of Translational Medicine. 2013; 11: 1-10.

43. Brunello F, Carucci P, Gaia S, Rolle E, Brunocilla PR, Castiglione A, Ciccone G, Rizzetto M. Local Tumor Progression of Hepatocellular Carcinoma After Microwave Percutaneous Ablation: A Preliminary Report. Gastroenterology Research. 2012; 5.

44. Ohno T, Kawano K, Yokoyama H, Tahara K, Sasaki A, Aramaki M, Kitano S. Microwave coagulation therapy accelerates growth of cancer in rat liver. Journal of Hepatology. 2002; 36: 774-779.

45. Mahnken AH. CT- and MR-guided interventions in radiology. Springer. 2013.


Creative Commons License All site content, except where otherwise noted, is licensed under a Creative Commons Attribution 4.0 License.
PII: 13901
