PTRF/Cavin-1 decreases prostate cancer angiogenesis and lymphangiogenesis

PDF |  HTML  |  How to cite

Oncotarget. 2013; 4:1844-1855. https://doi.org/10.18632/oncotarget.1300

Metrics: PDF 2733 views  |   HTML 3836 views  |   ?

Zeyad D Nassar, Hyeongsun Moon, Tam Duong, LiQi Neo, Michelle M Hill, Mathias Francois, Robert G Parton and Marie-Odile Parat _


Zeyad D. Nassar1, Hyeongsun Moon2, Tam Duong3, LiQi Neo1, Michelle M. Hill2, Mathias Francois3, Robert G. Parton3, Marie-Odile Parat1

1 The University of Queensland, School of Pharmacy, QLD, Australia.

2 The University of Queensland Diamantina Institute, Translational Research Institute, QLD, Australia.

3 The University of Queensland, Institute for Molecular Bioscience, QLD, Australia.


Marie-Odile Parat, email:

Keywords: PTRF, Caveolae, Angiogenesis, Lymphangiogenesis, Prostate Cancer

Received: August 19, 2013 Accepted: October 1, 2013 Published: October 4, 2013


Caveolae are specialized plasma membrane subdomains implicated in cellular functions such as migration, signalling and trafficking. Caveolin-1 and polymerase I and transcript release factor (PTRF)/cavin-1 are essential for caveola formation. Caveolin-1 is overexpressed and secreted in prostate tumors and promotes aggressiveness and angiogenesis. In contrast, a lack of PTRF expression is reported in prostate cancer, and ectopic PTRF expression in prostate cancer cells inhibits tumor growth and metastasis. We experimentally manipulated PTRF expression in three prostate cancer cell lines, namely the caveolin-1 positive cells PC3 and DU145 and the caveolin-1-negative LNCaP cells, to evaluate angiogenesis- and lymphangiogenesis-regulating functions of PTRF. We show that the conditioned medium of PTRF-expressing prostate cancer cells decreases ECs proliferation, migration and differentiation in vitro and ex vivo. This can occur independently from caveolin-1 expression and secretion or caveola formation, since the anti-angiogenic effects of PTRF were detected in caveolin-1-negative LNCaP cells. Additionally, PTRF expression in PC3 cells significantly decreased blood and lymphatic vessel densities in orthotopic tumors in mice. Our results suggest that the absence of PTRF in prostate cancer cells contributes significantly to tumour progression and metastasis by promoting the angiogenesis and lymphangiogenesis potential of the cancer cells, and this could be exploited for therapy.


Experimental and clinical data indicate that the progression of prostate cancer depends on angiogenesis and lymphangiogenesis. Prostate cancer cells express angiogenesis inducers vascular endothelial growth factor (VEGF), and interleukin-8 (IL-8) [1]. Endothelial cell (EC) proliferation is stimulated by co-culture with prostate cancer cells or exposure to their conditioned medium [2]. VEGF expression in clinical samples correlates with prostate-specific antigen (PSA) levels, Gleason score and reduced survival rate [3]. Additionally, microvessel density in prostate tumors is associated positively with Gleason score and predicts survival [4;5]. Lymph nodes are the first metastasis destination for prostate cancer cells, and poor prognosis as well as shorter disease free survival are reported in patients with lymph node metastasis [6-8]. Lymphangiogenesis promotes prostate cancer metastasis to lymph nodes. Studies report an association between expression of lymphangiogenesis activators such as VEGF-C, VEGF-D and VEGFR-3 and lymph node metastasis [9-11]. Accordingly, a positive correlation was reported between peri-tumoral lymphatic vessel density and lymph node metastasis [12].

The caveola-forming protein Cav-1 is overexpressed and secreted in prostate cancer and promotes growth, metastasis, angiogenesis, and conversion to hormone-independent status (reviewed in [13]). Caveolae are 50–100 nm flask-shaped specialized plasma membrane invaginations implicated in cellular signalling, endocytosis, lipid and cholesterol homeostasis, mechanosensing, cell migration adhesion and invasion [14;15]. In addition to membrane-inserted caveolin-1 (Cav-1), recent studies showed that caveola formation and functions require cytoplasmic proteins of the cavin family, which includes four members, named cavin-1 to -4. Cavin-1, also termed polymerase I and transcript release factor (PTRF) [16;17] and in specific tissues, cavin-2 [18] are essential for caveola formation. Cav-1 recruits PTRF (as a complex with other cavins) to the plasma membrane and both Cav-1 and PTRF are present in caveolae in close proximity [17]. The absence of PTRF leads to the loss of caveolae in vitro and in vivo [16;17;19].

Two recent studies investigated the expression of PTRF in cancer and normal human prostate epithelia. One reported that PTRF was expressed in normal prostate epithelium [20] while the other, employing a larger cohort, found no PTRF in normal epithelia [21]. Importantly, both studies reported that PTRF is not expressed in prostate cancer epithelium [21;22]. Therefore, in prostate cancer, caveolin-1 is overexpressed without PTRF. This unusual imbalance between Cav-1 and PTRF expression is exemplified in the prostate cancer cell line PC3. Ectopic expression of PTRF in endogenously Cav-1-expressing PC3 restores caveola formation [17], alters the cell proteome and secretome [23], significantly reduces cell migration and protease production [24] and reduces in vivo tumor growth and metastasis [21]. In agreement with a protective role for PTRF in prostate cancer, PTRF down regulation in DU145 cells enhances their 3-D migration [25]. Intriguingly, co-culture with or conditioned medium from the PTRF-expressing cells DU145 are unable to stimulate lymphatic endothelial cell migration and tube formation compared with the PTRF-devoid PC3 and LNCaP, suggesting that paracrine factors promoting lymphangiogenesis may be regulated by PTRF [26].

In the present study, we tested the effect of PTRF expression in 3 prostate cancer cell lines on their angiogenesis- and lymphangiogenesis-promoting phenotype using in vitro, ex vivo and in vivo assays.


Effect of PTRF expression on Cav-1 expression and secretion in PCa cells.

We manipulated the expression of PTRF in three prostate cancer cell lines, namely PC3 cells (which express abundant Cav-1 but no PTRF), LNCaP (which produce neither Cav-1 nor PTRF) [24] and DU145 (which express both Cav-1 and PTRF) [17]. The ectopic expression of PTRF in LNCaP cells and PC3, and PTRF down regulation in DU145 cells were confirmed using Western blotting of the cell lysates (figure 1). The expression of PTRF in LNCaP cells did not lead to the expression of endogenous Cav-1. However, the expression of PTRF in PC3 cells increased the amount of Cav-1 in both cell lysate and conditioned medium. Down regulation of PTRF in DU145 resulted in reduction of Cav-1 in the cell lysate as well as in the conditioned medium.

Cav-1 and PTRF expression in prostate cancer cell lines.

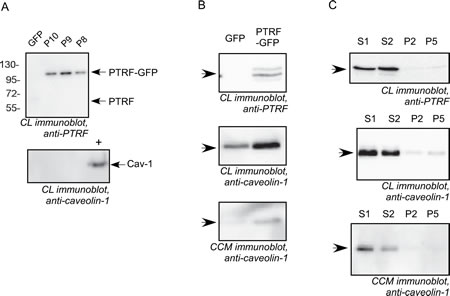

Figure 1: Cav-1 and PTRF expression in prostate cancer cell lines. Cell lysates (CL) from LNCaP, PC3 and DU145 and concentrated conditioned medium (CCM) from DU145 and PC3 cells were separated by SDS-PAGE and subjected to immunoblot analysis using anti-PTRF or anti-caveolin-1 antibodies. (A) LNCaP cells clones stably expressing GFP or PTRF-GFP (P8, P9 and P10). A Cav-1 positive control cell lysate (+) was used for the Cav-1 blot. (B) PC3 pooled cells stably expressing PTRF-GFP or GFP. (C) DU145 cell clones stably transfected with scrambled shRNA (S1 and S2 clones) or with PTRF shRNA (P2 and P5 clones).

Effect of PTRF expression in PCa on EC and LEC proliferation.

ECs are normally quiescent and divide rarely with an average turnover rate of once every three years [27]. Yet, upon angiogenic induction, the proliferation rate of ECs increases substantially [27]. The effect of PTRF expression by prostate cancer cells on their ability to elicit EC and LEC proliferation was evaluated using the MTT assay after 48h of exposure to prostate cancer cell conditioned media. While PTRF down-regulation in DU145 cells did not significantly change BAEC viability, the conditioned medium of PTRF- expressing LNCaP and PC3 cells reduced BAEC viability significantly compared to conditioned media of the control cells devoid of PTRF. There was no significant difference between LEC proliferation in conditioned media from either LNCaP or DU145 cells, but the medium of PTRF-expressing PC3 cells reduced LEC viability significantly compared to that of control PC3 cells.

Effect of PTRF expression in prostate cancer cells on endothelial cell viability.

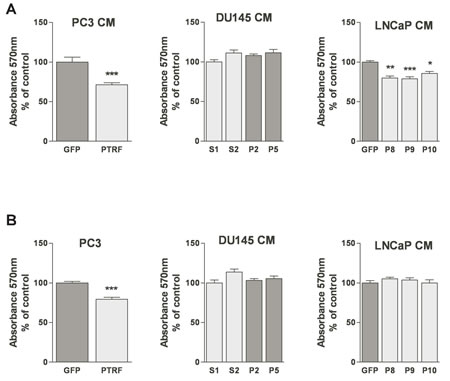

Figure 2: Effect of PTRF expression in prostate cancer cells on endothelial cell viability. (A) BAEC and (B) LEC proliferation after treatment with various prostate cancer cell-conditioned medium was tested using the MTT assay. Results are reported as percent of the viability of ECs to the control cells (n=3) *P<0.05, **P<0.01 and ***P<0.001.

PTRF expression level in prostate cancer cells modulates their production of endothelial and lymphatic chemotactic factors.

EC migration toward a growth factor concentration gradient is a crucial step in tumour angiogenesis and lymphangiogenesis. Ectopic expression of PTRF in prostate cancer cells decreased BAEC and LEC chemotaxis significantly. Their migration in the Boyden chamber assay toward the conditioned medium of PTRF-expressing LNCaP or PC3 was significantly lower than toward the conditioned medium of control cells. Accordingly, down-regulation of PTRF expression in DU145 cells enhanced BAEC and LEC transmigration towards DU145 conditioned medium significantly (figure 3).

Effect of PTRF expression in prostate cancer cells on

Figure 3: Effect of PTRF expression in prostate cancer cells on endothelial cell three-dimensional chemotaxis. (A) BAEC and (B) LEC were tested for their ability to migrate in a modified Boyden chamber assay toward various prostate cancer cell-conditioned media. Results are reported as percent of the migration to the control cells (n=3-5) *P<0.05, **P<0.01 and ***P<0.001.

Effect of PTRF expression in prostate cancer cells on blood and lymphatic endothelial cell random migration.

In order to confirm the effect of manipulating PTRF expression in prostate cancer cells on EC migration, we tested the conditioned media of prostate cancer cells expressing or devoid of PTRF on EC in the scratch wound assay. Ectopic expression of PTRF in LNCaP and PC3 cells reduced the wound closure of both BAECs and LECs when compared with control PC3 and LNCaP cells. Likewise, BAEC and LEC exposed to the conditioned medium of PTRF–down regulated DU145 cells migrated faster than those exposed to conditioned medium of PTRF-expressing cells (figure 4).

Effect of PTRF expression in prostate cancer cells on

Figure 4: Effect of PTRF expression in prostate cancer cells on endothelial cell two-dimensional chemokinesis. (A) BAEC and (B) LEC were tested for their ability to migrate randomly in the wound healing assay. Wounded EC monolayers were exposed to various prostate cancer cell-conditioned media for 6 h. Results are reported as percent of wound closure (n=3-6) *P<0.05, **P<0.01 and ***P<0.001.

PTRF expression in prostate cancer cells modulates EC and LEC tube formation.

One of the established characteristics of ECs is their ability to form capillary-like structures in vitro rapidly when plated on top of basement membrane extracellular matrix. Upon plating on extracellar matrix components, ECs elaborate dynamic cellular projections and then form tubule-like structures in a multi-step process that requires cell adhesion, migration, protease secretion and tube formation [28]. BAECs and LECs exposed to conditioned medium of PTRF-expressing PC3 or LNCaP cells produced incomplete tubules compared to those exposed to media from control cells, but ECs treated with medium of PTRF–down regulated DU145 cells exhibited a more differentiated phenotype and more branching points compared to cells exposed to medium from PTRF-expressing DU145 (figure 5).

Effect of PTRF expression in prostate cancer cells on

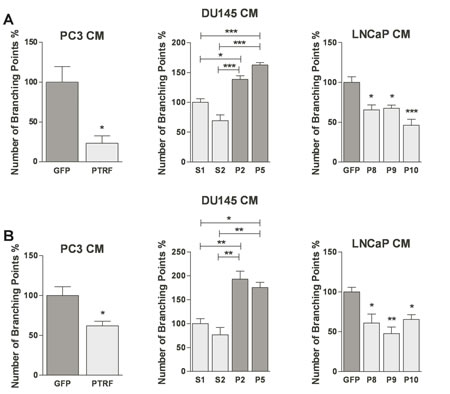

Figure 5: Effect of PTRF expression in prostate cancer cells on in vitro angiogenesis and lymphangiogenesis. (A) BAEC and (B) LEC were tested for their ability to differentiate into tube-like structures on MatrigelTM when exposed to various prostate cancer cell-conditioned media for 6 hr. Results are reported as percent of branching points compared to control cells (n=3) *P<0.05, **P<0.01 and ***P<0.001.

PTRF expression in prostate cancer cells modulates their ability to regulate ex vivo angiogenesis.

We tested the effect of conditioned media from prostate cancer cells on aortic ring explants outgrowth towards VEGF. Media from PTRF-expressing PC3 or LNCaP cells induced a significant reduction of the length of sprouting tube-like structures compared to media of control cells (figure 6). Similarly, aortic rings placed in conditioned media of PTRF-down regulated DU145 cells grew longer structures than rings exposed to conditioned media of control DU145 cells.

Effect of PTRF expression in prostate cancer cells on

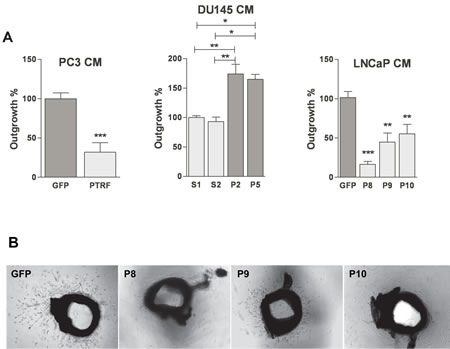

Figure 6: Effect of PTRF expression in prostate cancer cells on ex vivo angiogenesis. (A) Quantification of the growth of tube-like structures from aortic ring explants exposed for 5 days to various prostate cancer cell-conditioned media supplemented with 20 ng/mL of VEGF. Results are reported as percentage of growth distance to the control (n=4-6) *P<0.05, **P<0.01 and ***P<0.001. (B) Representative micrographs of aortic ring explants on day 5.

PTRF impairs angiogenesis and lymphangiogenesis in prostate cancer in vivo.

To confirm the antiangiogenic and antilymphangiogenic activities of PTRF in vivo, we used an orthotopic prostate cancer xenograft mouse model previously employed to show that PTRF expression in PC3 cells reduces in vivo tumor growth and metastasis [21]. Parraffin-embedded sections of 16 tumours generated from PTRF-expressing or control PC3 cells [21] were analysed by immunofluorescence using the lymphatic-specific marker podoplanin and the panendothelial cell marker endomucin (figure 7B). Quantitation of blood and lymphatic vessel density revealed that PTRF expression reduces the formation of blood and lymphatic vessels in prostate tumors by about 72% and 55%, respectively (figure 7A).

Effect of PTRF expression in PC3 prostate cancer cells on tumour angiogenesis and lymphangiogenesis

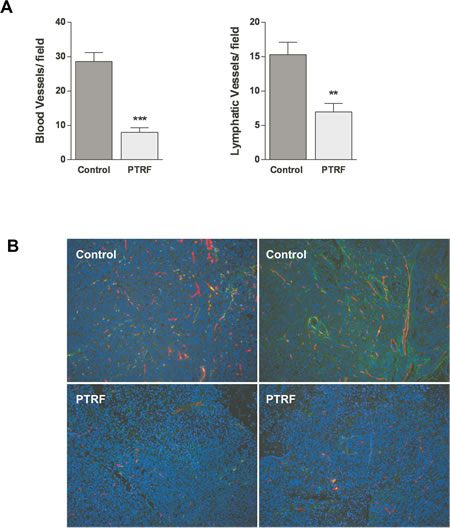

Figure 7: Effect of PTRF expression in PC3 prostate cancer cells on tumour angiogenesis and lymphangiogenesis in vivo. (A) Quantitation of blood and lymphatic vessel density in tumours in five randomly selected areas, expressed as number of vessels per field (n=8) **P<0.01 and ***P<0.001. (B) Representative immunofluorescence in sections of PC3 tumors using the lymphatic specific marker podoplanin (green) and the panendothelial cell marker endomucin (red).


The role of the caveola-forming proteins caveolin-1 and, most recently, cavin-1 in cancer has been evaluated in in vitro, preclinical and clinical studies and while multiple studies find differential expression in cancer, they differ in their conclusions, leading to the hypotheses that there may be tumour type and tumour stage differences, primary versus metastatic and cancer cell versus stromal cell specificity in expression pattern and functionality [21;29-35]. The evaluation of cancer clinical samples and cell lines has begun to unveil a potential tumour-suppressor role for PTRF, which was reported to be down-regulated in breast cancer tissues and cells [36], non-small-cell lung cancer extracts [37] and tumorigenic human bronchial epithelial cells [38]. In contrast, PTRF expression was recently documented to increase with the metastatic potential of pancreatic cancer cells [39].

We have previously demonstrated that PTRF expression in prostate cancer cells reduces their secretion of proteases, cytokines, and growth regulatory proteins [23;24], significantly reduces cell migration [24;25] and reduces in vivo tumor growth and metastasis [21]. Our current results show that expression of PTRF in prostate cancer cells further reduces their angiogenic and lymphangiogenic potential by inhibiting essential steps of these processes such as blood and lymphatic EC proliferation, migration, and tube formation. Conversely, down-regulation of PTRF in prostate cancer cells increases these activities. Thus, all reports so far concur that PTRF expression prevents prostate cancer aggressiveness. It is important to note that our experiments focus on prostate cancer but our results do not preclude a similar role for PTRF in other tumor types.

Prostate cancer is characterized by overexpression and secretion of the tumor-promoting protein caveolin-1 (reviewed in [13]). In most tissues, the expression of PTRF is proportional to that of caveolin-1 [17-19] either because in the absence of PTRF, caveolin-1 undergoes lysosomal degradation [17] or due to co-regulation at the transcriptional level [40]. However, despite elevated caveolin-1, prostate cancer cells in clinical samples lack PTRF expression [21;22]. In the absence of PTRF caveola cannot form, and ectopic expression of PTRF restores caveola formation in caveolin-1-rich PC3 prostate cancer cells [17]. Accordingly, in PTRF- down regulated DU145, caveolin-1 expression is drastically decreased and the number of caveolae reduced to ~4% of the control, scramble shRNA transfected cells (data not shown). It can therefore be proposed that PTRF modulates prostate cancer cell secretion of factors regulating angiogenesis or lymphangiogenesis, via caveola-dependent mechanisms, for example changes in cellular trafficking leading to altered secretome or prostasome composition [23]. However, our experiments were designed to test this hypothesis by expressing PTRF in both caveolin-1-positive PC3 cells (which then form caveolae [17]) and LNCaP cells that lack caveolin-1 (and thus do not form caveolae). In both cell lines the angiogenic and lymphangiogenic potential were similarly decreased by PTRF expression, thereby ruling out the involvement of caveolae per se in the observed effects.

The ability of PTRF to modulate prostate cancer angiogenesis and lymphangiogenesis results from altered paracrine factors from the prostate cancer cells that act on the blood or lymphatic endothelial cells. We have previously shown that PTRF expression reduces MMP9 production by PC3 cells independently of caveola formation [24]. We have also documented that PTRF reduces prostasome secretion [23] and IL6 production in vitro and in vivo [21;23]. These could all explain the changes in angiogenesis that we detected. Alternatively, an attractive secreted protein that could mediate the effect of PTRF on angiogenesis is caveolin-1, which is increased in the serum of prostate cancer patients [41], has been shown to exert paracrine proangiogenic effects [42], and can be antagonized by caveolin-1 antibody [43;44].

A hypothesis put forward to explain the role of PTRF in prostate cancer has been the potential for PTRF to trap caveolin-1 in caveolae and thereby reduce its secretion [23]. We assessed the consequences of modulating PTRF expression on the levels of cellular and secreted caveolin-1. In PC3, expression of PTRF increases caveolin-1 in cell lysates, presumably via stabilisation [17] but in LNCaP the expression of PTRF did not lead to endogenous caveolin-1 expression. In both DU145 and PC3 cells, we show that the absolute amount of caveolin-1 secreted increases, rather than decreases, with PTRF expression. While this does not preclude the possibility that the ratio of secreted caveolin-1 to cellular caveolin-1 is reduced when PTRF allows caveola formation, in our experiments the protection afforded by PTRF in terms of angiogenesis and lymphangiogenesis cannot be attributed to the amount of caveolin-1 that the prostate cancer cells secrete.

Taken together, the results obtained from three prostate cancer cell lines with a variety of in vitro, ex vivo and in vivo angiogenesis and lymphangiogenesis models show that PTRF expression can reduce prostate cancer new vessel formation, in a fashion that does not require caveola formation. To date, it is still unclear whether PTRF expression is down regulated in prostate epithelia when cancer progresses [22] or whether PTRF is not expressed in either normal or malignant prostate epithelia [21]. In light of the other previously demonstrated protective effects of PTRF in prostate cancer, and of its reduced expression in the stroma of prostate tumours [21], PTRF expression might provide a new way to target prostate cancer.



DMEM, DMEM/F12, RPMI 1640, penicillin/streptomycin, G418, trypsin, foetal bovine serum (FBS), glutamine and sodium pyruvate were purchased from Invitrogen (Life Technologies, Mulgrave, VIC, Australia). Non-essential amino acids (NEAA) were from Lonza (Mount Waverley, VIC, Australia). Aprotinin, leupeptin, IGEPAL, Hematoxylin, 3-(4,5-dimethylthiazol-2-yl)−2,5-diphenyltetrazolium bromide (MTT), collagen from rat tail, DAPI and dimethyl sulfoxide (DMSO) were obtained from Sigma-Aldrich (Castle Hill, NSW, Australia). Matrigel™ (Basement membrane matrix) and reduced growth factor Matrigel™ (RGF Matrigel) were from BD Biosciences (North Ryde, NSW, Australia). Human vascular endothelial growth factor (VEGF) was obtained from R&D Systems (Waterloo, NSW, Australia). Permount mounting medium and PVDF membranes were supplied by Fisher Scientific (Scoresby, VIC, Australia). Rabbit polyclonal anti-caveolin-1 was from BD Biosciences (North Ryde, NSW, Australia) and anti-PTRF from ProteinTech (Dural, NSW, Australia). Syrian hamster anti-podoplanin was from Bioclone Aust (South Yarra, VIC, Australia) and rat monoclonal anti-Endomucin from (Santa Cruz Biotechnology Inc).

Cells and culture conditions.

Human prostate adenocarcinoma cells derived from lymph node metastasis (LNCaP), brain metastasis (DU145) and bone metastasis (PC3) were transfected as follows. Pooled PC3 cells stably expressing GFP-tagged PTRF or control cells stably expressing GFP alone were previously described [24]. LNCaP clones expressing GFP-tagged PTRF (LNCaP-P8, -P9 and P10), or control cells expressing GFP alone (LNCaP-GFP) were generated by transfection using transpass D2 reagent (New England Biolabs, Arundel, QLD, Australia) and G418 selection. DU145 with reduced PTRF expression were established by stably transfecting cells with shRNA to PTRF or control shRNA as described previously [17] and selecting with G418. Two clones each of PTRF down-regulated cells (DU145-P2 and DU145-P5) and control cells (DU145-S1 and DU145-S2) have been previously described [25].

DU145 and LNCaP cells were propagated in RPMI-1640 medium supplemented with 10% (v/v) FBS, 100 i.u./ml penicillin, 100 μg/ml streptomycin and 375 μg/ml G418. PC3 cells were maintained in RPMI-1640 medium supplemented with 5% (v/v) FBS, 100 i.u./ml penicillin, 100 μg/ml streptomycin and 375 μg/ml G418. Bovine aortic endothelial cells (BAECs) were maintained in DMEM/F12 medium supplemented with 5% FBS, 100 i.u./ml penicillin and 100 μg/ml streptomycin. Lymphatic endothelial cells (LECs) isolated from mice expressing temperature-sensitive SV40 large T (H-2Kb-tsA58) [45] were maintained in DMEM medium supplemented with 10% FBS, 100 i.u./ml penicillin, 100 μg/ml streptomycin, 1% non-essential amino-acids, 1% sodium pyruvate and 1% glutamine. LECs were cultured in 8% CO2 in a humidified atmosphere at 33°C. Other cell lines were cultured in 5% CO2 in a humidified atmosphere at 37°C.

Conditioned medium preparation.

Cells were grown in a 10 cm dish to 70 % confluence, washed twice with PBS and then incubated with 6 ml of serum-free medium for 48 h. The cell-conditioned medium was collected, centrifuged at 400 x g for 5 minutes to remove cells and debris, and the supernatant stored at -20 °C.


Prostate cancer cells were washed twice with PBS and lysed for 20 min at 4 °C in 50 mM Tris, pH 8, 100 mM NaCl, 0.5% sodium deoxycholate, 1% (v/v) IGEPAL, 80 nM aprotinin and 2 μM leupeptin. The lysate was centrifuged at 9,000 × g for 20 min at 4 °C. Conditioned media from PC3 cells and DU145 cells were concentrated using ultrafiltration devices with a 3 kDa MW cut-off (Amicon Ultra Centrifugal Filters, Millipore Corporation, Kilsyth, VIC, Australia). Equal amounts of protein were separated by SDS-PAGE and transferred to PVDF membranes. Non-specific binding sites were blocked using 3% (w/v) BSA or 5% (w/v) of non-fat dry milk in PBS. The target proteins were probed with the appropriate primary antibodies and donkey anti-rabbit horseradish peroxidase-conjugated secondary antibody, (GE Healthcare, Sydney, NSW, Australia) via chemiluminescence with a VersaDocTM 4000 imaging system (Bio-Rad Laboratories Inc., Gladesville, NSW, Australia).

Cell proliferation assay.

The effect of prostate cancer cell conditioned media on BAEC and LEC proliferation was evaluated using the 3-(4,5-dimethyl-2-thiazoyl)-2,5-diphenyl-2H-tetrazolium bromide (MTT) assay as described previously [46]. Briefly, BAECs or LECs were seeded at 10×103 per well in 100μL of DMEM/F12 (5% serum) and DMEM (10% serum), respectively. Cells were incubated 18h to allow attachment. Cells were then washed twice with PBS and treated with prostate cancer cell-conditioned medium for 48 h. Each sample was tested in triplicate. 100 μL of MTT solution (0.5mg/mL in 5% serum medium) were added and incubated for an additional 3h. Subsequently, the medium was aspirated, and 100μL dimethyl sulfoxide (DMSO) were added. After incubation for 5 min, the absorbance at 590 nm was measured. The results are presented as percent of the viability of control cells ± SEM.

Transmigration Assay.

The 3-D transmigration assay was conducted using 48-well Boyden chambers. Briefly, polycarbonate membranes (8-μm pores) were coated with rat tail collagen type 1 (100 μg/ml in 0.2N acetic acid) and used to separate the lower chambers containing the prostate cancer cell conditioned medium from the upper chambers where the BAECs or LECs (30 x 103/ ml) were placed within serum-free medium. The chambers were incubated for 4 h. The cells remaining on the upper face of the membrane were scraped. The membranes were then fixed, stained with hematoxylin overnight, and mounted using permount mounting medium. The migrated cells were counted microscopically [47]. Results were reported as percent of the migration to the control cells ± SEM.

Wound Healing Assay.

BAECs or LECs were plated in 24 well plates until the formation of a confluent monolayer, after which a wound was created with a micropipette tip. The cells were then exposed to prostate cancer cell conditioned medium. The wounds were photographed promptly after wound creation, and after 6 h. The width of the cell-free wound was measured using ImageJ software (National Institutes of Health, Bethesda, MD). The results were expressed as a mean percentage of wound closure ± SEM. The percentage of wound closure was calculated according to the equation: % wound closure = ((D0-D6) / D0)) * 100 Where D0 is the wound width at 0h and D6 is the wound width at 6h. Using the MTT assay, we controlled that at 6h there was no influence of the conditioned media on cell viability, thereby ensuring that the wound closure was due to migration rather than proliferation.

Tube Formation Assay.

Fifty microliters of Matrigel™ matrix were transferred into each well of a 96-well plate and allowed to polymerize for 45 min at 37°C. BAECs or LECs were trypsinized and seeded in 100 μl of prostate cancer cell conditioned medium at 5,000 cell/cm2. After 6 h, tubular structures were imaged and the number of branching points was quantified. The number of branching points is presented as a percent of control cells ± SEM.

Ex vivo mouse aortic ring assay.

The mouse aortic ring assay was conducted as described previously [48]. The procedure was approved by the Animal Ethics Committee of the University of Queensland. Aortas were excised from C57BL/6 mice; the surrounding tissues were cleaned out. The aortas were sliced into approximately 1 mm-thick rings. The rings were embedded in 10 μL of LGF MatrigelTM in P35 dishes. After Matrigel polymerization, 800 μl of conditioned medium containing VEGF 20 ng/mL were added to the dishes. After 5 days, the length of blood vessels outgrowing from the primary ring explants was measured using ImageJ software (National Institutes of Health, Bethesda, MD) [49]. The growth distance of at least twenty tube-like structures per ring selected at regular intervals around the rings was measured. Growth distances were reported as the percentage of the growth distance of each cell line’s respective control ± SEM.

Immunohistochemical staining for endomucin and podoplanin.

Experiments were approved by the University of Queensland Animal Ethics Committee. Orthotopic prostate tumour xenografts were generated in 7-week-old male NOD.CB17-Prkdcscid mice by injecting control PC3 or PTRF-expressing PC3 (5 x 105 in 20 μl PBS) [21]. After 6 weeks, prostate tumours were collected, and tissues were fixed in 10% buffered formalin. The paraffin-embedded tissues were sectioned (3 μm), deparaffinised in xylene and rehydrated with descending concentrations of ethanol. For antigen retrieval, slides were heated in Antigen Unmasking Solution-Low pH (Vector laboratories, East Brisbane, QLD, Australia). After cooling and washing in PBS, slides were incubated with blocking solution [100 mmol/L maleic acid pH 7.4, 10% horse serum in PBS containing 0.1% Triton X-100 (PBSTx)] at room temperature for 1 h. Individual tissue sections were then treated with primary antibody against podoplanin (1:500 v/v in PBSTx) and endomucin (1:200 v/v in PBSTx) at 4°C for 18h. Slides were incubated with the secondary antibodies (1:200 v/v in PBSTx) for 1 h at room temperature. Nuclei were visualized using DAPI. The quantification of the lymphatic vessel and blood vessel densities was performed as described previously [50]. In brief, 5 random fields for each slide were photographed at 10X magnification, micrographs were coded using LVAP plug-in (Image J software) and overlaid with a 1 inch2 grid. The number of lymphatic vessels (double stained with endomucin and podoplanin) and blood vessels (stained with endomucin) per square was counted and averaged for an entire slide (n=8).

Statistical analysis.

All values are shown as mean ± SEM. Comparisons among groups were done via student t-test or one way analysis of variance (ANOVA) with appropriate post-test. P < 0.05 was considered significant.


RGP is supported by the National Health and Medical Research Council of Australia NHMRC (511055, 569542). MF is supported by NHMRC Career Development Fellowship and Cancer Council Queensland grant (#1008392). MH is supported by Australian Research Council Future Fellowship (FT120100251) and the Association for International Cancer Research. We acknowledge the technical help of Cho Saunda Aung. The authors acknowledge the facilities, and the scientific and technical assistance, of the Australian Microscopy & Microanalysis Research Facility (AMMRF) at the Centre for Microscopy and Microanalysis, the University of Queensland.


1. Ferrer FA, Miller LJ, Andrawis RI, Kurtzman SH, Albertsen PC, Laudone VP, Kreutzer DL. Angiogenesis and prostate cancer: in vivo and in vitro expression of angiogenesis factors by prostate cancer cells. Urology 1998; 51:161-7.

2. Hepburn PJ, Griffiths K, Harper ME. Angiogenic factors expressed by human prostatic cell lines: effect on endothelial cell growth in vitro. Prostate 1997; 33:123-32.

3. West AF, O’Donnell M, Charlton RG, Neal DE, Leung HY. Correlation of vascular endothelial growth factor expression with fibroblast growth factor-8 expression and clinico-pathologic parameters in human prostate cancer. Br J Cancer 2001; 85:576-83.

4. Bono AV, Celato N, Cova V, Salvadore M, Chinetti S, Novario R. Microvessel density in prostate carcinoma. Prostate Cancer Prostatic Dis 2002; 5:123-7.

5. Borre M, Offersen BV, Nerstrom B, Overgaard J. Microvessel density predicts survival in prostate cancer patients subjected to watchful waiting. Br J Cancer 1998; 78:940-4.

6. Stone NN, Stock RG. Laparoscopic pelvic lymph node dissection in the staging of prostate cancer. Mt Sinai J Med 1999; 66:26-30.

7. Cai T, Nesi G, Tinacci G, Giubilei G, Gavazzi A, Mondaini N, Zini E, Bartoletti R. Clinical importance of lymph node density in predicting outcome of prostate cancer patients. J Surg Res 2011; 167:267-72.

8. Briganti A, Karnes JR, Da Pozzo LF, Cozzarini C, Gallina A, Suardi N, Bianchi M, Freschi M, Doglioni C, Fazio F, Rigatti P, Montorsi F, Blute ML. Two positive nodes represent a significant cut-off value for cancer specific survival in patients with node positive prostate cancer. A new proposal based on a two-institution experience on 703 consecutive N+ patients treated with radical prostatectomy, extended pelvic lymph node dissection and adjuvant therapy. Eur Urol 2009; 55:261-70.

9. Tsurusaki T, Kanda S, Sakai H, Kanetake H, Saito Y, Alitalo K, Koji T. Vascular endothelial growth factor-C expression in human prostatic carcinoma and its relationship to lymph node metastasis. Br J Cancer 1999; 80:309-13.

10. Jennbacken K, Vallbo C, Wang W, Damber JE. Expression of vascular endothelial growth factor C (VEGF-C) and VEGF receptor-3 in human prostate cancer is associated with regional lymph node metastasis. Prostate 2005; 65:110-6.

11. Zeng Y, Opeskin K, Baldwin ME, Horvath LG, Achen MG, Stacker SA, Sutherland RL, Williams ED. Expression of vascular endothelial growth factor receptor-3 by lymphatic endothelial cells is associated with lymph node metastasis in prostate cancer. Clin Cancer Res 2004; 10:5137-44.

12. Zeng Y, Opeskin K, Horvath LG, Sutherland RL, Williams ED. Lymphatic vessel density and lymph node metastasis in prostate cancer. Prostate 2005; 65:222-30.

13. Nassar ZD, Hill MM, Parton RG, Parat MO. Caveola-forming proteins caveolin-1 and PTRF in prostate cancer. Nat Rev Urol 2013; 10:529-36.

14. Parat MO. The biology of caveolae: achievements and perspectives. Int Rev Cell Mol Biol 2009; 273:117-62.

15. Yamaguchi H, Oikawa T. Membrane lipids in invadopodia and podosomes: key structures for cancer invasion and metastasis. Oncotarget 2010; 1:320-8.

16. Liu L, Pilch PF. A critical role of cavin (PTRF) in caveolae formation and organization. Journal of Biological Chemistry 2008; 283:4314-22.

17. Hill MM, Bastiani M, Luetterforst R, Kirkham M, Kirkham A, Nixon SJ, Walser P, Abankwa D, Oorschot VMJ, Martin S, Hancock JF, Parton RG. PTRF-Cavin, a conserved cytoplasmic protein required for caveola formation and function. Cell 2008; 132:113-24.

18. Hansen CG, Shvets E, Howard G, Riento K, Nichols BJ. Deletion of cavin genes reveals tissue-specific mechanisms for morphogenesis of endothelial caveolae. Nat Commun 2013; 4:1831.

19. Liu L, Brown D, McKee M, Lebrasseur NK, Yang D, Albrecht KH, Ravid K, Pilch PF. Deletion of Cavin/PTRF causes global loss of caveolae, dyslipidemia, and glucose intolerance. Cell Metab 2008; 8:310-7.

20. Kim I, Moon SO, Kim SH, Kim HJ, Koh YS, Koh GY. Vascular endothelial growth factor expression of intercellular adhesion molecule 1 (ICAM-1), vascular cell adhesion molecule 1 (VCAM-1), and E-selectin through nuclear factor-kappa B activation in endothelial cells. J Biol Chem 2001; 276:7614-20.

21. Moon H, Lee CS, Inder KL, Sharma S, Choi E, Black DM, Lê Cao KA, Winterford C, Coward JI, Ling MT; the Australian Prostate Cancer BioResource, Craik DJ, Parton RG, Russell PJ, Hill MM. PTRF/cavin-1 neutralizes non-caveolar caveolin-1 microdomains in prostate cancer. Oncogene . 2013. In Press. doi: 10.1038/onc.2013.315

22. Gould ML, Williams G, Nicholson HD. Changes in caveolae, caveolin, and polymerase 1 and transcript release factor (PTRF) expression in prostate cancer progression. Prostate 2010; 70:1609-21.

23. Inder KL, Zheng YZ, Davis MJ, Moon H, Loo D, Nguyen H, Clements JA, Parton RG, Foster LJ, Hill MM. Expression of PTRF in PC-3 cells modulates cholesterol dynamics and the actin cytoskeleton impacting secretion pathways. Molecular & Cellular Proteomics 2011.

24. Aung CS, Hill MM, Bastiani M, Parton RG, Parat MO. PTRF-cavin-1 expression decreases the migration of PC3 prostate cancer cells: Role of matrix metalloprotease 9. Eur J Cell Biol 2010; 90:136-42.

25. Hill MM, Daud NH, Aung CS, Loo D, Martin S, Murphy S, Black DM, Barry R, Simpson F, Liu L, Pilch PF, Hancock JF, Parat MO, Parton RG. Co-regulation of cell polarization and migration by caveolar proteins PTRF/Cavin-1 and caveolin-1. PLoS ONE 2012; 7:e43041.

26. Zeng Y, Opeskin K, Goad J, Williams ED. Tumor-induced activation of lymphatic endothelial cells via vascular endothelial growth factor receptor-2 is critical for prostate cancer lymphatic metastasis. Cancer Res 2006; 66:9566-75.

27. Arnaoutova I, George J, Kleinman HK, Benton G. The endothelial cell tube formation assay on basement membrane turns 20: state of the science and the art. Angiogenesis 2009; 12:267-74.

28. Delvos U, Gajdusek C, Sage H, Harker LA, Schwartz SM. Interactions of vascular wall cells with collagen gels. Lab Invest 1982; 46:61-72.

29. Wu KN, Queenan M, Brody JR, Potoczek M, Sotgia F, Lisanti MP, Witkiewicz AK. Loss of stromal caveolin-1 expression in malignant melanoma metastases predicts poor survival. Cell Cycle 2011; 10:4250-5.

30. Witkiewicz AK, Kline J, Queenan M, Brody JR, Tsirigos A, Bilal E, Pavlides S, Ertel A, Sotgia F, Lisanti MP. Molecular profiling of a lethal tumor microenvironment, as defined by stromal caveolin-1 status in breast cancers. Cell Cycle 2011; 10:1794-809.

31. Martinez-Outschoorn UE, Whitaker-Menezes D, Lin Z, Flomenberg N, Howell A, Pestell RG, Lisanti MP, Sotgia F. Cytokine production and inflammation drive autophagy in the tumor microenvironment: role of stromal caveolin-1 as a key regulator. Cell Cycle 2011; 10:1784-93.

32. Salem AF, Bonuccelli G, Bevilacqua G, Arafat H, Pestell RG, Sotgia F, Lisanti MP. Caveolin-1 promotes pancreatic cancer cell differentiation and restores membranous E-cadherin via suppression of the epithelial-mesenchymal transition. Cell Cycle 2011; 10:3692-700.

33. Sainz-Jaspeado M, Martin-Liberal J, Lagares-Tena L, Mateo-Lozano S, Garcia DM, X, Tirado OM. Caveolin-1 in sarcomas: friend or foe? Oncotarget 2011; 2:305-12.

34. Furuta S, Ghajar CM, Bissel MJ. Caveolin-1: would-be Achilles’ heel of tumor microenvironment? Cell Cycle 2011; 10:3431.

35. Sloan EK, Ciocca DR, Pouliot N, Natoli A, Restall C, Henderson MA, Fanelli MA, Cuello-Carrion FD, Gago FE, Anderson RL. Stromal cell expression of caveolin-1 predicts outcome in breast cancer. Am J Pathol 2009; 174:2035-43.

36. Bai L, Deng X, Li Q, Wang M, An W, A D, Gao Z, Xie Y, Dai Y, Cong YS. Down-regulation of the cavin family proteins in breast cancer. J Cell Biochem 2012; 113:322-8.

37. Gamez-Pozo A, Sanchez-Navarro I, Calvo E, gullo-Ortuno MT, Lopez-Vacas R, Diaz E, Camafeita E, Nistal M, Madero R, Espinosa E, Lopez JA, Fresno Vara JA. PTRF/cavin-1 and MIF proteins are identified as non-small cell lung cancer biomarkers by label-free proteomics. PLoS ONE 2012; 7:e33752.

38. Shen J, Behrens C, Wistuba II, Feng L, Lee JJ, Hong WK, Lotan R. Identification and validation of differences in protein levels in normal, premalignant, and malignant lung cells and tissues using high-throughput western array and immunohistochemistry. Cancer Res 2006; 66:11194-206.

39. Liu L, Xu HX, Wang WQ, Wu CT, Chen T, Qin Y, Liu C, Xu J, Long J, Zhang B, Xu YF, Ni QX, Li M, Yu XJ. Cavin-1 is essential for the tumor-promoting effect of caveolin-1 and enhances its prognostic potency in pancreatic cancer. Oncogene 2013.

40. Joshi B, Bastiani M, Strugnell SS, Boscher C, Parton RG, Nabi IR. Phosphocaveolin-1 is a mechanotransducer that induces caveola biogenesis via Egr1 transcriptional regulation. J Cell Biol 2012; 199:425-35.

41. Tahir SA, Frolov A, Hayes TG, Mims MP, Miles BJ, Lerner SP, Wheeler TM, Ayala G, Thompson TC, Kadmon D. Preoperative serum caveolin-1 as a prognostic marker for recurrence in a radical prostatectomy cohort. Clin Cancer Res 2006; 12:4872-5.

42. Tahir SA, Yang G, Goltsov AA, Watanabe M, Tabata K, Addai J, Fattah el MA, Kadmon D, Thompson TC. Tumor cell-secreted caveolin-1 has proangiogenic activities in prostate cancer. Cancer Res 2008; 68:731-9.

43. Tahir SA, Yang G, Ebara S, Timme TL, Satoh T, Li L, Goltsov A, Ittmann M, Morrisett JD, Thompson TC. Secreted caveolin-1 stimulates cell survival/clonal growth and contributes to metastasis in androgen-insensitive prostate cancer. Cancer Res 2001; 61:3882-5.

44. Watanabe M, Yang G, Cao G, Tahir SA, Naruishi K, Tabata K, Fattah EA, Rajagopalan K, Timme TL, Park S, Kurosaka S, Edamura K, Tanimoto R, Demayo FJ, Goltsov AA, Thompson TC. Functional analysis of secreted caveolin-1 in mouse models of prostate cancer progression. Mol Cancer Res 2009; 7:1446-55.

45. Rebhun RB, Langley RR, Yokoi K, Fan D, Gershenwald JE, Fidler IJ. Targeting receptor tyrosine kinase on lymphatic endothelial cells for the therapy of colon cancer lymph node metastasis. Neoplasia 2006; 8:747-57.

46. Daud NH, Aung CS, Hewavitharana AK, Wilkinson AS, Pierson JT, Roberts-Thomson SJ, Shaw PN, Monteith GR, Gidley MJ, Parat MO. Mango extracts and the mango component mangiferin promote endothelial cell migration. J Agric Food Chem 2010; 58:5181-6.

47. Santilman V, Baran J, Anand-Apte B, Evans RM, Parat MO. Caveolin-1 polarization in transmigrating endothelial cells requires binding to intermediate filaments. Angiogenesis 2007; 10:297-305.

48. Morais C, Ebrahem Q, Anand-Apte B, Parat MO. Altered angiogenesis in caveolin-1 gene-deficient mice is restored by ablation of endothelial nitric oxide synthase. Am J Pathol 2012; 180:1702-14.

49. Shayan R, Karnezis T, Tsantikos E, Williams SP, Runting AS, Ashton MW, Achen MG, Hibbs ML, Stacker SA. A system for quantifying the patterning of the lymphatic vasculature. Growth Factors 2007; 25:417-25.

50. Foreman KE, Tang J. Molecular mechanisms of replicative senescence in endothelial cells. Exp Gerontol 2003; 38:1251-7.
