IKKα regulates the stratification and differentiation of the epidermis: implications for skin cancer development

PDF |  HTML  |  Supplementary Files  |  How to cite

Oncotarget. 2016; 7:76779-76792. https://doi.org/10.18632/oncotarget.12527

Metrics: PDF 1727 views  |   HTML 3004 views  |   ?

Josefa P. Alameda, Manuel Navarro, Ángel Ramírez, Angustias Page, Cristian Suárez-Cabrera, Rodolfo Moreno-Maldonado, Jesús M. Paramio, María del Carmen Fariña, Marcela Del Río, María Jesús Fernández-Aceñero, Ana Bravo and María de los Llanos Casanova _


Josefa P. Alameda1,2, Manuel Navarro1,2, Ángel Ramírez1,2, Angustias Page1,2, Cristian Suárez-Cabrera1,2, Rodolfo Moreno-Maldonado3, Jesús M. Paramio1,2, María del Carmen Fariña4, Marcela Del Río5,6,7, María Jesús Fernández-Aceñero8, Ana Bravo9, María de los Llanos Casanova1,2

1Molecular Oncology Unit, Centro de Investigaciones Energéticas, Medioambientales y Tecnológicas (CIEMAT), Madrid, Spain

2Molecular Oncology, Institute of Biomedical Investigation University Hospital “12 de Octubre”, Madrid, Spain

3Present address: SILO España, Madrid, Spain

4Department of Dermatology, Fundación Jiménez Díaz, Madrid, Spain

5Epithelial Biomedicine Division, CIEMAT-CIBERER (U714), Madrid, Spain

6Department of Bioengineering, Carlos III University (UC3M), Leganés, Madrid, Spain

7Cátedra Fundación Jiménez Díaz (IIS-FJD) of Regenerative Medicine and Tissue Bioengineer, Madrid, Spain

8Department of Pathology, Hospital Clínico San Carlos, Madrid, Spain

9Department of Veterinary Clinical Sciences, Faculty of Veterinary Medicine, University of Santiago de Compostela, Lugo, Spain

Correspondence to:

M. Llanos Casanova, email: [email protected]

Keywords: IKKα, keratinocyte differentiation, MMP9, skin, skin cancer

Received: July 29, 2016     Accepted: September 29, 2016     Published: October 08, 2016


IKKα plays a mandatory role in keratinocyte differentiation and exerts an important task in non-melanoma skin cancer development. However, it is not fully understood how IKKα exerts these functions. To analyze in detail the role of IKKα in epidermal stratification and differentiation, we have generated tridimensional (3D) cultures of human HaCaT keratinocytes and fibroblasts in fibrin gels, obtaining human skin equivalents that comprise an epidermal and a dermal compartments that resembles both the structure and differentiation of normal human skin. We have found that IKKα expression must be strictly regulated in epidermis, as alterations in its levels lead to histological defects and promote the development of malignant features. Specifically, we have found that the augmented expression of IKKα results in increased proliferation and clonogenicity of human keratinocytes, and leads to an accelerated and altered differentiation, augmented ability of invasive growth, induction of the expression of oncogenic proteins (Podoplanin, Snail, Cyclin D1) and increased extracellular matrix proteolytic activity. All these characteristics make keratinocytes overexpressing IKKα to be at a higher risk of developing skin cancer. Comparison of genetic profile obtained by analysis of microarrays of RNA of skin equivalents from both genotypes supports the above described findings.


The epidermis is a stratified squamous epithelium composed mainly of keratinocytes. Basal keratinocytes proliferate and give rise to differentiated cells, which, upon full maturation, generate the squamous cornified cell layer. Alterations in the normal proliferation/differentiation equilibrium of the epidermis lead to numerous pathologies, which is important because skin disorders are the most frequent pathologies in humans. Different studies performed in knockout mice for IKKα or in mice with epidermal keratinocyte-specific IKKα ablation have concluded that IKKα is essential for epidermal differentiation [14]. IKKα is a member of the IKK complex, which is composed of two kinase subunits, IKKα and IKKβ, and a regulatory subunit, IKKγ/NEMO. Activated IKK complexes phosphorylate IkBα, leading to its ubiquitination and degradation and to the subsequent activation of NF-κB [5, 6]. It has been described that the function of IKKα in epidermis is independent of its kinase activity regulating NF-κB [7], although the early death of IKKα null mice after birth precludes the study of many aspects related to mechanisms through which IKKα controls epidermal differentiation. In this regard, it has been recently proposed that the induction of IKKα has an important role in the pathogenesis of skin diseases that course with altered proliferation/differentiation equilibrium, such as psoriasis [8], suggesting an important role of IKKα in the maintenenace of the homeostasis of the epidermis in humans.

IKKα has also been connected with non-melanoma skin cancer (NMSC), although there are studies that suggest that IKKα may act as a tumor suppressor [9, 10] or as a tumor promoter [11, 12] in this type of cancer, and this controversy has not yet been solved. Therefore, the development of a new experimental model to decipher the mechanisms through which IKKα regulates the homeostasis of the epidermis and the development of non-melanoma skin cancer is necessary.

In the present study we have employed a new approach to solve these questions, using a new model of study, based on the generation of 3D co-cultures of HaCaT keratinocytes and skin fibroblasts embedded in fibrin gels. These cultures eventually give rise to an ordered structure equivalent to human skin (to which we refer to as skin equivalent), that comprise an epidermal and a dermal compartment that mimic a normal human skin [13]. The spontaneously immortalized human HaCaT cell line has been widely used in studies related to keratinocytes and epidermal biology because it maintains full epidermal differentiation capacity [13, 14]. Our previous studies showed that enhanced IKKα expression in HaCaT cells increased both early and terminal differentiation of these cells in differentiation assays in monolayer cultures [12]. However, in these kind of cultures the formation of basal and suprabasal layers is not possible; therefore, they do not allow for the sequential study of the epidermal stratification process. Our present approach using skin equivalents of HaCaT keratinocytes allows the study, in more physiological conditions, of the contribution of IKKα to the differentiation of the distinct epidermal layers. As a result, we have found that increased levels of IKKα accelerates the differentiation of human keratinocytes, although in an aberrant form, leading to the development of histological defects. In addition, our analysis shows that the augmented expression of IKKα promotes the appearance of preneoplastic changes and the expression of oncogenic proteins in human keratinocytes. The comparison of the genetic profiles obtained by analysis of microarrays of RNA of skin equivalents of both genotypes support these findings. In addition they show the up-regulation in the HaCaT-IKKα skin equivalents of genes also up-regulated in different skin diseases, such as psoriasis and ichthyosis, and in skin cancer. These results highlight the usefulness of our in vitro model of skin equivalents for studying the physiology and disorders of the skin.


Increased levels of IKKα induces dysplastic changes, disorganized stratification and altered differentiation in human skin equivalents

We have used the HaCaT-Control and HaCaT-IKKα cell populations of keratinocytes previously described [12] to generate skin equivalents. HaCaT-IKKα cells express the mouse IKKα cDNA under the control of the β-actin promoter and HaCaT-Control cells contain the empty vector. Both HaCaT-Control and HaCaT-IKKα keratinocytes were seeded on a fibrin matrix. Two to three days later they reached confluence and were raised to the air-liquid interface for up to 12 additional days to generate a stratified, differentiated epidermis (confirmed by histological and immunohistochemical analysis). Figure 1A shows the histological appearance of the fibrin organotypic skin equivalent established from HaCaT-Control keratinocytes and cultured for 2-days at the air-liquid interface. As shown, distinctive features that are normally seen in the epidermis in vivo can readily be distinguished, including well-organized and defined epidermal cell layers (basal and suprabasal). Histological resemblance with a human epidermis was also observed in HaCaT-IKKα skin equivalents (Figure 1A). The expression of the transgene in the HaCaT-IKKα skin equivalents was verified by western blot and immunohistochemistry (Figure 1B, 1C). The histological analysis showed that HaCaT-IKKα keratinocytes stratified faster than HaCaT-Control cells, as higher number of cell layers were observed in their epidermal compartment from 2-days of air-liquid culture onward (Figure 1A, 1D). Thus, while 2-day skin equivalents of HaCat-Control cells showed one basal and one suprabasal layer (this latter readily distinguished by the presence of keratinocytes with flattened nucleus), in 2-day HaCaT-IKKα equivalents there were 3 to 4 cell layers of keratinocytes, organized into three distinct strata: basal stratum (formed by a layer of cylindrical cells containing large nuclei), suprabasal stratum (with 1 or 2 layers of cells with smaller nuclei), and an upper stratum formed by cells with flattened nuclei (Figure 1A). HaCaT-Control skin equivalents of 6 to 12 days of differentiation showed 3 to 5 keratinocyte layers. By contrast, the HaCaT- IKKα skin equivalents exhibit up to 7–11 layers on day 12 (Figure 1D). In addition, we found that the stratification of the HaCaT- IKKα skin equivalents was disorganized, showing disorientated nuclei; they also presented dysplastic keratinocytes in large areas of the epidermis. These defects were similarly detected in the epidermis of transgenic mice expressing exogenously IKKα in the basal layer of the epidermis (K5-IKKα mice) in conditions of hyperproliferation [11]. Areas of spongiosis (intercellular edema of the epithelium) were also detected in the basal as well as in the suprabasal layers of HaCaT-IKKα skin equivalents (Figure 1D), being this alteration also detected in the epidermis of transgenic K5- IKKα mice (data not shown). By contrast, the stratification of HaCaT-Control skin equivalents resembled that of a normal human skin (Figure 1D).

Histological characterization of HaCaT-Control and HaCaT-IKKα skin equivalents.

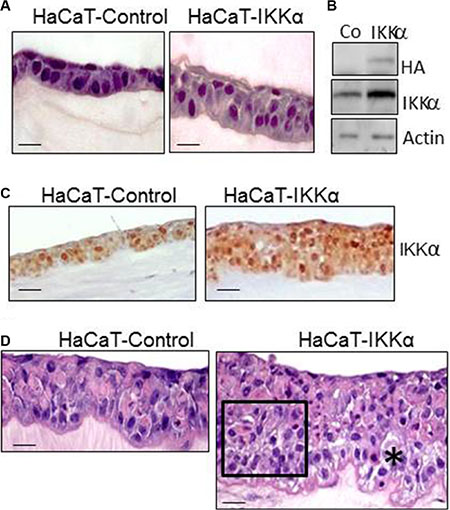

Figure 1: Histological characterization of HaCaT-Control and HaCaT-IKKα skin equivalents. (A) Appearance of skin equivalents after 2 days of differentiation in air-liquid interface culture. Note the increase in the number of keratinocyte layers in the HaCaT-IKKα 3D cultures. (B) Western blot showing the expression of the exogenous IKKα in the HaCaT-IKKα skin equivalents (protein extracts derived from 2-day fibrin gels). Actin was used as a loading control. (C) Immunostaining showing IKKα expression in the HaCaT-Control and HaCaT-IKKα skin equivalents using the NB-100-56704 antibody. (D) 12-day skin equivalents showing the increased stratification and marked morphological alterations found in the HaCaT-IKKα cultures. (*) = area of spongiosis; rectangle = area of disorganized keratinocytes. Scale bar: 30 μm (A, D); 50 μm (C).

In line with the stratification defects of HaCaT-IKKα keratinocytes in the bioengineered skin, the expression of involucrin (a protein characteristic of suprabasal layers and commonly used as a marker of early epidermal differentiation) was altered in the epidermal compartment of the HaCaT-IKKα skin equivalents, being delocalized along all the keratinocyte layers, including the basal layer (Figure 2A). By contrast, it was correctly localized in the suprabasal layers of the HaCaT-Control skin equivalents, following the pattern of expression observed in the normal human epidermis (Figure 2A). We also observed that the increased expression of IKKα seems to favor the terminal differentiation of keratinocytes, as fillagrin expression (a marker of terminal differentiation) was detected in the upper layer of the HaCat-IKKα skin equivalents of 12-day air-liquid culture, while at this time it was not expressed in the HaCaT-Control fibrin gels (Figure 2A). This result agrees with the presence of markers of terminal differentiation found in monolayer cultures of HaCaT-IKKα cells, where corneocytes were detected floating in the supernatant of keratinocytes overexpressing IKKα but not in that of HaCaT-Control cells [12]. Therefore our results show that increased levels of IKKα enhanced the stratification and differentiation of keratinocytes, although in a disorganized, not physiological manner.

Altered differentiation, increased proliferation and invasion foci in the HaCaT-IKKα skin equivalents.

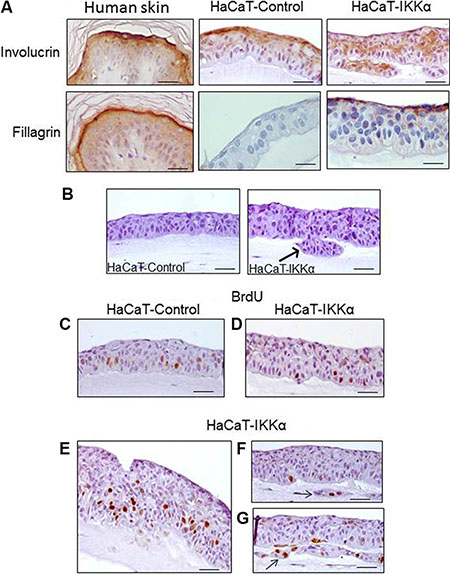

Figure 2: Altered differentiation, increased proliferation and invasion foci in the HaCaT-IKKα skin equivalents. (A) Immunostaining with two markers of epidermal differentiation; involucrin (upper panel) and filaggrin (a marker of upper terminal epidermal differentiation), (lower panel). The expression of these proteins in normal human epidermis as well as in HaCaT Control and HaCaT-IKKα skin equivalents is shown. (B) Invasive foci are observed in the 3D cultures of HaCaT-IKKα keratinocytes (arrow). (CG) Representative examples of BrdU incorporation. (C) HaCaT-Control skin equivalents: observe the predominance of signal in the basal layer; (D–G) BrdU signal in HaCaT-IKKα skin equivalents. (D) The BrdU staining in areas with light stratification defects in the HaCaT-IKKα skin equivalents is similar to that of HaCaT-Control (C); (E) BrdU incorporation in basal as well as suprabasal layers of keratinocytes is detected in areas where HaCaT-IKKα equivalents exhibit more aberrant stratification; (F–G) BrdU positive signal are detected in foci of invasion (arrows). Scale bar: 30 μm (A); 40 μm (C–G); 50 μm (B).

Invasive behavior and increased proliferation and clonogenic properties of the HaCaT-IKKα skin equivalents

In addition to the mentioned altered morphological features, we observed the appearance of invasive foci of keratinocytes growing into the underlying dermal compartment in the HaCaT-IKKα equivalents (Figure 2A, B arrow). This kind of growth was not observed in HaCaT-Control skin equivalents. We then analyzed the proliferation and apoptosis rates of the keratinocytes, finding that in those areas where the HaCaT-IKKα epidermis had lighter stratification defects, no differences in the number of BrdU positive cells were appreciated between keratinocytes of both genotypes (Figure 2C, 2D). However in those areas of the HaCaT-IKKα epidermal component where the phenotypic alterations were more evident (such as the invagination foci and the regions of higher disorganized stratification), increased BrdU signal was detected (Figure 2E2G). This result agrees with the increased proliferation seen in keratinocytes of K5-IKKα mice [11], indicating a strong concordance between data obtained both in vivo in the skin of mice and in the human HaCaT-IKKα skin equivalents. The apoptosis rate was analyzed by cleaved Caspase 3 immunostaining and no differences were found between skin equivalents from the two genotypes of HaCaT cells (data not show).

These characteristics of the HaCaT-IKKα skin equivalents, i.e., altered differentiation, increased proliferation and formation of invasion foci, along with the aberrant morphology of the epidermal compartment may be considered as premalignant signs. To further study the tendency towards malignant transformation of HaCaT-IKKα cells, we performed clonogenicity assays. Examination of the colony forming efficiency showed that HaCaT-IKKα cells produced higher number of colonies than HaCaT-Control cells (Figure 3A). In addition, clear differences were found in colony size: while all of the colonies originated by HaCaT-Control cells were equal or smaller than 2 mm of diameter, nearly 25% of the HaCaT-IKKα colonies had a diameter higher than 2 mm (Figure 3B). We also verified that HaCaT-IKKα cells grown in monolayer cultures exhibited increased proliferation, i.e. after 72 h of culture HaCaT-IKKα cells grew significantly faster than HaCaT-Control keratinocytes (Figure 3C); moreover the BrdU incorporation was also significantly higher in HaCaT- IKKα cells- indicating an enhanced proliferation- (Figure 3D). As a possible cause for this increase, we checked the expression of cyclin D1, one of the main cell cycle regulators that is positively regulated by IKKα [15], and found that it was induced in HaCaT-IKKα cells (Figure 3E). These results agree with our previous data showing increased expression of cyclin D1 in transgenic mice with exogenous expression of IKKα in the epidermis (K5-IKKα mice) [11].

Increased growth in HaCaT-IKKα keratinocytes.

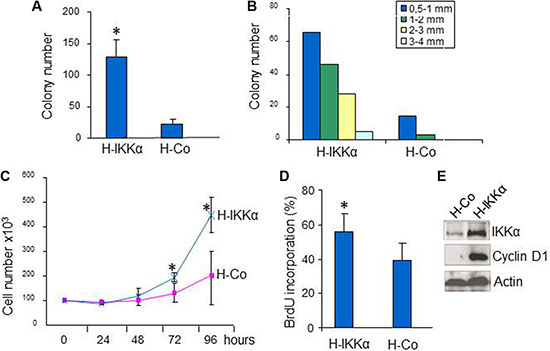

Figure 3: Increased growth in HaCaT-IKKα keratinocytes. (A, B) Clonogenic assay. The mean of three different experiments is shown. (A) Total number of colonies grown 14-days after seeding HaCaT keratinocytes of both genotypes. (B) Representative example of size diameter distribution of colonies in a clonogenic assay. Colony size was measured using a magnifier. Colonies of diameter > 0.5 mm were counted and classified according to their diameter. (C) Growth curves of HaCaT-IKKα and HaCaT-Control keratinocytes. Three plates of cells were counted at the indicated times. Growth of HaCaT-IKKα cells was significantly higher at 72 and 96 h post seeding. (D) BrdU incorporation by HaCaT-Control and HaCaT-IKKα cells after 72 h of culture on coverslides. (E) Western blot showing the increased expression of CyclinD1 in HaCaT-IKKα cells. Student’s T test was used for statistical analysis.*p < 0.05. H-IKKα = HaCaT-IKKα cells; H-Co = HaCaT-Control cells.

IKKα augments metalloprotease proteolytic activity of the HaCaT-IKKα skin equivalents and induces the expression of oncogenic proteins in HaCaT keratinocytes

By the time that the skin equivalents were collected, HaCaT-IKKα 3D cultures could be macroscopically distinguished from the HaCaT-Control skin equivalents by an evident reduction of the dermal compartment, i.e., a reduction in the thickness of the fibrin gel. This observation together with the above mentioned signs of invasiveness (Figure 2B) leaded us to study the proteolytic activity of MMP-2 and MMP-9, two matrix metalloproteases involved in the promotion of cancer cell invasion [16]. Increased proteolytic activity of MMP-9 was found in the HaCaT-IKKα skin equivalents by gelatin zymography, while MMP-2 activity did not change significantly (Figure 4A). This result was also confirmed by western blot analysis, using specific antibodies, which showed increased expression of MMP-9 metalloprotease (Figure 4B). Searching for a possible cause of this increase in MMP-9 levels we analyzed Snail, a positive regulator of MMP-9 expression that promotes cell invasion [17]. We found that Snail expression was induced in the HaCaT-IKKα skin equivalents, in comparison to the HaCaT-Control skin equivalents (Figure 4B). Another protein that accelerates cell motility and invasion of keratinocytes, is Podoplanin [18], a mucin-type transmembrane glycoprotein that is up-regulated in human squamous cell carcinomas of the skin [19]. The analysis of Podoplanin expression showed that it was highly induced in the HaCaT-IKKα skin equivalents (Figure 4B).

Increased metalloprotease proteolytic activity and increased expression of MMP-9, Snail and Podoplanin in the HaCaT-IKK&#x03B1; skin equivalents.

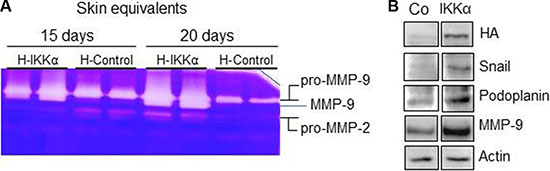

Figure 4: Increased metalloprotease proteolytic activity and increased expression of MMP-9, Snail and Podoplanin in the HaCaT-IKKα skin equivalents. (A) MMP-2 and –MMP-9 activity was evaluated by gelatin zymography, using protein from culture supernatant of HaCaT-Control and HaCaT-IKKα skin equivalents at the indicated days of growth in air-liquid interface. White bands of proteolytic activity were revealed on a Coomassie-Blue stained gelatin gel. (B) Western blot showing the increased expression of Snail, Podoplanin and MMP-9 proteins in the HaCaT-IKKα skin equivalents grown for 12-days in air-liquid interface. Actin was used as a loading control.

Genetic profiling of HaCaT-Control and HaCaT-IKKα skin equivalents

To further identified genetic changes induced by IKKα overexpression in 3D cultures of human keratinocytes, we performed expression profiling on HaCaT-Control and HaCaT-IKKα skin equivalents (10 days). Total number of overexpressed and repressed genes was 122 and 88 respectively. Bioinformatic analysis based in gene function and ontology (Table 1), revealed a striking increase in the expression of genes related to keratinocyte differentiation, epidermis development and cornified envelope, such as CNFN; genes encoding small proline-rich proteins (SPRR2C, SPRR3); CDSN; SCEL; KRTDAP; LCE3D; TGM1, etc). There was also an upregulation of genes involved in establishing cell-cell junctions and desmosomes (DSC2; DSG1; CDSN POF1B; CEACAM1; LMO7; OCLN…). Specially remarkable is the upregulation in HaCaT-IKKα skin equivalents of genes involved in the development of various skin disorders, such as pruritus (KLK5, KLK7; IL1β); dermatitis (BMP6, TNFαIP6); eczema (VNN3, IL1RL1, SPRR2B, SPRR3), psoriasis (CDSN, KLK, LCN2,IL1β), palmoplantar keratoderma (SLURP1; DSC2; DSG1), and ichthyosis (TGM1; ABCA12; ALOX12B, KLK5). An upregulation of genes implicated in immune response (DPP4, CD24; DEFB1; COLEC12; RFTN1; IL1β; RSAD2) was also seen, which is interesting, as in addition to its well known function in epidermal homeostasis, IKKα has been previously related with immunity functions [20, 21]). Moreover, we observed increased expression of genes that are also overexpressed in different types of cancer (SPINK7; BEX2, EDN1, CEACAM; PDPN; EREG; FBN1; CTHRC1; SLC6A14; IL1β etc), among them we found upregulation of genes involved in the development of skin carcinomas (LCN2; TNFRSF19 etc.); head and neck squamous cell carcinomas (CRTC1, CCNA1 (CYCLIN A1); EREG; NEFL; LCE3D), and prostate cancer (PDPN (podoplanin), LCN2). In addition, although the number and function of downregulated genes seemed to be less relevant than those upregulated, however we have identified that some of them also appear downregulated in prostate cancer (DST; VAV3; PLK3HH2; ITG6B; PPM1L). The complete list of differentially expressed genes is shown in Table 2 and Supplementary Table S1. Therefore, these results obtained from the genetic profile analysis of HaCaT-IKKα skin equivalents agree with the histological and biochemical analysis presented above, as well as with our previous observations in vitro [12], altogether supporting the increased proliferation, the altered and enhanced terminal differentiation, and the invasive capacity observed in HaCaT-IKKα keratinocytes growing in 3D cultures. In addition microarrays analysis has also revealed a number of skin diseases and different types of cancer that may be related to the increased expression of IKKα.

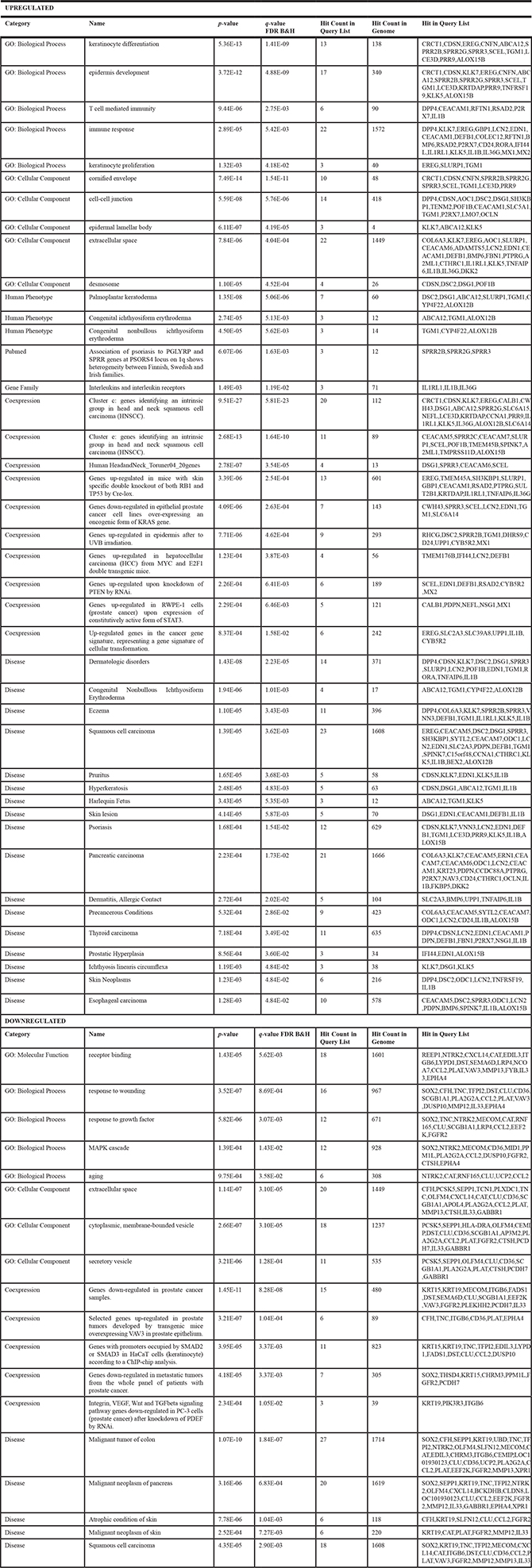

Table 1: Bioinformatic analysis of microarrays based on gene function and ontology

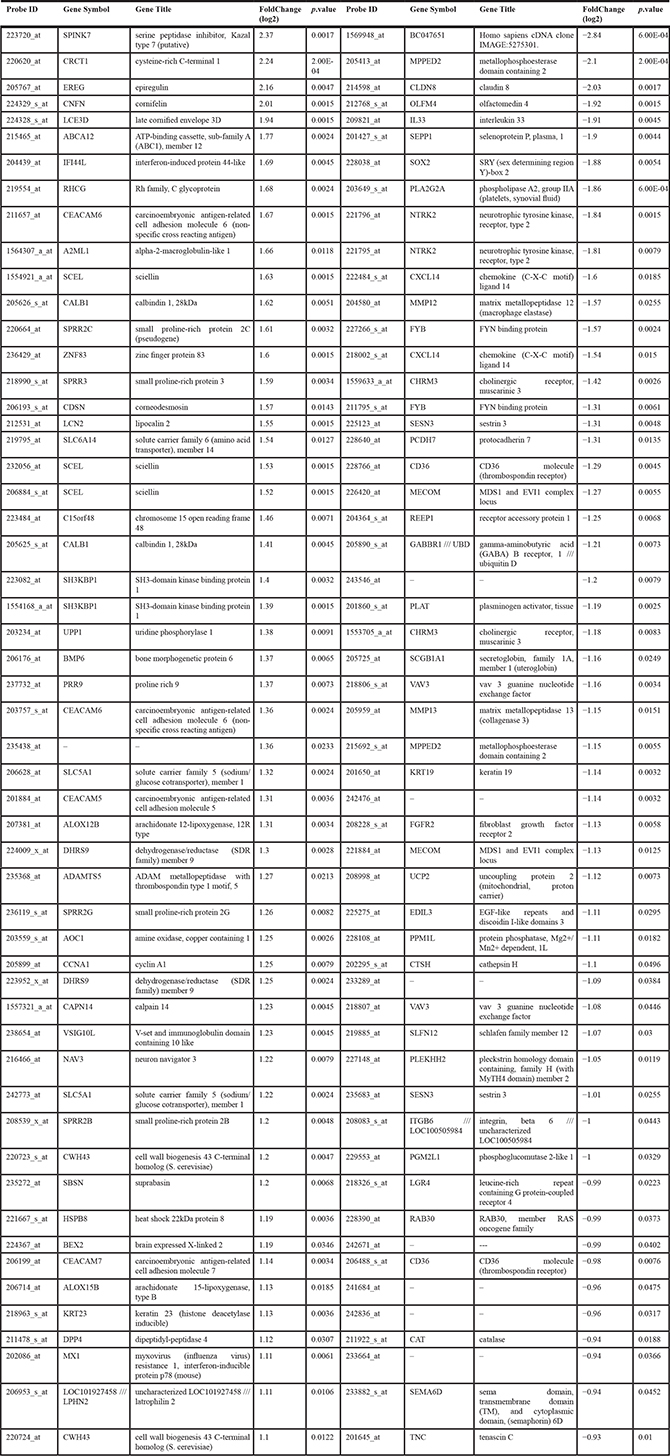

Table 2: Genes differentially expressed in the HaCat-IKKα skin equivalents (for a complete list, see Supplementary inf, Table 1


Our model of HaCaT skin equivalents developed to study the function of IKKα in the epidermal homeostasis and in skin cancer has demonstrated to be a useful approach for these purposes. Our results show that IKKα promotes the rapid differentiation of keratinocytes in skin equivalents, confirming the fundamental role of IKKα in this process that has been previously reported [1, 3, 12]; moreover, our new model of HaCaT-IKKα skin equivalents has allowed us the sequential study of the epidermal stratification process, showing that keratinocytes overexpressing IKKα exhibit a pathological differentiation, displaying remarkable alterations in tissue stratification and keratinocyte orientation, suggesting that levels of expression of IKKα must be strictly regulated. Enhanced keratinocyte proliferation was also observed in the HaCaT-IKKα skin equivalents, probably due to an effort to counteract the fast differentiation rate of the suprabasal layers. This result is in agreement with the loss of tissue architecture that the epidermis of K5-IKKα transgenic mice displayed when it was exposed to proliferative stimulus (as cutaneous TPA treatment) [11]. Loss of epidermal tissue architecture is considered a premalignant signal and it is remarkable that additional signs of premalignancy have been detected in the HaCaT-IKKα skin equivalents, such as the expression of oncogenic proteins (Podoplanin, Snail, Cyclin D1); the increased expression and proteolytic activity due to MMP-9 increase; and the presence of foci of keratinocyte invasion. These features suggest the predisposition towards malignant transformation of keratinocytes overexpressing IKKα, and agree with our previous data showing that K5-IKKα transgenic mice presented an enhanced malignant potential for developing skin tumors [11]; they are also in accordance with our previous results showing the more aggressive phenotype of skin carcinomas arisen in immunodeficient mice injected with PDVC57 tumoral keratinocytes overexpressing IKKα [12].

Some of the proteins regulated by IKKα in the HaCaT-IKKα skin equivalents have been previously shown to be regulated by IKKα in different contexts, reinforcing the validity of our model. Among them it was reported that IKKα induced cyclin D1 in response to mitogens and DNA synthesis [15]. Here we show that the expression of Cyclin D1 is increased in HaCaT-IKKα keratinocytes that also display increased proliferation. Moreover, we detected augmented levels of Cyclin D1 in the skin of K5-IKKα mice that presented enhanced proliferation as well [11]. Induction of Snail by IKKα has been previously observed in pancreatic cancer cells where it was proposed that Snail was promoting EMT [22]; the induction of MMP-9 by IKKα has also been described in activated human leukocytes [23]. In addition, we have just reported that increased levels of IKKα only in the cytoplasm of both, human HaCaT keratinocytes and keratinocytes of the basal layer of transgenic mice, induce the expression of MMP-9 [24]. In all these cases IKKα has been proposed to enhance the malignancy of the different types of cells where it was expressed. Actually our recent results show the fast development of more aggressive skin tumors in chemical skin carcinogenesis performed in transgenic mice that overexpress IKKα only in the nucleus or in the cytoplasm of keratinocytes [24].

Data obtained in the analysis of the microarrays of HaCaT-Control and HaCat-IKKα skin equivalents showed upregulation of genes implicated in differentiation/keratinization, and epidermal barrier formation. These results are in agreement with our experimental studies presented above, indicating the enhanced capacity of terminal differentiation of HaCaT-IKKα keratinocytes (Figure 2). They also agree with our previous observations in vitro showing the accelerated and increased ability of terminal differentiation in monolayer cultures of keratinocytes overexpressing IKKα [12]. They are in agreement as well with data reported by other groups that describe the fundamental role of IKKα in epidermal IKKα morphogenesis and epidermal barrier formation [14]. In adition, our expression profiling studies in keratinocytes overexpressing IKKα show opposite results to those obtained in genetic profiling studies of IKKα-null keratinocytes, which showed the down-regulation of genes involved in keratinocyte terminal differentiation and epidermal barrier formation [1]. Other differences found between skin equivalents of both genotypes in our microarrays point to the upregulation in the HaCaT-IKKα equivalents of genes related to proliferation (such as Cyclin A1); proteolysis (i.e. proteinases of the kallikrein family); and genes implicated in invasiveness (such as podoplanin) (Figure 4 and Tables 1, 2, Supplementary Table S1). Thus, these results could support both the increased proliferation and invasive capacity found above in the HaCaT-IKKα 3D cultures (Figures 2, 3) and could explain the degradation of fibrin gels observed in the HaCaT-IKKα skin equivalents. We have also found changes in the genetic expression profile of HaCaT-IKKα skin equivalents of genes implicated in skin cancer development, but, in addition, changes in genes involved in the development and progression of other types of cancer, such as head and neck cancer and prostate cancer has been also established. Remarkably overexpression of IKKα in prostate cancer has been previously found to correlate with poor prognosis [25] and some studies have found a relationship between IKKα activation and head and neck cancer progression [26, 27].

It is interesting that many of the changes in gene expression found in HaCaT-IKKα skin equivalents are relative to genes involved in the development of different skin disorders (CNFN, CDSN, TGM1, ALOX12B, etc). In this regard, alterations in proteins of the differentiated and cornified layers of the skin (such as cornifelin, corneodesmosin, transglutaminase 1, alox12B, ABCA12 etc.), has been associated with various cutaneous pathologies in human, such as inflammatory diseases, i.e. psoriasis, eczema, dermatitis and ichthyosis [2830]. This result agrees with the recent studies finding that the induction of IKKα has an important role in the pathogenesis of skin disorders that course with altered proliferation-differentiation equilibrium, such as psoriasis [8]. Moreover, microarrays analysis showed in HaCat-IKKα skin equivalents the upregulation of genes that are also upregulated in different types of ichthyosis (Table 1), and this is interesting, as several of the defects observed in IKKα mutant mice are similar to those manifested in human lamellar ichthyosis [3]. It is also noteworthy the differentially expressed genes found in HaCat- IKKα skin equivalents which are involved in the development of palmoplantar keratoderma, a heterogeneous group of disorders characterized by abnormal thickening of the palms and soles; being this phenotype consistent with the excesive differentiation displayed by the HaCat-IKKα skin equivalents.

Therefore, all these ocurrences reinforce the significance of our genetic profile studies and support the utility of our in vitro model of skin equivalents for studying the homeostasis and diseases of the skin. The relationship of IKKα overexpression with the development of different skin disorders and diverse types of cancer is an interesting issue to be investigated in future works.

Altogether, our results suggest that the increased expression of IKKα in human keratinocytes induces features of malignancy such as altered differentiation properties, increased proliferative and clonogenic properties, augmented ability for invasive growth, induction of the expression of oncogenic proteins and increased extracellular matrix proteolytic activity. All these characteristics make keratinocytes overexpressing IKKα to be at a higher risk to develop skin cancer than control keratinocytes.


Plasmid constructs

The β-Actin-Control construct (containing the empty vector) and the β-Actin-HA-IKKα construct (containing the HA-tagged-murine IKKα cDNA, under the control of the β-Actin promoter), were previously described [12]. Both constructs confer resistance to G418.

Cells and culture conditions

The HaCaT human keratinocyte cell line was grown in Dulbecco’s modified Eagle’s medium with Glutamax (Gibco-BRL, Gaithersburg, MD), supplemented with 10% FCS. HaCaT-Control cells (containing the β-Actin-Control construct) and HaCaT-IKKα cells (containing the β-Actin-HA-IKKα construct) were previously described [12]. Cells were permanently transfected using the calcium phosphate method. Resistant colonies were selected using G418 (0.45 mg/ml). Pools of HaCat-IKKα cells (derived from approximately 60 colonies) were employed in these experiments. For proliferation assays cells were incubated for 1h in presence of 10 mM BrdU.

Colony forming assay

A total of 3 and 6 × 102 cells were seeded per duplicate in DMEM-10% FCS in p100 plates. Medium was replaced every 4 days. Cells were fixed and stained with crystal violet. Experiments were performed three times.

Cell proliferation assay

5 × 104 cells/p60 were seeded in complete medium (DMEM-10% FCS) . At 24, 48, 72 and 96 h cells were trypsinized and counted. Three experiments per triplicate were performed.

Generation of skin equivalents

Primary human dermal fibroblasts were obtained from skin biopsies of health donors and were grown in DMEM containing 10% fetal calf serum, 2 mM glutamine, and epidermal growth factor (10 ng/ml). Donors provided informed consent for biopsy. Permission was obtained for specimens taken from organ donors. Skin equivalents were generated as described [31]. Briefly, 2.5 ml of fibrinogen solution (from cryoprecipitated pig blood) were added to 5 ml of keratinocyte growth medium containing 3 × 104 dermal fibroblasts. Immediately later, 0.5 ml of 25 mM Cl2Ca, with 9 IU of bovine thrombin (Sigma-Aldrich Co., St. Louis) was added. The mixture was placed on polycarbonate inserts (4 μM porous) in a 6-well culture plate (Corning Costar Corp., Cambridge, MA) and allowed to solidify at 37°C for 45 min; after that, 106 HaCaT cells were seeded on the fibrin matrix and grown to confluence. After reaching confluence the skin equivalent was raised to the air-liquid interface for variable time periods (up to 12 days) to generate a stratified epidermis. For proliferation assays skin equivalents were grown 1 h in presence of 10 mM BrdU.

Histology and immunohistochemistry

Skin equivalents were fixed in 10% buffered formalin and embedded in paraffin. Sections were stained with H&E and histopathological evaluation of skin equivalents was performed by two specialists in pathological anatomy: MJFA, specialized in human pathology and AB, a veterinarian expert in animal pathology. Immunostaining was performed using antibodies against IKKα NB-100-56704 (Novus Biologicals, Cambridge UK); IKKα sc-7182 (Santa Cruz Biotechnology, Inc. Heidelberg, Germany); IKKα 556532, Plakoglobin (BD Bioscience, NJ, USA); Involucrin, Filaggrin (Covance, CA, USA); BrdU (Roche, Mannheim, Germany). Sections were incubated with a biotinylated secondary antibody, and then with streptavidin conjugated to horseradish peroxidase (DAKO A/S, Glostrp, Denmark). Antibody localization was determined using 3,3-diaminobenzidine (DAB) in H2O (Vector Laboratories; Burlingame, CA, USA).

Pressure cooker with DAKO target retrieval solution ph9.0 (DAKO) was employed for antibodies detection.

Western blot analysis

Protein extracts were obtained from the epidermal compartment of skin equivalents. Total protein extracts (40 μg) were subjected to SDS/PAGE. The separated proteins were transferred to nitrocellulose membranes (Amersham, Arlington Heights, IL) and probed with antibodies against IKKα NB-100-56704 (Novus Biologicals); HA (Cell Signaling Technology, USA); Snail (Abcam, Cambridge, UK); Cyclin D1 (NeoMarkers, Fremont, CA, USA); Podoplanin, Actin (Santa Cruz Biotechnology); MMP-9 (Merck Millipore, Darmstadt, Germany). In all cases samples were subjected to luminography with the Supersignal West Pico Chemiluminescent Substrate (Pierce Biotechnology, Inc., Illinois, USA).

Gelatin zymography

Gelatin zymography was performed as described [32]. 20 μg of protein extracts from supernanatants were subjected to SDS/PAGE with 0.1% gelatin (Sigma-Aldrich, MO, USA). Gel were stained with 0.25% Coomasie-Blue R-250 in methanol:acetic:water (5:1:5) and destained in 7.5% acetic acid.

Microarrays of skin equivalents

Total RNA was isolated from the epidermal compartment of skin equivalents using TRIzol (Molecular Research Center Inc., Cincinnati, OH, USA) following manufacturer’s instructions and DNA was eliminated using a DNAse column kit (Qiagen). HG-U133_Plus_2 arrays were used (Afymetrix) and annotations were updated to the last available version (June 2016). Data were normalized using RPA and processed using limma (Bioconductor). Genes with a foldchange of at least 1.5 and a p value of less than 0.05 were considered as regulated. Gene lists with up- or downregulated genes were submitted to ToppGene (as ranked lists) [33] or to JMP Enrichr (as fuzzy lists) [34] for enrichment analysis based on functional annotations.
