Research Papers:

The independent association of mean platelet volume with overall survival in multiple myeloma

PDF |  HTML  |  How to cite

Oncotarget. 2016; 7:62640-62646. https://doi.org/10.18632/oncotarget.11551

Metrics: PDF 1679 views  |   HTML 2426 views  |   ?

Qiang Zhuang, Lina Xiang, Hanyan Xu, Fang Fang, Chongyun Xing, Bin Liang, Kang Yu and Jianhua Feng _


Qiang Zhuang1, Lina Xiang2, Hanyan Xu3, Fang Fang1, Chongyun Xing1, Bin Liang1, Kang Yu1, Jianhua Feng1,4

1Department of Hematology, The First Affiliated Hospital of Wenzhou Medical University, Wenzhou 325000, PR China

2Department of Emergency Medicine, The First Affiliated Hospital of Wenzhou Medical University, Wenzhou 325000, PR China

3Department of Pneumology, The First Affiliated Hospital of Wenzhou Medical University, Wenzhou 325000, PR China

4Department of Pediatric Hematology-Oncology, The First Affiliated Hospital of Wenzhou Medical University, Wenzhou 325000, PR China

Correspondence to:

Jianhua Feng, email: [email protected]

Keywords: multiple myeloma, mean platelet volume, prognosis, survival

Received: April 20, 2016     Accepted: August 13, 2016     Published: August 23, 2016


We retrospectively analyzed the association between mean platelet volume (MPV) and prognosis in 62 newly diagnosed multiple myeloma (MM) patients. The associations between MPV and clinical characteristics were assessed. The log-rank test and the Cox proportional hazards model were used to evaluate the effect of MPV on survival. A MPV value of 8.50 fl was considered to be the optimal cut-off value for prognosis. MPV was associated with IgA isotype (P=0.012), serum creatinine concentration > 176.8 μmol/L (P=0.025) and IgH rearrangement (P=0.008). The log-rank test demonstrated that patients with low MPV experienced a shorter overall survival (OS) (P=0.0397). The multivariate analysis demonstrated that low MPV was an independent prognostic factor for OS [hazard ratio (HR)=2.44, P=0.026]. Therefore, we demonstrated that low MPV predicted an unfavorable prognosis in patients with MM.


Multiple myeloma (MM) is a malignant disorder of plasma cells, associated with an increased thromboembolic risk, particularly venous thromboembolism (VTE) [1, 2]. Several underlying prothrombotic mechanisms in MM have been put forward. Except for patient related factors (such as advanced age, immobility and obesity), fibrin polymerization and fibrinolysis impairment, enhanced platelet adhesion and potential dysfunction, acquired resistance to activated protein C, as well as increased levels of inflammatory cytokines are considered as triggering factors for hypercoagulability [3]. It is also well established that anti-myeloma therapeutic regimens, such as chemotherapy and immunomodulatory agents (thalidomide and its derivatives lenalidomide and pomalidomide), increase the risk of thrombosis in patients with MM [3, 4]. Moreover, single nucleotide polymorphisms (SNPs) related to perturbed endothelium may also be a risk factor for the development of thrombosis in these patients [5]. On the other hand, in a large population-based study including over 9,000 MM patients, the occurrence of thrombosis was found to be associated with a significantly poorer survival [6]. Therefore, the incorporation of variables associated with risk of thrombosis into prognostic classification systems for MM may be available.

Mean platelet volume (MPV), which reflects platelet size, is a routinely determined parameter by complete blood count (CBC) analyzers [7]. Platelet size was proposed to be associated with platelet activity, and activated platelets play a significant role during thrombus formation and development. In fact, increased level of MPV has been found to be associated with various thromboembolic disorders in patients without cancer [810], while a decreased risk of VTE in patients with cancer [11]. Furthermore, VTE was noted to be correlated with poor survival in patients with cancer [12]. To the best of our knowledge, only one study has explored the prognostic significance of MPV in patients with MM: the study by Riedl et al. [11], who evaluated the data of 1,544 patients with various types of cancer (including 39 patients with MM) and found that high MPV values were associated with an improved patient survival. However, due to the relatively small sample sizes in subgroups of different types of cancer, no association of MPV with the risk of mortality could be found in individual cancer types, except for pancreatic cancer. Thus, the primary aim of this study was to investigate the prognostic effect of MPV prior to the initiation of treatment in a relatively large series of 62 patients with MM.


Patient population

The median age of the patients was 60.5 (37-78) years and the male to female ratio was 1.48:1. The most prevalent MM type was IgG (53.2%), and 24.2% of patients had light chain disease. Regarding ISS stage, 64.5% of patients had stage III, and 35.5% had stage I or II disease. In addition, the multiple probe fluorescent in situ hybridization (FISH) kit revealed that 46 (74.2%) patients had at least one abnormality. The most frequent abnormality was IgH rearrangement, which was seen in 40 (64.5%) patients. 1q21 amplification was observed in 35 (56.5%) cases, whereas both 13q14 deletion (D13S319 and/or RB1 deletion) and p53 deletion were detected in 12 (19.4%) cases. Other clinical and laboratory characteristics are summarized in Table 1.

Table 1: Baseline patient characteristics



(≤ 8.50 fl)

High MPV
(> 8.50 fl)


Age > 60 years

31/62 (50.0%)

13/22 (59.1%)

18/40 (45.0%)


Sex, male

37/62 (59.7%)

14/22 (63.6%)

23/40 (57.5%)



4/62 (6.5%)

2/22 (9.1%)

2/40 (5.0%)




12/62 (19.4%)

2/22 (9.1%)

10/40 (25.0%)


 History of VTE

1/62 (1.6%)

0/22 (0)

1/40 (2.5%)


 History of arterial event

3/62 (4.8%)

1/22 (4.5%)

2/40 (5.0%)



 Arterial thrombosis during follow-up

8/62 (12.9%)

5/22 (22.7%)

3/40 (7.5%)


ISS stage



22/62 (35.5%)

8/22 (36.4%)

14/40 (35.0%)


40/62 (64.5%)

14/22 (63.6%)

26/40 (65.0%)


 IgG, κ, or λ

33/62 (53.2%)

9/22 (40.9%)

24/40 (60.0%)


 IgA, κ, or λ

8/62 (12.9%)

6/22 (27.3%)

2/40 (5.0%)


 Light chain disease

15/62 (24.2%)

3/22 (13.6%)

12/40 (30.0%)



6/62 (9.7%)

4/22 (18.2%)

2/40 (5.0%)


Hemoglobin < 100 g/L

41/62 (66.1%)

17/22 (77.3%)

24/40 (60.0%)


Platelets < 150×109/L

31/62 (50.0%)

13/22 (59.1%)

18/40 (45.0%)


Creatinine > 176.8 μmol/L

8/62 (12.9%)

0/22 (0)

8/40 (20.0%)


Calcium > 2.75 mmol/L

5/51 (9.8%)

0/18 (0)

5/33 (15.2%)


Albumin < 35 g/L

34/62 (54.8%)

11/22 (50.0%)

23/40 (57.5%)


β2-microglobulin > 5.5 mg/L

29/62 (46.8%)

9/22 (40.9%)

20/40 (50.0%)


LDH ≥ (2× ULN)

1/57 (1.8%)

1/21 (4.8%)

0/36 (0)


BM plasma cell ≥ 30%

22/59 (37.3%)

7/22 (31.8%)

15/37 (40.5%)


Cytogenetics (FISH)

 1q21 amplification

35/62 (56.5%)

15/22 (68.2%)

20/40 (50.0%)


 13q14 deletion

12/62 (19.4%)

5/22 (22.7%)

7/40 (17.5%)


 p53 deletion

12/62 (19.4%)

4/22 (18.2%)

8/40 (20.0%)


 IgH rearrangement

40/62 (6.5%)

19/22 (86.4%)

21/40 (52.5%)


Front-line treatment regimen


 Novel drug-based

53/62 (85.5%)

19/22 (86.4%)

34/40 (85.0%)

 Older drug-based

9/62 (14.5%)

3/22 (13.6%)

6/40 (15.0%)


8/62 (12.9%)

3/22 (13.6%)

5/40 (12.5%)


MPV, mean platelet volume; ECOG, Eastern Cooperative Oncology Group; PS, performance status; VTE, venous thromboembolism; ISS, international staging system; LDH, lactate dehydrogenase; ULN, upper limit of normal value; FISH, fluorescent in situ hybridization; BM, bone marrow; SCT, stem cell transplantation.

The median follow up for the entire cohort of 62 patients was 42 (5-86) months. A total of 8 (12.9%) patients developed arterial thrombosis during follow-up. A total of 27 deaths had been recorded by the time of the last follow-up. Median value for OS was 56.7 months.

Optimal cut-off values for MPV and correlation between MPV and clinical characteristics

The ROC curve for MPV was used to determine the cut-off values. The area under the curve for MPV was 0.656 [95% confidence interval (CI): 0.515-0.797]. An MPV of 8.50 fl corresponded to the maximum joint sensitivity and specificity on the ROC curve (55.56% sensitivity and 80.0% specificity). The associations of MPV with clinical characteristics in this study population are shown in Table 1. The results showed that only IgA M component, creatinine and IgH rearrangement were associated with MPV level. The percentage of patients with IgA M component in low MPV (≤ 8.50 fl) cases was 27.3%, significantly higher than that (5.0%) in high MPV (> 8.50 fl) cases (P=0.012). The percentage of patients with serum creatinine concentration > 176.8 μmol/L in low MPV cases was 0, significantly lower than that (20.0%) in high MPV cases (P=0.025). In addition, the frequency of IgH rearrangement in low MPV cases was 86.4%, significantly higher than that (52.5%) in high MPV cases (P=0.008). Although low MPV was more correlated with more arterial thrombotic events developed during follow-up, no statistical significance was observed (P=0.119).

Prognostic impact of MPV in patients with MM

The Kaplan-Meier analysis was performed to determine whether MPV was associated with overall survival (OS). The OS was significantly shorter in the group with a MPV of ≤ 8.50 fl compared to that in the group with a MPV of > 8.50 fl (P=0.0397; Figure 1). Results of the univariate and multivariate analysis for factors influencing OS in patients with MM are reported in Table 2. The univariate analysis showed the following clinical parameters were significantly associated with OS: MPV and the percentage of BM plasma cell. While the relationship between older age (> 60 years) and OS approached, but did not reach, statistical significance (P=0.050). Multivariate analysis that included all the parameters having a P value of less than 0.1 in the univariate analysis revealed that the low MPV was independently associated with shorter OS (HR=2.44, 95% CI 1.11-5.38, P=0.026). The higher proportion of BM plasma cell (>30%) was also shown to be independent prognostic factors for the OS.

Kaplan-Meier analysis of overall survival of all the patients included in this study stratified by mean platelet volume (MPV; &#x2264;8.50 vs. &#x003E;8.50 fl).

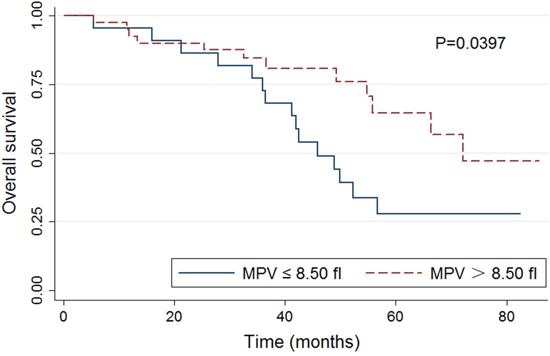

Figure 1: Kaplan-Meier analysis of overall survival of all the patients included in this study stratified by mean platelet volume (MPV; ≤8.50 vs. >8.50 fl).

Table 2: Univariate and multivariable analyses for overall survival


Univariate analysis

Multivariate analysis


HR (95% CI)




2.44 (1.11-5.38)


Age > 60 years


1.52 (0.68-3.38)









 History of thrombosisa



 Arterial thrombosis during follow-up


ISS stage III


Hemoglobin < 100 g/L


Platelets < 150×109/L


Creatinine > 176.8 umol/L


Calcium > 2.75 mmol/L


Albumin < 35 g/L


β2-microglobulin > 5.5 ug/mL


LDH ≥ (2× ULN)


BM plasma cell ≥ 30%


3.69 (1.58-8.60)


Cytogenetics (FISH)

 1q21 amplification


 13q14 deletion


 p53 deletion


 IgH rearrangement


Novel drug-based treatment regimen




MPV, mean platelet volume; ECOG, Eastern Cooperative Oncology Group; PS, performance status; ISS, international staging system; LDH, lactate dehydrogenase; ULN, upper limit of normal value; BM, bone marrow; FISH, fluorescent in situ hybridization; SCT, stem cell transplantation; HR, hazard ratio; 95% CI, 95% confidence interval.

aincluding the history of VTE and arterial event.


Platelets have been suggested to play an important role in cancer progression and metastasis [13]. A previous study demonstrated that preliminarily activated platelets have tumor-promoting properties [14]. More relatively, recent clinical reports demonstrated the negative effect of low MPV on the prognosis of cancer patients [11]. The present study including 62 patients with MM demonstrated that low MPV prior to the initiation of treatment was associated with decreased OS in patients with MM, which supports the findings of previous studies. To the best of our knowledge, this is the first study to demonstrate the prognostic effect of MPV on OS in patients with MM.

MPV, as an indicator of platelet activity [15], has been shown to be associated with platelet aggregation [16], thromboxane B2 production [17] and increased surface expression of the membrane glycoprotein IIb/IIIa complex [18]. Considering that the tendency of larger platelets to react to stimuli [19], thus it may be key to explaining the observations that increased MPV is associated with thromboembolic diseases in patients without cancer, such as myocardial infarction, stroke, or unprovoked VTE [810]. However, contrary to the observations in patients without cancer, in one lager, prospective, observational cohort study of cancer patients, high MPV was found to be associated with a decreased risk of VTE in patients with cancer [11]. One theory proposed to explain this phenomenon is that smaller platelets might exhibit a stronger pro-thrombotic tendency than larger platelets in cancer patients. This hypothesis was supported by the date from one retrospective study analyzing MPV levels in cancer patients who developed VTE [20]. It was found that MPV values were lower at the time of thrombosis development compared to those measured at the time of cancer diagnosis. Considering that patients with MM have an increased risk of thromboembolic events [1, 2], and what’s more, the development of thrombosis was reported to be associated with poor survival in a large population-based study of MM patients [6], not surprisingly then, low MPV might reflect high thromboembolic risk, which in turn correlates with poor clinical outcome in patients with MM.

One of the limitations of the present study was the retrospective nature, thus caution should be taken when interpreting the results of this study because of the selection bias. For example, in contrast to the previously published population-based study based on over 9000 MM patients [6], our results showed that the development of arterial thrombosis during follow-up was not associated with survival in MM (Table 2). Apart from the potential inaccuracy of thrombotic diagnosis obtained from the review of clinical records, the heterogeneity in terms of study design, patient selection and treatment might also account for the diversity. Moreover, only certain types of IgH translocation including t(4;14) and t(14;16) have been identified to be associated with prognosis in MM [2123]. Unfortunately, in this retrospective study, the translocation of IgH was detected by an IgH break-apart rearrangement probe but not by t(4;14) and t(14;16) probes due to the high fee. Furthermore, we had no complete and detailed information on the influence factors for MPV, such as the smoking behavior for the total cohort [24, 25], thus we could not adjust the association of MPV with risk of death for these influence factors.

In summary, this study demonstrated that low MPV prior to the initiation of treatment was an independent unfavorable prognostic factor in MM patients. MPV, available in a routine CBC examination, may represent one of the easiest measurements to be used as a prognostic marker in patients with MM. Further investigations are required to elucidate the precise mechanisms underlying the influence of platelet size on thrombosis development in patients with MM, as well as the prognostic effect of MPV in MM.


Study population

This retrospective study analyzed the records of 62 patients with newly diagnosed MM, and all patients were treated at the First Affiliated Hospital of Wenzhou Medical University between February 2009 and December 2013. Patients who had the full clinical information including laboratory parameters (immunoglobulin type of monoclonal protein, hemoglobin, platelet count, creatinine, calcium, albumin, β2-microglobulin, lactate dehydrogenase, bone marrow plasma cells, and MPV) before any therapy were included. Besides, information on comorbidities (such as diabetes, and history of VTE and arterial event [coronary artery disease and cerebrovascular disease]) as well as the complications (such as the development of thrombosis during follow-up) was obtained. For cytogenetics analysis, FISH was performed in all patients using the following probes: 1q21 probe, D13S319 (13q14.3) probe, RB1 (13q14) probe, p53 (17p13.1) probe, and IgH (14q32) break-apart rearrangement probe. All probes were purchased from Peking Ginpujia Medical Technologies. Patients who were diagnosed with monoclonal gammopathy of undetermined significance, asymptomatic MM, amyloidosis, and plasma cell leukemia were excluded. Patients with sepsis at diagnosis were also excluded from the study. Written informed consent was obtained from each patient before entering the study according to the Declaration of Helsinki, and the study was approved by the Institutional ethics committee.

According to the patients’ economic situation, novel drug-based (mainly bortezomib and thalidomide) or older drug-based (mainly anthracylines) regimens were used. In total, 37 patients (59.7%) received a bortezomib-containing regimen as first-line therapy: PAD (bortezomib, adriamycin and dexamethasone), VD (bortezomib and dexamethasone) and PCD (bortezomib, cyclophosphamide and dexamethasone); 5 patients (8.1%) received a thalidomide-containing regimen as first-line chemotherapy: TD (thalidomide and dexamethasone), TCD (thalidomide, cyclophosphamide and dexamethasone) and MPT (melphalan, prednisolone and thalidomide); 11 patients (17.7%) were treated with VTD (bortezomib, thalidomide and dexamethasone); 9 patients (14.5%) received older drug regimens as first-line chemotherapy: VAD (vincristine, adriamycin and dexamethasone). In addition, 6 patients (9.7%) underwent autologous stem cell transplantation and 2 (3.2%) received allogeneic stem cell transplantation following at least 4 cycles of treatment.

Statistical analysis

The chi-square test or Fisher’s exact test for discrete variables was used to compare patient characteristics. Receiver operating characteristics (ROC) curve were derived from the MPV value and survival status. In a ROC curve, the sensitivity and specificity were calculated by combining the optimal cut-off value for MPV and survival outcome. OS was defined as the period from the date of diagnosis to the date of the last follow-up or death from any cause. OS was evaluated through the Kaplan-Meier estimates and compared through the log-rank test. The Cox proportional hazards model was used for univariate analysis. Covariates having a P value of less than 0.1 in the univariate analysis were included in the multivariate Cox proportional hazards model. All statistical analyses were performed using Stata version 12 software (College Station, TX). A P value <0.05 was considered significant for all analyses.


This study was supported by grants from the Zhejiang Provincial Natural Science Foundation of China (Nos. LQ14H080002, LY12H08002).


The authors declare no competing financial interests.

Author contributions

Jianhua Feng originated the hypothesis; Jianhua Feng and Kang Yu designed the study; Qiang Zhuang, Lina Xiang, Hanyan Xu, Fang Fang, Chongyun Xing and Bin Liang collected the data; Qiang Zhuang, Kang Yu and Jianhua Feng analyzed the data; Qiang Zhuang wrote the manuscript draft which was amended by Kang Yu and Jianhua Feng. All the authors approved the final version submitted.


1. Kristinsson SY, Fears TR, Gridley G, Turesson I, Mellqvist UH, Bjorkholm M, Landgren O. Deep vein thrombosis after monoclonal gammopathy of undetermined significance and multiple myeloma. Blood. 2008; 112:3582-3586.

2. Kristinsson SY, Pfeiffer RM, Bjorkholm M, Goldin LR, Schulman S, Blimark C, Mellqvist UH, Wahlin A, Turesson I, Landgren O. Arterial and venous thrombosis in monoclonal gammopathy of undetermined significance and multiple myeloma: a population-based study. Blood. 2010; 115:4991-4998.

3. Kristinsson SY. Thrombosis in multiple myeloma. Hematology / the Education Program of the American Society of Hematology American Society of Hematology Education Program. 2010; 2010:437-444.

4. Leebeek FW, Kruip MJ, Sonneveld P. Risk and management of thrombosis in multiple myeloma. Thrombosis research. 2012; 129:S88-92.

5. Johnson DC, Corthals S, Ramos C, Hoering A, Cocks K, Dickens NJ, Haessler J, Goldschmidt H, Child JA, Bell SE, Jackson G, Baris D, Rajkumar SV, et al. Genetic associations with thalidomide mediated venous thrombotic events in myeloma identified using targeted genotyping. Blood. 2008; 112:4924-4934.

6. Kristinsson SY, Pfeiffer RM, Bjorkholm M, Schulman S, Landgren O. Thrombosis is associated with inferior survival in multiple myeloma. Haematologica. 2012; 97:1603-1607.

7. Bath PM, Butterworth RJ. Platelet size: measurement, physiology and vascular disease. Blood coagulation & fibrinolysis. 1996; 7:157-161.

8. Martin JF, Bath PM, Burr ML. Influence of platelet size on outcome after myocardial infarction. Lancet. 1991; 338:1409-1411.

9. Tohgi H, Suzuki H, Tamura K, Kimura B. Platelet volume, aggregation, and adenosine triphosphate release in cerebral thrombosis. Stroke; a journal of cerebral circulation. 1991; 22:17-21.

10. Greisenegger S, Endler G, Hsieh K, Tentschert S, Mannhalter C, Lalouschek W. Is elevated mean platelet volume associated with a worse outcome in patients with acute ischemic cerebrovascular events? Stroke; a journal of cerebral circulation. 2004; 35:1688-1691.

11. Riedl J, Kaider A, Reitter EM, Marosi C, Jager U, Schwarzinger I, Zielinski C, Pabinger I, Ay C. Association of mean platelet volume with risk of venous thromboembolism and mortality in patients with cancer. Results from the Vienna Cancer and Thrombosis Study (CATS). Thrombosis and haemostasis. 2014; 111:670-678.

12. Khorana AA. Venous thromboembolism and prognosis in cancer. Thrombosis research. 2010; 125:490-493.

13. Nash GF, Turner LF, Scully MF, Kakkar AK. Platelets and cancer. The Lancet Oncology. 2002; 3:425-430.

14. Zhang W, Dang S, Hong T, Tang J, Fan J, Bu D, Sun Y, Wang Z, Wisniewski T. A humanized single-chain antibody against beta 3 integrin inhibits pulmonary metastasis by preferentially fragmenting activated platelets in the tumor microenvironment. Blood. 2012; 120:2889-2898.

15. Thompson CB, Jakubowski JA. The pathophysiology and clinical relevance of platelet heterogeneity. Blood. 1988; 72:1-8.

16. Thompson CB, Eaton KA, Princiotta SM, Rushin CA, Valeri CR. Size dependent platelet subpopulations: relationship of platelet volume to ultrastructure, enzymatic activity, and function. British journal of haematology. 1982; 50:509-519.

17. Jakubowski JA, Thompson CB, Vaillancourt R, Valeri CR, Deykin D. Arachidonic acid metabolism by platelets of differing size. British journal of haematology. 1983; 53:503-511.

18. Giles H, Smith RE, Martin JF. Platelet glycoprotein IIb-IIIa and size are increased in acute myocardial infarction. European journal of clinical investigation. 1994; 24:69-72.

19. Thompson CB, Jakubowski JA, Quinn PG, Deykin D, Valeri CR. Platelet size and age determine platelet function independently. Blood. 1984; 63:1372-1375.

20. Mutlu H, Artis TA, Erden A, Akca Z. Alteration in mean platelet volume and platicrit values in patients with cancer that developed thrombosis. Clinical and applied thrombosis/hemostasis. 2013; 19:331-333.

21. Avet-Loiseau H, Attal M, Moreau P, Charbonnel C, Garban F, Hulin C, Leyvraz S, Michallet M, Yakoub-Agha I, Garderet L, Marit G, Michaux L, Voillat L, et al. Genetic abnormalities and survival in multiple myeloma: the experience of the Intergroupe Francophone du Myelome. Blood. 2007; 109:3489-3495.

22. Liebisch P, Dohner H. Cytogenetics and molecular cytogenetics in multiple myeloma. Eur J Cancer. 2006; 42:1520-1529.

23. Stewart AK, Fonseca R. Prognostic and therapeutic significance of myeloma genetics and gene expression profiling. Journal of clinical oncology. 2005; 23:6339-6344.

24. Liu C, Yang Y, He M, Yao P, Chen W, Liang Y, Wang Y, Fang W, Zhu J, Li X, Yang H, Yuan J, Hu FB, Wu T. Passive smoke exposure was related to mean platelet volume in never-smokers. American journal of health behavior. 2014; 38:519-528.

25. Cho SY, You E, Lee HJ, Lee WI, Park TS. Smoking cession decreases mean platelet volume in healthy Korean populations. Clinical laboratory. 2014; 60:1413-1416.
