Epigenetic changes in localized gastric cancer: the role of RUNX3 in tumor progression and the immune microenvironment

PDF |  HTML  |  Supplementary Files  |  How to cite

Oncotarget. 2016; 7:63424-63436. https://doi.org/10.18632/oncotarget.11520

Metrics: PDF 3259 views  |   HTML 2587 views  |   ?

Marta Jessica Llorca-Cardeñosa, Tania Fleitas, Maider Ibarrola-Villava, María Peña-Chilet, Cristina Mongort, Carolina Martinez-Ciarpaglini, Lara Navarro, Valentina Gambardella, Josefa Castillo, Susana Roselló, Samuel Navarro, Gloria Ribas and Andrés Cervantes _

Abstract

Marta Jessica Llorca-Cardeñosa1,*, Tania Fleitas1,*, Maider Ibarrola-Villava1, María Peña-Chilet1, Cristina Mongort2, Carolina Martinez-Ciarpaglini2, Lara Navarro2, Valentina Gambardella1, Josefa Castillo1, Susana Roselló1, Samuel Navarro2, Gloria Ribas1, Andrés Cervantes1

1Medical Oncology, Biomedical Research Institute INCLIVA, University of Valencia, Valencia, Spain

2Department of Pathology, Biomedical Research Institute INCLIVA, University of Valencia, Valencia, Spain

*These authors contributed equally to this work

Correspondence to:

Gloria Ribas, email: [email protected]

Andrés Cervantes, email: [email protected]

Keywords: RUNX3, ARID1A, gastric cancer, gene methylation, immune microenvironment

Received: June 16, 2016     Accepted: August 15, 2016     Published: August 23, 2016

ABSTRACT

Gastric cancer (GC) pathogenesis involves genetic, epigenetic and environmental factors. Epigenetic alterations, such as DNA methylation are considered pivotal in the inactivation of tumor-related genes. We assessed a methylation panel of 5 genes to study their association to GC progression and microsatellite instability (MSI), and studied the role of RUNX3 in GC pathogenesis and the tumor immune microenvironment.

The methylation status of 47 promoter-CpG islands was studied through MALDI-TOF mass spectrometry analysis in 35 Microsatellite stable (MSS) GC, 26 MSI, and 18 cancer-free samples (CFS), and 6 MSS GC and 4 MSI GC cell lines. We also studied RUNX3 expression by immunohistochemistry (IHC) in 40 samples, and validated differences in methylation levels between tumor, normal, and immune tissue in 14 additional samples.

Unsupervised hierarchical clustering of methylation levels revealed no distinct subgroups between MSI and MSS samples or cell lines. CFSs clustered together showing higher levels of RUNX3 methylation compared to GC samples. RUNX3 showed protein silencing in cancer and normal mucosa, compared to inflammatory peritumoural infiltrate in almost all cases, showing a non-lymphocytic predominant pattern and being correlated with epigenetic silencing.

Our results show aberrant promoter’s methylation in APC, CDH1, CDKN2A, MLH1 and RUNX3 associated with GC, as well as a non-lymphocytic predominant infiltrate with high expression of RUNX3. Deep study of RUNX3 inflammation signaling could help in understanding inflammation and immune activation in the tumor microenvironment.


INTRODUCTION

Gastric cancer (GC) has high incidence and mortality and is among the most common malignancies: in 2012 it was the second-leading cause of cancer-related deaths worldwide [1]. The roles played by genetic and epigenetic alterations in causing GC are being increasingly recognized, but currently only HER2 overexpression is used as a marker for target-based therapy [2]. Thus, comprehensive molecular characterization of GC is urgently needed in order to better stratify patients and personalize their treatments [35].

Epigenetic alterations, such as CpG island DNA methylation, are involved in gastric carcinogenesis [6], and promoter methylation is considered to be one of the key processes involved in inactivating tumor suppressor-related genes. Epigenetic inactivation of several genes has recently been related with GC progression [68], and includes genes involved in cell cycle regulation (CDKN2A), DNA repair (MLH1), cell adhesion/invasion/migration (CDH1), STAT and Wnt pathways (APC), transcriptional regulation (RUNX3), and many others. Furthermore, aberrant methylation of these genes has been previously related to the CpG island methylator phenotype (CIMP) [919] which was first described in colorectal cancer (CRC) and refers to the concurrence of hypermethylation in multiple genes [14, 17]. Despite the presence of the CIMP phenotype in GC having been reported by many scientists, data regarding its prognostic value for this cancer remains controversial [912, 20]. Moreover, according to the Cancer Genome Atlas Research Network, the CIMP phenotype is related to the microsatellite instability (MSI) GC subgroup and is also associated with female gender, antral tumor location, better survival rates, mutations in ARID1A, KRAS, HER2, and PIK3/PTEN/mTOR pathway involvement [5].

Additionally, the RUNX3 transcription factor, poorly qualified as a tumor suppressor gene (TSG) [2123], has been associated with early inflammatory, pre-neoplastic, and tumor stages [24] as well as with chronic H. pylori infection [15, 25], which is known to lead to inflammation in gastric tissue and may induce atrophy, dysplasia, and metaplasia [26]. During chronic inflammation genetic and epigenetic changes work in concert to alter important pathways involved in normal cellular function, and hence accelerate inflammation-associated cancer development [27].

Thus, we assessed the association of a panel of five marker genes to study their association to MSI subgroup, CIMP-phenotype, and GC-progression, as well as the role of RUNX3 as a conflicting TSG [2123] compared to a known TSG, ARID1A, in GC pathogenesis, H. pylori infection, MSI, and the tumor immune microenvironment.

RESULTS

Gene methylation panel analysis

Clinicopathological characteristics such as age, sex, tumor location, histology, tumor grade (based on the TNM classification system for malignant tumors, 7th edition), HER2, HER3, cMET, ARID1A expression, microsatellite status and treatments administered to patients with GC included in the initial methylation panel (n = 61) are shown in Table 1.

Table 1: Clinicopathological characteristics of samples included in the initial methylation panel (N = 61)



n (N = 61)

Mean age in years (SD)

71.03 (14.12)

Gender



Male

30

Female

31

Localization



Antrum

25

Body

15

GEJ

9

Cardia

6

Fundus

5

Gastric stump

1

Lauren Classification



Intestinal

40

Diffuse

15

Mixed

6

Stage



I

11

II

33

III

8

IV

4

Unknown

5

Treatment



No

38

XELOX

19

FOLFOX

1

Other

3

Microsatellite Instability



MSI

26

MSS

34

Unknown

1

HER2 amplification



Her2+

13

Her2–

48

HER3 amplification



Her3+

13

Her3–

47

unknown

1

cMET amplification



cMet+

13

cMet–

48

ARID1A Loss



Arid1a wt

37

Arid1a –

24

GEJ, gastro-esophageal junction; XELOX, capecitabine plus oxaliplatin; FOLFOX, folinic acid, fluorouracil and oxaliplatin; MSI, microsatellite instability; MSS, microsatellite stability; wt, wild-type.

Information about RUNX3 structure, promoters and amplicons location is available in Figure 1.

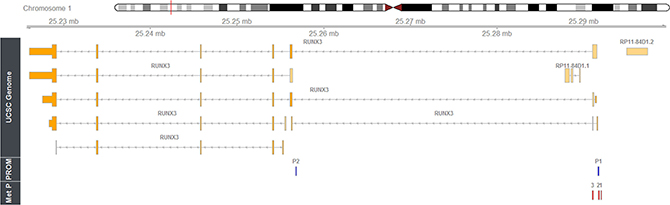

Mapping of the methylation amplicons studied within human RUNX3 gene.

Figure 1: Mapping of the methylation amplicons studied within human RUNX3 gene. Rbioconductor/Rstudio and package Gviz (REF) has been used to show genomic data for human RUNX3 on chromosome 1p36 (using as genomic source GRCh37 Hg19; http://genome.ucsc.edu/). Relative locations of P1 and P2 promoter regions and intron/exon structures of the derived transcripts are shown. Browser tracks show locations of RUNX3 methylation amplicons; 1 = RUNX3.4, 2 = RUNX3.13, 3 = RUNX3.53. The coordinates have been obtained using the ‘Blast Like Alignment Tool’ (BLAST).

Unsupervised hierarchical clustering of the methylation levels of all 47 promoter-CpG islands in 5 GC-related genes (Figure 2) revealed no significant methylation-level subgroups between MSI and MSS GC samples or MSI and MSS cell lines. Nevertheless, CFSs clustered together showing higher levels of RUNX3 methylation compared to GC samples. Additionally, RUNX3 methylation was also higher than in all the other genes in all of the samples evaluated.

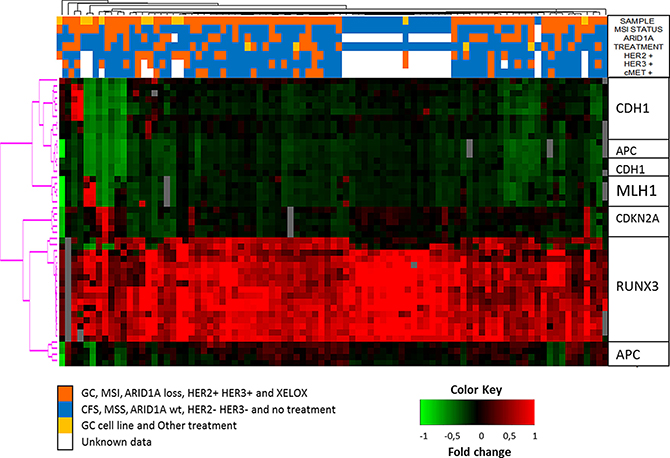

Unsupervised hierarchical clustering of the methylation levels measured in all 47 promoter-CpG islands of 5 GC-related genes.

Figure 2: Unsupervised hierarchical clustering of the methylation levels measured in all 47 promoter-CpG islands of 5 GC-related genes. See color key in the image.

When we compared the average methylation levels between MSI and MSS GC samples, only MLH1 showed statistically-significant differences associated with MSI status (p-value = 0.1 × 10–6), although CDKN2A and CDH1 showed a trend towards significance (p-values of 0.05 and 0.09, respectively). These results were similar when we compared the MSI and MSS GC cell lines, which confirm the association between hypermethylation of these gene-promoters and MSI status.

Furthermore, comparisons between the average methylation levels in GC samples and CFSs showed statistically significant differences between one or more amplicons in APC (APC.2), CDH1 (CDH1.29), MLH1 (MLH1.1 and MLH1.11), and RUNX3 (RUNX3.4 and RUNX3.13), as shown in Figure 3. Surprisingly, the RUNX3.53 amplicon, located proximal to the first exon, showed a trend which was completely opposite to the other RUNX3 amplicons (4 and 13) located in the P1 sequence, which were both hypermethylated in GC samples compared to CFSs.

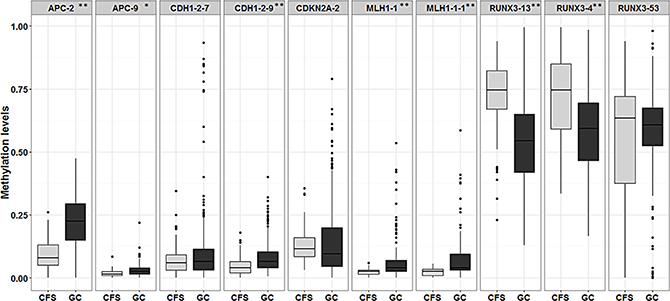

Box plot showing differences in the average methylation of amplicons in gastric cancer (GC) versus cancer-free samples (CFS).

Figure 3: Box plot showing differences in the average methylation of amplicons in gastric cancer (GC) versus cancer-free samples (CFS). * signifies p-values < 0.05 while ** signifies p-values < 0.01. Average amplicon methylation is represented in light grey for CFSs and in dark grey for GC samples.

Beside these aforementioned results, a total of 29 CpG islands (19 hypermethylated and 10 hypomethylated) spread over 5 genes, showed significant differences in methylation levels (FDR corrected p-values) when we compared GC samples with CFSs, as shown in Figure 4. Finally, lower levels of RUNX3 methylation were correlated with the intestinal GC subtype, according to Lauren classification (p-value > 0.001). There were no other associations found and none of the variables studied was correlated with differences in surveillance.

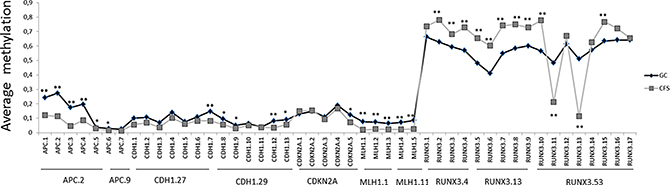

Differences in average amount of methylation in a single CpG island in gastric cancer (GC) versus cancer-free samples (CFS).

Figure 4: Differences in average amount of methylation in a single CpG island in gastric cancer (GC) versus cancer-free samples (CFS). * signifies p-values < 0.05 and ** signifies p-values < 0.01. Y axis represents methylation levels. Average CpG methylation is represented in grey for CFSs and in black for GC samples.

Information about the amplicon sequences and lengths, and their predicted-associated transcription factors (with sequence similarities greater than 0.85) is provided in Supplementary Table 1.

Immunohistochemical assay

In order to extend our evaluation of RUNX3 function in GC, we studied RUNX3 protein expression using IHC. We also evaluated ARID1A expression because it seems to play a key role in gastric carcinogenesis and it served as a control reference TSG to compare to RUNX3, which has been wrongly categorized as a TSG in the past. Clinicopathological patient features included in the IHC analysis of RUNX3 and ARID1A protein expression are shown in Table 2.

Table 2: Characteristics of patients included in the immunohistochemical analysis (N = 40)



N

%

Median age (range)

75 (49–88)



Sex





Male

29

72.5

Female

11

27.5

Pathological Stage *





0–I

20

50.0

IIa

9

22.5

IIb

11

27.5

Tumor Localization





GE junction

1

2.5

Cardias

4

10.0

Fundus

2

5.0

Body

12

30.0

Antrum

20

50.0

Gastrectomy stump

1

2.5

Histology





Intestinal

25

62.5

Diffuse

12

30.0

Both

2

5.0

Unknown

1

2.5

Grade





1

7

17.5

2

15

37.5

3

8

20.0

Unknown

10

25.0

HER2 Expression





Positive = “+++” or FISH positive

9

22.5

Negative = “–“ or FISH negative

30

75.0

Unknown

1

2.5

HER3 Expression





Positive

12

30.0

Negative

27

67.5

Unknown

1

2.5

Microsatellite Status





MSI

11

27.5

MSS

29

72.5

GE, gastroesophageal; MSI, microsatellite instability; MSS, microsatellite stability; *Pathological staging was based on the TNM classification system for malignant tumors, 7th edition.

Characterization of the mucosal tissue infiltrate

Analysis of the peritumoral mucosa revealed metaplasia in 50.0%, ulceration in 67.5%, and peritumoral infiltrates in 97.5% of the samples (Table 3). In parallel, for 27.5% of the patients, the cells in the stromal peritumoral infiltrate presented a “predominant lymphocytic phenotype”, while for the remaining 72.5% of the patients, these cells presented a “non-predominant lymphocyte phenotype” (Table 3). Up to 40.0% of the patients showed low or moderate H. pylori presence in their mucosal tissue samples, and most of the changes found were located either in the fundus or in the body of the stomach. No statistical associations were found between H. pylori infection and RUNX3 expression. Additional data regarding mucosal changes are shown in Table 3.

Table 3: Gastric mucosa changes and Helicobacter pylori infection status in patients included in the immunohistochemical analysis



Frequency (n = 40)

%

Atrophy





(–)

12

30.0

(+)

27

67.5

(++)

0

0.0

(+++)

1

2.5

Dysplasia





(–)

15

37.5

(+)

10

25.0

(++)

1

2.5

(+++)

14

35.0

Hyperplasia





(–)

39

97.5

(+)

1

2.5

Metaplasia





(–)

20

50.0

Complete

2

5.0

Incomplete

18

45.0

Erosion





(–)

13

32.5

(+)

21

52.5

(++)

1

2.5

(+++)

5

12.5

Inflammation





(–)

1

2.5

(+)

11

27.5

(++)

6

15.0

(+++)

22

55.0

Type of cells in peritumoral infiltrate





Predominant lymphocyte phenotype

11

27.5

Non-predominant lymphocyte phenotype

29

72.5

Helicobacter pylori infection





(–)

24

60.0

Low

15

37.5

Moderate

1

2.5

(–) = negative presence of mucosal changes or the absence of Helicobacter pylori in the tissue. (+), (++), (+++) = Low, moderate, or high presence of mucosal changes, respectively.

Analysis of RUNX3 and ARID1A expression

Normal gastric mucosa, gastric tumor, and peritumoral tissues were compared for RUNX3 and ARID1A protein expression. Significant differences were found in RUNX3 expression levels between tumor and peritumoral infiltrate (p-value < 0.0001) and between the adjacent mucosa and the peritumoral infiltrate (p-value < 0.0001) samples. In addition, ARID1A expression was also statistically different between tumor and adjacent mucosa tissues (p-value = 0.009) and between tumor and peritumoral infiltrate samples (p-value = 0.018). Specifically, ARID1A levels were reduced in 12.5% of the tumor tissues, whereas RUNX3 levels were lower in 87.5% of the tumor tissues analyzed. Adjacent normal gastric mucosa samples presented low protein expression levels for both RUNX3 and ARID1A. Regarding the peritumoral infiltrate, RUNX3 and ARID1A were highly expressed (“+++”) in 90.0% and 92.5% of cases, respectively (Figure 5).

Representative example of ARID1A and RUNX3 expression in gastric epithelial neoplasia and the peritumoral infiltrate (immunohistochemical staining findings).

Figure 5: Representative example of ARID1A and RUNX3 expression in gastric epithelial neoplasia and the peritumoral infiltrate (immunohistochemical staining findings). (A) Negative expression of ARID1A in the tumor and positive expression in the peritumoral infiltrate (×40 magnification). (B) Positive expression in the tumor and in the peritumoral infiltrate (×40 magnification). (C and D) Negative RUNX3 expression in the tumor and positive expression in the peritumoral infiltrate (×10/×40 magnification, respectively).

Spearman correlation analysis showed a positive correlation between RUNX3 expression in the peritumoral infiltrate and inflammation (r = 0.37), but no other correlations with the infiltrate mucosal tissue remained significant after Spearman correspondence analysis. With regard to microsatellite status, 11 patients (27.5%) presented MSI. Nevertheless, when the mucosal changes, as well as the ARID1A and RUNX3 expression, were compared between the MSI and MSS groups, the differences were not significant. The RUNX3 and ARID1A expression levels are shown in Table 4.

Table 4: RUNX3 and ARID1A protein expression (N = 40)

Characteristic

N

%

IHC RUNX3 expression





Normal mucosa (–)

38

95

(+)

2

5

Tumor (–)

35

87.5

(+)

4

10

(++)

1

2.5

Peritumoral infiltrate





(+)

2

5

(++)

2

5

(+++)

36

90

IHC ARID1A expression





Normal mucosa (–)

0

0

(+)

2

5

(++)

1

2.5

(+++)

37

92.5

Tumor (–)

5

12.5

(+)

5

12.5

(++)

0

0

(+++)

30

75

Peritumoral infiltrate





(+)

2

5

(++)

1

2.5

(+++)

37

92.5

IHC, immunohistochemistry.

Clinical outcome

The median overall patient survival was 92 months; and patients with high ARID1A expression levels in the adjacent mucosa had significantly better survival times than those with negative, low, or moderate expression levels of this gene (p-value = 0.018). There were no other differences in survival between the MSI and MSS groups, or in the outcome when comparing ARID1A or RUNX3 expression in tumoral tissue with that in the peritumoral infiltrate.

Methylation analysis validation

To validate the relationship found between RUNX3 hypermethylation in GC and CFS we performed a second methylation analysis, comparing the RUNX3 methylation status in microdissected tumoral, normal, and peritumoral inflammatory infiltrate tissues. The results showed hypomethylation in peritumoral inflammatory tissues compared to normal and tumoral tissues, although these differences where only statistically significant for the RUNX3.13 amplicon (p-value = 0.03) (Figure 6). This finding correlates with our IHC protein analysis results, and seems to corroborate the idea that promoter methylation plays a key role in regulating RUNX3 expression.

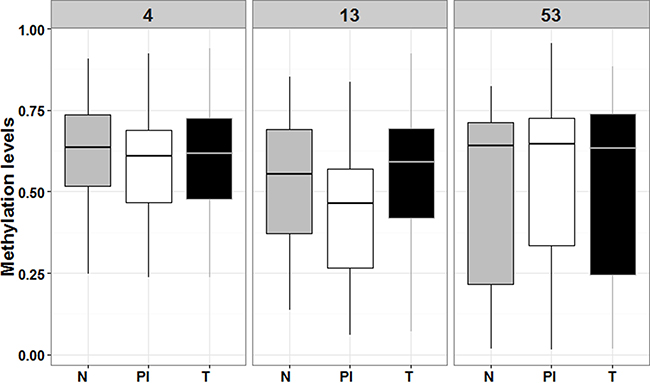

Box plot comparing RUNX3 levels of methylation among the tree type of microdissected tissues.

Figure 6: Box plot comparing RUNX3 levels of methylation among the tree type of microdissected tissues. N means normal adjacent mucosa (in grey), PI means peritumoral infiltrate (in white) and T means tumoral tissue (in black). Numbers 4, 13 and 53 refer to RUNX3.4, RUNX3.13 and RUNX3.53 amplicons, respectively.

DISCUSSION

Many methylated genes have been related to gastric carcinogenesis but useful markers that could improve early diagnosis, prognosis, or be used to design better treatments are still not available. The existence of the CIMP, widely described in CRC [17], it is still controversial in GC, and although it has been explored in several studies, a standard panel of methylation markers defining it has not yet been proposed [10, 11]. We searched for changes in the methylation status of five candidate genes in GC samples and showed different promoter methylation levels in the APC, CDH1, CDKN2A, MLH1, and RUNX3 genes. Unlike the others, the latter was hypermethylated in cancer-free samples (CFSs). These findings corroborate the hypothesis that methylation is involved in regulating these genes in GC [7, 8, 11, 16, 18, 28].

Surprisingly, we found no grouping between MSI and MSS samples when we applied unsupervised hierarchical clustering, indicating that the selected genes seem to be not sufficiently good markers (at least not alone) as to represent a CIMP for the MSI group [29, 30]. Thus, further investigation into the potential existence of a CIMP phenotype in GC, as a different subgroup with particular clinical and molecular characteristics is still required to find good markers to discriminate this subgroup of tumors.

RUNX3 is located in chromosome 1p36, and belongs to the Runt (RUNX) family of related transcription factors also known as alpha-type core-binding factors (CBFαs). RUNX3 was believed to be a tumor suppressor gene (TSG), although conflicting results have since emerged [2123]; it has been implicated in GC pathogenesis and also plays a key role in GC immunity. Its promoter area is divided in two regions of interest (P1 and P2): the P1 region is related to disease progression while the P2 region has not previously been correlated with RUNX3 silencing or GC progression [22]. Furthermore, aberrant P1 hypomethylation signatures have been associated with early inflammatory, pre-neoplastic, and tumor stages [24]. Thus, we examined two amplicons in P1 (RUNX3.4 and RUNX3.13), and another proximal to the first exon (RUNX3.53), and were able to corroborate the principal role of P1 in gene-expression control. Additionally, the inverse results found for amplicon RUNX3.53 compared to the other amplicons located in the P1 sequence raises the question of whether the P1 region is exclusively involved in RUNX3 regulation, especially given that the other CpG-rich zones are not yet fully understood and have not been clearly related to disease progression.

To further investigate the role of RUNX3 in GC, we performed IHC analysis which identified marked RUNX3 expression in the peritumoral inflammatory infiltrate, but almost no expression in tumoral or normal adjacent mucosa, in over 90% of the samples analyzed. Methylation analysis of a validation cohort of 14 samples, including immune infiltrate, tumoral, and normal adjacent mucosa tissues revealed decreased methylation levels in the immune infiltrate compared to the other two tissue types. This result supports the idea that RUNX3 promoter hypermethylation acts as a silencing mechanism in normal and tumoral tissues, and thus the important role of this gene in immunological cells. Similar findings were found by Kurklu et al. in 2014 in a comprehensive study of RUNX3 methylation which clearly showed it is silenced in tumoral and normal tissue and is overexpressed in every type of immune cell [15].

More than a decade ago RUNX3 was catalogued as a major TSG in GC and in other cancers. However, new evidence has subsequently emerged showing that RUNX3 is not expressed in normal gastric and other epithelia which has challenged this RUNX3-TSG paradigm [15, 22]. There is still controversy about the role of RUNX3 in gastric carcinogenesis, but it seems that this gene may have important functions in immunity and inflammation and thereby might indirectly influence epithelial tumor development through aberrant P1 hypomethylation [15]; our data further reinforce this as a silencing mechanism in normal and tumoral tissues.

Most of our patients presented a “non-predominant lymphocyte phenotype”. Gajewski et al. described two mechanisms of immune signaling, depending on the predominant cells in the peritumoral infiltrate. In T cell-infiltrated tumors, chemokines support the influx of CD8+ effector T cells, but these subsequently become functionally inhibited by the effects of PD-L1, IDO, regulatory T cells, and anergy. The development of this phenotype appears, in part, to be promoted by type I interferon signaling and CD8a+ dendritic cells. In non-T cell-infiltrated tumors, there is poor chemokine expression and lack of T cell infiltration but there is also a minimal presence of defined immune inhibitory pathways and it has been speculated that these tumors also have denser stroma and alternative myeloid or macrophage populations. Although this distinction has been best characterized in patients with melanoma, similar immune phenotypes may be operational in other subsets of solid tumors, some of which show T cell infiltration. T cell-infiltrated tumors may optimally respond to therapies targeting immune system inhibitory mechanisms, whereas non-T cell-infiltrated tumors may require additional interventions to help promote optimal inflammation and innate immune activation in the tumor microenvironment [31]. One limitation of our study is that we performed morphological characterization of the immune peritumoral infiltrate but did not use specific antibody stains to identify the immune cells present. A standardized procedure to immune tumor-microenvironment profiling would be needed in future studies in order to better understand immune cell signaling in specific context.

In order to elucidate the role of RUNX3 as a TSG we evaluated the expression of ARID1A, a well-known TSG; ARID1A expression was lost in 12.5% of the tumor samples, which agrees with previously published results [32, 33]. Furthermore, survival was significantly longer for patients with high ARID1A expression in normal epithelium (p-value = 0.018) which is also in concordance with published data showing that the maintenance of ARID1A expression is associated with a good prognosis, whereas its loss is associated with a poor prognosis and is linked with advanced GC [24, 3436]. No associations were found between RUNX3 or ARID1A and in our clinicopathological variables or between RUNX3 and H. pylori infection. However, this might be explained by the small sample size or because H. pylori is only detected well in the early phases of GC, while our samples were mostly GC resections conserved in paraffin.

In conclusion, our results showed aberrant promoter methylation in genes related with GC carcinogenesis, specifically in the APC, CDH1, CDKN2A, MLH1, and RUNX3 genes, as well as the presence of a non-lymphocytic-predominant infiltrate with high RUNX3 expression. Non-lymphocytic infiltrated tumors may require additional interventions aimed at promoting optimal inflammation and innate immune activation in the tumor microenvironment, perhaps by increasing RUNX3-mediated inflammatory signaling.

MATERIALS AND METHODS

Patient selection and data collection

Between January 2003 and December 2013, we obtained 220 samples from consecutive, non-related patients diagnosed with sporadic GC and 18 gastric tissue samples from cancer-free patients (CFS) at the Medical Oncology Unit in the INCLIVA Biomedical Research Institute in Valencia, Spain. Samples where formalin-fixed paraffin-embedded (FFPE) conserved and were evaluated for their tumor content; sections containing more than 30% tumor cells were selected by an expert pathologist. Most patients included had not received chemotherapy prior to surgery, although some had been treated with FOLFOX (folinic acid, fluorouracil and oxaliplatin) or XELOX (capecitabine plus oxaliplatin). Clinicopathological and follow-up information was retrieved for all of the participants. All the study subjects gave their written informed consent, and the study protocol was approved by the Ethics Board at the INCLIVA Biomedical Research Institute.

DNA isolation

Genomic DNA was isolated from FFPE tissues from four unstained 20 μm-sections using a QIAamp DNA FFPE tissue kit (QIAGEN). The DNA concentration was quantified in samples using a NanoDrop spectrophotometer (NanoDrop Technologies, Wilmington, DE, USA) and subsequently stored at –20°C.

Methylation analysis

The methylation status of 47 promoter-CpG islands in the APC, CDH1, CDKN2A, MLH1, and RUNX3 genes was studied using an EpiTYPER assay for high-throughput analysis of DNA methylation patterns (Sequenom, San Diego, CA, USA), in 35 microsatellite stable (MSS) GC and 26 MSI samples, 18 CFSs, and 6 MSS and 4 MSI cell lines. In the case of RUNX3, two amplicons (4 and 13) in the promoter 1 (P1) sequence, and another one in a CpG-dense zone proximal to exon 1 and upstream of the promoter 2 (P2) sequence, have been examined, in order to stablish possible differences in regulation between them.

In brief, in this method bisulfite-converted DNA is amplified by T7-promoter-tagged PCR, followed by generation of a single-stranded RNA molecule and subsequent base-specific cleavage by RNase A. The mixture of cleavage products (differing in length and mass) are analyzed by matrix-assisted laser desorption/ionization time-of-flight mass spectrometry (MALDI-TOF-MS). Differences in the template-DNA methylation profile result in changes in the nucleotide sequence after bisulfite treatment, which in turn yields different fragment masses in the assay. The abundance of each fragment (signal/noise level in the spectrum) is indicative of the amount of DNA methylation in the interrogated sequence [3739].

For the RUNX3 methylation validation analysis, micro-dissected and punched paired tumor, normal adjacent mucosa, and peritumoral infiltrate tissues were evaluated in 14 samples, using the same protocol described above.

Immunohistochemistry assays

Immunohistochemistry (IHC) assays were performed in 40 TNM stage I-II patients; gastric tumor, adjacent non-cancerous mucosa, and peritumoral infiltrate tissues were histologically characterized for all of them. ARID1A and RUNX3 expression was evaluated using an anti-ARID1A polyclonal rabbit antibody (HPA005456, dilution 1:500, Sigma-Aldrich) and an anti-RUNX3 monoclonal mouse antibody (R3-5G4, dilution 1:200, ABCAM), as previously described [32]. Microsatellite status was determined by analyzing MLH1, MSH2, PMS2, and MSH6 using primary antibodies against each protein according to the manufacturer’s recommendations (DAKO, Glostrup, Denmark). Tumors were regarded as positive for ARID1A or RUNX3 if the tumor cells showed nuclear immunoreactivity; adjacent mucosa and peritumoral infiltrate tissues were regarded as positive if epithelial and inflammatory cells both showed nuclear immunoreactivity. Mucosal morphological tissue changes (classified as low, moderate, or severe atrophy and dysplasia), as well as the immune-predominant phenotype, were also determined based on hematoxilin and eosin (H&E) staining. For microsatellite status, total lack of immunoreactivity was classified as a loss of protein expression and was considered as evidence of MSI. The apparently normal adjacent tissue was used as an internal control.

HER2, HER3, and cMET expression data were determined via routine hospital protocols and were available for all the patients in our database.

Inflammation was evaluated by morphological criteria without IHC staining. Diffuse infiltration or follicular aggregates of lymphocytes and plasma cells around the tumor infiltration line were analyzed in H&E-stained sections at 10× magnification by an expert pathologist. Inflammation was scored as “+”, “++”, or “+++”, according to the grade of the infiltrate identified. The predominant cell type in the peritumoral infiltrate was also recorded and classified as “Predominant lymphocyte phenotype” or “non-predominant lymphocyte phenotype” according to the presence of 50% or more lymphocytes in the peritumoral infiltrate in sections observed at 10× magnification.

Histochemical identification of Helicobacter pylori

The presence of (H. pylori) was monitored using the Warthin-Starry technique [40] with Dako’s Artisan Link pro automatic system, as per the manufacturer’s recommendations (Dako, Glostrup, Denmark).

Microsatellite instability determination by PCR

The Type-it Microsatellite PCR kit (Qiagen, Hilden, Germany) was used to co-amplify five markers (NR27, NR21, NR24, BAT25 and BAT26) in a standard multiplex PCR. The PCR conditions were: denaturation at 95°C for 5 minutes, 28 cycles of denaturation at 95°C for 30 seconds, annealing at 60°C for 90 seconds, and extension at 72°C for 30 seconds, followed by a final extension phase at 60°C for 3 minutes. The PCR products were denatured and separated by capillary electrophoresis using an ABI PRISM 310 DNA sequencer and were further analyzed with GeneMapper 3.5 software (Applied Biosystems, Paisley, UK). MSI status was confirmed when two or more markers presented instability and microsatellite stable (MSS) status was confirmed when one or none of the markers presented instability.

Statistical analysis

Two-way hierarchical clustering analysis, based on the average-linkage clustering algorithm, was performed on the 61 GC samples, 18 CFSs, and 10 GC cell lines, using Gene Cluster and Treeview software (http://www.eisenlab.org/eisen/). Association between clinicopathological and molecular features was analyzed using the Chi-squared test for categorical variables and the Mann-Whitney U test for the continuous age variable.

The t-test for sample independence was used to study the correlation between the average gene, amplicon, or CpG methylation levels with clinicopathological and molecular features, and to compare differences in methylation levels between MSI or MSS samples and cell lines, and between GC and CFS samples. Survival curves were calculated using the Kaplan-Meier method, and were compared by univariate analysis using the log-rank test. In the case of RUNX3 and ARID1A expression a multivariate COX-regression analysis was performed, in order to test a possible combined effect in survival. The TFBIND online tool (http://tfbind.hgc.jp/) was used to predict possible transcription factor binding sites in the studied regions in silico. The t-test for sample relatedness was also used to compare categorical RUNX3 and ARID1A protein and gene expression in different tissue types and correlation analyses were performed using Spearman’s correlation test; all analyses were performed using SPSS v.19.0 (SPSS, Chicago, IL, USA), POMELO II online tool (http://pomelo2.iib.uam.es/), and R Studio software (http://www.rstudio.com/). A p-value of less than 0.05 was considered to be statistically significant in all cases and p-values were adjusted for multiple comparisons using the Benjamini & Hochberg false discovery rate (FDR) when we compared methylation levels between single CpGs.

ACKNOWLEDGMENTS

We would like to give thanks to all the patients and volunteers who gave their consent for inclusion in this study. We also thank the medical staff in the Medical Oncology Unit at the INCLIVA Biomedical Research Institute in Valencia (Spain) for collecting the samples and providing the material for all of the analyses, as well as the expert personnel in the Genotyping and Epigenetics Laboratory and the Genotyping and Genetic Diagnosis Unit at the Central Biomedical Research Unit (UCIM) in the University of Valencia. Finally, we would like to thank Jose Luis García-Gimenez for his advice on the methylation-panel design.

CONFLICTS OF INTEREST

The authors have no conflicts of interest to declare.

FUNDING

This study was supported by grants from the Generalitat Valenciana (Prometeo 2015/005), Ministerio de Salud Carlos III (PI13/00606 and PI12/02767), and FEDER. TF is funded by a Rio Hortega grant (CM13/00193), MI-V is funded on a Sara Borrell contract (CD15/00153), and GR is funded on a Miquel Servet II contract (CPII14-00013) all from the Ministerio de Salud Carlos III; MJL-C is funded on a Prometeo contract (Prometeo/2013/005) from the Generalitat Valenciana; VG is funded by a translational research stay grant from the European Society of Medical Oncology (ESMO translational research fellowship 2014).

REFERENCES

1. Wadhwa R, Song S, Lee JS, Yao Y, Wei Q, Ajani JA. Gastric cancer-molecular and clinical dimensions. Nat Rev Clin Oncol. 2013; 10:643–55.

2. Bang YJ, Van Cutsem E, Feyereislova A, Chung HC, Shen L, Sawaki A, Lordick F, Ohtsu A, Omuro Y, Satoh T, Aprile G, Kulikov E, Hill J, et al. Trastuzumab in combination with chemotherapy versus chemotherapy alone for treatment of HER2-positive advanced gastric or gastro-oesophageal junction cancer (ToGA): A phase 3, open-label, randomised controlled trial. Lancet. 2010; 376:687–97.

3. Cervantes A, Roda D, Tarazona N, Roselló S, Pérez-Fidalgo JA. Current questions for the treatment of advanced gastric cancer. Cancer Treat. Rev. 2013.

4. Niccolai E, Taddei A, Prisco D, Amedei A. Gastric cancer and the epoch of immunotherapy approaches. World J Gastroenterol. 2015; 21:5778–93.

5. The Cancer Genome Atlas Research N. Comprehensive molecular characterization of gastric adenocarcinoma. Nature Med 2014; 513:202–9.

6. Yao D, Shi J, Shi B, Wang N, Liu W, Zhang G, Ji M, Xu L, He N, Hou P. Clinica Chimica Acta Quantitative assessment of gene methylation and their impact on clinical outcome in gastric cancer. 2012; 413:787–94.

7. Zhao C, Bu X. Promoter methylation of tumor-related genes in gastric carcinogenesis Histology and. 2012; 1271–82.

8. Qu Y, Dang S, Hou P. Clinica Chimica Acta Gene methylation in gastric cancer. 2013; 424:53–65.

9. Chang MS, Uozaki H, Chong JM, Ushiku T, Sakuma K, Ishikawa S, Hino R, Barua RR, Iwasaki Y, Arai K, Fujii H, Nagai H, Fukayama M. Human Cancer Biology CpG Island Methylation Status in Gastric Carcinoma with and without Infection of Epstein-Barr Virus. 2006; 12:2995–3003.

10. Loh M, Liem N, Vaithilingam A, Lim PL, Sapari NS, Elahi E, Mok ZY, Cheng CL, Yan B, Pang B, Salto-Tellez M, Yong WP, Iacopetta B, et al. DNA methylation subgroups and the CpG island methylator phenotype in gastric cancer : a comprehensive profiling approach. BMC Gastroenterol. 2014; 14:1–11.

11. Zong L, Seto Y. CpG island methylator phenotype, Helicobacter pylori, Epstein-Barr virus, and microsatellite instability and prognosis in gastric cancer: A systematic review and meta-analysis. PLoS One. 2014.

12. Toyota M, Ahuja N, Suzuki H, Itoh F, Ohe-Toyota M, Imai K, Baylin SB, Issa JP. Advances in Brief Aberrant Methylation in Gastric Cancer Associated with the CpG Island. 1999; 5438–42.

13. Fan XY, Hu XL, Han TM, Wang NN, Zhu YM, Hu W, Ma ZH, Zhang CJ, Xu X, Ye ZY, Han CM, Pan WS. Association between RUNX3 promoter methylation and gastric cancer: a meta-analysis. BMC Gastroenterol. 201; 11:92.

14. Jo P, Jung K, Grade M, Conradi L. CpG island methylator phenotype infers a poor disease-free survival in locally advanced rectal cancer. :564–70.

15. Kurklu B, Whitehead RH, Ong EK, Minamoto T, Fox JG, Mann JR, Judd LM, Giraud AS, Menheniott TR. Lineage-specific RUNX3 hypomethylation marks the preneoplastic immune component of gastric cancer. Oncogene. 2015; 34:2856–66.

16. Lee KH, Hwang D, Kang KY, Lee S, Kim DY, Joo YE, Lee JH. Frequent Promoter Methylation of CDH1 in Non-neoplastic Mucosa of Sporadic Diffuse Gastric Cancer. 2013; 3774:3765–74.

17. Sciences M. CpG island methylator phenotype in colorectal cancer. 1999; 96:8681–6.

18. Shigeyasu K, Nagasaka T, Mori Y, Yokomichi N. Clinical Significance of MLH1 Methylation and CpG Island Methylator Phenotype as Prognostic Markers in Patients with Gastric Cancer. 2015; 1–16.

19. Yagi K, Akagi K, Hayashi H, Nagae G, Tsuji S, Isagawa T, Midorikawa Y, Nishimura Y, Sakamoto H, Seto Y, Aburatani H, Kaneda A. Three DNA Methylation Epigenotypes in Human Colorectal Cancer. 2010; 21–34.

20. Liu J-B. infection associated with gastric cancer. World J. Gastroenterol. 2012.

21. Jones S, Wang TL, Shih IeM, Mao TL, Nakayama K, Roden R, Glas R, Slamon D, Diaz LA Jr, Vogelstein B, Kinzler KW, Velculescu VE, Papadopoulos N. Frequent mutations of chromatin remodeling gene ARID1A in ovarian clear cell carcinoma. Science. 2010; 330:228–31.

22. Lotem J, Levanon D, Negreanu V, Bauer O, Hantisteanu S, Dicken J, Groner Y. Runx3 at the interface of immunity, inflammation and cancer. 2015.

23. Virchow R. An Address on the Value of Pathological Experiments. Br Med J. 1881; 2:198–203.

24. Wang DD, Chen YB, Pan K, Wang W, Chen SP, Chen JG, Zhao JJ, Lv L, Pan QZ, Li YQ, Wang QJ, Huang LX, Ke ML, et al. Decreased Expression of the ARID1A Gene Is Associated with Poor Prognosis in Primary Gastric Cancer. PLoS One. 2012.

25. Zhang Y, Eom S, Yim D, Song Y, Yun H, Park J, Youn SJ, Kim BS, Kim YD, Kim H. Evaluation of the relationship between dietary factors, CagA-positive Helicobacter pylori infection, and RUNX3 promoter hypermethylation in gastric cancer tissue. 2013; 19:1778–87.

26. Loi S, Michiels S, Salgado R, Sirtaine N, Jose V, Fumagalli D, Kellokumpu-Lehtinen L-P, Bono P, Kataja V, Desmedt C, Piccart MJ, Loibl S, Denkert C, et al. Tumor infiltrating lymphocytes are prognostic in triple negative breast cancer and predictive for trastuzumab benefit in early breast cancer: results from the FinHER trial. Ann Oncol. 2014; 25:1544–50.

27. Chiba T, Marusawa H, Ushijima T. Inflammation-associated cancer development in digestive organs: mechanisms and roles for genetic and epigenetic modulation. Gastroenterology. 2012; 143:550–63.

28. Sun SHDHY, Pcr MÁM. Pathobiologic implications of methylation and expression status of Runx3 and CHFR genes in gastric cancer. 2011; 447–54.

29. Cristescu R, Lee J, Nebozhyn M, Kim KM, Ting JC, Wong SS, Liu J, Yue YG, Wang J, Yu K, Ye XS, Do IG, Liu S, et al. Molecular analysis of gastric cancer identifies subtypes associated with distinct clinical outcomes. Nat Med. 2015.

30. Bass AJ, Thorsson V, Shmulevich I, Reynolds SM, Miller M, Bernard B, Hinoue T, Laird PW, Curtis C, Shen H, Weisenberger DJ, Schultz N, Shen R, et al. Comprehensive molecular characterization of gastric adenocarcinoma. Nature. 2014; 513:202–9.

31. Gajewski TF, Schreiber H, Fu Y. Innate and adaptive immune cells in the tumor microenvironment. 2013; 14.

32. Ibarrola-Villava M, Llorca-Cardeñosa MJ, Tarazona N, Mongort C, Fleitas T, Perez-Fidalgo JA, Roselló S, Navarro S, Ribas G, Cervantes A. Deregulation of ARID1A, CDH1, cMET and PIK3CA and target-related microRNA expression in gastric cancer. Oncotarget. 2015; 6:26935–45. doi: 10.18632/oncotarget.4775.

33. Wu R-C, Wang T-L, Shih I-M. The emerging roles of ARID1A in tumor suppression. Cancer Biol Ther. 2014; 15:655–64.

34. Wang K, Kan J, Yuen ST, Shi ST, Chu KM, Law S, Chan TL, Kan Z, Chan AS, Tsui WY, Lee SP, Ho SL, Chan AK, et al. Exome sequencing identifies frequent mutation of ARID1A in molecular subtypes of gastric cancer. Nat. Genet. 2011.

35. Inada R, Sekine S, Taniguchi H, Tsuda H, Katai H, Fujiwara T, Kushima R. ARID1A expression in gastric adenocarcinoma: clinicopathological significance and correlation with DNA mismatch repair status. World J Gastroenterol. 2015; 21:2159–68.

36. Yan HB, Wang XF, Zhang Q, Tang ZQ, Jiang YH, Fan HZ, Sun YH, Yang PY, Liu F. Reduced expression of the chromatin remodeling gene ARID1A enhances gastric cancer cell migration and invasion via downregulation of E-cadherin transcription. Carcinogenesis. 2014; 35:867–76.

37. Coolen MW, Statham AI, Gardiner-Garden M, Clark SJ. Genomic profiling of CpG methylation and allelic specificity using quantitative high-throughput mass spectrometry: Critical evaluation and improvements. Nucleic Acids Res. 2007.

38. Radpour R, Kohler C, Haghighi MM, Fan AXC, Holzgreve W, Zhong XY. Methylation profiles of 22 candidate genes in breast cancer using high-throughput MALDI-TOF mass array. 2009; 28:2969–78.

39. Radpour R, Haghighi MM, Fan AX, Torbati PM, Hahn S, Holzgreve W, Zhong XY. High-Throughput Hacking of the Methylation Patterns in Breast Cancer by In vitro Transcription and Thymidine-Specific Cleavage Mass Array on. 2008; 6:1702–10.

40. Fallone CA, Loo VG, Lough J BA. Hematoxylin and eosin staining of gastric tissue for the detection of Helicobacter pylori. Helicobacter. 1997.


Creative Commons License All site content, except where otherwise noted, is licensed under a Creative Commons Attribution 3.0 License.
PII: 11520
