Distinct role of interleukin-6 and tumor necrosis factor receptor-1 in oval cell- mediated liver regeneration and inflammation-associated hepatocarcinogenesis

PDF |  HTML  |  Supplementary Files  |  How to cite  |  Order a Reprint

Oncotarget. 2016; 7:66635-66646. https://doi.org/10.18632/oncotarget.11365

Metrics: PDF 1848 views  |   HTML 2000 views  |   ?

Tong Ji, Gaofeng Li, Jiang Chen, Jie Zhao, Xi Li, Hui Lin, Xiujun Cai and Yong Cang _

Abstract

Tong Ji1,2,*, Gaofeng Li1,*, Jiang Chen2,*, Jie Zhao2, Xi Li3, Hui Lin2, Xiujun Cai2, Yong Cang1

1Life Sciences Institute and Innovation Center for Cell Signaling Network, Zhejiang University, Hangzhou, Zhejiang, 310058, China

2Department of General Surgery, Sir Run Run Shaw Hospital, College of Medicine, Zhejiang University, Hangzhou, Zhejiang, 310058, China

3Oncology Business Unit and Innovation Center for Cell Signaling Network, WuXi AppTec Co., Ltd., Shanghai 200131, China

*These authors contributed equally to this work

Correspondence to:

Yong Cang, email: cangyong@zju.edu.cn

Xiujun Cai, email: cxjzu@hotmail.com

Keywords: IL6, TNFR1, oval cell, hepatocellular carcinoma, NK cell

Received: January 01, 2016     Accepted: August 08, 2016     Published: August 18, 2016

ABSTRACT

Interleukin 6 (IL6), tumor necrosis factor α (TNFα) and TNF receptor-1(TNFR1) have been shown to involve in oval cell proliferation and hepatocellular carcinoma (HCC) development. However, their role in these processes is still unclear. In the present study, by using hepatocytes-specific DDB1 deletion mouse models, we explored the role and mechanism of IL6, TNFα and TNFR1 in oval cell proliferation and HCC development in the context of inflammation, which is the common features of HCC pathogenesis in humans. Our results showed that IL6 promotes oval cell proliferation and liver regeneration, while TNFα/TNFR1 does not affect this process. Deletion of IL6 accelerates HCC development and increases tumor burden. The number of natural killer(NK) cells is significantly decreased in tumors without IL6, implying that IL6 suppresses HCC by NK cells. In contrast to IL6, TNFR1-mediated signaling pathway promotes HCC development, and deletion of TNFR1 reduced tumor incidence. Increased apoptosis, compensatory proliferation and activation of MAPK/MEK/ERK cascade contribute to the oncogenic function of TNFR1-mediated signaling pathway. Intriguingly, deletion of TNFα accelerates tumor development, which shows divergent roles of TNFα and TNFR1 in hepatocarcinogenesis.


INTRODUCTION

Cytokines modulate various cell types in the liver. Among them, interleukine-6 (IL6) and tumor necrosis factor α (TNFα), which are produced mainly by macrophage, may be the most critical ones [1]. They are implicated in both liver physiological and pathological processes, including regeneration and hepatocellular carcinoma (HCC) [2, 3].

Under liver pathological conditions, liver progenitor cells or oval cells, which have bi-potential capacity to differentiate into hepatocytes and cholangiocytes, are activated to restore liver mass [4]. TNFα and IL6 are suggested to promote oval cell proliferation in this process [5, 6]. However, due to incapable of distinguishing newborn hepatocytes from pre-exist ones, liver regeneration could not be fully assessed in these chemical injury models [7]. Furthermore, recent studies found that oval cells play minor if any contribution to liver regeneration in conventional chemicals injury models, including thionine-supplemented(CDE) and 3-diethoxycarbonyl-1,4-dihydrocollidine (DDC) [8]. Therefore, the roles of TNFα and IL6 in oval cells-mediated liver regeneration are required to be re-evaluated in an appropriate model, in which oval cells contribute a lot to liver regeneration.

In addition to liver regeneration, IL6 and TNFa/TNFR1 signaling pathways are also involved in HCC development [9]. Deletion of IL6 inhibited diethylnitrosamine(DEN)-induced HCC development in mouse [10]. TNFα and TNFR1 do not contribute to HCC development induced by DEN, but promote obesity-and long-term CDE-induced HCC development [11, 12]. Thus, IL6 and TNFα/TNFR1 signaling pathways promote HCC development in most mouse models. However, HCC patients with high level of IL6 and TNFα have better prognosis [1315]. 90% of HCC cases in human arised in the context of hepatic inflammation [16], while in chemicals induced HCC models, tumors arise from chemically induced mutation without initial underlying hepatitis [17]. Therefore, re-evaluating the role of IL6, TNFα and TNFR1 in mouse model whose HCC development is accompanied with inflammation is more appropriately.

To re-evaluate the role of cytokines in oval cells-mediated liver regeneration and HCC development in inflammatory condition, we explored IL6 and TNFα/TNFR1 signaling in genetic induced hepatocyte damage model. Hepatocyte-specific deletion of damaged-binding protein 1(DDB1), an adaptor protein for Cullin4 ubiquitin ligase, blocks the proliferation ability of hepatocytes, resulting in compensatory regeneration mediated by oval cells and progressive tumor development in the context of inflammation [18]. Newborn hepatocytes derived from oval cells could be genetically distinguished in our model, and oval cells were induced independent of chemicals excluding the promiscuous effects of chemicals [7]. In addition, persistent deletion of DDB1 in DDB1F/F,Alb-Cre+/− mouse results in HCC arises in aged mice, preceding by intra-hepatic inflammation and immune cells infiltration [18]. Herein, by using hepatocyte-specific DDB1 knockout models, we reported divergent roles of IL6, TNFα and TNFR1 in oval cells-mediated liver regeneration and inflammation-associated hepatocarcinogenesis.

RESULTS

IL6 deficiency delayed liver generation in DDB1F/F, Mx1-Cre+/− Mice after poly(I:C) injection

We previously reported that injection of poly(I:C) into DDB1F/F, Mx1-Cre+/− mouse induced hepatocyte-specific DDB1 deletion. Oval cells are activated and differentiated into DDB1 positive hepatocytes subsequently [18]. Expression of IL6 was upregulated in the liver of DDB1F/F,Mx1-Cre+/− mice after poly(I:C) injection, with activation of downstream STAT3 but not ERK signaling (Figure 1A, 1B). To investigate the role of IL6 in oval cells mediated liver regeneration, DDB1F/F,Mx1-Cre+/−, IL6−/− mouse was obtained. DDB1 positive hepatocytes depletion was achieved in both IL6 normal and deficient DDB1F/F,Mx1-Cre+/− mice two weeks after poly(I:C) injection (Figure 1C). Newborn DDB1-positive hepatocytes were observed with much fewer in DDB1F/F,Mx1-Cre+/−, IL6−/− mice at 4 and 6 weeks post injection (Figure 1C). The level of DDB1 positive hepatocytes in IL6 deficient mice was regenerated to the same level as IL6 normal mice until 8 weeks post injection (Figure 1C). The delayed regeneration is due to slow proliferation as lower level of proliferation markers PCNA and cyclinD1 in DDB1F/F,Mx1-Cre+/−, IL6−/− mice at 4 weeks post injection, which was recovered in IL6 deficient mice at 6 weeks post injection (Figure 1D, 1E). Taken together, these data indicated that IL6 is required for liver regeneration in DDB1F/F,Mx1-Cre+/− mouse, loss of IL6 would delay this process.

Deletion of IL6 delayed liver regeneration in DDB1F/F,Mx1-Cre+/− mouse after poly(I:C) injection.

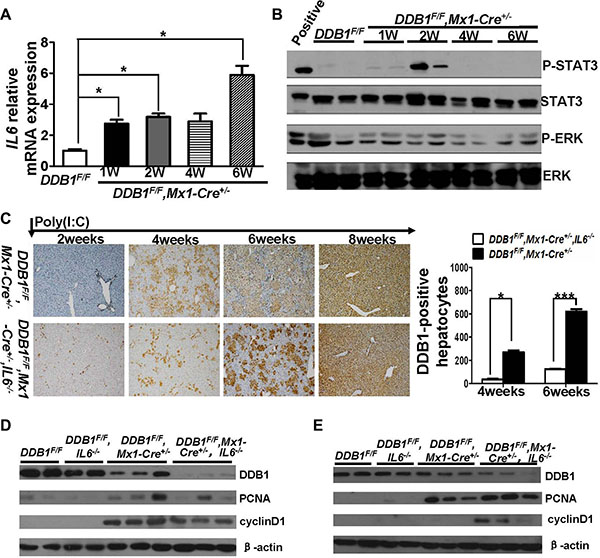

Figure 1: Deletion of IL6 delayed liver regeneration in DDB1F/F,Mx1-Cre+/− mouse after poly(I:C) injection. (A) The mRNA level of IL6 at indicated time points after poly(I:C) injection was detected by RT-PCR. Results are represented as mean ± S.E.M, n = 3–6, *P < .0.05. (B) The activation of IL6 downstream proteins STAT3 and ERK were detected by western blot. (C) IHC staining for DDB1 in liver slides(magnification,100×) and DDB1-positive hepatocytes counting at indicated time points after poly(I:C) injection, cells were counted under 20× objective from eight independently visual fields. Data are represented as mean ± S.E.M, n = 3–6, *P < 0.05, ***P < 0.001. Western blot for detecting DDB1,PCNA and cyclinD1 in liver homogenates of indicated mice at 4 weeks (D) and 6 weeks (E) after poly(I:C) injection.

Oval cell proliferation was inhibited in DDB1F/F,Mx1-Cre+/−,IL6−/− mouse

Newborn hepatocytes are mainly derived from oval cells in DDB1F/F,Mx1-Cre+/− mouse after poly(I:C) injection. To determine whether delayed liver regeneration in DDB1F/F,Mx1-Cre+/−,IL6−/− mouse is due to restricted oval cell proliferation, EpCAM expression, a biomarker of oval cells, was measured. Compared to DDB1F/F,Mx1-Cre+/− mouse, EpCAM+ oval cells were diminished in DDB1F/F,Mx1-Cre+/−,IL6−/− mouse (Figure 2A). Restricted proliferation of oval cells was further confirmed by significant reduction of CK19 and Thy1 (Figure 2B). Furthermore, upregulation of HGF and TWEAK, two important factors for oval cell proliferation, was significantly attenuated by IL6 deletion(Figure 2C). Collectively, these results suggested that IL6 is required for oval cell proliferation, partly by promoting the expression of HGF and TWEAK.

IL6 promotes oval cell proliferation by elevating the expression of HGF and TWEAK.

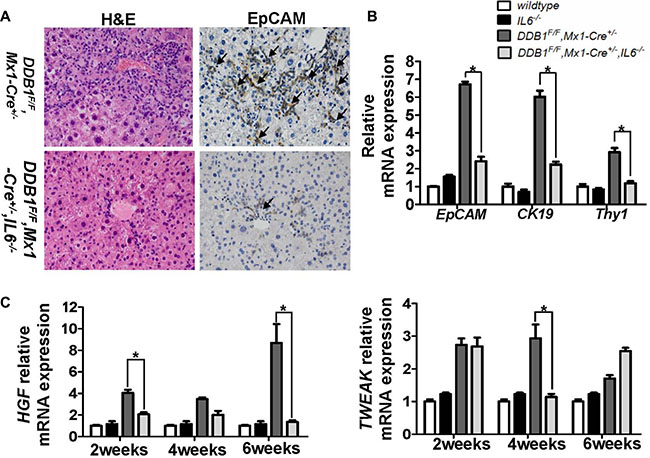

Figure 2: IL6 promotes oval cell proliferation by elevating the expression of HGF and TWEAK. (A) Liver tissues of indicated mice at 6 weeks after poly(I:C) injection were stained with HE and EpCAM(magnificantion, 400×, arrows indicated positive cells), and (B) the mRNA levels of EpCAM, CK19 and Thy1 were quantified by RT-PCR. Data are represented as mean ± S.E.M, n = 3–6, *P < 0.05. (C) The hepatic mRNA levels of HGF and TWEAK at indicated time points after poly(I:C) injection were measured by RT-PCR. Results are represented as mean ± S.E.M, n = 3–6, *P < 0.05.

TNFR1 is dispensable for oval cell proliferation and liver regeneration in DDB1F/F,Mx1-Cre+/− mouse

The role of TNFR1 in oval cell proliferation and liver regeneration was investigated as IL6. Equal DDB1-positive hepatocytes were regenerated at various time points after poly(I:C) injection with similar oval cell distribution in both TNFR1 wildtype or deficient DDB1F/F,Mx1-Cre+/− mice (Figure 3A3C). The expression of TNFα was also not varied significantly after poly(I:C) injection, as shown in Figure 3D. These results suggested that TNFα/TNFR1-mediated signaling pathway was dispensable for oval cell proliferation and liver regeneration in DDB1F/F,Mx1-Cre+/− mouse.

TNFR1 was dispensable for oval cell proliferation in DDB1F/F,Mx1-Cre+/&#x2212; mouse.

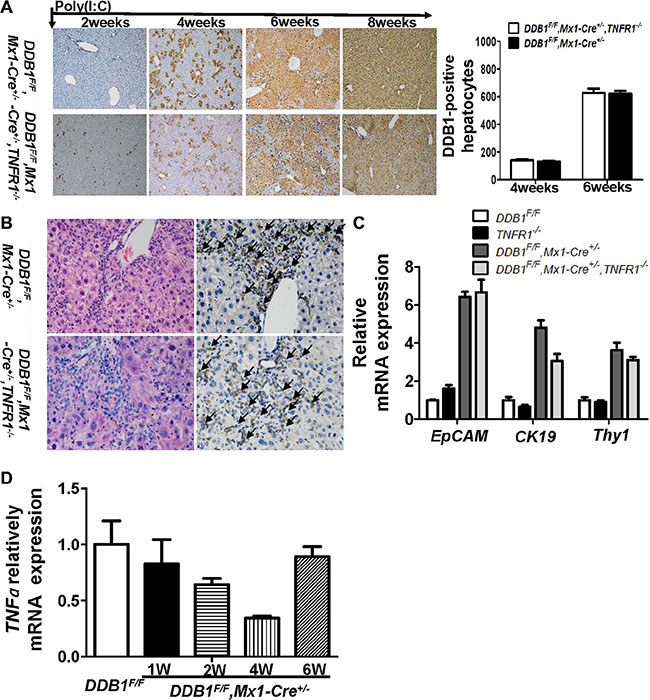

Figure 3: TNFR1 was dispensable for oval cell proliferation in DDB1F/F,Mx1-Cre+/− mouse. (A) IHC staining for DDB1 in liver tissues at indicated time points after poly(I:C) injection(magnification,100×) and DDB1-positive hepatocytes counting, cells were counted under 20× objective from eight independently visual fields. Data are represented as mean ± S.E.M, n = 4. (B) HE and IHC staining for EpCAM in liver tissues at 6 weeks after poly(I:C) injection (magnificantion, 400×, arrows indicated positive cells). (C) The mRNA levels of EpCAM, CK19 and Thy1 were quantified by RT-PCR. Data are represented as mean ± S.E.M, n = 4. (D) Detecting mRNA level of TNFα at indicated time points after poly(I:C) injection by real time RT-PCR. Results are represented as mean ± S.E.M, n = 4, *P < .0.05.

Intra-hepatic inflammation and immune cells infiltration before tumors arise in DDB1F/F,Alb-Cre+/− mouse

Various types of cancer arise under context of inflammation, especially for HCC [19]. Inflammation before tumor arised in DDB1F/F,Alb-Cre+/− and DEN mouse model was assessed, as shown in Figure 4A, by IHC for biomarkers of leukocytes(CD45) and macrophage (F4/80), more inflammatory cells in 12 months old DDB1F/F,Alb-Cre+/− mouse than age-matched control were observed, while no difference of inflammatory cells between DEN-treated and age-match control. We also evaluated the level of inflammation when noticeable HCC developed by IHC and RT-PCR. As shown Figure 4B and 4C, more inflammatory cells infiltration and T/B cells were detected in DDB1F/F,Alb-Cre+/− mouse. These data suggested that compared to DEN model, DDB1F/F, Alb-Cre+/− mouse model recapitulates key features of human HCC pathogenesis in inflammation.

Established inflammation before HCC arises and more immune cells infiltration in DDB1F/F,Alb-Cre+/&#x2212; mouse.

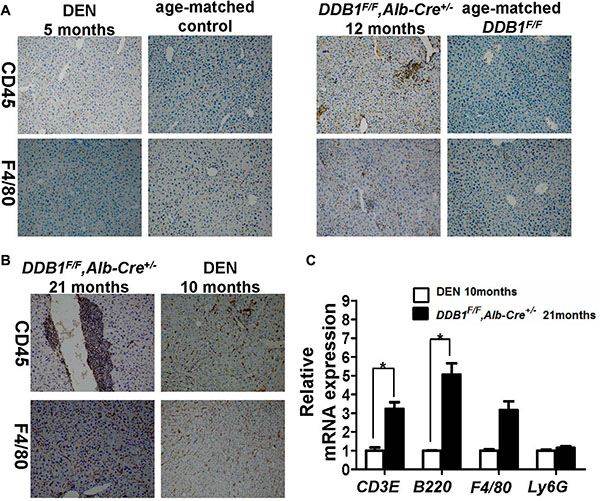

Figure 4: Established inflammation before HCC arises and more immune cells infiltration in DDB1F/F,Alb-Cre+/− mouse. (A and B) Representative pictures of IHC staining for CD45 and F4/80 in liver slides of indicated mice (magnification, 100×). (C) The hepatic mRNA levels of CD3E, B220, F4/80 and Ly6G were measured by RT-PCR. Data are represented as mean ± S.E.M, n = 4, *P < 0.05.

IL6 suppresses HCC in DDB1F/F,Alb-Cre+/− mouse through NK cells-mediated tumor surveillance

DDB1F/F,Alb-Cre+/−,IL6−/− mouse was obtained to investigate the role of IL6 in inflammation-associated HCC development. More DDB1F/F, Alb-Cre+/−,IL6−/− mice developed HCC at the age of 18 months (Supplementary Figure S1). At age of 21 months, even the tumor incidence was similar, the maximum tumor size increased significantly in DDB1F/F,Alb-Cre+/−,IL6-/- mouse (Figure 5A, 5B). Although Liver injury was elevated by deletion of IL6 reflected in ALT measurement, the apoptosis and compensatory proliferation was unaltered with similar level of cleaved-caspase3 and PCNA in IL6 wildtype and deficient DDB1F/F,Alb-Cre+/− mice (Supplementary Figure S2). Inflammation was also measured by IHC with similar staining for CD45 and F4/80 (Figure 5C). Interestingly, NK cells infiltration was decreased significantly in tumors of DDB1F/F,Alb-Cre+/−,IL6−/− mouse compared to DDB1F/F,Alb-Cre+/− mouse, confirmed by RT-PCR and IF for NK1.1, the biomarker of NK cells (Figure 5D, 5E). Finally, intra tumor TNFα and IFNγ level was significantly reduced in DDB1F/F,Alb-Cre+/−,IL6−/− mouse comparing to DDB1F/F,Alb-Cre+/− mouse (Figure 6). Taken together, our results suggested that deletion of IL6 promoted HCC development and increased tumor burden, NK cells, TNFα and IFNγ were significantly reduced in tumors of DDB1F/F,Alb-Cre+/−,IL6−/− mouse.

IL6 suppressed inflammation-associated HCC development by modulating NK cells.

Figure 5: IL6 suppressed inflammation-associated HCC development by modulating NK cells. (A) Representative pictures of liver appearance and HE staining of liver slides(magnification, 400×).(B) Tumor incidence, tumor number(> 1 mm), maximum tumor size and ALT in serum of indicated mice aged 21 months, dotted lines indicated tumor. Data are represented as mean ± S.E.M, n = 4–5, *P < 0.05. (C) Representative pictures of IHC for CD45 and F4/80 (magnification, 100×) and the mRNA levels of CD3E,B220,F4/80 detected by RT-PCR T indicates tumor and PT indicates para-tumor. Data are represented as mean ± S.E.M, n = 4–5. (D) The mRNA level of NK1.1 was detected by RT-PCR. Data are represented as mean ± S.E.M, n = 4–5, *P < 0.05. (E) IF staining for NK1.1 in tumor tissues of indicated mice. Representative pictures are shown (magnification, 200×).

The expression of TNF&#x03B1; and IFN&#x03B3; was significantly reduced in tumor regions of DDB1F/F,Alb-Cre+/&#x2212;,IL6&#x2212;/&#x2212; mouse.

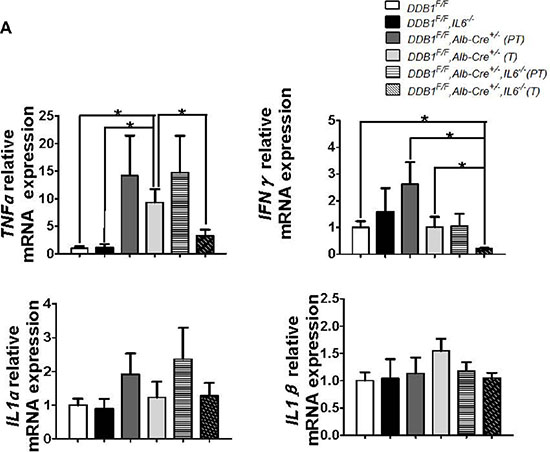

Figure 6: The expression of TNFα and IFNγ was significantly reduced in tumor regions of DDB1F/F,Alb-Cre+/−,IL6−/− mouse. (A) The mRNA levels of TNFα, IFNγ, IL1α and IL1β of liver tissues of indicated mice were detected by RT-PCR. Data are represented as mean ± S.E.M, n = 4–5, *P < 0.05.

TNFR1 and TNFα show divergent role in HCC development in DDB1F/F,Alb-Cre+/− mouse

We investigated the role of TNFR1 in inflammation-associated HCC development in DDB1F/F, Alb-Cre+/−, TNFR1−/− mouse. TNFR1 knockout reduced tumor incidence significantly, from 78% in DDB1F/F, Alb-Cre+/− mouse to 31% in DDB1F/F,Alb-Cre+/−,TNFR1−/− mouse (Figure 7A, 7B). NK cell infiltration was not affected by TNFR1 deletion (Supplementary Figure S3). Inflammation was similar between DDB1F/F,Alb-Cre+/−,TNFR1−/− and DDB1F/F,Alb-Cre+/− mouse (Figure 7C, 7D), with the same Th1 cytokine expression detected by RT-PCR (Supplementary Figure S4). However, cell apoptosis and compensatory proliferation was significantly decreased in DDB1F/F, Alb-Cre+/−,TNFR1−/− mouse with reduced cleaved-caspase3, BrdU and PCNA (Figure 8A, 8B). Furthermore, P-ERK was also reduced significantly in DDB1F/F, Alb-Cre+/−,TNFR1−/− mouse (Figure 8A, 8B). In contrast to TNFR1 knockout, deletion of TNFα accelerated HCC development in DDB1F/F,Alb-Cre+/− mouse. 13 months old DDB1F/F,Alb-Cre+/−,TNFα−/− mice developed tumors with massive inflammatory cell infiltration, while normal morphology in age-matched DDB1F/F,Alb-Cre+/− mice (Figure 9). Taken together, our results suggested that TNFR1 elevated HCC incidence, partially by promoting cells turnover and upregulating P-ERK. Unlike TNFR1, deletion of TNFα accelerated HCC development, which showed divergent role of TNFα and TNFR1 in hepatocarcinogenesis.

Deletion of TNFR1 reduced HCC incidence in DDB1F/F,Alb-Cre+/&#x2212; mouse.

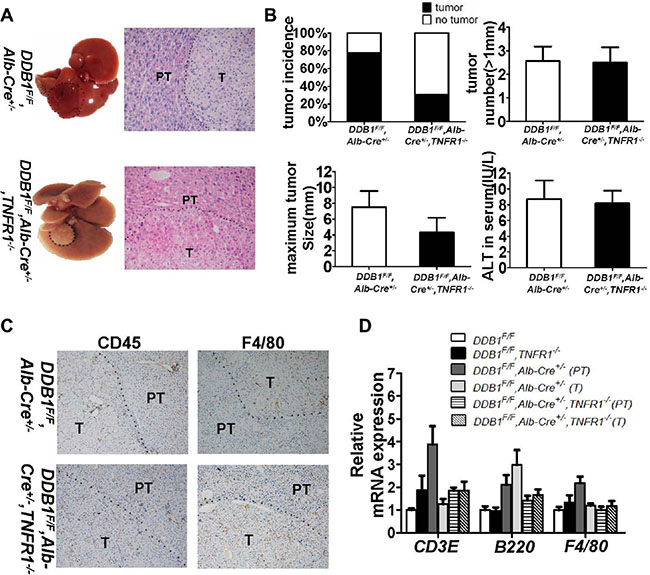

Figure 7: Deletion of TNFR1 reduced HCC incidence in DDB1F/F,Alb-Cre+/− mouse. All mice were sacrificed at the age of 21 months, tumor incidence, tumor numbers (> 1 mm) and maximum tumor size were calculated. (A) Representative pictures of liver and HE staining of liver slides (magnification, 400×), dotted line indicating tumor. (B) Tumor incidence, tumor number (> 1 mm), maximum tumor size and ALT in serum of indicated mice at the age of 21 months. Data are represented as mean ± S.E.M, n = 34. (C) Representative pictures of IHC for CD45 and F4/80 (magnification, 100×) and (D) the mRNA levels of CD3E, B220, F4/80 detected by RT-PCR, T indicates tumor and PT indicates para-tumor. Data are represented as mean ± S.E.M, n = 3–4.

Reduction of cell apoptosis and compensatory proliferation, P-ERK level in DDB1F/F,Alb-Cre+/&#x2212;,TNFR1&#x2212;/&#x2212; mouse.

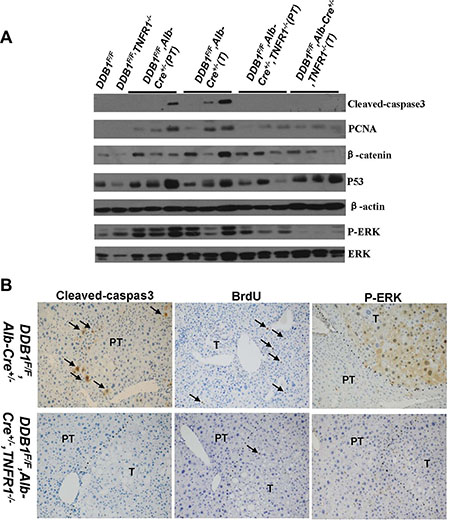

Figure 8: Reduction of cell apoptosis and compensatory proliferation, P-ERK level in DDB1F/F,Alb-Cre+/−,TNFR1−/− mouse. (A) Western blot for detecting cleaved-caspase3, PCNA, β-catenin, P-ERK and ERK. (B) Representative pictures of IHC for cleaved-caspase3, BrdU and P-ERK (magnification, 400×), arrows indicate positive cells

Deletion of TNF&#x03B1; accelerated tumor development in DDB1F/F,Alb-Cre+/&#x2212; mouse.

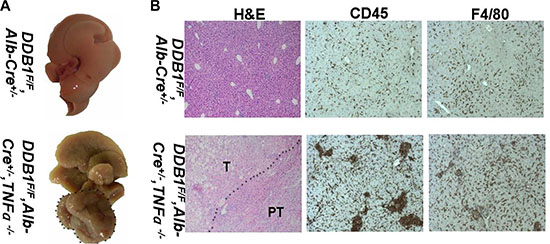

Figure 9: Deletion of TNFα accelerated tumor development in DDB1F/F,Alb-Cre+/− mouse. (A) Representative pictures of liver, dotted line indicates tumor. (B) Representative pictures of HE staining and IHC for CD45 and F4/80 (magnification, 200×). T indicates tumor and PT indicates para-tumor.

DISCUSSION

The involvement of IL6, TNFα and TNFR1 in oval cells mediated liver regeneration and HCC development has been explored by numerous studies with controversial results and discrepancy between experimental and clinical data [13, 20, 21]. By using hepatocyte-specific DDB1 deletion mouse models, we found IL6 promotes oval cells-mediated liver regeneration, while TNFα/TNFR1 signaling pathway does not affect this process. Intriguingly, TNFα and TNFR1showed divergent role in inflammation-associated hepatocarcinogenesis, and for the first time, the anti-tumor function of IL6 in HCC was revealed in present study.

Recently, Lu et al. reported that deletion of Mdm2, an E3 ubiquitin ligase responsible for P53 degradation, in hepatocytes resulted in P53 accumulation and elicited cell death and senescence. Subsequently, oval cells were induced and differentiated into P53 negative hepatocytes to restore liver mass [22]. Similarly, hepatocyte-specific deletion of DDB1 also induced cell senescence(unpublished data), followed by oval cells-mediated liver regeneration. The regenerative process in DDB1F/F,Mx1-Cre+/− mouse is characterized by replenishment of DDB1 negative hepatocytes with positive ones. Distinct from chemicals injury models, oval cells are the major source of newborn hepatocytes, and liver regeneration could be genetically assessed [7, 18]. Therefore, DDB1F/F, Mx1-Cre+/− mouse model suits the investigation for oval cells mediated liver regeneration.

During hepatocytes reconstitution, elevated expression of IL6 was detected, which may secreted by inflammatory cells or senescent hepatocytes [23]. IL6 is shown to promote liver regeneration after partial hepatectomy [24] and oval cell proliferation induced by CDE diet [5]. Therefore, we speculated that IL6 is required for oval cells-mediated liver regeneration in DDB1F/F,Mx1-Cre+/− mouse. This hypothesis was confirmed by IL6 depletion, which showed delayed liver regeneration and restricted oval cell proliferation. Previous studies have suggested IL6 promotes oval cell proliferation by activating JAK/STAT3 signaling [5]. Consistently, activation of JAK/STAT3 was observed in DDB1F/F, Mx1-Cre+/− mouse at 1 and 2 weeks post poly(I:C) injection. In addition, expression of HGF and TWEAK, two important mitogens for oval cells, was attenuated by IL6 depletion. HGF and TWEAK are secreted by stellate cells and macrophages respectively, their contribution on oval cell proliferation has been well characterized [25, 26]. Therefore, IL6 also modulate oval cell proliferation by promoting HGF and TWEAK expression in vivo. Unlike IL6, TNFR1 depletion did not affect liver regeneration in DDB1F/F,Mx1-Cre+/− mouse. The expression of TNFα was also unaltered during regeneration. This results indicated that TNFα/TNFR1 signaling pathway is dispensable for oval cells-mediated liver regeneration in DDB1F/F, Mx1-Cre+/− mouse.

Although IL6 promotes DEN-induced HCC development, its anti-tumor role in hepatocarcinogenesis was observed in current study. IL6 depletion accelerated tumor development and increased tumor burden in DDB1F/F,Alb-Cre+/− mouse. Detailed analysis found liver injury, compensatory proliferation, and intra-hepatic inflammation was not aggravated in DDB1F/F, Alb-Cre+/−,IL6−/− mouse. Interestingly, NK cells were decreased significantly in tumors without IL6. NK cells play an important role in tumor surveillance, it exerts anti-tumor function by direct cytotoxicity or cytokine secretion such as IFNγ [27]. In HCC patients, high density of intra-tumoral NK cells correlated with long survival rate [28]. To date, the relationship between NK cells and IL6 is still unclear and controversial [2931]. Based on our results, we postulated that IL6 signaling modulates NK cells to inhibiting inflammation-associated hepatocarcinogenesis, the underlying mechanism will be our next step.

Differ from IL6, TNFR1 depletion reduced HCC incidence in DDB1F/F,Alb-Cre+/− mouse, accompanied with decreased cell death/compensatory proliferation and inhibited activation of MAPK/MEK/ERK cascade. The oncogenic function of TNFR1 may mediate through cell death/compensatory proliferation and MAPK/MEK/ERK cascade, due to the positive correlation between them and hepatocarcinogenesis [3234]. Although TNFR1 signaling is mainly initiated by TNFα, which is suggested to promote HCC development in mdr2−/− mouse [35], deletion of TNFα accelerated rather than inhibited hepatocarcinogenesis in DDB1F/F,Alb-Cre+/− mouse. The divergent role of TNFα and TNFR1 implies that other ligands bind TNFR1 to promote HCC development, probably lymphotoxin-α, whose overexpression with lymphotoxin-β elicited HCC spontaneously [36].

Taken together, by using hepatocyte-specific DDB1 deletion mouse models, the roles of IL6 and TNFα/TNFR1 signaling in liver regeneration and hepatocarcinogenesis were systematically investigated. IL6 promotes liver regeneration by stimulating oval cell proliferation, while TNFα/TNFR1 signaling is dispensable for this process. For the first time, the anti-tumor role of IL6 in hepatocarcinogenesis was suggested, and NK cells were shown to involve in. Although TNFR1 promotes HCC development in DDB1F/F,Alb-Cre+/− mouse, TNFα depletion accelerates rather than inhibits hepatocarcinogenesis. Other ligands may initiate oncogenic function of TNFR1 signaling and special cautions should be paid to anti-IL6 and anti-TNFα therapy in HCC patients.

MATERIALS AND METHODS

Mice

DDB1F/F,Alb-Cre+/ and Mx1-Cre+/− mice were constructed previously [18]. IL6−/−, TNFα−/− and TNFR1−/− mice are acquired from Jackson Laboratory. IL6−/− ,TNFα−/− and TNFR1−/− mice were crossed with DDB1F/F,Alb-Cre+/− and Mx1-Cre+/− mice respectively to obtain double mutant mice. All animals were maintained in pathogen-free facilities and all experiments were conducted according to the Guide for the Care and Use of Laboratory Animals prepared by the National Academy of Sciences and published by NIH (publication 86–23 revised 1985).

Experimental protocol

For deletion of DDB1 in DDB1F/F,Mx1-Cre+/- and DDB1F/F, Mx1-Cre+/−,TNFR1−/− &IL6−/− mice, 6–8 weeks mice were i.p. injected polyinosinic:polycytidylic acid (poly(I:C) (GE healthcare) at 13 mg/kg mouse weight. For DEN model, DEN (sigma) was injected intraperitoneally into 2 weeks old male mice at a dose of 25 mg/kg mouse weight. For BrdU incorporation assays, mice were injected intraperitoneally with 100 mg/kg BrdU and sacrificed 1 h later.

Western blot analysis

Liver tissues were homogenized in RIPA buffer (sigma) containing protease inhibitor cocktail (Roche), incubated on ice for 30 min, and centrifuged for 15 min at 12,000 g, 4°C. Protein concentration was quantified by BCA protein kit (Thermo). Equal amounts of protein were separated discontinuously on 4–12% SDS–PAGE gel and transferred to polyvinylidene difluoride membrane (Millipore). The membranes were incubated overnight at 4°C with the desired primary antibodies, washed three times with TBS/T and incubated with the appropriate HRP-conjugated secondary antibodies (Santa Cruz) for 1 hour at room temperature. Protein level was detected by chemiluminescence (Pierce Biotechnology). The antibodies used for Western blotting include: anti-p44/42 MAPK (Erk1/2) (Thr202/Tyr204), anti-p44/42 MAPK (Erk1/2), anti-β-catenin, anti-P-STAT3(Thr705) and anti-STAT3(Cell Signaling Technology), anti-PCNA, anti-p53(Santa Cruz), anti-DDB1 and anti-β-actin(Abcam).

Immunohistochemistry and immunofluorescence

Five-micrometer paraffin tissue sections were prepared. After blocking endogenous peroxidase activity and non-specific staining, the sections were incubated overnight at 4°C with the primary antibodies. Immunohistochemistry (IHC) was done using the streptavidin-biotin peroxidase complex method according to manufacturer’s instructions (Lab Vision). For immunofluorescence (IF), slides were incubated with DAPI for 3 minutes after incubating with fluorescein-conjugated primary antibodies, washed with PBS and then covered with anti-fade(Sangon Biotech). Antibodies used for immunohistochemistry were: anti-CD45 and anti-F4/80(eBioscience), anti-EpCAM (Abcam), anti-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (Cell Signaling Technology), biotin conjugated anti-BrdU (Millipore), anti-cleaved-caspase3 (Cell signaling Technology) and anti-DDB1 (Bethyl Laboratories). PE-Cy7 conjugated anti-NK1.1 (eBioscience) was used for immunofluorescence.

Real Time-PCR (RT-PCR)

Total RNA was purified from liver tissue samples using Trizol (Invitrogen) according to manufacturer’s protocol. Reverse transcript was performed using PrimeScript RT Master Mix kit (Takara). Real time PCR was carried out in SYBR Green PCR Master Mix (Bio-Rad) with ABI PRISM 7500 Sequence Detection System. Primer sequences are listed in Supplementary Table S1. Each measurement was performed in triplicate and results were normalized to the expression of gapdh reference gene.

Serum alanine transaminases assay

Blood collected from mice incubated in room temperature for 2 hours, then centrifuge at 2000 g for 20 minutes. Serum in the upper layer after centrifuge transferred to new tubes. The activity of alanine transaminase (ALT) in serum was measured by alanine transaminases assay kit (Nanjin jiancheng).

Statistical analysis

Data were analyzed using SPSS and represented as the mean ± SEM. Comparisons between two groups were performed using an unpaired Student’s t-test. P < 0.05 was considered statistically significant

ACKNOWLEDGMENTS AND FUNDING

This work was supported by National Basic Research Program of China (973 program, 581220-N51501) and Zhejiang Provincial Natural Science Foundation of China (LZ14H160002).

CONFLICTS OF INTEREST

None.

REFERENCES

1. Racanelli V, Rehermann B. The liver as an immunological organ. Hepatology. 2006; 43:S54–62.

2. Budhu A, Wang XW. The role of cytokines in hepatocellular carcinoma. Journal of leukocyte biology. 2006; 80:1197–1213.

3. Clavien PA. IL-6, a key cytokine in liver regeneration. Hepatology. 1997; 25:1294–1296.

4. Duncan AW, Dorrell C, Grompe M. Stem Cells and Liver Regeneration. Gastroenterology. 2009; 137:466–481.

5. Yeoh GC, Ernst M, Rose-John S, Akhurst B, Payne C, Long S, Alexander W, Croker B, Grail D, Matthews VB. Opposing roles of gp130-mediated STAT-3 and ERK-1/2 signaling in liver progenitor cell migration and proliferation. Hepatology. 2007; 45:486–494.

6. Nagy P, Kiss A, Schnur J, Thorgeirsson SS. Dexamethasone inhibits the proliferation of hepatocytes and oval cells but not bile duct cells in rat liver. Hepatology. 1998; 28:423–429.

7. Endo Y, Zhang M, Yamaji S, Cang Y. Genetic abolishment of hepatocyte proliferation activates hepatic stem cells. PloS one. 2012; 7:e31846.

8. Yanger K, Knigin D, Zong Y, Maggs L, Gu G, Akiyama H, Pikarsky E, Stanger BZ. Adult hepatocytes are generated by self-duplication rather than stem cell differentiation. Cell stem cell. 2014; 15:340–349.

9. Bishayee A. The role of inflammation and liver cancer. Advances in experimental medicine and biology. 2014; 816:401–435.

10. Naugler WE, Sakurai T, Kim S, Maeda S, Kim K, Elsharkawy AM, Karin M. Gender disparity in liver cancer due to sex differences in MyD88-dependent IL-6 production. Science. 2007; 317:121–124.

11. Knight B, Yeoh GC, Husk KL, Ly T, Abraham LJ, Yu C, Rhim JA, Fausto N. Impaired preneoplastic changes and liver tumor formation in tumor necrosis factor receptor type 1 knockout mice. J Exp Med. 2000; 192:1809–1818.

12. Park EJ, Lee JH, Yu GY, He G, Ali SR, Holzer RG, Osterreicher CH, Takahashi H, Karin M. Dietary and genetic obesity promote liver inflammation and tumorigenesis by enhancing IL-6 and TNF expression. Cell. 2010; 140:197–208.

13. Chew V, Chen J, Lee D, Loh E, Lee J, Lim KH, Weber A, Slankamenac K, Poon RT, Yang H, Ooi LL, Toh HC, Heikenwalder M, et al. Chemokine-driven lymphocyte infiltration: an early intratumoural event determining long-term survival in resectable hepatocellular carcinoma. Gut. 2012; 61:427–438.

14. Chew V, Tow C, Teo M, Wong HL, Chan J, Gehring A, Loh M, Bolze A, Quek R, Lee VK, Lee KH, Abastado JP, Toh HC, et al. Inflammatory tumour microenvironment is associated with superior survival in hepatocellular carcinoma patients. J Hepatol. 2010; 52:370–379.

15. Cho HJ, Kim SS, Ahn SJ, Park SY, Park JH, Kim JK, Wang HJ, Cheong JY, Cho SW. Low serum interleukin-6 levels as a predictive marker of recurrence in patients with hepatitis B virus related hepatocellular carcinoma who underwent curative treatment. Cytokine. 2015; 73:245–252.

16. Nakagawa H, Maeda S. Inflammation- and stress-related signaling pathways in hepatocarcinogenesis. World journal of gastroenterology. 2012; 18:4071–4081.

17. Vucur M, Roderburg C, Bettermann K, Tacke F, Heikenwalder M, Trautwein C, Luedde T. Mouse models of hepatocarcinogenesis: what can we learn for the prevention of human hepatocellular carcinoma? Oncotarget. 2010; 1:373–378. doi: 10.18632/oncotarget.2828.

18. Yamaji S, Zhang M, Zhang J, Endo Y, Bibikova E, Goff SP, Cang Y. Hepatocyte-specific deletion of DDB1 induces liver regeneration and tumorigenesis. Proceedings of the National Academy of Sciences of the United States of America. 2010; 107:22237–22242.

19. Farazi PA, DePinho RA. Hepatocellular carcinoma pathogenesis: from genes to environment. Nature reviews Cancer. 2006; 6:674–687.

20. Itoh T. Stem/progenitor cells in liver regeneration. Hepatology. 2016; 64:663–8.

21. Grivennikov SI, Karin M. Inflammatory cytokines in cancer: tumour necrosis factor and interleukin 6 take the stage. Annals of the rheumatic diseases. 2011; 70:i104–108.

22. Lu WY, Bird TG, Boulter L, Tsuchiya A, Cole AM, Hay T, Guest RV, Wojtacha D, Man TY, Mackinnon A, Ridgway RA, Kendall T, Williams MJ, et al. Hepatic progenitor cells of biliary origin with liver repopulation capacity. Nat Cell Biol. 2015; 17:971–983.

23. Schmidt-Arras D, Rose-John S. IL-6 pathway in the liver: From physiopathology to therapy. J Hepatol. 2016; 64:1403–1415.

24. Cressman DE, Greenbaum LE, DeAngelis RA, Ciliberto G, Furth EE, Poli V, Taub R. Liver failure and defective hepatocyte regeneration in interleukin-6-deficient mice. Science. 1996; 274:1379–1383.

25. Ishikawa T, Factor VM, Marquardt JU, Raggi C, Seo D, Kitade M, Conner EA, Thorgeirsson SS. Hepatocyte growth factor/c-met signaling is required for stem-cell-mediated liver regeneration in mice. Hepatology. 2012; 55:1215–1226.

26. Jakubowski A, Ambrose C, Parr M, Lincecum JM, Wang MZ, Zheng TS, Browning B, Michaelson JS, Baetscher M, Wang B, Bissell DM, Burkly LC. TWEAK induces liver progenitor cell proliferation. The Journal of clinical investigation. 2005; 115:2330–2340.

27. Vivier E, Ugolini S, Blaise D, Chabannon C, Brossay L. Targeting natural killer cells and natural killer T cells in cancer. Nature reviews Immunology. 2012; 12:239–252.

28. Sun C, Sun HY, Xiao WH, Zhang C, Tian ZG. Natural killer cell dysfunction in hepatocellular carcinoma and NK cell-based immunotherapy. Acta pharmacologica Sinica. 2015; 36:1191–1199.

29. Luger TA, Krutmann J, Kirnbauer R, Urbanski A, Schwarz T, Klappacher G, Kock A, Micksche M, Malejczyk J, Schauer E, et al. IFN-beta 2/IL-6 augments the activity of human natural killer cells. Journal of immunology. 1989; 143:1206–1209.

30. Rabinowich H, Sedlmayr P, Herberman RB, Whiteside TL. Response of human NK cells to IL-6 alterations of the cell surface phenotype, adhesion to fibronectin and laminin, and tumor necrosis factor-alpha/beta secretion. Journal of immunology. 1993; 150:4844–4855.

31. Perez-Martinez A, Iyengar R, Gan K, Chotsampancharoen T, Rooney B, Holladay M, Ramirez M, Leung W. Blood dendritic cells suppress NK cell function and increase the risk of leukemia relapse after hematopoietic cell transplantation. Biology of blood and marrow transplantation. 2011; 17:598–607.

32. Maeda S, Kamata H, Luo JL, Leffert H, Karin M. IKKbeta couples hepatocyte death to cytokine-driven compensatory proliferation that promotes chemical hepatocarcinogenesis. Cell. 2005; 121:977–990.

33. Whittaker S, Marais R, Zhu AX. The role of signaling pathways in the development and treatment of hepatocellular carcinoma. Oncogene. 2010; 29:4989–5005.

34. Ito Y, Sasaki Y, Horimoto M, Wada S, Tanaka Y, Kasahara A, Ueki T, Hirano T, Yamamoto H, Fujimoto J, Okamoto E, Hayashi N, Hori M, et al. Activation of mitogen-activated protein kinases/extracellular signal-regulated kinases in human hepatocellular carcinoma. Hepatology. 1998; 27:951–958.

35. Pikarsky E, Porat RM, Stein I, Abramovitch R, Amit S, Kasem S, Gutkovich-Pyest E, Urieli-Shoval S, Galun E, Ben-Neriah Y. NF-kappaB functions as a tumour promoter in inflammation-associated cancer. Nature. 2004; 431:461–466.

36. Haybaeck J, Zeller N, Wolf MJ, Weber A, Wagner U, Kurrer MO, Bremer J, Iezzi G, Graf R, Clavien PA, Thimme R, Blum H, Nedospasov SA, et al. A lymphotoxin-driven pathway to hepatocellular carcinoma. Cancer Cell. 2009; 16:295–308.
