Simultaneous inhibition of Vps34 kinase would enhance PI3Kδ inhibitor cytotoxicity in the B-cell malignancies

PDF |  HTML  |  Supplementary Files  |  How to cite  |  Order a Reprint

Oncotarget. 2016; 7:53515-53525. https://doi.org/10.18632/oncotarget.10650

Metrics: PDF 1796 views  |   HTML 1997 views  |   ?

Xiaochuan Liu, Aoli Wang, Xiaofei Liang, Juanjuan Liu, Fengming Zou, Cheng Chen, Zheng Zhao, Yuanxin Deng, Hong Wu, Ziping Qi, Beilei Wang, Li Wang, Feiyang Liu, Yunhe Xu, Wenchao Wang, Stacey M. Fernandes, Richard M. Stone, Ilene A. Galinsky, Jennifer R. Brown, Teckpeng Loh, James D. Griffin, Shanchun Zhang, Ellen L. Weisberg _, Xin Zhang, Jing Liu and Qingsong Liu


Xiaochuan Liu1,2,*, Aoli Wang2,3,*, Xiaofei Liang2,4,*, Juanjuan Liu2,3,*, Fengming Zou2,4,*, Cheng Chen2,4,*, Zheng Zhao2,4, Yuanxin Deng2,3, Hong Wu2,3, Ziping Qi2,4, Beilei Wang2,4, Li Wang2,4, Feiyang Liu2,3, Yunhe Xu1, Wenchao Wang2,4, Stacey M. Fernandes5, Richard M. Stone5, Ilene A. Galinsky5, Jennifer R. Brown5, Teckpeng Loh1, James. D. Griffin5, Shanchun Zhang4,6, Ellen L. Weisberg5, Xin Zhang2, Jing Liu2,4, Qingsong Liu2,3,7

1Department of Chemistry, University of Science and Technology of China, Anhui, Hefei, 230036, P. R. China

2High Magnetic Field Laboratory, Chinese Academy of Sciences, Hefei, 230031, Anhui, P. R. China

3University of Science and Technology of China, Anhui, Hefei, 230036, P. R. China

4CHMFL-HCMTC Target Therapy Joint Laboratory, Hefei, 230031, Anhui, P. R. China

5Department of Medical Oncology, Dana-Farber Cancer Institute, Harvard Medical School, Boston, MA 02115, USA

6Hefei Cosource Medicine Technology Co. LTD. Hefei, 230031, Anhui, P.R.China

7Hefei Science Center, Chinese Academy of Sciences, Hefei, 230031, Anhui, P. R. China

*These authors have contributed equally to this work

Correspondence to:

Ellen L. Weisberg, email: Ellen_weisberg@dfci.harvard.edu

Xin Zhang, email: xinzhang@hmfl.ac.cn

Jing Liu, email: jingliu@hmfl.ac.cn

Qingsong Liu, email: qsliu97@hmfl.ac.cn

Keywords: PI3Kδ, Vps34, combination, chronic lymphatic leukemia, acute myeloid leukemia

Received: April 19, 2016     Accepted: June 03, 2016     Published: July 18, 2016


PI3Kδ has been found to be over-expressed in B-Cell-related malignancies. Despite the clinical success of the first selective PI3Kδ inhibitor, CAL-101, inhibition of PI3Kδ itself did not show too much cytotoxic efficacy against cancer cells. One possible reason is that PI3Kδ inhibition induced autophagy that protects the cells from death. Since class III PI3K isoform PIK3C3/Vps34 participates in autophagy initiation and progression, we predicted that a PI3Kδ and Vps34 dual inhibitor might improve the anti-proliferative activity observed for PI3Kδ-targeted inhibitors. We discovered a highly potent ATP-competitive PI3Kδ/Vps34 dual inhibitor, PI3KD/V-IN-01, which displayed 10-1500 fold selectivity over other PI3K isoforms and did not inhibit any other kinases in the kinome. In cells, PI3KD/V-IN-01 showed 30-300 fold selectivity between PI3Kδ and other class I PI3K isoforms. PI3KD/V-IN-01 exhibited better anti-proliferative activity against AML, CLL and Burkitt lymphoma cell lines than known selective PI3Kδ and Vps34 inhibitors. Interestingly, we observed FLT3-ITD AML cells are more sensitive to PI3KD/V-IN-01 than the FLT3 wt expressing cells. In AML cell inoculated xenograft mouse model, PI3KD/V-IN-01 exhibited dose-dependent anti-tumor growth efficacies. These results suggest that dual inhibition of PI3Kδ and Vps34 might be a useful approach to improve the PI3Kδ inhibitor’s anti-tumor efficacy.


PI3Kδ belongs to the Class I PI3K family, which also consists of PI3Kα, β and γ, and is predominantly expressed in leukocytes.[1] Deregulation of PI3Kδ, for example over-expression, has been found in B-cell malignancies such as Chronic Lymphatic Leukemia (CLL), indolent non-Hodgkin Lymphoma and Acute Myeloid Leukemia (AML).[2, 3] Constitutive activation of B-cell receptor (BCR) or proliferation and survival factors present in bone marrow and lymph node microenvironment may activate the PI3Kδ-mediated signaling pathway, which will lead to aberrant cell proliferation, survival and differentiation.[4] The seminal discovery of the PI3Kδ selective inhibitor, CAL-101 (Idelalisib), and its successful clinical application toward CLL and Indolent NHL, have validated PI3Kδ as a drug discovery target.[5] However, both preclinical and clinical tests have shown that inhibition of PI3Kδ alone only exerted limited cytotoxicity against the transformed cells directly, but rather inhibited cell survival by interfering with the microenvironment, such as by blocking the cytokines TNF-α, IL-6, etc to prevent the leukemic cells from circulating back to the lymph nodes and bone marrow for the further proliferation.[6] In order to improve clinical efficacy, various combination therapies have been suggested such as those involving in chemotherapy, and other signaling pathway inhibitors including MEK, BRAF, MYC, PARP, BCL-2 and autophagy.[7] Among them, the autophagy signaling pathway has attracted special attention since inhibition of the PI3K/AKT/mTOR signaling pathway is known to induce autophagy, which could provide a pro-survival mechanism for the cancer cells to escape apoptosis.[8] In addition, there is evidence that treatment of CLL cells with CAL-101 induces autophagy.[9] Therefore, simultaneous inhibition of PI3Kδ and autophagy might enhance the clinical efficacy of PI3Kδ inhibitors.

Vps34 belongs to Class III PI3K family and has been shown to be essential for autophagy initiation and progression. It is thought that VPS34 kinase can synthesize and deposit the phophatidylinositol-3-phosphate (PtdIns(3)P) on the autophagosome formation site, and hence inhibition of the Vps34 would block the autophagosome formation process and result in prevention of autophagy.[10] Recently, the discovery of several selective Vps34 inhibitors, such as Vps34-IN-1, PIK-III, SAR405, has clearly proven this.[1114] In addition, the combination of the Vps34 specific inhibitor, SAR405, with the mTOR inhibitor, everolimus, which can induce the autophagy, has been shown to be synergistic in renal cell carcinoma cell lines.[12]

Given the possible protective effects of autophagy induced by PI3Kδ inhibition and the structural similarity between PI3Kδ (Class I PI3K) and Vps34 (Class III PI3K), we postulated that development of a selective PI3Kδ and Vps34 dual inhibitor might enhance the cytotoxic effect of PI3Kδ inhibition on B-cell malignances, such as CLL and AML. This led to the discovery of a highly selective PI3Kδ/Vps34 dual inhibitor, PI3KD/V-IN-01, which displays superior anti-proliferative activity against B-Cell malignant cells in vitro and in vivo.


PI3KD/V-IN-01 is a highly selective and potent PI3Kδ/Vps34 dual inhibitor

A focused medicinal chemistry approach based on an aminothiazole scaffold led to a highly potent PI3Kδ/Vps34 dual inhibitor, PI3KD/V-IN-01. (chemical structure shown in Figure 1A) In the ADP-Glo™ biochemical assay with purified PI3K isoform proteins, PI3KD/V-IN-01 displayed an IC50 of 6 nM against PI3Kδ and 19 nM against VPS34. (Figure 1B) Among other PI3Ks, it exhibited an IC50 of 64 nM against Class I PI3K PI3Kα, 111 nM against PI3Kβ, 119 nM against PI3Kγ. In contrast, the drug showed little activity against Class II PI3Ks and PI4Kα/β. A kinetic study with varied ATP concentrations showed that PI3KD/V-IN-01 was an ATP competitive inhibitor against both PI3Kδ and Vps34. (Supplemental Figure 1A, 1B) Further characterization of PI3KD/V-IN-01 in the cellular context for the class I PI3Ks demonstrated that it potently inhibited anti-IgM- stimulated PI3Kδ activity in Raji cells with an EC50 of 11 nM, however exhibited far less activity against PI3Kα (EC50: 2966 nM), PI3Kβ (EC50: >3000 nM) and PI3Kγ (EC50: 186 nM). (Figure 1C and Table 1) Further characterization of the selectivity profile in the DiscoveRx’s KinomeScan™ platform showed that PI3KD/V-IN-01 (1 μM) is highly selective and did not potently bind to any of other protein kinases (S score (5)=0.00). (Figure 1D) In addition to Class I PI3K family kinases, PI3KD/V-IN-01 also strongly bound to the structurally similar mTOR kinase (% control number =0). However, the activity-based in vitro IP kinase assay demonstrated only modest inhibition of mTORC1 kinase by PI3KD/V-IN-01 (EC50 of 1700 nM), which is much less potent than activity displayed against PI3Kδ and vps34 kinases. (Supplemental Figure 3) In HeLa cells, PI3KD/V-IN-01 effectively prevented LC3BII accumulation in the presence of EBSS (Earle’s balanced salt solution) and HCQ (hydrochloroquine) with an EC50 of 413 nM. (Figure 1E) In addition, an immunofluorescence experiment showed that PI3KD/V-IN-01 increased LC3B puncta in HeLa cells in a dose-dependent way, which was similar to the Vps34 specific inhibitor Vps34-IN-1, but not for the PI3Kδ inhibitor CAL-101 or pan-PI3K inhibitor GDC-0941. (Figure 1F and Supplemental Figure 2) This is not surprising as HeLa cells express Vps34 but not PI3Kδ. In accordance with the established function of Vps34 in membrane trafficking [16, 17], the lysosome marker LAMP1 localization was affected by PI3KD/V-IN-01 and Vps34-IN-1, however not GDC-0941 or CAL-101. (Figure 1F) These biochemical and cellular data demonstrate that PI3KD/V-IN-01 was a highly potent and selective PI3Kδ/Vps34 dual inhibitor.

Biochemical and pharmacological characterization of PI3KD/V-IN-01.

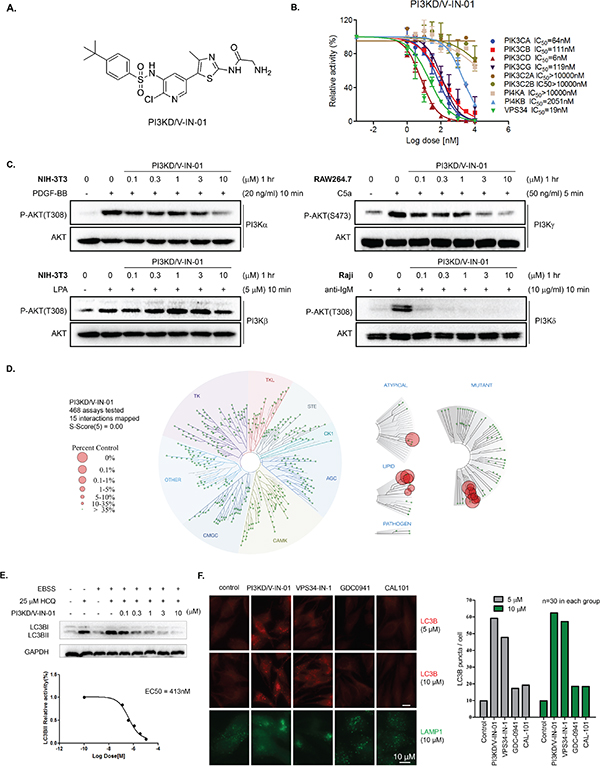

Figure 1: Biochemical and pharmacological characterization of PI3KD/V-IN-01. A. Chemical structure of PI3KD/V-IN-01. B. ADP-Glo™ Biochemical IC50 determination of PI3KD/V-IN-01 against a panel of PI3K-related kinases. C. Determination of the inhibitory effect of PI3KD/V-IN-01 against class I PI3Ks in the cellular context. Specifically, PI3Kα in NIH-3T3 cells with PDGF-BB stimulation; PI3Kβ in NIH-3T3 cells with LPA stimulation; PI3Kγ in RAW264.7 cells with C5a stimulation; PI3Kδ in Raji cells with anti-IgM stimulation. D. Selectivity profile of PI3KD/V-IN-01 in the DiscoveRx’s KinomeScan™ platform. E. Effect of PI3KD/V-IN-01 on autophagy in HeLa cells using co-culture of EBSS and HCQ (25 μM) and investigating LC3BII expression. F. Immuno-fluorescent imaging analysis of the effect of PI3K inhibitors on LC3BII expression in HeLa cells and of LAMP1 expression in HeLa cells treated with PI3K inhibitors.

Table 1: Quantification of PI3KD/V-IN-01 EC50 against class I PI3Ks

Cellular EC50 (nM)










PI3KD/V-IN-01 exhibits anti-proliferative activity against B-cell-related cancer cell lines

We next tested PI3KD/V-IN-01 in a panel of B-cell-related cancer cell lines, including AML, CLL, Burkitt lymphoma and B-cell lymphoma. (Table 2) PI3KD/V-IN-01 was more potent than the selective PI3Kδ inhibitor, CAL-101, and selective Vps34 inhibitor, Vps34-IN-1, against most of the cell lines, however less potent than the pan-PI3K inhibitor, GDC-0941. Specifically, CAL-101 did not effectively inhibit the majority of the cell lines tested, except OCI-AML-3 (AML, GI50: 2.4 μM). Interestingly, Vps34-IN-1 itself showed micro molar potencies against most of cell lines, including two CLL cell lines (HS505T and MEC-1), the latter of which poorly responded to CAL-101, GDC-0941 and PI3KD/V-IN-01 (GI50: >10 μM). What is worthy to note is that PI3KD/V-IN-01 was most potent against several FLT3-ITD-positive cell lines (GI50 below 1μM), including MV4-11, MOLM-13 and MOLM-14. PI3KD/V-IN-01 inhibited colony formation of OCI-AML-2 (AML, EC50 145 nM), OCI-AML-3(AML, EC50: 1001 nM), MV4-11 (AML, EC50: 124 nM) and MEC-2 (CLL, EC50: 1579 nM). (Supplemental Figure 4)

Table 2: PI3K inhibitor anti-proliferative effect against a panel of B-cell related cancer cell lines


Cell type





Primary target



















AML-3 (FLT3wt)






AML (FLT3 wt)


















AML (FLT3wt)




































B-cell lymphoma






Burrkit lymphoma






Burrkit lymphoma











Hs 505T












PI3KD/V-IN-01 suppresses the PI3Kδ-mediated signaling pathway, interferes with autophagy and arrests cell cycle progression in AML and CLL cell lines

We next examined the effect of PI3KD/V-IN-01 on the PI3Kδ-mediated signaling pathway in OCI-AML-2(AML), OCI-AML-3(AML), MV4-11(AML), and MEC-2 (CLL) cell lines. (Figure 2A) For all four cell lines, PI3KD/V-IN-01 treatment led to inhibition of pAKT(T308, S473) and downstream pFOXO1, pPRAS40 and pS6K. Phosphorylation of 4EBP1 was not inhibited in any of the cell lines, which supports the notion that PI3KD/V-IN-01 does not bear activity against mTOR kinase: this is in accordance with results of the in vitro IP kinase assay. Activity of the downstream AKT kinase mediator, GSK3β, and downstream transcription regulator, NFκB, were not affected in any of the cell lines. What is noteworthy is that in MEC-2 cells, pERK was significantly inhibited by PI3KD/V-IN-01, GDC-0941 and CAL-101, but this phenomenon was not observed in OCI-AML-2, OCI-AML-3 and MV4-11 cells. These results demonstrate that PI3Kδ is effectively inhibited in the cellular context, however differential responsiveness of certain signaling molecules to the inhibitors tested suggest that these cells might rely on different genetic/signaling network backgrounds.

Effect of PI3KD/V-IN-01 on cellular signaling, cell cycle progression, and autophagy.

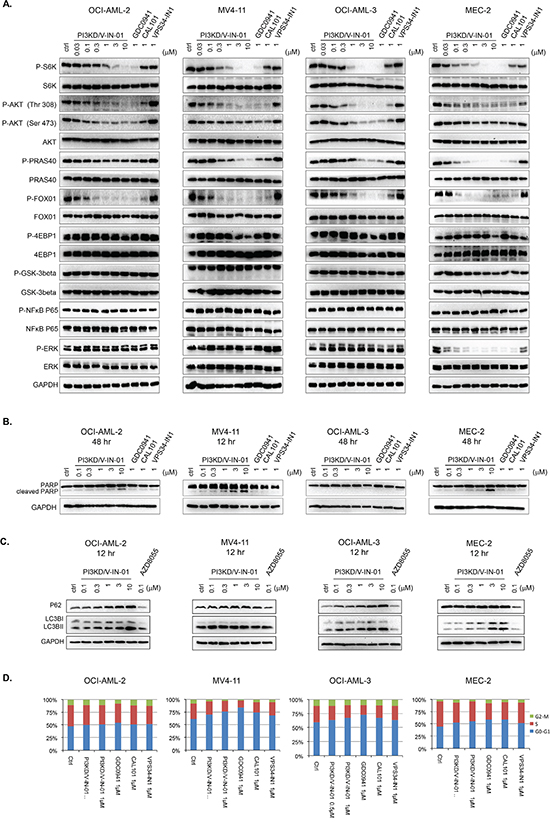

Figure 2: Effect of PI3KD/V-IN-01 on cellular signaling, cell cycle progression, and autophagy. A. Effect of PI3KD/V-IN-01 on PI3Kδ- mediated signaling pathways in OCI-AML-2 (AML), MV4-11 (AML), OCI-AML-3(AML) and MEC-2 (CLL) cell lines. B. Apoptotic effect of PI3KD/V-IN-01 in OCI-AML-2, MV4-11, OCI-AML-3 and MEC-2 cells. C. Autophagy interruption effect of PI3KD/V-IN-01 in OCI-AML-2, MV4-11, OCI-AML-3 and MEC-2 cells. D. Cell cycle progression effect of PI3KD/V-IN-01 in OCI-AML-2, MV4-11, OCI-AML-3 and MEC-2 cells.

We next examined the effect of PI3KD/V-IN-01 on induction of apoptosis. Interestingly, only for MV4-11 was apparent PARP cleavage observed, which clearly suggests drug-induced apoptosis of this line. (Figure 2B) For OCI-AML-2 and MEC-2, there was only a modest induction of apoptosis (evident at 3 μM to 10 μM), and for OCI-AML-3, no apoptosis was observed, even at concentrations up to 10 μM. Of relevance, a concentration-dependent increase in levels of the autophagy markers, LC3BII and p62, was observed in OCI-AML-2, OCI-AML-3 and MEC-2. (Figure 2C) However, this phenomenon was not observed for MV4-11 cell line. Cell cycle analysis showed that after 48 h treatment with PI3KD/V-IN-01, MV4-11, OCI-AML-3 and MEC-2 cells could be arrested in the G0/G1 phase, while there was no apparent cell cycle inhibition observed for drug-treated OCI-AML-2 cells. (Figure 2D)

Combination of CAL-101 and Vps34-IN-1 recapitulates the dual inhibitory effect of PI3KD/V-IN-01

We next investigated whether or not the combination of the selective PI3Kδ inhibitor, CAL-101, and selective Vps34 inhibitor, VPS34-IN-1, was able to mimic the anti-proliferative effect of dual PI3Kδ/Vps34 inhibitor, PI3KD/V-IN-01. The results suggest that for the OCI-AML-2 cells (AML), 1.1 μM Vps34-IN-1 (treatment with which leads to 82.8% inhibition of cell growth/viability) and 10 μM of CAL-101 (treatment with which leads to 76.9% inhibition of cell growth/viability) would together lead to 37.2% inhibition. (Figure 3A) For MV4-11 cells (AML), 3.3 μM of Vps34-IN-1(treatment with which leads to 43.5% inhibition of cell growth/viability) and 1.1 μM of CAL-101 (treatment with which leads to 62.4% inhibition of cell growth/viability) could together synergistically lead to 16.7% inhibition. (Figure 3B) Similarly, in Namalwa (Burrkit lymphoma) and MEC-2 cells (CLL), 10 μM of Vps34-IN-1 and 3.3 and 10 μM of CAL-101, respectively, together synergistically caused significant inhibition of cell growth/viability. (Figure 3C and 3D) We also investigated the extent of drug-induced apoptosis following drug combination treatment in MV4-11 cells, as PI3KD/V-IN-01 was observed to lead to substantial induction of apoptosis. (Figure 2B) The results suggest that 1 μM of CAL-101 and 3 μM of Vps34-IN-1 significantly increased the percentage of cells undergoing apoptotic cell death, similar to what was observed with 3 μM of PI3KD/V-IN-01. (Figure 3E)

Combinatorial effect of PI3Kδ selective inhibitor CAL-101 and Vps34 selective inhibitor VPS34-IN-1.

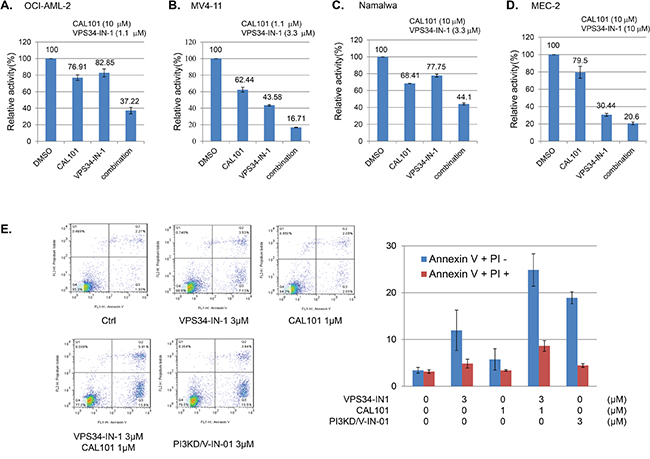

Figure 3: Combinatorial effect of PI3Kδ selective inhibitor CAL-101 and Vps34 selective inhibitor VPS34-IN-1. Combination of CAL-101 and Vps34-IN-1 against OCI-AML-2 A., MV4-11 B., Namalwa C., and MEC-2 D. E. FACS PI/Annexin V double staining analysis showing effect of the drug combination on induction of apoptosis.

PI3KD/V-IN-01 inhibited growth of CLL patient primary cells and AML primagraft cells and displayed anti-tumor activity in an MV4-11-inoculated xenograft mouse model

PI3KD/V-IN-01 inhibited the growth of primary CLL cells, with approximately 50% of cell proliferation inhibited at 1 μM following 72 hours. (Figure 4A and supplemental Table 1 for the patient information) In addition, PI3KD/V-IN-01 inhibited the growth of AML primagraft cells ex vivo following 72 hours. Of interest, FLT3-ITD positive primary AML cells were observed to be particularly sensitive to PI3KD/V-IN-01, with over 85% inhibition observed at 1μM. (Figure 4A)

Effect of PI3KD/V-IN-01 on CLL and AML patient primary cells and an MV4-11 cell-inoculated xenograft mouse model.

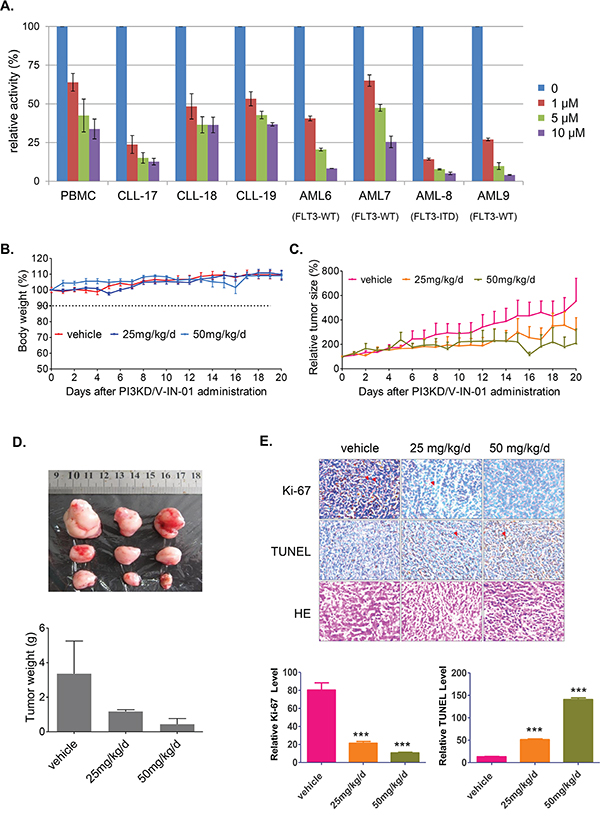

Figure 4: Effect of PI3KD/V-IN-01 on CLL and AML patient primary cells and an MV4-11 cell-inoculated xenograft mouse model. A. Anti-proliferative effect of PI3KD/V-IN-01 on patient CLL primary cells and AML primagrafts cells. B. The effect of PI3KD/V-IN-01 in an MV4-11-inoculated mouse xenograft model: measurement of body weight. C, D. The anti-tumor effect of PI3KD/V-IN-01 in an MV4-11- inoculated mouse xenograft model. E. Immunohistochemistry staining of Ki67, TUNEL and HE to look at the tumor cell proliferation and apoptosis in the tumor tissues.

Given that FLT3-ITD-positive MV4-11 cells and FLT3-ITD-positive primary AML cells were observed to be especially sensitive to PI3KD/V-IN-01 (see Table 1), we decided to investigate the in vivo effects of PI3KD/V-IN-01 using an in vivo model of mutant FLT3-positive leukemia. A dose of 50 mg/kg/day administered intraperitoneal almost completely suppressed the in vivo growth of inoculated MV4-11 cells with a TGI (Tumor growth inhibition) of 86.8%, with no apparent effects on body weight, suggesting a lack of toxicity. (Figure 4B, 4C and 4D) Immunohistochemistry study showed that the cell proliferation was dose-dependently inhibited (Ki67 stain) and apoptosis was dose-dependently increased (TUNEL stain). (Figure 4E)


The seminal discovery of the first highly selective PI3Kδ inhibitor, CAL-101, has greatly advanced progress in treatment of B-cell related malignancies. However, despite the promising clinical success with CAL-101 as a single agent, cytotoxicity against the cancer cell itself has limited its overall efficacy. Autophagy may be one of the mechanisms whereby cells overcome the activity of PI3Kδ inhibitors such as CAL-101. Here, through the discovery of a highly selective PI3Kδ/Vps34 inhibitor PI3KD/V-IN-01, which can efficiently block the PI3Kδ mediated signaling pathway and autophagy, we found that dual inhibition of PI3Kδ and Vps34 greatly enhances the anti-proliferative effects of single PI3Kδ and Vps34 inhibitors in B-cell cancers such as AML, CLL, and B-NHL. This dual inhibition can be recapitulated by the combination of PI3Kδ and Vps34 selective inhibitors individually. Our results further prove that autophagy is indeed an important factor leading to protection of leukemic cells from death upon PI3Kδ inhibitor treatment, and simultaneous inhibition of both targets potentiates anti-leukemic activity. In addition, given the complexities of drug-drug interactions and increased risk of toxicity resulting from this, discovery of a carefully controlled single agent, multi-targeted drug is preferable.

Interestingly, FLT3-ITD positive cell lines, such as MV4-11, MOLM-13, and MOLM-14, and FLT3-ITD positive primary AML cells are much more sensitive to PI3KD/V-IN-01 inhibition than wt FLT3 AML cell lines and primagrafts. However, this trend was not observed for either of the PI3Kδ selective inhibitor, CAL-101, or the Vps34 selective inhibitor, Vps34-IN-1, or the pan-PI3K inhibitor GDC-0941. These cells are dependent on FLT3-ITD for growth and did not seem to rely on autophagy for escape from cell death upon PI3Kδ inhibitor treatment. Considering the high selectivity of PI3KD/V-IN-01 revealed in KinomeScan™ profiling, it is unlikely that the other kinase targets contribute to its efficacy. One possible reason is that PI3Kδ is a downstream mediator of FLT3-ITD activation, and dual inhibition of PI3Kδ and Vps34 may lead to enhanced killing of these cells.

In summary, we have discovered a highly selective and potent PI3Kδ/Vps34 dual kinase inhibitor, PI3KD/V-IN-01, which exerts better anti-proliferative effects against the majority of B-cell related malignancies that we tested (AML, CLL and B-NHL) as compared to individual targeted PI3Kδ and Vps34 inhibitors. PI3KD/V-IN-01 is particularly potent against FLT3-ITD positive AML cells and exhibits significant anti-tumor activity in vivo. PI3KD/V-IN-01 thus represents a novel and potentially alternative approach to enhance the activity of PI3Kδ inhibitors and warrants further clinical investigation as a therapeutic agent for B-cell malignancies.
